Continental Fireplaces BCNV36N User manual

1
W415-0861 / A / 02.10.11
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.continentalfireplaces.com • ask@continentalfire.on.ca
1.31
$10.00
CERTIFIED FOR CANADAAND UNITED STATES USINGANSI/CSA METHODS.
SAFETY INFORMATION
!WARNING
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
If the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
WARNING
CERTIFIED UNDER CANADIANAND AMERICAN NATIONAL STANDARDS: CSA 2.22, ANSI Z21.50 RESPECTIVELY FOR VENTED GAS FIREPLACES.
BCNV36N
NATURAL GAS MODEL
BCNV36P
PROPANE GAS MODEL

2
W415-0861 / A / 02.10.11
TABLE OF CONTENTS
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.2 GENERAL INSTRUCTIONS 5
2.3 GENERAL INFORMATION 6
2.4 RATING PLATE INFORMATION 7
3.0 VENTING 8
3.1 VENTING SAFETY SWITCH 8
3.2 HIGH LIMIT SWITCH 9
3.3 VENTING ACTION CHECK 9
4.0 INSTALLATION 10
4.1 GAS INSTALLATION 10
4.2 OPTIONAL WALL SWITCH / THERMOSTAT 10
5.0 FRAMING 11
5.1 MINIMUM CLEARANCE TO COMBUSTIBLES 12

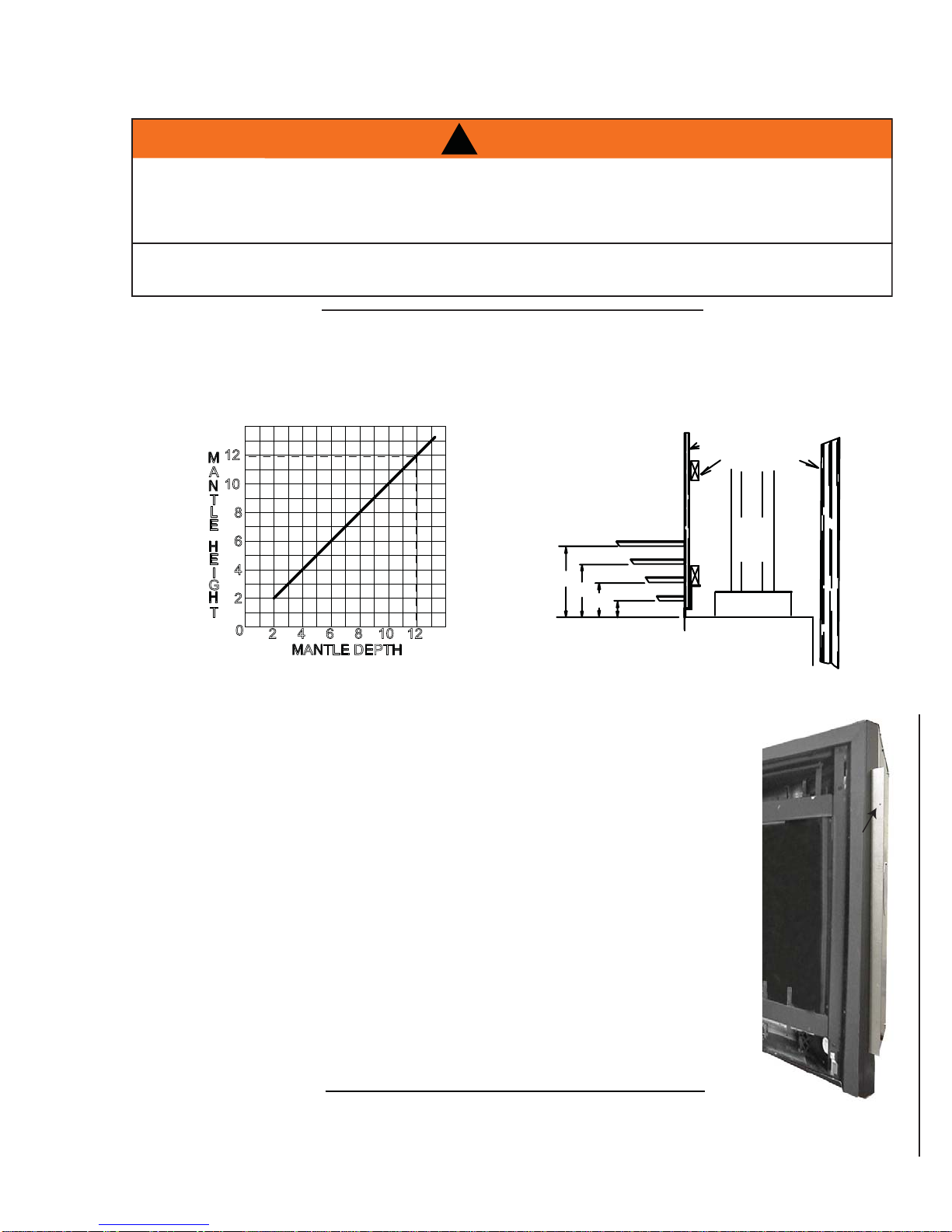

5.2 MINIMUM MANTEL CLEARANCES 13
5.3 NAILING TAB INSTALLATION 13
6.0 FINISHING 14
6.1 DOOR INSTALLATION / REMOVAL 14

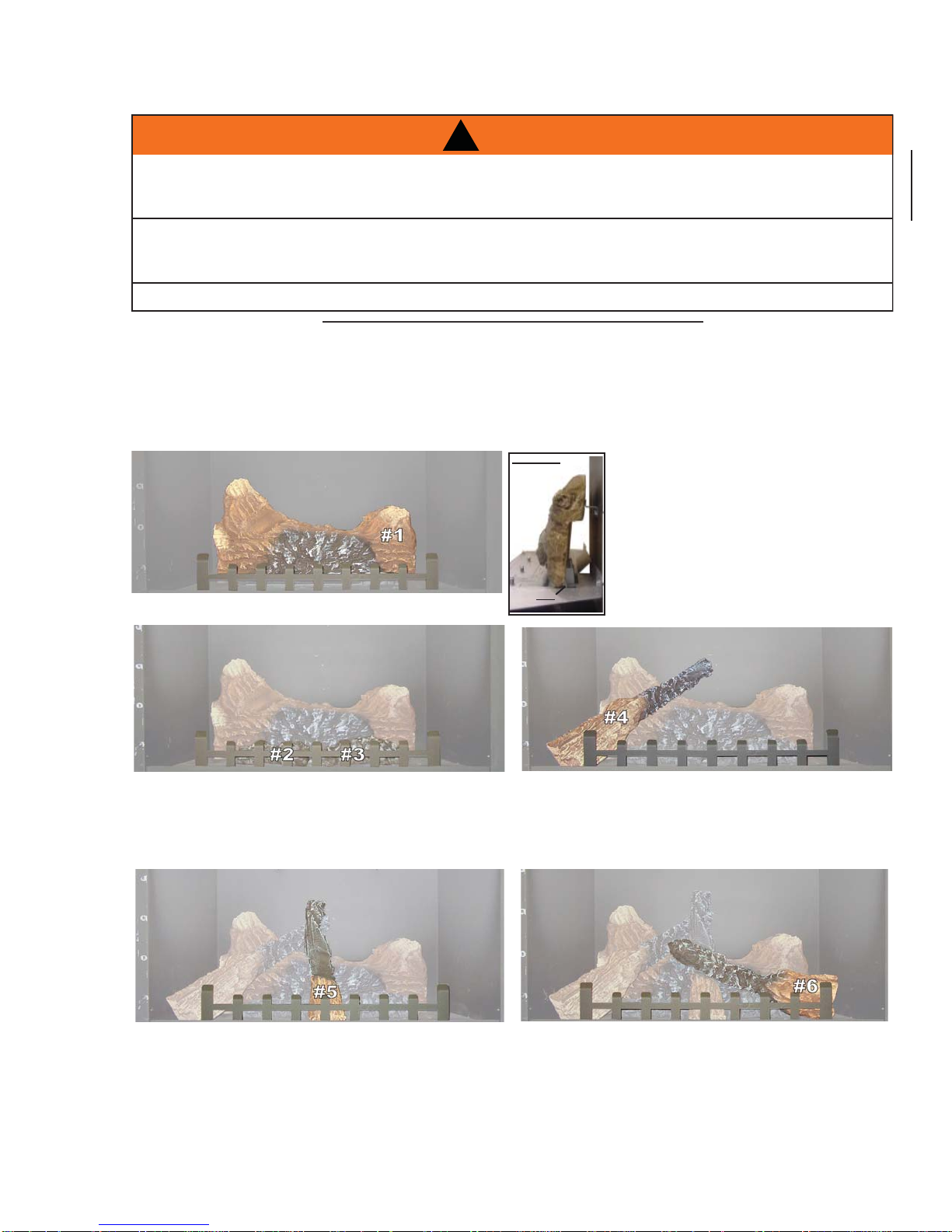

6.2 LOG PLACEMENT 15
6.3 CHARCOAL EMBERS 16
6.4 GLOWING EMBERS 16
6.5 LOGO PLACEMENT 16
6.6 LOUVRE INSTALLATION 16

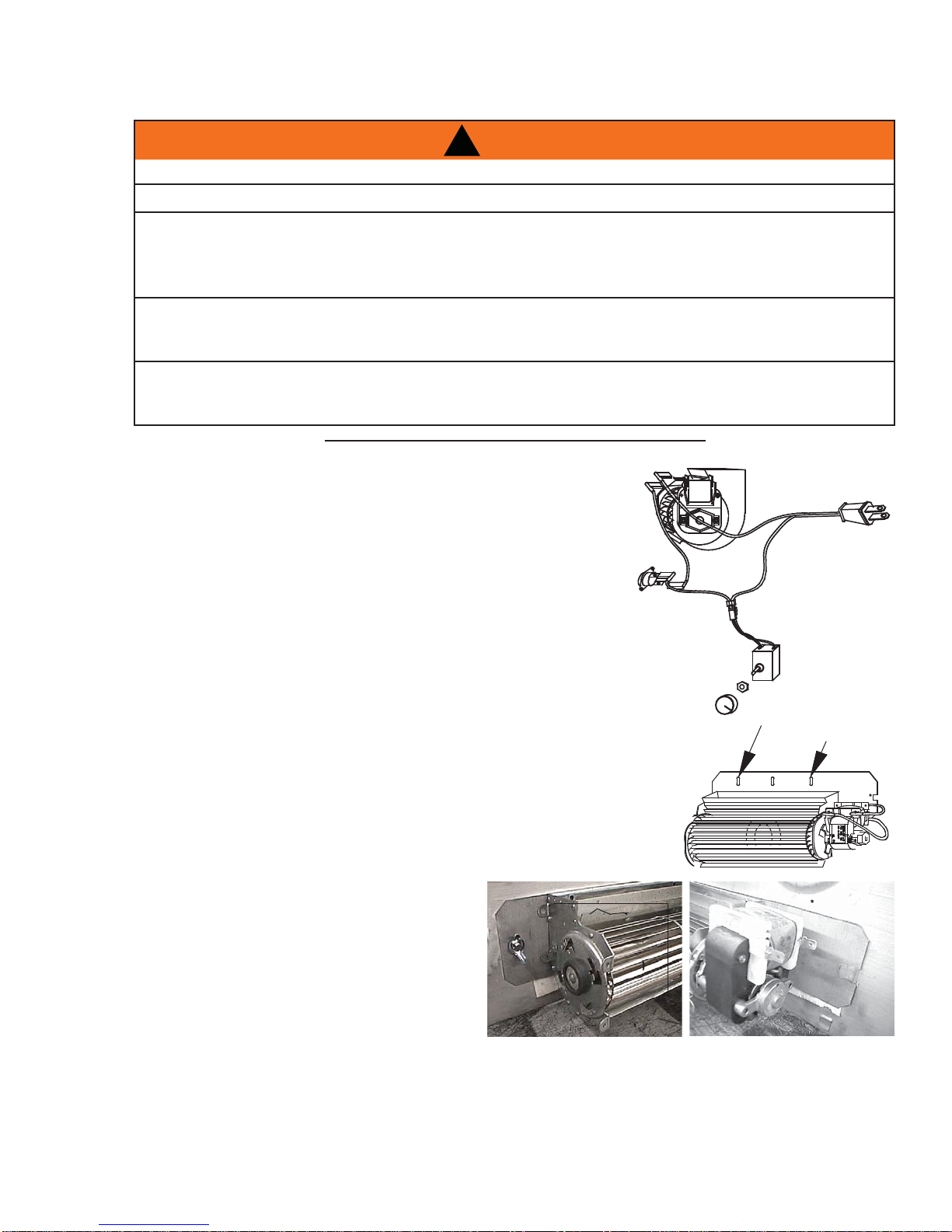

7.0 OPTIONAL BLOWER INSTALLATION 17
8.0 OPERATION 19
9.0 ADJUSTMENTS 20

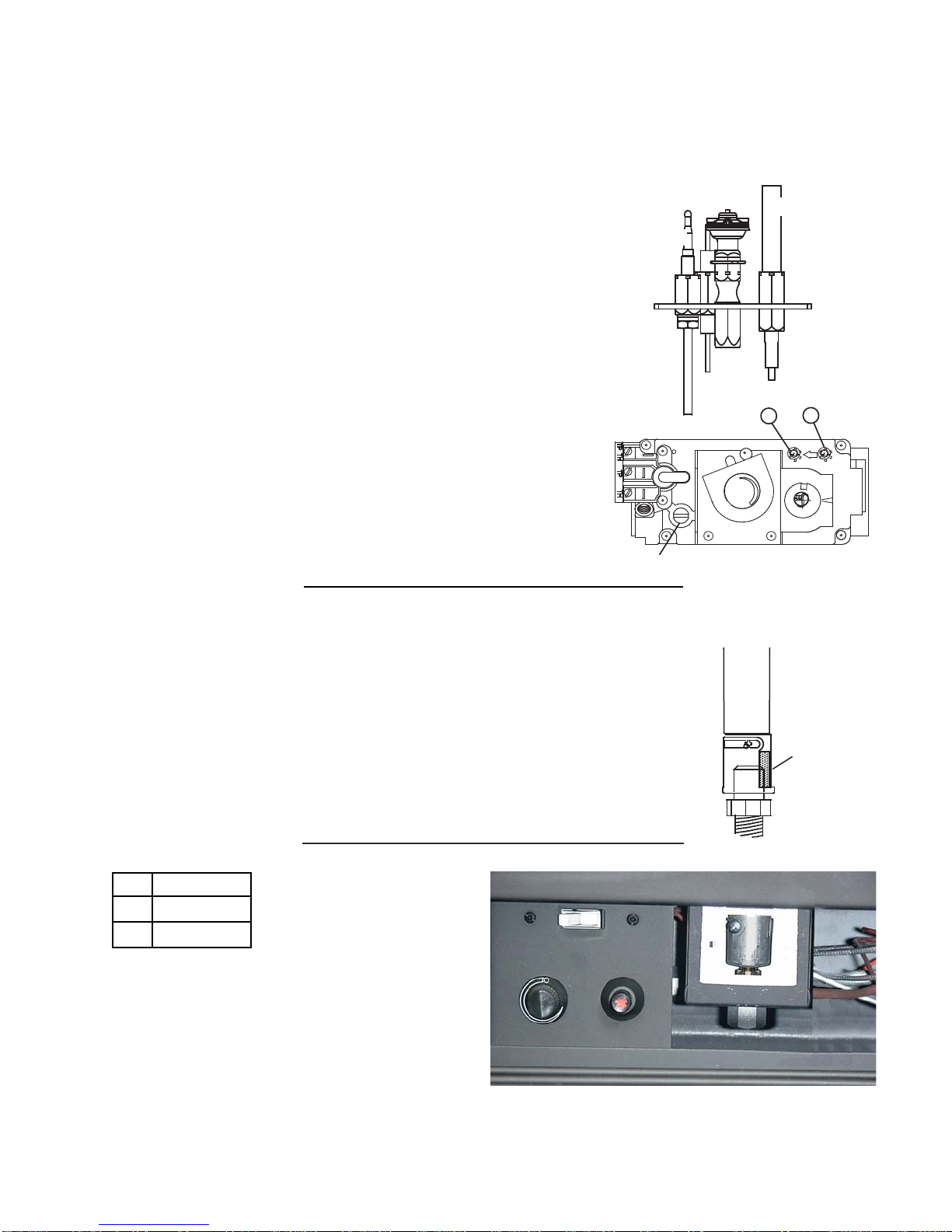

9.1 PILOT BURNER ADJUSTMENT 20
9.2 VENTURI ADJUSTMENT 20
9.3 FLAME CHARACTERISTICS 21
10.0 MAINTENANCE 21
10.1 DOOR GLASS REPLACEMENT 22
10.2 CARE OF GLASS 22
10.3 CARE OF PLATED PARTS 22
11.0 REPLACEMENTS 23
12.0 TROUBLE SHOOTING 26
13.0 WARRANTY 28
14.0 SERVICE HISTORY 29

3
W415-0861 / A / 02.10.11

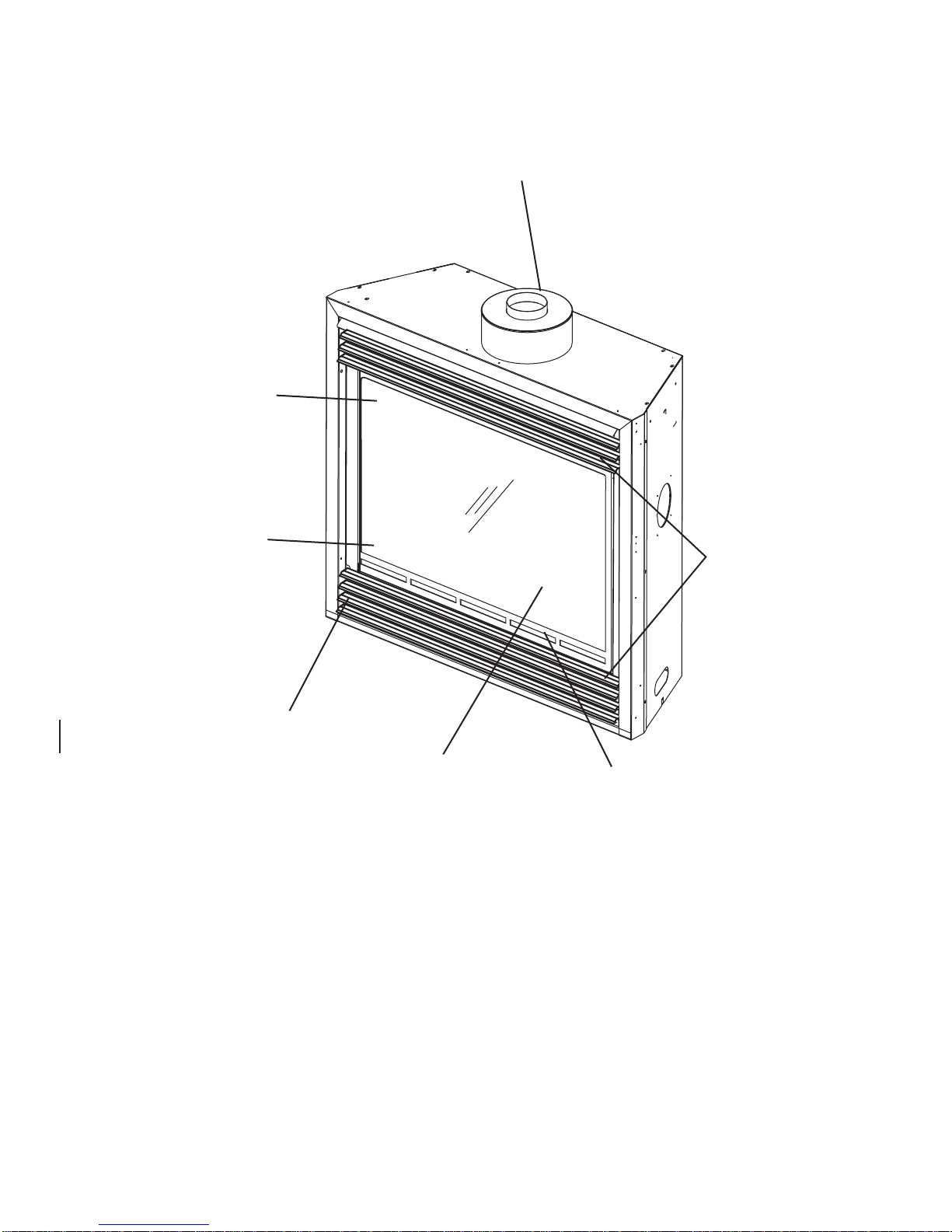

1.0 INSTALLATION OVERVIEW
Louvres, see “LOUVRE
INSTALLATION” section.
Glass, see “DOOR
GLASS REPLACEMENT”
section.
Door, see “DOOR INSTALLATION /
REMOVAL” section.
Logo, see “LOGO
PLACEMENT” section.
Logs, see “LOG PLACEMENT”
section.
Vent, see “VENTING”
section.
Rating plate, see “RATING PLATE
INFORMATION” section.

4
W415-0861 / A / 02.10.11
2.0 INTRODUCTION
3.16B
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR IT’S CONTROLS CAN BE
DANGEROUS AND IS PROHIBITED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
• Risk of fire or asphyxiation do not operate appliance with fixed glass removed.
• Do not connect 110 volts to the control valve.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal
edges may be sharp.
• Do not burn wood or other materials in this appliance.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away
to avoid burns or clothing ignition. Toddlers, young children and others may be susceptible to accidental
contact burns. A physical barrier is recommended if there are at risk individuals in the house. To restrict
access to an appliance or stove, install an adjustable safety gate to keep toddlers, young children and
other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot
surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children
from hot surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• This appliance is a vented gas-fired appliance. Do not burn wood or other materials in this appliance.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
appliance and venting system are kept clean. The appliance and its venting system should be inspected
before use and at least annually by a qualified service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and
free from combustible materials, gasoline and other flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
• This appliance must not be connected to a chimney flue pipe serving a separate solid fuel burning
appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas control
which has been under water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• Only doors / optional fronts certified with the unit are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
with all plastic bags, these are not toys and should be kept away from children and infants.
• As with any combustion appliance, we recommend having your appliance regularly inspected and
serviced as well as having a Carbon Monoxide Detector installed in the same area to defend you and
your family against Carbon Monoxide.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the
appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting,
discolouration or damage to decorations, a T.V. or other electronic components.

5
W415-0861 / A / 02.10.11

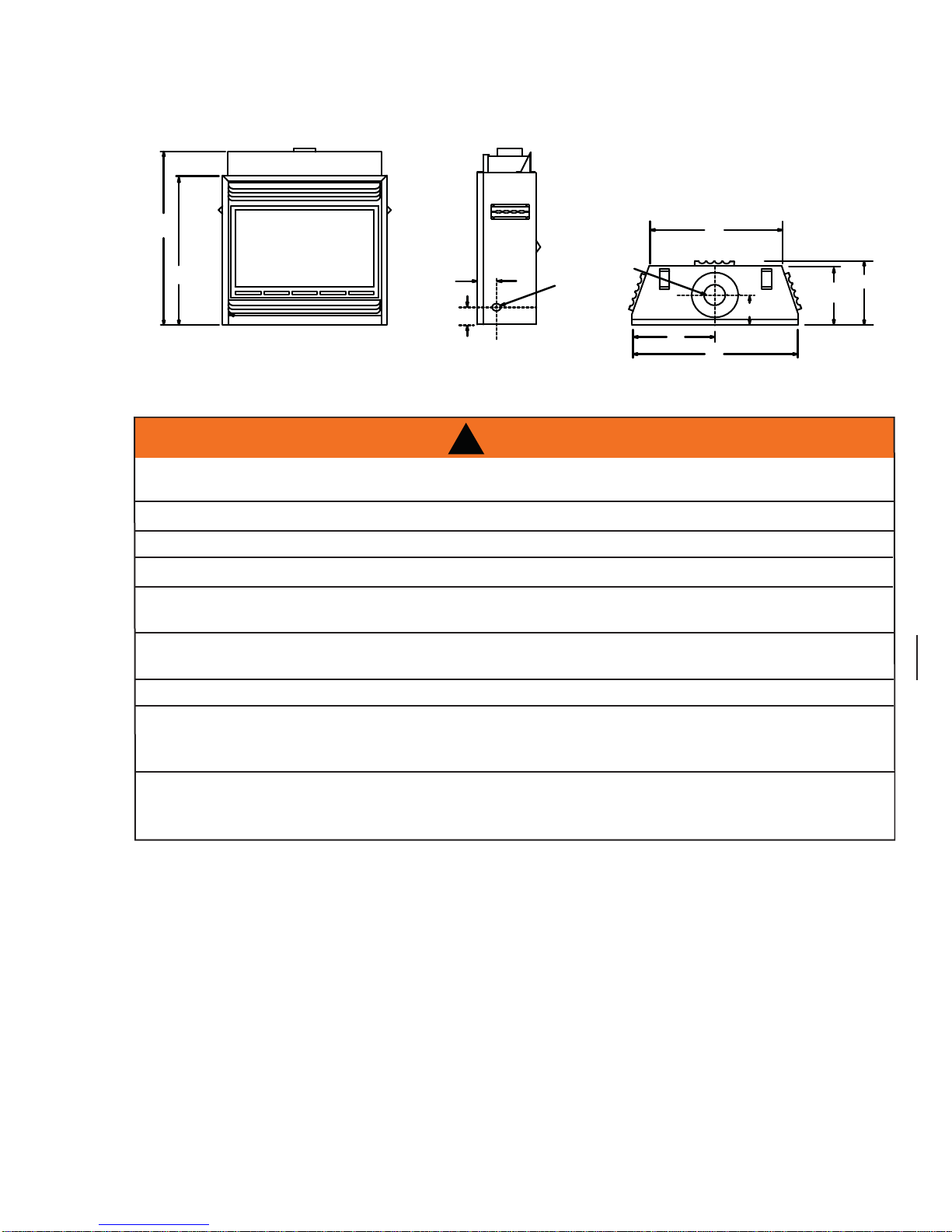

2.1 DIMENSIONS
2.2 GENERAL INSTRUCTIONS
THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to
conform with local codes. Installation practices vary from region to region and it is important to know the
specifics that apply to your area, for example in Massachusetts State:
• This product must be installed by a licensed plumber or gas fitter when installed within the commonwealth
of Massachusetts.
• The appliance damper must be removed or welded in the open position prior to installation of a appliance
insert or gas log.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36 inches.
• A Carbon Monoxide detector is required in all rooms containing gas fired appliances.
• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent
sealed combustion product.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,
WITH THE GLASS DOOR OPENED OR REMOVED.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” FROM THE
FRONT FACE OF THE UNIT.
SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID CONTACT
WHEN THE APPLIANCE IS OPERATING.
FIRE RISK. EXPLOSION HAZARD.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE PRESSURE
TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.
USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING
COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
!
WARNING
36 3/4"
32
3/8"
7 1/4"
27"
13 1/4"
36"
18"
12
1/4"
4" DIA.
3"
5
1/2"
GAS
INLET
ELECTRICAL INLET
LEFT SIDE

6
W415-0861 / A / 02.10.11
2.3 GENERAL INFORMATION
4.1A
The installation must conform with local codes or, in
absence of local codes, the National Gas and Propane
Installation Code CSA B149.1 in Canada, or the National
Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United
States. Suitable for mobile home installation if installed in
accordance with the current standard CAN/CSA Z240MH
Series, for gas equipped mobile homes, in Canada or
A
NSI Z223.1 and NFPA 54 in the United States.
A
s long as the required clearance to combustibles is
maintained, the most desirable and beneficial location for an appliance is in the center of a building, thereby
allowing the most efficient use of the heat created. The location of windows, doors and the traffic flow in the
room where the appliance is to be located should be considered. If possible, you should choose a location
where the vent will pass through the house without cutting a floor or roof joist.
If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood
flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.
Some appliances have optional fans or blowers. If an optional fan or blower is installed, the junction box must
be electrically connected and grounded in accordance with local codes, use the current CSA C22.1 Canadian
Electrical Code in Canada or the ANSI/NFPA 70 National Electrical code in the United States.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org
FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION
AND QUALITY!
BCNV36
NG LP
Altitude (FT) 0-4,500 0-4,500
Max. Input (BTU/HR) 17,000 BTU/hr 17,000 BTU/hr
Min. Inlet Gas Supply Pressure 4.5" Water Column 11" Water Column
Max. Inlet Gas Supply Pressure 7" Water Column 13" Water Column
Manifold Pressure (Under Flow Conditions) 3.5" Water Column 10" Water Column
When the appliance is installed at elevations above 4,500 ft, and in the absence of specific recommendations from
the local authority having jurisdiction, the certified high altitude input rating shall be reduced at the rate of 4% for each
additional 1,000 ft.
Expansion / contraction noises during heating up and cooling down cycles are normal and to be expected.
This appliance is approved for bedroom and bed-sitting room installation.
No external electricity (110 volts or 24 volts) is required for the gas system operation.

7
W415-0861 / A / 02.10.11
2.4 RATING PLATE INFORMATION
For rating plate location, see “INSTALLATION OVERVIEW” section.
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
CERTIFIEDUNDER/HOMOLOGUESELONLESNORMES:CSA2.22b-2009& ANSI Z21.50b-2009.
SERIALNUMBER/NO.DE SERIE: BG/BCNV36
MANIFOLD PRESSURE: 3.5" WATER COLUMN
PRESSION AU COLLECTEUR: 3.5" D'UNE COLONNE D'EAU
MINIMUM SUPPLY PRESSURE: 4.5"WATERCOLUMN
PRESSION D'ALIMENTATION MINIMALE: 4.5" D'UNE COLONNE D'EAU
MAXIMUM SUPPLY PRESSURE: 7.0" WATER COLUMN
PRESSION D'ALIMENTATION MAXIMALE: 7.0" D'UNE COLONNE D'EAU
NOTFOR USEWITH SOLID FUEL.FOR USEWITH GLASS
DOORSCERTIFIED WITH THISUNIT ONLY.
WARNING:DONOTADDANYMATERIALTOTHEAPPLIANCE,WHICHWILLCOMEINCON-
TACTWITHTHE FLAMES, OTHER THANTHATSUPPLIED BY THE MANUFACTURERWITHTHE
APPLIANCE.
MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS /
DEGAGEMENTSMINIMAUX DESMATERIAUXCOMBUSTIBLES:
TOP/DESSUS 0 RECESSED DEPTH / PROFONDEUR D'ENCASTRE 13½"
"1TNEVE/TNEV0REHCNALP/ROOLF
SIDES/COTES 0 "2UAETNAM/ELTNAM *
BACK/ARRIERE 0
*MAXIMUMHORIZONTALEXTENSION / L'EXTENSION HORIZONTALEMAXIMALE: 2".
SEE INSTRUCTION MANUAL FOR GREATER EXTENSIONS. REFERER AU MANUEL
D'INSTRUCTIONPOURDES EXTENSIONS PLUS GRANDES.
MANIFOLD PRESSURE: 10" WATER COLUMN
PRESSION AU COLLECTEUR: 10" D'UNE COLONNE D'EAU
MINIMUM SUPPLY PRESSURE: 11" WATER COLUMN
PRESSION D'ALIMENTATION MINIMALE: 11" D'UNE COLONNE D'EAU
MAXIMUM SUPPLY PRESSURE: 13" WATER COLUMN
PRESSION D'ALIMENTATION MAXIMALE: 13" D'UNE COLONNE D'EAU
UN COMBUSTIBLE SOLIDE NE DOIT PAS ETRE UTILISE
AVECCETAPPAREIL.UTILISERAVECLESPORTESVITREES
HOMOLOGUEESSEULEMENTAVECCETTEUNITE.
AVERTISSEMENT:N'AJOUTEZPASACETAPPAREILAUCUNMATERIAUDEVANTENTRER
ENCONTACTAVECLES FLAMMESAUTRE QUE CELUI QUI EST FOURNIAVECCETAPPAREIL
PAR LE FABRICANT.
THEAPPLIANCE MUST BE VENTED USING "B" VENT. SEE OWNERS INSTALLATION MANUAL
FORVENTINGSPECIFICS.
L'APPAREIL DOIT EVACUER SES GAZ EN UTILISANT L'EVENT "B". REFERER AU MANUEL
D'INSTALLATIONDEPROPRIETAIRE POUR L'EVACUATIONPRECISE.
ELECTRICALRATING / CLASSIFICATION: 115V0.82AMP, 60HZ
OPTIONALFAN KIT / ENSEMBLE DE VENTILATEUR FACULTATIF: GZ550-KT
W385-0238 / G
VENTEDGAS FIREPLACE. APPROVED FOR BEDROOM, AND
BED-SITTINGROOMINSTALLATION. FOYERAGAZ VENTILE. HOMOLOGUEPOURINSTALLATION DANS UNE CHAMBRE A COUCHER, ET UN STUDIO.
ALTITUDE/ELEVATION
INPUT/ALIMENTATION
REDUCED INPUT /ALIMENTATION REDUITE
0-4500FT (0-1370m)
17,000 BTU/h
12,000BTU/h
0-4500FT(0-1370m)
17,000BTU/h
12,000BTU/h
BGNV36P / BCNV36P
MODEL
BGNV36N / BCNV36N
MODEL
WOLF STEEL LTD.
24 Napoleon Rd. Barrie, Ontario L4M 4Y8 Canada
SAMPLE
21.521.5
0b0b
-200-20
SAMPLE
M
NN
'EAUEAU
OLUMUM
NN
NENE
D'EA
UAU
ERER
CO
L
U
M
COLU
N
OLONNELONNE
D'EA
UD'EA
WITHH
G
LA
SGLAS
SS
Y
..
YY
Y
CE,
WHI
CHWHICH
WI
LWIL
LL
CO
M
ECOME
I
NIN
CONCON
--
Y
THE
M
AN
UU
FF
ACTURERACTURER
FFF
WIT
HWITH
T
HTH
EE
M
AA
TERIALSTERIALS
AA
A
//
A
U
XX
CC
OO
MM
B
B
UU
S
TIB
STIB
LL
ESES
::
TH
/
PR
O
F
O
NDE
UROFONDEUR
D'EN
C
A
S
TR
ED'ENCASTRE
U
A
E
T
N
A
SIONSION
//
L'EXTEN
S
I
O
N
L'EXTENSIO
HO
RIZ
ONRIZON
TT
ALEA
TT
T
M
L
F
OFO
RR
GG
REE
A
A
TT
E
RER
E
XEX
TT
EN
SEN
I
OIO
N
SNS
..
RR
EXTE
TE
NN
S
I
OSIO
NN
SS
P
P
L
ULU
SS
GG
RR
AA
N
DND
ESE
.
M
ANIFOL
DMANIFOLD
P
RESSURE
:PRESSURE:
1
0"10"
WW
P
RESSIO
NPRESSION
A
UA
COLLECTEUECTEU
M
INIMU
MMINIMUM
SUP
PS
L
Y
L
PRESS
P
RESSIO
NPRESSIO
D'ALIMEN
T
M
AXIMU
MMAXIMU
SUP
P
L
Y
L
P
P
RESSIO
NPRESSION
D'ALIM
UNN
COMCOM
AA
VECVEC
AA
HOMHO
OYEROYER
AA
G
A
ZGA
VENTILE
.VENTILE.
HOM
DANSDANS
U
N
EUNE
C
HAMBR
ECHAMBRE
A
COUCHCOUCH
TIOO
NN
T
A
T
TIO
A
N
ENN
TT
AA
TTT
TIONTIO
AA
R
ED
U
IT
EEDUITE
0
-4
500
F
T500FT
(0-130-13
17,00
07,000
BTU/BTU
12,000BT12,000BT
LE
LE
B
G
NV
36
P
BGNV36P
//
B
MM
OO
D
E
DE
LL
L4M 4Y8 Canada4Y8 Canada

8
W415-0861 / A / 02.10.11
3.0 VENTING
3.1 VENTING SAFETY SWITCH
!
WARNING
RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.
This is a vented appliance and must be connected to a chimney in accordance with the current installation
codes. In absence of local codes, install to the current CAN/CGA B149 in Canada or to the current National
Fuel Gas Code ANSI Z223.1 in the United States. This model can be common-vented.
A minimum four inch diameter (4" Ø) B-vent or class A vent is required. A minimum 10' vent height is required.
Secure the B-vent to the exhaust collar on the appliance top with 3 screws. In cold climates, the use of a B-
vent and an insulated chase is recommended.
Under extreme vent configurations, allow several minutes (5-15) for the flame to stabilize after ignition. Provide
a means for visually checking the vent connection to the appliance after the appliance is installed.
TAMPERING WITH THE SAFETY SWITCH CAN RESULT IN CARBON MONOXIDE POISONING AND
POSSIBLE DEATH.
!
WARNING

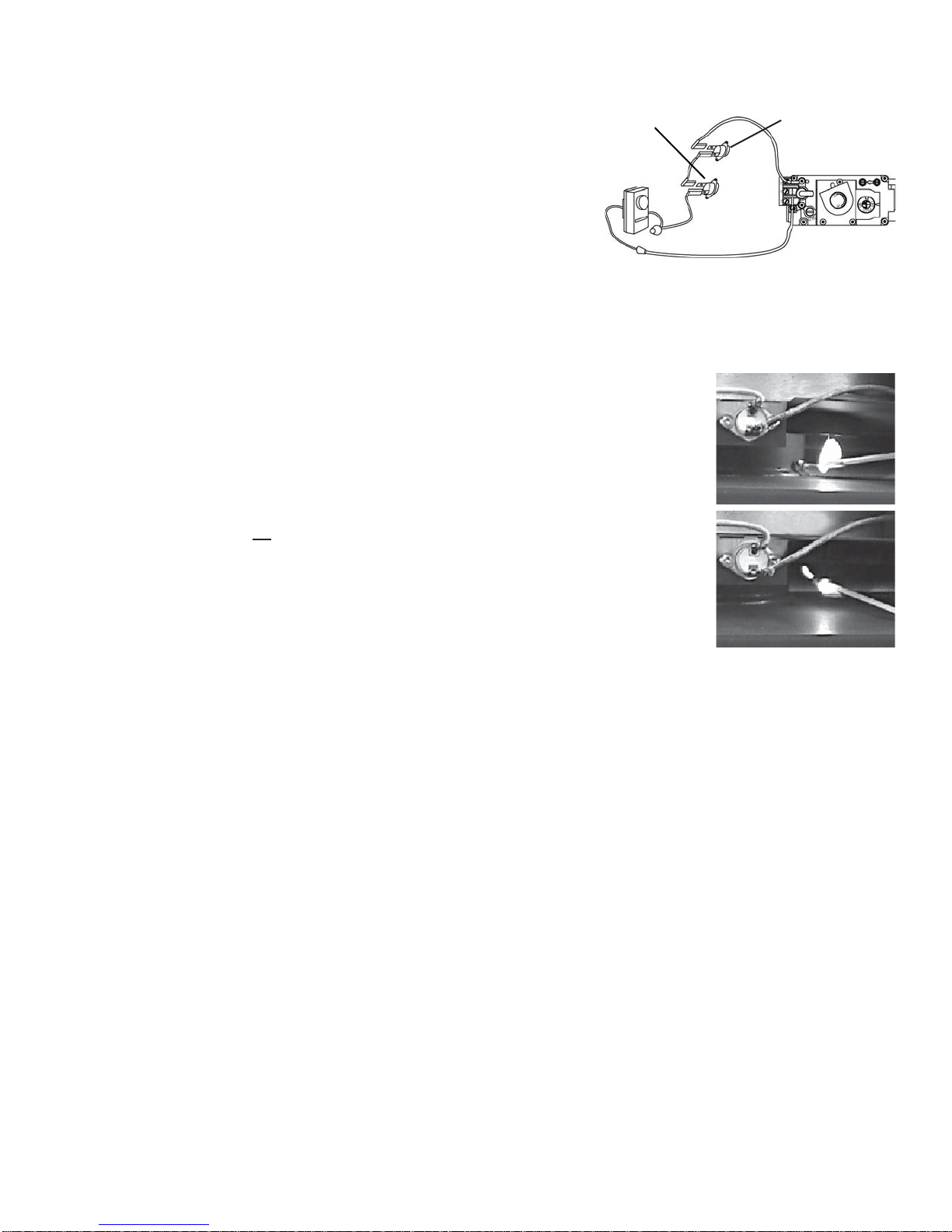

This thermally activated switch, located in front of the draft
hood, senses an increase in temperature and acts as a
safety shut-off, see "A". It shuts down the gas to the main
burner in the event of a severe downdraft of air or a blocked
or disconnected chimney flue. If the flue is blocked or has
no "draw", the safety switch will automatically shut off the
supply of gas to the main burner within 10 minutes.
This switch must be manually reset by depressing the
plunger.
1
2
3
B
A
PLUNGER
HI LIMIT
SWITCH

9
W415-0861 / A / 02.10.11
3.2 HIGH LIMIT SWITCH
This thermally activated switch, located in front of
the draft hood, senses an increase in temperature
and acts as a safety shut-off (See 'A'). It shuts
down the gas to the main burner in the unlikely
event of the appliance overheating. The HI Limit
switch will automatically reset after the appliance
has cooled down, resuming gas flow to the main
burner.
3.3 VENTING ACTION CHECK
A test for correct venting action must be made before the installed appliance can be left with the cus-
tomer.
Follow the procedure below:
A. Close all doors and windows in the room / start exhaust fans in the home /
turn the appliance blower off (if so equipped).
B. Set controls to "high" and light the appliance.
C. Wait 5 minutes. Light a match and hold to the front of the draft hood.
Venting action is satisfactory, if smoke and flames are drawn into the draft hood.
Venting action is unsatisfactory, if the smoke spills back, and the flame splays
outward. If venting action is unsatisfactory, turn off the appliance, wait 10 minutes
and try again. If the smoke is still not drawn into the draft hood, turn the appliance
off and check for vent blockage or restriction. If necessary, consult with a qualified
inspector.
The Vent Safety or Hi Limit switches must not be adjusted or disabled.
In the event that either switch or any associated parts are exchanged, only original manufacturer's
parts may be used.
VALVE
THERMOSTAT OR
WALL SWITCH
VENT SAFETY
SWITCH HIGH LIMIT
SWITCH

10
W415-0861 / A / 02.10.11

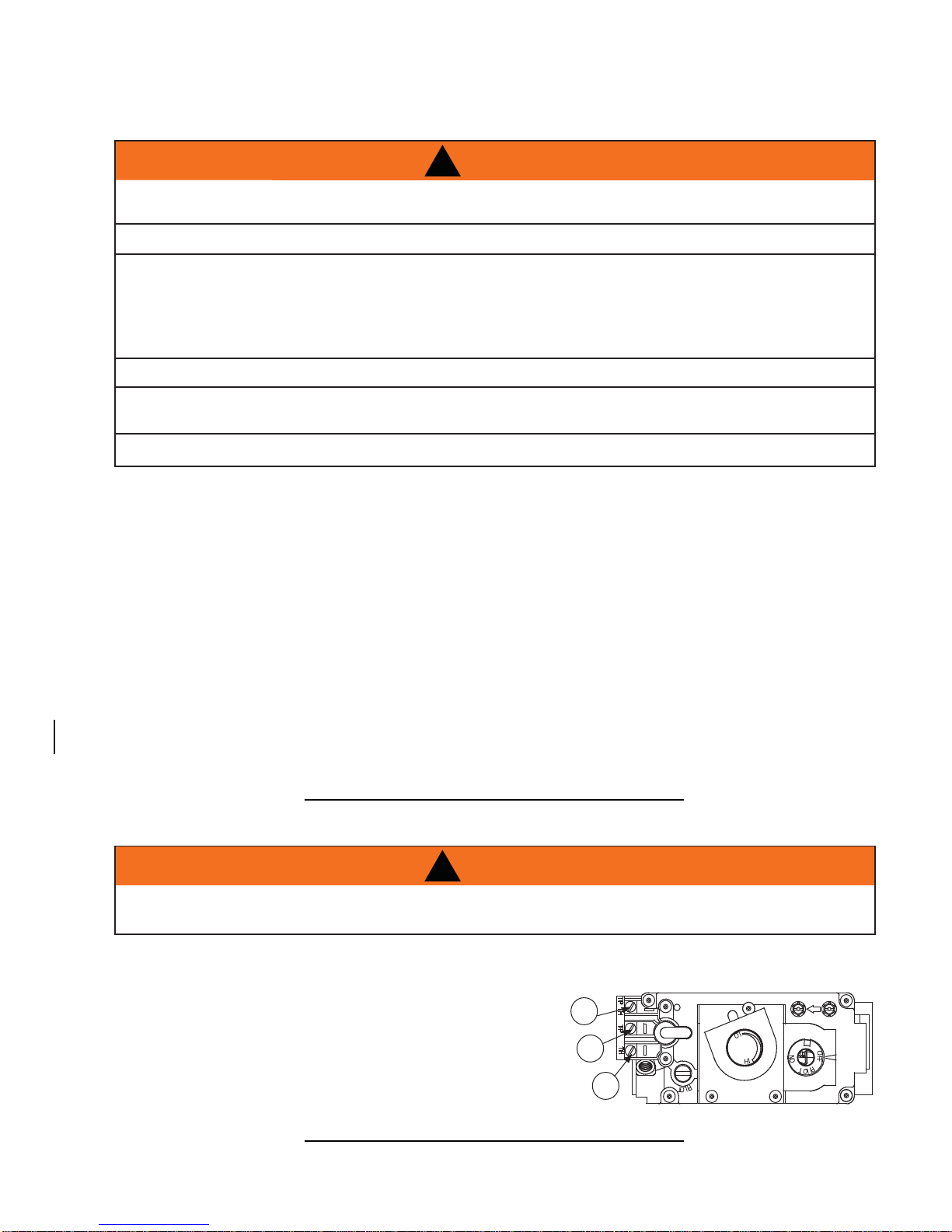

4.0 INSTALLATION
4.1 GAS INSTALLATION
30.1A
Installation and servicing to be done by a qualified installer. Do not use open flame.
A. Move the appliance into position and secure.
B. If equipped with a flex connector the appliance is designed to accept a 1/2” gas supply. Without the
connector it is designed to accept a 3/8” gas supply. The appliance is equipped with a manual shut off
valve to turn off the gas supply to the appliance.
C. Connect the gas supply in accordance to local codes. In the absence of local codes, install to the cur-
rent CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI
Z223.1 / NFPA 54 in the United States.
D. When flexing any gas line, support the gas valve so that the lines are not bent or kinked.
E. The gas line flex-connector should be installed to provide sufficient movement for shifting the burner
assembly on it’s side to aid with servicing components.
F. Check for gas leaks by brushing on a soap and water solution.
!
WARNING
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS
SPARKS OR OPEN FLAMES.
SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT
WITH THE GLASS DOOR OPENED OR REMOVED. PURGING OF THE GAS SUPPLY LINE SHOULD BE
PERFORMED BY A QUALIFIED SERVICE TECHNICIAN. ASSURE THAT A CONTINUOUS GAS FLOW IS AT
THE BURNER BEFORE CLOSING THE DOOR. ENSURE ADEQUATE VENTILATION. FOR GAS AND
ELECTRICAL LOCATIONS, SEE “DIMENSION” SECTION.
ALL GAS CONNECTIONS MUST BE CONTAINED WITHIN THE APPLIANCE WHEN COMPLETE.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG.
VALVE SETTINGS HAVE BEEN FACTORY SET, DO NOT CHANGE.
4.2 OPTIONAL WALL SWITCH / THERMOSTAT
For ease of accessibility, an optional remote wall switch or millivolt thermostat may be installed in a convenient
location. Route a 2 strand, solid core millivolt wire from the valve to the wall switch or millivolt thermostat. The
recommended maximum lead length depends on wire size:
WIRE SIZE MAX. LENGTH
14 gauge 100 feet
16 gauge 60 feet
18 gauge 40 feet
Disconnect the existing wires from terminals 1 and 3 (from the
ON/OFF switch) and replace with the leads from the wall switch / millivolt thermostat.
50.1
3
1
2
!
WARNING
DO NOT CONNECT EITHER THE WALL SWITCH, THERMOSTAT OR GAS VALVE DIRECTLY TO 110
VOLT ELECTRICITY.

11
W415-0861 / A / 02.10.11
5.0 FRAMING
!
WARNING
RISK OF FIRE!
IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING
IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE
APPLIANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH
ANY OTHER OUTSIDE WALL OF A HOME. THIS WILL ENSURE THAT CLEARANCE TO COMBUS-
TIBLES IS MAINTAINED WITHIN THE CAVITY.
DO NOT NOTCH THE FRAMING AROUND THE APPLIANCE STAND-OFFS. FAILURE TO MAINTAIN
AIR SPACE CLEARANCE MAY CAUSE OVER HEATING AND FIRE. PREVENT CONTACT WITH
SAGGING OR LOOSE INSULATION OR FRAMING AND OTHER COMBUSTIBLE MATERIALS. BLOCK
OPENING INTO THE CHASE TO PREVENT ENTRY OF BLOWN-IN INSULATION. MAKE SURE INSU-
LATION AND OTHER MATERIALS ARE SECURED.
WHEN CONSTRUCTING THE ENCLOSURE ALLOW FOR FINISHING MATERIAL THICKNESS TO
MAINTAIN CLEARANCES. FRAMING OR FINISHING MATERIAL CLOSER THAN THE MINIMUMS
LISTED MUST BE CONSTRUCTED ENTIRELY OF NON-COMBUSTIBLE MATERIALS. MATERIALS
CONSISTING ENTIRELY OF STEEL, IRON, BRICK, TILE, CONCRETE, SLATE, GLASS OR PLASTERS,
OR ANY COMBINATION THEREOF ARE SUITABLE. MATERIALS THAT ARE REPORTED AS PASSING
ASTM E 136, STANDARD TEST METHOD FOR BEHAVIOUR OF MATERIALS IN A VERTICAL TUBE
FURNACE AT 750°C AND UL763 SHALL BE CONSIDERED NON-COMBUSTIBLE MATERIALS.
MINIMUM CLEARANCE TO COMBUSTIBLES MUST BE MAINTAINED OR A SERIOUS FIRE HAZARD
COULD RESULT.
THE APPLIANCE REQUIRES A MINIMUM ENCLOSURE HEIGHT. MEASURE FROM THE APPLIANCE
BASE.
IF STEEL STUD FRAMING KITS WITH CEMENT BOARD ARE PROVIDED, THEY MUST BE
INSTALLED.
71.1
It is best to frame your appliance after it is positioned and the vent system is installed. Use 2x4's and frame to
local building codes.
Combustible materials may be installed flush with the front of the appliance but must not cover any of the black
face areas of the appliance. Non-combustible material (brick, stone or ceramic tile) may protrude in these
areas.
It is not necessary to install a hearth extension with this appliance.
When roughing in the appliance, raise the appliance to accommodate for the thickness of the finished floor ma-
terials, i.e. tile, carpeting, hard wood, which if not planned for will interfere with the opening of the lower access
door and the installation of many decorative flashing accessories.

12
W415-0861 / A / 02.10.11
37"
3"
13 ½”
5 ½”
36 ½”
5.1 MINIMUM CLEARANCE TO COMBUSTIBLES
36 1/2"
52"
36 3/4"36 1/2"
36 1/2"6"2' MIN.
13 1/2"INSIDE
CHASE
OUTSIDE
CHASE 13 1/2"

13
W415-0861 / A / 02.10.11
5.2 MINIMUM MANTEL CLEARANCES
!
WARNING
RISK OF FIRE, MAINTAIN ALL SPECIFIED AIR SPACE CLEARANCES TO COMBUSTIBLES. FAILURE
TO COMPLY WITH THESE INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO
OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT, MANTEL, FRONT, ETC.) ARE
CLEARLY MAINTAINED.
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE
HEAT RESISTANT TO PREVENT DISCOLOURATION.
73.1
Combustible mantel clearance can vary according to the mantel depth. Use the graph to help evaluate the
clearance needed.
MANTLE DEPTH
H
T
H
I
G
E
N
L
E
T
M
A
6
6
2
0
4
2 4
10
8
12
12810
7" MANTLE
6"
2”
4”
6"
7"
TOP OF UNIT
COMBUSTIBLE
MATERIALS
2x4
2”
4”
5.3 NAILING TAB INSTALLATION
55.1A
A. Attach the nailing tabs to the corner posts using the 2 sheet metal screws sup-
plied. Secure through the centre of the top and bottom slots in the nailing tab and
then through the existing holes in the corner posts. If there are no existing holes,
follow these instructions:
B. To determine the final location of the nailing tab you must first determine the
thickness of your finishing material (i.e. drywall). This will determine the dimen-
sion from the front edge of the corner post to the nailing tab. Once the nailing tab
is in the desired location, drill through the centre hole of the nailing tab. Secure
with a sheet metal screw*.
* Additional set screws may be installed.
NAILING TAB

14
W415-0861 / A / 02.10.11
6.0 FINISHING
6.1 DOOR INSTALLATION / REMOVAL
The upper louvres must be removed to allow the door to be opened
or closed. To access the lower door latch, open the valve control
door. Release the top and bottom door latches, located at the right
side of the door.
!
WARNING
GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.
THE DOOR LATCHES ARE PART OF A SAFETY SYSTEM AND MUST BE PROPERLY ENGAGED. DO
NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED.
FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR
OPENINGS, LOUVRES OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR
SERVICE. OBSERVE ALL CLEARANCES WHEN APPLYING COMBUSTIBLE MATERIALS.
BEFORE DOOR IS REMOVED TURN THE APPLIANCE OFF AND WAIT UNTIL APPLIANCE IS COOL TO
THE TOUCH. DOORS ARE HEAVY AND FRAGILE SO HANDLE WITH CARE.
75.1
!
WARNING
RISK OF FIRE!
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS
SUCH AS BRICK, MARBLE, GRANITE, ETC., PROVIDED THAT THESE MATERIALS DO NOT GO
BELOW THE SPECIFIED DIMENSION AS ILLUSTRATED.
DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS
REMOVED, CRACKED, BROKEN OR SCRATCHED.
FACING AND/OR FINISHING MATERIAL MUST NEVER OVERHANG INTO THE APPLIANCE OPENING.
72.1A

15
W415-0861 / A / 02.10.11
!
WARNING
FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE
ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE
PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED
IGNITION MAY OCCUR.
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.
76.1A
PHAZERTM logs and glowing embers exclusive to Continental Fireplaces, provide a unique and realistic
glowing effect that is different in every installation. Take the time to carefully position the glowing embers for a
maximum glowing effect.
Log colours may vary. During the initial use of the appliance, the colours will become more uniform as colour
pigments burn in during the heat activated curing process.
TAB
SIDE VIEW A. Place the back log (#1) onto the
log support tray and in front of
the tabs. The tabs maintain an
air space between the log and
firebox back to facilitate com-
bustion air flow. Ensure that the
back of the log rests against
the brackets on the back wall of
the firebox.
6.2 LOG PLACEMENT
B. Move the two small logs (#2 & #3) into posi-
tion, lining up the studs located on the burner
with the holes on the bottom of the logs. En-
sure that the small logs sit flat on the burner.
C. Place the bottom of the left crossover log (#4)
against the left firebox side and pulled forward
to the grate. The top of the log should rest in
the pocket on the back log.
D. Position the base end of the center log (#5)
against the middle grate post with the other
end of the log resting in the pocket of the left
crossover log.
E. Place the bottom of the right crossover log
(#6) against the right firebox side and pulled
forward to the grate. The top of the log should
rest in the pocket provided on the center log
(#5).

16
W415-0861 / A / 02.10.11
6.3 CHARCOAL EMBERS
Tear the embers into pieces and place along the front row of ports covering all of the burner area in front of
the small logs. Care should be taken to shred the embers into thin, small irregular pieces as only the exposed
edges of the fibre hairs will glow. The ember material will only glow when exposed to direct flame; how-
ever, care should be taken to not block the burner ports.
Blocked burner ports can cause an incorrect flame pattern, carbon deposits and delayed ignition. PHAZERTM
logs glow when exposed to direct flame. Use only certified "glowing embers" and PHAZERTM logs available
from your Continental® dealer.
32.1
Randomly place the charcoal embers along the front and sides of the log support tray in a realistic manner.
Fine dust found in the bottom of the bag should not be used.
NOTE: Charcoal embers are not to be placed on the burner.
A
B
C
SLOT
ABC
CLIPS
CENTRE SLOT
TAB
SLOT
HINGE CLIP
57.3
UPPER LOUVRES
Insert the louvre tabs
into the slots located
at the top left and right
corners of the unit.
LOWER LOUVRES
Insert the hinge clips
into the slots located at
the bottom left and right
corners of the unit. To
remove the louvres, pull
the back tabs of the clips
forward, while pushing
the louvre assembly
back. Lift the clip.
HOOD
Attach the hood by
pressing the top flange
into the clips along the
top of the louvre open-
ing. Secure using a
screw through the centre
slot.

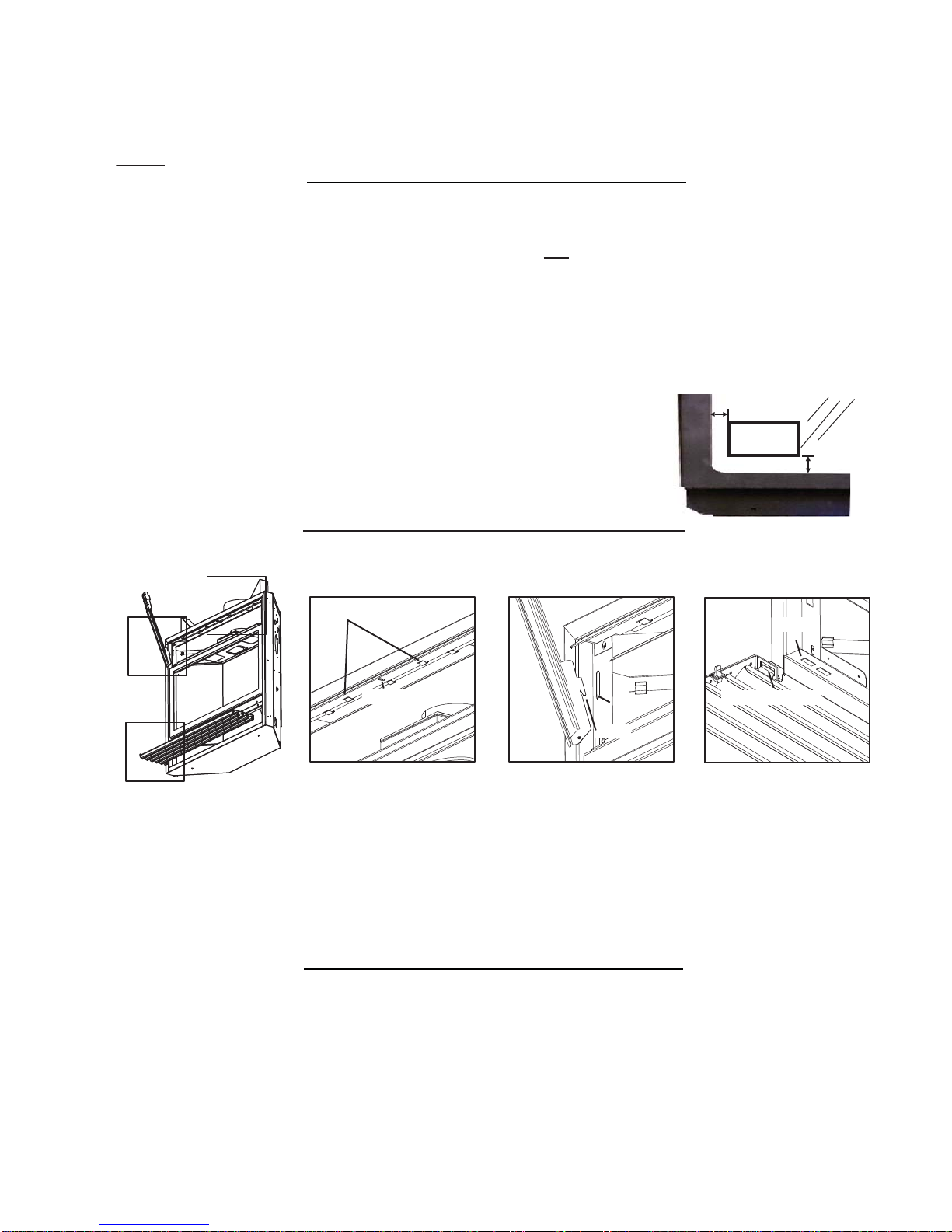

6.4 GLOWING EMBERS
6.5 LOGO PLACEMENT
6.6 LOUVRE INSTALLATION 97.1
Remove the backing o
f
the logo supplied and place on the glass viewing door,
as indicated. ½"
½"
LOGO

17
W415-0861 / A / 02.10.11
7.0 OPTIONAL BLOWER INSTALLATION
!
WARNING
RISK OF FIRE AND ELECTRICAL SHOCK.
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THIS APPLIANCE.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS
COMPONENTS, VENTING COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL
VOID THE WARRANTY AND CERTIFICATION.
ENSURE THAT THE FAN’S POWER CORD IS NOT IN CONTACT WITH ANY SURFACE OF THE
APPLIANCE TO PREVENT ELECTRICAL SHOCK OR FIRE DAMAGE. DO NOT RUN THE POWER
CORD BENEATH THE APPLIANCE.
THE WIRE HARNESS PROVIDED IN THE BLOWER KIT IS A UNIVERSAL HARNESS. WHEN
INSTALLED, ENSURE THAT ANY EXCESS WIRE IS CONTAINED, PREVENTING IT FROM MAKING
CONTACT WITH MOVING OR HOT OBJECTS.
51.5
INSTALLATION TO BE DONE BY A QUALIFIED INSTALLER and must
be electrically connected and grounded in accordance with local codes.
In the absence of local codes, use the current CSA C22.1 Canadian
electrical code in Canada or the ANSI / NFPA 70 National Electrical Code
in the United States.
If the appliance was not previously equipped with a blower:
Route a grounded 2-wire, 60hz power cable to the receptacle /
junction box. At this point, it must be strain relieved and insulated.
The three slots on the blower mounting bracket allow ease of adjustment when
attaching the blower. For a quiet running blower, do not allow the assembly to
sit on the firebox base. Slide the vibration reducing pad (A) into the clip (C) and
up against the threaded stud (B) at the other end. The blower must be able to
be positioned entirely onto the pad.
To ease installation of the blower, remove the hinge screen and valve control door
(lower louvres) from the base of the appliance.
Tilt the blower onto its side. Slide it past the controls and into the clip (C).
Secure to the threaded stud using the lock washer and wing nut provided.
Ensure that the blower does not touch the appliance base or the firebox.
Attach the connectors from the black and white
wires to the thermal switch and secure the
thermal switch bracket to the bottom left of the unit
using the screws provided. Ensure that the
thermal switch touches the firebox wall.

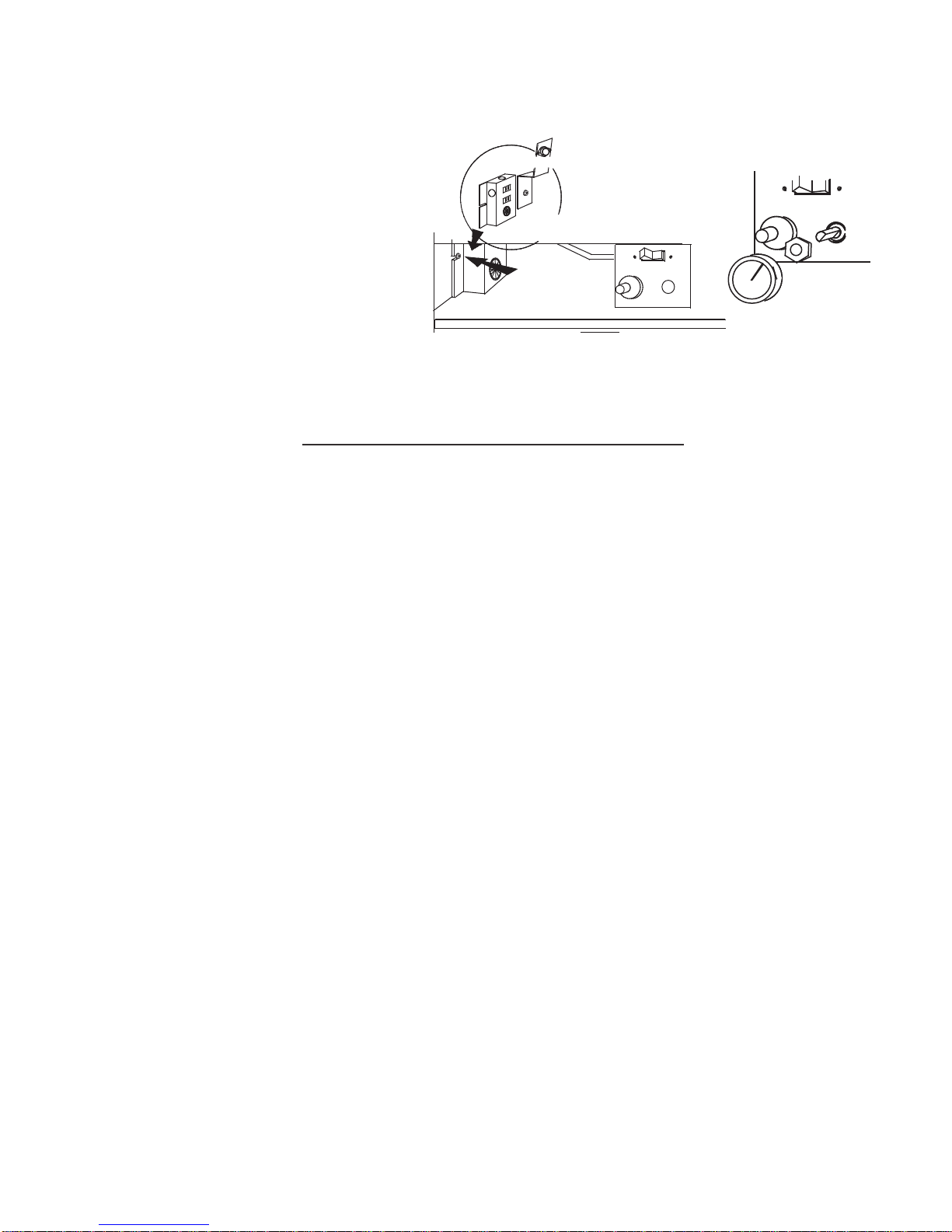

Attach the connectors from the black and red
wires to the blower.
black
white
red
VARIABLE
SPEED
SWITCH
BLOWER
THERMAL
SWITCH
SLOTS
ELONGATED
A
B
C

18
W415-0861 / A / 02.10.11
Attach the connectors from the black and red
wires to the blower.
Attach and secure the variable speed switch
using the nut provided. Plug the harness cord
into the receptacle.The wire harness provided
in this kit is a universal harness. When installed,
ensure that any excess wire is contained,
preventing it from making contact with
moving or hot objects.
Because the blower is thermally activated,
when turned on, it will automatically start
approximately 10 minutes after lighting the appliance and will run for approximately 30-45 minutes after the
appliance has been turned off. Use of the fan increases the output of heat. Drywall dust will penetrate into the
blower bearings, causing irreparable damage. Care must be taken to prevent drywall dust from coming into
contact with the blower or its compartment. Any damage resulting from this condition is not covered by the
warranty policy.
VARIABLE
SPEED
KNOB
51.1
RECEPTACLE /
THERMAL SWITCH
GROUND
SCREW
JUNCTION BOX

19
W415-0861 / A / 02.10.11
8.0 OPERATION
Ensure that a continuous gas flow is at the burner before installing the door. When lit for the first time, the appliance will
emit an odor for a few hours. This is a normal temporary condition caused by the "burn-in" of paints and lubricants used in
the manufacturing process and will not occur again.
A
fter extended periods of non-operation such as following a vacation or a warm weather season, the appliance may emit a
slight odor for a few hours. This is caused by dust particles in the heat exchanger burning off. In both cases, open a
window to sufficiently ventilate the room.
FOR YOUR SAFETY READ BEFORE LIGHTING:
A. This appliance is equipped with a pilot which must be lit by hand while following these instructions exactly.
B. Before operating smell all around the appliance area for gas and next to the floor because some gas is heavier than
air and will settle on the floor.
C. Use only your hand to turn the gas control knob. Never use tools. If the knob will not turn by hand, do not try to
repair it. Call a qualified service technician. Force or attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect
the appliance and replace any part of the control system and any gas control which has been under water.
Turn off all gas to the appliance.
Open windows.
Do not try to light any appliance.
Do not touch any electric switch; do not use any
phone in your building. GAS KNOB
WARNING: The gas valve has an interlock device which will not allow the pilot burner to be lit until the thermo-
couple has cooled. Allow approximately 60 seconds for the thermocouple to cool.
When lighting and re-lighting, the gas knob cannot be turned from pilot to off unless the knob is depressed slightly.
1. Stop! Read the above safety information on this label.
2. Turn off all electric power to the appliance.
3. Turn the gas knob clockwise to off.
4. Wait five (5) minutes to clear out any gas. If you smell gas including near the floor. Stop! Follow "B" in the
above safety information on this label. If you don't smell gas go the next step.
5. Turn gas knob counter-clockwise to pilot.
6. Depress slightly and hold gas knob while lighting the pilot with the push button igniter. Keep knob depressed for one
minute, then release. If pilot does not continue to burn, repeat steps 3 through 5.
7. With pilot lit, depress and turn gas knob counter-clockwise to on.
8. If equipped with remote on-off switch / thermostat, main burner may not come on when you turn valve to on. Remote
switch must be in the on position to ignite burner.
9. Turn on all electric power to the appliance.
1. Turn off all electric power to the appliance if service is to be performed.
2. Push in gas control knob slightly and turn clockwise to off. Do not force.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
WHAT TO DO IF YOU SMELL GAS:
LIGHTING INSTRUCTIONS:
TO TURN OFF GAS
TURN THE CONTROL VALVE TO THE OFF POSITION WHEN HEATER IS NOT IN USE.
47.2
IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH
THE GLASS DOOR OPENED OR REMOVED.
!
WARNING

20
W415-0861 / A / 02.10.11
9.0 ADJUSTMENTS
9.1 PILOT BURNER ADJUSTMENT
Adjust the pilot screw to provide properly sized flame. Turn in a clockwise
direction to reduce the gas flow.
Inlet pressure can be checked by turning screw (A)
counter-clockwise until loosened and then placing
pressure gauge tubing over the test point. Gauge should
read 7” (minimum 4.5”) water column for natural gas or 13” (11”
minimum) water column for propane. Check that main burner is
operating on “HI”.
Outlet pressure can be checked the same as above using screw (B).
Gauge should read 3.5” water column for natural gas or 10” water
column for propane. Check that main burner is operating on “HI”.
AFTER TAKING PRESSURE READINGS, TIGHTEN SCREWS
FIRMLY TO SEAL. DO NOT OVER TORQUE. LEAK TEST.
39.3
P
I
P
I
L
O
T
N
O
L
O
T
H
I
L
O
F
F
O
A
B
PILOT SCREW
PILOT
BURNER
THERMOCOUPLE
THERMOPILE
This appliance has an air shutter that has been factory set open according
to the chart below:
Regardless of venturi orientation, closing the air shutter will cause a more
yellow flame, but can lead to carboning. Opening the air shutter will cause a
more blue flame, but can cause flame lifting from the burner ports. The
flame may not appear yellow immediately; allow 15 to 30 minutes for the
final flame color to be established.
AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED
INSTALLER!
AIR
SHUTTER
OPENING
VENTURI
BURNER
ORIFICE
49.1
NG
LP
BCNV36
1/16"
3/8"
9.2 VENTURI ADJUSTMENT
