Continental Fireplaces CBI 360-P User manual

EN
W415-1363 / B / 08.01.18
FR
PG
29
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.38A
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.continentalfireplaces.com • ask@continentalfire.on.ca
SAFETY INFORMATION
!WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
•If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
CERTIFIED FOR CANADAAND UNITED STATES USING ANSI/CSA METHODS.
$10.00
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
Decorative Product: Not for use as a heating appliance.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
CONFORMS TO AMERICAN NATIONAL STANDARDS: ANSI Z21.50, CERTIFIED TO CANADIAN CSA 2.22 FOR VENTED GAS FIREPLACES.
CBI360-N
NATURAL GAS
CBI360-P
PROPANE
SAFETY BARRIER
SHOWN WITH GIFK6 FLASHING & FPGI36-K FACEPLATE
fire-parts.com

TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.2 MINIMUM CLEARANCE TO COMBUSTIBLES 5
2.3 GENERAL INSTRUCTIONS 5
2.4 GENERAL INFORMATION 6
2.5 RATING PLATE INFORMATION 7
3.0 INSTALLATION 8
3.1 LEVELLING THE APPLIANCE 8
3.2 CHIMNEY CONNECTION 8
3.3 OPTIONAL WALL SWITCH 9
3.4 GAS INSTALLATION 9
4.0 FINISHING 10
4.1 SAFETY SCREEN REMOVAL AND INSTALLATION 10
4.2 FIBRE FIREBRICK PANELS 11
4.3 DOOR REMOVAL AND INSTALLATION 11
4.4 LOG PLACEMENT 12
4.5 CHARCOAL EMBERS 12
4.6 FLASHING KIT 13
4.7 FLUSH LOUVRE KIT, GI-1L (USED ONLY WITH S3600SB) 13
4.8 LOGO PLACEMENT 13
5.0 OPERATION 14
6.0 ADJUSTMENTS 15
6.1 PILOT BURNER ADJUSTMENT 15
6.2 VENTURI ADJUSTMENT 15
6.3 FLAME CHARACTERISTICS 16
6.4 BLOWER REPLACEMENT 16
7.0 MAINTENANCE 17
7.1 ANNUAL MAINTENANCE 17
7.2 CARE OF GLASS 18
7.3 DOOR GLASS REPLACEMENT 18
8.0 REPLACEMENTS 19
9.0 OVERVIEW 20
10.0 ACCERSSORIES 21
11.0 TROUBLESHOOTING 22
12.0 WARRANTY 24
13.0 SERVICE HISTORY 25
14.0 NOTES 26
W415-1363 / B / 08.01.18
2
EN
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
fire-parts.com

W415-1363 / B / 08.01.18
3
EN
1.0 INSTALLATION OVERVIEW
SAFETY BARRIER
Rating Plate, see “RATING PLATE
INFORMATION” section.
Flashing, see
“FLASHING KIT” section.
Log placement see “LOG
PLACEMENT” section.
Blower, see “BLOWER
REPLACEMENT” section.
Door, see “SAFETY SCREEN
REMOVAL / INSTALLATION” &
“DOOR REMOVAL /
INSTALLATION” section.
fire-parts.com

W415-1363 / B / 08.01.18
4
EN
2.0 INTRODUCTION
!
WARNING
3.16D
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR IT’S CONTROLS CAN BE DANGEROUS AND IS
PROHIBITED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance
according to operating instructions could cause fire or injury.
• Risk of fire or asphyxiation do not operate appliance with fixed glass removed.
• Do not connect 110 volts to the control valve.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges may
be sharp.
• Do not burn wood or other materials in this appliance.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier
is recommended if there are at risk individuals in the house. To restrict access to an appliance or stove,
install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the
room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot
surfaces. These screens and guards must be fastened to the floor.
• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior to
operating the appliance.
• This appliance is a vented gas-fired appliance. Do not burn wood or other materials in this appliance.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the appliance
and venting system are kept clean. The appliance and its venting system should be inspected before use and at
least annually by a qualified service person. More frequent cleaning may be required due to excessive lint from
carpeting, bedding material, etc. The appliance area must be kept clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
• This appliance must not be connected to a chimney flue pipe serving a separate solid fuel burning appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system and any gas control which has been under water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should be
done by a licensed or qualified service person, if equipped.
• Do not strike or slam shut the appliance glass door, if equipped.
• Only doors / optional fronts certified with the original wood-burning appliance are to be used in
conjunction with this appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all
plastic bags, these are not toys and should be kept away from children and infants.
• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as well
as having a Carbon Monoxide Detector installed in the same area to defend you and your family against Carbon
Monoxide.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or damage to
decorations, a T.V. or other electronic components.
• A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the original
wood-burning appliance and shall be installed.
• If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this
appliance.
• Installation and repair should be done by a qualified service person. The appliance should be inspected
before use and at least annually by a professional service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments,
burners and circulating air passageways of the appliance be kept clean.
fire-parts.com

W415-1363 / B / 08.01.18
5
EN

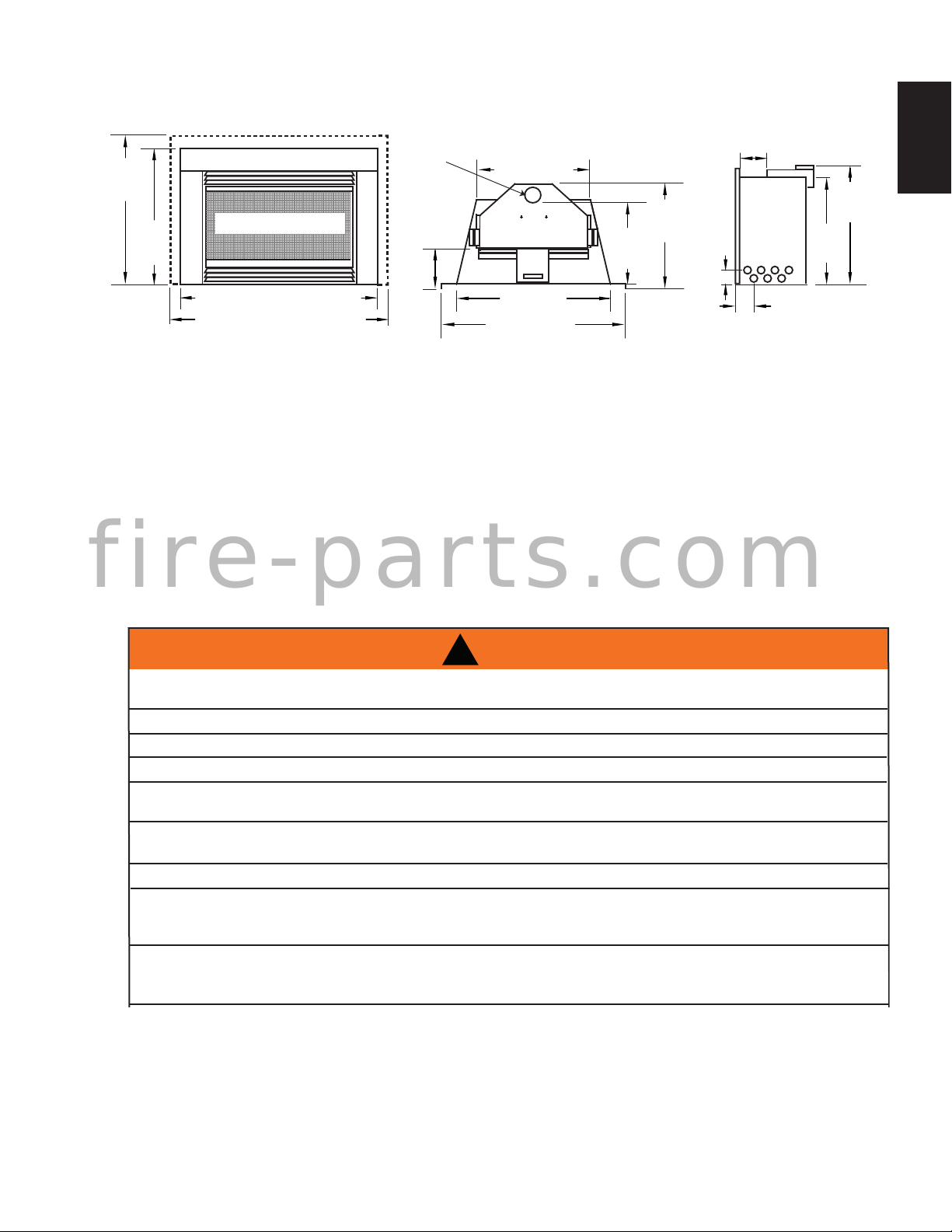

2.1 DIMENSIONS
27 1/2"
[699mm]
30 1/2"
[775mm]
43" [1092mm] 6" (152mm) FLASHING
49" [1245mm] 9" (229mm) FLASHING
EXHAUST
3" [76mm] DIA. 18 1/2" [470mm]
25" [635mm]
30 1/8" [765mm]
17 1/2"
[445mm]
13 1/2"
[343mm]
8"
[203mm]
22"
[559mm]
17 1/4"
[438mm]
7" [178mm]
2 1/2"
[64mm]
GAS INLET
ELECTRICAL
INLET LEFT
SIDE
3"
[76mm]
SAFETY BARRIER
THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to
conform with local codes. Installation practices vary from region to region and it is important to know the
specifics that apply to your area, for example in Massachusetts State:
• This product must be installed by a licensed plumber or gas fitter when installed within the commonwealth
of Massachusetts.
• The appliance damper must be removed or welded in the open position prior to installation of an appliance
insert or gas log.
• The appliance off valve must be a “T” handle gas cock.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,
WITH THE GLASS DOOR OPENED OR REMOVED.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” (1219mm)
FROM THE FRONT FACE OF THE APPLIANCE.
SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID CONTACT
WHEN THE APPLIANCE IS OPERATING.
FIRE RISK. EXPLOSION HAZARD.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE PRESSURE
TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG (35mb).
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.
USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING
COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
!
WARNING
This appliance must be recessed into a vented noncombustible wood-burning appliance (prefabricated or ma-
sonry) only. The minimum appliance opening size in which the appliance is to be installed is:
HEIGHT 17 1/2" (445mm) WIDTH 25 1/2" (648mm) DEPTH 16 1/2" (419mm)
The minimum distance, from the bottom of a combustible mantle projecting 6" (152mm) maximum from the
wall to the top of the louvre opening, is 8" (203mm).
2.2 MINIMUM CLEARANCE TO COMBUSTIBLES
2.3 GENERAL INSTRUCTIONS
*SHOWN WITH S3600SB
fire-parts.com

W415-1363 / B / 08.01.18
6
EN
2.4 GENERAL INFORMATION
4.12A
pp g
• The flexible connector must not be longer than 36 inches (914mm).
• A Carbon Monoxide detector is required in all rooms containing gas fired appliances.
• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent
sealed combustion product.
The installation must conform with local codes or, in
absence of local codes, the National Gas and Propane
Installation Code CSA B149.1 in Canada, or the National
Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United
States. Suitable for mobile home installation if installed in
accordance with the current standard CAN/CSA Z240MH
Series, for gas equipped mobile homes, in Canada or
A
NSI Z223.1 and NFPA 54 in the United States.
Some appliances have optional fans or blowers. If an optional fan or blower is installed, the junction box must
be electrically connected and grounded in accordance with local codes, use the current CSA C22.1 Canadian
Electrical Code in Canada or the ANSI/NFPA 70 National Electrical code in the United States.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org
FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND
QUALITY!
RATES AND EFFICIENCIES
NG LP
Max. Input (BTU/HR) 24,000 22,000
Max. Output (BTU/HR) 15,900 16,000
Min. Inlet Gas Supply Pressure 4.5" (11mb) Water Column 11" (27mb) Water Column
Max. Inlet Gas Supply Pressure 7" (17mb) Water Column 13" (34mb) Water Column
Manifold Pressure (Under Flow Conditions) 3.5" (9mb) Water Column 10" (25mb) Water Column
No external electricity (110 volts or 24 volts) is required for the gas system operation.
Under extreme vent configurations, allow several minutes (5-15) for the flame to stabilize after ignition.
Altitudes greater than 4000ft. (1219m) require a minimum vent run of 12ft (4m).
When the appliance is installed at elevations above 4,500ft (1372m), and in the absense of specific
recommendations from the local authority having jurisdiction, the certified high altitude input rating shall be
reduced at the rate of 4% for each additional 1,000ft (305m).
Expansion / contraction noises during heating up and cooling down cycles are normal and to be expected.
This appliance is not approved for closet or recessed installations. It is approved for bathroom, bedroom and bed-
sitting room installations.
This appliance must be connected to any accepted lined chimney system listed to ULC-S635M (in Canada)
or UL-1777 (in USA). The venting connection must be in compliance with the vent manufacturers installation
instructions.
The draft hood must be installed so it is in the same atmospheric pressure zone as the combustion air inlet to
the appliance.
Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing and
operating the appliance. Never obstruct the front opening of the appliance.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the appliance
and must be installed.
fire-parts.com

W415-1363 / B / 08.01.18
7
EN
2.5 RATING PLATE INFORMATION
INSTALLER: It is your responsibility to check off the appropriate box on the rating plate according to
the model, venting and gas type of the appliance.
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
NOTE: The rating plate must remain with the appliance at all times. It must not be removed.
W385-1982
NOT FOR USE WITH SOLID FUEL
GI3600
GI3600N
NATURAL GAS / GAZ MODEL
CONFORMS TO / CONFORMEAUX: ANSI Z21.50-2014, CERTIFIED TO / CERTIFIE CSA2.22-2014 VENTED GAS FIREPLACE / FOYER À GAZ VENTILÉ.
GAS-FIRED VENTED GAS FIREPLACE. MUST BE RECESSED INTO A WOOBURNING NON-
COMBUSTIBLE FIREPLACE AND USE A LISTED VENT LINER. CERTIFIED FOR BEDROOM AND
BEDSITTING ROOM INSTALLATION.
FOYER À GAZ VENTILÉ. IL DOIT ETRE ENCASTRE DANS UN FOYER EN MACONNERIE ET
RACCORDE A UN CONDUIT HOMOLOGUE. CERTIFIE POUR INSTALLATION DANS UNE
CHAMBRE A COUCHER ET UN STUDIO.
MANIFOLD PRESSURE: 3.5 INCHES W.C. (NG)
PRESSION AU COLLECTEUR: 3.5" D'UNE
COLONNE D'EAU(GN)
MIN SUPPLY PRESSURE: 4.5" W.C.(NG)
PRESSION D'ALIMENTATION MIN: 4.5" D'UNE
COLONNE D'EAU (GN)
MAX. SUPPLY PRESSURE: 7" W.C. (NG)
PRESSION D'ALIMENTATION MAX: 7" D'UNE
COLONNE D'EAU (GN)
MANIFOLD PRESSURE: 10 INCHES W.C.(LP)
PRESSION AU COLLECTEUR: 10" D'UNE
COLONNE D'EAU (P)
MIN SUPPLY PRESSURE: 11" W.C. (LP)
PRESSION D'ALIMENTATION MIN: 11" D'UNE
COLONNE D'EAU (P)
MAX. SUPPLY PRESSURE: 13" W.C. (LP)
PRESSION D'ALIMENTATION MAX: 13" D'UNE
COLONNE D'EAU (P)
0-4500ft
24,000 BTU/h
16,000 BTU/h
15,900 BTU/h
57.5%
ALTITUDE / ELEVATION
INPUT / ALIMENTATION
REDUCED INPUT / ALIMENTATION REDUITE
OUTPUT / RENDEMENT
P4
NOT A SOURCE OF HEAT. FOR USE WITH GLASS
DOORS CERTIFIED WITH THIS UNIT ONLY. FOR USE
ONLY WITH BARRIER W565-0180. FOLLOW THE
INSTALLATION INSTRUCTIONS LOCATED IN
THE INSTALLATION MANUAL.
NON CONCU POUR CHAUFFER UTILISERAVEC LES
PORTES VITREES HOMOLOGUEES SEULEMENT
AVEC CETTE UNITE. POUR UNE UTILISER SEULMENT
AVEC BARRIÈRE W565-0180. SUIVEZ LES
INSTRUCTIONS D'INSTALLATION SE TROUVENT
DANS LE MANUEL D'INSTALLATION.
UN COMBUSTIBLE SOLIDE NE DOIT PAS
ETRE UTILSE AVEC CET APPAREIL
SERIAL NUMBER / NO. DESERIE
0-4500ft
22,000 BTU/h
17,000 BTU/h
15,900 BTU/h
62.3%
CBI360N GI3600P CBI360P
PROPANE MODEL
WOLF STEEL LTD.
24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA
9700539 (WSL) 4001657 (NGZ)
4001658 (NAC) 4001659 (WUSA)
WARNING: FOR INSTALLATION IN A VENTED NON-COMBUSTIBLE FIREPLACE ONLY. THE
FIREPLACE CHIMNEY MUST HAVE A PERMANENT VENT OPENING TO ATMOSPHERE OF NOT LESS
THAN 13 SQ. INCHES (84 SQ CM). THE MINIMUM FIREPLACE SIZE IS: HEIGHT 17½”, DEPTH 16½”,
WIDTH 25½”. THE MINIMUM INSIDE DIAMETER CHIMNEY FLUE SIZE IS 5”. THE MINIMUM DISTANCE,
FROM THE BOTTOM OF A COMBUSTIBLE MANTEL PROJECTING A MAXIMUM 6” FROM THE WALL TO
THE TOP OF THE UNIT IS 8”. THIS DECORATIVE APPLIANCE NEEDS FRESH AIR FOR SAFE OPERATION
AND MUST BE INSTALLED SO THERE ARE PROVISIONS FOR ADEQUATE COMBUSTION AND
VENTILATION AIR.
ELECTRICAL RATING: 115V, 0.82 AMPS, 60 HZ
OPTIONALFAN KIT: GZ550-KT
ATTENTION: POUR INSTALLATION DANS UN FOYER VENTILE EN MACONNERIE. LA CHEMINEE DU
FOYER DOIT AVOIR UNE OUVERTURE DE L’EVENT PERMANENTE VERS L’ATMOSPHERE D’AU MOINS 13
POUCES CA. (84 CM. CA.). LES DIMENSIONS MINIMUMS SONT: HAUTEUR 17½”, PROFONDEUR 16½”,
LARGEUR 25½”. LE DIAMETRE INTERIEUR MINIMUM DU CONDUIT D’EVACUATION EST DE 5”. LA DISTANCE
MINIMALE, DU BAS DU MANTEAU COMBUSTIBLE FORMANT UNE PROJECTION MAXIMALE DE 6” DU MUR
AU DESSUS DU FOYER EST 8”. PAR MESURE DE SECURITE, CET APPAREIL REQUIERT DE L’AIR FRAIS ET
DOIT ETRE INSTALLE DE FACON A ASSURER UN APPROVISIONNEMENT SUFFISANT D’AIR DE
COMBUSTION ET DE VENTILATION.
PRODUIT DÉCORATIF: NE PAS UTILISER COMME APPARIEL DE CHAUFFAGE.
DECORATIVE PRODUCT: NOT FOR USE AS A HEATING APPLIANCE
CLASS: 115V, 0.82AMPS, 60 HZ
EMSEMBLE DEVENTILATIONFACULTATIF: GZ550-KT
S
SAMPLE
S
SAMPLE
YER À GAZ
. IL DOIT ETRE EN
ONDUIT HOMOLOGUE.
HER ET
U
N STUDIO
MA
P
VATION
TATION
ALIMENTATION REDUITE
UT / RENDEM
P4
0-45
22
62
I3600P
PL
L
PROPANE MODEL
CANADA
(NGZ)
9
(WUSA)
HERE OF NOT LESS
T 17½”, DEP
HE MINIMUM DISTA
M 6” FROM THE WALL TO
R FOR SAFE OPERATION
EQUATE COMBUSTION AND
ATTENTIO
YER D
PO
LA
APPLIA
fire-parts.com

W415-1363 / B / 08.01.18
8
EN
3.0 INSTALLATION
68.4B
Clean out ashes from the inside of the wood-burning appliance. Make sure that the chimney and wood-burning
appliance are in a clean and sound condition and constructed of non-combustible materials. If necessary have
any repair work done by a qualified person before installing the insert. Remove the existing appliance damper
or lock into an open position.
Using screws, attach the appliance warning tag
to the inside of the firebox of the appliance into
which the insert is being installed.
The sheet-metal parts of the appliance, in which
the gas appliance insert is to be installed, must
not be cut.
If the wood-burning factory-built appliance has
no gas access hole(s) provided, an access hole of 1½ inch (38.1mm) or less may be drilled through the lower
sides or bottom of the appliance in a proper workman like manner. This access hole must be plugged with non
-
combustible insulation after the gas supply line has been installed.
Ensure that existing chimney cleanouts fit properly.
The refractory, glass doors, screen rails, screen mesh and log grates may be removed from the existing
appliance before installing the gas appliance insert.
Smoke shelves, shields and baffles may be removed if attached by mechanical fasteners.
The ventilation openings in the existing appliance may be obstructed by the backer plates, aluminium trim etc.
but these parts are not to be applied so as to have an airtight seal.
!
WARNING
RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.
W385-0199_B
WARNING: THIS FIREPLACE HAS BEEN CONVERTED FOR USE WITH A GAS FIREPLACE
INSERT ONLYAND CANNOT BE USED FOR BURNING WOOD OR SOLID FUELS UNLESSALL ORIGINAL
PARTS HAVE BEEN REPLACEDAND THE FIREPLACE IS RE-APPROVED BY THEAUTHORITY HAVING
JURISDICTION.
ATTENTION: CE FOYERA ETE CONVERTIAFIN D’ETRE UTILISE SEULEMENT
COMME FOYER ENCASTRE AU GAZ ET NE PEUT ETRE UTILSE POUR BRULER DU BOIS OU
TOUTAUTRE COMBUSTIBLE SOLIDE, SANS QUE TOUTES LES PIECES ORIGINALES AIENT
ETE REMPLACEES ET QUE LE FOYER SOITAPPROUVE DE NOUVEAU PAR LESAUTORITES
AYANT JURIDICTION.
ADVERTENCIA: ESTA CHIMENEASE REMODELÓ PARA USARSE SOLO CON UNA
INSERCIÓN DE CHIMENEAA GAS Y NO PUEDE USARSE PARA QUEMAR MADERANI COMBUSTIBLES
SÓLIDOS, A MENOS QUE SE HAYAN REEMPLAZADO TODAS LAS PIEZAS ORIGINALES, Y LAAUTORI-
DAD JURISDICCIONAL LA HAYA VUELTO AAPROBAR.
3.1 LEVELLING THE APPLIANCE
Move the appliance close to its final position inside the wood-burning appliance. This appliance is equipped
with 4 levelling screws located on the front and back on either side of the appliance base. Level using the
levelling screws to eliminate rocking or excessive noise when the fan is in operation. Once the appliance is
level, move it partially into place within the appliance to allow for all connections to be made. It is not practical
to level the appliance once it has been installed. Determine the required depth prior to installing the appliance
and adjust the four levelling screws accordingly.
Chimney installation must conform to both national and local code requirements. The chimney must be lined
with a 3" (76mm) or 4" (102mm) diameter approved liner. The minimum vent length is 10 feet (3m).
The liner must be continuous from the appliance to the chimney cap.
Remove the securing screw from the front of the dilution plate. Push
the dilution draft hood out of the securing clips and attach the liner
using 3 screws equally spaced. Pack insulation around the liner at
the damper area to prevent air flow from entering the chimney. Move
the insert into the centre of the woodburning appliance making
sure that the dilution draft hood inserts back into its securing clips.
Replace the securing screw to the front of the dilution plate.
DILUTION
DRAFT HOOD
DILUTION PLATE
SECURING CLIPS
3.2 CHIMNEY CONNECTION
fire-parts.com

30.1A
Installation and servicing to be done by a qualified installer.
• Move the appliance into position and secure.
• If equipped with a flex connector the appliance is designed to accept a 1/2” (13mm) gas supply.
Without the connector it is designed to accept a 3/8” (9.5mm) gas supply. The appliance is equipped
with a manual shut off valve to turn off the gas supply to the appliance.
• Connect the gas supply in accordance to local codes. In the absence of local codes, install to the
current CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI
Z223.1 / NFPA 54 in the United States.
• When flexing any gas line, support the gas valve so that the lines are not bent or kinked.
• The gas line flex-connector should be installed to provide sufficient movement for shifting the burner
assembly on its side to aid with servicing components.
• Check for gas leaks by brushing on a soap and water solution. Do not use open flame.
!
WARNING
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS
SPARKS OR OPEN FLAMES.
SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT
WITH THE GLASS DOOR OPENED OR REMOVED. PURGING OF THE GAS SUPPLY LINE SHOULD BE
PERFORMED BY A QUALIFIED SERVICE TECHNICIAN. ASSURE THAT A CONTINUOUS GAS FLOW IS AT
THE BURNER BEFORE CLOSING THE DOOR. ENSURE ADEQUATE VENTILATION. FOR GAS AND
ELECTRICAL LOCATIONS, SEE “DIMENSIONS” SECTION.
ALL GAS CONNECTIONS MUST BE CONTAINED WITHIN THE APPLIANCE WHEN COMPLETE.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG.
VALVE SETTINGS HAVE BEEN FACTORY SET, DO NOT CHANGE.
W415-1363 / B / 08.01.18
9
EN

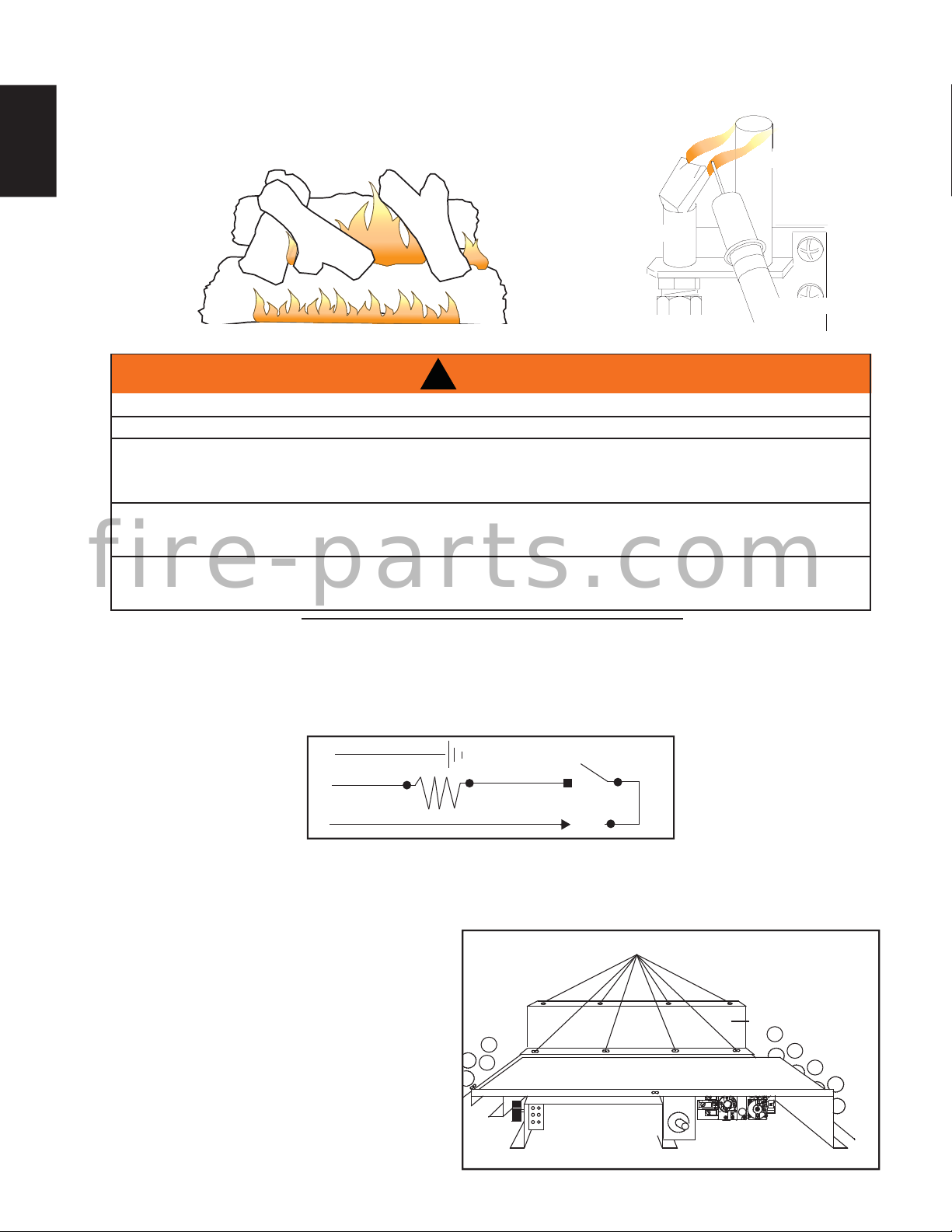

3.3 OPTIONAL WALL SWITCH
For ease of accessibility, an optional remote wall switch may be installed in a convenient location. Route a
2 strand, solid core millivolt wire from the valve to the wall switch. The recommended maximum lead length
depends on wire size:
WIRE SIZE MAX. LENGTH
14 gauge 100 feet (30.5m)
16 gauge 60 feet (18.3m)
18 gauge 40 feet (12m)
Disconnect the existing wires from terminals 1 and 3 (from the
ON/OFF switch) and replace with the leads from the wall switch. 50.5
P
I
L
O
T
TP
!
WARNING
DO NOT CONNECT THE WALL SWITCH OR GAS VALVE DIRECTLYTO 110 VOLT ELECTRICITY.
1
3
BLACK
PIPE
SHUT OFF VALVE
FLEXIBLE
CONNECTOR
ADAPTER
FITTING
3.4 GAS INSTALLATION
fire-parts.com

W415-1363 / B / 08.01.18
10
EN

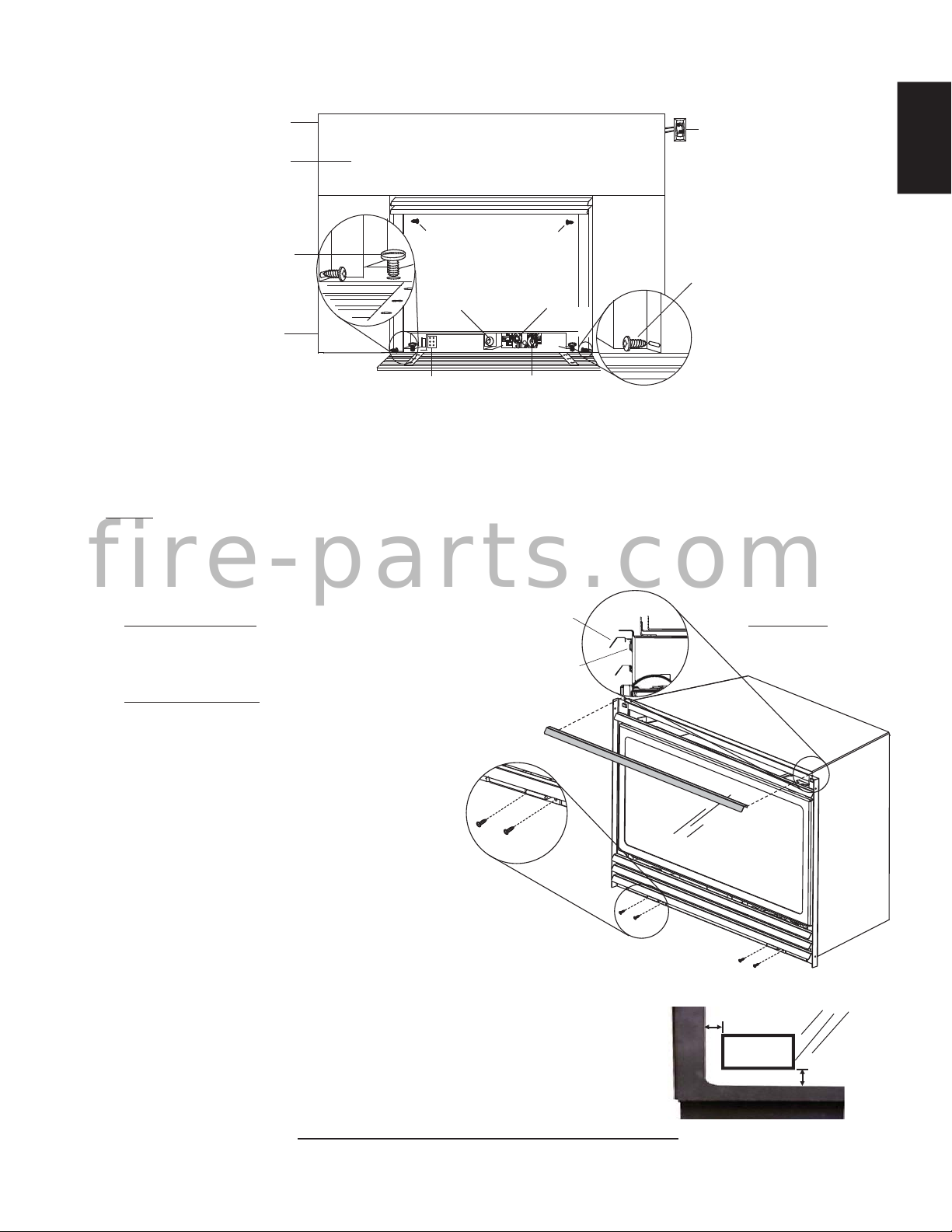

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the
appliance and must be installed.
Before the glass door can be removed, the faceplate and safety screen must be removed. Lift the faceplate
up up and off the appliance door and remove from the appliance.
FLASHING
!
WARNING
GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.
IF EQUIPPED WITH DOOR LATCHES THAT ARE PART OF A SAFETY RELIEF SYSTEM, THEY MUST BE
PROPERLY ENGAGED. DO NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED.
FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR
OPENINGS, LOUVRE OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR
SERVICE. OBSERVE ALL CLEARANCES WHEN APPLYING COMBUSTIBLE MATERIALS.
BEFORE DOOR IS REMOVED TURN THE APPLIANCE OFF AND WAIT UNTIL APPLIANCE IS COOL TO
THE TOUCH. DOORS ARE HEAVY AND FRAGILE SO HANDLE WITH CARE.
75.1A
4.0 FINISHING
!
WARNING
RISK OF FIRE!
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS
REMOVED, CRACKED, BROKEN OR SCRATCHED.
4.1 SAFETY SCREEN REMOVAL AND INSTALLATION
fire-parts.com

W415-1363 / B / 08.01.18
11
EN
To open the door, the safety screen must be
removed to allow the door to be opened or
closed. Remove the upper screws of the door
frame assembly and loosen bottom screws. Lift
out the door frame assembly, handle carefully.
Replace the door glass and gasket.
Reverse these steps to close the door. Ensure the
safety screen is installed correctly before using
appliance.
NOTE: The protective wrap on plated parts is
best removed when the assembly is at room
temperature but this can be improved if the
assembly is warmed, using a hair dryer or
similar heat source.
4.3 DOOR REMOVAL AND INSTALLATION
SAFETY SCREEN
TOP CLIPS
BOTTOM BRACKETS
SAFETY SCREEN FRAME
TOP BRACKETS
DOOR FRAME
TOP BRACKETS
A. Remove the top clips and set aside.
B. Remove the safety screen from the safety
screen frame by sliding it up and out.
C. Remove the two screws from the top
brackets of the safety screen frame.
D. Lift the safety screen frame up and away
from door frame.
REMOVAL:
4.2 FIBRE FIREBRICK PANELS
To give your insert that authentic masonry look, optional fibre firebrick panels are available at your Continental /
Wolf Steel Ltd. dealer. Complete installation and maintenance instructions are included with the kit.
INSTALLATION:
E. Install the safety screen frame into the
bottom brackets of the door frame and
secure the top brackets with the 2 screws
into the top brackets of the door frame.
F. Slide the safety screen into the safety
screen frame.
G. Install the top clips.
H. Ensure the safety screen is installed
correctly before using the appliance.
A.
B.
C.
D.
SCREWS
fire-parts.com

W415-1363 / B / 08.01.18
12
EN

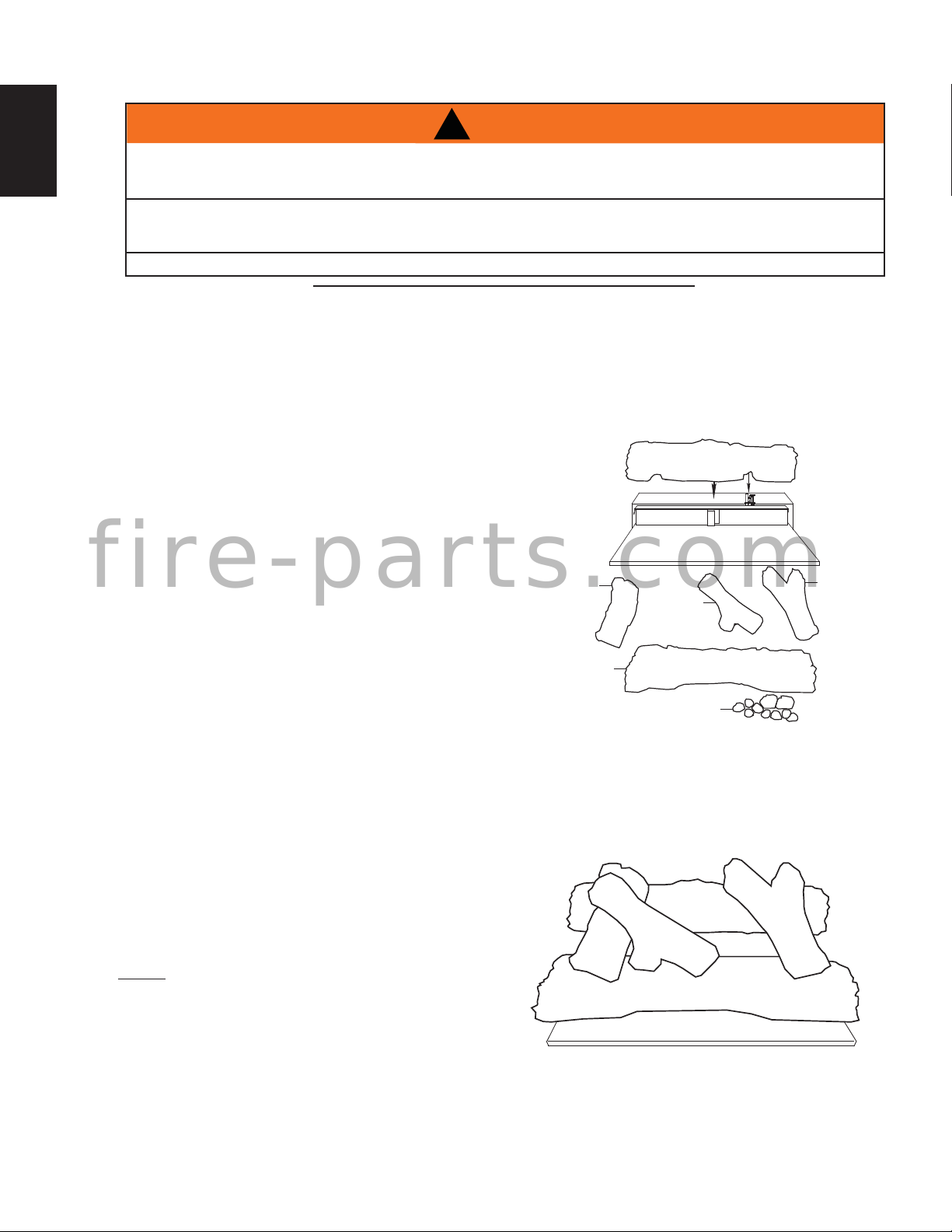

4.4 LOG PLACEMENT
!
WARNING
FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE
ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE
PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED
IGNITION MAY OCCUR.
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.
76.1A
PHAZERTM logs and glowing embers exclusive to Continental appliances, provide a unique and realistic
glowing effect that is different in every installation. Take the time to carefully position the glowing embers for a
maximum glowing effect.
Log colours may vary. During the initial use of the appliance, the colours will become more uniform as colour
pigments burn in during the heat activated curing process.
1. Place the front log onto the main burner, pushing
it as close as possible to the burner ports without
blocking/covering them. The left and right spacing
between the log ends and the burner ports should be
equal.
YOU MAY FIND IT EASIER TO PLACE SOME
CHARCOAL EMBERS BENEATH THE FRONT LOG
NOW.
2. Place the back log onto the step located at the back
of the combustion chamber. The notch situated at the
lower right of the back log should be centered evenly
above the pilot assembly.
3. While supporting the back log, to prevent it from falling
forward, set the three smaller logs into the pockets and
grooves of the front and back logs, respectively.
4. To remove the logs reverse these instructions.
LEFT LOG CENTER
LOG
RIGHT LOG
FRONT LOG
CHARCOAL EMBERS
REAR LOG
4.5 CHARCOAL EMBERS
Fine dust found in bottom of bag not to be used.
PHAZERTM logs and charcoal embers glow when
exposed to direct flame. Use only certified PHAZERTM
logs and charcoal embers available from your Conti-
nental / Wolf Steel Ltd. dealer.
Randomly place the embers beneath the front log, covering all of the burner area beneath the hollowed out
section of the log. Place the remaining embers along the front. Keep ember dust away from burner ports to
avoid plugging them.
NOTE: KEEP EMBER DUST AWAY FROM BURNER
PORTS TO AVOID PLUGGING THEM. USE ONLY
CERTIFIED PHAZERTM LOGS AND CHARCOAL
EMBERS AVAILABLE FROM YOUR CONTINENTAL /
WOLF STEEL LTD.
fire-parts.com

W415-1363 / B / 08.01.18
13
EN
97.1A
Remove the backing of the logo supplied and place on the glass viewing
door, as indicated. ½"(12.7mm)
LOGO
½"(12.7mm)
The insert can be equipped with a flashing kit to close off most appliance openings. Mount the flashing
inside the unit's outer shell using 4 securing screws. The flashing and trim are available in many finishes
to accent any room decor. Objects placed in front of the appliance should be kept a minimum of 48"
(1219mm) away from the front face.
NOTE: IF DESIRED, THE ON/OFF SWITCH CAN BE MOUNTED ON THE BOTTOM LEFT SIDE OF THE
APPLIANCE. SEE "OPTIONAL ON/OFF SWITCH LOCATION" ABOVE.
TRIM
FLASHING
ON/OFF SWITCH
OPTIONAL ON/OFF
SWITCH LOCATION
LEVELING
SCREW
VARIABLE SPEED SWITCH GAS KNOB
PIEZO
IGNITOR
FLAME
ADJUSTMENT
KNOB
SECURING SCREWS
SECURING SCREWS
4.6 FLASHING KIT
UPPER LOUVRE
LOUVRE CLIP
4.7 FLUSH LOUVRE KIT, GI-1L (USED ONLY WITH S3600SB)
UPPER LOUVRES
Insert the back edge of the upper louvre into the
upper louvre clips, as shown.
LOWER LOUVRES
Secure the lower louvre assembly to the insert,
using the 4 screws supplied, as shown.
SIDE VIEW
4.8 LOGO PLACEMENT
fire-parts.com

W415-1363 / B / 08.01.18
14
EN
5.0 OPERATION
When lit for the first time, the appliance will emit an odor for a few hours. This is a normal temporary condition
caused by the “burn-in” of paints and lubricants used in the manufacturing process and will not occur again.
A
fter extended periods of non-operation such as following a vacation or a warm weather season, the appliance
may emit a slight odor for a few hours. This is caused by dust particles in the heat exchanger burning off. In
both cases, sufficiently ventilate the area.
FOR YOUR SAFETY READ BEFORE LIGHTING:
• This appliance is equipped with a pilot which must be lit by hand while following these instructions exactly.
• Before operating smell all around the appliance area for gas and next to the floor because some gas is
heavier than air and will settle on the floor.
• Use only your hand to turn the gas control knob. Never use tools. If the knob will not turn by hand, do not
try to repair it. Call a qualified service technician. Force or attempted repair may result in a fire or
explosion.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician
to inspect the appliance and replace any part of the control system and any gas control which has been
under water. WHAT TO DO IF YOU SMELL GAS:
• Do not use a mobile or land phone.
• If you cannot reach your gas supplier, call the fire
department.
• Do not try to light any appliance.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• Turn off all gas to the appliance.
LIGHTING INSTRUCTIONS:
A. Stop! Read the above safety information on this label.
B. Turn the gas knob clockwise to off.
C. Wait five (5) minutes to clear out any gas. If you smell gas including near the floor, STOP! Follow “B” in the
above safety information on this label. If you don’t smell gas go to the next step.
D. If the appliance is equipped with flame adjustment valve turn clockwise to off.
E. Find pilot located in front of back log.
F. Turn gas knob counter-clockwise to pilot.
G. Depress and hold gas knob while lighting the pilot with the push button igniter. Keep knob fully depressed
for one minute, then release. If pilot does not continue to burn repeat steps 3 through 7.
H. With pilot lit, turn gas knob counter-clockwise to on.
I. If equipped with flame adjustment valve, push and turn knob to high.
J. If equipped with remote on-off switch, main burner may not come on when you turn the valve to on or high.
Remote switch must be in the on position to ignite burner.
A. Push in gas control knob slightly and turn clockwise to off. DO NOT FORCE.
TO TURN OFF GAS:
47.9
There is a thermally activated switch, attached to the back of the appliance and extending up into the dilution draft
hood, which senses the change in temperature and shuts down the gas valve in the event of a severe downdraft
of air or a blocked or disconnected vent.
It acts as a safety shut-off to prevent a build up of carbon monoxide or an explosion of unburnt gases during
start up. If the flue is blocked or has no "draw", the spill switch will automatically shut off the supply of gas within
about 5-10 minutes.
TAMPERING WITH THE SWITCH CAN RESULT IN CARBON MONOXIDE (CO) POISONING AND POSSIBLE
DEATH. A CHECK FOR CORRECT VENTING ACTION MUST BE MADE BEFORE THE INSTALLED INSERT
IS LEFT WITH THE CUSTOMER.
fire-parts.com

W415-1363 / B / 08.01.18
15
EN
6.0 ADJUSTMENTS
6.1 PILOT BURNER ADJUSTMENT
This appliance has an air shutter that has been factory set open according
to the chart below:
Regardless of venturi orientation, closing the air shutter will cause a more
yellow flame, but can lead to carbonization. Opening the air shutter will
cause a more blue flame, but can cause flame lifting from the burner ports.
The flame may not appear yellow immediately; allow 15 to 30 minutes for
the final flame colour to be established.
AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED
INSTALLER!
AIR
SHUTTER
OPENING
VENTURI
BURNER
ORIFICE
49.1
PILOT SCREW
1. Remove the pilot adjustment cap.
2. Adjust the pilot screw to provide properly sized flame.
3. Replace the adjustment cap.
VENTURI ADJUSTMENT CHART
FUEL CBI360
NG 1/16 (2mm)
LP 3/8 (10mm)
Test after installing the appliance into a vented non-combustible fireplace in the following manner:
1. Close all doors and windows in the room; start exhaust fans in the home; turn the appliance blower off.
2. Set controls to "high" and light the appliance.
3. Wait 5 minutes. Light a match and hold it to the spill tube opening.
4. Venting action is satisfactory if smoke is drawn into the spill tube. Venting action is unsatisfactory if the flame
and smoke are not drawn into the tube.
5. Ifventingactionisunsatisfactory,turn the applianceoff,wait 10 minutesand try again.If the smokeor flame is
still not drawn into the spill tube, turn the appliance off and check for vent blockage or restriction. If necessary,
consult with a qualified air quality specialist.
PILOT BURNER
THERMOPILE
ELECTRODE
6.2 VENTURI ADJUSTMENT
fire-parts.com

W415-1363 / B / 08.01.18
16
EN
It’s important to periodically perform a visual check of the pilot and
burner flames. Compare them to the illustrations provided. If any flame
appears abnormal call a service person. 3/8” - 1/2”
(9.5mm - 12.7mm)
6.3 FLAME CHARACTERISTICS
6.4 BLOWER REPLACEMENT
This appliance comes standard with a blower, a heat sensor, variable on/off speed control and a power cord.
Because the blower is thermally activated, when turned on, it will automatically start approximately 15 minutes
after lighting the appliance and will run for approximately 30 minutes after the appliance has been turned off.
Use of the fan increases the output of heat. Air, drawn in through the lower louvre access door, is driven up the
back of the firebox, and exhausted as hot air between the upper louvres.
!
WARNING
RISK OF FIRE AND ELECTRICAL SHOCK.
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THIS APPLIANCE.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS
COMPONENTS, VENTING COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL
VOID THE WARRANTY AND CERTIFICATION.
ENSURE THAT THE FAN’S POWER CORD IS NOT IN CONTACT WITH ANY SURFACE OF THE
APPLIANCE TO PREVENT ELECTRICAL SHOCK OR FIRE DAMAGE. DO NOT RUN THE POWER
CORD BENEATH THE APPLIANCE.
THE WIRE HARNESS PROVIDED IN THE BLOWER KIT IS A UNIVERSAL HARNESS. WHEN
INSTALLED, ENSURE THAT ANY EXCESS WIRE IS CONTAINED, PREVENTING IT FROM MAKING
CONTACT WITH MOVING OR HOT OBJECTS. 51.5
G
V
BHEAT
VARIABLE SPEED SWITCH FAN
SENSOR
1. Turn off the gas and electric power to the appliance.
2. Remove the safety screen and upper glass bracket. Loosen the lower glass bracket and remove the glass.
3. Remove the logs, refer to " LOG PLACEMENT" section for detailed instructions.
8 SCREWS
ACCESS DOOR
BLOWER
DUCT
4. Remove the burner assembly.
5. Remove the eight screws holding the access
door in place on the control assembly (located
at the back of the burner support).
6. Remove the four screws holding the blower
duct and slide it forward from beneath the
burner support.
7. Disconnect the electrical connectors at the
blower.
8. Remove the blower.
9. To reinstall the blower reverse these steps.
PILOT BURNER
THERMOPILE
ELECTRODE
fire-parts.com

!
WARNING
THE FIREBOX BECOMES VERY HOT DURING OPERATION. LET THE APPLIANCE COOL
COMPLETELY OR WEAR HEAT RESISTANT GLOVES BEFORE CONDUCTING SERVICE.
NEVER VACUUM HOT EMBERS.
DO NOT PAINT THE PILOT ASSEMBLY.
• This appliance will require maintenance which should be planned on an annual basis.
• Service should include cleaning, battery replacement, venting inspection and inspection of the burner,
media and firebox. Refer to the door removal section and remove the door as instructed.
• Carefully remove media if necessary (logs, glass, brick panels etc).
• Using a vacuum with a soft brush attachment, gently remove any dirt, debris or carbon build up from the
logs, firebox and burner. For glass media, follow the installation instructions for pre-cleaning.
• Also gently remove any build-up on the pilot assembly including, if equipped; thermopile, thermocouple,
flame sensor and igniter. NOTE: Clean flame sensor using a fine emery cloth or a synthetic scrub pad
(such as Scotch-Brite™) to remove any oxides. Clean the pilot assembly using a vacuum with a soft
brush attachment. It is important that the pilot assembly is not painted.
W415-1363 / B / 08.01.18
17
EN
7.0 MAINTENANCE
This appliance and its venting system should be inspected before use and at least annually by a qualified
service person. The following suggested checks should be performed by a qualified technician. The
appliance area must be kept clear and free of combustible materials, gasoline or other flammable vapors and
liquids. The flow of combustion and ventilation air must not be obstructed.
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper
and dangerous operation. Verify proper operation after servicing.
A. In order to properly clean the burner and pilot assembly, remove the logs, rocks and/or glass to
expose both assemblies.
B. Keep the control compartment, media, burner, air shutter opening and the area surrounding the logs
clean by vacuuming or brushing, at least once a year.
C. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning
or are not burning properly.
D. Check to see that the pilot flame is large enough to engulf the flame sensor and/or thermocouple /
thermopile as well as reaches the burner.
E. Replace the cleaned logs, rocks or glass. Failure to properly position the media may cause carbon
which can be distributed inside of firebox and on exterior surfaces surrounding vent termination.
F. Check to see that the main burner ignites completely on all openings when turned on. A 5 to 10
second total light-up period is satisfactory. Service as required.
G. Check that the gasketing on the sides, top and bottom of the door is not broken or missing. Replace
if necessary.
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE.
APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED.
DO NOT USE ABRASIVE CLEANERS.
DO NOT PAINT THE PILOT ASSEMBLY.
MAINTENANCE
MAINTENANCE
MAINTENANCE
!
WARNING
7.1 ANNUAL MAINTENANCE
H. Cleaning the safety barrier may be necessary due to excessive lint / dust from carpeting, pets, etc. Simply
vacuum using the brush attachment.
fire-parts.com

37.1E
• Inspect all accessible gaskets and replace as required.
• Access the blower, if equipped and clean using a soft brush and vacuum.
• Re-assemble the various components in reverse order.
• Inspect the relief system. The appliance relieves through the main glass door or through the flaps on the
firebox top. Ensure they open freely, and close sealed.
• Check the gas control valve pilot and Hi / Lo knobs move freely (if equipped) – replace if any stiffness in
movement is experienced.
• Check for gas leaks on all gas connections up and downstream from the gas valve including the pilot
tube connections.
W415-1363 / B / 08.01.18
18
EN
7.2 CARE OF GLASS
5.1A
DO NOT CLEAN GLASS WHEN HOT! DO NOT USE
ABRASIVE CLEANERS TO CLEAN GLASS.
Buff lightly with a clean dry soft cloth. Clean both sides
of the glass after the first 10 hours of operation with a
recommended fireplace glass cleaner. Do not use an
ammonia-based fireplace glass cleaner. Thereafter clean
as required. If the glass is not kept clean permanent
discoloration and / or blemishes may result.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
!
WARNING
7.3 DOOR GLASS REPLACEMENT
5.5A
This appliance is factory equipped with 4mm tempered glass. Use only replacement parts available from
your appliance manufacturer. DO NOT SUBSTITUTE MATERIALS.
!
WARNING
DO NOT USE SUBSTITUTE MATERIALS.
GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.
CARE MUST BE TAKEN WHEN REMOVING AND DISPOSING OF ANY BROKEN DOOR GLASS OR
DAMAGED COMPONENTS. BE SURE TO VACUUM UP ANY BROKEN GLASS FROM INSIDE THE
APPLIANCE BEFORE OPERATION.
DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS
REMOVED, CRACKED, BROKEN OR SCRATCHED.
56.1C
Replacement glass/frame assembly shall be replaced as a complete unit as supplied by the
appliance manufacturer.
If equipped, inspect the relief system. The appliance relieves through the main glass door or through the flaps on the
firebox top. Ensure they open freely and close sealed.
fire-parts.com

W415-1363 / B / 08.01.18
19
EN
41.1C
Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts
can be ordered through your Authorized dealer / distributor.
FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE
REQUIRED TO HONOUR THE CLAIM.
When ordering replacement parts always give the following information:
• Model & Serial Number of appliance
• Installation date of appliance
• Part number
• Description of part
• Finish
PARTS, PART NUMBERS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.
PARTS IDENTIFIED AS STOCKED WILL BE DELIVERED WITHIN 2 TO 5 BUSINESS DAYS FOR MOST
DELIVERY DESTINATIONS.
PARTS NOT IDENTIFIED AS STOCKED WILL BE DELIVERED WITHIN A 2 TO 4 WEEK PERIOD, FOR
MOST CASES.
PARTS IDENTIFIED AS ‘SO’ ARE SPECIAL ORDER AND CAN TAKE UP TO 90 DAYS FOR DELIVERY.
FAILURE TO POSITION THE PARTS IN ACCORDANCE WITH THIS MANUAL OR FAILURE TO USE
ONLY PARTS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
!
WARNING
8.0 REPLACEMENTS
fire-parts.com

W415-1363 / B / 08.01.18
20
EN
ITEMS MAY NOTAPPEAR EXACTLYAS ILLUSTRATED
08.05.14
REF. NO. PART NUMBER DESCRIPTION 1W135-0016 SMALL LEFT LOG 2W135-0007 REAR LOG 3 4 5 6 7
REF. NO. PART NUMBER DESCRIPTION
GI3600 OVERVIEW
8 9 10
GL-610
W135-0015 SMALL RIGHT LOG 18
19 20 21 22 23 24 25 17
W135-0052 GL-610 LOG SET
DECORATIVE FRONT
W565-0180-SER SAFETY SCREEN
2
7
26
W080-0079-SER LOWER GLASS BRACKET
W080-0062-SER UPPER GLASS BRACKET
W660-0019 VARIABLE SPEED SWITCH W357-0001 PUSH BUTTON IGNITER W010-0364-SER BURNER ASSEMBLY
W135-0009 CENTER LOG
4
FRONT LOG
5
W550-0001 CHARCOAL EMBERS
6
8
W715-1007
911
12 13 14 15 16 17 18 19 20
21
23
24
25
26
27
28 29 30 31
11 12 13 14 15
27 28 29 30
9
10
SAFETY SCREEN
22
3
1
31
W456-0042 BURNER ORIFICE #42
W660-0009 ON/OFF SWITCH W660-0006 SPILL SWITCH W080-0309 SPILL SWITCH BRACKET W361-0037 BLOWER INSULATION W062-0005 BLOWER ASSEMBLY
W100-0057 PILOTASSEMBLY W080-0383 PILOT BRACKET W725-0036 HI-LO VALVE
GI-63K 6" FLASHING
16
W280-0267 SAFETY SCREEN FRAME W432-0038 3/8" MANIFOLD W445-0038
W385-2010 NAPOLEON LOGO
W010-3383 DOOR FRAME
3/8" CONNECTOR
W245-0006 BURNER EXTENSION (X2)
W010-3474 SAFETY SCREEN
9.0 OVERVIEW
W385-0430 CONTINENTAL LOGO
fire-parts.com
