ICFDV Fireplace Insert
High Elevations ........................................................5
Gas Pressures .........................................................5
Gas Specications ...................................................5
Before You Start .......................................................7
Insert Applications ....................................................7
Clearances ...............................................................7
Insert Clearances .....................................................8
Mantel Clearances ...................................................8
Hearth Requirements ...............................................8
Insert Placement ......................................................9
Zero-Clearance Fireplace Requirements .................9
Installation Precautions ..........................................10
Venting Requirements ............................................10
Altitude Considerations ..........................................11
Venting Congurations ...........................................12
Intake/Exhaust Manifold Removal & Vent ..................
Installation ..............................................................13
Check Gas Type.....................................................14
Install Gas to Insert Location .................................14
Installation Items Needed ......................................14
Electrical Wiring .....................................................17
For Your Safety Read Before Lighting ...................24
Operating Instructions ............................................25
To Turn Off Gas ......................................................25
Touch Screen Remote Control Operation ..............29
Venting System ......................................................38
Cleaning Glass .......................................................38
Pilot and Burner Flames ........................................38
Firebox Cleaning ....................................................39
Yearly Service Procedure .......................................40
Optional Accessories .............................................44
20304164
ICFDV Fireplace Insert
3
4. Never install the replace
• in a recreational vehicle
• where curtains, furniture, clothing, or other am-
mable objects are less than 36" from the front, top,
or sides of the replace
• in high trafc areas
• in windy or drafty areas
5. This replace reaches high temperatures. Keep children
and adults away from hot surfaces to avoid burns or
clothing ignition. Fireplace will remain hot for a time after
shutdown. Allow surfaces to cool before touching.
6. Carefully supervise young children when they are in
the room with replace.
7. Do not modify replace under any circumstances. Any
parts removed for servicing must be replaced prior to
operating replace.
8. Turn replace off and let cool before servicing, install-
ing, or repairing. Only a qualied service person should
install, service, or repair the replace. Have burner
system inspected annually by a qualified service
person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent cleaning
may be needed due to excessive lint and dust. Turn off
the gas valve and pilot light before cleaning replace.
10. Have venting system inspected annually by a qualied
service person. If needed, have venting system cleaned
or repaired. Refer to Cleaning and Maintenance, Page
38.
11. Keep the area around your replace clear of combus-
tible materials, gasoline, and other ammable vapor and
liquids. Do not run replace where these are used or
stored. Do not place items such as clothing or decora-
tions on or around replace.
12. Do not use this replace to cook food or burn paper or
other objects.
13. Never place anything on top of replace.
This replace is a vented product. This replace must be
properly installed by a qualied service person. The glass
door must be properly seated and sealed. If this unit is not
properly installed by a qualied service person with glass
door properly seated and sealed, combustion leakage can
occur.
Early signs of carbon
monoxide poisoning are similar to the u with headaches,
dizziness and/or nausea. If you have these signs, the re-
place may not have been installed properly. Get fresh air
at once! Have the replace inspected and serviced by a
qualied service person. Some people are more affected
by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia,
those under the inuence of alcohol, and those at high
altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor added
to these gases can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings. Keep
this manual for reference. It is your guide to safe and proper
operation of this replace.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certied
kit is used.
2. For propane/LP replace, do not place propane/LP
supply tank(s) inside any structure. Locate propane/LP
supply tank(s) outdoors. To prevent performance prob-
lems, do not use propane/LP fuel tank of less than 100
lbs. capacity.
3. If you smell gas
• shut off gas supply.
• do not try to light any appliance.
• do not touch any electrical switch; do not use any
phone in your building .
• immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
Continued on page 4
Please leave these instructions with the appliance.
Please retain these instructions for future reference
.
420304164
ICFDV Fireplace Insert
Continued from page 3
14. Do not use any solid fuels (wood, coal, paper, card-
board, etc.) in this replace. Use only the gas type
indicated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22.1.
16. Do not obstruct the ow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and
proper operation.
17. Do not use replace if any part has been exposed to
or has been under water. Immediately call a qualied
service technician to inspect the appliance and replace
any part of the control system and any gas control
which as been submerged in water.
18. Do not operate replace if any log is broken.
19. Do not use a blower insert, heat exchanger insert, or
any other accessory not approved for use with this
replace.
20. Do not operate the replace with glass door removed,
cracked, or broken.
Direct Vent type appliances draw all combustion air from
outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to
comply with the established standards for DIRECT VENT
GAS FIREPLACE HEATERS in the USA and Canada as
follows:
TESTED TO:
ANSI Z21.88-2009/CSA 2.33-2009 STANDARDS
A manufactured home (USA only) or mobile home OEM
installation must conform with the Manufactured Home
Construction and Safety Standard,
or when such a standard is not applicable, the
, or
.
WARNING
!
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
It is normal for fireplaces fabricated of steel
to give off some expansion and/or contraction
noises during the start up or cool down cycle.
Similar noises are found with your furnace heat
exchanger or car engine.
It is not unusual for gas replaces to give off some
odor the rst time it is burned. This is due to the
manufacturing process.
It is recommended that you burn your replace
for at least ten (10) hours the rst time you use it.
Place the fan switch in the “OFF” position during
this time.
20304164
ICFDV Fireplace Insert
5
• This appliance has been certied for use
with either natural or propane gas. Refer
to the appropriate data plates.
• This appliance is not for use with solid
fuels.
• The appliance is approved for bedroom or
bedsitting room installations.
• The appliance must be installed in accor-
dance with local codes if any. If none exist
use the current installation code. ANSI
Z223.1/NFPA 54 in the USA, CSA B149
in Canada.
• This appliance is mobile home appr-
oved.
• The appliance must be properly connected
to a venting system.
• The appliance is not approved for closet
or recessed installations.
Input ratings are shown in BTU per hour and are certied
without deration for elevations up to 4,500 feet (1,370 m)
above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installation must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having juris-
diction.
In Canada, please consult provincial and/or local authori-
ties having jurisdiction for installation at elevations above
4,500 feet (1,370 m).
Natural Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
ICFDV30LNTSC Nat. 31,000 22,500 #36
FP2946
ICFDV insert controls
Figure 1 -
ICFDV Series Fireplace Insert Controls
Control Board
AC Module
Gas
Valve
Command
Center
FP2946
620304164
ICFDV Fireplace Insert
2256QE” (560 mm)
1156QE”
(303 mm)
1056”
(257 mm)
26QE”
(56 mm)
556QE”
(144 mm)
1656"
(410 mm)
246QE” (621 mm)
2756” (689 mm) 256M”
(57 mm)
2156QE"
(535 mm)
4164
ICFDV insert dims
Figure 2
ICFDV Fireplace Insert Dimensions
20304164
ICFDV Fireplace Insert
7
Read this homeowner manual thoroughly and follow all instructions carefully. Inspect all con-
tents for shipping damage and immediately inform your dealer if any damage is found. Do
not install any unit with damaged, incomplete, or substitute parts. Check your packing list to
verify that all listed parts have been received.
The following factors should be taken into consideration:
• This insert should have sufcient access for its safe operation and maintenance.
• The ow of combustion and ventilation air must not be obstructed.
• Minimum clearances to combustibles, such as mantels, must be maintained. Refer to Pages
8 and 9, Figures 3 and 4.
• Never obstruct the front opening of the insert.
• Do not install in the vicinity where gasoline or other ammable liquids may be stored.
• These units can be installed in a bedroom. Refer to National Fuel Gas Code ANSI Z233.1/
NFPA 54 (current edition), the Uniform Mechanical Code (current edition), and Local Build-
ing Codes for specic installation requirements.
.
Before installing the gas replace insert, consider the functioning needs of the replace. Con-
rm the size of the replace cavity, the design of the chimney, and the availability of the gas
supply and electricity for the insert fan.
When the unit is installed into a wood burning replace, the minimum distance the mantel
can be placed above the replace is governed by local building codes applicable to wood
burning replaces. Consult local authorities having jurisdiction for these clearances. The
underside of the mantel will become warm. Use only nishes which are heat resistant and
do not discolor.
The dimensions shown on Pages 8 and 9, Figures 3 and 4, are mini-
mum clearances to maintain when installing this heater. Follow these
instructions carefully to ensure safe installation. Failure to follow
instructions exactly can create a re hazard.
820304164
ICFDV Fireplace Insert
12” (305 mm)
Maximum Depth
12”
(305 mm)
Side Wall
Combustible Mantel
Top Facing
Side Facing
3/4” (19 mm)
Maximum Depth
Combustible Facing
42” (1067 mm)
Minimum
10” (254 mm)
Minimum
12” (305 mm)
Minimum
FP1947
insert clearances
9/08
9”
(228 mm)
No combustibles (ie: drapes, doors) may be within, or swing within 36" of the front of the insert.
The insert must be installed on a noncombustible hearth extending a minimum of 12" from the
replace opening (local codes may require a larger hearth). The hearth must also extend to both
sides of the face.
FP2959
Figure 3
Mantel Clearances
Side clearance
to combustibles is 10"
(254 mm) from opening
whether it is side wall or
mantel legs.
20304164
ICFDV Fireplace Insert
9
• The insert must be placed within a code-conforming
masonry replace or a tested and listed zero-clear-
ance (UL-127, solid fuel) replace. Repair any replace
damage prior to installation.
• Because the insert uses a circulation blower, clean the
replace, smoke shelf and chimney before installing.
• This heater may be placed in a bedroom. Please be
aware of the large amount of heat this appliance pro-
duces when determining a location.
Figure 4 -
Minimum Openings
fp2945
FIREBOX DIMS
23”
(584 mm)
21”
(533 mm)
17”
(432 mm)
30”
(762 mm)
• The damper and grate must be removed.
•
The smoke shelf, internal bafes, screen, refractory and
metal or glass doors may be removed (if applicable)
.
• Do not remove or alter the insulation or any structured
rigid frame members (metal sides, oor, door frames,
face of the replace, etc.).
Please review the following carefully.
It is normal for inserts fabricated of steel to give off some
expansion and/or contraction noises during the start up or
cool down cycle. Similar noises are found with your furnace
heat exchanger or car engine.
It is not unusual for your insert to give off some odor the
rst time it is burned. This is due to the curing of the paint
and any undetected oil from the manufacturing process.
Burn your insert for at least six (6) hours on "HIGH" the
rst time you use it. Place the fan in the "OFF" position
during this time.
&P
ZEROCLEARANCEREQUIREMENTS
Insulation
Damper
Smoke
Shelf
Masonry Lining or Refractory
Screen
Metal or Glass Doors
Internal
Bafes
Masonry Lining or Refractory
Grate
Figure 5 -
Metal Fireplace Zero-Clearance Requirements
10 20304164
ICFDV Fireplace Insert
Consult local building codes before beginning the installa-
tion. The installer must make sure to select the proper vent
system for installation. Before installing vent kit, the installer
must read this insert manual and vent kit instructions.
Only a qualied installer/service person should install vent-
ing system. The installer must follow these safety rules:
• Wear gloves and safety glasses for protection.
• Use extreme caution when using ladders or when
on rooftops.
• Be aware of electrical wiring locations in walls and
ceiling.
The following actions will void the warranty on your vent-
ing system:
• Installation of any damaged venting component.
• Unauthorized modication of the venting system.
• Installation of any component part not manufactured
or approved by MHSC.
• Installation other than permitted by these instruc-
tions.
• The exhaust vent must reline the entire length of chim-
ney and terminate above chimney top.
• Vent must meet all vent manufacturer's requirements
when installed.
• Make sure you have the following before installing
unit:
• 3" and 3" UL 1777 Listed gas liner for air inlet and
exhaust.
• Vertical Terminations kits:
HEDV32T812, HEDV32T1212, HEDVRT,
A131AK33A

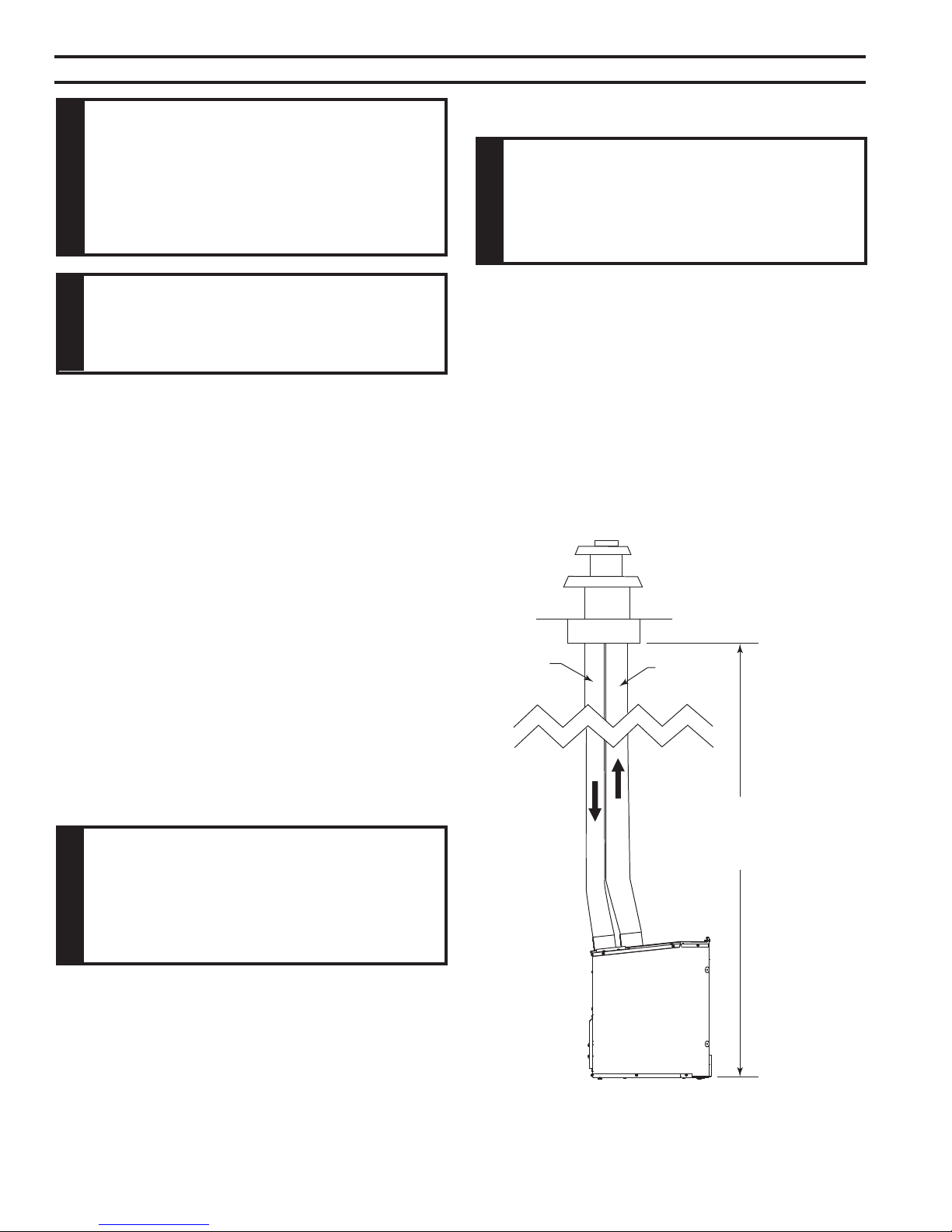

Figure 6 -
Venting Unit
FP2947
vent requirements
Maximum Height 40'
(12.9 m)
Minimum Height 10'
(3 m)
Exhaust
Inlet
FP2947
Figure 6
20304164
ICFDV Fireplace Insert
11
This heater has been tested at altitudes ranging from sea level to 4,500 feet (1,370 m). In this
testing, heater with standard orice burns correctly with just an air shutter adjustment. If you need
to resize orice for use at high altitude, contact your dealer.
High Temp
Silicone
FP2948
exhaust pipe
3" and 3" UL 1777 Gas
Liner
Apply high-temperature silicone to
lines on both ends and secure with
two (2) screws
Termination Kit
(Refer to Page 10)
Figure 7 -
Connecting Vent Pipe to Heater
FP2948
12 20304164
ICFDV Fireplace Insert
FP2949
inlet exhaust reline
Exhaust
Inlet
Recommended block-off
plate (noncombustible
metal). Prevents odors from
chimney entering room.
UL 127 Solid
Fuel Z.C Fire-
box
Figure 8 -
Inlet and Exhaust Reline
You may use either reline conguration with a masonry
or zero-clearance replace.
FP1924
3" (75 mm) Exhaust
UL 1777 Gas Liner 3" (75 mm) Inlet
Termination Kits (Refer to Page 12)
20304164
ICFDV Fireplace Insert
13
FP2979
intake exhaust
The intake/exhaust manifold is shipped attached to insert. It may
be removed to allow tight installation.
1. Unfasten the two (2) machine screws on the face of the unit
and release the plate assembly by sliding the plate back.
2. Attach the exhaust and the intake ex pipes to the collar on
the plates with a hose clamp (not provided) or other approved
methods (check local codes).
3. Re-attach exhaust bafe and manifold assembly in reverse
order of Step 1.
Figure 9
Machine
Screws
Intake Collar
Exhaust/Intake
Slide Plate
Assembly
FP2979
Exhaust Collar
The unit is shipped from the factory as a natural gas unit
with the bafe installed. The bafe should be sufcient for
venting up to 20 feet (6 m) off the top of the unit. An extra
bafe plate is shipped with the unit for installations 20
feet and above. Adjust the plate to the closed position as
desired. Figure 10
FP1961
baffle adjustment
9/08
Loosen Four (4) Screws to Adjust
FP1961
Figure 10 -
Bafe Assembly and Adjustment
14 20304164
ICFDV Fireplace Insert
Use proper gas type for the insert you are installing. If you have conicting gas type, do not
install insert. See dealer where you purchased the insert for proper insert according to your
gas type.
Make sure you have the items listed below before installing appliance.
• External regulator (supplied by installer) • Piping (check local codes) • Test gauge connection*
• Sealant (resistant to propane/LP gas) • Sediment trap (optional but recommended)
• Tee joint • Pipe wrench
• approved exible gas line with gas connector (if allowed by local codes — not provided)
* A CSA design-certied equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test
gauge connection. Purchase the CSA design-certied equipment shutoff valve from your dealer.
For propane/LP connections only, the installer must supply an external regulator. The external regulator will
reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 13 inches of wa-
ter. If you do not reduce incoming gas pressure, burner system regulator damage could occur. Install external
regulator with the vent pointing down as shown in Figure 11. Pointing the vent down protects it from freezing
rain or sleet.
&0
EXTERNALREGULATOR
External
Regula-
tor
Vent
Pointing
Down
100 gal. (min.
Propane/LP
Supply Tank
FP1930
Figure 11 -
External Regulator with Vent Pointing Down
(Propane/LP Only)
20304164
ICFDV Fireplace Insert
15
A listed manual shutoff is factory installed upstream of appliance. Union tee and plugged 1/8"
NPT pressure tapping point should be installed upstream of the appliance. Figure 12
The main gas valve is for turning on or shutting off the gas to the insert.
Check your building codes for any special requirements for
locating equipment shutoff valve to inserts.
Apply pipe joint sealant lightly to threads. This will prevent
excess sealant from going into pipe. Excess sealant in pipe
could result in clogged burner system valves.
We recommend that you install a sediment trap/drip leg in
supply line as shown in Figure 12. Locate sediment trap/drip
leg where it is within reach for cleaning. Install in piping system between fuel supply and burner
system. Locate sediment trap/drip leg where trapped matter is not likely to freeze. A sediment
trap traps moisture and contaminants. This keeps them from going into the burner system
gas controls. If sediment trap/drip leg is not installed or is installed wrong, burner system may
not run properly.
NOTE : The gas line connection may be made using 1/2" rigid tubing or an approved
ex connector. Since some municipalities have additional local codes it is always best
to consult your local authorities and the current edition of the National Fuel Gas Code
ANSI.Z223.1, NFPA54. In Canada CSA-B149 (1 or 2) Installation Code.
3" Minimum
FP1931
gas connection
9/08
Approved Flexible
Gas Line Supplied
with Appliance
Tee Joint
Pipe Nipple
Cap
From Gas Meter
(4.5" w.c. to 10.5" w.c. Pressure)
From External Regulator
(11" w.c. to 13" w.c. Pressure)
Figure 12 -
Gas Connection
Figure 12
16 20304164
ICFDV Fireplace Insert
Figure 13 -
Signature Command Valve
FP1909a
signature command valve
alternate view
8/08
Pressure Inlet
Pilot Adjust-
ment Screw
Pressure Outlet
1. Check gas type. The gas supply must be the same as
stated on the appliance’s rating decal. If the gas supply
is different from the replace, Do not install the
appliance. Contact your dealer immediately.
2. To ease installation, a 24" (610 mm) ex line with manual
shut-off valve has been provided with on this appliance.
Install and attach 1/2" gas line onto shut-off valve.
3. After completing gas line connection, purge air from
gas line and test all gas joints from the gas meter to
the replace for leaks. Use a solution of 50/50 water
and soap solution or a gas sniffer.
4. To check gas pressures at valve, turn captured screw
counter clockwise 2 or 3 turns and then place tubing
to pressure gauge over test point. Turn unit to high.
Figure 13. After taking pressure reading, be sure and
turn captured screw clockwise rmly to reseal. Do not
over torque. Check test points for gas leaks.
20304164
ICFDV Fireplace Insert
17
A/C Module
Control Board
RF Receiver
ON/OFF Button
Pilot
Black / Thermopile
Red / Thermopile
Sensor
Ignitor / Sparker
Conversion
NG/LP
Plug-in Connector
Control Board to Command Center
OFF/LO LED ON/HI
Master Switch
Command Center
Plug-in Connector
Stepper Motor to
Control Board
DC Power/Green
Ground
Plug-in Connector
Control Board to
Solenoid
Gas In
Gas Out
Pilot Gas Tubing
Valve
A/C Module
FP2962
SCS wiring diagram
To Outlet
Optional Aux.
300 Watts
Max
300 Watts
Max
300 Watts
This insert will work without any electrical supply.
Electricity is only needed to operate blower.
Verify proper operation after servicing.
National Electrical Code ANSI/NFPA 70 (latest
edition)Canadian Electrical Code, CSA C22.1
Figure 14 -
Signature Command Wiring Diagram
Wall switch
wires must be con-
nected together.
18 20304164
ICFDV Fireplace Insert
Fp2961
ember material area
- This unit is supplied with six (6) ceramic ber logs. Do not handle these logs with
your bare hands. After handling
the logs, wash your hands gently with soap and water to remove any traces of bers.
1. Break up rock wool (ember material) into small uffy pieces. Place evenly as shown. Do not exceed
1" layer covering all round burner ports. Refer to Figures 15 and 16.
2. Apply a light layer of embers to the ports. Excessive amount of embers will affect the ame
and the ame appearance.
Ember Material Area
FP2961
Figure 15 -
Ember Material Area
LG1116
ICFDV ember material
Ember Material
LG1116
Figure 16 -
Place Ember Material
20304164
ICFDV Fireplace Insert
19
LG1117
ICFDV logs 1 2
Log #2
Log #1
LG1117
Figure 17
3. Align the two pin holes on Log #1
onto the burner. Figure 17
4. Place log #2 by aligning the holes to
the burner pin. Figure 17
LG1118
ICFDV log 3
Log #3
LG1118
Figure 18
5. Position log #3 so that it is resting
on log #2. Figure 18
LG1119
ICFDV log 4
Log #4
LG1119
Figure 19
6. Position log #4 so that the bottom
right end is resting on the pad on
log #3 and the left end is resting on
the at spot on log #2. Figure 19
20 20304164
ICFDV Fireplace Insert
LG1120
ICFDV log 5
7. Align log #5 hole to the burner pin and
rest on log #2. Figure 20
Log #5
LG1120
Figure 20
LG1121
ICFDV log 6
Log #6
LG1121
8. Align the cutout on the bottom
of log #6 and t it into log #5.
Figure 21
Figure 21
This manual suits for next models
1
Table of contents
Other Monessen Hearth Indoor Fireplace manuals
Monessen Hearth
Monessen Hearth AVFLST42NTSC Manual
Monessen Hearth
Monessen Hearth MCUF36 User manual
Monessen Hearth
Monessen Hearth BUF32A User manual
Monessen Hearth
Monessen Hearth LO-Rider Designer Vent Free Fireboxes LSTF36 User manual
Monessen Hearth
Monessen Hearth 624BVST Installation instructions
Monessen Hearth
Monessen Hearth SDV500 User manual
Monessen Hearth
Monessen Hearth ODWR400 Mounting instructions
Monessen Hearth
Monessen Hearth DZS36NMAS User manual
Monessen Hearth
Monessen Hearth LO-Rider Designer Vent Free Fireboxes LSTF36 Installation instructions
Monessen Hearth
Monessen Hearth Vent-Free Fireplace Systems DBX24C* User manual
Monessen Hearth
Monessen Hearth HO24-R User manual
Monessen Hearth
Monessen Hearth Direct Vent Gas Insert IDV380NVC User manual
Monessen Hearth
Monessen Hearth CWC400 Mounting instructions
Monessen Hearth
Monessen Hearth Radiant Wood Burning HWB800HB User manual
Monessen Hearth
Monessen Hearth Mojo MJ27NR User manual
Monessen Hearth
Monessen Hearth B Vent 724BV4536C Installation instructions
Monessen Hearth
Monessen Hearth Direct Vent Gas Fireplace BDV400 User manual
Monessen Hearth
Monessen Hearth AVFL Series Manual
Monessen Hearth
Monessen Hearth MCUF42D-R Magnum Installation instructions
Monessen Hearth
Monessen Hearth NB24 User manual
Popular Indoor Fireplace manuals by other brands
Wildfire
Wildfire F-021 1 Series User instructions
Regency
Regency Horizon HZ54E Owners & installation manual
Dimplex
Dimplex RILEY RLY20-AU manual
Charlton & Jenrick
Charlton & Jenrick iRange i560e instruction manual
Dimplex
Dimplex Revillusion RBF30WC owner's manual
Archgard
Archgard DVR 36-H User's installation, operation and maintenance manual
Duraflame
Duraflame DFI-470-06 operating instructions
Heatilator
Heatilator CL36D owner's manual
Ambifuego
Ambifuego KALIDO 73 Installation, user and servicing instructions
Heatilator
Heatilator CONSTITUTION C-40 owner's manual
Desa
Desa Design Dynamics VTD-18P-PDG OWNER'S OPERATION AND INSTALLATION MANUAL
Napoleon
Napoleon LINEAR PATIOFLAME GPFL48MHP user guide
Kingsman
Kingsman ZDV3318 Series installation instructions
Riello Burners
Riello Burners 40 FS20 Installation, use and maintenance instructions
Solas
Solas Twenty6 FI Installation and operation manual
Jolly Mec
Jolly Mec BRERA Instructions for installation, use and maintenance manual
FireplaceXtrordinair
FireplaceXtrordinair 564 Rectangular Face manual
Mayer Barbecue
Mayer Barbecue ELEGANZA Assembly instructions
