Continental Fireplaces CVF42P User manual

1
W415-0380 / E / 08.31.12
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.29B
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
SAFETY INFORMATION
!WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
- This is an unvented gas-fired heater that
uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion
and ventilation air must be provided. Refer to
section “ COMBUSTION AND VENTILATION AIR
PROVISIONS”.
CERTIFIED FOR THE UNITED STATES USING ANSI METHODS.
$10.00
This appliance may be installed in an aftermarket,
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
WARNING
CVF42P
PROPANE
CVF42N
NATURAL GAS
CERTIFIED UNDERAMERICAN NATIONAL STANDARDS, ANSI Z21.11.2, VOLUME II FOR UNVENTED ROOM HEATERS.
UNVENTED MILLIVOLT
SYSTEM

2
W415-0380 / E / 08.31.12
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.2 GENERAL INSTRUCTIONS 5
2.3 GENERAL INFORMATION 7
2.4 RATING PLATE INFORMATION 8
3.0 INSTALLATION 9
3.1 COMBUSTION AND VENTILATION AIR PROVISIONS 9
3.2 DETERMINING CONFINED OR UNCONFINED SPACE 9
3.3 GAS INSTALLATION 11
3.4 OPTIONAL WALL SWITCH / THERMOSTAT 11
3.5 MOBILE HOME 11

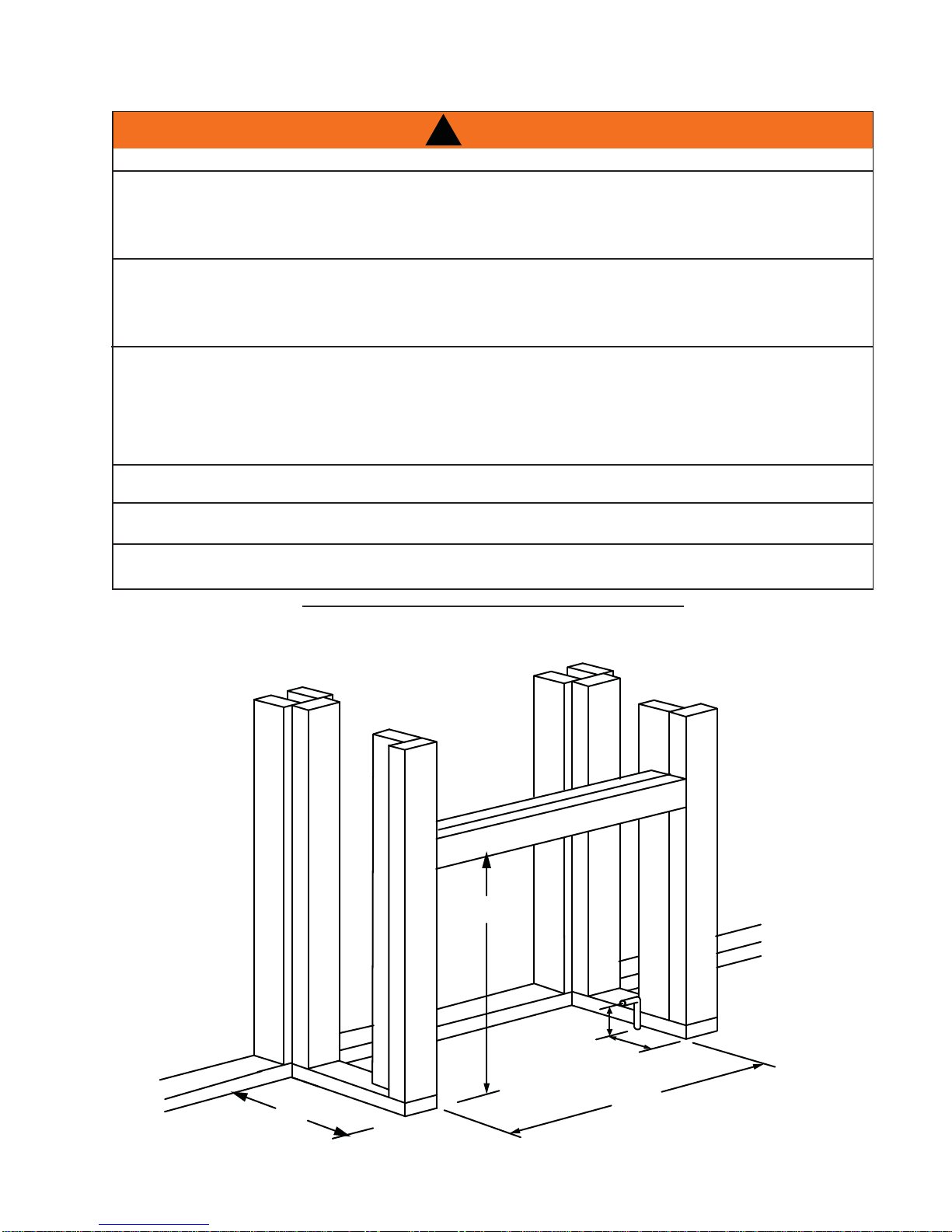

4.0 FRAMING 12
4.1 MINIMUM CLEARANCE TO COMBUSTIBLES 13
4.2 MINIMUM MANTEL CLEARANCES 13
4.3 ALCOVE INSTALLATION 14
4.4 NAILING TAB INSTALLATION 14
5.0 FINISHING 15
5.1 GRATE INSTALLATION 15

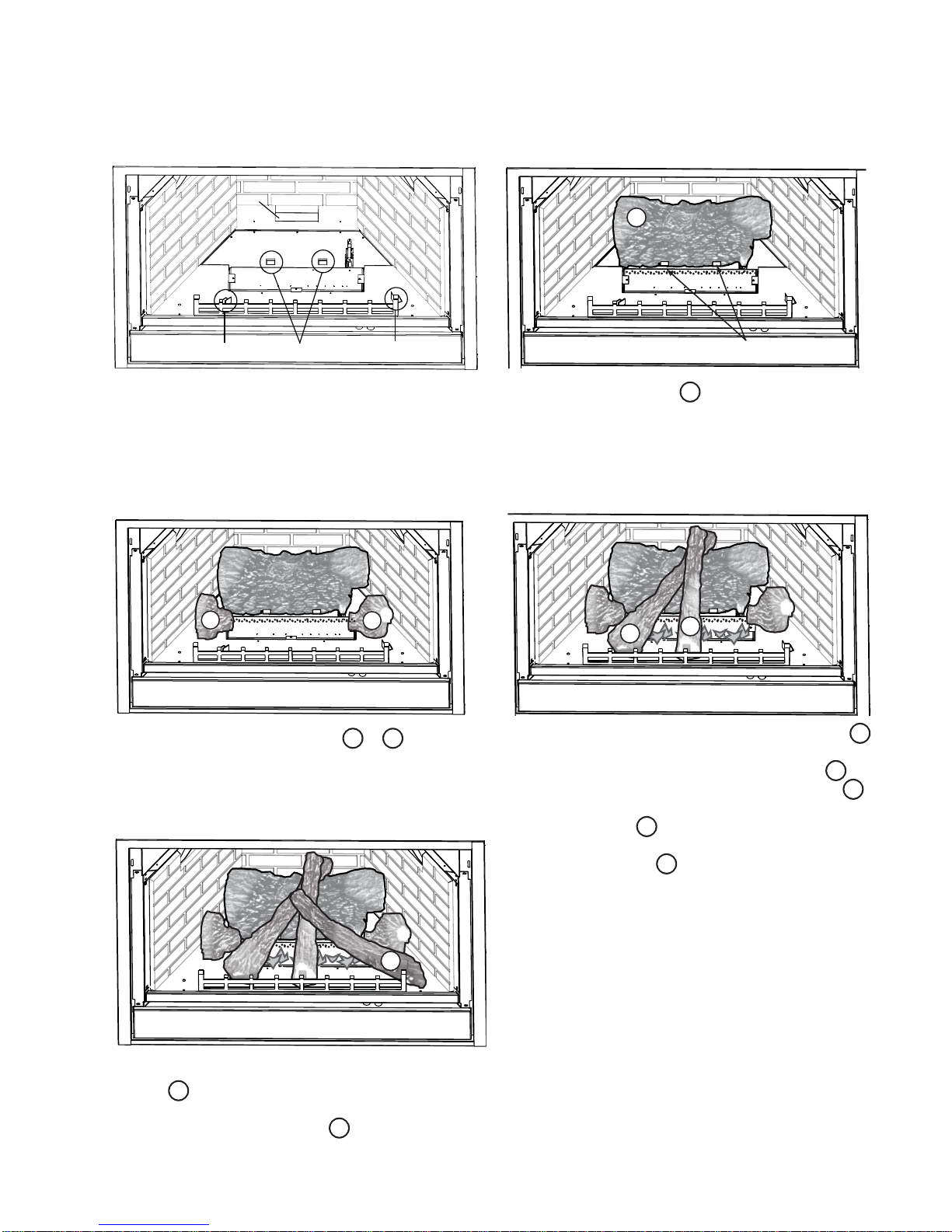

5.2 LOG PLACEMENT 15
5.3 GLOWING EMBERS 17
5.4 CHARCOAL EMBERS 17
5.5 VERMICULITE 17
5.6 CHARCOAL LUMPS 17
5.7 HOOD 17
5.8 L42 LOUVRE INSTALLATION 18
5.9 LOGO PLACEMENT 18
6.0 OPTIONAL BLOWER INSTALLATION 19
7.0 OPERATION 21
8.0 ADJUSTMENT 22
8.1 VENTURI ADJUSTMENT 22
8.2 FLAME CHARACTERISTICS 22
9.0 MAINTENANCE 23
9.1 OXYGEN DEPLETION SENSOR PILOT CLEANING 23
9.2 CARE OF PLATED PARTS 24
10.0 REPLACEMENTS 24
11.0 TROUBLE SHOOTING GUIDE 26
12.0 WARRANTY 29
13.0 SERVICE HISTORY 30
14.0 NOTES 31

3
W415-0380 / E / 08.31.12

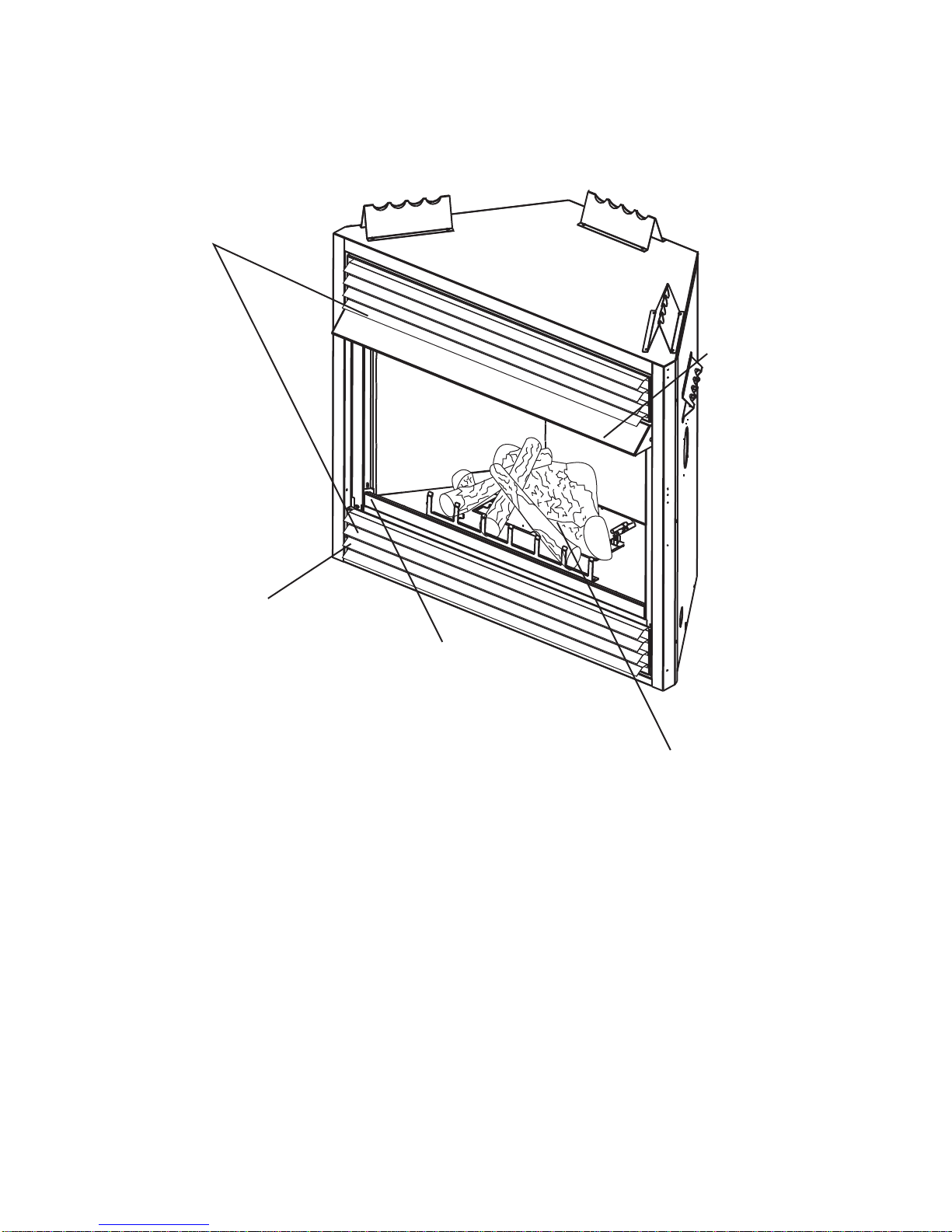

1.0 INSTALLATION OVERVIEW
Louvres, see “L42
LOUVRE INSTALLATION”
section.
Logs, see “LOG PLACEMENT”
section.
Hood, see “HOOD”
section.
Logo, see “LOGO
PLACEMENT” section.
Rating Plate, see
“RATING PLATE
INFORMATION”
section.

4
W415-0380 / E / 08.31.12
3.4B
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS PROHIBITED.
• Under no circumstances should this appliance be modified.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges
may be sharp.
• Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing and
operating the appliance. Never obstruct the front opening of the appliance.
• If the appliance shuts off, do not re-light until you provide fresh air. If appliance keeps shutting off, have it
serviced. Keep burner and control compartment clean.
• Do not burn wood or other materials in this appliance.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is recommended
if there are at risk individuals in the house. To restrict access to an appliance, install an adjustable safety gate
to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
• Ensure you have incorporated adequate safety measures to protect infants/toddlers from touching hot
surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from
hot surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
appliance are kept clean. The appliance should be inspected before use and at least annually by a qualified
service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding
material, etc. The appliance area must be kept clear and free from combustible materials, gasoline and other
flammable vapours and liquids.
• Furniture or other objects must be kept a minimum of 4 feet away from the front of the appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the control system and any gas control which has been
under water.
• Do not allow fans to blow directly into the appliance. Avoid any drafts that alter burner flame patterns.
• Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this appliance.
• Carbon or soot should not occur in a vent free appliance as it can distribute into the living area of your home.
If you notice any signs of carbon or soot, immediately turn off your appliance and arrange to have it serviced
by a qualified technician before operating it again.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all
plastic bags, these are not toys and should be kept away from children and infants.
• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as
well as having a Carbon Monoxide Detector installed in the same area to defend you and your family against
Carbon Monoxide.
• If equipped, the screen must be in place (closed) when the appliance is in operation.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or
damage to decorations, a T.V. or other electronic components.
2.0 INTRODUCTION

5
W415-0380 / E / 08.31.12
2.1 DIMENSIONS
35 ½"
38 ½"
5½"
3"
16 ½"
20" 22"
42" 2¼"
This gas appliance should be installed and serviced by a qualified installer to conform with local codes.
Installation practices vary from region to region and it is important to know the specifics that apply to your
area, for example: in Massachusetts State:
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36“.
• The appliance is not approved for installation in a bedroom or bathroom unless the appliance is a direct
vent sealed combustion product.
• Acarbon monoxide detector is required in all rooms containing gas fired appliances.
• WARNING: This product must be installed by a licensed plumber or gas fitter when installed within the
commonwealth of Massachusetts.
• Un-vented room appliance shall be installed in accordance with 527 CMR 30.00 and 248 CMR 3.00
through 7.00.
• Sellers of un-vented propane or natural gas-fired space / room appliances shall provide to each purchaser
a copy of 527 CMR 30.00 upon the sale of the appliance from http://www.napoleonfireplaces.com/
Webshare/installation_manuals/mass_requirements.pdf
!
WARNING
* CARBON MONOXIDE POISONING MAY LEAD TO DEATH
EARLY SIGNS OF CARBON MONOXIDE POISONING RESEMBLE THE FLU, WITH HEADACHE,
DIZZINESS AND/OR NAUSEA. IF YOU HAVE THESE SIGNS, THE HEATER MAY NOT BE WORKING
PROPERLY. GET FRESH AIR AT ONCE! HAVE HEATER SERVICED.
SOME PEOPLE---PREGNANT WOMEN, PERSONS WITH HEART OR LUNG DISEASE, ANEMIA,
THOSE UNDER THE INFLUENCE OF ALCOHOL, THOSE AT HIGH ALTITUDES--- ARE MORE
AFFECTED BY CARBON MONOXIDE THAN OTHERS.
IT IS RECOMMENDED THAT PERSONS WITH RESPIRATORY PROBLEMS NOT USE VENT FREE
APPLIANCES
THE APPLIANCE IS ONLY FOR USE WITH THE TYPE OF GAS INDICATED ON THE RATING PLATE.
THIS APPLIANCE IS NOT CONVERTIBLE FOR USE WITH OTHER GASES.
OBJECTS PLACED IN FRONT OF THE HEATER SHOULD BE KEPT A MINIMUM OF 48” AWAY FROM
THE FRONT FACE OF THE APPLIANCE.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
THIS APPLIANCE. USING NON-LISTED ACCESSORIES AND REPLACEMENT PARTS (BLOWERS,
LOUVRES, TRIMS, GAS COMPONENTS, VENT COMPONENTS, ETC.) COULD RESULT IN A SAFETY
HAZARD AND WILL VOID THE LIMITED LIFETIME WARRANTY.
NOT DESIGNED FOR USE WITH A GLASS DOOR. SCREEN MUST BE CLOSED WHEN APPLIANCE IS
IN OPERATION.
THIS APPLIANCE MUST NOT BE INSTALLED IN A BEDROOM OR BATHROOM.
2.2 GENERAL INSTRUCTIONS

6
W415-0380 / E / 08.31.12
4.2D
In absence of local codes, install the appliance to the current National Fuel Gas Code, ANSI Z223.1
Installation Code which can be obtained from:
American National Standards Institute Inc. or National Fire Protection Association Inc.
1430 Broadway Batterymarch Park
New York, NY 10018 Quincy, MA 02269
The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa). The appliance must be
isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa). When
installed with a blower the junction box must be electrically connected and grounded in accordance with local
codes. In the absence of local codes, use the current ANSI / NFPA 70 National Electric Code. In the case
where the blower is equipped with a power cord it must be connected into a properly grounded receptacle.
The grounding prong must not be removed from the cord plug.
As long as the required clearance to combustibles is maintained,
the most desirable and beneficial location for the appliance is in
the center of a building, thereby allowing the most efficient use of
the heat created. The location of windows, doors and the traffic
flow in the room where the appliance is to be located should be
considered.
If the appliance is installed directly on carpeting, vinyl tile or other
combustible material other than wood flooring, the appliance shall be installed on a metal or wood panel
extending the full width and depth. NOTE: This does not apply to stoves.
* Air shortage caused by an inadequate air supply, improper log positions, the addition of foreign or
unapproved materials or the failure to properly maintain the appliance, may result in incomplete combustion of
the fuel. Incomplete combustion results in soot being deposited inside the firebox as well as surfaces outside
the appliance. If any soot deposits are observed, shut off the appliance immediately and arrange for it to be
serviced by a qualified technician.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org

7
W415-0380 / E / 08.31.12
2.3 GENERAL INFORMATION
For your satisfaction, this appliance has been test-fired to assure its operation and quality!
CVF42
NG LP
Altitude (FT) 2,000* 2,000*
Max. Input (BTU/HR) 30,000 30,000
Min. Inlet Gas Supply Pressure 4.5" Water Column 11" Water Column
Max. Inlet Gas Supply Pressure 7" Water Column 13" Water Column
Manifold Pressure (Under Flow Conditions) 3.5" Water Column 10" Water Column
* When the appliance is installed at elevations above 2,000ft, and in the absence of specific recommendations from
the local authority having jurisdiction, the certified high altitude input rating shall be reduced at the rate of 4% for each
additional 1,000ft. Expansion / contraction noises during heating up and cooling down cycles are normal and to be
expected.
No external electricity (110 volts or 24 volts) is required for the gas system operation. Expansion / contraction
noises during heating up and cooling down cycles are normal and are to be expected.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convert-
ible for use with other gases, unless a certified kit is used.
This appliance is equipped with a pilot light safety system referred to as an oxygen depletion sensor and is
designed to turn off the appliance if not enough fresh air is available.
Use only accessories designed for and listed with your specific appliance.

8
W415-0380 / E / 08.31.12
2.4 RATING PLATE INFORMATION
CERTIFIEDUNDER:ANSIZ21.11.2a-2008 VOLUME II, UNVENTEDROOMHEATER
W385-0248 / G
SERIALNUMBER: G/CVF42
WOLFSTEELLTD.
24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA
THIS APPLIANCE MAY BE INSTALLED IN AN AFTERMARKET,
PERMANENTLYLOCATED, MANUFACTURED (MOBILE) HOME, WHERE
NOTPROHIBITEDBYLOCALCODES. THISAPPLIANCEISONLYFOR USE
WITH THE TYPE OF GAS INDICATED ON THE RATING PLATE. THIS
APPLIANCEIS NOT CONVERTIBLE FORUSE WITHOTHER GASES.
THIS ISA GAS-FIRED UNVENTED ROOM HEATER THAT REQUIRES
ADEQUATE COMBUSTION AND VENTILATIONAIR. THISUNITIS NOT
APPROVEDFORBEDROOM,BATHROOMAND BED-SITTING ROOM
INSTALLATION.
GVF42-N / CVF42-N MODEL GVF42-P / CVF42-P
**0-2000FT (0-610m) ALTITUDE 0-2000FT (0-610m)**
30,000 BTU/h INPUT 30,000 BTU/h
22,000 BTU/h REDUCED INPUT 22,000 BTU/h
MANIFOLD PRESSURE: 3.5" WATER COLUMN MANIFOLD PRESSURE: 10" WATER COLUMN
MINIMUM SUPPLY PRESSURE: 4.5" WATER COLUMN MINIMUM SUPPLY PRESSURE: 11" WATER COLUMN
MAXIMUM SUPPLY PRESSURE: 7.0" WATER COLUMN MAXIMUM SUPPLY PRESSURE: 13" WATER COLUMN
SIT CONTROL: #820637 SIT CONTROL: #820636
OPERATING PILOT OXYPROTECTOR: #8214 OPERATING PILOT OXYPROTECTOR: #8404
** ABOVE 2,000FT, CONSULT LOCALAUTHORITY HAVING JURISDICTION
NOT FOR USE WITH SOLID FUEL.
WARNING: FIREPLACE SCREENS MUST BE CLOSED WHILE IN OPERATION. DO NOT ADD ANY MATERIAL TO THE APPLIANCE, WHICH WILL COME IN
CONTACT WITH THE FLAMES, OTHER THAN THAT SUPPLIED BY THE MANUFACTURER WITH THE APPLIANCE. DONOT USE BLOWER INSERT, HEAT EXCHANGER INSERT OR OTHER
ACCESSORIES NOTAPPROVED FOR USE WITH THIS HEATER. IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTAINANCE CAN CAUSE PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE. REFER TO THE OWNER'S INFORMATION MANUAL PROVIDED WITH THISAPPLIANCE. INSTALLATIONAND SERVICE MUST BE PERFORMED BYA QUALIFIED INSTALLER,
SERVICEAGENCY OR THE GAS SUPPLIER.
MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS:
TOP / SIDES / BACK / FLOOR 0”
RECESSED DEPTH 22“
MANTEL 2”*
MAXIMUM HORIZONTAL EXTENSION: 2". SEE INSTRUCTION MANUAL FOR GREATER
EXTENSIONS.
ELECTRICAL RATING: 115V 0.82AMP, 60HZ
OPTIONAL FAN KIT: GZ550-KT
9700539 (WSL) 4001657 (NGZ)
4001658 (NAC) 4001659 (WUSA)
SAMPLE
M 0G8
M0G
U
AA
TETE
AA
A
RR
OVEOVE
D
D
FO
SS
TT
ALLALL
TTT
AA
LL
L
TIOTIO
AAA
NN
..
DELDEL
GVGV
LTITUDETITUDE
INP
U
T
INPUT
REDUCED INPUTEDUCED INPUT
L
L
L
COLUMNOLUMN
MANIFOLD PRMAN
R COLUMNR COLUM
MINIMUM SMINI
TER COLUMNER COLUMN
MAXIMUMMAXIM
NTROL:L:
#8
2
063
7
#820637
SIT COSIT CO
ROTECTOR:ROTECTOR:
#8
214
#8214
OPEPE
,000FT, CONSULT LOCALAU000FT, CONSULT LOCALAU
N
OT FOR USE WT FOR USE W
E CLOSECLOS
D WHILE INWHILE IN
BY THE MANUFACTURER WITY THE MANUFACTURER WIT
ER. IMPROPER INSTALLATIONMPROPER INSTALLATIO
ORMATION MANUAL PROVIDEON MANUAL PROVID
E MATERIALS:E MATERIALS:
22
“
4
001657
(
NGZ
)
GZ)
4
001659
(
WUSA
)4001659 (WUSA)
L
L
L
L
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
INSTALLER: It is your responsibility to check off the appropriate box on the rating plate according to
the model, venting and gas type of the appliance.
For rating plate location, see “INSTALLATION OVERVIEW” section.
NOTE: The rating plate must remain with the appliance at all times. It must not be removed.

9
W415-0380 / E / 08.31.12
3.0 INSTALLATION
17.1A
This appliance shall not be installed in a confined space or unusually tight construction unless provisions are
provided for adequate combustion and ventilation air.
The National Fuel Gas Code, ANSI Z223.1 / NFPA 54 defines a confined space as a space whose volume is
less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances
installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per
1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space.
Rooms communicating directly with the space in which the appliances are installed, through openings not
furnished with doors are considered a part of the unconfined space.
The CVF42 is rated at 30,000 BTUs per hour for natural gas and 30,000 BTUs for propane and therefore re-
quires a minimum unconfined space of 1,500 cubic feet.
3.1 COMBUSTION AND VENTILATION AIR PROVISIONS
To determine the volume o
f
the room where the appliance is to be installed, multiply the width x the length x
the ceiling height of that room measured in feet. If any adjoining rooms are connected by grilles or openings
such as kitchen pass-throughs, etc., the volume of those rooms may be added to the total.
Multiply the room volume by 1000 and divide this amount by 50 to determine the maximum BTU/hr that the
space can support with adequate combustion and ventilation air.
A
dd the Btu/hr of all fuel burning appliances located within the space such as gas furnace, gas water
appliance, etc. Do not include direct vent gas appliances which draw their input and output air from and to the
outdoors.
Unusually tight construction is defined as construction where:
A) Walls and ceilings exposed to the outside atmosphere have a continuous water vapour retarder with a
rating of 1 perm (6 x 10-11 kg per pa-sec-m2) or less with openings gasketed or sealed, and
B) Weather stripping has been added on openable windows and doors, and
C) Caulking or sealants are applied to areas such as joints around window and door frames, between sole
plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical,
and gas lines, and at other openings.
A
n unvented room appliance is recommended for use as a secondary heat source rather than as a primary
source. Gas combustion produces water vapour which could occur at the rate of approximately one ounce of
water for every 1,000 BTU/hr of gas input. During the cold weather season, indoor humidity levels tend to be
low. Consequently, this water vapour can enhance the living space. However if a problem should occur:
A) Ensure sufficient combustion and circulation air
B) Use a dehumidifier
C) Do not use the unvented room appliance as a primary heat source
Without sufficient fresh air for proper operation, poor fuel combustion can result. Carbon Monoxide is a result
of poor combustion.
If additional fresh air is required, use one of the methods described in the National Fuel Gas Code, ANSI
Z223.1 / NFPA54 or the applicable local code.
!
WARNING
IF THE AREA IN WHICH THE APPLIANCE MAY BE OPERATED IS SMALLER THAN THAT DEFINED AS
AN UNCONFINED SPACE OR IF THE BUILDING IS OF UNUSUALLY TIGHT CONSTRUCTION, PROVIDE
ADEQUATE COMBUSTION AND VENTILATION AIR BY ONE OF THE METHODS DESCRIBED IN THE
NATIONAL FUEL GAS CODE ANSI Z223.1/ NFPA 54 ,AIR FOR COMBUSTION AND VENTILATION, OR THE
APPLICABLE LOCAL CODE.
IF THE AREA IN WHICH THE APPLIANCE MAY BE OPERATED DOES NOT MEET THE REQUIRED VOLUME
FOR INDOOR COMBUSTION AIR, COMBUSTION AND VENTILATION AIR SHALL BE PROVIDED BY ONE
OF THE METHODS DESCRIBED IN THE ANSI Z223.1 / NFPA 54, THE INTERNATIONAL FUEL GAS CODE,
OR APPLICABLE LOCAL CODES.
3.2 DETERMINING CONFINED OR UNCONFINED SPACE

10
W415-0380 / E / 08.31.12
19.1B
Room Volume = Length x Width x Height
Max BTU/hr = Room Volume x 1000 / 50
LENGTH
HEIGHT
ROOM 2
ROOM 1
WIDTH
If for example:
The length of the rooms is 10 feet,
The width of Room 1 is 10 feet,
The width of Room 2 is 15 feet,
The height of the rooms is 8 feet.
The volume of Room 1: 10x10x8 = 800 cubic feet
The volume of Room 2: 10x15x8 = 1200 cubic feet
19.3
EXAMPLE 2:
If in this example a solid door separates Room 1 from Room 2, the volume of Room 2 could not be used. In
this case the maximum BTU/h would be:
Maximum BTU/h: 800x1000 = 16,000 BTU/h
50
19.2
EXAMPLE 1:
In this example, because there is no door to the adjoining room, the volume of the adjoining room may be
added to the volume of the room with the heater to get a total unconfined space.
The total unconfined space: 800 + 1200 = 2000 cubic feet.
Maximum BTU/h: 2000x1000 = 40,000 BTU/h
50
If there are no more fuel burning appliances within this space then the 30,000 BTU/h input of the appliance is
suitable to be installed. This also assumes that the construction of this space is not unusually tight.
This would be considered a confined space since it can not support the 30,000 BTU/h input of the appliance
and it would be necessary to provide adequate combustion and ventilation air to Room 1.

11
W415-0380 / E / 08.31.12

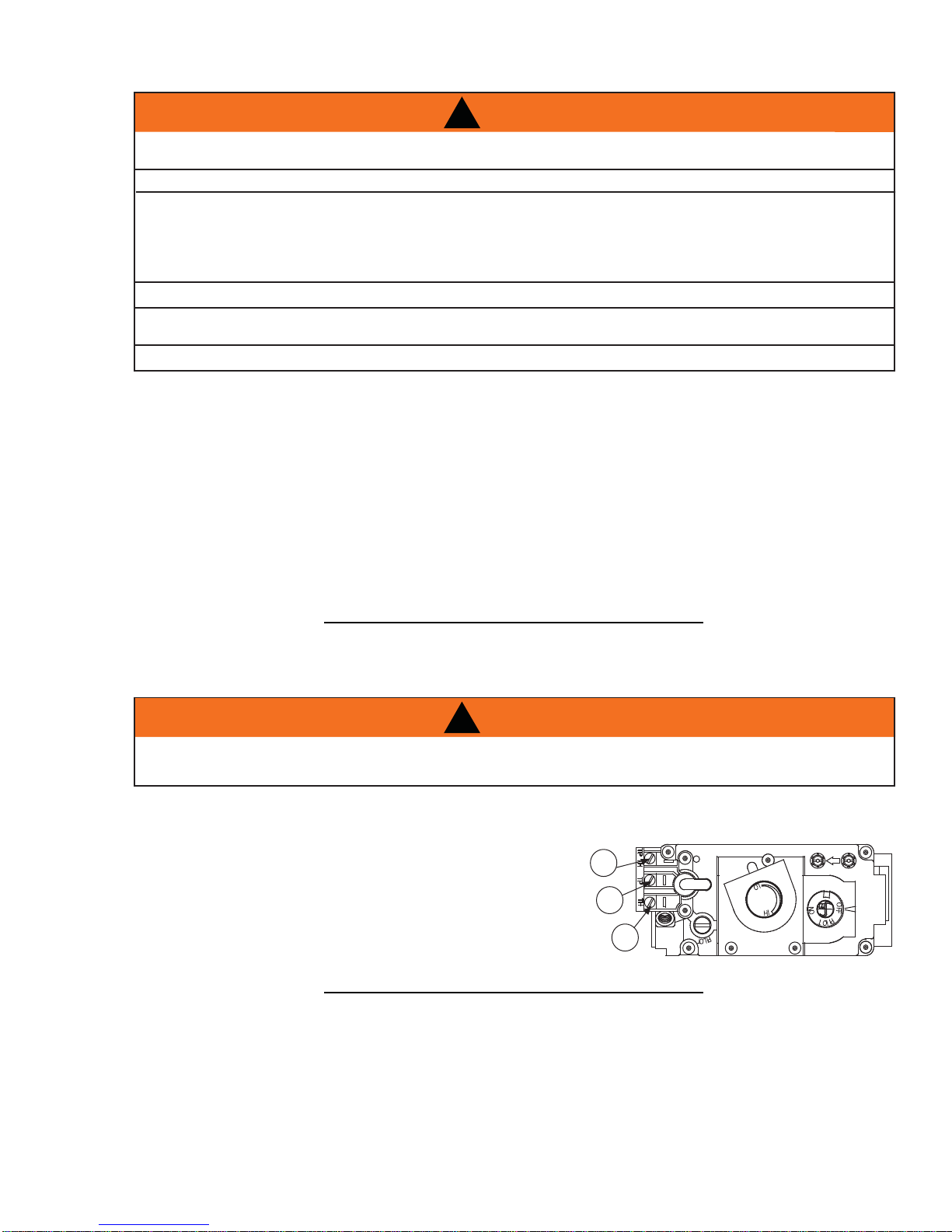

30.1A
Installation and servicing to be done by a qualified installer.
A. Move the appliance into position and secure.
B. If equipped with a flex connector the appliance is designed to accept a 1/2” gas supply. Without the
connector it is designed to accept a 3/8” gas supply. The appliance is equipped with a manual shut off
valve to turn off the gas supply to the appliance.
C. Connect the gas supply in accordance to local codes. In the absence of local codes, install to the
current CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI
Z223.1 / NFPA 54 in the United States.
D. When flexing any gas line, support the gas valve so that the lines are not bent or kinked.
E. The gas line flex-connector should be installed to provide sufficient movement for shifting the burner
assembly on it’s side to aid with servicing components.
F. Check for gas leaks by brushing on a soap and water solution. Do not use open flame.
!
WARNING
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS
SPARKS OR OPEN FLAMES.
SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT
WITH THE GLASS DOOR OPENED OR REMOVED. PURGING OF THE GAS SUPPLY LINE SHOULD BE
PERFORMED BY A QUALIFIED SERVICE TECHNICIAN. ASSURE THAT A CONTINUOUS GAS FLOW IS AT
THE BURNER BEFORE CLOSING THE DOOR. ENSURE ADEQUATE VENTILATION. FOR GAS AND
ELECTRICAL LOCATIONS, SEE “DIMENSION” SECTION.
ALL GAS CONNECTIONS MUST BE CONTAINED WITHIN THE APPLIANCE WHEN COMPLETE.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG.
VALVE SETTINGS HAVE BEEN FACTORY SET, DO NOT CHANGE.
3.4 OPTIONAL WALL SWITCH / THERMOSTAT
For ease of accessibility, an optional remote wall switch or millivolt thermostat may be installed in a convenient
location. Route a 2 strand, solid core millivolt wire from the valve to the wall switch or millivolt thermostat. The
recommended maximum lead length depends on wire size:
WIRE SIZE MAX. LENGTH
14 gauge 100 feet
16 gauge 60 feet
18 gauge 40 feet
Disconnect the existing wires from terminals 1 and 3 (from the
ON/OFF switch) and replace with the leads from the wall switch / millivolt thermostat.
50.1
3
1
2
!
WARNING
DO NOT CONNECT EITHER THE WALL SWITCH, THERMOSTAT OR GAS VALVE DIRECTLY TO 110
VOLT ELECTRICITY.
3.5 MOBILE HOME
Suitable for mobile home installation where the mobile home has been permanently placed on its site. This ap-
pliance must not be installed in a bedroom or bathroom.
This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home, where
not prohibited by local codes.
3.3 GAS INSTALLATION

12
W415-0380 / E / 08.31.12

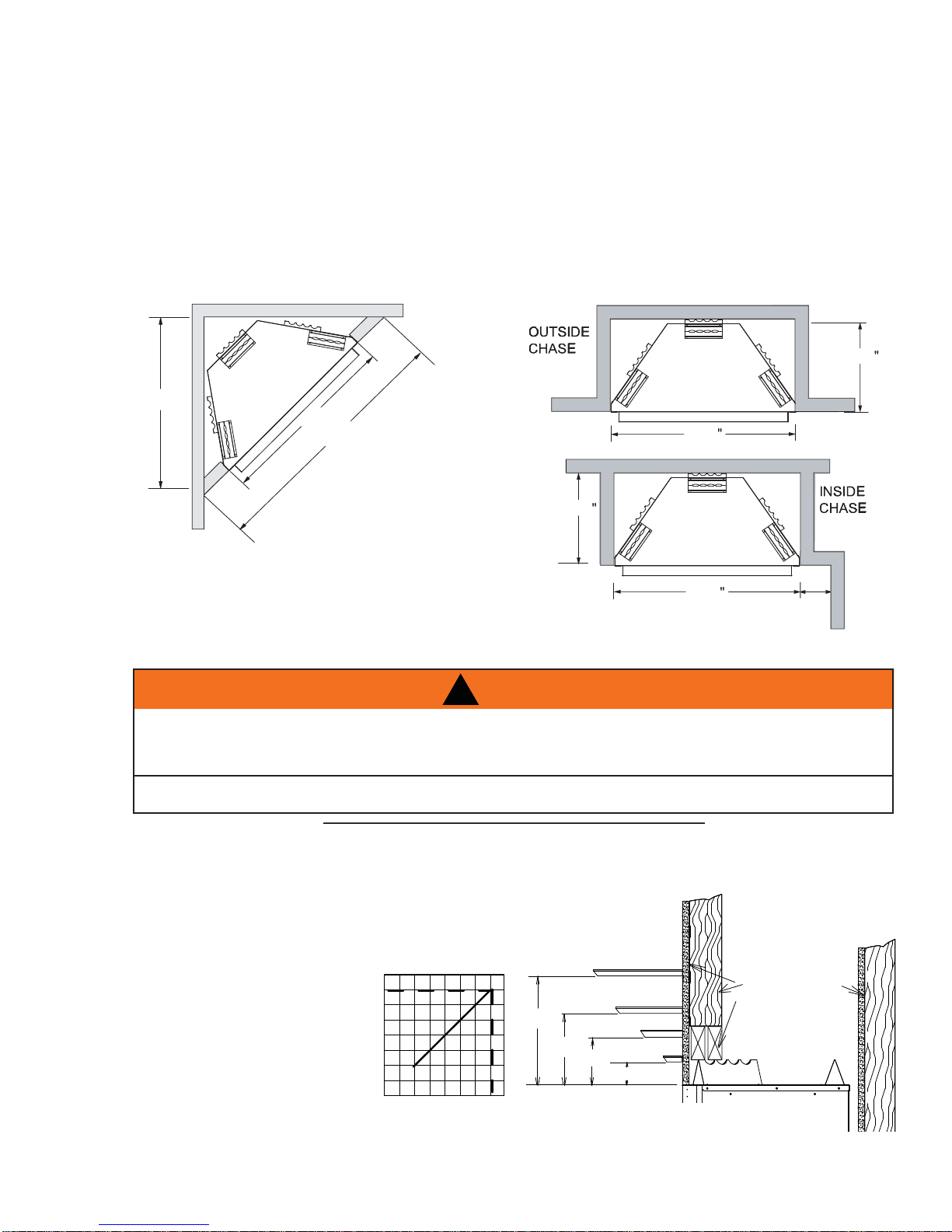

4.0 FRAMING !
WARNING
RISK OF FIRE!
IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING
IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE
APPLIANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH
ANY OTHER OUTSIDE WALL OF A HOME. THIS WILL ENSURE THAT CLEARANCE TO
COMBUSTIBLES IS MAINTAINED WITHIN THE CAVITY.
DO NOT NOTCH THE FRAMING AROUND THE APPLIANCE STAND-OFFS. FAILURE TO MAINTAIN
AIR SPACE CLEARANCE MAY CAUSE OVER HEATING AND FIRE. PREVENT CONTACT WITH
SAGGING OR LOOSE INSULATION OR FRAMING AND OTHER COMBUSTIBLE MATERIALS. BLOCK
OPENING INTO THE CHASE TO PREVENT ENTRY OF BLOWN-IN INSULATION. MAKE SURE
INSULATION AND OTHER MATERIALS ARE SECURED.
WHEN CONSTRUCTING THE ENCLOSURE ALLOW FOR FINISHING MATERIAL THICKNESS TO
MAINTAIN CLEARANCES. FRAMING OR FINISHING MATERIAL CLOSER THAN THE MINIMUMS
LISTED MUST BE CONSTRUCTED ENTIRELY OF NON-COMBUSTIBLE MATERIALS. MATERIALS
CONSISTING ENTIRELY OF STEEL, IRON, BRICK, TILE, CONCRETE, SLATE, GLASS OR PLASTERS,
OR ANY COMBINATION THEREOF ARE SUITABLE. MATERIALS THAT ARE REPORTED AS PASSING
ASTM E 136, STANDARD TEST METHOD FOR BEHAVIOUR OF MATERIALS IN A VERTICAL TUBE
FURNACE AT 750°C AND UL763 SHALL BE CONSIDERED NON-COMBUSTIBLE MATERIALS.
MINIMUM CLEARANCE TO COMBUSTIBLES MUST BE MAINTAINED OR A SERIOUS FIRE HAZARD
COULD RESULT.
THE APPLIANCE REQUIRES A MINIMUM ENCLOSURE HEIGHT. MEASURE FROM THE APPLIANCE
BASE.
IF STEEL STUD FRAMING KITS WITH CEMENT BOARD ARE PROVIDED, THEY MUST BE
INSTALLED.
71.1
It is best to frame your appliance after it is positioned. Use 2x4’s and frame to local building codes.
42 ½”
39”
3” 5 ½”
22 ½”

13
W415-0380 / E / 08.31.12
58"
42½"
41"
42
½
"
22
½
"
42
½
"
OUTSIDE
CHASE
OUTSIDE
OU
T
S
ID
E
OUTSIDE
CHASE
C
HA
SE
CHASE
INSIDE
CHASE
INSIDE
IN
S
ID
E
INSIDE
CHASE
C
HA
SE
CHASE
6"
22
½
"
Minimum clearance to combustible construction from appliance:
sides, back, bottom and top of the unit 0 inch
recessed depth 22 inches
It is not necessary to install a hearth extension with this appliance.
When roughing in the appliance, raise the appliance to accommodate for the thickness of the finished floor ma-
terials, i.e. tile, carpeting, hard wood, which if not planned for will interfere with the opening of the lower access
door and the installation of many decorative flashing accessories.
Raise the appliance up to the height of the finished flooring to ensure control access and accessory installa-
tions.
4.1 MINIMUM CLEARANCE TO COMBUSTIBLES
4.2 MINIMUM MANTEL CLEARANCES
Combustible materials may be installed flush with the front of the appliance but must not cover any of the black
face-areas of the appliance. Non-combustible material (brick, stone or ceramic tile) may protrude in these
areas.
Combustible mantel clearance can vary according to the
mantel depth. Use the graph to help evaluate the clear-
ance needed.
MATERIALS
STUD
COMBUSTIBLE
TOP OF UNIT
7” MANTEL
6” MANTEL
4” MANTEL
2” MANTEL
7”
2”
4”
6”
!
WARNING
RISK OF FIRE, MAINTAIN ALL SPECIFIED AIR SPACE CLEARANCES TO COMBUSTIBLES. FAILURE
TO COMPLY WITH THESE INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO
OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT, MANTEL, FRONT, ETC.) ARE
CLEARLY MAINTAINED.
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE
HEAT RESISTANT TO PREVENT DISCOLOURATION. 73.1
MANTEL WIDTH
4
31
2
3
7
5
6
75
H
E
I
G
H
T
M
A
N
T
E
L

14
W415-0380 / E / 08.31.12
4.3 ALCOVE INSTALLATION
55.1A
A. Attach the nailing tabs to the corner posts using the 2 sheet metal screws sup-
plied. Secure through the centre of the top and bottom slots in the nailing tab and
then through the existing holes in the corner posts. If there are no existing holes,
follow these instructions:
B. To determine the final location of the nailing tab you must first determine the
thickness of your finishing material (i.e. drywall). This will determine the dimen-
sion from the front edge of the corner post to the nailing tab. Once the nailing tab
is in the desired location, drill through the centre hole of the nailing tab. Secure
with a sheet metal screw*.
* Additional set screws may be installed.
NAILING TAB
4.4 NAILING TAB INSTALLATION
APPLIANCE
RECESS OR
ALCOVE
AREA
NOTE: Recesses or alcoves above the appliance can be made as deep as desired provided the minimum
clearances to combustibles are maintained.
Non-combustible material can be used, provided the minimum clearances to combustible materials are applied.
The minimum enclosure volume must be increased by no less than the volume of the recess. This adjustment
can be made by increasing any or all of the height, width and depth of the enclosure.
71.2
ENCLOSURE
AREA

15
W415-0380 / E / 08.31.12
5.0 FINISHING
!
WARNING
RISK OF FIRE!
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS
SUCH AS BRICK, MARBLE, GRANITE, ETC., PROVIDED THAT THESE MATERIALS DO NOT GO
BELOW THE SPECIFIED DIMENSION AS ILLUSTRATED. AS AN ALTERNATIVE, YOU CAN FINISH THE
APPLIANCE WITH DRYWALL, SEE ILLUSTRATIONS TO FOLLOW.
FACING AND/OR FINISHING MATERIAL MUST NEVER OVERHANG INTO THE APPLIANCE OPENING.
72.2
5.1 GRATE INSTALLATION
The grate for this appliance has been removed for
shipping purposes.
The grate must be installed before the logs are in-
stalled.
Remove the packaging from the grate and install onto
the two pins as illustrated.
!
WARNING
LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE
PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY. DELAYED IGNITION
AND CARBON / SOOT DISTRIBUTION THROUGHOUT THE LIVING AREA MAY OCCUR.
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.
DO NOT PLACE CHARCOAL EMBERS, VERMICULITE OR CHARCOAL LUMPS ON THIS BURNER.
ALL PREVIOUSLY APPLIED LOOSE MATERIAL (GLOWING EMBERS) MUST BE REMOVED PRIOR TO
REAPPLICATION.
DO NOT CHANGE OR SUBSTITUTE THE GLOWING EMBER MATERIAL PROVIDED WITH THE
APPLIANCE. IF REPLACING, USE ONLY REPLACEMENT GLOWING EMBERS AVAILABLE FROM
YOUR LOCAL AUTHORIZED DEALER / DISTRIBUTOR.
FAILURE TO FOLLOW THESE INSTRUCTIONS WILL ADVERSELY EFFECT THE APPLIANCE’S
PERFORMANCE AND MAY RESULT IN CARBON / SOOT DEPOSITS INSIDE THE APPLIANCE AND ON
SURROUNDING SURFACES. 76.2B
5.2 LOG PLACEMENT

16
W415-0380 / E / 08.31.12
PHAZERTM logs and glowing embers, exclusive to Continental Appliances, provide a unique and realistic
glowing effect that is different in every installation. Take the time to carefully position the glowing embers for a
maximum glowing effect. Log colours may vary. During the initial use of the appliance, the colours will become
more uniform as colour pigments burn in during the heat activated curing process.
D. Place the bottom of the left crossover log 4
against the left tab of the log support and
against the grate. Place the top of log 4
into the pocket provided on the back log 1
Position the notch located on the end of the
center log 5against the centregrate post
with the other end of the log resting in the
pocket of log 4.
45
6
E. Place the bottom of the right crossover log
6against the right tab of the log support
and against the grate. Place the top into the
pocket provided on log 5and allow to rest
against the bracket of the log support.
REAR LOG SUPPORT
LEFT TAB REAR TABS RIGHT TAB REAR TABS
1
A. Prepare for log placement by ensuring the
left, rear, and right tabs of the log support and
firebox bottom are bent up to 90º, to aid in
locating the logs.
B. Place the back log 1onto the base of the fire-
box. Ensure that the back of the log rests against
the rear log support on the back wall of the fire-
box, and behind the two rear tabs on the firebox
bottom.
23
C. Move the two small logs 2& 3into posi-
tion, place holes in the bottom of the logs
over the studs located on the burner.

17
W415-0380 / E / 08.31.12
Randomly place the charcoal embers along the front and sides of the log support tray in a realistic manner.
Fine dust found in the bottom of the bag should not be used.
Sprinkle vermiculite around the charcoal embers.
NOTE: Vermiculite is not to be placed on the burner.
33.1
GLOWING EMBERS
Tear the glowing embers into pieces and place along the
front row of ports covering all of the burner area in front
of the small logs. Care should be taken to shred the em-
bers into thin, small irregular pieces as only the exposed
edges of the fibre hairs will glow. The ember material
will only glow when exposed to direct flame; however, care should be taken to not block the burner ports.
Blocked burner ports can cause an incorrect flame pattern, Carbon deposits and delayed ignition. PhazerTM
logs glow when exposed to direct flame.
5.3 GLOWING EMBERS
34.1
Place the lumps in front of the logs in a realistic manner taking care not to block any of the burner ports.
!
WARNING
CHARCOAL EMBERS, VERMICULITE AND CHARCOAL LUMPS ARE NOT TO BE PLACED ON THE
BURNER.
!
WARNING
APPLIANCE SCREENS MUST BE CLOSED WHILE THE APPLIANCE IS IN OPERATION.
Hood
SECURING
SCREW
CURTAIN
MESH
SCREWS
HOOD
CURTAIN
MESH
LOUVRE BRACKETS
A. Remove the screws
located on either side
of the frame, above the
curtain rod.
B. Align the slots on the
hood with the holes
from which the screws
were removed.
C. Secure the hood using the screws removed
in step 1. Ensure that the louvre brackets are
positioned in front of the hood.
5.4 CHARCOAL EMBERS
5.5 VERMICULITE
5.6 CHARCOAL LUMPS
5.7 HOOD

18
W415-0380 / E / 08.31.12
CURTAIN
MESH
HOOD
LOUVRES
A
B
A
B
SLOT
TAB
SLOT
HINGE
CLIP
57.1A
UPPER LOUVRES
Insert the louvre tabs into the slots
located at the top left and right corners of
the unit.
LOWER LOUVRES
Insert the hinge clips into the slots lo-
cated at the bottom left and right corners
of the unit.
To remove the louvres, pull the back tabs
of the clips forward, while pushing the
louvre assembly back. Lift the clip.
5.8 L42 LOUVRE INSTALLATION
5.9 LOGO PLACEMENT
Remove the backing of the logo supplied and place on the screen
cover, as indicated.
LOGO
D. The curtain mesh must be kept fully closed
during operation to help prevent accidental
burns from occurring.

19
W415-0380 / E / 08.31.12
6.0 OPTIONAL BLOWER INSTALLATION
!
WARNING
RISK OF FIRE AND ELECTRICAL SHOCK.
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THIS APPLIANCE.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS
COMPONENTS, VENTING COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL
VOID THE WARRANTY AND CERTIFICATION.
ENSURE THAT THE FAN’S POWER CORD IS NOT IN CONTACT WITH ANY SURFACE OF THE
APPLIANCE TO PREVENT ELECTRICAL SHOCK OR FIRE DAMAGE. DO NOT RUN THE POWER
CORD BENEATH THE APPLIANCE.
THE WIRE HARNESS PROVIDED IN THE BLOWER KIT IS A UNIVERSAL HARNESS. WHEN
INSTALLED, ENSURE THAT ANY EXCESS WIRE IS CONTAINED, PREVENTING IT FROM MAKING
CONTACT WITH MOVING OR HOT OBJECTS. 51.5
INSTALLATION TO BE DONE BY A QUALIFIED INSTALLER and must
be electrically connected and grounded in accordance with local codes.
In the absence of local codes, use the current ANSI / NFPA 70 National
Electrical Code.
If the appliance was not previously equipped with a blower:
Route a grounded 2-wire, 60hz power cable to the receptacle /
junction box. At this point, it must be strain relieved and insulated.
The three slots on the blower mounting bracket allow ease of
adjustment when attaching the blower. For a quiet running blower, do not allow the
assembly to sit on the firebox base. Slide the vibration reducing pad (A) into the
clip (C) and up against the threaded stud (B) at the other end. The blower must
be able to be positioned entirely onto the pad.
To ease installation of the blower, remove the hinge screen and valve control door
(lower louvres) from the base of the appliance.
Tilt the blower onto its side. Slide it past the controls and into the clip (C).
Secure to the threaded stud using the lock washer and wing nut provided.
Ensure that the blower does not touch the appliance base or the firebox.
Attach the connectors from the black and white
wires to the thermal switch and secure the
thermal switch bracket to the bottom left of the
unit using the screws provided. Ensure that the
thermal switch touches the firebox wall.
Attach the connectors from the black and red
wires to the blower.
black
white
red
VARIABLE
SPEED
SWITCH
BLOWER
THERMAL
SWITCH
SLOTS
ELONGATED
A
B
C

20
W415-0380 / E / 08.31.12
Attach and secure the variable speed switch
using the nut provided. Plug the harness cord
into the receptacle.The wire harness provided
in this kit is a universal harness. When installed,
ensure that any excess wire is contained,
preventing it from making contact with
moving or hot objects.
Because the blower is thermally activated,
when turned on, it will automatically start
approximately 10 minutes after lighting the
appliance and will run for approximately 30-45 minutes after the appliance has been turned off. Use of the fan
increases the output of heat. Drywall dust will penetrate into the blower bearings, causing irreparable damage.
Care must be taken to prevent drywall dust from coming into contact with the blower or its compartment. Any
damage resulting from this condition is not covered by the warranty policy.
VARIABLE
SPEED
KNOB
51.6
RECEPTACLE /
THERMAL SWITCH
GROUND
SCREW
JUNCTION BOX
