Contour Opulence User manual

Technical Helpline: 0845 402 9924
Half Height Glass Shower Door
Fitting Instructions
from
Bi-folding door & A return panel
Left hand panel, right hand door illustrated
Bi-folding door & A BI-PARTING DOOR
Left hand panel, right hand door illustrated
TWIN Bi-folding doorS
Not handed illustrated
BI-PARTING doorS
Not handed illustrated
Corner Shower Door Options
FIXED panel
Left hand panel illustrated
TWIN Bi-folding doorS
Not handed illustrated
BI-PARTING doorS
Not handed illustrated
Inline Shower Door Options
PLEASE READ ALL INSTRUCTIONS CAREFULLY & LEAVE WITH THE END USER.
INSTRUCTIONS ARE PREPARED TO HELP WITH THE ASSEMBLY & INSTALLATION OF HALF HEIGHT
SHOWER DOORS TO SUIT A CORNER OR INLINE / ALCOVE SETTING.
CAREFULLY UNPACK THE PRODUCT. ENSURE YOU DO NOT ACCIDENTALLY DISPOSE OF ANY PARTS.
CHECK THAT THE SHOWER AREA / SHOWER TRAY WHERE THE DOORS ARE TO BE
INSTALLED IS LEVEL.
ALL SEALS ARE PRE-APPLIED AND SHOULD NOT BE REMOVED DURING INSTALLATION
PROTECT SHOWER TRAY SURFACES AND COVER ANY WASTES TO PREVENT LOSS OF SMALL
ITEMS & TO PREVENT DEBRIS ENTERING THE PIPEWORK.
USE THE OUTER CARTON TO PROTECT THE FLOOR AND / OR WALL DURING ASSEMBLY IF
NECESSARY.
ALLOW SUITABLE CURING TIME FOR SILICONE SEALANT. THIS COULD BE 24 HOURS DEPENDING
UPON THE VARIETY USED.
IN THE CASE OF ANY DIFFICULTIES BEING ENCOUNTERED, PLEASE DO NOT HESITATE TO CONTACT
OUR TECHNICAL DEPARTMENT ON 0845 402 9924.
DUE TO THE NATURE OF ALL GLASS SHOWER DOORS, WE CANNOT GUARANTEE THEY
ARE 100% WATERTIGHT.
WE DO NOT APPROVE THE USE OF POWER SHOWERS WITH EASY ACCESS SHOWER
DOORS AND SHOWER TRAYS.
Read before installation:
Bi-folding door & A FIXED PANEL
Left hand panel, right hand door illustrated
Revision 1
Contour Showers, Siddorn Street, Winsford, Cheshire CW7 2BA
Telephone: [phone] Fax: [phone]
Email: [e-mail]
Website: www.contour-showers.co.uk
LIFETIME
GUARANTEE
EASY CLEAN GLASS
Opulence glass shower enclosures are coated with an Easy
Clean coating. The coating is an effective protection for easy
to clean glass.
To optimize the durability of the Easy Clean protection, we
recommend the following:
• Regularly rinse off the water & soap deposits by drying
the surface with a squeegee or cloth if necessary.
• Clean the glass panels weekly (depending on the use &
the hardness of the water).
• Clean glass with warm soapy water or water
containg a small amount of washing up liquid.
Rinse thoroughly & wipe with a soft, non-abrasive cloth.
DO NOT USE abrasive products, strong or concentrated
acids, alkalis, chlorine or other abrasive cleaning products
such as household bleach, disinfectant, bathroom limescale
remover / mousse as they may discolour or damage the
coating and void the warranty.
EASY
CLEAN
glass

Before you start the installation, ENSURE that the
shower area / shower tray / wetfloor former area where
the doors are to be fitted is level, both side to side and
front to back, using a spirit level (indicated by the red
dotted lines above).

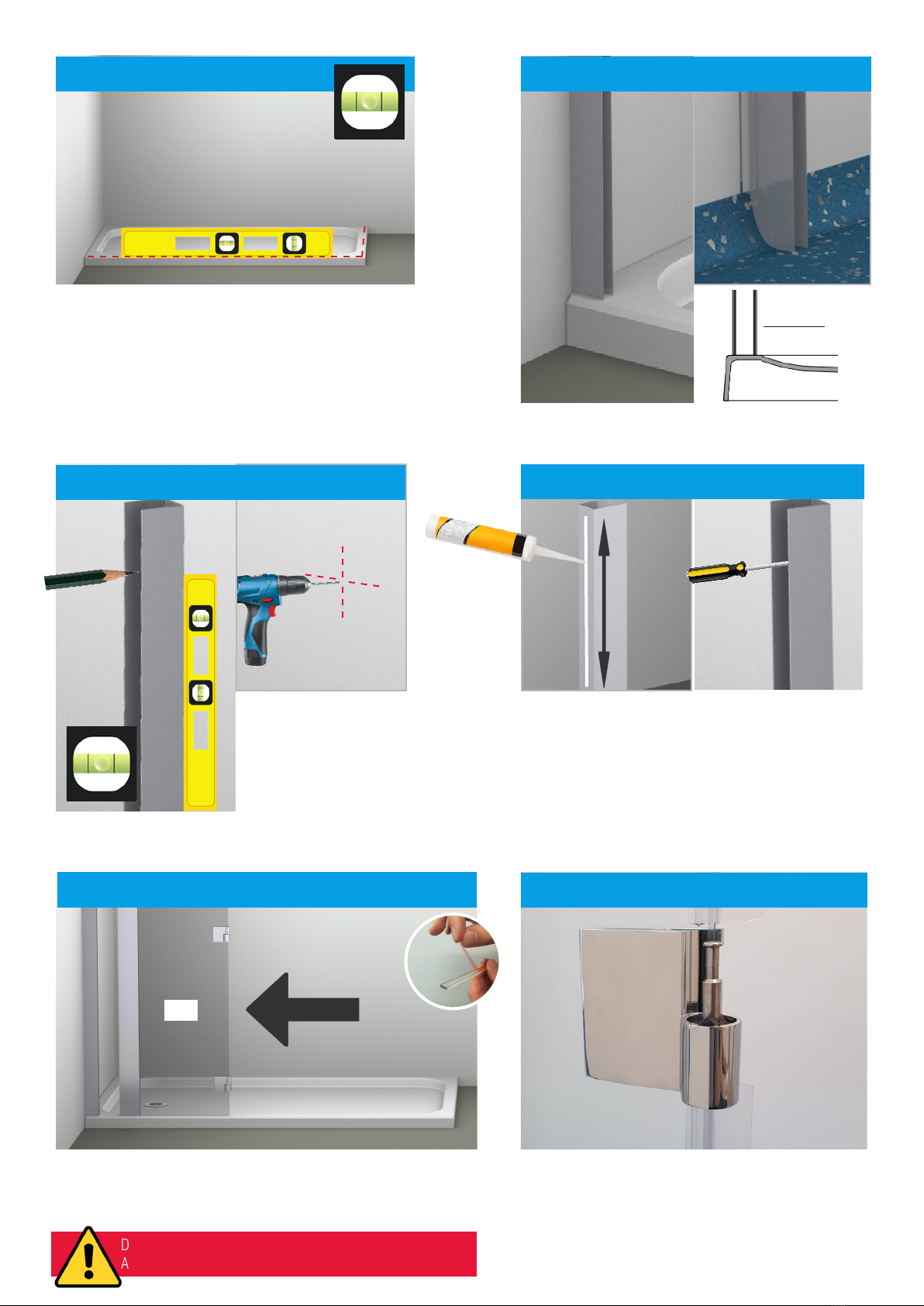

1: CHECK THE LEVEL!
Run a bead of clear silicone bathroom sealant down the narrow
face, for the full length of the outer compensator and then
screw to the wall using suitable screws (NOT SUPPLIED).
Wipe ANY excess silicone from compensator/wall joint.
FOLLOW THE MANUFACTURERS GUIDELINES WHEN
USING SILICONE SEALANT.
5: LOCATE PANEL “A”
Slide “PANEL A” into the wall compensator. An optional self adhesive
protective strip is supplied for applying to the bottom edge of the glass panel,
see inset above. We recommend using this on a tiled floor setting.
DO NOT DRILL FIXING HOLES INTO COMPENSATOR INNER YET.
DO NOT REMOVE PANEL STICKERS UNTIL DOORS
ARE FULLY ASSEMBLED.
The hinge attached to “PANEL A” will have a spigot ready
to accept “PANEL B”. Ensure the spigot part of the hinge is
on the outer side of the door, with the receiving pin pointing
upwards, to ensure the rise & fall hinges open outward.
6: DOOR HINGE CLOSE UP
•
Mark position of wall compensator
fixing points, checking the
compensator is perfectly vertical.
Drill holes with a suitable drill bit
and insert suitable wall fixings.
(NOT SUPPLIED).
A
2: COMPENSATOR STYLES
3: POSITION COMPENSATOR 4: FIX COMPENSATOR
Place compensator against the wall ensuring that it rests on the
flat area of the shower tray / wetfloor former.
SHOWER TRAY
COMPENSATOR
•

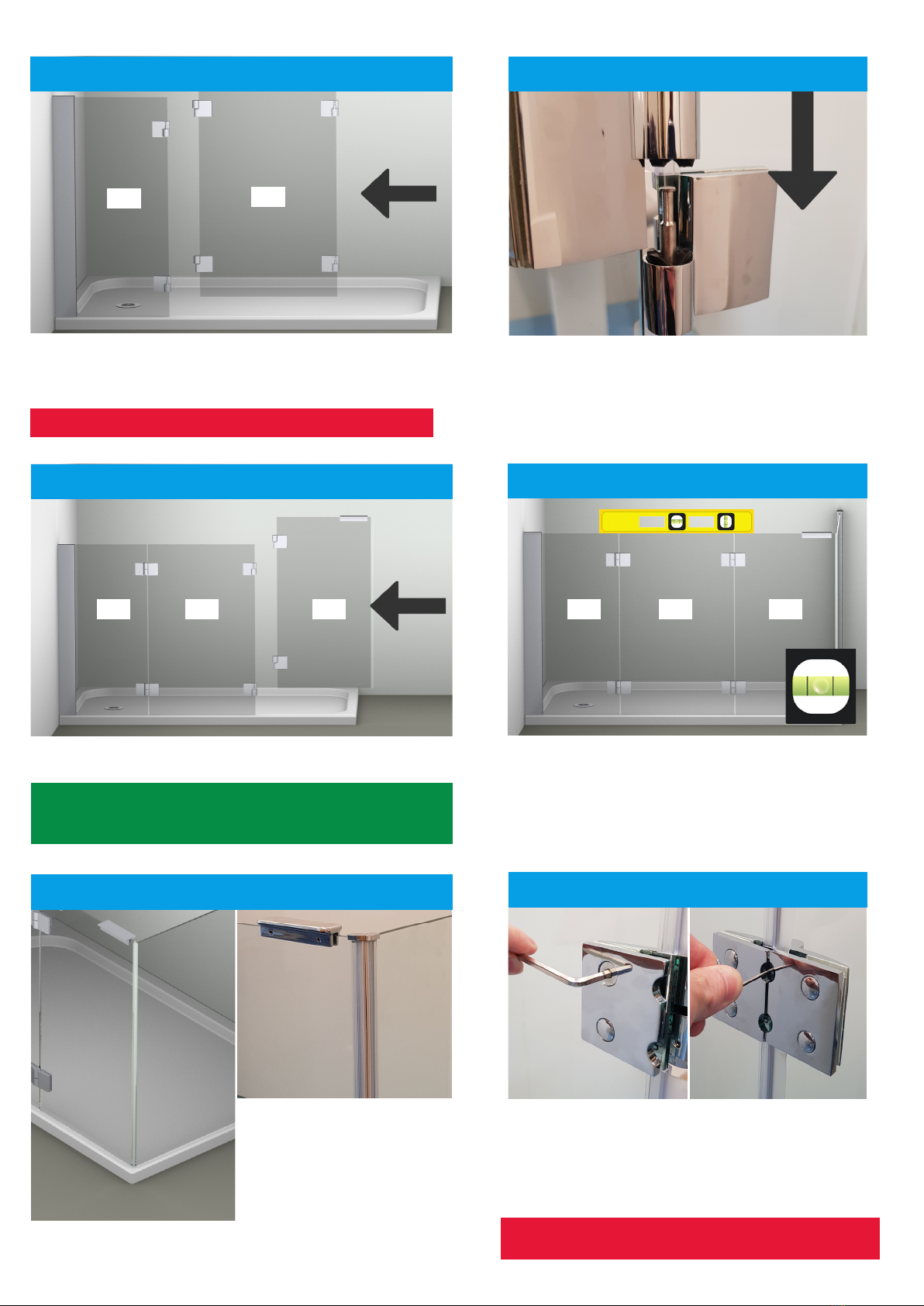

With the doors assembled and in the
closed position, ENSURE that the
magnetic profiles where the door(s)
/ return panels meet at the corner are
parallel and the magnetic profiles come
together for the full height of the doors.
Offer “PANEL B” to “PANEL A”.
The female hinge section of “PANEL B” locates onto the male hinge
section of “PANEL A”.
9: LOCATE PANEL “C”
Using a spirit level ensure the top of all the door panels are level,
on both the long side and return side, and are also level where
the magnetic profiles meet at the corner.
10: PANELS MUST BE LEVEL!
11: THERE SHOULD BE NO GAPS!
7: LOCATE PANEL “B”
AB
REPEAT STEP 7
Connect “PANEL C” to “PANEL B” as described previously.
You have now assembled one section of your door.
Repeat STEPS 3 to 9 to complete the return panel or inline door
panel assembly. DO NOT TIGHTEN ANY SCREWS YET.
A B C
With the doors still in the closed position, use a 5mm allen key to
fully tighten the 4 x allen screws on each hinge, see above left.
Attach the 4 x chrome cover caps to cover the screw heads.
Using a 3mm allen key tighten the hinges top grubscrew.
This will secure each door panel in position, see above right.
You may find it easiest to do this whilst inside the
shower area.
12: TIGHTEN ALL SCREWS
Connect “PANEL B” to “PANEL A”
With a downward motion, connect “PANEL B” to “PANEL A”,
gently pushing down until the top of the glass panels are level
and the hinge is fully seated in the middle.
DO NOT TIGHTEN HINGE GRUBSCREWS YET.
8: CONNECTING THE HINGE
BI-PARTING DOOR OPTIONS DO NOT USE “PANEL B”. GO TO STEP 9.
“PANEL A”“PANEL B”
A B C

Clip the stabiliser bar on to “PANEL A”
Mark the fixing point on the wall around the wall lug.
Unscrew the wall lug from the stabiliser bar with an allen key and use
it to mark the centre point for the wall fixing. Drill a hole with a suit-
able drill bit and insert suitable wall fixings. (NOT SUPPLIED).
14: 45º STABILISER BAR
Drill the “PANEL A” compensators with a 3mm
drill bit through the pre-drilled 4.5mm hole on the
compensator located on the inside face (inside of
the shower area).
Using the screws supplied in Pack “A” securely fix both
panels to the wall compensators and conceal using the
supplied chrome cover caps .
VIEW FROM INSIDE SHOWER AREA
Take the wall lug from the stabiliser bar and using suitable wall
fixings (NOT SUPPLIED) screw securely to the wall, as shown
above.
Re-attach the stabiliser bar to the wall lug & “PANEL A” as
shown in Step 14.
Silicone joint between floor / shower tray both “PANEL A’s”.
Allow suitable cure time for silicone (this may be 24 hours
depending on the variety used).
FOLLOW THE MANUFACTURERS GUIDELINES WHEN
USING SILICONE SEALANT.
13: DRILL COMPENSATOR
15: FIX STABILISER BAR
Measure from the wall to the front inside edge of PANEL “A”
compensator, see above left. Using your measurement, measure
from the front shoulder of the top cap back to the ribbed area of
the top cap and mark, see above right.
Cut of the excess ribbed area with a small hacksaw.
The cut end of the cap should fit against the wall, see inset above.
16: CUT TOP CAP TO SIZE
Place the bracket of the latch against the leading edge of
PANEL “B” (Next to PANEL “C”). Using a 4mm allen key
tighten the grubscrews, do not overtighten.
OPTIONAL LATCH
17: SEAL WITH SILICONE
TIP: On the outside of the panel silicone along the compensator
and the glass. On the inside silicone along the glass only.
BC
Contour Showers, Siddorn Street, Winsford, Cheshire CW7 2BA
Telephone: [phone] Fax: [phone]
Email: [e-mail]
Website: www.contour-showers.co.uk
built-in independence
You have now assembled one section of your door.
REPEAT STEP FOR THE RETURN PANEL OR INLINE DOOR
