Convotherm ConvoVent 4+ Instruction sheet

ConvoVent 4 / ConvoVent 4+
Read instructions before use
Convotherm 4 hoods
Operating and installation instructions - Original, ENG
Your meal. Our mission.




Table of Contents
ConvoVent 4 / ConvoVent 4+ 3
Table of Contents
1General information 4
1.1EC Declaration of Conformity in compliance with Directive 2006/42/EC, Annex II A 5
1.2Environmental protection 6
1.3Identifying your condensation hood 7
1.4About this operating and installation manual 9
1.5Intended use of your hood 11
1.6ConvoVent 4 technical data 12
1.7ConvoVent 4+ technical data 14
2For your safety 16
2.1Basic safety code 17
2.2Warnings on the condensation hood 18
2.3Summary of hazards 19
2.4Additional hazards and safety precautions 21
2.5Safety devices 26
2.6Requirements to be met by personnel, working positions 27
2.7Personal protective equipment 28
3Operation 29
3.1Basic operating sequence 30
4Cleaning and Servicing 31
4.1Cleaning and servicing schedule 32
5How to do it correctly 35
5.1Removing and fitting the baffle filters, mist collectors and secondary filter 36
6Moving and setting up the appliance 39
6.1Requirements for the installation location 40
6.2Taking to the installation location 41
6.3Fitting the hood 42
7Connecting up the appliance 57
7.1Electrical installation 58
8Preparing for first-time use, taking out of operation and
disposal 59
8.1Safe working 60
8.2Procedure for preparing the appliance for first-time use 61
8.3Taking the appliance out of operation and disposal 63





1 General information
ConvoVent 4 / ConvoVent 4+ 4
1 General information
Purpose of this chapter
This chapter shows you how to identify your appliance and provides guidance on using this manual.
Contents
This chapter includes the following topics
Page
EC Declaration of Conformity in compliance with Directive 2006/42/EC, Annex II A 5
Environmental protection 6
Identifying your condensation hood 7
About this operating and installation manual 9
Intended use of your hood 11
ConvoVent 4 technical data 12
ConvoVent 4+ technical data 14







1 General information
ConvoVent 4 / ConvoVent 4+ 5
1.1 EC Declaration of Conformity in compliance with Directive
2006/42/EC, Annex II A
Manufacturer
Convotherm Elektrogeräte GmbH, Ovens & Advanced Cooking EMEA, Manitowoc Foodservice, Tal-
straße 35, 82436 Eglfing, Germany
Validity of Declaration of Conformity
This Declaration of Conformity applies to the following condensation hoods:
ConvoVent 4 6.10/10.10 6.20/10.20 20.10 12.20/20.20 STK 6.10/10.10 STK 6.20/10.20
ConvoVent 4+ 6.1010.10 6.20/10.20 20.10 12.20/20.20 STK 6.10/10.10 STK 6.20/10.20
Declaration of Conformity with directives and standards
The manufacturer hereby declares that the condensation hoods listed above comply with the following
directives:
2006/42/EC (Machinery Directive)
2004/108/EC (EMC Directive)
2011/65/EU (RoHS Directive)
The safety objectives of European Directive 2006/95/EC (Low Voltage Directive) have been met in
accordance with Annex I, Section 1.5.1 of the Machinery Directive.
Compliance of electrical appliances with standards:
The electrical appliances comply with the requirements in the following European standards:
DIN EN 60335-2-99: 2012
EN 55014-1: 2006 + A1: 2009 + A2: 2011
EN 61000-3-11: 2000
EN 61000-3-12: 2011
EN 62233: 2008
EN 55014-2: 1997 + A1: 2001 + A2: 2008
Authorized body for documentation
The following body is authorized to compile the technical documentation in accordance with Annex II A
Section 2 of Directive 2006/42/EC: Convotherm Elektrogeräte GmbH, Ovens & Advanced Cooking
EMEA, Manitowoc Foodservice, Talstraße 35, 82436 Eglfing, Germany
Eglfing, 11.08.2014
Dr. Martin Behle
Vice President & General Manager
Ovens & Advanced Cooking - EMEA
pp Lutz Isenhardt
Technical Director ETC - EMEA
pp Gisela Rosenkranz
Manager Technical Documentation





1 General information
ConvoVent 4 / ConvoVent 4+ 6
1.2 Environmental protection
Statement of principles
Our customers' expectations, the legal regulations and standards and our company's own reputation set
the quality and service for all our products.
We have an environmental management policy that not only ensures compliance with all environmental
regulations and laws, but also commits us to continuous improvement of our green credentials.
We have developed a quality and environmental-management system in order to guarantee the con-
tinued manufacture of high-quality products, and to be sure of meeting our environmental targets.
This system satisfies the requirements of ISO 9001:2008 and ISO 14001:2004.
Environmental protection procedures
We observe the following procedures:
Use of residue-free compostable wadding materials
Use of RoHS-compliant products
REACH chemical law
Recommendation and use of bio-degradable cleaning agents
Recycling of electronic waste
Environmentally friendly disposal of old appliances via the manufacturer
Join us in our commitment to protect the environment.





1 General information
ConvoVent 4 / ConvoVent 4+ 7
1.3 Identifying your condensation hood

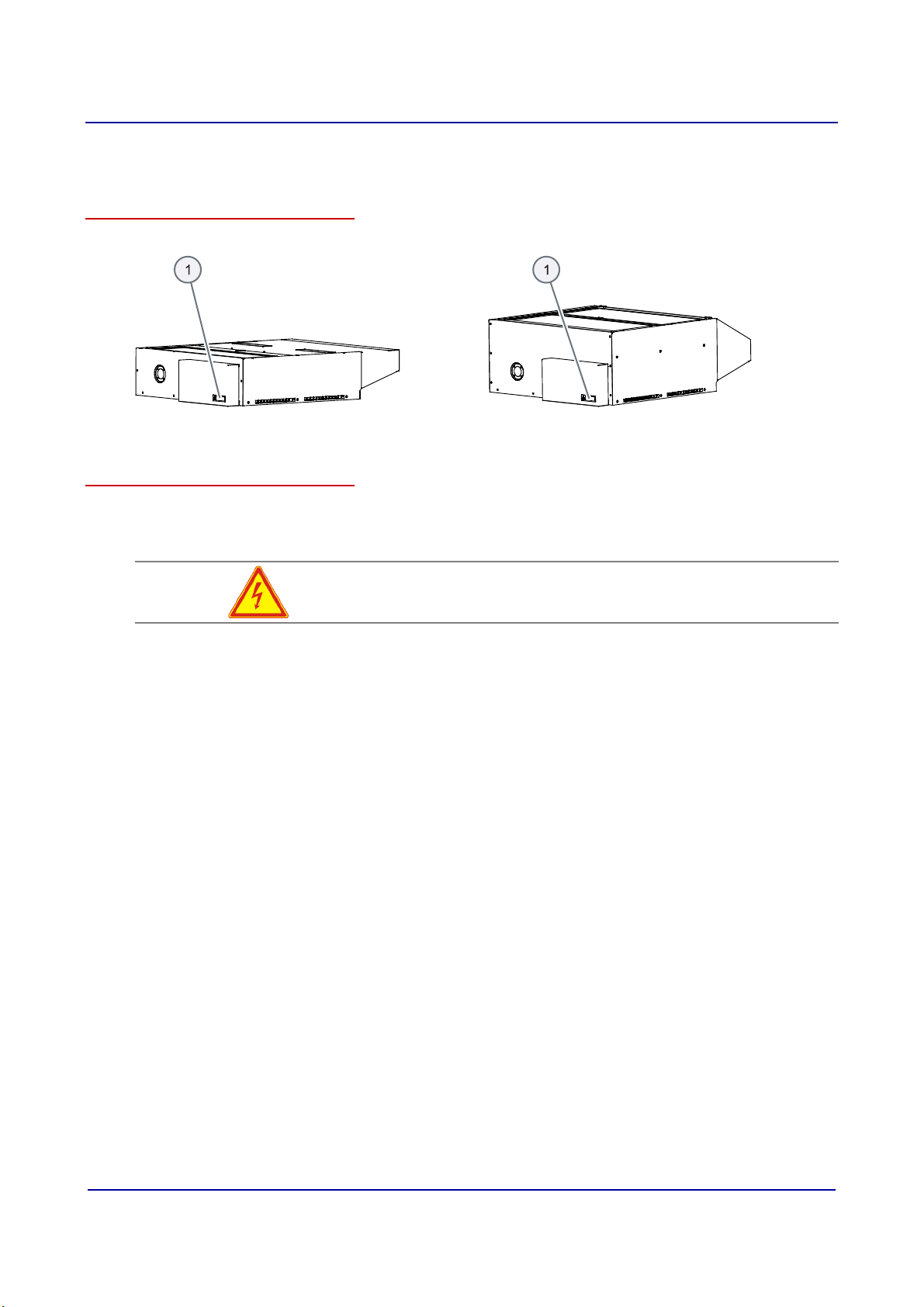

Position of type plate
The type plate is located on the left-hand side of the condensation hood.

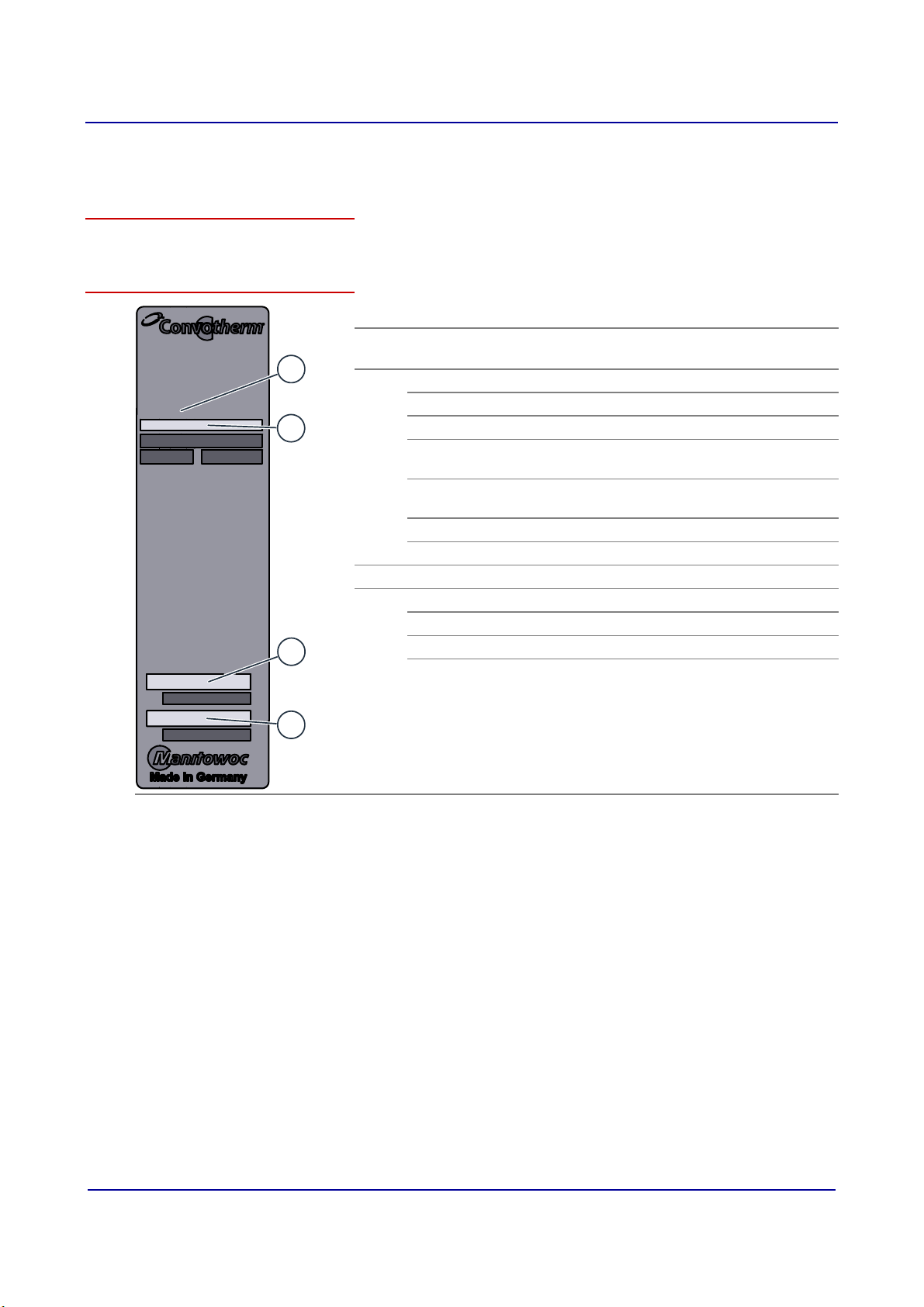

Layout and structure of the type plate
3
2
4
1
3
2
4
1
Elektrogeräte GmbH
Talstraße 35
82436 Eglfing
ConvoVent Type
Item Name
1 Name of appliance
ConvoVent
2 Trade name
Element Meaning
ConvoVent Hood for Convotherm 4
4 Condensation hood with steam
separator
4+ Condensation hood with grease
trap and fume filter
Digits xx.yy / xx.yy Appliance size
EL Electrical unit
3 Part number
4 Serial number
Element Meaning
Hood type Condensation hood (KH)
Sequential number 3 digits





1 General information
ConvoVent 4 / ConvoVent 4+ 8
List of matching Convotherm combi steamers
Use the table below to identify your hood and the matching combi steamer from the trade name on the
type plate:
Part number Condensation hood model For combi steamer model
3455870 ConvoVent 4 ES/EB C4 6.10/10.10
3455871 ConvoVent 4 ES/EB C4 6.20/10.20
3455872 ConvoVent 4 ES/EB C4 20.10
3455873 ConvoVent 4 ES/EB C4 12.20/20.20
3455874 ConvoVent 4 for use in the stacking kit Stacking kit combination ES/EB C4
6.10/10.10
3455875 ConvoVent 4 for use in the stacking kit Stacking kit combination ES/EB C4
6.20/10.20
3455876 ConvoVent 4+ ES/EB C4 6.10/10.10
3455877 ConvoVent 4+ ES/EB C4 6.20/10.20
3455878 ConvoVent 4+ ES/EB C4 20.10
3455879 ConvoVent 4+ ES/EB C4 12.20/20.20
3455880 ConvoVent 4+ for use in the stacking kit Stacking kit combination ES/EB C4
6.10/10.10
3455881 ConvoVent 4+ for use in the stacking kit Stacking kit combination ES/EB C4
6.20/10.20
Optional Accessory For hood model
3455892 Front condenser 6.10/10.10/20.10 ConvoVent 4 for 6.10/10.10/20.10
3455893 Front condenser 6.20/10.20/12.20/20.20 ConvoVent 4 for 6.20/10.20/12.20/20.20
3455894 Lighting unit for ConvoVent 4/4+ ConvoVent 4/4+ for 6.10/10.10/20.10
3455895 Lighting unit for ConvoVent 4/4+ ConvoVent 4/4+ for
6.20/10.20/12.20/20.20






1 General information
ConvoVent 4 / ConvoVent 4+ 9
1.4 About this operating and installation manual
Purpose
This manual provides answers to the following questions:
How can I use the hood?
How do I install the hood?
Who should read this manual
This operating and installation manual is aimed at the following groups:
Chef
User
Installation engineer
The target groups must have the qualifications listed in "Requirements to be met by personnel".
Layout of the operating instructions
The table below lists the chapters in these operating instructions and summarizes their content, pur-
pose, and target groups:
Chapter/section Purpose
General information Shows you how to identify your hood
Provides guidance on using this user and installation manual.
Design and function Specifies the intended use of the hood
Explains the functions of the hood and shows the position of its components
Summarizes the technical data
For your safety Describes the hazards posed by the hood and suitable preventive actions
You should read this chapter carefully in particular.
Operation Contains instructions for the operating procedures used with the hood
Cleaning and Servicing Contains the cleaning instructions
Contains the servicing schedule where relevant to the user
Contains cleaning instructions
How to do it correctly Contains instructions for regularly used operating procedures for the hood
Moving and setting up the
appliance
Specifies the basic appliance dimensions
Specifies requirements for the installation site
Provides information on conveying the appliance to the installation site, unpacking
and setting up
Connecting up the appli-
ance
Provides information on the electrical installation
Explains the functions of selected components in the hood and shows their position
Preparing for first-time use,
taking out of service and
disposal
Explains the procedure for preparing the appliance for first-time use
Explains the procedure for taking the appliance out of use
Contains disposal instructions





1 General information
ConvoVent 4 / ConvoVent 4+ 10
Form of warning notices
The warning notices are categorized according to the following hazard levels:
Hazard level Consequences Likelihood
Death / serious injury (irreversible) Immediate risk
Death / serious injury (irreversible) Potential risk
Minor injury (reversible) Potential risk
NOTICE Damage to property Potential risk
Notation for decimal points
A decimal point is always used in order to achieve international standardization.





1 General information
ConvoVent 4 / ConvoVent 4+ 11
1.5 Intended use of your hood
Intended use
The hood must only be used for the purposes specified below:
The hood is exclusively designed for condensing steam and vapour from combi steamers.
The hood is designed for combi steamers in the following model series: C4 ES 6.10, 10.10, 6.20,
10.20, 20.10, 12.20, 20.20 and C4 EB 6.10, 10.10, 6.20, 10.20, 20.10, 12.20, 20.20. The hood is also
designed for STK C4 ES/EB 6.10/10.10 and STK C4 ES/EB 6.20/10.20.
The hood is intended solely for professional, commercial use.
The ambient temperature must lie between 4°C and 35°C.
The hood does not need to be connected directly to a ventilation system as the exhaust air from the
combi steamer is condensed by a condensation unit and by baffle filters, mist collectors and se-
condary filters (ConvoVent 4: steam separator, ConvoVent 4+: fine particle filter).
The hood is connected to the combi steamer controller to enable communication and relevant control.
In addition, the hood is only being used as intended when the following conditions are met:
To avoid accidents and any damage to the hood, the owner must train staff on a regular basis.
The hood must be operated only by trained staff.
The manufacturer regulations for operation and servicing of the hood must be observed.
Restrictions on use
The following restriction on use must be observed:
The hood improves the environment in the kitchen but is no substitute for an air ventilation system.
The hood must only be operated when all safety devices are fitted and in working order.
The hood must not be used with mobile combi steamers (stand on castors).
Requirements to be met by personnel
The following requirements must be met by personnel:
The hood must only be operated by trained personnel only.
Requirements relating to the operating condition of the condensation hood
The following requirements relating to the operating condition of the hood must be met:
The hood must only be operated when all safety devices are working correctly.
The hood must only be operated when all covers are fitted correctly.
The hood must only be operated when the baffle filters and mist collectors are fitted correctly.
Requirements relating to the operating environment of the condensation hood
The following requirements relating to the operating environment of the condensation hood must be met:
The hood must not be operated if the national and local regulations regarding ventilation and
discharge, or the specific requirements for the relevant cooking equipment, are not complied with.
The hood must not be operated in the vicinity of flammable gases or liquids.
The hood must not be operated in toxic or potentially explosive atmospheres.
The kitchen floor must be kept dry to reduce the risk of accidents.
Cleaning requirements
The following requirements must be met during cleaning:
The combi steamer and the hood must be disconnected from the power supply in order to clean the
hood.
It is only permitted to use the following materials:
- Common household, non-alkaline detergent that is gentle on the skin and is pH-neutral
High-pressure cleaners, sprinklers or water jets must not be used for cleaning.
The hood must not be treated with acids or exposed to acid fumes.




1 General information
ConvoVent 4 / ConvoVent 4+ 12
1.6 ConvoVent 4 technical data
Dimensions and weights
The following table shows appliance dimensions and weights:
6.10 /
10.10
6.20 /
10.20
20.10 12.20 /
20.20
STK
6.10 /
10.10
STK
6.20 /
10.20
Width
including packaging [mm] 960 1200 960 1200 960 1200
excluding packaging [mm] 877 1122 892 1137 877 1122
Depth
including packaging [mm] 1150 1350 1150 1350 1150 1350
excluding packaging [mm] 1085 1285 1086 1285 1085 1285
Height
including packaging [mm] 440 440 440 440 440 440
excluding packaging [mm] 240 240 240 240 240 240
Weight
including packaging [kg] 72 103 73 104 74 105
excluding packaging [kg] 66 96 67 97 68 98
Safety clearances for hood
rear [mm]
100 100 100 100 100 100
left [mm]
50 50 50 50 50 50
top [mm] 500 500 500 500 500 500
Material
Stainless steel
Electrical connected load ratings
The following table shows the electrical connected load ratings:
6.10 /
10.10
6.20 /
10.20
20.10 12.20 /
20.20
STK
6.10 /
10.10
STK
6.20 /
10.20
1N~ 200-240V 50/60Hz
Rated power consumption [W] 130-260 130-260 130-260 130-260 130-260 130-260
Rated current [A] 1.0-1.9 1.0-1.9 1.0-1.9 1.0-1.9 1.0-1.9 1.0-1.9
Fuse rating [A] 2.5 2.5 2.5 2.5 2.5 2.5





1 General information
ConvoVent 4 / ConvoVent 4+ 13
Appliance technical standards
The following table shows the technical standards for the appliance:
6.10 /
10.10
6.20 /
10.20
20.10 12.20 /
20.20
STK
6.10 /
10.10
STK
6.20 /
10.20
Degree of protection IPX 5 IPX 5 IPX 5 IPX 5 IPX 5 IPX 5
Approval mark CE, CB,
TÜV GS
CE, CB,
TÜV GS
CE, CB,
TÜV GS
CE, CB,
TÜV GS
CE, CB,
TÜV GS
CE, CB,
TÜV GS
Maximum noise emission dB (A) 64 63 64
Air flow rate
(full speed)
m³/h 675 840 675
Air flow rate
(reduced speed)
m³/h 550 630 550
Notice
The IPX5 degree of protection for the hood does not include the power cable / socket.






1 General information
ConvoVent 4 / ConvoVent 4+ 14
1.7 ConvoVent 4+ technical data
Dimensions and weights
The following table shows appliance dimensions and weights:
6.10 /
10.10
6.20 /
10.20
20.10 12.20 /
20.20
STK
6.10 /
10.10
STK
6.20/10.20
Width
including packaging [mm] 960 1200 960 1200 960 1200
excluding packaging [mm] 877 1122 892 1137 877 1122
Depth
including packaging [mm] 1150 1350 1150 1350 1150 1350
excluding packaging [mm] 1085 1285 1086 1285 1085 1285
Height
including packaging [mm] 570 570 570 570 570 570
excluding packaging [mm] 373 373 373 373 373 373
Weight
including packaging [kg] 91 127 92 128 95 131
excluding packaging [kg] 85 119 86 120 89 123
Safety clearances for hood
rear [mm]
100 100 100 100 100 100
left [mm]
50 50 50 50 50 50
top [mm] 500 500 500 500 500 500
Material
Stainless steel
Electrical connected load ratings
The following table shows the electrical connected load ratings:
6.10 /
10.10
6.20 /
10.20
20.10 12.20 /
20.20
STK
6.10 /
10.10
STK
6.20/10.20
1N~ 200-240V 50/60Hz
Rated power consumption [W] 130-260 130-260 130-260 130-260 130-260 130-260
Rated current [A] 1.0-1.9 1.0-1.9 1.0-1.9 1.0-1.9 1.0-1.9 1.0-1.9
Fuse rating [A] 2.5 2.5 2.5 2.5 2.5 2.5





1 General information
ConvoVent 4 / ConvoVent 4+ 15
Appliance technical standards
The following table shows the technical standards for the appliance:
6.10 /
10.10
6.20 /
10.20
20.10 12.20 /
20.20
STK
6.10 /
10.10
STK
6.20/10.20
Degree of protection IPX 5 IPX 5 IPX 5 IPX 5 IPX 5 IPX 5
Approval mark CE, CB,
TÜV GS
CE, CB,
TÜV GS
CE, CB,
TÜV GS
CE, CB,
TÜV GS
CE, CB,
TÜV GS
CE, CB,
TÜV GS
Maximum noise emission dB (A) 63 62 63
Air flow rate
(full speed)
m³/h 500 795 500
Air flow rate
(reduced speed)
m³/h 390 590 390
Notice
The IPX5 degree of protection for the hood does not include the power cable / socket.





2 For your safety
ConvoVent 4 / ConvoVent 4+ 16
2 For your safety
Purpose of this chapter
This chapter provides you with all the information you need in order to use the appliance safely without
putting yourself or others at risk.
You should read this chapter carefully in particular.
Contents
This chapter contains the following topics:
Page
Basic safety code 17
Warnings on the condensation hood 18
Summary of hazards 19
Additional hazards and safety precautions 21
Safety devices 26
Requirements to be met by personnel, working positions 27
Personal protective equipment 28







2 For your safety
ConvoVent 4 / ConvoVent 4+ 17
2.1 Basic safety code
Object of this safety code
This safety code aims to ensure that all persons using the appliance have a thorough knowledge of the
hazards and safety precautions and that they follow the safety directions given in the operating in-
structions and on the appliance. If you do not follow this safety code, you risk potentially fatal injury and
property damage.
Working with the operating instructions
Follow the instructions below:
Read in full the Safety chapter and chapters that relate to your work.
Always keep the operating instructions to hand for reference.
Pass on the operating instructions with the appliance if it changes owners.
Working with the appliance
Follow the instructions below:
Only people who satisfy the requirements set forth in these operating instructions are allowed to use
the appliance.
People (including children) who, because of their physical, sensory or intellectual capabilities, or
because of their lack of experience or knowledge, are incapable of using the appliance safely, must
not use this equipment without the supervision or guidance of a responsible person.
Use the appliance only for its specified use. Never, under any circumstances, use the appliance for
any other purposes that might seem self-evident.
Take all the safety precautions specified in these operating instructions and on the appliance. In
particular, use the prescribed personal protective equipment.
Only stand in the working positions specified.
Do not make any changes to the appliance, e.g. do not remove parts or install non-approved parts. In
particular, you must not disable any safety devices.





2 For your safety
ConvoVent 4 / ConvoVent 4+ 18
2.2 Warnings on the condensation hood
Where are the warning signs fitted?
The figure below shows a size 6.10 condensation hood as an example of all condensation hoods:
ConvoVent 4 ConvoVent 4+
Warnings on the rear panel
The following warning signs must be attached to the condensation hood in the area indicated so as to be
easily visible at all times.
Area Warning sign Description
1
Warning of dangerous electric voltage / electric shock.
There is a risk of electric shock from live parts if the safety cover is opened.





2 For your safety
ConvoVent 4 / ConvoVent 4+ 19
2.3 Summary of hazards
General rules for dealing with hazards and safety precautions
The appliance is designed to protect the user from all hazards that can reasonably be avoided by design
measures.
The actual purpose of the appliance, however, means that there are still residual risks; you must
therefore take precautions to avoid them. A safety device can provide you with a certain degree of
protection against some of these hazards. You must ensure, however, that these safety devices are in
place and in working order.
The nature of these residual risks and what effect they have are described below.
Hazard points
The figure below shows a size 6.10 condensation hood as an example of all condensation hoods:
ConvoVent 4 ConvoVent 4+
Item Name
1 Mounting plate cover
2 Appliance cover
Damaged power cable
The appliance's power cable may become damaged during transit. This poses:
A risk of electric shock from damaged power cable.
Live parts
The appliance contains live parts. This poses:
A risk of electric shock if covers are not in place.
Risk of electric shock caused by a short-circuit when spraying water on the appliance.
Missing equipotential bonding
No equipotential bonding installed. This poses:
A risk of electric shock when the hood is not incorporated into the equipotential bonding of the combi
steamer.
Clogged filters and case components
Sparks can ignite grease if the filters and accessible case parts have not been cleaned adequately. This
poses:
Grease fire hazard due to insufficient cleaning.




2 For your safety
ConvoVent 4 / ConvoVent 4+ 20
Hot steam / vapour
The combi steamer generates hot steam and vapour that escape when the appliance door is opened.
This poses:
A risk of scalding from hot steam when the appliance door is opened. You are protected from hot
steam by the appliance door itself.
Hot components
Touching the baffle filters, mist collectors or inside surfaces directly after opening the appliance door or if
the hood is fitted on the appliance but not yet in operation (no mains connection) poses:
A risk of burns from hot components.
Condensation collection
The hood is fitted on the appliance but not yet in operation. This poses:
A risk of mold formation from condensation collecting inside the appliance.
Overstressing your body
If a single person tries to lift the appliance by himself/herself, the appliance's weight may lead to:
A risk of injury, especially in the area of the torso, from incorrect lifting.
Contact with cleaning agents
Cleaning agents can come into direct contact with your skin and eyes. This poses:
Risk of skin and eye irritation or chemical burns.
Hood falling down
If the hood is not fastened to the combi steamer correctly, the hood may slip and fall down. This poses:
Risk of crushing various parts of the body from the hood falling down.
Combined units falling over
Mounting the hood on top of the combi steamer increases the risk of the units toppling over. This poses:
Risk of crushing various parts of the body from the combined units falling over.
Pinching of hands by various activities
For various actions, such as cleaning the appliance, there is the risk that you will pinch your hand.
Rotating fan
The appliance contains a fan. This poses:
A risk of hand injuries or hair or loose clothing being caught by the rotating fan wheel if the cover is not
fitted properly.
Overhang of the hood
The hood extends beyond the combi steamer. This poses:
Danger of hitting the overhanging hood.

