Haier HCH6500ALS User manual

36"Island Range Hood
Hotte de cuisinière congurée en îlot 36"
Campana decorativa isla de 36"
Installation and User Manual
Instructions d’installation et
Guide de l’utilisateur
Instrucciones de instalación y
Manual del usuario
HCH6500ALS
Part # 0570000874 REV A

1
TABLE OF CONTENTS
RANGE HOOD SAFETY INSTRUCTIONS..............................................................2
INSTALLATION REQUIREMENTS.........................................................................5
Tools and Parts...............................................................................................................5
Location Requirements ................................................................................................5
Venting Requirements ..................................................................................................6
Electrical Requirements ................................................................................................ 7
INSTALLATION INSTRUCTIONS.......................................................................... 8
Step 1 - Unpack Range Hood ........................................................................................ 8
Step 2 - Plan Installation................................................................................................ 9
Step 3 - Install Ductwork.............................................................................................10
Step 4 - Install Cross Bracing ......................................................................................10
Step 5 - Install Electrical Connection..........................................................................11
Step 6 - Calculate Mounting Height ...........................................................................11
Step 7 - Mount to the Ceiling ......................................................................................13
Step 8 - Install Decorative Vent Covers .....................................................................14
Step 9 - Install Range Hood.........................................................................................16
RANGE HOOD USE............................................................................................ 18
Range Hood Controls ..................................................................................................18
RANGE HOOD CARE ......................................................................................... 19
Cleaning .......................................................................................................................19
TROUBLESHOOTING........................................................................................ 22
LIMITED WARRANTY ........................................................................................ 23
RECORD KEEPING
Thank you for purchasing this Haier
product. This user manual will help you
get the best performance from your
new range hood.
For future reference, record the model
and serial number located inside of the
hood, and the date of purchase.
Staple your proof of purchase to this
manual to aid in obtaining warranty
service if needed.
___________________________________
Model number
___________________________________
Serial number
___________________________________
Date of purchase

2
RANGE HOOD SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and
on your appliance. Always read and obey all safety messages.
DANGER
WARNING
CAUTION
This is the safety alert symbol.
This symbol alerts you to potential hazards that can
kill or hurt you and others. All safety messages will
follow the safety alert symbol and either the word
“DANGER,” “WARNING” or “CAUTION.”
These words mean:
An imminently hazardous situation. You
could be killed or seriously injured if you
don’t immediately follow instructions.
A potentially hazardous situation
which, if not avoided, could result in
death or serious bodily injury.
A potentially hazardous situation
which, if not avoided, may result in
moderate or minor injury.
All safety messages will tell you what the potential hazard is, tell you
how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the
State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the
State of California to cause birth defects or other reproductive harm.

3
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: To reduce the risk of re, electrical shock, injury to persons,
or damage when using the range hood, follow basic precautions,
including the following:
• This appliance is intended for
normal family household use
only.
• Before servicing or cleaning
the unit, switch power o
at service panel and lock
the service disconnecting
means to prevent power
from being switched on
accidentally. When the
service disconnecting means
cannot be locked, securely
fasten a prominent warning
device, such as a tag, to the
service panel.
• Installation work and
electrical wiring must be
done by qualied person(s)
in accordance with all
applicable codes and
standards, including re-rated
construction.
• Do not operate any fan with
a damaged cord or plug.
Discard fan or return to an
authorized service facility for
examination and/or repair.
• Sucient air is needed
for proper combustion
and exhausting of gases
through the ue (chimney)
of fuel burning equipment
to prevent backdrafting.
Follow the heating equipment
manufacturer’s guideline
and safety standards such
as those published by the
National Fire Protection
Association (NFPA), the
American Society for
Heating, Refrigeration and
Air Conditioning Engineers
(ASHRAE), and the local code
authorities.
• When cutting or drilling into
wall or ceiling; do not damage
electrical wiring and other
utilities.
• Ducted fans must always be
vented outdoors.
• For general ventilating use
only. Do not use to exhaust
hazardous or explosive
materials and vapors.
• To reduce risk of re and to
properly exhaust air, be sure
to duct air outside - do not
vent exhaust air into spaces
within walls or ceilings, attics
or into crawl spaces, or
garages.
• To reduce the risk of re, use
only metal ductwork.
• To reduce the risk of re or
electrical shock, do not use
this fan with any solid-state
speed control device.

4
IMPORTANT SAFETY
INSTRUCTIONS
• Wipe up spill over
immediately.
• Do not allow aluminum foil,
plastic, paper or cloth to
come in contact with a hot
surface.
• Do not allow pans to boil dry.
• Always have a working smoke
detector near the kitchen.
• Moist or damp pot holders
on hot surfaces may result in
burns from steam. Do not let
pot holder touch hot heating
elements. Do not use a towel
or other bulky cloth.
WARNING: TO REDUCE THE
RISK OF A RANGE TOP GREASE
FIRE:
• Never leave surface units
unattended at high settings.
Boilovers cause smoking and
greasy spillovers that may
ignite. Heat oils slowly on low
or medium settings.
• Always turn hood ON when
cooking at high heat or when
ambeing food (i.e. Crepes
Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).
• Clean ventilating fans
frequently. Grease should not
be allowed to accumulate on
fan or lter.
• Use proper pan size. Always
use cookware appropriate
for the size of the surface
element.
WARNING: TO REDUCE THE
RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE
FOLLOWING.a
• SMOTHER FLAMES with a
close tting lid, cookie sheet,
or metal tray, then turn o
the burner. BE CAREFUL
TO PREVENT BURNS. If
the ames do not go out
immediately, EVACUATE
AND CALL THE FIRE
DEPARTMENT.
• NEVER PICK UP A FLAMING
PAN - you may be burned.
• DO NOT USE WATER,
including wet dishcloths
or towels - a violent steam
explosion will result.
• Use an extinguisher ONLY if:
– You know you have a class
ABC extinguisher, and
you already know how to
operate it.
– The re is small and
contained in the area where
it started.
– The re department is being
called.
– You can ght the re with
your back to an exit.
a
Based on “Kitchen Fire Safety
Tips” published by NFPA.
READ AND SAVE THESE
INSTRUCTIONS

5
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Gather the required tools and parts before starting installation. Read and follow the
instructions provided with any tools listed here.
TOOLS NEEDED
• Level
• Drill with 1¼" and ¹⁄₈" Drill Bits
• Pencil
• Wire Stripper or Utility Knife
• Tape Measure or Ruler
• Pliers
• Caulking Gun
• Caulking Compound (weatherproof)
• Vent Clamps
• Jigsaw or Keyhole Saw
• Flat-blade Screwdriver
• Metal Snips
• Phillips Screwdriver
PARTS NEEDED
• 6" dia. round metal duct - length required is determined by ceiling height.
PARTS SUPPLIED
Remove parts from packages. Check that all parts are included.
• Vent Hood Assembly (including a
metal grease lter and a charcoal
lter)
• 120 V Power Cord (with 3 prong plug)
• Two-piece Vent Structure (upper and
lower)
• Two-piece Vent Cover (upper and
lower)

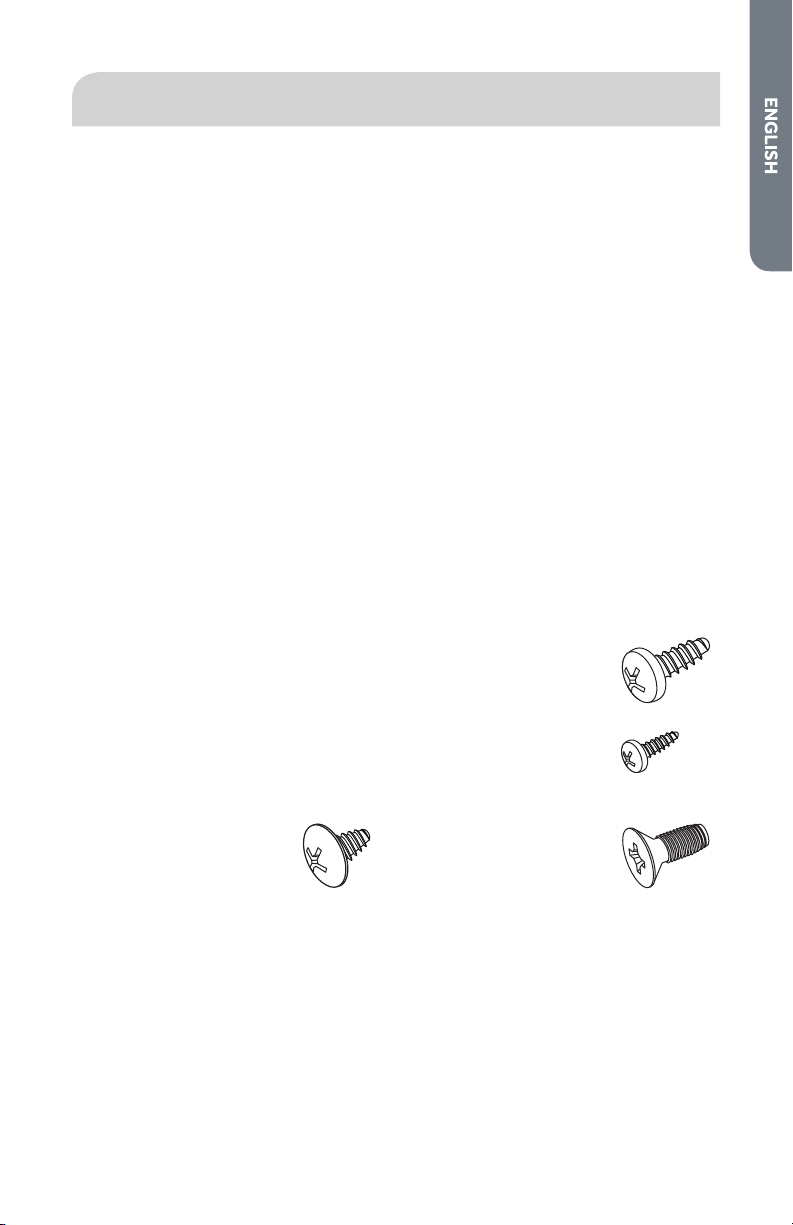

• Phillips Pan-head
Screws (8)
• Small Phillips Pan-head
Screws (3)
• Phillips Self-drilling
Screws (16) • Phillips Countersunk- head Screws (4)
LOCATION REQUIREMENTS
IMPORTANT: Observe all governing codes and ordinances.
Have a qualied technician install the range hood. It is the installer’s responsibility to
comply with installation clearances specied on the model/serial rating plate. The
model/serial rating plate is located behind the left lter on the rear wall of the vent
hood.
Canopy hood location should be away from strong draft areas, such as windows,
doors and strong heating vents.
Grounded electrical outlet is required. See “Electrical Requirements” section.

6
FOR MOBILE HOME INSTALLATIONS
The installation of this range hood must conform to the Manufactured Home
Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal
Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when
such standard is not applicable, the standard for Manufactured Home Installation
1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA
501A, or latest edition, or with local codes.

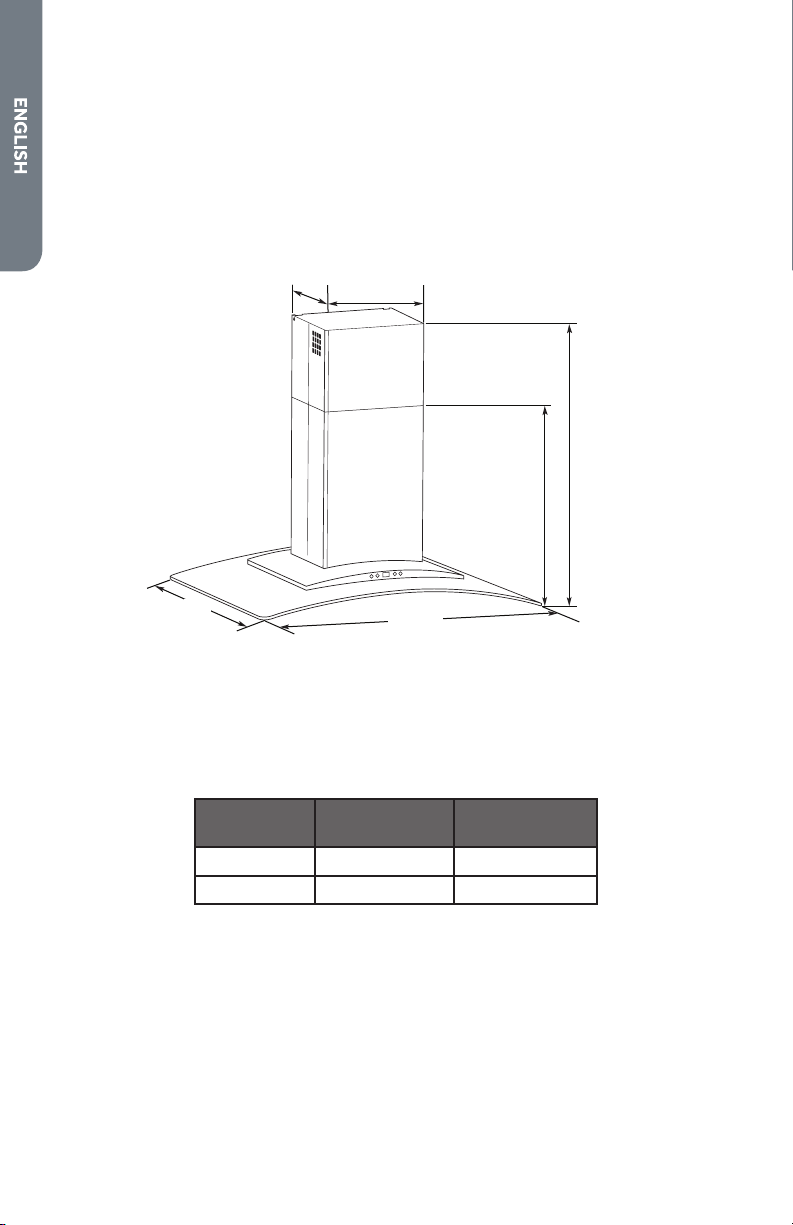

PRODUCT DIMENSIONS
46⅝"
(118.5 cm)
Max
11¹⁵⁄₁₆"
(30.4 cm)
10¹¹⁄₁₆"
(27.2 cm)
35⅜"
(90.0 cm)
26⅜"
(67.0 cm)
23⅝"
(60.0 cm)
INSTALLATION CLEARANCE
It is important to install the range hood at the correct height from the cooktop.
Hoods mounted too low could result in heat damage; while hoods mounted too high
may decrease performance and eciency.
Height from Cooktop Surface to Bottom of Hood:
Minimum: Suggested
Maximum:
Electric 24" (61 cm) 36" (91 cm)
Gas 30" (76 cm) 36" (91 cm)
VENTING REQUIREMENTS
Makeup Air
Local building codes may require the use of makeup air systems when using
ventilation systems greater than specied CFM of air movement. The specied CFM
varies from locale to locale.
Consult your HVAC professional for specic requirements in your area.

7
General Ventilation
The vent hood is designed to vent through the roof.
• Vent system must terminate to the outdoors.
• Do not terminate the vent system in an attic or other enclosed area.
• Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent
is not recommended.
• The length of vent system and number of elbows should be kept to a minimum
to provide ecient performance.
• Always keep the duct clean to ensure proper airow.

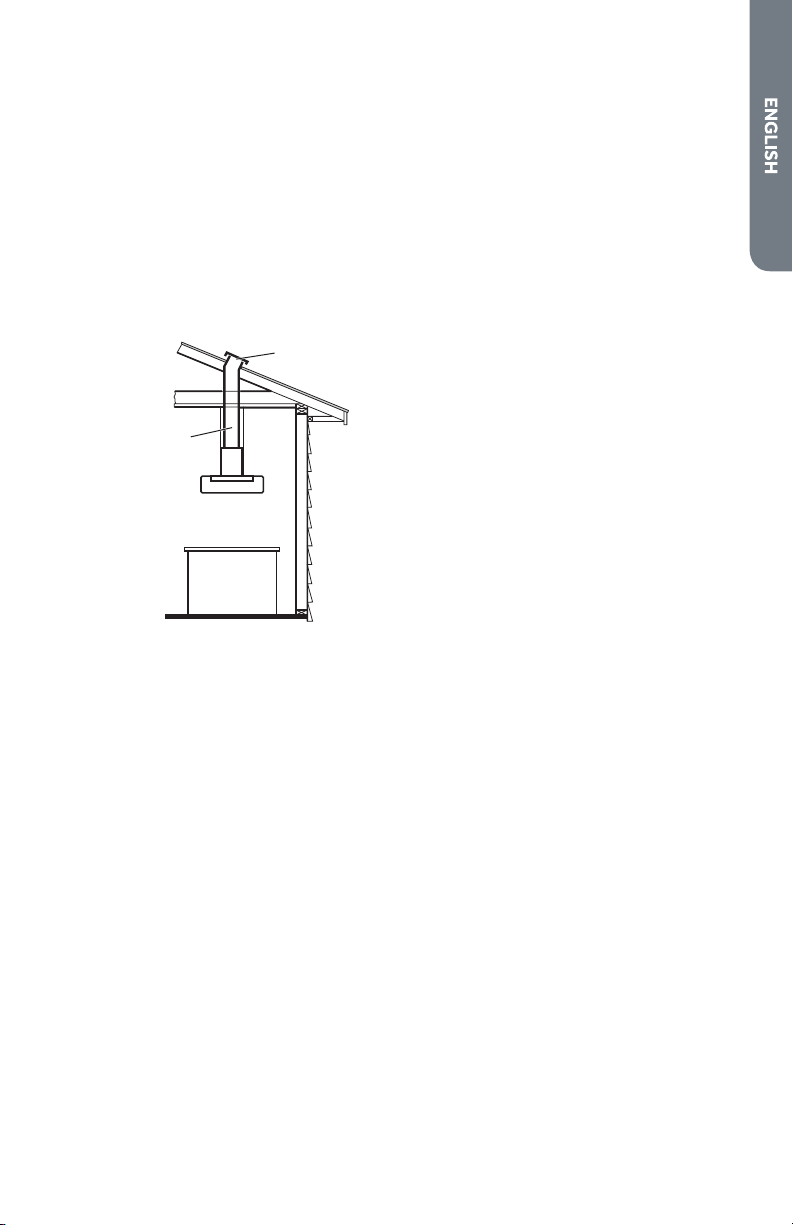

Roof Venting:
b
a
a Roof Cap
b 6" (15 cm) round vent
ELECTRICAL REQUIREMENTS
Observe all governing codes and ordinances.
Ensure that the electrical installation is adequate and in conformance with National
Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94,
Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local
codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a
qualied electrician determine that the ground path is adequate.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
Canadian Standards Association
178 Rexdale Blvd.
Toronto, ON M9W 1R3 CANADA
It is important to make sure you have the proper electrical connection.

8
RECOMMENDED GROUNDING METHOD
A 120 volt, 60 Hz, AC only, 15-amp fused, grounded electrical supply is required. Use
an outlet that cannot be turned o by a switch. Do not use an extension cord.
NOTE: Before cleaning, or removing a light bulb, turn vent hood o, and then
disconnect the vent hood from the electrical source. When you are nished,
reconnect the vent hood to the electrical source.
INSTALLATION INSTRUCTIONS
WARNING
Electrical Shock Hazard
Disconnect power before installing unit.
Failure to do so can result in death, fire, or electric shock.
Disconnect power before installing range hood.
STEP 1 - UNPACK RANGE HOOD
1. Select a at surface for assembling the range hood and cover the surface.
WARNING
Excessive Weight Hazard
Use two or more people to move and install range hood.
Failure to do so can result in back or other injury.
2. Using two or more people, lift the range hood onto the covered surface.
3. Separate the two-sections of the vent structure.
4. Remove the tape from the damper aps.

9
STEP 2 - PLAN INSTALLATION
1. Measure:
• The oor to ceiling height.
• The distance from the range cooking surface to the ceiling.
• The distance from the range cooking surface to the bottom of the range
hood.
a
b
d
c
a Countertop Height
b Hood Height From Ceiling to Bottom of the
Range Hood Filter surface: D-A-C=B
c 24" (61 cm) Min. from Electric Cooking
Surface, 30" (76 cm) min. from Gas
Cooking Surface, Suggested 36" (91 cm)
Max.
d Ceiling Height
2. Decide where the ductwork will run between the hood and the outside. Short
straight duct runs will provide the most airow.
3. Find the center point of your range/cooktop. Drop a plumb line from your ceiling
to this point on your cooking surface. Mark the ceiling where the plumb line
starts.
NOTE: It is required that you install cross braces between the ceiling joists. See
“Install Cross Braces.”
4. Calculate the required height of the vent mounting structure and vent cover.
The range hood will t on walls between 8½' and 9½' depending on the mounting
height of the range hood.
NOTE: For a shorter installation you may need to have the vent structure and
vent cover sections cut. For a longer installation you may need to make an
extension piece.

10
STEP 3 - INSTALL DUCTWORK
IMPORTANT:
• An island range hood exhausts vertically up through the ceiling and out the roof.
• Exhaust air must not be discharged into a ue that is used for exhausting fumes
from other appliances.
• Exhaust air cannot be discharged into an attic space or a garage.

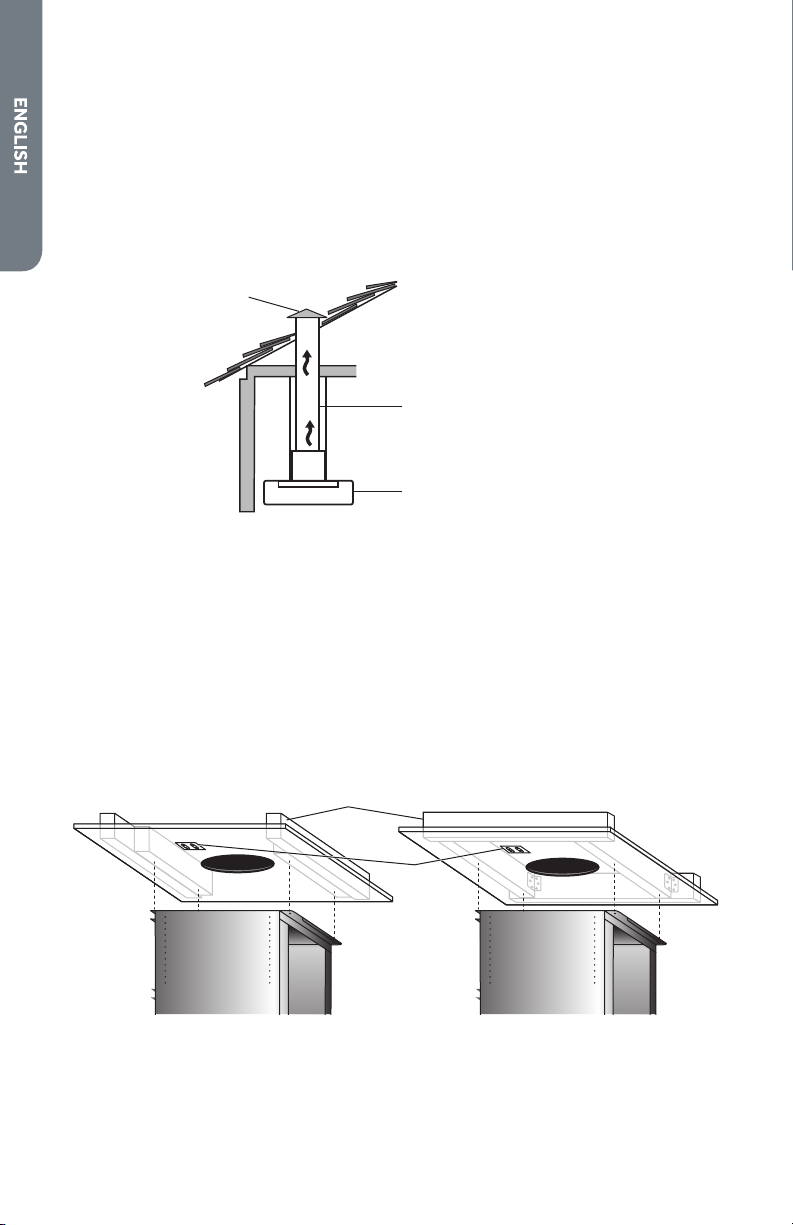

1. Plan where the ductwork will run between the range hood and the outside.
a
b
c
a Roof Cap
b Duct
c Hood
2. A short straight duct run will produce the most airow. Longer lengths and
elbow ducts will reduce the eciency of the blower.
3. Install a roof cap outside your home.
4. Connect a 6" metal duct to the cap and work backward toward the hood.
5. Ensure connections are completely sealed with duct tape.
STEP 4 - INSTALL CROSS BRACING
1. In the ceiling, install cross-braces between the ceiling joists.
NOTE: The bottom of the cross braces must be level to ensure that the island
hood hangs level.
a
b
a Ceiling Joists
b Electrical Outlet

11
STEP 5 - INSTALL ELECTRICAL CONNECTION
WARNING
Electrical Shock Hazard
Disconnect power before installing unit.
Failure to do so can result in death, fire, or electric shock.
1. Install a grounded 3 prong 110/120V receptacle on the ceiling within the
dimensions of the vent cover.
NOTE: All electrical wiring must be done by a electrician person and in
accordance with all applicable codes and standards. This range hood must
be properly grounded. Removing the plug from the power cord will void the
warranty of the range hood.
STEP 6 - CALCULATE MOUNTING HEIGHT
1. First, consider the following when calculating the mounting height. See “Plan
Installation.”
• Select a mounting height between a minimum of 24” (61 cm) for an electric
cooking surface, a minimum of 30” (76 cm) for a gas cooking surface, and a
suggested maximum of 36” (91 cm) above the range to the bottom of the
hood.
• Your eye level - Mounting the island range hood at a height where the
controls are at eye level is usually most convenient.
• Design - Factors such as symmetry and the t of the vent cover.

12

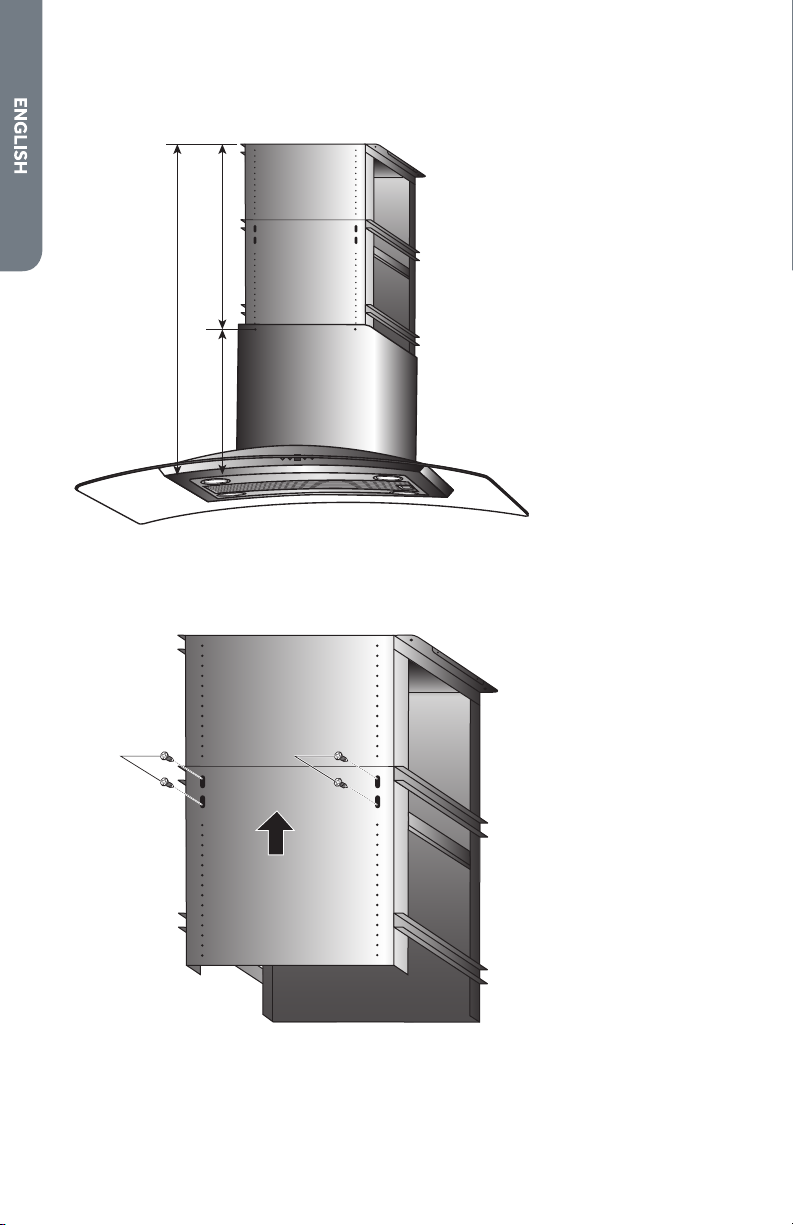

2. Calculate the available height from the ceiling to the bottom of the hood a.
Calculate the height of the range hood b, and then calculate the extended
height for the vent mounting structure c.
b
c
aa Ceiling to Bottom
of Hood
b Height of Hood
c Mounting
Structure Height
3. Slide the lower section of the vent mounting structure over the upper section.
Expand (telescope) the vent mounting structure to the calculated length c.
4. Using the screws (provided), fasten the two sections of the vent structure
together.
aa
a Phillips Pan-
head Screws

13
NOTES:
• If the calculated height of the vent mounting structure is shorter than
the actual height of the mounting structure, you will need to have both
the mounting structure and the vent cover cut to t your installation. We
recommend that a stainless steel fabricator do this to ensure a straight even
cut.
• If the calculated height of the vent mounting structure is larger than the
actual height of the vent structure, you will need to add an extension.
STEP 7 - MOUNT TO THE CEILING
IMPORTANT: If the range hood is being installed above an installed range, ensure
the range is turned o and is completely cooled before beginning installation.
1. Center the upper section of the vent mounting structure on the ceiling around
the exhaust duct opening. Ensure that:
• The markings align with the cross braces between the ceiling joints.
• The vent structure is square with the cooking surface below.
• The side of the vent structure that has the arrow on it faces the front.
When installed, this is the side of the hood that will have the controls.
2. Mark the upper screw holes on the ceiling.
a
a
a 2½” #10 Wood Screws (4)
3. Partially screw the four mounting screws (not provided) into the ceiling where
marked.
4. Ensure that the mounting structure is square and level, and then completely
tighten the screws. The structure should now be rmly attached to the ceiling.

14
STEP 8 - INSTALL DECORATIVE VENT COVERS
1. Attach 6" metal vent duct (not provided) to the prepared ductwork in the ceiling.
Seal all seams.
a
a Flexible Metal
Vent Duct
2. Separate the two sections of the vent cover.
NOTE: Remove the white lm from the vent covers, as needed, prior to
assembly and installation. Handle the vent covers gently to avoid scratching the
nish.
3. Using the screws (provided), fasten the upper section of the vent cover to the
top of the vent structure.
a
a
a Phillips Self-
drilling Screws

15
4. Slide the lower section of the vent cover onto the vent structure over the upper
vent cover, and insert two screws to temporarily hold the lower section of the
cover in place.
a
a Temporary
Screws (not
provided)

16
STEP 9 - INSTALL RANGE HOOD
WARNING
Excessive Weight Hazard
Use two or more people to move and install range hood.
Failure to do so can result in back or other injury.
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power cord plug.
Do not use an adapter.
Do not use an extension cord.
Failure to do so can result in death, fire or electrical shock.
1. Before mounting the range hood, plug the range hood into a grounded 3 prong
outlet to test all functions for proper operation.
• Blower works at all speeds.
• Lights turn on and o.
• The damper aps open when the blower is on.
2. Position the range hood so that the controls are toward the front. Then, with two
people lifting, raise the hood up and over the lower section of the vent structure.
3. Hold the range hood in position, while the third person fastens the range hood to
the vent structure.

17
a
a Phillips
Countersunk-
head Screws
4. Using the three small pan-head screws (provided), attach 6" metal vent duct to
the hood duct connector. Ensure that the damper aps are free to open. Seal all
seams.
a
b
a Metal Duct
b Small Phillips
Pan-head
Screws
5. Remove the temporary screws holding the bottom section of the vent cover in
place, and lower this section over the range hood.

18

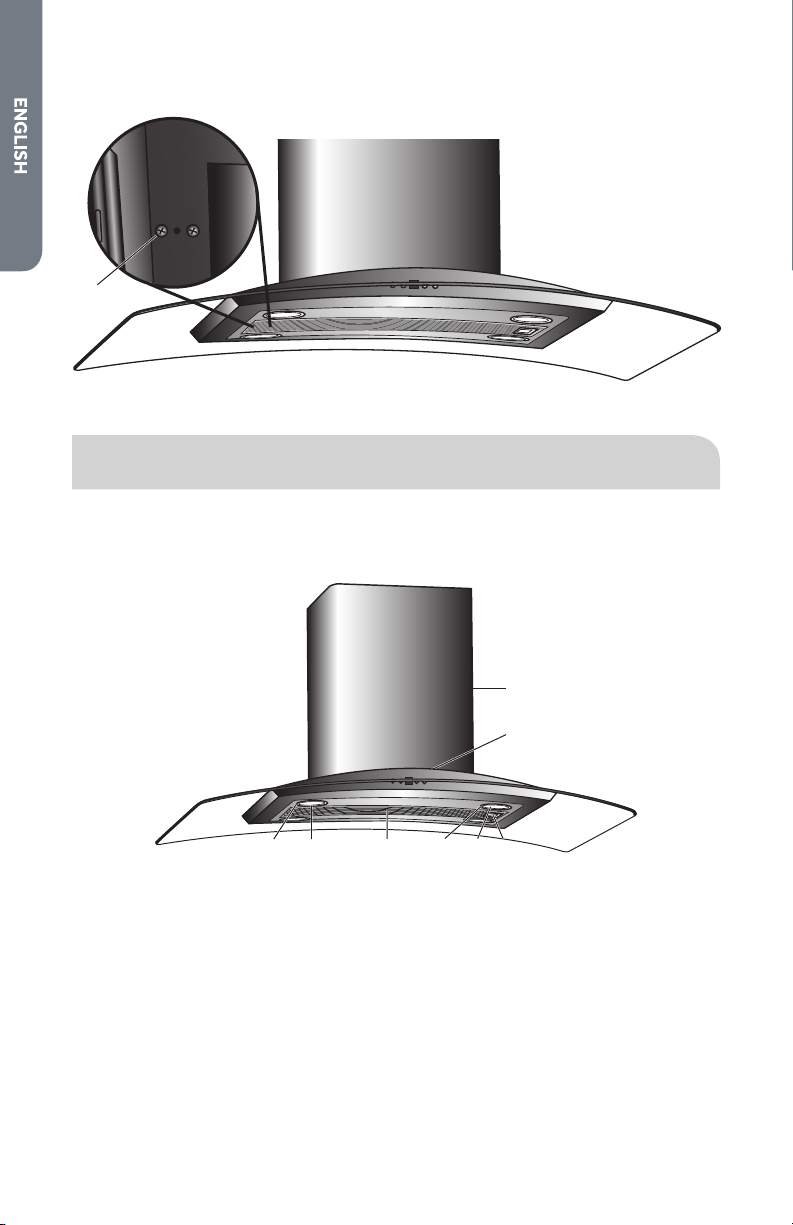

6. Using ten of the Phillips self-drilling screws, fasten the lower vent cover to the
top of the range hood.
a
a Phillips Self-drilling Screws
RANGE HOOD USE
The range hood is designed to remove smoke, cooking vapors and odors from the
cooktop area. For best results, start the hood before cooking and allow it to operate
15 minutes after the cooking is complete to clear all smoke and odors from the
kitchen.
a
b
cd ecdf
a Decorative Vent Cover
b Control Panel
c Lens
d Halogen Bulb
e Grease Filter
f Grease Filter Release
