Think Appliances GUH52SD User manual

User Manual for your
GUH52SD 52 cm
GUH75 75 cm
Canopy Hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 28/06/13

Contents Page 2

3
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8 – 9
GUH52SD 8
GUH75 9
Using your cooker hood 10 - 11
Beforefirstuse 10
To use your cooker hood 10 - 11
Cleaning your cooker hood 11 – 12
Generalcleaning 11
The grease filter 12
Maintenance 12 – 16
Removing and cleaning the grease filter 12 - 13
Changingalightbulb 13-14
Fitting the carbon filters 14 - 16
Installation 16 - 21
Electricalconnection 17
Before beginning installation 18
Installing your cooker hood 19 - 20
Connecting to external ducting 21
Completing the installation 21
Extraction mode or recirculation mode? 22
Troubleshooting 23 – 24
Contactdetails 28

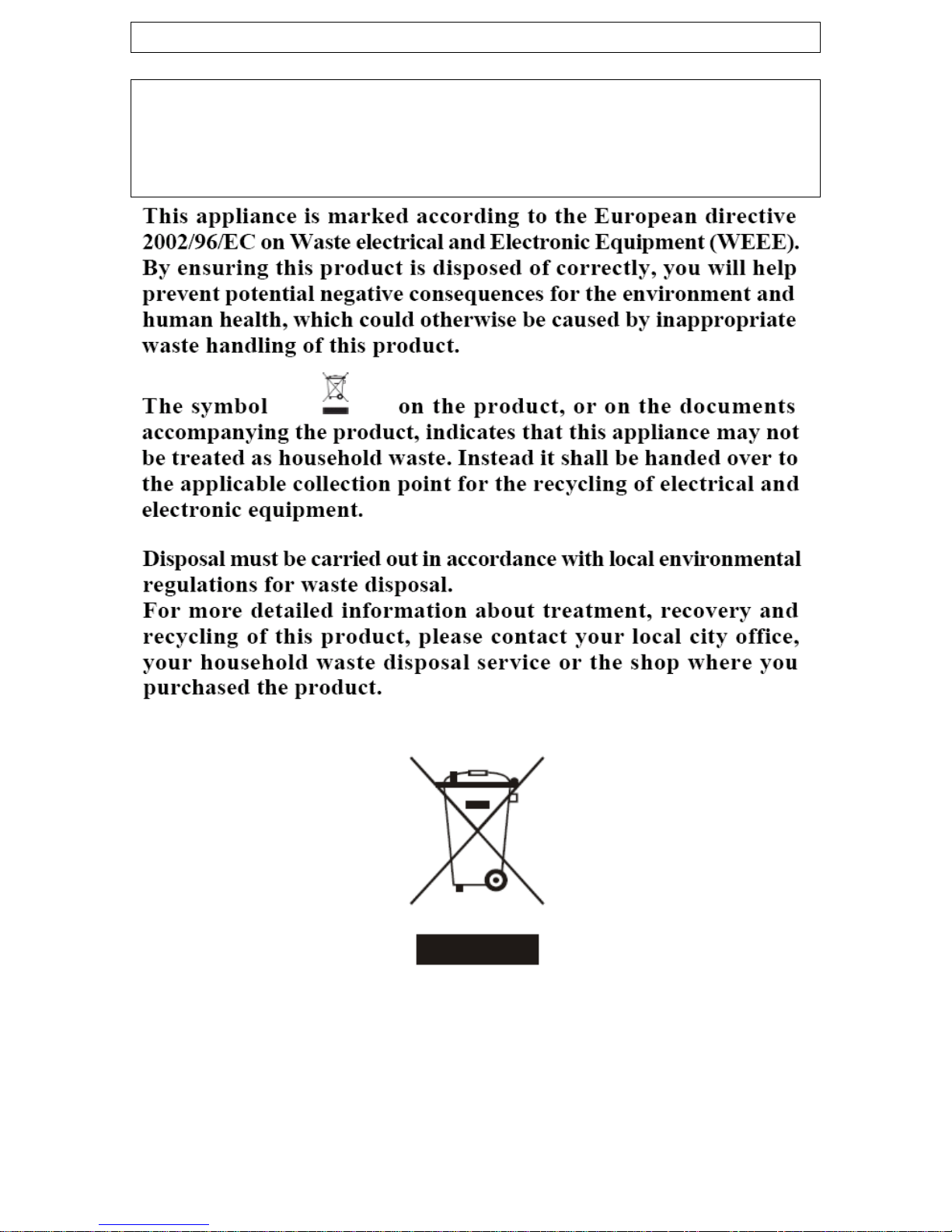

ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
oThe packaging materials that we use are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to us. Please
make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Retailer where you
purchased your unit from.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with your
local Gas Safety regulations.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
Electric cookers: 700 mm
Gas cookers: 700 mm
Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
oWhen installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
oThe edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
5

oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with or
tampering with the cooker hood. Older children
and infirm persons should be supervised if they
are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
6
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.
oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.

oNote that it removes odours from your room, not steam.
oWarning - Always ensure that the cooker
hood has been disconnected from the power
supply before carrying out any work on the
hood, including replacing light bulbs.
oDo not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use as
overheated fats and oils might catch fire.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
oNever flambé cook under this cooker hood.
oThe lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
7

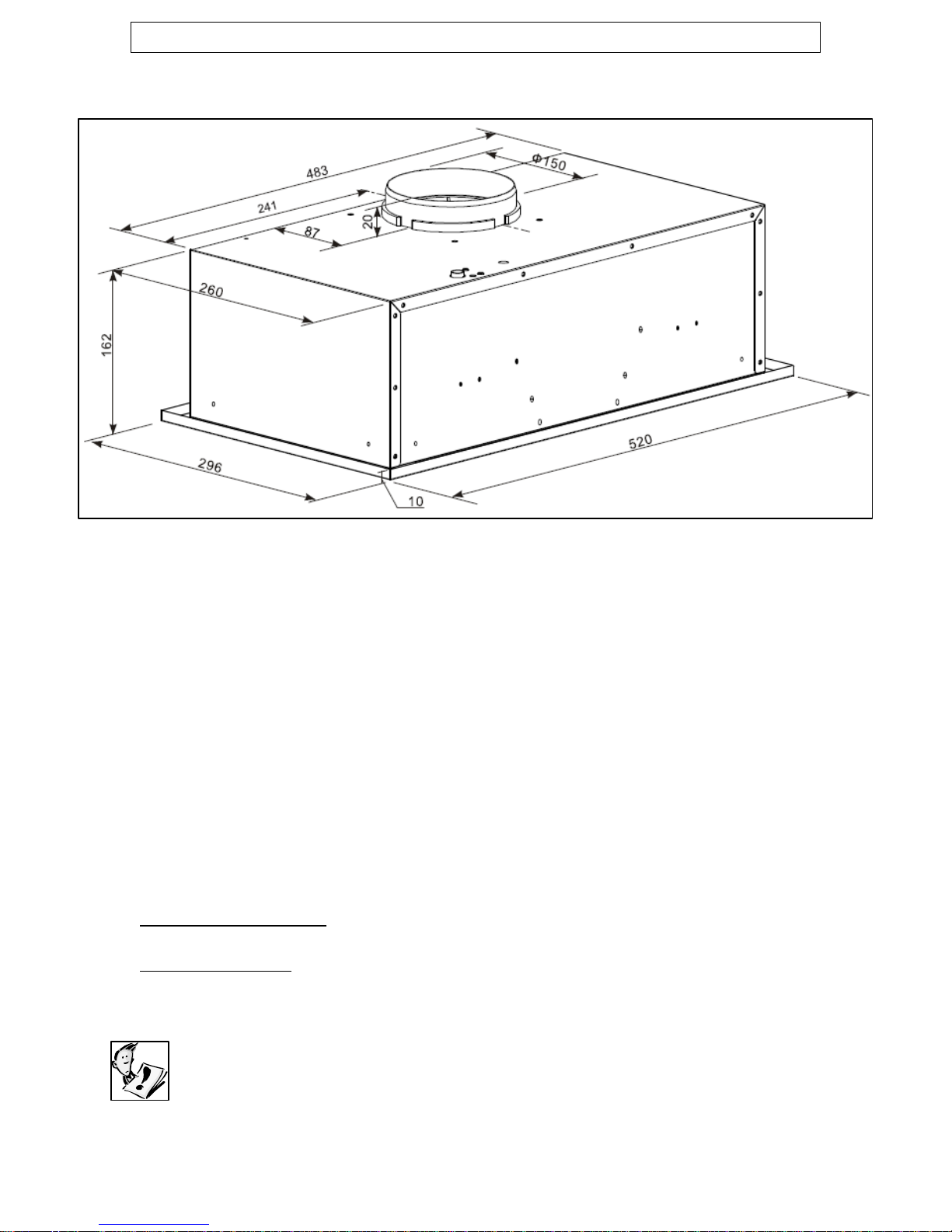

Specifications of your cooker hood
GUH52SD
Product dimensions
Height: 162 mm
Width: 520 mm
Depth: 296 mm
Your canopy hood is fitted with:
oSlider control operation
oIntegrated axial motor
o3 speeds
o1 washable aluminium grease filter
oNon-return airflow flap
o2 halogen lights
oNoise level: 52 / 57 / 62 dB
Extraction capacity: 350 m³ / hr
Optional extras: 1 pair S2 carbon filters for air recirculation
mode
All of the optional extras are available from the Spares
Department.
8

GUH75
Product dimensions
Height: 256 mm
Width: 746 mm
Depth: 296 mm
Your stainless steel canopy hood is fitted with:
oSlider control operation
oIntegrated axial motor
o3 speeds
o1 washable aluminium grease filter
oNon-return airflow flap
o2 halogen lights
oNoise level: 61 / 65 / 68 dB
Extraction capacity: 750 m³/hr
Optional extras: 1 pair S1 Carbon filters for air recirculation
mode
All of the optional extras are available from the Spares
Department.
9

Using your cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE COOKER HOOD IS USED FOR THE FIRST
TIME.
oYou should use a good quality stainless steel cleaner on ALL of
the stainless steel areas of your cooker hood, before it is used
for the first time.
oThis will help to leave a silicone water-resistant film to protect
the stainless steel surfaces.
To use your cooker hood
oMake sure that it has been installed by a suitably qualified
person, as per the information contained in these installation
instructions.
oFind the control panel, which is located at the front right of the
canopy.
oThere are two sliders on the control panel, which perform
separate functions.
1) Light control. The light can be used even when the motor is
OFF.
0 = Light OFF
1 = Light ON
2) Motor speed control.
= Low speed
= Medium speed
= High speed
10

IMPORTANT: IDEALLY YOU SHOULD SWITCH ON
YOUR HOOD TEN MINUTES BEFORE YOU START TO
COOK, OR AT THE VERY LEAST WHEN YOU BEGIN
COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR
TEN MINUTES AFTER YOU HAVE FINISHED COOKING.
Cleaning your cooker hood

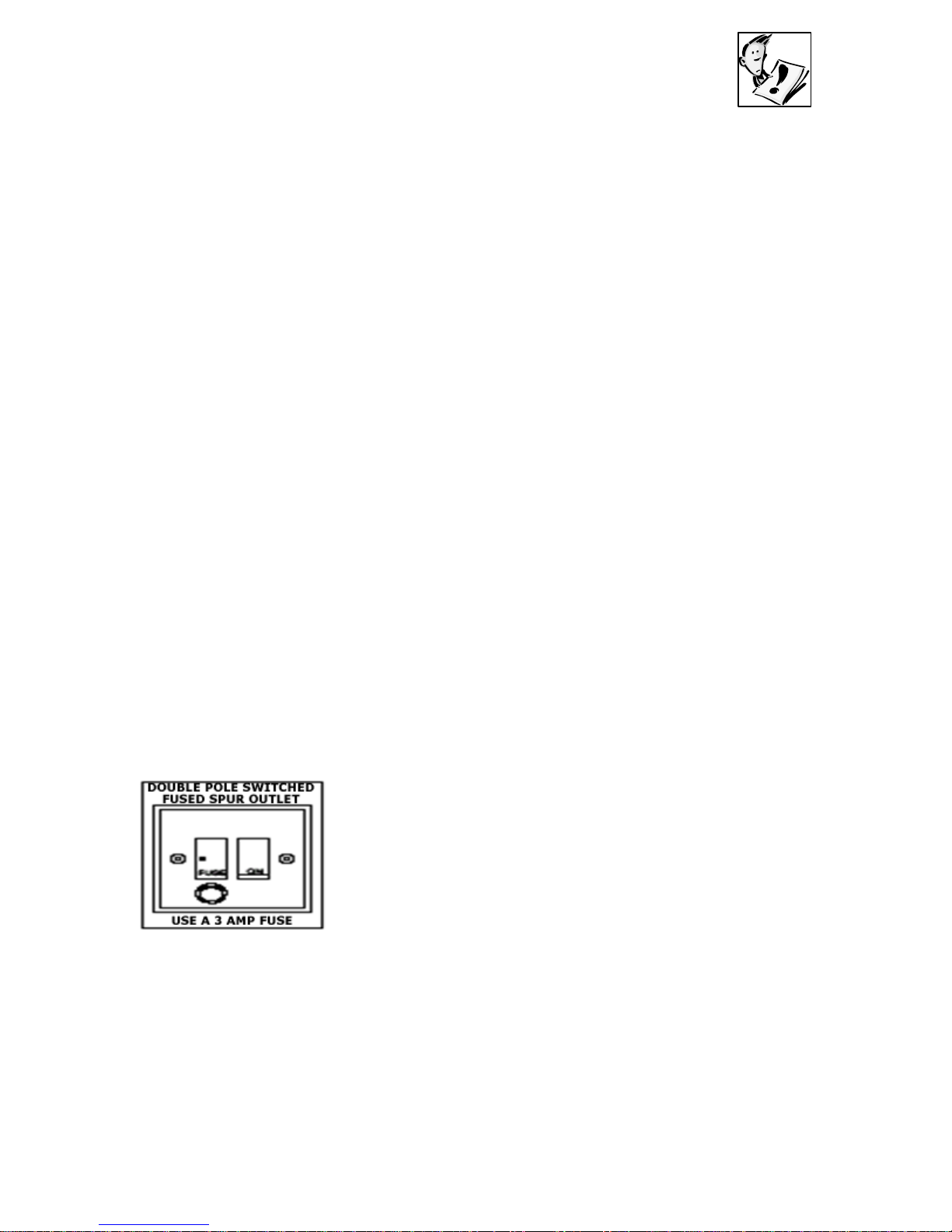

IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE
THAT YOU HAVE SWITCHED YOUR COOKER HOOD
OFF AT THE OMNI-POLAR SWITCH, SET AT THE
WALL FROM THE CABLE.
Cleaning
oClean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
oNever use abrasive powder, corrosive solvents or brushes.
oNever insert pointed objects into the motor’s protective grid.
oOnly clean the control panel and grease filter grill with mild liquid
detergents and a new damp cloth.
oIf you are using the appliance in recirculation mode, then be
sure to replace the carbon filters at the recommended interval
(see section on “Fitting the carbon filter”). A build up of grease
could cause a fire hazard.
oNever attempt to clean the area above the grease filter.
oIMPORTANT: You should regularly use a good quality
stainless steel cleaner to maintain the shine and finish on
the stainless steel areas of your cooker hood.
oThis will help to leave a silicone water-resistant film to protect
the stainless steel surfaces and keep them in good condition for
the life of the product.
11

The grease filter
oYour cooker hood includes a grease filter which helps to absorb
grease particles to protect your kitchen and furniture from
greasy residues.
oThe metallic filter may become flammable if it becomes
saturated with greasy residue.
oTo prevent this fire hazard, the filter should be cleaned regularly.
Depending on use, this should be done every 10-15 days or at
least once a month, using hot water and normal washing-up
detergent.
oDO NOT WASH THE GREASE FILTER IN A DISHWASHER.
Maintenance

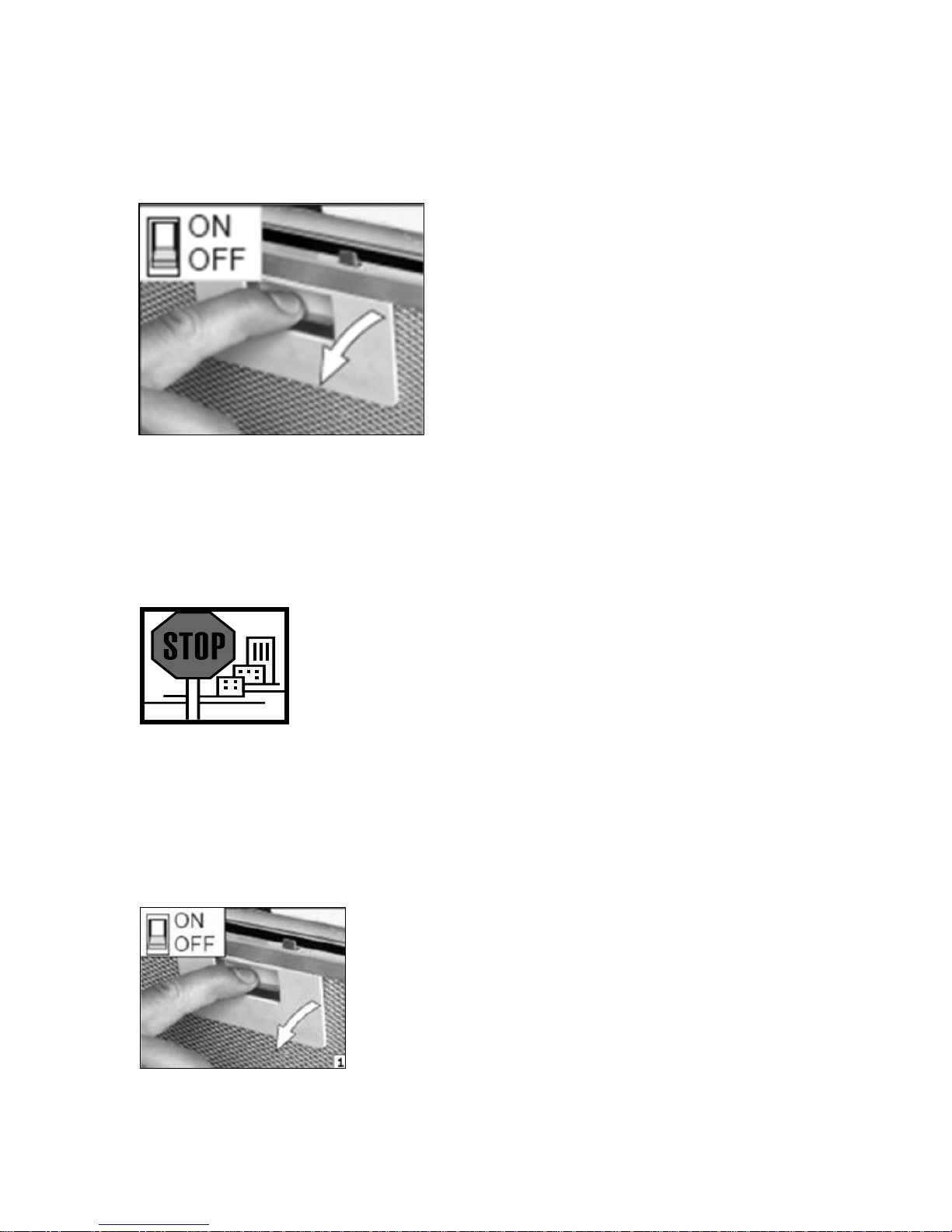

Removing and cleaning the grease filter

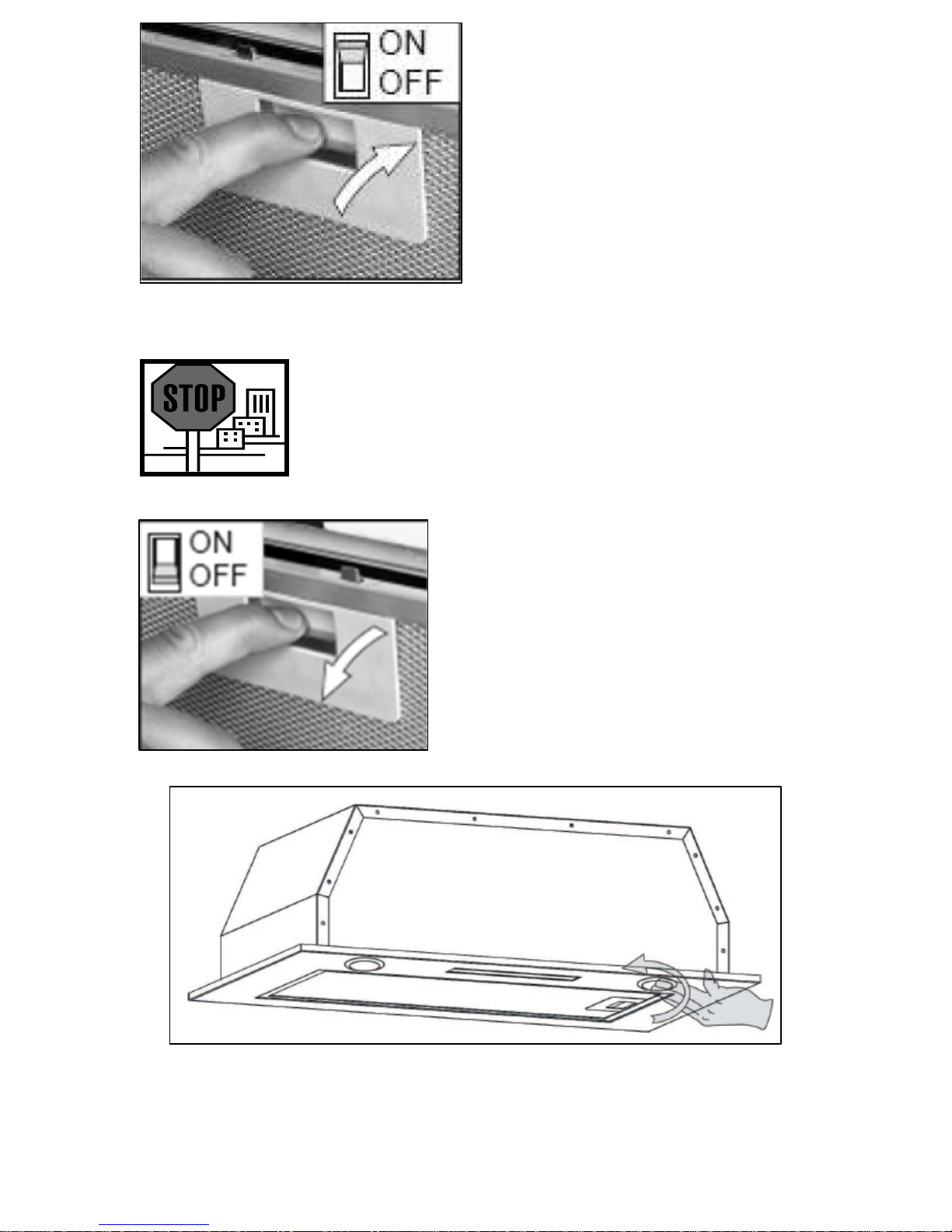

oFirst remove the grease
filters by pulling down on the
handle and pulling them away
from the cooker hood.
oSoak the grease filter in hot water and washing up liquid for
about an hour.
oRinse it off thoroughly with hot water.
12
oRepeat the process if required.

oRefit the grease filter once it
has dried.
oIMPORTANT: Let the
grease filter dry
thoroughly before
refitting it in the cooker
hood.
Changing a light bulb
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FROM
YOUR MAINS SUPPLY.
13
oRemove the grease filter (as
described on page 12).
oPrior to touching the light bulbs
ensure that they have cooled
down.
oFind the bulb that requires
replacement, you will find it
located in the light fixture which
is inside the exposed section of
the canopy.
oPress gently on the underside of the bulb that needs to be
replaced and twist anticlockwise to release.

oInsert a new identical 40W (max) bulb.
oIMPORTANT: Defective bulbs should be replaced immediately.
oIf the lights still do not work, make sure that the bulbs are fitted
properly into their housings before you call for technical
assistance. oRefit the grease filter.
Fitting the carbon filter
If the appliance is going to be used in recirculation mode then it is
necessary to a fit a carbon filter. This will help to absorb unpleasant
odours caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.

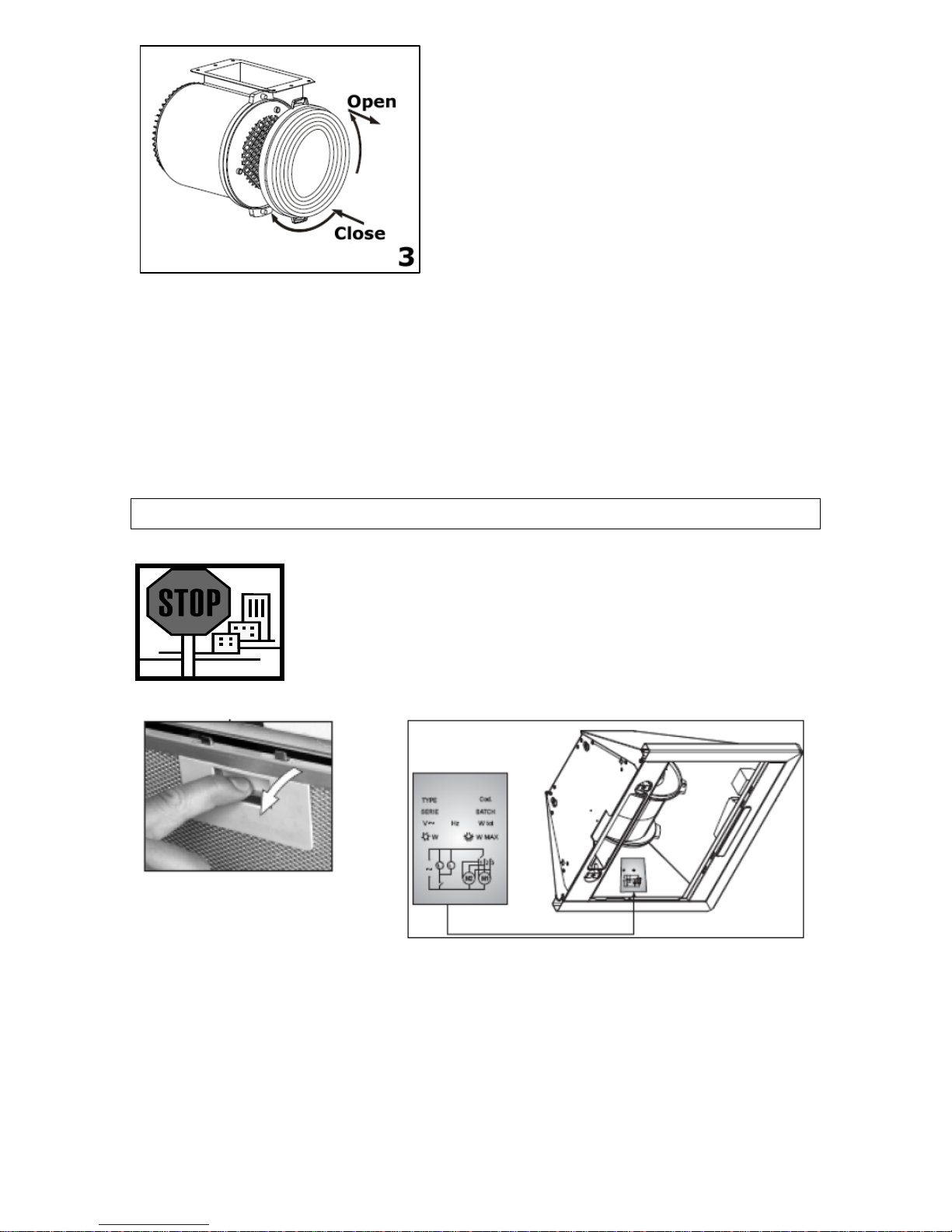

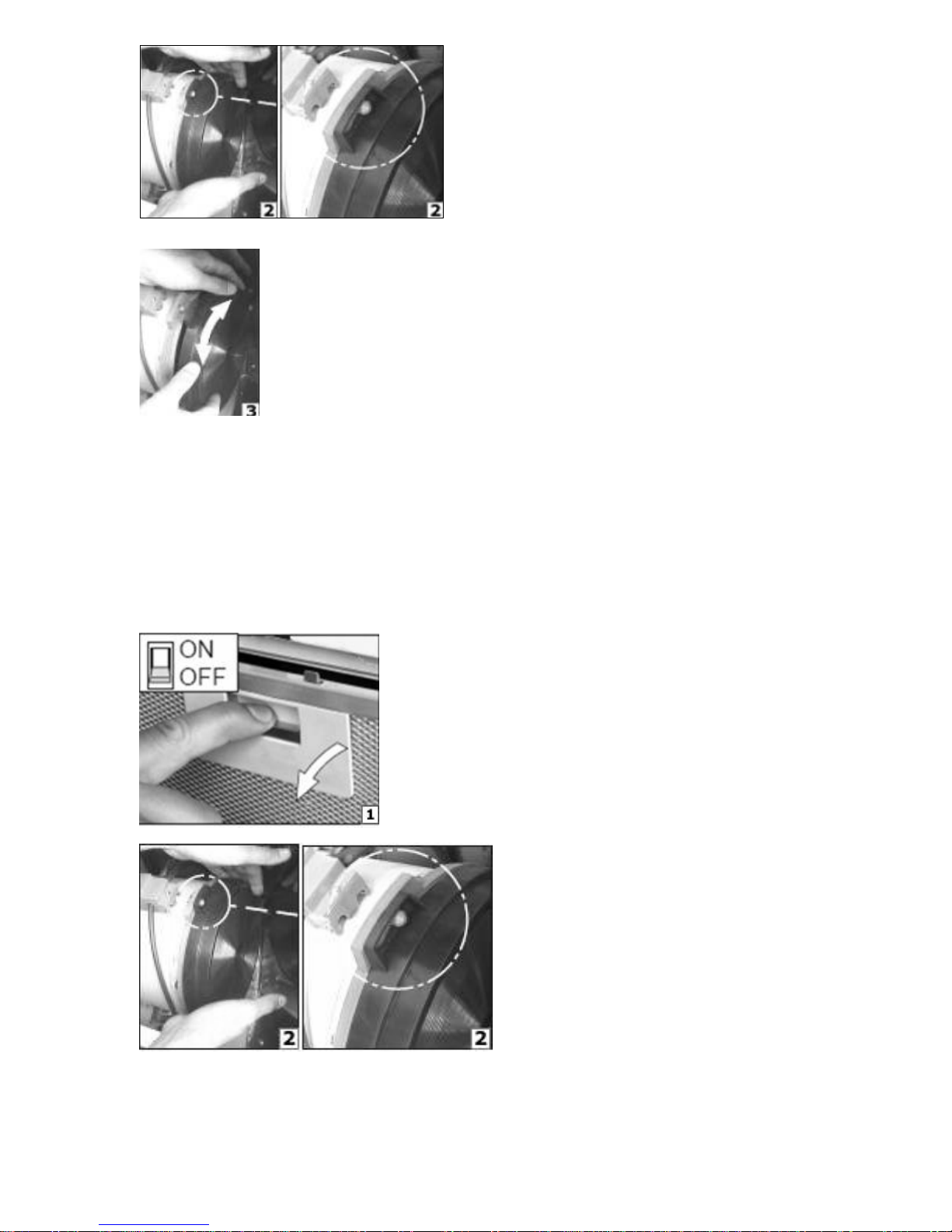

oYou will find that one filter will attach over the front of the fan
motor. The active carbon filter must be replaced at least every
four months depending on usage to allow normal operation when
in recirculation mode.
GUH52SD (1 x pair S2 carbon filters)
oRemove the grease filters.
14

2) Hook the carbon filter over the
pins that are located at the end of
the motor.
3) Turn the carbon filter clockwise until you feel it latch
onto the motor’s sides.
4) Replace the grease filters.
oWhen replacing the carbon filter, follow the steps outlined above
and turn the carbon filter anti-clockwise to unlatch it from the
motor.
GUH75 (1 x pair S1 carbon filters)
1) Remove the grease filters (as described
previously).
2) Hook the carbon filter over
the pins that are located at the
end of the motor.
15

3) Turn the carbon filter anticlockwise,
until you feel it click into place.
oRepeat this process for the second carbon filter. You need to
place a carbon filter at either end of the motor.
oRefit the grease filters.
oThe carbon filters should be replaced every 3 - 6 months or if
they show signs of damage.
Installation
IMPORTANT: Before installation read all the
instructions and make sure that the voltage (V)
and the frequency (Hz) indicated on the rating
plate are exactly the same as the voltage and
frequency in your home. The rating plate can be
found behind the grease filters.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
lectric system.e
16

17
lectrical connection
ENDED FOR FITTED AND
ERMANENT INSTALLATION.
ment to re-wire the appliance then please follow the
uidelines below.
of at least 3 mm. THE FUSE MUST BE RATED AT 3
AMPS.
WARNING: THIS APPLIANCE MUST BE EARTHED.
ed by a qualified
lectrician, who will comply with local regulations.
ons
o2010 Electricity Safety Regulations
ains lead are coloured in accordance with the
llowing UK code:
lue = Neutral, Brown = Live, Green/Yellow = Ground
brown),
hen neither must be connected to the earth terminal.
ifying the terminals
in your spur box, please proceed as follows:
l marked “N” (neutral), or coloured
black.
terminal marked “L” (live), or coloured red.
vice agent, or similarly
ualified persons to avoid any hazard.
E
YOUR COOKER HOOD IS INT
P
You cooker hood comes supplied with a fitted plug; however should
there be a require
g
oThe cooker hood’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance
We recommend that the appliance is connect
e
oAS/NZS 3000: 2007 Wiring Regulati
The wires in the m
fo
B
If you only find two wires in the main’s lead (blue and
t
oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings ident
oThe blue wire must be connected to the
termina
oThe brown wire must be connected to the
IMPORTANT: If your supply cord is damaged, it must be
replaced by the manufacturer, its ser
q

18
efore beginning installation
e should also be space to connect a ducting hose to the
outside.
ecessary masonry work prior to the fitting of the
cooker hood.
ctrical connections are carried out by a suitably
qualified person.
llation of the cooker hood the grease
filter should be removed.
tees etc. These should be removed and kept for future
use.
This will
help to protect these surfaces from damage and debris.
ve covering and place all cooker hood
parts and fittings on it.
try. This appliance is designed to be surface mounted
only.
B
oCheck that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then ther
oCarry out all n
oEnsure that all ele
oBefore commencing insta
oCheck inside the product and ensure that there is no transit
packaging or any other materials, such as packets of screws,
guaran
oIf possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
ceiling. If this is not possible, then a thick, protective covering
should be placed over the worktop, hob top or cooker.
oSelect a flat surface for assembling the cooker hood. Cover that
surface with a protecti
oDo not tile, grout or silicone this appliance to the wall or
cabine

19
nstalling your cooker hood
THE DIFFERENCES BETWEEN THESE
TWO MODES.
oWe recommend that two people install this hood.
ood should only be fitted into the underside of a
kitchen unit.
ou cannot fit this product by securing it between
two cupboards.
I
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE
IT IN EXTRACTION MODE OR RECIRCULATION
MODE. PLEASE TURN TO PAGE 21-22 NOW TO
UNDERSTAND
oYour cooker h
oIt must be positioned at least 700 mm above the hob
underneath it. Y
IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED
TO YOUR MAINS SUPPLY AFTER THE REST OF THE
NSTALLATION PROCESS HAS BEEN COMPLETED.
1) Remove the metal grease filter (A).

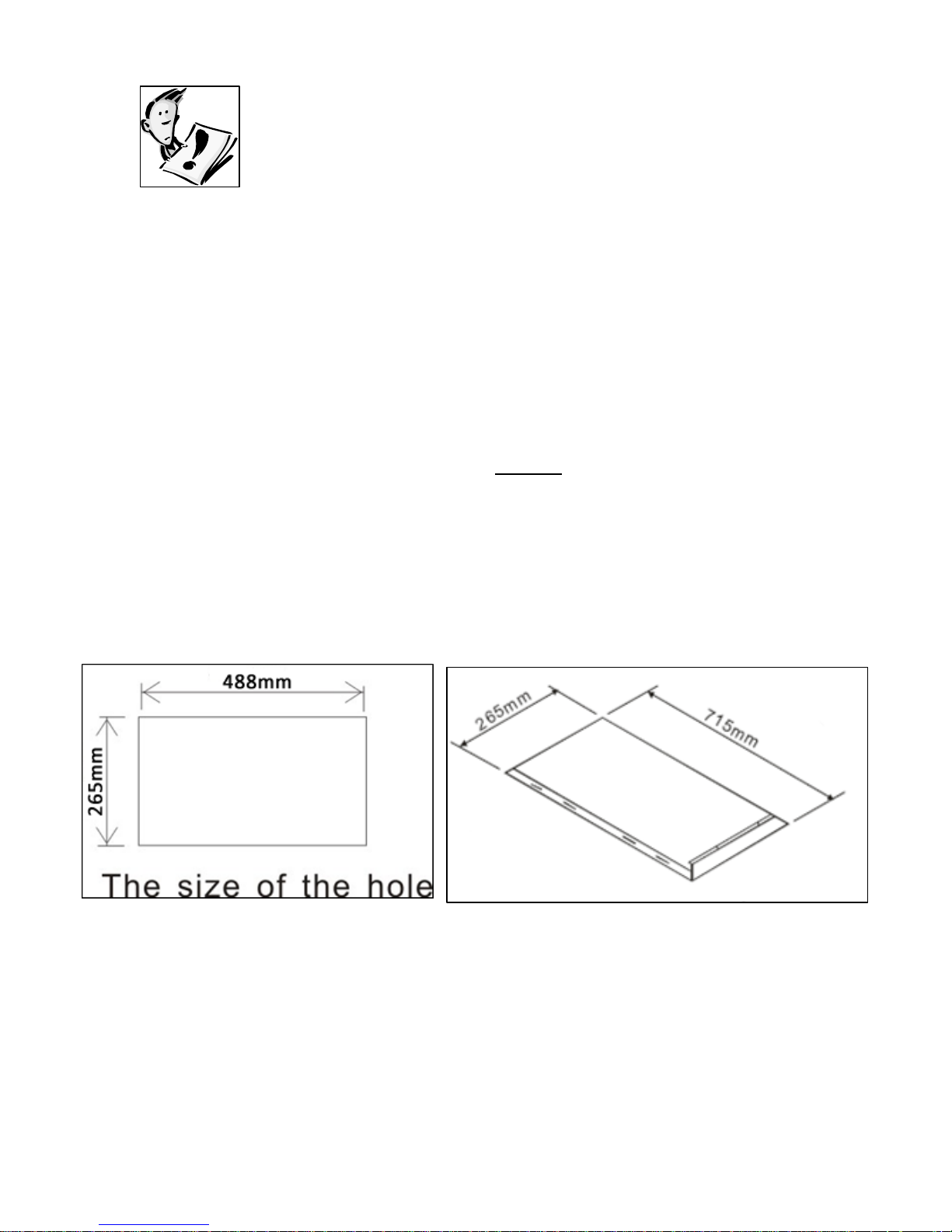

t; the cut-
ut must be of the dimensions shown in the drawing below.
f the installation (this information can be found on
page 20).
I
2) Create an opening in the underneath of the kitchen uni
o
GUH52SD GUH75
oIMPORTANT: If you are going to connect your cooker hood to
external ducting, then you must complete the steps listed in the
“Connecting to external ducting” section before carrying on with
the rest o

3) Make a hole in the inside of the
kitchen unit for the electrical cable
to feed through. Remove the screws
securing the extractor frame (B) to
the hood and unscrew the 2 lights.
Ensure that the two support clips on
either side of the hood are set to
accommodate the thickness of the
mounting surface, by adjusting the
clip via the screw.
4) Lift the cooker hood towards the
cut-out that you made in step 2.
Feed the electrical cable through the
hole that you made in step 3.
IMPORTANT: Do not connect the
electrical cable to the mains supply
at this stage.
5) Lift the cooker hood fully into the cut out that you made in step 2.
If you are connecting the cooker hood to external ducting, then secure
the ducting hose to the coupling on the appliance.
oOne person should support the hood. The other person should
fully tighten the support screws through the pre-drilled holes in
the outer frame of the hood, into the kitchen unit. Then replace
the extractor frame using the screws (B) and reattach the 2
lights.
oRefit the grease filter.
20
