Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this
manual for your appliance. Always read and obey all safety
messages.
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that can cause severe bodily injury or death.
All safety messages will follow the Safety Alert Symbol and either
the words “DANGER” “WARNING” or “CAUTION”
DANGER
Danger means that failure to heed this safety statement may
result in severe injury or death.
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power o at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
General Safety
WARNING
Warning means that failure to heed this safety statement
may result in extensive product damage, serious personal
injury, or death.
CAUTION
Caution means that failure to heed this safety statement
may result in minor or moderate personal injury, property or
equipment damage.
WARNING
To reduce the risk of fire or electric shock, do not use this fan
with any solid-state control device.
WARNING
CAUTION
For General Ventilating Use Only. Do Not Use To Exhaust
Hazardous Or Explosive Materials And Vapors. Take care
when using cleaning agents or detergents. Suitable for use in
household cooking area.
WARNING
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for
the size of the surface element.

5
Milano Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
WARNING
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn o the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a
violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you
already know how to operate it.
2) The fire is small and contained in the area where it
started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit
Based on “Kitchen Firesafety Tips” published by NFPA.
WARNING
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION
To reduce risk of fire and to properly exhaust air outside, do
not vent exhaust air into spaces within walls, ceilings, attics,
crawl spaces, or garages.
WARNING
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
b) Sucient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
c) When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application and be connected
to a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit.
WARNING
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.

6Milano Use, Care, and Installation Guide
MILANO
WALL
CORE
Safety Information
Operation
ŹAlways leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and
loose clothing.
ŹThe manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and
the warranty of the unit automatically expires due to improper maintenance.
NOTE: Please check www.zephyronline.com for revisions before doing any custom work.
Electrical Requirements
Important:
ŹObserve all governing codes and ordinances.
ŹIt is the customer’s responsibility to be aware of these below:
ŹTo contact a qualified electrical installer.
ŹTo assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest
edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes
and ordinances.
ŹIf codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path
is adequate.
ŹDo not ground to a gas pipe.
ŹCheck with a qualified electrician if you are not sure the range hood is properly grounded.
ŹDo not have a fuse in the neutral or ground circuit.
ŹThis appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected
by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram
on product.
ŹA cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and
install appropriate connector if necessary.
* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
READ AND SAVE THESE INSTRUCTIONS

7
Milano Use, Care, and Installation Guide
ZEPHYRONLINE.COM
List of Materials
Parts Not Supplied
Ducting, conduit and all installation tools
Cable locking connector (if required by local codes)
Duct cover extension accessory
Recirculating kit
Parts Supplied
Quantity Part
1Hood
2 Aluminum mesh filter
1 Duct cover assembly (top and bottom)
1 Duct cover wall bracket
2 LumiLight LED, 6W (pre-installed)
1 Single blower motor (pre-installed)
1 Hardware package
(3) Wire Nuts
(4) #6 x 1-1/2” (2) #6 x 1” (2) M4 x 8

8Milano Use, Care, and Installation Guide
MILANO
WALL
CORE

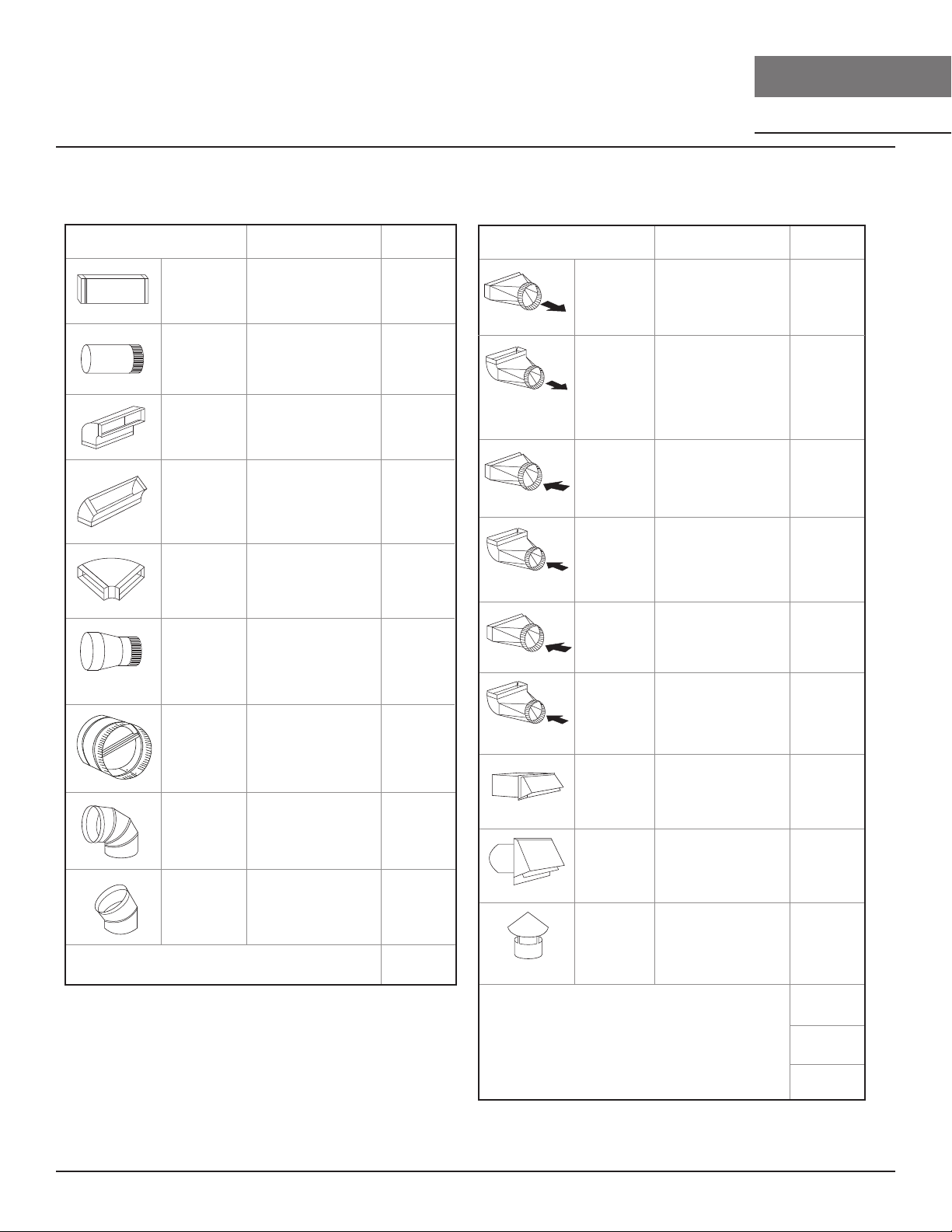

Installation Instructions
Duct pieces To t al
Equivalent number
length x used =
3-1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) =Ft.
3-1/ 4” x 10”
Rect. to
6” round
transition
5 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect. to
6” round
transition
900 elbow
20 Ft. x ( ) = Ft.
6”, 7”, 8”, 10”
Round,
900
15 Ft. x ( ) = Ft.
6”, 7”, 8”, 10”
Round,
450
9 Ft. x ( ) = Ft.
Ft.
6”, 7”, 8”, 10”
Round,
straight
1 Ft. x ( ) =Ft.
Subtotal column1 =
Duct pieces To t al
Equivalent number
length x used =
6”, 7”, 8”, 10”
Round, wall
cap with
damper
30 Ft. x ( ) = Ft.
Ft.
Ft.
Ft.
6”, 7”, 8”, 10”
Round
roof cap
30 Ft. x ( ) = Ft.
Subtotal column2 =
Subtotal column1 =
Total ductwork =
Maximum Duct Length: For satisfactory air movement,
the totalductlength
should not exceed 150 equivalent feet.
6” roundto
3-1/ 4” x 10”
rect.
transition
1 Ft. x ( ) = Ft.
6” roundto
3-1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) = Ft.
7” roundto
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) = Ft.
7” roundto
3-1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) = Ft.
elbow
elbow
7” to 6” or
8” to 7” Round
tapered
reducer
25 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect. 900
elbow
15 Ft. x ( ) =Ft.
3-1/ 4” x 10”
Rect. 450
elbow
9 Ft. x ( ) =Ft.
3-1/ 4” x 10”
Rect. 900
flatelbow
24 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) = Ft.
Ft. x ( ) = Ft.
15
6”, 7“, 8”
Round
in-line
damper
Ducting Calculation Sheet

9
Milano Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions

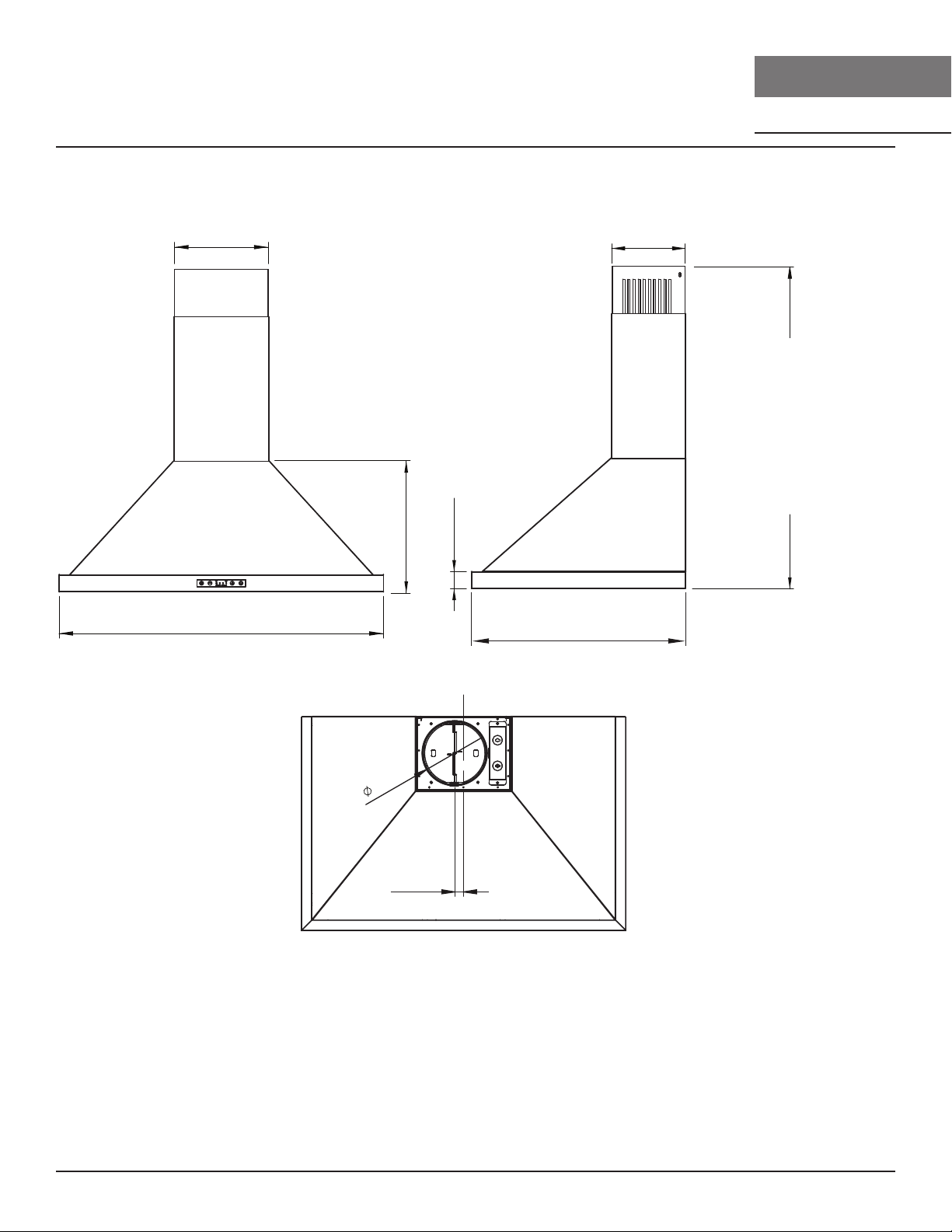

Mounting Height, Clearance, & Ducting
24” min.
34” max.
min. A
min. B
max. C
min. D
min. E
max. F
Standard Extension
Hood Heights Duct Cover Duct Cover
minimum ducted (A) 30” 46-1/2“
minimum recirculating (B) 32” 50-1/2“
maximum (C) 42-1/2” 80”
Ceiling Heights
minimum ducted (D) 90” (7’ 6”) 106-1/2“ (8‘ 10-1/2”)
minimum recirculating (E) 92” (7’ 8”) 110-1/2“ (9‘ 2-1/2”)
maximum (F) 112-1/2” (9’ 4-1/2“) 150” (12’ 6”)
36”

10 Milano Use, Care, and Installation Guide
MILANO
WALL
CORE
Installation Instructions
Mounting Height, Clearance, & Ducting
A minimum of 6” round duct is recommended to maintain maximum air flow eciency.
Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.
Also use the ducting calculation sheet (on page 8) to compute total available duct run when using
elbows, transitions and caps.
ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required,
increase duct size from 6” to 7”.
If turns or transitions are required; install as far away from hood duct output and as far apart,
between the two as possible.
Minimum mount height between range top to hood bottom should be no less than 24”.
Maximum mount height should be no higher than 34”.
It is important to install the hood at the proper mounting height. Hoods mounted too low could result
in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its
performance and eciency.
If available, also refer range manufacturer’s height clearance requirements and recommended hood
mounting height above range. Always check your local codes for any dierences.
Duct cover extension kit available for ceiling heights up to 12 feet. Turn to the list of parts and
accessories section for part number and ordering information.
For shipment and installation damages:
ŹPlease fully inspect unit for damage before installation.
ŹIf the unit is damaged in shipment, return the unit to the store in which it was bought for repair or
replacement.
ŹIf the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
ŹIf the unit is damaged by the installer (if other than the customer), repair of replacement must be
made by arrangement between customer and installer.

11
Milano Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Ducting Options
ŹUse single wall rigid metal ductwork only.
ŹFasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Fire Hazard: NEVER exhaust air or terminate ductwork into
spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
recirculating option.
WARNING
ű
ħ
ć

ħ




ħ


12 Milano Use, Care, and Installation Guide
MILANO
WALL
CORE
Installation Instructions
Ů
Standard
min. ducted - 30”
min. recirc - 32”
max. 42-1/2”
Z1C-01OMS
Z1C-01OMBS
min. ducted - 46-1/2”
min. recirc. - 50-1/2”
max. 80”
TOP
FRONT SIDE
1-9/16”
19-3/4”
6-7/8”
8-3/4”
12”
29-7/8”, 35-7/8”
7/8”
6”

13
Milano Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Electrical Supply
Electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards. Turn o
electrical power at service entrance before wiring.
WARNING
For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not
use extension cord or adapter plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.
This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly
grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring
must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product.

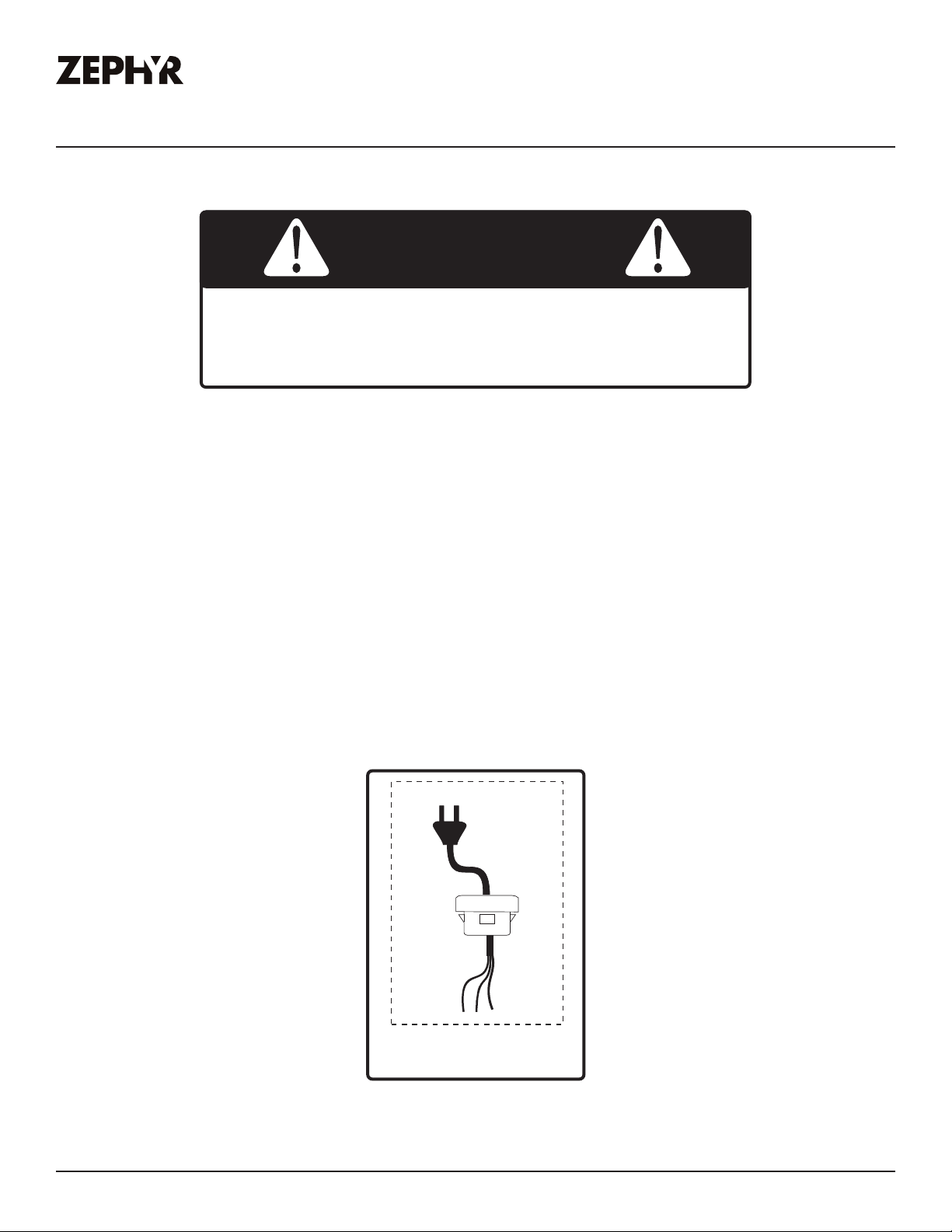

Cable Lock
A cable locking connector (not supplied) might be required by local codes. Check with local
requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)
FIG. A
Cable Lock

14 Milano Use, Care, and Installation Guide
MILANO
WALL
CORE
Installation Instructions

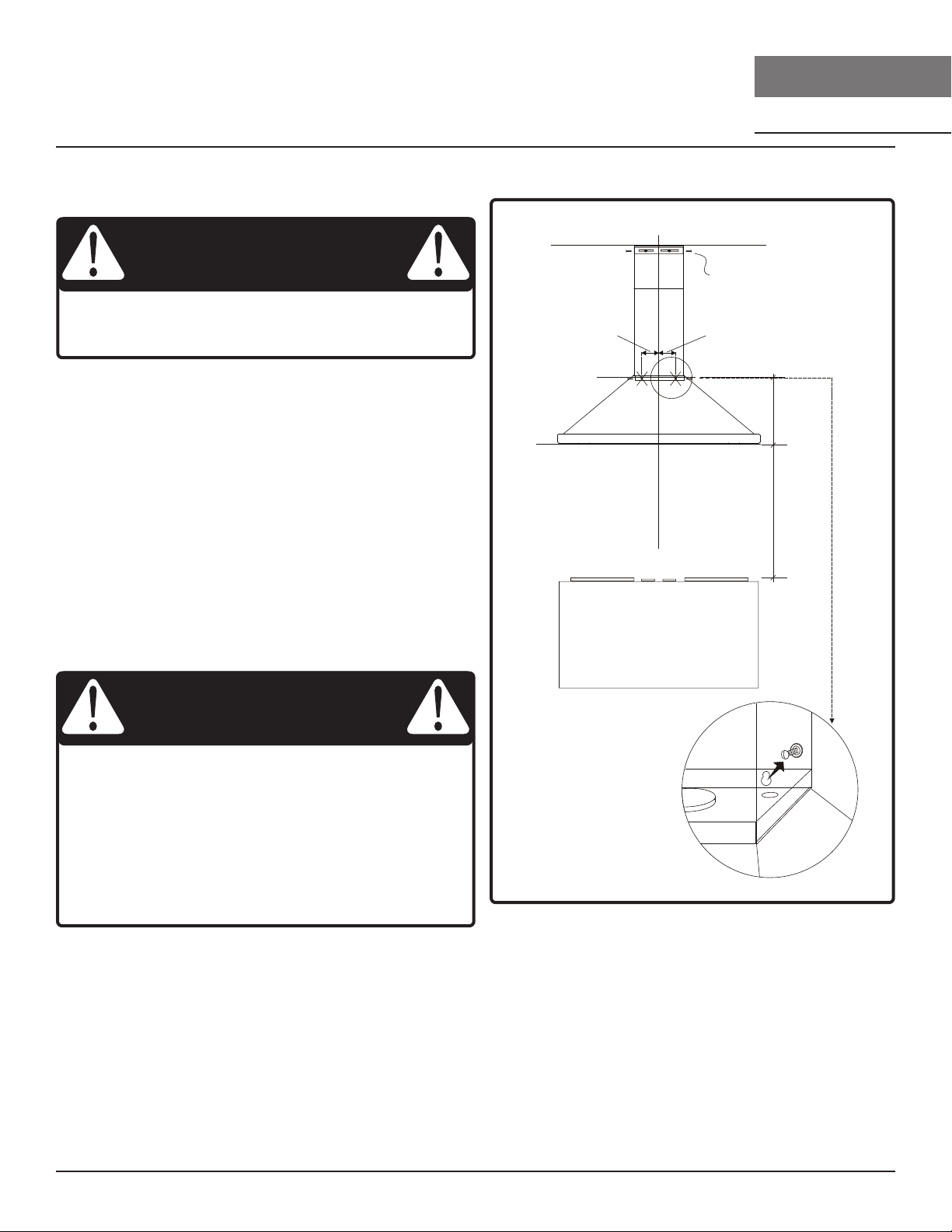

Mounting the Hood
At least two installers are required due to the
weight and size of the hood.
CAUTION
1. Measure from range top to hood bottom and
mark line A. (26” minimum from range top).
2. Plum and mark center line.
3. Mark mounting height line B. (12-1/4” from line
A).
4. Mark mounting spread from C/L on line B. From
C/L to left mount mark (3-1/2”). From C/L to
right mount mark (2”).
5. Fasten (2) #6 x 1-1/2” screws into studs on line B
but do not tighten all the way.
Wood blocking may need to be added behind
the drywall if no studs are present. Wall anchors
may also be used but check local codes for
compliance. Failure to use suitable wall anchors
and screws to hold the weight of the hood could
result in personal injury or damage to cooking
surface or counter.
WARNING
FIG. B
A
B
C/L
12-1/4"
C/L
26" min
C
Duct Cover Bracket
2"3-1/2"
6. Hang hood onto screws and hand tighten shown on C in FIG. B. Use the last 6# x 1-1/2” screws to
further secure the hood to the wall from inside the hood.
7. Center and attach duct cover bracket to wall below ceiling or sot using (2) 6# x 1-1/2” screws.
8. Install electrical.

15
Milano Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
9. (If applicable) If using hood in recirculating mode you must secure the air diverter plate onto wall
before installing duct work and duct covers. Turn to page 16 for more details.
10. Install duct work and seal all joints with certified duct tape.
11. Power up hood and check for leaks around duct tape.
12. Place telescopic duct covers onto hood and extend inner (top) duct cover upwards and secure to
duct cover bracket using (2) M4 x 8 screws.
Mounting the Hood

16 Milano Use, Care, and Installation Guide
MILANO
WALL
CORE
Installation Instructions

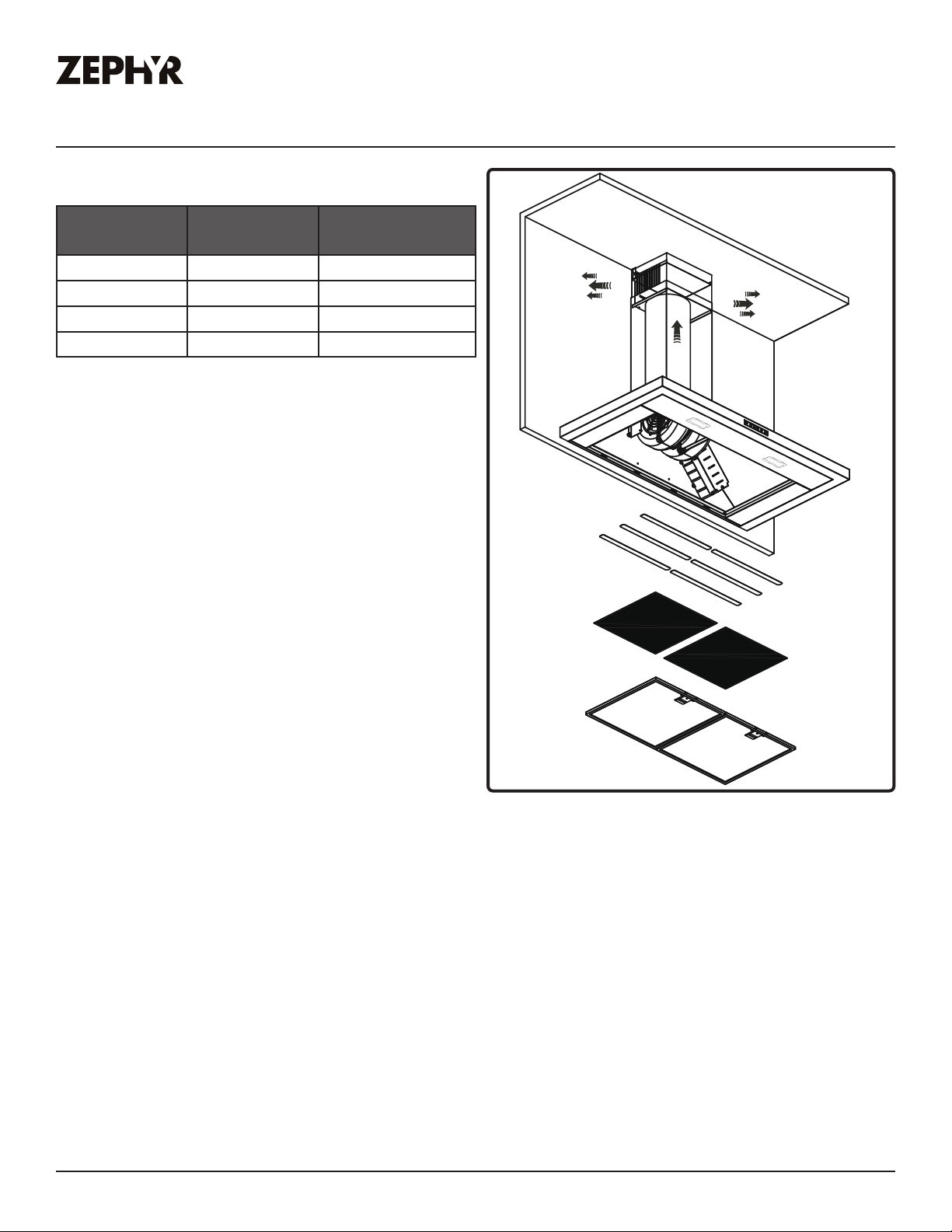

Ductless Recirculation
Ductless recirculation is intended for applications where an exhaust duct work is not possible to be
installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood.
Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is
then purified and re-circulated back within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new
duct work, if possible. The hood is most eective and ecient as an exhaust hood. Only when the
exhaust option is not possible should you recourse to converting the hood into a recirculating hood.
When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard
Metal Filter set. Order according to its part number below. The standard mesh filters are intended to
capture residue from cooking, and the optional charcoal filters help to purify fumes exhausted from
cooking for recirculation.
Recirculating Kit Installation (required if no ducting is used)
Kit includes the charcoal filters, charcoal filter brackets and the air diverter plate.
Hood Model Part Number Filters in Package
ZOM-E30BS ZRC-01OM 2
ZOM-E30BBS ZRC-01OM 2
ZOM-E36BS ZRC-01OM 2
ZOM-E36BBS ZRC-01OM 2
1. Purchase recirculating kit per the part number above.
2. Secure air diverter plate to wall below duct cover bracket. (FIG. C). Remove aluminum mesh filter
from hood. Place charcoal filter over the back side of the aluminum mesh filter.
3. Secure charcoal filters to back side of filters by three brackets for each filter.
4. Reinstall aluminum mesh filters.
5. Enable recirculating mode (refer to page 19). The microprocessor in the controls will indicate the
need to change the charcoal filters after 120 hours of continuous use. Order replacement charcoal
filters per the list below.

17
Milano Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Charcoal Filter Replacements
Hood Model Part Number Quantity to
Order
ZOM-E30BS Z0F-C091 2
ZOM-E30BBS Z0F-C091 2
ZOM-E36BS Z0F-C091 2
ZOM-E36BBS Z0F-C091 2
DO NOT WASH CHARCOAL FILTERS. Charcoal
filters may need to be changed more often
depending on cooking habits.
FIG. C

18 Milano Use, Care, and Installation Guide
MILANO
WALL
CORE
Features & Controls

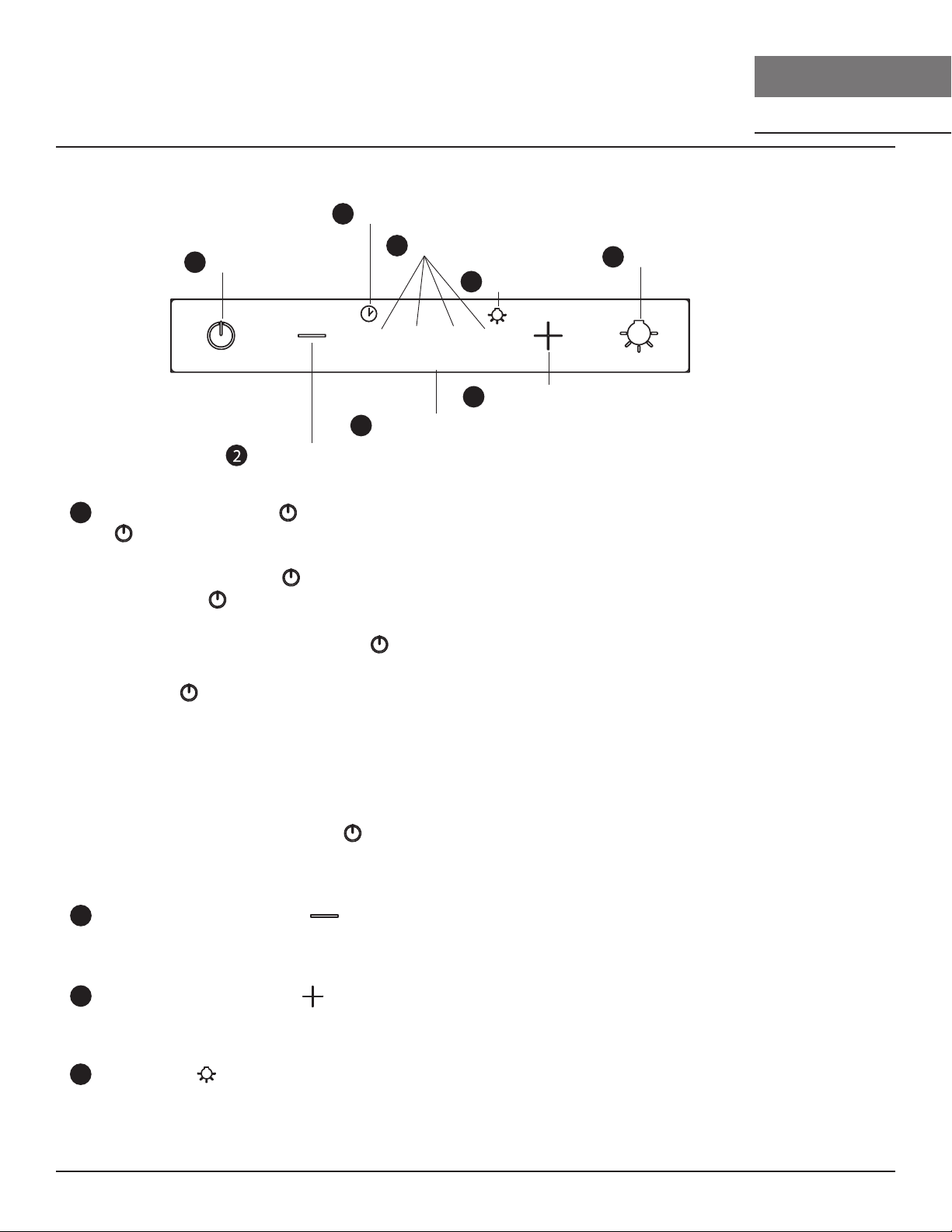

Touch Controls
Q 2 3 4
clean filters
1Power / Delay O 4Lights On/O
5Delay O Timer Indicator
6Speed Indicators
8Lights Indicator
Fan Speed Decrease
Fan Speed Increase
Clean Filter Indicator
3
7
1ħŰ
- Button will turn power on and o for entire hood (fan and lights.
- Hood will remember the last speed and light level it was last turned o at.
(Example: Press button to turn o hood when on fan speed 3 and high lights.
Press button again and the hood will turn back on at speed 3 and high lights.
Ű
- With the fan on, press and hold the button for two seconds. The fan will change to speed 1 and the 5
minute delay o timer will start.
- Pressing Button while delay o function is enabled will turn the hood o and cancel the delay o
function.
Ů
- Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes
and regulations.
- To verify the maximum fan CFM:
- Wtih hood o, hold the Button for three seconds. If all speed four indicator illuminates = default
maximum CFM. If speed three indicator illuminates = 390 maximum CFM. If speed two indicator illuminates =
290 maximum CFM.
2
- Press this button to decrease fan speed. 4, 3, 2, Q (Quiet).
- If fan is o, press this button to turn on fan at last speed it was turned o at.
3
- Press this button to increase fan speed. Fan on, Q (Quiet), 2, 3, 4
- If fan is o, press this button to turn on fan at last speed it was turned o at.
4
- Lights are two levels, high and low.
- From o, press one time for high. Press again for low. Press again to power lights o.

19
Milano Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Features & Controls
Touch Controls
7Clean Filters Indicator
- After 30 hours of fan usage, the clean fitlers indicator will turn on indicating it is time to clean the mesh filters.
- To Reset: With hood o: hold the button for three seconds. The clean filters indicator will turn o
confirming the 30 hour timer has been reset.
Recirculating Mode
- To Enable: With hood o, press and hold the button and button simultaneously for three seconds. The clean
filter indicator will illuminate for three seconds confirming the function is enabled.
- To Disable: With hood o, press and hold the button and button simulaneously for three seconds. The clean
filter indicator will blink two times confirming the function is disabled.
- After 120 hours of fan usage, the clean filters indicator will flash on and o indicating it is time to replace the
charcoal filters.
- To Reset: With hood o: hold the button for three seconds. The clean filters indicator will turn o
confirming the 120 hour timer has been reset.
8Lights Indicator
- When lights are on high or low, lights indicator will illuminate.
5Ű
- When delay o function is activated, delay o indicator light will turn on indicating the delay o 5 minute
timer has started.
- After 5 minutes the fan, lights and delay o indicator will automatically turn o.
6Speed Level Indicators
- Fan is four speed levels. Q (Quiet), 2, 3, and 4.

20 Milano Use, Care, and Installation Guide
MILANO
WALL
CORE
Hood & Filter Cleaning
Surface Maintenance
ŹDo not use corrosive detergents, abrasive detergents or oven cleaners.
ŹDo not use any product containing chlorine bleach or any product containing chloride.
ŹDo not use steel wool or abrasive scrubbing pads which will scratch and damage surface.
Cleaning Stainless Steel
Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub
in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser
detergent.
After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and bu out the stainless
luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and bu in the
direction of the stainless steel grain.
Cleaning Black Stainless Steel
Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. To remove
heavier grease build up use a liquid degreaser detergent.
Due to a built-in layer of protective anti-smudge coating, do not use stainless steel polish/cleaners to
bu out black stainless steel.
Aluminum Mesh Filters
The aluminum mesh filters installed by the factory are intended to filter out residue and grease from
cooking. They need not be replaced on a regular basis but are required to be kept clean.
Remove and clean by hand or in dishwasher using a non-phosphate detergent. Discoloration of the
filter may occur if using phosphate detergents, or as a result of local water conditions - but this will
not aect filter performance. This discoloration is not covered by the warranty. Spray degreasing
detergent and leave to soak if heavily soiled.
Dry filters and re-install before using hood.
Maintenance
