Cooke & Lewis BDW60CL User manual

60cm Built in dishwasher
BDW60CL - Version: 01
GB IE 60cm Built in dishwasher - Barcode: 5052931258482
WARNING: Read the instructions before using the appliance.
BDW60CL-C&L-A5-GB-IM-18.indd 1 4/7/14 10:51 AM

2BDW60CL 60cm Built in dishwasher
[01] x 1 [02] x 2 [03] x 1
[04] x 1 [05] x 1
[06] x 1 [07] x 4 (Prelled on appliance) [08] x 1
[09] x 1
1 : 1
[11] x 4 (4x37mm)
[10] x 4 (3.9x19mm)
[12] x 4 (3.9x13mm)
BDW60CL-C&L-A5-GB-IM-18.indd 2 4/7/14 10:51 AM

3
Let's
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started… 03
Your product 03
Before you start 04
Safety 06
In more detail… 09
Operation 09
Care and maintenance 22
Troubleshooting 25
Recycling and disposal 27
Technical and legal information 28
Guarantee 31
CE declaration of conformity 33
Appendix...
34
Installation
GB
IE
BDW60CL-C&L-A5-GB-IM-18.indd 3 4/7/14 10:51 AM

4
BDW60CL 60cm Built in dishwasher
Getting started...
GB
IE

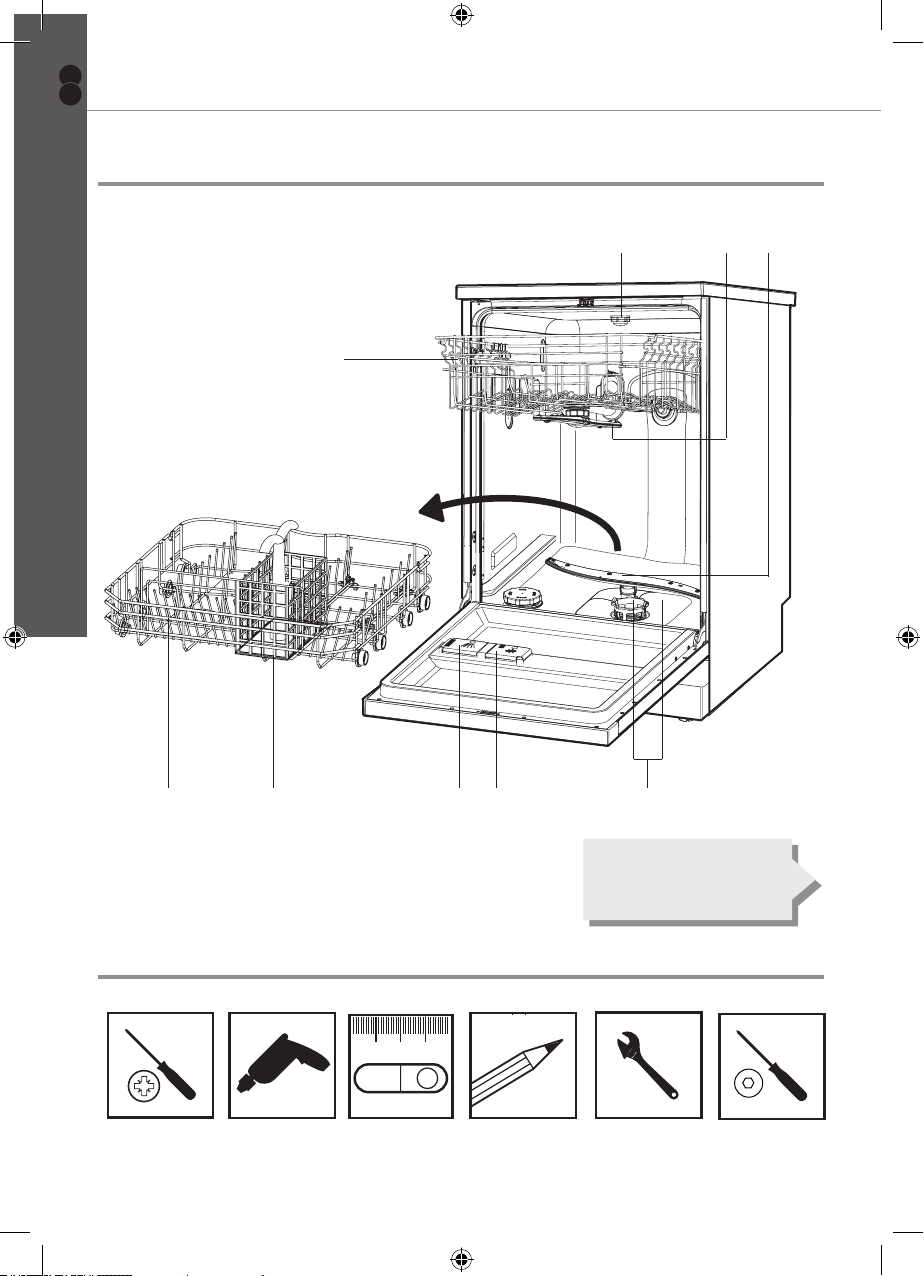

Your product
1. Upper spray arm
2. Lower spray arm
3. Filters
4. Rinse aid dispenser
5. Detergent dispenser
6. Cutlery basket
7. Lower basket
8. Upper basket
9. Top sprayer
You will need
Your product
Installation guide
located at the end of
the guidebook
0109 02
08
0304050607
BDW60CL-C&L-A5-GB-IM-18.indd 4 4/7/14 10:51 AM

5
Getting started...
BDW60CL 60cm Built in dishwasher GB
IE
Before you start
Before you start
• Please read these instructions carefully before using this appliance. The
instructions contain important information which will help you get the best
out of the appliance and ensure safe and proper installation, use and
maintenance.
• Keep this manual in a convenient place so you can always refer to it for the
safe and proper use of the appliance.
• If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner can
become familiar with the appliance and safety warnings.
This appliance is intended to be used in household and similar applications such
as:
- Staff kitchen areas in shops, ofces and other working environments;
- Farm houses ;
- by clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments.
Symbol explanation
General information and tips
Warning – Important safety information
Environmental information
BDW60CL-C&L-A5-GB-IM-18.indd 5 4/7/14 10:51 AM

6
BDW60CL 60cm Built in dishwasher
Getting started...
GB
IE
Safety
Safety
Note!
The appliance was designed for domestic
use inside the house. It is not intended for
commercial or industrial use.
Before switching on the appliance for the rst time
Do…
Make sure all packaging is removed.
Make sure that the mains voltage and
frequency is compatible with the electrical
information on the appliance rating plate.
Use a separate earthed socket for the power
supply. The appliance must be earthed.
Make sure the plug is easily accessible.
Hold the plug and not the electric cable when
unplugging the power supply.
Make sure not to damage the electric cable
and the plug. If they become damaged have
them replaced by a qualied person.
If you nd a leak, turn the electricity supply off.
Turn the water supply off. Stop the water leak,
Ensure there are no water leaks before turning
on the electricity supply.
BDW60CL-C&L-A5-GB-IM-18.indd 6 4/7/14 10:51 AM

7
Getting started...
BDW60CL 60cm Built in dishwasher GB
IE
Safety
Do not…
Install or use the appliance where the ambient
temperature is below 5°C.
Use multi-plug adapters or extension cables.
Put ammable products or items that have
been wet with ammable products in, near or
on the appliance.
Use water spray or steam to clean the
appliance.
During daily use
Do…
Put knives and cutlery with sharp points in
the cutlery basket with the points down or in a
horizontal position.
Do not…
Open the door while a programme is in
operation. The appliance can release hot
steam.
BDW60CL-C&L-A5-GB-IM-18.indd 7 4/7/14 10:51 AM

8
BDW60CL 60cm Built in dishwasher
Getting started...
GB
IE
Safety
Do not…
Leave the door in the open position since this
could present a tripping hazard.
Allow children or pets near dishwasher when
the door is open.
Sit or stand on the open door.
Remove the dishes from the appliance until
the programme is completed. There can still
be detergent on the dishes.
Drink the water in the appliance. The water
may be contaminated with detergent residues.
Note: This appliance can be used by
children aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualied persons in order
to avoid a hazard.
BDW60CL-C&L-A5-GB-IM-18.indd 8 4/7/14 10:51 AM

9
In more detail...
BDW60CL 60cm Built in dishwasher GB
IE
Operation
Control panel
+ h
1 4 5 6 7 8 9
3
2
1. On/off indicator and option indicator
2. On/off button
3. Programme/Reset button
4. Programme indication
5. Option indication
6. Option button
7. Option change button
8. Time & Info display
9. Low salt/rinse indicator and water indicator
BDW60CL-C&L-A5-GB-IM-18.indd 9 4/7/14 10:51 AM

10
In more detail...
BDW60CL 60cm Built in dishwasher
GB
IE
Operation
Status indication
Multitab
Activate this option only when you use the combi
detergent tablets. This option decreases the ow of rinse
aid and salt. Related indication. The programme duration
can increase.
Half load
Use this option if you have only a few items to wash.
This will save water, energy and time. If you use powder
detergent use a little less detergent than for a full load.
Option indication
Delay
start
You can delay the start of a programme in 1 hour steps up
to 24 hours. Check the according paragraph under “Daily
use”.
Extra
Hygiene
This option gives more hygienic results. During the rinsing
phase, the temperature stays at 70°C for approximately
10 minutes.
Extra
shine
This option reduces spots on glassware and dinnerware.
The option adds an extra intermediate rinse.
Decit indication
Salt If the indicator lights up: Softener salt is empty! This
indicator is off while the programme operates.
Rinse
aid
If the indicator lights up: Rinse aid is empty! This indicator
is off while the programme operates.
Water
If the indicator lights up: The appliance does not ll with
water.
See Troubleshooting section.
BDW60CL-C&L-A5-GB-IM-18.indd 10 4/7/14 10:51 AM

11
In more detail...
BDW60CL 60cm Built in dishwasher GB
IE
Operation
Programmes
The water pressure and temperature, the variations of the mains supply, the
options and the quantity of dishes can change the programme duration and
performance. Consumption values are measured under standard conditions.
The display always shows the related programme duration.

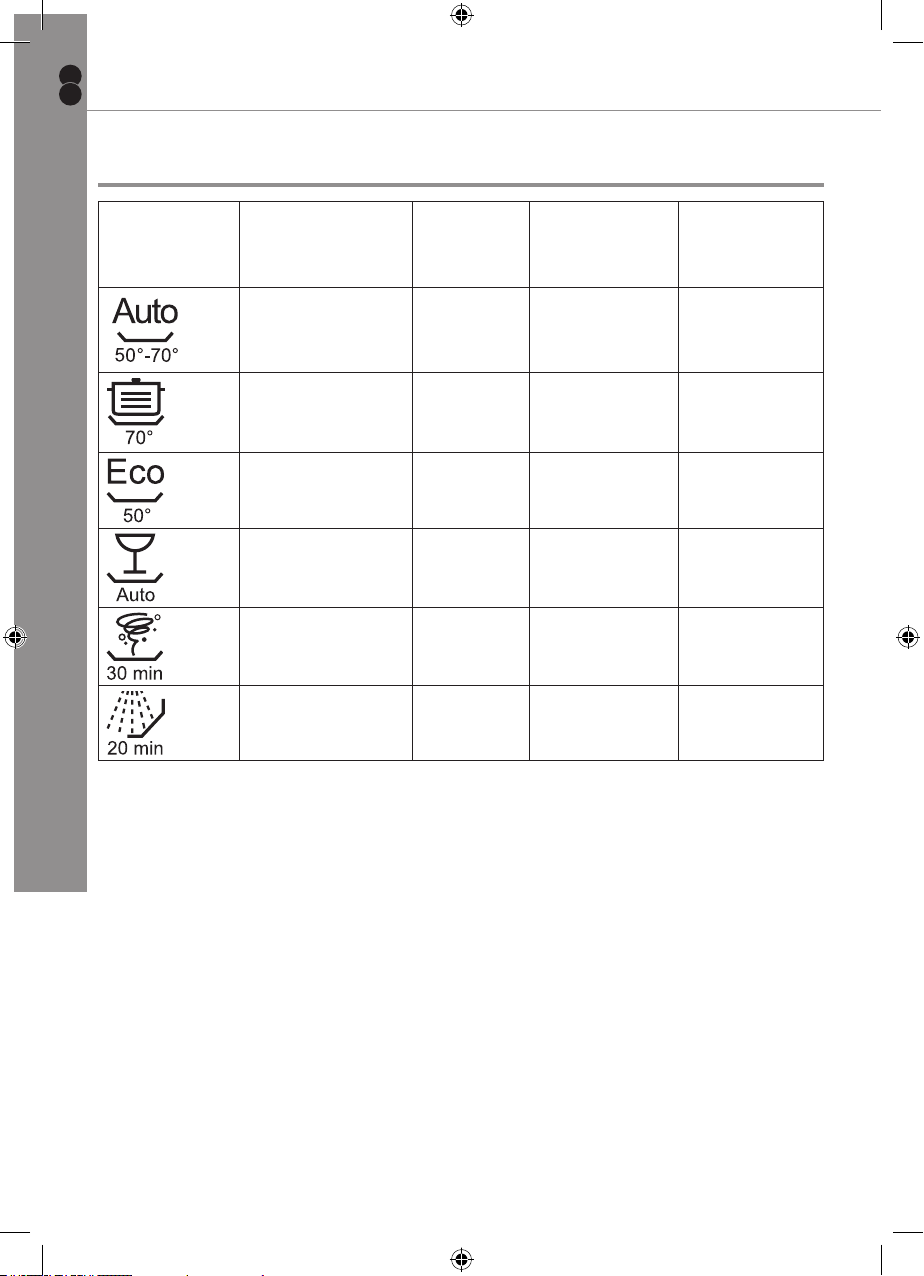

Programme description
Programme Type of food
remnants Type of load Programme phases
Light to heavy
food remnants:
Casseroles, sauces,
potatoes, pasta,
rice, roasted or fried
food
Nondelicate:
Dinnerware,
cutlery, pots and
pans
Prewash cold
Wash 50–70°C
Rinse cold
Rinse hot
Dry
Auto 50–70°C 1)
Heavy food
remnants:
Casseroles, sauces,
potatoes, pasta,
rice, roasted or fried
food
Nondelicate:
Dinnerware,
cutlery, pots and
pans
Prewash cold
Wash 70°C
Rinse cold
Rinse hot
Dry
Intensive 70°C
Normal food
remnants: Soups,
eggs, sauces,
potatoes, pasta,
rice, roasted or fried
food
Nondelicate:
Dinnerware
cutlery,
glassware
Prewash cold
Wash 50°C
Rinse hot
Dry
ECO 50°C 2)
Light food
remnants: Coffee,
cake, milk, cold
drinks, salad,
sausage
Delicate:
Glassware,
dinnerware,
cutlery
Wash 45°C
Rinse hot
Dry
Glass-Auto
Fresh food
remnants: Coffee,
cake, milk, cold
drinks, salad,
sausages
Nondelicate:
Dinnerware,
cutlery,
glassware
Wash 43°C
Rinse hot
Party 30min 3)
Dishes to be stored
for a few days
before washing
All: Dinnerware,
cutlery,
glassware pots
and pans
Prewash 45°C
Prewash 4)
BDW60CL-C&L-A5-GB-IM-18.indd 11 4/7/14 10:51 AM

12
In more detail...
BDW60CL 60cm Built in dishwasher
GB
IE
Programme consumption
Programme Programme
Type
Cycle
Time in
min.
Energy
Consumption
in kWh
Water
Consumption
in ltr
1) * Automatic 115-165 1,05-1,65 9,5-15,5
Intensive 130 1,45 12,5
2) * Eco 170 0,94 10,0
Glass 120-140 1,05-1,20 9,5-12,5
3) * Party 30 0,85 7,0
4) * Prewash 20 0,45 3,5
* Remark
1) The appliance senses the type of soil and the quantity of items in the
baskets. It automatically adjusts the temperature and quantity of water,
energy consumption and programme duration.
2) Standard programme for the Energy Labelling according to 2010/30 EU.
With this programme you have the most efcient use of water and energy
consumption for dishes with normal soil.
3) With this programme you can wash a load with fresh soil. It gives good
washing results in a short time.
4) Use this programme to quickly rinse the dishes. This prevents the
remaining food to bond on the dishes and bad odours to come out from the
appliance. Do not use detergent with this programme!
Operation
BDW60CL-C&L-A5-GB-IM-18.indd 12 4/7/14 10:51 AM

13
In more detail...
BDW60CL 60cm Built in dishwasher GB
IE
Operation
Water softener
Hard water contains a high quantity of minerals that can cause damage
to the appliance and bad washing results. The water softener neutralises
these minerals in coaction with salt specically designed for a dishwasher.
To make sure that the water softener uses the correct quantity of
dishwasher salt and water it should be thoroughly adjusted to your local
water hardness.
Water hardness Water softener
adjustment
German
degrees
(°dH)
French
degrees
(°fH)
mmol/l Clarke
degrees Electronic
31 – 50 55 - 89 5.5 - 8.9 39 - 63 H9
22 – 30 39 – 54 3.9 - 5.4 27 - 38 H8
17 – 21 30 – 38 3.0 - 3.8 21 – 26 H7
13 – 16 23 – 29 2.3 - 2.9 16 – 20 H6 1) *
11 – 12 19 – 22 1.9 - 2.2 14 – 15 H5
9 – 10 16 – 18 3.0 - 3.8 11 – 13 H4
7 - 8 12 – 15 1.2 - 1.5 9 - 10 H3
0 - 6 0 - 11 0 - 1.1 0 - 8 H2 2) *
- - - - H1 3) *
* Remark
1) Factory default setting for powder detergent.
2) Factory default setting for combi detergent tablets.
3) Indicator for Salt is off. No usage of salt at this level.
Note!
If you use combi detergent tablets (multitabs), activate the Multitab
option. These tablets contain detergent, salt, rinse aid and other
added agents. Be sure that these tablets are applicable to the water
hardness in your area. Refer to the instructions on its packaging.
BDW60CL-C&L-A5-GB-IM-18.indd 13 4/7/14 10:51 AM

14
In more detail...
BDW60CL 60cm Built in dishwasher
GB
IE
Different settings for water softener
There are 2 different softener settings related to the used kind of detergent:
Detergent powder setting
• The salt is added from the water softener only.
With the multitab indicator OFF the multitab option is off.
Factory default setting: , multitab off.
Multitab setting
• The salt is added from the water softener in addition to the multitab salt.
With the multitab indicator ON, you have selected the multitab option.
Factory default setting:
While your setting for detergent powder is mandatory, factory default setting for
multitab will normally perform well.
For adjustments see How to adjust a default setting section.
How to ll the salt container
Caution!
Only use dishwasher salt. Other products can cause damage to the
appliance!
Water and salt can come out from the salt container when you ll it.
Risk of corrosion. To prevent it, run a programme immediately after lling.
1. Turn the cap anticlockwise and
open the salt container.
2. Only for the rst time:
Put 1 litre of water into the salt
container.
3. Fill the salt container with
dishwasher salt.
4. Remove the salt around the
opening of the salt container.
5. Turn the cap clockwise to close
and seal the salt container.
Operation
BDW60CL-C&L-A5-GB-IM-18.indd 14 4/7/14 10:51 AM

15
In more detail...
BDW60CL 60cm Built in dishwasher GB
IE
How to ll the Rinse Aid dispenser
Caution!
Only use rinse aid for dishwashers.
Other product can cause damage to the appliance!
Note!
The rinse aid is added during the last rinsing phase. It helps to
dry the dishes without streaks and stains.

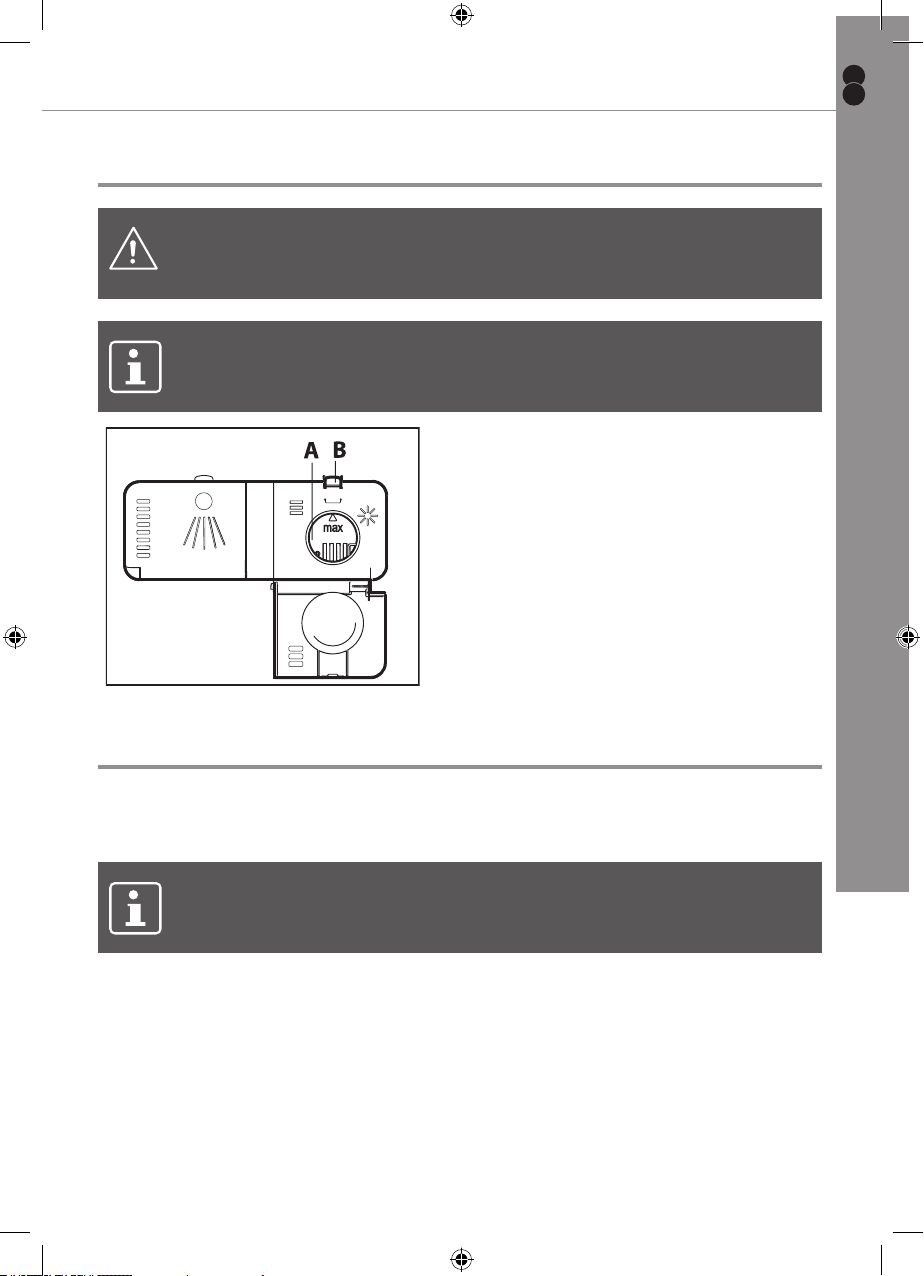

1. Press the release button (B) to
open the lid.
2. Fill the rinse aid dispenser (A) no
more than the mark‚ "max".
3. Remove spilled rinse aid with
an absorbent cloth to prevent
creation of foam.
4. Close the lid. Make sure that the
release button locks into position.
Different Rinse Aid settings
If you think it necessary to adjust the rinse aid see Troubleshooting section to
know about the necessary quantity.
You can adjust the quantity of rinse aid between d1 and d7.
Note!
If you set the position 1, you switch off the usage of rinse aid and you
switch off the indicator for rinse aid.
Factory default setting is 6.
For adjustments see How to adjust a default setting section.
Operation
BDW60CL-C&L-A5-GB-IM-18.indd 15 4/7/14 10:51 AM

16
In more detail...
BDW60CL 60cm Built in dishwasher
GB
IE
Operation
How to adjust a default setting
To get best results in each programme there are well dened specic default
settings. If there is no special requirement default settings are recommended.
You may adjust three default settings in one menu:
Rinse aid dosage, buzzer ON/OFF (sound at programme end), water softener
setting.
For rinse aid setting dx, the following step can be selected:
d1: rinseaid dosage will be 0 ml; Indication for rinse aid will be deactivated
d2: rinseaid dosage will be 1 ml;
d3: rinseaid dosage will be 2 ml;
d4: rinseaid dosage will be 3 ml;
d5: rinseaid dosage will be 4 ml;
d6: rinseaid dosage will be 5 ml;
d7: rinseaid dosage will be 6 ml;
For acoustical end signal beep bx, the following choice can be selected:
b0: acoustical end signal off
b1: acoustical end signal on
1. The appliance has to be switched off. Press RESET button for about 3
seconds. The programme indicators light up. The ashing one indicates
which default setting could be currently changed.
• First indicator: Menu for rinse aid dosage .
• Second indicator: Menu for buzzer indication .
• Third indicator: Menu for water softener adjustment .
Press RESET button to select the setting for rinse aid/buzzer/water softener.
• First indicator blinks: Press ON/OFF indicator for rinse aid dosage setting
from d1 to d7.
• Second indicator blinks: Press ON/OFF indicator for buzzer setting from
b0 to b1 or display shows value for buzzer ON (1)/ OFF (0).
• Third indicator blinks: Press ON/OFF indicator for water setting from H1 to
H9 or display shows value for water softener setting (1-9).
2. To select another default setting press sequentially the RESET button.
3. When you nish the setting, press ON/OFF button around 5 seconds for
conrmation.
BDW60CL-C&L-A5-GB-IM-18.indd 16 4/7/14 10:51 AM

17
In more detail...
BDW60CL 60cm Built in dishwasher GB
IE
Using the dishwasher
1. Open the water tap.
2. Press the ON/OFF button to activate the appliance.
• If the salt indicator is on, ll the salt container right to the top. Press
and hold the RESET button for 3 seconds to conrm the relling of
softener salt.
• If the rinse aid indicator is on, ll the rinse aid container up to the "max"
mark. Press and hold the RESET button for 3 seconds to conrm the
relling of rinse aid.
3. Press ON/OFF button to select "1/2", "multi-tab" if applicable.
4. Press programme/reset button for program selection.
5. To select "delay start", "extra hygiene, "extra shine" function if applicable,
press option button and the relevant operation indication light is ashing.
Then press option change button for selection.
Delay start function. - The selection is from 0 hour to 24 hour. For example, if
you select 1H, the appliance will turn on after one hour.
Extra Hygiene function - Press button 6 twice to light on this function and then
press button 7 to activate this.
Extra Shine function - Press button 6 three times to light on this function and
then press button 7 to activate this.
6. When the program is set, close the door and the appliance will operate as per
the setting.
Note!
During operation, press ON/OFF button to switch off the operation or
cancel the setting.
Note!
Rell such a container always completely before you press the RESET
button. Failure to ll the containers completely at this initial stage could
lead to poor washing results at a later date.
7. Load the baskets.
8. Add the detergent.
9. According to the type of load and soil select
• a programme
• possibly a start time delay
• possibly an option
10. Close the door and the programme starts.
11. After the programme nishes you can unload the baskets.
12. Close the water tap.
Operation
BDW60CL-C&L-A5-GB-IM-18.indd 17 4/7/14 10:51 AM

18
In more detail...
BDW60CL 60cm Built in dishwasher
GB
IE
Operation
Load the baskets
Note!
With delicate glasses and porcelain make sure they are labelled
"dishwasher-proof".
Do not put in the appliance items made of wood, horn, aluminium, pewter
copper or cast iron.
Do not put in the appliance items that can absorb water (sponges,
household cloths, etc).
Only use the appliance to wash items that are "dishwasher-safe".
Remove remaining food from items prior to loading.
Items with burnt on food should be pre soaked to soften residues.
Put hollow items (cups, glasses and pans) with the opening down.
Mix spoons with other cutlery to prevent them to bond together.
Make sure that cutlery and dishes do not bond together.
Make sure that glasses do not touch other glasses.
Put small items in the cutlery basket.
Put light items in the upper basket. Make sure they can not move.
Before each programme start check if spray arms can move freely.
BDW60CL-C&L-A5-GB-IM-18.indd 18 4/7/14 10:51 AM

19
In more detail...
BDW60CL 60cm Built in dishwasher GB
IE
Cutlery basket
1. Mix spoons with other cutlery to
prevent them bonding together.
2. Place cutlery with the points down
for reasons of safety.
3. Place long items in a horizontal
position so the spray arms can
move freely.
Upper basket
1. Place normal or lightly soiled
utensils (like breakfast plates and
glasses) in the upper basket.
2. Place small items on the cup
holder.
Adjust height of upper basket
To create more space in the upper or lower basket you can adjust the
height of the upper basket.
Caution!
Only adjust the height if the basket is empty. Otherwise the basket
might be to heavy to secure the new position.
Always make sure that both sides of the basket are at the same height
after an adjustment.
Operation
BDW60CL-C&L-A5-GB-IM-18.indd 19 4/7/14 10:51 AM

20
In more detail...
BDW60CL 60cm Built in dishwasher
GB
IE
Lift basket
1. Pull out the upper basket.
2. Hold the basket on both sides on
the edge above the lever.
3. Lift the basket till you hear a click.
4. Push down the basket with
light pressure to check secure
adjustment.
Knife rack
For best washing results place your
table knifes in the knife rack.
Place all long items like soup ladle,
spatula, egg whisk, etc. in the knife
rack.
Caution!
Place your sharp/longer
kitchen knifes into the knife
rack.
For more space you can take the spikes
out.
Operation
BDW60CL-C&L-A5-GB-IM-18.indd 20 4/7/14 10:51 AM
