Cooke & Lewis BDW60MCL User manual

Built-in dishwasher
Warning! Read the instructions before using the appliance.
BDW60MCL-C&L-IM-V01-EN.indd 1 12/19/14 2:45 PM
GB IE Dishwasher - Barcode: 5052931465385
BDW60MCL - Version: 01

[A] x 1 [B] x 1
[C] x 1 [D] x 1
[A] Main unit with cutlery rack and upper rack
[B] Lower rack
[C] Water inlet hose
[D] Plastic funnel
BDW60MCL-C&L-IM-V01-EN.indd 2 12/19/14 2:45 PM
Your Product
BDW60MCL Dishwasher

[07] x 2 [08] x 2
[09] x 2 [10] x 1
[06] Condensation strip (1x)
[07] Top brackets (2x)
[08] Hooks (2x)
[09] Covers (2x)
[10] Installation guide sheet
BDW60MCL-C&L-IM-V01-EN.indd 3 12/19/14 2:45 PM
Your Product
[01] x 10 (ST4 x 14 mm) [02] x 4 (ST3.5 x 45 mm)
[03] x 2 (ST3.5 x 25 mm) [04] x 2
[05] x 2 (ST3.5 x 16 mm) [06] x 1
BDW60MCL Dishwasher
[01] Screws (10x) (ST4 x 14 mm)
[02] Screws (4x) (ST3.5 x 45 mm)
[03] Screws (2x) (ST3.5 x 25 mm)
[04] Brackets (2x)
[05] Screws (2x) (ST4 x 16 mm)

4
Let's
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started… 05
Safety 05
Your product 11
Before you start 14
In more detail… 15
Operation 15
Care and maintenance 27
Troubleshooting 32
Recycling and disposal 36
Technical and legal information 37
Guarantee 39
CE declaration of conformity 41
Appendix...
42
Installation
GB
IE
BDW60MCL-C&L-IM-V01-EN.indd 4 12/19/14 2:45 PM

5
Getting started...
GB
IE
These instructions are for your safety.
Please read through them thoroughly prior
to installation and retain them for future
reference.
All installation work must be carried
out by a competent person or qualied
electrician.
This appliance must be installed
correctly by a qualied person,
strictly following the manufacturer’s
instructions.
This appliance complies with all current
European safety legislation, however, the
manufacturer must emphasise that this
compliance does not prevent the surfaces of
the appliance from heating up during use and
remaining hot during its operation.
Accessible parts may become hot during
use. Young children should be kept away.
Care should be taken to avoid touching the
appliance.
The manufacturer highly recommends that this
appliance be kept out of the reach of babies
and small children.
Safety
BDW60MCL-C&L-IM-V01-EN.indd 5 12/19/14 2:45 PM
BDW60MCL Dishwasher

6
Getting started...
GB
IE
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children shall not play with the
appliance. Cleaning and user maintenance
shall not be made by children without
supervision.
This appliance is not intended for use by
persons (including children) with reduced
physical sensory, or mental capabilities, or by
those who lack experience and knowledge,
unless they have been given supervision and
instruction concerning the use of the appliance
by a person responsible for their safety.
The appliance is for domestic use only.
Do not install the appliance outdoors in a
damp place or in an area which may be prone
to water leaks such as under or near a sink
unit. In the event of a water leak allow the
machine to dry naturally.
Safety
BDW60MCL-C&L-IM-V01-EN.indd 6 12/19/14 2:45 PM
BDW60MCL Dishwasher

7
Getting started...
GB
IE
Make sure that the power cord is not caught
under or in the appliance and avoid damage to
the power cable.
Do not allow the power cord to touch the hot
parts of the appliance.
Regularly check the power plug and
power cord for damage. If the supply cord
is damaged, it must be replaced by the
manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
Do not remove the plug in the presence of
ammable gas.
Do not use ammable sprays in close vicinity
to the appliance.
We also recommend that great care be taken
during use and cleaning. Read the cleaning
and maintenance sections for this appliance
carefully.
A steam cleaner is not to be used.
The appliance is not intended to be operated
by means of external timer or separated
remote-control system.
Safety
BDW60MCL-C&L-IM-V01-EN.indd 7 12/19/14 2:45 PM
BDW60MCL Dishwasher

8
Getting started...
GB
IE
The manufacturer declines all liability for
personal or material damage as a result
of misuse or incorrect installation of this
appliance.
Keep away from heat sources and direct sun
light to prevent plastic and rubber components
from ageing.
The water inside the dishwasher is not suitable
for drinking.
Warning! Before connecting to the power
supply, check: The dishwasher must not
be connected to the electricity supply while
installation is being carried out. The mains
electricity supply must conform to the details
shown on the dishwasher nameplate. The
socket is adequate for the maximum power
of the dishwasher. The voltage meets
requirements. The socket is able to accept the
appliance plug.
This appliance is classied as protection
class I and must be connected to a protective
ground (Earth).
Check with a qualied electrician or service
representative if you are in doubt whether the
appliance is properly grounded.
Safety
BDW60MCL-C&L-IM-V01-EN.indd 8 12/19/14 2:45 PM
BDW60MCL Dishwasher

9
Getting started...
GB
IE
Do not connect the dishwasher to the
electricity supply via an extension cable. After
the appliance has been installed, the mains
plug should still be easily accessible. During
installation, the power supply cord must not be
excessively or dangerously bent or attened.
For additional protection, we recommend the
use of a residual current device (RCD) with
a tripping current not exceeding 30 mA in
the electrical circuit supplying power to your
appliance. The installation should be done by
an experienced electrician.
Warning! Do not immerse the electrical parts
of the appliance in water or other liquids.
Never hold the appliance under running water.
Disconnect the power plug from the electrical
outlet when not in use and before cleaning.
The appliance is to be connected to the water
mains using new hose-sets. Old hose-sets
should not be reused.
The door should not be left in the open
position since this could present a tripping
hazard.
Safety
BDW60MCL-C&L-IM-V01-EN.indd 9 12/19/14 2:45 PM
BDW60MCL Dishwasher

10
Getting started...
GB
IE
Warning! Knives and other utensils with sharp
points must be loaded in the basket with their
points down or placed in a horizontal position.
Open the door very carefully if the dishwasher
is operating, there is a risk of water squirting
out.
Do not wash plastic items unless they are
marked dishwasher safe or the equivalent.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Do not tamper with controls.
The maximum permissible inlet water pressure
is 1 MPa.
The minimum permissible inlet water pressure
is 0.04 MPa.
Dispose of the packaging material correctly.
Safety
BDW60MCL-C&L-IM-V01-EN.indd 10 12/19/14 2:45 PM
BDW60MCL Dishwasher

11
Getting started...
GB
IE
Your product
Front view
1
4
5
6
8
10
2
3
11
7
9
1 Cutlery rack 7 Door
2 Upper rack 8 Control panel
3 Upper spray arm 9 Display
4 Lower spray arm 10 Detergent dispenser
5 Filter assembly 11 Salt container cap
6 Rinse aid dispenser
Your product
BDW60MCL-C&L-IM-V01-EN.indd 11 12/19/14 2:45 PM
BDW60MCL Dishwasher

12
Getting started...
GB
IE
Your product
Control panel
1h
15 14 13 12
16 17 18 19 20 21
12 Time indicator 17 Upper rack indicator
14 Salt indicator 19 Delay button
15 Program indicators 20 PProgram button
16 Rinse aid indicator 21 On/off button
Back view
22 23 24
22 Power cord with power
plug
23 Water inlet hose socket
24 Water drain hose
Your product
BDW60MCL-C&L-IM-V01-EN.indd 12 12/19/14 2:45 PM
BDW60MCL Dishwasher
13 Lower rack indicator 18 Alt Wash zone selector button

13
Getting started...
GB
IE
Your product

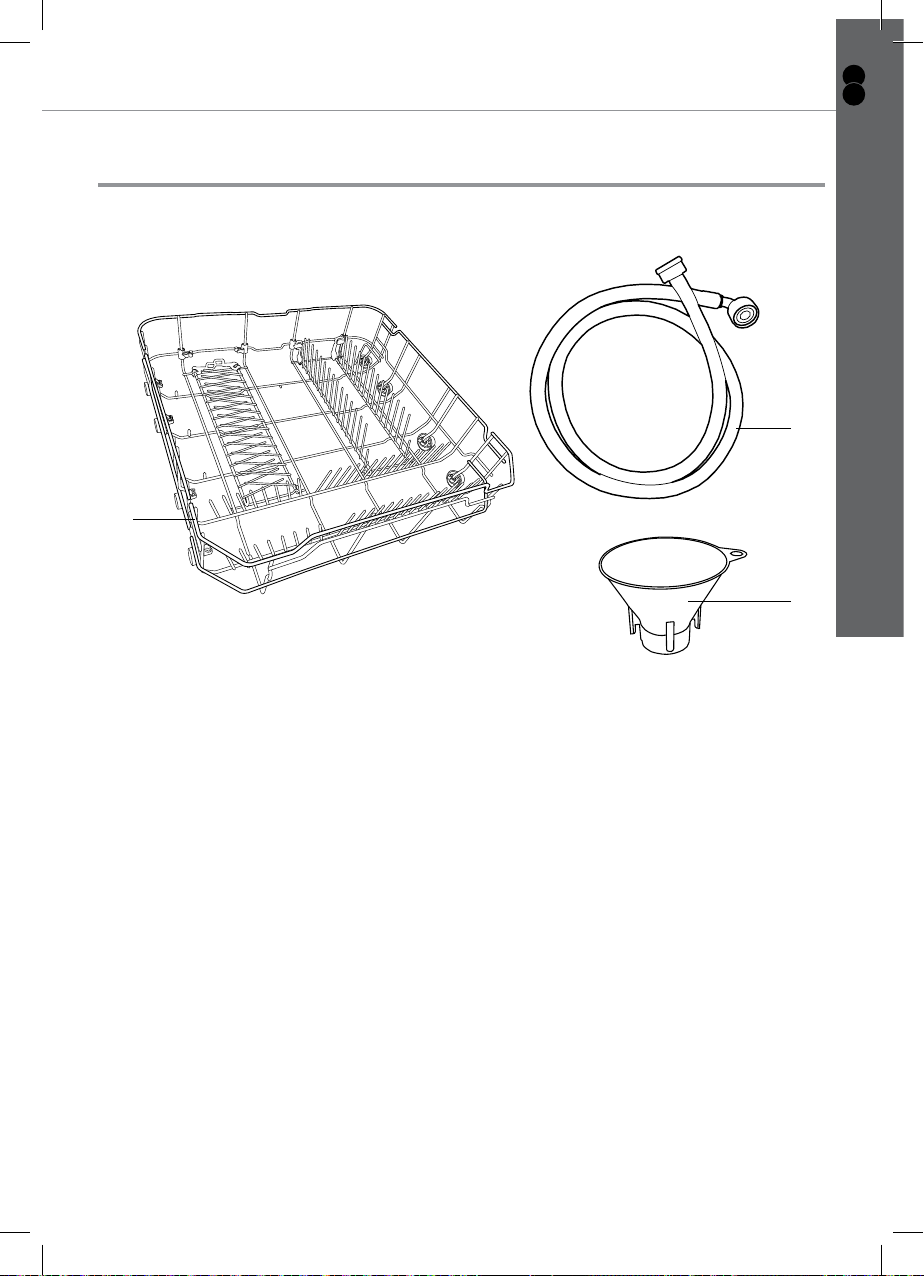

Accessories
26
25
27
25 Lower rack
26 Water inlet hose
27 Plastic funnel
Your product
BDW60MCL-C&L-IM-V01-EN.indd 13 12/19/14 2:45 PM
BDW60MCL Dishwasher

14
Getting started...
GB
IE
You will need (not supplied)
Installation guide
located at the end of
the guidebook 42
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this appliance is installed correctly and that
you read the safety instructions carefully to avoid misuse and hazards.
Please keep this instruction booklet for future reference and pass it on to
any future owners. After unpacking the appliance please check that it is
not damaged. If in doubt, do not use the appliance but contact Customer
Services on 0344 800 1128 (UK), 0144 75261 (Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
The specications plate is available on this appliance. This plate displays
all the necessary identication information for ordering replacement parts.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner can
become familiar with the appliance and its safety warnings.
Before you start
BDW60MCL-C&L-IM-V01-EN.indd 14 12/19/14 2:45 PM
BDW60MCL Dishwasher

15
In more detail...
GB
IE
Before rst use
Water softener
The appliance is equipped with a special softener that uses a salt specically
designed to eliminate lime and minerals from the water.
Adjust the water softener according to the hardness of the water in your area.
Contact your local water authority for information on the hardness of your water
supply.
Adjusting salt consumption
The dishwasher is designed to allow for adjustment in the amount of salt
consumed based on the hardness of the water used.
1. Open the door.
2. Switching on the appliance: Press the on/off button on the control panel.
3. Press and hold the program button P for about 10 seconds. The rinse aid
indicator and salt indicator start ashing alternately. Meanwhile, the
default salt setting H4 stays constantly there.
4. Within 5seconds, press the program button P to select desired salt level.
Available settings:
H1 / H2 / H3 / H4 / H5 / H6
5. Press the on/off button to conrm the setting and switch off the appliance.
Note!
The table below is provided only for reference for adjusting salt
consumption.
Water hardness Selector
position
Salt consumption
(gram/cycle)
°fH °Clarke
0 - 9 0 - 6 H1 0
10 - 20 7 - 14 H2 9
21 - 30 15 - 21 H3 12
31 - 40 22 - 28 H4 20
41 - 60 29 - 42 H5 30
61 - 98 43 - 69 H6 60
fH: French degree
Clarke: British degree
Operation
BDW60MCL-C&L-IM-V01-EN.indd 15 12/19/14 2:45 PM
BDW60MCL Dishwasher

16
In more detail...
GB
IE
Operation
Before rst use
Loading the salt container
Warning!
• Only use salt intended for use with dishwashers. Every other
type of salt, especially table salt, will damage the water softener.
• Add salt just before starting a wash cycle. Otherwise the lter
system, pump or other parts of the appliance may be damaged
by salty water.
1. Unscrew the salt container cap.
2. Place the plastic funnel into the salt container. Add about 1.5 kg of dishwasher
salt.
3. Fully ll the salt container with water. It is normal for a small amount of water
to come out of the salt container.
4. Carefully screw the cap back on.
BDW60MCL-C&L-IM-V01-EN.indd 16 12/19/14 2:45 PM
BDW60MCL Dishwasher

17
In more detail...
GB
IE
Before rst use
Caution!
• After adding the salt, a washing program should be immediately
started. We suggest the selection of the rapid wash program.
• The salt container must only be relled when the salt indicator
on the control panel comes on. Depending on how well the salt
dissolves, the salt warning light may still be on even though the
salt container is lled.
• If there are spills of the salt, the soak or rapid program should be
run to remove the excessive salt.
Loading the rinse aid dispenser
Warning!
• Only use rinse aid intended for use with dishwashers. Every
other type of rinse aid will damage the appliance.
• Only use liquid rinse aid with this appliance.
This product makes dishes sparkle and helps them to dry without spotting.
The rinse aid dispenser is located on the inside panel of the door.
Fill the rinse aid dispenser when:
• the rinse aid indicator on the control panel lights up, or
• the rinse aid indicator on the rinse aid dispenser shows corresponding
indications.
Indication Description
Full
3/4 full
1/2 full
1/4 full: Needs lling.
Empty: Needs lling.
Rinse aid indicator
Rinse aid dispenser
Operation
BDW60MCL-C&L-IM-V01-EN.indd 17 12/19/14 2:45 PM
BDW60MCL Dishwasher

18
In more detail...
GB
IE
Before rst use
To ll the rinse aid dispenser, proceed as below:
1. Turn the cap anti-clockwise to the "open" position and lift it out.
2. Regulating the amount of rinse aid for each cycle: Turn the dosage adjusting
arrow with a screwdriver. There are 6settings and the default setting is 4.
3. Pour in the rinse aid and make sure not to overll.
4. Insert the cap. Turn it clockwise until it locks securely.
Operation
BDW60MCL-C&L-IM-V01-EN.indd 18 12/19/14 2:45 PM
BDW60MCL Dishwasher

19
In more detail...
GB
IE
Operation
Before rst use
Loading the detergent dispenser
Warning!
• Only use detergent specically intended for dishwashers. Every
other type of detergent will damage the appliance.
• Always add the detergent before starting each wash cycle
following the instructions in the "Program overview".
• Dishwasher detergent is corrosive! Keep it out of reach of
children!
1. Press the latch. The dispenser cover opens automatically.

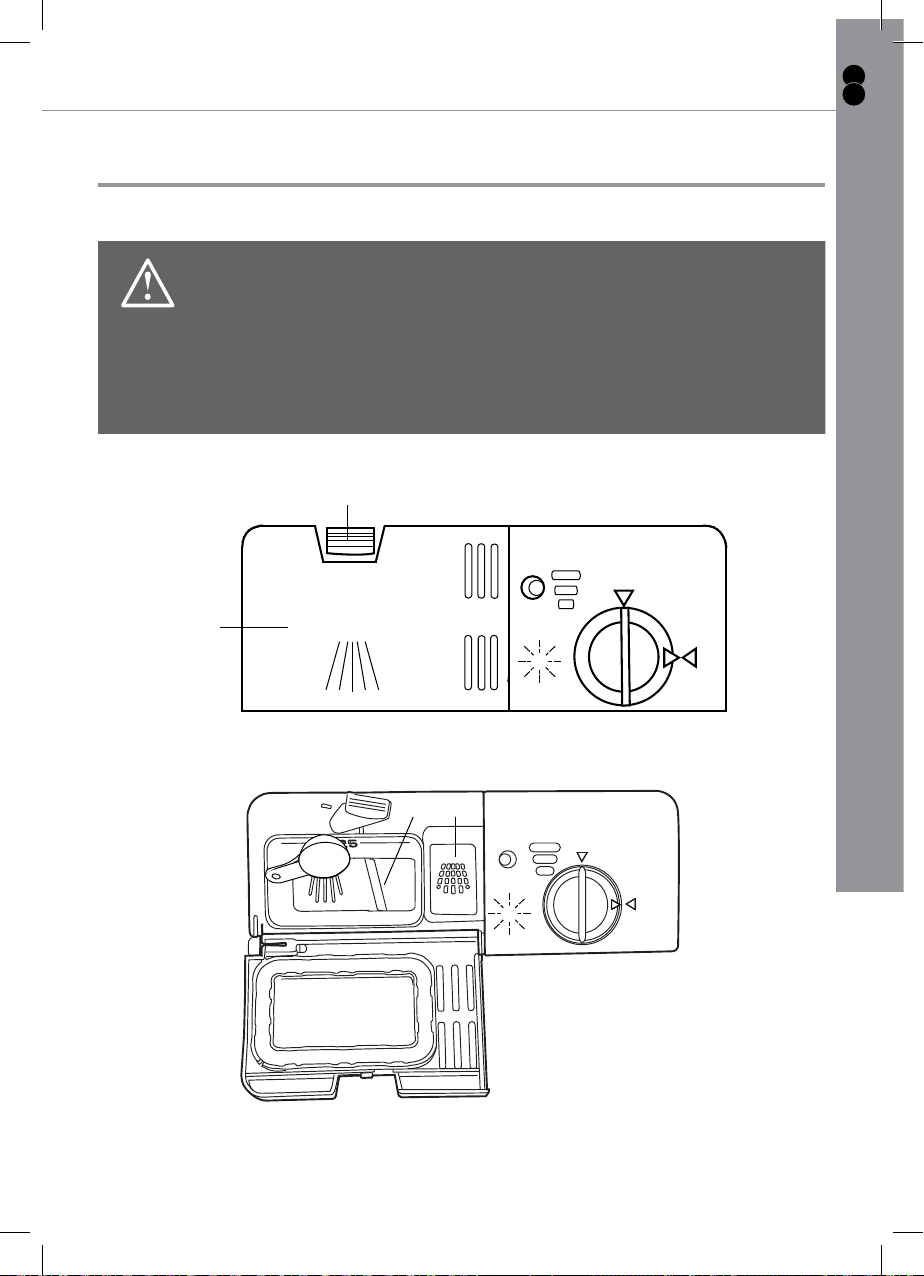

Dispenser cover
Latch
2. Add the detergent with a spoon: Compartment A is for the main wash cycle
detergent and compartment B for the pre-wash cycle detergent.
A B
3. Close the dispenser cover. Press the latch to let it click into place.
Note: For detailed use of the detergent, follow the manufacturer's instructions.
BDW60MCL-C&L-IM-V01-EN.indd 19 12/19/14 2:45 PM
BDW60MCL Dishwasher

20
In more detail...
GB
IE
Tips on loading the dishwasher racks
Tips!
• Purchase table or kitchenware which are identied as
dishwasher-proof.
• Use a mild detergent that is described as "kind to dishes".
If necessary, seek further information from the detergent
manufacturers.
• Select a program with a low temperature and as short a duration
as possible.
• Do not take glass and cutlery out of the dishwasher immediately
after the program has ended.
Utensils unsuitable for the dishwasher
Utensils of limited suitability
• Some types of glasses can become dull after a large number of washes.
• Silver and aluminum parts have a tendency to discolour during washing.
• Glazed patterns may fade if machine washed frequently.
Before loading the dishwasher
• Remove larger food particles to prevent the lter from becoming clogged,
which results in reduced performance.
• Soften remnants of burnt food in pans.
• Load hollow items such as cups, glasses, pans etc. with the opening facing
downwards so that water cannot collect in the container.
• Load those curved items or the ones with recesses aslant so that water can
run off.
• Position long and/or sharp items horizontally.
• Stack all utensils securely.
• Place all utensils in the way that the spray arms can rotate freely during
washing.
Operation
BDW60MCL-C&L-IM-V01-EN.indd 20 12/19/14 2:45 PM
BDW60MCL Dishwasher
• Cutlery with wooden, horn china or mother-of-pearl handles
• Plastic items that are not heat resistant
• Older cutlery with glued parts that are not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic bres
