Cookson Phantom Featheredge 6,225,768 User manual

COOKSON OWNER'S MANUAL
WIRELESS SELF MONITORING
SENSING EDGE SYSTEM
PATENT NO. 6,225,768
9046.DWG ECN 1057 10/27/09 REV 6
VERSION 6

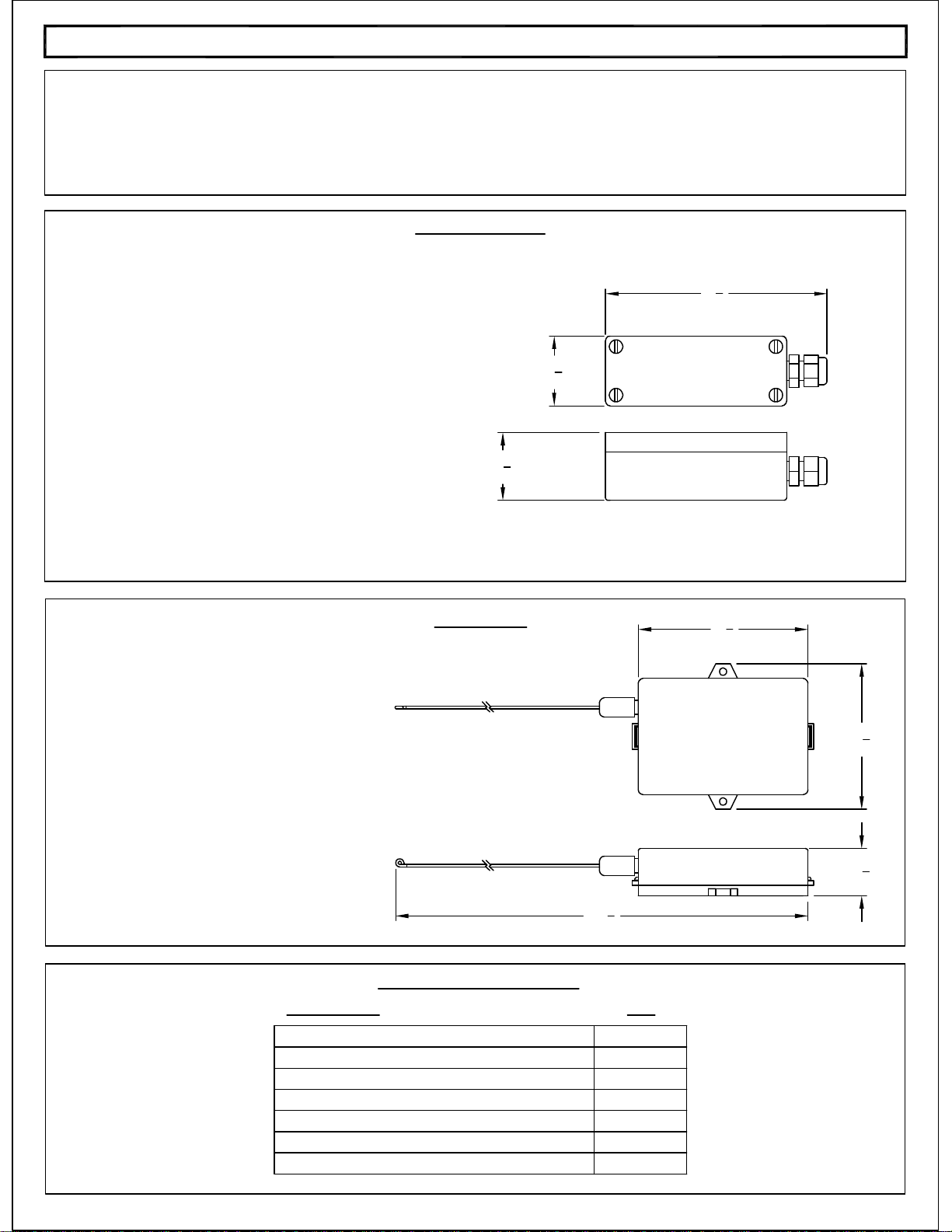

SPECIFICATIONS
RECEIVER
TRANSMITTER
ENCLOSURE MATL:..............POLYCARBONATE
ENCLOSURE COLOR:...........BLACK
ENCLOSURE RATING:..........NEMA 4
2
145
8
43
8
55
8
13
4
13
4
33
4
11
4
OPERATING TEMP:...............-25° F TO 120° F
OPERATING FREQUENCY:..315 Mhz
MAX OPER DISTANCE:.........50 FT
POWER:..................................9 VOLT LITHIUM BATTERY
EXPECTED BATTERY LIFE:.12 MOS-NORMAL USAGE
ANTENNA TYPE:....................PCB LOOP
SPECIAL FEATURES:
- PROGRAMMABLE TRANSMITTER CODES
- DETECTS LOW BATTERY VOLTAGE
- LED INDICATOR
- PROGRAMMABLE RECEIVER CODES
SPECIAL FEATURES:
ELECTRICAL CONFIG.:.........OPTIONAL N.O. OR N.C.
POWER:..................................24 VOLT AC OR DC
OPERATING TEMP:...............-25° F TO 120° F
ENCLOSURE COLOR:...........BLACK
ENCLOSURE MATL:..............ABS
MAX OPER DISTANCE:.........50 FT
ANTENNA TYPE:....................COAX RIGID WIRE
- LED INDICATORS
NOT COMPATIBLE WITH OTHER (RF)
RADIO FREQUENCY DEVICES
COMPATIBLE WITH THE FOLLOWING OPERATORS:
- MGJ / H / GH / FDO-A / FDO-B / FDO-A10 / MG / SG
PACKAGE CONTENTS:
DESCRIPTION QTY
RECEIVER W/WIRING HARNESS
TRANSMITTER W/ADHESIVE TAPE
ANTENNA
#6 RHMS SCREWS
WIRE NUT
OWNERS MANUAL 1
1
2
1
1
1
BATTERY-9 VOLT LITHIUM 1

THEORY OF OPERATION
GENERAL DESCRIPTION:
The Phantom Edge is a self monitoring wireless (RF) sensing edge system. A special
communication protocol between the transmitter and receiver allow for additional signals
3
(other than edge activation) to be sent, such as battery condition and periodic communication
checks. If the unit detects a fault it will convert the operator to supervised mode
(i.e. constant pressure contact on operator close control) indicating that maintenance
is required.
WIRING COULD CAUSE ELECTROCUTION OR DAMAGE TO CIRCUITRY
FOLLOW ALL LOCAL BUILDING CODES AND NATIONAL ELECTRICAL CODES. IMPROPER
TO PREVENT ELECTROCUTION DISCONNECT POWER AT FUSE BOX OR CIRCUIT
INSTALLATION INSTRUCTIONS
BREAKER AND OPERATOR BEFORE WIRING
2) Clean the vertical surface where the Transmitter is to be mounted on the Bottom Bar.
TRANSMITTER INSTALLATION:
NOTES:
3) Remove the protective film from the adhesive backed foam tape and attach it to the back of the
Transmitter box. Attach the Transmitter box to Bottom Bar vertical surface with the label facing
NOTE: If your installation requires the use of mounting screws, remove the cover from transmitter,
the mounting holes are at the corners (at cover screw locations). DO NOT drill any holes in
the Transmitter box.
device is functioning properly.
the Receiver, reversing the door. The unit has self check features, which ensure that the
When the Bottom Bar encounters an obstruction, the Transmitter sends reversing signal to
OPERATION:
The unit periodically tests communication by sending a signal at regular intervals.
If any of the above occur (not occur) the unit will enter into Supervised Mode:
Low Battery Voltage condition
1) Locate position on Bottom Bar near Sensing Edge pigtail. (Approx. 18" from end of Bottom Bar)
Constant pressure will be required on close door operation until fault is corrected.
4) Connect the sensing edge pigtail to the transmitter per the detail shown on the next page.
BEFORE INSTALLING, VERIFY THAT YOU HAVE A COMPATIBLE OPERATOR.
PHANTOM EDGE SYSTEM.
OPERATOR SHOULD BE COMPLETELY WIRED AND FUNCTIONAL TO INSTALLING
PRIOR
outward, not up.

3) Attach Coax Rigid Wire antenna. (The unit will not work unless the rigid antenna is properly attached)
(Units with Motor Covers will require a remote antenna kit to mount the antenna outside the motor cover)
4) Verify that the dip switches in the Receiver and Transmitter are set properly.
5) Verify correct wiring. Restore power to Operator.
CAUTION
BE SURE THAT ALL COAX FITTINGS AND COAX WIRES DO NOT COME IN CONTACT
WITH ANY PART OF THE METAL CONTROL BOX. THIS WILL RESULT IN A SHORT,
4

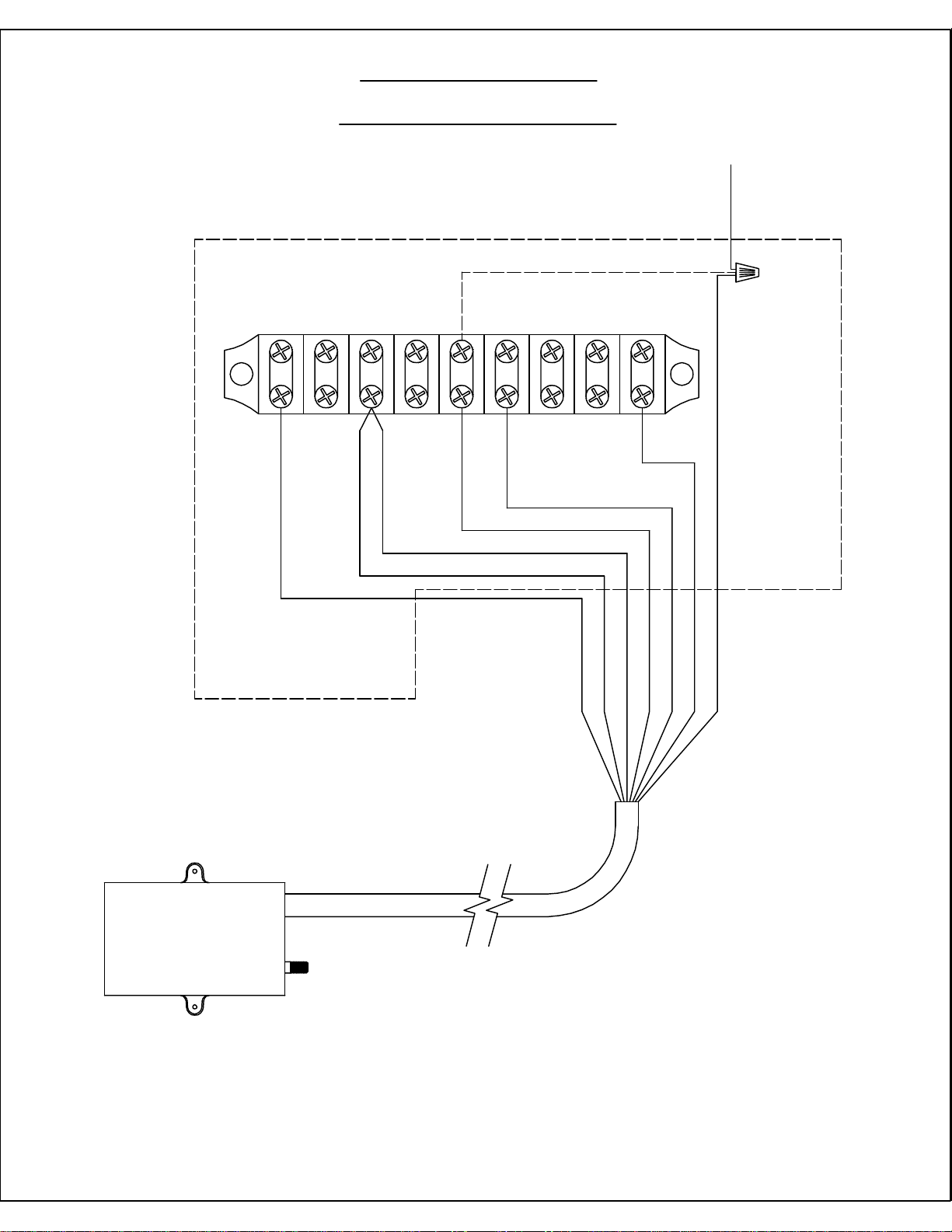

2) Wire to Operator per operator specific wiring diagram. (See Appendix for Wiring Diagrams)
internal components of the door operator.
of obstructions. Make sure a knock out is accessible, and that mounting screws will clear
1) Locate the Receiver on the Operator Control Enclosure, with Antenna horizontal and free
RECEIVER INSTALLATION:
is functioning properly.
cover of the unit, and replace the cover. The green LED light should light indicating that the unit
5) Be sure that the battery strap is connected and insert the lithium ion 9 Volt battery into the
CAUTION: DISCONNECT POWER TO OPERATOR
AND WILL DAMAGE THE RECEIVER.
White
Black
2 - Wire 4 - Wire
Connections Connections
Dip Switch #5 "ON" Dip Switch #5 "OFF"
White
Black

5
With door several feet from closed position, disable sensing edge
TEST SENSING EDGE TERMINATION:
connection to the Transmitter.
- (D5) "Edge Activation" (AMBER) LED will light for several seconds.
When edge is first pressed;
D7D8D5D6
- (D8) "Signal Acquired" (GREEN) LED will blink when edge is pressed.
Hold closed door control:
- 2 LED's under the label will be lit.
The unit will be in "Supervised Mode":
INITIAL POWER UP:
START UP / TESTING PROCEDURES
D6 GREEN
D5 AMBER
D8 GREEN
D7 RED CHECK BATTERY
SIGNAL ACQUIRED
EDGE ACTIVATION
NORMAL MODE
LED LEGEND-RECEIVER
TRANSMITTER
(ON BOTTOM BAR)
RECEIVER
(ON OPERATOR)
Constant pressure required on door CLOSE control
- (D3) "Transmitter Awake" (GREEN) LED will blink when edge is pressed.
1)
2)
3)
1)
Electrical Edge:
- Unplug quick disconnect plug connecting
Unit should switch to "Supervised Mode":
Constant pressure required on door CLOSE control. LED LEGEND-TRANSMITTER
TRANSMITTER SENDINGGREEND3
Transmitter to Sensing Edge.
GAGR
4) Receiver will switch to "Normal Mode":
- (D6) "Normal Mode" (GREEN) LED will light.
Door now requires momentary contact for CLOSE control.
- (D7) "Check Battery" (RED) LED should not be lit.
- (D6) "Normal Mode" (GREEN) LED will turn off.

2) Check the Battery voltage first.
- Minimum 7 Volts. Replace battery if voltage is at or below minimum.
DIP SWITCH CONFIGURATIONS
RECEIVER SWITCH SETTINGS
12345
ON
OFF (0) OFF (0)
ON 54321
TRANSMITTER SWITCH SETTINGS
678
TROUBLESHOOTING
1) Verify address selection dip switches (1 thru 4) are set the same on the Transmitter and Receiver.
ADDRESS
SELECTOR SELECTOR
ADDRESS FACTORY SET
DO NOT ADJUST
6
Open door several feet - Verify that unit is still in "Supervised Mode". Constant3)
Reconnect sensing edge to Transmitter.4)
Unit will switch to "Normal Mode".
- (D6) "Normal Mode" (GRN) LED will light. Door now requires momentary
contact for CLOSE control.
pressure required on door CLOSE control.
ON (1)
TEST
MODE
ON (2 WIRE, 10K TERMINATION EDGE)
3) Make sure the antenna is attached to the receiver, and that the "tip" of the antenna is NOT aimed
OFF (4 WIRE EDGE)
at the transmitter (the side of the whip antenna is what picks up the signals, not the tip).
4) Do NOT mount the antenna inside a closed metal box; the box will shield the antenna from all
signals, and the receiver will not work as a result. If the receiver must be mounted inside a metal
box, use an antenna extension kit to mount the antenna on the outside of the metal box.
5) Make sure the transmitter is mounted so that when the door is partly open, you are looking
directly at the label on the lid and not looking at the side of the case.

7
1) Receiver has no power and the Safety Edge relay output is "closed" as a result.
- Ensure that a STEADY 24 VOLTS are present; if DC is used, the red lead must be "positive"
2) Make sure the receiver switch #5 in "ON" for 2-wire w/termination; "OFF" for 4-wire Phantom Edge.
1) Receiver has had a Power-On-Reset and has not heard from the sensing edge transmitter since
the power-on, causing a Communication Time-Out Fault (the red LED on the receiver will be
DOOR WON'T CLOSE OR REVERSES TO FULL OPEN WHEN IT ATTEMPTS TO CLOSE:
polarity.
DOOR STAYS IN CONSTANT PRESSURE MODE:
"ON" solid).
* Check that the power to the receiver STAYS on when the limit switches are reached, and when
any of the Operator push buttons are pressed.
2) Receiver has a slowly blinking red LED; this means that the transmitter has a low battery.
* Use a lithium 9-volt battery for cold weather operation; an alkaline battery will work in mild
weather, but has about half the capacity of the lithium types.
3) Receiver has a fast blinking red LED; this means that the transmitter sees a sensing edge
termination fault. If the edge is a 4-wire type, one of the safety edge wires may not be making
contact in the connector in the transmitter, or the sensing edge is faulty. If the edge is of the
terminated 2-wire type, the transmitter is not seeing the terminator resistor.
* Make sure that switch #5 on the transmitter is OFF for 4-wire, and ON for terminated 2-wire.
This unit will not function correctly with a non-terminated 2-wire edge. The terminated edges
can be identified two ways; 1) There will be a blue band around the pigtail as it exits the edge;
2) The edge will measure 10K ohms between the two leads if checked with a multimeter.
1) Check that the Door Operator "sensing edge cut-out" switch is correctly adjusted to within 6"
of the floor.
DOOR FAILS TO REVERSE WHEN IT CONTACTS AN OBSTACLE:
2) Check that the receiver's sensing edge relay output wires are intact and still connected to the
Door Operator's sensing edge input terminals.
3) Check the receiver sensing edge relay output jumper; the jumper should be placed on the N/O
pins for the channel one (green and orange wires) normally-open relay contacts.

8
For a BRIEF TEST, turn on the transmitter's test mode switch, #8, and activate the safety edge to
TO TEST FOR A RF SHORT-RANGE PROBLEM BETWEEN THE TRANSMITTER AND THE RECEIVER:
initiate a transmission. The transmitter will come on and stay on until the switch #8 is turned back
off for normal operation. The receiver Signal Acquired green LED (next to the red Maintenance
Required LED) should come on and stay on while the door is run through its range of motion. The
safety edge should work as usual while in test mode. TURN OFF "TEST MODE" AS SOON AS
POSSIBLE, to avoid undue RF interference and also quickly exhausting the transmitter battery.
An ACTIVE SENSING EDGE to the transmitter will cause the receiver sensing edge output relay
REMEMBER:
to stay ACTIVE.
ALL FAULT CONDITIONS (low battery, edge termination not sensed, communications time-out)
cause the receiver to put the door-operator into Constant Pressure mode.
Check the condition of the receiver's indicator lights at the time of the problem, to quickly
find the cause.
Some locations are much more electrically noisy than others. If the receiver shows signs of
performing a "power-on" light test when the operator's motor starts or stops, or other heavy
equipment in the vicinity seems to be affecting the wireless link, please contact Miller Edge
with the necessary information (mounting location, plus the make and model of the door
operator or other related equipment) to resolve the problem.

9
LABEL AND MANUAL INFORMATION
1) Labeling Requirement
In accordance with the Section 15.19 of FCC Rules, a permanently attached label shall be affixed
to every product in a conspicuous location with the following statement:
conditions: 1) This device may not cause harmful interference, and 2) this device must accept any
"This device complies with part 15 of the FCC Rules. Operation is subject to the following two
interference received, including interference that may cause undesired operation."
(a) For a class A digital device or peripheral, the instructions furnished the user shall include the
following or similar statement, placed in a prominent location in the text of the manual:
"Note: This equipment has been tested and found to comply wit the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
cause the user will be required to correct the interference at his own expense."
(b) For a class B digital device or peripheral, the instructions furnished the user shall include the
following or similar statement, placed in a prominent location in the text of the manual:
equipment does cause harmful interference to radio or television reception, which can be determined
However, there is no guarantee that interference will not occur in a particular installation. If this
accordance with the instruction manual, may cause harmful interference to radio communications.
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
against harmful interference when the equipment is operated in a commercial environment. This
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
"Note: This equipment has been tested and found to comply wit the limits for a Class B digital device,
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the antenna and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV techician for help."
2) Information to User
The users manual or instruction manual for an intentional or unintential radiator shall caution the
user that changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

APPENDIX INDEX
A-1
A-2
A-4
A-5
WIRING DIAGRAM - LIFTMASTER GH/H
WIRING DIAGRAM - LIFTMASTER MGJ
WIRING DIAGRAM - FDO-A / FDO-B
WIRING DIAGRAM - PRO GH/H
DESCRIPTION PAGE
10
LIFTMASTER
MICANAN
COOKSON
WIRING DIAGRAM - FDO-A10 A-6
WIRING DIAGRAM - LIFTMASTER - MGJ 3 PHASE A-3
WIRING DIAGRAM - MG, MGHL, SGH A-7

BLACK RED YELLOW BLUE GREEN BROWN ORANGE
PHANTOM
EDGE
RECEIVER
1234 5 7 10
LIFTMASTER GH/H
L1 L2 L3
WIRE NUT
FROM
TRANSFORMER
RED
(REMOVE)
WIRING DIAGRAM
WIRE NUT
(FIELD INSTALLED)
BLACK
RED
YELLOW
BLUE
GREEN
ORANGE
A-1
BROWN

2
RED GREEN BLACK YELLOW ORANGE BROWN BLUE
PHANTOM
EDGE
RECEIVER
1234 5 710 11 12
RED
(REMOVE)
NOT USED
LIFTMASTER MGJ - SINGLE PHASE
WIRING DIAGRAM
WIRE NUT
(FIELD INSTALLED)
RED
GREEN
BROWN
BLUE
A-2
BLACK
ORANGE

2
RED GREEN BLUE ORANGE BROWN
PHANTOM
EDGE
RECEIVER
1234 5 710
LIFTMASTER MGJ - 3 PHASE
WIRING DIAGRAM
WIRE NUT
(FIELD INSTALLED)
RED
GREEN
ORANGE
A-3
BLACK
TRANSFORMER
WIRE NUT
BLACK
BLUE
BROWN
RED
RED (REMOVE)
YELLOW
YELLOW

BROWN BLACK
ORANGE
GREEN
BLUE
RED
BLACK
BROWN
WIRING DIAGRAM
J9
J8
NOT USED
FDO-A/FDO-B OPERATOR
24
23
222120191817
16
15
1413
12
11
1098
7
65
4
3
2
1
9108
765
4
3
2
1
RECEIVER
EDGE
PHANTOM
ORANGE GREEN BLUE YELLOW RED BROWN BLACK
A-4
AUX TERMINAL
BLOCK
J2 CIRCUIT BOARD TERMINALS

BLACK BLUE GREEN YELLOW ORANGE BROWN RED
PHANTOM
EDGE
RECEIVER
123456789
MICANAN GH/H
(REMOVE)
WIRING DIAGRAM
WIRE NUT
(FIELD
BLACK
BLUE
GREEN
ORANGE
YELLOW
RED WHITE
A-5
INSTALLED)

RED
BROWN
BLACK YELLOW ORANGE GREEN BLUE
RECEIVER
EDGE
PHANTOM
1234 5 6 10 11 A2 A1 L1 L2
YELLOW FROM TERMINAL 14
(REMOVE)
NOT USED
WALL MOUNTED CONTROL PANEL
FDO-A10
WIRING DIAGRAM
ORANGE
GREEN
BLUE
WIRE NUT
(FIELD INSTALLED)
RED
BROWN
BLACK
A-6
ON CLOSE CONTACTOR

RED
BLUE
ORANGE YELLOW GREEN BLACK BROWN
RECEIVER
EDGE
PHANTOM
12344A 5 6 78910
NOT USED
WALL MOUNTED CONTROL PANEL
COOKSON MG & SG SERIES OPERATOR
WIRING DIAGRAM
GREEN
BLACK
RED
BLUE
ORANGE
A-7
BROWN
