COOL Reefer User manual

USER MANUAL
Reefer

Congratulations on the purchase of your new
Cool Display Solutions premium product!
At Cool Display Solutions, we develop products with complete
devotion to quality and ease of use. That’s our passion. To obtain
the best results, we advise you to read this user manual* carefully.
Even though this product has been designed according to the highest
standards, it is important to use and maintain your appliance correctly.
Bob Jones
CEO and Founder, Cool Display Solutions
*Cool Display Solutions constantly works on the further development of all models. Therefore please
understand that we have to reserve the right to make design, equipment and technical modications.

Table of Contents
1.) SAFETY INSTRUCTIONS............................................................................................................... 4
2.) PUTTING INTO OPERATION.......................................................................................................... 7
2.) ELECTRICAL INTERFACES............................................................................................................8
3.) USE OF THE APPLIANCE..............................................................................................................10
4.) CLEANING AND MAINTENANCE..................................................................................................11
5.) TECHNICAL SPECIFICATIONS.....................................................................................................12
6.) TROUBLESHOOTING....................................................................................................................13
7.) TAKING THE UNIT OUT OF SERVICE...........................................................................................15
8.) ENVIRONMENTAL POLICY & RECYCLING..................................................................................16
9.) DISPOSING OF THE APPLIANCE.................................................................................................16
3
IMPORTANT!
See separate instructions for detailed guidelines on the promotional
display assembly. In the case these instructions are missing, please
contact the seller or your local service provider.
Get in touch with our after-sales service: 1.866.864.5273 |[email protected]

1.0 Safety Instructions
Please read this operating and maintenance manual carefully.
We suggest to keep the guide in your possession during the
entire life cycle of the product.
After delivery, immediately check the appliance for possible
transport damage and make sure it works properly. All safety
devices must be present and functional before operating the
appliance.
Do not leave children without supervision. Ensure that they do
not play with the appliance. In the case of appliances provided
with locks, the key must be kept at a site where children cannot
have access to it to avoid unintentional locking.
The appliance always has to be transported
and displayed vertically.
The appliance is designed for inside use only.
The surroundings should not transcend the following conditions
(based on a standard environment):
• 25°C / 77°F temperature
• 60% humidity
• 0,2 m/s air speed
Installation and Use
4

1.0 Safety Instructions
Keep a minimum distance of 10 cm/3.9 inches between the
appliance and neighbouring surfaces (walls, roof, furniture etc.).
Keep clear of obstructions all ventilation openings in the
appliance enclosure or for built-in structure.
Before connecting the device, check:
• The power rating (on the type plate)
• The relevant local electrical safety regulations
Do not use an extension cord to connect the appliance
to the electrical circuit.
Make sure that power cable and plug are undamaged before
connecting the appliance. The damaged cable can only be re-
placed with a cable identical to the original part.
After delivery, keep the appliance in a warm ambient
temperature for 2 hours before starting it.
Do not use electrical appliances inside the storage compartments
of the appliance, unless they are of the type recommended
by the manufacturer.
2Hrs
5

1.0 Safety Instructions

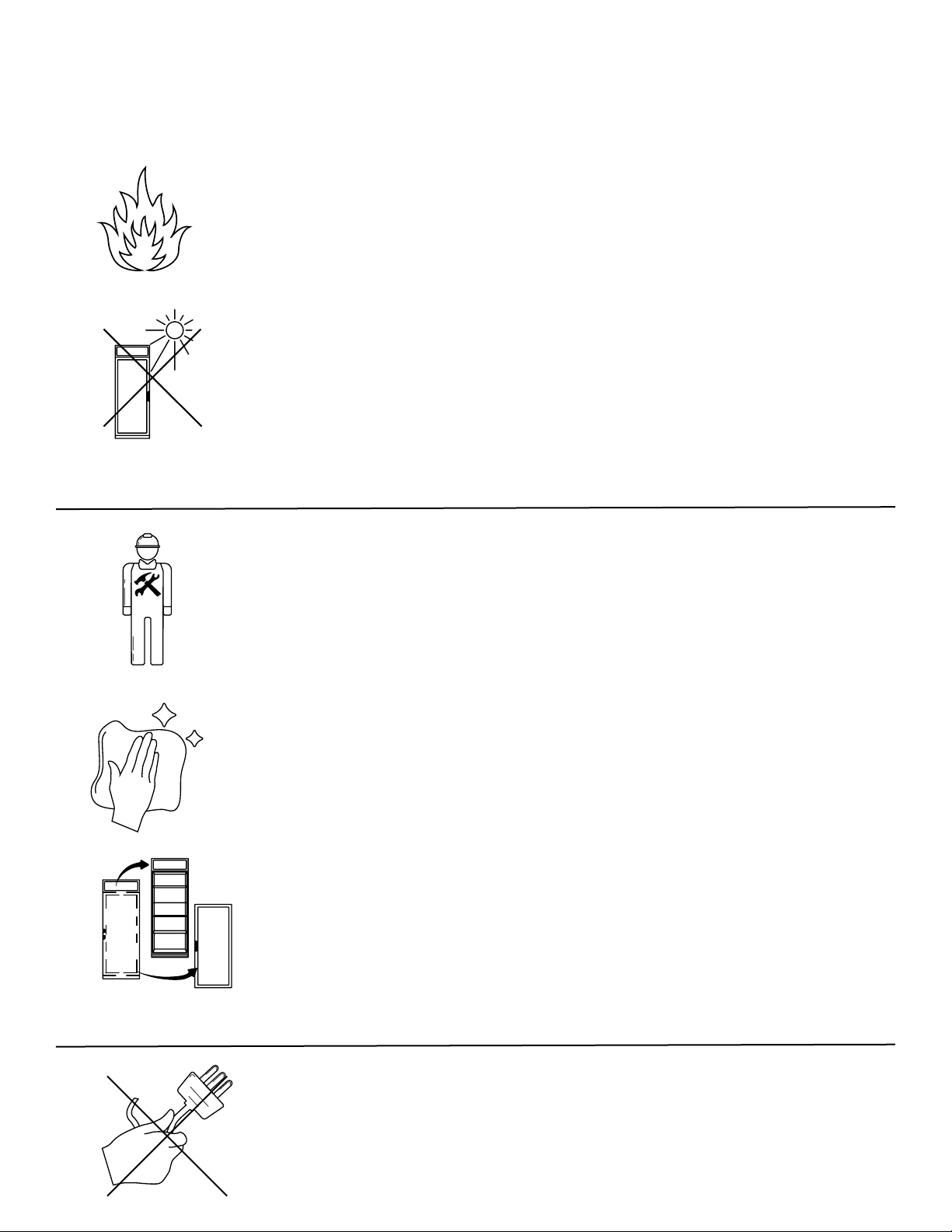

Do not store explosive substances such as aerosol cans with
a ammable propellant in the appliance. The user is solely
responsible for damages to properties or products, or injuries to
persons resulting from careless and improper use of the appliance.
Do not expose the appliance into direct sunlight. Do not heat the
appliance to more than 70°C/158°F.
Only authorised service specialists may perform work on the
electrical and refrigeration systems. If this is not observed, all
warranty and liability claims become invalid.
Damaging the refrigerant circuit can lead to severe injuries.
Do not damage the refrigerant circuit!
Make sure that the appliance is thoroughly cleaned and dried.
Proper cleaning prevents corrosion and mould formation.
Appliances out of use may be dangerous for children, therefore
position the appliance in such manner that no person can get
locked up.
When disconnecting the appliance from the power supply,
always take hold of the plug. Do not pull the cable.
1.2 Defects
1.3 When Not In Use
6

2.0 Putting Into Operation
Position the device where it is protected from sunlight and other
heat sources, since operation may be disturbed if the ambient
temperature exceeds +25°C/77°F.
The appliance should not be operated in rooms where the
temperature drops below +10°C/50°F since this disrupts the
lubrication of the compress
Leave at least 10 cm/3.9 inches space between the appliance’s
side walls/roof/back and neighbouring surfaces such as other
devices, walls, furniture and ceiling to provide free air ow be-
hind the device to enable proper operation.
If the furnishing of the room allows positioning only close to the
heat source the following minimum clearances must be kept: or.
• Put a 0.5-1cm/0.393 inches thick insulation board between
two devices if they are 3 cm/1.18 inches or less apart.
• Min. 30 cm/11.8 inches from oil or coal-red ovens.
The appliance may be connected to 110 V mains via proper-
ly mounted grounded socket. Check if the voltage meets the
local voltage and make sure that the connecting cable isn’t stuck
anywhere.
A fuse/circuit breaker of 10 A is required for the operation
of the appliance.
If the connection cable is damaged or it has to be extended,
the job must be done by a qualied electrician to avoid the
dangerous situations.
Do not use an extension cord! The appliance must be positioned
in a way that the main plug is easily accessible.
2.2. Electrical Connection
IMPORTANT!
Never move the appliance by grasping the sides.
2.1. Installation
7
WARNING!
Keep all ventilation openings in the appliance clear of obstructions.

2.3 Electrical Interfaces
WARNING!
Never connect more then 2 Reefers to the same electric circuit.
The Reefer includes different types of electric interfaces:
WARNING!
Low voltage disconnects or appliance disconnections are not
permitted, since they may lead to malfunctions. If this is not observed,
all warranty and liability claims become invalid.
The main power cable (115V / 60 Hz) in the lower rear
part of the Reefer close to the digital controller.
Two outputs for LED lighting (12V) in the top part of the Reefer
close to the front end.
Once the Reefer is switched off, or in case the power is cut off,
wait for at least 5 minutes before plugging in again to avoid
damaging the compressor or cooling system of the Reefer.
WARNING! DO NOT ADJUST SETTINGS!
Only authorised personnel may change
the factory pre-set temperature with
the digital temperature controller.
8

3.0 Use of the Appliance
1. Make sure that all packaging material and foreign objects
are removed from the appliance.
2. Clean the appliance with detergent before switching it on,
dry it with a soft, clean cloth and let it ventilate for a while.
3. It is advised to keep the appliance in an upright position
for at least 2 hours after transport before using it.
4. It is advised to switch on the appliance and check its
operation before positioning it at the nal place.
5. See separate instructions for detailed guidelines on the
promotional display appliance assembly. In case the
instructions are missing, please contact the seller or
your local service provider.
6. Place the shelves on the shelf holders.
7. It is advised to switch on the appliance and check its
operation before positioning it at the nal place. Connect
the plug into the socket.
8. Leave the appliance connected in an empty state for 2
hours to check the functioning before adding goods for
the rst time. Do not load food to be chilled before
the temperature display reads +6°C.

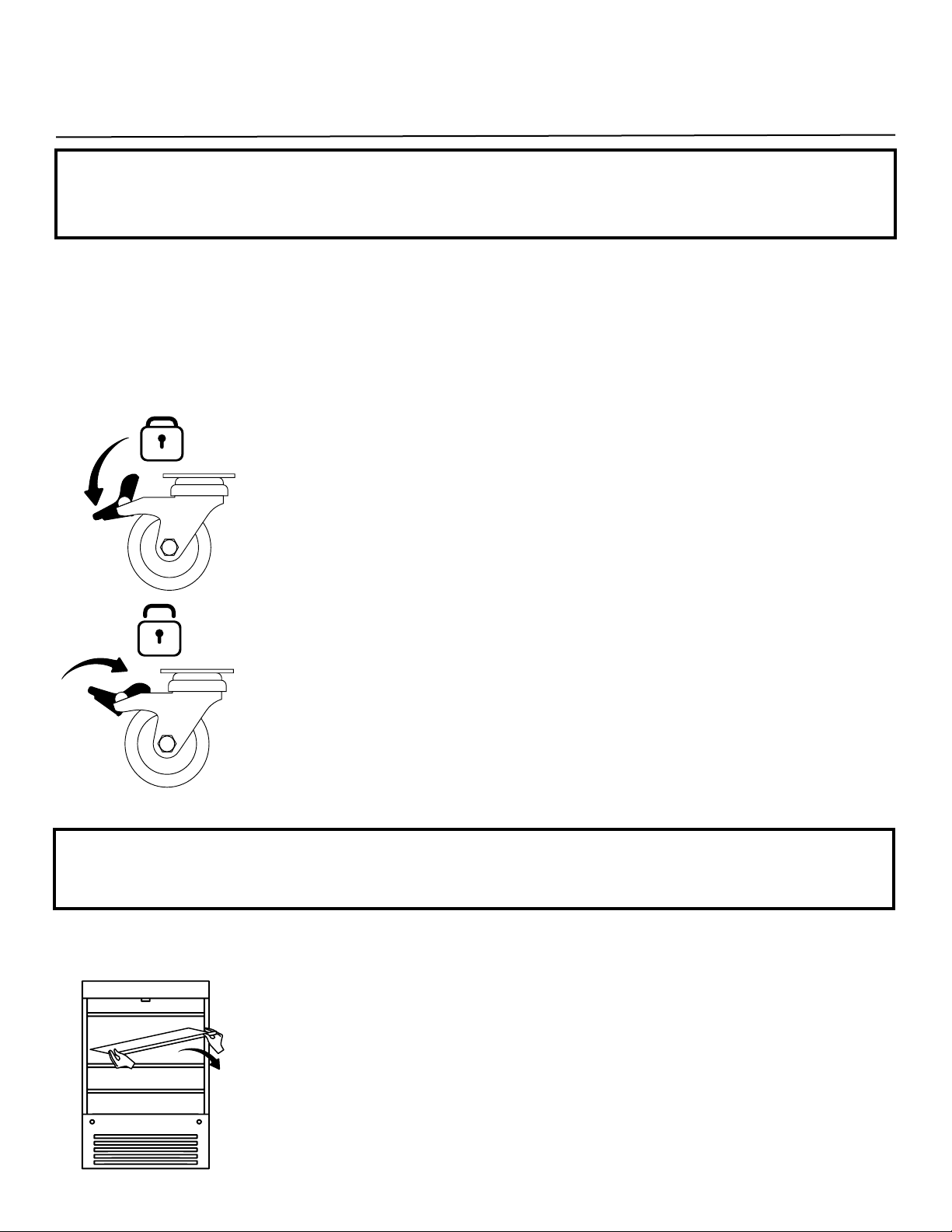

9. Apply brakes to prevent the appliance from moving.
1. Attach shelf supports to shelf rails at the desired height.
2. Slide the shelf into the appliance and mount it on supports.
3. Make sure the shelf stays stable on its supports.
IMPORTANT!
All packaging materials are recyclable.
IMPORTANT!
Wear safety gloves during the installation.
3.1. Starting Up
1
2
3.2 Shelf Installation
9

3.3 Filling
FILL LINE
Lbs/Kg
Max
FILL LINE
To achieve optimal cooling, it is advised to ll up the appliance
when it is less frequently used.
1. Check the maximum load.
2. Do not overload the device with products.
3. Be careful not to block air circulation.
1. 2. 3.
Once the appliance is switched off, or in case the power is cut
off, wait for at least 5 minutes before plugging in again to avoid
damaging the compressor or cooling system of the appliance.
IMPORTANT!
Do not place the appliance in direct sunlight, HVAC outlets or
near heat-producing appliances (like ovens, boilers and heat-
ers).The appliance reaches its top efciency when it works 24/7,
do not switch it off during the night.
Keep your appliance clean and well maintained: dust
on the condenser or any unsolved problem can cause
increased energy consumption.
Fill the appliance according to the prescribed instructions to
allow energy-efcient operation.
Wipe goods dry before placing them in the appliance.
This cuts down on moisture build-up inside the appliance.
Turn off the interior lighting of the appliance for the night.
Maintain and clean the appliance in a proper way. If the
condenser coil is not cleaned at least 2 times per year,
the efciency of the appliance will decrease signicantly.
Use the ECO frame provided with ECO models to
increase the efciency of the appliance*.
3.4 Energy Saving Tips
10
Do not point spotlights at the unit.
IMPORTANT!
Do not place the appliance in direct sunlight, HVAC outlets
or near heat-producing appliances (like ovens, boilers and
heaters).
HINT!
