Cooler Master Centurion 590 User manual

Centurion 590
Chassis
Installation Guide
User Manual / English
使用说明 / 简体中文

CONTENTS
01
1. Product Overview.........................................................02
1.1 Specifications.....................................................................02
1.2 Diagram........................................................................... 02
1.3 Part List............................................................................03
1.4 Fittings Pack......................................................................03
2. Installation Guide.........................................................04
2.1 How to remove the side panel and install the power supply.......04
2.2 How to install the motherboard.............................................05
2.3 How to install add-on cards..................................................05
2.4 How to install the 3.5” and 5.25” devices...............................06
2.5 Install Hard Drives in the 4-in-3 Device Module.......................08
2.6 How to install or replace case fans.........................................09
2.7 Completing Installation........................................................09
2.8 Cable management.............................................................10
3. Front Connector Installation Guide...............................11
Warranty Information......................................................13
Centurion 590
Centurion 590

Black
L510 x W120 x H440mm
Net Weight : 8.5kg; Gross Weight : 9.3kg
Chassis : SECC, Bezel : AL+ABS
Micro-ATX / ATX
9 Exposed (without the use of exposed 3.5" Drive bay)
4 (Hidden; from one 4-in-3 Device Module included)
1 (Exposed; converted from one 5.25" Drive Bay)
7
One 120x120x25 mm front intake fan (Blue LED), 1200 rpm, 17 dBA
One 120x120x25 mm rear exhaust fan, 1200 rpm, 17 dBA
USB 2.0 x 2, IEEE 1394 x 1, Audio x 1, MIC x 1,
(Supports Intel HD Audio)
Standard ATX PS2 / EPS 12V(optional)
Available Color
Dimension
Weight
Material
M/B
5.25” Drive Bay
3.5” Drive Bay
Expansion Slot
Cooling System
I/O Panel
Power Supply
Centurion 590
Centurion 590
POWER BUTTON
IE 1394
MIC
HEADSET
USB 2.0
POWER LED
HDD LED

1.3 Part List
Item
1
2
3
4
5
6
Q’ty
1
1
1
1
1
1
Parts Name
right side panel
Casing
5.25" TO 3.5" Bracket Module
front panel
3.5” Shield
5.25"to 3.5"meshed panel
Item
7
8
9
10
11
Q’ty
8
1
1
1
1
Parts Name
5.25” Shield
Front LED fan 120*25mm
4-in-3 Device Module
Rear fan 120*25mm
Left side panel
03
4
3
2
1
6
5
7
891011
Centurion 590
Centurion 590
Figure Parts Name
Cable Tie
Stand-off (6.9mm)
#6-32 screw
M3 screw
HDD-screw installing 3.5" device
Q’ty Used for
Cable management
M/B tray
M/B tray,power supply
CD-ROM,FDD,3.5" Bracket
12
12
20
20
16
1.4 Fittings Pack

2. Installation Guide

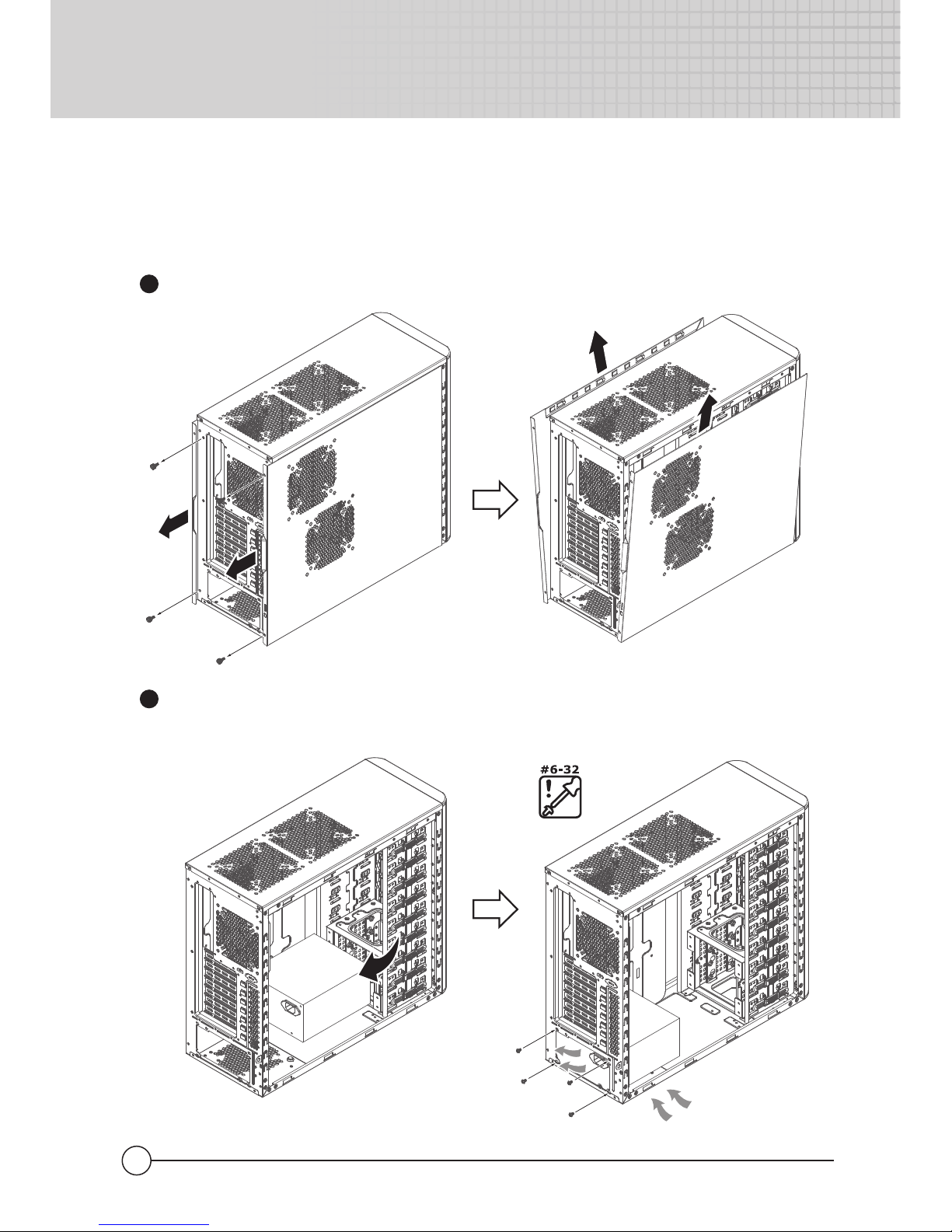

2.1 How to remove the side panel and install the power supply.
Remove the 4 screws and pull the side panel backward.
1
Place the PSU in the location as shown below.If the PSU has a single fan,
please make sure the fan faces the bottom vent.
2
04
Note: The sequence of installation may be different, depending on the type of
case and devices used.
PSU air inlet
Centurion 590
Centurion 590

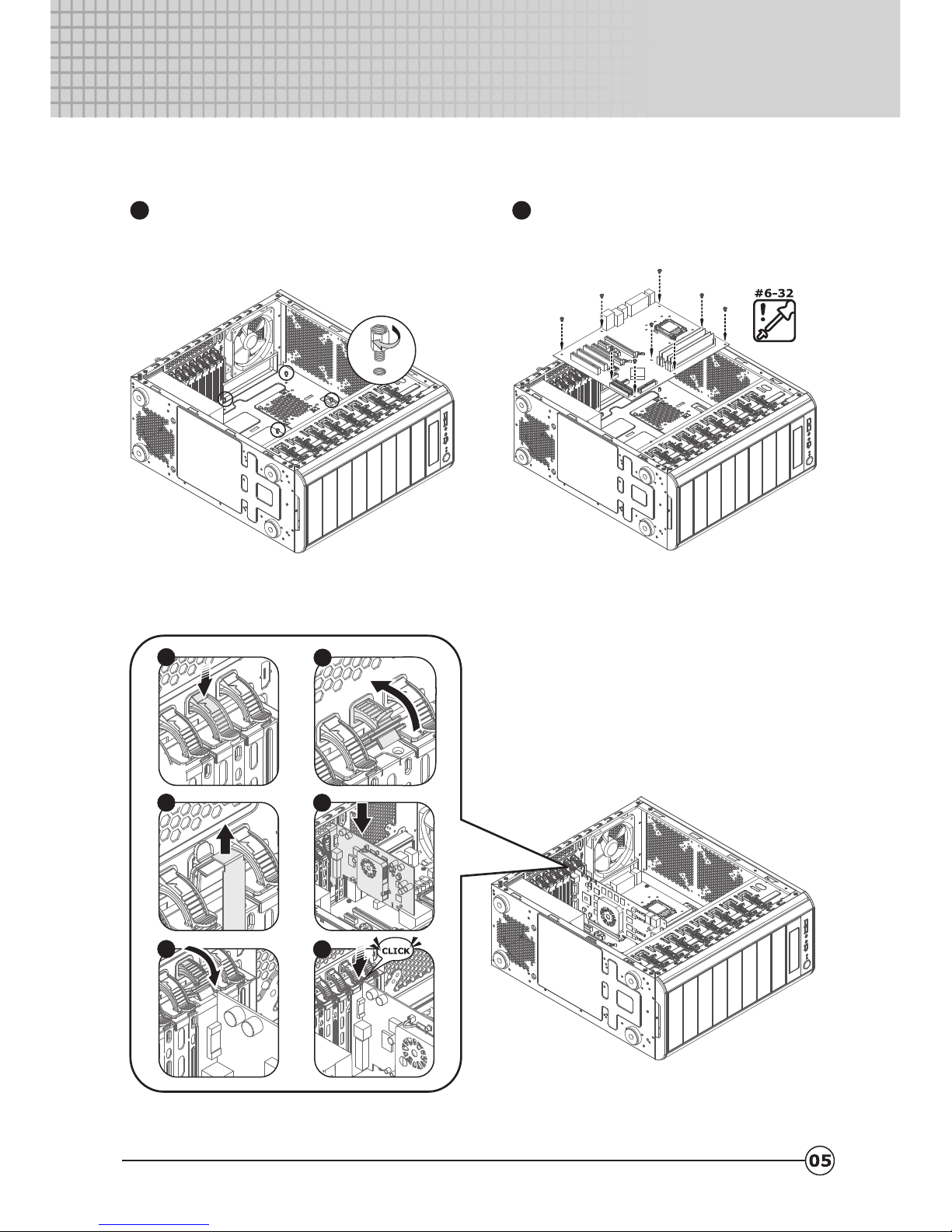

2.2 How to install the motherboard.
2.3 How to install add-on cards.
Adjust the hole position of the M/B with
the MB tray and screw in the spacers.
1Make sure the holes on the Motherboard
and chassis line up properly before
securing the screws.
2
Centurion 590
Centurion 590
FE
DC
AB

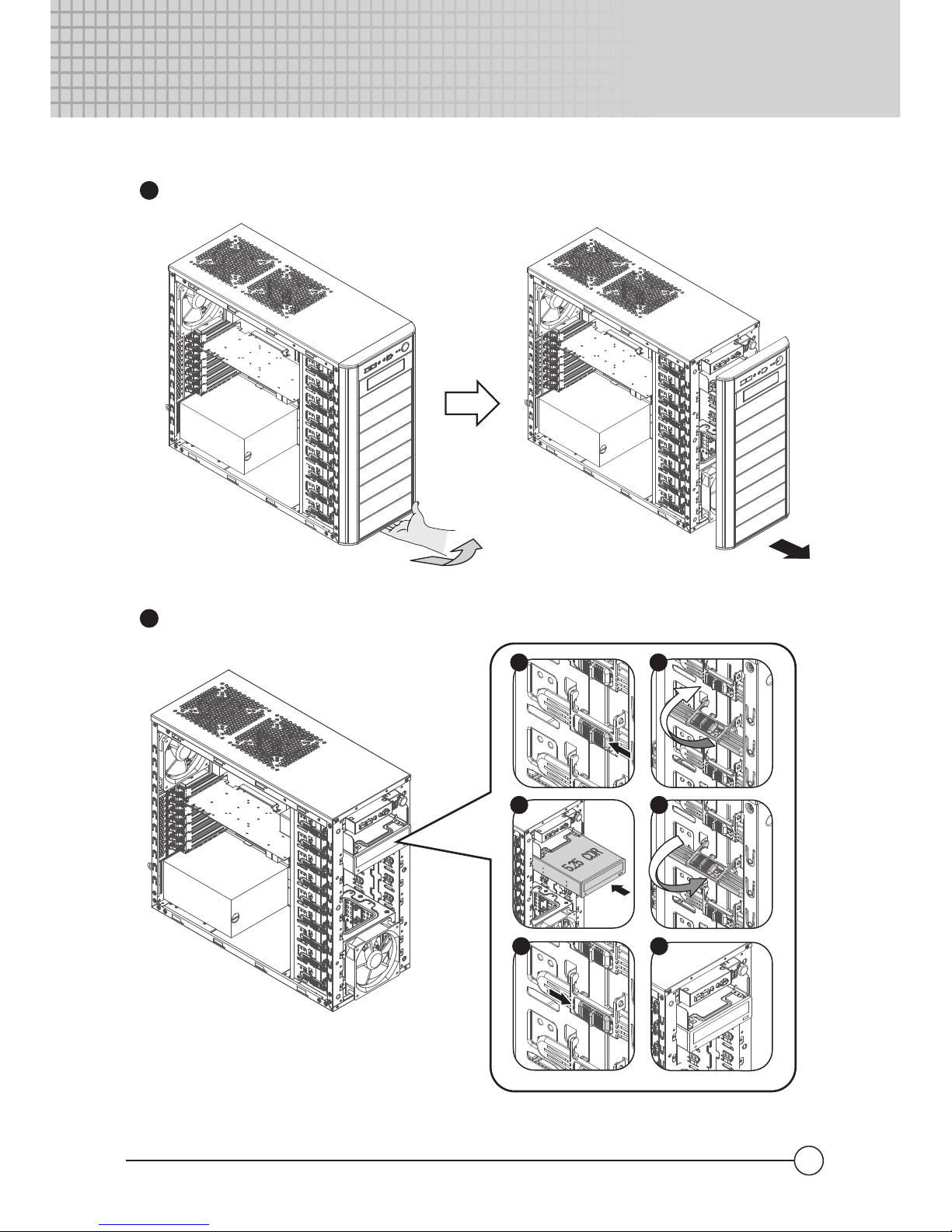

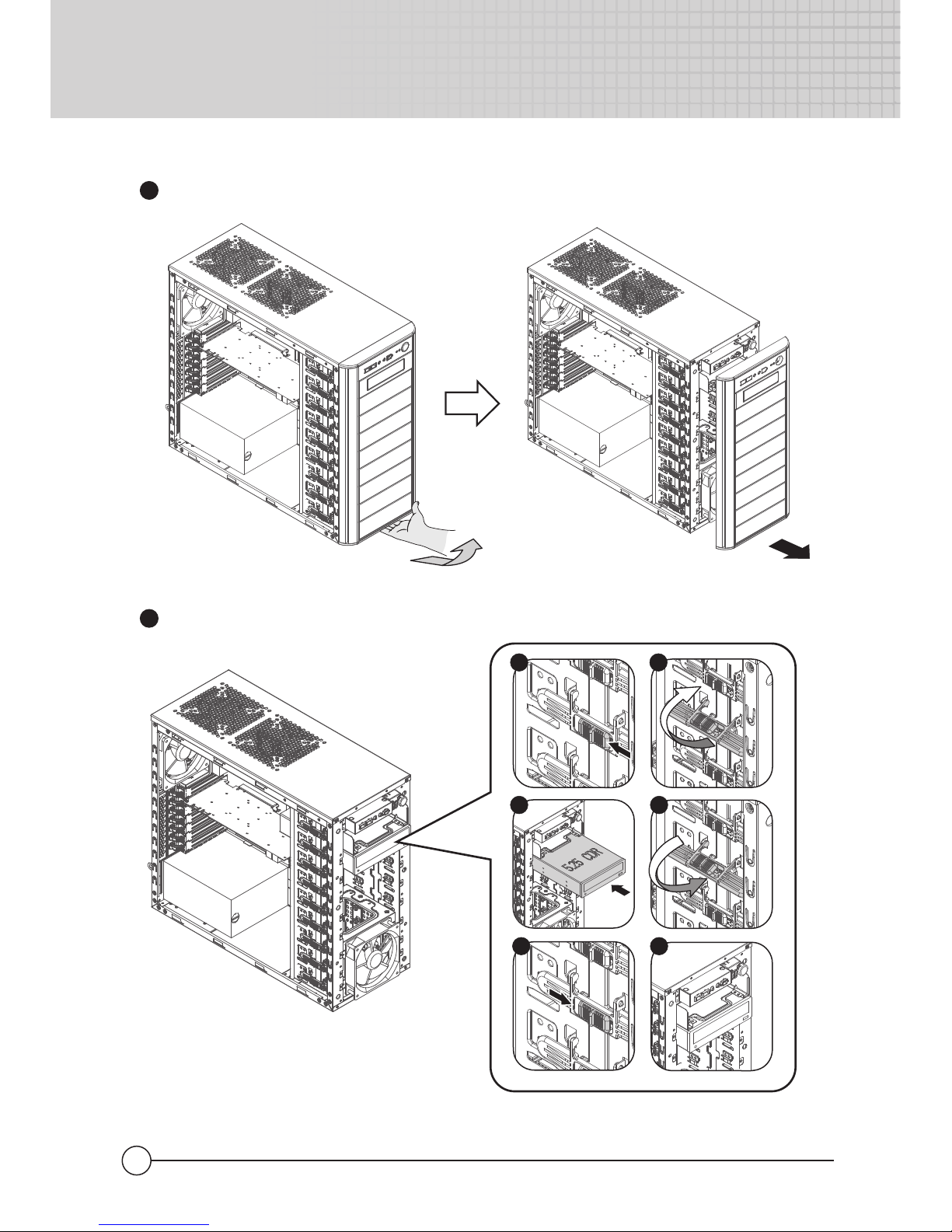

2.4 How to install the 3.5” and 5.25” devices.
06
Remove the front panel.
1
Insert the device into 5.25” drive bay.
2
Centurion 590
Centurion 590
A
C
AB
D
C
EF

07

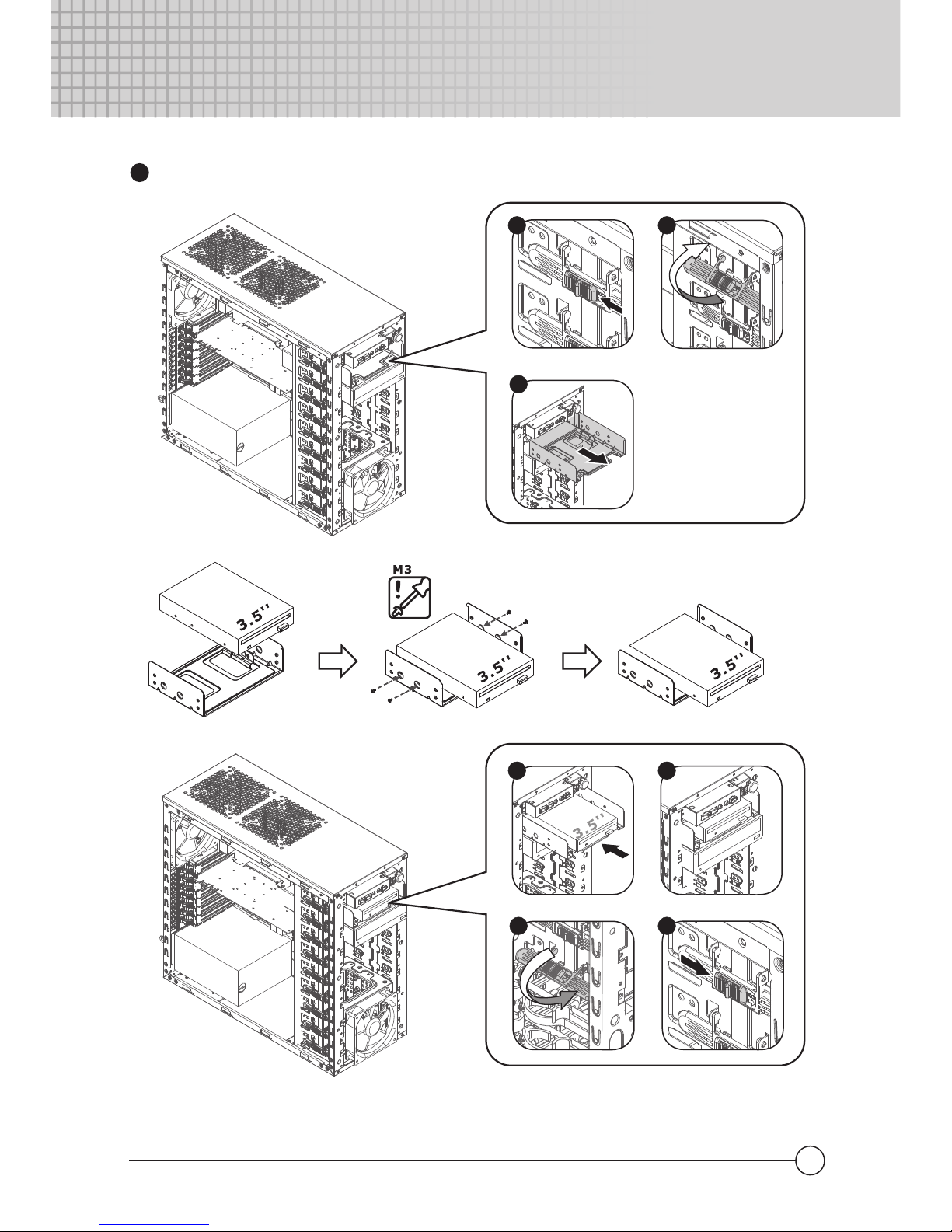

How to install 3.5" devices.
3
Centurion 590
Centurion 590
AB
A
D
B
C
C

08

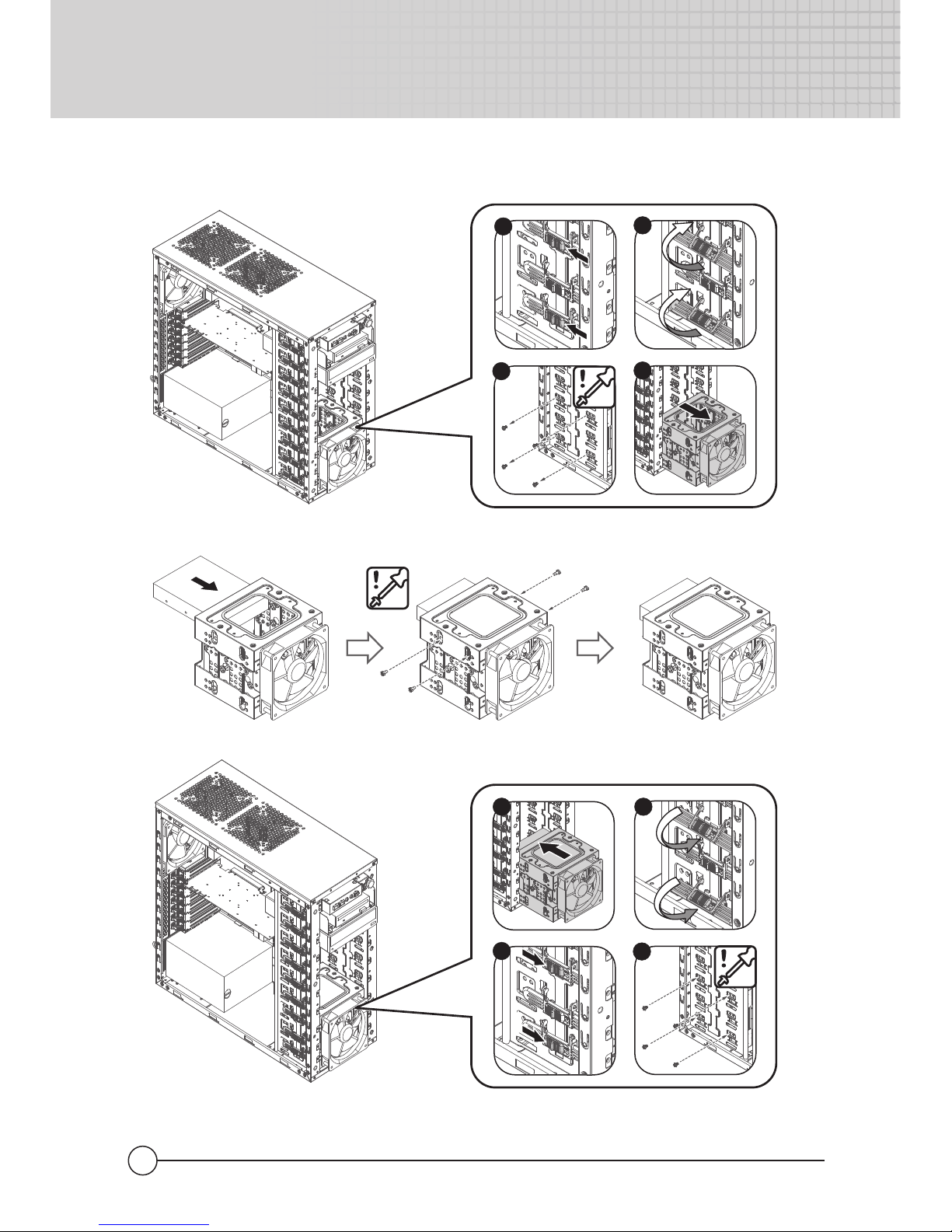

2.5 Install Hard Drives in the 4-in-3 Device Module
Centurion 590
Centurion 590
AB
CD
D
C
A
M3
M3
HDD-Screw
B

A. Top fan x 2 : Supports 80/90/120/140mm fans (optional)
B. Rear fan x 1 : Supports 80/90/120mm fans
C. Front fan x 1 : Supports 90/120mm fans
D. Left fan x 2 : Supports 80/90/120/140mm fans (optional)
Install/replace top / rear / front / left fans
Centurion 590
Centurion 590
M5

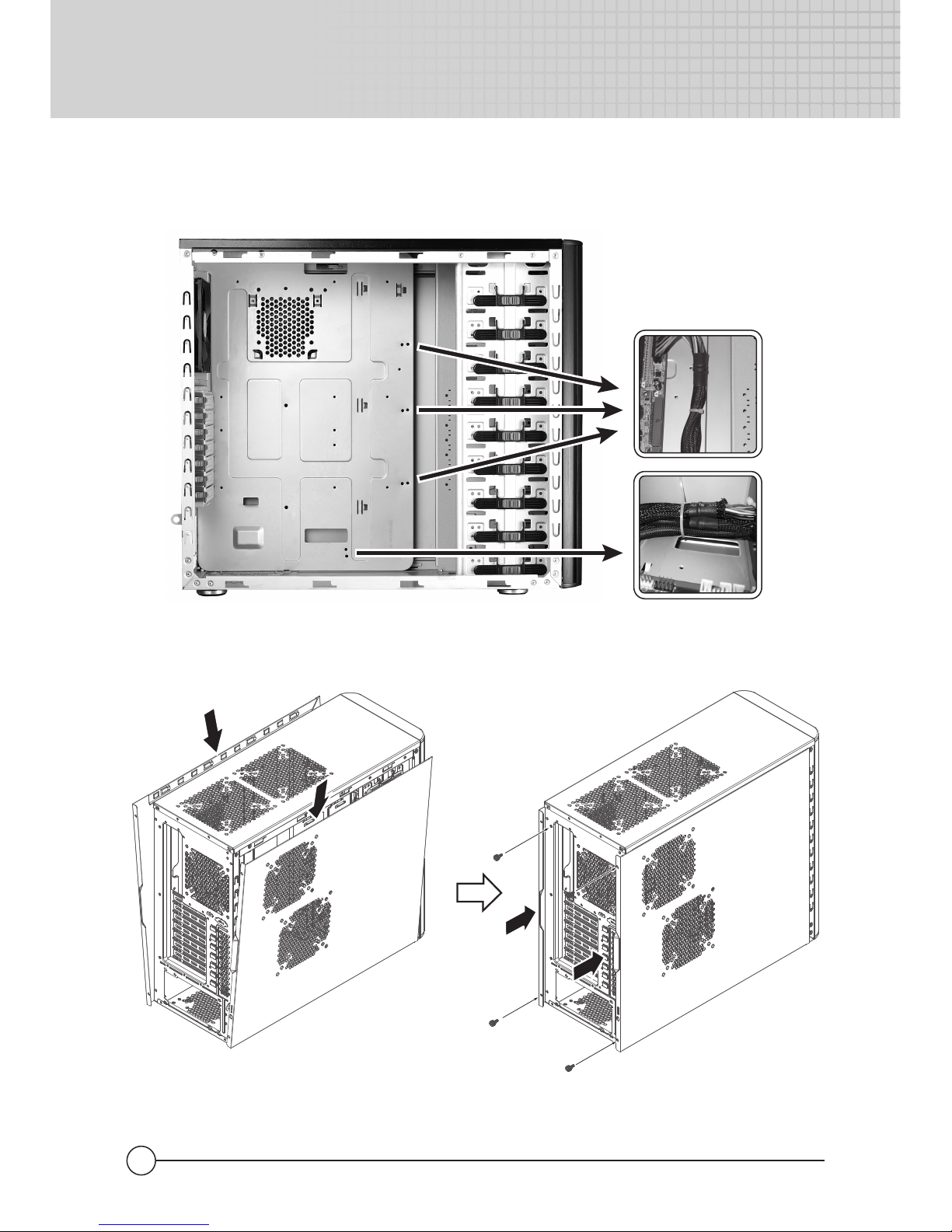

2.7 Completing Installation
or

10
2.8 Cable management
Centurion 590
Centurion 590

11

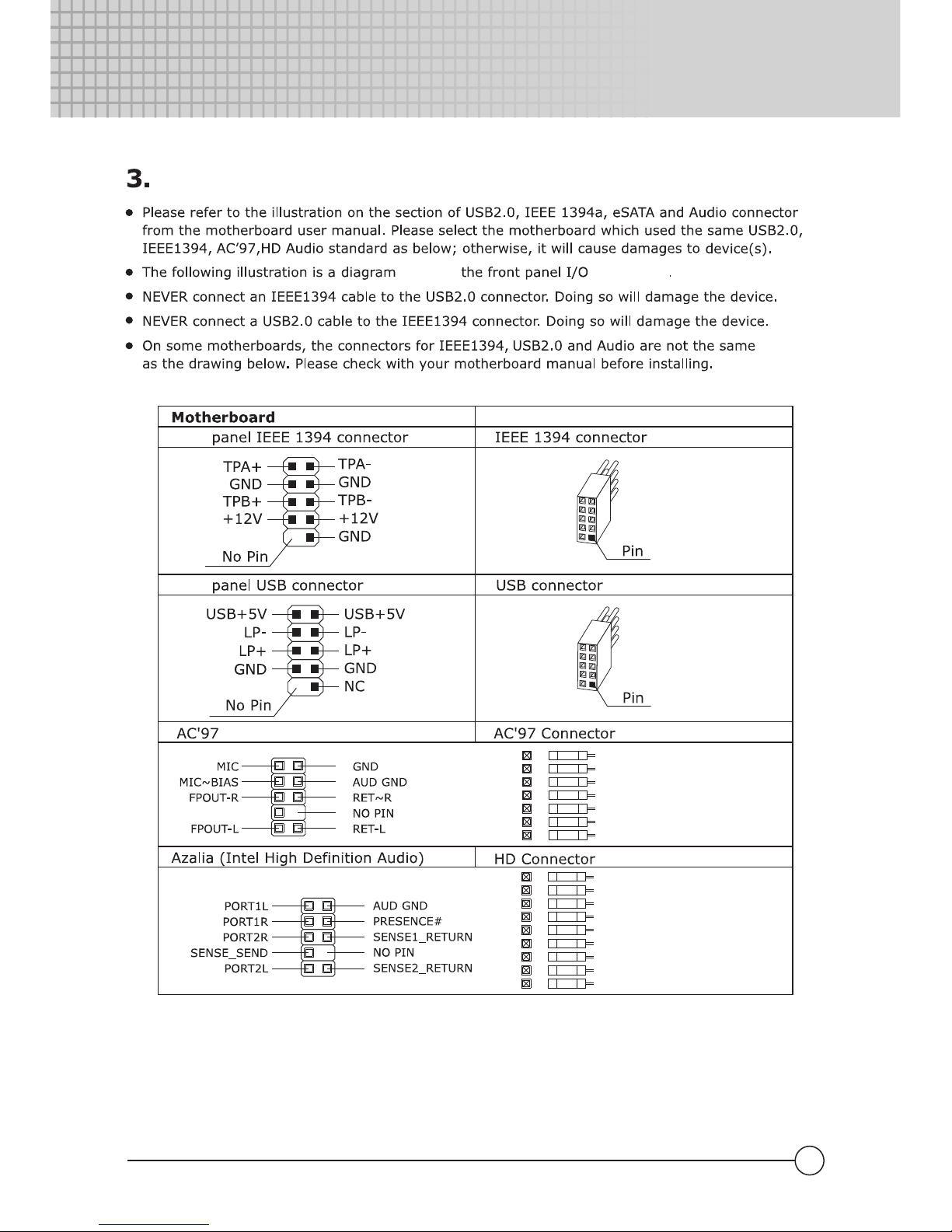

Centurion 590
Centurion 590
Top
Top
Yellow-MIC
Yellow-PORT1L
Red-PORT1R
Green-PORT2R
Blue-PORT2L
Black-AUD GND
Gray-SENSE2_RETURN
Brown-SENSE1_RETURN
Orange-SENSE_SEND
White-PRESENCE#
Red-MIC-BIAS
Green/Green-FPOUT-R
Blue/Blue-FPOUT-L
Black-AUD GND
Green-RET-R
Blue-RET-L
showing connectors
Case Connector
Front Connector Installation Guide

目 录
1. 产品简介.........................................................................02
1.1 规格..................................................................................02
1.2 示意图...............................................................................02
1.3 零件表...............................................................................03
1.4 配件包...............................................................................03
2. 安装说明..........................................................................04
2.1 拆下侧板和安装电源................................................................04
2.2 安装主板..............................................................................05
2.3 安装附加卡...........................................................................05
2.4 安装光驱和软驱.....................................................................06
2.5 安装硬盘..............................................................................08
2.6 安装和更换机箱风扇................................................................09
2.7 完成安装.............................................................................09
2.8 线材管理.............................................................................10
3. 有害物质禁用表.................................................................11
4. I/O面板安装说明...............................................................12
保修信息.............................................................................13
工具需要图示
Centurion 590
Centurion 590
01

黑色
长510 x 宽120 x 高440mm
凈重 : 8.5kg; 毛重 : 9.3kg
机身 : SECC(镀锌钢板), 前面板: AL+ABS
Micro-ATX / ATX
9 外置 (包含一个3.5”装置)
4 隐藏 (使用三转四模组转换)
1外置
7
USB 2.0 x 2, IEEE 1394 x 1, Audio x 1, SPK x 1,
(支持Intel HD Audio)
标准 ATX PS2 / EPS 12V(选购)
POWER BUTTON
IE 1394
MIC
HEADSET
USB 2.0
POWER LED
HDD LED
前风扇(进风): 120x120x25 mm x 1(蓝光LED), 1200 rpm, 17 dBA
后风扇(排风): 120x120x25 mm x 1, 1200 rpm, 17 dBA
颜色
尺寸
重量
材质
5.25"装置
3.5"装置
扩充孔
散热系统
I/O面板
电源
产品规格变更恕不另外通知
规格
产品简介
示意图
顶视图
前视图 右视图 左视图
主板类型
02
Centurion 590
Centurion 590

2. 安装说明
2.1 拆下侧板和安装电源
移除4颗手动螺丝和拆下左右侧板
1
安裝电源
注意:电源风扇朝下
2
注意:安装的顺序可以不同,取决于安装装置的类型.
电源散热孔
04
Centurion 590
Centurion 590

2.2 安装主板
2.3 安裝附加卡
主板和主板支架上的孔位对准后,
将螺柱安装到主板支架上.
1在锁合前,请确认主板和机身已经完全对准孔位. 2
Centurion 590
Centurion 590
05
FE
DC
AB

2.4 安装光驱和软驱
移除前面板
1
安装光驱
2
06
Centurion 590
Centurion 590
A
C
AB
D
C
EF

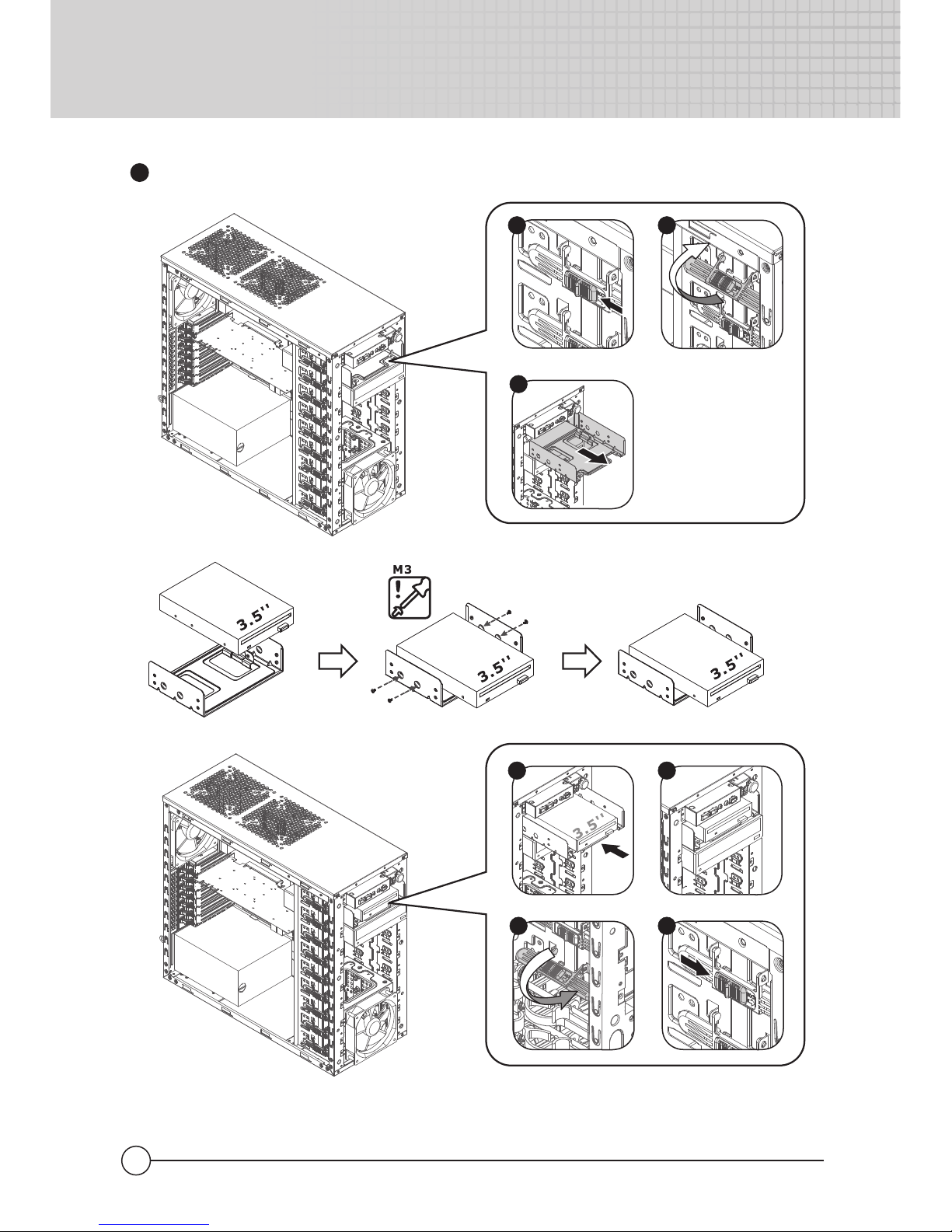

安装软驱
3
Centurion 590
Centurion 590
07
AB
A
D
B
C
C
