Coolmaster Synk X User manual

Synk X
A Cross-platform Immersive Haptic Chair
User Manual

TABLE OF CONTENTS
OA. 01 | SPECIFICATIONS
OA. 02 | ACCESSORY NAMES AND FUNCTIONS
OA. 03 | CONTROL PANEL AND FUNCTIONS
AS. 01 | LIST OF COMPONENTS
AS. 02 | PRESSURE CASTER WHEEL INSTALLATION
AS. 03 | GAS CYLINDER INSTALLATION
AS. 04 | SEAT AND BACKREST INSTALLATION
AS. 05 | 4D ARMREST INSTALLATION
AS. 06 | CABLE CONNECTIONS
AS. 07 | CHAIR ASSEMBLY
TU. 01 | RECLINING ANGLE ADJUSTMENT
TU. 02 | SEAT HEIGHT ADJUSTMENT
TU. 03 | LEG REST ADJUSTMENT
TU. 04 | 4D ARMREST ADJUSTMENT
TU. 05 | ARGB LED CONTROL
TU. 06 | INTERFACE INPUT CONTROL
TU. 07 | HEADPHONE VOLUME AND VIBRATION LEVEL CONTROL
TU. 08 | POWER OPERATIONS
TU. 09 | IMPORTANT SAFETY INFORMATION
QA. 01 | FREQUENTLY ASKED QUESTIONS
SA. 01 | TROUBLESHOOTING
RL. 01 | REGUL ATORY STATEMENTS
OverviewOverview
Operating Instructions
FAQ
After-sales Service
---------------------------------02
--------------03
-----------------05
----------------------------06
---------07
---------------------08
---------------09
----------------------10
-----------------------------11
----------------------------------12
----------------13
---------------------14
------------------------15
---------------------16
--------------------------17
--------------------18
--19
-------------------------20
-------------21
----------------23
--------------------------24
-------------------25
Regulatory Information
Assembly Instructions
1

Specications
Product Name Synk X
100W Peak/50W RMS, 4Ω, 2 sets of transducer
Shock absorbing plywood, Metal pipes
Flame resistant foam and three-layer breathable mesh,
Goose down fabric
Length: 683 mm
Width: 726 mm
Height: 1225 mm
29.4 kg
5% to 95% RH
5°C to 40°C (ambient temperature)
Seat Weight Capacity :
Maximum weight 136 kg
Reclined backrest weight capacity :
Maximum weight 96 kg
4S2P Lithium-ion battery pack
16.8V
5200mAh
100~240VAC 50/60Hz
Voltage
Power
Structural Materials
Seat Materials
Size
Weight
Operating
Temperature
Operating
Humidity
Weight Capacity
Battery
Specications
2

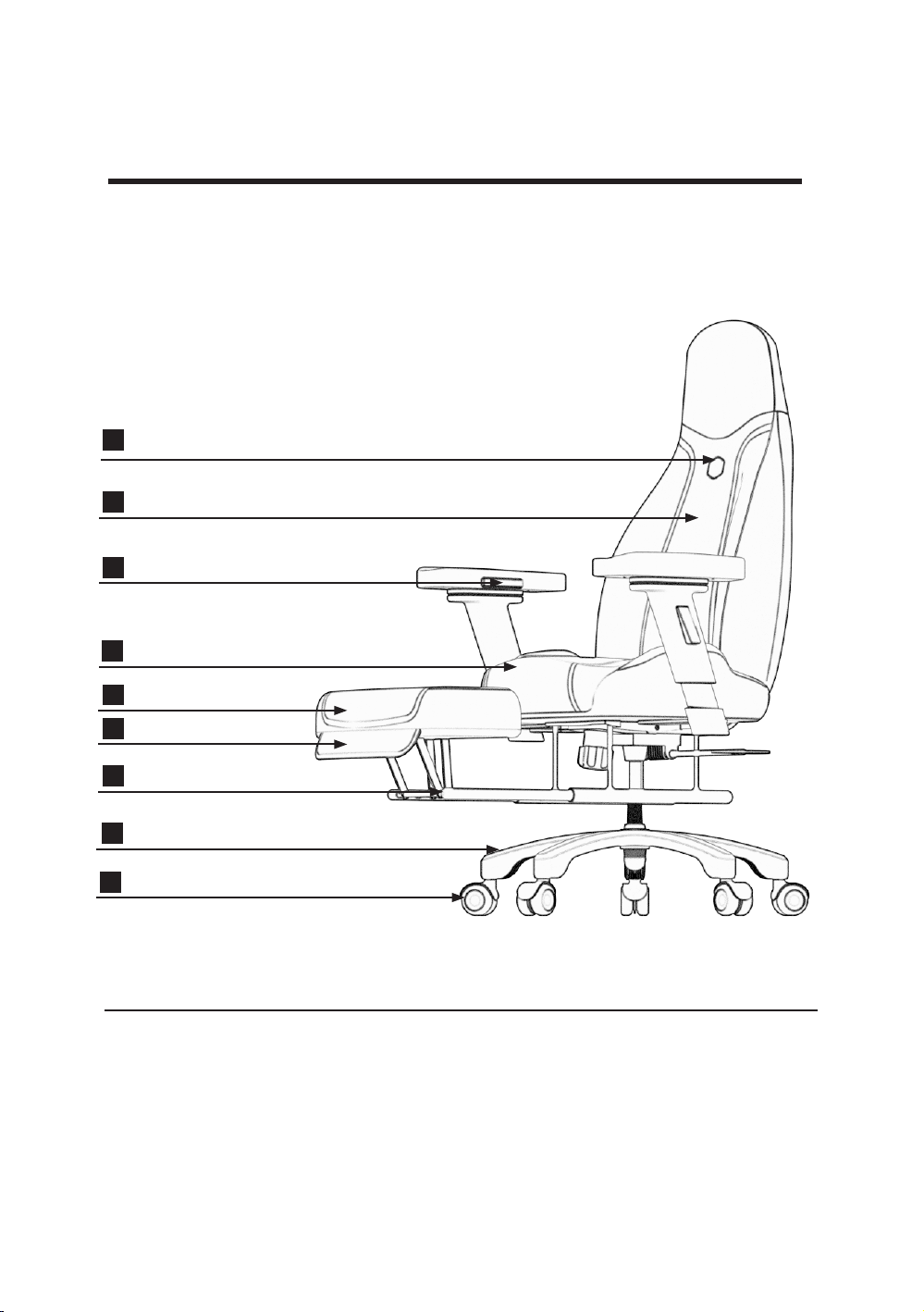

ACCESSORY NAMES AND FUNCTIONS
1
2
3
4
7
8
9
Embroidered Logo
Base
Backrest
Pressure Caster Wheels
4D Armrest Pad Position
Adjustment Button
Seat
Leg Rest Support
6Leg Rest Strap
5Leg Rest
Caution!
The weight capacity of the seat is 136 kg
The weight capacity of the backrest is 96 kg
3

15
14
12
11
10
17
18
16
Cooler Master Logo
4D Armrest Pad
4D Armrest Pad Height
Adjustment Button
13 Tilt Structure
Control Interface
Seat Height
Adjustment Lever
Tilt Tension Knob
Reclining Angle Adjustment
Gas Cylinder
Caution!
The weight capacity of the 4D armrest pad is 23 kg
The weight capacity of the leg rest is 30 kg
4

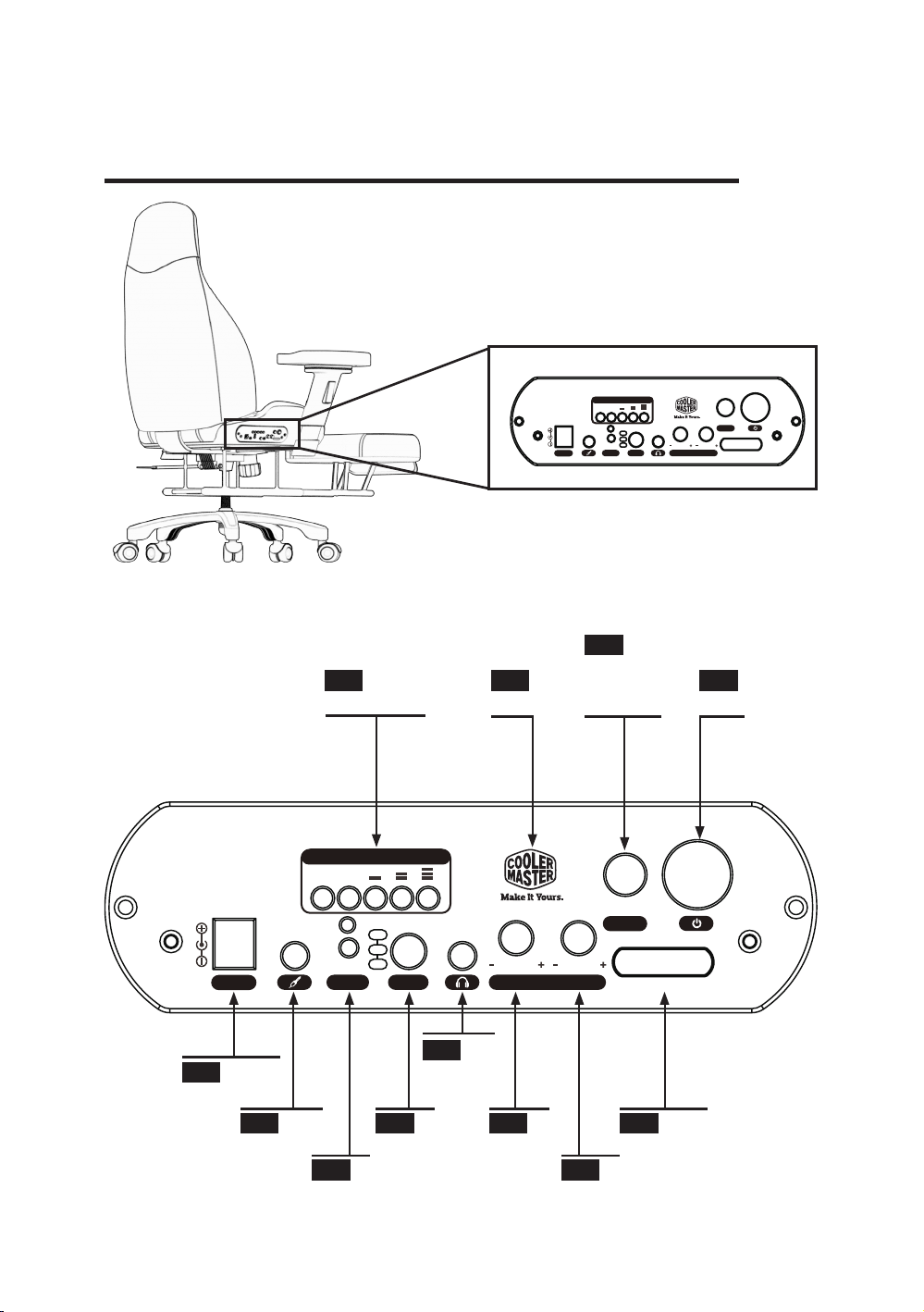

CONTROL PANEL AND FUNCTIONS
Location of the control interface
(right side of the seat)
DC19V IN VOLUME MASTER
CHARGING
BATTERY STATUS
SELECT
PAIRING
ARGB
AUX
BT
5.8G
Battery Status
19
LOGO
20 ARGB
Illumination
Mode
21
Power
22
Charging Port
23
Audio Input
Pairing Indicator
24
25
Input Mode
26
Headphone
Output
27
Headphone
Volume
28
Vibration Level
29
Antenna Shield
30
DC19V IN
VOLUME MASTER
CHARGING
BATTERYSTATUS
SELECT
PAIRING
ARGB
AUX
BT
5.8G
5

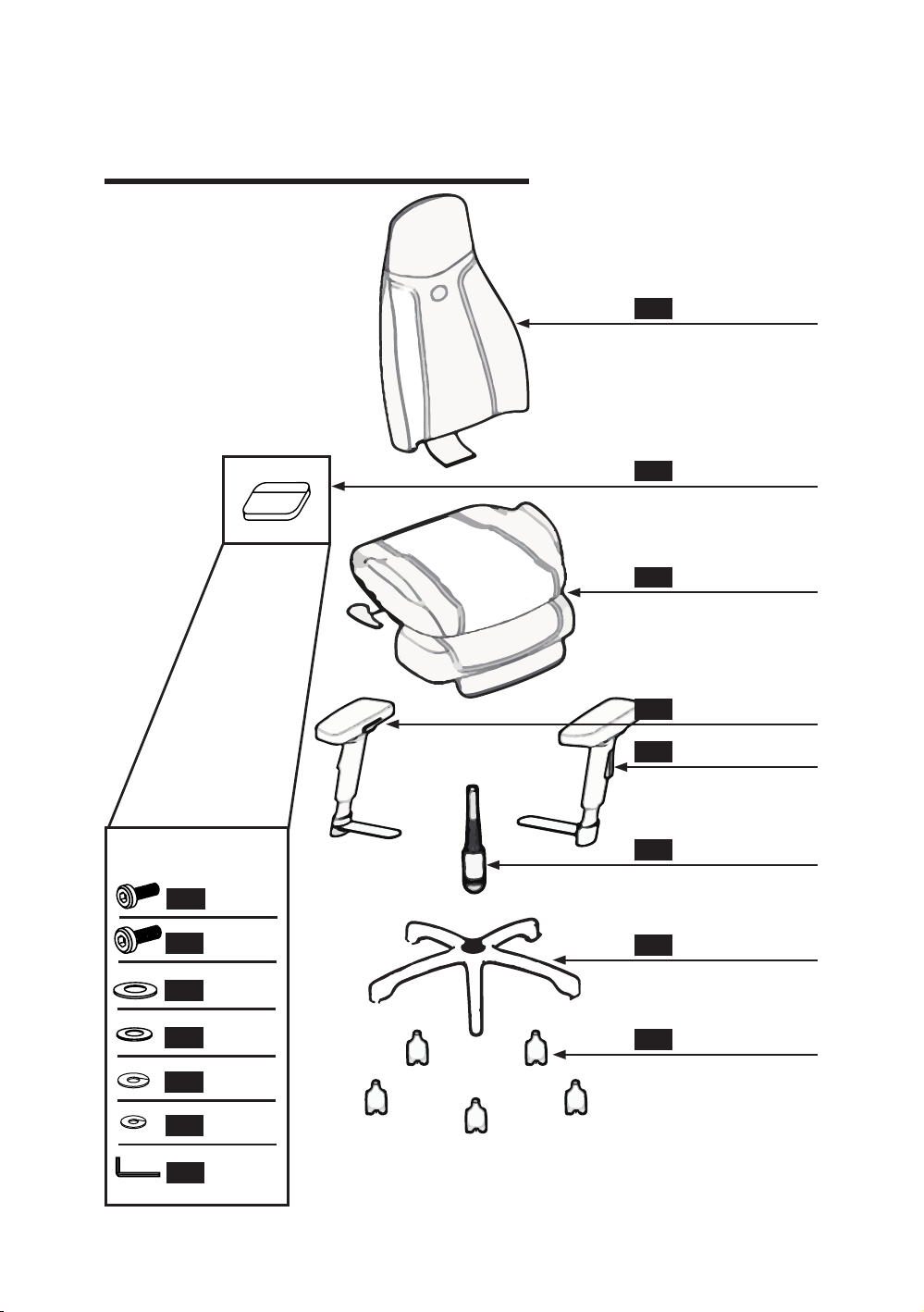

LIST OF COMPONENTS
Accessories:
31 Backrest
32 Accessories Kit
33 Seat and Leg Rest
34 Right Armrest
35 Left Armrest
36 Gas Cylinder
37 Base
38 Pressure Caster Wheels
40
39 20mm Screw
x 3 pcs
41
42
43
44
45
25mm Screw
x 6 pcs
M8 Plain
Washer
x 3 pcs
1/4 Plain
Washer
x 6 pcs
M8 Spring
Washer
x 3 pcs
1/4 Spring
Washer
x 6 pcs
M5 Hex
Wrench
x 1 pcs
6

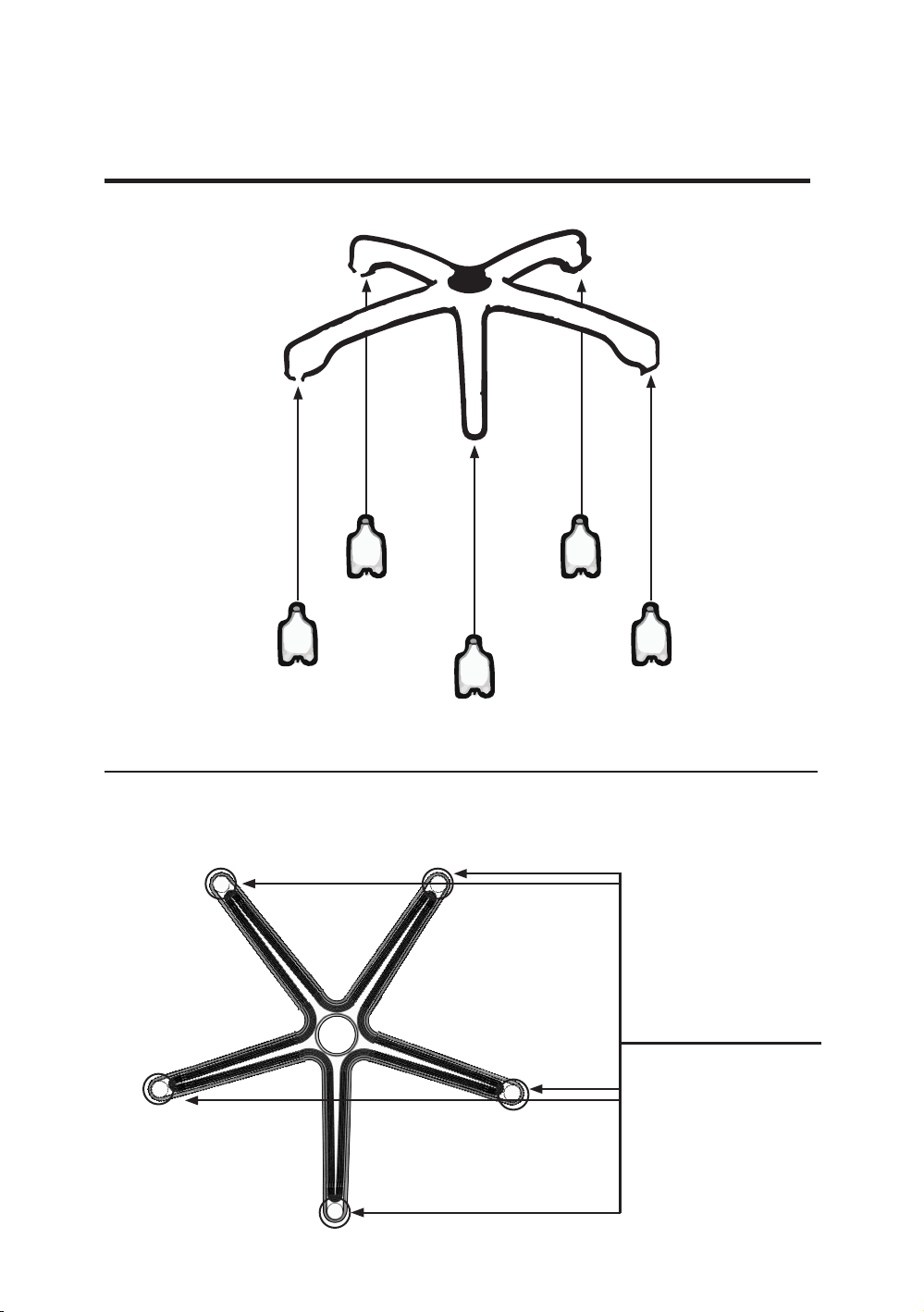

PRESSURE CASTER WHEEL INSTALLATION
Take the ve pressure caster wheels and
insert them into the holes in the base
Location of the
hole at the center
of the base
7

GAS CYLINDER INSTALLATION
Take the Gas Cylinder and insert it into the
hole located at the center of the base
Location of the hole at
the center of the base
8

SEAT AND BACKREST INSTALLATION
Lay the backrest at on the oor and
insert the seat into the tilt structure
Take the 20 mm screws, insert them, and
tighten with the M5 hex wrench
9

4D ARMREST INSTALLATION
Place the left and right armrests in the holes
on both sides of the base of the seat
Take the 25 mm screws, insert them,
and tighten with the M5 hex wrench
The locking position of
the chair can be adjusted
according to your preference
10

CABLE CONNECTIONS
Connect the DC plug to the corresponding socket
Connect the DuPont connector to the
corresponding DuPont socket
Location of cables
11

CHAIR ASSEMBLY
Align the gas cylinder with the hole in the center
of the seat and press the seat into place
Location of the hole at the
center of the seat
Bottom view of the seat
12

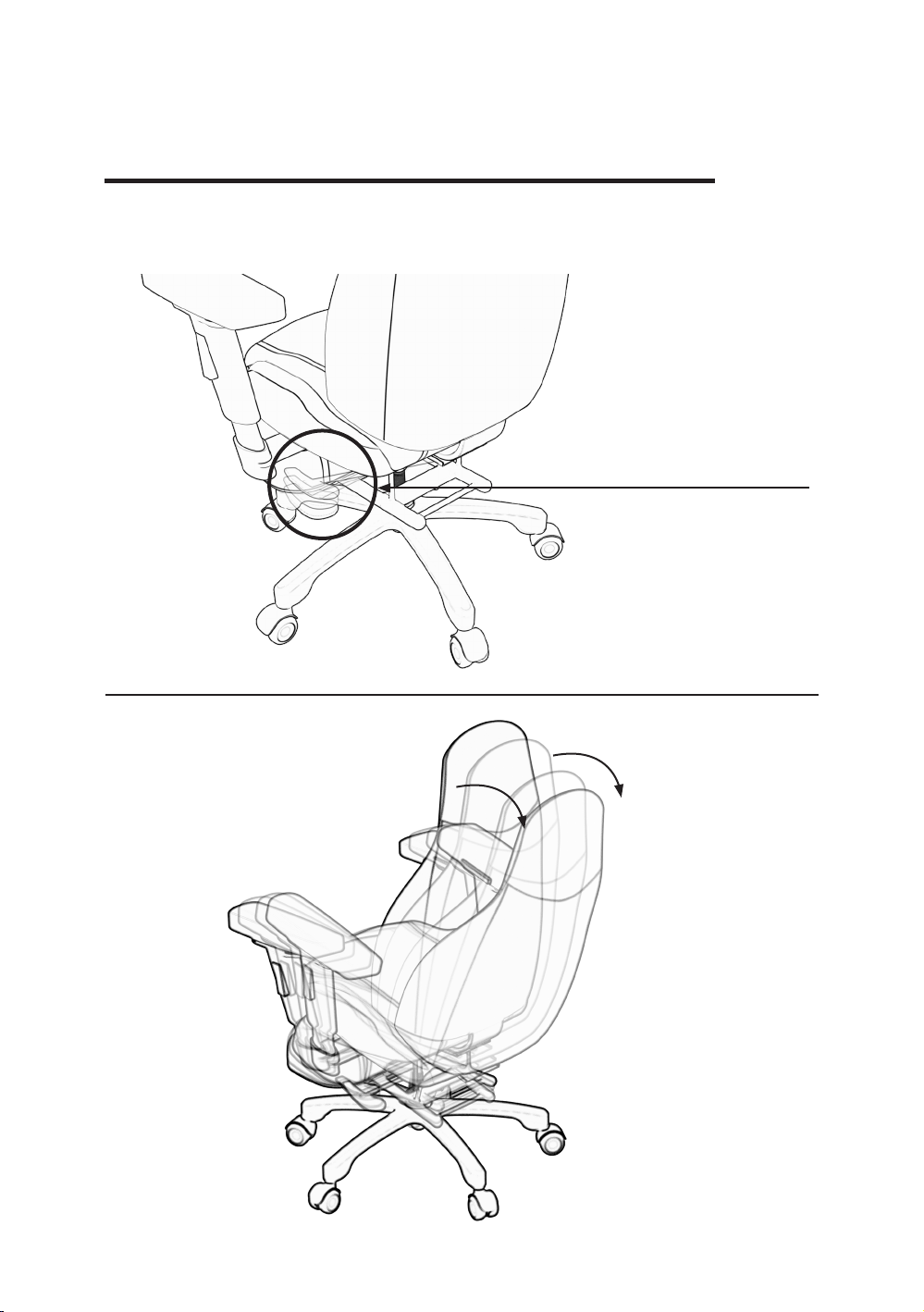

RECLINING ANGLE ADJUSTMENT
Seat Tilt Lever
。Push the lever down
to lock the tilt position
。Pull the lever up
to unlock the tilt position
The maximum angle the
backrest can recline is 135°
13

SEAT HEIGHT ADJUSTMENT
Seat Height
Adjustment Lever
。Push the lever down
to lock the seat height
。Pull the lever up to
unlock the seat height
The adjustment range of the
height is 46 to 55 cm
14

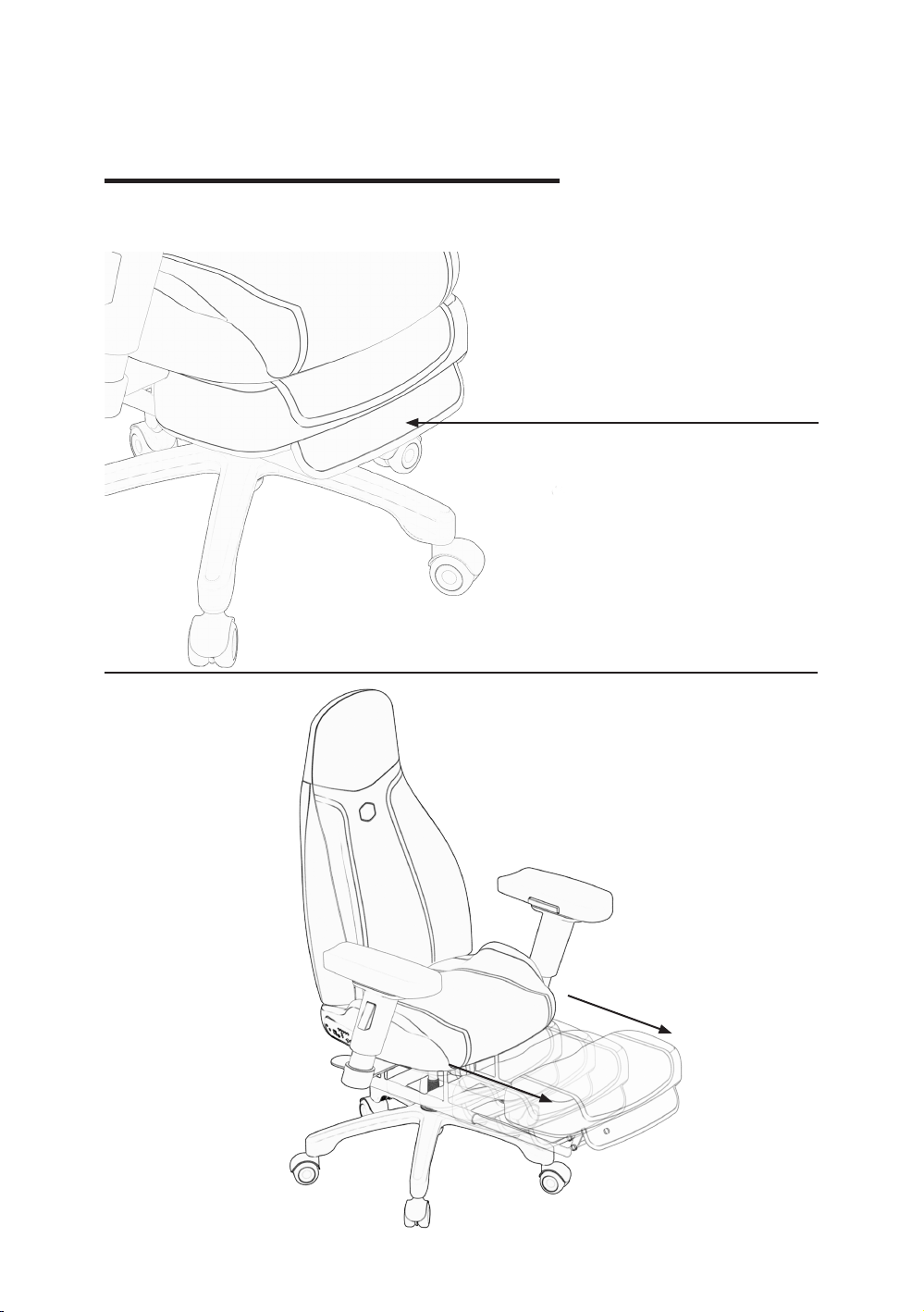

LEG REST ADJUSTMENT
Leg Rest Strap
。Two-level length adjustment
。The leg rest can be extended
to a maximum of 36 cm
15

4D ARMREST ADJUSTMENT
4D Armrest Height
Adjustment Button
4D Armrest Pad Position
Adjustment Button
The extension range of the
armrest is 90 mm
The armrest pad can be rotated to
the left or right by 35°
The left/right lateral sliding distance
of the armrest pad is 25 mm
The front/back sliding distance of
the armrest pad is 50 mm
16

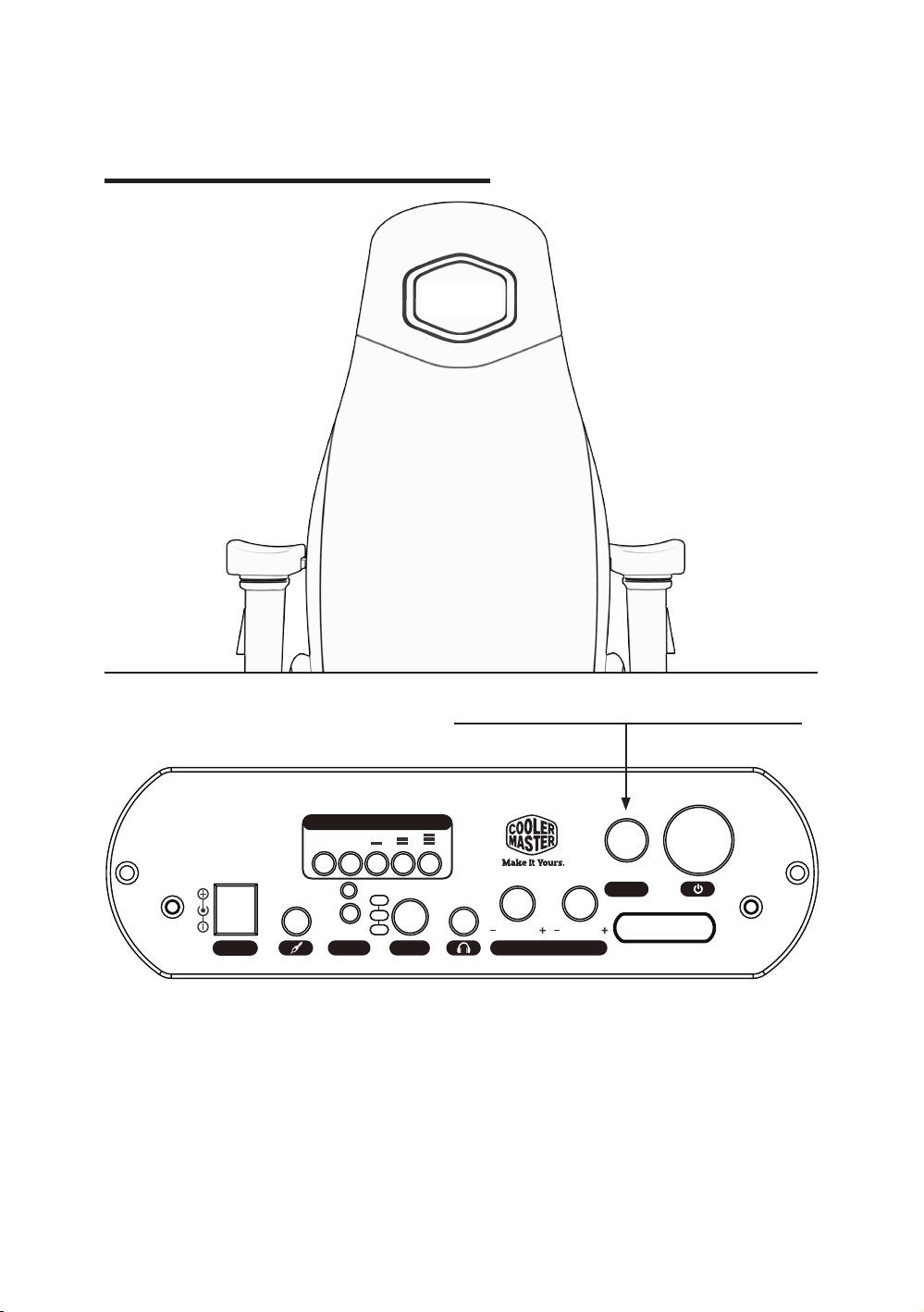

ARGB LED CONTROL
DC19V IN VOLUME MASTER
CHARGING
BATTERY STATUS
SELECT
PAIRING
ARGB
AUX
BT
5.8G
ARGB Illumination Mode Button
Mode 1: Uniform red light
Mode 2: Uniform purple light
Mode 3: Uniform green light
Mode 4: Uniform blue light
Mode 5: Rainbow ow e󰀨ect
Mode 6: Rainbow breathing e󰀨ect
Mode 7: O󰀨
When powered on, the system automatically remembers the ARGB
illumination mode chosen when the system was last turned o󰀨
Location of the
Cooler Master Logo
17

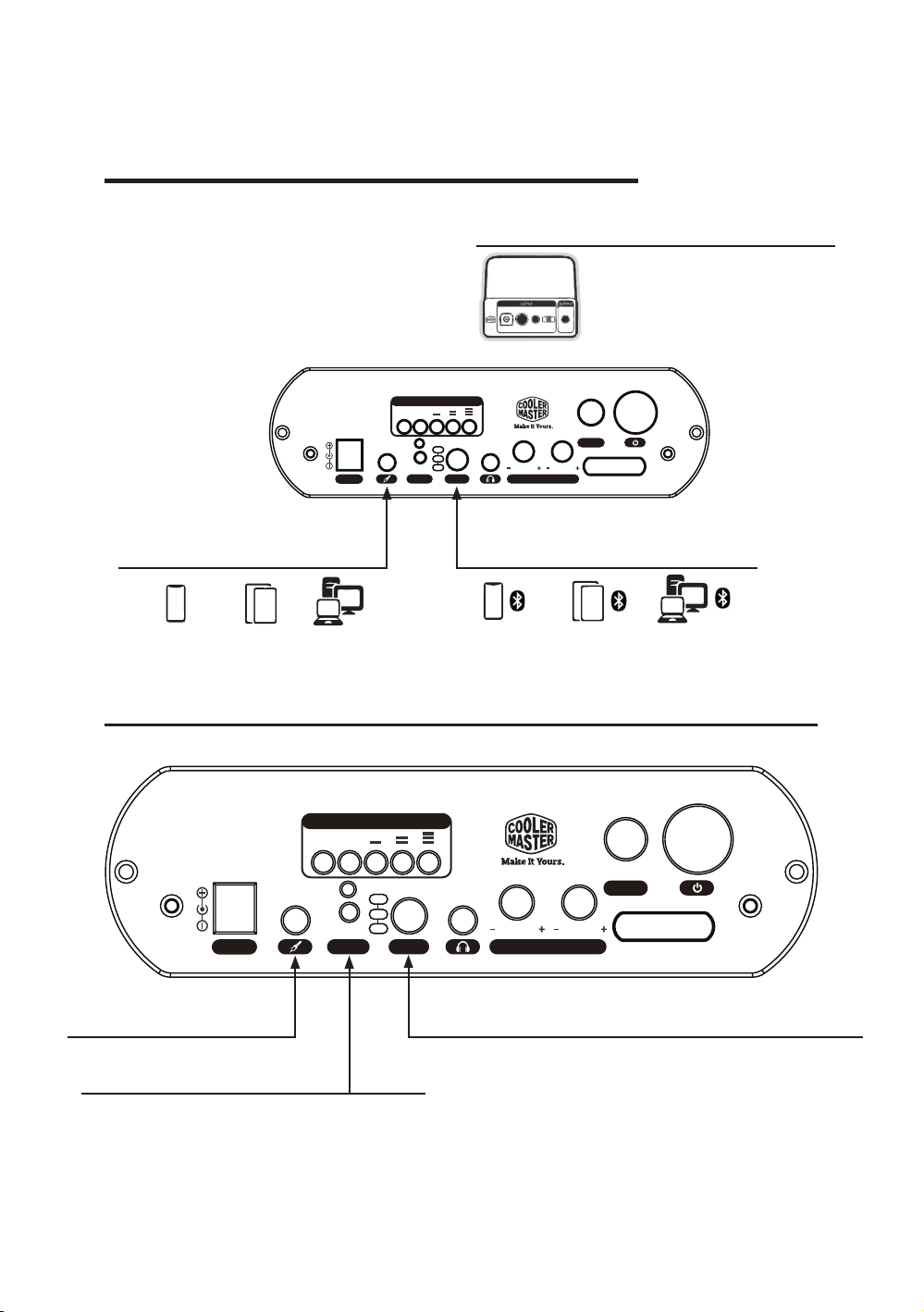

INTERFACE INPUT CONTROL
DC19V IN VOLUME MASTER
CHARGING
BATTERY STATUS
SELECT
PAIRING
ARGB
AUX
BT
5.8G
Press the SELECT button to change the input mode
。AUX mode: The voice prompt will say
“auxiliary mode”
。BT mode: The voice prompt will say
“Bluetooth is waiting to pair”
。5.8G mode: The voice prompt will say
“tactile transmitter mode”
AUX interface for
connecting devices
。Light mode 1: Blinking white light -
5.8G is not paired or the host is not powered on
。Light mode 2: Static white light -
successfully paired with the host
。Light mode 3: Rapidly blinking white light -
pairing
(Press and hold down the PAIRING button for
3 seconds to start pairing)
DC19V IN VOLUME MASTER
CHARGING
BATTERY STATUS
SELECT
PAIRING
ARGB
AUX
BT
5.8G
AUX interface devices
Smartphones Tablets Desktop PCs
laptops
Bluetooth mode devices
Bluetooth
connection
5.8G mode device
Synk X 5.8G transmitter
Ultra-low latency accessories kit
(please visit the website to purchase)
Smartphones Tablets
Bluetooth
connection
Desktop PCs
laptops
Bluetooth
connection
18

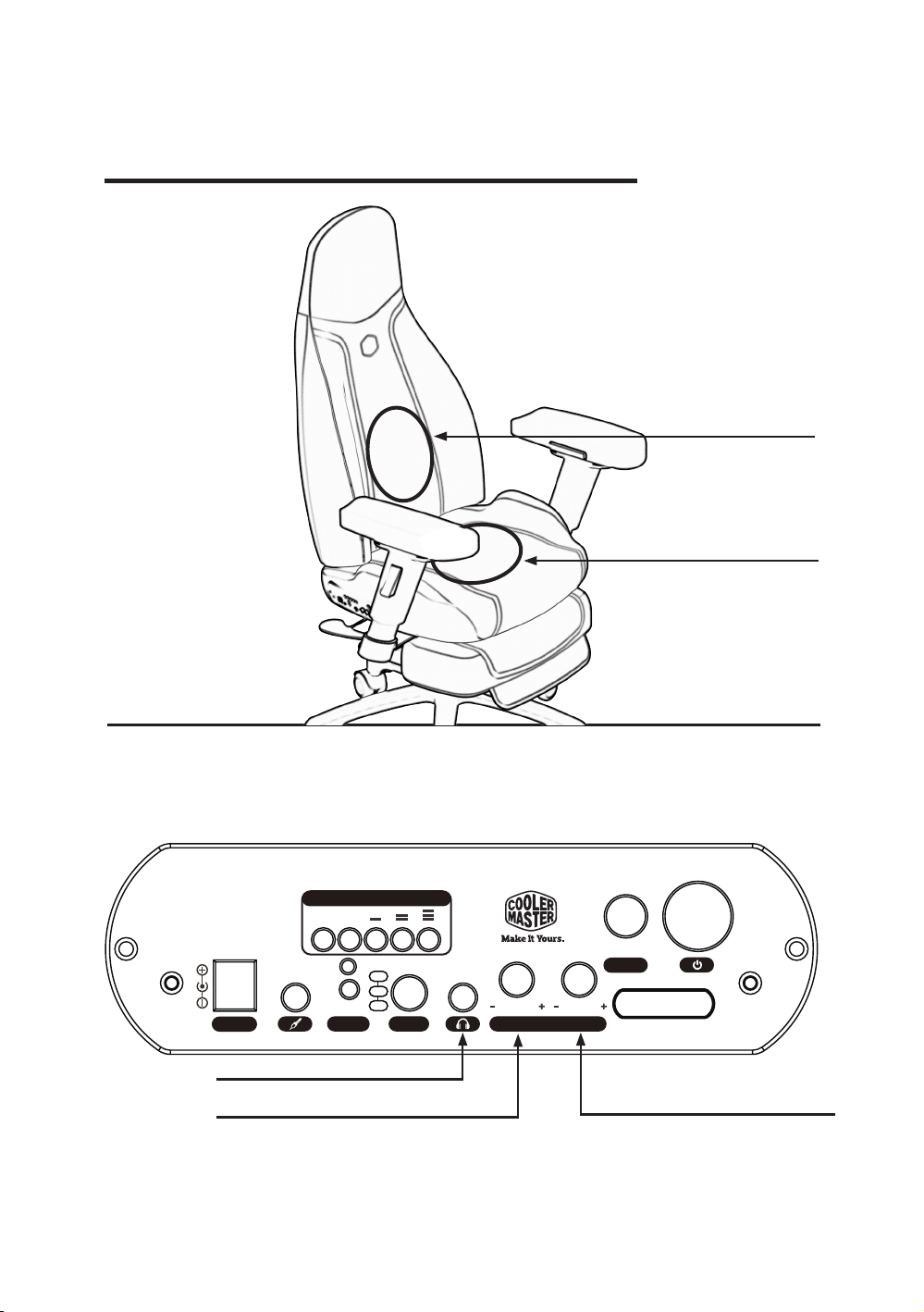

HEADPHONE VOLUME AND
VIBRATION LEVEL CONTROL
DC19V IN VOLUME MASTER
CHARGING
BATTERY STATUS
SELECT
PAIRING
ARGB
AUX
BT
5.8G
Headphone volume adjustment Vibration level adjustment
Headphone volume adjustment: Adjusts the volume in real time
Vibration level adjustment: Adjusts the vibration level in real time
3.5 mm headphone jack
Backrest vibration
di󰀨usion zone
Seat vibration
di󰀨usion zone
19
