Cooper & Hunter CH-HYP36CLUO User manual

IMPORTANT NOTE:
• Read this manual carefully before installing or operating your new air conditioning unit.
Make sure to save this manual for future reference.
• This manual only describes the installation of the indoor unit. When installing the outdoor
unit, refer to the installation manual of the outdoor unit.
LIGHT COMMERCIAL
HYPER SPLIT AIR CONDITIONER
WITH HEAT PUMP
INSTALLATION MANUAL
OUTDOOR UNIT
CH-HYP36CLUO
CH-HYP48CLUO

Table of Contents
Installation Manual
1. Accessories...................................................................................................................................3
2. Safety Precautions.......................................................................................................................4
3. Installation Summary..................................................................................................................5
4. Unit Parts......................................................................................................................................6
5. Indoor Unit Installation...............................................................................................................7
1. Select installation location ..................................................................................................................................7
2. Hang indoor unit.....................................................................................................................................................9
3. Drill wall hole for connective piping ............................................................................................................ 11
4. Connect drain hose............................................................................................................................................. 11
6. Outdoor Unit Installation..........................................................................................................12
1. Select installation location ............................................................................................................................... 12
2. Install drain joint .................................................................................................................................................. 13
3. Anchor outdoor unit........................................................................................................................................... 13
7. Refrigerant Piping Connection.................................................................................................15
A. Note on Pipe Length .......................................................................................................................................... 15
B. Connection Instructions –Refrigerant Piping............................................................................................ 16
1. Cut pipe.............................................................................................................................................................. 16
2. Remove burrs................................................................................................................................................... 16

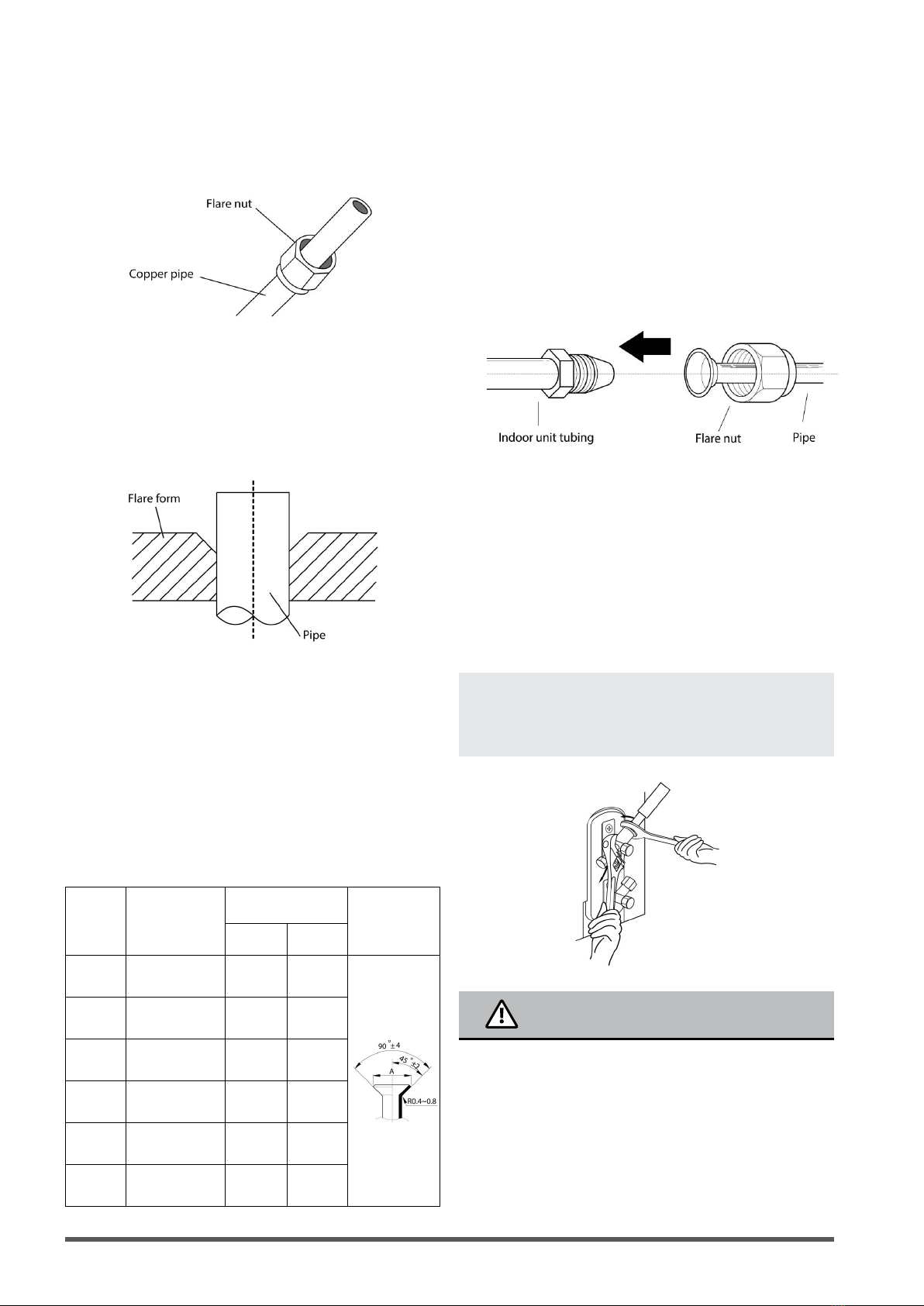

3. Flare pipe ends................................................................................................................................................. 16
4. Connect pipes.................................................................................................................................................. 17
8. Wiring .........................................................................................................................................19
1. Outdoor Uint Wiring ........................................................................................................................................... 20
2. Indoor Uint Wiring............................................................................................................................................... 21
9. Air Evacuation............................................................................................................................23
1. Evacuation Instructions ..................................................................................................................................... 23
2. Indoor Uint Wiring............................................................................................................................................... 24
10. Test Run ....................................................................................................................................25

Page 3
Accessories 1
The air conditioning system comes with the following accessories. Use all of the installation parts and
accessories to install the air conditioner. Improper installation may result in water leakage, electrical
shock and re, or cause the equipment to fail. The items not included with the air conditioner must
be purchased separately.
Name of Accessories Q‘ty(pc) Shape
Soundproof/insulation sheath (some models) 1
Outlet pipe sheath (some models) 1
Outlet pipe clasp (some models) 1
Drain joint (some models) 1
Seal ring (some models) 1
Copper nut 2
Battery (some models) 2
Remote controller holder (some models) 1
Fixing screw for remote controller holder (some models) 2
Magnetic ring (wrap the electric wires S1&S2 (P&Q&E)
around the magnetic ring twice) (some models)
1
Magnetic ring (After installation, hitch this on the
connective cable between the indoor unit and outdoor
units) (some models)
Varies by
model
Conduit installation plate (some models) 1
Name Shape Quantity
Connecting pipe
assembly
Liquid side
Ø 1/4in/6.35 mm
Parts you must purchase
separately. Consult your
technician for the proper
size.
Ø 3/8in/9.52 mm
Ø 1/2in/12.7 mm
Gas side
Ø 3/8in/9.52 mm
Ø 1/2in/12.7 mm
Ø 5/8in/15.9 mm
Ø 3/4in/19 mm
Ø 7/8in/22.2 mm

Page 4
Safety Precautions 2
Read safety precautions before installation
Incorrect installation due to ignoring instructions can cause serious damage or injury.
The seriousness of potential damage or injuries is classied as either a WARNING or CAUTION.
WARNING
Failure to observe a warning may result in death. The appliance must be installed in
accordance with national regulations.
SAFETY
Failure to observe a caution may result in injury or equipment damage.
WARNING
• Carefully read the safety precautions before installation.
• In certain functional environments, such as kitchens, server rooms, etc., the use of specially
designed air-conditioning units is highly recommended.
• Only trained and certied technicians should install, repair, and service this air conditioning
unit.
• Improper installation may result in electrical shock, short circuit, leaks, re, or other damage
to equipment and personal property.
• Strictly follow the installation instructions set forth in this manual.
• Before you install the unit, consider strong winds, typhoons, and earthquakes that might
aect your unit and locate it accordingly. Failure to do so could cause damage to the unit.
• After installation, ensure there are no refrigerant leaks and that the unit is operating properly.
• Refrigerant is toxic and ammable and presents a serious health and safety risk.
NOTE ABOUT FLUORINATED GASSES
1. This air conditioning unit contains fluorinated gasses. For specific information on the type of
gas and the amount, please refer to the relevant label on the unit itself.
2. Installation, service, maintenance, and repair of this unit must be performed by a certified
technician.
3. Product uninstallation and recycling must be performed by a certified technician.
4. If the system has a leak-detection system installed, it must be checked for leaks at least every
12 months.
5. When the unit is checked for leaks, proper record-keeping of all checks is strongly
recommended.

Page 5
Installation Summary 3
Install the outdoor unitInstall the drainpipe
LN
1
23
4
5
MC MC
6
7
Install the indoor unit
Evacuate the refrigeration
system
Connect the wires Connect the refrigerant
pipes
Perform a test run

Page 6
Unit Parts 4
NOTE:
The installation must be performed in accordance with local and national standards.
The installation may be slightly dierent in dierent areas.
1. Air ow louver (at air outlet)
2. Air inlet (with air lter in it)
3. Installation part
4. Display panel
5. Remote controller
6. Drain pipe
7. Connecting pipe
8. Air inlet
9. Air outlet
NOTE ON ILLUSTRATIONS:
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit
may be slightly dierent. The actual shape shall prevail.
1
24
3
6
7
8
8
9
5

Page 7
INSTALLATION INSTRUCTIONS – INDOOR UNIT
NOTE:
Panel installation should be performed after piping and wiring have been completed.
Step 1: Select installation location
Before installing the indoor unit, you must choose an appropriate location. The following are
standards that will help you choose an appropriate location for the unit.
Recommended distances surrounding the indoor unit
The distance between the mounted indoor unit should meet the specications illlustrated in the
following diagram.
Indoor Unit Installation 5
Proper installation locations meet the
following standards:
Enough room exists for installation and
maintenance.
Enough room exists for connecting the pipe
and drainpipe.
The ceiling is horizontal and its structure can
sustain the weight of the indoor unit.
The air inlet and outlet are not blocked.
The airow can ll the entire room.
There is no direct radiation from heaters.
DO NOT install unit in the following
locations:
Areas with oil drilling or fracking
Coastal areas with high salt content in the air
Areas with caustic gases in the air, such as
hot springs
Areas that experience power uctuations,
such as factories
Enclosed spaces, such as cabinets
Kitchens that use natural gas
Areas with strong electromagnetic waves
Areas that store ammable materials or gas
Rooms with high humidity, such as
bathrooms or laundry rooms
1.38in/35mm
39.4in/1000mm
1.38in/35mm 1.38in/35mm

Page 8
Refrigerant pipe
connection
(D. gas side)
Refrigerant pipe
connection
(E. Liquid side)
Drain point
Hook
A
C
D
E
B
Indoor parts installation size
MODEL(Btu/h) Length of A
(in/mm)
Length of B
(in/mm)
Length of C
in/mm)
Length of D
(in/mm)
Length of E
(in/mm)
18k~24k 42/1068 26.6 /675 9.3/235 38.7/983 8.7/220
36k~60k 65/1650 26.6 /675 9.3/235 61.6/1565 8.7/220

Page 9

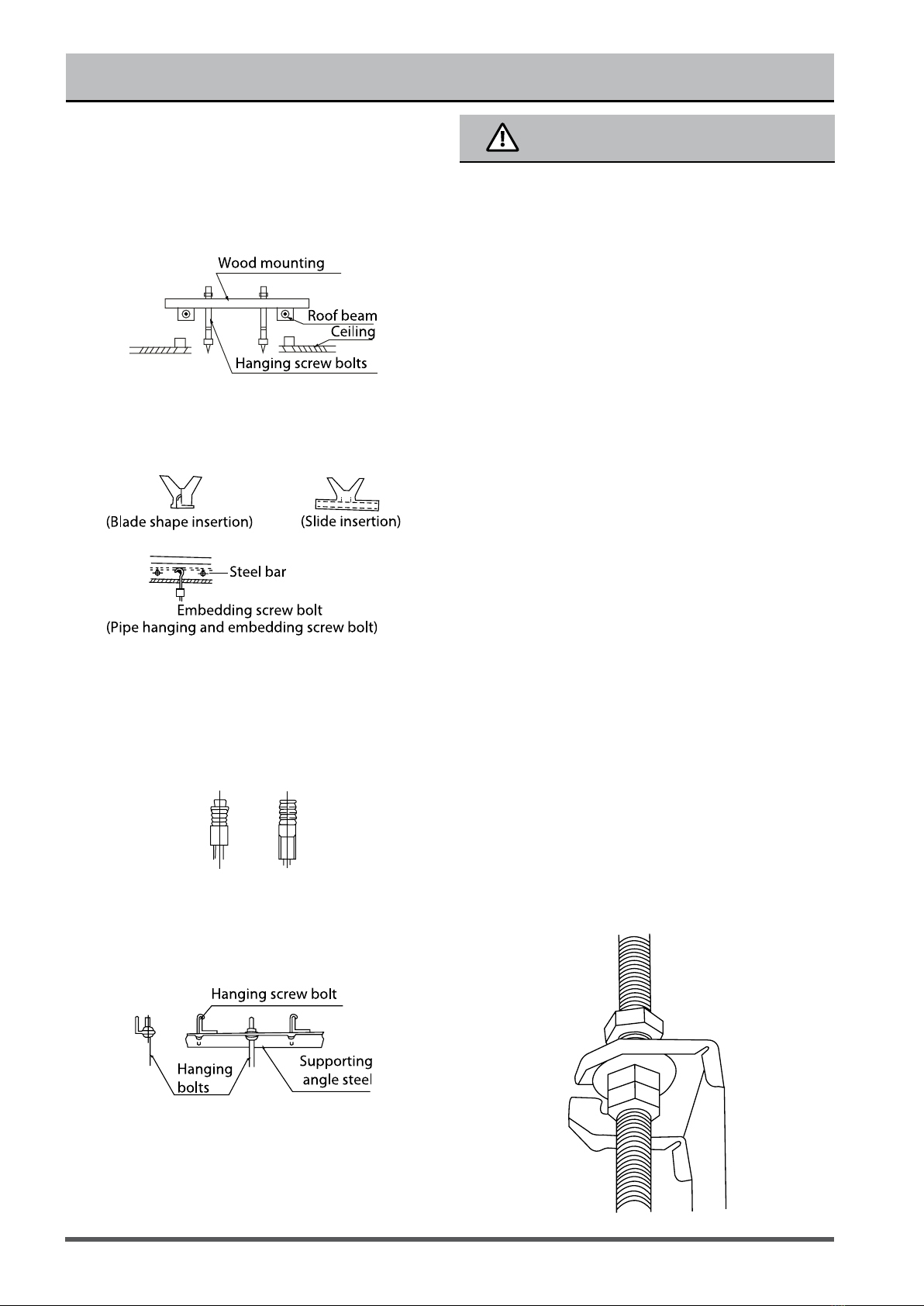

Step 2: Hang indoor unit
Wood
Place the wood mounting across the roof beam,
then install the hanging screw bolts.
New concrete bricks
Inlay or embed the screw bolts.
Original concrete bricks
Install the hanging hook with expandable bolt
into the concrete to a depth of 1.77~1.97in/
45~50mm to prevent loosening.
Steel roof beam structure
Install and use the supporting steel angle.
CAUTION
The unit body must be completely aligned with
the hole. Ensure that the unit and the hole are
the same size before moving on.
1. Install and t pipes and wires after you
have nished installing the main body.
When choosing where to start, determine
the direction of the pipes to be drawn out.
Especially in cases where there is a ceiling
involved, align the refrigerant pipes, drain
pipes, and indoor and outdoor lines with
their connection points before mounting
the unit.
• The installation of hanging screw bolts.
• Cut o the roof beam.
2. Strengthen the area at which the cut was
made and consolidate the roof beam.
3. After the selection of the installation
location, position the refrigerant pipes, drain
pipes, and indoor and outdoor wires to the
connection points before mounting the
machine.
4. Drill 4 holes 4in/10cm deep at the ceiling
hook positions in the internal ceiling. Be sure
to hold the drill at a 90° angle to the ceiling.
5. Secure the bolt using the included washers
and nuts.
6. Install the four suspension bolts.
7. Mount the indoor unit. You will need two
people to lift and secure it. Insert suspension
bolts into the unit’s hanging holes. Fasten
them using the included washers and nuts.
Other features

Page 10

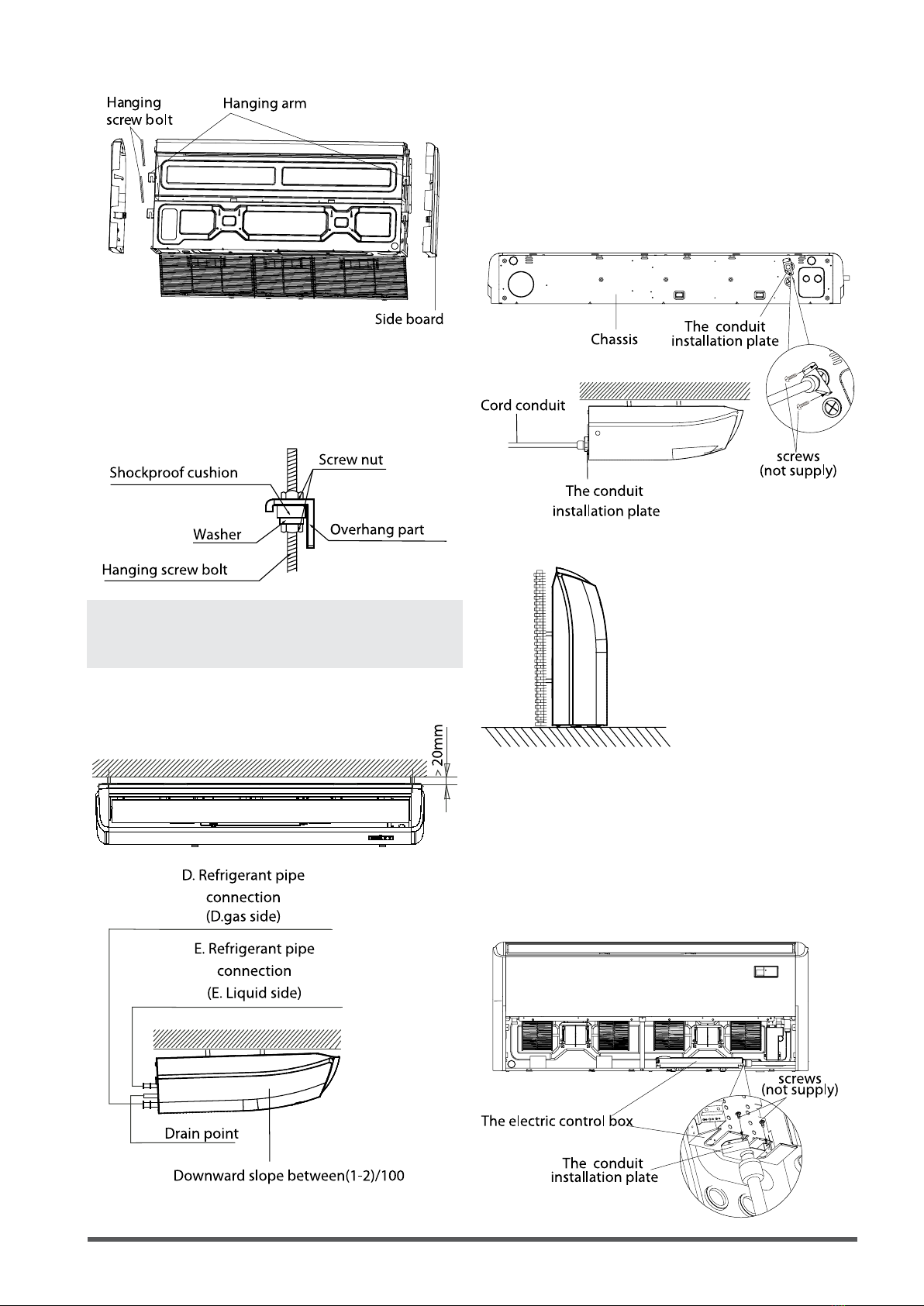

8. Remove the side board and the grille.
9. Mount the indoor unit onto the hanging
screw bolts with a block. Position the indoor
unit on a at level by using a level to prevent
leaks.
NOTE:
Confirm the minimum drain tilt is 1/100 or more.
Ceiling Installation
How to install the conduit installation plate (if
supplied)
1. Fix the sheath connector (not supply) on the
wire hole of the conduit installation plate.
2. Fix the the conduit installation plate on the
chassis of the unit.
Wall-Mounted Installation
How to install the conduit installation plate
(if supplied)
1. Fix the sheath connector (not supply) on the
wire hole of the conduit installation plate.
2. Fix the conduit installation plate on the
electric control box.

Page 11

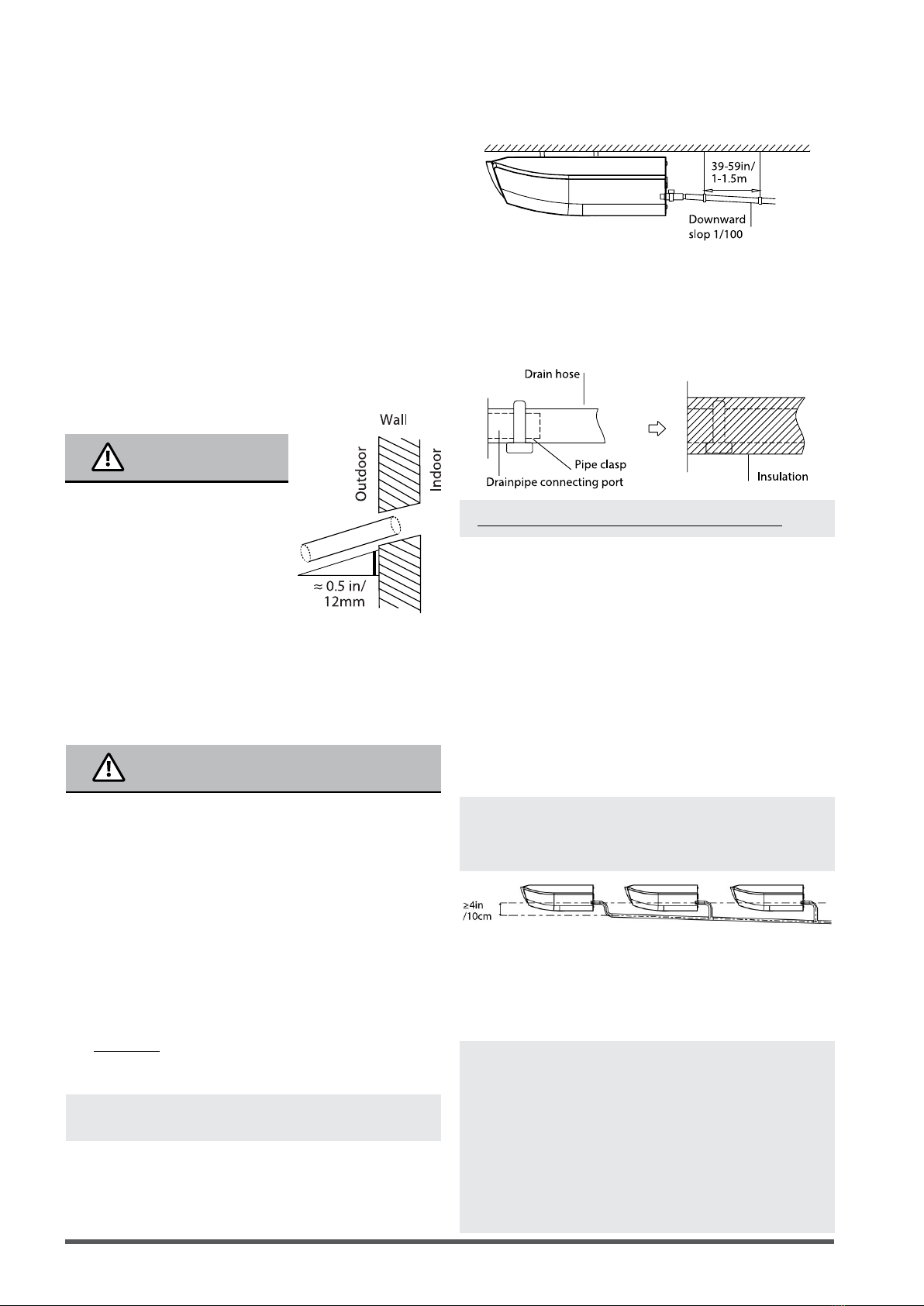

Step 3: Drill wall hole for connective
piping
1. Determine the location of the wall hole based
on the location of the outdoor unit.
2. Using a 2.5in/65mm or 3.54in/90mm
(depending on models) core drill, drill a hole
in the wall. Make sure that the hole is drilled at
a slight downward angle, so that the outdoor
end of the hole is lower than the indoor end by
about 0.5in/12mm. This will ensure proper water
drainage.
3. Place the protective wall cu in the hole. This
protects the edges of the hole and will help seal
it when you nish the installation process.
Step 4: Connect drain hose
The drainpipe is used to drain water away from
the unit. Improper installation may cause unit
and property damage.
CAUTION
• Insulate all piping to prevent condensation,
which could lead to water damage.
• If the drainpipe is bent or installed
incorrectly, water may leak and cause a
water-level switch malfunction.
• In HEAT mode, the outdoor unit will
discharge water. Ensure that the drain hose
is placed in an appropriate area to avoid
water damage and slippage.
• DO NOT pull the drainpipe forcefully. This
could disconnect it.
NOTE ON PURCHASING PIPES
Installation requires a polyethylene tube
(exterior diameter = 1.45-1.53in/3.7-3.9cm,
interior diameter = 1.26in/3.2cm), which can be
obtained at your local hardware store or dealer.
Indoor Drainpipe Installation
Install the drainpipe as illustrated in the
following Figure.
1. Cover the drainpipe with heat insulation to
prevent condensation and leakage.
2. Attach the mouth of the drain hose to the
unit’s outlet pipe. Sheath the mouth of the
hose and clip it rmly with a pipe clasp.
NOTE ON DRAINPIPE INSTALLATION
• When using an extended drainpipe, tighten
the indoor connection with an additional
protection tube to prevent it from pulling
loose.
• The drainpipe should slope downward at a
gradient of at least 1/100 to prevent water
from owing back into the air conditioner.
• To prevent the pipe from sagging, space
hanging wires every 39-59in/1-1.5m.
• Incorrect installation could cause water to
ow back into the unit and ood.
NOTE: When connecting multiple drain-
pipes, install the pipes as illustrated in the
following Figure.
1. Pass the drain hose through the wall hole.
Make sure the water drains to a safe location
where it will not cause water damage or a
slipping hazard.
NOTE: The drainpipe outlet should be
at least 1.9in/5cm above the ground. If it
touches the ground, the unit may become
blocked and malfunction. If you discharge
the water directly into a sewer, make sure
that the drain has a U or S pipe to catch
odors that might otherwise come back into
the house.
CAUTION
When drilling the wall
hole, make sure to avoid
wires, plumbing, and other
sensitive components.

Page 12
Outdoor Unit Installation 6
Unit must be installed in accordance with local
codes and regulations, which may vary from
region to region.
INSTALLATION INSTRUCTIONS –
OUTDOOR UNIT
Step 1: Select installation location
Before installing the outdoor unit, you must
choose an appropriate location. The following
are standards that will help you choose an
appropriate location for the unit.
Proper installation locations meet the
following standards:
Meets all spatial requirements shown in
Installation Space Requirements above
Good air circulation and ventilation
Firm and solid - the location can support the
unit and will not vibrate
Noise from the unit will not disturb others
Protected from prolonged periods of direct
sunlight or rain
Where snowfall is anticipated, raise the
unit above the base pad to prevent ice
buildup and coil damage. Mount the unit
high enough to be above the average
accumulated area snowfall. The minimum
height must be 18 inches.
DO NOT install unit in the following locations:
Near an obstacle that will block air inlets and
outlets
Near a public street, crowded areas, or where
noise from the unit will disturb others
Near animals or plants that will be harmed
by hot air discharge
Near any source of combustible gas In a
location that is exposed to large amounts of
dust
In a location exposed to excessive amounts
of salty air
SPECIAL CONSIDERATIONS FOR
EXTREME WEATHER
If the unit is exposed to heavy wind:
Install unit so that air outlet fan is at a 90° angle
to the direction of the wind. If needed, build
a barrier in front of the unit to protect it from
extremely heavy winds.
See Figures below.
If the unit is frequently exposed to heavy rain
or snow:
Build a shelter above the unit to protect it from
the rain or snow. Be careful not to obstruct air
ow around the unit.
If the unit is frequently exposed to salty air
(seaside):
Use outdoor unit that is specially designed to
resist corrosion.

Page 13

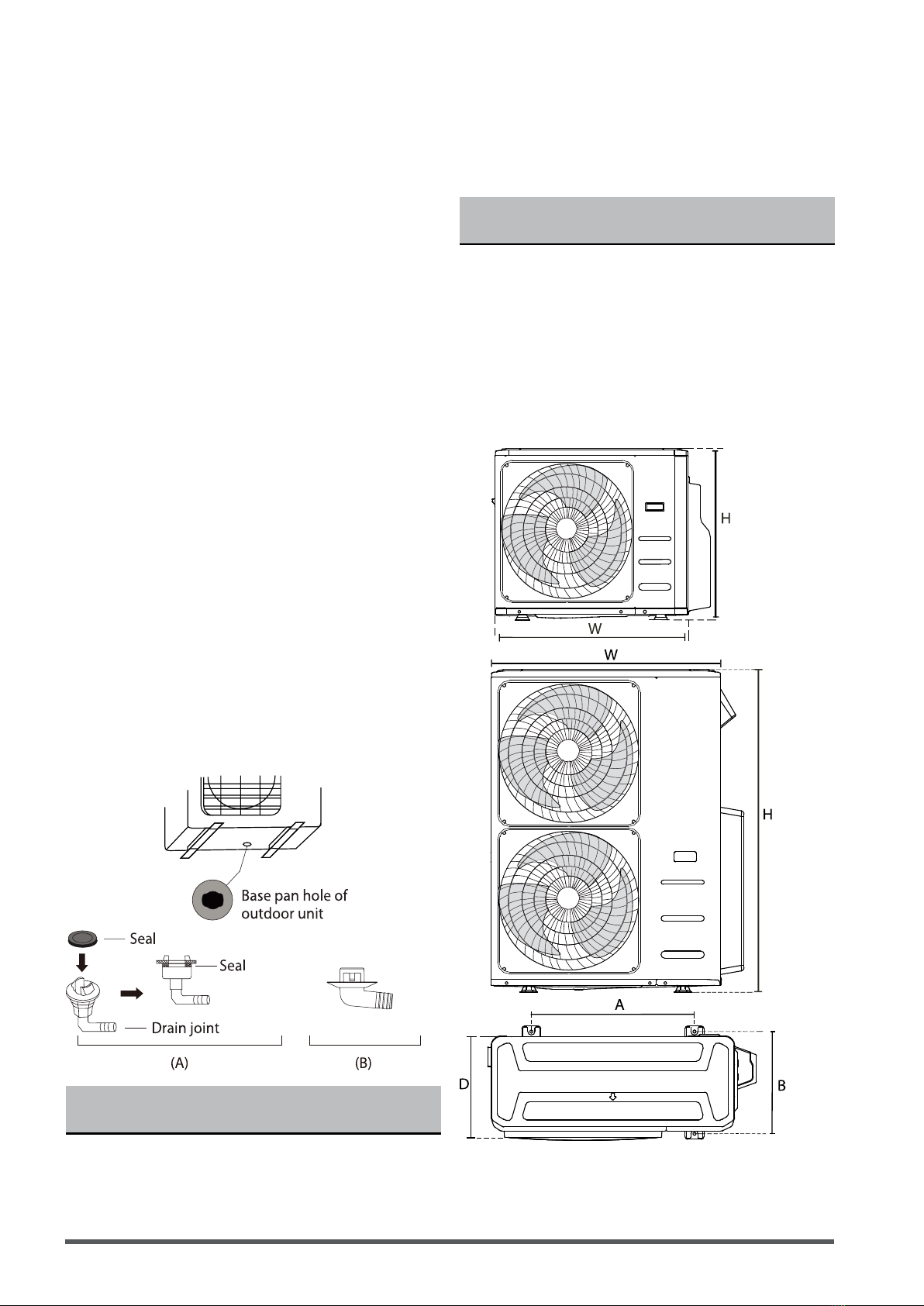

Step 2: Install drain joint (Heat pump
unit only)
Before bolting the outdoor unit in place, you
must install the drain joint at the bottom of the
unit.
Note that there are two dierent types of drain
joints depending on the type of outdoor unit.
If the drain joint comes with a rubber seal
(see Fig. A), do the following:
1. Fit the rubber seal on the end of the drain
joint that will connect to the outdoor unit.
2. Insert the drain joint into the hole in the
base pan of the unit.
3. Rotate the drain joint 90° until it clicks in
place facing the front of the unit.
4. Connect a drain hose extension (not
included) to the drain joint to redirect water
from the unit during heating mode.
If the drain joint doesn’t come with a rubber
seal (see Fig. B), do the following:
1. Insert the drain joint into the hole in the
base pan of the unit. The drain joint will click
in place.
2. Connect a drain hose extension (not
included) to the drain joint to redirect water
from the unit during heating mode.
IN COLD CLIMATES
In cold climates, make sure that the drain hose
is as vertical as possible to ensure swift water
drainage. If water drains too slowly, it can freeze
in the hose and ood the unit.
Step 3: Anchor outdoor unit
The outdoor unit can be anchored to the
ground or to a wall-mounted bracket with bolt
(M10). Prepare the installation base of the unit
according to the dimensions below.
UNIT MOUNTING DIMENSIONS
The following is a list of dierent outdoor unit
sizes and the distance between their mounting
feet. Prepare the installation base of the unit
according to the dimensions below.
Outdoor Unit Types and Specications
Split Type Outdoor Unit

Page 14
(unit: in/mm)
Outdoor Unit Dimensions, in/mm W x D x H Mounting Dimensions, in/mm
Distance A Distance B
37.24x16.14x31.89/946x410x810 26.5/673 15.87/403
37.48x16.34x52.48/952x415x1333 24.96 /634 15.9/404

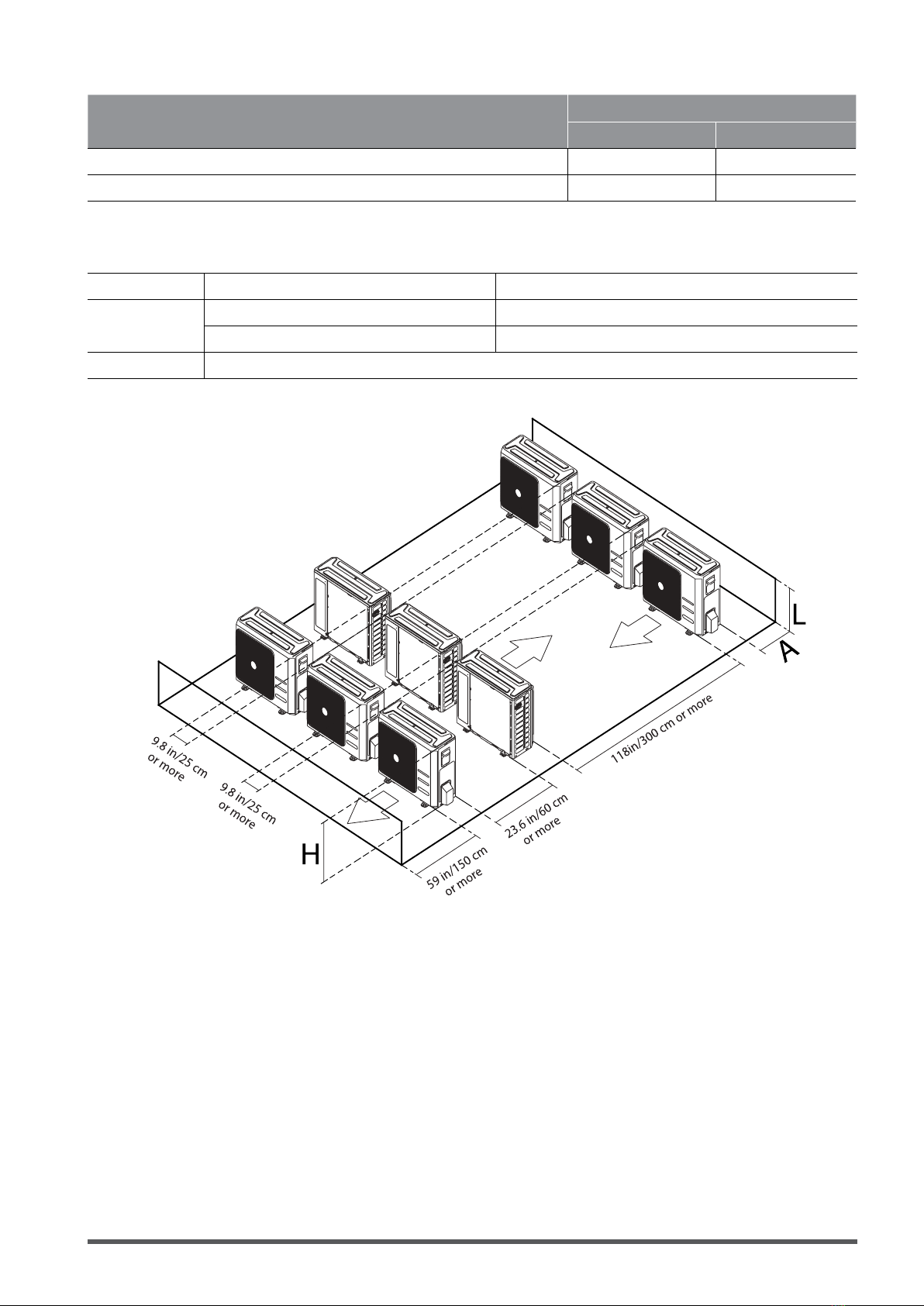

Rows of series installation
The relations between H, A and L are as follows.
L A
L≤H L≤H 9.8in/25 cm or more
1/2H<L≤H 11.8in/30 cm or more
L>H Can not be installed

Page 15
CAUTION
Oil traps
If the indoor unit is installed higher than the
outdoor unit:
• If oil ows back into the outdoor unit’s
compressor, this might cause liquid
compression or deterioration of oil return.
Oil traps in the rising gas piping can prevent
this.
• An oil trap should be installed every
32.8ft/10m of vertical suction line riser.
The indoor unit is installed higher than the
outdoor unit
Refrigerant Piping Connection 7
When connecting refrigerant piping, do not let substances or gasses other than the specied
refrigerant enter the unit. The presence of other gasses or substances will lower the unit’s capacity,
and can cause abnormally high pressure in the refrigeration cycle. This can cause explosion and
injury.
Note on Pipe Length
Ensure that the length of the refrigerant pipe, the number of bends, and the drop height between
the indoor and outdoor units meets the requirements shown in the following table:
The Maximum Length And Drop Height Based on Models (Unit: ft /m)
Type of model Capacity (Btu/h) Length of piping Maximum drop height
North America,
Australia and the EU
frequency conversion
Split Type
<15k82/25 32.8/10
≥15k- <24k98.4/30 65.6/20
≥24k- <36k164/50 82/25
≥36k- ≤60k213/65 98.4/30
Other Split Type 12k49/15 26/8
18k-24k82/25 49/15
36k98.4/30 65.6/20
60k164/50 98.4/30

Page 16

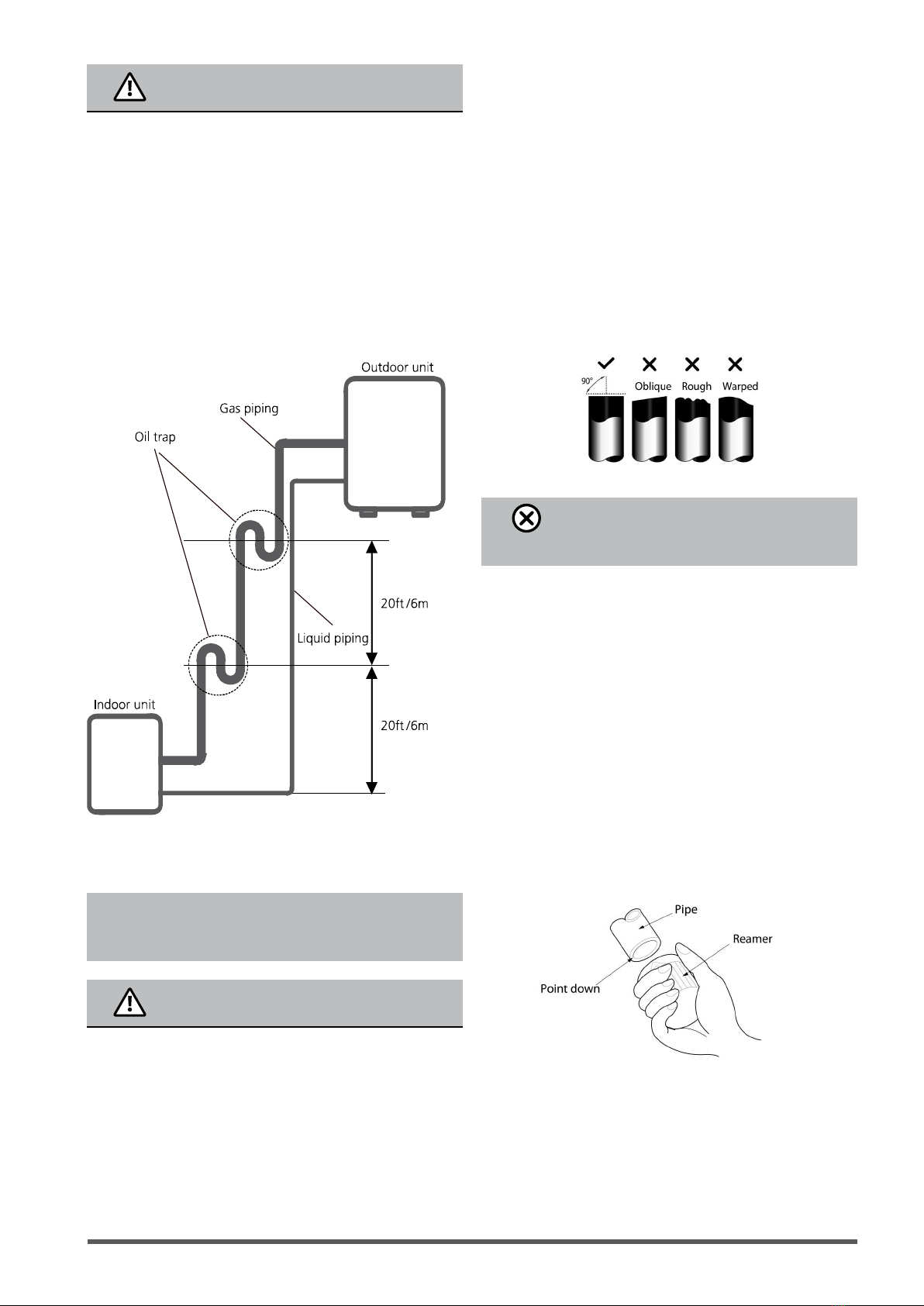

CAUTION
If the outdoor unit is installed higher than the
indoor unit:
• It is recommended that vertical suction
risers not be upsized. Proper oil return to
the compressor should be maintained with
suction gas velocity. If velocities drop below
1,500fpm (feet per minute)/7.62m/s oil
return will be decreased. An oil trap should
be installed every 20ft/6m of vertical suction
line riser.
The outdoor unit is installed higher than the
indoor unit
Refrigerant Piping Connection
Instructions
CAUTION
• The branching pipe must be installed
horizontally. An angle of more than 10° may
cause malfunction.
• DO NOT install the connecting pipe until
both indoor and outdoor units have been
installed.
• Insulate both the gas and liquid piping to
prevent water leakage.
Step 1: Cut pipes
When preparing refrigerant pipes, take extra
care to cut and are them properly. This will
ensure ecient operation and minimize the
need for future maintenance.
1. Measure the distance between the indoor
and outdoor units.
2. Using a pipe cutter, cut the pipe a little
longer than the measured distance.
3. Make sure that the pipe is cut at a perfect 90°
angle.
DO NOT DEFORM PIPE
WHILE CUTTING
Be extra careful not to damage, dent, or
deform the pipe while cutting. This will
drastically reduce the heating eciency of the
unit.
Step 2: Remove burrs.
Burrs can aect the air-tight seal of refrigerant
piping connection. They must be completely
removed.
1. Hold the pipe at a downward angle to
prevent burrs from falling into the pipe.
2. Using a reamer or deburring tool, remove all
burrs from the cut section of the pipe.
Step 3: Flare pipe ends
Proper aring is essential to achieve an airtight
seal.
1. After removing burrs from cut pipe, seal
the ends with PVC tape to prevent foreign
materials from entering the pipe.

Page 17
2. Sheath the pipe with insulating material.
3. Place are nuts on both ends of pipe. Make
sure they are facing in the right direction,
because you can’t put them on or change
their direction after aring.
4. Remove PVC tape from ends of pipe when
ready to perform aring work.
5. Clamp are form on the end of the pipe. The
end of the pipe must extend beyond the
are form.
6. Place aring tool onto the form.
7. Turn the handle of the aring tool clockwise
until the pipe is fully ared. Flare the pipe in
accordance with the dimensions.
8. Remove the aring tool and are form, then
inspect the end of the pipe for cracks and
even aring.
Piping Extension Beyond Flare Form
Pipe
gauge
(Unit:
in/mm)
Tightening
torque
Flare dimension (A)
(Unit: in/mm) Flare shape
Min Max
Ø1/4in
/6.4cm
18-20 N.m
(183-204 kgf.cm) 0.33 /8.4 0.34 /8.7
Ø3/8in
/9.5mm
25-26 N.m
(255-265 kgf.cm) 0.52 /13.2 0.53/13.5
Ø1/2in
/12.7mm
35-36 N.m
(357-367 kgf.cm) 0.64/16.2 0.65/16.5
Ø5/8in
/15.9mm
45-47 N.m
(459-480 kgf.cm) 0.76/19.2 0.78/19.7
Ø3/4in
/19.1mm
65-67 N.m
(663-683 kgf.cm) 0.91/23.2 0.93/23.7
Ø7/8in
/22mm
75-85N.m
(765-867 kgf.cm) 1.04/26.4 1.06/26.9
Step 4: Connect pipes
Connect the copper pipes to the indoor unit
rst, then connect it to the outdoor unit. You
should rst connect the low-pressure pipe, then
the high-pressure pipe.
1. When connecting the are nuts, apply a thin
coat of refrigeration oil to the ared ends of
the pipes.
2. Align the center of the two pipes that you
will connect.
3. Tighten the are nut as tightly as possible by
hand.
4. Using a spanner, grip the nut on the unit
tubing.
5. While rmly gripping the nut, use a torque
wrench to tighten the are nut according to
the torque values in above table.
NOTE: Use both a spanner and a torque
wrench when connecting or disconnecting
pipes to/from the unit.
CAUTION
• Be sure to wrap insulation around the
piping. Direct contact with the bare piping
may result in burns or frostbite.
• Make sure the pipe is properly connected.
Over tightening may damage the bell mouth
and under tightening may lead to leakage.

Page 18

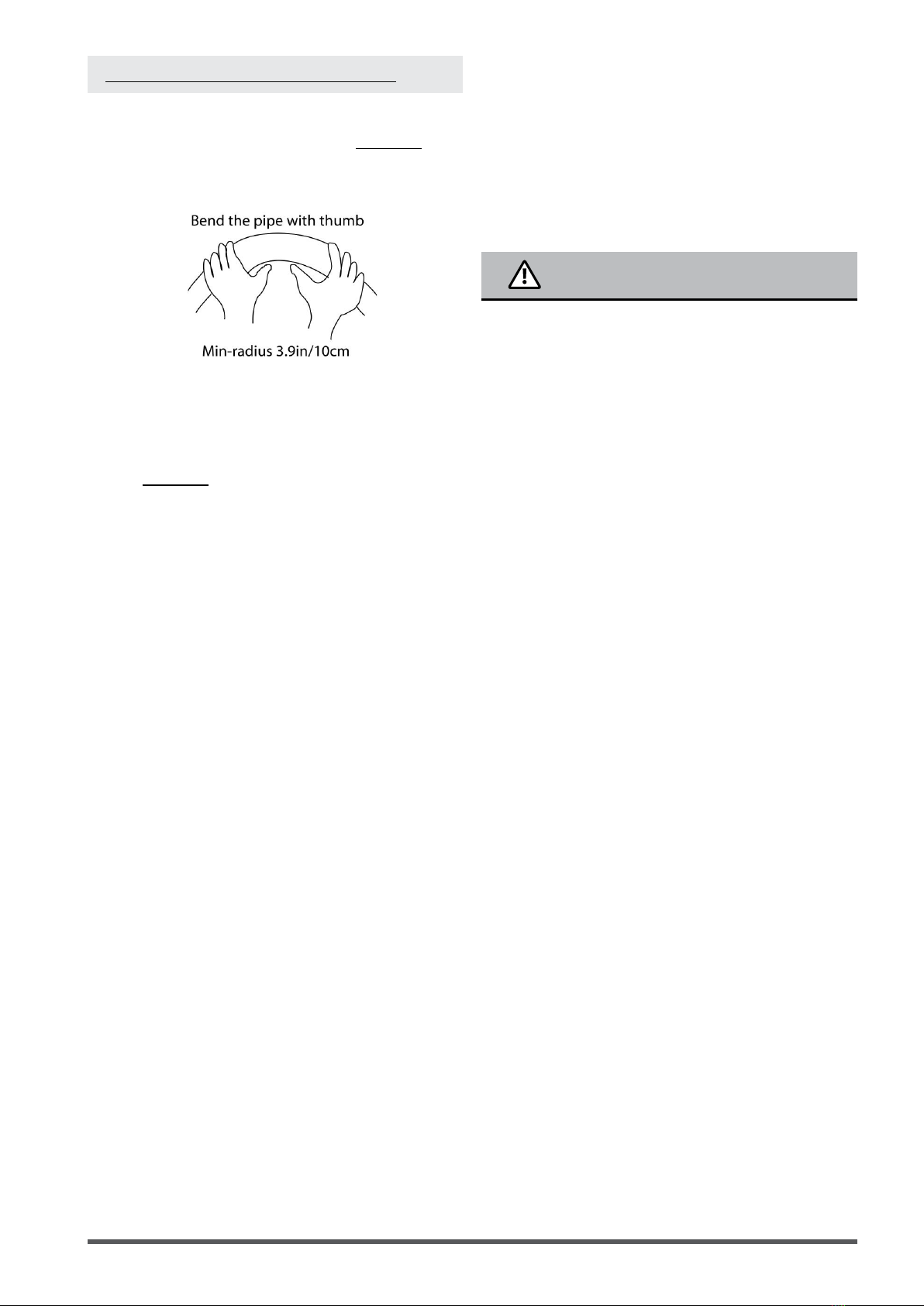

NOTE ON MINIMUM BEND RADIUS
Carefully bend the tubing in the middle
according to the diagram below. DO NOT
bend the tubing more than 90° or more than
3 times.
After connecting the copper pipes to the indoor
unit, wrap the power cable, signal cable and the
piping together with binding tape.
NOTE: DO NOT intertwine signal cable with
other wires. While bundling these items
together, do not intertwine or cross the signal
cable with any other wiring.
6. Thread this pipeline through the wall and
connect it to the outdoor unit.
7. Insulate all the piping, including the valves
of the outdoor unit.
8. Open the stop valves of the outdoor unit to
start the ow of the refrigerant between the
indoor and outdoor unit.
CAUTION
Check to make sure there is no refrigerant leak
after completing the installation work. If there is
refrigerant leak, ventilate the area immediately
and evacuate the system (refer to the Air
Evacuation section of this manual).

Page 19
Wiring 8
WARNING
BEFORE PERFORMING ANY
ELECTRICAL WORK, READ
THESE REGULATIONS
1. All wiring must comply with local and
national electrical codes and regulations and
must be installed by a licensed electrician.
2. All electrical connections must be made
according to the Electrical Connection
Diagram located on the panels of the indoor
and outdoor units.
3. If there is a serious safety issue with the
power supply, stop work immediately.
Explain your reasoning to the client, and
refuse to install the unit until the safety issue
is properly resolved.
4. Power voltage should be within 90-110% of
rated voltage. Insucient power supply can
cause malfunction, electrical shock, or re.
5. If connecting power to xed wiring, install a
surge protector and main power switch with
a capacity of 1.5 times the maximum current
of the unit.
6. If connecting power to xed wiring, a switch
or circuit breaker that disconnects all poles
and has a contact separation of at least
1/8in/3mm must be incorporated in the
xed wiring. The qualied technician must
use an approved circuit breaker or switch.
7. Only connect the unit to an individual
branch circuit outlet. Do not connect
another appliance to that outlet.
8. Make sure to properly ground the air
conditioner.
9. Every wire must be rmly connected. Loose
wiring can cause the terminal to overheat,
resulting in product malfunction and
possible re.
10. Do not let wires touch or rest against
refrigerant tubing, the compressor, or any
moving parts within the unit.
11. If the unit has an auxiliary electric heater, it
must be installed at least 40in/1m away from
any combustible materials.
12. To avoid getting an electric shock, always
wait 10 minutes or more before you touch
the electrical components after the power
supply has been turned o.
13. Make sure that you do not cross your
electrical wiring with your signal wiring. This
may cause distortion and interference.
14. The unit must be connected to the main
outlet. Normally, the power supply must
have a impedance of 32 ohms.
15. No other equipment should be connected to
the same power circuit.
16. Connect the outdoor wires before
connecting the indoor wires.
WARNING
BEFORE PERFORMING ANY
ELECTRICAL OR WIRING WORK,
TURN OFF THE MAIN POWER TO
THE SYSTEM.
NOTE ON AIR SWITCH
When the maximum current of the air
conditioner is more than 16A, an air switch
or leakage protection switch with protective
device shall be used (purchased seperately).
When the maximum current of the air
conditioner is less than 16A, the power cord
of air conditioner shall be equipped with plug
(purchased seperately).

Page 20
NOTE: The cographs are for explanation
purpose only. Your machine may be
slightly different. The actual shape shall
prevail.
Outdoor Unit Wiring
WARNING
BEFORE PERFORMING ANY
ELECTRICAL OR WIRING WORK, TURN
OFF THE MAIN POWER TO THE SYSTEM.
1. Prepare the cable for connection
a. You must rst choose the right cable size.
Be sure to use H07RN-F cables.
Minimum Cross-Sectional Area of Power and
Signal Cables North America
Rated Current
of Appliance (A)
Nominal Cross-Sectional
Area (mm²)
> 3 and ≤ 6 0.75
> 6 and ≤10 1
> 10 and ≤16 1.5
> 16 and ≤25 2.5
> 25 and ≤32 4
> 32 and ≤40 6
b. Using wire strippers, strip the rubber
jacket from both ends of the signal cable to
reveal approximately 5.9in/15cm of wire.
c. Strip the insulation from the ends.
d. Using a wire crimper, crimp u-lugs on the
ends.
NOTE: When connecting the wires, strictly
follow the wiring diagram found inside the
electrical box cover.
2. Remove the electric cover of the outdoor
unit. If there is no cover on the outdoor unit,
take o the bolts from the maintenance
board and remove the protection board.
