Cooper & Hunter SOPHIA CH-09MSPHMC-230VI User manual

MULTI-ZONE
DUCTLESS INVERTER
SPLIT AIR CONDITIONER
WITH HEAT PUMP
CONSOLE TYPE
USER’S MANUAL
INDOOR UNIT
SOPHIA
IMPORTANT NOTE:
Read this manual carefully before
installing or operating your new air
conditioning unit. Make sure to save
this manual for future reference.
This manual only describes the installation of
outdoor unit. When installing the indoor unit,
refer to the installation manual of indoor unit.
•
•
Models:
CH-09MSPHMC-230VI
CH-12MSPHMC-230VI

Indoor Unit Parts and Major Functions .......... 05
Manual Operations.................................................... 07
Table of Contents
Owner’s Manual
SAFETY
FIRST
Safety Precautions .................................................... 04
1
2
3

 Page 3 
Care and Maintenance ............................. 08
a. Unit Maintenance ....................................... 08
b. How to Clean the Air Filter ....................... 08
c. Repairing Refrigerant Leaks ...................... 09
d. Preparation for Periods of Non-use ........ 09
Troubleshooting................................. 10
a. Common Problems ........................... 10
b. Troubleshooting Tips ......................... 11
4
5

 Page 4 
Thank you for purchasing this air conditioner. This manual will provide you with information on how
to operate, maintain, and troubleshoot your air conditioner. Following the instructions will ensure the
proper function and extended lifespan of your unit.
Please pay attention to the following signs:
Safety Precautions 1
WARNING
• Ask an authorized dealer to install this air
conditioner. Inappropriate installation may
cause water leakage, electric shock, or fire.
• The warranty will be voided if the unit is not
installed by professionals.
• If abnormal situation arises (like burning
smell), turn o the power supply and call
your dealer for instructions to avoid electric
shock, fire or injury.
• DO NOT let the indoor unit or the remote
control get wet. It may cause electric shock
or fire.
• DO NOT insert fingers, rods or other
objects into the air inlet or outlet. This may
cause injury, since the fan may be rotating
at high speeds.
• DO NOT use a flammable spray such as
hair spray, lacquer or paint near the unit.
This may cause fire or combustion.
CAUTION
General
Introduction
• DO NOT touch the air outlet while the swing
flap is in motion. Fingers might get caught
or the unit may break down.
• DO NOT inspect the unit by yourself. Ask an
authorized dealer to perform the inspection.
• To prevent product deterioration, do not use
the air conditioner for preservation purposes
(storage of food, plants, animals, works of
art, etc.).
Failure to observe a warning may result in death. The appliance must be
installed in accordance with national regulations.
.
Failure to observe a caution may result in injury or equipment damage.
WARNING
CAUTION
• DO NOT place items that might be aected
by moisture damage under the indoor unit.
Condensation can occur at a relative
humidity of 80%.
• DO NOT
expose heat-producing appliances
to cold air or place them under the indoor
unit. This may cause incomplete combustion
or deformation of the unit due to the heat.
• After long periods of usage, check the
indoor unit to see if anything is damaged. If
the indoor unit is damaged, it may fall and
cause injury.
• If the air conditioner is used together with
other heating devices, thoroughly ventilate
the room to avoid oxygen deficiency.
• DO NOT climb onto or place objects on top
of the outdoor unit.
• DO NOT operate the air conditioner when
using fumigant insecticides. The chemicals
may become layered with the unit and
endanger those who are hypersensitive to
chemicals.
• DO NOT let children play with the air
•
The air conditioner can be used by children aged
8 years and older and people with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, if they have been
given instruction on how to properly and safely
operate the system.
• DO NOT operate the air conditioner in a wet
room (e.g. bathroom or laundry room). This
can cause electrical shock and cause the
product to deteriorate.
Safety
Precautions
conditioner.
• DO NOT operate the air conditioner with
wet hands. It may cause electric shock.
• DO NOT touch the evaporator coils inside
the indoor unit. The evaporator coils are
sharp and may cause injury.

 Page 5 
Indoor Unit Parts And Major Functions 2
Unit Parts
Fig. 2.1
Operating Conditions
Use the system under the following temperatures for safe and eective operation. If the air
conditioner is used under dierent conditions, it may malfunction or become less ecient.
COOL Mode HEAT mode DRY mode
Indoor
Temperature
17-32°C
(62-90°F)
0-30°C
(32-86°F)
17-32°C
(62-90°F)
Outdoor
Temperature
0-50°C
(32-122°F)
-15-24°C
(5-76°F)
0-50°C
(32-122°F)
-15-50°C
(5-122°F)
(low temperature
cooling models)
Indoor Unit
Parts And Major
Functions
Drain hose
Refrigerant connecting
pipe
Display panel
Air inlet (with air filter in it)
Air flow louver (at air outlet)
Air flow louver (at air outlet)

 Page 6 
Features
Indoor Unit
Parts And Major
Functions
Default Setting
When the air conditioner restarts after a power
failure, it will default to the factory settings
(AUTO mode, AUTO fan, 24°C (76°F)). This
may cause inconsistencies on the remote
control and unit panel. Use your remote
control to update the status.
Auto-Restart (some models)
In case of power failure, the system will
immediately stop. When power returns, the
Operation light on the indoor unit will flash. To
restart the unit, press the ON/OFF button on
the remote control. If the system has an auto
restart function, the unit will restart using the
same settings.

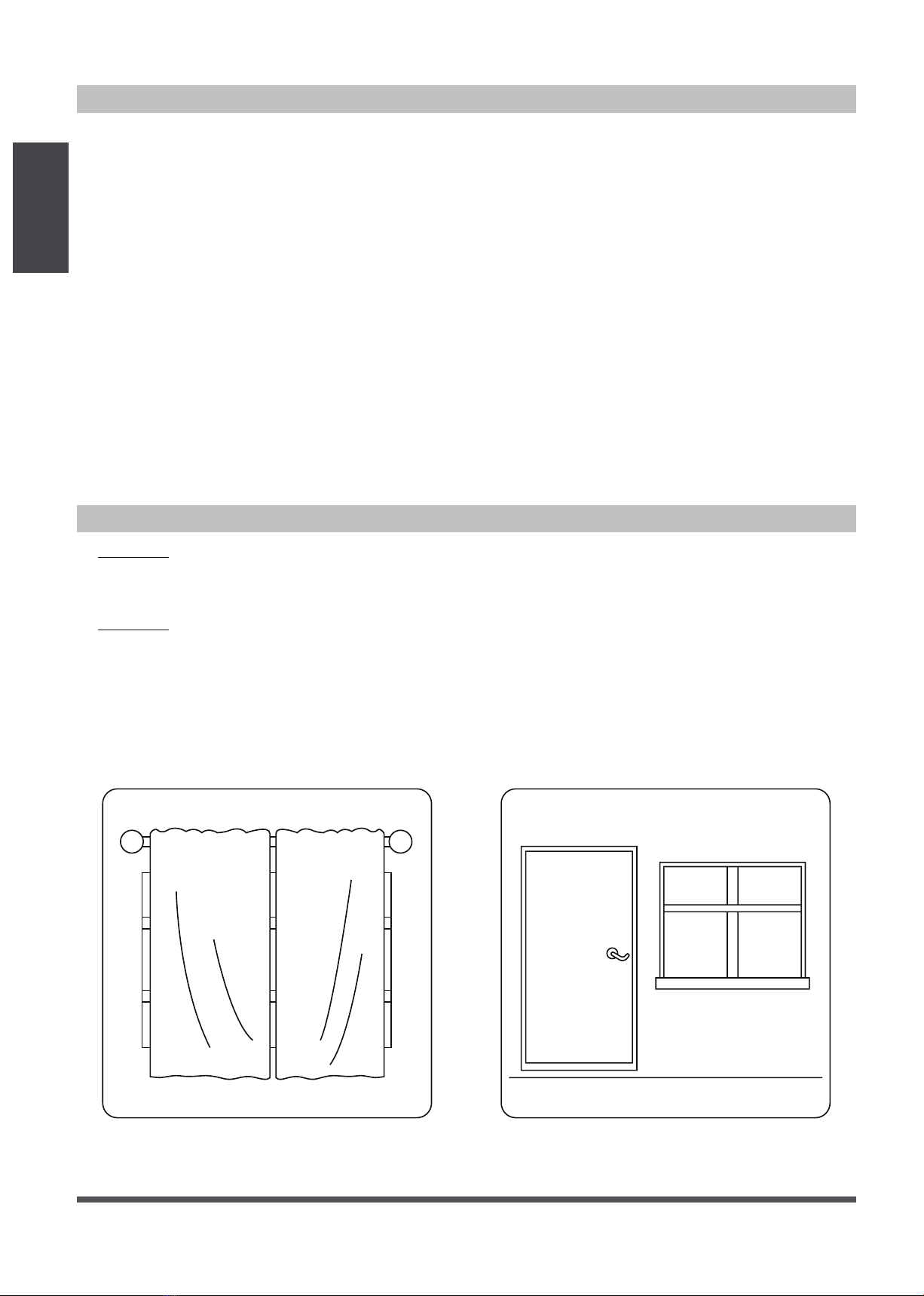

Energy Saving Tips
• DO NOT set the unit to excessive temperature levels.
• While cooling, close the curtains to avoid direct sunlight.
• Doors and windows should be kept closed to keep cool or warm air in the room.
• DO NOT place objects near the air inlet and outlet of the unit.
• Set a timer and use the built-in SLEEP/ECONOMY mode if applicable.
• If you don’t plan to use the unit for a long time, remove the batteries from the remote control.
• Clean the air filter every two weeks.
• Adjust louvers properly and avoid direct airflow.
Louver Angle Memory Function (Optional)
Some models are designed with a louver angle
memory function. When the unit restarts after a
power failure, the angle of the horizontal louvers
will automatically return to the previous position.
The angle of the horizontal louver should not be
set too small as condensation may form and drip
into the machine. To reset the louver, press the
manual button, which will reset the horizontal
louver settings.
Refrigerant Leak Detection System
(some models)
In the event of a refrigerant leak, the LCD screen
will display “EC” and the LED indicator light will
flash.
Closing curtains during heating also
helps keep the heat in
Doors and windows should be kept
closed

 Page 7 
Manual Operations 3
Manual Operations
This display panel on the indoor unit can be used
to operate the unit in case the remote control
has been misplaced or is out of batteries.
Fig. 3.1
Fig. 3.3 Fig. 3.4
Fig. 3.2 Fig. 3.5
•
MANUAL button: This button selects the
mode in the following order: AUTO, FORCED
COOL, OFF.
• FORCED COOL mode: In FORCED COOL
mode, the Operation light flashes. The system
will then turn to AUTO after it has cooled with
a high wind speed for 30 minutes. The remote
control will be disabled during this operation.
• OFF mode: When the panel is turned OFF, the
unit turns o and the remote control is
re-enabled.
Infrared receiver
Timer indicator
PRE-DEF
(pre-heating/defrost)
indicator
Operation indicator
Adjusting Air Flow Direction
CAUTIONS
Do not try to adjust the horizontal louver by
hand. This may cause damage the mechanism
and result in condensation forming on the air
outlets.
Manual button
Manual Swing: Press Air Direction to x the
louver at a desired angle.The louver swings
(upward or downward) at a dierent angle with
each press of the button.
When cooling
Adjust the louver downwards (horizontally).
(See Fig.3.3).
When heating
Adjust the louver vertically. (See Fig.3.4)
Adjust the Air Flow Direction Left and Right
Hold the knob and move the louver.
You will nd a knob on the left-side and the
right-side blades.(See Fig.3.5)

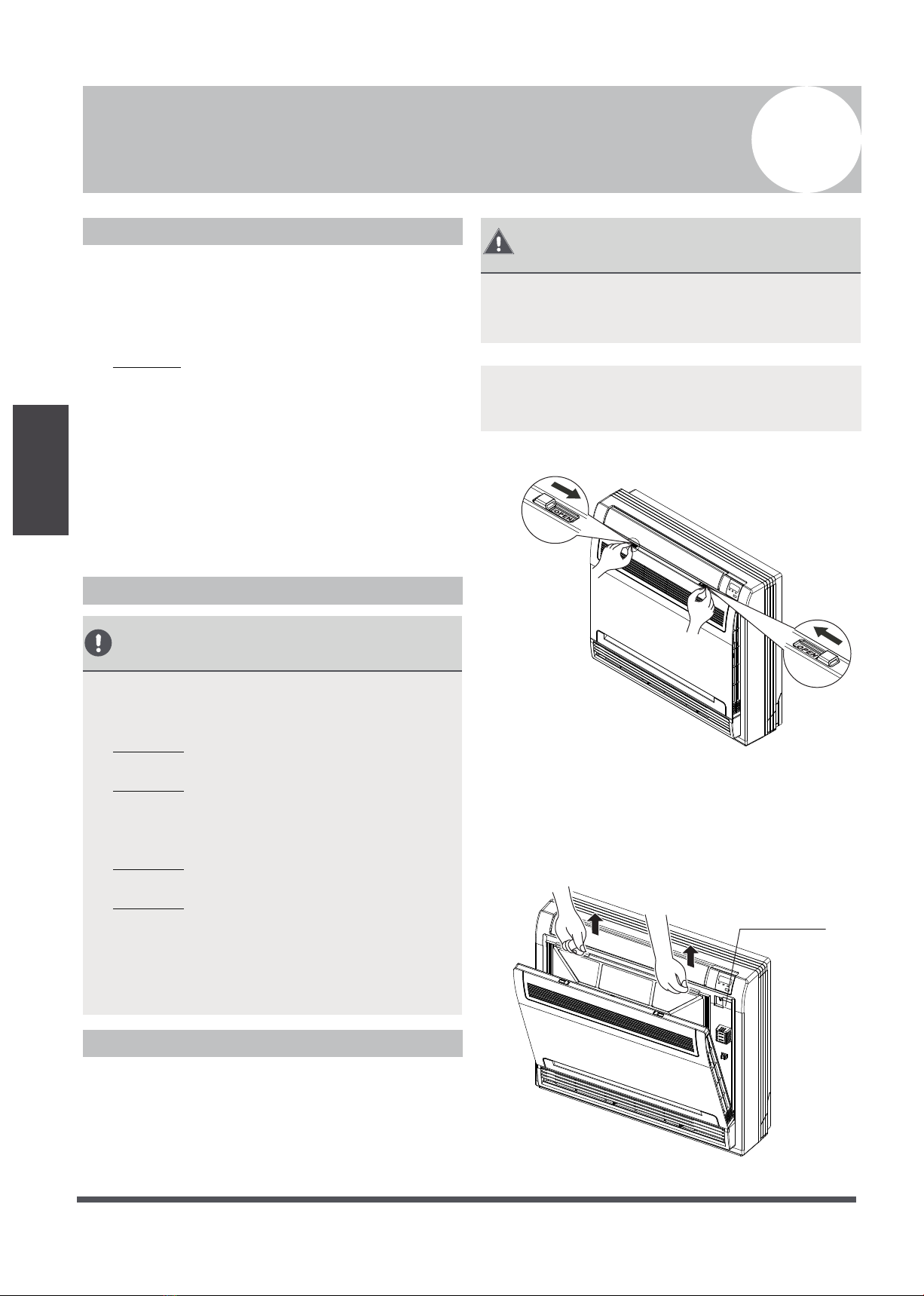

1. Open the front panel.
Fig. 4.1
Fig. 4.2
2. Remove the air lter.
 Page 8 
Care And Maintenance
Safety Precautions
• Contact an authorized service technician for
repair or maintenance. Improper repair and
maintenance may cause water leakage,
electrical shock, or fire, and may void your
warranty.
• DO NOT substitute a blown fuse with a
higher or lower amperage rating fuse, as this
may cause circuit damage or an electrical fire.
• Make sure the drain hose is set up according
to the instructions. Failure to do so could
cause leakage and result in personal
property damage, fire and electric shock.
• Make sure that all wires are connected
properly. Failure to connect wires according
to instructions can result in electrical shock
or fire.
Unit Maintenance
BEFORE CLEANING OR
MAINTENANCE
• Always turn o your air conditioning system
and disconnect the power supply before
cleaning or maintenance.
•
DO NOT use chemicals or chemically
treated cloths to clean the unit.
•
DO NOT use benzene, paint thinner,
polishing powder or other solvents to clean
the unit. They can cause the plastic surface
to crack or deform.
•
DO NOT wash the unit under running water.
Doing so creates an electrical hazard.
•
DO NOT use water hotter than 40°C (104°F)
to clean the front panel. This can cause the
panel to become deformed or discolored.
• Clean the unit using a damp, lint-free cloth
and neutral detergent. Dry the unit with a
dry, lint-free cloth.
How To Clean The Air Filter
The filter prevents dust and other particles from
entering the indoor unit. Dust buildup can reduce
the efficiency of the air conditioner. For optimum
efficiency, clean the air filter every two weeks or
more frequently if you live in a dusty area.
Replace the filter with a new one if it’s heavily
clogged and cannot be cleaned.
WARNING: DO NOT REMOVE OR
CLEAN THE FILTER BY YOURSELF
Removing and cleaning the filter can be
dangerous. Removal and maintenance must be
performed by a certified technician.
NOTE: In households with animals, you will
have to periodically wipe down the grille to
prevent animal hair blocking airow.
Care And Maintenance 4
Press the claws on the right and left sides of
the air lter down slightly, then pull upward.
Air Outlet
Selection Switch

Care And Maintenance
 Page 9 
Care And Maintenance
5. Rinse the lter with clean water and allow
it to air-dry. DO NOT let the lter dry in
direct sunlight.
6. Reinstall the lter.
Repairing Refrigerant Leaks
WARNING
• If the refrigerant leaks, turn o the air
conditioner and any combustible heating
devices, ventilate the room and call your
dealer immediately. Refrigerant is both toxic
and flammable.
DO NOT use the air
conditioner until the leak is repaired.
• When the air conditioner is installed in a
small room, measures must be taken to
prevent the refrigerant concentration from
exceeding the safety limit in the event of
refrigerant leakage. Concentrated
refrigerant causes a severe health and safety
threat.
Refrigerant Leak Detection System (some
models)
• In the event of a refrigerant leak, the LCD
screen will display “EC” and the LED
indicator light will flash.
Preparation For Periods Of Non-Use
Maintenance after Extended Non-Use
1. Remove any obstacles blocking the vents of
both the indoor and outdoor units.
2. Clean the air lter and the front grille of the
indoor unit. Reinstall the clean, dry air lter in
its original position.
3. Turn on the main power switch at least 12
hours prior to operating the unit.
Storing the Unit While Not In Use
1. Run the appliance on FAN mode for 12 hours
in a warm room to dry it and prevent mold.
2. Turn o the appliance and unplug it.
3. Clean the air lter according to the
instructions in the previous section. Reinstall
the clean, dry lter before storing.
4. Remove the batteries from the remote control.
3. Hold the tabs of the frame,and remove the
4 claws. (The special function lter can be
washed with water once every 6 months. It
isrecommended that you replace it once
every 3 years.)
4. Clean the air lter by vacuuming the surface
or washing it in warm water with mild
detergent.
A. If using a vacuum cleaner, the inlet side
should face the vacuum.
Fig. 4.4
Fig. 4.3
B. If using water, the inlet side should face
down and away from the water stream.
Fig. 4.5
Special function lter

 Page 10 
Troubleshooting
CAUTIONS
If one of the following conditions occurs, switch o the power supply immediately and contact
your dealer for further assistance.
• The operation light continues to flash rapidly after the unit has been restarted.
• The remote control buttons do not work.
• The unit continually trips fuses or circuit breakers.
• A foreign object or water enters the air conditioner.
• Other abnormal situations.
Common Problems
The following symptoms are not a malfunction and in most situations will not require repairs.
Problem Possible Causes
Unit does not
turn on when
pressing ON/
OFF button
The unit has a 3-minute protection feature that prevents the unit from
overloading. The unit cannot be restarted within three minutes of being
turned o.
Cooling and Heating Models: If the Operation light and PRE-DEF (Pre-heating/
Defrost) indicators are lit up, the outdoor temperature is too cold and the unit’s
anti-cold wind is activated in order to defrost the unit.
In Cooling-only Models: If the “Fan Only” indicator is lit up, the outdoor
temperature is too cold and the unit’s anti-freeze protection is activated in
order to defrost the unit.
The unit changes
from COOL mode
to FAN mode
The unit changes its setting to prevent frost from forming on the unit. Once
the temperature increases, the unit will start operating again.
The set temperature has been reached, at which point the unit turns o the
compressor. The unit will resume operating when the temperature fluctuates
again.
The indoor unit
emits white mist
In humid regions, a large temperature dierence between the room’s air and
the conditioned air can cause white mist.
Both the indoor
and outdoor units
emit white mist
When the unit restarts in HEAT mode after defrosting, white mist may be
emitted due to moisture generated from the defrosting process.
The indoor unit
makes noises
A squeaking sound is heard when the system is OFF or in COOL mode. The
noise is also heard when the drain pump (optional) is in operation.
A squeaking sound may occur after running the unit in HEAT mode due to
expansion and contraction of the unit’s plastic parts.
Both the indoor
unit and outdoor
unit make noises
A low hissing sound may occur during operation. This is normal and is caused
by refrigerant gas flowing through both the indoor and outdoor units.
A low hissing sound may be heard when the system starts, has just stopped
running or is defrosting. This noise is normal and is caused by the refrigerant
gas stopping or changing direction.
The outdoor unit
makes noises The unit will make dierent sounds based on its current operating mode.
Troubleshooting 5

 Page 11 
Troubleshooting
Problem Possible Causes
Dust is emitted from
either the indoor or
outdoor unit
The unit may accumulate dust during extended periods of non-use, which
will be emitted when the unit is turned on. This can be mitigated by covering
the unit during long periods of inactivity.
The unit emits a
bad odor
The unit may absorb odors from the environment (such as furniture, cooking,
cigarettes, etc.) which will be emitted during operations.
The unit’s filters have become moldy and should be cleaned.
The fan of the
outdoor unit
does not operate
During operation, the fan speed is controlled to optimize product operation.
Troubleshooting Tips
When troubles occur, please check the following points before contacting a repair company.
Problem Possible Causes Solution
The unit
is not
working
Power failure Wait for the power to be restored
The power switch is o Turn on the power
The fuse is burned out Replace the fuse
Remote control batteries are dead Replace the remote control batteries
The unit’s 3-minute protection has
been activated Wait three minutes after restarting the unit
Poor cooling
performance
Temperature setting may be higher
than the ambient room temperature Lower the temperature setting
The heat exchanger on the indoor
or outdoor unit is dirty Clean the aected heat exchanger
The air filter is dirty Remove the filter and clean it according
to instructions
The air inlet or outlet of either unit
is blocked
Turn the unit o, remove the obstruction
and turn it back on
Doors and windows are open Make sure that all doors and windows are
closed while operating the unit
Excessive heat is generated by
sunlight
Close windows and curtains during
periods of high heat or bright sunshine
Low refrigerant due to leak or
long-term use
Check for leaks, re-seal if necessary and
top o refrigerant
The unit
starts and
stops
frequently
There’s too much or too little
refrigerant in the system
Check for leaks and recharge the system
with refrigerant
There is air, incompressible gas or
foreign material in the refrigeration
system.
Evacuate and recharge the system with
refrigerant
System circuit is blocked Determine which circuit is blocked and replace
the malfunctioning piece of equipment
The compressor is broken Replace the compressor
The voltage is too high or too low Install a manostat to regulate the voltage
Poor heating
performance
The outdoor temperature is lower
than 7°C (44.5°F)
Check for leaks and recharge the system
with refrigerant
Cold air is entering through doors
and windows
Make sure that all doors and windows are
closed during use
Low refrigerant due to leak or
long-term use
Check for leaks, re-seal if necessary and
top o refrigerant

 Page 12 
Troubleshooting
Error Codes
Number Cause
The number
of flashes
per second
Timer
indicator
Error
Code
1Indoor EEPROM (Electrically Erasable Programmable
Read-Only Memory) error 1 O E0
2 Indoor and outdoor unit communication malfunction 2 O E 1
3 Indoor fan speed malfunction 4 O E3
4 Indoor room temperature sensor error 5 O E4
5 Evaporator coil temperature sensor error 6 O E5
6 Refrigerant leak detection system malfunction 7 O EC
7 Water level alarm malfunction 8 O EE
8Dual indoor unit (twin model only) communication
malfunction 9 O E8
9 Other twin model malfunction 10 O E9
10 Overload protection 1 On F0
11 Outdoor temperature sensor error 2 On F 1
12 Outdoor condenser pipe sensor error 3 On F2
13 Discharge air temperature sensor error 4 On F3
14 Outdoor EEPROM (Electrically Erasable
Programmable Read-Only Memory) error 5 On F4
15 Outdoor fan speed (DC fan motor only) malfunction 6 On F5
16 T2b sensor error 7 On F6
17
18
19
20
Inverter module IPM protection 1 Flash P0
21
High/Low voltage protection 2 Flash P 1
22
Compressor top overheating protection 3 Flash P2
23
Outdoor low temperature protection 4 Flash P3
24
Compressor drive error 5 Flash P4
Mode conflict 6 Flash P5
Compressor low-pressure protection 7 Flash P6
Outdoor IGBT sensor error 8 Flash P7

LIMITED WARRANTY STATEMENT
MULTI ZONE INVERTER AIR CONDITIONING SYSTEM WITH HEAT PUMP
FOR WARRANTY SERVICE OR REPAIR:
Contact your installing contractor. You may find the installer’s name on the equipment or in your Owner’s packet.
Complete product registration below and send back by e-mail at [e-mail]
PRODUCT REGISTRATION:
Model No.: ______________________________________________________________________________________________
Serial No.: _______________________________________________________ Date of Installation: ______________________
Owner Name: ____________________________________________________________________________________________
Address of Installation:_____________________________________________________________________________________
Installing Contractor: ______________________________________________________________________________________
Address: ________________________________________________________________________________________
Phone No. / E-mail: _______________________________________________________________________________
C&H distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship
under normal use and maintenance as follows. All warranty periods begin on the date of original installation. If the date cannot
be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. Damage resulting from
failure to use, install or maintain the product in a manner consistent with our/manufacturer’s recommendations shall render the
warranty void. Cooper&Hunter, at its option, may request a report from a qualified technician prior to honoring a warranty
claim. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at
Company’s option, to replace the failed defective part at no charge for the part. This limited warranty is subject to all
provisions, conditions, limitations and exclusions listed below.
●A warranty period of Seven (7) years on compressor to the original registered end-user.
●A warranty period of Five (5) years on all parts to the original registered end user.
●A warranty period of One (1) year on the remote control provided with the original unit.
●Limited warranty applies only to systems that are properly installed by a state certified or licensed HVAC contractor,
under applicable local and state law in accordance with all applicable building codes and permits; C&H installation
and operation instructions and good trade practices.
●Warranty applies only to products remaining in their original installation location.
●Defective parts must be returned to the distributor through a registered servicing dealer for credit.
www.cooperandhunter.us
This warranty should be registered on our web-site www.cooperandhunter.us
The warranty is only valid when installed by a Licensed HVAC Technician
Place Of Purchase: ________________________________________________________________________________________
Date of Purchase:
_______________________________________________________________________________

LIMITATIONS OF WARRANTIES: ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR
CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF
THIS LIMITED WARRANTY. SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU. THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE
EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON,
WHATSOEVER.
THIS WARRANTY DOES NOT COVER
:
1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing, or handling of defective
parts, replacement parts, or new units.
2. Product cleaning required prior to warranty service and repair.
3. Normal maintenance as outlined in the installation and servicing instructions or user's manual, including filter
cleaning and/or replacement and lubrication.
4. Failure, damage, or repairs due to faulty installation, misapplication, abuse, improper servicing, unauthorized
alteration, or improper operation.
5. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the inadequacy or
interruption of electrical service.
6. Failure or damage due to floods, winds, fires, lightning, accidents, corrosive environments (rust, etc.), or other
conditions beyond the control of Company.
7. Failure or damage of coils or piping due to corrosion on installations within one (1) mile of a sea coast or a corrosive
body.
8. Parts not supplied or designated by Company, or damages resulting from their use.
9. Products installed outside the continental USA and Canada.
10. Electricity or fuel costs, or increases in electricity or fuel costs for any reason whatsoever, including additional or
unusual use of supplemental electric heat.
11. Any cost to replace, refill, or dispose of refrigerant, including the cost of refrigerant.
12. Shipping damage or damage as a result of transporting the unit.
13. Accessories such as condensate pumps, line sets, and so forth.
14. Any special, indirect, or consequential property or commercial damage of any nature whatsoever. Some states or
provinces do not allow the exclusion of incidental or consequential damages, so the above limitation may not apply to
you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to
province.
