Cooper & Hunter Sophia CH-S30FTXW-SV User manual

HIGH-WALL DUCTLESS
AIR CONDITIONING &
HEATINGSYSTEM
OWNER'S MANUAL
Models:
CH-S30FTXW-SV (230V)
CH-S36FTXW-SV (230V)
SOPHIA
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
future reference.

WARNING
Do not connect air conditioner to multi-purpose socket.
This appliance can be used by children aged from 8
Operation and Maintenance
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Do not spray water on indoor unit. It may cause electric
shock or malfunction.
Otherwise, it may cause fire hazard.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.

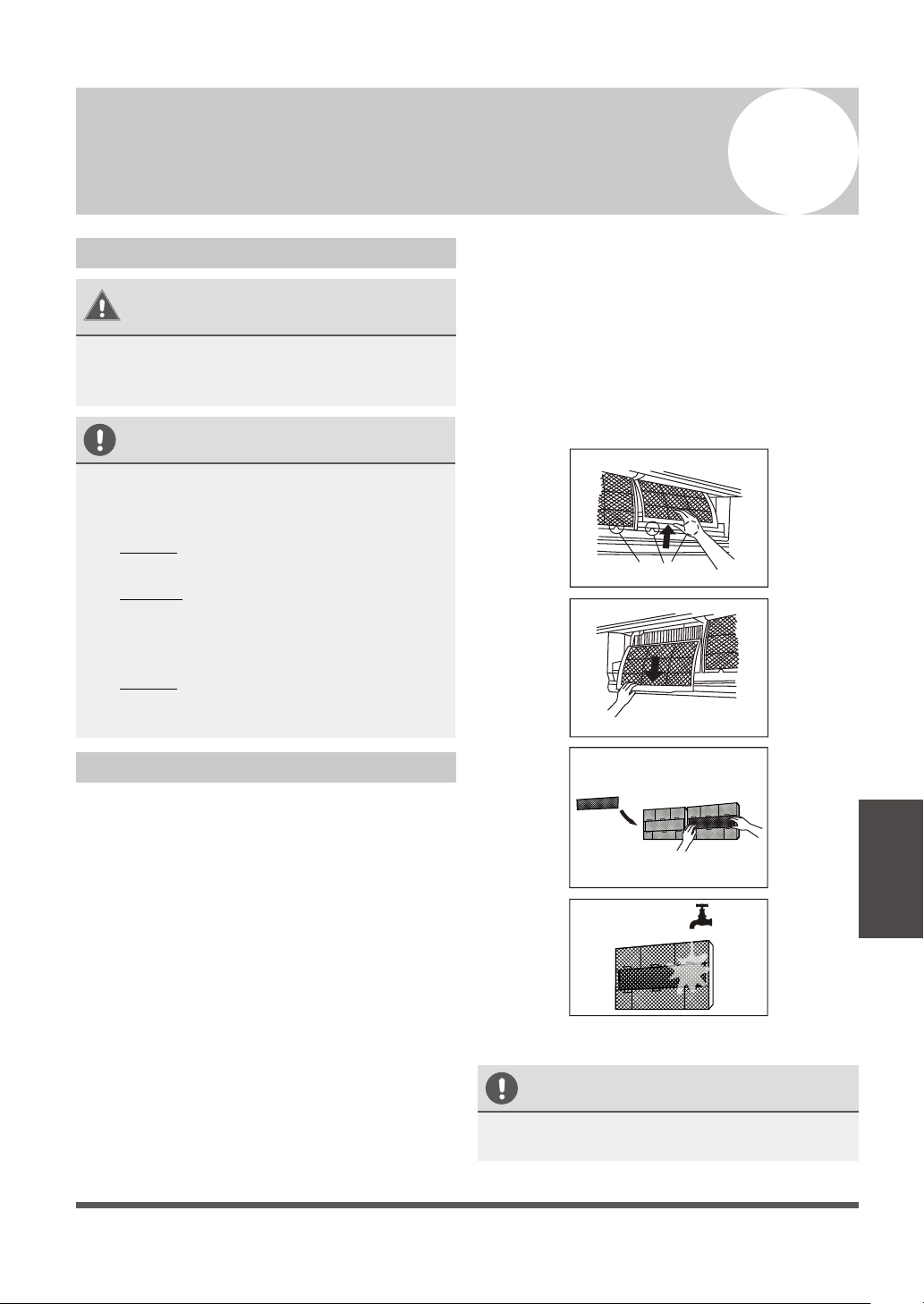

Do not wash the air conditioner with water to avoid
electric shock.
After removing the filter, do not touch fins to avoid injury.
Do not use fire or hair dryer to dry the filter to avoid
deformation or fire hazard.
Do disconnect power supply when cleaning air
conditioner. Otherwise, it may cause electric shock.
.
Precautions
Page 1

Do not block air outlet or air inlet. It may cause
malfunction.
remote controller may be broken.
●Power cord is overheating or damaged.
●There’s abnormal sound during operation.
●Circuit break trips off frequently.
●Air conditioner gives off burning smell.
●Indoor unit is leaking.
contact the dealer or qualified professionals for service.
When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.
outlet. It may cause personal injury or damage.
WARNING
conditioner and disconnect power immediately, and then
If the air conditioner operates under abnormal conditions,
it may cause malfunction, electric shock or fire hazard.
Do not spill water on the remote controller, otherwise the
electric shock or damage. Please contact dealer when
you need to repair air conditioner.
Do not repair air conditioner by yourself. It may cause
objects. It may cause damage or personal injury.
Do not step on top panel of outdoor unit, or put heavy
When below phenomenon occurs, please turn off air
Do not extend fingers or objects into air inlet or air
Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury
or damage.
Page 2

Page 3
Do install the circuit break. If not, it may cause malfunction.
of at least 1/8in(3mm)in all poles should be connected in
fixed wiring.
magnet buckle and heating buckle function, it can protect
the circuit-short and overload.
power supply circuit and circuit break.
WARNING
note the following table.Air switch should be included
Make sure the power supply matches with the
requirement of air conditioner.Unstable power supply or
incorrect wiring or malfunction. Please install proper power
supply cables before using the air conditioner.
An all-pole disconnection switch having a contact separation
Must follow the electric safety regulations when installing
the unit.
grounding wire of power socket.
Properly connect the live wire, neutral wire and
any work related to electricity and safety.
Be sure to cut off the power supply before proceeding
Including an circuit break with suitable capacity, please
Air Conditioner should be properly grounded. Incorrect
Don't use unqualified power cord.
grounding may cause electric shock.
According to the local safety regulations, use qualified
Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.
Attachment

Page 4
Installation must be performed in accordance with the
persons in order to avoid a hazard.
must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.
The appliance must be positioned so that the plug is
accessible.
If the length of power connection wire is insufficient, please
contact the supplier for a new one. Avoid extending the
wire by yourself.
All wires of indoor unit and outdoor unit should be
connected by a professional.
national wiring regulations.
requirement of National Electrical Codes (NEC) and
local electrical codes by authorized personnel only.
WARNING
wire, which can't be used for other purposes.
The grounding resistance should comply with national
electric safety regulations.
The air conditioner is the first class electric appliance. It
keep the interconnection cable away from the copper
tube.
The temperature of refrigerant circuit will be high, please
the manufacturer, its service agent or similarly qualified
If the supply cord is damaged, it must be replaced by
The yellow-green wire in air conditioner is grounding
The appliance shall be installed in accordance with
Do not put through the power before finishing installation.

Page 5
The indoor unit should be installed close to the wall.
Instructions for installation and use of this product are
provided by the manufacturer.
WARNING
If you need to relocate the air conditioner to another place, only the
qualified person can perform the work. Otherwise, it may cause
personal injury or damage.
For the air conditioner without plug, an circuit break must be
installed in the line.

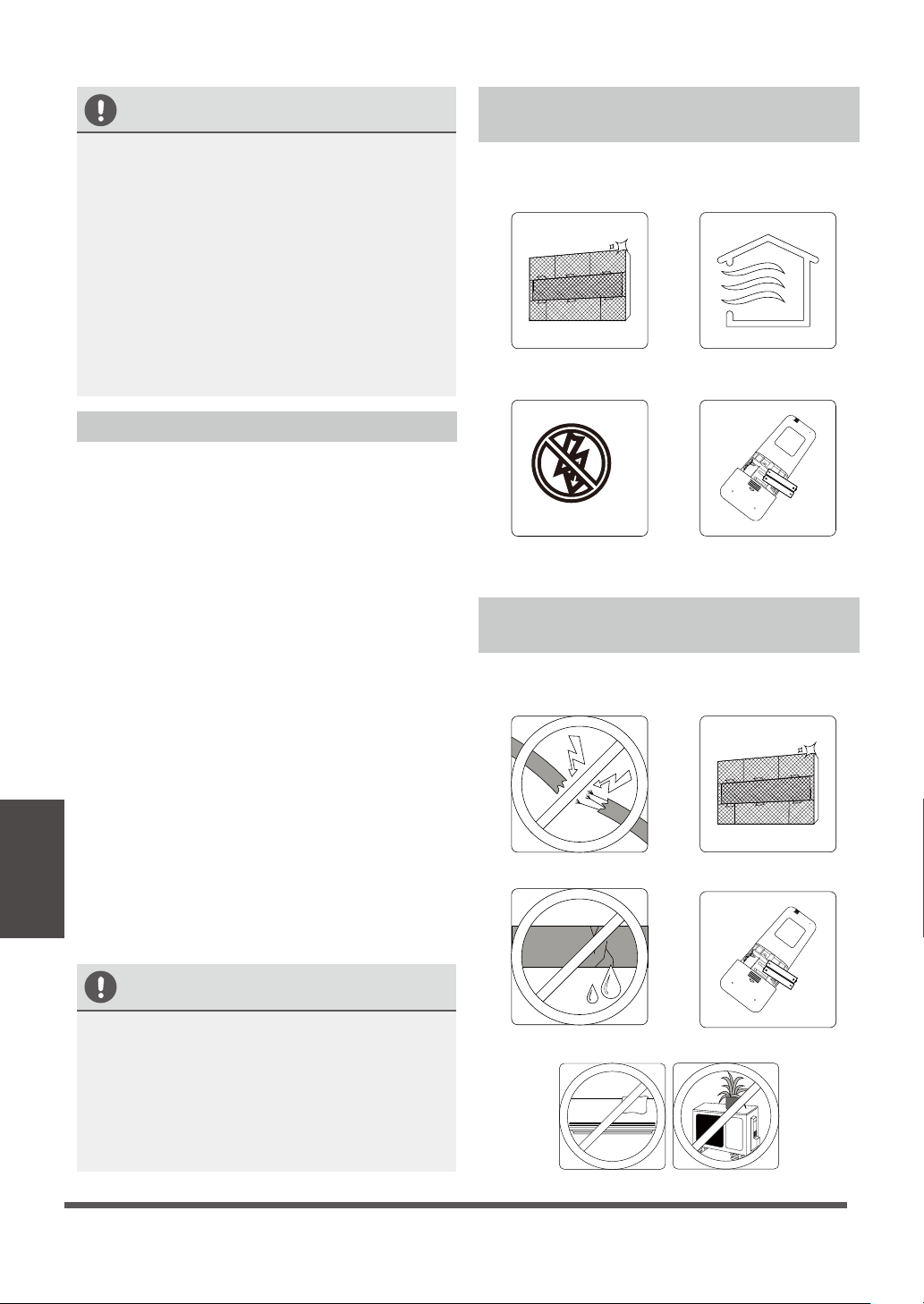

Select a location which is out of reach for children and far away from
animals or plants.If it is unavoidable, please add the fence for safety
purpose.
For the air conditioner with plug, the plug should be reachable after
finishing installation.
This symbol indicates that ignoring instructions may cause death or serious
injury.
This symbol indicates that ignoring instructions may cause moderate injury
to your person, or damage to your unit or other property.
WARNING
CAUTION
This symbol indicates that you must never perform the action indicated.

Page 6 
Unit Specications and Features 1
Unit Parts
Unit
Specifications
and Features
Power Cable (Some Units )
Remote Control
TURBO
SE LF
CL EAN

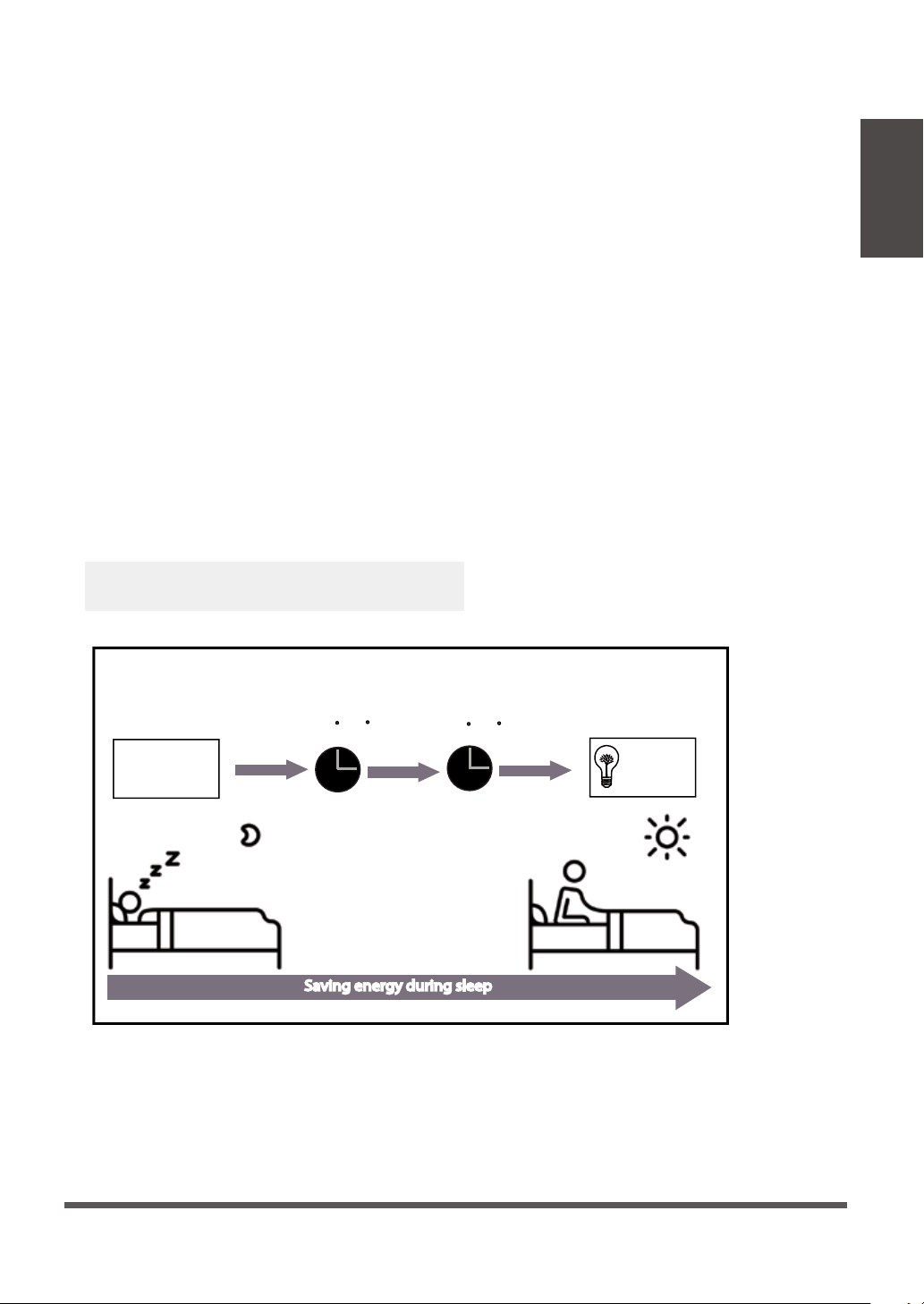

SLEEP
SILENCE
FP
TIMER
ON
TIMER
OF F
LOCK RESET
LED
FOLLOW
ME
FAN
SPEED
SWING
MODE
TEMP
ON/OFF
SWING
Remote Holder (Some Units)
“ ” for 3 seconds when:
• TIMER ON is set
• FRESH, SWING, TURBO, or SILENCE features are turned on
“ ” for 3 seconds when:
• TIMER OFF is set
• FRESH, SWING, TURBO, or SILENCE features are turned off
“ ” when defrosting
“ ” when anti-cold air feature is turned on
“ ” when unit is self-cleaning
“ ” when freeze protection is turned on
Display Code
Meanings
Functional Filter
(On Front of Main Filter - Some Units)
Louver
Front Panel
Display window
In Fan mode, the unit will display the room temperature.
In other modes, the unit will display your temperature setting.
NOT E:
,
,
“ ”
A guide on using the infrared remote is not
included in this literature package.
When ECO function(optional) is activated, the
illuminates gradually one by one as --
-- --set temperature-- ...... in one second interval.

Unit
Specifications
and Features
Page 7 
Room
Temperature 63°-90°F (17°-32°C) 32°-86°F (O°-30°C) 50°-90°F (10°-32°C)
Outdoor
Temperature
64°-109°F (18°-43°C)
19°-75°F (-7°-24°C)
52°-109°F (11°-43°C)
19°-109°F (-7°-43°C)
(For models with low-temp cooling systems) 64°-109°F (18°-43°C)
64°-126°F (18°-52°C)
(For special tropical models)
64°-126°F (18°-52°C)
(For special tropical models)
COOL mode HEAT mode DRY mode
COOL mode HEAT mode DRY mode
Room Temperature (17°C - 32°C)
63°F - 90°F
(0°C - 30°C)
32°F - 86°F
(10°C - 32°C)
50°F - 90°F
Outdoor
Temperature
(0°C - 50°C)
32°F - 122°F
(-15°C - 30°C)
5°F - 86°F
(0°C - 50°C)
32°F - 122°F
(-15°C - 50°C)
5°F - 122°F
(For models with
low temp. cooling
systems.)
To further optimize the performance of your unit, do the following:
• Keep doors and windows closed.
• Limit energy usage by using TIMER ON and TIMER OFF functions.
• Do not block air inlets or outlets.
• Regularly inspect and clean air lters.
FOR UNITS WITH
AUXILARY ELECTRIC
HEATER
Achieving Optimal Performance
Optimal performance for the COOL, HEAT, and DRY modes can be achieved in the following
temperature ranges. When your air conditioner is used outside of these ranges, certain safety
protection features will activate and cause the unit to perform less than optimally.
Inverter Split Type
Fixed-speed Type
When outside
temperature is below 0°C
(32°F ), we strongly
recommend keeping the
unit plugged in at all
timers to ensure smooth
ongoing performance.

NOTE ON ILLUSTRATIONS
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be
slightly dierent. The actual shape shall prevail.
For a detailed explanation of each function,
refer to the Remote Control Manual.
Other Features
• Auto-Restart
If the unit loses power, it will automatically
restart with the prior settings once power has
been restored.
• Anti-mildew (some units)
When turning o the unit from COOL, AUTO
(COOL), or DRY modes, the air conditioner will
continue operate at very low power to dry up
condensed water and prevent mildew growth.
Unit
Specifications
and Features
• Wi-Fi Control (some units)
Wi-Fi control allows you to control your air
conditioner using your mobile phone and a
Wi-Fi connection.
• Louver Angle Memory(some units)
When turning on your unit, the louver will
automatically resume its former angle.
• Refrigerant Leakage Detection (some
units)
The indoor unit will automatically display “EC”
when it detects refrigerant leakage.
For a detailed explanation of your unit’s
advanced functionality (such as TURBO mode
and its self-cleaning functions), refer to the
Remote Control Manual.
Page 8 

Page 9 
Setting vertical angle of air ow
While the unit is on, use the SWING /DIRECT
button to set the direction (vertical angle) of
airflow.
1. Press the SWING /DIRECT button once to
activate the louver. Each time you press
the button, it will adjust the louver by 6°.
Press the button until the direction you
prefer is reached.
2. To make the louver swing up and down
continuously, press and hold the SWING/
DIRECT button for 3 seconds. Press it
again to stop the automatic function.
The horizontal angle of the airow must be set
manually. Grip the deector rod (See Fig.2.3)
and manually adjust it to your preferred direction.
For some units, the horizontal angle of the airow
can be set by remote control. please refer to the
Remote Control Manual.
NOTE ON LOUVER ANGLES
When using COOL or DRY mode, do not set
louver at too vertical an angle for long periods
of time. This can cause water to condense on
the louver blade, which will drop on your floor
or furnishings. (See Fig. 2.2)
When using COOL or HEAT mode, setting the
louver at too vertical an angle can reduce the
performance of the unit due to restricted air
flow.
Do not move louver by hand. This will cause the
louver to become out of sync. If this occurs, turn
o the unit and unplug it for a few seconds,
then restart the unit. This will reset the louver.
Fig. 2.2
CAUTION
Do not put your ngers in or near the blower
and suction side of the unit. The high-speed
fan inside the unit may cause injury.
Fig. 2.3
Setting Angle of Air Flow
Setting horizontal angle of air ow
•
Unit
Specifications
and Features
