1
In s tal l ati o n Manual
AirtoWaterHeatPumps
CH-HP08UIMPRM CH-HP12UIMPRM CH-HP20UIMPRM CH-HP24UIMPRM
www.cooperandhunter.com

1
Content
1. Preface............................................................................................1
2. Safety Instructions........................................................................2
3. Features..........................................................................................3
4. Unit Dimension (mm)....................................................................5
5. Installation
Diagram......................................................................7
6. Handling & Installation.................................................................8
7. Maintenance................................................................................11
8. Parameters...................................................................................13
9. Wiring Diagram...........................................................................14
10. Display Operation Guide........................................................17
11. Failure List & Troubleshooting..............................................26
1. Preface
In order to provide customers with high-quality, strong reliable and good
versatile products, this heat pump is manufactured by strict design and
manufacture standards.
This manual includes all the necessary information about installation,
debugging and maintenance. Please read the manual carefully before
you start or maintain the unit.
The manufacturer of this product will not be held responsible if someone
is injured or the unit is damaged, as aresult of improper installation,
debugging, unnecessary maintenance which is not in line with this
manual.
The unit must be installed by qualified personnel.
It is vital that the below instructions are adhered to at all times to keep the
warranty.
—The unit can only be turned on or repaired by aqualified installer or an
authorized dealer.
—Maintenance and operation must be carried out according to the
recommended time and frequency, as stated in this manual.
—Use standard spare parts only.
Failure to comply with these recommendations will invalidate the
warranty.
Inverter air to water heat pump is akind of high efficiency, energy-saving
and environment-friendly equipment, which is mainly used for house
heating/cooling and hot water. It can work with indoor units such as fan
coils, radiators, or floor heating, to provide heating or hot water. One heat
pump can work with several indoor units.

2
Mark Notes
Icon Notes
2. Safety Instructions
To prevent the users and maintainers from the harm of this unit, and avoid
damage on the unit or other property, and use the heat pump properly,
please read this manual carefully and understand the following information
correctly.
Mark
Meaning
WARNING
A wrong operation may lead to death or grievous injury on
people.
ATTENTION
A wrong operation may lead to harm on people or loss of
material.
Icon
Meaning
Prohibition. What is prohibited will be nearby this icon.
Compulsory implement. The listed action need to be taken.
ATTENTION (include WARNING)
Please pay attention to what is indicated.
Warning
Installation
Meaning
Professional installer
is required.
The heat pump must be installed by qualified personals, to avoid
improper installation which may lead to water leakage, electrical
shock or fire.
Earthing is required.
Please make sure that the unit and power connection have good
earthing, otherwise may cause electrical shock.
Operation
Meaning
PROHIBITION
DO NOT put fingers or others into the fans and evaporator of the unit,
otherwise harm may occur.
Shut off the power.
When there is something wrong or strange smell, the power supply
needs to be shut off to stop the unit. Continue running may cause
short circuit or fire.
Move and Repair
Meaning
Entrust
When the heat pump needs to be moved or installed again, please
entrust dealer or qualified person to carry it out. Improper installation
will lead to water leakage, electrical shock, injury or fire.
Entrust
It is prohibited to repair the unit by the user himself, otherwise
electrical shock or fire may occur.
Prohibit
When the heat pump needs to be repaired, please entrust dealer or
qualified person to carry it out. Improper movement or repair on the
unit will lead to water leakage, electrical shock, injury or fire.
The appliance shall be stored in a room without continuously
operating ignition sources (for example: open flames, an
operating gas appliance or an operating electric heater.)

3
Installation
Meaning
Installation Place
The unit CANNOT be installed near the flammable gas.
Once there is any leakage of the gas, fire may occur.
Fix the unit.
Make sure that the basement of the heat pump is strong
enough, to avoid any decline or fall down of the unit
Need circuit
breaker.
Make sure that there is circuit breaker for the unit, lack of
circuit breaker may lead to electrical shock or fire.
Operation
Meaning
Check the installation
basement.
Please check the installation basement regularly (one
month), to avoid any decline or damage on the basement,
which may hurt people or damage the unit.
Switch off the
power.
Please switch off the power when cleaning or maintenance.
Prohibition
It is prohibited to use copper or iron as fuse. The right fuse
must be fixed by electrician for the heat pump.
Prohibition
It is prohibited to spray the flammable gas to the heat
pump, as it may cause fire.
3. Features
WithnewtechnologyofDCInverterEVI,Seriescanbe
usedinextremelycoldareaforheating/cooling,hotwater.TheSeriesis
featuredasfollows.
3.1. DCInverterEVIHeatPumpTechnology
a. RukingDriverBoard
Rukingdriverboardcontrolsthecompressorrunningpreciselybasingon
watertemperatureandairtemperature.Anditcanworkwithwide
voltageof456Vatmaximum.
b. PanasonicInverterCompressor
PanasonicinverterEVIcompressorisadoptedfortheunitstoensure
highstability.
c. DCFanMotor
DCfanmotorwithadjustablespeedensurestheunits’silentrunning.
Thismakestheunitsworkmoreefficientlyatdifferentconditions.
3.2. A+++EnergyLevel
DCinvertertechnologyenablestheheatpumptoadjustits
frequencyfrom30Hz-90Hzaccordingtorealheatingrequirement.With
thistechnology,SeriesachieveanenergylevelofA+++
accordingtoErPdirective.
3.3. Certification GuaranT-junctiond
To meet the European market requirement, the series has achieved several
certifications such as CE, ErP, MCS.
ATTENTION

4
3.4. R32LowGWPGas
ComparedwithR410Arefrigerantheatpumps,Series
withR32gashaveaGWPofonlyone-third.Itisanenvironment-friendly
choiceforreducingCO2emission.Meanwhile,R32heatpumpneeds30%
lessamountthanR410Aheatpump.
3.5. LowNoiseof37dB(A)
Withanewinternalnoisereducingdesign,Seriescan
realizethelowestnoiserunningof37dB(A)whentestingat1meter,soas
toprovideasilentlivingenvironmentforusers.
3.6. 5-inch Touch Display
5-inch display has many powerful functions, such as water temperature
curve, easy timing, one-key mute, and mute timer.
3.7. APP&IOT
SimplifyyourlifewithWarmLink.ViaconnectionbyWi-Fior4G,youcan
takefullcontrolofyourheatpumpfromanywhereinyourhomeoroffice
withasingleapponyoursmartphone.
Besides,hasacentralplatform,whicheffectivelysavesthecostfor
manpowerduringtheafter-salesserviceperiod.Thefaultreportbutton
allowsadirecterrorreportingchanneltothelocalserviceprovider.When
anerrorhasbeenreported,theserviceprovidercanseetheerror
informationofthetargetheatpumpfromthebackgroundsystem,and
contactusersimmediatelytoofferhelp.

5
4. Unit Dimension (mm)
4.1. Models: CH-HP08UIMPRM
4.2. Models: CH-HP12UIMPRM
490
442
1002
750
915
805
65
155
332 392
Power Line
SignaI Iine
Water Outlet 1”
Water Inlet 1”
Power Line
SignaI Iine
Water Inlet 1”
Water Outlet 1”

6
4.3. Models: CH-HP20UIMPRM
4.4. Models: CH-HP24UIMPRM
997
650
437 395
1315
288
75
1605
Water Inlet 1 1/4”
Water Outlet 1 1/4”
SignaI Iine
Power Line

7

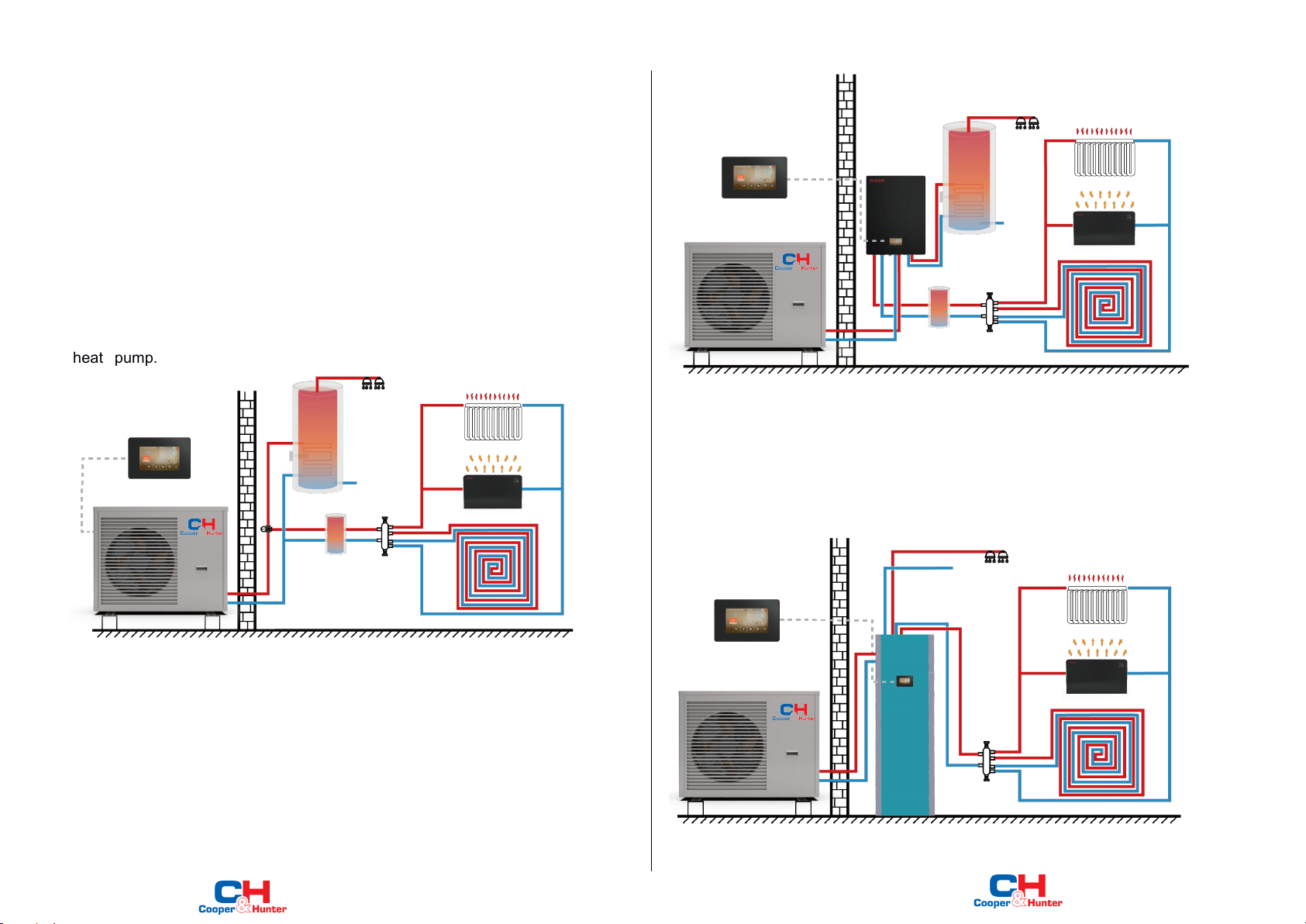

5. InstallationDiagram
Monoblockheatpumpscanprovideheating/coolinganddomestichot
water.Floorheatingloopsandfancoilunitsareusedforspaceheating
andfancoilunitsareusedforspacecooling.Domestichotwateris
suppliedfromthedomestichotwatertankconnectedtotheheatpump.
5.1TraditionalInstallation
Providesthemonoblockheatpumpwithmaincirculationpumpbuilt
inside.Wheninstalltheunit,installershouldconnecttheheatpumpwith
otherpartsincludingthebuffertank(forspaceheating/cooling),storage
watertank(fordomestichotwater)andwaterpumps(forspaceheating/
coolingwatercirculationanddomestichotwater).Externalfittingsare
alsoneededincludingthesafetyvalve,waterchargevalve,hotwater
valves(three-wayvalve).Temperaturesensorshouldbeaddedinthe
storagewatertank.Additionalelectricheatercanbeinstalledinthe
DHWtankorthebuffertankwhichcangetthecontrolsignalfromthe
heatpump.
Heat Pump
User Interface
Domestic Hot Water
Fan Coil
DHW Tank
Radiator
s
Tap water
Buffer Tank
Floor Heating
5.2InstallationwithHydronicBox
Pprovidesthemonoblockheatpump(withoutcirculationpump)andthe
Hydronicbox.Hydronicboxincludesonesmallsizebuilt-inbuffertank,
onemaincirculationwaterpump,onespaceheating/coolingcirculation
waterpump,oneDHWpump,safetyvalve,waterchargevalveand
expansiontank,electricalheater.Wheninstalltheunit,installershould
connecttheheatpumpdirectlytotheHydronicboxwhilethebuffer
tank(forspaceheating/cooling)isconsideredwhethertoaddornot.
Storagewatertankisneededforthedomestichotwaterapplication.
Temperaturesensorshouldbeaddedinthestoragewatertank.
Buffer Tank
Radiators
Floor Heating
User Interface
Heat Pump
DHW Tank
Tap
water
Hydronic
Module
Fan Coil
Domestic Hot Water
5.3InstallationwithMulti-functionsbox
Providesthemonoblockheatpump(withoutcirculationpump)andthe
Multi-functionsbox.Multi-functionsboxincludesone50-literbuffertank,
one
150-literstoragetank,onemaincirculationwaterpump,onespaceheating/cooling
circulationwaterpump,onedomestichotwaterpump,safetyvalve,watercharge
valveandhotwatervalve.Wheninstalltheunit,installerjustconnecttheheatpump
directlytotheMulti-functionsbox.
Multi-function
Water Tank
User Interface
Heat Pump
Tap water
Domestic Hot Water
Fan Coil
Radiator
Floor Heating

8
6. Handling &Installation
6.1. Packing List
Heat Pump Unit × 1
Display Mounting Plate × 1
Rubber Feet × 4
Drain Connection × 1
Display Connecting Wire × 1
Thermistor × 1
*optional accessory
6.2. Installation Site Requirement (Unit: mm)
≥500
≥1500
≥500
≥1000
≥150
≥1000

9
Φ20
3
12
P6
P10A/P10T
P17A/P17T
P24T
L
750
953
997
1172
H
805
915
1315
1605
W
442
423
395
397
A
750
700
650
725
B
473
443
400
415
A
1002
700
650
725
B
P1
200
200
200
200
P2
150
150
150
150
P3
B+100
B+100
B+100
B+100
60 M10×4
B
P1
P2
A
P3
×4
W
L
H
B
A
4

10
6.3. Cable Specification
6.3.1 Single Phase Unit
Nameplate
max. current
Phase
line
Earth line
MCB
Creepage protector
Signal line
Less than
10A
2×1.5 mm2
1.5 mm2
20A
30mA less than 0.1 sec
n×0.5mm2
10~16A
2×2.5 mm2
2.5 mm2
32A
30mA less than 0.1 sec
16~25A
2×4 mm2
4 mm2
40A
30mA less than 0.1 sec
25~32A
2×6 mm2
6 mm2
40A
30mA less than 0.1 sec
32~40A
2×10 mm2
10 mm2
63A
30mA less than 0.1 sec
40 ~63A
2×16mm2
16mm2
80A
30mA less than 0.1 sec
63~75A
2×25 mm2
25mm2
100A
30mA less than 0.1 sec
75~101A
2×25 mm2
25mm2
125A
30mA less than 0.1 sec
101~123A
2×35 mm2
35 mm2
160A
30mA less than 0.1 sec
123~148A
2×50 mm2
50 mm2
225A
30mA less than 0.1 sec
148~186A
2×70 mm2
70 mm2
250A
30mA less than 0.1 sec
186~224A
2×95 mm2
95 mm2
280A
30mA less than 0.1 sec
6.3.2 Three Phase Unit
Nameplate
maximum
current
Phase line
Earth line
MCB
Creepage protector
Signal line
Less than
10A
3×1.5 mm2
1.5mm2
20A
30mA less than 0.1 sec
n×0.5mm2
10~16A
3×2.5 mm2
2.5mm2
32A
30mA less than 0.1 sec
16~25A
3×4 mm2
4mm2
40A
30mA less than 0.1 sec
25~32A
3×6 mm2
6mm2
40A
30mA less than 0.1 sec
32~40A
3×10 mm2
10mm2
63A
30mA less than 0.1 sec
40 ~63A
3×16mm2
16mm2
80A
30mA less than 0.1 sec
63~75A
3×25mm2
25mm2
100A
30mA less than 0.1 sec
75~101A
3×25 mm2
25mm2
125A
30mA less than 0.1 sec
101~123A
3×35 mm2
35mm2
160A
30mA less than 0.1 sec
123~148A
3×50 mm2
50mm2
225A
30mA less than 0.1 sec
148~186A
3×70 mm2
70mm2
250A
30mA less than 0.1 sec
186~224A
3×95 mm2
95mm2
280A
30mA less than 0.1 sec
If the unit is installed outdoor, please use the cable which can against UV.
6.4. Display Interface
⑫⑪ ⑩ ⑭ ⑨ ⑧ ⑦
⑬
① ② ③ ④ ⑤ ⑥
Key No.
Key Name
Key Function
①
ON/OFF
Switch the unit ON or OFF. Red represents ON, while
gray represents OFF.
②
Lock Screen
Lock the screen. White represents disabled, while
green represents enabled.
③
Running
Mode
Switch to Hot water mode, heating mode, cooling
mode, hot water + heating mode or hot water +
cooling mode
④
Temperature
Setting
Set the target temperature.
⑤
Timer
Setting
Set the timer. White represents disabled, while green
represents enabled.

11
⑥
Setup
Check the unit status, time, factory parameter,
temperature curve, timer setting and mute setting.
⑦
Fault
This icon will flash when there is an error showing up.
The display will enter fault record interface after
tapping this icon.
⑧
Defrosting
The unit is in defrosting mode when this icon shows
up.
⑨
Electric
Heater
The unit is in electric heater mode when this icon
shows up.
⑩
Ambient
Temperature
It shows the current ambient temperature.
⑪
Cooling
Mode
The unit is in cooling mode when this icon shows up.
⑫
Hot Water
Mode
The unit is in hot water mode when this icon shows up.
⑬
Tank Water
Temperature
The unit is in hot water mode when this icon shows up;
Otherwise, this icon is not shown.
⑭
Water Flow
It shows the current water flow (note: When H31=0,
the icon is not displayed).
7. Maintenance
7.1. Precautions for Daily Use
Before starting up the unit for the first time or after along-time shutdown, the
following preparations must be made:
(1) Thoroughly inspect and clean up the unit.
(2) Clean the waterway system.
(3) Check water pump, regulating valve and other waterway
equipment.
(4) Tighten all wire connections.
Do not change the system parameters before consulting the engineer.
Ensure the water refill and exhaust device in the waterway is well, otherwise
the performance and reliability of the unit will become worse.
Ensure the waterways are clean and avoid dirt and blockage.
Timely check the electrical, water and replace the faulty parts.
Please use the parts provided or recommended by the company, do not use the
parts unqualified.
Refrigerant supplement:
Each unit has been equipped with sufficient refrigerant when leaving the factory.
Do not charge or change the refrigerant.
If you need to replenish the refrigerant due to leakage, please contact the
engineer or dealer.

12
7.2. Periodic Maintenance (every 6months)
7.3. Inspection and Maintenance
7.3.1. Preparing for inspection and maintenance
Danger!
Risk of death caused by fire or explosion if there is arefrigerant leakage!
Only carry out the work if you are competent and have knowledge about the special
features and risks of R32 refrigerant.
The product contains combustible refrigerant R32. In the event of aleak, escaping
refrigerant may mix with air to form aflammable atmosphere. There is arisk of fire
and explosion.
Ensure that space is sufficiently aerated around the product.
Observe the basic safety rules before carrying out inspection and maintenance
work or installing spare parts.
Disconnect the product from the power supply but ensure that the product is still
earthed.
7.3.2. Cleaning the product
Do not clean the product with ahigh-pressure cleaner or adirect jet of water.
Clean the product using asponge and hot water with acleaning agent.
Do not use abrasive cleaners. Do not use solvents. Do not use any cleaning agents
that contain chlorine or ammonia.
7.3.3. Checking the evaporator, fan, and condensate discharge
Check whether there is dirt between the fins or whether depositions have adhered
to the fins.
Clean the fins using asoft brush, avoid fins from being bent.
Check whether dirt has accumulated on the condensate tray or in the condensate
discharge pipe.
Check that the water can drain freely.
Preparation
Before maintenance, please ensure that the unit stop
running and cut off the power supply.
Inspection and
cleaning of fin
heat exchanger
In order to ensure that heat exchangers remain
in optimum condition for heat exchange, their
surfaces must be kept clean.
Inspection and
cleaning of plate
heat exchanger
Every 6months or when the capacity of the unit
drops by more than 10%, check the water-side
heat exchanger for scale and clean the
heat exchanger.
Check the
electrical wiring
Check if the contact point is loose, oxidized, or
blocked by sundries, etc., which causes poor
contact of the electronic wiring.

13
7. Parameters
Model
PowerSupply / 230V~/30~90Hz 380V/3N~/30~90Hz 380V/3N~/30~90Hz 380V3N~/30~90Hz 380V/3N~/30~90Hz 380V/3N~/30~90Hz
MoistureResistance IPX IPX4 IPX4 IPX4 IPX4 IPX4 IPX4
ElectricalShockproof I I I I I I I
HeatingCondition-AmbientTemp.(DB/WB):7/6°C,WaterTemp.(In/Out):30/35°C
HeatingCapacityRange kW 2.29~8.25 4.70~12.50 7.00~20.50 10.00~25.00 7.00~20.50 10.00~25.00
HeatingPowerInputRange kW 0.63~1.81 1.08~3.44 1.50~6.00 2.80~5.70 1.50~6.00 2.80~5.70
HeatingCurrentInputRange A 3.2~8.0 2.1~5.7 2.5~10.0 4.67~10.17 2.5~10.0 4.67~10.17
CoolingCondition-AmbientTemp.(DB/WB):35/24°C,WaterTemp.(In/Out):12/7°C
CoolingCapacityRange kW 1.98~6.10 3.22~11.30 5.50~15.50 6.4~15.80 5.50~15.50 6.4~15.8
CoolingPowerInputRange kW 0.70~2.22 1.27~4.64 1.50~6.00 3.4~6.80 1.50~6.00 3.4~6.8
HeatingCurrentInputRange A 3.3~9.7 2.4~7.6 2.5~10.0 6.28~11.6 2.5~10.0 6.28~11.6
HotWaterFunctionisavailableforallthesizes.
Max.PowerInput kW 2.9 4.64 7.20 12.50 7.20 12.5
Max.CurrentInput A 13.0 21.5 12.0 20.3 12.0 20.3
WaterFlow m3/h 1 1.7 2.9 4.2 2.9 4.2
Refrigerant/ProperInput kg R32/1.3kg R32/1.7kg R32/2.0kg R32/3.4kg R32/2.0kg R32/3.4kgCO2
Equivalent Ton 0.88 1.08 1.35 2.27 1.35 2.27
SoundPressure(1m) dB(A) 37~54 42~55 44~58 53~59 44~58 53~59
UnitDimension(L/W/H) mm 1002×490×805 953×460×915 953×437×1315 1178×450×1605 997×437×1315 1178×450×1605
ShippingDimension(L/W/H) mm 1070×510×970 1050×500×1060 1050×450×1470 1220×500×1780 1080×450×1470 1220×500×1780
Compressor Brand Panasonic Panasonic Panasonic Panasonic Panasonic Panasonic
CirculationPump Brand GRUNDFOS GRUNDFOS GRUNDFOS GRUNDFOS GRUNDFOS GRUNDFOS
OperatingAmbientTemperature ℃ -25~43 -25~43 -25~43 -25~43 -25~43 -25~43
FanQuantity / 1 1 1 2 2 2
FanMotorType / DCmotor DCmotor DCmotor DCmotor DCmotor DCmotor
FanMotorPowerInput
(Min~Max) W 30~75 30~93 30~73 60~150 30~80 60~150
FanSpeed(RPM) RPM 300~850 300~800 300~800 300~800 300~800 300~800Water
Connection(Inch) Inch 1 1 1 11/4 11/4 11/4
WaterPressureDrop(max) kPa 28 35 35 68 65 68
CirculationPumpWaterHead m 5.5 5.5 12.5 21 12.5 21
CH-HP20UIMPRM CH-HP24UIMPRM
CH-HP08UIMPRK
CH-HP12UIMPRM

14
9. Wiring Diagram
CH-HP08UIMPRK
CH-HP12UIMPRM

15
CH-HP24UIMPRM
CH-HP20UIMPRM
CH-HP24UIMPRM

16
10. Display Operation Guide
10.1. Main Interface Display and Function
(1) Power on Interface
(2) Starting up Interface
⑫ ⑪ ⑩ ⑭ ⑨ ⑧ ⑦
⑬
① ② ③ ④ ⑤ ⑥
Key No.
Key Name
Key
Function
①
ON/OFF
Switch the unit ON or OFF. Red represents ON,
while grey represents OFF.
②
Lock Screen
Lock the screen. White represents disabled,
while green represents enabled.
③
Running Mode
Switch Hot water mode, heating mode, cooling
mode, hot water + heating mode or hot water +
cooling mode
④
Temperature Setting
Set the target temperature.
⑤
Timer Setting
Set the timer. White represents disabled, while
green represents enabled.
⑥
Setup
Check the unit status, time, factory parameter,
temperature curve, timer setting and mute
setting.
⑦
Fault
This icon will flash when there is an error
showing up. The display will enter fault record
interface after tapping this icon.
⑧
Defrosting
The unit is in defrosting mode when this icon
shows up.
⑨
Electric Heater
The unit is in electric heater mode when this icon
shows up.
⑩
Ambient Temperature
It shows the current ambient temperature.
⑪
Cooling Mode
The unit is in cooling mode when this icon shows
up.
⑫
Hot Water Mode
The unit is in hot water mode when this icon
shows up.
⑬
Tank Water
Temperature
The unit is in hot water mode when this icon
shows up; Otherwise, this icon is not shown.
⑭
Water Flow
(Only available for
some models. Will be
available for all before
Dec. 2021)
It shows the current water flow (note: When
H31=0, the icon is not displayed).

17

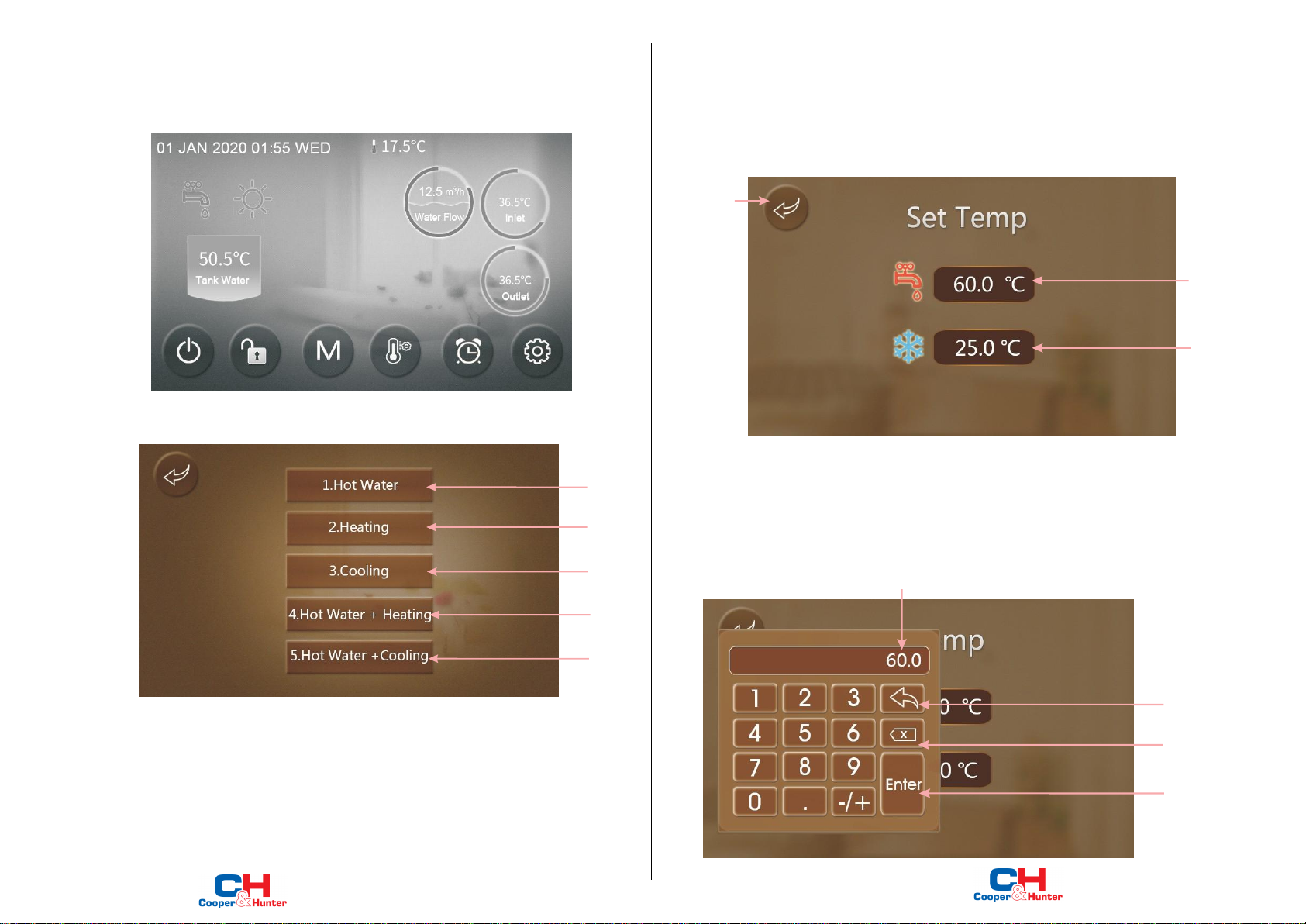

10.2. ON/OFF
As the main interface shows
(1) In the shutting down interface (on/off key is in grey status), press the on/off
key can start up the machine.
(2) Note: In starting up interface (on/off key is in red status), press the on/off key
can shut down the machine.
10.3. Mode Switch
In the main interface, there are five modes that can be selected after tapping the
mode key.
(1)tapping hot water mode icon ①,then the display will change to this mode’s
interface;
(2)tapping heating mode icon ②,then the display will enter this mode’s
interface;
(3)tapping cooling mode icon ③,then the display will switch to this mode’s
interface;
(4)tapping hot water +heating mode icon ④,then the display will go into the hot
water +heating mode’s interface;
(5)tapping hot water +cooling mode icon ⑤,then the display will come to the
hot water +cooling mode’s interface;
Note: If your unit is aheating-only model (without acooling function), the
"cooling" key will show on the interface.
10.4. The setting of Target Temperature
①
②
③
Take hot water +cooling mode for example:
Tapping ①,the wire controller will back to the main interface;
Tapping ②,the target temp of hot water can be set by the pop-up keyboard;
Tapping ③,the target temp of cooling mode can be set by the pop-up keyboard.
10.5. When the target temp is being set, the pop-up keyboard is shown as
following:
①
②
③
④
⑤
①
②
③
④

18
Key
No.
Key Name
Key Function
②
Return
key
Tapping this key can back to the main interface.
③
Delete
key
Tapping this key to undo the last action.
④
Enter key
Tapping this key can save you action and back to the main
interface.
Note: ①means the new target temp under the current setting
10.6. Unlock Screen
Click the lock screen key again while the screen has been locked, the pop-up
keyboard is shown as following:
Note: Input the password of 22 or 022 and click the enter key, the screen will be
unlocked.
10.7. Timer Setting
Click the timer setting key to enter the timer setting, the interface display is as
follows:
Key No.
Key name
Key color
Key function
①
Return key
Click this key to return to
the main interface.
②
Enable the timer
on/off
Enable: Green ON
Disable: Gray OFF
Click this key to start or
turn off the timed function
③
Enable the timer
off
Enable: Red ON
Disable: Gray OFF
Click this key to start or
turn off the timed
shutdown function
④
Hour of timer on
Click this button to set
the timing boot time
⑤
Hour of timer off
Click this button to set the
scheduled shutdown time
⑥
Page left
Click this button to turn the page
left
⑦
Page right
Click this button to turn page right
① ④ ⑤
⑥
②
③
⑦

19
10.8. Setup
Click the setup key to enter the setup and the interface display is shown as
follows:
①②③ ④
⑤ ⑥ ⑦
Key No.
Key Name
Key Function
①
Return key
Click this key to return to the main interface.
②
Operating mode
Click this key to view the current operating
parameters of the unit.
③
Electric heating
Click this key to turn on the unit Electric
heating.
④
Factory parameter
Click the key and enter the password to
enter the factory parameter settings and
status parameters interface.
⑤
System time
setting
Click this key to set the system time.
⑥
Mute setting
Click this key to set the unit mute function
mode.
⑦
Curve key
Click this key to view the temperature curve.
Note:
If the unit has ②,⑥or both functions, the corresponding icon will be displayed
on the setting interface.
In the setup interface:
(1)Tapping operating mode button②,then the interface display is shown as
follows:
(2)Tapping system time setting button⑤,then the interface display is shown as
follows:
Key No.
Key Name
Key Function
①
Return key
Click this key to return to the setup interface.
②
Up key
Click this key to increase the value.
③
Down key
Click this key to decrease the value.
④
Cannel key
Click this key to cancel the current settings and return
to the settings page.
⑤
Enter key
Click this key to save the current settings.
(3) Tapping Electric heating button③,then the interface display is shown as
follows:
②
③
④ ⑤
1
