In-Wall Smart Switch Installation Instructions
HIWMAS1BLE40A
• Turn OFF circuit breaker or remove fuse(s) and test that power is
off before wiring or servicing.
• Never wire any electrical device with power turned on. Wiring
device with power on may cause permanent damage to product
and void warranty.
• If you are not sure about any part of these instructions, please
contact a licensed electrician.
• Minimum 75°C supply conductors
• Edges may be Sharp - Wear gloves while handling.
• Connect switch to a 120 volt, 60 Hz power source. Any other
connection voids the warranty.
• Fixture should be installed by persons with experience in household
wiring or by a qualified electrician.The electrical system, and
the method of electrically connecting the fixture to it, must be in
accordance with the National Electrical Code and local building codes.
ONLY USE WITH NON-SMART LIGHTS
PACKAGING CONTENTS
SINGLE LOCATION OVERVIEW
ITEMS REQUIRED (Purchase separately)
A. Smart Switch B. (4) Wire Nuts C. (2) Screws • Philips Screwdriver
• Labels or electrical tape for tagging wiring
• Voltage tester
• Tape or labels (3- or 4-way wiring)
• Gloves
The HALO Home Smart Switch requires a neutral wire for operation. If there is no neutral wire at the current switch location,
contact a licensed electrician for installation.
The HALO Home Smart Switch easily replaces a single location standard switch to allow incandescent, LED/CFL loads, or small
motor loads such as a ceiling or exhaust fan to be turned ON and OFF by the HALO Home App and HALO Home controllers.
Max Loads: 720W Incandescent, 600W LED/CFL/FL/ELV, 600VA MLV, 1/2 HP Motors
A. B. C.

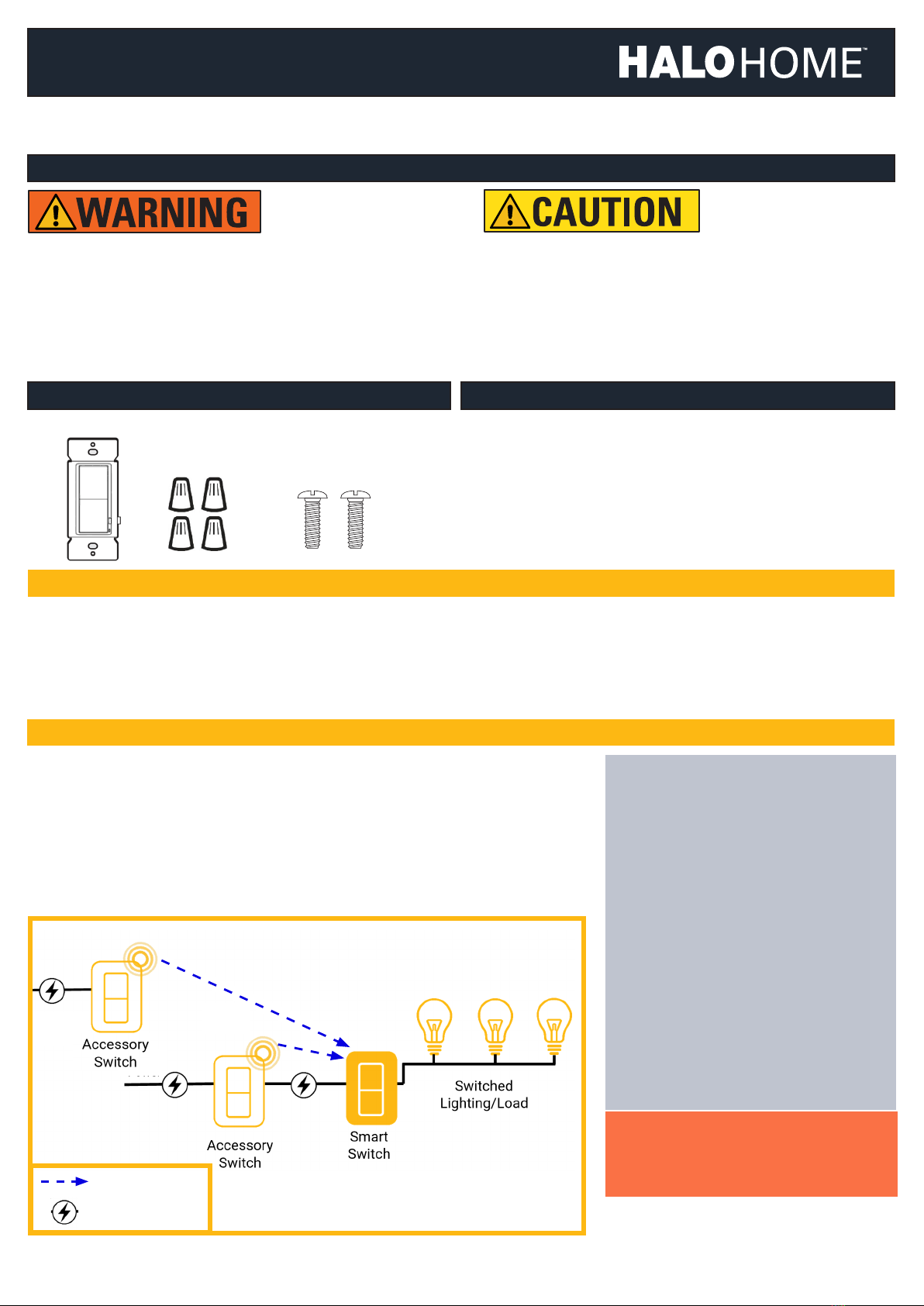

MULTI-LOCATION CONTROL OVERVIEW
TIPS: When retrofitting existing 3-way
or 4-way locations:
• Verify that there is a neutral wire at
EACH switch location. (White wires
connected to switch terminals and
marked with electrical tape are
typically NOT neutral wires.)
• Only 1 HALO Home Smart Switch will
be used in the circuit.
• The HALO Home Smart Switch must
be directly connected to the
lighting load.
• HALO Home Accessory Switches
cannot wire downline of a Smart
Switch. They require a constant hot
feed (unswitched and undimmed).
• HALO Home Accessory Switches can
be powered from a different circuit
than the lighting/Smart Switch if
necessary.
3-way and 4-way wiring can be
confusing. If wiring does not match
diagrams shown, stop and consult with
an electrician.
ENGLISH

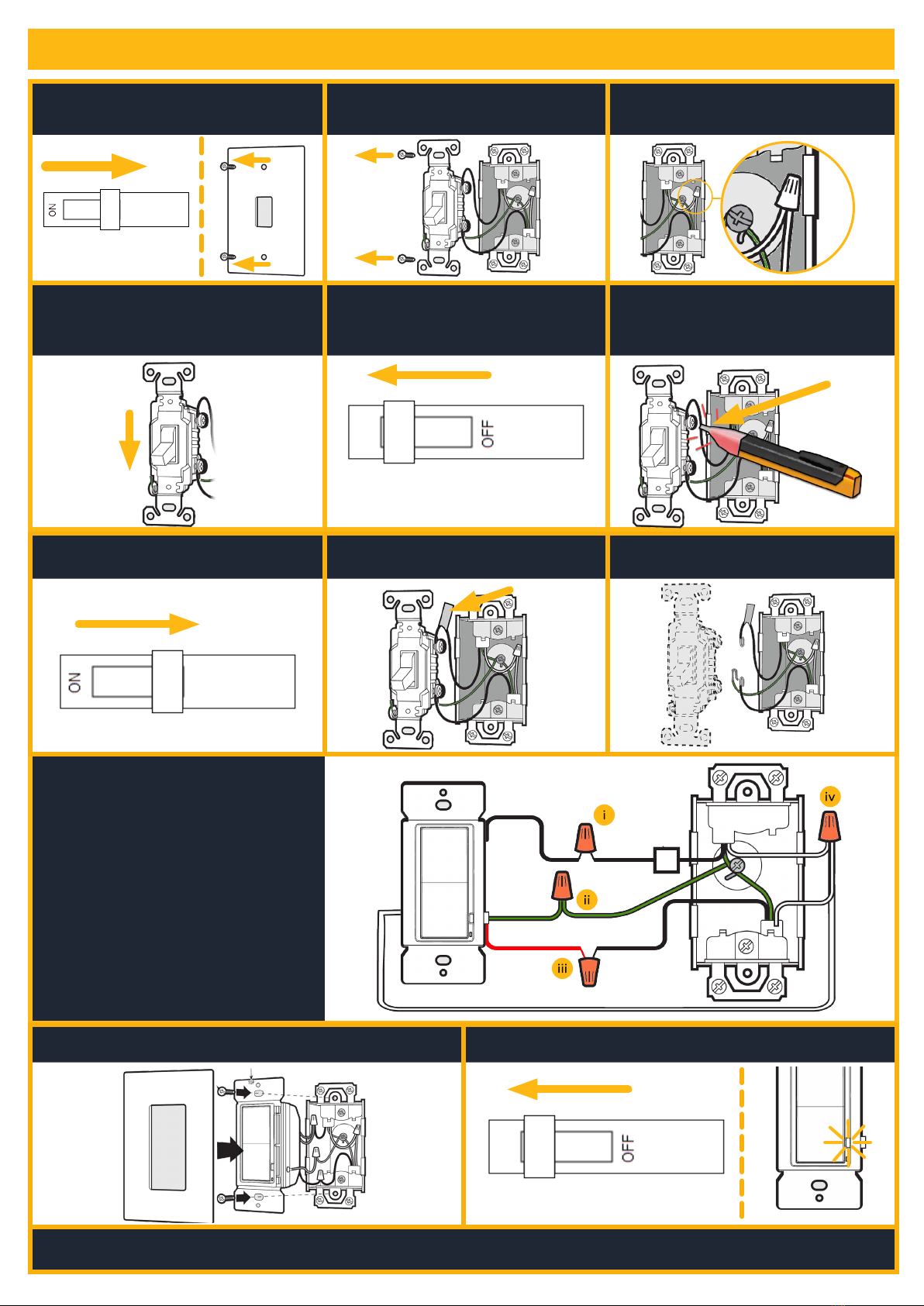

Connect the HALO Home Smart
Switch (A) using provided wire nuts
(B).
i. Connect the tagged ‘Hot’ wire to the
Smart Switch’s black wire.
ii. Connect the bare copper or green
ground wire from the wall-box to
the Smart Switch’s green wire.
iii. Connect the other switch wire (load)
to the Smart Switch’s red wire.
iv. Connect the neutral wire in the
wall-box to the Smart Switch’s white
wire. (NEUTRAL IS REQUIRED).
Turn OFF power at the circuit breaker Use a label or electrical tape to tag
the identified ‘Hot’/power wire.
Disconnect the wires and remove the
switch.
HOT
Using the screws provided (C), mount the Smart Switch
in the wall-box and attach a wall plate (not included).
Turn ON power at the circuit breaker. (An LED indicator
will start flashing when power is turned ON).
Using your smart phone/tablet, follow the online Quick Start Guide to pair this product to your HALO Home account.
BringHaloHome.com
Turn OFF power at the circuit breaker
and remove the wall plate
Leaving wiring attached, pull the
switch away from the wall.
Verify that there is a neutral wire
available. If not, stop and consult a
licensed electrician.
Turn the wall switch to the OFF
position but keep wires connected.
Ensure wiring is safely separated
and terminals are not touching
anything, and then turn ON power
at the circuit breaker.
DO NOT TOUCH EXPOSED WIRE OR
TERMINALS. Using a voltage tester,
determine and note which wire still
has power (‘Hot’).
HOT
4
1
7
10
11
13
12
5
2
8
6
3
9
SINGLE-POLE INSTALLATION (1 Switch)
ON
ON
OFF
OFF

Turn OFF power at the
circuit breaker.
Disconnect the wiring and remove both switches.
Turn OFF the light using one of the
switches. Turn OFF power at the circuit
breaker.
Remove the wall plates
from the existing light
switches.
Leaving wiring attached, remove screws and pull
the switches away from the wall. Verify that BOTH
switch locations have a neutral wire available. If
not, stop and consult a licensed electrician.
Neutral
1 2
Accessory
8 9
3
At each switch location, place electrical tape or a label on
the wire connected to the different colored screw terminal
(common).
Ensure wiring is safely separated and terminals are not
touching anything, and then turn ON power at the circuit
breaker.
4 5
DO NOT TOUCH EXPOSED WIRE OR TERMINALS. Using a
voltage tester, determine which switch location has power
on the tagged wire. (The powered location is connected to the breaker
while the unpowered location is connected to the switched load.)
Use tape or label to tag the powered switch location
“ACCESSORY”. Label the other switch location “SMART”.
Accessory
6 7
Smart
Smart
3-WAY INSTALLATION (2 Switches)
ON
OFF
OFF
HOT
HOT

At the location labeled
“ACCESSORY” connect the HALO
Home Accessory Switch using
provided wire nuts.
v. Connect the tagged wire (power) to
the Accessory Switch’s black wire.
vi. Connect the bare copper or green
ground wire from the wall-box to
the Accessory Switch’s green wire.
vii. Connect the other two switch wires
to the Accessory Switch’s red wire.
viii. Connect the neutral wire in the wall-
box to the Accessory Switch’s white
wire. (NEUTRAL IS REQUIRED).
At the location labeled “SMART”,
connect the HALO Home Smart
Switch (A) using provided wire nuts
(B).
i. Connect the tagged wire (lighting
load) to the Smart Switch’s red wire.
ii. Connect the bare copper or green
ground wire from the wall-box to
the Smart Switch’s green wire.
iii. Connect the other two switch wires
(INCOMING POWER) to the Smart
Switch’s black wire.
iv. Connect the neutral wire in the
wall-box to the Smart Switch’s white
wire. (NEUTRAL IS REQUIRED).
3-WAY INSTALLATION (2 Switches) Continued
3-WAY WIRING DIAGRAM
Accessory
Smart
10
11
Using the screws provided (C), mount the Smart Switch
in the wall-box and attach a wall plate (not included).
Turn ON power at the circuit breaker. (An LED indicator
will start flashing when power is turned ON).
Using your smart phone/tablet, follow the online Quick Start Guide to pair this product to your HALO Home account.
BringHaloHome.com
12
14
13
ON
RedLoad
Red
Hot
Neutral
Neutral
HALO Home
Smart Light(s)
Green
Ground
Traveler Wires
Black
Black
White White
Green
Ground
Accessory
Switch
Accessory
Switch
Smart
Switch
Red
Red
Load
Hot
Neutral
Neutral
Standard
Light(s)
Traveler Wires
Black
White
Green
Ground
Accessory
Switch
Accessory
Switch
White
Green
Ground
Red
Traveler Wires
Black
Black
White
Green
Ground
Red
Red
Load
Hot
Neutral
Neutral
Traveler Wires
Black
White
Green
Ground
Accessory
Switch
Accessory
Switch
Accessory
Switch
White
Green
Ground
Red
Traveler Wires
Black
Black
White
Green
Ground
HALO Home
Smart Light(s)
RedLoad
Red
Hot
Neutral
Neutral
Standard
Light(s)
Green
Ground
Traveler Wires
Black
Black
White White
Green
Ground
Smart
Switch
Accessory
Switch
RedLoad
Red
Hot
Neutral
Neutral
HALO Home
Smart Light(s)
Green
Ground
Traveler Wires
Black
Black
White White
Green
Ground
Accessory
Dimmer
Accessory
Dimmer
Smart
Dimmer
Red
Red
Load
Hot
Neutral
Neutral
Standard
Light(s)
Traveler Wires
Black
White
Green
Ground
Accessory
Dimmer
Accessory
Dimmer
White
Green
Ground
Red
Traveler Wires
Black
Black
White
Green
Ground
Red
Red
Load
Hot
Neutral
Neutral
Traveler Wires
Black
White
Green
Ground
Accessory
Dimmer
Accessory
Dimmer
Accessory
Dimmer
White
Green
Ground
Red
Traveler Wires
Black
Black
White
Green
Ground
HALO Home
Smart Light(s)
RedLoad
Red
Hot
Neutral
Neutral
Standard
Light(s)
Green
Ground
Traveler Wires
Black
Black
White White
Green
Ground
Smart
Dimmer
Accessory
Dimmer
HOT

(Make sure circuit breaker is still OFF from previous steps.)
At each 4-way switch location, identify the 2 separate pairs
of wires.
Disconnect the wiring, keeping the 2 pairs separated.
2
1
4-Way Switch 4-Way Switch
2
1
Connect HALO Home Accessory
Switches at each 4-way switch
location using provided wire nuts.
i. Connect 1 of the pair of wires to the
Accessory Switch’s black wire.
ii. Connect the bare copper or green
ground wire from the wall-box to the
Accessory Switch’s green wire.
iii. Connect the other pair of switch
wires to the Accessory Switch’s red
wire.
iv. Connect the neutral wire in the wall-
box to the Accessory Switch’s white
wire. (NEUTRAL IS REQUIRED). Pair 2
Pair 1
In locations with 3 or more switches, the following rules will be true:
• 2 locations will have 3-way switches: 3 wiring terminals plus a ground terminal.
• All remaining locations will have 4-way switches: 4 wiring terminals plus a ground terminal.
Ground Ground
!
3
5
4
4-WAY INSTALLATION (3+ Switches)
3-WAY 4-WAY
1 1
3
2 2
3 4
Follow steps 1 - 3 in the “3-WAY INSTALLATION (2
Switches)” section, removing 3- and 4-way switches from
the wall in step 3. All switch locations must have a neutral.
At the two 3-way switch locations, follow steps 4 - 11 in the
“3-WAY Installation (2 Switches)” section and then return
to this section for further instruction.
1 2
Using the screws provided (C), mount the Smart Switch
in the wall-box and attach a wall plate (not included).
Turn ON power at the circuit breaker. (An LED indicator
will start flashing when power is turned ON).
Using your smart phone/tablet, follow the online Quick Start Guide to pair this product to your HALO Home account.
support.BringHaloHome.com
6
8
7
ON

FACTORY RESET CIRCUIT DISCONNECT (AIR-GAP)
ONLY DOTHIS STEP IFYOU ARE UNABLETO REMOVE THE
DEVICE USINGTHE APP.
If removal does not work, delete it in the app by clicking “my
device is broken” and then follow the factory reset steps:
1. Press and hold the ON button for 12 seconds to reset.
2. The load may turn OFF or ON and the LED will start flashing
indicating the reset is processing.The LED will continue
flashing to indicate that the switch is ready to be paired with
the HALO Home App.
To replace a bulb, disconnect power to this switch and any con-
nected loads by using a flathead screwdriver to pull the air-gap
switch out until you hear a click. For anything other than bulb
replacement, power must be disconnected at the circuit breaker.
4-WAY INSTALLATION (3+ Switches) Continued
4-WAY WIRING DIAGRAM
RedLoad
Red
Hot
Neutral
Neutral
HALO Home
Smart Light(s)
Green
Ground
Traveler Wires
Black
Black
White White
Green
Ground
Accessory
Switch
Accessory
Switch
Smart
Switch
Red
Red
Load
Hot
Neutral
Neutral
Standard
Light(s)
Traveler Wires
Black
White
Green
Ground
Accessory
Switch
Accessory
Switch
White
Green
Ground
Red
Traveler Wires
Black
Black
White
Green
Ground
Red
Red
Load
Hot
Neutral
Neutral
Traveler Wires
Black
White
Green
Ground
Accessory
Switch
Accessory
Switch
Accessory
Switch
White
Green
Ground
Red
Traveler Wires
Black
Black
White
Green
Ground
HALO Home
Smart Light(s)
RedLoad
Red
Hot
Neutral
Neutral
Standard
Light(s)
Green
Ground
Traveler Wires
Black
Black
White White
Green
Ground
Smart
Switch
Accessory
Switch
RedLoad
Red
Hot
Neutral
Neutral
HALO Home
Smart Light(s)
Green
Ground
Traveler Wires
Black
Black
White White
Green
Ground
Accessory
Dimmer
Accessory
Dimmer
Smart
Dimmer
Red
Red
Load
Hot
Neutral
Neutral
Standard
Light(s)
Traveler Wires
Black
White
Green
Ground
Accessory
Dimmer
Accessory
Dimmer
White
Green
Ground
Red
Traveler Wires
Black
Black
White
Green
Ground
Red
Red
Load
Hot
Neutral
Neutral
Traveler Wires
Black
White
Green
Ground
Accessory
Dimmer
Accessory
Dimmer
Accessory
Dimmer
White
Green
Ground
Red
Traveler Wires
Black
Black
White
Green
Ground
HALO Home
Smart Light(s)
RedLoad
Red
Hot
Neutral
Neutral
Standard
Light(s)
Green
Ground
Traveler Wires
Black
Black
White White
Green
Ground
Smart
Dimmer
Accessory
Dimmer
FCC Statement
• This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
• (1) This device may not cause harmful
interference.
• (2) This device must accept any interference
received, including interference that may
cause undesired operation.
ote:N The grantee is not responsible for any
changes or modifications not expressly
approved by the party responsible for
compliance. Such modifications could void the
user’s authority to operate the equipment.
ote:N This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
• This equipment generates uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV
technician for help
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: 2AKCY-HIWMAS1BLE40A
Responsible Party – U.S. Contact Information
Cooper Lighting Solutions
1121 Highway 74 S
Peachtree City, GA 30269
www. cooperlighting.com
RF Exposure Statement
• This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with minimum distance of 20 cm
between the radiator and your body.
IC Statement
• This device contains licence-exempt
transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation
is subject to the following two conditions: 1.
This device may not cause interference. 2. This
device must accept any interference, including
interference that may cause undesired operation
of the devicen.
IC 20cm RF
• This equipment complies with IC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with minimum distance of 20 cm
between the radiator and your body.
• Do not make or alter any open holes in an
enclosure of wiring or electrical components
during kit installation.
FCC ID: 2AKCY-HIWMAS1BLE40A
IC: 4706A-HIWMASBLE40
SAVE THESE INSTRUCTIONS AND
WARNINGS.
FCC STATEMENT
Cooper Lighting Solutions
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.cooperlighting.com
© 2021 Cooper Lighting Solutions
All Rights Reserved.
Specifications and dimensions
subject to change without notice.
IL518126ML page 6
January 15, 2021 4:52 PM
5-YEAR WARRANTY
For warranty information, please visit
www.cooperlighting.com/legal
Construction of control: Independently
Mounted for Flush Mounting
Type of Action: Type 1.B Action
Pollution Degree: 2
Rated Impulse Voltage: 2500 V
Software Class: Class A
SUPPLEMENTAL INFORMATION
