Coopers of Stortford F880 User manual

Super 8 Converter F880 Instructions for Use
Please read and retain these instructions for future reference v001: 25/03/19
Technical Detail
Function
Film to Digital Converter
Interface
USB2.0
Image Sensor:
3.53Mega pixels(2304(H)x1536(V)1/3”
CMOS sensor
Display
Colour 2.4” TFT LCD
Exposure control
Automatic/Manual (-2.0 EV - +2.0EV)
White Balance
Automatic
Resolution
1080P(1440’1080 30fps)
Frame Rate
30 Frames(2 frame speed recording, 30 frames
replay)
Scan method
Video
Film type
5”&3” Reel 8mm roll film & Super8 roll film
Picture effects
Positive
File format
MPEG-4(MP4)
TV-out type
NTSC/PAL
Built-in memory
None
External memory card
SD card up to 32GB
Power supply
DC 12V Mains Adaptor
Language
English/French/German/Italian/Spanish/Japanese/S-
Chinese/T-Chinese
Support system
Windows XP/Vista/Windows 7/8/10
Mac 10.7.3
Product size
L269 xW114 xH166mm
Weight
1410g
Contents
Technical Detail ..................................................................................................................................... 1
Product Structure Diagram & Accessories ............................................................................................... 2
Keyboard ............................................................................................................................................... 3
Reel Folding Methods ............................................................................................................................ 4
Film Install Methods .............................................................................................................................. 5

Super 8 Converter F880 Instructions for Use
Please read and retain these instructions for future reference v001: 25/03/19
Power on/off ......................................................................................................................................... 6
Function Setting Menu........................................................................................................................... 7
Save the video to PC .............................................................................................................................. 8
Fast Forward.......................................................................................................................................... 9
WARNINGS AND SAFETY INSTRUCTIONS:................................................................................................ 9
PLUG WIRING (UK & IRELAND) ............................................................................................................. 10
CARE AND CLEANING INSTRUCTIONS.................................................................................................... 11
DISPOSAL............................................................................................................................................. 11
Please do not attempt to disassemble or modify any part of the scanner.
Please do not contact the inner part of the scanner after dropping the unit or if the unit suffers any
damage.

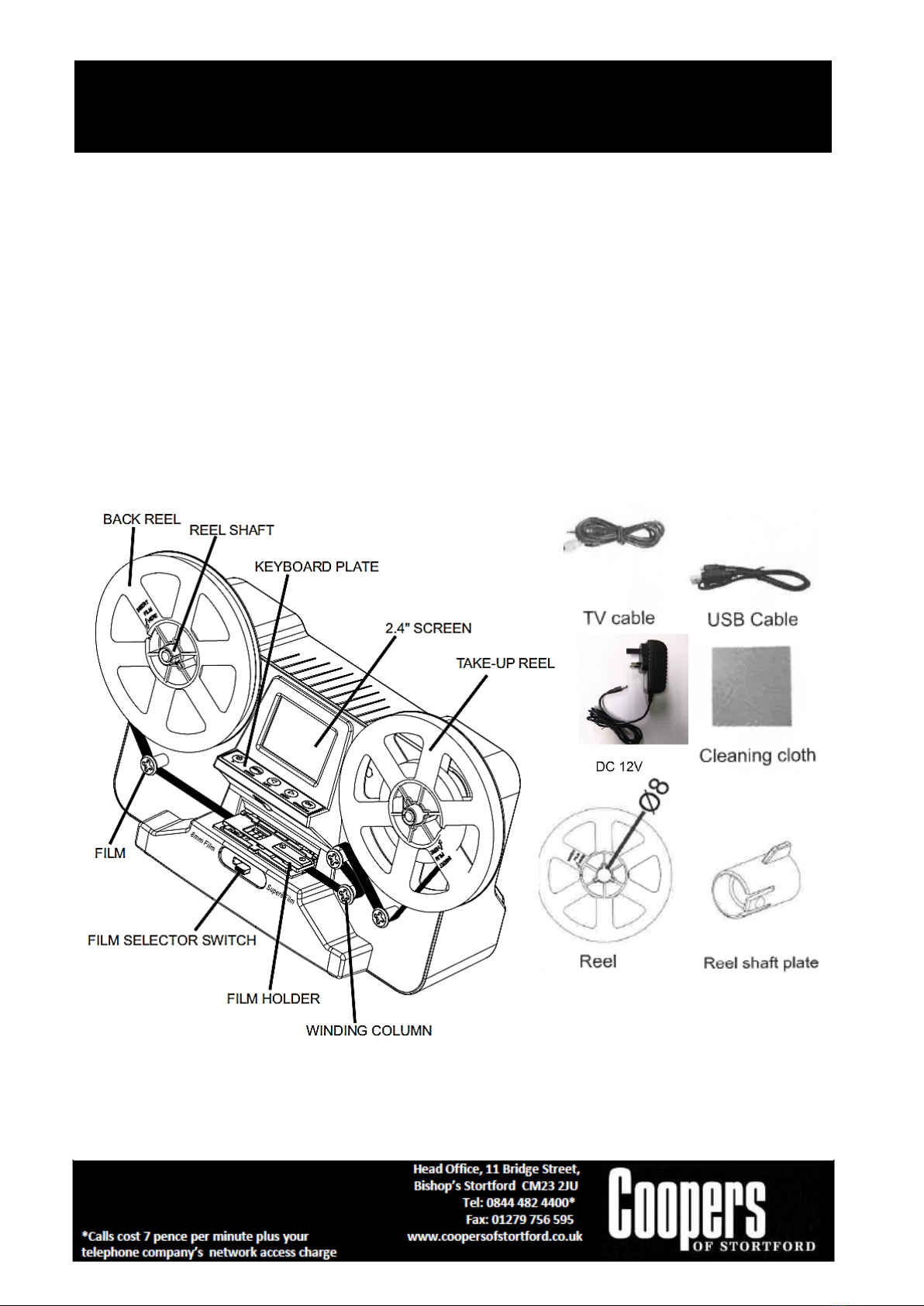

Product Structure Diagram & Accessories

Super 8 Converter F880 Instructions for Use
Please read and retain these instructions for future reference v001: 25/03/19
Please stop using the product if there is any problem with it, such as smoke or a smell while using.
Please insert the SD card (Over Class6) before starting.
Please do not use in a dusty or damp environment.
Please do not overload the USB connections on your computer to avoid overworking the scanner.
Please use films of the standard size.
Cleaning: To produce a clean image, make sure the scanner is clean before using.
Non use period: The USB cord or adapter should be unplugged from the computer or plug seat
when the unit is left for a long period of time.
This item is loud when working, please do not disturb others.

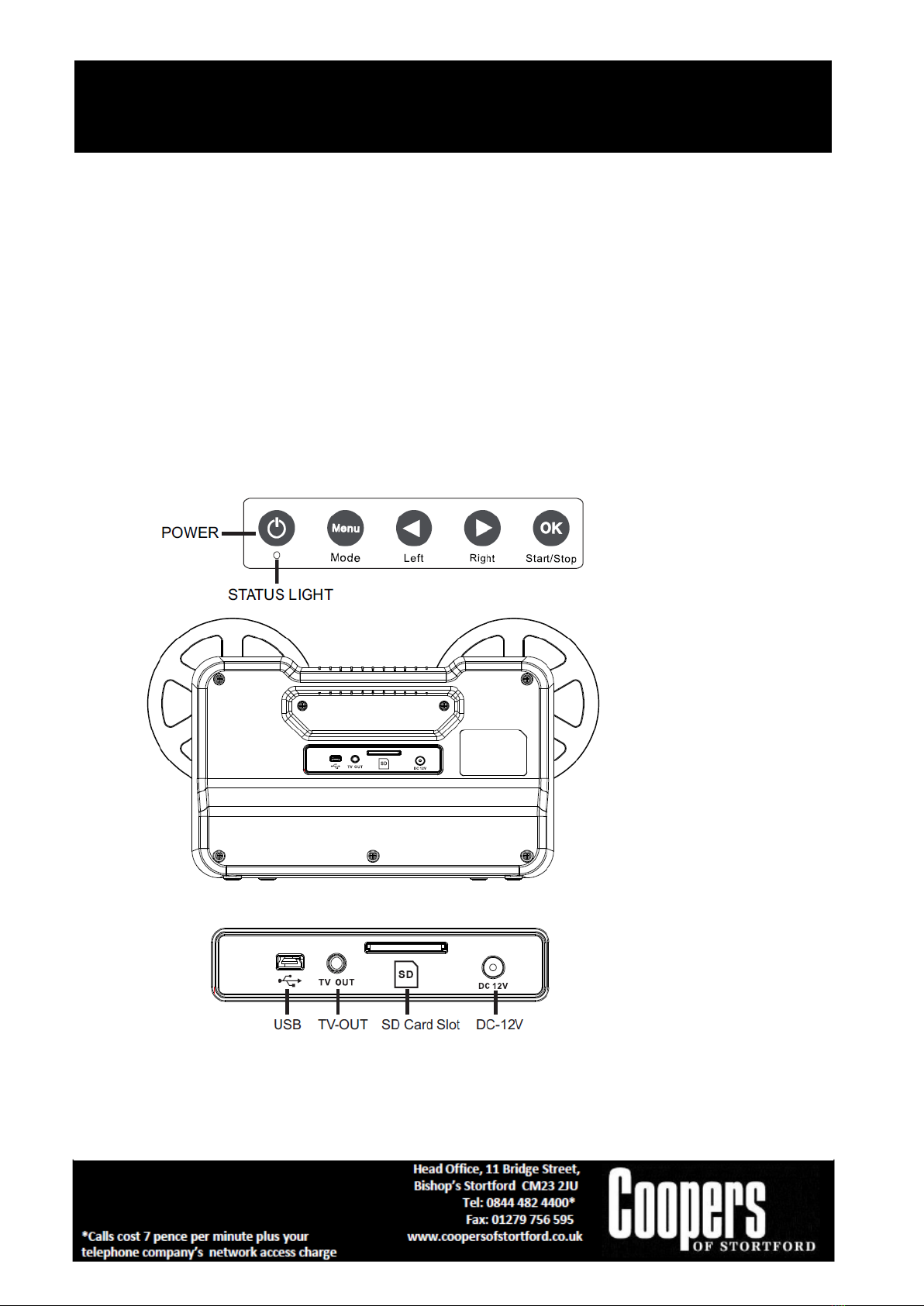

Keyboard
Rear

Super 8 Converter F880 Instructions for Use
Please read and retain these instructions for future reference v001: 25/03/19
Reel Folding Methods
Reel hole diameter 8mm
Reel hole diameter 13mm

Super 8 Converter F880 Instructions for Use
Please read and retain these instructions for future reference v001: 25/03/19
Film Install Methods
The structural representation

Super 8 Converter F880 Instructions for Use
Please read and retain these instructions for future reference v001: 25/03/19

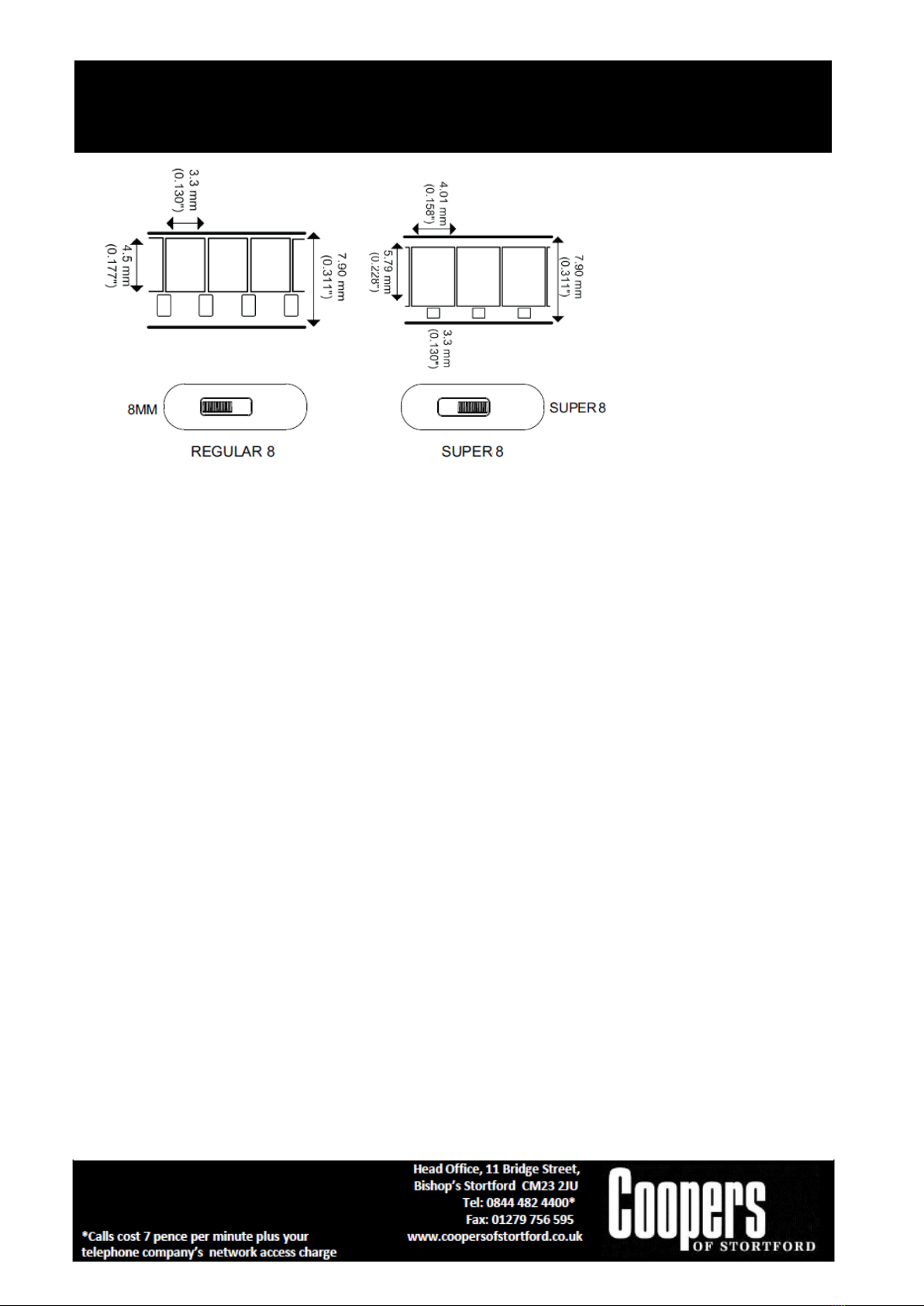

Please use available film
Power on/off
Power on: Insert the SD card (over class 6), connect the power cable (DC12V) press POWER button into
preview mode, after two revolutions of the motor, the status light turns on;
Power off: short press POWER button and the status light will turn off.
Video recording: Press POWER button, into preview mode, press OK button to select the reset size after
starting video, and then press OK button to stop the video.
The scanning speed is 2 frames/second. Please press OK button to stop scanning 15 seconds after it starts,
if needed.
The red point light flashes once per second on the screen and the display time will countdown when
working.
After the film is finished the converter will stop automatically.

Super 8 Converter F880 Instructions for Use
Please read and retain these instructions for future reference v001: 25/03/19

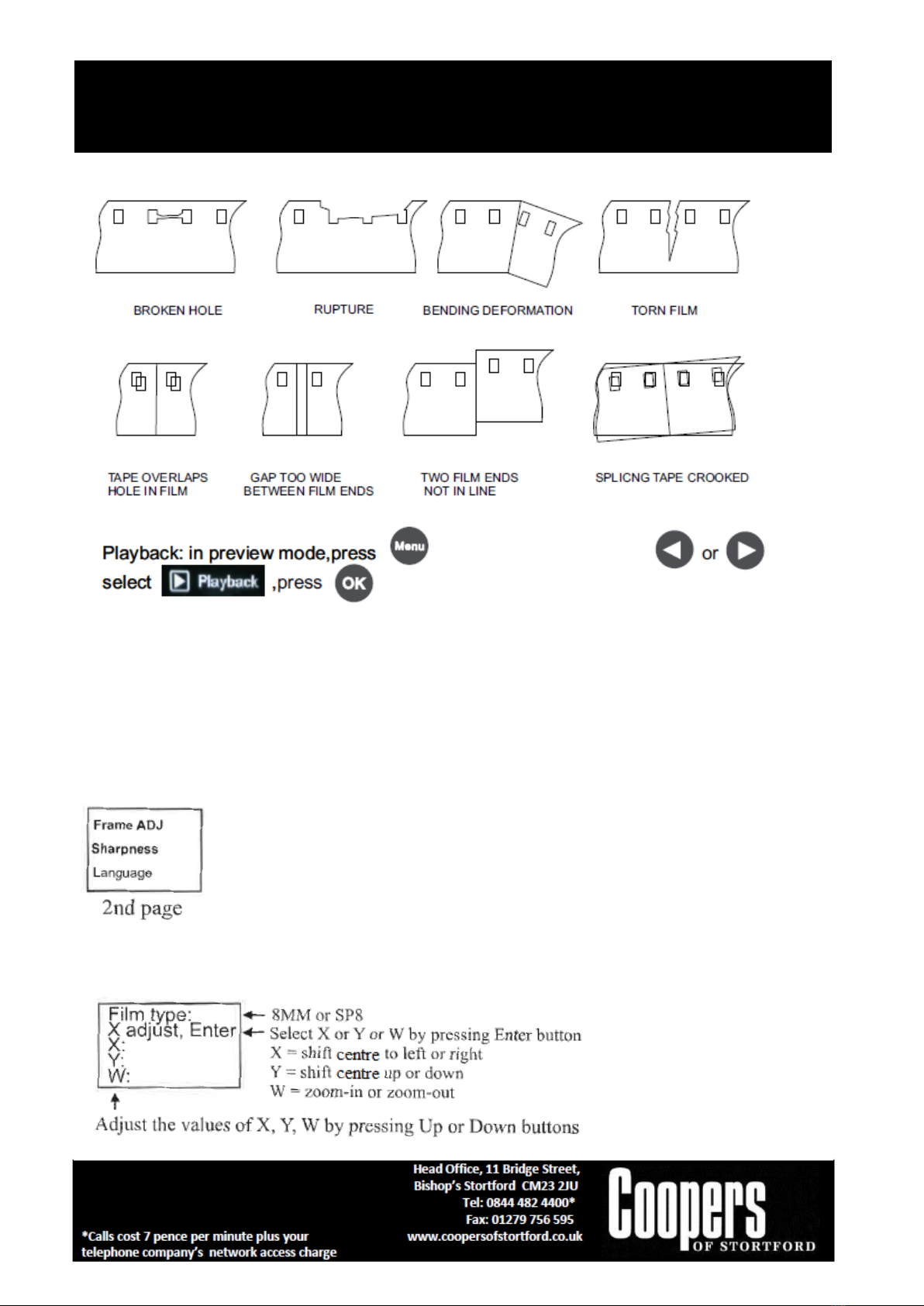

Please ensure your film is well preserved. Film as shown below is unsuitable:
Function Setting Menu
Press MENU button into setting mode interface. Press LEFT or RIGHT button to select option. Press OK
button to select. After you select option, press MENU button again to exit.
Press MENU button to enter the interface of system setting menu.
Sharpness
Sharpness ranges from Low to High. The default setting is Medium.
Frame ADJ
You can make the adjustment of Movie Register (the film centre X and Y).

Super 8 Converter F880 Instructions for Use
Please read and retain these instructions for future reference v001: 25/03/19
1
Menu
Option
2
Playback
Return/Delete/Protect
3
Fast Forward
Yes/No
4
Exposure
+2.0 - -2.0
5
Frame ADJ
6
Sharpness
Low/Medium/High
7
Language
English/French/German/Italian/Spanish/Japanese/S-
Chinese/t-Chinese
8
USB
USB Upload/Insert USB cable
9
Format
Cancel/OK
10
Default Version
Cancel/OK
11
Version
Note: The scanner will save the last setting used when switched off.
Save the video to PC
Insert the USB cable, press MENU button into MENU mode, select USB button, press OK into upload mode.
Press MENU button or unplug USB cable directly to stop upload mode and back to preview mode.
Uploading: into upload mode, under the U-disk mode, you can copy or cut the files to the computer to play.
You can also remove the SD card, and use a card reader to read the data from the card.

Super 8 Converter F880 Instructions for Use
Please read and retain these instructions for future reference v001: 25/03/19
Fast Forward
WARNINGS AND SAFETY INSTRUCTIONS:
WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED:
READ ALL INSTRUCTIONS BEFORE USE.
FOR DOMESTIC INDOOR USE ONLY.
DO NOT USE OUTDOORS OR FOR COMMERCIAL USE.

Super 8 Converter F880 Instructions for Use
Please read and retain these instructions for future reference v001: 25/03/19
BEFORE USE, CHECK THOROUGHLY FOR ANY DEFECTS AND DO NOT USE IF DEFECTS ARE FOUND.
TAKE CARE NOT TO DROP THE APPLIANCE AS HEAVY IMPACTS MAY CAUSE INTERNAL DAMAGE.
BEFORE CONNECTING THE APPLIANCE, CHECK IF THE VOLTAGE INDICATED ON THE BOTTOM OF
THE APPLIANCE IS IN ACCORDANCE WITH THE MAINS VOLTAGE IN YOUR HOME.
CHECK THE APPLIANCE AND POWER CABLE CAREFULLY FOR DAMAGE BEFORE EACH USE.
THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH
REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND
KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE
APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT
PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY
CHILDREN WITHOUT SUPERVISION.
CHILDREN OF LESS THAN 3 YEARS SHOULD BE KEPT AWAY UNLESS CONTINUOUSLY SUPERVISED.
THE USE OF ANY ACCESSORY ATTACHMENTS NOT RECOMMENDED BY COOPERS OF STORTFORD
MAY CAUSE INJURIES AND INVALIDATE ANY WARRANTY YOU MAY HAVE.
DO NOT LET THE POWER CABLE HANG OVER THE EDGE OF A TABLE OR COUNTER, OR TOUCH HOT
SURFACES.
DO NOT PLACE ON OR NEAR HEAT SOURCES.
USE ON A LEVEL, STABLE SURFACE.
DO NOT COVER THE ITEM IN ANY WAY WHEN IN USE AS THIS MAY CAUSE OVERHEATING.
DO NOT USE THIS APPLIANCE FOR ANY OTHER USE THAN THE INTENDED USE IT IS DESIGNED FOR.
ENSURE THERE IS SUFFICIENT DISTANCE BETWEEN THIS APPLIANCE AND OTHER ITEMS ON THE
WORK SURFACE OR WORK STATION, OR SUFFICIENT DISTANCE BETWEEN THE APPLIANCE AND THE
CONFINES OF THE AREA IN WHICH IT IS SITUATED. WE RECOMMEND A MINIMUM CLEARANCE
AROUND ALL FACES OF AT LEAST 10CM.
TO PROTECT AGAINST ELECTRIC SHOCK, DO NOT IMMERSE POWER CABLE, PLUG OR APPLIANCE, IN
WATER OR ANY OTHER LIQUID.
UNPLUG FROM OUTLET WHEN NOT IN USE AND BEFORE CLEANING.
•DO NOT OPERATE ANY APPLIANCE WITH A DAMAGED POWER CABLE OR PLUG OR AFTER THE
APPLIANCE MALFUNCTIONS, OR HAS BEEN DAMAGED IN ANY MANNER. WE RECOMMEND THAT
THE POWER CABLE IS NOT KINKED OR STORED IN A TWISTED MANNER, AND THAT YOU REGULARLY
CHECK ITS CONDITION.
•ANY REPAIRS MUST BE CONDUCTED BY A QUALIFIED ELECTRICIAN OR ELECTRICAL SERVICE AGENT.
PLUG WIRING (UK & IRELAND)
This appliance is supplied with a mains adaptor/charger with BS1363 plug pins.
DO NOT use if the socket outlets in your home or office are not suitable for this product’s mains adaptor/
charger plug pins. Attempts to insert the mains adaptor/charger into the wrong socket is likely to cause
electric hazard or damage.
DO NOT use with any other mains transformer/charger than the one that is supplied with this product.

Super 8 Converter F880 Instructions for Use
Please read and retain these instructions for future reference v001: 25/03/19
CARE AND CLEANING INSTRUCTIONS
Always switch off and unplug before
cleaning.
Do NOT immerse in water. Risk of
electric shock.
Do NOT use abrasive cleaners or sharp
utensils to clean this appliance.
Wipe surfaces with a soft dry cloth.
Allow to dry thoroughly before further
use.
Store the appliance in a cool, dry place.
DISPOSAL
•Dispose of all packaging, paper, cartons, plastic and plastic bags in accordance with your local
recycling regulations.
•At the end of the product’s lifespan please dispose of it at an authorised household WEEE waste
recycling centre.
