Coopers J063 User manual

Exercise Bike J063 Instructions for Use
Please read and retain these instructions for future reference v001: 01/05/20
Dimensions
L70cm xW46cm xH103cm (27˝in x18in x40˝in)
Seat is height adjustable from 66cm to 79cm (26in to 31in).
Weighs 9.8kg (21lb).
Battery required 1x AA (supplied).
Max. weight capacity 110kg (17st 4lb).

Exercise Bike J063 Instructions for Use
Please read and retain these instructions for future reference v001: 01/05/20

Exercise Bike J063 Instructions for Use
Please read and retain these instructions for future reference v001: 01/05/20
ASSEMBLY VIEW
20

Exercise Bike J063 Instructions for Use
Please read and retain these instructions for future reference v001: 01/05/20
Part List
NO.
Description
QTY
NO.
Description
QTY
1
Main Frame
1
11
Flat washer
3
2
Rear Stabilizer
1
12
Seat
1
3
Front Stabilizer
1
13
Pedal(R)
1
4
Carriage Bolt
4
14
Fixing Bolt
4
5
Curved washer
8
15
Front Post
1
6
Domed Nut
4
16
Monitor Holder
(stored in the polystyrene bag
behind the monitor)
1
7
Pedal(L)
1
17
Monitor
(battery included)
1
8
Adjustment Knob
(stored inside separate bag
with monitor holder)
1
18
Fixing Bolt
2
9
Seat post
1
19
Handlebar
1
10
M8 lock nut
3
20
Tension Control
1
SPARE PARTS PICTURE:

Exercise Bike J063 Instructions for Use
Please read and retain these instructions for future reference v001: 01/05/20
ASSEMBLY INSTRUCTIONS:
Step 1:
1. Attach the Front Stabilizer (pt.
3) to the Main Frame (pt. 1) using
2 sets of M8 Domed Nuts (pt. 6),
Ø8 Curved Washers (pt.5) and
M8x60mm Carriage Bolts (pt. 4).
Check you put the right stabilizer
on the front and back correctly. As
the washers are curved, washer
they must be flush with the body
that you are attaching.
2. Slide the Rear Stabilizer (pt.2)
into the Main Frame (pt. 1),
making sure the open side of the
bracket is facing up, as shown,
then fix with 4pcs Ø8 Washer (pt.
5), 2pcs M8x60mm Carriage Bolts
(pt. 4).and 2 sets of M8 Domed
Nuts (pt. 6).

Exercise Bike J063 Instructions for Use
Please read and retain these instructions for future reference v001: 01/05/20
Step 2:
Fix the Seat (pt. 12) to the Seat
post by using the three sets of
Washers (pt. 11) and three lock
Nuts (pt. 10) located under the
seat.

Exercise Bike J063 Instructions for Use
Please read and retain these instructions for future reference v001: 01/05/20
Step 3:
Insert the Seat Post (pt. 9) into the
Seat Post housing and line up the
holes (The correct height
adjustment can be made when
the bike is fully assembled) Secure
the seat in position with the
Adjustment Knob (pt. 8).
Step 4:
Remove the bolts from the Front
Post (15). Take the Front Post (15)
and connect the Upper Monitor
Wire with Lower Monitor
Wire(See picture A,B,C).
Put the tension knob on zero –
this will help you get the cable
over the metal buckle and
connect the sensor cable. Then
tighten the nuts up but not too
tight.
Then push down the whole lot in
front post of the main body. Then
connect the 2 sections together
with 4 pcs fixing Bolts (pt. 14) and
Curved washer(pt.5). Be careful
not to cut the sensor wires. Make
sure the curved washers are flush
with the body again.

Exercise Bike J063 Instructions for Use
Please read and retain these instructions for future reference v001: 01/05/20
Step 5:
On the monitor holder there are 2
holes you thread the sensor wire
through any one of the holes. Plug
the Upper Monitor Sensor Wire in to
the back of the Monitor (pt. 17), and
then slide the Monitor onto the
Monitor Holder (pt.16).
Fix Handlebar (pt.19) on the Front by
2 pcs M8*30mm Fixing Bolt (pt.18）

Exercise Bike J063 Instructions for Use
Please read and retain these instructions for future reference v001: 01/05/20
Step 6.
Fix the (L) pedal (pt.7)on the Main
Frame by wrench (13-15 ) in counter
clockwise.
Fix the (R) pedal (pt.13)on the main
frame by wrench in clockwise.
Step 7:
The tension can be adjusted by turning the
knob either to –mark or to + mark.

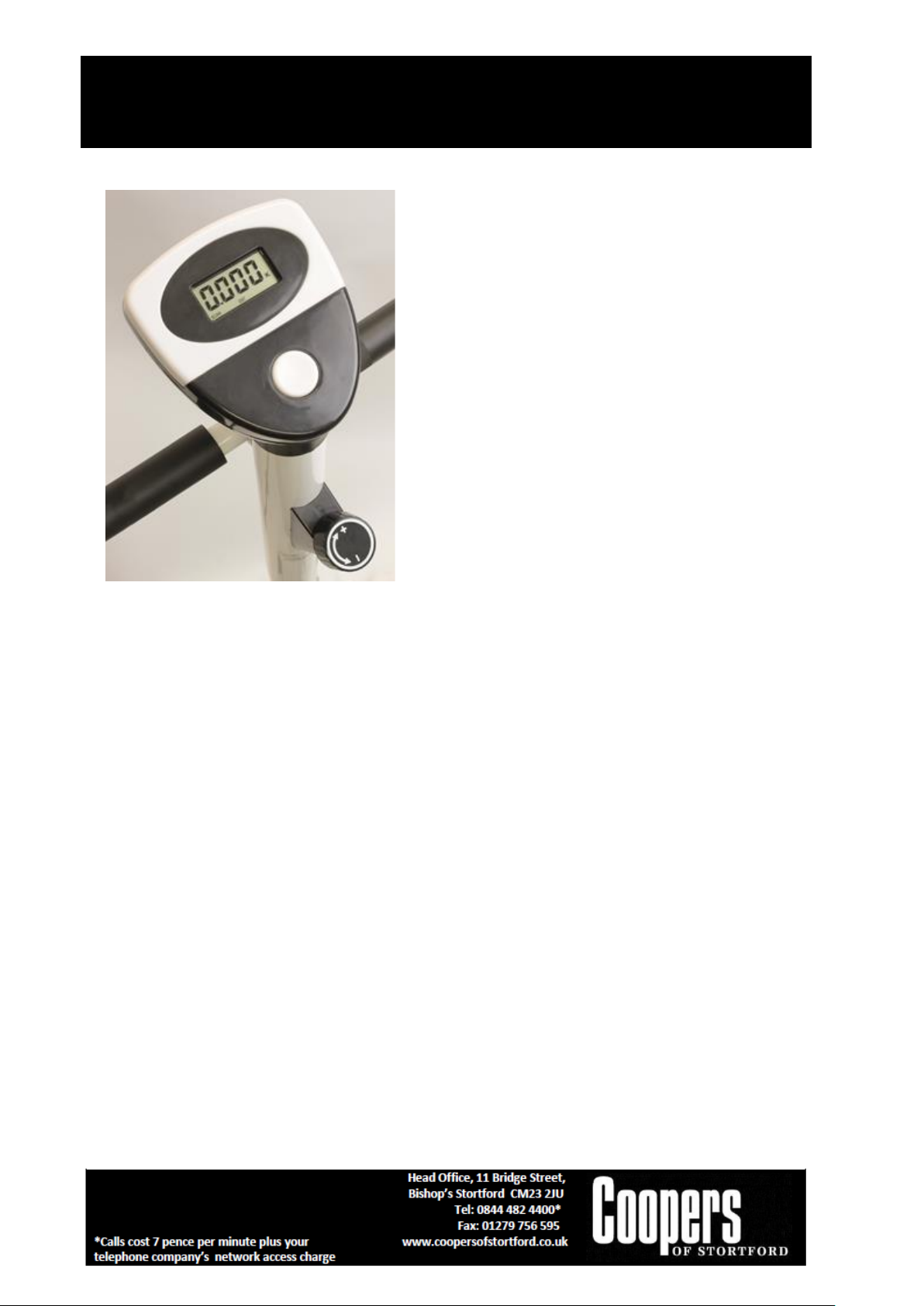

MONITOR

Exercise Bike J063 Instructions for Use
Please read and retain these instructions for future reference v001: 01/05/20
SCAN: Automatic display of the following
functions in the order shown:
TIME-SPEED-DISTANCE-CALORIES (repeat)
DST: The distance of each workout will be
displayed by pressing MODE key until DST
appears.
SPD：Current speed will be shown by pressing
MODE key until brand SPD (speed) appears.
TMR：The exercise time will be displayed by
pressing MODE key until TMR appears.
CAL :The calories burned will be displayed by
pressing MODE key until CAL appears.
Manual
TIME(TMR)...................................................................00:00-99:59 MIN
SPEED(SPD)...................................................................... 0.0-99.9KM/H
DISTANCE (DST)............................................................... 0.00-999.9KM
CALORIES (CAL)....................................................................0-9999KCAL
