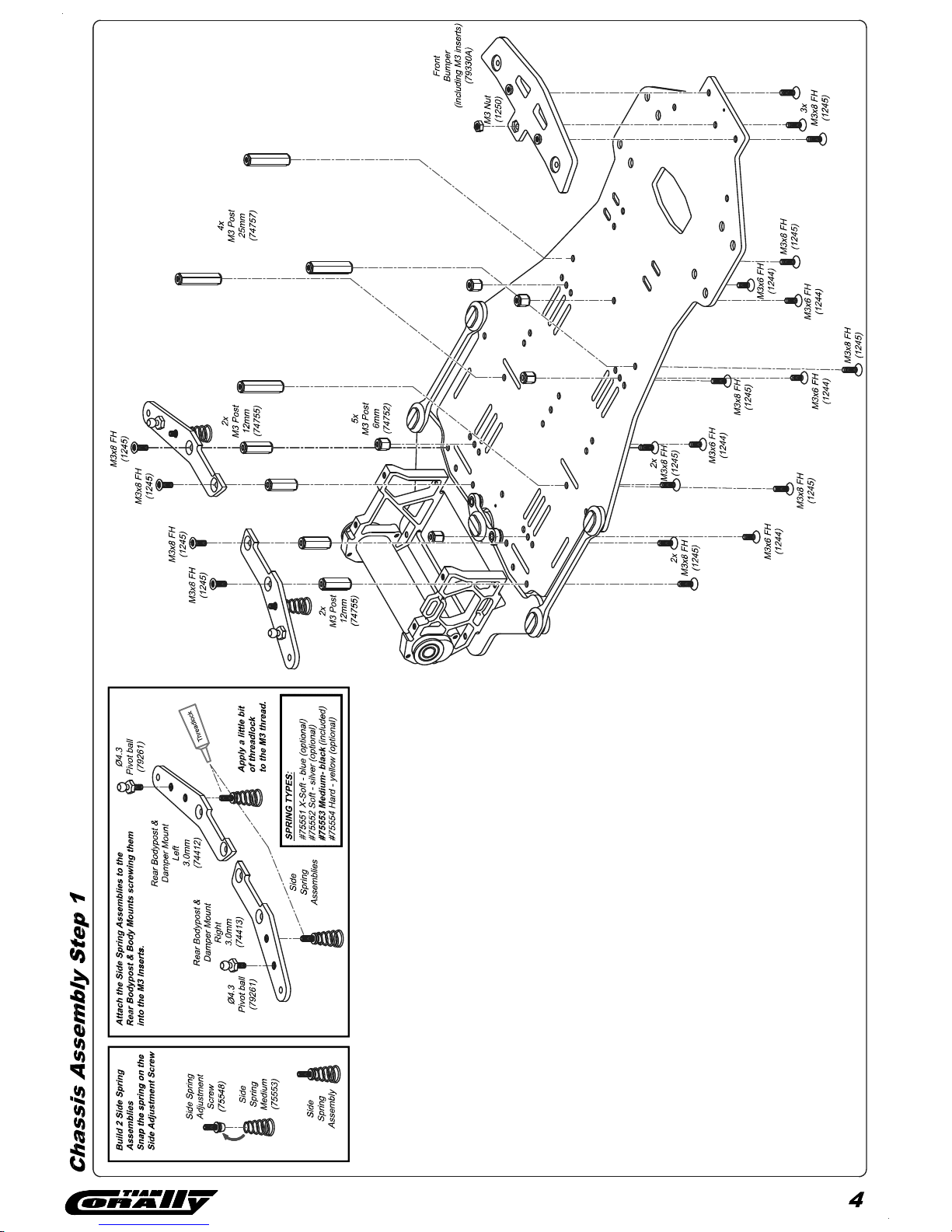

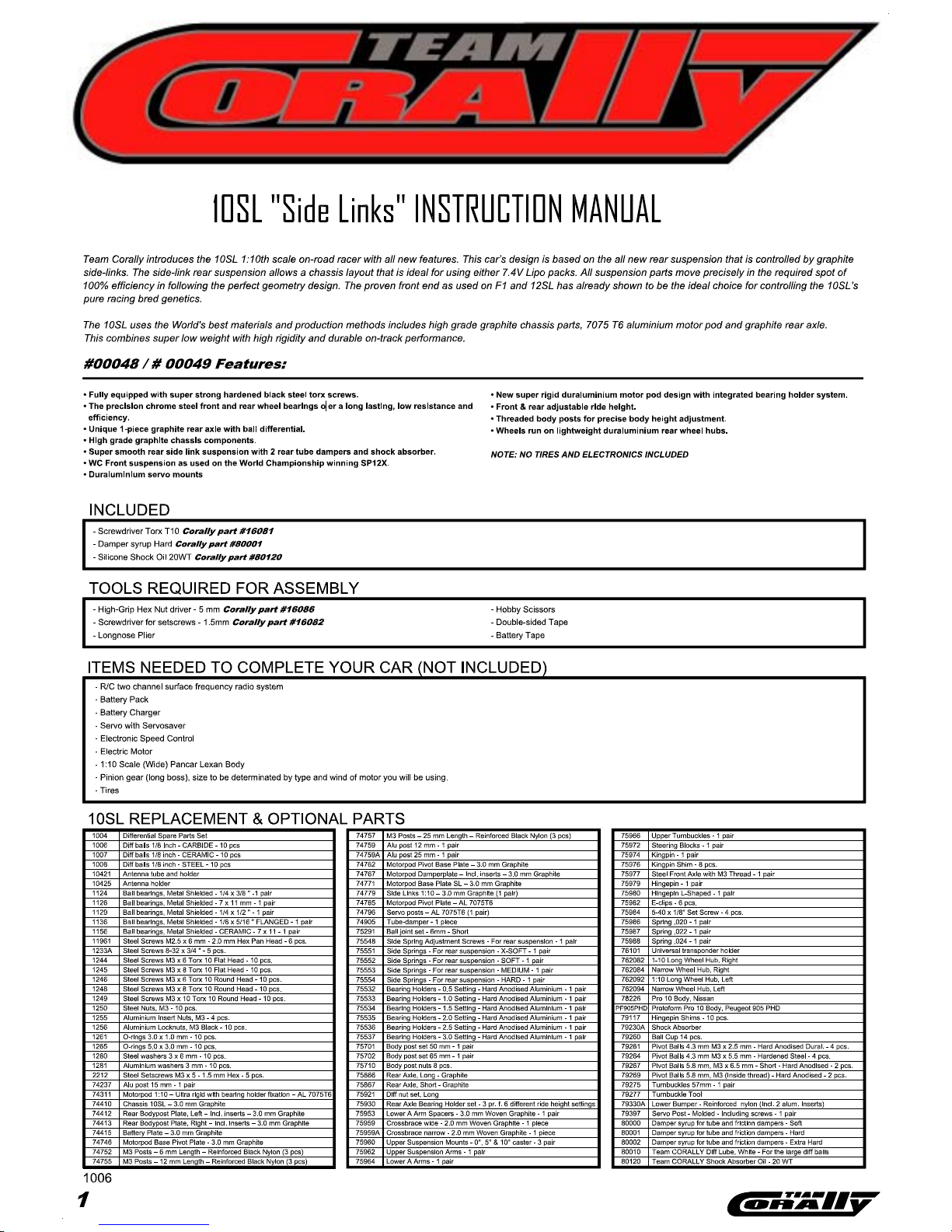

Corally 10sl User manual

TIPS TO FINAL ASSEMBLY

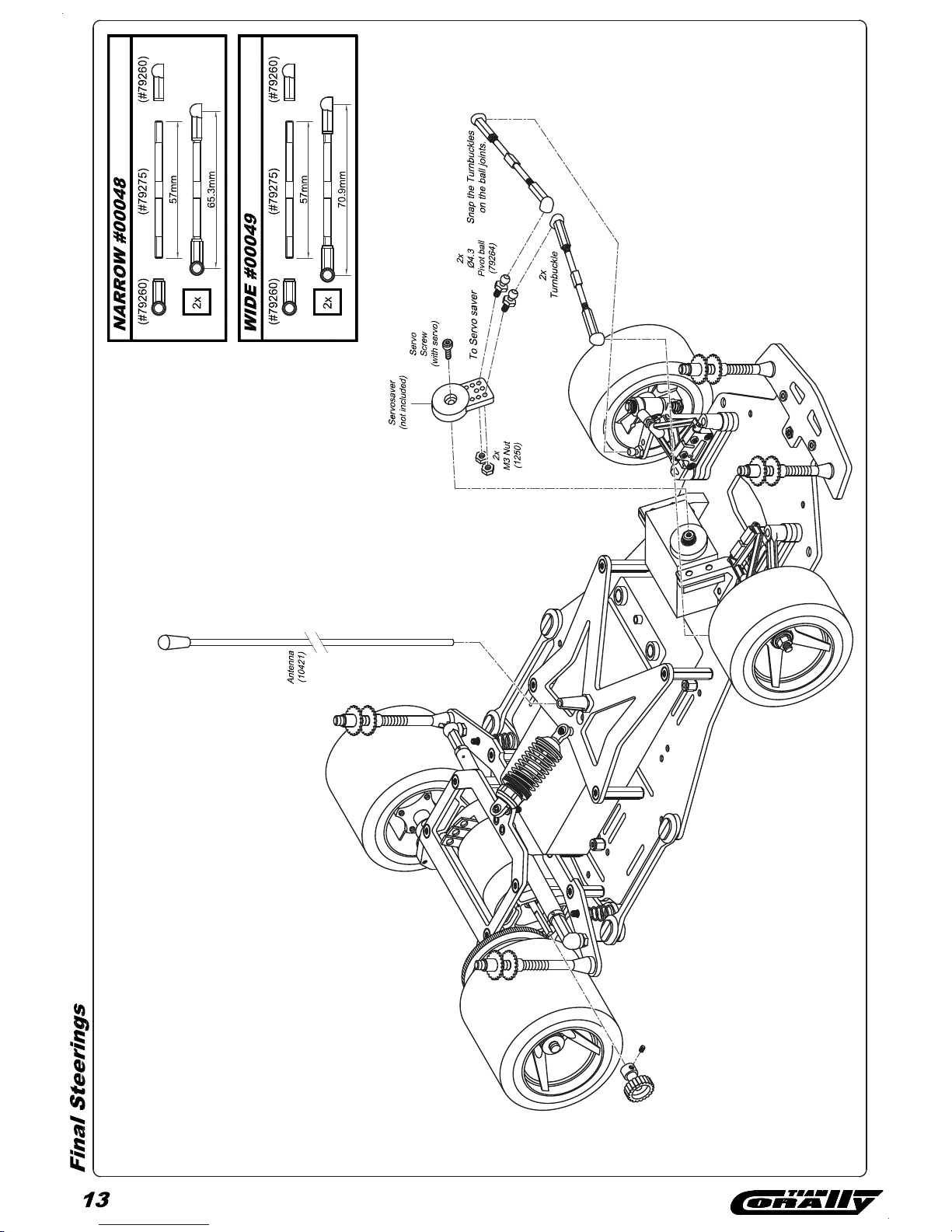

Radio installation.

The Electronic speed control (ESC) and the receiver need to be mounted onto the chassis, using double sided tape (not supplied.) Mount the ESC

first on the chassis plate on the left of the car. It is important that the ESC is mounted in a position which keeps the battery wires to the minimum

length, to minimise electrical losses and potential interference problems. Next mount your receiver on the chassis plate on the right of the car. It

is advised to keep the crystal and aerial wire as far away from the batteries as possible. Finally thread the aerial wire through the o-rings on the

Anti-roll mast.

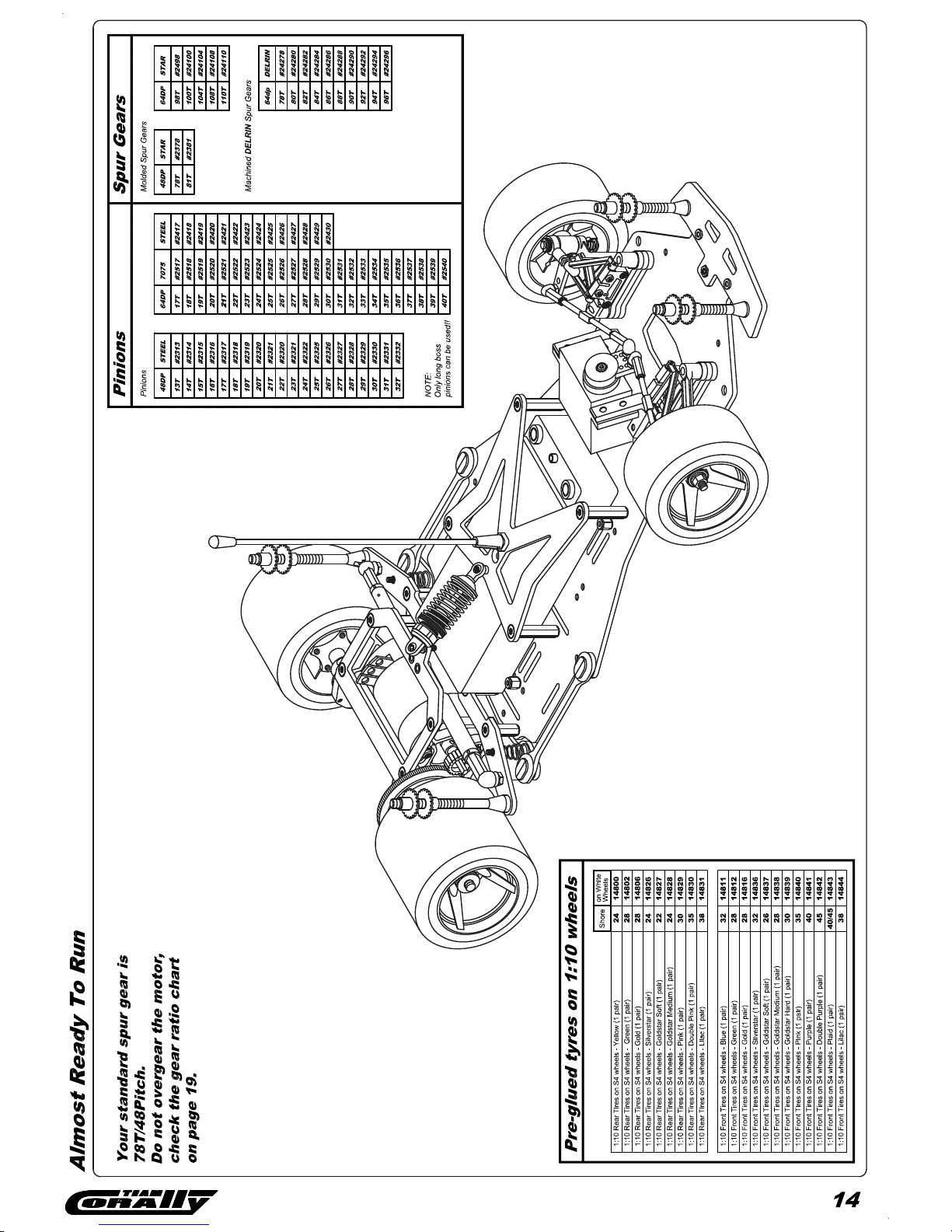

Motor installation and gear meshing.

Bolt your chosen motor in place as shown and fit the appropriate pinion gear to the shaft of the motor. The 10SL is designed for use with long boss

pinions which are available from Corally in a wide variety of sizes in 48 dp and 64 dp. Use a 1.5 mm setscrew driver and ensure that you tighten

the 3 mm set screw onto the flat on the motor shaft. Refer to the gear ratio chart in this manual for advice on gear ratio selection. Once in place

and the gears are fitted you need to adjust the position of the motor, in the slotted holes provided in the motor pod, to ensure that the gears mesh

smoothly. A small amount of play is required between the teeth of the gears as they engage, turn the axle to ensure that they mesh consistently

around the whole spur gear. Once in position tighten up the M3 screws to hold the motor firmly in place. Please note that there are two types of

gears available for Corally cars. One is 48 dp which offers good efficiency and great durability, whilst for the serious racer there are 64 dp gears

which have a much smaller tooth form and so offer greater efficiency at the expense of durability.

Mounting the bodyshell and wings.

It is recommended that you use a lexan / polycarbonate bodyshell (not included) as they are lightweight and strong. See the set-up section later

in this manual for advice on bodyshell selection and other aerodynamic considerations. It is advised that you mark the outside of the bodyshell

with bodypost and aerial positions, before you spray paint it on the inside. The Corally body mounting posts fitted to the car are fully adjustable.

The bodypost screws are fitted with sleeves which have been designed to allow the bodyshell to ‘float’ a little. This design helps in the event of a

crash or when the bodyshell is accidentally run too low.

MAINTENANCE AND SETUP TIPS.

Tweak (left to right balance of the car).

One of the most important factors when racing an R/C on-road car is ‘tweak'. If a car is tweaked then the car will turn differently in left and right

hand bends. Purposely tweaking a car may be advantageous when oval racing, but generally it is best if the car handles exactly the same in both

left and right hand turns.

A car becomes tweaked when the grip or weight is not balanced between left and right hand wheels. This may occur in several ways.

- The chassis assembly could be twisted, this is no longer common in modern cars, but should be checked after major crashes.

- The tires on each side of the car could be different sizes. The outside tire generally wears more quickly than the inside tire. To prevent

problems swap the tires from left to right hand sides after every couple of races. Or use a tire truer if available.

- The suspension or ride height may not be set the same on each side of the car. Check springs, tweak adjuster settings and ride height settings.

- Steering movement may be different on left and right sides.

- Tires may be giving different grip levels. Check and replace any that seem to have different firmness on the left or right.

- When using tire additive it is possible to tweak the car by accidentally applying different amounts of additive to each tire – be careful!

- Finally its possible for the car to feel tweaked if the suspension does not move freely. Check that the power wires to the motor do not restrict

the rear suspension movement and check that all ball joints move freely.

Ride height adjustment.

The ride height should be kept to a minimum, this will keep the centre of gravity of the car as low as possible and so maximise cornering speeds.

The ride height should ideally be between 4 – 6 mm (1/8"-3/16"), but on bumpy tracks or where regulations dictate otherwise run the car a little

higher. Check regularly to compensate for tire wear which can be rapid on some tracks.

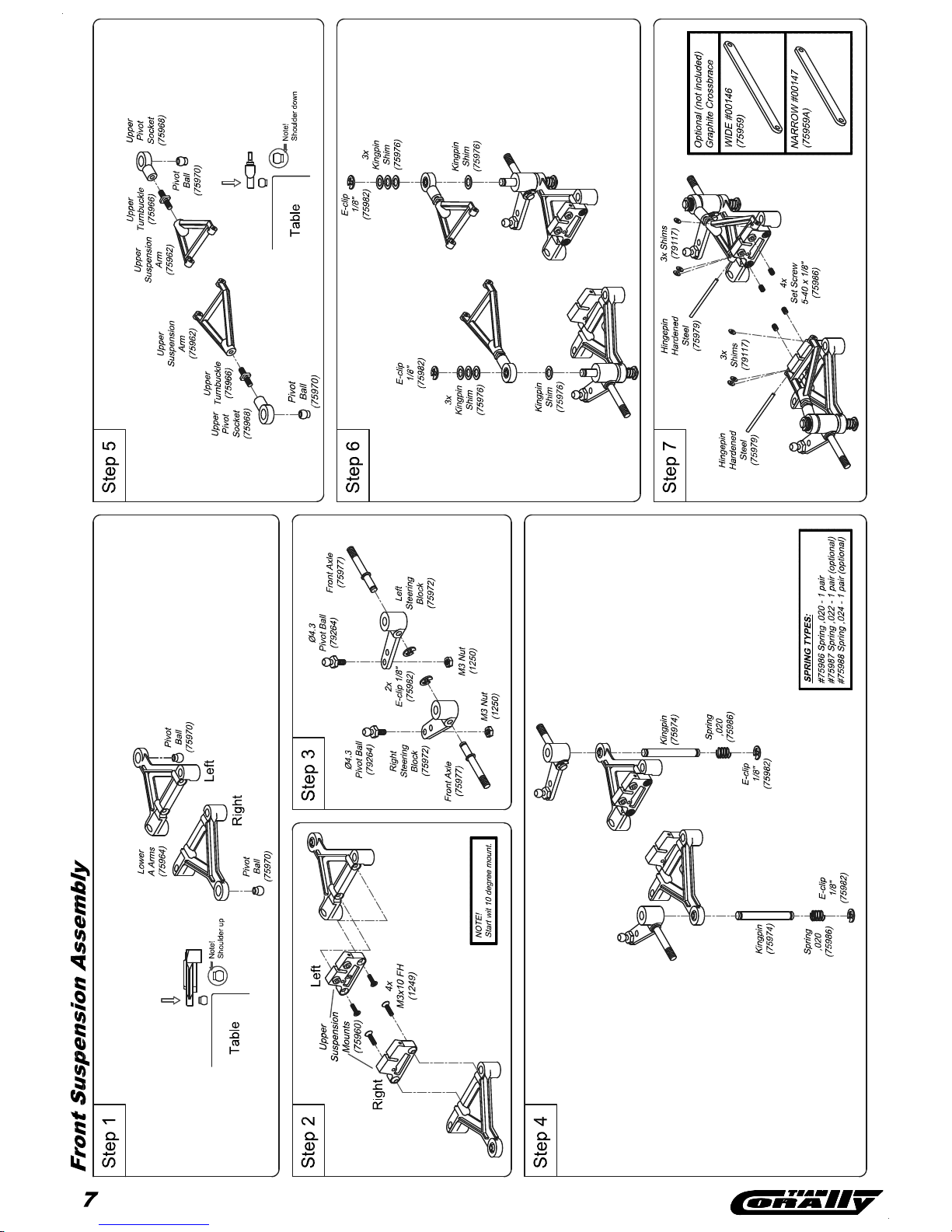

Adjusting the front ride height.

A-arm spacers cab be mounted under A-arms of the front suspension. Placing the front A-arms block lowers the chassis (less ride height) and

conversely putting them above raises the chassis, giving more ride height.

Adjusting the rear ride height.

Three molded different pairs of rear axle bearing holders have been included in the kit, they are all off-set to give 6 different rear axle height

settings. Optional Available are six pairs of rear axle Hard Anodised Aluminium bearing holders. With these settings it is possible to fine tune the

ride height with different kind of tire sizes.

Remove the rear axle and fit the appropriate pair of bearing holders to each end of the rear axle tube, complete with ball bearings and put the

rear axle back into place. Do not forget to re-mesh your pinion and spur gear. Always use the same height setting on both sides of the car

otherwise the rear axle bearings will lock up.

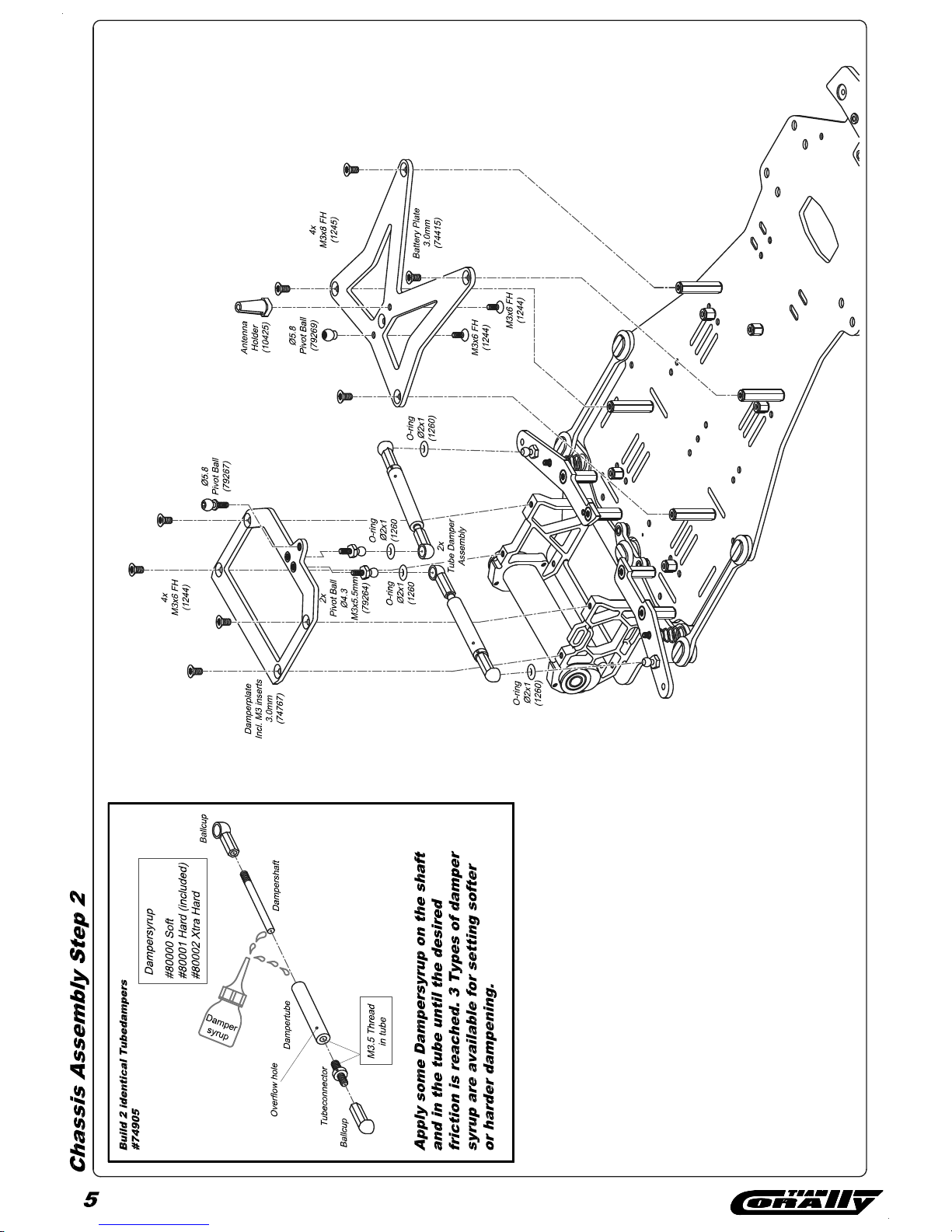

Rear tube damper servicing and adjustment.

The rear tube dampers are a very important part of the car. These dampers control the rear suspension movement.

Periodically check that the movement of these dampers is even and smooth in all directions. To change the damper action (stiffness) the damper

syrup has to be replaced by another type. Corally offers 3 different grades as following:

#80000 – Damper Syrup, Soft

#80001 – Damper Syrup, Hard

#80002 – Damper Syrup, X-Hard

Rear damper setup.

The rear damper setup controls the speed at which the rear suspension moves over bumps and through turns.

-If the car is poor over bumps then increasing the rear dampening effect may help.

-Increasing the rear dampening effect will also increase steering a little, remember this when making this adjustment for other reasons.

-If the inside front wheel goes light or even lifts during cornering then the damper is to thin.

-If the car is reluctant to change direction quickly enough in chicanes then reducing the rear damper effect may help.

General rule - if the car understeers whilst exiting corners then the rear damper is set too thin. If the car oversteers exiting corners then the

damper is too thick.

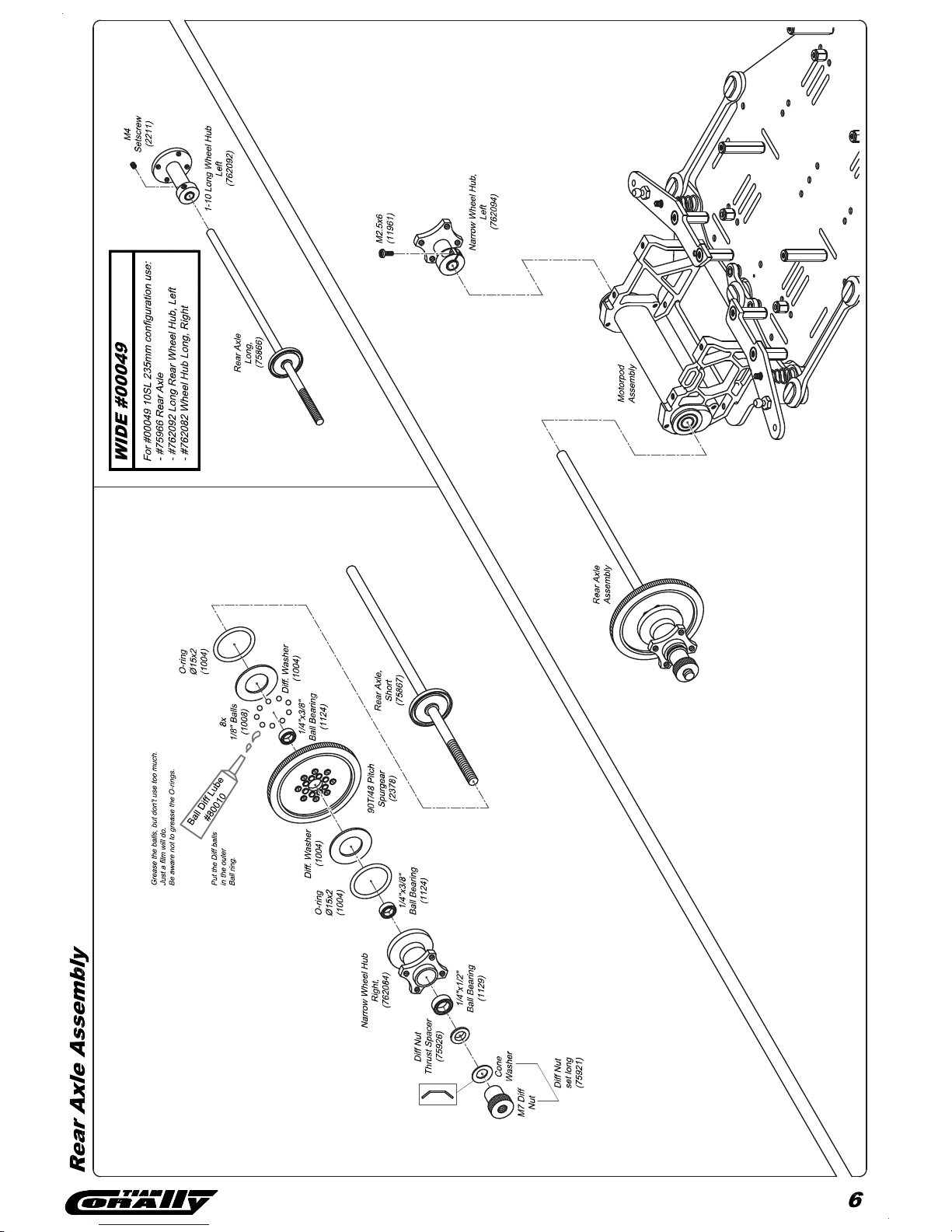

Corally US differential adjustment and maintenance.

To test the differential hold both rear wheels then try to turn the spur gear with your right thumb. If the gear turns without extreme force then

tighten the diff nut in the centre of the right wheel a small amount. Repeat this process until the gear cannot be easily rotated when both wheels

are being held.

Servicing the differential.

Unscrew the diff nut and carefully remove each component, making careful note of the order in which they are fitted (refer to the sectional dra-

wings if necessary). Check the bearings in the centre of the spur gear and the drive plate, clean if necessary. Clean the 1/8" balls, the diff

washers, the spur gear, and thrust bearing. Worn diff balls are often the cause of poor differential action, so if they are old or if the diff has been

slipping a great deal, then try a new set. If you suspect that the diff washers are worn then firstly try building the diff with the washers turned

over so that the balls run on the other face of the washers. If you have already done this once or if the diff still feels rough then they will need to

be replaced.

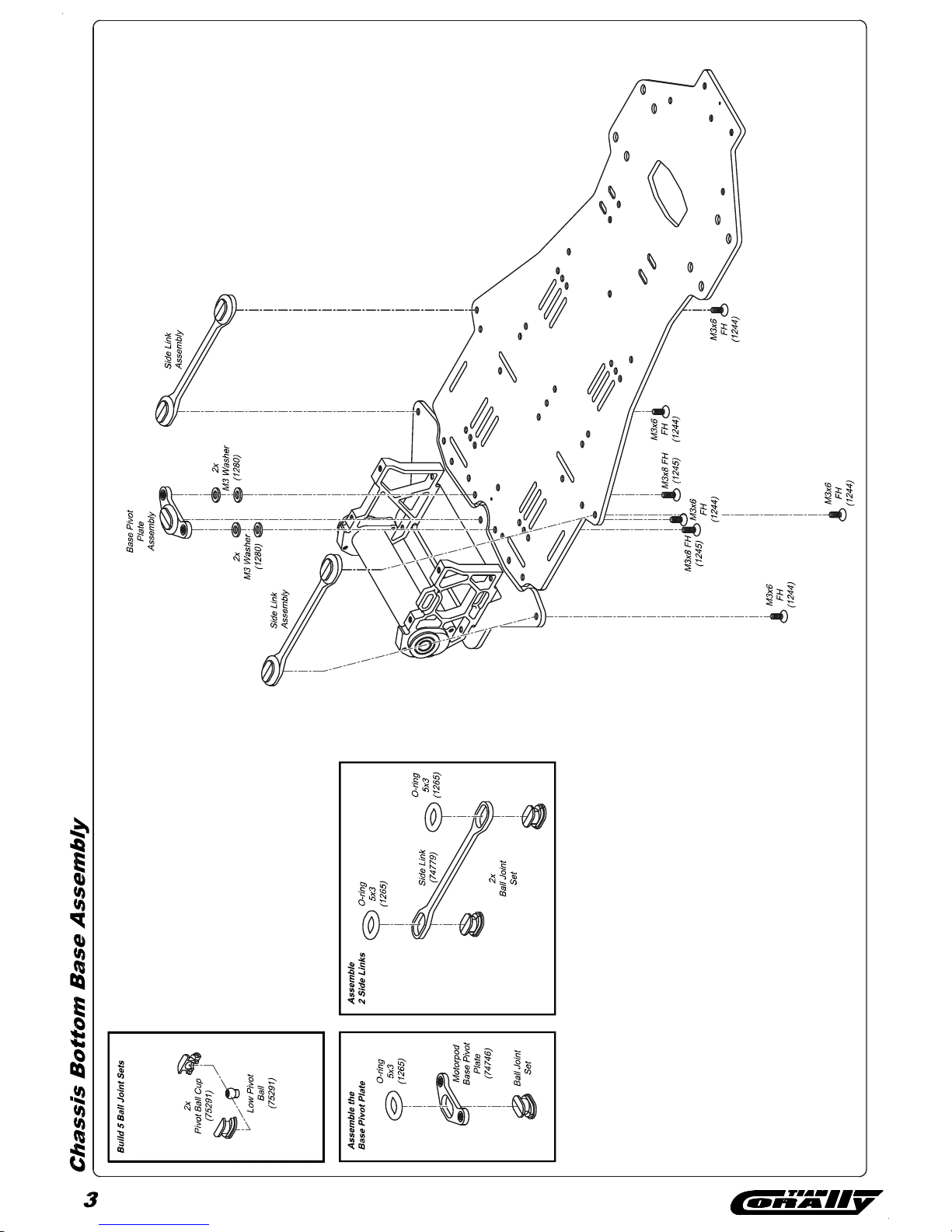

Ball pivot servicing.

The 10SL utilises simple, but highly effective ball pivots on the Side Links and Base Pivot. It is important that the movement of these pivots is free

and smooth. To service the ball pivots simply remove the large rubber O-ring and the Side Links or Base Pivot Plate can be lift away. The plastic

socket can then be removed in two pieces. Please note that at the Corally factory these ball pivots are matched in sets to ensure that smooth, play

free movement is maintained. Do not mix the ball and socket sets.

Check the system for play or binding, if the pivot system is worn or damaged then replace. There are also plastic pivot clips available as an

alternative for the O-rings. It isnotusualforplaytobeevident.

Basic chassis set-up.

Most chassis tuning is to be done to give a good balance between front and rear traction. Too much front end traction will cause the car to turn

too fiercely or even spin, this is referred to as ‘oversteer’. Too much rear end traction will cause the car to turn far less than the front wheels are

actually asking it to do. The car will ‘push’ or ‘understeer’ wide in the turns. The car will also scrub off speed due to the extra lock on the turned

front wheels. It is critical that you tune your car to give a good balance between front and rear grip. The ideal situation is for the car to negotiate

the turns without under or oversteering. The minimum amount of steering lock should be used as this will ensure that the car carries its speed

through the turns.

Corally cars are designed to give maximum traction, with neutral and stable handling. This is a good starting point on most tracks, but not all

tracks or conditions are the same.

Choosing the right tires

Choose the best available highest bite tire for the rear of the car and then balance the car with the front tires. If the car pushes or understeers

then fit front tires with more grip (softer). If the car oversteers or hooks then fit front tires with less grip (harder).

Choosing the right tire diameter

When a tire is new and has a large diameter it will provide more grip than the same tire when it has worn down and has a small diameter.

Remember the following:

-Larger tires have more rolling resistance then smaller tires.

-Smaller tires are not so good over bumps as larger tires.

-When more steering is required use smaller rear tires or larger front tires.

-When less steering is required use larger rear tires or smaller front tires.

Tire additive

Once the correct tires have been selected, you have experience of the best ways to treat them and what the different diameter achieve, you can

fine tune the car by adjusting the amount of additive used on the front tires. Always apply the additive across the full width of the rear tires and on

the inside of the front tires. Ensure that you treat each front tire exactly the same amount.

The more steering you need, the more additive you use on your front tires.

* Repeated use of the same set of tires with additive can make them very soft. These tires can easily be damaged, they wear more quickly and

have higher rolling resistance. The best solution is to have several sets of the same compound of tire. You can then rotate these sets of tires to

prevent premature softening and they will give longer overall life.

Gear ratio charts

As it is often necessary to change tires and tire sizes to get the car dialled into the track, it is therefore important that you know exactly what

effect these tire size changes will have on the gear ratio. The following gear ratio charts equate motor gear ratios into linear distance travelled

along the track per revolution of the motor and by doing so take into consideration the tire size used.

How to use these charts.

Measure your rear tires, find the chart for the tire size, line up the appropriate pinion and spur gears used and the chart will then show you the

mm/rev travelled.

-The higher the number the further the car will travel per motor revolution, meaning it’s geared higher than a lower figure.

-Smaller pinions mean lower mm/rev settings and larger pinions mean higher settings.

-Smaller spur gears mean higher mm/rev settings and larger spur gears mean lower settings.

-Higher settings mean higher top speed (using more battery energy).

-Lower settings mean less top speed but more acceleration (using less battery energy).

-A too high gear ratio setting might damage your motor and cause excessive brush and commutator wear.

The gear ratio chart can be found in the following page 19.

Universal Gear Ratio Chart in mm/rev

Tire Diamete

556

5 Tire Diamete

560

Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

Spur

78 29,6 31,8 34,1 36,4 38,7 40,9 43,2 45,5 47,8 50,0 52,3 54,6 56,9 59,1 61,4 63,7 66,0 68,2 78 31,7 34,1 36,5 39,0 41,4 43,8 46,3 48,7 51,1 53,6 56,0 58,5 60,9 63,3 65,8 68,2 70,6 73,1

81 28,5 30,7 32,9 35,0 37,2 39,4 41,6 43,8 46,0 48,2 50,4 52,6 54,8 56,9 59,1 61,3 63,5 65,7 81 30,5 32,8 35,2 37,5 39,9 42,2 44,6 46,9 49,3 51,6 53,9 56,3 58,6 61,0 63,3 65,7 68,0 70,4

98 23,5 25,3 27,2 29,0 30,8 32,6 34,4 36,2 38,0 39,8 41,6 43,4 45,3 47,1 48,9 50,7 52,5 54,3 98 25,2 27,1 29,1 31,0 33,0 34,9 36,8 38,8 40,7 42,6 44,6 46,5 48,5 50,4 52,3 54,3 56,2 58,2

100 23,1 24,8 26,6 28,4 30,2 31,9 33,7 35,5 37,3 39,0 40,8 42,6 44,4 46,1 47,9 49,7 51,4 53,2 100 24,7 26,6 28,5 30,4 32,3 34,2 36,1 38,0 39,9 41,8 43,7 45,6 47,5 49,4 51,3 53,2 55,1 57,0

104 22,2 23,9 25,6 27,3 29,0 30,7 32,4 34,1 35,8 37,5 39,2 40,9 42,6 44,4 46,1 47,8 49,5 51,2 104 23,7 25,6 27,4 29,2 31,1 32,9 34,7 36,5 38,4 40,2 42,0 43,8 45,7 47,5 49,3 51,1 53,0 54,8

108 21,4 23,0 24,6 26,3 27,9 29,6 31,2 32,9 34,5 36,1 37,8 39,4 41,1 42,7 44,4 46,0 47,6 49,3 108 22,9 24,6 26,4 28,1 29,9 31,7 33,4 35,2 36,9 38,7 40,5 42,2 44,0 45,7 47,5 49,3 51,0 52,8

110 21,0 22,6 24,2 25,8 27,4 29,0 30,6 32,3 33,9 35,5 37,1 38,7 40,3 41,9 43,5 45,2 46,8 48,4 110 22,5 24,2 25,9 27,6 29,4 31,1 32,8 34,5 36,3 38,0 39,7 41,4 43,2 44,9 46,6 48,4 50,1 51,8

Tire Diamete

057

0 Tire Diamete

061

Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

Spur

78 29,8 32,1 34,4 36,7 39,0 41,3 43,6 45,9 48,2 50,5 52,8 55,1 57,4 59,7 62,0 64,2 66,5 68,8 78 31,9 34,4 36,8 39,3 41,7 44,2 46,7 49,1 51,6 54,0 56,5 58,9 61,4 63,8 66,3 68,8 71,2 73,7

81 28,7 30,9 33,1 35,4 37,6 39,8 42,0 44,2 46,4 48,6 50,8 53,0 55,2 57,5 59,7 61,9 64,1 66,3 81 30,7 33,1 35,5 37,8 40,2 42,6 44,9 47,3 49,7 52,0 54,4 56,8 59,1 61,5 63,8 66,2 68,6 70,9

98 23,7 25,6 27,4 29,2 31,0 32,9 34,7 36,5 38,4 40,2 42,0 43,8 45,7 47,5 49,3 51,1 53,0 54,8 98 25,4 27,4 29,3 31,3 33,2 35,2 37,1 39,1 41,0 43,0 45,0 46,9 48,9 50,8 52,8 54,7 56,7 58,6

100 23,3 25,1 26,8 28,6 30,4 32,2 34,0 35,8 37,6 39,4 41,2 43,0 44,7 46,5 48,3 50,1 51,9 53,7 100 24,9 26,8 28,7 30,6 32,6 34,5 36,4 38,3 40,2 42,1 44,1 46,0 47,9 49,8 51,7 53,6 55,5 57,5

104 22,4 24,1 25,8 27,5 29,3 31,0 32,7 34,4 36,1 37,9 39,6 41,3 43,0 44,7 46,5 48,2 49,9 51,6 104 23,9 25,8 27,6 29,5 31,3 33,2 35,0 36,8 38,7 40,5 42,4 44,2 46,0 47,9 49,7 51,6 53,4 55,3

108 21,5 23,2 24,9 26,5 28,2 29,8 31,5 33,1 34,8 36,5 38,1 39,8 41,4 43,1 44,7 46,4 48,1 49,7 108 23,1 24,8 26,6 28,4 30,1 31,9 33,7 35,5 37,2 39,0 40,8 42,6 44,3 46,1 47,9 49,7 51,4 53,2

110 21,2 22,8 24,4 26,0 27,7 29,3 30,9 32,5 34,2 35,8 37,4 39,1 40,7 42,3 43,9 45,6 47,2 48,8 110 22,6 24,4 26,1 27,9 29,6 31,3 33,1 34,8 36,6 38,3 40,0 41,8 43,5 45,3 47,0 48,8 50,5 52,2

Tire Diamete

557

5 Tire Diamete

561

Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

30 1

32 4

34 7

37 0

39 4

41 7

44 0

46 3

48 6

50 9

53 2

55 6

57 9

60 2

62 5

64 8

67 1

69 4

32 2

34 7

37 1

39 6

42 1

44 6

47 0

49 5

52 0

54 5

56 9

59 4

61 9

64 4

66 8

69 3

71 8

74 3

78 30,1 32,4 34,7 37,0 39,4 41,7 44,0 46,3 48,6 50,9 53,2 55,6 57,9 60,2 62,5 64,8 67,1 69,4 78 32,2 34,7 37,1 39,6 42,1 44,6 47,0 49,5 52,0 54,5 56,9 59,4 61,9 64,4 66,8 69,3 71,8 74,3

81 29,0 31,2 33,4 35,7 37,9 40,1 42,4 44,6 46,8 49,0 51,3 53,5 55,7 58,0 60,2 62,4 64,6 66,9 81 31,0 33,4 35,8 38,1 40,5 42,9 45,3 47,7 50,1 52,4 54,8 57,2 59,6 62,0 64,4 66,8 69,1 71,5

98 24,0 25,8 27,6 29,5 31,3 33,2 35,0 36,8 38,7 40,5 42,4 44,2 46,1 47,9 49,7 51,6 53,4 55,3 98 25,6 27,6 29,6 31,5 33,5 35,5 37,4 39,4 41,4 43,4 45,3 47,3 49,3 51,2 53,2 55,2 57,1 59,1

100 23,5 25,3 27,1 28,9 30,7 32,5 34,3 36,1 37,9 39,7 41,5 43,3 45,1 46,9 48,7 50,6 52,4 54,2 100 25,1 27,0 29,0 30,9 32,8 34,8 36,7 38,6 40,6 42,5 44,4 46,3 48,3 50,2 52,1 54,1 56,0 57,9

104 22,6 24,3 26,0 27,8 29,5 31,2 33,0 34,7 36,5 38,2 39,9 41,7 43,4 45,1 46,9 48,6 50,3 52,1 104 24,1 26,0 27,9 29,7 31,6 33,4 35,3 37,1 39,0 40,9 42,7 44,6 46,4 48,3 50,1 52,0 53,8 55,7

108 21,7 23,4 25,1 26,7 28,4 30,1 31,8 33,4 35,1 36,8 38,5 40,1 41,8 43,5 45,1 46,8 48,5 50,2 108 23,2 25,0 26,8 28,6 30,4 32,2 34,0 35,8 37,5 39,3 41,1 42,9 44,7 46,5 48,3 50,1 51,9 53,6

110 21,3 23,0 24,6 26,3 27,9 29,5 31,2 32,8 34,5 36,1 37,8 39,4 41,0 42,7 44,3 46,0 47,6 49,2 110 22,8 24,6 26,3 28,1 29,8 31,6 33,4 35,1 36,9 38,6 40,4 42,1 43,9 45,6 47,4 49,2 50,9 52,7

Tire Diamete

058

0 Tire Diamete

062

Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

30 4

32 7

35 0

37 4

39 7

42 0

44 4

46 7

49 0

51 4

53 7

56 0

58 4

60 7

63 0

65 4

67 7

70 0

32 4

34 9

37 4

39 9

42 4

44 9

47 4

49 9

52 4

54 9

57 4

59 9

62 4

64 9

67 4

69 9

72 4

74 9

78 30,4 32,7 35,0 37,4 39,7 42,0 44,4 46,7 49,0 51,4 53,7 56,0 58,4 60,7 63,0 65,4 67,7 70,0 78 32,4 34,9 37,4 39,9 42,4 44,9 47,4 49,9 52,4 54,9 57,4 59,9 62,4 64,9 67,4 69,9 72,4 74,9

81 29,2 31,5 33,7 36,0 38,2 40,5 42,7 45,0 47,2 49,5 51,7 54,0 56,2 58,5 60,7 63,0 65,2 67,5 81 31,2 33,6 36,1 38,5 40,9 43,3 45,7 48,1 50,5 52,9 55,3 57,7 60,1 62,5 64,9 67,3 69,7 72,1

98 24,2 26,0 27,9 29,7 31,6 33,5 35,3 37,2 39,0 40,9 42,7 44,6 46,5 48,3 50,2 52,0 53,9 55,8 98 25,8 27,8 29,8 31,8 33,8 35,8 37,7 39,7 41,7 43,7 45,7 47,7 49,7 51,6 53,6 55,6 57,6 59,6

100 23,7 25,5 27,3 29,1 31,0 32,8 34,6 36,4 38,2 40,1 41,9 43,7 45,5 47,4 49,2 51,0 52,8 54,6 100 25,3 27,3 29,2 31,1 33,1 35,0 37,0 38,9 40,9 42,8 44,8 46,7 48,7 50,6 52,6 54,5 56,5 58,4

104 22,8 24,5 26,3 28,0 29,8 31,5 33,3 35,0 36,8 38,5 40,3 42,0 43,8 45,5 47,3 49,0 50,8 52,5 104 24,3 26,2 28,1 30,0 31,8 33,7 35,6 37,4 39,3 41,2 43,1 44,9 46,8 48,7 50,5 52,4 54,3 56,2

108 21,9 23,6 25,3 27,0 28,7 30,4 32,0 33,7 35,4 37,1 38,8 40,5 42,2 43,8 45,5 47,2 48,9 50,6 108 23,4 25,2 27,0 28,8 30,6 32,4 34,2 36,1 37,9 39,7 41,5 43,3 45,1 46,9 48,7 50,5 52,3 54,1

110 21,5 23,2 24,8 26,5 28,1 29,8 31,5 33,1 34,8 36,4 38,1 39,7 41,4 43,0 44,7 46,4 48,0 49,7 110 23,0 24,8 26,5 28,3 30,1 31,9 33,6 35,4 37,2 38,9 40,7 42,5 44,2 46,0 47,8 49,6 51,3 53,1

Tire Diamete

558

5 Tire Diamete

562

Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

30 6

33 0

35 3

37 7

40 0

42 4

44 7

47 1

49 5

51 8

54 2

56 5

58 9

61 2

63 6

65 9

68 3

70 7

32 7

35 2

37 7

40 3

42 8

45 3

47 8

50 3

52 8

55 4

57 9

60 4

62 9

65 4

67 9

70 4

73 0

75 5

81 29,5 31,7 34,0 36,3 38,6 40,8 43,1 45,4 47,6 49,9 52,2 54,4 56,7 59,0 61,2 63,5 65,8 68,0 81 31,5 33,9 36,3 38,8 41,2 43,6 46,0 48,5 50,9 53,3 55,7 58,1 60,6 63,0 65,4 67,8 70,3 72,7

98 24,4 26,2 28,1 30,0 31,9 33,7 35,6 37,5 39,4 41,2 43,1 45,0 46,9 48,7 50,6 52,5 54,4 56,2 98 26,0 28,0 30,0 32,0 34,0 36,0 38,0 40,1 42,1 44,1 46,1 48,1 50,1 52,1 54,1 56,1 58,1 60,1

100 23,9 25,7 27,6 29,4 31,2 33,1 34,9 36,7 38,6 40,4 42,2 44,1 45,9 47,8 49,6 51,4 53,3 55,1 100 25,5 27,5 29,4 31,4 33,4 35,3 37,3 39,3 41,2 43,2 45,1 47,1 49,1 51,0 53,0 55,0 56,9 58,9

104 23,0 24,7 26,5 28,3 30,0 31,8 33,6 35,3 37,1 38,9 40,6 42,4 44,2 45,9 47,7 49,5 51,2 53,0 104 24,5 26,4 28,3 30,2 32,1 34,0 35,9 37,7 39,6 41,5 43,4 45,3 47,2 49,1 50,9 52,8 54,7 56,6

108 22,1 23,8 25,5 27,2 28,9 30,6 32,3 34,0 35,7 37,4 39,1 40,8 42,5 44,2 45,9 47,6 49,3 51,0 108 23,6 25,4 27,3 29,1 30,9 32,7 34,5 36,3 38,2 40,0 41,8 43,6 45,4 47,2 49,1 50,9 52,7 54,5

110 21,7 23,4 25,0 26,7 28,4 30,1 31,7 33,4 35,1 36,7 38,4 40,1 41,7 43,4 45,1 46,8 48,4 50,1 110 23,2 25,0 26,8 28,5 30,3 32,1 33,9 35,7 37,5 39,3 41,0 42,8 44,6 46,4 48,2 50,0 51,7 53,5

Tire Diamete

059

0 Tire Diamete

063

Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

30 9

33 3

35 6

38 0

40 4

42 8

45 1

47 5

49 9

52 3

54 6

57 0

59 4

61 8

64 1

66 5

68 9

71 3

33 0

35 5

38 0

40 6

43 1

45 7

48 2

50 7

53 3

55 8

58 3

60 9

63 4

65 9

68 5

71 0

73 5

76 1

81 29,7 32,0 34,3 36,6 38,9 41,2 43,5 45,7 48,0 50,3 52,6 54,9 57,2 59,5 61,8 64,0 66,3 68,6 81 31,7 34,2 36,6 39,1 41,5 44,0 46,4 48,8 51,3 53,7 56,2 58,6 61,1 63,5 65,9 68,4 70,8 73,3

98 24,6 26,5 28,4 30,2 32,1 34,0 35,9 37,8 39,7 41,6 43,5 45,4 47,3 49,2 51,0 52,9 54,8 56,7 98 26,2 28,3 30,3 32,3 34,3 36,3 38,4 40,4 42,4 44,4 46,4 48,4 50,5 52,5 54,5 56,5 58,5 60,6

100 24,1 25,9 27,8 29,6 31,5 33,3 35,2 37,1 38,9 40,8 42,6 44,5 46,3 48,2 50,0 51,9 53,7 55,6 100 25,7 27,7 29,7 31,7 33,6 35,6 37,6 39,6 41,5 43,5 45,5 47,5 49,5 51,4 53,4 55,4 57,4 59,3

104 23,2 24,9 26,7 28,5 30,3 32,1 33,8 35,6 37,4 39,2 41,0 42,8 44,5 46,3 48,1 49,9 51,7 53,4 104 24,7 26,6 28,5 30,4 32,3 34,2 36,1 38,0 39,9 41,8 43,7 45,7 47,6 49,5 51,4 53,3 55,2 57,1

108 22,3 24,0 25,7 27,4 29,2 30,9 32,6 34,3 36,0 37,7 39,5 41,2 42,9 44,6 46,3 48,0 49,7 51,5 108 23,8 25,6 27,5 29,3 31,1 33,0 34,8 36,6 38,5 40,3 42,1 44,0 45,8 47,6 49,5 51,3 53,1 55,0

110 21,9 23,6 25,3 26,9 28,6 30,3 32,0 33,7 35,4 37,1 38,7 40,4 42,1 43,8 45,5 47,2 48,8 50,5 110 23,4 25,2 27,0 28,8 30,6 32,4 34,2 36,0 37,8 39,6 41,4 43,2 45,0 46,8 48,6 50,4 52,2 54,0

Tire Diamete

559

5 Tire Diamete

563

Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

133

535

938

340

743

145

547

950

352

755

157

559

962

364

767

169

571

235

838

340

943

546

048

651

153

756

258

861

463

966

569

071

674

176

81 30,0 32,3 34,6 36,9 39,2 41,5 43,8 46,1 48,4 50,7 53,1 55,4 57,7 60,0 62,3 64,6 66,9 69,2 81 32,0 34,5 36,9 39,4 41,8 44,3 46,8 49,2 51,7 54,2 56,6 59,1 61,5 64,0 66,5 68,9 71,4 73,8

98 24,8 26,7 28,6 30,5 32,4 34,3 36,2 38,1 40,0 41,9 43,8 45,8 47,7 49,6 51,5 53,4 55,3 57,2 98 26,4 28,5 30,5 32,6 34,6 36,6 38,7 40,7 42,7 44,8 46,8 48,8 50,9 52,9 54,9 57,0 59,0 61,0

100 24,3 26,2 28,0 29,9 31,8 33,6 35,5 37,4 39,2 41,1 43,0 44,8 46,7 48,6 50,4 52,3 54,2 56,0 100 25,9 27,9 29,9 31,9 33,9 35,9 37,9 39,9 41,9 43,9 45,9 47,9 49,8 51,8 53,8 55,8 57,8 59,8

104 23,4 25,2 26,9 28,7 30,5 32,3 34,1 35,9 37,7 39,5 41,3 43,1 44,9 46,7 48,5 50,3 52,1 53,9 104 24,9 26,8 28,8 30,7 32,6 34,5 36,4 38,3 40,3 42,2 44,1 46,0 47,9 49,8 51,8 53,7 55,6 57,5

108 22,5 24,2 25,9 27,7 29,4 31,1 32,9 34,6 36,3 38,1 39,8 41,5 43,2 45,0 46,7 48,4 50,2 51,9 108 24,0 25,8 27,7 29,5 31,4 33,2 35,1 36,9 38,8 40,6 42,5 44,3 46,2 48,0 49,8 51,7 53,5 55,4

110 22,1 23,8 25,5 27,2 28,9 30,6 32,3 34,0 35,7 37,4 39,1 40,8 42,5 44,2 45,9 47,6 49,3 51,0 110 23,6 25,4 27,2 29,0 30,8 32,6 34,4 36,3 38,1 39,9 41,7 43,5 45,3 47,1 48,9 50,8 52,6 54,4

Tire Diamete

060

0 Tire Diamete

064

Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Pinion 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

78 31,4 33,8 36,2 38,6 41,1 43,5 45,9 48,3 50,7 53,1 55,6 58,0 60,4 62,8 65,2 67,6 70,0 72,5 78 33,5 36,1 38,6 41,2 43,8 46,4 49,0 51,5 54,1 56,7 59,3 61,8 64,4 67,0 69,6 72,1 74,7 77,3

31,4

33,8

36,2

38,6

41,1

43,5

45,9

48,3

50,7

53,1

55,6

58,0

60,4

62,8

65,2

67,6

70,0

72,5

33,5

36,1

38,6

41,2

43,8

46,4

49,0

51,5

54,1

56,7

59,3

61,8

64,4

67,0

69,6

72,1

74,7

77,3

81 30,2 32,6 34,9 37,2 39,5 41,9 44,2 46,5 48,8 51,2 53,5 55,8 58,1 60,5 62,8 65,1 67,5 69,8 81 32,3 34,7 37,2 39,7 42,2 44,7 47,1 49,6 52,1 54,6 57,1 59,5 62,0 64,5 67,0 69,5 71,9 74,4

98 25,0 26,9 28,8 30,8 32,7 34,6 36,5 38,4 40,4 42,3 44,2 46,1 48,1 50,0 51,9 53,8 55,8 57,7 98 26,7 28,7 30,8 32,8 34,9 36,9 39,0 41,0 43,1 45,1 47,2 49,2 51,3 53,3 55,4 57,4 59,5 61,5

100 24,5 26,4 28,3 30,1 32,0 33,9 35,8 37,7 39,6 41,4 43,3 45,2 47,1 49,0 50,9 52,8 54,6 56,5 100 26,1 28,1 30,1 32,2 34,2 36,2 38,2 40,2 42,2 44,2 46,2 48,2 50,2 52,2 54,3 56,3 58,3 60,3

104 23,6 25,4 27,2 29,0 30,8 32,6 34,4 36,2 38,0 39,9 41,7 43,5 45,3 47,1 48,9 50,7 52,5 54,3 104 25,1 27,1 29,0 30,9 32,8 34,8 36,7 38,6 40,6 42,5 44,4 46,4 48,3 50,2 52,2 54,1 56,0 58,0

108 22,7 24,4 26,2 27,9 29,7 31,4 33,1 34,9 36,6 38,4 40,1 41,9 43,6 45,4 47,1 48,8 50,6 52,3 108 24,2 26,1 27,9 29,8 31,6 33,5 35,4 37,2 39,1 40,9 42,8 44,7 46,5 48,4 50,2 52,1 54,0 55,8

110 22,3 24,0 25,7 27,4 29,1 30,8 32,5 34,3 36,0 37,7 39,4 41,1 42,8 44,5 46,2 48,0 49,7 51,4 110 23,7 25,6 27,4 29,2 31,1 32,9 34,7 36,5 38,4 40,2 42,0 43,8 45,7 47,5 49,3 51,2 53,0 54,8

Table of contents

Other Corally Toy manuals
