Core Innovations ANT800BAR User manual

80-Mile Range Amplied Indoor TV Antenna
with Signal Level Indicator
ANT800BAR
User Manual

1
II. Getting Started
2 3 4
Power Supply 2/16’’ x 1’’
Screws
Anchors
Digital Converter Box
(sold separately - for analog TVs only)
TV
Here’s what you’ll need to get set up:
I. Included Parts
1Antenna with Attached Coaxial Cable (9.8’)

2

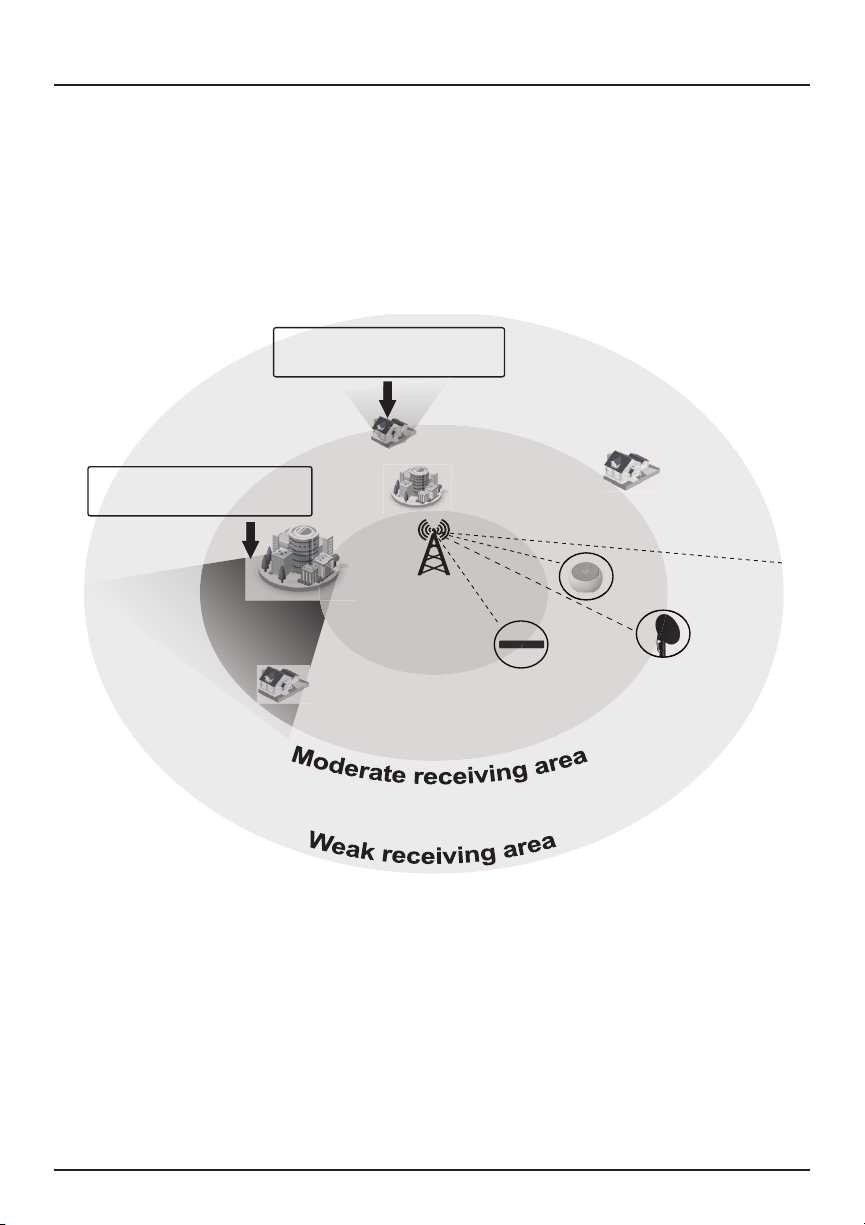

Make sure the distance between your location and TV transmitter tower is
within 80 miles, and set up your antenna as high as possible in the direction
of the TV tower for better reception. You can search for available channels in
your area by visiting dtv.gov/maps or www.tvfool.com.
80 miles 100 miles
Outdoor
antenna series
Indoor
antenna series
Weaker signal
reception area
Weaker signal
reception area
Strong
receivingarea
Indoor & Outdoor
antenna series
III. Key Considerations For Your Installation Site
• Be sure that installation is in accordance with all local, city and state
electrical and building codes.
• Understand where broadcast towers are located in your area.
Visit www.antennapoint.com or www.antennaweb.org and enter your zip
code to identify the channels you can expect to receive.

3
Step 1: Connect Your Antenna to Your TV
Plug the barrel end of the power supply into the DC input on the antenna,
and the AC end into an electrical outlet.
If your TV has a digital tuner:
Simply connect the antenna’s coaxial output cable directly to your TV’s
antenna input port.
If your TV does not have a digital tuner:
Connect the antenna’s coaxial output cable to your digital converter box,
and then connect your converter box output cable to your TV.
TV ANT IN
Coaxial Cable

4
Step 2: Check the LED Signal Indicator
The built-in LED signal indicator assists in locating the best channel
reception. The LED lights indicate ideal signal strength.
Note: You must re-scan for channels anytime you move or reposition your
antenna.
GOOD BETTER BEST
To perform a TV channel scan:
• Set the tuner mode to “Antenna” or “Air” on your TV’s setup menu.
• Set your TV to scan for channels. This may be listed as auto-program,
auto-scan, channel search or channel scan.
• Move and rotate your antenna, and note which locations receive the most
channels and best channel reception.
Note: Running a channel scan is not the same as pressing Channel UP/
DOWN on your remote.
• Refer to your TV’s user manual for further details.
Step 3: Scan for Channels
Tuner Mode
A B
Antenna
Channel Search
Scanning for Channels

5

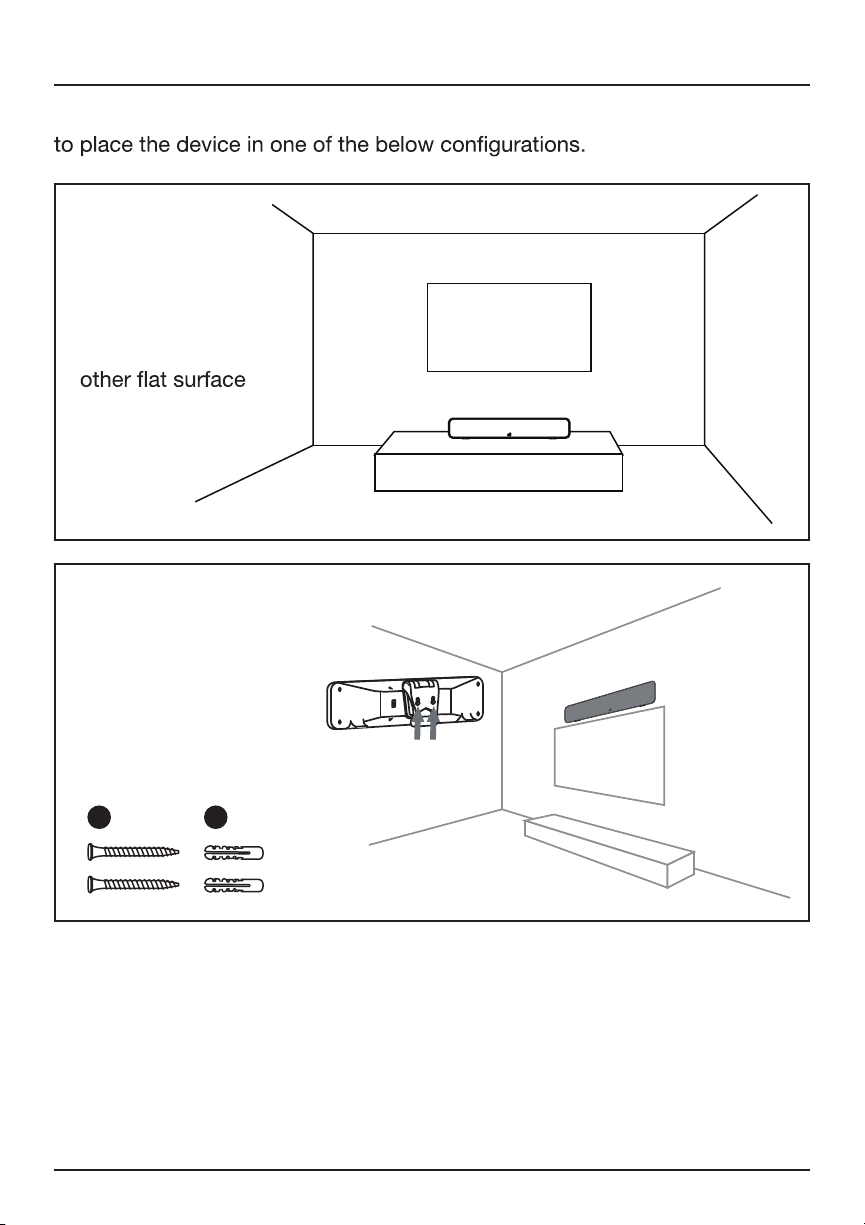

Once you have found the optimal location for your antenna, you may choose
Step 4: Place Your Antenna
1. Tabletop
Placement
Place your
antenna on a
console, table or
near your TV.
2. Wall Mounted
Use the included
2/16’’ x 1’’ screws and
plastic anchors to
mount your antenna
to the wall.
3 4

6
Troubleshooting
I am not getting any channels, or channels are missing.
Keep your antenna away from sources of interference, including air
conditioners, hair dryers and microwave ovens.
Move or rotate your antenna and re-run a channel scan on your TV. Refer to
your TV’s user manual for more information.
Picture or sound freezes while I am watching a channel. Picture quality
is weak.
This is often caused by a weak or intermittent signal. Try moving or rotating
your antenna to a dierent location or angle.
When do I need to run a channel scan?
Run a channel scan after setting up or adjusting your antenna.
Visit www.antennaweb.org/address to calculate the strength of each station.
You may then run a channel scan on an as-needed basis.
How do I know where the signal is strongest?
Test your antenna in dierent locations or at dierent angles, making sure to
run a channel scan every time you move your antenna.
Sometimes moving a few feet can make a dierence. The fewer obstructions
between the antenna and the tower, and the higher the antenna is mounted,
the better the chance of receiving a strong signal.
Some HDTVs have a signal strength indicator that shows how strong your
signal is. Refer to your TV’s user manual for more information.
Where should I place my antenna?
The antenna is designed for indoor use. We recommend placing your
antenna on a at surface or mounting it on a wall near a window.

7
Does my antenna work with any HDTV?
Your antenna works with any HDTV or device that has an ATSC tuner. Any TV
manufactured after March 1, 2007 is required by US government to have an
ATSC tuner. If your TV menu has an option to scan for digital channels, your
TV has an ATSC tuner.
How many channels will I receive with my antenna?
The number of channels will vary from location to location. Generally, if you
live in or near a metropolitan area, you will receive more channels than if you
live outside a metropolitan area. Keep in mind that antenna reception may
vary based on terrain (including trees, buildings, hills and mountains). The
fewer the obstructions, the better your chance of receiving strong digital
signals.
How do I conrm that my antenna is working properly?
Connect your antenna to the power supply. Make sure the indicator light is
on. Then, plug your antenna into your TV’s tuner, and make sure there are
input signals.
What should I do if my antenna indicator light is o?
If the light does not turn on, please check whether the connector is loose,
the plug is not fully inserted or if it is placed incorrectly.
Are all broadcasts now in High Denition?
Not all digital signals are in High Denition. Make sure your digital receiver is
an HD receiver, otherwise HD channels cannot be viewed.
Troubleshooting

8
Specications
Need Help?
For customer support regarding your device, please submit a request by
emailing [email protected]. You will be provided a
ticket number regarding your inquiry, which you can refer to when contacting
us further.
You may also reach a Core Innovations customer service representative
by calling 1-833-909-CORE (1-833-909-2673). We are available Monday
- Friday, 9am - 5pm PST, except major holidays. Core Innovations strongly
urges customers to email their inquiry prior to calling, as this will enable us to
better assist you.
Please make sure to note the model number and a description of your
inquiry.
Thank you for purchasing a Core Innovations product.
• 80-Mile Range
• 1080P Full HD, 4K Ultra HD Ready
• Omni-Directional
• 3G/4G/5G LTE Filter
• In the Box: Antenna with Built-in Amplier, Power Adapter, Mounting
Screws & Anchors, User Manual, Warranty Card

9
Limited Warranty
Core Innovations (the “Company”) warrants the product purchased and contained in
this package (the “Product”) against defects in material or workmanship for 90 Days
(Parts & Labor) and 1 Year (Limited). In order for the Company to honor this limited
warranty, you must present a valid proof of purchase (i.e. a receipt) of this Product.
This warranty is void if the Company deems, in its discretion, that the Product may
have been damaged through modication, improper use, end user negligence,
water damage or tampering of the barcode of the Product. This warranty is a limited
warranty for repair/replacement of the Product, subject to the conditions set forth
herein.
The Company is not liable for consequential, indirect, incidental, special or punitive
damages and the Company’s total liability hereunder shall not exceed an amount
greater than the retail purchase price of the product.
90 Days Parts & Labor
The Company warrants to you as the original retail purchaser of the Product, that
should the Product have any defect, under normal conditions, such defect(s) will
be repaired or replaced with a new or refurbished part (at the Company’s sole
discretion) without charge, if the Product is submitted to the Company within a
period of ninety (90) days from the date of purchase of the Product. The customer
is responsible for transportation cost and insurance charges (if applicable) to the
Company. It is the customer’s responsibility to retain original packaging or provide
like packaging in order to facilitate the warranty process. The Company will incur
no liability whatsoever to provide packaging for warranty items. Should the product
be damaged due to insucient packaging, the warranty may be voided. You must
receive a return authorization number (RMA#) before sending the unit in for service.
This warranty only applies to manufacturer defects, and the Product must be
returned to the Company in its original condition.
1 Year Limited Parts
The one (1) year limited parts warranty gives you the option to return the Product
to the Company for repair or replacement. The customer will be responsible for
labor charges. This warranty does not cover any incidental or indirect costs incurred
as a result of a defect in the Product, including any consequential, incidental or
indirect damages.
Warranty Information

10
Appendix
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

Core Innovations intends to make this manual accurate and complete. However, Core
Innovations makes no claim that the information contained herein covers all details and
conditions. The information in this document is subject to change without notice at any time.
Core Innovations assumes no responsibility for accuracy or completeness of the information
contained in this manual.
