Corsiva Yachting 505 NEW AGE User manual

Manufacturer:
Corsiva Yachting
http://corsiva.pl/

CORSIVA YACHTING
1
INDEX
1. INTRODUCTION....................................................................................................................... 3
. RISK ASSESSMENT................................................................................................................... 4
3. GENERAL SAFTY RULES............................................................................................................5
3.1. Safety................................................................................................................................5
3. . Passengers on board........................................................................................................ 5
3.3. Life-saving equipment......................................................................................................6
4. IDENTIFICATION OF BOAT.......................................................................................................7
4.1. Craft identification number (CIN).................................................................................... 7
4. . Builder's plate.................................................................................................................. 8
4.3. Declaration of Conformity of Recreational Craft............................................................. 8
5. STABILITY AND BUOYANCY..................................................................................................... 9
6. DESCRIPTION OF BOAT..........................................................................................................11
6.1. Technical data................................................................................................................ 11
7. ENGINE.................................................................................................................................. 1
8. STEERING SYSTEM.................................................................................................................13
8.1. Boat steering system......................................................................................................13
8. . Navigation lights.............................................................................................................14
8.3. Steering system..............................................................................................................15
8.4. Field vision from the helm’s position.............................................................................15
9. FUEL SYSTEM.........................................................................................................................16

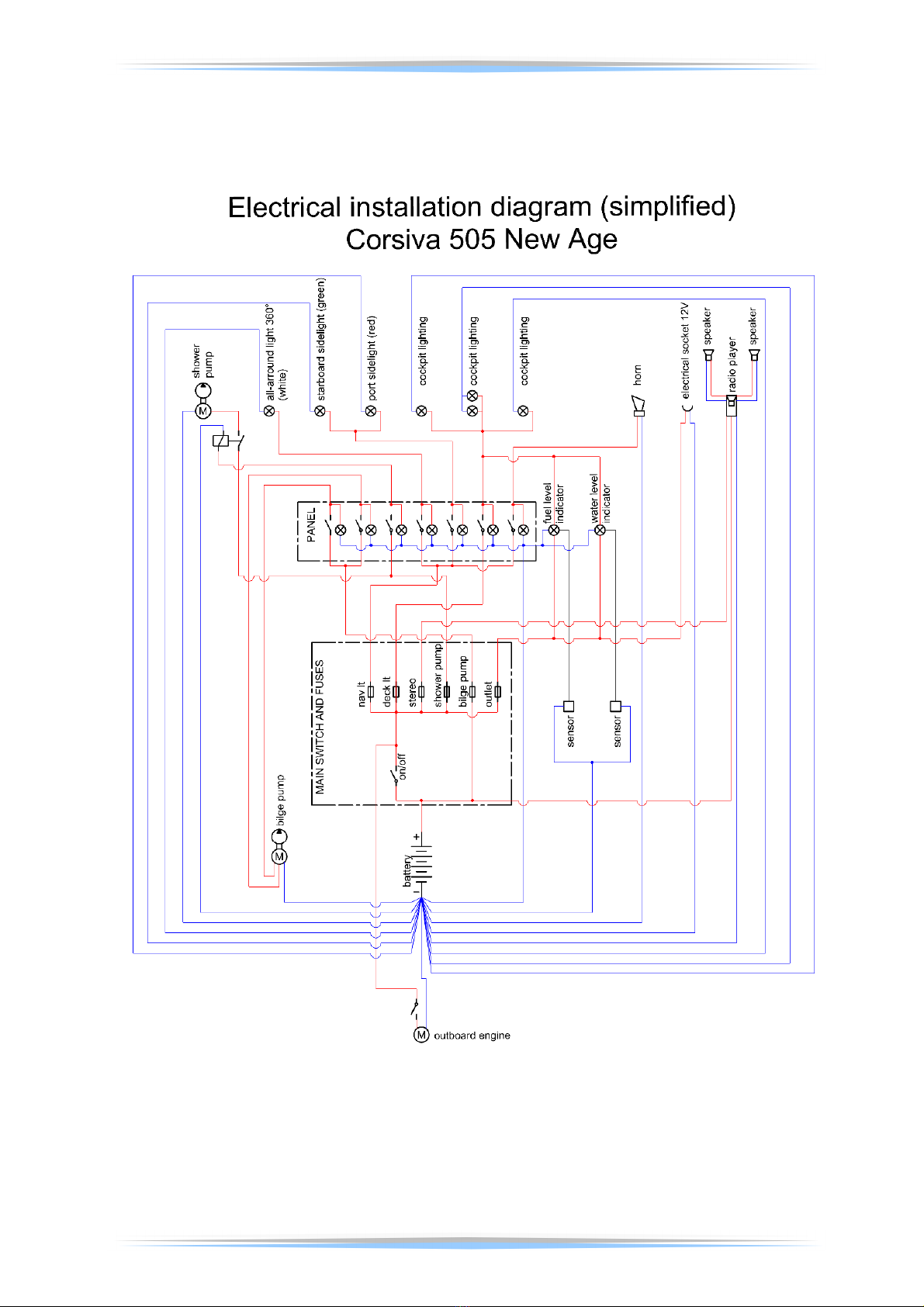

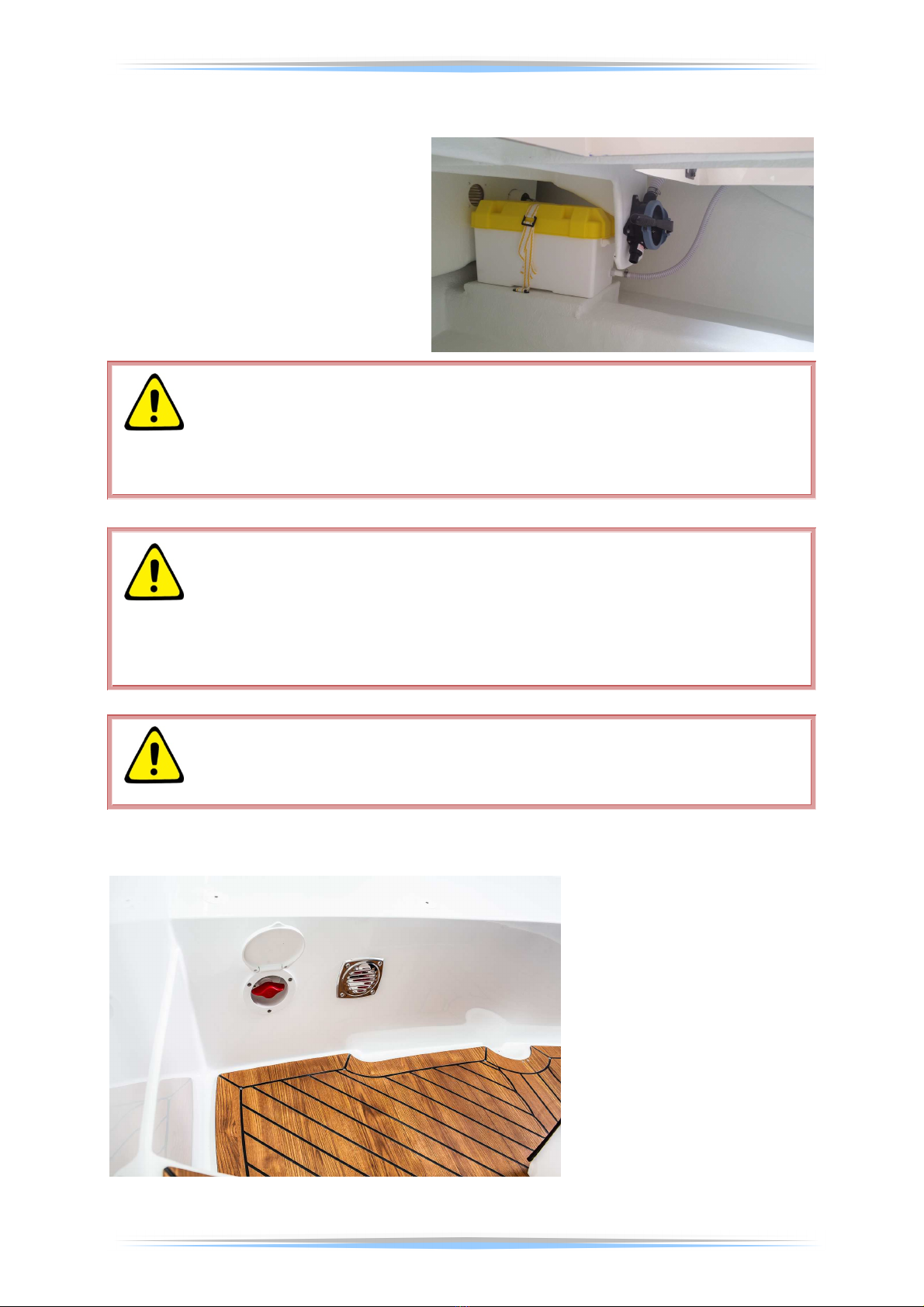

10. ELECTRICAL INSTALLATION................................................................................................. 17
11. WATER SYSTEM...................................................................................................................19
1 . BILGE INSTALATION............................................................................................................. 0
13. BOTTOM, SIDE AND DECK OPENINGS................................................................................. 1
14. FIRE PROTECTION................................................................................................................
15. UPHOLSTERY....................................................................................................................... 3
15.1. Sundeck........................................................................................................................ 4
16. MAINTENANCE, PAINTING, CLEANING............................................................................... 5
16.1. Stainless steel............................................................................................................... 6

CORSIVA YACHTING
17. TRAILERING AND LAUNCHING............................................................................................ 7
18. ANCHORING, MOORING AND TOWING.............................................................................. 8
19. ENVIRONMENTAL PROTECTION.......................................................................................... 9
19.1. Oil derivatives............................................................................................................... 9
19. . Sewage and waste removal......................................................................................... 9
0. REMOVING MALFUNCTIONS...............................................................................................30

CORSIVA YACHTING
3
1. INTRODUCTION
The Owner’s manual, which you received together with a boat, will help you operate your
CORSIVA 505 NEW AGE motorboat safely and appropriately so you may use it with pleasure.
Manual contains the description of the boat, its equipment and installation systems as well
as practical information about its use and maintenance.
Read the information carefully before using the boat.
This Owner's Manual is not a detailed guide of the boat’s maintenance or troubleshooting. In
case of difficulties, contact your manufacturer or its dealer.
Always employ trained and qualified people for maintenance or repairs.
Repairs which may impact on safety features of the yacht should be evaluated, carried out
and documented by qualified people.
The boat manufacturer is not responsible for the modifications made without its consent
therefore any modification of the boat repeals the boat’s warranty.
Always keep your boat in a good condition and take into account the boat’s deterioration
that will follow in time as a result of intensive use or improper handling of the boat.
Each boat, regardless of how it is strong, can be severely damaged if is not properly used.
Always adjust the speed and direction of the boat to the conditions on the water.
This owner’s manual owner is not a course of safety yachting or sailing skills. If this is your
first boat or if you change the boat’s type (to which you do not know) for your own comfort
and safety, make sure that you got the experience in leading the boat and operating it. Your
dealer, a national sailing federation or boat clubs will be pleased to provide you all
information on local marine schools or qualified instructors.
With wishes of successful cruises,
Corsiva Yachting
*) We are an intensively developing company and our boats are constantly improved, therefore, some of the solutions and
information included in this manual might not apply to your boat.
PLEASE KEEP THIS OWNER'S MANUAL
IN A SAFE PLACE
AND HAND IT OVER TO A NEW OWNER WHEN
YOU SELL THE BOAT

CORSIVA YACHTING
4
2. RISK ASSESSMENT
The manual contains three kinds of sign, which are supposed to turn your attention to the
actions and situations which may cause danger for health or life if they are not fulfilled.
Make sure you are familiar with the following signs:
DANGER
The sign warns before appearing the highest danger, which can cause durable
damage of body or death unless the appropriate safety actions are taken.
WARNING
The sign warns before appearing the danger, which can cause durable damage
of body or death unless the appropriate safety actions are taken.
CAUTION
The sign reminds about applying the safety behavior or turns attention to
inappropriate behavior, which may result body injuring, the damage to the boat
as well as its elements or damages to the natural environment.
A warning sign used in accordance with PN-EN ISO 11192 Graphical symbols

CORSIVA YACHTING
5
3. GENERAL SAFTY RULES
3.1. Safety
Even if all was planned the safety of the sailing remains heavily dependent on the weather,
sea conditions, the experience and knowledge of the crew.
Always check the weather forecast before leaving and see that the circumstances should be
expected to the boat’s construction category.
Before you prepare your boat for sailing, check local water sailing legislations under which
you have to obey.
Check the restrictions for swimming; speed limit restrictions and outboard noise and fumes
reduction.
Stimulants
Never sail under the influence of alcohol or drugs.
The combination of noise, vibration, sun, wind and water movement causes fatigue. The
effects of alcohol on the water are worse than on land.
3.2. Passengers on board
During boarding the passengers, stop the engine.
Moving the engine level to the neutral position is not sufficient.
The boat’s helmsman is responsible for passengers and cargo.
Do not overload the boat.
The boat is evaluated relatively to the maximum of load and capacity.
If in doubt, contact your dealer or the yacht manufacturer.
WARNING
Stimulants and sailing do not go together. Operating a boat while being under
the influence of alcohol or other forbidden substances is illegal and dangerous.
Weakening eyesight or assessment of the situation can lead to a disaster.
WARNING
The helmsman cannot allow anyone to sit on the parts of the boat not intended
for it. In particular the boat edges, seatbacks, transom, bow, or anywhere
where an unexpected acceleration or sudden stop will cause a person fall
overboard.
WARNING
Always turn off the engine when the boat is located near people in the water.
Even at low engine power, the screw can cause serious injuries.

CORSIVA YACHTING
6
3.3. Life-saving equipment
There should be a boat type and weather conditions’ appropriate safety equipment on the
boat (life jackets, safety harnesses, etc.). In some countries equipment is indicated and
required by the local law.
Carefully read the manual of a life raft.
The crew should be familiar with the use of all safety equipment and emergency
maneuvering (man overboard, towing, etc.). Sailing schools and clubs regularly organize
training sessions.
All persons should wear appropriate rescue measures (lifejackets / buoyancy aids), while
they are on board. Please note that in some countries there is a legal requirement to wear a
permanent rescue equipment.
WARNING
Read carefully the instructions placed on the life jackets label and follow them.
Checking the condition of life jackets, make sure it fits the body.
Try vest before you fall into the water.
WARNING
It is important for children and non-swimmers to wear life jackets. Children
who cannot swim require special instruction on how to use lifejackets.

CORSIVA YACHTING
7
4. IDENTIFICATION OF BOAT
The CORSIVA 505 NEW AGE boat was manufactured by CORSIVA according to applicable
requirements of Annex I to Directive 013/53/UE of European Parliament and the European
Council, Recreational craft and personal watercraft.
The CORSIVA 505 NEW AGE boat was tested by Polish Register of Shipping according with
applicable requirements of Annex I to Recreational Craft Directive 013/53/UE for design
category C.
The design category C - INSHORE defines the craft which has been designed for sailing at
typical wind force Beaufort Force 6° and significant wave heights up to and including to
meters.
Such conditions may be encountered on open inland waters, estuaries and coastal waters in
moderate weather conditions.
4.1. Craft identification number (CIN)
The CORSIVA 505 NEW AGE can be identified
by the same identification number plates
located in two places on the boat.
First one is placed on the right side of
a transom, the second one is hidden inside
the construction of boat in a place only
known to its manufacturer. CIN is needed
to identify a boat in case it was stolen.
The craft identifications number includes:
PL – Country code
COR – Manufacturer’s identification
50501 – Serial number
B
–
Production
month
(A
–
January,
B
–
February,
C
–
March,
etc.)
0 – Production year (e.g. 014 – 4, 016 – 6)
0 – Model of the year (e.g. 015 – 15, 016 – 16)
P L - C O R 5 0 5 0 1 B 0 2 0

CORSIVA YACHTING
8
4.2. Builder's plate
In the cockpit of CORSIVA 505 NEW AGE the builder’s plate is placed.
The builder’s plate includes:
4.3. Declaration of Conformity of Recreational Craft
Conformity assessment includes all information which are established for market controlling
institutes.
In Declaration of Conformity the manufacturer is issued under the sole responsibility that
the boat complies with all applicable requirements of the Directive.
C Yacht design category – „INSHORE”.
max. x 5 + Max. load which cannot be exceeded by the boat’s capacity
defined by the manufacturer, which includes: 5 people +
personal equipment.
max.
Max. power of an outboard engine (kW).
The CE sign is the confirmation that the boat complies all
applicable requirements of Recreational Craft Directive
013/53/UE Recreational craft and personal watercraft.

CORSIVA YACHTING
9
5. STABILITY AND BUOYANCY
