COSHARE SuperFlow1 User manual

SuperFlow1
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

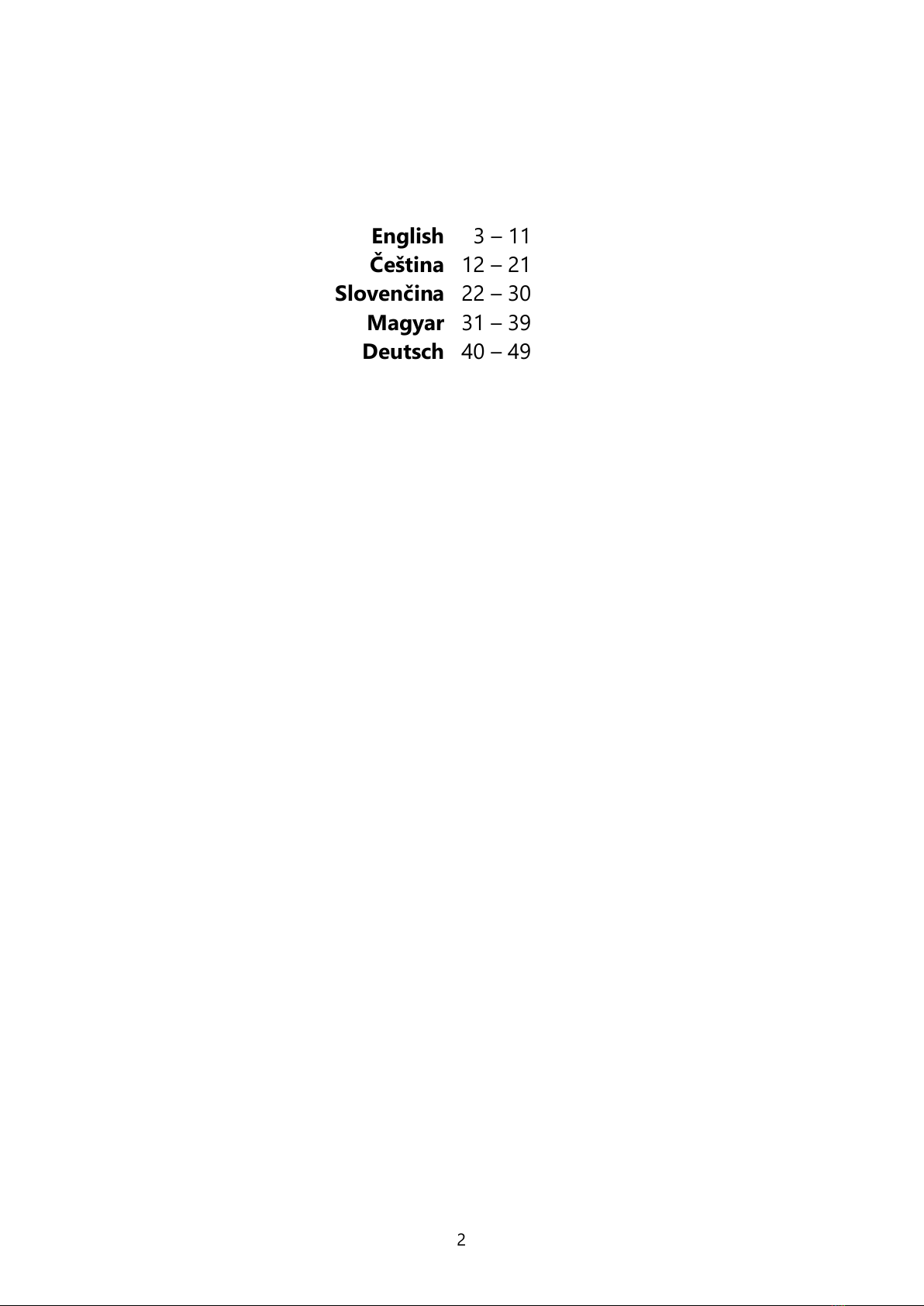

2
English
3 –11
Čeština
12 –21
Slovenčina
22 –30
Magyar
31 –39
Deutsch
40 –49

3
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully before
first use and keep this user manual for future reference. Pay particular attention to the safety
instructions. If you have any questions or comments about the device, please contact the
customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Prague 7, www.alza.cz

4

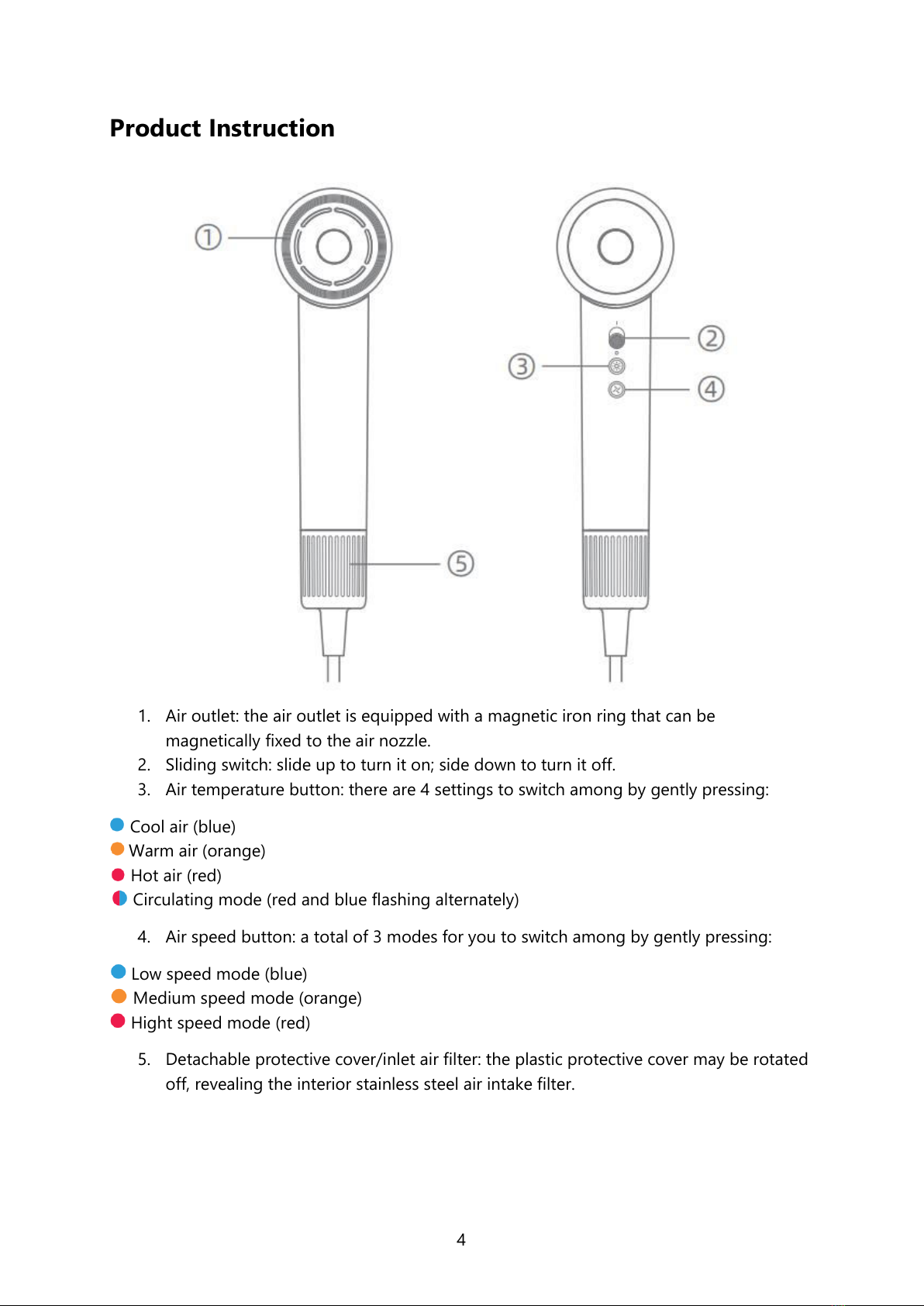

Product Instruction
1. Air outlet: the air outlet is equipped with a magnetic iron ring that can be
magnetically fixed to the air nozzle.
2. Sliding switch: slide up to turn it on; side down to turn it off.
3. Air temperature button: there are 4 settings to switch among by gently pressing:
Cool air (blue)
Warm air (orange)
Hot air (red)
Circulating mode (red and blue flashing alternately)
4. Air speed button: a total of 3 modes for you to switch among by gently pressing:
Low speed mode (blue)
Medium speed mode (orange)
Hight speed mode (red)
5. Detachable protective cover/inlet air filter: the plastic protective cover may be rotated
off, revealing the interior stainless steel air intake filter.

5
Function
Mode switch for air temperature
Tap the air temperate button to switch the temperature in the following sequence:
“cool air, warm air, hot air, cool air…”
Press the air temperature button for 2 seconds to enter the automatic air circulation
mode. At tis mode, gently press the air temperature button to return to the cool aur
mode.
STATUS
MODES
TEMPERATURE
Blue light is always on
Cool air mode
The natural wind blows at
room temperature.
Orange light is always on
Warm air mode
The air temperature is kept
constant at 57°C at 10cm
from the air outlet, which
does not harm the hair.
Red light is always on
Hot air mode
The air temperature is kept
constant at 75°C at 10cm
from the air outlet, which is
fast drying hair.
Red and blue alternately
flashing
Circulating mode
Automatic circulation of cold
and hot air every 5 seconds.
Mode switch for air speed
Tap the air speed button to switch the speed modes in the following sequence: “low speed,
medium speed, high speed, low speed…”
STATUS
MODES
Applicable scene
Blue light is always on
Low speed mode
Suitable for children, pets or
styling
Orange light is always on
Medium speed mode
Suitable for scenes with
sufficient time
Red light is always on
Hight-speed mode
Suitable for quick drying
scenes
One-key dust removal function
While the hair dryer is on and at low speed mode, press the air speed button for 5 seconds to
activate the reverse dust removal function. The motor fan gradually stops and start reverse
rotation. The dust removal is complete after 10 seconds of reverse rotation, and the motor
automatically stop to prevent damage to the equipment.

6
Note:
1. When the hair is moist after shampoo, the hot air mode is ideal. When the hair is
going to dry, as the humidity is low, it is better to switch to the cool/warm aur or
circulating ode to avoid hair damage brought by the hight temperature from the hot
air.
2. At the hot air mode, the temperature at the air outlet will be more than 100°C, so
please keep awa from the air outlet when you use it.
3. According to scientific experiments, the critical temperature for hair scales to start
damaging is 60°C. The warm air mode keeps a constant temperature at 57°C, which
aims to care your hair to the fullest.
Product Specification
Product Name:
Hair Dryer
Model Number:
HD10E
Rated Voltage:
230V~
Rated Frequency:
50Hz
Rated Power:
1600W
Product Size:
249x85x69mm
Cable Length:
2m
Features
Super hight air speed
At a maximum air speed of 22m/s, the 110,000 rpm three-phase high-speed brushless motor
provides strong airflow for efficient hair drying.
Intelligent constant temperature control
The built-in temperature sensor is installed at the air outlet. To prevent from hair damage
due to overheating, the sensor controls temperature nicely at the frequency of the
temperature calibration of 100 times per second according to different temperature modes.
Hair care with negative ions
With a concentration of 300 million negative ions, the built-in negative ion generator reduces
static amount in hair to prevent frizz and flyaways caused by static electricity.
Hot and cold circulating air
Thanks to the automatic circulation of cold and hot air every 5 seconds, the hair dryer would
not blow hot air on one area continuously, which prevents hair burn efficiently. Whether you
are styling your hair or drying long hair, you can concentrate on one area without worry.

7
One-key dust removal function
The motor fan supports reversing and one-key dust removal. It automatically cleans particles
accumulated in the air duct and filter after extended periods of use, ensuring that the
product always perform well.
Instructions
1. Tear off the plastic and take out the shine ring and bracket.
2. Combine the shine ring and bracket together correspondingly.
3. Rotate to tighten the two into one.
4. Attach the shine ring and bracket to Coshare hair dryer with magnetic adsorption, and
it can be used normally.
Assemble together
Tear off
Shine ring
bracket
Rotate and lock

8
Cleating and Maintenance
1. To remove the protective cover, turn it contraclockwise.
2. After removing the protective cover, set the hair dryer’s air speed to low, then press
the air speed button for 5 seconds to activate the reverse dust removal function; the
hair dryer will gradually stop and start reverse rotation for 10 seconds to remove the
fine rubbish and dust from the air duct.
3. After cleaning, turn off the blower by depressing the sliding switch and return the
protective cover to its original position.
4. After turning off and on again, the hair dryer will revert to regular operation and blow
out air normally.
Wind speed
button

9

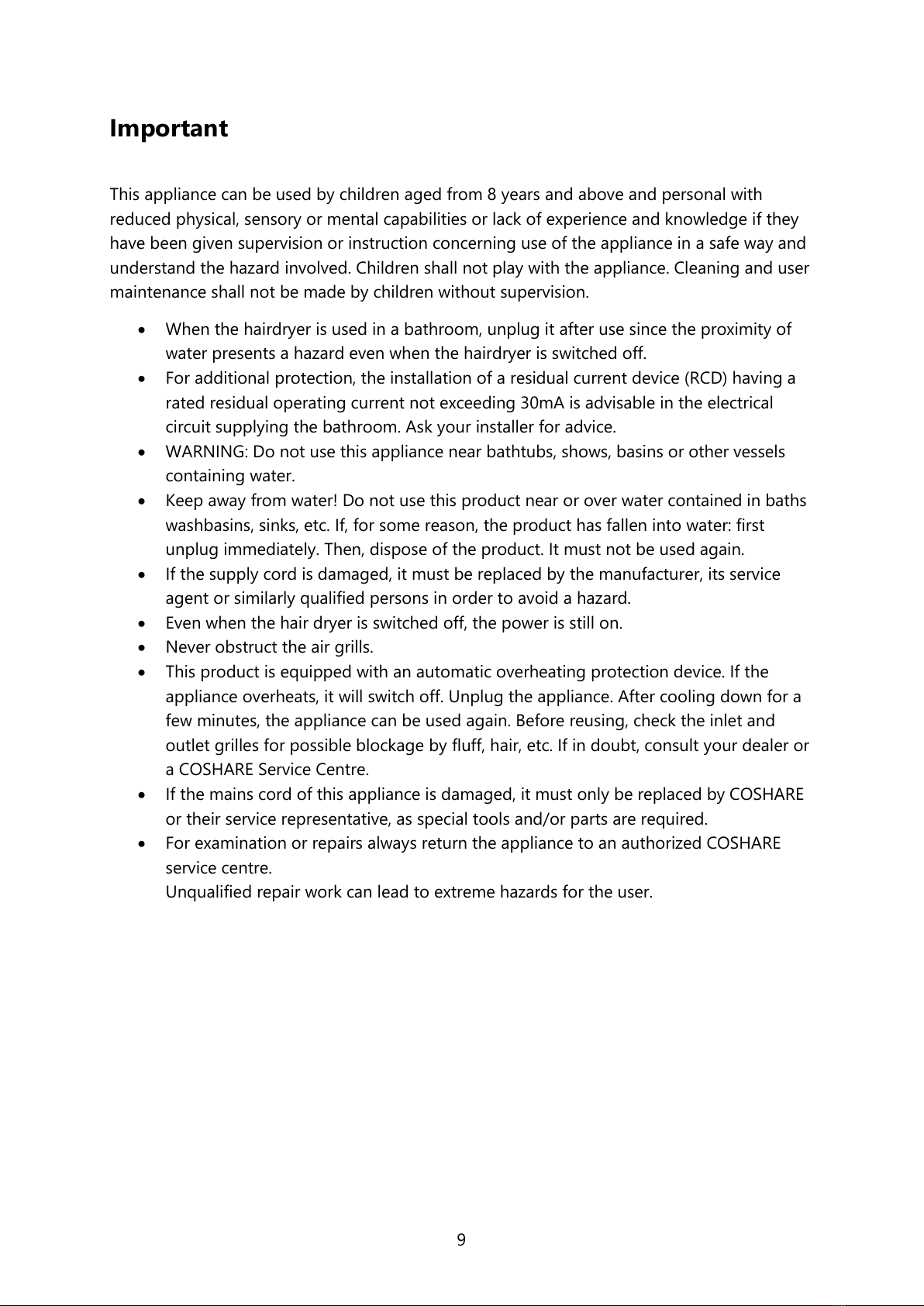

Important
This appliance can be used by children aged from 8 years and above and personal with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazard involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
When the hairdryer is used in a bathroom, unplug it after use since the proximity of
water presents a hazard even when the hairdryer is switched off.
For additional protection, the installation of a residual current device (RCD) having a
rated residual operating current not exceeding 30mA is advisable in the electrical
circuit supplying the bathroom. Ask your installer for advice.
WARNING: Do not use this appliance near bathtubs, shows, basins or other vessels
containing water.
Keep away from water! Do not use this product near or over water contained in baths
washbasins, sinks, etc. If, for some reason, the product has fallen into water: first
unplug immediately. Then, dispose of the product. It must not be used again.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
Even when the hair dryer is switched off, the power is still on.
Never obstruct the air grills.
This product is equipped with an automatic overheating protection device. If the
appliance overheats, it will switch off. Unplug the appliance. After cooling down for a
few minutes, the appliance can be used again. Before reusing, check the inlet and
outlet grilles for possible blockage by fluff, hair, etc. If in doubt, consult your dealer or
a COSHARE Service Centre.
If the mains cord of this appliance is damaged, it must only be replaced by COSHARE
or their service representative, as special tools and/or parts are required.
For examination or repairs always return the appliance to an authorized COSHARE
service centre.
Unqualified repair work can lead to extreme hazards for the user.

10

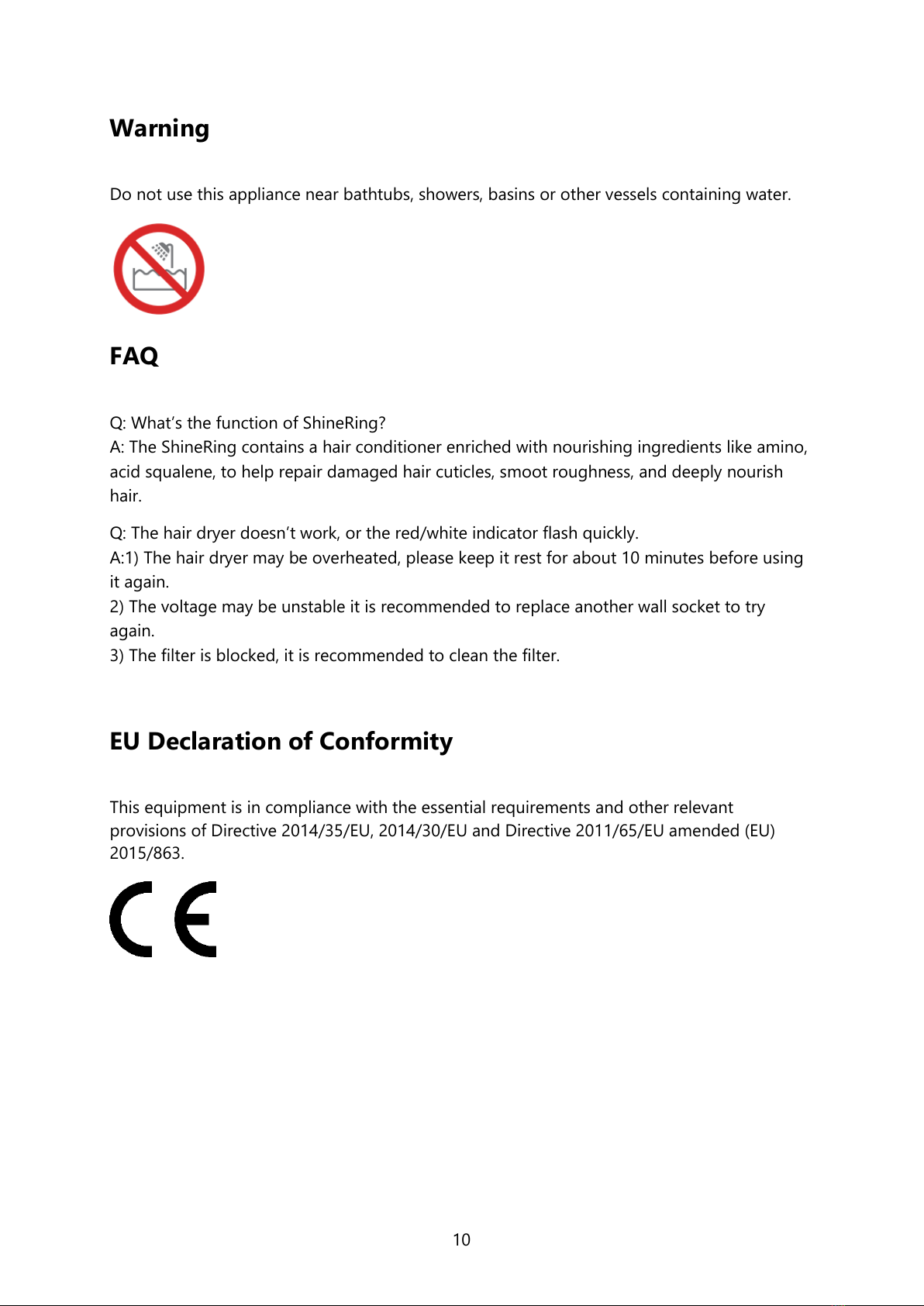

Warning
Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
FAQ
Q: What’s the function of ShineRing?
A: The ShineRing contains a hair conditioner enriched with nourishing ingredients like amino,
acid squalene, to help repair damaged hair cuticles, smoot roughness, and deeply nourish
hair.
Q: The hair dryer doesn’t work, or the red/white indicator flash quickly.
A:1) The hair dryer may be overheated, please keep it rest for about 10 minutes before using
it again.
2) The voltage may be unstable it is recommended to replace another wall socket to try
again.
3) The filter is blocked, it is recommended to clean the filter.
EU Declaration of Conformity
This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 2014/35/EU, 2014/30/EU and Directive 2011/65/EU amended (EU)
2015/863.
