Costway EP24558US User manual

www.costway.com
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Visit us: www.costway.com
Follow Costway
Please give us a chance to make it right and do better！
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP!
USER’S MANUAL
Coffee Maker with Grinder
EP24558US

www.costway.com
Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.
E-mail
US: [e-mail]
UK: [e-mail]
Before You StartBefore You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
02

www.costway.com
IMPORTANT SAFEGUARDS
Before using the electrical appliance, the following basic precautions should
always be followed including the following:
1.Read all instructions.
2.Before using check that the voltage of wall outlet corresponds to rated voltage
marked on the rating plate.
3.This appliance has been incorporated with a grounded plug. Please ensure the wall
outlet in your house is well earthed.
4.To protect against fire, electric shock and injury to persons do not immerse main
parts of the product, cord, plug, in water or other liquid.
5.The appliance must not be immersed.
6.Remove plug from wall outlet before cleaning and when not in use. Allow appliance
cool down completely before taking off, attaching components or before cleaning.
7.Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions, or is dropped or damaged in any manner. Return appliance to the
nearest authorized service facility for examination, repair or electrical or mechanical
adjustment.
8.The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
9.Place appliance on flat surface or table, do not hang power cord over the edge of
table or counter.
10.Ensure the power cord do not touch hot surface of appliance.
11.Do not place the coffee maker on hot surface or beside fire in order to avoid to be
damaged.
12.To disconnect, remove plug from wall outlet. Always hold the plug. But never pull
the cord.
13.Do not use appliance for other than intended use and place it in a dry
environment.
14.Be careful not to get burned by the steam.
15.Do not touch the hot surface of appliance (such as steam wand, and the steel
mesh just boiling). Use handle or knobs.
16.Do not let the coffee machine operate without water.
17.DO NOT remove the metal filter holder while brewing coffee. Please remove the
metal filter holder to make additional coffee after finish brewing for more than 10
seconds. Caution should also be taken while removing the metal filter holder since
the metal parts will be hot. Please make sure to hold it by the handle and to use the
filter retention clip to dispose the grounds. Caution should be taken when moving unit
with hot liquids.
03

www.costway.com
18.Connect plug to wall outlet before using and turn any switch off before plug is
removed from wall outlet.
19.This appliance can be used by children aged from 8 years and above if they have
been given supervision or instruction concerning use of the appliance in a safe way
and if they understand the hazards involved. Cleaning and user maintenance shall
not be made by children unless they are older than 8 and supervised. Keep the
appliance and its cord out of reach of children aged less than 8 years.
20.Appliances can be used by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the
hazards involved.
21.Children shall not play with the appliance.
22.This appliance is intended to be used in household and similar applications such
as:
– staff kitchen areas in shops, offices and other working environments;
– farm houses;
– by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments.
23.Do not use outdoors.
24.Save these instructions.
Warning: To prevent hot steam and hot water from scalding the body or causing other
personal injury, and also to prevent damage to the product, do not remove the water
tank or filter holder assembly when you use this coffee machine to brew coffee or
froth milk. Before removing filter holder assembly to brew another cup of coffee,
make sure the coffee machine is in standby condition. If you want to add more water
into the water tank, press the power button and the four indicators extinguish to
ensure that the power of the product is in off condition.
Warning:
Do not touch the top cover of the machine after the machine has been working for a
long time so as to prevent burns.
04

www.costway.com
KNOW YOUR COFFEE MAKER
05

www.costway.com
USER GUIDE
06

www.costway.com
CONTROL PANEL
Grinder
Indicators
Each button has a light indicator around, and there is a triangular light indicator on
the fixing ring of steam knob.
Preheating：Press the Power button once, the machine enters the preheating state,
and the four indicators flash white in the form of a breathing lamp. The machine need
around 10S to preheat.
Standby：After the machine is preheated, it enters the standby state. The four
indicators are always illuminated white.
Make hot water：In the standby state, press the Hot water button once to enter the
hot water function. At this time, the Power button indicator becomes constant white,
the hot water indicator flashes white in the form of a breathing lamp, Single cup and
Double cup indicators extinguish . Press the Hot water button again, the hot water
function stops, and the machine enters the standby state.
Brew single cup coffee：In the standby state, press the Single cup button once to
enter the function of brewing a single cup of coffee. At this time, the Power button
indicator is always white, and the single cup indicator flashes white in the form of a
breathing lamp, hot water indicator and double cup indicator go out. Pressing the
Single cup button once again or waiting for the ending of single cup function , the
machine enters the standby state.
Brew double cup coffee: In the standby state, press the Double cup button once to
enter the function of brewing double cup coffee. At this time, the Power button
indicator is always white, the double cup indicator light flashes white in the form of
breathing lamp, hot water indicator and single cup indicator go out. Pressing the
Double cup button again or waiting for the ending of double cup coffee function , and
the machine enters the standby state.
07

www.costway.com
Steam preheating:
In the standby state, turn the steam knob to the preheating position . At this time, the
Power indicator is always white, the hot water, single cup and double cup indicators
are off, and the steam indicator (triangle) flashes white. At this time, the steam
function is preheating, and the steam indicator is always white, and the steam function
is preheated.
Make steam：When the steam is preheated, turn steam knob to the Max position, at
this time, the Power indicator is always white, the hot water, single cup and double
cup indicators are off, and the steam indicator flashes white in the form of a breathing
lamp, at this time the steam function is in progress, turn the steam knob to the
preheating position again, the steam indicator returns to the normal white, the steam
function is finished, select the steam knob to the "off" position, the machine enters
cooling state, at this time the steam indicator is extinguished. Until the machine is
cooled down completely, the machine enters the standby state.
Grinding coffee beans: Press power button, grinding indicator is lighted white,
indicating unit enters grinding beans preparation state, at this time attach pressurized
filter holder into filter holder bracket and push it forwards to grind coffee beans, during
grinding the grinding indicator flashes white; when grinder is not fit in place, grinding
indicator flashes red, at this time coffee beans can not be ground until grinder is fit in
place.
Sleep mode：When the machine is not operating for 20 minutes in the standby state,
it will automatically enter the sleep state. At this time, three indicators except the
Power button indicator are off, the Power button indicator flashes red ten times, the
buzzer rings two times. Pressing any button in sleep mode activates the machine to
re-enter the preheating state.
BEFORE THE FIRST USE
1. Check and ensure all accessories no broken.
2. Fill appropriate water into water tank.
3. Insert pressurized filter holder into filter holder snap position of the machine, turn it
anticlockwise to lock tightly.
4. Place a container on the drip plate, connect the machine into power source, steam
knob shall be in off position，press the Power button, the machine enters the
preheating state, after finishing preheating, the machine enters the standby state.
5. Press the Hot water button to dispense proper hot water, then press Hot water
button to stop hot water function, press Single or Double cup button to clean tubing
system of machine.
6. Clean all detachable parts by warm water.
Choose appropriate ground coffee
The coffee should be freshly ground and subjected to deep roasting. You may need to
use French or Italian roasted coffee powder for espresso. Pre-ground coffee powder
can only remain scented for 7 to 8 days unless it is stored in a sealed container and
placed in a cool place. Do not store coffee in the refrigerator or freezer. It is
recommended to grind all coffee beans into powder before use. The fragrance of the
coffee beans stored in the sealed container can be maintained for 4 weeks.
08

www.costway.com
If you are grinding coffee beans for yourself, this step is a key step in the espresso
making process and requires more practice. The coffee beans must be finely ground,
and the adjustment knob can adjust the coarseness&fineness of ground coffee. The
preset intermediate grind setting is optimal when the machine leaves the factory.
When coffee ground by cutting blade becomes coarser during use, the adjustment
knob can be properly rotated to make the ground coffee finer.
• The ground coffee should look like salt.
• If the powder is too fine, even if it is tamped it may cause the coffee to flow out
intermittently. These ground coffee feels like flour
• If the powder is too thick, the water will flow too fast, which will hinder the extraction
of its rich aroma.
In order to get a uniform, consistent coffee, be sure to use a high quality coffee
grinder.
Operation instruction
1. Fill appropriate water into water tank, water level can’t exceed MAX.
2. Connect the machine into power source, press the Power button (steam knob
needs to be turned off), the machine starts to preheat, the indicator flashes until the
machine finishes preheating, the power indicator becomes always on, and it enters
the standby state.
3.Grinding coffee beans: Press power button, attach grinder to unit, grinding indicator
is lighted white, fill bean container with appropriate coffee beans, turn adjustment
knob to the proper setting, then attach pressurized filter holder into filter holder
bracket and slightly push it forwards to grind coffee beans until desired amount of
ground coffee is reached.

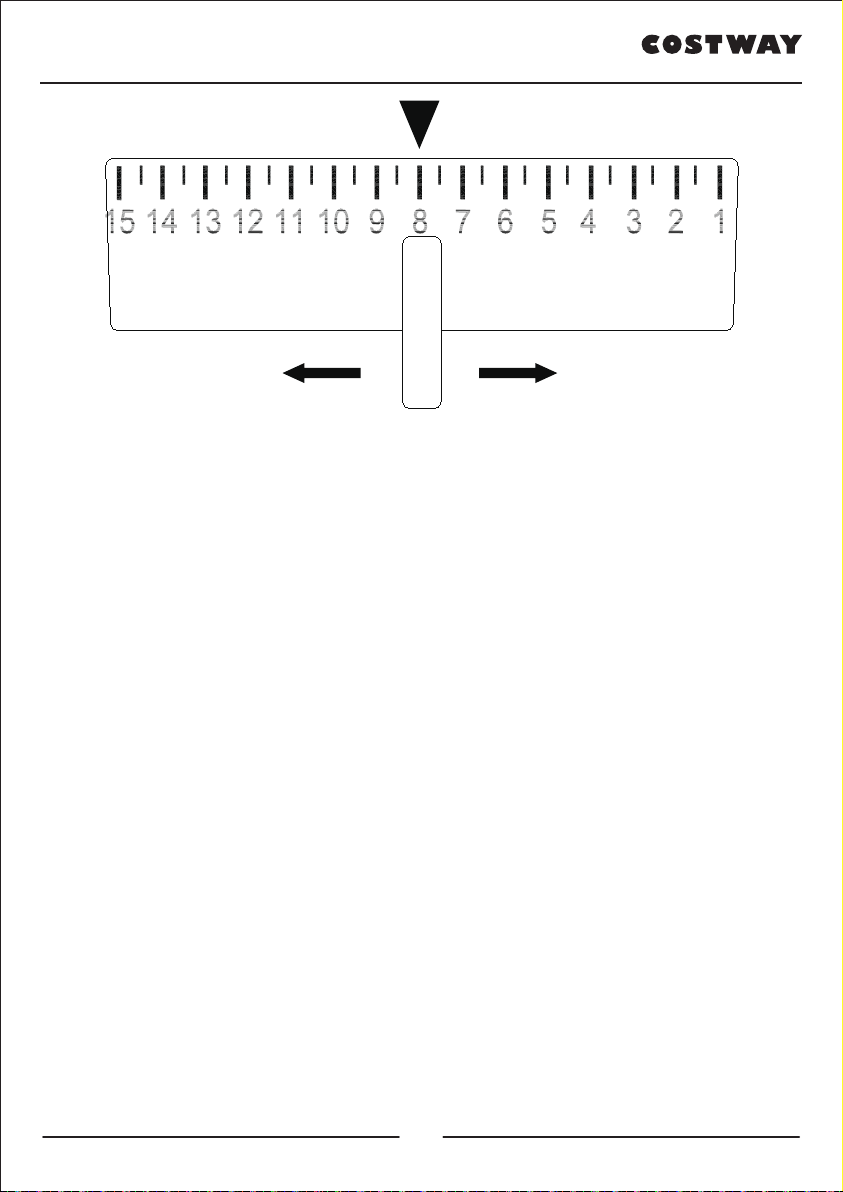

Tip: 1.it is recommended to make delicious coffee at grind settings 7-10 and the
continuous working time of grinder should not be more than 1min each time.
2.If pressure gauge indicates too low pressure during brewing, you can turn the grind
knob to a finer setting and then try to grind the beans to brew the coffee. (see below
figure)
3. If pressure gauge indicates too high pressure during brewing so that coffee can't be
brewed or coffee is over-extracted, you can turn the grind knob to a coarser setting,
and try to grind beans to brew coffee.(see below figure)
09

www.costway.com
4. Make hot water: Press Hot water button, the Hot water button indicator flashes in
the form of a breathing light; hot water flows out from hot water pipe, after dispensing
200ml hot water, the machine automatically stops and returns to standby mode. To
stop the hot water function anytime, press the Hot water button again.
5. Brew single cup of coffee: Attach 1- cup filter to the filter holder, load 13-15 grams
of coffee powder into filter using a tamper and press the coffee powder with a force of
10-15Kg, then align the filter holder assembly with the filter holder bracket buckle
position and turn it counterclockwise into the filter holder bracket, put a coffee cup on
the drip plate under the filter holder. Press the Single cup button in the standby state,
the Single cup button indicator flashes in the form of a breathing light; the machine
starts to brew coffee, and the pressure gauge will display pressure parameters in
brewing process, when the coffee is finished, the pressure gauge is reset, all
indicators on the panel are solid on, and machine restores to the standby mode.
6.Brew double cup of coffee: Attach 2- cup filter to the filter holder, load 20-22 grams
of coffee powder into filter using a tamper and press the coffee powder with a force of
10-15Kg, then align the filter holder assembly with the filter holder bracket buckle
position and turn it counterclockwise into the filter holder bracket, put a coffee cup on
the drip plate under the filter holder. Press the Double cup button in the standby state,
the Double cup button indicator flashes in the form of a breathing light; the machine
starts to brew coffee, and the pressure gauge will display pressure parameters in
brewing process, when the coffee is finished, the pressure gauge is reset, all
indicators on the panel are solid on, and machine restores to the standby mode.
Recommendation: To make a delicious hot espresso, we recommend that you
preheat the appliance before making the coffee, including the filter holder, filter and
cup, so that the coffee will not be affected by the cold appliance
Fine Coarse
10

www.costway.com
7.Produce steam to froth milk: Turn steam knob from off to preheat position, at this
time the machine starts steam preheating, steam indicator flashes, when reaching
steam preheating temperature, indicator keeps constant on, turn steam knob from
preheat to Max position, the machine starts to produce steam, steam indicator
flashes in the form of a breathing light during producing steam; To stop steam
function, turn steam knob from MAX to preheat position to stop producing steam.
Turn steam knob from preheat to off position, the steam indicator light is
extinguished, the machine will cool down, when all indicators on the panel become
constant on, the machine enters the standby mode.
Recommendation: The machine shall need 1 minute rest after performing steam
function for continuous 10 minutes, so as to prevent the machine from overheating.
Warning: When the machine is cooling down, the relief port in the drip plate will
release some steam, please don’t approach.
8. Cup volume adjustment: Press and hold Single cup button and Double cup button
at the same time for 5S, the machine enters customized cup volume status (single
indicator and double indicator flash at the same time), press single button at this time
(single indicator flashes, double indicator illuminates) to memorize single cup volume
while start to dispense hot water, press Single cup button again (single indicator
illuminates) to stop dispensing water and finish memorizing. After the memorization is
completed, the machine resumes customized cup volume status; Set double cup
volume in same method as above.（For single cup amount of water is 20-60ml,
double cup is 60-100ml）
Note: 1）Steam knob shall be in off position during preheating when brewing coffee
or Making hot water.
2) Single cup or double cup coffee can be brewed only after finishing preheating.
3）You can press single button or double button to stop during coffee brewing.
4）When water tank lacks of water( less than MIN level), the unit will alarm, indicator
flashes, after refilling water, it will turn to normal condition.
5）If you want to return cup volume to the defaulted factory setting, just press and
hold the corresponding cup button for 5s while button indicator flashes twice.
6) After finish frothing milk, the steam pipe should be wiped with a moist cloth in time,
and steam shall be produced for a length of time to prevent the milk from clogging the
steam nozzle. In case of steam pipe blockage, clean needle can be used to dredge
steam pipe hole.
7) After finish making steam, hot water and brewing coffee functions cannot be
performed during machine cooling stage until machine enters standby mode.
8) When the red float of the drip tray rises above the drip plate, it means that the drip
tray is near full water, please pour water in time.
11

www.costway.com
CLEANING AND MAINTENANCE
Tip: The grinder of this coffee machine is detachable. The detailed detaching method
is shown below:
Detaching method: Press release button as shown, turn the adjustment knob to the
maximum setting, and then turn it in the detaching direction shown in the figure to
remove the grinder vertically.
Attaching method: Align the bump position of grinder with the slot position of unit,
attach grinder into unit vertically. Turn the adjustment knob to the finest setting and
turn the grinder in the attaching direction until a click sound is heard.
Each time the grinder is used, the remaining coffee beans can be removed and the
residual coffee powder in the grinder can be cleaned with the brush.
Release button
12

www.costway.com
Detaching direction
Attaching direction
1. Cut off power source and let the coffee maker cool down completely before
cleaning.
2. Clean housing of coffee maker with moisture-proof sponge often and clean water
tank, drip tray and removable shelf regularly then dry them.
Note: Do not clean with alcohol or solvent cleanser. Never immerse the housing in
water for cleaning.
3. Detach the metal filter holder by turning it clockwise, get rid of coffee residue
inside, then you can clean it with cleanser, but at last you must rinse with clear
water. Do not wash the metal filter holder in a dishwasher.
4. Clean all the attachments in the water and dry thoroughly.
Note: Removable water tanks, bean box, grinder, and filter holder bracket cannot be
washed in the dishwasher.
13

www.costway.com
CLEANING MINERAL DEPOSITS
To keep your coffee maker operating efficiently, you should clean away the mineral
deposits left by the water regularly according to the water quality in your area and
the frequency of use of the appliance, the detail is as follows:
1. Fill the water tank with water and descaler to the MAX level in the gauge of
coffee maker (the scale of water and descaler is 4:1, the detail refers to the
instruction of descaler. Please use “household descaler”, you can use the citric acid
instead of the descaler (the one hundred parts of water and three parts of citric
acid).
2. Press the power button, the unit enters preheating, after finish preheating, the
indicator becomes solid on
3. Make sure the filter holder locks in place.
4. Place a large enough container (approx. 2L) to receive water under the filter
holder outlet, hot water pipe nozzle and steam nozzle
5.Press and hold the Hot water button for 5s, the machine will enter the automatic
cleaning function, then turn the steam knob to the Max position. During the
automatic cleaning process, the descaler solution will flow out from the filter holder,
hot water pipe and steam pipe respectively, after 10-15 minutes, the cleaning
function is completed, the machine enters the power-off state.
6. After removing scale, fill clear water into water tank, repeat step 4 until descaler
solution is cleaned up.
7. After cleaning, clean water tank and drip tray.
Note:
1) During automatic cleaning process, a suitable container (about 2L) shall be
placed at the filter holder outlet and hot water outlet to receive water.
2) During cleaning , the pump will start and stop intermittently. This is a normal
phenomenon.
3) During cleaning, the steam knob must be turned on. If the automatic cleaning
function is switched to clean steam tube, the machine will alarm once the steam
knob is turned off. At this time, the steam knob shall be turned on and the water will
flow out of the steam tube.
4) It is recommended that the user shall perform descaling operation after 1000
working cycles . If the total working cycle of the machine reaches 1000 cycles, there
will be a reminder signal once the machine is turned on ( four indicators on the
panel will flash red twice), which reminds user to perform descaling.
14

www.costway.com
TROUBLE SHOOTING
Symptom
Cause
Corrections
Water leaks from the bottom
of coffee maker.
There is much water in the
drip tray.
Please clean the drip tray.
The coffee maker is
malfunction.
Please contact with the
authorized service facility
for repairing.
Water leaks out of outer side
of filter.
There is some coffee powder
on filter edge.
Get rid of them.
Acid (vinegar) taste exists in
Espresso coffee.
No clean correctly after
cleaning mineral deposits.
Clean coffee maker per the
content in “before the first
use
”
for several times.
The coffee powder is stored
in a hot, wet place for a long
time. The coffee powder
turns bad.
Please use fresh coffee
powder, or store unused
coffee powder in a cool, dry
place. After opening a
package of coffee powder,
reseal it tightly and store it
in a refrigerator to maintain
its freshness.
The coffee maker cannot
work any more.
The power outlet is not
plugged well.
Plug the power cord into a
wall outlet correctly, if the
appliance still does not
work, please contact with
the authorized service
facility for repairing.
The steam cannot froth. The container is too big or
the shape is not fit.
Use high and narrow cup.
You have used skimmed
milk
Use whole milk or
half-skimmed milk
During brewing, both
i
ndicators of the single an
d
d
ouble cups flash red in th
e
f
orm of a breathing light, an
d
n
o coffee flows out of the filte
r
h
older or only flows out dro
p
b
y drop
Check if the coffee filter holder
i
s clogged
Coffee powder should not
be too fine, and the amount
of coffee powder exceeds
the standard.
15

www.costway.com
ENVIRONMENT FRIENDLY DISPOSAL
You can help protect the environment!
Please remember to respect the local regulations:
hand in the non-working electrical equipments to an
appropriate waste disposal center.
16

Welcome to visit our website and purchase our quality products!
Reward Points
Exclusive Customer Service
Personalized Recommendaons
Permanent Shopping Cart
Order History
We would like to extend our hearelt thanks to
all of our customers for taking me to assemble
this product and giving us valuable feedbacks.
www.costway.com
Your suggestions and comments for COSTWAY are really important to us!
We sincerely solicit you to go back to our shop and leave a good rating in just a
simple click. It would be quite encouraging if you could kindly do so like below:
February 24, 2019
Great products so far. Fast delivery, easy setup, and working without any issues.
Great products so far
With your inspiring rating, COSTWAY will be more consistent to offer you
EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
US office: Fontana, California
UK office: Ipswich
www.costway.com
17
