Costway FP10218US User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
EN FR
USER'S MANUAL/MANUEL DE L'UTILISATEUR
FP10218US
Tumble Dryer /Sèche-linge

Important Safeguards
When using electrical appliances, in order to reduce the risk
of fire, electric shock, and/or injury to persons, basic safety
precautions should always be followed, including:
For Your Safety
Read all instructions carefully, even if you are quite familiar with the
appliance.
● This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
● Young children should be supervised to ensure that they do not
play with the appliance.
● INDOOR USE ONLY - this appliance is not intended for outdoor
use.
● Do not place naked flame sources, such as candles, on the
appliance.
● Do not locate the appliance or cord near heat sources such as
radiators, heaters, air ducts or direct sunlight.
● Do not block any of the ventilation openings.
Ensure that vents are not covered by newspapers, tablecloths,
curtains, etc.
● Do not run the cord under floor coverings.
EN
02

Instead, arrange the cord away from trffic areas where it will not
become a trip hazard.
● To disconnect the appliance, turn the appliance off, switch off the
power outlet and remove the plug from the power outlet.
● Do not misuse the cord. Never carry the appliance by the cord or
pull to disconnect it from the outlet. Instead, grasp the plug and
pull to disconnect.
● Do not operate the appliance if it has a damaged cord or plug;
after the appliance malfunctions; or has been dropped or damaged
in any way. Consult the after-sales service center.
● Do not attempt to repair, disassemble or modify this appliance by
yourself. Consult a qualifed technician for repairment.
● Clothes soiled with flammable materials must be thoroughly
cleaned with detergent before they can be placed in the dryer.
● Do not excessively bend, stretch, twist or bind the power cord or
place heavy objects on it.
● This appliance is only to be serviced by a qualified person. There
are no user serviceable parts inside.
● Do not use an extension cord with this appliance.
● Do not install in a tight fitting cabinet.
● Do not overload the tumble dryer.
● Ensure foreign objects do not get into the tub of the tumble dryer.
● The door window may be hot after a long drying cycle. Please
ensure children are kept away from the machine.
● If the tumble dryer is not wall mounted, place it in a flat, firm, dry
and drafty place. Use the adjustable front legs to assist in leveling
the dryer if need be. Do not place it on any soft material such as
foam or plastic.
03

● Do not use flammable or combustible materials such as gas,
petrol, alcohol or lacquer in the tumble dryer.
● After turning off the power supply to the tumble dryer, wait at
least 2 minutes before turning it back on again.
● Please remove the transport packaging at the rear of the tumble
dryer, prior to use.
● If the supply cord is damaged, it must be replaced by the
manufacturer or similarly qualified persons in order to avoid a
hazard.
CAUTION: If this appliance is supplied from a cord extension set or
an electrical portable outlet device, the cord extension set or
electrical portable outlet device must be positioned so that it is not
subject to splashing or ingress of moisture.
1. If it is unavoidable that fabrics that contain vegetable or cooking
oil or have been contaminated by hair care products be placed in a
tumble dryer, they should first be washed in hot water with extra
detergent - this will reduce, but not eliminate, the hazard.
2. Do not dry unwashed items in the tumble dryer.
Oil- affected items can ignite spontaneously,
especially when exposed to heat sources such as in
a tumble dryer. The items become warm, causing
an oxidation reaction in the oil. Oxidation creates
heat. If the heat cannot escape, the items can
become hot enough to catch fire. Piling, stacking or
storing oil- affected items can prevent heat from
escaping and so cause a fire hazard.
04

3. Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine,
waxes and wax removers should be washed in hot water with an
extra amount of detergent before being dried in the tumble dryer.
4. Fabric softeners, or similar products, should be used as specified
by the fabric softener instructions.
5. The final part of a tumble dryer cycle occurs without heat (cool
down cycle) to ensure that the items are left at a temperature that
ensures that the items will not be damaged.
6. WARNING: Never stop a tumble dryer before the end of the
drying cycle, unless all items are quickly removed and spreaded out
so that the heat is dissipated.
- this appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
- children shall not play with the appliance.
- cleaning and user maintenance shall not be made by children
without supervision.
This marking indicates that this product should not be
disposed with other household wastes. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources.
Correct Disposal of this product:
05

- Children of less than 3 years should be kept away unless
continuously supervised.
Save These Instructions
- that the tumble dryer is not to be used if industrial chemicals have
been used for cleaning.
- that the lint trap has to be cleaned frequently.
- that lint must not to be allowed to accumulate around the tumble
dryer.
- that adequate ventilation has to be provided to avoid the back
flow of gases into the room from appliances burning other fuels,
including open fires.
- items such as foam rubber (latex foam), shower caps, rubber
backed articles and clothes or pillows fitted with foam rubber pads
should not be dried in the tumble dryer.
WARNING: The appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by a uility.
- that the appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the tumble dryer, in such a way that a full opening of the tumble
dryer door is restricted.
06

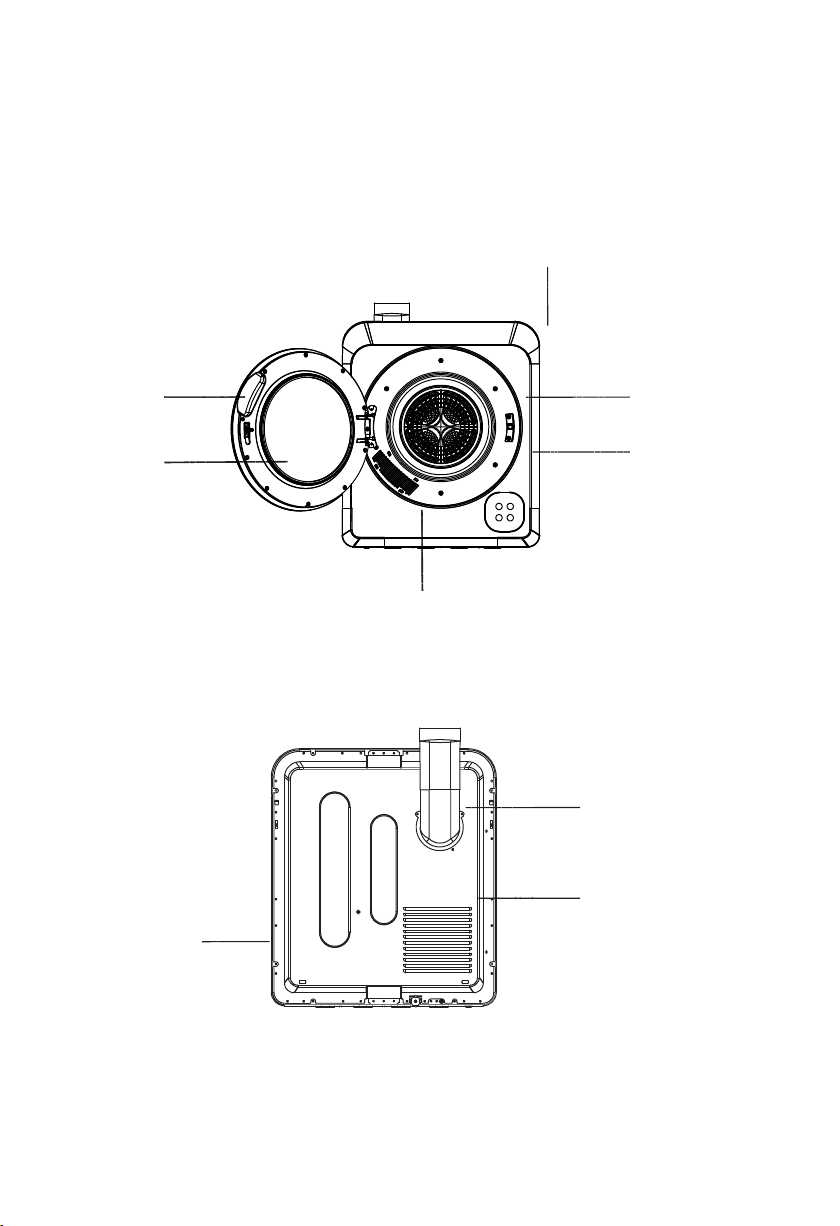

Name of Components
Cabinet
Exhaust vent
Back cover
Control Panel
Air intake shroud
Door
Window
Door Gasket
Drum
07

Operating your dryer
Electrical Requirements
The unit is required to be plugged into a
three pin socket that is reliably grounded.
The power supply must be 110V. Plug the
power cord into the socket.
Loading the dryer
It is recommended to put items in the
dryer one at a time, this will ensure
they don't get tangled and cause
uneven drying. When closing the
dryer door prior to starting the unit,
ensure that items are not jammed in
the door.
Tips before drying

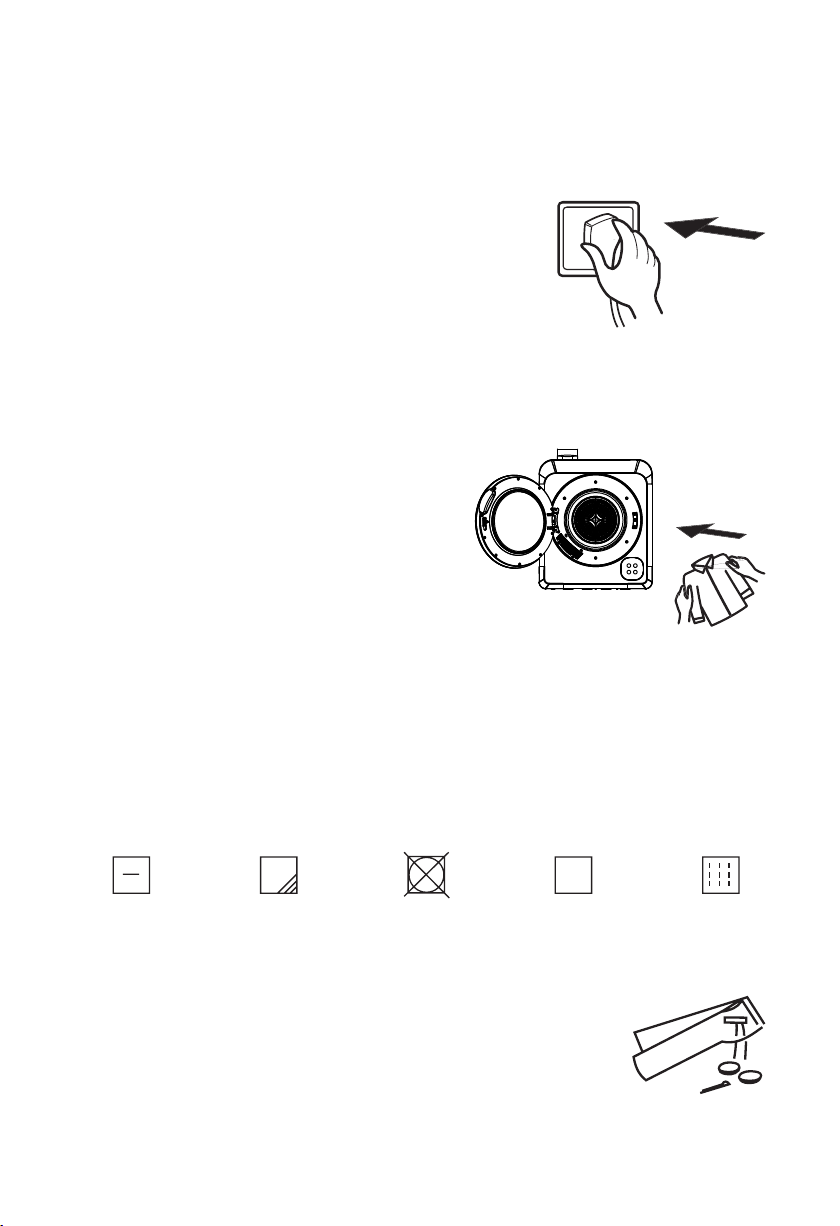

Prior to loading the dryer, check that the items do not have the
following the symbols anywhere on them. If they have, do not
tumble dry these items.
● Check the items to be dried do not have
combustible materials or foreign objects within them,
such as lighters, hair pins, coins.
Dry flat Dry in
the shade
Do not
tumble dry
Hang
to dry
Drip
dry
08

● Dryer heat may permanently set stains, ensure you check prior to
drying that stains are removed.
● Separate dark and light colored items as you would do when
washing.
● For best results, load the dryer with similar fabrics. Place small
delicate items in a mesh bag and do not overload the dryer.
● The maximum mass is 4kg/8.8lbs of dry textile material for the
dryer and do not overload. The tumble dryer is intended only for
drying textile material washed in water.
● Turn items with zippers inside out and fasten
buckles.
Control Panel Functions
140°F
104°F
1 hour
Smart
Extra Airing
5 1 2 3 4 6
Power Supply Key
Program Selection Key
Temperature Selection Key
Start/pause key
Program Indicator
Temperature Indicator
1
2
3
4
5
6
09

1) Press the "power" button to turn on (off) the power supply;
2) Programming. Users can select the program according to the
clothing material and clothing quantity, click the "Program
Selection" button, and switch the program between "Special Agent",
Intelligent" and "One Hour".
3) Selection of heating temperature. When using the "timing"
program, the heating temperature can be set in the three options of
"140°F" "104°F" and "air-drying". When the selection is successful,
the corresponding temperature indicator lights up.
4) Press the "Start/Stop" button, and the dryer will start working
after 2 seconds. Pressing this button during operation can stop
working. Clothes can be added or reduced in this state, and hot
steam will come out carefully when opening the door, so as to avoid
scalding. Press the machine again to resume operation and continue
to complete the selection process. The "Star/Stop" key is the switch
between start and stop of dryer. If you press the "Start/Stop"
button directly after turning on the power supply, the dryer will run
according to the intelligent program.
Program Heat
140°F
131°F
140°F
104°F
Airing
Extra 8.8~
13.2 lbs
2.2~
13.2 lbs
4.4 lbs
Smart
1 hour
Max!
volume
of dry
clothings
Clothings! type Crease
Guard
Max dry
time
150min
150min
60min
√
√
√
Quick-drying!
Clothes
Cotton! clothes,
jeans
cotton! weaving!
clothes, jeans! and!
bedsheets
10

Operation Precautions
Delicate items should be placed into a nylon net
bag prior to drying. It is not recommended to dry
underwear in this unit.
Ensure that foreign objects will not get into
the dryer. All pockets should be emptied,
buttons, buckles and zips fastened. These
will also help reduce impact noise when the
items hit against the turning drum.
If drying large items such as a blanket,
it is recommended that from time to
time you open the dryer door, shake
the item, place the item back in the
dryer and close the door. This will
ensure even drying.
If any of the below labels are on an items that you are going to
place in the dryer, stop, do not, as the dryer may damage the item.
Do not add items into the dryer whilst
it is in operation.
Flip over
clothes
Remove all objects from pockets such as lighters and
matches.
Dry flat Dry in
the shade
Do not
tumble dry
Hang
to dry
Drip
dry
11

Electrical Requirements: A three pin socket
must be used. (reliably grounded)
To ensure you get the most out of
the anti-wrinkle function, do not
overload the dryer and remove the
dried items from the dryer
immediately and hang on coat
hangers. Iron the items if desired.
Reduced load
To minimize the risk of fire in a tumble dryer, the following should
be observed:
● Items that have been spotted or soaked with vegetable or cooking
oil constitute a fire hazard and should not be placed in a tumble
dryer.
Oil-affected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer. The items
become warm, causing an oxidation reaction in the oil. Oxidation
creates heat. If the heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking or storing oil-affected items
can prevent heat from escaping and so cause a fire hazard.
Eusure that the fan is switched off from the supply mains
before removing the guard.
If it is unavoidable that fabrics that contain vegetable or cooking oil
or have been contaminated by hair care products be placed in a
tumble dryer, they should first be washed in hot water with extra
detergent - this will reduce, but not eliminate, the hazard.
12

The "cool down" cycle of tumble dryers should be used to reduce
the temperature of the items. They should not be removed from the
tumble dryer or piled or stacked while hot.
Items that have been previously cleaned in, washed in, soaked in or
spotted with petrol/gasoline, dry-cleaning solvents or other
flammable or explosive substances should not be placed in a tumble
dryer.
Highly flammable substances commonly used in domestic
environments include acetone, denatured alcohol, petrol /gasoline,
kerosene, spot removers (some brands), turpentine, waxes and wax
removers.
● ltems containing foam rubber (also known as latex foam) or
similarly textured rubber. Materials like these should not be dried in
a tumble dryer on a heat setting.
Foam rubber materials can, when heated, produce fire by
spontaneous combustion.
● Fabric softeners or similar products should not be used in a
tumble dryer to eliminate the effects of static electricity unless this
practice is specifially recommended by the manufacturer of the
fabric softener or product.
● Undergarments that contain metal reinforcements should not be
placed in a tumble dryer.
Damage to the tumble dryer can result if metal reinforcements
come loose during drying. When there is drying rack available for
these items.
● Plastic articles such as shower caps or babies' waterproof napkin
covers should not be placed in a tumble dryer.
● Rubber-backed articles, clothes fitted withs foam rubber pads,
pillows, galoshes and rubber-coated tennis shoes should not be
placed in a tumble dryer.
13

Operating guide
● In standby state, confirm that the normal state is ok.
● Open the door and put clothes in drum, the clothes weight should
not exceed rated drying capacity for appropriate.
● Close the door and check if these is clothes to be pinned by door.
● Select program, according to actual need to choose the drying
time/ program.
● Push start/pause button on the door and the dryer starts working.
● Dryer stops working after one or two minutes, take out the dryed
clothes.
Installation Instructions
This dryer can not be used upside down
Where to place your dryer
Place the dryer in a dry well ventilated area. It should be positioned
away from heat and direct sunlight.
If the dryer is not wall mounted, it must be placed on firm
horizontal ground. Do not place the dryer on carpet as this will
block the intake. There should be at least 5.1" between the dryer
and the walls.
If the dryer is rack mounted. A secure bracket is required to ensure
stability and prevent vibration. At least 5.1" between the dryer and
walls is required (The bracket is not included).
14

5.1"
Bracket
Wall Mounting Instructions
1. Determine dryer position on wall and mark required bracket
position. This dryer is not suitable to be directly placed on top of a
washing machine.
* A minimum 2-inch is needed between the top of the dryer and the
ceiling for ease of installation.
* If mounting above a washing machine, allow sufficient room to
open the lid of the washer.
1
1
4
1
Tools required
Tools & parts
required for
Plaster
/wooden wall
Drill & 3mm Bit
Philips Head Screw Driver
Wood Screws, φ 12x 50mm Timber Screws
Helper to lift dryer onto wall
15

Note: Optional for Wall Mounted Kits with Extra Cost.
2
2
1
4

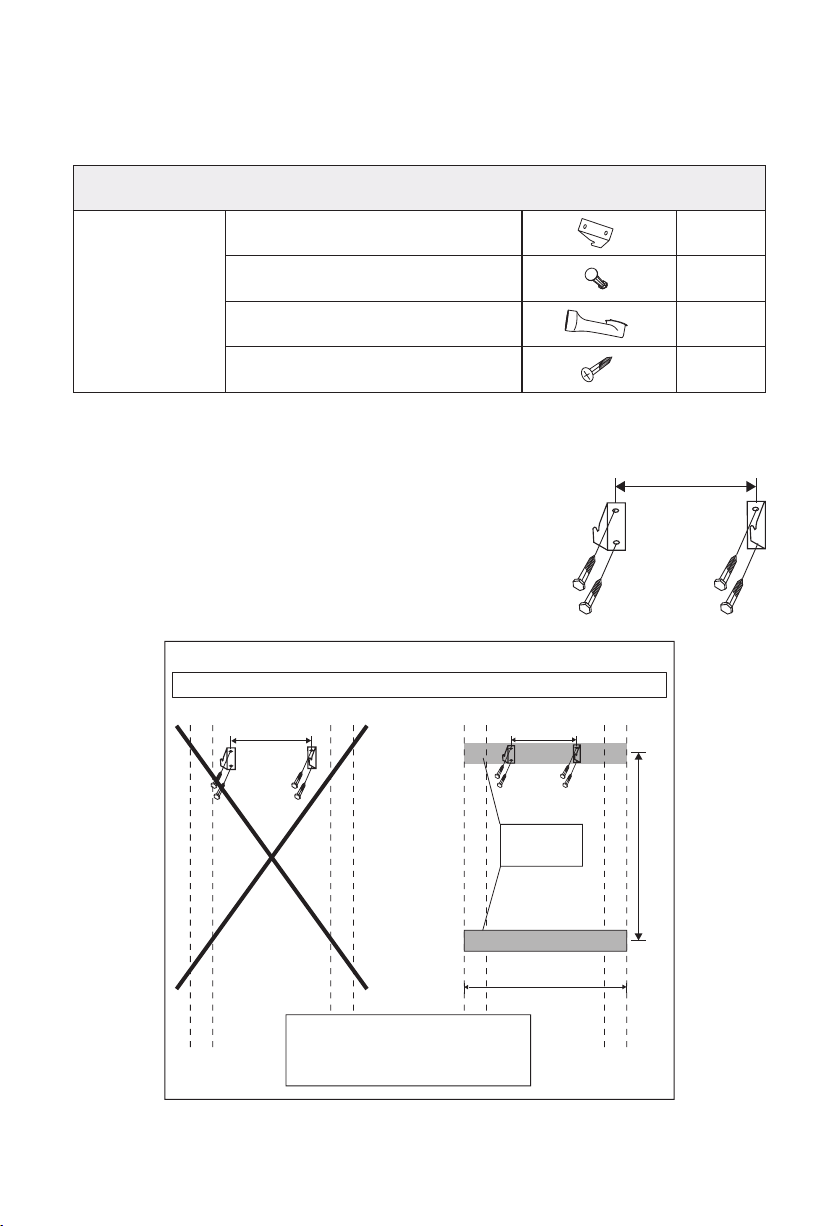

Wall Mounting Kit Includes
Description Hanging brackets
Plastic Spacers
Exhaust connector
55mm/2.2" Long Screws
2. Fix the wall hanging brackets (2 supplied)
to the wall securely (eg. into the stud.) Fit a
timber slat between the studs to mount the
brackets onto if the stud position is too wide.
1.8ft
Ceiling
Fig. 1
1.8ft 1.8ft
1.9ft
25x75mm
/1"x 3"
Timber
1.77ft
Stud Stud Stud Stud
Ensure brackets
aresecurely fastened. Fit
Timber slats if necessay.
16

3. To install the hanging hook to
wall, start at Fig 2.
4. Align hanging hooks and
fasten screws tightly.
5. Install exhaust pipe: Adjust
the direction of the exhaust
outlet (1) as shown in Fig.3.
6. Fix the 2 spacers as per Fig4.
7. With assistance, mount dryer
on wall. See Fig. 5.
Fig. 5
Fig. 3
Fig. 2
Hanging Hook
25mm long
screws
Fig. 4
spacers
Note: All accessories Optional with Extra Cost.
17

Maintenance
Cleaning the Lint Filter
Please unplug the power cord prior to any cleaning. The lint filter
must be in place whenever drying. It must be cleaned before each
use.
1. Removing the filters
Remove by pulling outwards with fingers, inserted into the four
holes around the exhaust vent shroud. The filter is in 3 parts:
Exhaust vent shroud, lint filter and exhaust filter (as shown in
figure1)
2. Cleaning the filter
Separate "exhaust vent shroud", "lint filter" and "exhaust filter".
Clean the lint on the lint filter and exhaust filter with a soft brush or
vacuum cleaner.
Do not damage the filters (as shown in figure 2)
The filter fixed in the
bottom of the drum
Exhaust
vent shroud
Lint filter Exhaust
Filter Figure 1
Lint Filter Lints Exhaust
Filter
Dust
Cleaner Figure 2
18

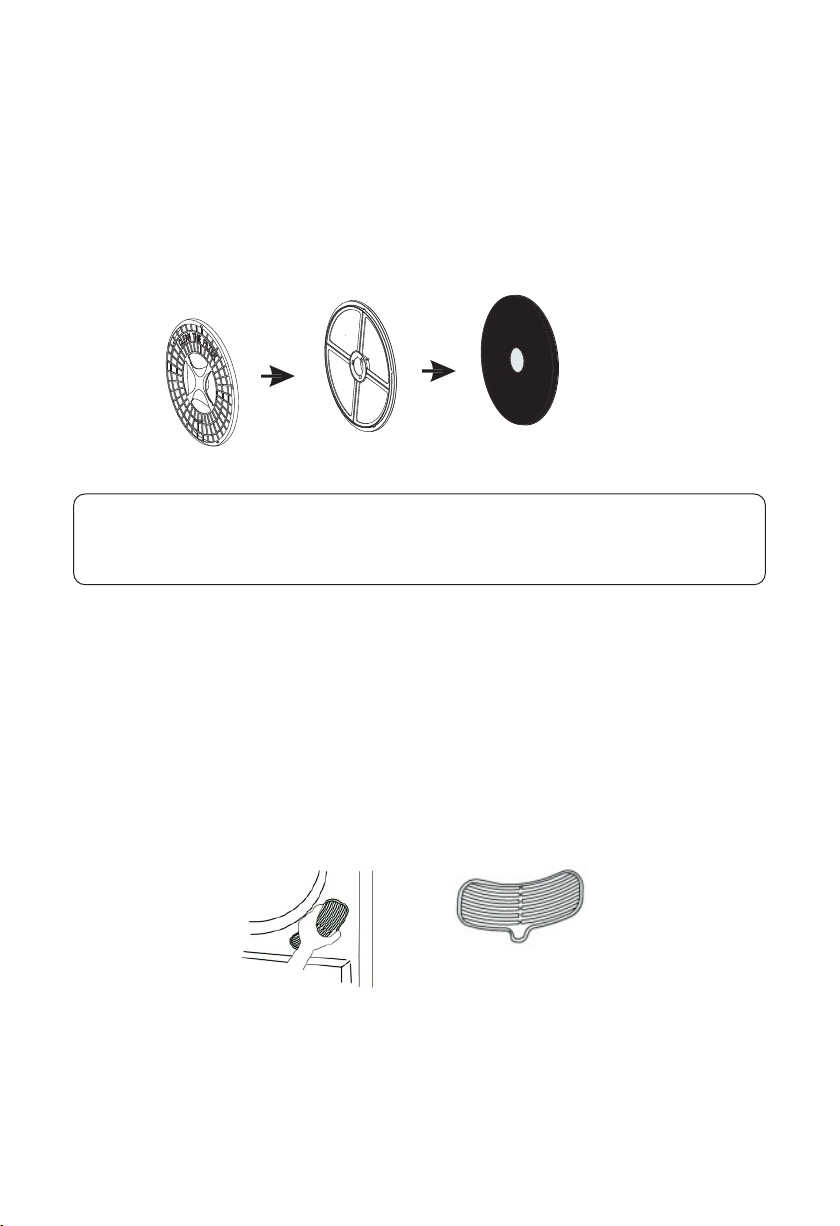

Note: The filter fixed in the bottom of the drum should also be
cleaned with a soft brush.
Cleaning of the Air Intake Filter
The filter should be cleaned once a month.
Remove by pulling outwards holding the upper and lower ends of
the air intake shroud. Remove the filter inside the shroud and clean
it with a soft brush. Reassemble and install as before.
Slightly push upwards with your thumb until the latch hook
disconnects, then remove.
Air Intake Filter
3. Re-installing the filter
After cleaning, assemble in the sequence of “exhaust filter - lint
filter- exhaust vent shroud”, align the recesses in the center with
the projection in the center of the drum. Make sure that it is firmly
inserted (as shown in figure 3).
Figure 3
19

WARNING: Regularly clean the
lint trap
CAUTION! HOT SURFACE
● Do not touch the intake during the drying
cycle due to high temperatures.
READ THE
INSTRUCTIONS
Cleaning the interior & exterior of the Dryer
Do not wash directly with water.
Do not use thinner, gasolene or alcohol.
Do not use any type of spray cleaner when cleaning the interior. If
dryer drum becomes stained, clean the drum with a damp cloth.
Remove any residue before drying the next load.
Clean cabinet with mild soap and water. Do not use harsh or
abrasive cleaners, this could damage the dryer.
20
