5.4 Height adjustment (Fig. 8)
Undo the union nut (Item 5) until the grass
trimmer handle can be moved in and out freely.
Now set the required working height (Fig. 9)
and secure the handle in this position by
tightening the union nut again.
5.5. Fitting the additional handle (Fig. 10)
Fit the additional handle to the mount provided,
paying attention to the teeth (Item I & II). Then
secure the additional handle with the help of
the screw and the adjustment lock provided.
Make sure that the compartment for the spare
blades faces the top of the equipment.
5.6 Adjusting the additional handle (Fig. 11)
Undo the adjustment lock (Item 3) for the
additional handle until it can be moved
forwards and backwards without any great
resistance. Set the required position and
tighten the securing screw again.
5.7 Adjusting the angle of tilt of the guide
handle (Fig. 12)
Press the button for the angle of tilt adjustment
(Item K). Now you can set the long handle to the
required tilt. Release the button and allow the
handle to lock into position to fix the angle of tilt.
Three different locking angles are possible.
5.8. Installing the battery (Fig. 13/14)
Press the side push-lock buttons of the battery
pack as shown in Fig. 13 and push the battery
pack into the mount provided. When the battery
pack is positioned as in Fig. 14, make sure that
the push-lock buttons latch in place! To remove
the battery pack, proceed in reverse order.
5.9 Charging the battery (Fig. 15)
1. Take the battery pack out of the equipment.
Do this by pressing the push-lock button.
2. Check that your mains voltage is the same
as that marked on the rating plate of the
battery charger. Insert the power plug of the
charger (10) into the mains socket outlet.
The green LED will then begin to flash.
3. Insert the battery pack (11) into the
battery charger (10).
4. In section „Charger indicator“ you will find a
table with an explanation of the LED
indicator on the charger.
The battery pack can become a little warm
during the charging. This is normal. If the battery
pack fails to charge, check:
•whether there is voltage at the socket outlet
•whether there is good contact at the
charging contacts
If the battery pack still fails to charge, send
•the charging unit
•and the battery pack
to our customer service center.
To ensure that the battery pack provides long
service, you should take care to recharge it
promptly. You must recharge the battery pack when
you notice that the power of the cordless grass
trimmer drops. Never fully discharge the battery
pack. This will cause it to develop a defect.
5.10 Battery capacity indicator (Fig. 16)
Press the switch for the battery capacity
indicator (Item C). The battery capacity indicator
(Item B) shows the charge status of the battery
using 3 LEDs.
All 3 LEDs are lit:
The battery is fully charged.
2 or 1 LED(s) are lit:
The battery has an adequate remaining charge.
1 LED flashes:
The battery is empty, recharge the battery.
All LEDs flash:
The battery pack has undergone exhaustive
discharge and is defective. Do not use or
charge a defective battery pack.
6. Operation
To obtain maximum performance from your
grass trimmer, please follow these instructions:
•Never use the grass trimmer without
the guard.
•Do not mow grass when it is wet. The
best results are achieved with dry grass.

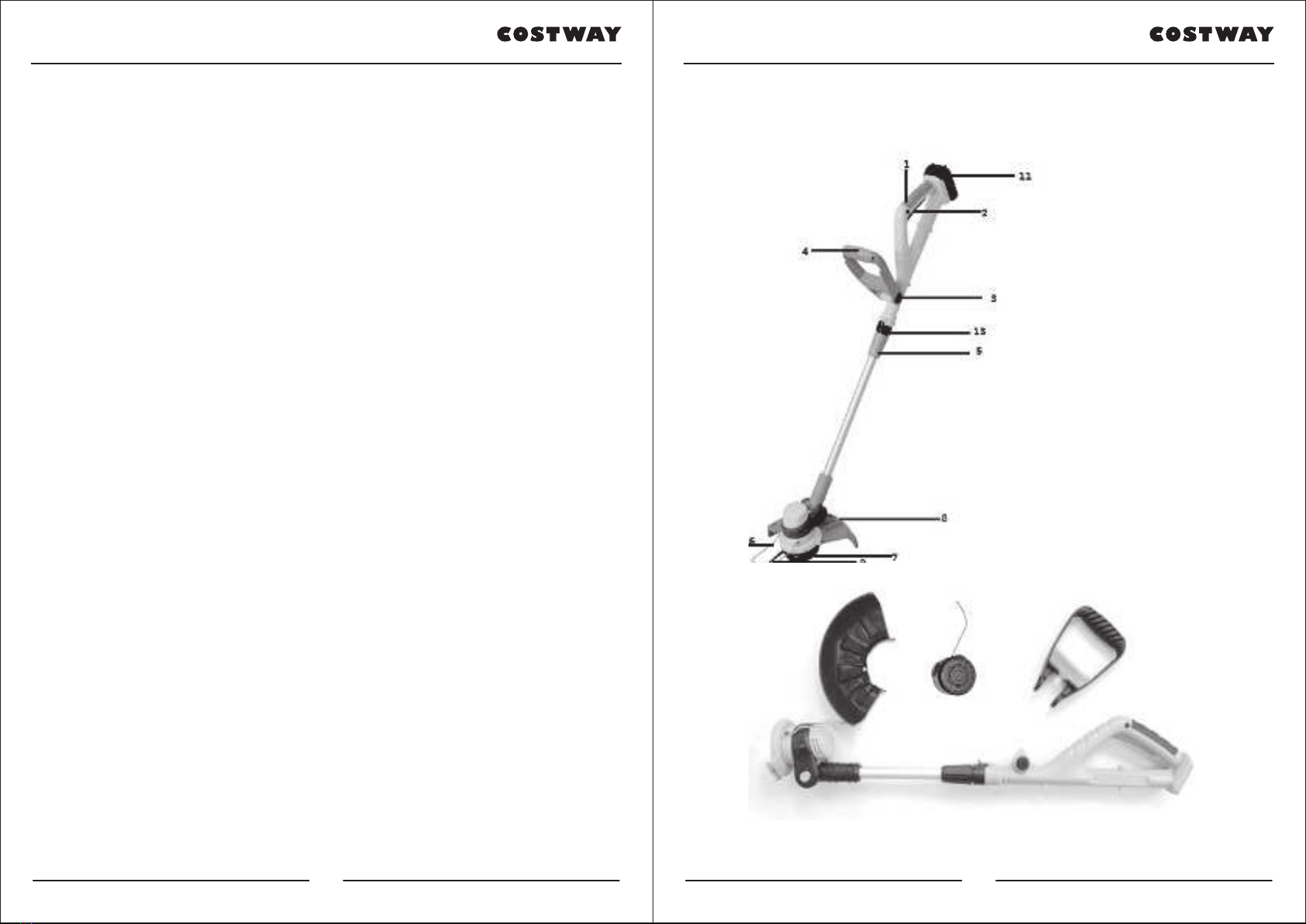

•To switch on your grass trimmer, press the
safety lock-off (Fig. 2 / Item 1) and the
On/Off switch (Fig. 2 / Item 2).
•To switch off your grass trimmer, let go of
the On/Off switch again (Fig. 2 / Item 2).
•Do not allow the grass trimmer near the grass
GB
until the switch is pressed, i.e. the grass
trimmer is in operation.

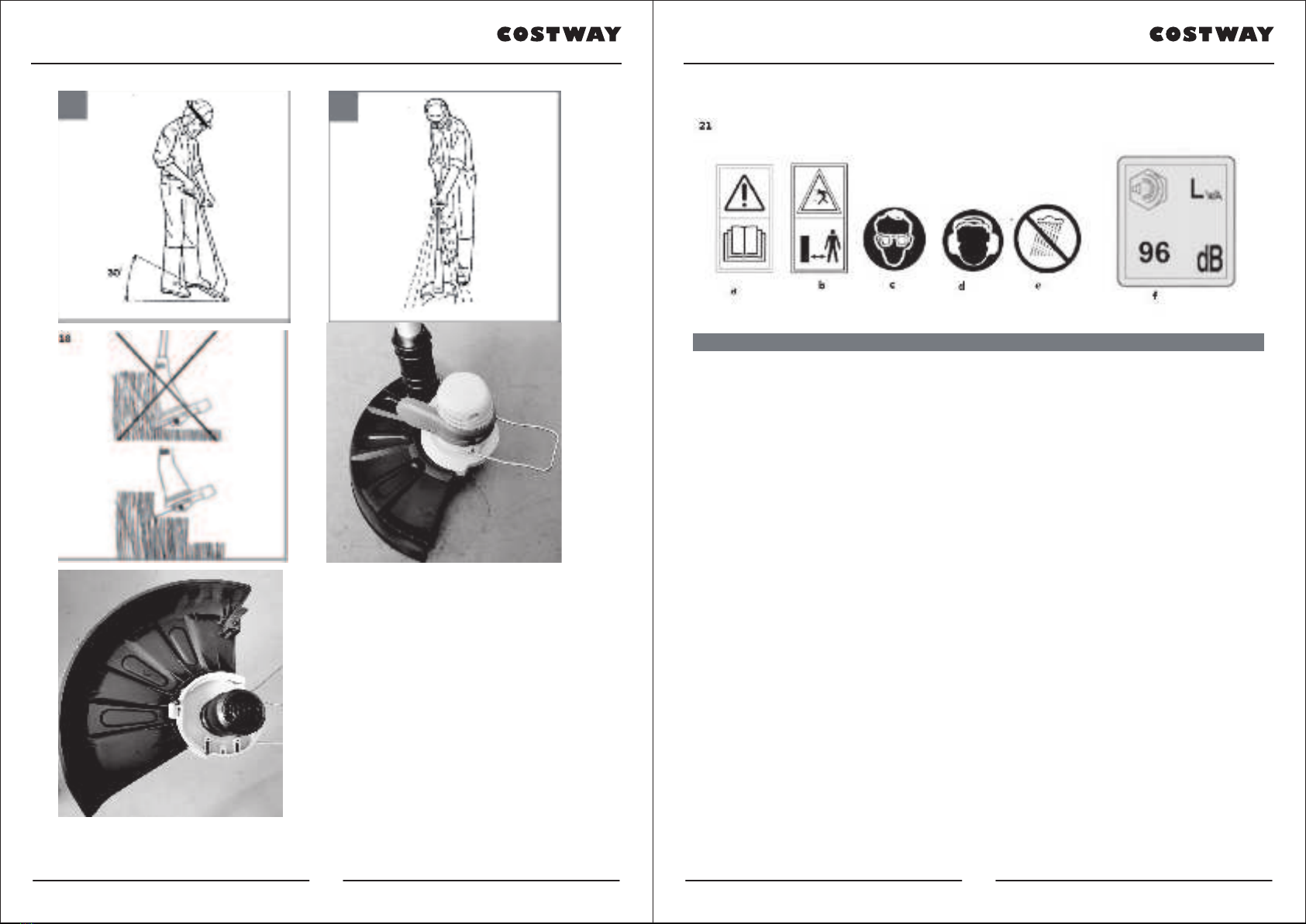

•To cut properly, swing the machine sideways
while moving forwards. Keep the grass
trimmer inclined at an angle of approx. 30°
while you do so (see Figs. 17 and 18).
•If the grass is long, the grass must be cut
shorter in stages, starting from the tip
(see Fig. 19).
•Use the guard hood to prevent
unnecessary wear.
•To avoid unnecessary wear, keep the
grass trimmer away from hard objects.
Using the grass trimmer as an edge trimmer
To cut the edges of lawns and flower beds, the
grass trimmer can be converted as follows:
•Remove the battery pack
•Pull the lock for the rotatable motor head in the
direction of the arrow as shown in Fig. 20.
•Turn the motor head through 90° in the
required direction until it latches in place (Fig.
21).
•Now you have converted the grass trimmer to
an edge trimmer for cutting the lawn vertically.
•To convert the equipment back to its
original state, proceed in reverse order.
7. Cleaning, maintenance and
ordering of spare parts
Danger!
Before putting away or cleaning the grass
trimmer, switch and remove the battery pack.
7.1 Cleaning
•Keep all safety devices, air vents and the
motor housing free of dirt and dust as far
as possible. Wipe the equipment with a
clean cloth or blow it down with
compressed air at low pressure.
•We recommend that you clean the
equipment immediately after you use it.
•Clean the equipment regularly with a damp
cloth and some soft soap. Do not use
cleaning agents or solvents; these may be
aggressive to the plastic parts in the
equipment. Ensure that no water can get into
the interior of the equipment. The ingress of
water into an electric tool increases the risk
of an electric shock.
•Use a brush to remove deposits from
the safety guard.
7.2 Replacing the blade
IMPORTANT! Be sure to remove the
battery pack before replacing!
•To remove the blade, push the blade
inwards and remove it through the larger
opening as shown in Fig. 22.
•To fit the new blade, proceed in reverse order
(Fig. 7). Make sure that it clicks into place.
7.3 Maintenance
There are no other parts inside the
equipment which require maintenance.
7.4 Ordering spare parts
Please provide the following information on
all orders for spare parts:
•Model/type of the equipment
•Article number of the equipment
•ID number of the equipment
•Spare part number of the required spare
part For our latest prices and information please
go to website
8. Disposal and recycling
The equipment is supplied in packaging to
prevent it from being damaged in transit. The
raw materials in this packaging can be reused or
recycled. The equipment and its accessories are
made of various types of material, such as metal
and plastic. Defective components must be
disposed of as special waste. Ask your dealer or
your local council.
9. Faults
The equipment does not work:
Check that the battery is charged and whether
the charging unit is working. If the equipment
will not work in spite of the voltage supply
being OK, please send it to the customer
service address below.
