COUNTRY TUFF S401628CT User manual

ASSEMBLY & OPERATING INSTRUCTIONS
LS190-886-0811
Rev. 1
MODEL NO.
S401628CT
Owner’s Manual
28 TON VERTICAL/HORIZONTAL
LOG SPLITTER
28 TON VERTICAL/HORIZON-
TAL
WARNING: All operators must read this manual before operating this log
splitter. Follow the safety instructions in the manual and in decals attached
to the product. Failure to do so could result in serious injury or death.

Table of Contents
Page(s)
Important Safety Information................................................................................................................. 1-6
Intended Use ......................................................................................................................... 1
Personal Protective Equipment ............................................................................................... 1
Safety Decals ....................................................................................................................... 1-2
General Safety ...................................................................................................................... 3
Preparation of the Log ........................................................................................................... 3
Work Area ........................................................................................................................... 3
Operation of the Log Splitter .................................................................................................. 3-4
Repair and Maintenance Safety ............................................................................................. 4
Hydraulic Safety .................................................................................................................. 5
Fire Prevention ..................................................................................................................... 5-6
Towing Safety ...................................................................................................................... 6
Assembly Instructions ...................................................................................................................... 7-9
Operating Instructions ....................................................................................................................... 12-13
Engine Oil Recommendations ................................................................................................ 12
Hydraulic Oil Recommendations ............................................................................................ 12
Starting Instructions ............................................................................................................... 12
Operation .............................................................................................................................. 13
Towing ...................................................................................................................................... 13
Maintenance .......................................................................................................................................... 13
 Specications.........................................................................................................................................BackCover
Replacement Parts................................................................................................................................. 10-11

WARNING: Read and thoroughly understand all instructions and safety information before assem-
bling
or operating this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone
to operate this log splitter who has not read this manual. As with all power equipment, a log splitter
can be dangerous if assembled or used improperly. Do not operate this log splitter if you have doubts
or questions concerning safe operation. Call our customer service department at 1-800-525-8322 to
address these concerns.
Si no entiende ingles, se preere que busque alguien que interprete las instrucciones para usted.
NEVER use this log splitter for any other purposes than splitting wood. It is designed for this use only. Any other use can
cause serious injury or death.
PEPER
PERPERSONALSONAL PROTECTIVE EQUIPMENT
BEFORE operating this log splitter make sure that you wear safety gear such as goggles or safey glasses, steel toed
shoesandtightttinggloves(withoutloosecuffsordrawstrings).Alwayswearaprotectivehearingdevicewhenoperat-
ing this log splitter.
NEVER wear loose clothing or jewelry that can be caught by moving parts of the log splitter. Keep clothing and hair away
from all moving parts when operating this log splitter.
PERSONAL PROTECTIVE EQUIPMENT
SAFETY DECALS
Make sure that all safety warning decals are in good condition and readable. Always replace missing or defaced decals.
Call 1-800-525-8322 for replacement decals.
PARTNUMBER:S52062500
LOCATION:FRONTSIDEENDOFTONGUE
INTENDED USE
Page 1

PARTNUMBER:S52062100
LOCATION:TOPOFHYDRAULIC
CYLINDER
PARTNUMBER:S52062400
LOCATION:HYDRAULICTANK
LOWER TANK, RIGHT CORNER
Page 2
PARTNUMBER:S52062200
LOCATION:TOP,LOWERENDOF
CYLINDER
PARTNUMBER:S52062300
LOCATION:RIGHTSTRIPPER
PLATE
PARTNUMBER:S52062600
LOCATION:LEFTSTRIPPER
PLATE

GENERAL SAFETY
EVER
NEVER allow children to operate this log splitter. NEVER allow adults lacking proper instructions and understanding to
operate this log splitter.
KEEP all people and pets a minimum of 10 feet away from your work area when operating this log splitter. Only the op-
erator is to be near the log splitter during use.
NEVER actuate the control until all people are clear of the work area.
NEVER operatethelogsplitterwhenundertheinuenceofalcohol,drugsormedication.
NEVER allow a person who is tired or otherwise not alert to operate the log splitter.
PREPARATION OF THE LOG
Bothendsofthelogshouldbecutassquareaspossibletohelppreventthelogfromridingoutofthesplitterduring
operation. Do not split logs greater than 26 in. in length.
WORK AREA
NEVER operate the log splitter on slippery, wet, muddy or icy ground.
ONLY operate your log splitter on level ground. Operating on a slope could cause the log splitter to roll over or logs to fall
off.
NEVER operate your log splitter in an enclosed area. Exhaust fumes contain carbon monoxide which can be deadly when
inhaled.
NEVER attempt to move your log splitter over hilly or uneven terrain without a tow vehicle or adequate help.
ALWAYS block the wheels to prevent movement of the log splitter while in operation.
ONLYoperateyourlogsplitterindaylightorundergoodarticiallight.
ALWAYS keep the work area clean. Remove split wood around your log splitter immediately so that you don’t stumble
over it.
OPERATION OF THE LOG SPLITTER
Failure to follow these instructions may result in serious injury or death.
ZONE
TONGUE
FOOT PLATE
ENGINE
BEAM
ONLY operate the log splitter from the operator zone as
shown in the diagram. The operator has the safest and
most effcient access to the control valve and the beam
in this location.Operating the log splitter in another
location can result in serious injury or death.
Page 3
ALWAYSEread the operator’s manual before operation. It is located in the plastic canister on the tongue.
OPERATOR

KNOW how to stop the log splitter and disengage the controls before operating it.
NEVER place hands or feet between the log and splitting wedge during forward or reverse stroke. Serious injury or death
could result.
NEVER straddle or step over the log splitter during operation.
NEVER reach or bend over the log splitter to pick up a log.
NEVER try to split two logs on top of each other.
NEVER try to cross split a log.
NEVER attempt to load your log splitter when the ram or wedge is in motion.
ALWAYS use your hand to operate the control lever on the valve. NEVER use your foot, a rope or any extension device.
NEVER move the log splitter while the engine is running. Shut off the engine even if you are leaving the log splitter for a
short period of time.
ALWAYS avoidcontactwiththemuferandotherhotareasoftheengineduringoperationorafterrunningtoprevent
burns.
REPAIR AND MAINTENANCE SAFETY
NEVER operate your log splitter when it is in poor mechanical condition or in need of repair.
Periodicallycheckthatallnuts,bolts,screws,hydraulicttingsandhoseclampsaretight.
NEVER alter your log splitter in any manner. Such alterations may cause your log splitter to be unsafe and will void the
warranty.
Perform all recommended maintenance procedures before using your log splitter.
Replace all damaged or worn parts immediately.
NEVER tamper with the engine to run it at excessive speeds. The maximum engine speed is preset by the manufacturer
and is within safety limits. See Honda engine manual.
ALWAYS remove the spark plug wire before performing any service or repair on your log splitter.
ALWAYS check the level of hydraulic oil and engine oil before operation.
ALLreplacementpartsmustmeetmanufacturer’sspecications.
Page 4

HYDRAULIC SAFETY
Thehydraulicsystemofyourlogsplitterrequirescarefulinspectionalongwiththemechanicalparts.Besureto
replace frayed, kinked, cracked or otherwise damaged hydraulic hoses or hydraulic components.
NEVER checkforleaksofhydraulicuidwithyourhand.Fluidescapingfromasmallholecanbealmostinvisible.
Escapinguidunderpressurecanhavesufcientforcetopenetrateskincausingseriouspersonalinjuryorevendeath.
Leaks can be detected by passing a piece of cardboard over the suspected leak and looking for discoloration.
ALWAYS seekprofessionalmedicalattentionimmediatelyifinjuredbyescapinghydraulicuid.Seriousinfectionorreac-
tion can develop if proper medical treatment is not administered immediately.
ALWAYS be sure to relieve all pressure by shutting off the engine and moving the valve control handle back and forth
shoulditbecomenecessarytoloosenorremoveanyhydraulictting.
NEVER remove the cap from the hydraulic tank or reservoir while the log splitter is running. The tank could contain hot oil
under pressure which could result in serious injury.
NEVERadjustthehydraulicvalve.Thepressurereliefvalveonyourlogsplitterispresetatthefactory.Onlyaqualied
service technician should perform this adjustment.
FIRE PREVENTION
NEVERoperateyourlogsplitternearaameorspark.Hydraulicoilandgasolineareammableandcanexplode.
NEVER llthegastankwhiletheengineishotorrunning.Allowtheenginetocoolbeforerefueling.
NEVER smoke while operating or refueling your log splitter. Gas fumes can easily explode.
ONLY refuel your log splitter in a clear area with no gas fumes or spilled gas.
ALWAYS use an approved fuel container.
ALWAYS replace the gas cap securely.
If gasoline has spilled, move the log splitter away from the area of the spill and avoid creating any source of ignition until
the spilled gas has evaporated.
ALWAYStakeaClassBreextinguisherwithyouwhenoperatingthislogsplitterindryareasasaprecautionary
measureagainstpossibleyingsparks.
ALWAYSdrainthefueltankpriortostoragetoavoidthepotentialrehazard.
ALWAYS store gasoline in an approved, tightly sealed container. Store the container in a cool, dry place.
NEVER store gasoline in the house or near a heating appliance.
Page 5
ALWAYS turn the fuel shut off valve on the engine to the “OFF” position before towing the log splitter. Failure to do so
mayresultinoodingtheengine.

IMPORTANT NOTE:
This log splitter is equipped with an internal combustion engine and should not be used on or near any unimproved
forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrest-
er meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in efffective working
order by the operator. In the state of California a spark arrester is required by law. Other states have similar laws. Federal
lawsapplyonfederallands.Asparkarrestermufer(optionalbymanufacturer)isavailableasanaccessoryatyournear-
est engine dealer. Always check the legal requirements in your area.
TOWING SAFETY
ALWAYS check all local and state regulations regarding towing, licensing, and lights before towing your log splitter.
ALWAYS check before towing to make sure that the log splitter is correctly and securely attached to the towing vehicle
and that the safety chains are secured to the hitch or bumper of the vehicle with enough slack to allow turning. Always
use a Class I, 2” ball with this log splitter.
NEVER carry any cargo or wood on your log splitter.
NEVER allow anyone to sit or ride on your log splitter.
ALWAYS disconnect your log splitter from the towing vehicle before operating it.
ALWAYS be careful when backing up with your log splitter in tow. It could jackknife.
ALWAYS allow for added length of your log splitter when turning, parking, crossing interesections and in all driving
situations.
NEVER exceed 45 mph when towing your log splitter. Towing the log splitter at speeds higher than 45 mph could result
in loss of control, damage to the equipment , serious injury or death. Adjust towing speed for terrain and conditions.
Beextracautiouswhentowingoverroughterrainespeciallyrailroadcrossings.
Page 6

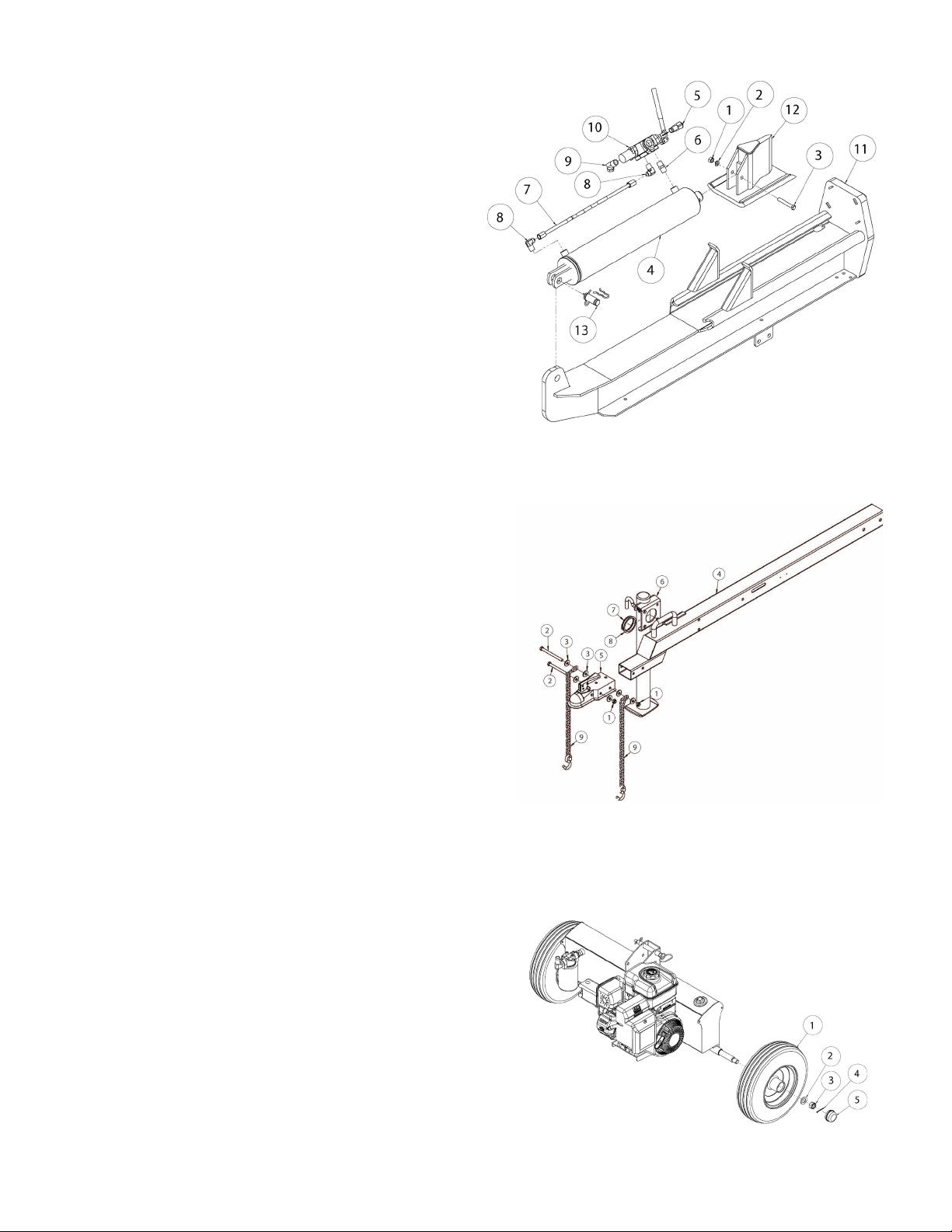

ASSEMBLY INSTRUCTIONS
STEP 1: Remove all the components from the crate. Inspect each piece for shipping damage. If any part is damaged,
contact your dealer or delivering carrier.
Page 7
NOTE:Thislogsplitterwaspartiallyassembledatthefactory.Refertothedrawingsandpartslistshoulditbecome 
necessary to disassemble the unit for repair or replacement of parts
1   BeamAssembly 1
2   BeamLockAssembly 1
3 Tank Assembly 1
4 Tire and Wheel 2
5 Tongue Assembly 1
Hardware Kit 1

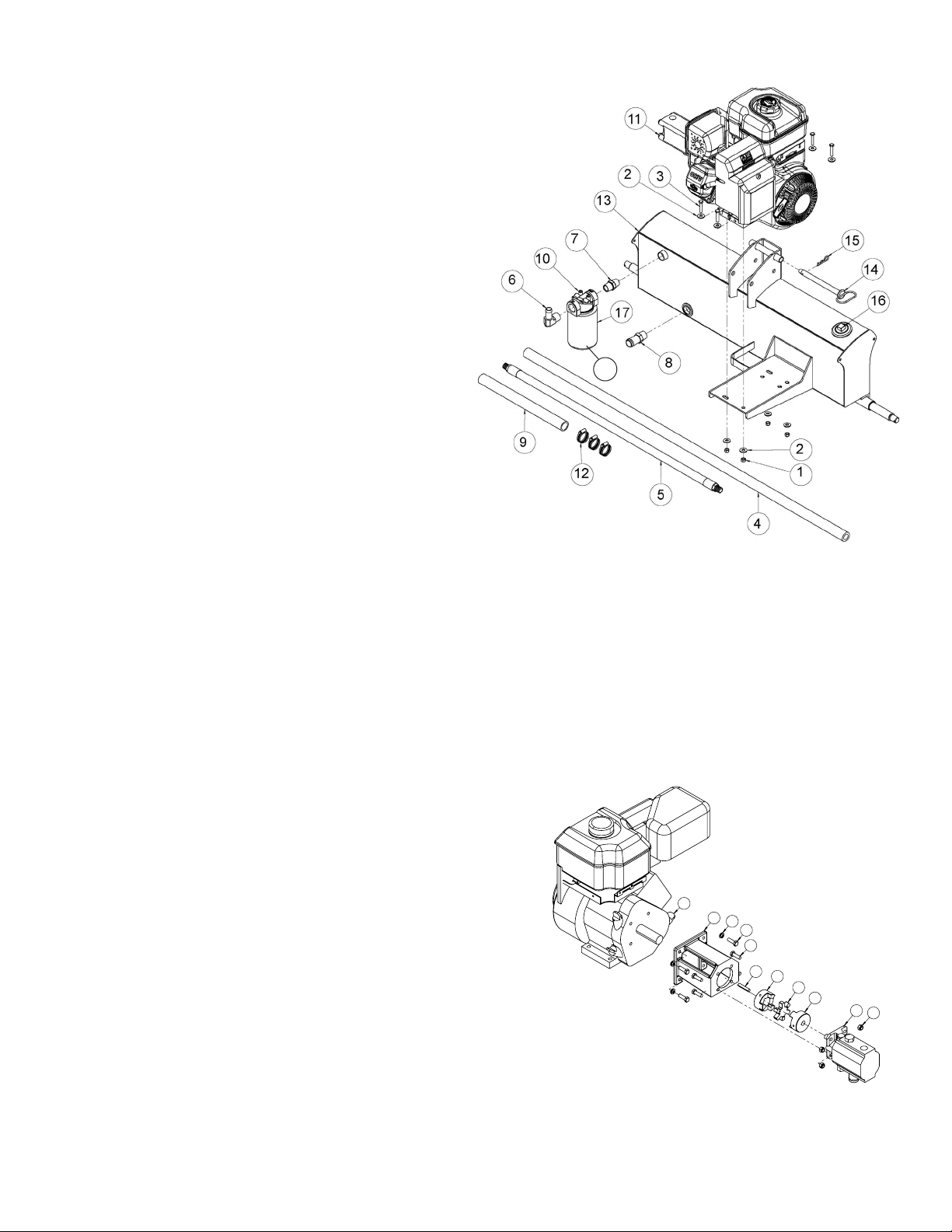

STEP 2: Attachthetwowheels(2)tothetankassembly(1)wheelspindlesusingthe3/4”lightatwashers(3),3/4”NF 
slotted nuts (4), 1/8” x 1-1/2” cotter pins (5) and the hub caps (6). These items are in the hardware package.
Tighten the slotted nuts and make sure that the wheels rotate freely.
ITEM NO. DESCRIPTION QTY.
1 Tank Assembly 1
2 Wheel Assembly 2
3 3/4” Light Flatwasher 2
4 3/4” Slotted Nut 2
5 1/8” x 1-1/2” Cotter Pin 2
6 Hub Cap 2
REF. NO. DESCRIPTION QTY.

Page 8
STEP 3: Attach the tongue assembly (5) to the tank assembly (1) using two 1/2” NC x 4-1/2” hex cap bolts (2), two 1/2”
lock washers (3) and two and two 1/2” hex nuts (4). Tighten.
ITEM NO. DESCRIPTION QTY.
1 TankAssembly 1
2 1/2” NC x 4-1/2 Hex Bolt 2
63 1/2” Lock Washer 2
4 1/2” NC Hex Nut 2
5 Tongue Assembly 1
STEP 4: Stand the beam (1) up on end. Two people may be needed for this step to ensure safety. Make sure that the
beam is stable and on a level surface. Remove the pivot pin (3) and clip pin (2) from the tank assembly. Roll
the tongue/ tank assembly into position between the two tabs on the beam (1). Slide the pivot pin (3) through
the aligned holes and lock in place with the clip pin (2)
ITEM NO. DESCRIPTION QTY.
1 Beam Assembly 1
2 1/2”-3/4” R Clip Pin 1
3 Pivot Pin 1

Page 9

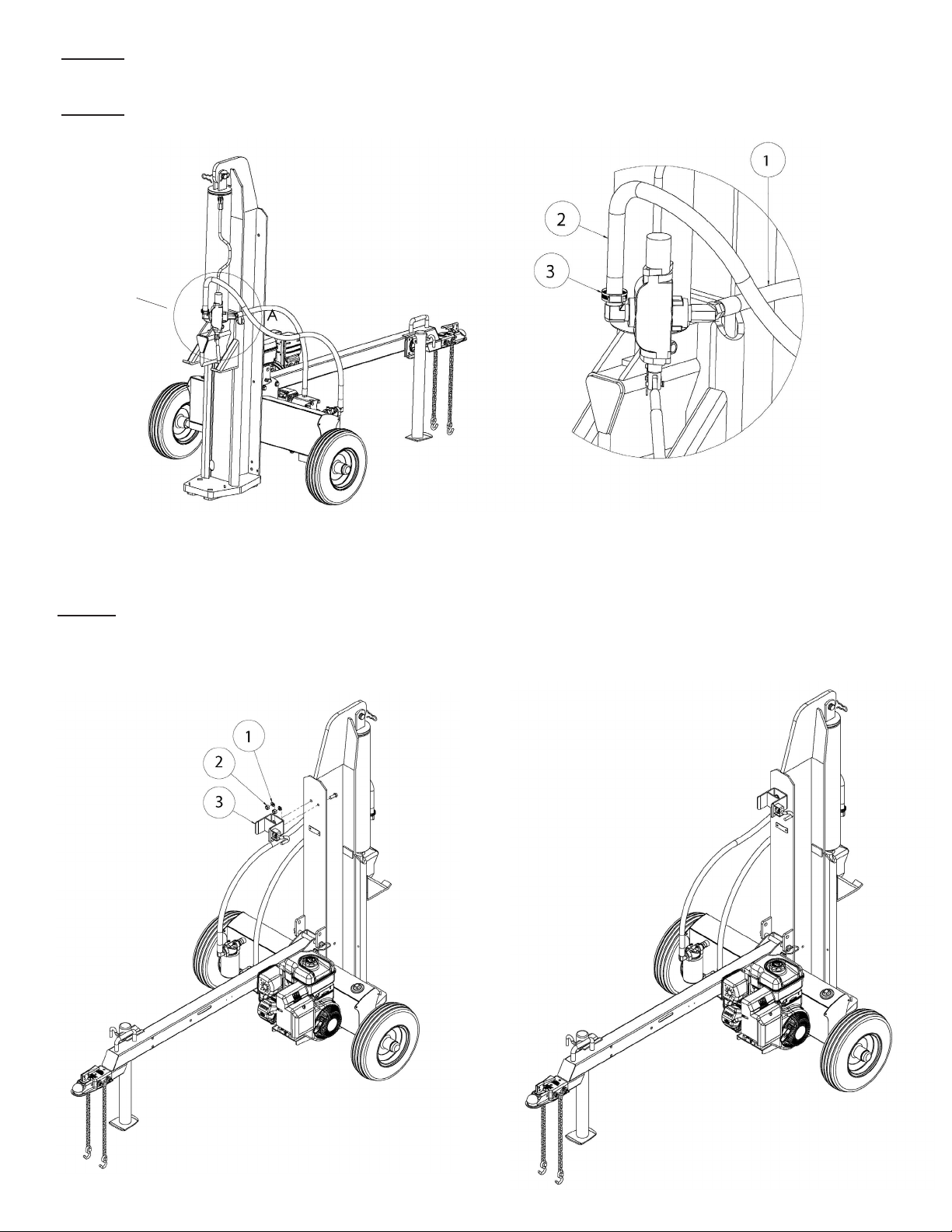

STEP 5: Connecttheendofthe1/2”IDx38”hydraulicpressurehose(1)comingfromthettingonthepumptothe 
ttingonthevalve.Makesurethatyouremovetheplasticinsertfromthevalveport.Seeillustrationsbelow.
STEP 6: Slideonehoseclampontheendofthe3/4”x56”hydraulicreturnhose(2)thatcomesfromthettingonthe 
lter.Thenconnectthehosetothettingonthevalve.Tightenhoseclamp.Seeillustrationsbelow.
Area of
Detail
DETAIL A
SCALE 1:3
ITEM NO. DESCRPTION QTY.
1 1/2” X 38” Pressure Hose 1
2 3/4” x 56” Return Hose 1
3 Worm Gear Clamp 2
STEP 7: Attach the latch (3) to the bottom side of the beam as shown in the diagram using the two 1/2” x 1-1/4”
Grade 5 hex cap bolts (4), the two 1/2” lock washers (1) and the two 1/2” hex nuts (2 ). Lower the beam onto
the tongue.Position the latch assembly on the tongue and then tighten hardware.
ITEM NO. DESCRIPTION QTY.
1 1/2” Lock Washer 2
2 1/2” Hex Nut 2
3 Beam Lock 1
4 1/2” x 1-1/4” Bolt 2
Page 9

ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L 5/16”-18 UNC Nylock Nut 4
2 O/L 5/16” Flat Washer 8
3 O/L 5/16” x 1-3/4” GR5 Hex Bolt 4
4 S39027400 Return Line Hose, 3/4” x 56” 1
5 S39027500 1/2” x 38” Hydraulic Pressue Hose 1
6 S39032000 3/4” NPT x 3/4” Tube 1
7 S39034900 3/4” Hex Nipple 1
8 S39038100 Straight Fitting, 3/4”NPT to
1/2” Tube 1
9 S39038900 1” ID Suction Hose 1
10 S390604B0 Filter Base 1
10A S390601A0 Filter Element 1
11 S39074100 Pump/Kohler Engine Assembly 1
12 S39031600 Worm Gear Clamp 3
13 S40118800 Tank 1
14 S071022WC Pivot Pin 1
15 O/L 1/2”-3/4” Hairpin Cotter 1
16 S39037500 Dip Stick/Breather Cap 1
17 S390601A0 Filter Element 1
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
PUMP/ENGINE ASSEMBLY BREAKDOWN
TANK/ENGINE ASSEMBLY BREAKDOWN
Page 10
10A
ITEM NO. PART NO. DESCRIPTION QTY.
1  O/L  5/16”X1”UNFGR5Bolt  4
2 O/L 5/16”x1”GR5Bolt  4
3 O/L 5/16” Regular Lock Washer 4
4 S39056600 Kohler CH395 Engine 1
5 S40081800 Pump Mount 1
6 *S400825L0 JawCoupler,1”Bore  1
7 *S400826L0 JawCoupler,1/2”Bore  1
8 *S400827L0 Rubber Spider 1
*S400824L0 Complete Coupler Assembly 1
9 S40034300 1/2” SQ. x 1-1/2” SQ. Key 1
10 S39070900 Pump, 16 GPM 1
11 S17020700 5/16”-18 UNC, Nylock Nut 4
* Must be ordered as a complete assembly S400824L0
4
53
1
2
96
8
7
11 10
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
REPLACEMENT PARTS

BEAM ASSEMBLY BREAKDOWN
ITEM NO. PART NO. DESCRIPTION QTY
1 O/L 1/2” Hex Nut 1
2 O/L 1/2” Regular Lock Washer 1
3 O/L 1/2” x 3-1/4” Hex Bolt 1
4 S390119B0 4.5” x 24” Hydraulic Cylinder 1
5 S39032000 3/4” NPT x 3/4” Tube 1
6 S39034300 1/2” NPT Nipple 1
7 S39034600 1/2” Steel Tubing 1
8 S39034700 1/2” Pipe to Steel Tube Fitting 2
9 S39039000 45° Fitting, 34” Male, 1/2” Fem. 1
10 S390406SC Auto-Return Valve 1
11 S401413G0 Beam 1
12 S40141800 Wedge 1
13 S07073100 Cylinder Pin 1
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
Page 11
ITEM NO . PART NO. DESCRIPTION QTY.
1 O/L M10 x 1.5 Nylock Nut 2
2 O/L M10 x 1.5 x 129mm Bolt 2
3 O/L M10 Flat Washer 6
4 S401273A0 Tongue 1
5 S40034600 Hitch Ball Assembly 1
6 S40127400 Ground Stand 1
7 S9114-1 Retaining Ring 1
8 S9132-1 Washer 1
9 S40032300 Chain w/Hook 2
TONGUE ASSEMBLY BREAKDOWN
ITEM NO. PART NO. DESCRIPTION QTY.
1 S400312B0 Wheel Assembly 2
2 O/L 3/4” Light Flatwasher 2
3 O/L 3/4” Slotted Nut 2
4 O/L 1/8” x 1-1/2” Cotter Pin
2
5 S40033200 Hub Cap 2
S40030900 Wheel Bearing Replacement Kit
(not shown)
WHEEL ASSEMBLY BREAKDOWN

CAUTION: DO NOT START OR RUN THE ENGINE BEFORE ADDING OIL IN THE HYDRAULIC RESERVOIR AND OIL IN
THE ENGINE.
OPERATING INSTRUCTIONS
WARNING: Read and thoroughly understand all instructions and safety information before operating
this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone to operate
this log splitter who has not read this manual. As with all power equipment, a log splitter can be dan-
gerous if assembled or used improperly. Do not operate this log splitter if you have doubts or ques-
tions concerning safe operation. Call our customer service department at 1-800-525-8322 to address
these concerns.
Si no entiende ingles, se preere que busque alguien que interprete las instrucciones para usted.
STEP 1: The hydraulic reservoir must be lled with hydraulic oil before operation. AW46 hydraulic oil is recommended when oil is needed. Automatic
transmisssion uid can be substituted and should be used instead of hydraulic oil when temperatures are below 32 degrees F. Use only
clean oil and take care to prevent dirt from entering the hydraulic reservoir. Fill the hydraulic tank with approximately 3.5 to 4 gallons of
hydraulic oil.
CAUTION: WHEN TIGHTENING THE BREATHER CAP ON THE TANK, POINT THE HOLE AWAY FROM THE ENGINE
AND THE OPERATOR ZONE.
STEP 2: After the hydraulic reservoir and the engine crankcase are lled with oil, start the engine. The hydraulic pump should prime itself. With the
engine running, move the hydraulic valve lever toward the foot plate. This will cause the cylinder to extend and expel air. When the cylinder
is fully extended, retract it. Repeat this procedure several times. An erratic movement of the cylinder indicates that there is still air in the
system. Add about 1.0 to 1.5 gallons more. Five gallons will register just above the top ll line on the dip stick.The total capacity of the entire hydrau-
lic system is 6.5 gallons. NOTE: If the tank is overlled it will tend to expel oil from the breather cap when the cylinder is retracted.
Cycle the cylinder again until it has a constant speed indicating that all air has been expelled.
Page 12
NOTE: The engine maximum governed speed is preset at the factory at 3600 RPM no load speed. When splitting wood the throttle
should be set at the maximum speed to develop the horsepower required for the pump.
TURN FUEL SHUT OFF VALVE TO THE “OFF” POSITION PRIOR TO TOWING.FAILURE TO DO SO MAY RESULT IN
FLOODING THE ENGINE.
CAUTION:
ENGINE OIL RECOMMENDATIONS (Kohler CH395)
For temperatures above 32 degrees F use an 10W-30 oil. Using mutigrade oil may increase oil consumption. Using SAE 30W oil below 40 degrees F
will resuilt in hard starting and possible engine bore damage.For temperatures below 32 degrees F use an SAE 5W-20 or SAE 5W-30 oil. Oil capac-
ity is about 1.16 quart (1.1 liter).
STARTING INSTRUCTIONS (Kohler CH395)
Refer also to the Kohler Engine Operating and Maintenance Instructions manual for your log splitter.
1) Move the fuel lever to the “ON” position.
2) For a cold engine put the throttle control midway between “SLOW” and ‘FAST.”Place the choke control into the “ON” position.
3) For retractable start engine turn engine ON/OFF switch to “ON.” Slowly pull the starter handle to just past compression. STOP. Return starter
handle. Pul rmly with a smooth steady motion until it starts.
4) Gradually return the choke control to the “OFF” position after the engine starts and warms up.
5) For a warm engine put the throttle control between “SLOW” and “FAST.” A warm engine usually does not require the choke on.
STOPPING THE ENGINE
1) If possible, remove the load.
2) Move the throttle control to the “SLOW” or “LOW” idle position.
3) Turn key switch or on/off switch to “OFF.” Move throttle to “STOP” position if equipped.
4) Close the fuel shut-off valve.

OPERATION
WARNING: See safety information related to operation of the log splitter on page 3 and 4 of this manual. Make sure that you have the
recommended personal protective equipment described on page 1.
1) Set up the log splitter in a clear, level area and block the wheels. Make sure that the suction port on the tank is always on the lower side
of the log splitter.
2) For horizontal operation place a log on the beam against the foot plate. Make sure the the log is securely on the foot plate and up against the
beam.To split wood in the vertical position, release the pin on the beam latch located near the front end of the beam. Carefully tilt the beam up until
the foot plate is sitting squarely on the ground and the log splitter is stable. Place the log on the foot plate up against the beam. When the beam is
returned to the horizontal position make sure the beam latch is securely locked down.
3) With the engine running, depress the valve handle so that the cylinder will drive the wedge into the log. Extend the cylinder until the log splits or to
the end of its stroke. If the log has not completely split after the cylinder has reached the end of its extension, retract the cylinder.
IMPORTANT: Leaving the valve in the “actuate” position at the end of the stroke may damage the pump. Always use extra care when splitting
logs with unsquare ends.
NOTE: For operation in wooded areas, obtain a spark arrestor for the exhaust system. See the engine operating and maintenance manual and
check with your authorized Kohler service center. See also Fire Prevention on page 5 of this manual.
IMPORTANT: TO EXTEND THE LIFE OF THE HYDRAULIC CYLINDER, AVOID “BOTTOMING OUT” WEDGE PLATE TO THE FOOT
PIECE. TO CONFORM WITH INDUSTRY SAFETY RECOMMENDATIONS, THE WEDGE STOPS 1.5 INCHES FROM
THE END OF THE STROKE.
TOWING
This log splitter is equipped with pneumatic tires, a Class I coupler (2 in. diameter ball required) and safety chains. Before towing, the safety chains
must be secured to the hitch or bumper of the vehicle. Local regulations should be checked regarding licensing, lights, towing, etc.Turn fuel shut off
valve on the engine to the “Off” position prior to towing. Failure to do so may result in ooding the engine. Do not exceed 45 mph when towing this
log splitter. See also Towing Safety on page 6 of this manual.
Page 13
MAINTENANCE
1) Consult the operating and maintenance instructions of the engine manufacturer for engine care and maintenance.
2) Always check the oil level of the hydraulic reservoir before operation. Operating the log splitter without an adequate oil supply will cause
severe damage to the pump.
3) Change the oil lter after the rst 25 hours of operation. There after change the oil lter every 100 hours or seasonally, whichever comes rst.
4) To drain the hydraulic oil, loosen the clamp on the hose coming from the tting on the bottom of the tank. It is located just to the right of the oil
lter.
5) If the wedge becomes dull or nicked, it can be removed and sharpened. Remove the 1/2 in. diameter bolt that connects the wedge to the cylinder.
hose from the valve. The hose from the valve may need to be removed. Carefully lift the cylinder to allow the wedge to slide forward. The wedge
can now be lifted off and sharpened.
6) Clean the breather cap after 25 hours of operation. Clean it more often when operated in dusty conditions. To clean, remove the breather cap
from the tank and ush with kerosene or liquid detergent to remove the dirt.
7) See also Repair and Maintenance Safety on page 4 of this manual.
8) All replacement parts must meet manufacturer’s specications.

NOTES
Model No. ____________________ Serial No. _____________________________
Date of Purchase _______________ Place of Purchase _______________________
_______________________
_______________________
_______________________
IMPORTANT NOTICE
We,themanufacturer,reservetherighttochangetheproductand/orspecicationsinthismanualwithoutnotication.
The manual is for information usage only and the pictures and drawings depicted herein are for reference only.
Page 14
Warranty Repair and Service
Do not return this product to the store for warranty issues or repair. Call 1-800-525-8322 for the location of the
nearest service center.
Record the information below for future reference.
Location:Tank/tongueplatebelowbeam
Serial Number Label

SPECIFICATIONS
AA
Engine Kohler CH395 277cc
Pump Two-Stage, 16 gpm
Cylinder 4-1/2 in. Diameter x 24 in. Stroke
Valve Auto-Return
Maximum Splitting Force* 28 Tons
Maximum Log Length 26 in.
Cycle Time* 12 Seconds
Wheels 4.80 x 8 in.
Wedge 7 in. High with Spreader Wings
BeamSize 8in.x10in.withBuilt-InLogCradle
Hydraulic Capacity 6.5 Gallons Maximum
Filter Spin-On Replaceable Filter
Height 72 in. in Vertical Position
42 in. in Horizontal Position
Length 78 in.
Width 49 in.
Shipping Weight 590 lbs.
* Tonnage and cycle times may vary dependent upon mechanical and
environmental conditions.
Part No. S53018900
