CHAPTER 1: GETTING STARTED
Thank you for choosing the Coworker CW-S10 tablet to support you in your activity.
To ensure an optimum performance of this product, please read this user’s manual carefully.
Introduction:
Read the safety instructions carefully and thoroughly. All cautions and warnings on the equipment or user’s
manual should be noted.
Keep this equipment away from humidity and high temperatures.
Lay this equipment on a stable surface before setting it up.
The openings on the frame are used for air convection and to prevent the equipment from overheating.
Do not cover the openings.
Do not leave the equipment in an unconditioned environment with a storage temperature above 60°C or
below -20°C, which may damage the equipment.
This unit should not be used under a maximum ambient temperature of 50ºC (120ºF) or under 60°C
(140ºF) for light loading applications.
The hereunder are requirements of the battery storage:
•If the storage duration is within 3 months, please keep the temperature between -20 ℃~45 ℃;
If the storage duration is above 3 months but within 1 year, please keep the temperature at
23℃± 2℃.
•The battery capacity should remain at 30 ± 5%.
•The storage humidity should remain at 65 ± 25%RH.
•The battery charging temperature should be between 10 ℃~45 ℃, the discharging temperature
should be between -20℃~60℃.
•For the maximum battery discharging performance, please keep the storage temperature at
25℃.
Make sure the power voltage is within safety range and has been adjusted properly to the value of
100~240V before connecting the equipment to the power outlet.
Always unplug the AC power cord before adding a cord or installing any module to the equipment.
Always disconnect the AC power cord or uninstall the battery pack or switch off the wall socket if the
equipment shall be left unused for a certain time to achieve zero energy consumption.
Place the power cord in a way that people are unlikely to step on it. Do not place anything on top of the
power cord.
Always keep strong magnetic or electrical objects away from the tablet.
Never put liquid into the opening, that could damage the equipment or cause an electrical shock.

4
If any of the following situations arise, get the equipment checked by a certified technician:
-The power cord or plug is damaged.
-Liquid has penetrated into the equipment.
-The equipment has been exposed to moisture.
-The equipment has not worked well or you can not get it work according to User’s Manual.
-The equipment has been dropped and damaged.
-The equipment has obvious signs of breakage.
Specifications:
The Coworker CW-S10 tablets are equipped with the following specifications:
Processor Intel® Celeron N4120 Quad Core
Windows 10 Pro
Tested to MIL STD 810G standard, drop resistance 1.2m
IP65, Tumble test 1m, 100 fois
Hot swap battery
Hardware encryption TPM 2.0
LAN Ethernet 10/100/1000 (PXE support)
Available options :
Stylus, handstrap and briefcase handle
4G LTE multi career with GPS
RFID reader / Barcode reader 2D (Honeywell)
Mobile dock, office dock, snap mount and battery charger

5

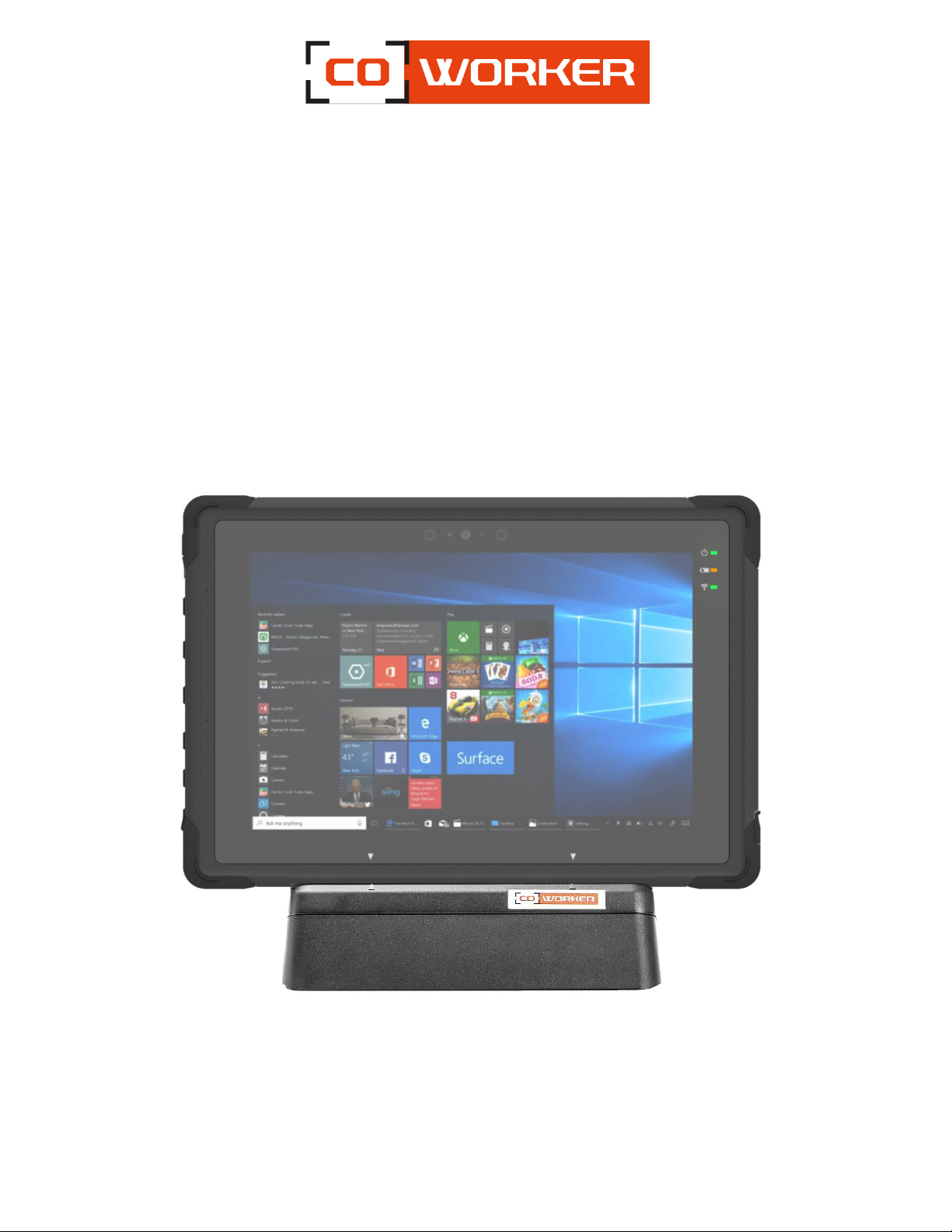

Overview of Coworker tablet :
Start up :
To turn the tablet on, press and hold the power button on the top side of the tablet for 3 seconds.
For the first use of the Coworker tablet, follow the instructions that come up on the tablet. Once the
settings have been done, the desktop opens.
Now, the tablet can be used, following our terms of use.

6
CHAPTER 2: USING COWORKER TABLET
1- Using touch function:
The Coworker tablets have a 10 point multi touch capacitive display.
The touch screen can be used with gloves.
2- Using camera :
Take photos and record videos using the various modes and available settings.
On the taskbar, press
Camera.
Taking pictures or recording videos:
Press to take a picture or on to record a video.
To zoom in, move two fingers away from each other on the screen.
To zoom out, bring them closer together.
To use the front camera, press
3- Battery:
-Standard battery capacity: 7.2V, 9447mAh, 68Wh.
Checking the charge level:
-Under Windows: To check the battery charge level, you have to click once on the battery logo
(bottom right of the taskbar).

7

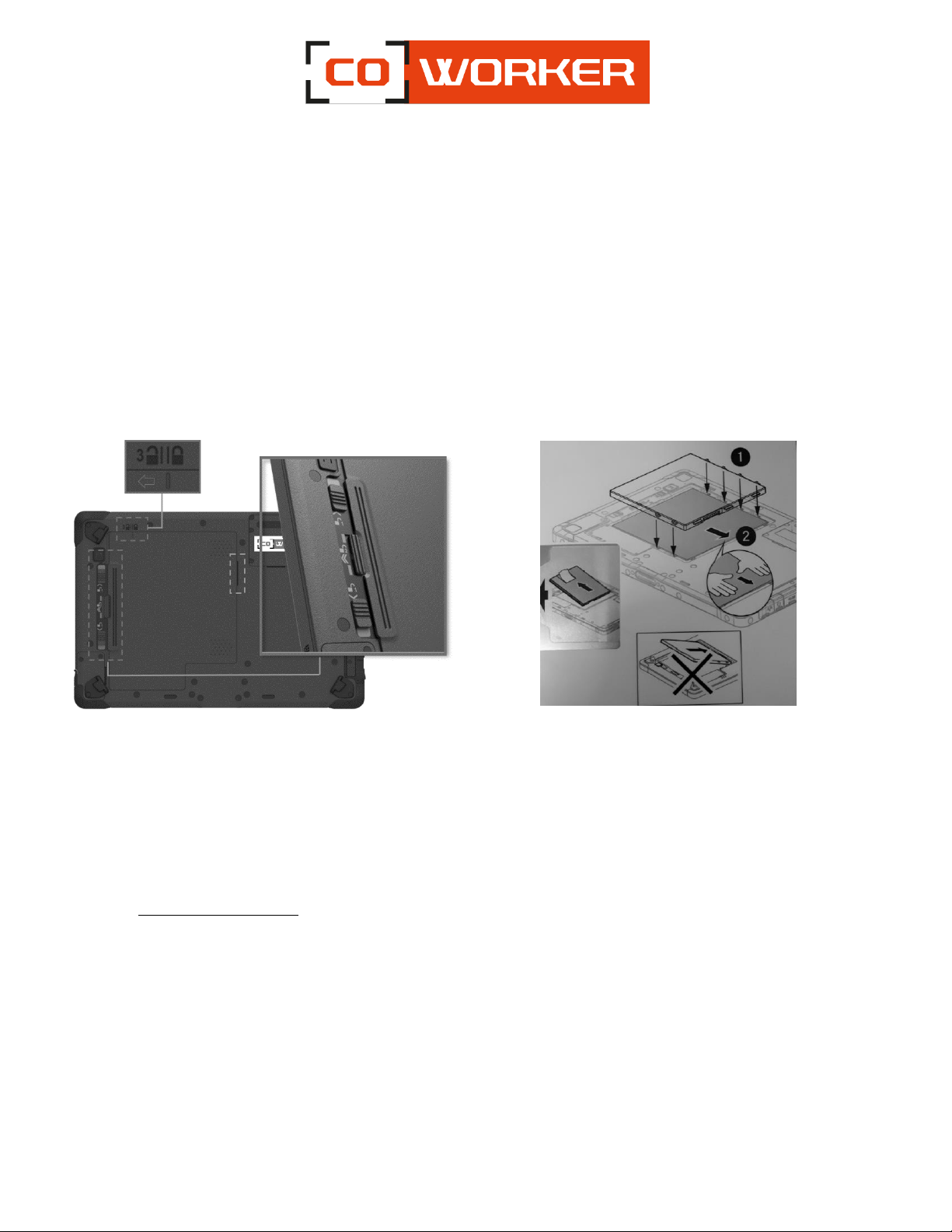

Inserting the battery:
Please carefully follow these instructions for the battery installation (as below):
1. Opening of the trap with the battery
oMove the latches 1 outwards (up and down)
oMove latch 2 to the left
oSlide the plate to the left (3)
oLift the plate using the notch on the right
2. Setting up the battery
oPosition the batter by placing it correctly in each notch
oSlide the battery to the right
oReplace the battery protection plate (Following step 1 –Reverse direction)
Changing the battery (Hot swap):
-The tablet is equipped with a backup battery, it takes over during 2 minutes when changing the
battery.
-When the battery is removed, the screen shuts off but the tablet remains active, when the new
battery is inserted the display turns on again and the tablet can be used normally.
4- Using the Bluetooth:
You can connect a variety of Bluetooth devices to your tablet, including: mouse, phones, speakers and
much more. To start using the Bluetooth, you must first pair your Bluetooth device with your tablet.
Examples:
To connect an audio device:
1. Turn on your Bluetooth audio device and make it visible.
The procedure for making it visible depends on the audio device. Check the audio device or visit
the manufacturer’s web site to learn how to do this.

8
2. Turn on the Bluetooth on your tablet if you have not already done so. To do this, on the taskbar,
Bluetoothselect notification center >
3. In the notification center, select connect> and choose the name of the device.
4. Follow all the instructions on the screen. Otherwise, you’re finished and you’re connecting.
Generally, your Bluetooth device and tablet will automatically connect when the two devices are
within range of each other and turned on.
To connect a device:
1. Turn on your device and make it visible.
2. Select the start button , and then choose settings > devices > Bluetooth and other
devices .
3. Turn on the Bluetooth, then select add a Bluetooth device or another device > Bluetooth. Choose
the device and follow the additional instructions, as if so, then select OK.
5- Using the Wi-Fi :
In order to connect to a Wi-Fi network, please follow these instructions:
In the taskbar, double click on the Wi-Fi icon in the bottom right corner.
1. Select your network (company or box) from the list of Wi-Fi networks scanned;
2. Click on « Connect »;
3. Enter the network security key;
4. Click on « Next »;
5. When the connection is established on your network, the word « Connected » appears.

9
6- Using the SIM or SD card reader :
-The SIM card/or SD card must be inserted with the tablet turned off so that it can be properly
detected.
-The SIM card and SD card slot is under the trap on the right side of the tablet.
-The SIM card should be insert in the dedicated place for it. It opens thanks with the extraction
tool (provided with the tablet)
-Once the SIM car dis correctly placed, insert the tray into the tablet until it stops.
-The SD card must be inserted in the direction shown on the trap, chip down and inserted first.

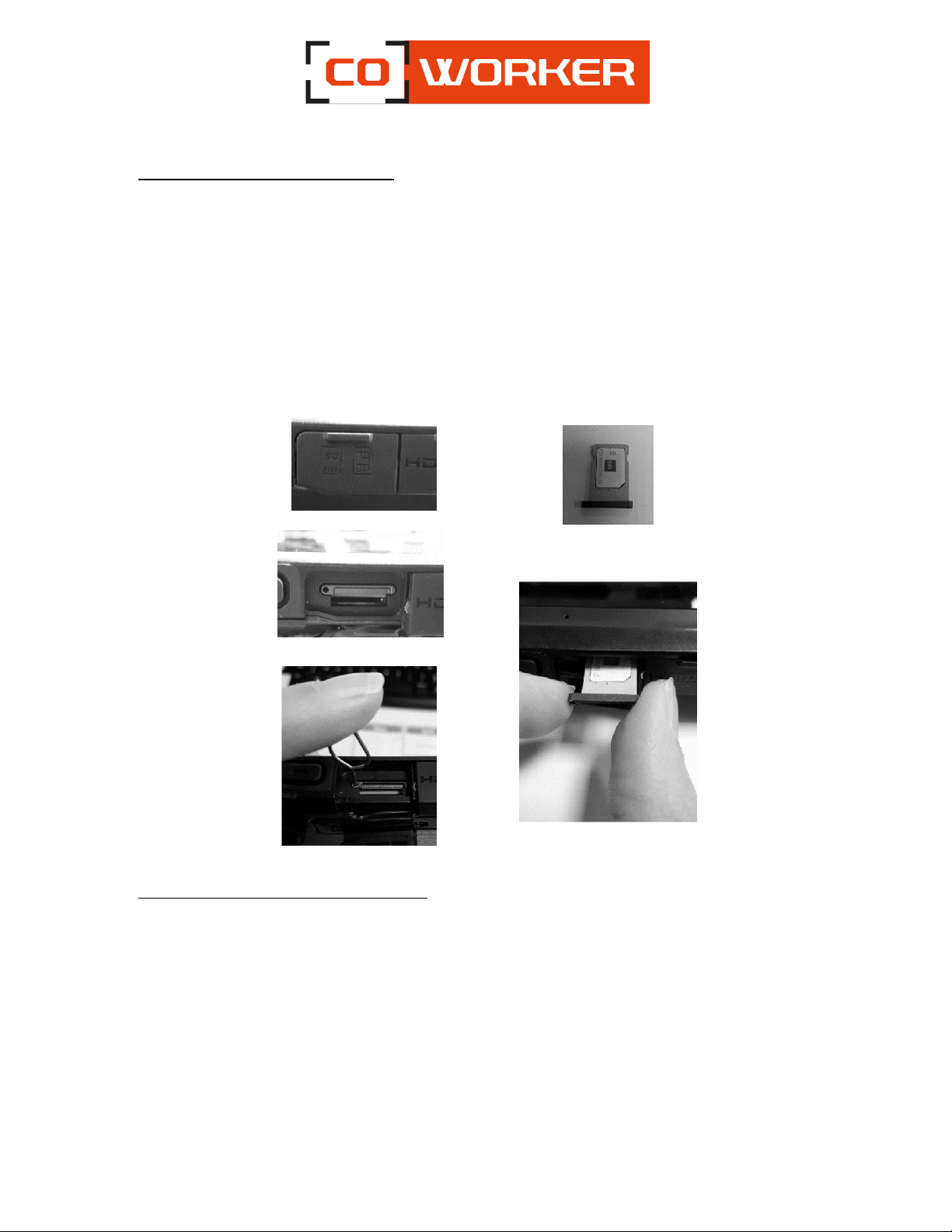

Example of SIM card insertion:
7- Using cellular connectivity (optional):
If you have purchased your Coworker with the optional mobile broadband module, you can connect it to
high speed mobile phone network around the world, with the mobile broadband module and an internet
package subscribed with one or more mobile phone operators, you will have full access to the internet.
Note:
Before connecting to a mobile broadband network, you must have an active account with a mobile phone
operator and obtain a SIM card for mobile broadband access.
1. Turn the tablet off, insert your SIM card and turn the tablet back on. (Refer to the previous
paragraph).

10
2. Activate the mobile broadband function as follows:
a. Press the network icon .
b. In the network window, enable cellular.
c. Press the cellular icon to display your service provider.
d. Press the connect button to establish a connection, and enter the PIN code.
If you want to change the operator, please follow the instructions below:
a. Press the network icon
b. Press Network & Internet settings.
c. Tap on 'Network and Internet' then tap on 'Cellular Network'.
d. Tap ‟Advanced options”.
e. Select your operator from the 'Choose Default Internet APN' drop-down list.
8- Using GPS :
Whether you’re traveling by car, by foot or by bus, maps for Windows 10 tells you how to reach your
destination. Download offline maps before you leave so you can search and get directions, even without
internet access.
How to use GPS :
Get directions to the address, the landmark or the business of your choice. The maps application even
guides you to the desired address.
1. Click the start button, and then click maps.
2. Select Directions.
3. If you wish, you can change the transport mode (on foot or by public transport), and select
preferences to avoid items such as tolls or traffic jams, or to obtain a route with a public transport
with less walking.
4. In fields A (starting point) and B (destination), start typing an address, a city name, the name of a
company. Select the desired location from the choices that appear.
5. If you need to make multiple stops, select “add destination”. You can also press and hold down (or
right click) on the map, then select and add the destination. Drag the destinations to rearrange
them in the list.
6. Select « Get directions ».
7. To listen to the detailed itinerary during your trip, select OK.
8. Or, to print it, select more > print.
Offline Maps:
Download maps via Wi-Fi before you leave, then use the maps application to search and get directions,
even when you are not connected to the internet.
1. Close the maps application, select the start button, and then choose settings > Applications >
Offline maps.
2. Select Download maps, then choose the region map you wish to obtain.

11
9- Using the barcode reader (optional) :
A barcode reader can be considered as a replacement for the keyboard. The code contains a number of
pieces of information that are not readable by the naked eye.
Open a text editor and use the barcode reader by passing the reader over any barcode you will see the
different information on the screen. It’s like someone’s been writing on the keyboard.
Actually, a barcode scanner works like a keyboard: the scanned barcode is transformed into a string of
characters (example: 1353453452311) sent to the software.

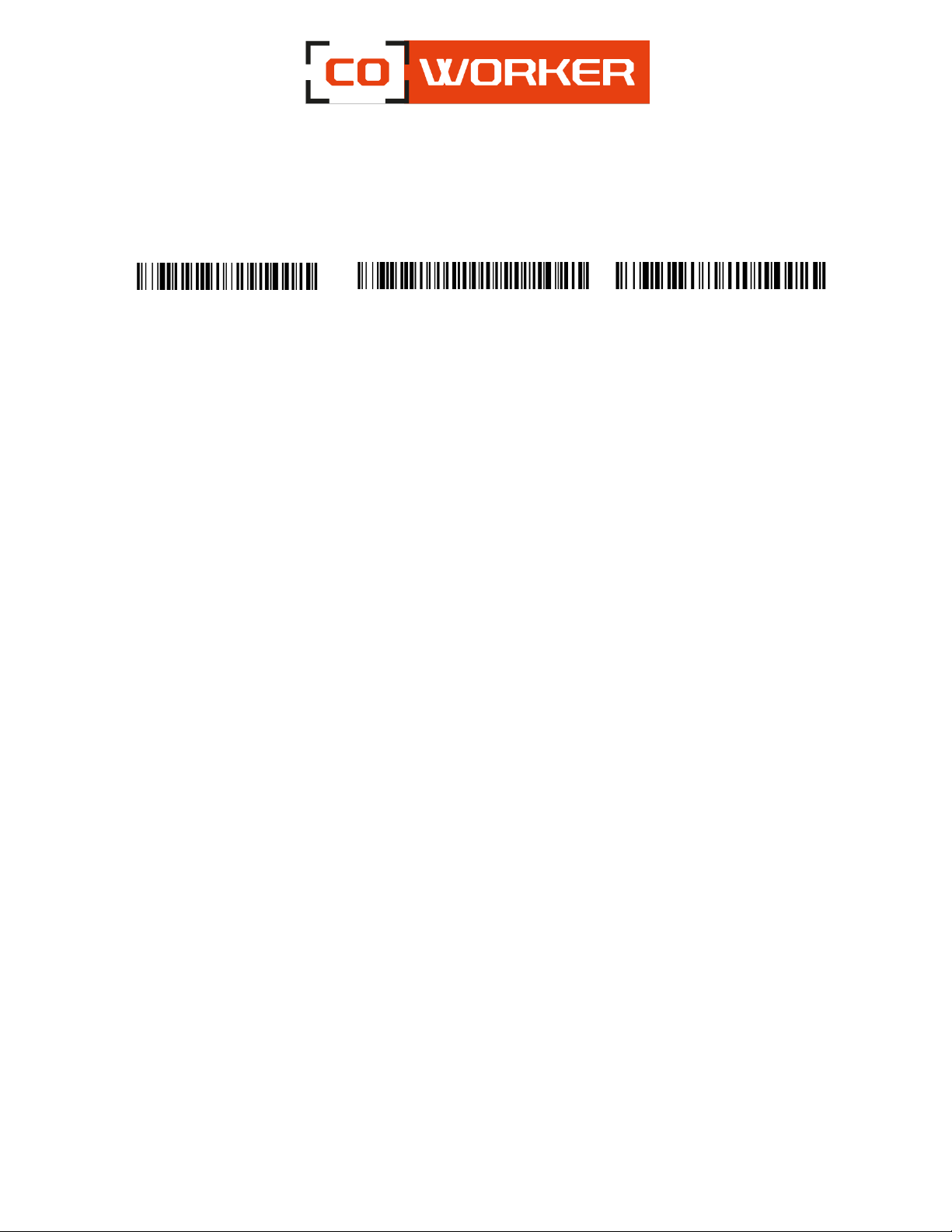

Configuration of the barcode reader:
USB HID Keyboard
Keyboard Country:
Your keyboard layout default is a US keyboard. To change this layout, scan the appropriate
keyboard country code.
Belgium
Germany / Austria
Norway
Denmark
Great Britain
Spain
Finland
Italy
Switzerland
France
USA (Default)

12
Suffix:
If you want a carriage return after the barcode, scan the Add CR Suffix bar code. To add a tab
after the barcode, scan the Add Tab Suffix bar code. Otherwise, scan the Remove Suffix bar code
to remove the suffixes.
Add CR Suffix
Add Tab Sufix
Remove Suffix
Type de code-barres pris en charge
Linear:
Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA
Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with
Extended coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation
2D Stacked:
Codablock A, Codablock F, PDF417, MicroPDF417
2D Matrix:
Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) Code
Postal: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post,
Netherlands Post, Planet Code, Postnet

13
CHAPTER 3: MAINTENANCE OF YOUR COWORKER
General maintenance:
Avoid exposing the tablet to extreme temperatures, impact, liquids and strong magnetic fields.
Do not place heavy objects on the tablet.
If you have to put the tablet aside for a long time, unplug the AC adapter and remove the battery,
after partially discharging it.
Do not disassemble the tablet. This would void your warranty.
Screen maintenance:
Follow these tips to keep your screen clean:
Fingerprints and most stains can be removed from the screen surface with a soft cloth.
If necessary, use a cleaning product to clean the screen, spray the product on a cloth, and then
wipe the screen. Never spray directly on the screen surface or use abrasive cleaners.
If a liquid is spilt on the screen, wipe it immediately with a soft cloth.
Only use a bumper pen. Any other object could damage the screen surface.
When transporting the tablet, use a holster to protect the screen from unnecessary contact.
Cover the screen with a protective film. The new tablet already has one, remember to change it if
it is damaged.
Avoid exposing the screen to direct sunlight for long periods of time.
Screen calibration:
Open the control panel.
Go to hardware and audio.
Then in tablet pc parameters.
A new window opens with a calibrate button.
In order to be able to calibrate the complete display, you have to turn the tablet portrait
ways up.
