CR Laser SUPER-3S User manual

Version: 1.0

Laser Show System
1. FEATURES
zThis device has been designed to produce decorative effect lighting and is used
light show systems.
zHigh speed scanner.
zSuper wide scanned angle.
zSeveral working modes:
{DMX controlled, 8channels
{Stand-alone with built-in microphone
{Stand-alone automatic mode
zDMX-addressing with LED display
zPreprogrammed multi-color laser shows
zComplies to EN/IEC 60825-1 for Laser Safety
2. BEFORE USE
zBefore you start using this unit, please check if there’s no transportation
damage. Should there be any, do not use the device and consult your dealer
first.
zImportant: This device left our factory is in perfect condition and well packaged,
It is absolutely necessary for the user to strictly follow the safety instruction and
warnings in this user manual. Any damage caused by mishandling is not
subject to warranty. The dealer will not accept responsibility for any resulting
defects or problems caused by disregarding this user manual.

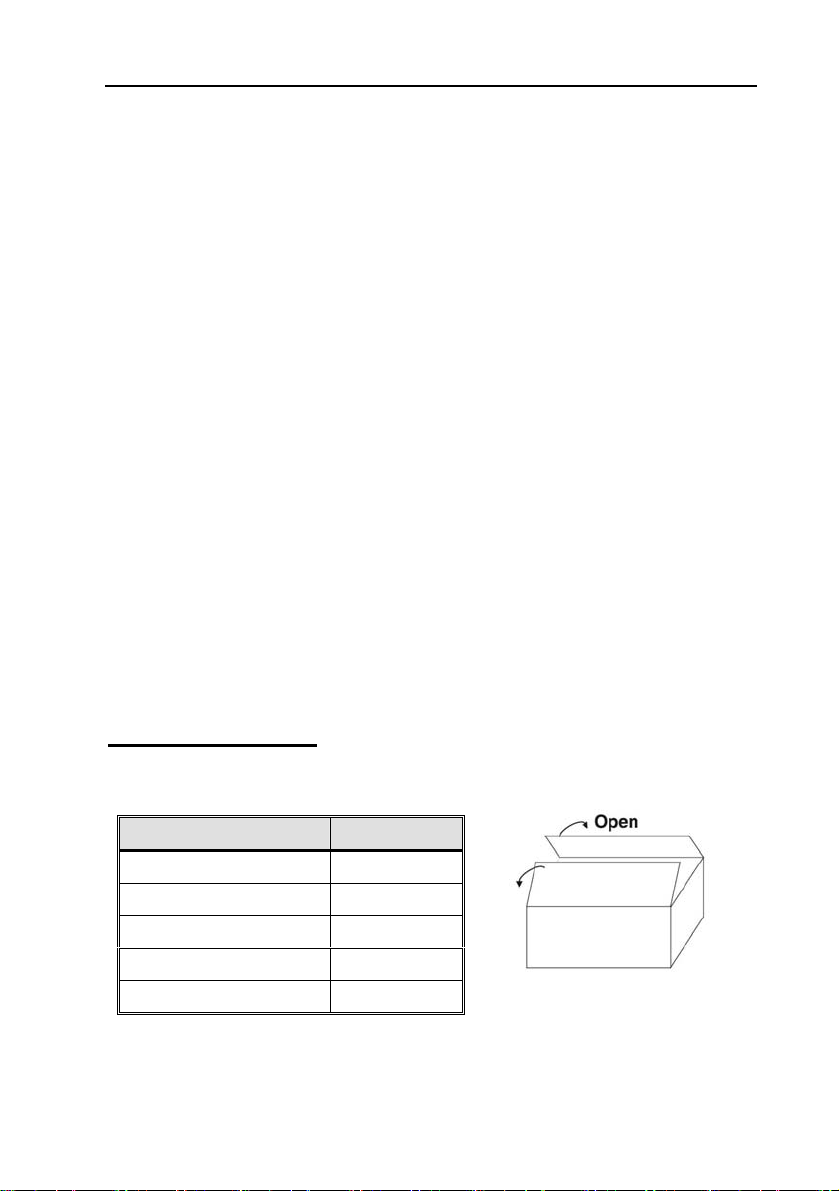

Check the contents:
The carton contains the following items：
1
NAME QTY
Laser Light 1 PCS
Mains cable 1 PCS
KEYS (for key switch) 2 PCS
USER MANUAL 1 PCS

Laser Show System
3. SAFETY INSTRUCTIONS:
Every person involved with installation and maintenance of this device have to:
-be qualilfied
-follow the instructions of this manual
CAUTION! Be careful with your operations. Witch a high
voltage you can suffer a dangerous electric shock
when touchin
g
th wires
!
zTo protect the environment, please try to recycle the packing material as much
as possible.
zTo prevent fire or shock hazard, do not expose this appliance to rain or
moisture.
zTo avoid condensation to be formed inside, allow this unit to adapt to the
surrounding temperatures when bringing it into a warm room after transport.
Condense sometimes prevents the unit from working at full performance or may
even cause damages.
zThis unit is for indoor use only.
zDon’t place metal objects or spill liquid inside the unit. Electric shock or
malfunction may result. If a foreign object enters the unit, immediately
disconnect the mains power.
zLocate the fixture in a well ventilated spot, away from any flammable materials
and/or liquids. The fixture must be fixed at least 50cm from surrounding walls
zDon’t cover any ventilation openings as this may result in overheating.
zPrevent use in dusty environments and clean the unit regularly.
zKeep the unit away from children.
zInexperienced persons should not operate this device.
zMaximum save ambient temperature is 45 degree Don’t use this unit at higher
ambient temperatures.
zMake sure the area below the installation place is free from unwanted persons
during rigging, de-rigging and servicing.
zAllow the device about 10 minutes to cool down before replacing the bulb or
start servicing.
zAlways unplug the unit when it is not used for a longer time or before replacing
the bulb or start servicing.
zThe electrical installation should be carried out by qualified personal only,
according to the regulations for electrical and mechanical safety in your country.
2

Laser Show System
zCheck that the available voltage is not higher than the one stated on the rear
panel of the unit.
zThe power cord should always be in perfect condition: switch the unit
immediately off when the power cord is squashed or damaged.
zNever let the power-cord come into contact with other cables.
zThis fixture must be earthed to in order comply with safety regulations.
zDon’t connect the unit to any dimmer pack.
zAlways use an appropriate and certified safety cable when installing the unit.
zIn order to prevent electric shock, do not open the cover, Apart from the lamp
and mains fuse there are no user serviceable parts inside.
zNever repair a fuse or bypass the fuse holder. Always replace a damaged fuse
with a fuse of the same type and electrical specifications!
zIn the event of serious operating problems. stop using the fixture and contact
your dealer immediately
zThe housing and the lenses must be replaced if they are visibly damaged.
zPlease use the original packing when the device is to be transported.
zDue to safety reasons it is prohibited to make unauthorized modifications to the
unit.
Important: Never look directly into the light source! Don’t use the effect
in the presence of persons suffering from epilepsy.
4. LASER SAFETY INSTRUCTIONS:
zAccording to the EN 60825-1：1994 + A2：2002 regulations, this laser fall under
the classification 3B.Direct eye exposure can be dangerous.
zThis is so-called show laser, emitting radiation with a wavelength spectrum
between 400 and 700nm and producing lighting effects for shows.
zDue to the instruction of this laser, the beam is moved so fast, that it can only hit
the eye very short. This is why the use of this laser for a laser-light show can be
regarded as save.

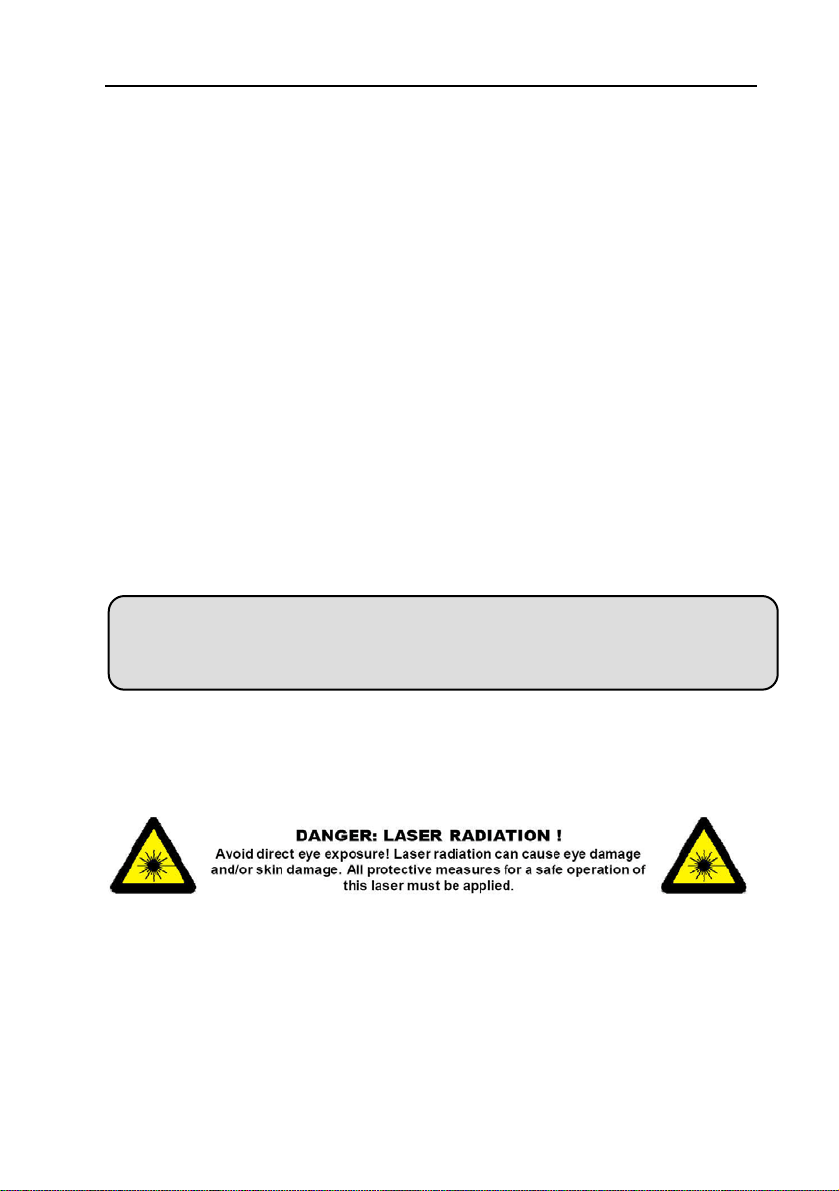

zNever direct the laser beam to people or animals and never leave this device
running unattended.
3

Laser Show System
zThis laser may only be used for shows. The operation of a class 3B show laser
is only allowed if the operation is controlled by a skilled and well-trained
operator.
zDepending on the classification, operating a laser product can produce laser
radiation that may cause permanent eye damage and /or skin damage. The
legal instructions for using a laser product vary from country to country. The
user must always inform himself on the legal instructions valid in his country
and apply them to his situation.
Please note that the laser light can not be made liable for damages caused
by incorrect installations and unskilled operation!
5. OVERHEAD RIGGING
zImportant: The installation must be carried out by qualified service
personal only. Improper installation can result in serious injuries and /or
damage to property. Overhead rigging required extensive experience!
Working load limits should be respected, Certified installation materials
should be used, the installed device should be inspected regularly for
safety.
zMake sure the area below the installation place is free from unwanted persons
during rigging, de-rigging and servicing.
zLocate the fixture in a well ventilated spot, far away from any flammable
materials and /or liquids. The fixture must be fixed at least 50cm from
surrounding walls.
zThe device should be installed out of reach of people and outside areas where
persons may walk by or be seated.
4

Laser Show System

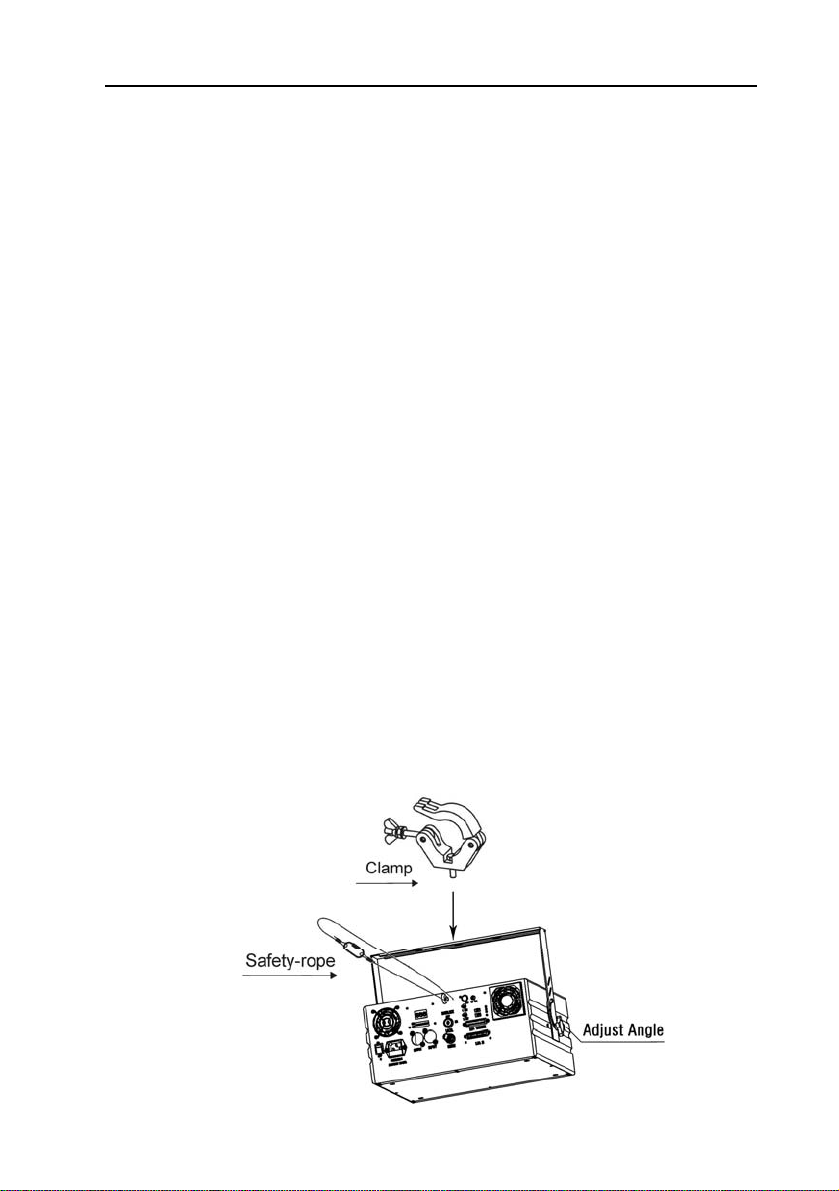

zBefore rigging make sure that the installation area can hold a minimum point
load of 10 times the device’s weight.
zAlways use a certified safety cable that can hold 12 times the weight of the
device when installing the unit. This secondary safety attachment should be
installed in a way that no part of the installation can drop more than 20cm if the
main attachment fails.
zThe device should be well fixed; a free swinging mounting is dangerous and
may not be considered!
zDo not cover any ventilation openings as this may result in overheating.
zThe operator has to make sure that the safety relating and machine technical
installations are approved by an expert before using them for the first time. The
installations should be inspected every year by a skilled person to be sure that
safety is still optimal.
CAUTION EYEDAMAGE: Always position the laser in a way that
prevents the audience from looking directly into the laser beams. The
installation should assure that the beam will not strike the audience.

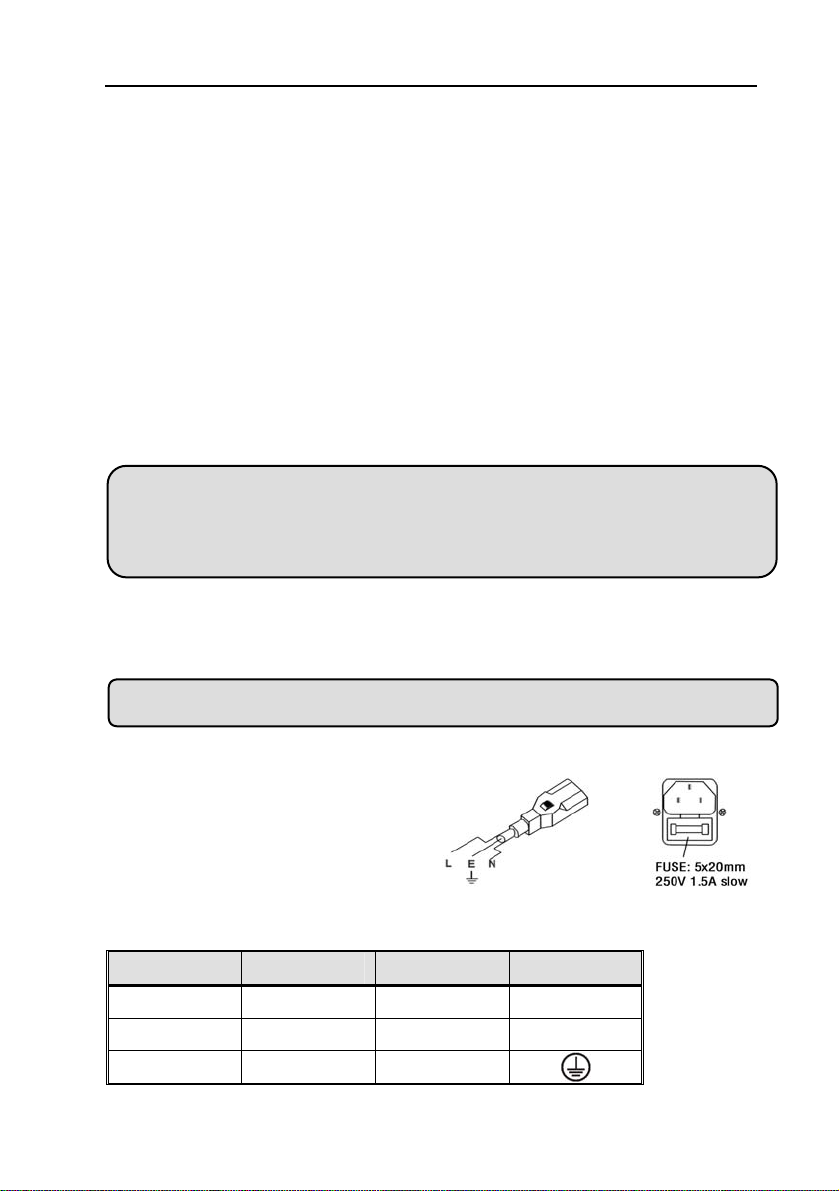

5.1 Connection to the mains
Verify the power supply settings before applying power!
if you wish to change the power supply settings, see the chapter below.
Connect the fixture to mains with the
enclosed power cord and pulg.
The earth has to be connected!
The occupation of the connection-cables is as follows:
5
Cable(EU) Cable(US) Pin International
Brown Black Live L
Liht blue White Neutral N
Yellow/Green Green Earth

Laser Show System
5.2 DMX-512 connection/connection between fixtures
zThe fixture is equipped with 3-pin XLR sockets for DMX input and output. The
sockets are wired in parallel. Only use a shielded twisted-pair cable designed
for 3-pin XLR-plugs and connectors in order to connect the controller with the
fixture or one fixture with another.
Occupation of the XLR-connection:
Building a serial DMX-chain:
zIf you are using the standard DMX-controllers, you can connect the DMX-output
of the controller directly with the DMX-input of the first fixture in the DMX-chain.
If you wish to connect DMX-controllers with other XLR-outputs, you need to use
adapter cables.
zConnect the DMX-output of the first fixture in the DMX-chain with the
DMX-input of the next fixture. Always connect output with the input of the next
fixture until all fixtures are connected.
Caution: At the laser fixture, the DMX-cable has to terminated
with a terminator. Solder a 120 Ohm resistor between Signal (-)
and Signal (+) into a 3-pin XLR-plug and plug and plug it in the
DMX-output of the last fixture.
6

Laser Show System
6. DESCRIPTION:
6.1 Back panel of the fixture
7
NO NAME FUNCTION
1 Mains input With socket and integrated fuse holder
2 Switch Switch on and off the power
3 Cooling fan Cooling and never cover this fan outlet
4 Safety eye Attach the safety cable
5 DMX output 3PINfemale XLR port，using for DMX
6 DMX input 3PIN male XLR port, using for DMX
7 Dip switch Choosing the address
8 display Display the address
9 Urgent and
safe switch Switch off the laser manually if error occurs
10 Key switch Make sure the professional person use
11 Microphone Sound sensitive input
12 Music switch Adjust the sensitive to the music

Laser Show System
NO NAME FUNCTION
13 Y SIZE Adjust the Y axis
14 X SIZE Adjust the X axis
15 ILDA
THOUGHT ILDA signal output，connecting another unit
16 ILDA IN ILDA signal input
17 Y MIRROR The picture on the Y direction
18 X MIRROR The picture on the X direction
6.2 Front panel of the fixture
8

Laser Show System
NO NAME FUNCTION
19 handing
bracket Fasten the machine
20 Power LED Indicate the unit is switch on
21 DMX LED Indicate the unit is in the DMX mode
22 Laser output Never seeing the laser direct
7. HOW TO SET UP AND CONTEROL THE UNIT
zRegular breaks during operation are essential to maximize the life of this device
as it is not designed for continual use.
zDo not switch the unit on and off in short time intervals as this reduces the lamp
life.
zAlways unplug the unit when it is not used for a longer time. Or before replacing
the bulb or star servicing.
zIn the event of serious operating problems, stop using the fixture and contact
your dealer immediately.
zImportant: Never look directly into the laser beam! Don’t use the effect in the
presence of persons suffering from epilepsy.
Good to know: Every time you turn the unit on, it moves the motors to their
‘home’ position so you may hear some noises for several seconds. After that the
unit will be ready to receive DMX signal or run the built-in programs.
You can operate the unit in 5 ways:
7.1 MUSIC CONTROLLED STAND-ALONE MODE:
zSet DIP switch number 10 in OFF and 1-9 are stand-alone position.(display
show “---” )
9

Laser Show System
zPut on some rhythmic music at the desired level.
zTurn the music sensitivity potentiometer until the laser beam nicely follows the
beat of the music.
7.2 MULTI-UNIT WORK TOGETHER：(need connect by the
cable)
zSet DIP of the MASTER laser switch number 10 OFF, and the1-9 is in any
mode, and SLAVE lasers’ DIP switch number 10 is ON as below:
zThe laser is operating in SLAVE MODE. Connect the SLAVE MODE laser to
MASTER MODE laser (either Auto or Music mode) with standard DMX512
cable, the SLAVE MODE laser is running laser show exactly as the MASTER
MODE laser does. The laser is operating this mode until next setting
7.3 ONE UNIT AUTO CONTORL:
zSet the DIP switch number9, and 10 ON, and1-8 is on any mode, the laser will
be Auto activity.
10

Laser Show System
7.4 DMX OPERATED MODE:
The DMX-protocol is a widely used high speed signal to control intelligent light
equipment. You need to “daisy chain” your DMX controller and all the connected
light effects with a good quality XLR M/F balanced cable.
Each effect in the chain needs to have its proper staring address so it knows
which commands from the controller it has to decode.
This is how you must setup and use the fixture:
zConnect the unit to a DMX-controller using a suitable DMX-cable.
zDetermine which DMX address the laser needs.
zSet DIP-switch number 10 in “DMX” position.

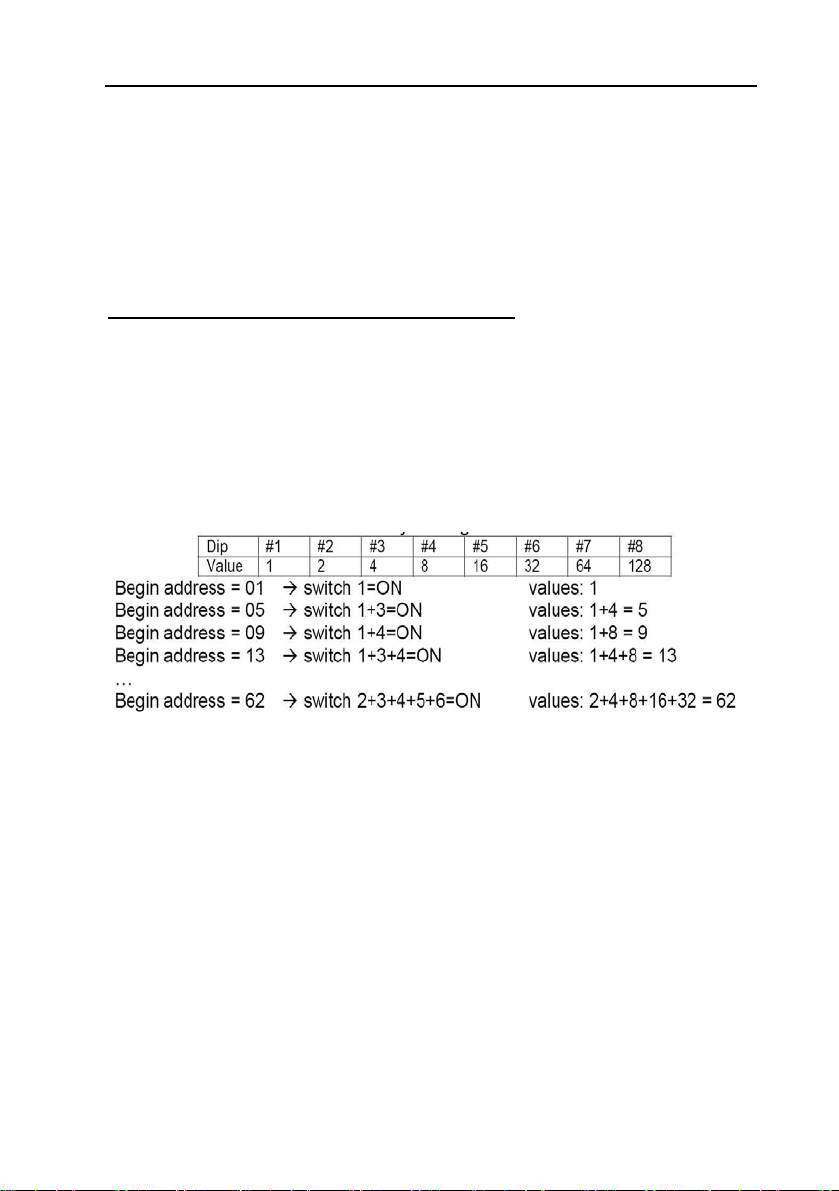

zYou will have to set the DMX staring address with the DIP-switches 1to 8. Each
of these switches has a corresponding DMX-value written under it. You can
combine the values of these switches to obtain any staring address between
001 and 256:
zThe display helps you check if the desired staring address is correct.
zOnce the address is set you can switch the unit on with the key actuated on/off
switch.
7.5 ILDA CONTROL MODE:
This unit has the ILDA DB25 port, and it can be controlled by the PC, There
is auto transform set in the inside of the unit to transform the ILDA and the
preprogram. when connecting by the 25 pin cable, the unit will be control by PC,
when disconnect the unit, it will be preprogrammed program control。
In the theory, as long as it is ILDA B25，It can control this unit, but in the reality,
some of the software can not control this unit, for the 4 pin and the 17 pin of the
output card has not connect. In fact this is an easy problem. As long as you
connect them. It can control this unit.
11

Laser Show System
8. DMX PROTOCOL
8.1 DMX CHANNEL LIST:
CHANNEL VALUE DESCRIPTION
000-51 Switchoff
052-103 Auto Running Line
104-155 Auto Running，Dot
156-207 Sound Mode Line
CH 1
208-255 Sound Mode Dot
CH 2 000-255 128 graphics
rotation( rotation by Z axis)
000-128
CH 3 129-255
12
Adjust the speed of the rotation
RollingbyYAxis
000-128
CH 4 129-255 Adjust the speed of rolling
000-128 Rolling by X Axis
CH 5 129-255 Adjust the speed of rolling
Xdirectionmoving
000-128
CH 6 129-255 Speed of moving
000-128 Y direction moving
CH 7 129-255 Speed of moving
000-255 Drawing speed slow to fast
CH 8

Laser Show System

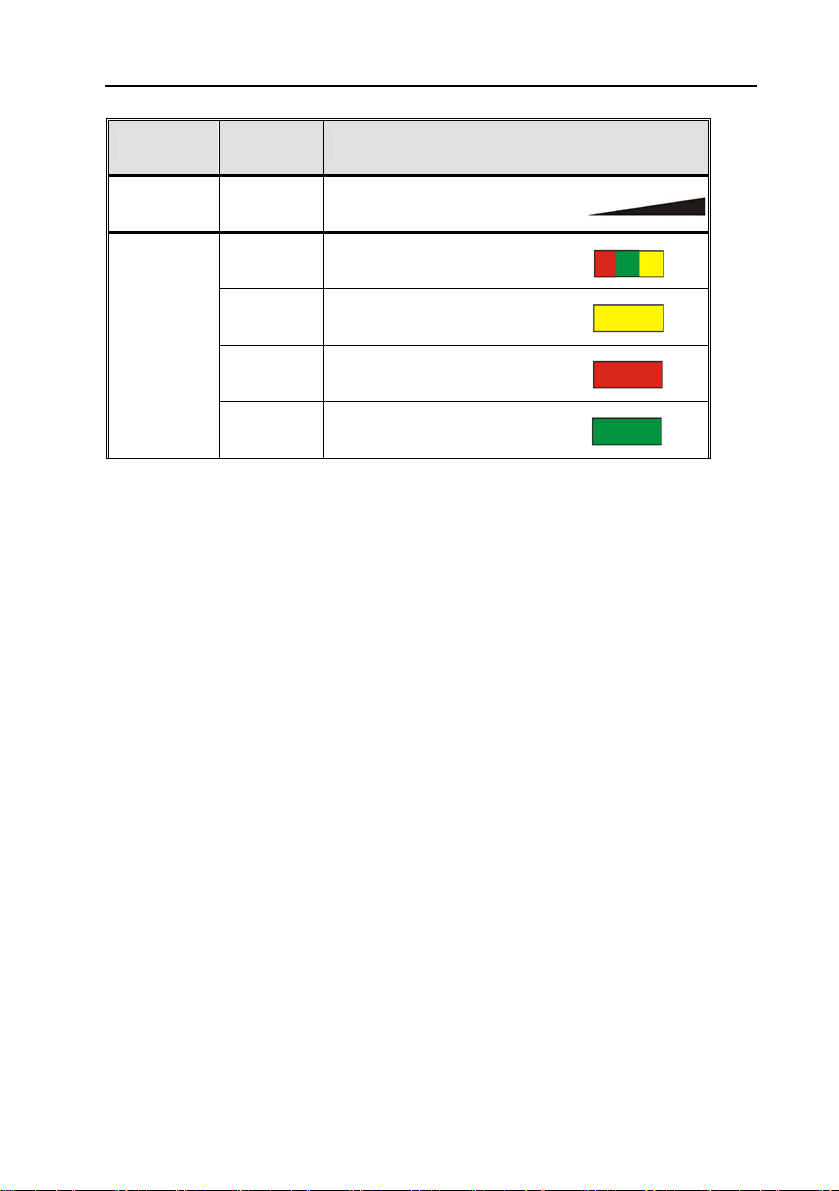

CHANNEL VALUE DESCRIPTION
Scanning speed
CH 9 000-255
Originalcolor
000-64
Yellow
065-129
13
130-194 Red
CH 10
Green
195-255

Laser Show System
14
9. MAINTENANCE
zMake sure the area below the installation place is free from unwanted persons
during servicing
zSwitch off the unit , unplug the mains cable and wait until the unit has been
cooled down.
During the inspection the following points should be checked:
zAll screws used for installing the device and any of its parts should be tightly
fastened and may not be corroded
zHousings, fixations and installations spots( ceiling, truss, suspensions) should
be totally free from any deformation
zWhen an optical lens is visibly damaged due to cracks or deep scratches, it
must be replaced
zThe mains cables must be in impeccable condition and should be replaced
immediately when even a small problem is detected
zIn order to protect the device from overheat the cooling fans(if any ) and
ventilation openings should be cleaned monthly.
zThe interior of the device should be cleaned annually using a vacuum cleaner
or air-jet.
zThe cleaning of internal and external optical lenses and / or mirrors must be
carried out periodically to optimize light output. Cleaning frequency depends on
the environment in which the fixture operates: damp. smoky or particularly dirty
surroundings can cause greater accumulation of dirt on the unit’s optics
{Clean with a soft cloth using normal glass cleaning products.
{Always dry the parts carefully.
{Clean the external optics at least once every 30 days.
{Clean the internal optics at least very 90 days.
Attention: We strongly recommend internal cleaning to be carried out by
qualified personnel!

Laser Show System
15
10. SPECIFICATIONS
zMains Input: AC110/230V, 50/60Hz
zFuse: 250V 1.5A slow blow(20mm glass)
zScanning Angle: 0~±20º
zLaser Diode Blanking: 1~1000Hz
zSound Control: Internal microphone
zDMX connections: 3pinXLRmale/female
zDMX channels: 10hannels
zLaser Power: Max. 60mW Green CW laser (λ=532nm)
Max. 300mW Red CW laser (λ=650nm)
zLaser radiation class: 3B
zLaser Safety Standard: EN60825-1:1994+A1:2002+A2:2002
zWorking Temperature: 10 ~40℃℃
zMain Power: 45W
zSize: 340X330X150mm
zWeight: 9.2kg
