Claypaky AXCOR SPOT 300 User manual

1
INSTRUCTI N MANUAL
C61505
ENGLISH
AXCOR SPOT 300
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the rich
Claypaky range, has been designed and made with total
quality to ensure excellent performance and best meet your
expectations and requirements.
INDEX
Page
2
3
4
5
7
15
15
Contents
Safety Information
Unpacking and preparation
Installation and start-up
Control panel
Maintenance
Technical information
Cause and solution of problems
PRELIMINARY

2
AXCOR SPOT 300
SAFETY INF RMATI N
EN
IT
DE
ES
FR
RU
SAFETY INF RMATI N
IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also
available in digital format at the following link:
http://www.claypaky.it/en
Ref: [FIS01A – Safety Information Axcor 300 series]
INF RMAZI NI DI SICUREZZA
IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative
a questo prodotto, sempre reperibili in versione digitale al seguente link:
http://www.claypaky.it/en/download
Rif: [FIS01A – Safety Information Axcor 300 series]
INF RMATI NEN ZUR SICHERHEIT
WICHTIG: Claypaky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und
aufzubewahren. Sie sind in Digitalversion immer unter folgendem ink auffindbar:
http://www.claypaky.it/en/download
Ref: [FIS01A – Safety Information Axcor 300 series]
INF RMACI NES DE SEGURIDAD
IMPORTANTE: Claypaky recomienda leer detenidamente y conservar la información de seguridad relativa a este
producto. Además, está disponible una versión digital de la misma en el siguiente enlace:
http://www.claypaky.it/en/download
Ref: [FIS01A – Safety Information Axcor 300 series]
C NSIGNES DE SÉCURITÉ
IMPORTANT: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives à
ce produit, disponibles en version digitale au lien suivant:
http://www.claypaky.it/en/download
Réf. : [FIS01A – Safety Information Axcor 300 series]
ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ
ВАЖНО: Claypaky рекомендует внимательно прочитать и сохранить инструк ию по технике безопасности
данного изделия, которая всегда доступна в электронном формате по следующей ссылке:
http:// .claypaky.it/en/do nload
Наименование: [FIS01A – Safety Information Axcor 300 series]

3
AXCOR SPOT 300
UNPACKING AND PREPARATI N
90°
90°
90°
90°
UNLOCKED
LOCKED
PAN Mechanism Lock and Release (every 90°) - Fig. 2
TILT Mechanism Lock and Release (every 45°) - Fig. 3
3
45°
2 3
Packing contents - Fig. 1
1

4
AXCOR SPOT 300
4
1
1
2
3
5
INSTALLATI N AND START-UP

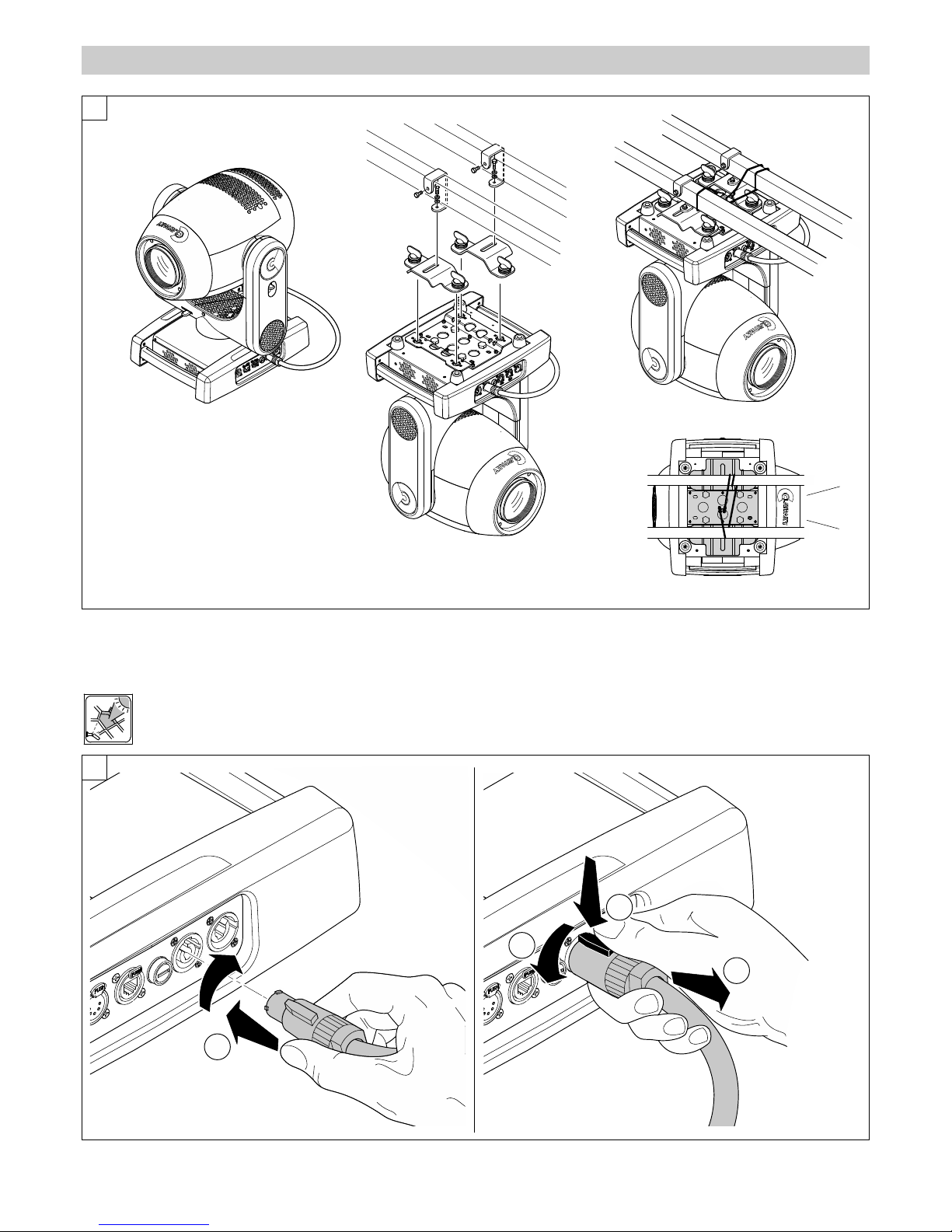

Connecting and disconnecting power cable - Fig. 5
Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING: with the exception o when the projector is positioned on the loor, the sa ety cable must be itted. (Cod. 105041/003 available on request).
This must be securely ixed to the support structure o the projector and then connected to the ixing point at the centre o the base.
WARNING: light collimation system
This product contains internal light collimation system.
Avoid intense light from any angle.

5
AXCOR SPOT 300
Switching on the projector - Fig. 8
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware Axcor Spot 300 System errors
Axcor Spot Version X.X.X Dmx Address xxx E: .........................
300 Date - Hour W: .........................
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control panel
(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions:
rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address.
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
C NTR L PANEL
1
Dmx Address
War ning Message
8

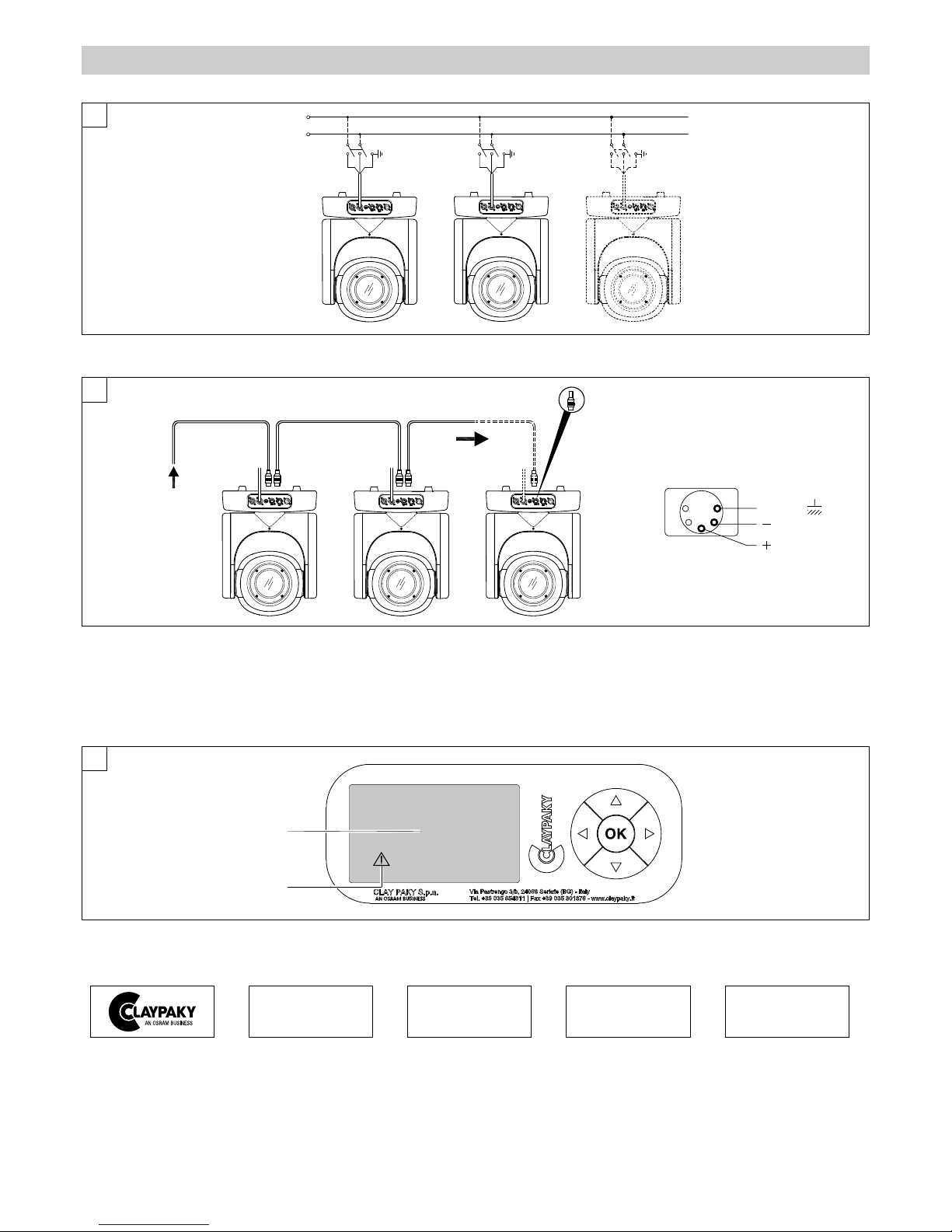

Connecting to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using X R type 5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMP RTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
Mains
6
7
SIGNAL
SCREEN
DMX 512
5 PIN
1
2
3
4
5
SIGNAL
DMX 512
Connecting to the mains supply - Fig. 6
NB: connecting one Axcor
Spot 300 to the mains,
it is possible to connect up to a
maximum of 8 @200-240Vac -
3 @100-120Vac Axcor Spot 300
in parallel at the same time.
Continue ➔

6
AXCOR SPOT 300
6
28
28
Reversal of the display - Fig. 9
To activate this function, press UP
B
and DOWN
C
keys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
9
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
RIGHT
E
to momentarily activate the display and thus access the settings. Once the required operations have been carried
out, the display will switch off again after a wait time of 30 seconds.
USING THE MENU:
1) Press EFT
D
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN
C
keys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN
C
keys to select the MENU items.
Confirms the displayed value, or activates the displayed function,
or enters the successive menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Commute from units, tens, hundreds, in the "Address" and "Calibration" menù or enters the
successive menu.
F
C
DOWN
B
UP
D
EFT
E
RIGHT

7
AXCOR SPOT 300
Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section.

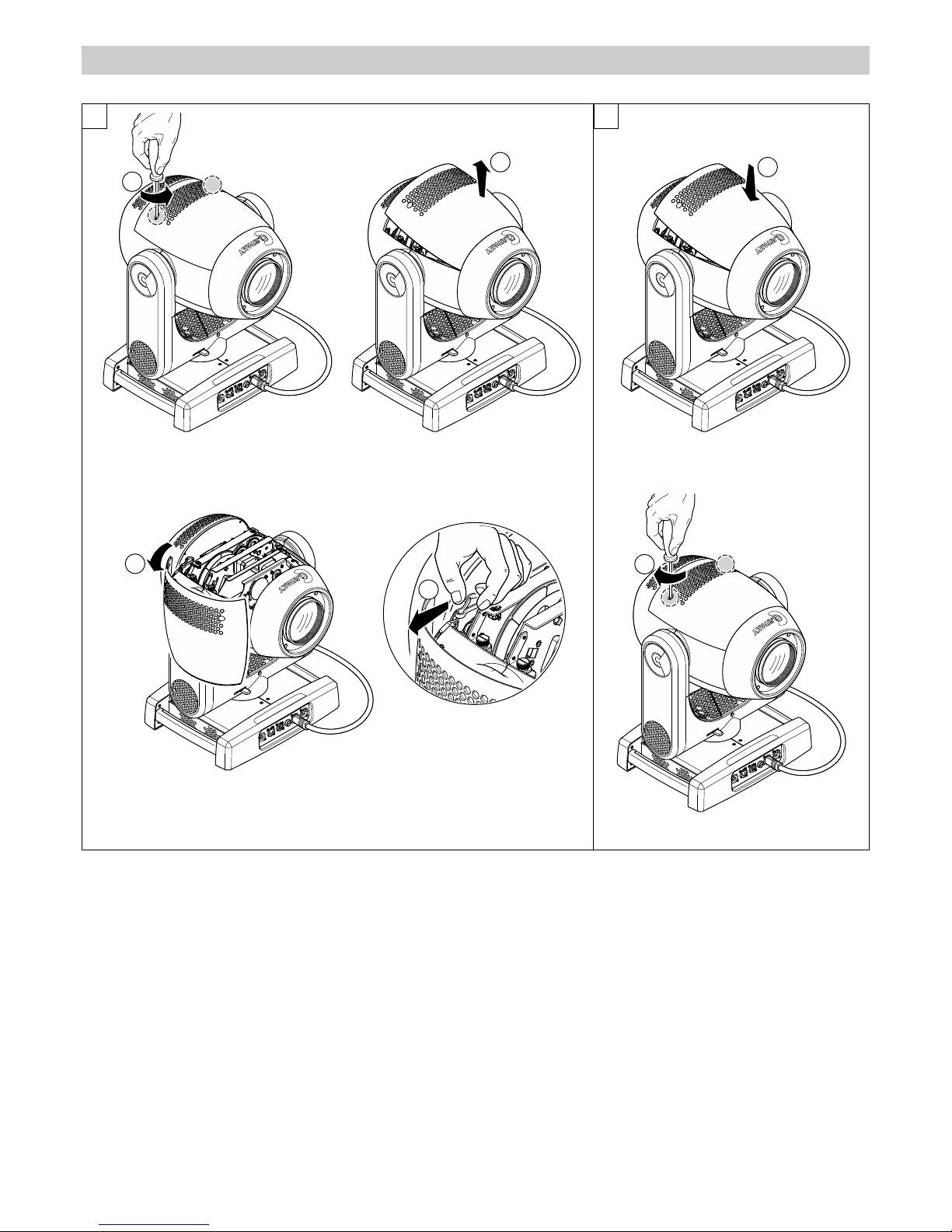

pening the head covers - Fig. 10.
Closing the head covers - Fig. 11.
1/4 Turn
1
21
1/4 Turn
2
4
3
10 11
MAINTENANCE
Continue ➔

2
1
13

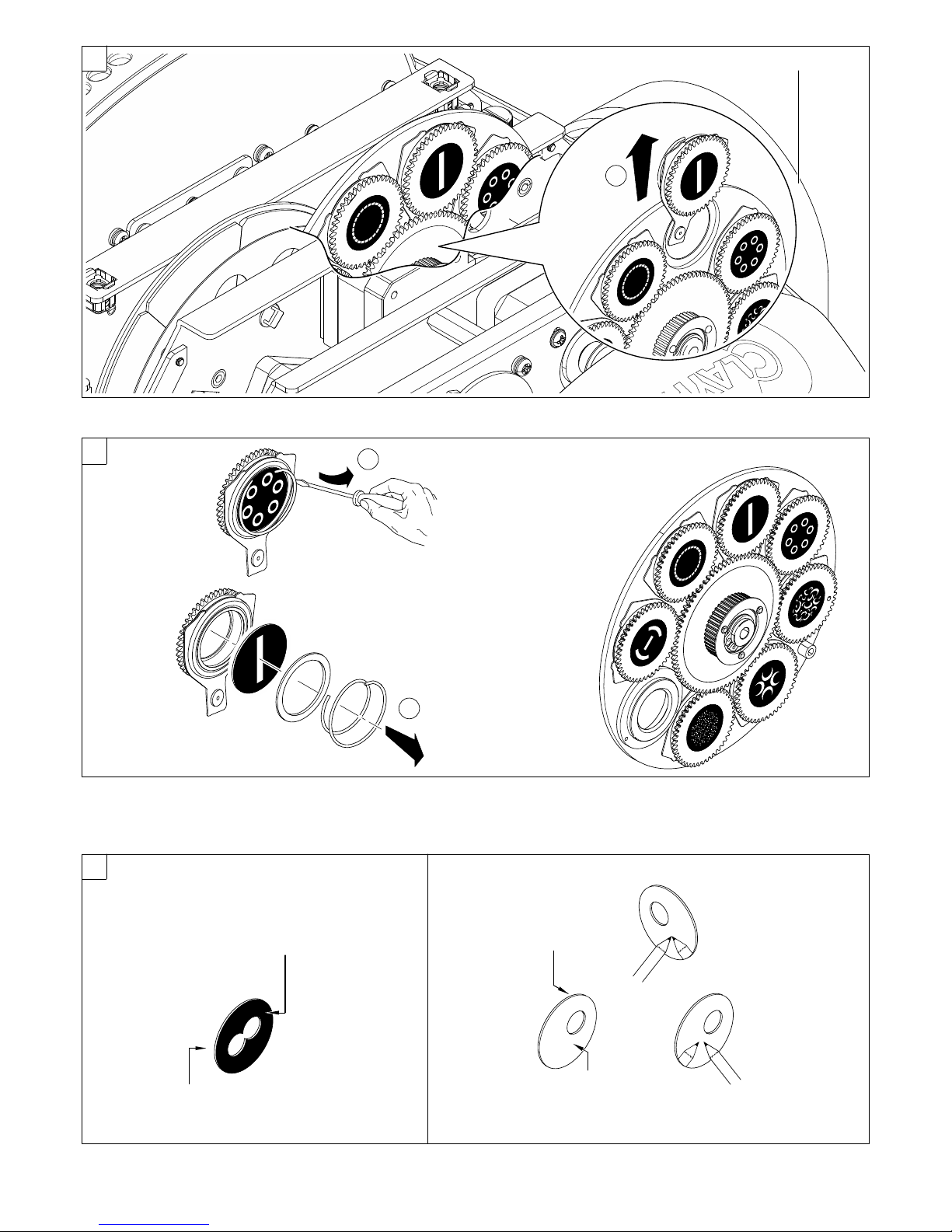

Replacing rotating gobos (ø 22.9 mm - max 18 mm image – thickness max 1.1 mm) - Fig. 13
IMP RTANT: Use only glass gobos on the rotating gobos wheel.
WARNING: Before using custom gobos contact Claypaky.
Upper Side
1
8
AXCOR SPOT 300
Bearing group replacement - Fig. 12
12
Gobo orientation - Fig. 14
The pictures shown the correct gobos orientation.
GOBO DI VETRO DICROICI TIPO 1 GOBO DI VETRO DICROICI TIPO 2
14
To determine which side of a godo is coated, hold an odject up to it. On the
uncoated side, there is a space between the object and its reflection.
C ATED GLASS G B S TYPE 1 C ATED GLASS G B S TYPE 2
Grey/Black side
away from light source
Coated side towards
light source
Coated side
Uncoated side
Uncoated side
Reflective side towards light source

9
AXCOR SPOT 300

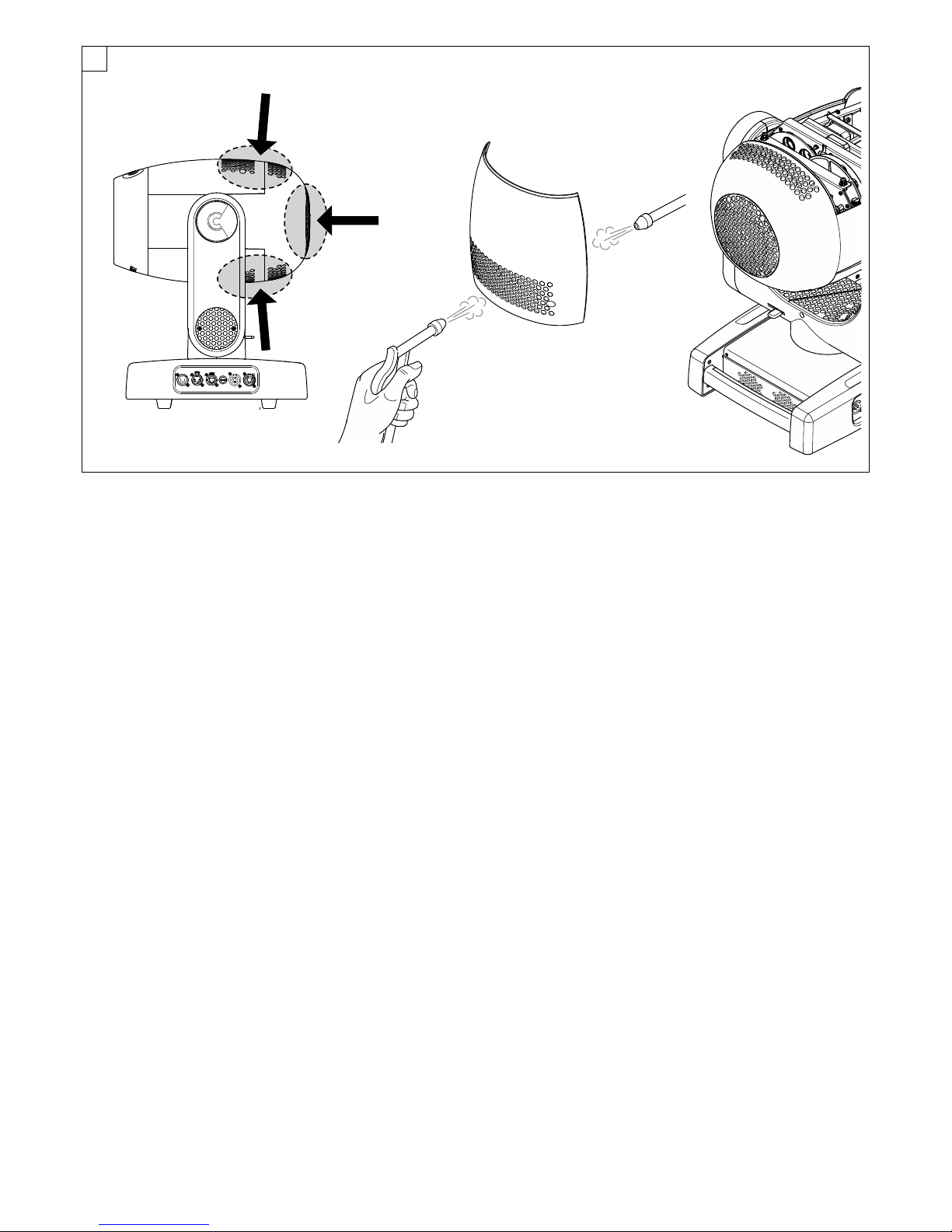

Periodical cleaning - Fig. 15
To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the
working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended
that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:
•General cleaning of internal parts.
•Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.
•General visual check of the internal components, cabling, mechanical parts, etc.
•Electrical, photometric and functional checks; eventual repairs.
Upper Side
Upper Side
15
Parts requiring frequent cleaning.
Continue ➔

10
AXCOR SPOT 300
Cleaning of the filters - Fig. 16
16

11
AXCOR SPOT 300
1
2
Upper Side
Upper Side
17
Extraction of the effect modules - Fig. 17
IMP RTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 17 and 18 in reverse order.
Continue ➔

12
AXCOR SPOT 300
Extraction of the effect modules - Fig. 18
IMP RTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 17 and 18 in reverse order.
1
2
Upper Side
Upper Side
18

13
AXCOR SPOT 300

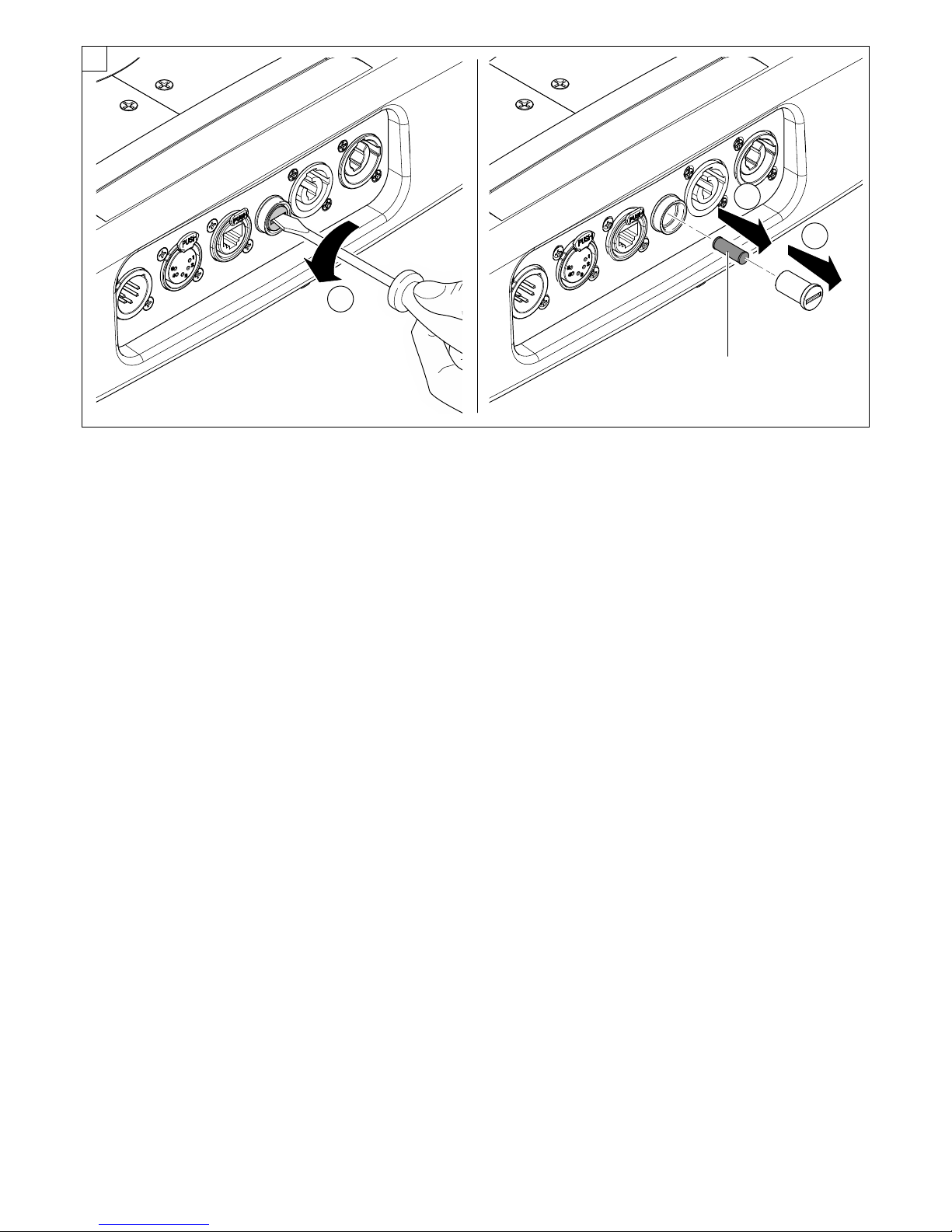

Replacing fuse - Fig. 19
3
2
1
Fuse
5x20mm - T5A 250V
19
Continue ➔

Battery removal - Fig. 20
This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the
regulation in force.
14
AXCOR SPOT 300
1
2
20

LIGHT S URCE
180W White ED engine (7000 K)
PTICS
8°-40° linear zoom
Motorised focus lens
C L R SYSTEM
CMY System
One color wheel with 7 colors (including 1 CTO filter)
EFFECTS SECTI N
One wheel with 7 rotating gobos
One wheel with 10 fixed gobos
Rotating 4-facet prism
Mechanical Iris
Frost filter
C NTR L AND PR GRAMMING
16-bit Electronic Dimmer with 4 curves
Electronic strobe
WEIGHT
20.2 Kg (44.53 lbs)
TECHNICAL INF RMATI N
350
(13.77")
275
(10.83")
558
(21.97")
350
(13.77")
378
(14.88")
378
(14.88")
480
(18.88")
CAUSE AND S LUTI N F PR BLEMS
THE PROJECTOR WI NOT SWITCH ON
PROBLEMS
E ECTRONICS NON-OPERATIONA
DEFECTIVE PROJECTION
REDUCED UMINOSITY
POSSIBLE CAUSES CHECKS AND REMEDIES
No mains supply.
ight source exhausted or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
enses broken
Dust or grease deposited.
Check the power supply voltage.
Replace the light source.
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).
15
AXCOR SPOT 300

Clay Paky S.p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. [phone] - Fax [phone] - www.claypaky.it
IST018/001 – EN - Preliminary 01/2018
