CR Remeha iSense User manual

iSense
Digital timer thermostat
Cyfrowy termostat czasowy
Электронный программируемый
термостат
Termostat sa digitalnim tajmerom
Dijital zamanlayıcılı termostat
User Guide
Instrukcja obsługi
Инструкция по эксплуатации
Uputstvo za upotrebu
Kullanım Kılavuzu
SRRUPLEN TR

EN
6.Using the controller .......................... 16
6.1 Selecting program .................................16
6.2 Temporarily changing the temperature..16
6.3 Fireplace mode......................................17
6.4 Information ............................................18
6.5 Displaying the estimated energy
consumption..........................................18
7.Messages........................................... 19
7.1 Fault messages.....................................19
7.2 Service message...................................22
8.Technical specifications................... 22
Contents
1.Introduction ......................................... 4
2.Overview .............................................. 4
3.Installation ........................................... 5
3.1 Location of the controller.........................5
3.2 Installation and connection......................6
3.3 Location of the outside sensor ................7
3.4 Room sensor (for controller RF only) ......8
4.Prior to first use .................................. 8
4.1 Setting language, time and date..............8
4.2 Default setting .........................................8
5.Setting.................................................. 9
5.1 Three usage modes ................................9
5.2 Creating or changing a clock program ..10
5.3 Setting continuous temperatures...........12
5.4 Group control.........................................12
5.5 Setting the control strategy....................13
5.6 Setting a holiday program .....................15

4
EN
1. Introduction
The iSense is an OpenTherm timer thermostat with many enhanced functions.
The controller is supplied in two versions:
• iSenseOpenTherm
• iSenseRF(wireless),withtheiBaseRF(basestation)transmitter
Thismanualcoversbothversions(OpenThermandRF).Whereinformationonlypertainstooneof
the two versions then this is clearly stated.
AfulldescriptionofthecontrollercanbefoundintheInstallationandServicemanual.
2. Overview
Thecontrollerismenu-controlled,whichmeansitisverysimpletooperate:itonlyhasthreebuttons.
R000248-04-A
Textbox menus
Mode button BMode button A
Temperature
Time
Pictograms
Menu Program
Button A Button B Button C, (push-turn)
Display

5
EN
Most important pictograms Pictograms not shown
sClock program active DController requesting heat
!Continuous day temperature @N Centralheatingboileronforhotwater
zContinuous night temperature @D Centralheatingboileronforcentralheating
]Frost protection pGroup 1 selected
{Summer mode qGroup 2 selected
EManual setting rProduction of electricity
xHoliday program Warning symbols
TDHWstandbyfunctionswitchedoff eWaterpressureincentralheatingboilertoolow
yCurrent room temperature cGeneralwarningsymbol
MRoom temperature set ?Centralheatingboilerrequiresservicing
vBatteryincontrolleralmostempty
wNo wireless connection
3. Installation
3.1 Location of the controller
Thecontrollerissettoroomcontrolbydefault,whichmeansthattheinsidetemperatureisused
tocontrolthecentralheating.Thatiswhyitisbesttolocatethecontrolleronaninternalwallinthe
room in which you spend the most time, such as the living room.
Do not locate the controller too close to heat sources (fireplace, radiator, lamp, candles, direct
sunlightetc.),orinplaceswhereitmaybedraughty.

6
EN
Controller RF
• Positionthecontrolleratleast1metrefromequipmentwithelectromagneticemissionssuchas
washingmachines,Tumbledriers,wirelesstelephones,TVs,computers,microwaveovens,etc.
• Positionthecontrollersothatithasgoodreception.Takeaccountofthefactthatobjects
containing metal will affect the reception. These include steel-reinforced concrete, mirrors and
windows with a metal coating, insulating films etc.
TherangeofthecontrollerRFinbuildingsisgenerally30metres.
Note!
This value is purely an indication. The actual range of the RF signal depends strongly on the local
environment.Rememberthatthenumberofwallsandceilings(metalorotherwise)canhavea
(considerable)impactonreception.Otherobjectsthatcontainmetalmayalsoimpactreception.
These include mirrors and windows with a metal coating, insulating films etc.
iThe signal strength can be viewed via Menu > Information.
3.2 Installation and connection
Thefollowingmustbedonebeforeyouinstallandconnectthecontroller:
• AdjusttheboilersothatitcanbeconnectedtoacontrollerOpenTherm.
• Turnofftheboiler.
Consulttheboilerdocumentationforthisprocess.
OpenTherm is polarity insensitive; you may therefore swap the wires.

7
EN
Do this as follows:
R000249-A
OT
OT
(Controller OpenTherm only)PlacethreeAAbatteriesinthecontrollerifrequired.Thesearenot
provided.Thebatteriesensurethattheclockkeepsrunningwhentheboilerisswitchedoff.
ThebatteriesalsopowerthebacklightforthecontrollerforboilersthatdonothaveOpenTherm
Smart Power.
(Controller RF only)Place3AAbatteriesinthecontroller.Thesearerequiredtooperatethe
controller RF.
iThe controller is now ready for use. The base station needs to be installed for the controller RF.
Consult the base station RF documentation.
iThe programs that are set are saved if the boiler or the controller is switched off
(even if there are no batteries).
3.3 Location of the outside sensor
An outside temperature sensor is not supplied as standard with the controller. You only require this
sensor if you want weather-compensated control of the inside temperature.

8
EN
iConsult the documentation for your boiler for information on connecting an outside temperature
sensor.
3.4 Room sensor (for controller RF only)
AnRFroomsensorisavailableforthecontrollerRFasanoption.Thissensorreplacestheinternal
controller sensor.
4. Prior to rst use
4.1 Setting language, time and date
The menu for selecting the language (international version) or setting the time (Dutch version)
appears when you connect the controller.
1. SelectthedesiredlanguageifapplicablebyturningbuttonCandthenpushbuttonCtoconfirm.
2. Follow the instructions on the display to select the time, year, month and day.
The controller is now ready for use. After installation, the default program is activated
(see paragraph 4.2).Thetemperatureisnowcontrolledbythisclockprogram.
iThe controller automatically switches between summer time and winter time settings.
4.2 Default setting
Room control
Thecontrollerissettoroomcontrolbydefault.Thismeansthattheflowtemperatureofthecentral
heatingwateriscontrolledbythetemperatureintheroomwherethecontrollerisinstalled.

9
EN
Weather-compensatedboilercontrolisalsopossible(withoutsidesensor);inotherwordsbased
on the outside temperature. The controller has a programmed heating curve which determines the
waterflowtemperaturetogetherwiththeoutsidetemperature.Theheatingcurvemustbechosenso
thattheleastfavourableroomcanbeefficientlyheatedevenwhentheoutsidetemperatureisvery
low. See paragraph 5.5 for further information about weather-compensated control.
Clock program
The default clock program sets the temperature each day as follows:
• 06.00–19.00: 20°C
• 19.00–23.00: 21°C
• 23.00–06.00: 15°C+T
You can of course adapt the clock programs to your own requirements. See Chapter 5.
5. Setting
5.1 Three usage modes
The controller has three usage modes:
• Basic mode: no clock programs are used in this mode. You can only set the temperature on the
controller manually.
• Normal mode:thisisthestandardmode.Mostoptionsareavailable,suchastheclock
program.
• Extended mode:thismodeletsyouusetwostandardclockprograms(AandB),changemore
settings and request more detailed information.
You can change the usage mode via the menu: Menu > Settings > Users > User mode.

10
EN
iThis manual deals with most functions relating to the “Normal mode”.
This is the default mode after initial start-up.
5.2 Creating or changing a clock program
Aclockprogramautomaticallycontrolsthetemperatureforaday,andcanbesetforeachindividual
day.Youcanadjustthedefaultclockprogramorenteracompletelynewprogram.
iThe controller starts pre-heating prior to the set time by default, so that the room has reached
the desired temperature at the correct time.
Making an overview
Itisusefultodrawupyourownoverviewwithswitchtimes:whattemperaturedoesitneedtobeand
when in your home? This of course depends on who is at home when, what time you get up etc.
You can set up to six switch times per day.
Creating a new clock program
1. Select Menu > Program > Clock prog. > New.
2. Select an initial program if appropriate (Home at weekend, Home mid-week or Home all day).
Youcannowcreateyourownclockprogrambasedonthisprogram.
PressbuttonCtoconfirm.
3. Go to the day for which you want to set the clock program.
PressbuttonCtoconfirm.
4. Go to the time you want to set.
PressbuttonCtoconfirm.

11
EN
iYou can use the button Delete to remove the selected switch time.
5. UsebuttonCtosetthetimeandthecorrespondingdesiredtemperature.
6. Once you have set all switch times for a particular day, you can copy the settings for that day to
other days:
- Go to the day.
- Press Copy.
 -Selecttheday(s)towhichyouwanttocopythesettingsusingbuttonCandpress Save.
7. Go to the day.
ThenpressbuttonC.
8. Go to step 3 to set the next day, or press Back to close this menu.
Changing an existing clock program
1. Select Menu > Program > Clock prog. > Change.
2. Go to the day for which you want to change the clock program.
PressbuttonCtoconfirm.
3. Go to the time you want to change.
PressbuttonCtoconfirm.
iYou can use the button Delete to remove the selected switch time.
4. UsebuttonCtosetthetimeandthecorrespondingdesiredtemperature.
5. Once you have set all switch times for a particular day, you can copy the settings for that day to
other days:
- Go to the day.
- Press Copy.

12
EN
 -Selecttheday(s)towhichyouwanttocopythesettingsusingbuttonCandpressSave.
6. Go to the day.
ThenpressbuttonC.
7. Go to step 2 to set the next day, or press Back to close this menu.
Restoring the default settings
Select Menu > Program > Clock prog. > Factory settings to restore the settings for the default
clock program.
5.3 Setting continuous temperatures
Instead of the clock program, you can also set the room temperature continuously to a particular
value. You can set three different continuous temperatures via Menu > Program:
• Day temp.: room temperature during the day, corresponding to the “Continuous day” program.
• Night temp.: room temperature at night, corresponding to the “Cont. night” program.
• Frost temp.: room temperature to protect the room where the controller is installed from
freezing. This setting comes under the “Frost” program.
iThe programs mentioned are explained in paragraph 6.1.
5.4 Group control
Withtheaidofthec-Mix,thecontrollercancontroltwogroups;bothgroupscanbeassignedtheir
own program and control strategy. This is done via: Menu > Settings > System > CH system >
Zoning the default setting is “No zoning”.
The option “1 & 2 separate”canbeusedtoassigneachgroupitsownprogram.

13
EN
The oiconwillappearinthestandardscreen.Youcanthenpresstherotaryknob/pushbutton
toswitchbetweencontrolofgroup1andgroup2.If“2 follows 1”isselected,bothgroupsare
assignedtheirownstrategy,butgroup2willfollowtheprogramforgroup1.
5.5 Setting the control strategy
Thecontrollerletsyouusetheroomcontroland/orweather-compensatedcontrolstrategiesin
various ways. You can select a control strategy via Menu > Settings > System > Control settings.
iWhen implementing these changes, the user level must be set to “Extended mode”
(See paragraph 5.1).
Specific settings for weather-compensated control
Ifyouhaveoptedforaweather-compensatedcontrolstrategy,anumberofextrasettingsare
availableviaMenu > Settings > System > OTC settings.

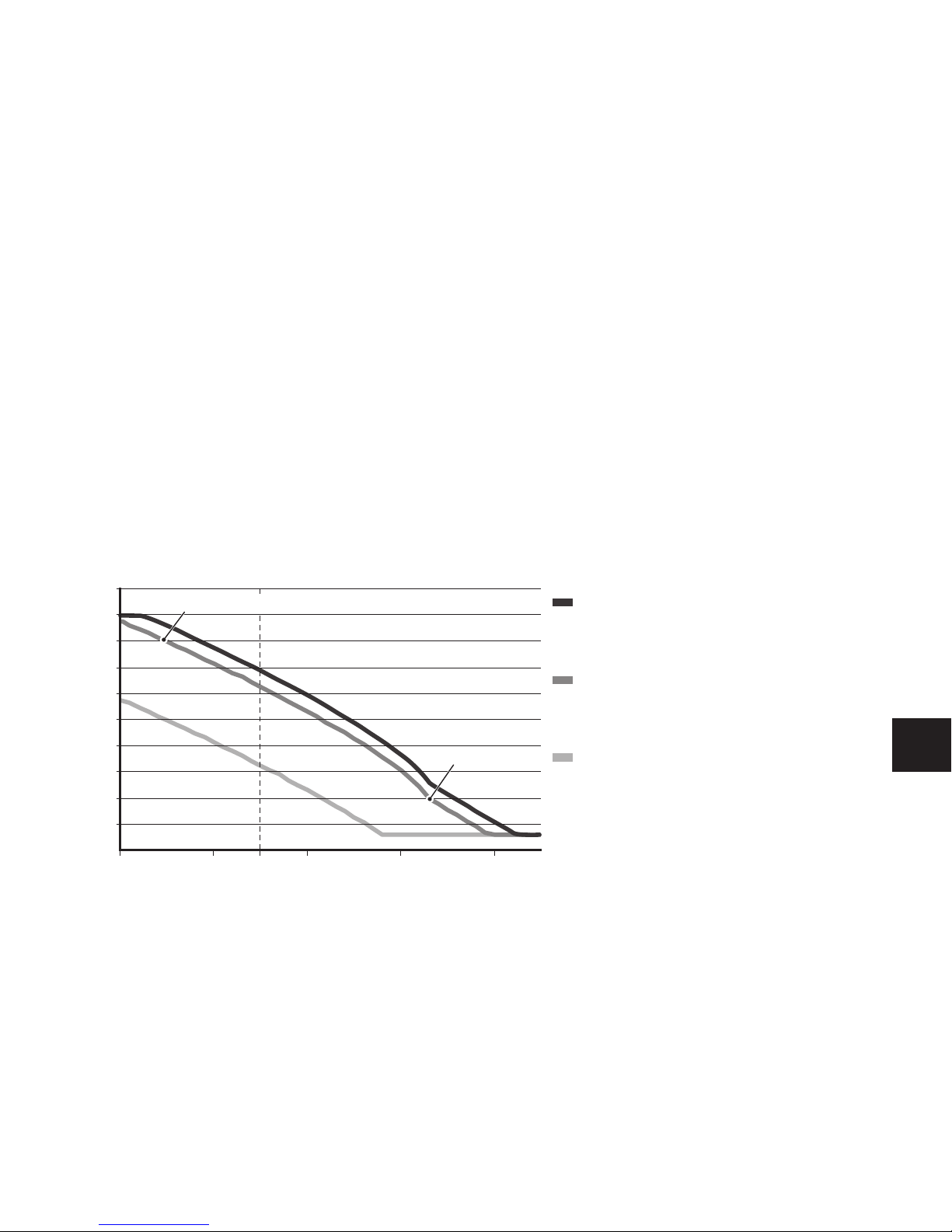

• Heating curve:
- Base outside:outsidetemperaturebasepoint
- Base flowtemp:flowtemperaturebasepoint
- Climate outside: outside temperature climate point
- Climate flowtemp: flow temperature climate point
- Curvature: degree of curvature of the heating curve, depending on your central heating
system. Select the relevant type of heaters: underfloor heating, radiators or convectors.
This will provide more comfort early and late in the year.
iThe heating curve is based on an outside temperature of 20°C. When the desired room
temperature is increased, the heating curve shifts upwards.

14
EN
The degree of increase is determined using the “RT effect” function.
• RT effect: factor influencing the shift in the heating curve.
• Heat limit day:outsidetemperatureabovewhichthecentralheatingisswitchedoffduringthe
day. The day temperature limit is relevant when the desired room temperature is higher than the
nighttemperaturethathasbeensetviaMenu > Program > Night temp.
• Heat limit night:outsidetemperatureabovewhichthecentralheatingisswitchedoffduringthe
night. The night temperature limit is relevant when the desired room temperature is the same as
orlowerthanthenighttemperaturethathasbeensetviaMenu > Program > Night temp..
Heating curve – an example
R000250-04-A
-5-15515 25
Outside temperature (°C)
Boiler temperature (°C)
100
90
80
70
60
50
40
30
20
10
0
0
Base point Desired room temperature
of 15°C during the night
Increased room temperature
during the day
Desired room temperature
of 20°C during the day
Climate point

15
EN
iSee the installation and service manual for the day/night temperature limit.
The settings for the heating curve are highly dependent on the design of the central heating
systemandthehome.Thismeansthatnoclearadvicecanbegivenonthismatter.Theheating
curvecanbeoptimisedduringuse.Theheatingcurvealsoshiftsupwardsordownwardswhenthe
temperature is increased or decreased.
5.6 Setting a holiday program
Itcanbeusefultosetaholidayprogramifyouareawayfromhomeforsometime.
This ensures a constant temperature in your home for the period you set.
You set the temperature yourself.
A holiday program automatically takes effect at 0.00 hours on the start date and ends at 0.00 on the
end date.
Thesymbolxappears in the display.
This program is switched off and removed once the period set has ended.
You can set a maximum of 16 holiday programs.
You do this via Menu > Program > Holiday prog.:
• SelectView to look at the holiday programs set.
• SelectChange to change or remove programs.
• SelectEnter to add a new program.
• SelectDesired temp. to set the constant temperature.

16
EN
6. Using the controller
6.1 Selecting program
You can select one of the following programs via Program in the main display:
• Clock program:thecentralheatingtemperatureiscontrolledbytheprogramyouhaveset.
• Continuous day: the temperature remains constant at the day temperature you have set.
• Cont. night: the temperature remains constant at the night temperature you have set.
• Frost:thetemperatureremainsconstantatthefrostprotectiontemperatureyouhaveset.DHW
standbyisswitchedoffforthisprogram.
• Cont. summer:thetemperatureremainsconstantatthenighttemperature,wherebythetap
waterisonstandbybetween6.00and23.00(whichmeansthatyouwillgethotwatermore
quickly).
6.2 Temporarily changing the temperature
Youcan(temporarily)switchoffaselectedclockprogramorcontinuousprogramatanytimeby
setting the temperature manually.
1. TurnbuttonCfromthemaindisplaytosetanewtemperature.
2. Press Adjust time if you also want to set an end time for the manually-selected temperature,
andselectthistimeusingpush-turnbuttonC.
iIf you do not select an end time and a clock program was active, that clock program will become
active again at the next switch point. Manual operation will then be switched off.
3. Press Duration if you also want to set an end date for the manually selected temperature, and
selectthistimeusingpush-turnbuttonC.

17
EN
4. PressbuttonCtoreturntothemainmenuorwaitfivesecondsuntilthecontrollerautomatically
returns to the main menu.
Press the Continue programbuttontocancelthemanualtemperaturechange.
6.3 Fireplace mode
Oncethetemperaturehasreachedthedesiredlevelintheroomwherethecontrollerhasbeen
positioned,thecentralheatingswitchesoff.Thismaybeinconvenientif,forexample,youhavean
open fire or if a lot of people are present in that room. Other rooms in the house are also no longer
heated in this situation.
You can switch on the “Fireplace” mode via the Programbuttonsothattheotherroomsarestill
heated.Thisswitchesoffthebuilt-inroomsensorinthecontroller.Thetemperatureofthecentral
heating water at that point is then maintained.
Ifitbecomestoocoldortoohotintheotherrooms,youcanincreaseordecreasetheroom
temperaturethereusingpush-turnbuttonConthecontroller.Thisincreasesordecreasesthe
central heating water temperature. You can fit thermostat valves to the radiators in order to
individually control the temperatures in these rooms.
iThe “Fireplace” mode should only be activated if the controller uses the room temperature to
control the temperature.
iWe advise that you close the radiator valves in the room in which the controller has been
positioned to prevent the room temperature there becoming too high.
iThe controller switches to weather-compensated control if the outside temperature sensor is
used.

18
EN
6.4 Information
Youcanrequestoperatinginformationaboutyourcentralheatingsystem,suchasthewater
pressure in the central heating system and various temperatures, via Menu > Information. The
informationavailabledependsonyourcentralheatingunit.
6.5 Displaying the estimated energy consumption
Intheinformationmenuyoucanfindtheestimatedenergyconsumptionascalculatedbythe
controller.
For the correct calculation set the parameters: Menu > Settings > Installer > kWh calculation.
For more information see the installation and service manual.

19
EN
7. Messages
This is what a fault message or service message looks like:
R000251-04-A
Menu
No connection
to outside
sensor
Program
Fault indication
Display text
7.1 Fault messages
Faultcode - F200 No connection to outside sensor cand Zare lit up.
Display text No connection to outside sensor.
Solution Checktheboiler’sconnectiontotheoutsidetemperaturesensor.
Faultcode - F203 Faultyconnectiontoboiler cis lit up.
Display text Communication fault. Check the connection.
Solution Checktheconnectiontotheboiler.

20
EN
Faultcode - F214 Incorrect room temperature reading cis lit up.
Display text Room temperature is out of measuring range or sensor is defective.
Solution Roomtemperaturereadingisincorrect.Iftheroomtemperatureisbetween
-5°Cand65°C,thetemperaturesensormaybefaulty.
Contact your installer.
Faultcode - F215 Controller failure cis lit up.
Display text Internal fault. Controller failure.
Solution Contact your installer.
Faultcode - F216 Noconnectionwithbasestation(RFonly) wand c are lit up.
Display text Nocommunicationwithbasestation.
Solution Checkwhetherthebasestationfortheboilerisonandisfunctioning
correctly (consult the transmitter manual if necessary). If there is no
connectionbetweenthecontrollerandbasestation,thenrestorethe
connection as follows:
-Putthebasestationinconnectionmode(consult the base station manual
for this).
- On the controller select Menu > Settings > Users > Connection.
Ifthisdoesnotsolvetheproblem,lookforanotherlocationforthecontroller
and/orbasestationorremove“obstacles”thatcouldinterferewiththeRF
signal.
