oventrop R-Tronic RT B User manual

Valves, controls + systems
“R-Tronic RT B / RTF B / RTFC K”
“Aktor MH CON B / Aktor MD CON B”
Installation and operating instructions
“R-Tronic”
Climate display device/control
EN

- 2 von 64 -

- 3 von 64 -
Extent of supply
Thank you for purchasing this wireless thermostat. Please check the delivery for
completeness. It consists of the following components (depending on the ordered
model):
“R-Tronic RT B “
(Temperature)
“R-Tronic RTF B “
(Temperature / Air humidity)
Battery operation
(Item no.: 1150681)
Battery operation
(Item no.: 1150680)
“R-Tronic RTFC K”
(Temperature / Air humidity / CO2)
“R-Tronic RTFC K“
(Temperature / Air humidity / CO2)
Flush-mounted power pack with wall bracket
(Item no.: 1150682)
Mains adaptor with table stand
(Item no.: 1150684)
“Aktor MD CON B”
Battery operation
Squeeze connection
“Aktor MH CON B”
Battery operation
Valve connection M30 x 1.5
(Item no.: 1150675)
(Item no.: 1150665)

- 4 von 64 -
Accessories (optional)
Note regarding storage and packaging
The following instructions regarding storage of the climate display device/control,
actuator and optional accessories must be observed:
Do not store the components in open air, keep dry and free from dust.
Do not expose to aggressive fluids or heat sources.
Protect from direct sunlight and mechanical agitation.
Storage temperature: -10°C…+65°C
Max. relative air humidity: 70% RH (“relative humidity”)
Packaging material is to be disposed of environmentally friendly.
Keep the packaging material out of reach of children.
Mains adaptor with table stand
(Item no.: 1150694)
optional for the models
“R-Tronic RT B“ / „R-Tronic RTF B”
Flush-mounted power pack with wall bracket
(Item no.: 1150692)
optional for the models
“R-Tronic RT B" / "R-Tronic RTF B”
Window contact
(Item no.: 1153070)
Cover frame 88x88 mm
(item no. 1150693)

- 5 von 64 -
Content
1General information 6
2Safety notes 7
2.1 Correct use 7
2.2 Residual risks and fundamental dangers 7
2.3 Warnings and their meaning 8
2.4 High-frequency emissions of wireless sensors 8
3Product description 9
3.1 Summary 9
3.2 Technical data 12
3.3 Note regarding declaration of conformity 13
3.4 General conditions of sales and delivery 13
4Installation and initial operation 14
4.1 General installation advice 14
4.2 Wall attachment of fixing plate “R-Tronic RT B / RTF B” (battery operation) 15
4.3 Wall attachment fixing plate with flush-mounted power pack (type “RTFC K”) 16
4.4 Installation with table stand and mains adaptor 17
4.5 Installation of the wireless actuator “Aktor MH/MD CON B” 18
4.6 Creation of the radio communication “R-Tronic” and actuator 21
4.6.1 Setting language, date and time 21
4.6.2 Adaptation of the “Aktor MH/MD CON B” to the “R-Tronic” 22
4.7 Calibration of the actuator (“adjustment run”) 25
4.8Window contacts (accessory): “Teach in” process and installation 26
4.9 Standard heating profiles and temperature setting 29
4.9.1 Switching between different heating profiles 29
4.9.2 Setting of the required temperature via NOMINAL SETTING 31
5Operation and menu structure of the “R-Tronic” 32
5.1 Menu “Time profile” 33
5.2 Menu “Temperatures” 38
5.2.1 Setting of the general temperature range 39
5.3 Menu “Functions” 40
5.3.1 BOOST (rapid heating) 40
5.3.2 Vacation function (setback temperature during absence) 41
5.3.3 “Party mode” (required temperature during a defined period) 42
5.3.4 Child-proof lock (operation lock) 43
5.3.5 Valve protection 43
5.4 Menu “Settings” 44
5.4.1 Installation (radio communication “R-Tronic” / “Aktor MH/MD CON B”) 44
5.4.2 Date and time 45
5.4.3 Language 46
5.4.4 Default view display 46
5.4.5 OFFSET TEMPERATURE control 46
5.4.6 Summer-/winter time 47
5.4.7 Display lighting (ON/OFF) 47
5.4.8 Assignment of the room designation to the “R-Tronic” 47
5.4.9 Factory settings “R-Tronic” and “Aktor MH/MD CON B” 48
5.4.10 Reset (only “R-Tronic”) 48
5.5 Menu “Room climate” (only “R-Tronic RTFC K”) 49
5.6 Menu “Information” 51
5.7 Battery replacement “R-Tronic” / “Aktor MH/MD CON B” 53
6Disposal 56
7Display notes and error messages 57
8Schematic menu overview 60
9Air humidity and “comfort diagram” 61
10 Illustration index 62

- 6 von 64 -
General information
1 General information
These installation and operating instructions refer to the different models of the
Oventrop product “R-Tronic” and the associated radio controlled radiator actuator
“Aktor MH CON B” respectively “Aktor MD CON B”. The installation and operating
instructions which are intended for installers and final consumers serve to install the
wireless room controllers “R-Tronic T”, “R-Tronic TF” and “R-Tronic TFC”
professionally, to put them into operation and to use them correctly. The same applies
for the optional accessories.
NOTE
Read installation and operating instructions in their entirety before installing the
wireless thermostats “R-Tronic RT B”, “R-Tronic RTF B” or “R-Tronic RTFC K” and
their accessories. This will allow an (energy) efficient use of the product.
Please also take note of the brief instruction supplied with the product.
Advice for installers: The installation and operating instructions as well as all other valid
documents have to be handed over to the final user.
This documentation has to be kept for later reference and has to be handed over to
the new owner in case of resale.
The installation and operating instructions are copyrighted!
Please contact your specialist heating company or the company Oventrop if
malfunctions or further questions occur.
Manufacturer and contact
OVENTROP GmbH & Co. KG
Paul-Oventrop-Straße 1
D-59939 Olsberg
Technology hotline
Phone: [phone]
Mo.-Fr. 7:30-16:30 h
Fax: [phone]
Mobile box: [phone]
E-Mail: [email protected]

- 7 von 64 -
Safety notes
2 Safety notes
2.1 Correct use
Safety in operation is only guaranteed if the climate display device/control
“R-Tronic” and the actuator “Aktor MH/MD CON B” are used correctly. The product
combination is used for the radio-based control of radiators and thus for temperature
control of individual rooms or temperature zones in a room. Moreover, the wireless
thermostat “R-Tronic RTF B”measures the air humidity and the “R-Tronic RTFC K”
additionally measures the CO2value (as recommendation for window airing). Please
observe that only Oventrop accessories (power packs etc.) must be installed. Any use
of the wireless controllers “R-Tronic RT B”, “R-Tronic RTF B”and “R-Tronic RTFC
K” and the actuator outside the above applications will be considered as non-
compliant and misuse.
Claims of any kind against the manufacturer and/or his authorised representatives due
to damages caused by incorrect use can not be accepted.
2.2 Residual risks and fundamental dangers
Even though the product combination “R-Tronic” and the associated actuator “Aktor
MH CON B” respectively “Aktor MD CON B” are in accordance with the latest technical
status and the approved safety rules and regulations, dangers do still exist. For this
reason, the following safety notes must be observed.
The flush-mounted power pack (see page 16) has to be connected to the
230 V network. Connection must only be carried out by a qualified electrician.
Switch off current supply before cabling!
The occupational health and accident prevention regulations must be observed
during installation.
Avoid dangers from electricity, mechanical risks, risk of fire and thermal
dangers at hot surfaces.
The controller and the actuator must only be installed in dry, closed rooms.
Provide protective equipment (safety gloves and similar) during installation, if
required.
Keep small components and accessories out of reach of children (risk of
ingestion).
Avoid risk of scalding at the radiator caused by excessive flow temperatures.
Please observe that excessive room temperatures may cause health problems
(cardiovascular problems or similar).
Avoid frost damages caused by too low flow temperatures.
Please avoid any contact with the products if allergies against the used material
(metal or similar) are known.

- 8 von 64 -
Safety notes
2.3 Warnings and their meaning
This manual shows warnings for a safe installation and operation of the product,
especially at text passages with action-related information. These warnings must be
observed to avoid accidents, damage to property and malfunctions. The below
hazard classification is, amongst others, based on the ISO 3864 standard and the
international ANSI standard Z535.6.
DANGER
Warning symbol and signal are indicating a dangerous situation with high risk which
will lead to death or serious injury if not avoided.
WARNING
Warning symbol and signal are indicating a dangerous situation with moderate risk
which may lead to death or serious injury if not avoided.
CAUTION
Warning symbol and signal are indicating a dangerous situation with low risk which
may lead to minor or moderate injury or damage to property if not avoided.
NOTICE
Signal word (without warning symbol) indicating a possible damage to property.
2.4 High-frequency emissions of wireless sensors
Under normal conditions (use in residential areas), the use of this product does not
constitute a hazard to health. The high-frequency emissions of wireless switches
and sensors with wireless technology are much lower than the emissions of
conventional switches with also emit electromagnetic fields. Please observe that
special regulations and standards apply for the medical sector (e.g. hospitals).
The
“R-Tronic” with the actuator “Aktor MH/MD CON B” is not suitable for use in the
medical sector.

- 9 von 64 -
Product description
3 Product description
3.1 Summary
The climate display device/control “R-Tronic“ and the actuator “Aktor MH CON B“
respectively “Aktor MD CON B“ are used for the radio controlled temperature control
of rooms or zones in a room. Depending on the model, the “R-Tronic” is powered by
two batteries, a flush-mounted power pack or a mains adaptor (100-240 V ~/50-60 Hz).
“R-Tronic“ models:
“R-Tronic RT B”: temperature control only, battery operated by default, power
supply can also be carried out via a flush-mounted power pack or a mains
adaptor which are available as optional accessory (item no.: 1150692 or 94).
“R-Tronic RTF B”: Temperature control with air humidity measurement,
battery operated by default, power supply can also be carried out via a flush-
mounted power pack or a mains adaptor which are available as optional
accessory (item no.: 1150692 or 94).
“R-Tronic RTFC K”: Temperature control with air humidity and
CO2measurement, powered by a flush-mounted power pack or a mains adapter.
The communication between the “R-Tronic” and the actuator “Aktor MH/MD CON B”
for the control of the radiator is wireless.
Up to 3 actuators can be connected to a battery-operated “R-Tronic” and up to
8 actuators to a mains-operated “R-Tronic”.
Application showing room temperature control with “R-Tronic” and actuator.
(Illustr. 1)
To guarantee a room temperature control according to the given set value, the
actuator always has to be “teached in”, i.e. it has to be adapted to the wireless room
controller. The technical term “teach in” describes the creation of a radio
connection between two devices.

- 10 von 64 -
Menu-button:
Navigation and nominal setting by turning (to the
left/right) and pressing (confirmation)
Product description
Summary “R-Tronic”
(Illustr. 2)
Explanation of the display symbols
Time profile
NOTE regarding display activation
Please observe that in the “R-Tronic” standard configuration settings can only be
carried out when the display is active or illuminated. The display is activated by
pressing one of the three buttons.
Operating mode
and time profile
Display (illuminated):
Symbols and
display units.
Text line:
supplies information on
- Measured values
- Menu structure
- Diagnosis (advice)
Auto/Manu-button:
Switching between the
standard heating profiles
Return-button:
Previous menu level;
keep pressed for 3 seconds:
return to default view
Recommendation for room ventilation
(only “R-Tronic RTFC K”)
Wireless control active
(at least one “teached in” actuator)
Current supply via external power pack
Important information in the menu (display of notes
and error messages)
Child-proof lock activated
Window open (sensor controlled)
Battery status (fully charged, low, empty)
Heating period/ Valve OPEN CLOSED
Day of the week
Time
Setting of comfort temperature / lower temperatures during remaining periods
Operating mode
AUTO/MANU

- 11 von 64 -
Product description
The radiator must be equipped with an electromotive actuator for the regulation of the
heat output according to the required temperature (set value) set at the “R-Tronic”. The
actuator receives and evaluates the corresponding control commands via a radio
communication.
Exterior view of the wireless actuators
(Illustr. 3)
Internal view of the wireless actuator (this ex. “Aktor MH CON B”)
(Illustr. 4)
Aktor MH CON B
with Colar Nut M 30 x 1,5
Aktor MD CON B
mit Squeeze_Connection
Aktor-ID
Casing cover
Type plate
LED info
(viewer)
“Teach in”/
adjustment button
2 x LED info
Collar nut
Antenna
Battery case for two batteries
(AA 1.5 V round cell)

- 12 von 64 -
Product description
3.2 Technical data
“R-Tronic” and “Aktor MH CON B” / “Aktor MD CON B”
Radio frequency: 868.3MHz
Transmitting power max.: 10 mW
Radio range within the building: Depending on materials and interference sources
Transmission interval: 150 seconds
Operation mode: Type 1 (EN 60730-1)
Protection: IP20 (EN 60529)
Protective system: III - Protective low voltage
Ambient temperature: +5°C up to +50°C
For battery operation: Battery type AA 1.5 V Mignon LR6
Service life approx. 2 years
“R-Tronic RT B / RTF B / RTFC K”
Power supply: “RTFC K” with external power pack
(100-240V / 50-60Hz)
“RT B”, “RTF B” battery operation,
mains operation optional
Display: LC display
Measuring range T (°C): +0°C up to +50°C
Accuracy at +25°C: ± 1 K
Measuring range RH (%): 0 up to 100% RH, only for “RTF B” and “RTFC K”
Accuracy at +25°C
and 20-80 % RH: ± 4,5% RH
Measuring range CO2(PPM): 0 up to 2,000 PPM, only for “RTFC K”
Accuracy at +25°C
and 1013 mbar: < ± 50 PPM +2% of measured value
Temperature dependence: typ. 2 PPM CO2/°C (0…50 PPM)
Long-term stability: typ. 20 PPM/a
Casing: ABS (ASA), traffic white similar to RAL 9016
Casing dimensions: 85 x 85 x 35 mm (W x H x D)
Type plates
Subject to technical modification!

- 13 von 64 -
Product description
“Aktor MH CON B” / “Aktor MD CON B”
Power supply: Battery operation (see above)
Casing: ABS (ASA), traffic white similar to RAL 9016
Casing dimensions : 51 x 52 x 86 mm (W x H x D)
Connection thread: M30 x 1.5 or Squeeze Connection
Operating power: approx. 80 N
Maximum piston stroke: 4.0 mm
Weight: approx. 160 g (without batteries)
Type plate
Colour codes of info LEDs and their meaning:
3x green (slowly) = “Teach in”/”Teach out” process or adjustment run successful
3x red (slowly) = “Teach in”/”Teach out” process or adjustment run unsuccessful
1x red (every 50 seconds) = Error message (e.g. batteries empty)
1x green (shortly) = “Teach in”/adjustment button pressed for at least 2 seconds
5x green (quickly) = “Stem” retracted successfully (for removal)
2x red and green alternately = Factory setting restored successfully
Red running = Adjustment run has not yet been carried out
Subject to technical modifications!
3.3 Note regarding declaration of conformity
The company OVENTROP GmbH & Co. KG hereby declares that the “R-Tronic” and
“Aktor MH CON B” respectively “Aktor MD CON B” comply with the basic requirements
and other relevant provisions of the guidelines 2014/53/EU (RED).
The declaration of conformity can be obtained from the manufacturer.
3.4 General conditions of sales and delivery
Oventrops general conditions of sales and delivery valid at the time of supply are
applicable.

- 14 von 64 -
Installation and initial operation
4 Installation and initial operation
4.1 General installation advice
The climate display device/control “R-Tronic” should be installed at a location where a
good circulation of air is guaranteed. If possible, the controller should be mounted onto
an inner wall or a pillar at a height of 140 cm to 170 cm. Please make sure that the
room controller is not affected by other heat sources (such as sunlight or heating
devices next to it).
The controller unit cannot only be mounted onto a wall, but can also be placed on a
table stand which is available as optional accessory for all models. The table stand
should be set up freestanding, for instance on tables, sideboards or similar.
As the actuator is radio controlled by the respective “R-Tronic”, the following advice
regarding the radio range must be observed:
The radio range can be impaired by spatial factors such as room geometry, existing
objects, materials and interference sources and so-called radio-shadows, for
instance behind metal objects, may develop.
Reduction of radio range compared with an unobstructed visual contact:
Material
Radio range reduction
Wood, gypsum, uncoated glass,
without metal
0 - 10%
Brickwork, wooden or gypsum walls
or walls made of pressboards
5 - 35%
Armoured concrete
10 - 90%
Metals
up to 100%
It might therefore become necessary to re-position the wireless room controller
to guarantee an uninterrupted radio communication to the actuator. More
detailed information can be found in chapter 4.6.
The battery operated wireless actuator “Aktor MH/MD CON B” always has to be
mounted onto the radiator valve. It must be easily accessible for battery replacement.
The actuator connected to the radiator must not be covered (for instance with textiles).

- 15 von 64 -
Installation and initial operation
4.2 Wall attachment of fixing plate “R-Tronic RT B / RTF B”
(battery operation)
For the models “R-Tronic RT B” and “R-Tronic RTF B”, power is either supplied by
batteries, a flush-mounted power pack or a mains adapter with table stand
(available as accessories). The “R-Tronic RTFC K” is always operated with a flush-
mounted power pack or a mains adaptor.
If the “R-Tronic” models “RT B” and “RTF B” shall be used for battery operation,
i.e. for standard operation, please proceed as follows:

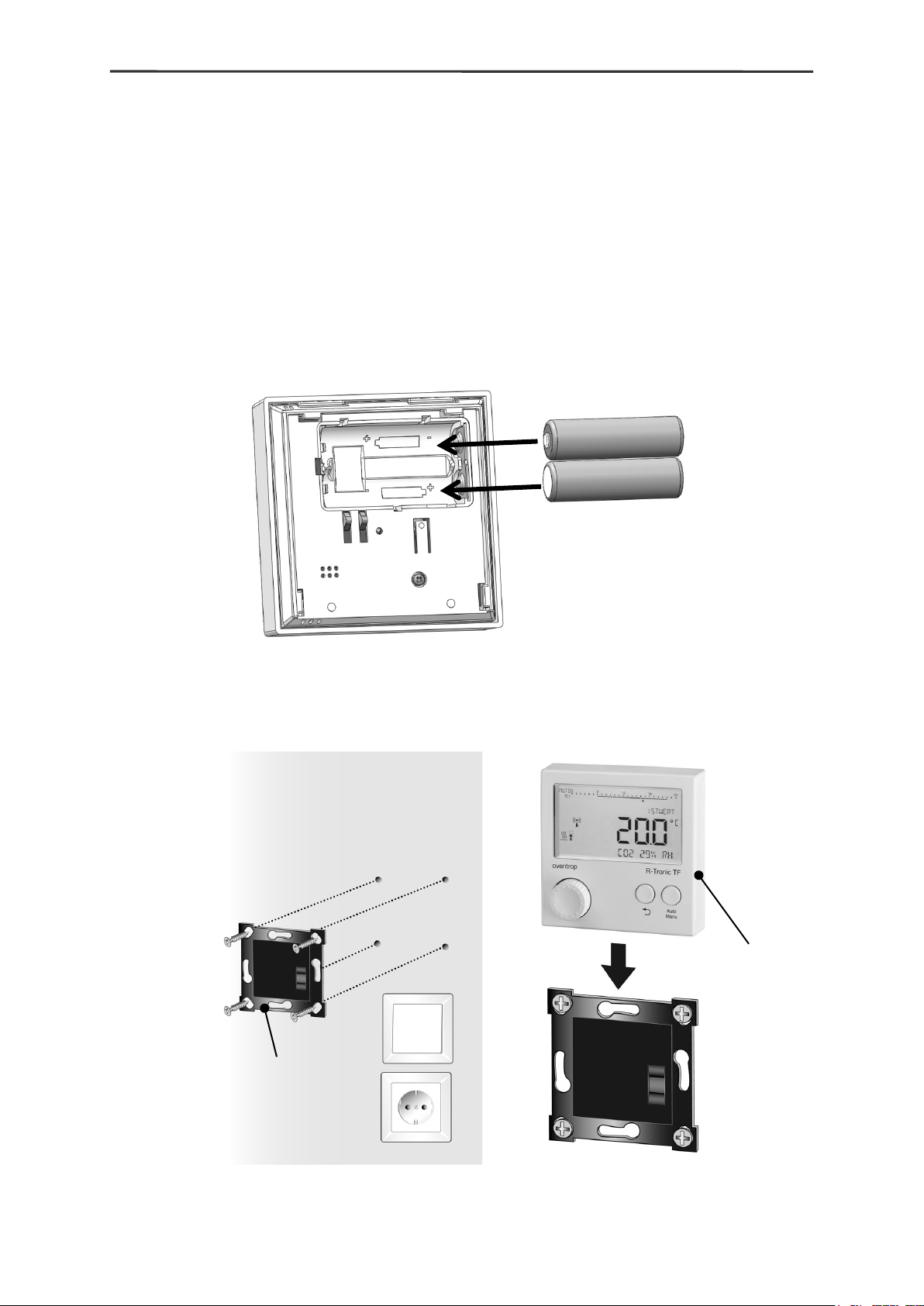

1. Insert two AA 1.5 V Mignon batteries into the battery case.
The position of the batteries is specified by the markings +/-.
(Illustr. 5)
2. Screw the supplied fixing plate horizontally into the wall.
3. Insert the operating unit into the fixing plate from the top.
(Illustr. 6)
►The “R-Tronic” is now ready for the “teach in” process (see paragraph 4.6).
“R-Tronic RT B / RTF B”
(battery operation)
Fixing plate

- 16 von 64 -
Installation and initial operation
4.3 Wall attachment fixing plate with flush-mounted power pack
(type “RTFC K”)
DANGER Risk of electric shock!
As the flush-mounted power pack has to be connected to the
current supply of the house, there is a risk of an electric shock.
• Installation of the flush-mounted power pack must only be
carried out by a qualified electrician.
CAUTION Risk of fire due to overcharging of the batteries!
There is a risk of overcharging of the batteries (types “RT B” and
“RTF B”) if the “R-Tronic” is equipped with batteries and is connected
to the 230 V network via the flush-mounted power pack.
• The operating unit “R-Tronic” must never be equipped with
batteries when using the flush-mounted power pack.

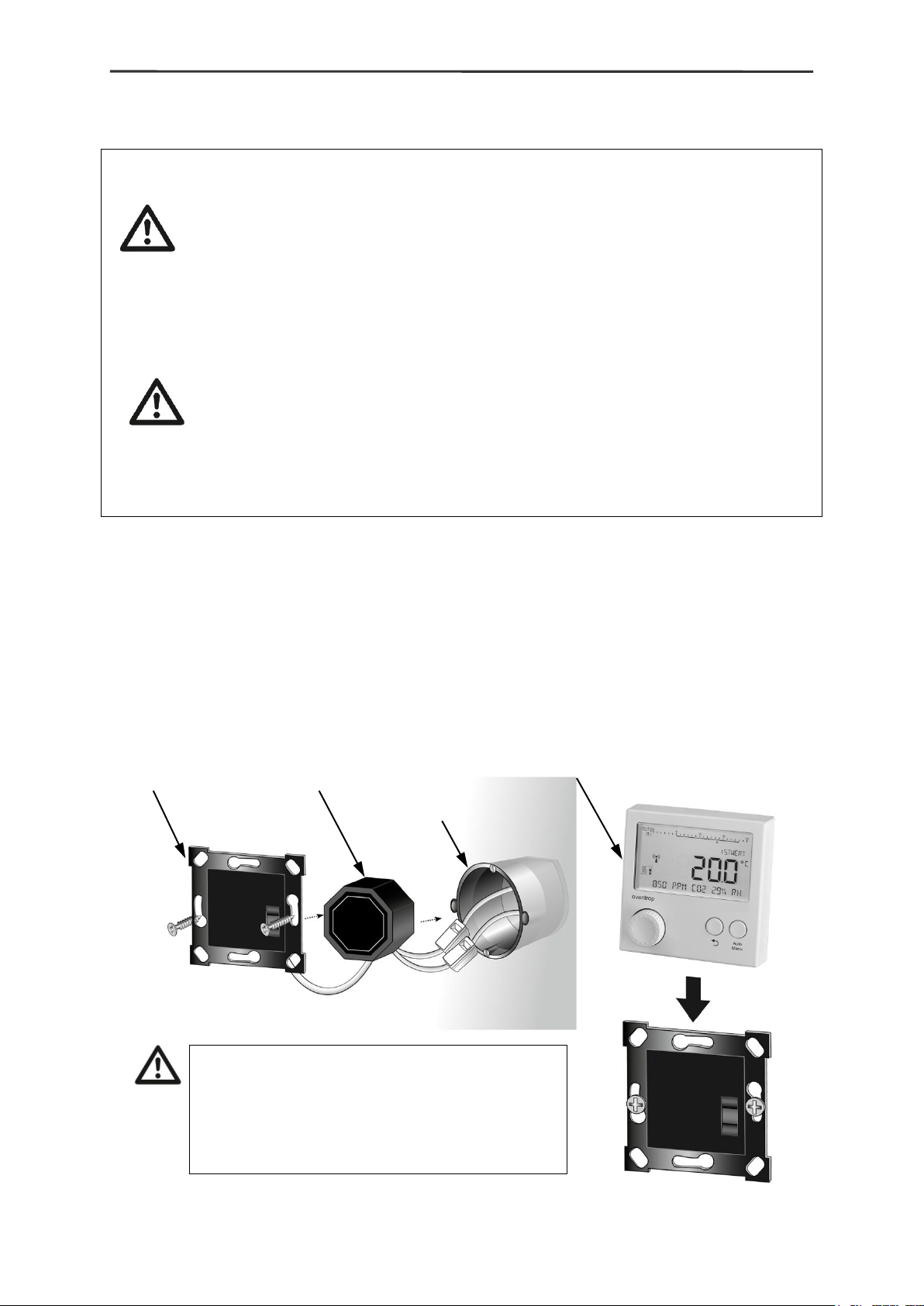

1. Switch off current supply before installation of the flush-mounted power pack.
2. Assemble the electrical connection between the flush-mounted power pack and
the 230 V connection in the flush socket.
3. Screw the fixing plate to the flush socket.
4. Insert the operating unit into the fixing plate from the top.
(Illustr. 7)
►The “R-Tronic” is now ready for the “teach in” process (see paragraph 4.6).
“R-Tronic RTFC K” (option for “RT B” / ”RTF B”)
remove batteries!
Flush-mounted power pack
Fixing plate
Flush socket
1 Primary cables
230V
2 Secondary cable
The flush-mounted mains adaptor has to be
installed so that the primary cables (1) and the
secondary cable (2) do not touch each other.
If necessary, these cables are to be fixed, for
instance with a cable retainer in order to guarantee
the physical separation.

- 17 von 64 -
Installation and initial operation
4.4 Installation with table stand and mains adaptor
CAUTION Risk of fire by short circuit!
There is a risk of overcharging of the batteries (types “RT B” and
“RTF B”) if the operating unit is equipped with batteries and is
connected to the 230 V network via the table stand.
• The operating unit must never be equipped with batteries when
using the mains adaptor with table stand.

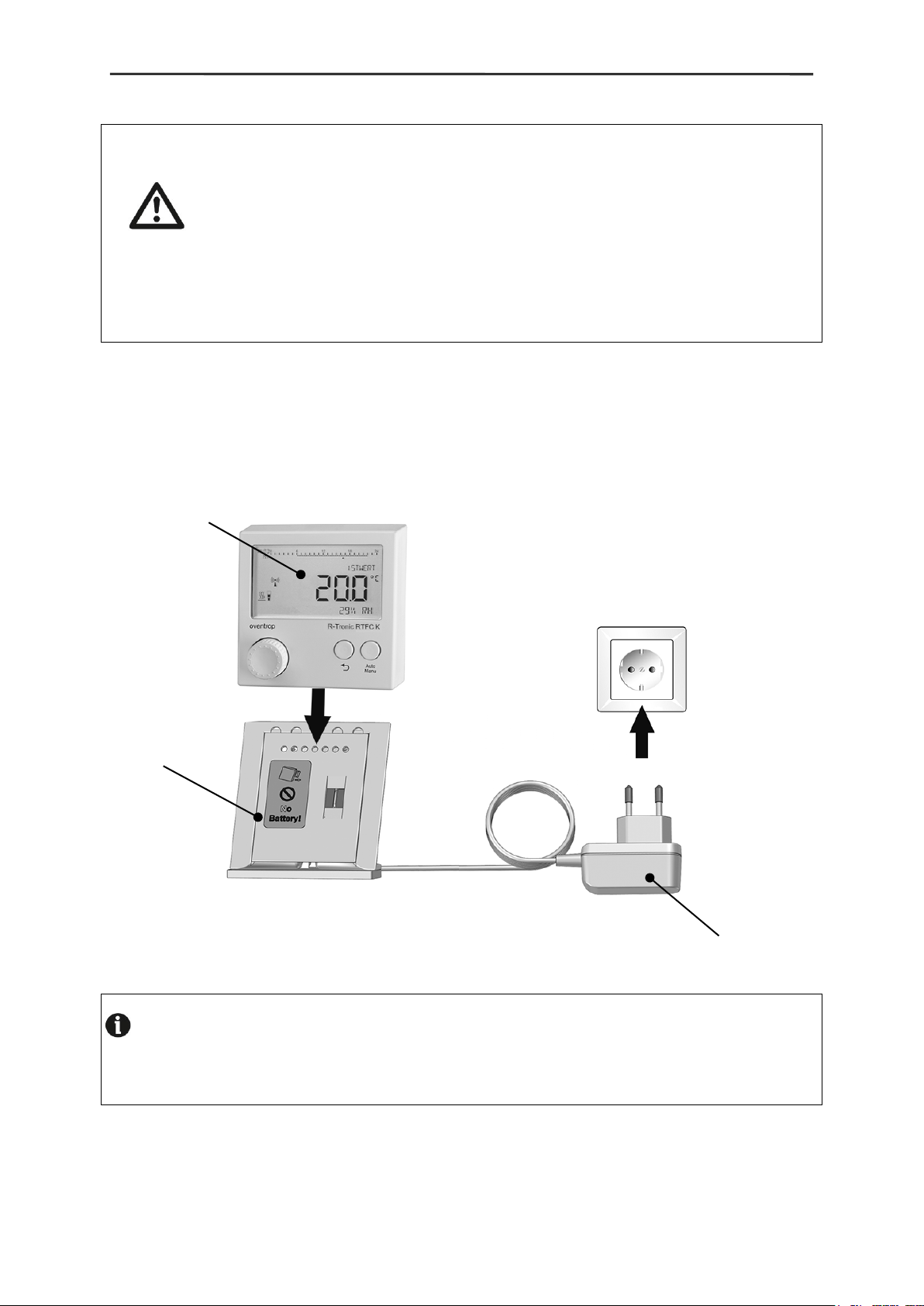

1. Plug the mains adaptor which is connected to the table stand into a socket
(100-240 V ~/50-60 Hz).
2. Insert the operating unit into the table stand from the top.
(Illustr. 8)
►The “R-Tronic is now ready for the “teach in” process (see paragraph 4.6).
NOTE
The “R-Tronic” is removed by pulling it vertically upward out of the table stand.
“R-Tronic RTFC K”
Mains adaptor
Table stand
(option for
“RT B / RTF B”)
remove batteries!

- 18 von 64 -
Installation and initial operation
4.5 Installation of the wireless actuator “Aktor MH/MD CON B”
NOTE
The actuator “Aktor MH CON B” can be fitted without adapter to integrated distributors
and thermostatic radiator valves with connection thread M 30 x 1.5. An adapter set
(item no. 1011445) for valves with connection threadM 30 x 1 is available from
Oventrop. Keep a spanner (size 32) available forinstallation. The version “Aktor MD
CON B”can be fitted without adapter to the integrated distributors and thermostatic
radiator valves with squeeze connection of the company Danfoss, series RA and
connection fittings VHS.
1. Remove the casing cover of the actuator by pushing down both release tabs and
by removing the cover at the same time.

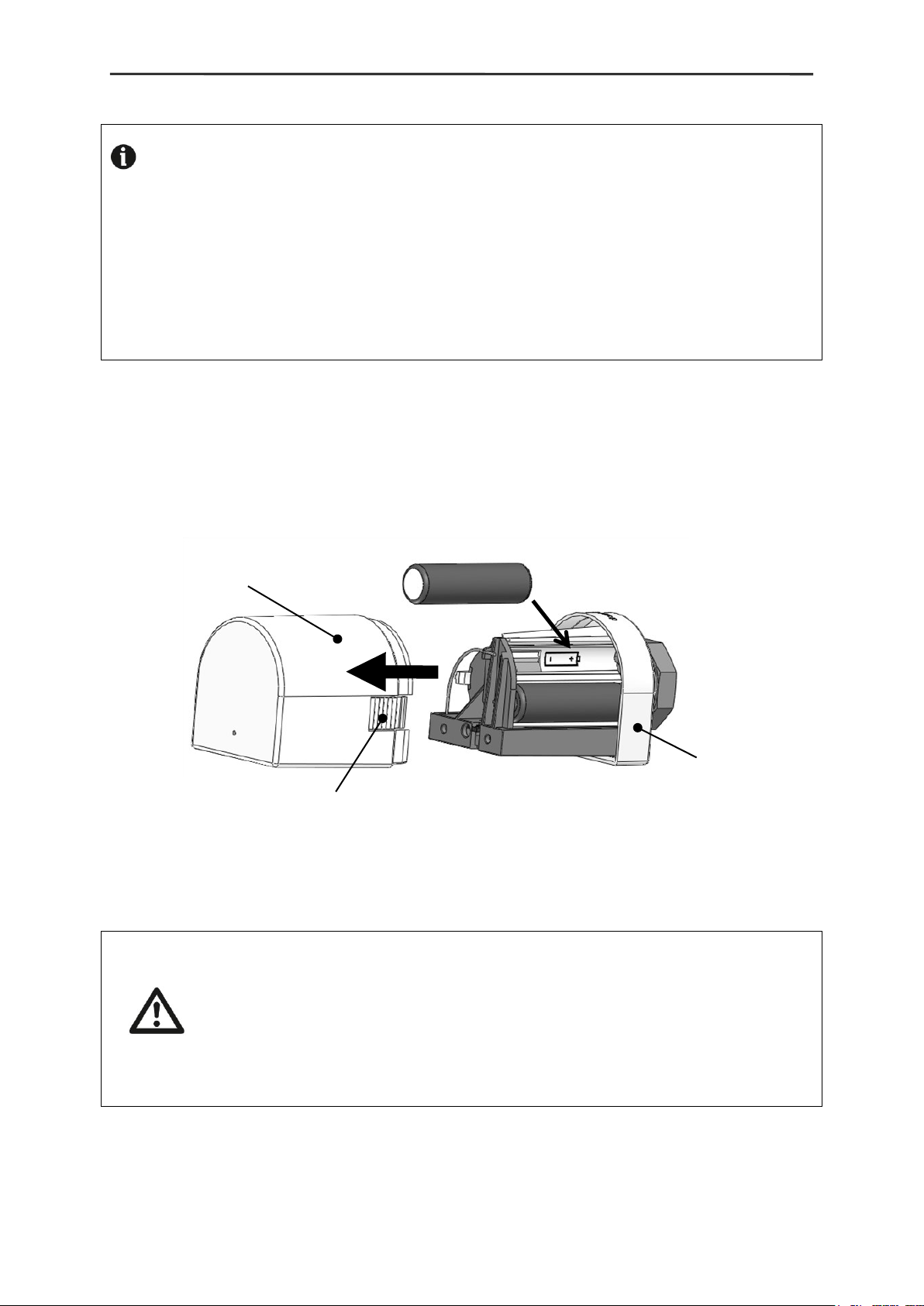

2. Insert two AA 1,5 V Mignon batteries into the battery case.
The position of the batteries is specified by the markings +/-.
(Illustr. 9)
3. Remove the mounted radiator thermostat by unscrewing it from the valve. This
can be done without draining the system.
CAUTION Risk of scalding at hot radiator!
Whilst the radiator valve is open, hot water may pass through the
radiator during installation.
• Wear safety gloves during installation, if required.
4. Screw the new automatic actuator without casing cover to the radiator valve.
Tighten the collar nut with slight pressure.
It must be observed that the radiator valve is opened and closed by the actuator
via a mobile “push rod” (see illustr. 11). When leaving the factory, the push rod
Casing cover
Insert batteries
Wireless actuator
Push down release tabs and remove cover

- 19 von 64 -
is retracted to facilitate installation of the actuator.

- 20 von 64 -
Installation and initial operation

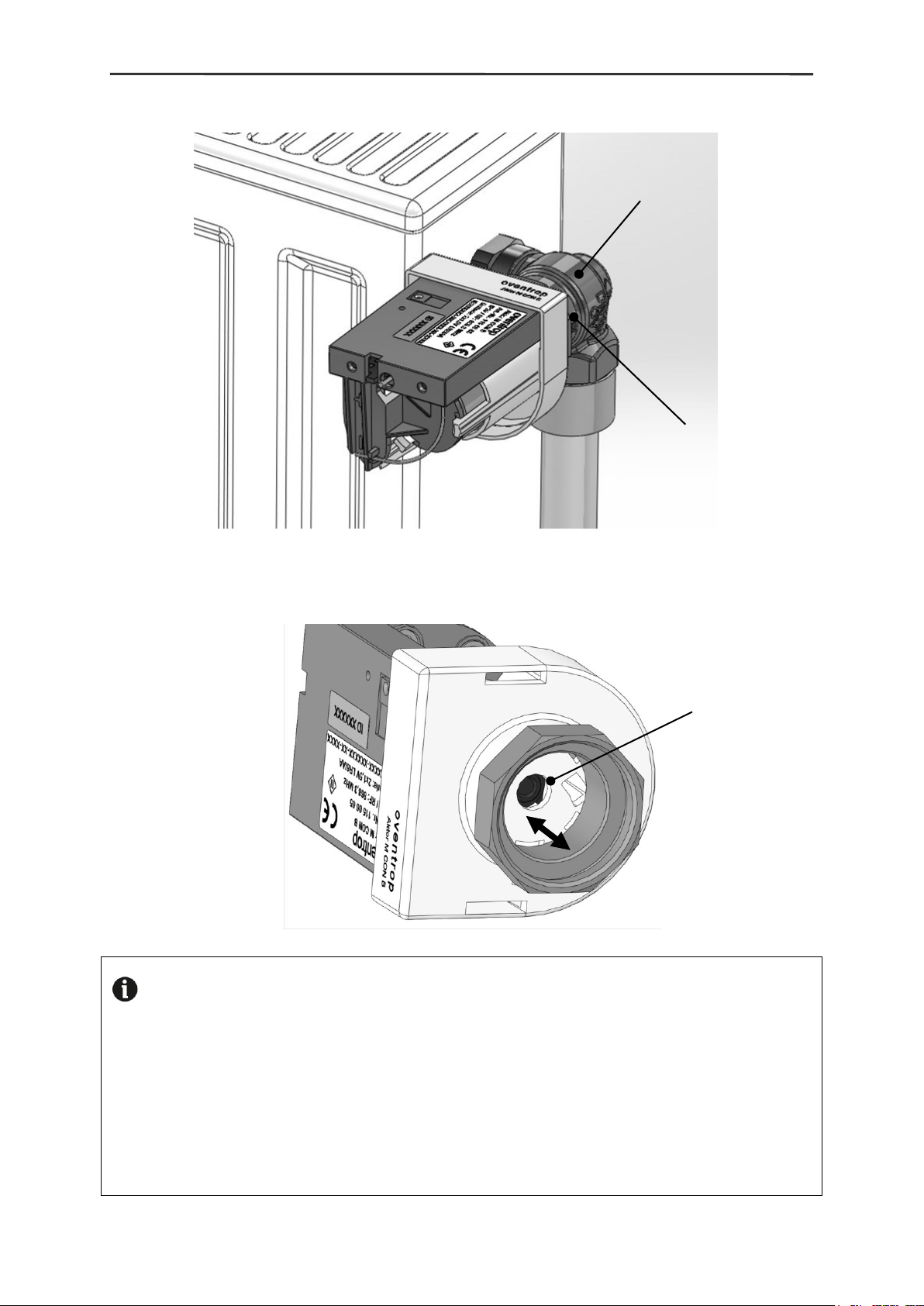

(Illustr. 10)
►The wireless actuator is now ready for the “teach in” process.
(Illustr. 11)
NOTE
The “push rod” (see illustr. above) may be extended before installation - for instance
if the actuator has been mounted onto a radiator before.
The installation position can be restored (“push rod” retracted) by pressing the
“teach in”/adjustment button for at least 2 seconds. The info LED will flash green
quickly five times after this “adjustment run”.
Press the “teach in”/adjustment button for at least 2 seconds before removing the
actuator so that the “push rod” is retracted.
Radiator valve
Collar nut of the
actuator
(M30 x 1.5)
without image:
squeeze connection
“Push rod”
(retracted)
