CradlePoint COR IBR1100/IBR1150 – Manual

Highly Available, Cloud-Managed Networking for Extreme Conditions

The CradlePoint COR IBR1100 Series is a compact, ruggedized 3G/4G/LTE networking solution designed for mission critical connectivity in the most challenging

environments.

Ideal for in-vehicle networks including police cars, ambulances, and mass transit, this cloud-managed solution provides organizations the ability to scale deployments quickly

and manage their vehicle networks easily in real-time.

With an extensive list of safety and hardening certifications, the COR IBR1100 is engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, water

splash, reverse polarity and transient voltage.

Key Features

Cloud-managed for zero-touch deployment and intelligent management

Internal 3G/4G modem with secured SIM card access and dual SIM slots

LTE support for all major U.S. carriers and Europe/international operators (failover to HSPA+ or EVDO)

Software-defined radio supports multiple carriers (Gobi)

WiFi (IBR1100) and non-WiFi versions (IBR1150) available: IBR1100 includes dual-band dual-concurrent 2.4/5 GHz 802.11 a/b/g/n/ac WiFi; 2 x 2 MIMO with two

external dual-band antenna connectors

Ignition sensing

Ruggedized: protects against vibration, shock, dust, splash, & humidity

Built-in transient and reverse polarity voltage protection; 9–36 DC voltage input range

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

Integrated temperature sensor

Three 10/100 Ethernet ports (LAN/WAN configurable)

Antenna connectors for external cellular modem (two) and active GPS (one)

RS-232 serial port

Introduction

Package Contents

System Requirements

Specifications

Hardware

LEDs

Quick Start

Basic Setup

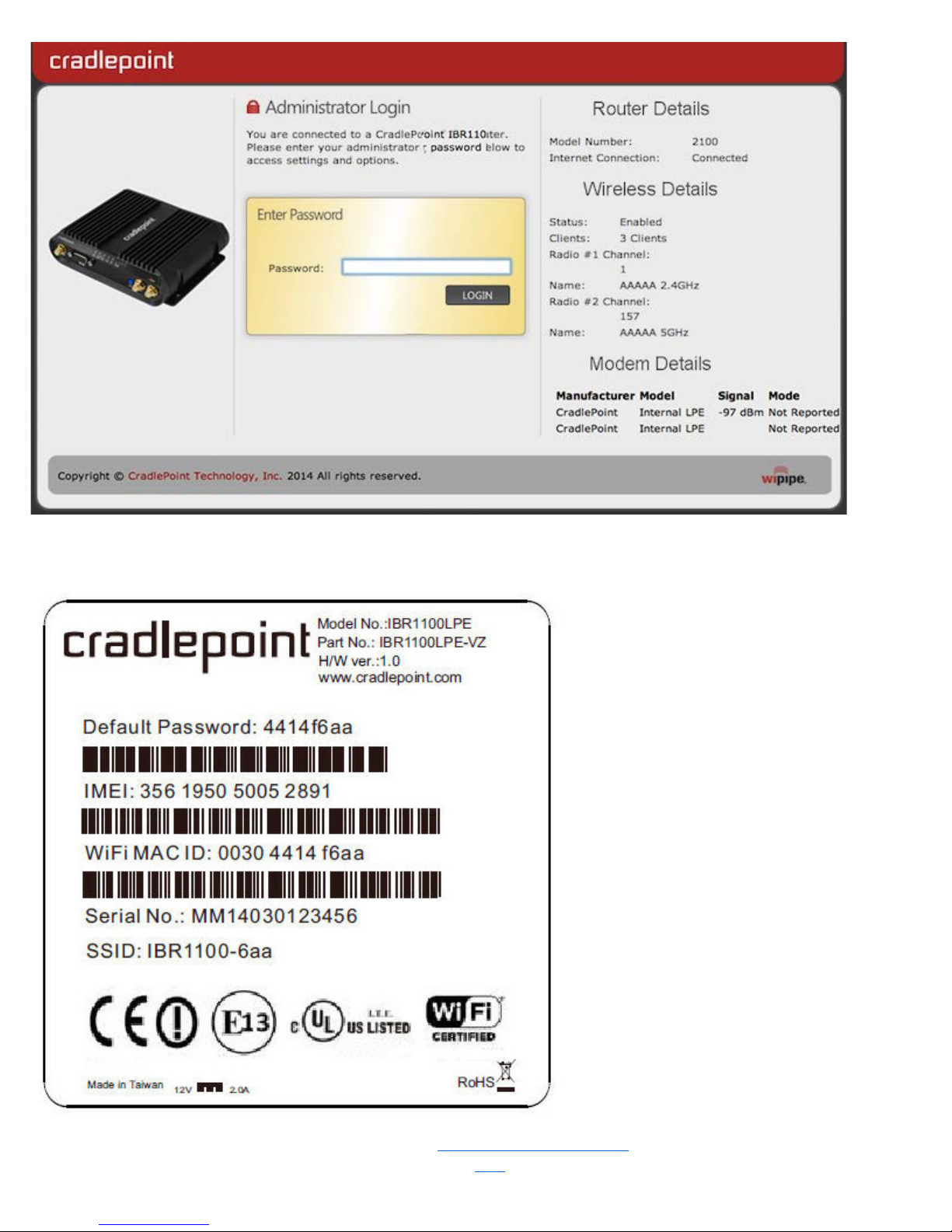

Accessing the Administration Pages

First Time Setup Wizard

Using Enterprise Cloud Manager

Administration Pages

The COR IBR1100/IBR1150 administration pages include the following five tabs:

See Navigating the Administration Pages for helpful information about how to use the device's GUI-based management interface.

NOTE: The manual content for the following administration pages sections is generic across multiple devices. Therefore, some details may

not apply to the COR IBR1100 or COR IBR1150 because they are specific to another device. For example, CP Secure Threat

Management is only available for the AER 2100. Also, the configuration pages within Enterprise Cloud Manager (ECM) are very similar to

the local router administration pages, but some items are missing because they are not relevant in the ECM environment. For example, the

entire Status tab is absent in ECM because status information is presented in other ways (Dashboard, Devices list, etc.).

Getting Started

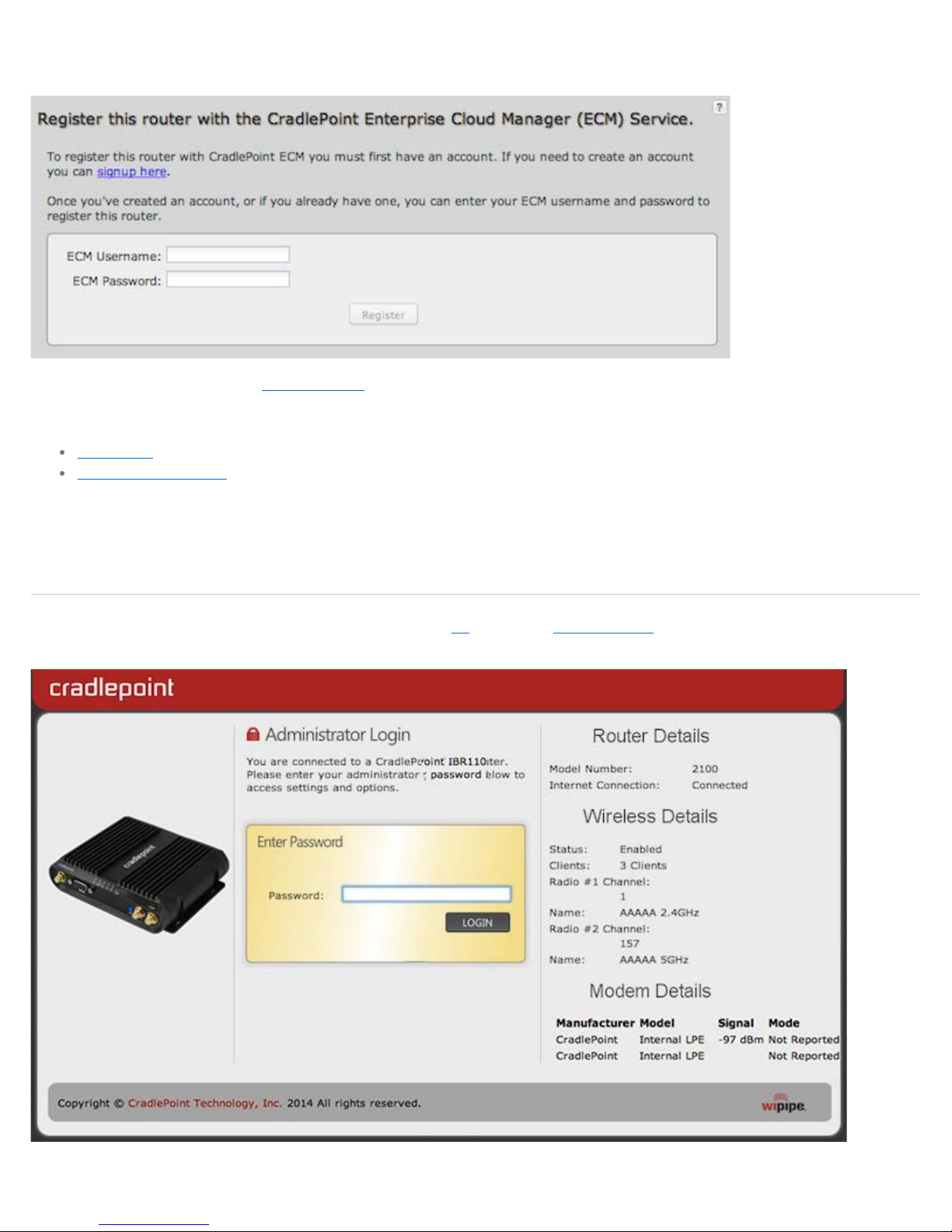

Enterprise Cloud Manager Registration

First Time Setup

IP Passthrough Setup

Status

Client List

Dashboard

GPS

GRE Tunnels

Hotspot Clients

Internet Connections

Routing

Statistics

System Logs

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

VPN Tunnels

WiPipe QoS

Network Settings

Content Filtering

DHCP Server

DNS

Firewall

MAC Filter / Logging

Routing

Routing Protocols

WiFi / Local Networks

WiPipe QoS

Internet

Connection Manager

Client Data Usage

Data Usage

GRE Tunnels

L2TP Tunnels

Network Mobility (NEMO)

NHRP Interfaces

OpenVPN Tunnels (coming Q4)

VPN Tunnels

WAN Affinity / Load Balancing

WiFi as WAN / Bridge

System Settings

Administration

Certificate Management

Device Alerts

GPIO Connector

Enterprise Cloud Manager

Feature Licenses

Hotspot Services

Serial Redirector

SNMP Configuration

System Control

System Software

Introduction

Package Contents

System Requirements

Specifications

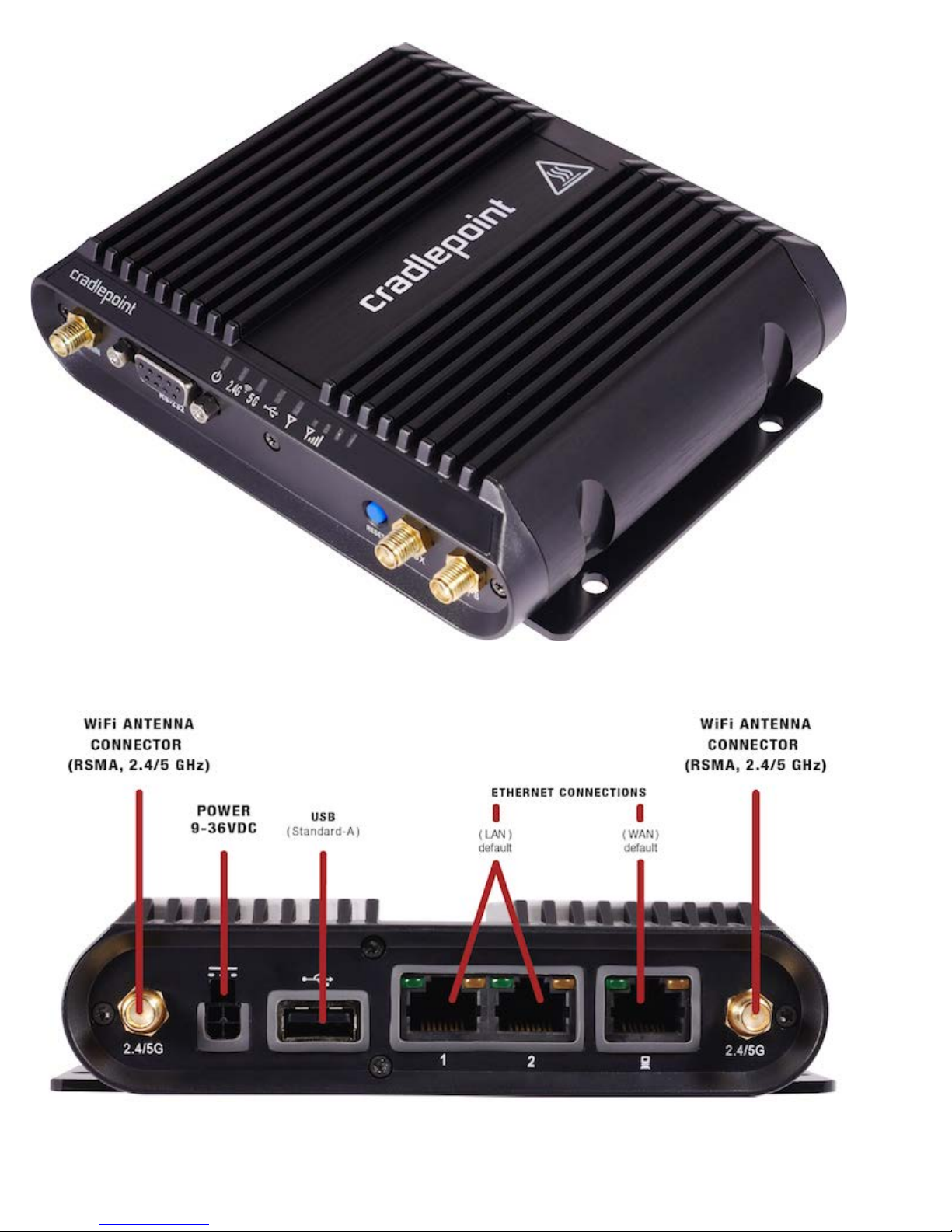

Hardware

LEDs

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

Package Contents

Ruggedized router with integrated business-class 3G/4G modem; includes integrated mounting plate

Two meter locking power and GPIO cable (direct wire)

Quick Start Guide with warranty information

NOTE: Due to the diverse needs of customers, the COR IBR1100/IBR1150 package does not include a power adapter or antennas. See

the Accessories section below for several power and antenna options.

System Requirements

At least one Internet source: a CradlePoint integrated 3G/4G modem with an active data plan, an Ethernet-based modem, or WiFi as WAN

Windows 2000/XP/7/8, Mac OS X, or Linux computer (with WiFi adapter – 802.11n recommended – for WiFi functionality).

Internet Explorer v6.0 or higher, Firefox v2.0 or higher, Safari v1.0 or higher.

Specifications

WAN

Integrated 4G LTE modem (with 3G failover)

Three LAN/WAN switchable 10/100 Ethernet ports – one default WAN (cable/DSL/T1/satellite/Metro Ethernet)

WiFi as WAN, Metro WiFi; 2x2 MIMO "N" 2.4 GHz or 5 GHz; 802.11 a/b/g/n/ac (IBR1100 only)

LAN

Dual-band dual-concurrent WiFi; 802.11 a/b/g/n/ac (IBR1100 only)

Three LAN/WAN switchable 10/100 Ethernet ports – two default LAN

Serial console support for out-of-band management of a connected device

PORTS

Power

2-wire GPIO

USB 2.0

3 Ethernet LAN/WAN

2 cellular antenna connectors (SMA)

1 active GPS antenna connector (SMA)

2 WiFi antenna connectors (R-SMA)

Serial DE-9 (commonly called "DB-9") connector – RS-232 (out-of-band management of an external device requires a null modem adapter/cable)

TEMPERATURE

−30° C to 70° C (−22 °F to +158 °F) operating

−40 °C to 85 °C (−40 °F to +185 °F) storage

Includes temperature sensor with options for alerts and automatic shutoff

HUMIDITY (non-condensing)

5% to 95% operating

5% to 95% storage

POWER

DC input steady state voltage range: 9–36 VDC (requires inline fuse for vehicle installations)

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

For 9–24 VDC installations, use a 3 A fuse

For > 24 VDC installations, use a 2.5 A fuse

Reverse polarity and transient voltage protection per ISO 7637-2

Ignition sensing (automatic ON and time-delay OFF)

Power consumption:

idle: typical=400mA@12VDC (4.8W); worst case=800mA@12VDC (9.6W)

Tx/Rx: typical=650mA@12VDC (7.8W); worst case=1300mA@12VDC (15.6W)

12VDC 2A adapter recommended

SIZE – 5.3 in x 4.4 in x 1.4 in (134 mm x 112 mm x 35 mm)

WEIGHT – 16.1 oz (457 g)

CERTIFICATIONS

FCC, CE, IC

WiFi Alliance (IBR1100 only) – 802.11a/b/g/n certified, 802.11ac supported

Safety: UL/CUL, CB Scheme, EN60950-1

Hazardous Locations: Class I, Div. 2 (pending)

Shock/Vibration/Humidity: compliant with MIL STD 810G and SAEJ1455

Ingress Protection: compliant with IP64 (includes protection from dust and splashing water)

Materials: WEEE, RoHS, RoHS-2, California Prop 65

Vehicle: E-Mark, compliant with ISO 7637-2

Telecom: PTCRB/CTIA, GCF-CC

GPS

GPS Protocols: TAIP and NMEA 0183 V3.0

Accuracy:

< 2m: 50%

< 5m: 90%

Acquisition:

Hot start: 1 second

Warm start: 29 seconds

Cold start: 32 seconds

Sensitivity

Tracking: −161 dBm (tracking sensitivity is the lowest GNSS signal level for which the device can still detect an in-view satellite 50% of the time when in

sequential tracking mode)

Acquisition (standalone): −145 dBm (acquisition sensitivity is the lowest GNSS signal level for which the device can still detect an in-view satellite 50% of

the time)

Operational limits: altitude < 6000 m or velocity < 100 m/s (either limit may be exceeded, but not both)

Feature Details

WAN Security – NAT, SPI, ALG, inbound filtering of IP addresses, port blocking, service filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3,

SSH), protocol filtering, WAN ping (allow/ignore)

Redundancy and Load Balancing – Failover/failback with 4G, 3G, Ethernet with rule selection, advanced load balancing options (round robin, spillover, data

usage, rate), WAN failure detection, VRRP

Intelligent Routing – UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route

management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS

proxy; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, VLAN 802.1Q (coming Q4), STP, enterprise routing protocols:

BGP/OSPF/RIP, multicast proxy support, IP setting overrides, IPv6 support

Management – Enterprise Cloud Manager: cloud-enabled management and application platform (subscription-based); web-based GUI (local management), optional

RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to

serial, SSH to telnet; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage;

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

custom AT scripting to modems

Performance & Health Monitoring – Advanced QoS with traffic shaping, with DSCP/DiffServe QoS, Modem Health Management (MHM) improves connectivity of

modem, SSID-based priority, WAN port speed control, several levels of basic and advanced logging for troubleshooting

VPN (IPsec) – Tunnel, NAT-T, and transport modes; connect to CradlePoint, Cisco/Linksys, CheckPoint, Watchguard, Juniper, SonicWall, Adtran and others;

certificate support; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES); support for 5 concurrent connections, GRE tunneling, L2TP

support, multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP

GPS – Active GPS antenna port; GUI mapping; multiple server reporting (coming Q4) with LAN and WAN options; TAIP and NMEA; custom intervals based on time

and/or velocity (coming Q4)

Services, Support, and Warranty

CradleCare Support Agreement available with technical support, software upgrades, and advanced hardware exchange – 1, 3, and 5 year options

One-year limited hardware warranty available in the US and Canada; two-year limited hardware warranty for integrated EU products when purchased from an

authorized EU distributor – extend warranty to 2, 3, or 5 years

CradleCare Site Survey and Installation services offered for rapid deployment

Accessories

Power

Wall options

COR IBR1100/IBR1150 extended temperature (−30 °C to 70 °C) 12VDC 2A locking power adapter – requires separate line cord (Part # 170648-000)

Line cord for North America (Part # 170623-001)

Line cord for EU (Part # 170623-002)

Line cord for UK (Part # 170623-003)

COR 12VDC 2A locking power adapter with 0 °C to 40 °C temperature range – includes US, EU, and UK plugs (Part # 170584-002)

NOTE: CradlePoint primarily recommends the extended temperature adapter because it covers the COR IBR1100/IBR1150 full

temperature range of −30 °C to 70 °C. Cost-sensitive customers that intend to use the IBR1100/IBR1150 in temperature-controlled office

environments can order the 170584-002 adapter, but it limits the operating temperature range to 0 °C to 40 °C.

Vehicle options

Vehicle locking power adapter for COR (Part # 170635-000)

Two meter locking power and GPIO cable (direct wire) for replacement – included by default (Part # 170585-000)

Antennas – 3G/4G Modem, WiFi, & GPS

Universal 3G/4G multi-band cellular modem antenna – 2dBi/3dBi (Part # 170649-000)

2.4 GHz and 5 GHz dual-band dual-concurrent WiFi antenna (Part # 170628-000)

5-in-1 – 3G/4G modem, GPS-GLONASS, and WiFi – screw-mount antenna with 3m cables (Part # 170654-000)

3-in-1 – 3G/4G modem and GPS-GLONASS – screw-mount antenna with 3m cables (Part # 170653-000)

GPS-GLONASS screw-mount antenna with 3m cable (Part # 170651-000)

GPS-GLONASS magnetic-mount antenna with 3m cable (Part # 170652-000)

Directional Patch antennas for external (outside) mounting (Part # 170587-000)

Directional Yagi (Log-Periodic) antennas for external (outside) mounting (Part # 170588-000)

Omni-directional antennas for external (outside) mounting (Part # 170586-000)

12" Mag-mount antenna (Part # 170605-000)

4" Mini mag-mount antenna (Part # 170606-000)

See the CradlePoint antenna accessories page for more information about antennas. Also see the Antenna Ordering and Installation Guide, available as a PDF in the

Resources section of antenna and router product pages.

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

Business-Grade Modem Specifications

COR IBR1100/IBR1150 models include an integrated 4G LTE modem – specific model names include a specific modem (e.g., the COR IBR1100LPE-VZ includes a Verizon

LTE modem).

Please note that LPE models are flexible and support bands for multiple cellular providers; however, only the frequency bands in bold below are supported by the listed

provider.

COR IBR1100LPE-VZ, COR IBR1150LPE-VZ – 4G LTE/HSPA+/EVDO for Verizon

Technology: LTE, HSPA+, EVDO Rev A

Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)

Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)

Frequency Bands:

LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)

HSPA+/UMTS (850/900/1900/2100 MHz, AWS)

GSM/GPRS/EDGE (850/900/1800/1900 MHz)

CDMA EVDO Rev A/1xRTT (800/1900 MHz)

Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted)

Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf-cm)

GPS: active GPS support

Industry Standards & Certs: FCC, Verizon

COR IBR1100LPE-AT, COR IBR1150LPE-AT – 4G LTE/HSPA+/EVDO for AT&T

Technology: LTE, HSPA+, EVDO Rev A

Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)

Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)

Frequency Bands:

LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900

MHz)

HSPA+/UMTS (850/900/1900/2100 MHz, AWS)

GSM/GPRS/EDGE (850/900/1800/1900 MHz)

CDMA EVDO Rev A/1xRTT (800/1900 MHz)

Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted)

Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf-cm)

GPS: active GPS support

Industry Standards & Certs: PTCRB, FCC, IC, AT&T

COR IBR1100LPE-SP, COR IBR1150LPE-SP – 4G LTE/HSPA+/EVDO for Sprint

Technology: LTE, HSPA+, EVDO Rev A

Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)

Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)

Frequency Bands:

LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)

HSPA+/UMTS (850/900/1900/2100 MHz, AWS)

GSM/GPRS/EDGE (850/900/1800/1900 MHz)

CDMA EVDO Rev A/1xRTT (800/1900 MHz)

Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted)

Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf-cm)

GPS: active GPS support

Industry Standards & Certs: FCC, Sprint

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

COR IBR1100LP3-EU, COR IBR1150LP3-EU – 4G LTE/HSPA+ for Europe

Technology: LTE, HSPA+

Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps (theoretical)

Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps (theoretical)

Frequency Bands:

LTE Band 1 (2100 MHz), Band 3 (1800 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 20 (800 MHz)

HSPA+/UMTS (800/850/900/1900/2100 MHz)

GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)

Power: LTE Band 1/3/8/20 – 23 dBm +/− 1; LTE Band 7 – 22 dBm +/− 1, HSPA+ 23 dBm +/− 1 (typical conducted)

Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf-cm)

GPS: active GPS support

Industry Standards & Certs: CE, GCF-CC

COR IBR1100LPE-GN, COR IBR1150LPE-GN – 4G LTE/HSPA+/EVDO (generic – for use on T-Mobile in the U.S. and

Rogers, Bell, & TELUS in Canada)

Technology: LTE, HSPA+, EVDO Rev A

Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)

Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)

Frequency Bands:

LTE Band 2 (1900 MHz), Band 4 (AWS), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)

HSPA+/UMTS (850/900/1900/2100 MHz, AWS)

GSM/GPRS/EDGE (850/900/1800/1900 MHz)

CDMA EVDO Rev A/1xRTT (800/1900 MHz)

Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted)

Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf-cm)

GPS: active GPS support

Industry Standards & Certs: PTCRB, FCC, IC

Hardware

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

Ports & LEDs

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

ANTENNA CONNECTORS – There are five total antenna connectors for the IBR1100 and three for the IBR1150:

Two for the integrated 3G/4G modem (SMA)

One for GPS (SMA)

(IBR1100 only) Two for dual-band dual-concurrent WiFi (RSMA)

Be careful to correctly distinguish between SMA and RSMA connections. Antennas WITH pins must attach to connectors WITHOUT pins, while antennas WITHOUT pins must

attach to connectors WITH pins.

Also, the MAIN modem connector may have better performance than the AUX connector, so attach the better (or single) modem antenna to the MAIN connector if that is

relevant in your setup.

ETHERNET PORTS – By default there are two LAN Ethernet ports and one WAN Ethernet port. All three of these ports are LAN/WAN configurable.

POWER/GPIO CONNECTOR – This connector has four pin slots: power, ground, input, and output.

Connector pinout – view into router (rear view of cable connector):

Pin Definition Details Wire Color

1 Ground – Black

2 Power 9–36 V DC Red

3 Input 3 V input high threshold (36 V tolerant) Orange

4 Output capable of sinking 250 mA Blue

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

RESET (power and factory reset button)

On – Press and hold for one second to turn on. Multiple LEDs turn on to signal that the router is on. RELEASE THE BUTTON BEFORE FIVE SECONDS TO

PREVENT THE ROUTER FROM TURNING OFF AGAIN.

Off – Press and hold for five seconds to turn off. The USB and modem lights turn red to signal that the router will turn off upon release. RELEASE THE BUTTON

BEFORE TEN SECONDS TO PREVENT FACTORY RESET.

Factory reset – Press and hold for ten seconds to factory reset the device. The USB and modem lights turn amber and blink twice to signal factory reset. This

returns all settings to factory defaults.

NOTE: Using the reset button for turning the device on/off is typically unecessary: the device powers on by default as soon as it receives

power, and it can be configured to sense vehicle ignition with a timed delay for power off.

RS-232 (serial port) – This is a serial DE-9 (commonly called "DB-9"), 9-pin female connector. The pins are numbered from the top right as shown here:

Pin Signal Type

1 RI

2 TxD

3 RxD

4 DSR

5 GND

6 DTR

7 CTS

8 RTS

9 DCD

LEDs

– POWER

Green = Powered ON.

No Light = Not receiving power. Check the power switch and the power source connection.

Flashing Amber = Attention. Open the administration pages (see Accessing the Administration Pages) and check the router status.

– WiFi BROADCAST

These two LEDs indicate activity on the WiFi broadcast for both the 2.4 GHz and 5 GHz bands.

2.4G (green) = 2.4 GHz WiFi is on and operating normally.

5G (blue) = 5 GHz WiFi is on and operating normally.

– EXTERNAL USB MODEM

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

Indicates the status of external USB modems.

– INTEGRATED MODEM

Indicates the status of integrated modems.

Both integrated and external USB modems have the following LED indicators:

Green = Modem has established an active connection.

Blinking Green = Modem is connecting.

Amber = Modem is not active.

Blinking Amber = Data connection error. No modem connection possible.

Blinking Red = Modem is in the process of resetting.

– SIGNAL STRENGTH

Blue LED bars indicate the active modem’s signal strength.

4 Solid Bars = Strongest signal.

1 Blinking Bar = Weakest signal. (A blinking bar indicates half of a bar.)

ADDITIONAL LED INDICATIONS

The USB and modem lights turn amber and blink twice to signal factory reset.

Two of the modem LEDs blink red in unison for 10 seconds when there is an error during firmware upgrade.

Quick Start

Basic Setup

Accessing the Administration Pages

First Time Setup Wizard

Using Enterprise Cloud Manager

Basic Setup

1. Insert an activated SIM.

A wireless broadband data plan must be added to your CradlePoint COR IBR1100/IBR1150. Wireless broadband data plans are available from wireless carriers such as

Verizon, AT&T, Sprint, EE, and Vodafone. The SIM must be provisioned with the carrier. Contact your carrier for details about selecting a data plan and about the process for

provisioning your SIM.

Once you have an activated SIM, insert it into the integrated modem:

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

1. Remove the bottom SIM cover (requires a small Phillips screwdriver).

2. Slide the metal latch down to unlock the SIM cartridge. Use the cartridge marked SIM 1 first (use the other cartridge, SIM 2, for a secondary/backup SIM).

3. Pull the cartridge upward, so it is standing at a 90° angle.

4. Insert the SIM card with the metal contacts down and notch out.

5. Press the cartridge back into place.

6. Return the metal latch to the start (lock) position.

7. Replace the bottom SIM cover. NOTE: Device will not power on without cover in place.

2. Attach modem/WiFi/GPS antennas.

Antennas are NOT included in the product package because of the diverse needs of customers. Both the COR IBR1100 and COR IBR1150 have two connectors for 3G/4G

modem antennas (SMA) and one connector for GPS (SMA):

Addtionally, the COR IBR1100 has two connectors for dual-band dual-concurrent 2.4/5 GHz WiFi (RSMA):

See the CradlePoint antenna accessories page for recommended options for antennas. Also see the Antenna Ordering and Installation Guide, available as a PDF in the

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

Resources

section of antenna and router product pages. Many network designs with the COR IBR1100/IBR1150 require remoted antennas with cables. Several factors affect

antenna selection:

require 3G/4G modem antennas only, or GPS/WiFi as well

direct-attach, screw-mount, or magnetic-mount

size/shape limitations

directional or omnidirectional

performance in specific frequency ranges

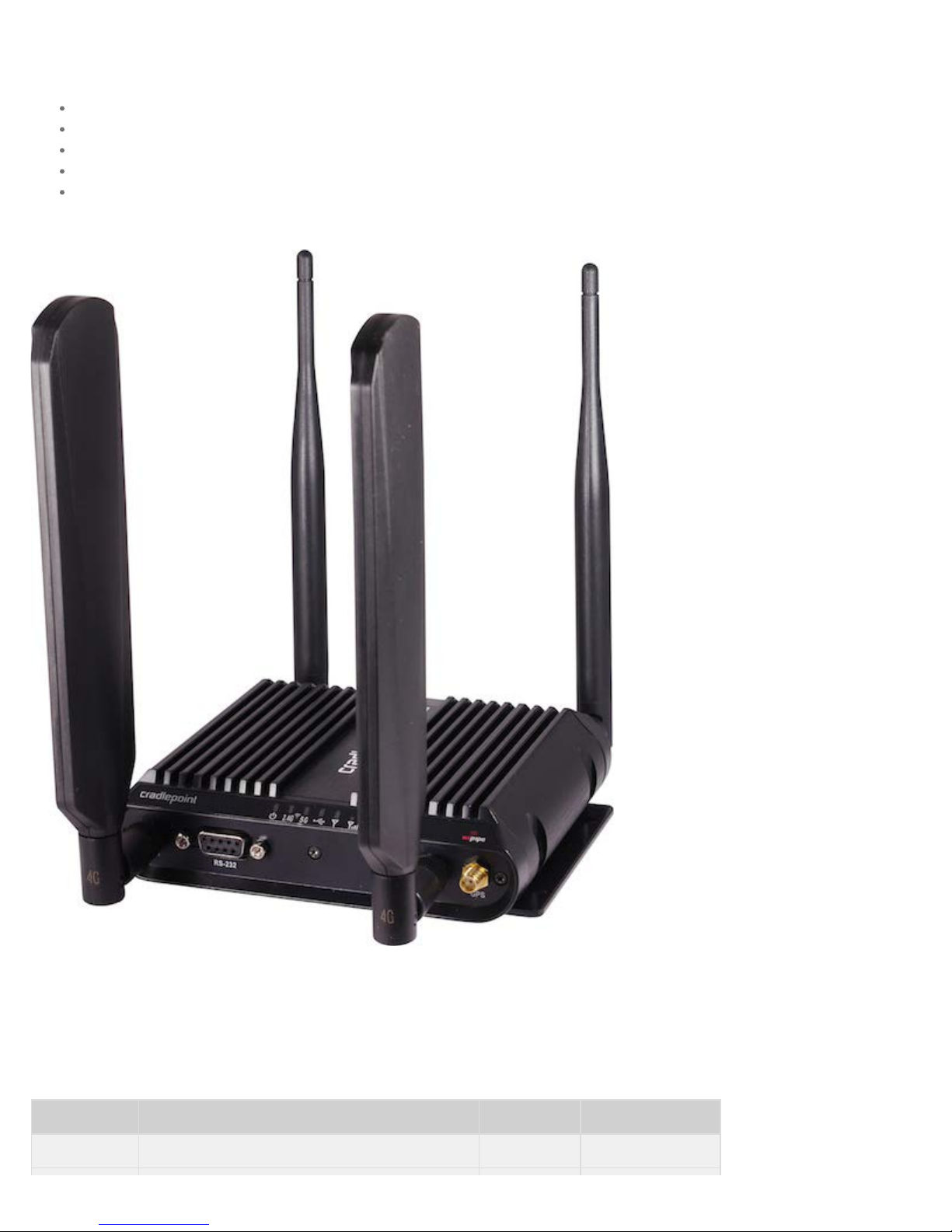

This is a simple, standard antenna setup for direct-attach antennas for the COR IBR1100:

We recommend experimenting with different antenna orientations to see what works best in your environment (e.g., spreading one set of antennas out to a 45° angle). Do

NOT allow antennas to lie flat on top of each other.

See the charts below for CradlePoint's default antenna recommendations for some common networking designs:

Basic Setup

Antenna Type Recommended Antenna Part Number Suggested Amount

Modem Universal 3G/4G antenna 170649-000 2

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

WiFi

Dual-band dual-concurrent 2.4/5 GHz WiFi antenna 170628-000 2

GPS GPS-GLONASS magnetic-mount antenna (includes 3M cable) 170652-000 1

Vehicle Screw-Mount

Antenna Type Recommended Antenna Part Number Suggested Amount

Modem, WiFi, & GPS

5-in-1 screw-mount antenna (includes 3M cables)

two 3G/4G modem

two 2.4/5 GHz WiFi

one GPS-GLONASS

170654-000 1

Modem & GPS

3-in-1 screw-mount antenna (includes 3M cables)

two 3G/4G modem

one GPS-GLONASS

170653-000 1

GPS GPS-GLONASS screw-mount antenna (includes 3M cable) 170651-000 1

3. Connect to a power source.

The CradlePoint COR IBR1100/IBR1150 includes a two meter direct wire power and GPIO cable (shown below).

The GPIO cable can be attached to the fuse box in a vehicle. For detailed instructions on vehicle installations, see the COR IBR1100 Vehicle Installation Guide, available

as a PDF in the Resources section of the CradlePoint COR IBR1100 Series product page.

If you want to plug into a wall power outlet, you'll need to purchase a separate wall power adapter: choose between the extended temperature range (−30 °C to 70 °C) and

standard (0 °C to 40 °C) options. Most vehicle installations will use the included direct wire power/GPIO cable, which can be used to enable the ignition sensing feature, but

there is also a car adapter option for plugging into a vehicle cigarette lighter receptacle.

Wall options

COR IBR1100/IBR1150 extended temperature (−30 °C to 70 °C) 12VDC 2A locking power adapter – requires separate line cord (Part # 170648-000)

Line cord for North America (Part # 170623-001)

Line cord for EU (Part # 170623-002)

Line cord for UK (Part # 170623-003)

COR 12VDC 2A locking power adapter with 0 °C to 40 °C temperature range – includes US, EU, and UK plugs (Part # 170584-002)

NOTE: CradlePoint primarily recommends the extended temperature adapter because it covers the COR IBR1100/IBR1150 full

temperature range of −30 °C to 70 °C. Cost-sensitive customers that intend to use the IBR1100/IBR1150 in temperature-controlled office

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

environments can order the 170584-002 adapter, but it limits the operating temperature range to 0 °C to 40 °C.

Vehicle options

Vehicle locking power adapter for COR (Part # 170635-000)

Two meter locking power and GPIO cable (direct wire) for replacement – included by default (Part # 170585-000)

4. Connect to a computer or other network equipment.

Connect wirelessly to the WiFi broadcast or with an Ethernet cable connected to your computer and plugged into one of the default Ethernet LAN ports (numbered 1–2).

The default WiFi network name broadcast is “IBR1100-xxx”, where “xxx” is the last three characters of your router’s MAC address (this is the SSID on the product label). To

connect to the WiFi, you will need to input the DEFAULT PASSWORD when prompted. The DEFAULT PASSWORD is provided on the product label found on the bottom

of your router.

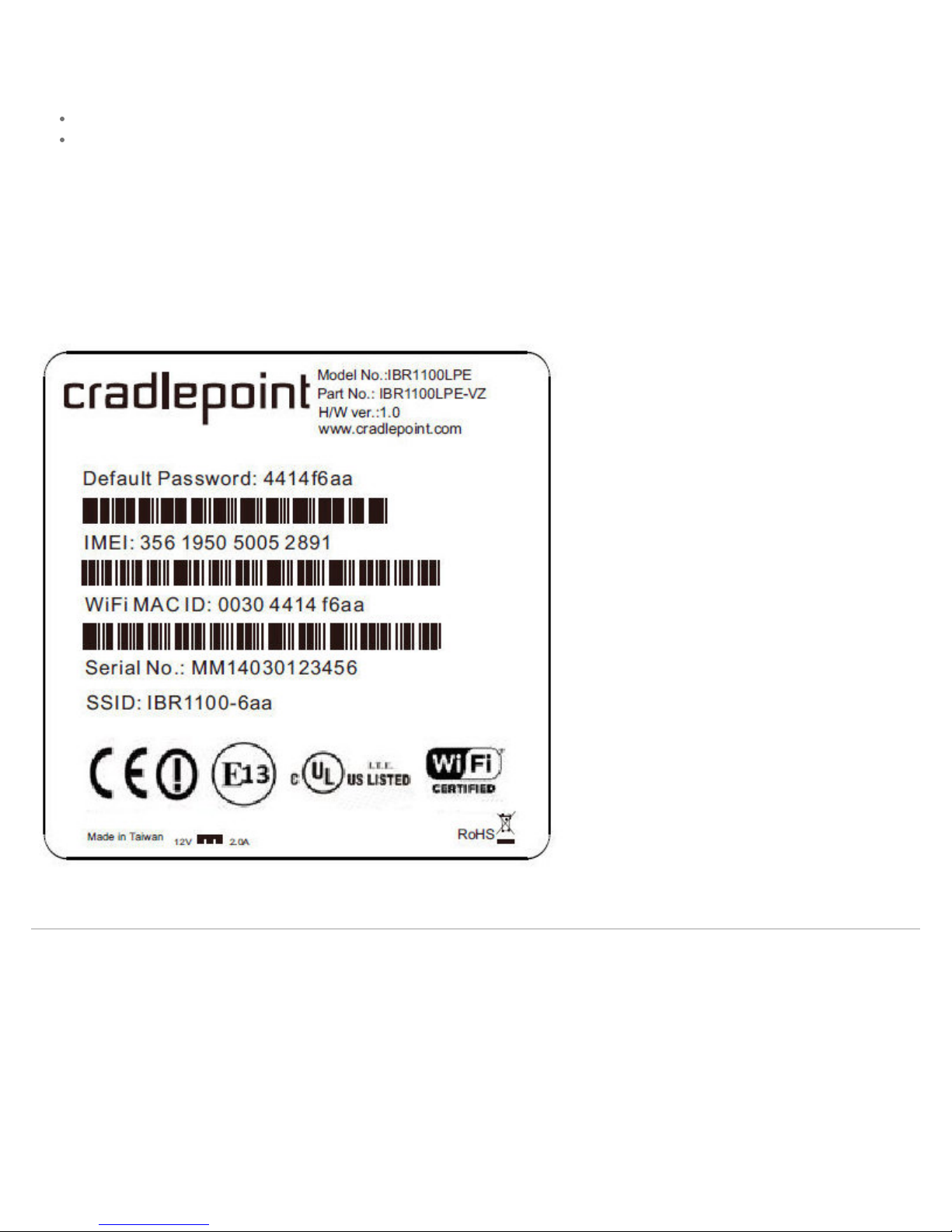

NOTE: The product label below is an example only: your DEFAULT PASSWORD and SSID will be unique.

Accessing the Administration Pages

Once you are connected, open the GUI-based administration pages to make configuration changes to your router.

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

1. Open a browser window and type “cp/” or “192.168.0.1” in the address bar. Press ENTER/RETURN.

2. When prompted for your password, type the eight character DEFAULT PASSWORD found on the product label.

It's possible – and more efficient – to do all your configuration changes through CradlePoint Enterprise Cloud Manager (ECM) without logging into the local administration

pages. Set up a group of routers and set the configuration for all of them at once. See below for more information about ECM.

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

First Time Setup Wizard

When you log in for the first time, you will be automatically directed to the FIRST TIME SETUP WIZARD, which will walk you through the steps to customize your

CradlePoint COR IBR1100/IBR1150. You have the ability to configure any of the following:

Administrator Password

Time Zone

WiFi Network Name

Security Mode

Access Point Name (APN) for SIM-based modems

Modem Authentication

Failure Check

If you are currently using the router’s WiFi network, you will need to reconnect your devices to the network using the newly established wireless network name and password.

NOTE: To return to the First Time Setup Wizard after your initial login, select GETTING STARTED on the top navigation bar and FIRST TIME

SETUP in the dropdown menu.

Using Enterprise Cloud Manager

Rapidly deploy and dynamically manage networks at geographically distributed stores and branch locations with Enterprise Cloud Manager, CradlePoint’s next generation

management and application platform. Enterprise Cloud Manager (ECM) integrates cloud management with your CradlePoint devices to improve productivity, increase reliability,

reduce costs, and enhance the intelligence of your network and business operations.

Click here to sign up for a free 30-day ECM trial.

Depending on your ordering process, your devices may have already been bulk-loaded into ECM. If so, simply log in at cradlepointecm.com using your ECM credentials and

begin managing your devices seamlessly from the cloud.

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

If your device has not yet been loaded into your ECM account, you need to register. Log into the device administration pages and go to Getting Started →Enterprise

Cloud Manager Registration. Enter your ECM username and password, and click on “Register”.

Once you have registered your device, go to cradlepointecm.com and log in using your ECM credentials.

For more information about how to use CradlePoint Enterprise Cloud Manager, see the following:

Getting Started

ECM on the Knowledge Base

Navigating the Administration Pages

To access the administration pages, open a web browser and type the hostname “cp/” or IP address “http://192.168.0.1” into the address bar. The Administrator Login page

appears.

CradlePoint COR IBR1100/IBR1150 – Manual

10/13/2014

Default Password

(this password is also the last eight

digits of the unit’s MAC address). You may have changed the administrator password during initial setup using the First Time Setup Wizard. If so, log in using your

personalized administrator password.

If you have forgotten your personalized password, you can reset the device to the factory default configuration. When you reset the router, the administrator password will

revert back to the Default Password. Press and hold the reset button on the router unit until the lights flash (approximately 10-15 seconds). You can then log in using

the Default Password.

Quick Links

The CradlePoint logo in the top left corner of all the administration pages is a link to the Dashboard (Status →Dashboard), which displays fundamental information about

the router.
