D-Link mydlink DCH-S220 User manual

DCH-S220
User Manual
mydlink™ Wi-Fi Siren
Version 1.01 | July 7, 2015

iD-Link DCH-S220 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes.
Manual Revisions
Revision Date Description
1.00 June 1, 2015 • First version
1.01 July 7, 2015 • Minor changes
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App
StoreSM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc. Internet Explorer®, Windows®
and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2015 by D-Link Corporation, Inc. All rights reserved.This publication may not be reproduced, in whole or in part, without prior expressed
written permission from D-Link Corporation, Inc.
Power Usage
This device is an Energy Related Product (ErP) that automatically switches to a power-saving Network Standby mode within 1 minute of no packets
being transmitted. If it is not needed during certain periods of time, it can be unplugged to save energy.
Network Standby: 1.45 watts
Preface

iiD-Link DCH-S220 User Manual
Table of Contents
Preface................................................................................. i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Features.................................................................................... 3
Hardware Overview..................................................................... 4
Front/Bottom ......................................................................... 4
Side ............................................................................................ 5
Wireless Installation Factors ..................................................... 6
Setting Up Your Device............................................................... 7
mydlink™ Home ................................................................. 9
My Devices...................................................................................... 9
Information...................................................................................10
My Actions ....................................................................................11
My Places.......................................................................................14
Table of Contents
Troubleshooting ..............................................................16
Technical Specications ..................................................17
Safety Instructions ..........................................................18
Contacting Technical Support ........................................23
Warranty...........................................................................24
Registration .....................................................................31

1D-Link DCH-S220 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
If any of the above items are missing from your package, please contact your reseller.
Quick Installation Card
DCH-S220 mydlink™ Wi-Fi Siren
Quick Install Card
General Public License (GPL) Statement

2D-Link DCH-S220 User Manual
Section 1 - Product Overview
System Requirements
General Requirements • Wireless router with Internet Service
• An available power outlet
Mobile Requirements • iPhone, iPad, or Android smartphone or tablet1
mydlink Requirements • For mydlink and mydlink app requirements
refer to: http://www.mydlink.com
1Please refer to the mobile app’s store page to check whether your device is compatible.

3D-Link DCH-S220 User Manual
Section 1 - Product Overview
Introduction
Features
The mydlink™ Wi-Fi Siren is a wireless siren that helps keep your home safe. You can set an alarm via the mydlink™ Home app so
when you’re away, the mydlink Wi-Fi siren will be enabled and ready to receive signals from a trigger such as the mydlink Wi-Fi
Motion Sensor (DCH-S150). When the siren is triggered, it will generate a 100 dB (max) audio alarm for deterrence while pushing
instant notications to your mobile device-so you can stay updated from anywhere.
Works With Other D-Link Connected Home Devices
The mydlink™ Wi-Fi Siren can be triggered by other D-Link Connected Home devices such as a water sensor, door sensor, and
smoke detector, so you can customize your own home automation system to suit your purposes.
mydlink™ Home
Manage your siren and connected appliances by using the mydlink™ Home app available for iPhone®, iPad®, and iPod touch®
and Android™ devices. Its intuitive user interface and simple instructions let you easily manage your automated devices from
wherever you are.
Simple Setup
Through its easy-to-use mydlink™ Home app, you can quickly and easily connect the DCH-S220 to an existing network. The app’s
setup wizard will even guide you through the setup process, so you can get your home automation devices up and running in
no time.
Customize Your Audio Notication
The DCH-S220 comes with six dierent alarm sounds so you can immediately distinguish the type of event that has triggered
your siren. Save precious seconds so you can immediately call for help during any emergency.

4D-Link DCH-S220 User Manual
Section 1 - Product Overview
Hardware Overview
Front/Bottom
1 Warning LED Blinking Red The siren has been triggered
Light O The siren has not been triggered
2 Speaker Alarm sounds when triggered
3 Electrical Plug Plugs into an electrical wall outlet
2
3
1

5D-Link DCH-S220 User Manual
Section 1 - Product Overview
Hardware Overview
Side
1 Status LED
Solid Green The device is connected to the network
Blinking Green (slow) WPS is working
Blinking Orange The device is not connected to the network
Solid Red The device is powering on or the rmware is being upgraded
2 WPS Button Press the WPS button for 1 second to connect the siren to your wireless router using Wi-Fi Protected Setup.
3 Reset Button Press the reset button for 5 seconds to reset the DCH-S220 back to the factory default settings.
2
1
3

6D-Link DCH-S220 User Manual
Section 2 - Installation
Wireless Installation Factors
The Wi-Fi Siren connects to your home automation network using your existing wireless network. Keep in mind that the number,
thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the Wi-Fi range.
Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business.
The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between your wireless router and the Siren to a minimum - each wall or ceiling can
reduce your device’s range by up to 98 feet (30 meters).
2. Be aware of the direct line between network devices. At a 45-degree angle, a wall that is 0.5 meters thick (1.5 feet appears to
be almost 1 meter (3 feet) thick. At a 2-degree angle it can appear over 14 meters (45 feet) thick! Position devices so that the
signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.Try to position
access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects
such as glass, steel, metal, walls with insulation, water (i.e., sh tanks), mirrors, le cabinets, brick, and concrete can degrade
your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones, your wireless connection may degrade dramatically or drop completely. Make sure
your 2.4 GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in
not in use.
6. If you are using X-10 wireless products, such as ceiling fans, lights, and home security systems, your wireless connection may
degrade dramatically.

7D-Link DCH-S220 User Manual
Section 2 - Installation
To install your DCH-S220, rst download and install the mydlink™ Home app on your mobile device.This app will walk you through
installing and conguring your DCH-S220.
Step 2:
Launch the mydlink Home app and create a new account or sign
in to your existing account.
Step 1:
On your mobile device, download mydlink Home by going to
mydlinkhomeapp.dlink.com, or by searching for mydlink Home
in the iTunes App Store or Google Play.
Step 3:
After logging in, tap the Settings icon in the top-left corner,
select Add New Device, and follow the instructions.
Step 4:
When you are asked to scan a QR code, use the code on the
Quick Install Card in your package, or on the label attached to
your device.
Setting Up Your Device
Note:
iOS: If you are asked about allowing the app to access your
location, select Allow.
Android: Make sure location services are turned on in your
phone’s settings.

8D-Link DCH-S220 User Manual
Section 2 - Installation
Step 5:
In order for notications to work, you must set up a rule rst using
the mydlink Home app’s My Actions page. Please refer to page 11
for details on how to set up a rule.
Congratulations, your DCH-S220 is now ready to use!

9D-Link DCH-S220 User Manual
Section 3 - Usage
mydlink™ Home
My Devices
Tapping the DCH-S220 under the My Devices page will take you to the device’s settings.
Siren:
Volume:
Duration:
Information:
Manually activate the alarm in your DCH-S220 for
the duration you have set.
Set the alarm volume.
Adjust the alarm duration in seconds.
This page will show detailed information about the
product and your network. More details are on the
next page.
To change the device name or associated icon, tap the name or
the icon respectively, and enter the new name or use the menu
to select a new icon.

10D-Link DCH-S220 User Manual
Section 3 - Usage
Information
This page shows your product and related network details.
Product Name:
Firmware
Version:
MAC Address:
IP Address:
mydlink
Number:
Remove
Device:
Displays the product model.
Displays the version of the rmware.
Displays the MAC address of the device.
Displays the IP address of the device.
Displays the mydlink number of the device.
Tap Remove to perform a factory reset and remove
the device from your mydlink account.

11D-Link DCH-S220 User Manual
Section 3 - Usage
My Actions
This page lets you add and enable/disable rules to determine when your mydlink™ Wi-Fi Siren should be triggered and to
enable notications on your smartphone. Tap to switch between pages.
1. To add a new rule for your device, tap on New rule.
2. Tap on the device (sensor) you want to trigger the siren with.
3. Select from the available events for this device and tap Next.
Whenever the selected event occurs, the siren will be triggered.
4. Select your DCH-S220 from the list to be the responder.

12D-Link DCH-S220 User Manual
Section 3 - Usage
5. Select which alarm the siren should use for this rule and tap
Next.
6. In the text box, type in a name for this rule and tap Done.
7. The new rule will appear on the My Actions page and you can
now enable and disable your rule from this page.

13D-Link DCH-S220 User Manual
Section 3 - Usage
8. To delete a rule on iOS, swipe the rule you want to delete to the
left.
Tap the red Delete button to remove the rule.
To delete a rule on Android, swipe the rule you want to delete
to the right.
Tap the trash can icon to remove the rule.

14D-Link DCH-S220 User Manual
Section 3 - Usage
My Places
This page lets you place devices into a group so you can easily see which devices are in a particular location.
1. To create a group, tap New group.

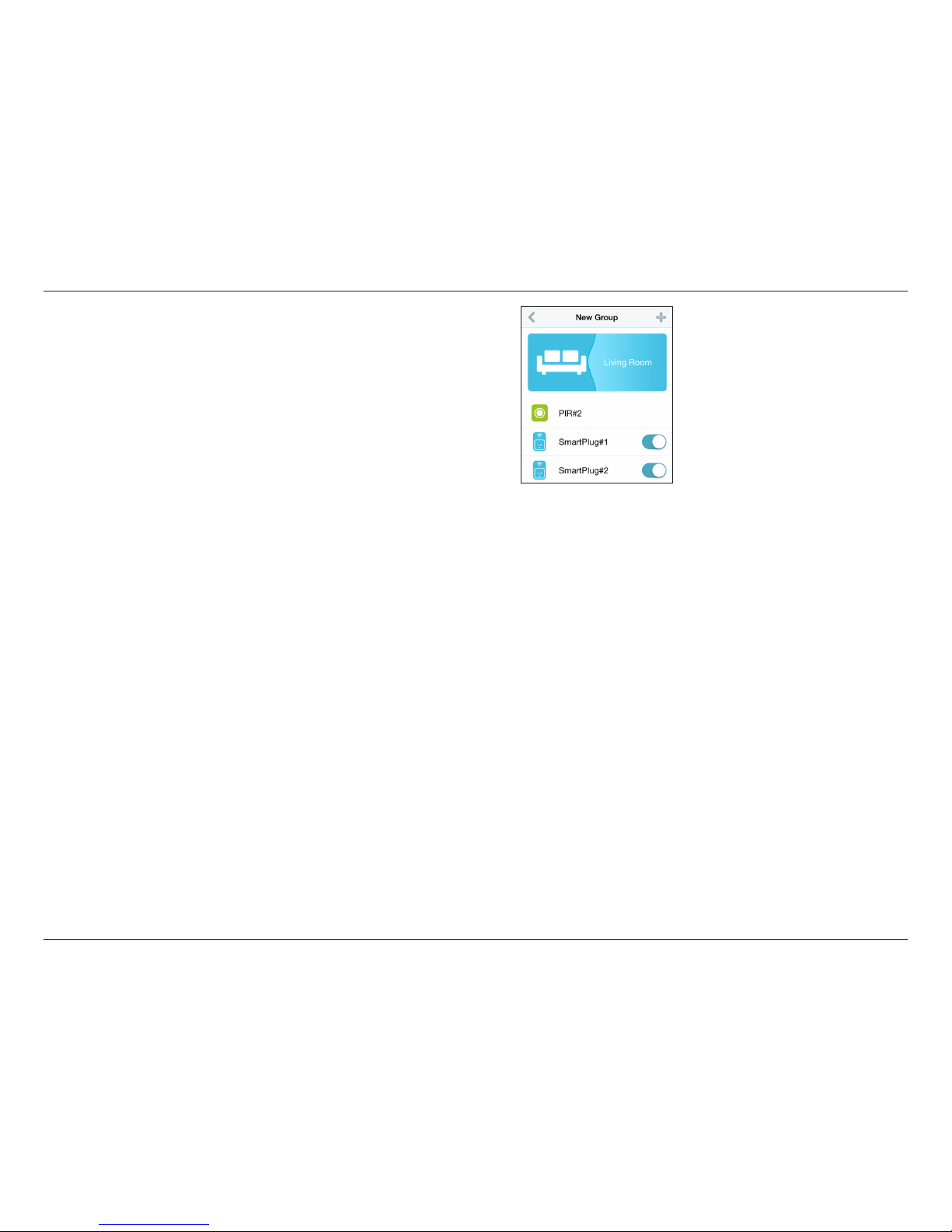

2. On the New Group page, tap the icon to choose an icon or photo
for the group.Tap next to it to enter a name for the group. Then
tap the +icon to add devices to the group.
3. Select the devices to be included in this group and tap Done.

15D-Link DCH-S220 User Manual
Section 3 - Usage
4. Your group will be created and will show up in My Places. Tap a
device to take you to its settings.

16D-Link DCH-S220 User Manual
Section 4 - Troubleshooting
Troubleshooting
How do I reset the DCH-S220?
When you reset your DCH-S220, it will change your settings back to the factory default settings. To reset the device, locate the Reset button on the side
of the device. With the device plugged in, press and hold the Reset button for about 5 seconds until the Power LED turns red. Please refer to page 5 for
the location of the reset button.
Why can’t I connect the DCH-S220 to my wireless router?
If you are having trouble connecting to your wireless router, try plugging the DCH-S220 into an electrical outlet that is closer to your router. After the
Power LED turns solid green, you can unplug the mydlink™ Wi-Fi Siren and move it to the desired location.
Where can I nd the mydlink™ Home app?
You may download the free mydlink™ Home app from the App Store (iPhone, iPad, or iPod touch) or Google Play (Android). Search for the mydlink™
Home app by typing in “mydlink Home”.
How does the mydlink™ Wi-Fi Siren work while I am away from home?
Remote access of the mydlink™ Wi-Fi Siren is enabled once you have registered and linked your DCH-S220 through the mydlink services. When your
DCH-S220 is enabled for remote access, you will be able to control it from anywhere using your iOS or Android device.*
Why am I not receiving smartphone notications after my sensor or siren is triggered?
First, verify that your smartphone’s notication settings are enabled. If you have an iOS device, go to Settings > Notications > mydlink Home and
make sure the notication slider is enabled. For Android, the procedure may dier so you may need to look up the specic procedure on how to enable
notications.
For some users, the notications may be delayed temporarily because it takes some time to optimize the notication system. In this case, we recommend
restarting the app and trying again after 10-30 minutes.
* The DCH-S220 must be connected to your home Wi-Fi network for remote access.

17D-Link DCH-S220 User Manual
Appendix A - Technical Specications
Technical Specications
Standards
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
Wireless Frequency Range 1
• 2.4 GHz to 2.4835 GHz
Antenna
• Two Internal Antennas
Security
• WPS™ (PBC)
• Wi-Fi Protected Access (WPA/WPA2)
Device Management
• mydlink™ Home app
Diagnostic LEDs
• Status
• Warning
Operating Temperature
• 0 to 40 ˚C (32 to 104 ˚F)
Storage Temperature
• -20 to 65 ˚C (-4 to 149 ˚F)
Operating Humidity
• 10% to 90% non-condensing
Storage Humidity
• 5% to 95% non-condensing
Power Input
• AC 100-125V AC
Certications
• FCC
• UL
Dimensions
• 65 x 65 x 52.7 mm (2.56 x 2.56 x 2.07 inches)
Weight
• 105 grams (3.70 ounces)
1Frequency range varies depending on local regulations
