Craftex CX413 User manual

MODEL CX413
3 HP DUST CYCLONE
USER MANUAL
Version 1.0

2
TABLE OF CONTENTS
General Safety Instructions..................................................................................... 3
Specific Safety Instructions..................................................................................... 4
CX413 Features...................................................................................................... 5
CX413 Physical Features ....................................................................................... 6
Un-Packing ............................................................................................................. 7
Proper Grounding ................................................................................................... 8
Assembly ................................................................................................................ 9
Cyclone Bag Frame Assembly................................................................................ 11
ON/OFF Switch.......................................................................................................11
Remote Controller...................................................................................................12
Test Run .................................................................................................................12
Maintenance ...........................................................................................................13
Emptying the Collection Drum ................................................................................13
Cleaning the Canister .............................................................................................13

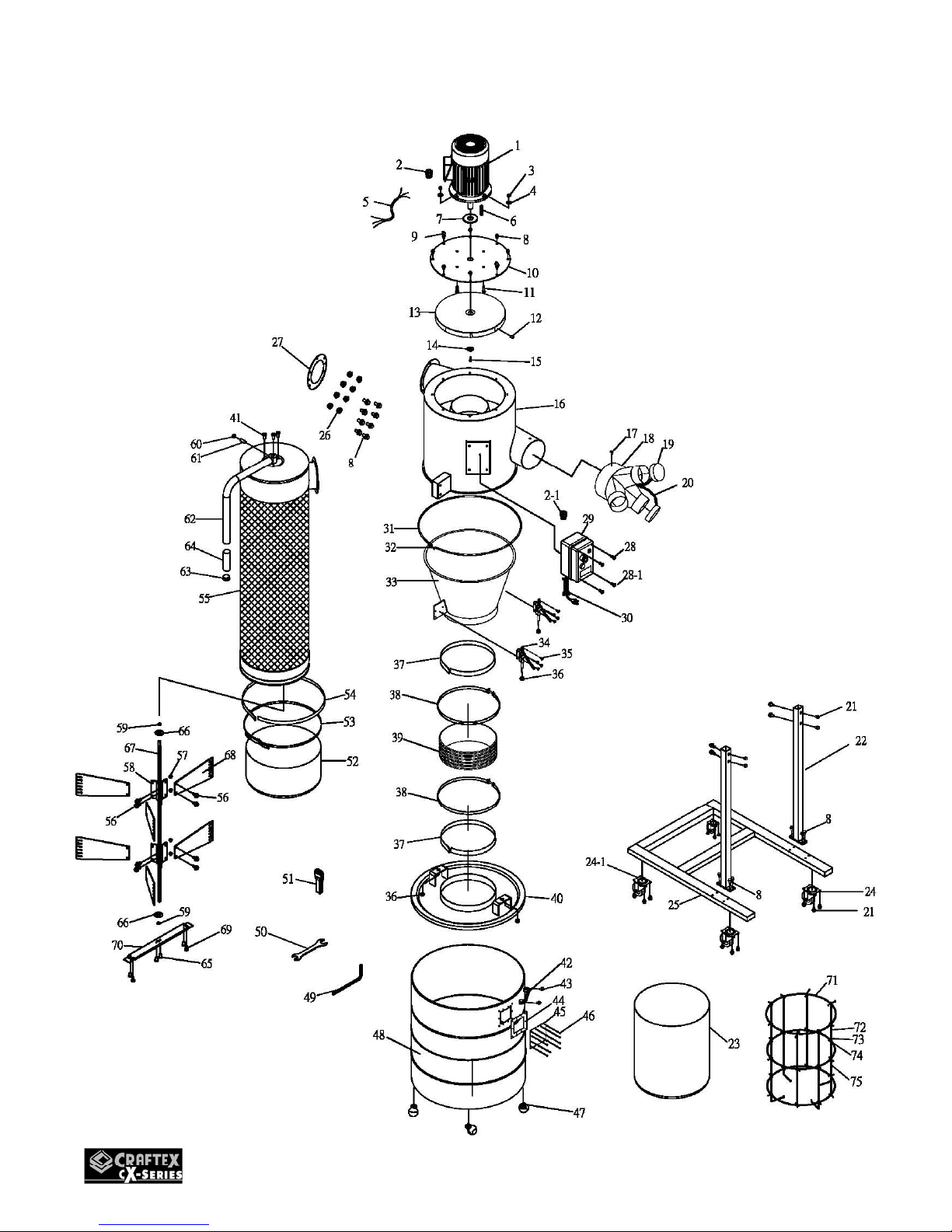

CX413 Parts Breakdown.........................................................................................14
CX413 Parts List.....................................................................................................15
Warranty .................................................................................................................17

3
GENERAL SAFETY INSTRUCTIONS
FOR MACHINES
Extreme caution should be used when operating all power tools. Know your power
tool, be familiar with its operation, read through the user manual and practice safe
usage procedures at all times.
ALWAYS read and understand the
user manual before operating the
machine.
CONNECT your machine ONLY to the
matched and specific power source.
ALWAYS wear safety glasses
respirators, hearing protection and
safety shoes, when operating your
machine.
DO NOT wear loose clothing or
jewelry when operating your machine.
A SAFE ENVIRONMENT is
important. Keep the area free of dust,
dirt and other debris in the immediate
vicinity of your machine.
BE ALERT! DO NOT use prescription
or other drugs that may affect your
ability or judgment to safely use your
machine.
DISCONNECT the power source when
changing drill bits, hollow chisels,
router bits, shaper heads, blades,
knives or making other adjustments or
repairs.
NEVER leave a tool unattended while it
is in operation.
NEVER reach over the table when the
tool is in operation.
ALWAYS keep blades, knives and bits
sharpened and properly aligned.
ALL OPERATIONS MUST BE
performed with the guards in place to
ensure safety.
ALWAYS use push sticks and feather
boards to safely feed your work through
the machine and clamp the work-piece
(when necessary) to prevent the work-
piece from any unexpected movement.
ALWAYS make sure that any tools used
for adjustments are removed before
operating the machine.
ALWAYS keep the bystanders safely
away while the machine is in operation.
NEVER attempt to remove jammed
cutoff pieces until the saw blade has
come to a full stop.

4
READ and follow all the instructions
and safety precautions in the user
manual before setup or use.
THIS DUST CYCLONE is designed for
wood dust only. It is not to be used for
other materials such as liquids or
metal scraps but not limited to, nails
and fillings. It is also not intended to
collect large pieces that will not pass
through the impeller
DO NOT place your hands or tools
near the open inlet while the dust
cyclone is running. Turn the machine
OFF to repair, service, or inspection
(such as clogging).
DO NOT operate the dust cyclone in
areas exposed to ignition sources
such as pilot lights or open flame
etc...Suspended particulates may be a
source of explosion.
ALWAYS wear personal protective
devices such as masks, respirators,
and safety glasses when emptying
dust from the collection bags. Proper
disposal method should be followed.
MAKE SURE the collection bags and
the canisters are securely fastened to
the collector body before every use.
METALLIC OBJECTS that strike the
impeller may produce a spark which can
smolder in wood dust for a long period
of time before fire or flame is detected.
While operating the dust cyclone, if
metal contacts metal, immediately turn
the switch to the OFF position and
unplug the cord from the outlet, allowing
the impeller to come to a complete stop.
Empty the dust into an approved air tight
metal container and remove all metal
objects from dust prior to resuming
operation.
CERTAIN WOODS maybe an irritant or
cause an allergic reaction. It is good to
know what type of wood dust you will be
exposed to, in case there is an allergic
reaction. Always wear approved
personal safety equipments.
ALWAYS turn OFF the dust cyclone
and disconnect power, allowing the
impeller to come to a complete stop
before servicing the dust cyclone or
connected system.
MAKE SURE you have read and
understood all the safety instructions in
the manual and you are familiar with
your dust cyclone, before operating it. If
you fail to do so, serious injury could
occur.
CX413 – 3HP DUST CYCLONE
SPECIFIC SAFETY INSTRUCTIONS
WARNING!
The safety instructions given above can not be complete because the environment in
every shop is different. Always consider safety first as it applies to your individual
working conditions.

5
MODEL CX413 - 3HP DUST CYCLONE
As part of the growing line of Craftex woodworking equipment, we are proud to offer the
CX413 a 3HP Dust Cyclone. By following the instructions and procedures laid out in this user
manual, you will receive years of excellent service and satisfaction. The CX413 is a
professional tool and like all power tools, proper care and safety procedures should be
adhered to.
Motor ..............................................3 HP, 220-Volts, 60-Hz, Single Phase
Amp ................................................13 Amps
Motor Speed ...................................3450 RPM
Suction Capacity.............................2100 CFM
Static Pressure ...............................11” H2O
Impeller Size...................................15”
Switch.............................................ON/OFF Magnetic Switch
Inlet Size.........................................8” (with 4" Y-Inlet)
Made In ..........................................Taiwan
Warranty.........................................3 Years
CX413 – 3HP DUST CYCLONE
FEATURES

6
CX413 - 3HP DUST CYCLONE

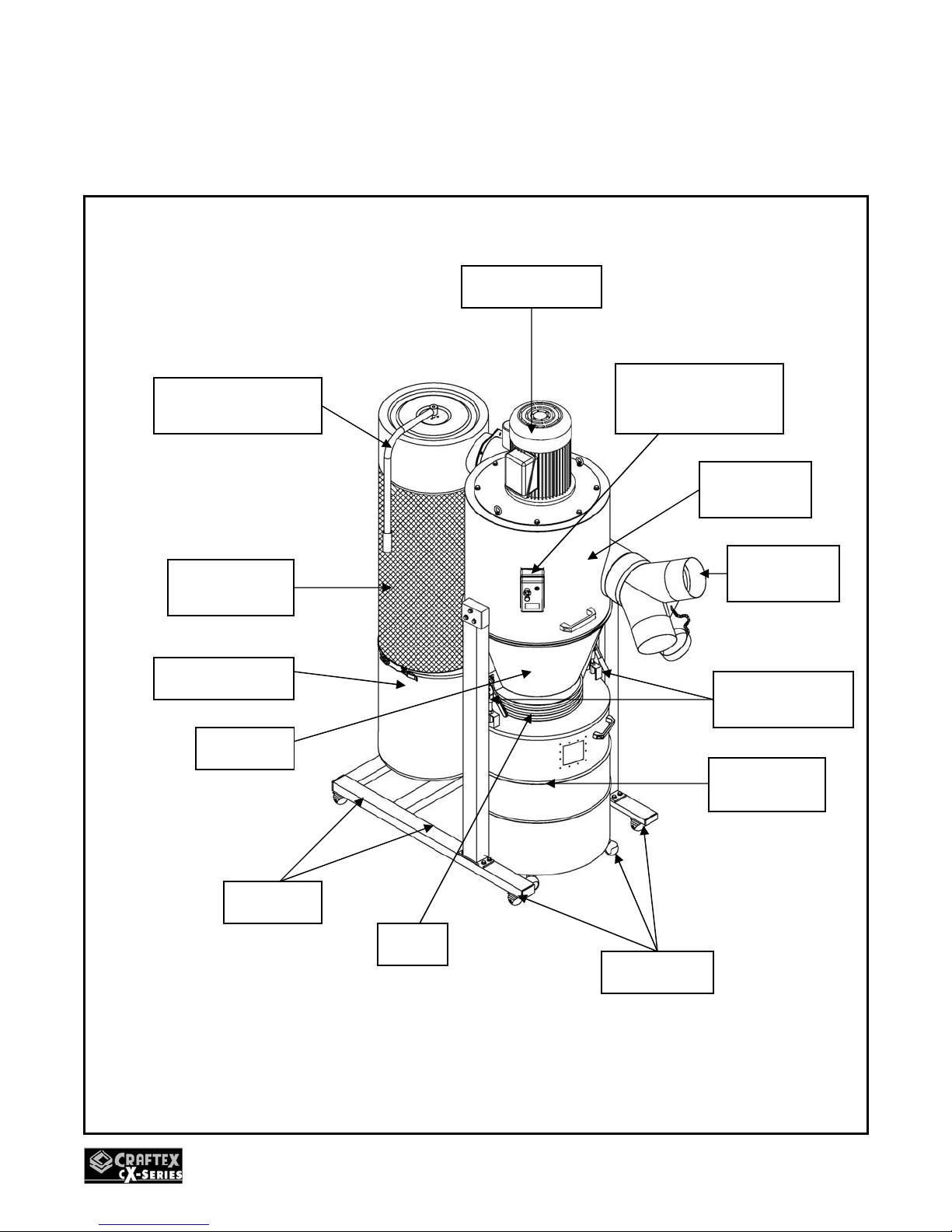

PHYSICAL FEATURES
Wheels
Canister
Filter
Main
Housing
Quick-Lock
Levers
4" Y-Inlet
Adapter
3 HP Motor
Canister Filter
Cleaning Handle
Base
Bottom Bag
ON/OFF
Magnetic Switch
Hose
Cone
Collection
Drum

7
UNPACKING
The machine is properly packaged and
shipped completely in carton for safe
transportation. When unpacking, carefully
inspect the carton and ensure that nothing
has been damaged during transit.

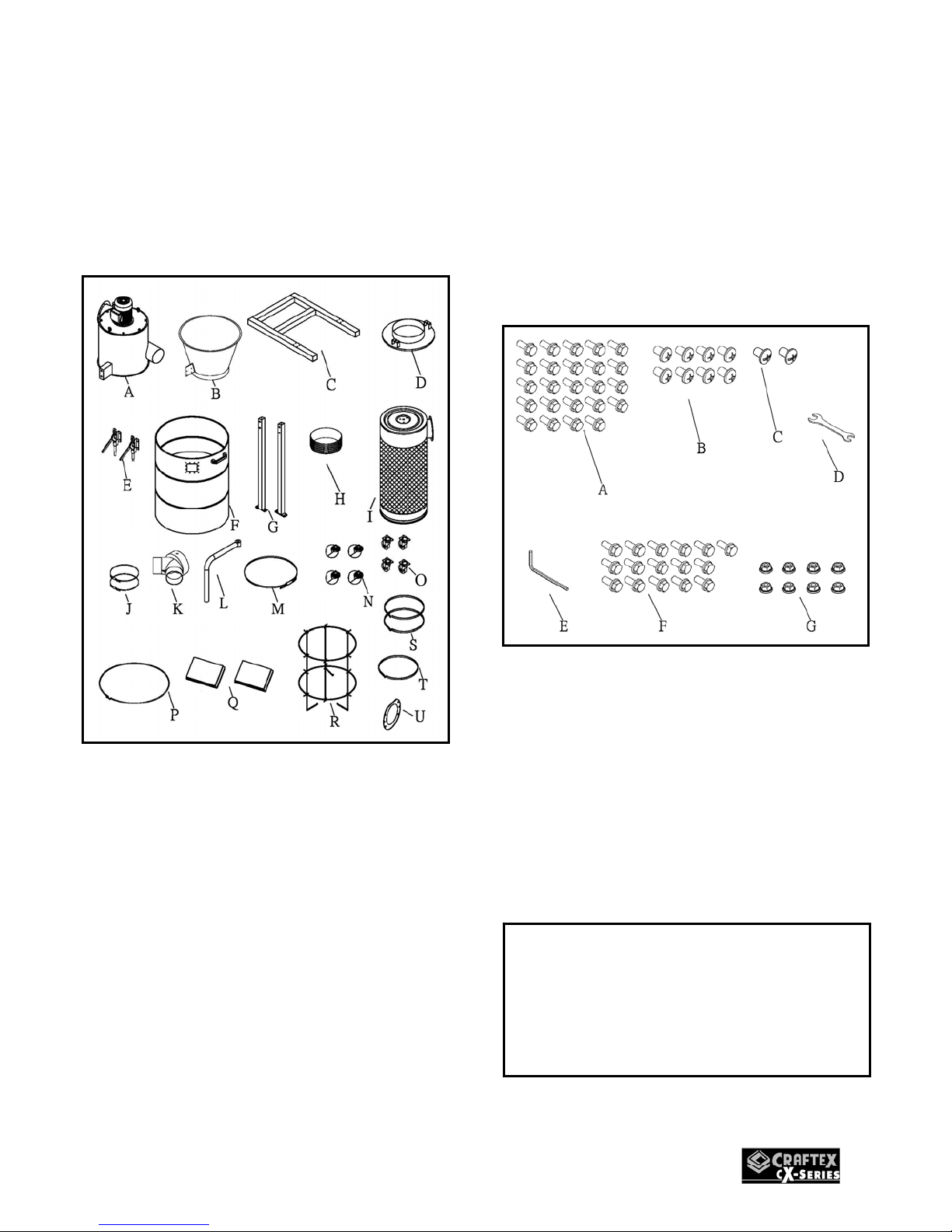

Figure-1 Inventory
List of Contents Qty
A. Main Housing ................................... 1
B. Cone.................................................. 1
C. Base .................................................. 1
D. Drum Lid............................................ 1
E. Quick Lever ....................................... 2
F. Drum ................................................. 1
G. Stand................................................. 2
H. Hose.................................................. 1
I. Canister Filter.................................... 1
J. Hose Clamp ...................................... 2
K. Inlet Adapter...................................... 1
L. Handle............................................... 1
M. Bag Clamp ........................................ 1
N. Drum Wheel...................................... 4
O. Base Wheel ...................................... 4
P. Cone Clamp...................................... 1
Q. PE Bag.............................................. 2
R. Inner Frame ...................................... 1
S. Foam................................................. 2
T. Foam................................................. 1
U. Gasket .............................................. 1
Figure-2 Hardware
List of Contents Qty
A. Flange Bolt Screw 5/16" x 1/2".......... 24
B. Philips Head Screw M5 x 8 ............... 8
C. Flat Head Screw 1/4" x 1/2" .............. 2
D. Open Wrench 10 x 12mm ................. 1
E. Allen Wrench 4mm............................ 1
F. Flange Bolt Screw 5/16" x 3/4".......... 16
G. Nut 5/16" ........................................... 8
NOTE!
While doing inventory, if you can not find
any part, check if the part is already
installed on the machine. Some of the
parts come assembled with the machine
because of shipping purposes.

8
PROPER GROUNDING
Grounding provides a path of least
resistance for electric current to reduce the
risk of electric shock.
CX413 is equipped with a 220-volts, single
phase motor which features a 3-conductor
cord and a 3-prong grounded plug to fit a
grounded type receptacle. Do not remove
the grounding prong to fit it into a 2-pronged
outlet. Always check with a qualified
electrician if you are in doubt.
Make sure the cord is plugged into a
properly installed and grounded power
outlet.
To prevent electrical hazards, have a
qualified electrician ensure that the line is
properly wired.
This machine is for use on a normal 220-
volt circuit and is factory-equipped with a
specific electric cord and plug to permit
connection to a proper electric circuit. Make
sure that the machine is connected to an
outlet having the same configuration as the
plug.
Figure-3 220-Volts outlet for CX413
It is strongly recommended not to use
extension cords with your CX413. Always
try to position your machine close to the
power source so that you do not need to
use extension cords.
If you really find it necessary to use an
extension cord, make sure the extension
cord does not exceed 50-feet in length and
the cord is 14-gauge to prevent motor
damage.
WARNING!
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician if you are in doubt as to
whether the outlet is properly grounded.

9
ASSEMBLY
Attach the base wheels (#24) to the base
(#25) using the 5/16" x 1/2" flange bolt
screws (#17) provided. See figure-1.
Secure the stand (#22) onto the base (#25)
using the 5/16" x 3/4" flange bolt screw
(#8).

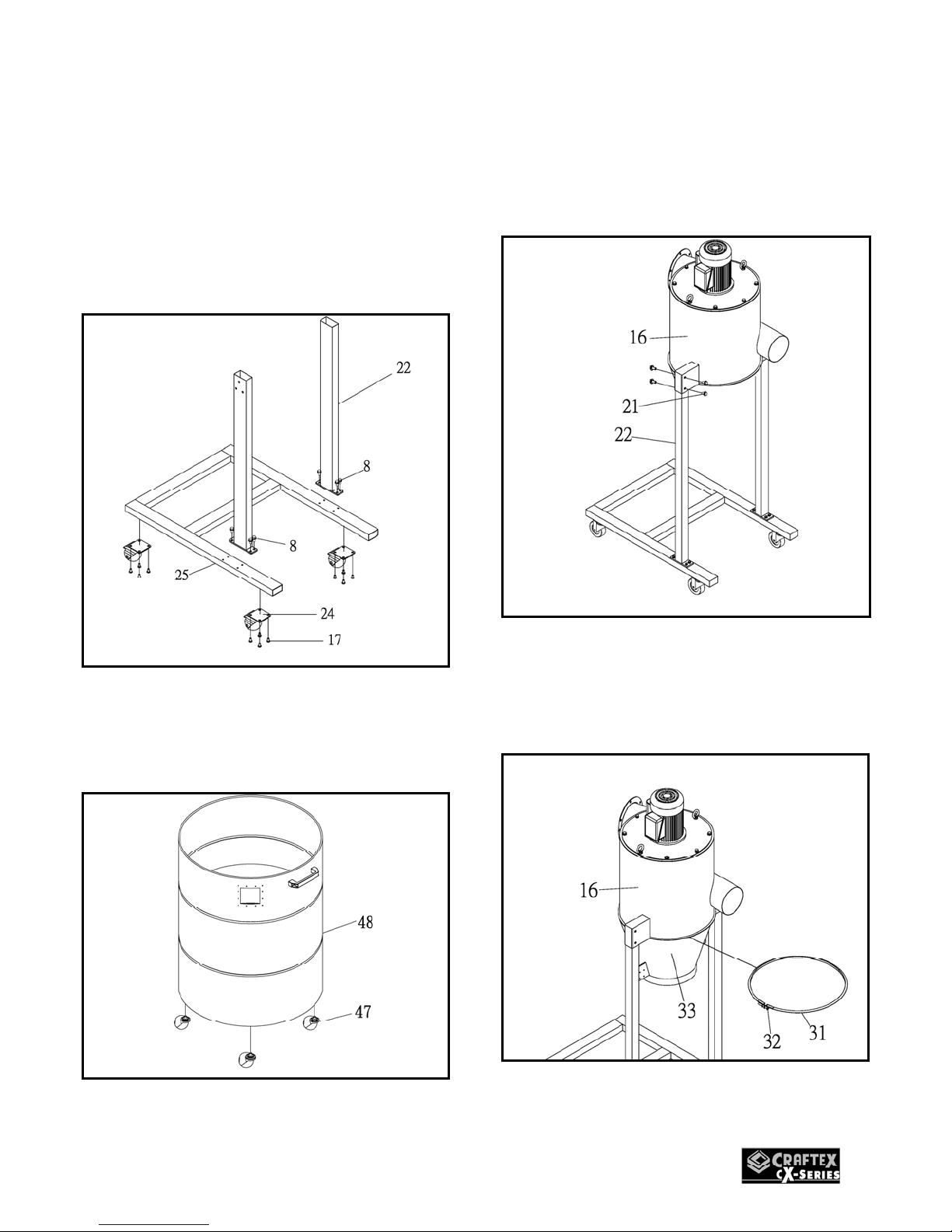

Figure-4 Installing the stand and wheels
Tighten the wheels (#47) under the drum
(#48) into the thread nuts as shown in
figure-5.
Figure-5 Installing wheels under the drum
Get the help of a friend or use a fork truck
and lift up the main housing (#16) and place
it on the stand (#22). Using the flange bolt
screw 5/16" x 1/2" (#21) secure the main
housing on to the stand. See figure-6.
Figure-6 Securing the main housing to the
stand
Attach the cone (#33) under the main
housing and secure it using the cone clamp
(#31) and hex screw (#32). See figure-7.
Figure-7 Attaching the cone to the housing

10
Attach the handle (#62) to the canister filter
(#55) and secure it with the set screw 5/16"
x 3/4" (#61) and nut 5/16" (#60) as shown in
figure-8.
Figure-8 Attaching the handle to the
canister
Now, attach the canister (#55) to the main
housing (#16) and tighten with the gasket
(#64 not shown) between. Secure it using
flange bolt (#8) and nut (#26). See figure-9.
Figure-9 Installing the canister filter
Attach the Y-inlet adapter (#18) to the main
housing (#16) and secure it with Philips
head screw 3/18" x 3/8" (#17). See figure-
10.
Paste the foam (#54) as a circle around the
canister filter (#55) and tighten the PE bag
(#52) with bag clamp (#53) as shown in
figure-10.
Figure-10 Installing the inlet adapter and
PE bag
Place the drum lid (#40) on the drum and
position the drum (#48) under the main
housing. Attach one end of the hose (#39)
to the cone (#33) and the other end onto
the drum lid (#40). Use the hose clamps
(#38) and secure it on both ends. See
figure-11.
Figure-11 Installing the hose

11
Place the PE bag (#23) into the drum (#48)
and place the inner frame inside the PE bag
in order to press the bag down.

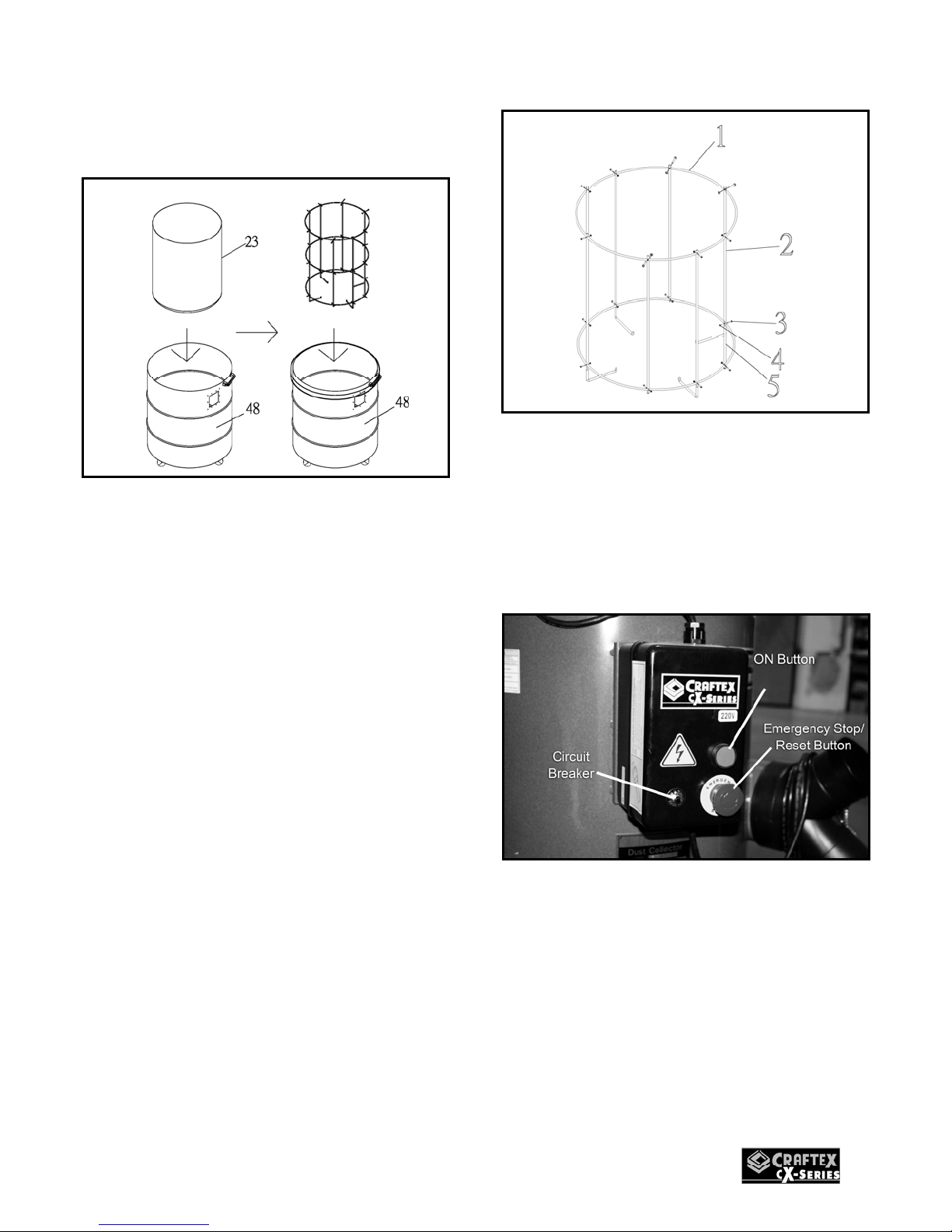

Figure-12 Placing the bag inside the drum
with the inner frame
Pull down the quick lever and thread the nut
(#41) onto the quick lever thread and
tighten it. This will secure the drum lid to the
cone.
CYCLONE BAG FRAME
ASSEMBLY
Attach each long side support rod (#2) and
short side support rod (#5) to the ring (#1)
using bolts (#3) and nuts (#4) provided.
Now position the second ring (#1) around
the long side and short side support rods
and secure it using bolts (#3) and nuts (#4)
provided. See figure-13.
Figure-13 Assembling the cyclone bag
frame
ON/OFF SWITCH
The CX413 features a magnetic ON/OFF
switch with a large Emergency Stop/Reset
button located on the left side of the inlet.
Figure-14 ON/OFF Switch with removable
key

12
REMOTE CONTROLLER
The CX413 features a remote controller
(#50) that allows you decrease or increase
the amount of time the impeller runs before
automatically shutting off.
Press the "ON Button" to turn on the
machine and then press the "Increase
Button" to increase the amount of time.
Each time you press the "Increase Button"
the amount of time is increased by two
hours up to a maximum of 8 hours cycle
and the light for the selected time
illuminates on the remote controller.
Decrease the amount of time by pressing
the "Decrease Button". See figure-15.

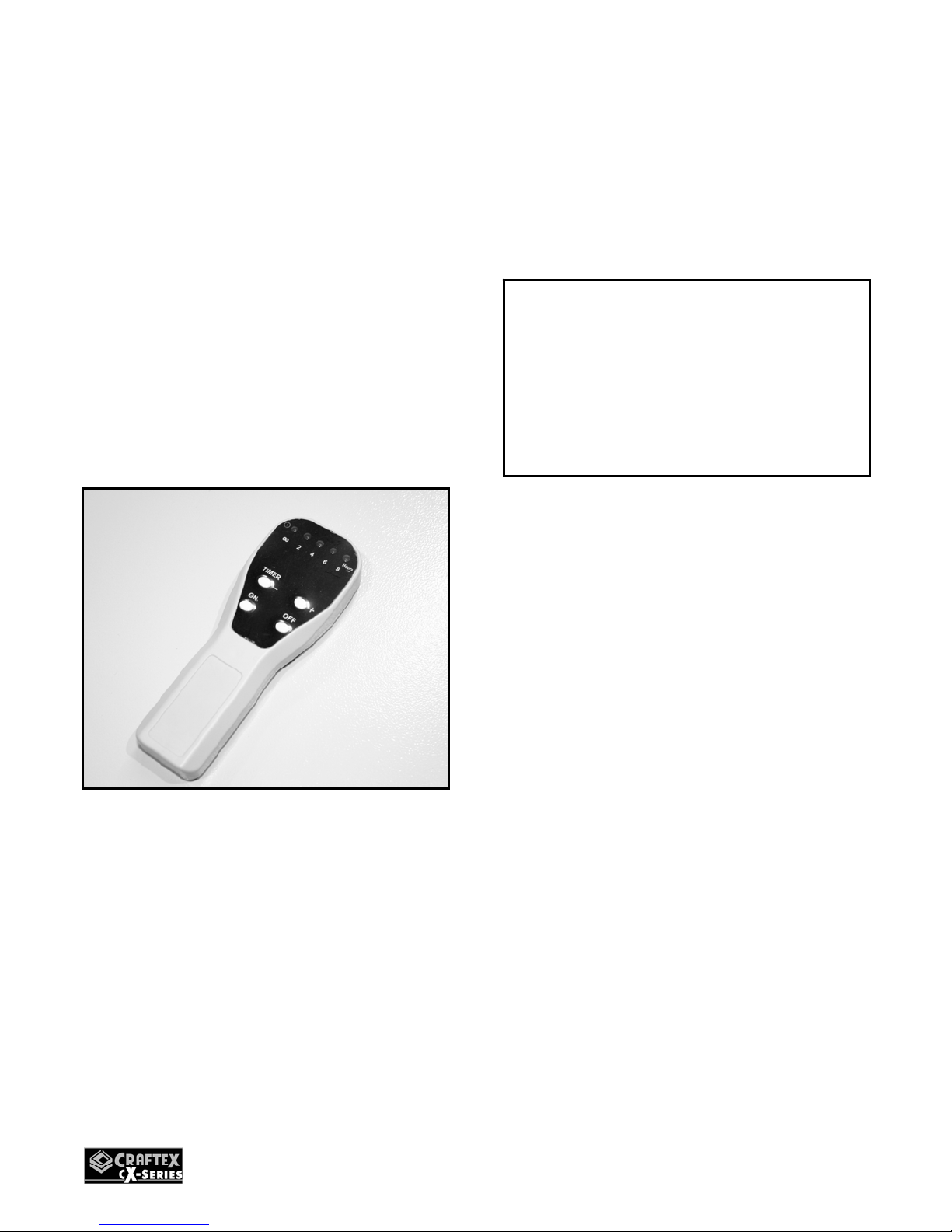

Figure-15 Remote controller for CX413
TEST RUN
Once you have assembled your machine
completely, it is now time for a test run to
make sure that the machine works properly
and is ready for operation.
All the tools and objects used for
assembling the machine should be
removed and cleared away during the test
run.
Plug the cord to the power outlet and turn
the machine ON. Test the ON, OFF and
Emergency Stop buttons make sure they
are working properly.
During the test run if there is any unusual
noise coming from the machine or the
machine vibrates excessively, shut off the
machine immediately and disconnect the
cord from the power source. Check all the
parts you have assembled, once again and
investigate to find out the problem.
WARNING!
Before turning on the machine, make
sure you have read and understood the
instructions given in the manual and you
are familiar with the functions and safety
features on this machine. Failure to do
so could result in serious injury to the
operator or damage to the machine.

13
MAINTENANCE
During the life of your machine, you will
need to practice some regular maintenance
to keep your machine in peak performance
condition.
Check your machine daily for:
Loose mounting bolts.
Damaged cord.
Worn switch.
Full collection bag / drum.
Any other unsafe condition.
EMPTYING THE
COLLECTION DRUM
You should empty the collection drum when
it is approximately 3/4 full. If the drum is full
and you continue to use the Cyclone, you
may have larger dust particles enter the
filter and damage the canister.
CLEANING THE CANISTER
The canister (#55) features a cleaning
handle (#62) which is used to clean the
canister filter. To clean the canister filter
simply move the handle back and forth and
the trapped dust particles will fall into the
collection bag.
Figure-16 Cleaning the canister
WARNING!
Make sure the machine is turned off and
the cord is disconnected from the power
source before servicing and
removing/replacing any components on
the machine.
WARNING!
Always wear proper dust mask or
respirator while emptying the collection
bag. The small dust particles flying into
the air while emptying the collection bag
can be easily inhaled and is extremely
unhealthy, causing serious long term
respiratory problems.

14
CX413 PARTS BREAKDOWN

15
NO. DESCRIPTION SPECIFICATIONS QUANTITY
1 Motor 3HP 1
2 Bushing MP-20 2
2-1 Bushing MP-16 1
3 Nut 5/16” 4
4 Spring Washer 5/16” 4
5 Motor Cord 1
6 Key 7x7x25 1
7 Motor Washer 1
8 Flange Bolt Screw 5/16”x3/4” 22
9 Hanger 5/16” 2
10 Motor Plate 1
11 Hex. Head Bolt 5/16”x1” 4
12 Set Screw 3/8”x3/4” 1
13 Impeller 15” 1
14 Washer 1
15 Cap Screw M6x20 1
16 Main Housing 1
17 Philips Head Screw 3/16”x3/8” 1
18 Inlet Adaptor 8”x4”x3 1
19 Cap 4” 2
20 Chain 2
21 Flange Bolt Screw 5/16”x 1/2” 24
22 Stand 2
23 PE Bag for Drum 1
24 Non-Locking Base Wheel 3” 2
24-1 Locking Base Wheel 3” 2
25 Base 1
26 Nut 5/16” 8
27 Gasket 1
28 Phillips Head Screw 3/16”x3/8” 2
28-1 Phillips Head Screw 3/16”x3/8” 2
29 Magnetic Switch 1
30 Power Cord 1
31 Cone Clamp 1
32 Hex. Head Bolt 1/4”x2-1/2” 1
33 Cone 1
34 Quick Handle 2
CX413 PARTS LIST

16
35 Phillips Head Screw M5x8 8
36 Nut 3/8” 4
37 Foam 2
38 Hose Clamp 12-1/2” 2
39 Hose 12” 1
40 Drum Lid 1
41 Button Head Screw M5x10 3
42 Drum Handle 1
43 Flat Head Screw 1/4”x1/2” 2
44 Packing 1
45 Acrylic Board 1
46 Rivet 4-2 12
47 Drum Wheel 5/16”x3” 4
48 Drum 1
49 Allen Wrench 4mm 1
50 Open Wrench 10x12mm 1
51 Remote Control Bar 1
52 PE Bag for Canister Filter 1
53 Bag Clamp Φ370 1
54 Foam 1
55 Canister Filter 370x1000 1
56 Flange Bolt M5x12 16
57 Nut M5 12
58 Plate Fixing Block 2
59 Bearing 1206 2
60 Nut 5/16” 1
61 Set Screw 5/16”x3/4” 1
62 Handle 1
63 Cap 3/4” 1
64 Sponge 7/8” 1
65 Button Head Screw M5x6 3
66 Bearing Support 2
67 Spindle 1
68 Flapper 6
69 Phillips Head Screw M5x8 4
70 Upper Fixing Support 1
71 Loop 3
72 Barrel Fixing Stick(long) 4
73 Nut M3 24
74 Phillips Head Screw M3x12 24
75 Barrel Fixing Stick(short) 4

17
WARRANTY
Craftex warrants every product to be free from defects in materials and agrees to correct such defects where
applicable. This warranty covers three years for parts and 90 days for labour (unless specified otherwise), to the
original purchaser from the date of purchase but does not apply to malfunctions arising directly or indirectly from
misuse, abuse, improper installation or assembly, negligence, accidents, repairs or alterations or lack of
maintenance. Proof of purchase is necessary.
All warranty claims are subject to inspection of such products or part thereof and Craftex reserves the right to
inspect any returned item before a refund or replacement may be issued.
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches
etceteras.
Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or
for incidental contingent, special or consequential damages arising from the use of our products.
RETURNS, REPAIRS AND REPLACEMENTS
To return, repair, or replace a Craftex product, you must visit the appropriate Busy Bee Tools showroom or call 1-
800-461-BUSY. Craftex is a brand of equipment that is exclusive to Busy Bee Tools.
For replacement parts directly from Busy Bee Tools, for this machine, please call 1-800-461-BUSY (2879), and
have your credit card and part number handy.
All returned merchandise will be subject to a minimum charge of 15% for re-stocking and handling with the
following qualifications.
Returns must be pre-authorized by us in writing.
We do not accept collect shipments.
Items returned for warranty purposes must be insured and shipped pre-paid to the nearest warehouse
Returns must be accompanied with a copy of your original invoice as proof of purchase. Returns must be in
an un-used condition and shipped in their original packaging a letter explaining your reason for the return.
Incurred shipping and handling charges are not refundable.
Busy Bee will repair or replace the item at our discretion and subject to our inspection.
Repaired or replaced items will be returned to you pre-paid by our choice of carriers.
Busy Bee reserves the right to refuse reimbursement or repairs or replacement if a third party without our
prior authorization has carried out repairs to the item.
Repairs made by Busy Bee are warranted for 30 days on parts and labour.
Any unforeseen repair charges will be reported to you for acceptance prior to making the repairs.
The Busy Bee Parts & Service Departments are fully equipped to do repairs on all products purchased from us
with the exception of some products that require the return to their authorized repair depots. A Busy Bee
representative will provide you with the necessary information to have this done.
For faster service it is advisable to contact the nearest Busy Bee location for parts availability prior to
bringing your product in for repairs.
CRAFTEX 3 YEARS LIMITED WARRANTY
