Craftsman 320.48249 User manual

Owner's Manual
360°Level System
...f_.t...g LAsERTRA¢'"
2-Beam Level, Plumb and Square
Model No.
320.48249
CAUTION: Read, understand and follow
all Safety Rules and Operating Instructions
in this manual before using this product.
, SAFETY
°OPERATION
°MAINTENANCE
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Warranty ...................................................... Page 2
Safety Instructions .......................................... Page 3
Description ................................................... Page 4
Operation ..................................................... Pages 5-6
Calibration .................................................... Pages 6-7
Applications .................................................. Pages 8 -10
Maintenance ................................................. Page 1'1
Trouble Shooting ........................................... Page 12
Notes ............................................................. Pages 13-14
Service Numbers ........................................... Back Cover
FULL ONE YEAR WARRANTY ON CRAFTSMAN
360°LEVEL SYSTEM featuring LASERTRAC TM
If this CRAFTSMAN Level System fails to give complete satisfaction
within one year from the date of purchase, RETURN ITTOTHE
NEAREST SEARS STORE IN THE UNITED STATES,
and Sears will replace it, free of charge.
If this CRAFTSMAN Level System is used for commercial or rental
purposes, this warrant,] applies for only 90 days from the date
of purchase_
This warranty gives you specific legal rights, and you may also
have other ri_jhts which vary from state to state.
Sears, Roebuck and Co., Dept.817 WA, Hoffman Estates, iL 60179
SAVE THESE INSTRUCTIONS!
READ ALL INSTRUCTIONS!
CONTENTS
Level System, Laser enhancing glasses, carrying bag, laser target
Owner's Manual.
2

ii1,1ull,: ..................::::1,i..-:..¸.::...........
WARNmNG: BE SURE to read and understand all instructions in this
manual before using this Level System_ Failure to follow all instructions may
result in hazardous laser radiation exposure, electric shock, and/or bodily injury°
............... ii ,i ii i,, iiiiii ,i,,11,1,
iii i,
CAUTION: Use of controls or adjustments or performance
of procedures other than those specified herein, may result in hazardous laser
radiation exposure°
i.............................. , ,,, i III/11' I' I/'t
CAUTION: The use of optical instruments with this product will
increase eye hazard°
,_ IMPORTANT: The following labels
are on your Level System
(see fig. 2). They indicate
where the laser light is emitted,
ALWAYS BE AWARE of the emission
point locations when using the Level System.
ALWAYS MAKE SURE that any bystanders
in the vicinity of use are made aware of the dangers of looking directly into the laser.
WARNING! LASER LIGHT. LASER RADIATION.
Avoid Direct Eye Exposure. Do Not Stare into beam
1. DO NOT remove or deface any product labels, Removing product labels
increases the risk of exposure to laser radiation.
2. DO NOT stare directly at the laser beam or project the laser beam directly into
the eyes of others. Serious eye injury could result.
3. DO NOT place the Level System in a position that may cause anyone to stare
into the laser beam intentionally or unintentionally. Serious eye injury could result,
4. DO NOT use any magnifying optical tools such as, but not limited to,
telescopes or transmits to view the laser beam. Serious eye injury could result,
5. DO NOT operate the Level System around children or allow children to operate
the toolo Serious eye injury could result
6. ALWAYS turn the Level System off when not in use_ Leaving the tool on
increases the risk of someone inadvertently staring into the laser beam,
7. DO NOT operate the Level System in combustible areas such as in the presence
of flammable liquids, gases or dust,
8. When using any of the base plates,
ALWAYS check to be sure that the tool is securely mounted on the base when
using other base plates Damage to the tool and/or serious injury to the user
could result if the tool falls.
9. ALWAYS use only the accessories that are recommended by Sears for use
with this product. Use of accessories that have been designed for use with
other laser tools could result in serious injury,
10, DO NOT use this Level System for any purpose other than those outlined
in this manual This could result in serious injuryr
11. DO NOT leave Level System on unattended,,
3

KNOW YOUR LEVEL SYSTEM (See Fig. 1 &Fig. 2)
This Craftsman Level System is a highly versatile tool.
It can be hand-held, wall-mounted or leveled on a horizontal surface or tripod
stand (sold separately). It projects a pulse laser'dot' that forms a line
horizontally or vertically. It is designed to rotate from a fixed position to mark
desired horizontal and vertical dimensions in a 360 ° complete circle° When not
rotating, the laser dot can be manually positioned by rotating the laser to any
position_
As a 2-beam level, it can be used to accurately determine square alignment
such as when laying concrete foundations, "squaring off" a deck or porch and
when aligning fence and rail constructions. The Level System is equipped with
a low battery alarm that starts beeping when batteries are low.
This Level System is easy to use in every applications- from simple home
decorating projects to home construction° It will project a level horizontal or
vertical 'line' that is accurate to +1/4-inch at 100 feet. (recommended usable
range is 50 feet)
Fig.1 Laser Eight
aperture
Top View
i,,11,,,,i,, ,J ,,, ,,,,,,,i,l,,lluu ii.... i,
TECHNICAL SPECIFICATIONS
Recommended Use Indoors & Outdoors withlaser enhancing glasses
Laser Diode Type Red Laser Diode 635nm-,665nm
Laser Class
,,,,,,,,,,,,,, ,, ,, Li J
Battery
Class Ilia, maximum
power output <_2.5roW ,, ,, ,, ,,,, ,,,,,,, ,,,, , , ,
2"D" 1.5-volt batteries (sold separately)
Scan Speed Olslowlmediumlfast
Optimum Operating
Temperature Range 30°F to 104°F (-1°C to 40°C)
,,,, ,__ .................
Accuracy +_1/4-in.at 100 ft. (recommendedusablerangeis50feet)
4

TO INSTALL BATTERIES (See Fig. 3)
This Pulse Level uses two "D" battede& (sold separately)
Fig. 3 1. Rotate the screw on the battery
cover counterclockwise as shown
in Fig. 3 until the cover is loosened
completely,
2, Install two new batteries, Be sure
the polarity (+/-) is correcfl
3. Tighten the screw securely
to lock+
TO TURN THE TOOL ON (See Figure 4)
The soft touch button to turn ON the Level System is located on the top of the tool.
To turn tool on (Operating Mode): Press and hold button
1. The bright red laser beam will light. The bubble vials will also be highlighted
for easier visibility when leveling or calibrating the laser tool+The tool emits
a 2-beam laser: one from the top aperture of the rotary head and another from
the side aperture on the rotary head. The rotary head does not rotate when the
pulse level is first turned on+This condition is called the Stop Mode.
WARNING: When turning ON the Level System ALWAYS be aware of protecting
the eyes of yourself and those around you. NEVER point the Level System at
anyone's face, including your own.
To turn OFF the laser light and stop rotation: Press button t again, The instrument
stops projecting a laser beam and the rotary head stops rotating.
3 button 2 button 1
Button 1:
Button 2:
Button 3:
ON/OFF switch+
4 step speeds of
rotary head selected
(O/slow/medium/fast)
3 different scan chalk
lines can be selected -
short, medium or long.
Horizontal position: The position of the Level System when it is positioned
to project a horizontal level line+
Vertical position: The position of the Level System when it is positioned
to project a vertical plumb line+
Laser light apertures: The rotary head projects 2 laser beams simultaneously: one
from the top aperture of the rotary head and one from the side of the rotary head
at an angle of 90° to the top aperture laser.
"X" wheel: Used when leveling (calibrating) the Level System; adjusts the bubble
of the X vial (horizontal) (Fig+ 1)+ 5

"Y"wheel:Usedwhenleveling(calibrating)the LevelSystem;adjuststhebubbles
oftheYvial (in horizontalposition)andZ vial (inverticalposition)(Fig.2),
Using the Glasses Included
This LevelSystemincludesapairofstandardsafetyglassesthataremadeof a
laser-lightenhancingmaterial.Theprimarypurposeoftheseglassesisto improve
theuser'svisibilityofthetool'slaserline.
WARNING:TheseglassesWILLNOTprotectthe eyesfromdamagethat could
resultfromlookingdirectlyintothelaserprojection,

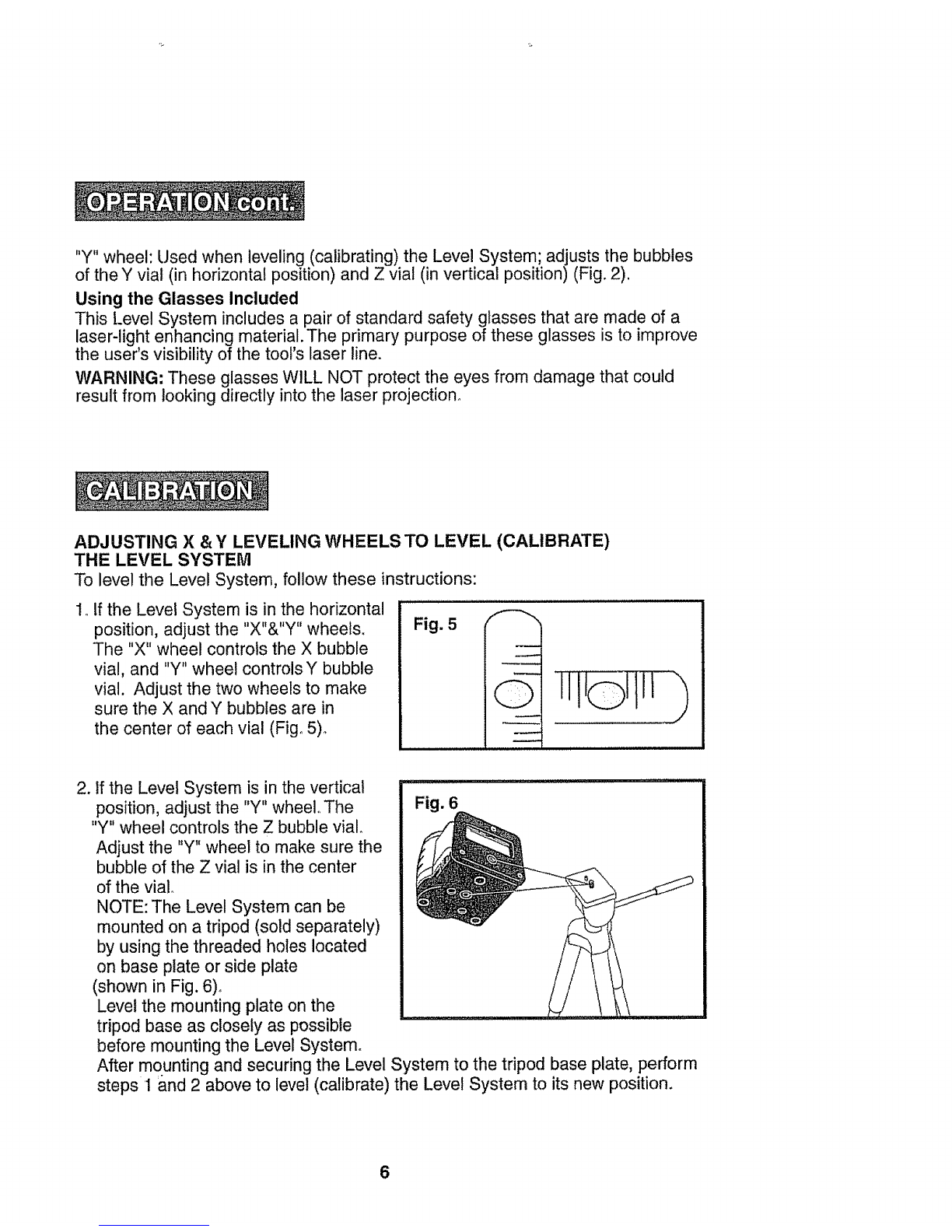

ADJUSTING X & Y LEVELING WHEELS TO LEVEL (CALIBRATE)
THE LEVEL SYSTEM
To level the Level System, follow these instructions:
1, if the Level System is in the horizontal
position, adjust the "X"&"Y" wheels.
The "X" wheel controls the X bubble
vial, and "Y" wheel controls Y bubble
vial. Adjust the two wheels to make
sure the X and Y bubbles are in
the center of each vial (Fig, 5)°
Fig. 5
2. tf the Level System is in the vertical -
position, adjust the "Y" wheel, The ,6
"Y" wheel controls the Z bubble vial
Adjust the "Y" wheel to make sure the
bubble of the Z vial is in the center
of the vial,
NOTE: The Level System can be
mounted on a tripod (sold separately)
by using the threaded holes located
on base plate or side plate
(shown in Fig. 6)°
Level the mounting plate on the
tripod base as closely as possible
before mounting the Level System°
After mounting and securing the Level System to the tripod base plate, perform
steps 1 and 2 above to level (calibrate) the Level System to its new position.
6

ADJUSTING THE HORIZONTAL
LASER BEAM SCAN
1, Place the Level System on a horizontal
surface or on a tripod stand (sold separately)
in horizontal position (Fig,7)o
2, Level the tool, (See page 6)
3.,Press the "ON/OFF" soft touch
control button to turn power ON,
4_Press the soft touch scan button (button 2)
one time for "fast" speed; two times
for" medium" speed; three times for
"slow" speed; or four times
to stop rotation,
You can choose different speeds depending
on different work surroundings. Selecting the
best scan speed for your working conditions
and job requirements gives you a highly visible
level reference line (Fig,, 8)°
ADJUSTING THE VERTICAL (PLUMB)
LASER BEAM SCAN
1, Place the Level System in a vertical
position on a horizontal surface or
on a tripod stand (sold separately),
2_Level the tool (See page 6)
3. Press the "ON/OFF" soft touch button
to turn the power ono Press the soft touch
scan button to choose the desired rotating
speed, Selecting the best rotating speed
for your working conditions gives you
a highly visible vertical (plumb)
reference line (Fig, 9)_
Fig.9
7

USINGTHE LEVEL SYSTEM
This level can be easily used in several ways, tt can be hand, held for point
marking and simple alignment, placed against a plumb wall or on a level
structure (and re-leveled) or mounted on a tripod (sold separately) to project
a pulsing dot 'chalk line' as a horizontal level line or vertical plumb line, Be
sure to re-level (re-calibrate) the Level System everytime you change its position,
POINT MARKING (HAND HELD)
1, Be sure the Level System is in the
"Stop Mode" (ON but not rotating).
2, Align the laser beam to your target
by turning the rotary head manually
(Fig. 10), The tool can be used for
marking a series of points either in the
horizontal or vertical direction,
MAKING A'CHALK LINE'
1. Place the Level System on a horizontal
surface or on a tripod stand
(sold separately),
2, Level (calibrate) the tool, (See page 6,)
3. Press the "ON/OFF" soft touch button
to turn the power ON_
4, Align the laser beam to your target
by turning the rotary head manually°
5. Press "soft touch button 3" to project
a chalk line. Press once to project
the longest chalk line length; twice to
project a medium chalk line length;
three times to project the shortest
chalk line length,
Fig.10
You can generate achalk line either in the horizontal or vertical direction
(Fig. 9). if you want to change your work target, just turn the rotary
head manually to the new target.You do not have to turn the power
off even with the head in motion. Just rotate the head to new position.
8

WORKING WITH OBSTRUCTIONS AND USER INTERFERENCE
Figure 12 illustrates the nature
of the laser "line" projected from the
Level System° It is actually a "dot"
of laser light that is projected as
a pulse° This is important because
obstructions and user interference
that takes place in front of the
device WILL NOT affect the laser
line projected on either side of
the user or obstruction,
REFERENCING AND LEVELING ACROSS MULTIPLE ADJACENT SURFACES
(See Figures 13 and 14),
The Level System 'dot of light' is also useful when working with two or more
adjacent surfaces,,
Fig. 13
\
Figure 13 illustrates its use in
aligning electrical outlet positions
on stud work with two adjoining
walls.
Figure 14 illustrates pictures being aligned
on multiple room walls.
9

WHENUSINGAS A HAND-HELDLEVEL
The Leve! System can be hand-held for use as a straight line reference tool.
As a hand-held device the Level System can be used for quick reference and
alignment across any two points of reference such as lining up cut-outs and
fixtures on drywall or checking wallpaper and paint trim. Also ideal for insuring
straight placement of mounted fixtures and brackets, such as stair railing fittings.
*Care must be taken not to direct the laser light into the eyes of others.
USE THE LEVEL SYSTEM MOUNTED TO TRIPOD:
°To install drop ceiling, grids and tiles
(See Horizontal Laser Beam Scan - Figures 7 and 8 on page 7).
o For indoor leveling and plumbing of window frames, cabinets, shelves,
doors, windows, erecting walls and partitions, aligning 900 joints and edges,
floors, and tile work
(See Vertical [Plumb] Laser Beam Scan - Figure 9 on page 7).
For outdoor leveling and plumbing of porches, decks, fencing, flagpoles, and
landscaping (See Point Marking and Making a Chalk Line-
Figures 10 and t 1 on page 8),
USE THE LEVEL SYSTEM TO DETERMINE SQUARE
1. To establish a square layout (for laying concrete footings, aligning floor tiles
and deck posts, etc.), mount the Level System in the vertical position and level
the tool (calibrate)_
2. Turn ON the tool and use the bright red dot of laser light projected from the
top aperture of the rotating head to define one fixed tocator position°
.Now rotate the rotary head until the bright red dot of laser light from the side
of the rotating head appears on the other Iocator position. The angle formed
between the 2 beams is 90°. Use the Level System to create or verify square
alignmenL
10

The LevelSystemhas beendesignedto be a low-maintenancetoot,However,
in orderto maintain its performance,you mustALWAYSfollowthese simple
directions_
1.ALWAYS handle the tool with care_ Treat it as the fine opticat device it is,
and as you would treat a camera or binoculars°
2. AVOID exposing the tool to shock, continuous vibration or extreme hot
or cold temperatures°
3. ALWAYS store the tool indoors° When not in use, ALWAYS store the tool
in its protective case.
4. After you have finished using the tool, ALWAYS make sure that the soft
touch button is in the "OFF" position.
5. ALWAYS keep the tool free of dust and liquids, if needed, use ONLY a
soft cloth or cotton swab and glass cleaner to clean the laser-emitting
windows.
6. ALWAYS clean and thoroughly dry the tool after each use°
7. Check the batteries regularly to avoid deterioration, ALWAYS remove the
batteries from the tool if it is not going to be used for an extended period
of time.
8. ALWAYS replace the batteries when the low battery alarm sounds°
9. DO NOT disassemble the Level System° This will not only void the warranty,
but could expose the user to hazardous laser radiation exposure°
10. DO NOT attempt to change any part of the laser len&
11

PROBLEM
Tone is heard
from Levet
System
Laser dot!line
is hard to
see.
Laser dot/line
is not
projected.
The tool can
not be leveled
nlll,i i
Laser dot/line
projected
is not level
Laser dot/line
projected
is not level
CAUSE
Batteries
are weak,
Working condition is
too bright.
The toot is too far from
the target,
Power switch
is not "on",,
The surface where
the tool is placed
is very uneven.
The X and Y bubbles
are not in the center
of vials.
The Z bubble is not in
the center of vial,
SOLUTION
ul_l,,,,,,,,i ii,i i i , ,ll,i/
Replace with fresh batteries.
Use laser enhancing glasses.
Get the toot closer to the target,
lU Ullll ,
Check to be sure the power
switch cover is in the full
down or "on" position,
u
Place the tool on an
comparatively horizontal surface,
Adjust the "X" and "Y" wheels
to make sure the X and Y
bubbles is are in the center of vials.
Adjust the "Y" wheels to make
sure the Z bubble is in the
center of the vial
12

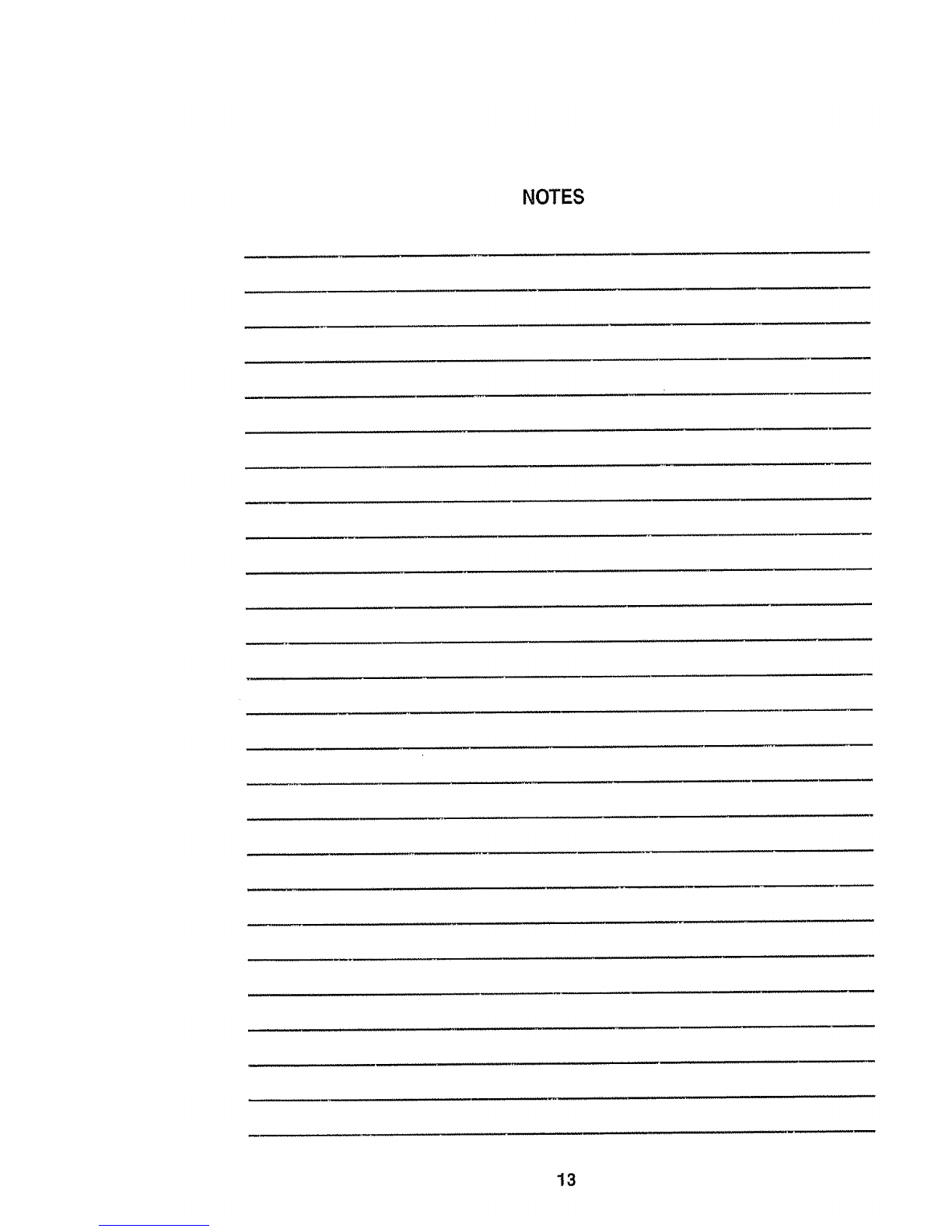

NOTES
13

NOTES
14

Manua_ del Propietado
$istema eivelaci6n de 360°
...oo.LasetTtac .
Nivel de 2 Rayos Ldser, de PIomada y Escuadra
iViodelo No.
320.48249
r
ATENCION: Antes de usar este
producto, lea, comprenda y siga todas
las reglas de seguridad y las instrucciones
de funcionamiento incluidas
en este manual.
°SEGURIDAD
oFUNCIONAlVlIENTO
oMANTENIMIENTO
Sears, Roebuck and Co., Hoffman Estates, aL60179 U.S.A.

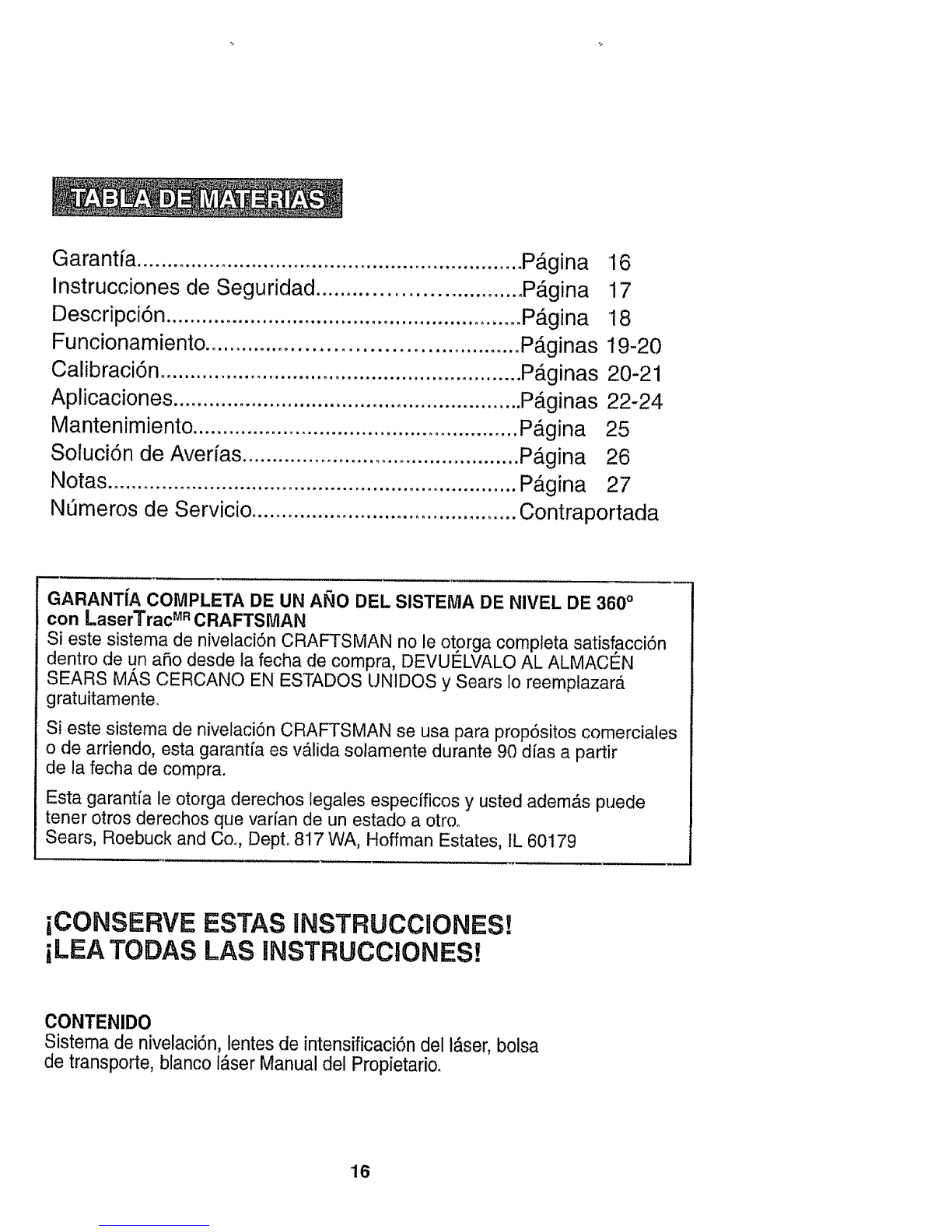

Garantfa ................................................................ P,_gina 16
Instrucciones de Seguridad ................................ P_.gina 17
Descripci6n ........................................................... PAgina 18
Funcionamiento ................................................ P,_ginas 19-20
Calibraci6n ............................................................ PAginas 20-21
Aplicaciones .......................................................... PAginas 22-24
Mantenimiento ...................................................... PAgina 25
Soluci6n de Averfas .............................................. PAgina 26
Notas .................................................................... P,_gina 27
NL_merosde Servicio ............................................ Contraportada
GARANT{A COMPLETA DE UN AI_JODEL SISTEMA DE NIVEL DE 360 °
con LaserTrac MRCRAFTSMAN
Si este sistema de nivelaci6n CRAFTSMAN no le otorga completa satisfacci6n
dentro de un aSo desde fa fecha de compra, DEVUI_LVALO AL ALMACE_N
SEARS MAS CERCANO EN ESTADOS UNIDOS y Sears Io reemplazarA
gratuitamente.
Si este sistema de nivelaci6n CRAFTSMAN se usa para prop6sitos comerciales
o de arriendo, esta garant{a es v_.lida solamente durante 90 dfas a partir
de la fecha de compra.
Esta garanfia le otorga derechos legales especfficos y usted ademAs puede
tener otros derechos que varfan de un estado a otroo
Sears, Roebuck and Co. DepL 817 WA, Hoffman Estates, 1L60179
iCONSERVE ESTAS INSTRUCCIONES!
iLEA TODAS LAS INSTRUCCIONES!
CONTENIDO
Sistema de nivelaci6n, lentes de intensificaci6n del i_.ser,bolsa
de transporte, blanco l&ser Manual del Propietario,
16

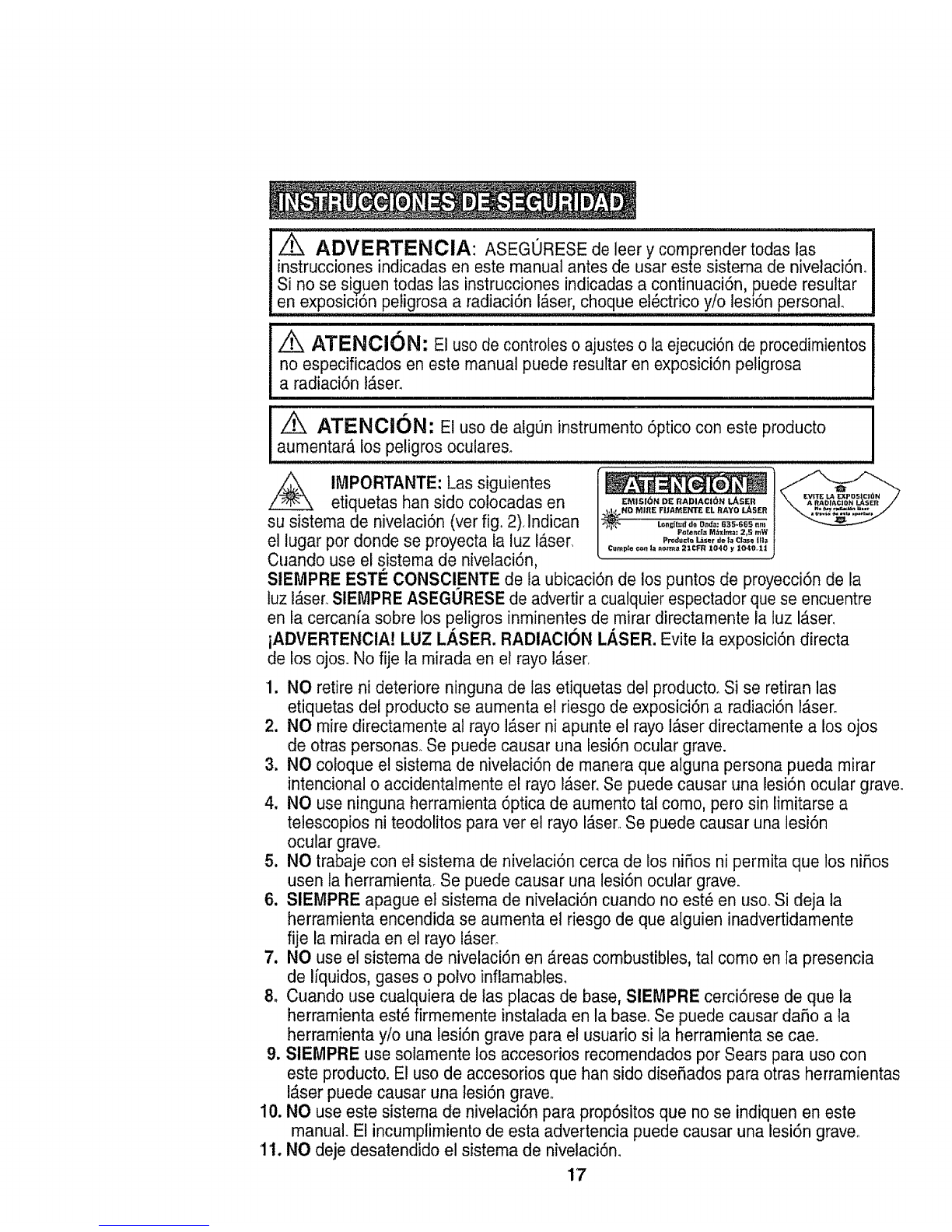

Z_ ADVERTENClA: ASEGORESE de leer y comprender todas las
instrucciones indicadas en este manual antes de usar este sistema de nivelaci6n.
Si no se siguen todas las instrucciones indicadas a continuaci6n, puede resultar
en exposic;6n peligrosa a radiaci6n I_ser, choque el_ctrico y/o lesl6n personal,
Z_ ATENClON: El usode controles o ajustes o la ejecuci6n de procedimientos
no especificados en este manual puede resultar en exposici6n peligrosa
a radiaci6n IAser,
ii i
ATENClON. El uso de algun instrumento 6ptico con este producto
aumentarA los peligros oculares_
Z_ IMPORTANTE: Las siguientes
etiquetas han sido colocadas en
su sistema de nivelaci6n (ver fig° 2).Indican
el lugar por donde se proyecta la luz I_ser I_ _JN DE RADIACI6N I_SER l
NO MIF_£ FIJAMEN'I'E EL RAYO L_S£R
I_ ,-°_'_,"r',:_,:_,_;',','"."_,
| P_ducta L_er d_ _,_Cl:as_ [_]a
Cump_e c_n |a tlor_'_a 21CFR 1040 y 1040,11
Cuando use el sistema de nivelaci6n,
SIEMPRE ESTI_ CONSCIENTE de la ubicaci6n de los puntos de proyecci6n de la
luz I_ser,SlEMPRE ASEGORESE de advertir a cualquier espectador que se encuentre
en fa cercania sobre los petigros inminentes de mirar directamente la tuz laser,
iADVERTENCIA! LUZ LASER. RADIAClON L/_SER. Evite la exposici6n directa
de los ojos. No fije la mirada en el rayo IAser_
1. NO retire ni deteriore ninguna de las etiquetas del producto, Si se retiran las
etiquetas del producto se aumenta el riesgo de exposiciSn a radiaci6n laser.
2. NO mire directamente al rayo laser ni apunte el rayo laser directamente a los ojos
de otras personas. Se puede causar una lesi6n ocular grave.
3, NO coloque el sistema de nivelaci6n de manera que alguna persona pueda mirar
intencional o accidentalmente el rayo l_ser, Se puede causar una lesi6n ocular grave.
4, NO use ninguna herramienta 6ptica de aumento tal como, pero sin limitarse a
telescopios ni teodolitos para ver el rayo I_,ser,Se puede causar una lesi6n
ocular grave°
5, NO trabaje con el sistema de nivetaci6n cerca de los niSos ni permita que los nifios
usen la herramienta_ Se puede causar una tesi6n ocular grave.
6. SlEMPRE apague el sisterna de nivelaci6n cuando no est_ en uso, Si deja la
herramienta encendida se aumenta el riesgo de que alguien inadvertidamente
fije la mirada en el rayo l_ser_
7. NO use el sistema de nivelaci6n en Areas combustibles, ta! como en la presencia
de liquidos, gases o potvo inflamables,
8, Cuando use cualquiera de las placas de base, SlEMPRE cerci6rese de que la
herramienta est6 firmemente instalada en la base. Se puede causar daSo a la
herramienta y/o una lesi6n grave para el usuario si la herramienta se cae,
9. SlEMPRE use solamente los accesorios recomendados por Sears para uso con
este producto. El uso de accesorios que han sido diseSados para otras herramientas
laser puede causar una lesi6n grave°
10. NO use este sistema de nivelaci6n para prop6sitos que no se indiquen en este
manual, El incumplimiento de esta advertencia puede causar una lesi6n grave°
11, NO deje desatendido el sistema de nivelaci6n.
17

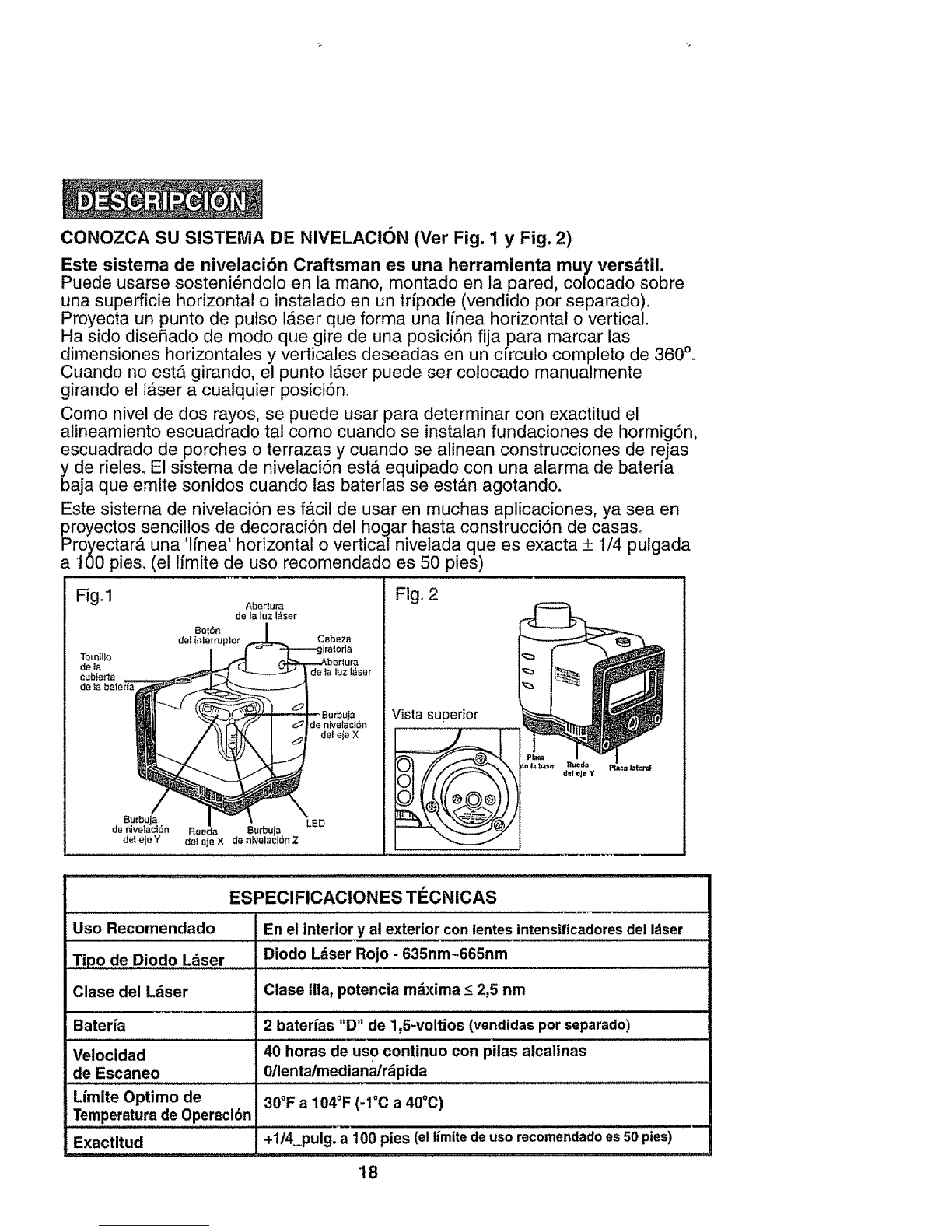

CONOZCASU SISTErvIADE NIVELACION (Ver Fig. 1yFig. 2)
Este sistema de nivelaci6n Craftsman es una herramienta muy versdtil.
Puede usarse sosteni_ndolo en ta mano, montado en la pared, colocado sobre
una superficie horizontal o instalado en un trfpode (vendido por separado)o
Proyecta un punto de pulso 1,4_serque forma una ifnea horizontal o vertical.
Ha sido diseSado de modo que gire de una posici6n fija para marcar las
dimensiones horizontales y verticales deseadas en un cfrculo completo de 360°,,
Cuando no est_ girando, el punto I_ser puede ser cotocado manualmente
girando e! I_ser a cuatquier posiciSn.
Como nivel de dos rayos, se puede usar para determinar con exactitud el
alineamiento escuadrado tal como cuando se instalan fundaciones de hormig6n,
escuadrado de porches o terrazas y cuando se alinean construcciones de rejas
y de rieleso El sistema de nivelaci6n ester equipado con una alarma de baterfa
baja que emite sonidos cuando tas bater[as se est_n agotando.
Este sistema de nivelaci6n es f&cil de usar en muchas aplicaciones, ya sea en
proyectos sencillos de decoraci6n del hogar hasta construcci6n de casaso
Proyectar_ una 'l[nea' horizontal o vertical nivetada que es exacta + 1/4 putgada
a 100 pies. (el lfmite de uso recomendado es 50 pies)
Abertura
de la luz I_ser
Bot6n
de{ interrupter
Fig. 1
Torniito
de ta
cubterta
de Iabater{a
Burbua
de hive act_n Rueda Burbuja
de{ eje Y dei eje X de nIvelaci6n Z
Cabeza
dela IuzI_ser
LED
Fig° 2
Vista superior
ESPECIFICACIONES Ti_CNICAS
Uso Recomendado En el interiory al exteriorconlentesintensificadoresdelI_ser
TiPOde Diodo L_ser Diodo L_ser Rojo - 635nm-.665nm , , i i i i i H .,,,,.LU,,,ul,,,
Clase del L_iser Clase Ilia, potencia m_xima< 2,5 nm
Bater{a 2 baterfas "D" de 1,5-voltios(vendidas porseparado)
Velocidad 40 horas de uso continuo con pilas alcalinas
de Escaneo 0/lenta/mediana/r_pida
Limite Optimo de 3O°Fa 104°F(-1°Ca 40°C)
TemperaturadeOperaci6n
Exactitud +114 pulg. a 100 pies (el limite de uso recomendado es 50 pies)
18

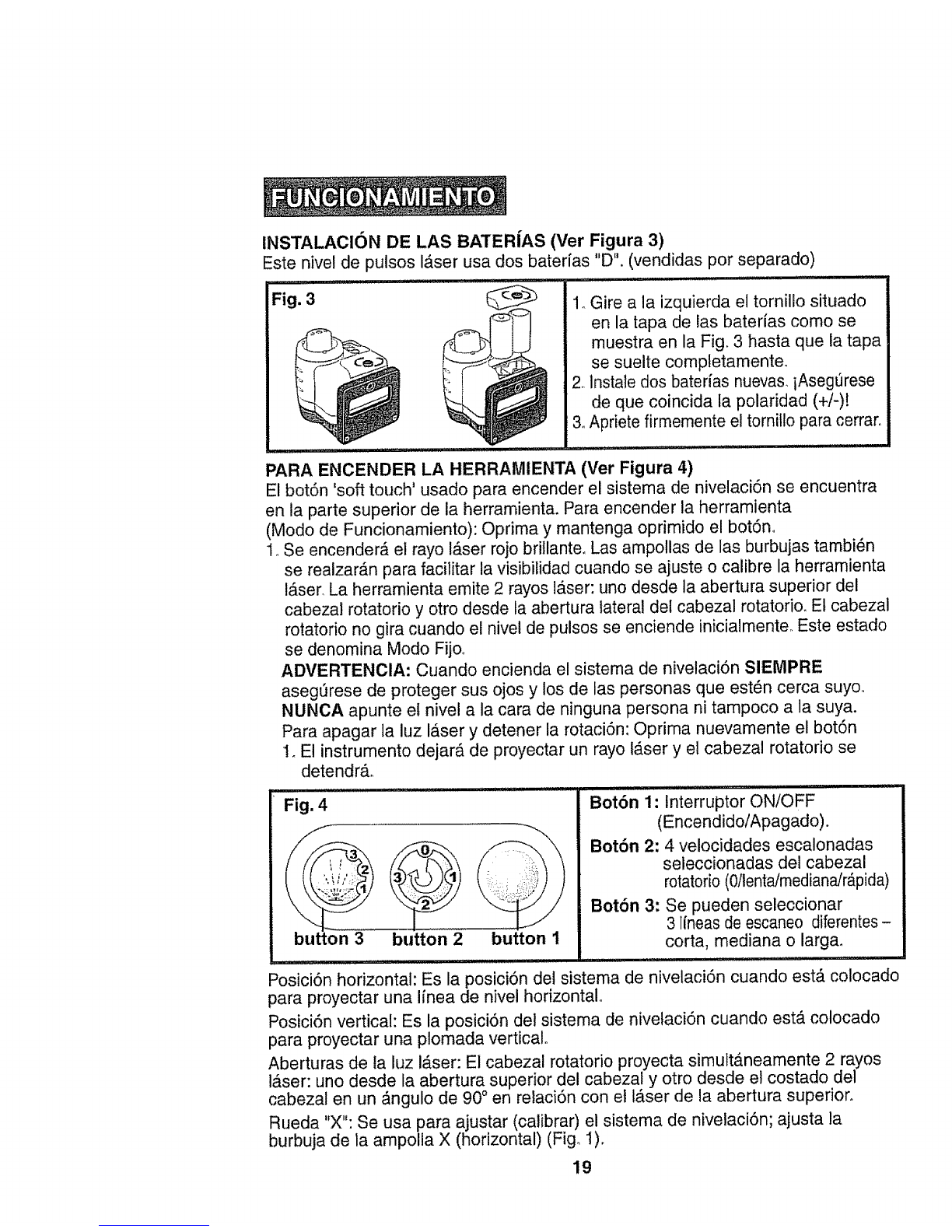

INSTALACI6N DE LAS BATERIAS (Ver Figura 3)
Este nivel de pulsos I&ser usa dos batedas "D". (vendidas por separado)
Fig. 3 1oGire a la izquierda el tornillo situado
en la tapa de las batedas como se
muestra en la Fig. 3 hasta que fa tapa
se suelte completamente°
2olnstale dos baterias nuevas, iAseg_Jrese
de que coincida ta polaridad (+/-)!
3_Apriete firmemente el tomillo para cerraro
PARA ENCENDER LA HERRAMIENTA (Ver Figura 4)
El bot6n 'soft touch' usado para encender el sistema de nivelaci6n se encuentra
en la parte superior de la herramienta. Para encender la herramienta
(Modo de Funcionamiento): Oprima y mantenga oprimido el bot6n°
1, Se encender& el rayo I_.ser rojo brillante. Las ampotlas de las burbujas tambi_n
se realzar_n para facilitar la visibilidad cuando se ajuste o calibre la herramienta
Ib,ser La herramienta emite 2 rayos I&ser: uno desde la abertura superior del
cabezal rotatorio y otro desde la abertura lateral del cabezal rotatorio. Et cabezal
rotatorio no gira cuando el nivel de pulsos se enciende inicialmenteo Este estado
se denomina Modo Fijo.
ADVERTENCIA: Cuando encienda el sistema de nivelaci6n SlEMPRE
aseg6rese de proteger sus ojos y los de las personas que est6n cerca suyo,
NUNCA apunte et nivel a la cara de ninguna persona ni tampoco a la suya.
Para apagar la luz I_.sery detener la rotaci6n: Oprima nuevarnente el bot6n
1. El instrumento dejar_ de proyectar un rayo i_ser y el cabezal rotatorio se
detendr_..
Fig. 4
3button 2 button 1
Bot6n 1: Interruptor ON/OFF
(Encendido/Apagado).
Bot6n 2:4 velocidades escalonadas
seleccionadas del cabezal
rotatorio (0/lentaJmediana/r_pida)
Bot6n 3: Se pueden seleccionar
3 lineas de escaneo diferentes -
corta, mediana o larga.
Posici6n horizontal: Es la posici6n det sistema de nivelaci6n cuando est,. colocado
para proyectar una linea de nivel horizontal°
Posici6n vertical: Es la posici6n del sistema de nivelaci6n cuando ester colocado
para proyectar una plomada vertical°
Aberturas de ta luz laser: El cabezal rotatorio proyecta simultAneamente 2 rayos
I&ser: uno desde la abertura superior del cabezal y otro desde et costado del
cabezal en un Angulo de 90° en relaci6n con et I_.ser de la abertura superior.
Rueda "X": Se usa para ajustar (calibrar) el sistema de nivelaci6n; ajusta la
burbuja de la ampolla X (horizontal) (Fig. t).
19

Rueda"Y":Se usaparaajustar(calibrar)el sistemade nivelaci6n;ajustalas
burbujasde taampollaY (enposici6nhorizontal)y de la ampoltaZ (enposici6n
vertical)(Fig.2).
Uso de los Lentes Provistos
Coneste nivelse incluyeunpar de lentesprotectoresest__ndaresfabricadosde
unmaterialqueintensificala luz laser.Elprop6sitoprimordialdeestoslenteses
mejorarlavisibilidaddefusuariode la linea laserde laherramienta.
ADVERTENClA:EstoslentesNOprotegerAnlosojoscontradafiosquepodrfan
resultaral rnirardirectamentela proyecci6ndellaser.
REGULACtON DE LAS RUEDAS NIVELANTES "X!' Y"Y"
PARA AJUSTAR (CALIBRAR) EL SISTEMA DE NtVELACION
Para calibrar el sistema de nivelaci6n, siga estas instrucciones:
1oSi el sistema de nivelaci6n estA en
posici6n horizontal, ajuste las ruedas
"X" y "Y". La rueda "X" controla la
ampolla de la burbuja X y la rueda "Y"
controla la ampotla de ta burbuja Yo
Ajuste las dos ruedas asegurAndose
de que las burbujas X yY queden en
el centro de cada ampolla(Figo 5)°
Fig. 5
iil©ilrt¸¸)
2_ Si el sistema de nivelaci6n estA en
posici6n vertical, ajuste la rueda "Y".
La rueda "Y" controla la ampolla de la
burbuja Z. Ajuste la rueda "Y"
asegurAndose de que la burbuja
de la ampolla Z quede en el centro
de la burbuja_
NOTA: El sistema de nivelaci6n puede
ser instalado en un tfipode (vendido
por separado) usando los agujeros
roscados situados en la placa de base
o en la ptaca lateral
(mostrada en la Fig. 6).
Nivele la placa de montaje en la base
del tfipode tanto como sea posible antes de instalar el sistema de nivelaci6n.
Despues de instalar y asegurar et sistema de nivelaci6n en la placa de base de!
tfipode, realice los pasos 1 y 2 anteriores para ajustar (calibrar) e! sistema de
nivelaci6n en su nueva posiciono
20
Table of contents
Languages:
Other Craftsman Laser Level manuals

Craftsman
Craftsman 320.48293 User manual

Craftsman
Craftsman 320.48291 User manual

Craftsman
Craftsman 320.48293 User manual

Craftsman
Craftsman 320.48292 User manual

Craftsman
Craftsman CMHT77634 User manual

Craftsman
Craftsman 320.48290 User manual

Craftsman
Craftsman 320. 48295 User manual

Craftsman
Craftsman 320.48251 User manual

Craftsman
Craftsman CMHT77629 User manual

Craftsman
Craftsman CMHT77630 User manual
