Owner's Manual
42-nnch Universal
Tow Behind
POWER MOWER
Model No. 486.243292
CAUTION:
Before using this product, read
this manual and follow all
Safety Rules and
Operating Instructions.
• Safety
• Assembly
• Operation
• Maintenance
• Parts
IMPORTANT - READ THIS FIRST!!!
For Missing Parts or Assembly Questions
Please Call 217-728-8388
Mon.-Fri. 7 am - 5 pm CST.
FAX 217-728-2032 or e-mail [email protected]
Missing parts will be sent UPS in 24 hours directly to your home.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
PRINTED IN U.S.A. FORM NO. 48839 (3/03)
TABLE OF CONTENTS
WARRANTY ............................................................... 2
SAFETY RULES .................................................... 3-4
CARTON CONTENTS ............................................... 5
ASSEMBLY ............................................................ 6-8
WIRING DIAGRAM .................................................... 8
OPERATION ......................................................... 9-13
MAINTENANCE ................................................. 14-15
SERVICE AND ADJUSTMENT ......................... 16-17
STO RAG E ................................................................ 18
REPAIR PARTS LISTS ...................................... 20-22
SLOPE GUIDE ......................................................... 23
PARTS ORDERING/SERVICE ................ Rear Cover
LIMITED WARRANTY ON CRAFTSMAN POWERED TRACTOR ATTACHMENTS
For one (1) year from the date of purchase, if this Craftsman Equipment is maintained, lubricated and tuned
up according to the instructions in the owner's manual, Sears will repair or replace free of charge any parts
found to be defective in material or workmanship. Warranty service is available free of charge by returning
your Craftsman equipment to your nearest Sears Service Center. In-home warranty service is available but
a trip charge will apply. This Warranty applies only while this product is in the United States.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as spark plugs, air cleaners, belts, and oil
filters.
•Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or
glass.
• Repairs necessary because of operator abuse, including but not limited to, damage caused by impacting
objects that bend the frame or crankshaft, or over-speeding the engine.
• Repairs necessary because of operator negligence, including but not limited to, electrical and mechanical
damage caused by improper storage, failure to use the proper grade and amount of engine oil, or failure
to maintain the equipment according to the instructions contained in the owner's manual.
• Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or oxidized
(stale). In general, fuel should be used within 30 days of its purchase date.
• Equipment used for commercial or rental purposes.
LIMITED WARRANTY ON BATTERY
For ninety (90) days from date of purchase, if any battery included with the equipment proves defective in
material or workmanship and our testing determines the battery will not hold a charge, Sears will replace the
battery at no charge. Warranty service is available free of charge by returning your Craftsman equipment to
your nearest Sears Service Center. In-home warranty service is available but a trip charge will apply. This
Warranty applies only while this product is in the United States.
TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE SERVICE,
SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to
state.
2

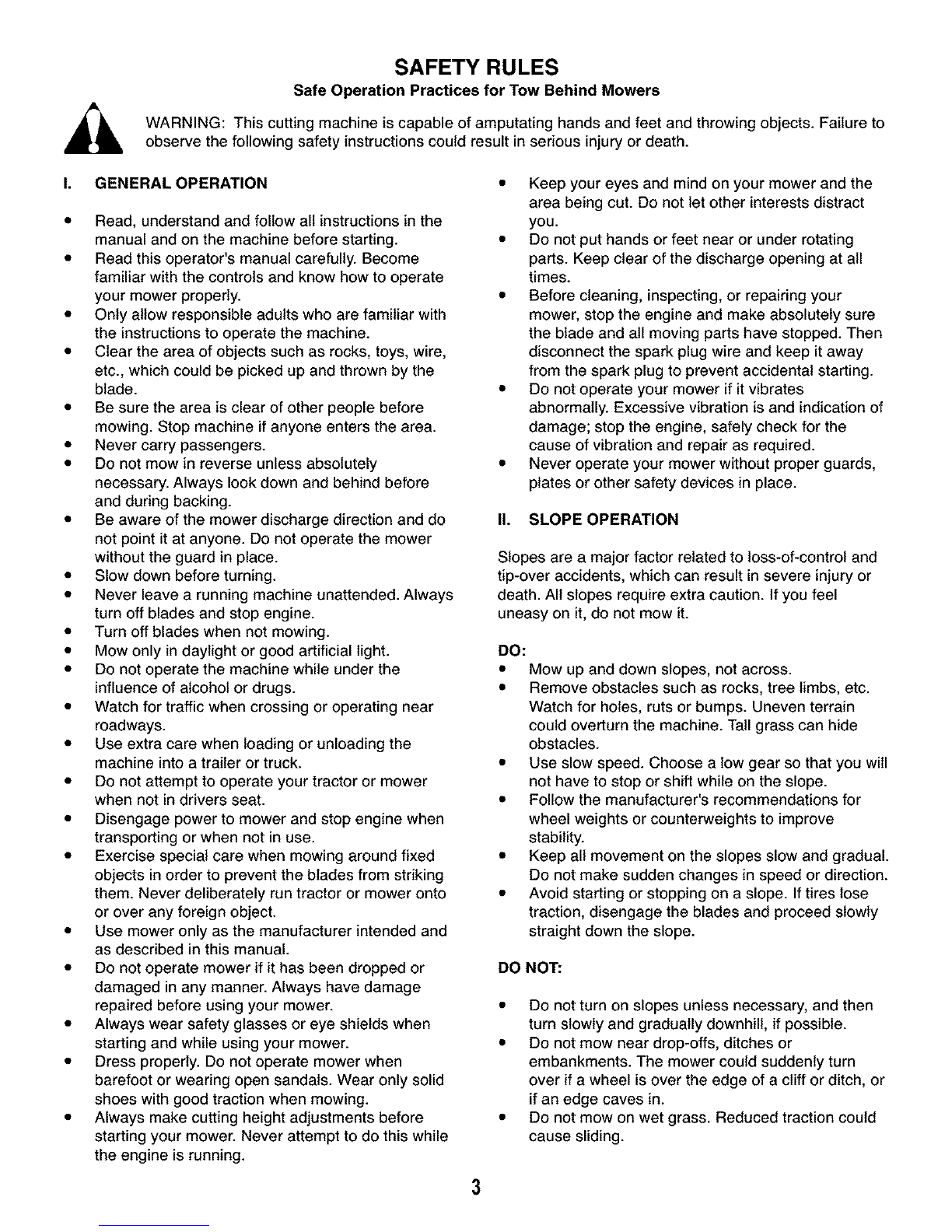

SAFETY RULES
Safe Operation Practices for Tow Behind Mowers
WARNING: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to
observe the following safety instructions could result in serious injury or death.
LGENERAL OPERATION
Read, understand and follow all instructions in the
manual and on the machine before starting.
Read this operator's manual carefully. Become
familiar with the controls and know how to operate
your mower properly.
• Only allow responsible adults who are familiar with
the instructions to operate the machine.
• Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the
blade.
• Be sure the area is clear of other people before
mowing. Stop machine if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely
necessary. Always look down and behind before
and during backing.
• Be aware of the mower discharge direction and do
not point it at anyone. Do not operate the mower
without the guard in place.
• Slow down before turning.
• Never leave a running machine unattended. Always
turn off blades and stop engine.
• Turn off blades when not mowing.
• Mow only in daylight or good artificial light.
• Do not operate the machine while under the
influence of alcohol or drugs.
• Watch for traffic when crossing or operating near
roadways.
• Use extra care when loading or unloading the
machine into a trailer or truck.
• Do not attempt to operate your tractor or mower
when not in drivers seat.
• Disengage power to mower and stop engine when
transporting or when not in use.
• Exercise special care when mowing around fixed
objects in order to prevent the blades from striking
them. Never deliberately run tractor or mower onto
or over any foreign object.
• Use mower only as the manufacturer intended and
as described in this manual.
• Do not operate mower if it has been dropped or
damaged in any manner. Always have damage
repaired before using your mower.
• Always wear safety glasses or eye shields when
starting and while using your mower.
• Dress properly. Do not operate mower when
barefoot or wearing open sandals. Wear only solid
shoes with good traction when mowing.
• Always make cutting height adjustments before
starting your mower. Never attempt to do this while
the engine is running.
• Keep your eyes and mind on your mower and the
area being cut. Do not let other interests distract
you.
• Do not put hands or feet near or under rotating
parts. Keep clear of the discharge opening at all
times.
• Before cleaning, inspecting, or repairing your
mower, stop the engine and make absolutely sure
the blade and all moving parts have stopped. Then
disconnect the spark plug wire and keep it away
from the spark plug to prevent accidental starting.
• Do not operate your mower if it vibrates
abnormally. Excessive vibration is and indication of
damage; stop the engine, safely check for the
cause of vibration and repair as required.
• Never operate your mower without proper guards,
plates or other safety devices in place.
II. SLOPE OPERATION
Slopes are a major factor related to loss-of-control and
tip-over accidents, which can result in severe injury or
death. All slopes require extra caution. If you feel
uneasy on it, do not mow it.
DO:
•Mow up and down slopes, not across.
•Remove obstacles such as rocks, tree limbs, etc.
Watch for holes, ruts or bumps. Uneven terrain
could overturn the machine. Tall grass can hide
obstacles.
•Use slow speed. Choose a low gear so that you will
not have to stop or shift while on the slope.
•Follow the manufacturer's recommendations for
wheel weights or counterweights to improve
stability.
• Keep all movement on the slopes slow and gradual.
Do not make sudden changes in speed or direction.
• Avoid starting or stopping on a slope. If tires lose
traction, disengage the blades and proceed slowly
straight down the slope.
DO NO_
• Do not turn on slopes unless necessary, and then
turn slowly and gradually downhill, if possible.
• Do not mow near drop-offs, ditches or
embankments. The mower could suddenly turn
over if a wheel is over the edge of a cliff or ditch, or
if an edge caves in.
• Do not mow on wet grass. Reduced traction could
cause sliding.
3
III. CHILDREN
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the machine and the mowing activity. Never assume
that children will remain where you last saw them.
• Keep children out of the mowing area and under
the watchful care of another responsible adult.
• Be alert and turn machine off if children enter the
area.
• Before and when backing, look behind and down
for small children.
• Never carry children. They may fall off and be
seriously injured or interfere with safe machine
operation.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners,
shrubs, trees or other objects that may obscure
vision.
IV. SERVICE
Use extra care in handling gasoline and other fuels.
They are flammable and vapors are explosive.
• Use only an approved container.
• Never remove gas cap or add fuel with the
engine running.
• Allow engine to cool before refueling. Do not
smoke near or while operating mower.
• Never refuel the machine indoors.
• Never store the machine or fuel container inside
a room where there is an open flame, such as
with a gas water heater.
Never run a machine inside a closed area.
Keep nuts and bolts, especially blade attachment
nuts, tight and keep equipment in good condition.
Never tamper with safety devices. Check their
proper operation regularly.
Keep machine free of grass, leaves or other debris
build-up. Clean oil or fuel spillage. Allow machine to
cool before storing.
Stop and inspect the equipment if you strike an
object. Repair, if necessary, before restarting.
Never make adjustment or repairs with the engine
running.
Mower blades are sharp and can cut. Wrap the
blade(s) or wear gloves, and use extra caution
when servicing them.
Check brake operation frequently. Adjust and
service as required.
Look for this symbol to point out
important safety precautions. It
means CAUTION!!! BECOME
ALERT!!! YOUR SAFETY IS
INVOLVED.
CAUTION: Always disconnect spark
plug wire and place wire where St
cannot contact spark plug in order to
prevent accidental starting when
setting up, transporting, adjusting or
making repairs.
4
Please read and keep this manual. The instructionswill
enable you to assemble and maintain your Power
Mower propedy. Always observe the "Safety Rules."
Record sedal number and date of purchase in space
provided below.
MODEL
NUMBER: 486.243292
SERIAL
NUMBER:
DATE OF
PURCHASE:
The model and sedal numbers will be found on a
plate attached to the right side of the Ddve Housing.
You should record both serial number and date of
of purchase and keep in asafe place for future
reference.
WARNING: This unit is equipped with an
internal combustion engine and should
not be used on or near any unimproved
forest-covered or grass-covered land
unless the engine's exhaust system is equipped
with a spark arrester meeting applicable local or
state laws (if any). If a spark arrester is used, it
should be maintained in effective working order by
the operator.
In the state of California the above is required by
law (Section 4442 of the California Public Resources
Code). Other states may have similar laws. Federal
laws apply on federal lands. A spark arrester for the
muffler is available through your nearest Sears
Authorized Service Center.
PRODUCT SPECIFICATIONS
HORSEPOWER: 8.0
DISPLACEMENT: 21 CU. IN.
GASOLINE CAPACITY: 1.4 GALLONS
GASOLINE TYPE: UNLEADED REGULAR
OIL TYPE (API-SF/SG): S,_E 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
3.0 PINTS
CHAMPION RC12YC
OIL CAPACITY:
SPARK PLUG:
(GAP: .030")
VALVE CLEARANCE: INTAKE: .003 - .005 IN.
EXHAUST: .005- .007 IN.
BLADE BOLT TORQUE 35-40 FT. LBS.
TIRE PRESSURE 10 PSI
WIDTH OF CUT 42 INCHES
III
CONTENTS OF CARTON
PARTS PACKED SEPARATELY IN CRATE
PARTS BAG
MOWER DECK
PARTS BAG CONTENTS
CABLE GUIDE (2)
OPERATOR PRESENCE SEAT
1/2 CABLE CLIP (3)
3/8 CABLE CLIP (3)
_SCREW (3)
5
REMOVING UNIT FROM CRATE
•Remove top boards.
• Remove two Bolts from front of crate which hold
shipping anchors.
• Remove two Bolts from bottom at rear of crate
which hold shipping anchors.
• Remove Hitch Assembly and Parts Bag from crate.
• Remove Roller Bolt from Front Roller, Remove
shipping anchors and reinstall Roller Bolt.
• Remove Nuts from Height Adjustment Straps and
remove shipping anchors from each side of mower.
Reinstall Nuts to Height Adjustment Straps, then
loosen 1/4 turn to allow straps to pivot freely.
• Check all loose parts and bag contents against
Crate Contents and Bag Contents illustration on
page 5. If any part is missing or damaged contact
the store where you purchased the unit.
_, CAUTION: Before starting to
assemble mower, remove spark plug
wire from plug of mower engine.
OPERATOR ORIENTATION
When right and left are mentioned in this manual, it
means your right and your left when you are seated
behind the wheel in the operating position.
ENGINE OIL
VERY IMPORTANT:
Engine must be filled with oil before operation. See OIL
& FUEL RECOMMENDATIONS in engine Owner's
Manual for correct filling instructions and oil fill capacity.
INSTALL TOWBAR TUBE TO REAR
QUADRANT
• Cut and remove the Plastic Tie which holds the Wire
Harness and the Clutch Cable to the Rear
Quadrant. (See Fig. 1)
• Remove two 3/8 Bolts, two 3/8 Lock Nuts and one
3/8 Flat Washer from the rear of the Towbar Tube.
• Place tube into Rear Quadrant, align holes, insert
3/8-16 x 2-1/2 Hex Bolt through rear hole of tube.
• Secure tightly with 3/8-16 Lock Nut then loosen Nut
1/4 turn to allow tube to pivot freely inside Rear
Quadrant.
• Assemble a 3/8 Flat Washer onto a 3/8-16 x 2-1/2
Hex Bolt.
• Insert Bolt and Washer through slot of Rear
Quadrant and hole in Towbar Tube.
• Secure tightly with 3/8-16 Lock Nut then loosen Nut
1/4 turn to allow tube to pivot freely inside Rear
Quadrant.
NOTE: Towbar Tube must pivot freely inside Rear
Quadrant when latch is pulled from notch.
INSTALL CLUTCH CABLE AND WIRE
HARNESS TO TOWBAR TUBE.
• Unwrap the Wire Harness and the Clutch Cable
from around the Engine.
• Lay the Clutch Cable along the left side of the
Towbar Tube and lay the Wire Harness along the
right side of the Towbar Tube.
• Install three 3/8" Cable Clips on the Clutch Cable
and three 1/2" Cable Clips onto the Wire Harness.
• Align all six Cable Clips with the holes in the Towbar
Tube and secure them with three #10 Self-Tapping
Screws.
INSTALL CLUTCH CABLE TO THE HITCH
ASSEMBLY
• Remove the 1/4" Lock Nut and 1/4" x 3/4" Bolt from
the Clutch Cable Eyelet.
• Screw one 5/16" Nut off the Clutch Cable Housing
and onto the bare cable wire. Screw the second
5/16" Nut all the way onto the Clutch Cable Hous-
ing. Insert the Clutch Cable Eyelet through the
slotted hole in the Cable Anchor on the Hitch
Assembly.
NOTE: The loose 5/16" Nut on the cable wire must be
cocked at an angle to fit through the slotted hole.
• Fasten the Clutch Cable Eyelet to the Clutch Lever,
reusing the 1/4" x 3/4" Hex Bolt and 1/4" Lock Nut.
Tighten the 1/4" Lock Nut securely and then loosen
approximately two turns to allow the cable to pivot
freely on the bolt.
• Screw the loose 5/16" Nut back onto the Clutch
Cable Housing. Use the 5/16" Nuts to adjust the
cable to the proper tension.
VERY IMPORTANT
See DRIVE TENSION on page 16 in the SERVICE AND
ADJUSTMENTS Section of this manual for proper
Clutch Cable adjustment.
6
ON/OFF
SWITCH
1/4"
!
L_X'-J_ %'_ .,/t I "
it #
//
11
q
RING NUT
OND
RING NUT
(3
©
_ f
#10 SELF
BOLT 318 X 24/2 TAPPING
SCREW
3/5 FLAT WASHER "_ I
318 CABLE CLIP (3) _f_
1/2 CABLE CLiP
SWITCH
MOUNTING
BRACKET
CLUTCH CABLE
REAR QUADRANT //7' CABLE
// TOW BAR TUBE
WIRE HARNESS
318 LOCK NUT HITCH AS
INSTALL THE WIRE HARNESS AND THE
ON/OFF SWITCH
• Slide the Wire Harness under the Cable Anchor of
the Hitch Assembly.
• Connect two 1/4 Female Spade Connectors from
the Wire Harness to the prongs of the ON/OFF
Switch.
• Insert the Seat Switch Plug of the Wire Harness into
the Hitch Assembly, Pulling it up and through the
right top side of the Switch Mounting Bracket.
• Remove one Ring Nut from the ON/OFF Switch and
adjust the second Ring Nut 1/4 Inch from the top of
the threads.
• Insert the ON/OFF Switch up through the Switch
Mounting Bracket and secure it by reinstalling the
Ring Nut.
NOTE: The notch in the threads of the ON/OFF Switch
must face toward the "ON" of the ON/OFF Switch Decal
to insure proper ON/OFF control.
CABLE EYELET
MOWER BLADE
CLUTCH LEVER
CLUTCH CABLE-
HOUSING
CABLE
ANCHOR" _
NUT 5/16 (2)
CABLE
GUIDE
WIRE HARNE_
FIG. 1
BOLT 1/4 X3/4
HITCH
ASSEMBLY
SWITCH
MOUNTING
SWITCH
RING NUT
CONNECTOR
_NUT
7
CABLE GUIDE
WIRE
CONNECTOR
OPERATOR PRESENCE SEAT
SEAT STRAPS
FIG. 1A
INSTALL OPERATOR PRESENCE SEAT TO
TRACTOR
Your Mower is equipped with and Operator Presence
Seat to provide for your safety. The Operator Presence
Seat must be installed on the seat of the tow vehicle
and must be plugged in to the Wire Harness of the
Mower for proper operation of this unit.
NOTE: In order to start the mower en_line you must
have the Operator Presence Seat plugged into the Wire
Harness of the Mower and the Mower Blade Clutch
Lever in the disengaged position. In order to en_laq{tthe
Mower Blades You must be seated on the Tow Vehicle
and on the Operator Presence Seat.
*Place the Operator Presence Seat on the Tractor
Seat with the Wire toward the bottom and secure
with the seat strap. (See Fig. 1A)
•Lift Tractor Seat and install a cable guide in the
middle of the Tractor rear fenders.
• Place Operator Presence Seat Wire into Cable
Guide with the connector toward the rear so as to
connect with the Seat Switch Plug of the Wire
Harness.
•Lower Tractor Seat
• Connect Operator Presence Seat wire to the Seat
Switch Plug of the Wiring Harness.
SAFETy SEAT _\
\\\
WIRING DIAGRAM
AUTOMATIC GROUND
LER
BLACK WiRE (E)
FROM MODULE TO
ENGINE GROUND
RED W{RE_
FROM ON,'QFF SWtTCH
TO MAGNETO GROUND
BLUE WIREFROMSAFETYSEAT_
TOLOWERSPADEOFSWITCN
\\\_SWITCH
ENGINEON/OFF
8LACK WtRE
FROM ON,OFF SWITCH
TO ENGINE GROUND
T}LU_%_ERREFpRADOME_AGNwEITTOcGROU N D
8
KNOW YOUR MOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR MOWER.
Compare the illustrations with your mower to familiarize yourself with the location of various controls and adjustments.
Save the manual for future reference,
THROTTLE
CONTROL
HEIGHT
ADJUSTMENT
STRAP
HEIGHT
ADJUSTMENT
LIFT LEVER
\
FIG. 2
RECOIL START
MOWER BLADE
CLUTCH LEVER
SHUT OFF
CONTROL
TOW HIT_
OFFSET TOW BAR
ADJUSTMENT HEIGHT
ADJUSTMENT
MOWER BLADE CLUTCH LEVER - Starts and stops
mower blade rotation
THROTTLE CONTROL - Controls engine speed, engine
shut-off
SHUT OFF CONTROL - Used to shut off mower engine
from tractor seat
HEIGHT ADJUSTMENT LIFT LEVER -Raise and lower
mower to different cutting heights
HEIGHT ADJUSTMENT STRAP - Controls cutting
height
TOW BAR HEIGHT ADJUSTMENT - To level mower
front to rear
RECOIL START HANDLE -Used to start engine
TOW HITCH OFFSET ADJUSTMENT - To adjust
mower deck offset from tractor center
CHOKE CONTROL - Opens and closes choke
9
The operation of any mower can result in foreign objects being thrown into the eyes,
which can result in severe eye damage. Always wear safety glasses or eye shields
before starting your mower and while mowing. We recommend wide vision safety mask
for over the spectacles or standard safety glasses.
CHILDREN
Tragic accidents can occur if the operator is not alert to the presence of children.
Children are often attracted to the machine and the mowing activity. Never
assume that children will remain where you last saw them.
HOW TO USE YOUR MOWER ATTACHING MOWER TO TRACTOR
STOPPING
• Move blade clutch lever to Off position,
• Move engine shut off switch to Off position.
• Move engine throttle to Stop position,
STARTING
,, Move engine shut off switch to On position.
• Move engine throttle to Full position.
• Move choke to full.
• Move blade clutch lever to Off position.
• Pull start rope.
• Move engine choke to Off position after engine
starts.
USE
• Sit on tractor seat.
• Raise blade clutch leverto Engage position.
• Operate tractor at medium ground speed.
(3-4 MPH)
• Refer to Safety Rules on page 3 and to
the Slope Guide on page 23 regarding
operation of mower on slopes,
TRANSPORTING
• Shut off engine.
• Place mower deck in the highest position directly
behind tractor.
• Place mower behind tractor and back tractor up to it
for attaching. (See Fig. 3)
• Slide tow bar of mower over tractor drawbar so that
the hitch pin holes line up.
• Insert hitch pin until it extends through the bottom of
the tow bar,
• Insert hair cotter pin through hitch pin,
HITCH Pff
TRACTOR
DRAWBAR
HAIR COTTER PIN
FIG. 3
_lJ CAUTION:
Never operate the mower without discharge
chute cover in its proper place.
10
