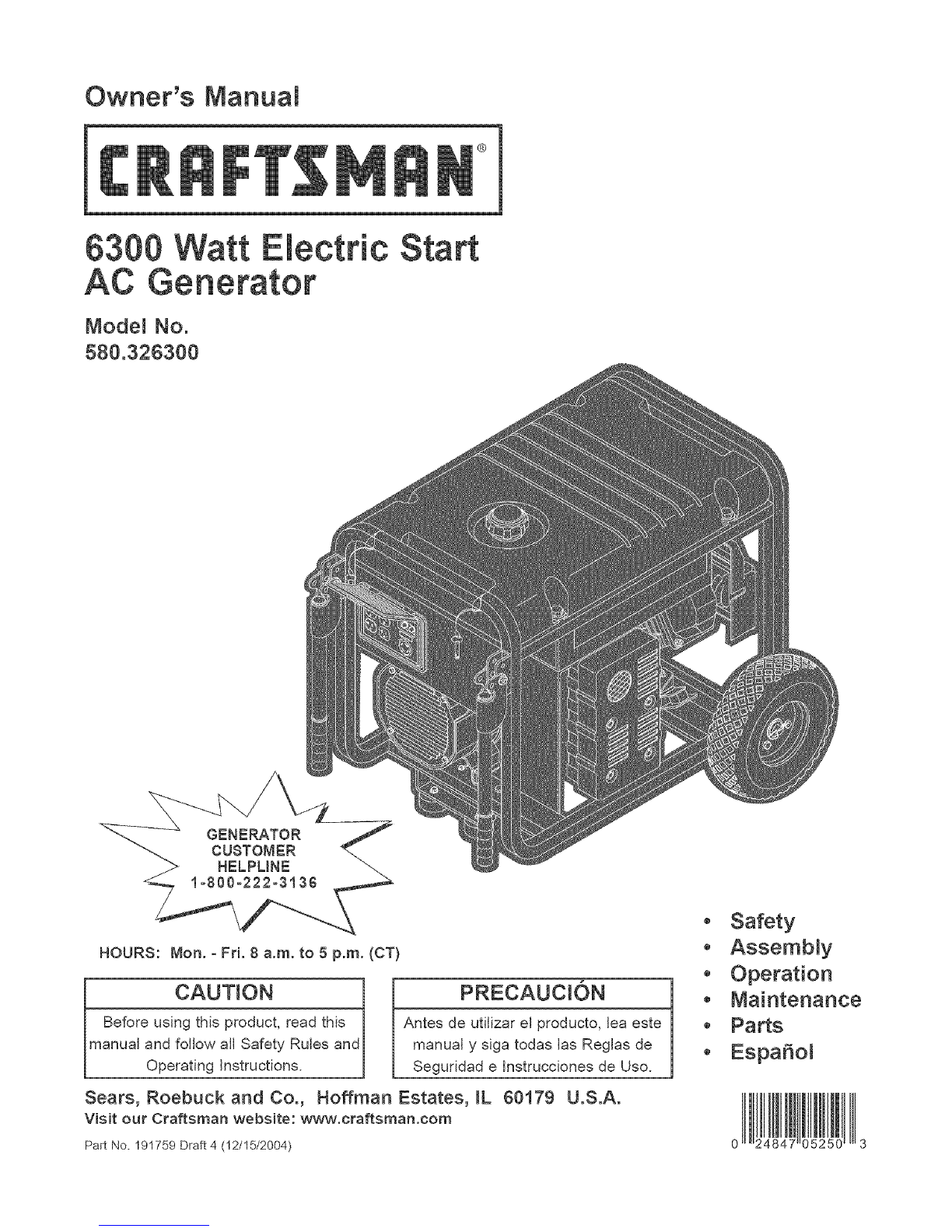

Craftsman 580.326300 User manual

Owner's Manual
®
Start
AC
Model No.
580.326300
GENERATOR
CU8TOMER
HELPLJNE
HOURS: Non. -Fri. 8 a.m. to 5p.m. (CT)
CAUTION
Before using this product, read this
manual and follow all Safety Rules and
Operating Instructions.
Sears, Roebuck and Co., Hoffman Estates, _L 60179 U.S.A.
Visit our Craftsman website: www.craftsmamcom
Part No. 191759 Draft 4 (I2/15/2004)
PRECAUCION
Antes de utilizar el producto, lea este
manual y siga todas las Reglas de
Seguridad e Instrucciones de Uso.
o Safety
o Assembly
o Operation
o Maintenance
o Parts
oEspa_oN
0 3

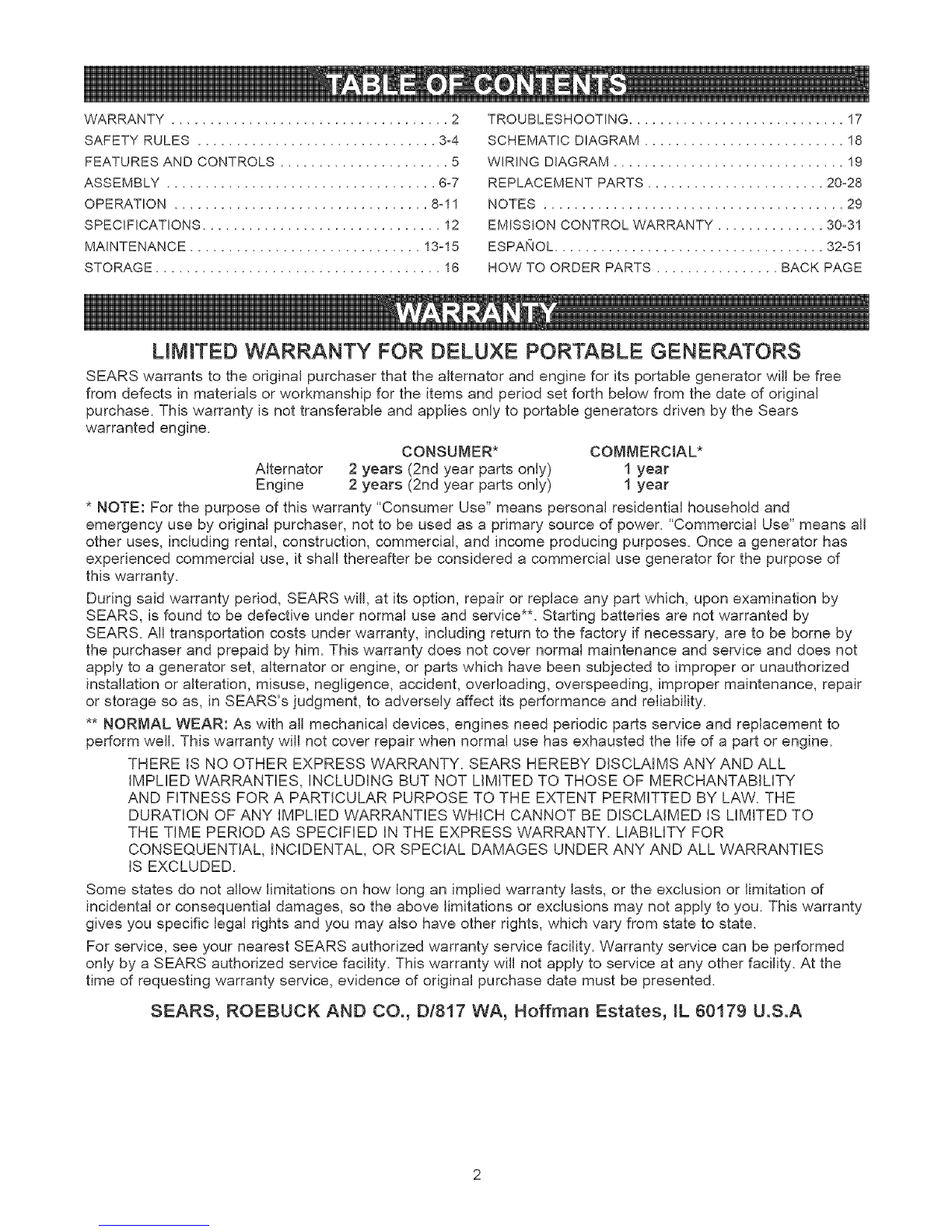

WARRANTY .................................... 2
SAFETY RULES ............................... 3-4
FEATURES AND CONTROLS ...................... 5
ASSEMBLY ................................... 6-7
OPERATION ................................. 8-11
SPECIFICATIONS ............................... 12
MAINTENANCE .............................. 13o15
STORAGE ..................................... 16
TROUBLESHOOTING ............................ 17
SCHEMATIC DIAGRAM .......................... 18
WIRING DIAGRAM .............................. 19
REPLACEMENT PARTS ....................... 20°28
NOTES ....................................... 29
EMISSION CONTROL WARRANTY .............. 30o31
ESPA!_OL ................................... 32o51
HOW TO ORDER PARTS ................ BACK PAGE
LIMITED WARRANTY FOR DELUXE PORTABLE GENERATORS
SEARS warrants to the original purchaser that the alternator and engine for its portable generator will be free
from defects in materials or workmanship for the items and period set forth below from the date of original
purchase. This warranty is not transferable and applies only to portable generators driven by the Sears
warranted engine. CONSUMER* COMMERCIAL*
Alternator 2 years (2nd year parts only) 1 year
Engine 2 years (2nd year parts only) 1 year
* NOTE: For the purpose of this warranty "Consumer Use" means personal residential household and
emergency use by original purchaser, not to be used as a primary source of power. "Commercial Use" means all
other uses, including rental, construction, commercial, and income producing purposes. Once a generator has
experienced commercial use, it shall thereafter be considered a commercial use generator for the purpose of
this warranty.
During said warranty period, SEARS will, at its option, repair or replace any part which, upon examination by
SEARS, is found to be defective under normal use and service**. Starting batteries are not warranted by
SEARS. All transportation costs under warranty, including return to the factory if necessary, are to be borne by
the purchaser and prepaid by him. This warranty does not cover normal maintenance and service and does not
apply to a generator set, alternator or engine, or parts which have been subjected to improper or unauthorized
installation or alteration, misuse, negligence, accident, overloading, overspeeding, improper maintenance, repair
or storage so as, in SEARS's judgment, to adversely affect its performance and reliability.
** NORMAL WEAR: As with all mechanical devices, engines need periodic parts service and replacement to
perform well. This warranty will not cover repair when normal use has exhausted the life of a part or engine.
THERE IS NO OTHER EXPRESS WARRANTY. SEARS HEREBY DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THOSE OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE TO THE EXTENT PERMITTED BY LAW. THE
DURATION OF ANY IMPLIED WARRANTIES WHICH CANNOT BE DISCLAIMED IS LIMITED TO
THE TIME PERIOD AS SPECIFIED IN THE EXPRESS WARRANTY. LIABILITY FOR
CONSEQUENTIAL, INCIDENTAL, OR SPECIAL DAMAGES UNDER ANY AND ALL WARRANTIES
IS EXCLUDED.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights and you may also have other rights, which vary from state to state.
For service, see your nearest SEARS authorized warranty service facility. Warranty service can be performed
only by a SEARS authorized service facility. This warranty will not apply to service at any other facility. At the
time of requesting warranty service, evidence of original purchase date must be presented.
SEARS, ROEBUCK AND CO., Dt817 WA, Hoffman Estates, _L 60179 U.S.A

This is the safety alert symbol. It is used to alert you to potentiam personal inju_' hazards.
Obey all safety messages that foltow this symbol to avoid possible injury or death.
ii-!-j_ij Read this manuat carefully and become
familiar with your pressure washer. Know its
applications, its limitations, and any hazards
involved.
The safety alert symbol (,&) is used with a signal
word (DANGER, CAUTION, WARNING), a pictorial
and/or a safety message to alert you to hazards.
DANGER indicates a hazard which, if not avoided, wil/
result in death or serious injury. WARNING indicates a
hazard which, if not avoided, could result in death or
serious injury. CAUTION indicates a hazard which, if
not avoided, might result in minor or moderate injury.
CAUTION, when used without the alert symbol,
indicates a situation that could result in equipment
damage. FoJlow safety messages to avoid or reduce
the risk of injury or death.
WARNING
The engine exhaust from this product contains
chemicams known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
• This generator does not meet U. S. Coast Guard
Regulation 33CFR-183 and should not be used on
marine applications.
• Failure to use the appropriate U. S. Coast Guard
approved generator could result in bodily injury and/or
property damage.
Hazard Symbols and Meanings
Electrocution Electrical Shock Electrical Shock
Explosion Fire
Toxic Fumes Hot Surface Kickback
WARNING
Operate generator ONLY outdoors.
Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes or other openings.
DO NOT operate generator inside any building or
enclosure, including the generator compartment of a
recreational vehicle (RV).
WARNING
When using generator for backup power, notify utility
company. Use approved transfer equipment to isolate
generator from electric utility.
Use a ground circuit fault interrupter (GFCI) in any damp
or highly conductive area, such as metal decking or steel
work.
DO NOT touch bare wires or receptacles.
DO NOT use generator with electrical cords which are
worn, frayed, bare or otherwise damaged.
DO NOT operate generator in the rain.
DO NOT handle generator or electrical cords while
standing in water, while barefoot, or while hands or feet
are wet.
DO NOT allow unqualified persons or children to operate
or service generator.
WARNtNG
When starting engine, pull cord slowly until resistance is
felt and then pull rapidly to avoid kickback.
NEVER start or stop engine with electrical devices
plugged in and turned on.

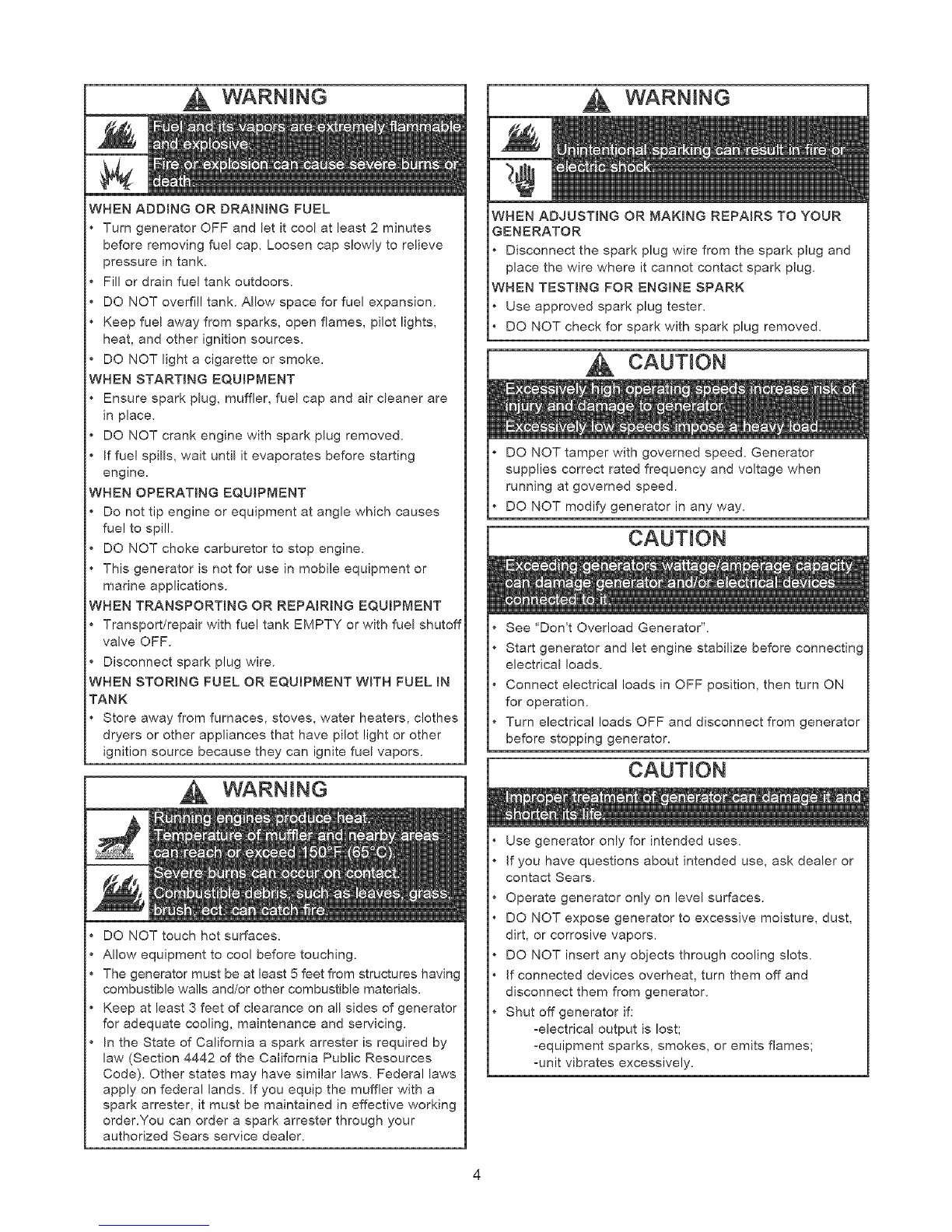

WARNING
WHEN ADDING OR DRAINmNG FUEL
Turn generator OFF and let it cool at least 2 minutes
before removing fuel cap. Loosen cap slowly to relieve
pressure in tank.
Fill or drain fuel tank outdoors.
DO NOT overfill tank. Allow space for fuel expansion.
Keep fuel away from sparks, open flames, pilot lights,
heat, and other ignition sources.
DO NOT light a cigarette or smoke.
WHEN STARTING EQUIPMENT
Ensure spark plug, muffler, fuel cap and air cleaner are
in place.
DO NOT crank engine with spark plug removed.
If fuel spills, wait until it evaporates before starting
engine.
WHEN OPERATING EQUIPPv_ENT
Do not tip engine or equipment at angle which causes
fue! to spill.
DO NOT choke carburetor to stop engine.
This generator is not for use in mobile equipment or
marine applications.
WHEN TRANSPORTING OR REPAIRING EQUIPMENT
Transport/repair with fuel tank EMPTY or with fuel shutoff
valve OFF.
Disconnect spark plug wire.
WHEN STORING FUEL OR EQUIPMENT WiTH FUEL IN
TANK
Store away from furnaces, stoves, ,water heaters, clothes
dryers or other appliances that have pilot light or other
ignition source because they can ignite fuel vapors.
WARNING
DO NOT touch hot surfaces.
Allow equipment to cool before touching.
The generator must be at least 5 feet from structures having
combustible walls and/or other combustible materials.
Keep at least 3 feet of clearance on all sides of generator
for adequate cooling, maintenance and servicing.
In the State of California a spark arrester is required by
law (Section 4442 of the California Public Resources
Code). Other states may have similar laws. Federal laws
apply on federal lands. If you equip the muffler with a
spark arrester, it must be maintained in effective working
order.You can order a spark arrester through your
authorized Sears service dealer.
WARNING
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR
GENERATOR
+Disconnect the spark plug wire from the spark plug and
place the wire where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
Use approved spark plug tester.
DO NOT check for spark with spark plug removed.
CAUTION
DO NOT tamper with governed speed. Generator
supplies correct rated frequency and voltage when
running at governed speed.
DO NOT modify generator in any way.
CAUTION
See "Don't Overload Generator".
Start generator and let engine stabilize before connecting
electrical loads.
Connect electrical loads in OFF position, then turn ON
for operation.
Turn electrical loads OFF and disconnect from generator
before stopping generator.
CAUTION
Use generator only for intended uses.
If you have questions about intended use, ask dealer or
contact Sears.
Operate generator only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
dirt, or corrosive vapors.
DO NOT insert any objects through cooling slots.
If connected devices overheat, turn them off and
disconnect them from generator.
Shut off generator if:
-electrical output is lost;
-equipment sparks, smokes, or emits flames;
-unit vibrates excessively.

KNOW YOUR GENERATOR
Read the owner's manual and safety rules before operating your generator.
Compare the illustrations with your generator to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Fuel Valve
(not shown)_./)
Fuel Tank
Rocker Switch
(on engine shroud)
Recoil Starter
(not shown)
Choke
Lever
iCleaner
Oil Fill
(2) 120 Volt AC,
20 Amp Duplex
Receptacles /
120/240 Volt AC,
30 Amp Receptacle
Circuit
Breakers (AC)
120 Volt AC, 20 Amp, Duplex Receptacles -- May
be used to supply electrical power for the operation of
120 Volt AC, 20 Amp, single phase, 60 Hz electrical,
lighting, appliance, tool and motor loads.
1201240 Volt AC, 30 Amp Locking Receptacle --
May be used to supply electrical power for the
operation of 120 and/or 240 Volt AC, 30 Amp, single
phase, 60 Hz electrical, lighting, appliance, tool and
motor loads.
Air Cleaner -- Filters intake air as it is drawn into the
engine.
Choke Lever -- Used when starting a cold engine.
Circuit Breakers (AC) -- Push to reset circuit
breakers are provided to protect the generator against
electrical overload.
Spark Attester Muffler
Grounding Fastener
Fue_ Tank -- Capacity of seven (7) U.S. gallons.
Fuel Valve -- Used to turn fuel on and off to engine.
Grounding Fastener -- If required, please consult a
qualified electrician, electrical inspector, or local
agency having jurisdiction.
O{I Fill -- Add engine oil here.
Recoil Starter -- Used to start the engine.
Rocker Switch -- Set this switch to "On" before using
recoil starter. Set switch to "Off" to switch off engine.
Spark Attester Muffler- Exhaust muffler lowers
engine noise and is equipped with a spark attester
screen.

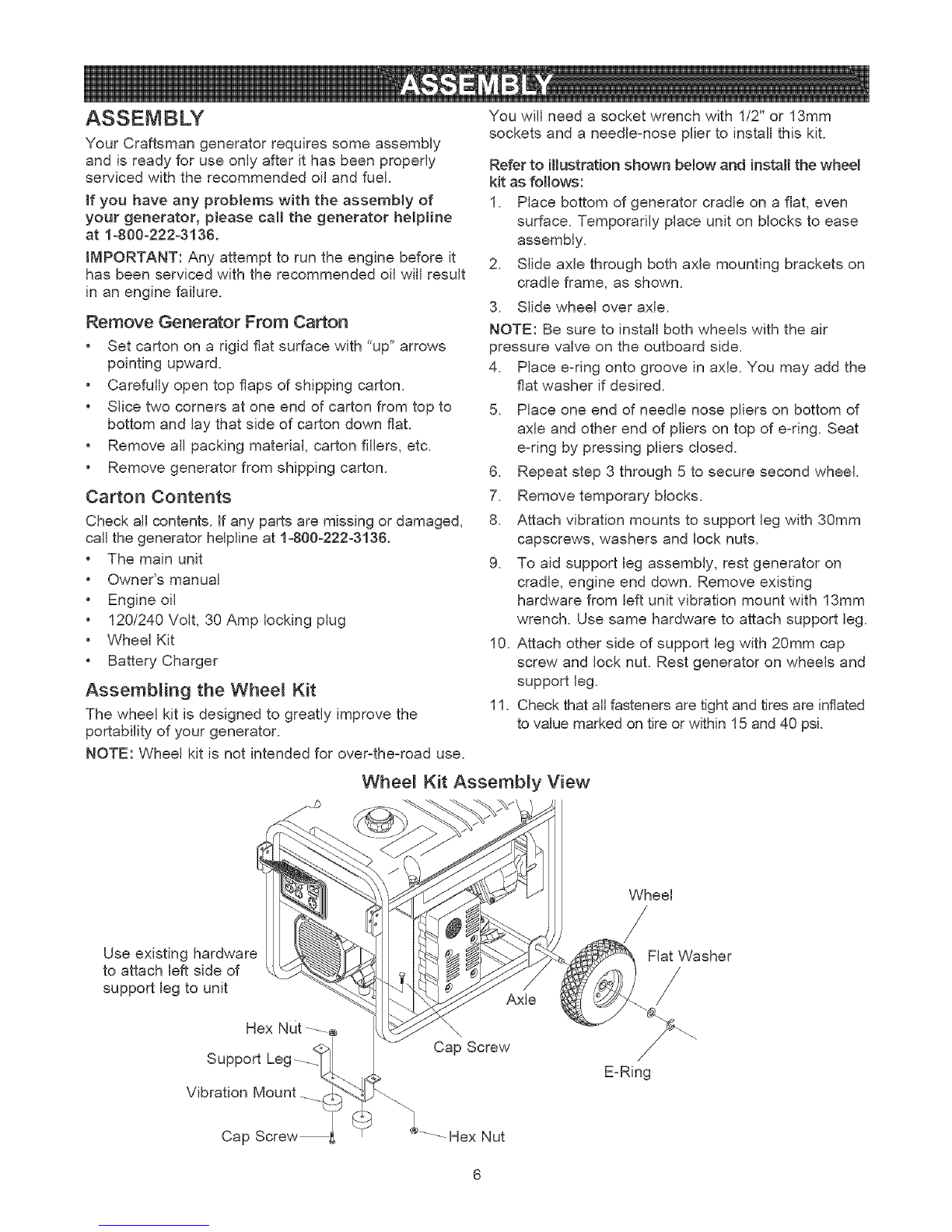

ASSEMBLY
Your Craftsman generator requires some assembly
and is ready for use only after it has been properly
serviced with the recommended oil and fuel.
If you have any problems with the assembly of
your generator, please call the generator helpline
at 1-800-222-3136.
IMPORTANT: Any attempt to run the engine before it
has been serviced with the recommended oil will result
in an engine failure.
Remove Generator From Carton
• Set carton on a rigid flat surface with "up" arrows
pointing upward.
• Carefully open top flaps of shipping carton.
• Slice two corners at one end of carton from top to
bottom and lay that side of carton down flat.
• Remove all packing material, carton fillers, etc.
•Remove generator from shipping carton.
Carton Contents
Check all contents. If any parts are missing or damaged,
call the generator helpline at 1-800-222-3136.
•The main unit
•Owner's manual
•Engine oil
•120/240 Volt, 30 Amp locking plug
•Wheel Kit
•Battery Charger
Assembling the Whee_ Kit
The wheel kit is designed to greatly improve the
portability of your generator.
NOTE: Wheel kit is not intended for over-the-road use.
You will need a socket wrench with 1/2" or 13mm
sockets and a needle-nose plier to install this kit.
Refer to illustration shown below and install the wheel
kit as follows:
1. Place bottom of generator cradle on a flat, even
surface. Temporarily place unit on blocks to ease
assembly.
2. Slide axle through both axle mounting brackets on
cradle frame, as shown.
3. Slide wheel over axle.
NOTE: Be sure to install both wheels with the air
pressure valve on the outboard side.
4. Place e=ring onto groove in axle. You may add the
flat washer ifdesired.
5. Place one end of needle nose pliers on bottom of
axle and other end of pliers on top of e=ring. Seat
e=ring by pressing pliers closed.
6. Repeat step 3 through 5 to secure second wheel.
7. Remove temporary blocks.
8. Attach vibration mounts to support leg with 30mm
capscrews, washers and lock nuts.
9. To aid support leg assembly, rest generator on
cradle, engine end down. Remove existing
hardware from left unit vibration mount with 13mm
wrench. Use same hardware to attach support leg.
10. Attach other side of support leg with 20mm cap
screw and lock nut. Rest generator on wheels and
support leg.
11. Check that all fasteners are tight and tires are inflated
to value marked on tire or within 15 and 40 psi.
Whee_ Kit Assembly View
Wheel
Use existing hardware
to attach left side of
support leg to unit
Hex Nut ---_
Support Leg
Vibration
Axle
Cap Screw
Flat Washer
/
E=Ring
Cap Hex Nut

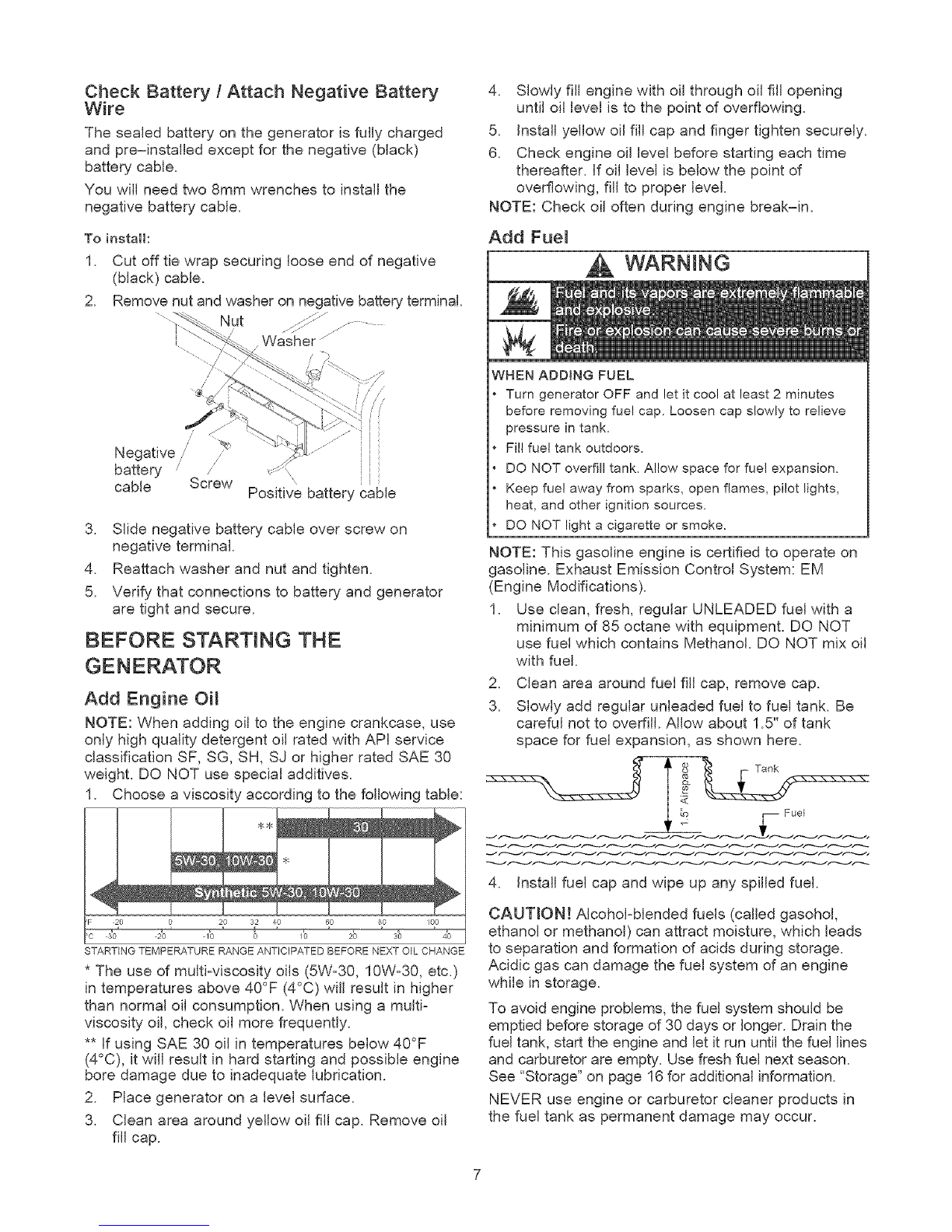

Check Battery tAttach Negative Battery
Wire
The sealed battery on the generator is fully charged
and pre-installed except for the negative (black)
battery cable.
You will need two 8mm wrenches to install the
negative battery cable.
To install:
.
2.
Cut off tie wrap securing loose end of negative
(black) cable.
Remove nut and washer on negative battery terminal
Nut _.:::::::".........
wds her.........
Negative/' _/
battery ' / ,,i
cable Screw Positive battery cable
3. Slide negative battery cable over screw on
negative terminal.
4. Reattach washer and nut and tighten.
5. Verify that connections to battery and generator
are tight and secure.
BEFORE STARTING THE
Add Engine OH
NOTE: When adding oil to the engine crankcase, use
only high quality detergent oil rated with API service
classification SF, SG, SH, SJ or higher rated SAE 30
weight. DO NOT use special additives.
1. Choose a viscosity according to the following table:
STARTING TEMPERATURE RANGE ANTICIPATED BEFORE NEXT O_L CHANGE
* The use of multi-viscosity oils (5W=30, 10W=30, etc.)
in temperatures above 40°F (4°C) will result in higher
than normal oil consumption. When using a multi=
viscosity oil, check oil more frequently.
** If using SAE 30 oil in temperatures below 40°F
(4°C), it will result in hard starting and possible engine
bore damage due to inadequate lubrication.
2. Place generator on a level surface.
3. Clean area around yellow oil fill cap. Remove oil
fill cap.
4. Slowly fill engine with oil through oil fill opening
until oil level is to the point of overflowing.
5. Install yellow oil fill cap and finger tighten securely.
6. Check engine oil level before starting each time
thereafter. If oil level is below the point of
overflowing, fill to proper level.
NOTE: Check oil often during engine break-in.
Add Fue_
WARNING
WHEN ADDING FUEL
Turn generator OFF and let it coo! at least 2 minutes
before removing fuel cap. Loosen cap slowly to relieve
pressure in tank.
Fill fuel tank outdoors.
DO NOT overfill tank. Allow space for fuel expansion.
Keep fuel away from sparks, open flames, pilot lights,
heat, and other ignition sources.
DO NOT light a cigarette or smoke.
NOTE: This gasoline engine is certified to operate on
gasoline. Exhaust Emission Control System: EM
(Engine Modifications).
1. Use clean, fresh, regular UNLEADED fuel with a
minimum of 85 octane with equipment. DO NOT
use fuel which contains Methanol. DO NOT mix oil
with fuel.
2. Clean area around fuel fill cap, remove cap.
3. Slowly add regular unleaded fuel to fuel tank. Be
careful not to overfill. Allow about 1.5" of tank
space for fuel expansion, as shown here.
4. InstaJl fueJ cap and wipe up any spiJJedfuel
CAUTRON! Alcohol-blended fuels (called gasohol,
ethanol or methanol) can attract moisture, which leads
to separation and formation of acids during storage.
Acidic gas can damage the fuel system of an engine
while in storage.
To avoid engine problems, the fuel system should be
emptied before storage of 30 days or longer. Drain the
fuel tank, start the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel next season.
See "Storage" on page 16 for additional information.
NEVER use engine or carburetor cleaner products in
the fuel tank as permanent damage may occur.

HOW TO USE YOUR GENERATOR
if you have any problems operating your generator,
please ca++the generator helpline at 1=800-222-3136+
System Ground
The generator has a system ground that connects the
generator frame components to the ground terminals
on the AC output receptacles. The system ground is
connected to the AC neutral wire (the neutra+ is
bonded to the generator flame).
SpeciamRequirements
There may be Federa+ or State Occupationa+ Safety
and Health Administration (OSHA) regulations, local
codes, or ordinances that apply to the intended use of
the generator. Please consult a qualified electrician,
electrica+ inspector, or the loca+agency having
jurisdiction.
• in some areas, generators are required to be
registered with loca+utility companies.
• if the generator is used at a construction site, there
may be additiona+ regulations which must be
observed.
Connecting to a Build+rig's E_ectrica_
System
Connections for standby power to a bui+ding's
electrica+ system must be made by a qualified
electrician. The connection must isolate the generator
power from utility power, and must comply with all
applicable laws and electrical codes.
WARNING
When using generator for backup power, notify utility
company. Use approved transfer equipment to isolate
generator from electric utility.
Use a ground circuit fault interrupter (GFCI) in any damp
or highly conductive area, such as metal decking or steel
work.
DO NOT touch bare wires or receptacles.
DO NOT use generator with electrical cords which are
worn, frayed, bare or otheP,,vise damaged.
DO NOT operate generator in the rain.
DO NOT handle generator or electrical cords while
standing in water, while barefoot, or while hands or feet
are wet,
DO NOT allow unqualified persons or children to operate
or service generator.
Generator Location
Generator Clearance
WARNtNG
Operate generator ONLY outdoors.
Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes or other openings.
DO NOT operate generator inside any building or
enclosure, including the generator compartment of a
recreational vehicle (RV).
The generator must be at least 5 ft. (152 cm) from
structures having combustible walls and/or other
combustible materials. Leave at least 3 ft. (92 cm) all
around generator including overhead, for adequate
cooling, maintenance and servicing.
Place generator in a well ventilated area, which will
allow for removal of deadly exhaust gas+ DO NOT
place generator where exhaust gas could accumulate
and enter inside or be drawn into a potentially
occupied building. Ensure exhaust gas is kept away
from any windows, doors, ventilation intakes or other
openings that can allow exhaust gas to collect in a
confined area. Prevailing winds and air currents
should be taken into consideration when positioning
generator.
/
/
Typical Generator Shown
Exhaust Port

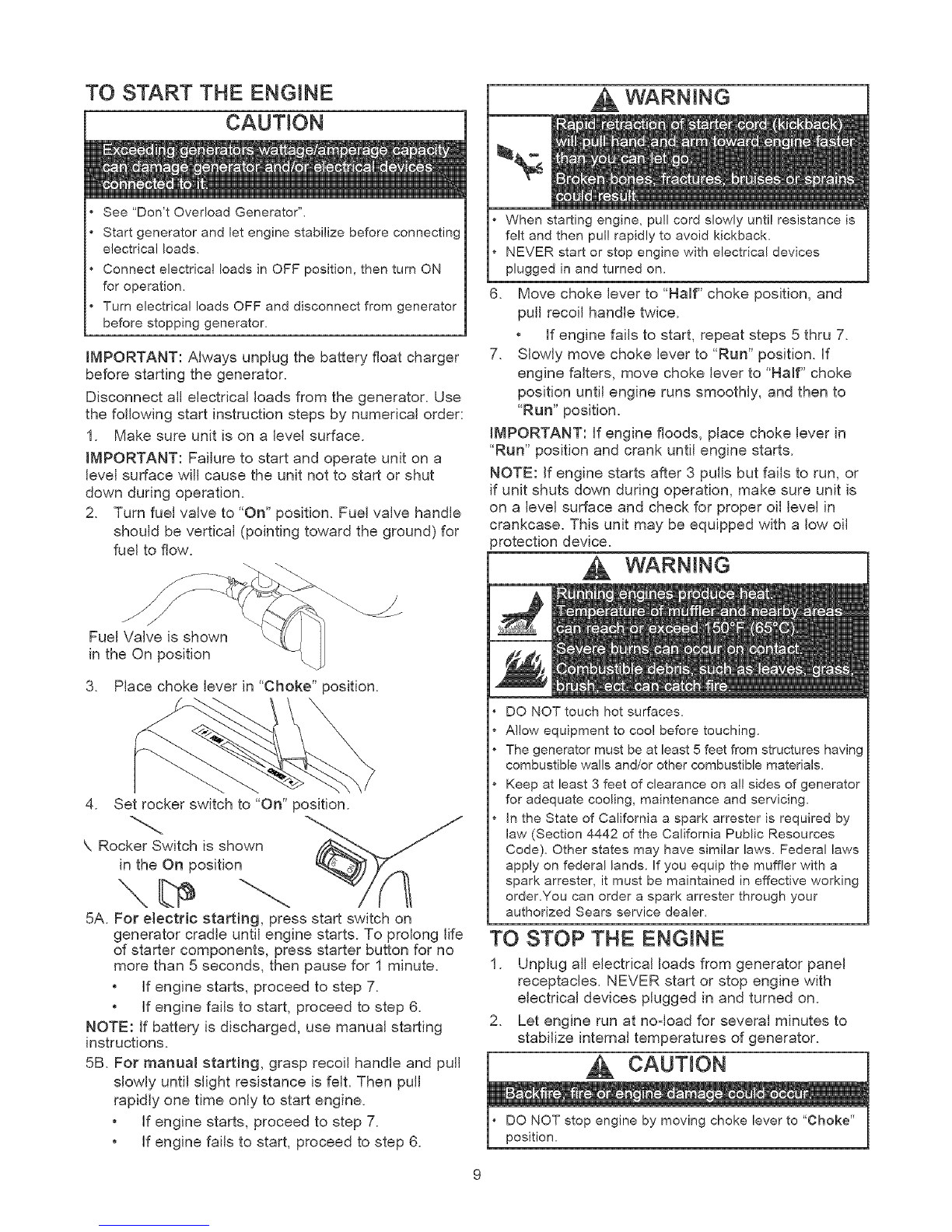

TO START THE ENGINE
CAUTION
See "Don't Overload Generator",
Start generator and let engine stabilize before connecting
electrical loads,
Connect electrical loads in OFF position, then turn ON
for operation,
Turn electrica! loads OFF and disconnect from generator
before stopping generator,
IMPORTANT: Always unplug the battery float charger
before starting the generator.
Disconnect all electrical loads from the generator. Use
the following start instruction steps by numerical order:
1. Make sure unit is on a level surface.
IMPORTANT: Failure to start and operate unit on a
level surface will cause the unit not to start or shut
down during operation.
2. Turn fuel valve to "On" position. Fuel valve handle
should be vertical (pointing toward the ground) for
fuel to flow.
3. Place choke lever in "Choke" position.
4. Set rocker switch to "On" position.
k Rocker Switch is shown
in the On position
5A. For electric starting, press start switch on
generator cradle until engine starts. To prolong life
of starter components, press starter button for no
more than 5 seconds, then pause for 1 minute.
• if engine starts, proceed to step 7.
• if engine fails to start, proceed to step 6.
NOTE: If battery is discharged, use manual starting
instructions.
5B. For manua! starting, grasp recoil handle and pull
slowly until slight resistance is felt. Then pull
rapidly one time only to start engine.
• If engine starts, proceed to step 7.
• If engine fails to start, proceed to step 6.
WARNING
When starting engine, pull cord slowly until resistance is
felt and then pul! rapidly to avoid kickback,
NEVER start or stop engine with electrical devices
plugged in and turned on.
6. Move choke lever to "Half" choke position, and
pull recoil handle twice.
• If engine fails to start, repeat steps 5 thru 7.
7. Slowly move choke lever to "Run" position. If
engine falters, move choke lever to "Hamf"choke
position until engine runs smoothly, and then to
"Run" position.
IMPORTANT: If engine floods, place choke lever in
"Run" position and crank until engine starts.
NOTE: If engine starts after 3 pulls but fails to run, or
if unit shuts down during operation, make sure unit is
on a level surface and check for proper oil level in
crankcase. This unit may be equipped with a low oil
orotection device.
WARNING
DO NOT touch hot surfaces,
Allow equipment to coo! before touching.
The generator must be at least 5 feet from structures having
combustible wails and/or other combustible materials.
Keep at least 3 feet of clearance on all sides of generator
for adequate cooling, maintenance and servicing.
In the State of California a spark arrester is required by
law (Section 4442 of the California Public Resources
Code), Other states may have similar laws. Federal laws
apply on federal lands. If you equip the muffler with a
spark arrester, it must be maintained in effective working
orderXou can order a spark arrester through your
authorized Sears service dealer,
TO STOP THE ENGtNE
1. Unplug all electrical loads from generator panel
receptacles. NEVER start or stop engine with
electrical devices plugged in and turned on.
2. Let engine run at noqoad for several minutes to
stabilize internal temperatures of generator.
, O NOT stop engine by moving choke lever to "Choke"
position,

3. Move rocker switch to "Off" position.
4. Move fuel valve to "Off" position.
CONNECTING ELECTRICAL LOADS
• DO NOT connect 240 Volt loads to 120 Volt
receptacles.
• DO NOT connect 3-phase loads to the generator.
• DO NOT connect 50 Hz loads to the generator.
• Let engine stabilize and warm up for a few minutes
after starting.
• Plug in and turn on the desired 120 and/or 240 Volt
AC, single phase, 60 Hz electrical loads.
• DO NOT OVERLOAD GENERATOR. See"Don't
Overload Generator".
CORD SETS AND RECEPTACLES
Use only high quality, weGinsulated, extension cords
with the generator's 120 Volt electrical receptacles.
Check the ratings of all extension cords before you
use them. Extension cord sets used should be rated
for 125 Volt AC loads at 20 Amps or greater for most
electrical devices. Some devices, however, may not
require this type of extension cord. Check the owner's
manuals of those devices for the manufacturer's
recommendations.
Keep extension cords as short as possible, preferably
less than 15 feet long, to prevent voltage drop and
possible overheating of wires.
CAUTION i
• NEVER attempt to power a device requiring more
amperage than generator or receptacle can supply,
• DO NOT overload the generator, See "Don't Overload
Generator",
120 Volt AC, 20 Amp Duplex Receptacle
Each receptacle is protected against overload by a
single 20 Amp push-to-reset circuit breaker. Use each
receptacle to operate 120 Volt AC, single phase 60 Hz
electrical loads requiring up to 2,400 watts (2.4 kW) at
20 Amps of current.
120/240 Volt AC, 30 Amp Receptacle
This is a full capacity receptacle; it can supply the
generator's full rated output from this sole outlet. The
outlet is protected by two 30 Amp push-to-reset
circuit breakers.
4-Wire Cord Set
/
1
NEMA L14-30
(Neutral)
Y (Hot) _ X (Hot)
Ground (Green)
A NEMA L14-30 plug is used with this 240 Volt
receptacle. Connect a suitable 4-wire cord set to the
plug and to the desired load. The cord set should be
rated for 250 Volt AC loads at 30 Amps (or greater).
How to Use the Battery Charger
Use battery charger jack to keep the starting battery
charged and ready for use. Battery charging should be
done in a dry location, such as inside a garage.
1. Plug charger into unit's "12V DC Battery Charger"
jack, which is located on control panel. Plug
battery charger into a 120 Volt AC wall rece )tacle.
y
2. Unplug charger from unit and wall outlet when
generator is being started and while in operation.
3. Keep charger plugged in when generator is not in
use to prolong battery life. The charger has a built
in float equalizer and will not overcharge battery,
even when plugged in for an extended period of
time.
IMPORTANT: See "Battery Maintenance" on page 13
for additional information.
10

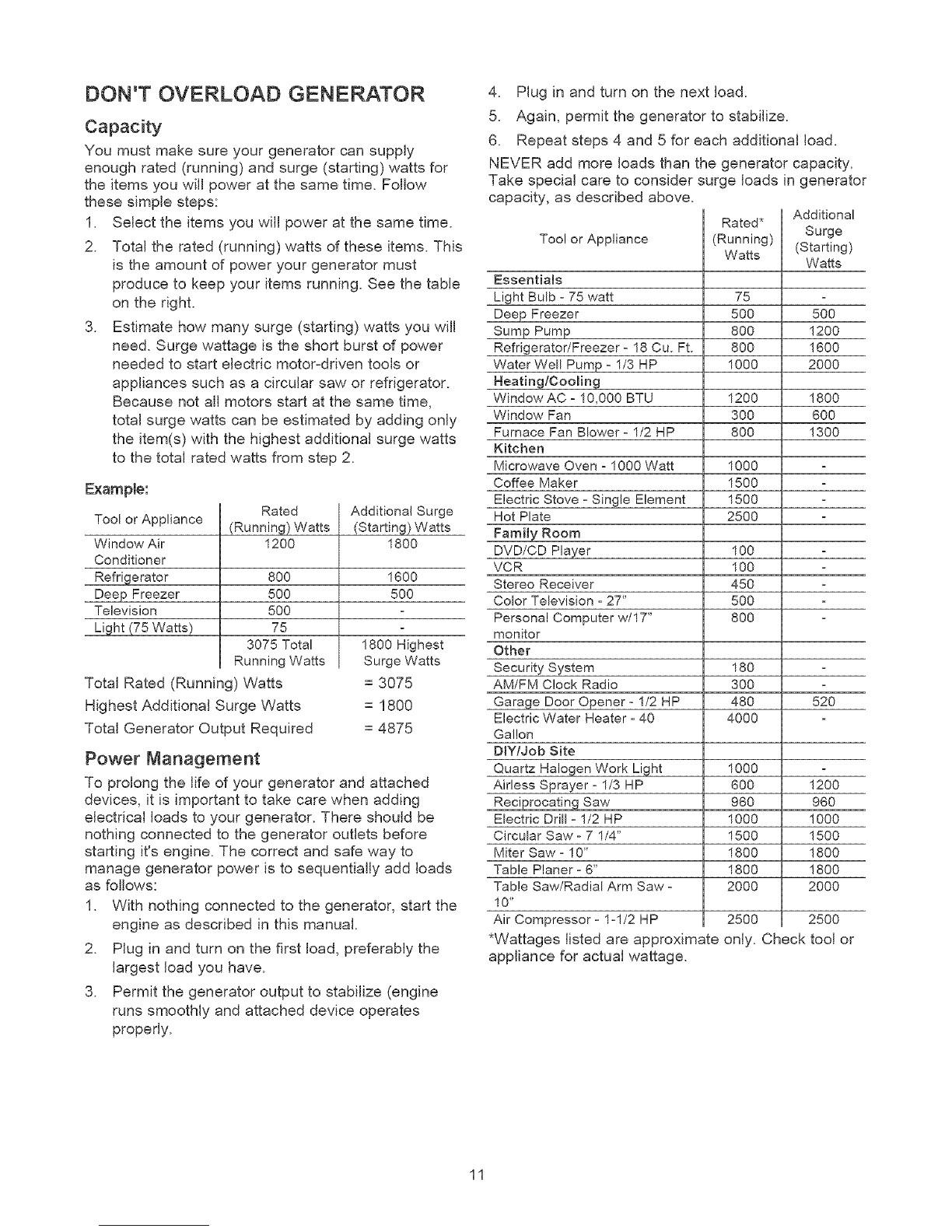

DON'T OVERLOAD GENERATOR
Capacity
You must make sure your generator can supply
enough rated (running) and surge (starting) watts for
the items you will power at the same time. Follow
these simple steps:
1. Select the items you will power at the same time.
2. Total the rated (running) watts of these items. This
is the amount of power your generator must
produce to keep your items running. See the table
on the right.
3. Estimate how many surge (starting) watts you will
need. Surge wattage is the short burst of power
needed to start electric motor-driven tools or
appliances such as a circular saw or refrigerator.
Because not all motors start at the same time,
total surge watts can be estimated by adding only
the item(s) with the highest additional surge watts
to the total rated watts from step 2.
Example:
Tool or Appliance
Window Air
Conditioner
Refrigerator
Deep Freezer
Television
Li ht z75 Watts
Rated
(Running) Watts
1200
8OO
5OO
5OO
75
3075 Total
Running Watts
Total Rated (Running) Watts
Highest Additional Surge Watts
Total Generator Output Required
Power Management
Additional Surge
(Starting) Watts
1800
1600
500
1800 Highest
Surge Watts
= 3075
= 1800
= 4875
To prolong the life of your generator and attached
devices, it is important to take care when adding
electrical loads to your generator. There should be
nothing connected to the generator outlets before
starting it's engine. The correct and safe way to
manage generator power is to sequentially add loads
as follows:
1. With nothing connected to the generator, start the
engine as described in this manual.
2. Plug in and turn on the first load, preferably the
largest load you have.
3. Permit the generator output to stabilize (engine
runs smoothly and attached device operates
properly.
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.
NEVER add more loads than the generator capacity.
Take special care to consider surge loads in generator
capacity, as described above.
Too! or Appliance
Essentials
Light Bulb -75 watt
Deep Freezer
Sump Pump
Refrigerator/Freezer- 18 Cu. Ft.
Water Well Pump -1/3 HP
Heating/Cooling
Window AC -10,000 BTU
Window Fan
Furnace Fan Blower- 1/2 HP
Kitchen
Microwave Oven -1000 Watt
Coffee Maker
Electric Stove -Single Element
Hot Plate
Family Room
DVD/CD Plaver
VCR
Stereo Receiver
Color Television - 27"
Personal Computer w/17"
monitor
Other
Security System
AM/FM Clock Radio
Garage Door Opener -1/2 HP
Electric Water Heater -40
Gallon
D_Y/Job Site
Quartz Haloqen Work Light
Airless Sprayer -1/3 HP
Reci rocatin Saw
Electric Drill -1/2 HP
Circular Saw -7 1/4"
Miter Saw -10"
Table Planer -6"
Table Saw/Radial Arm Saw -
10"
Air Compressor -1-1/2 HP
*Wattages listed are approximate only.
appliance for actual wattage.
Additional
Rated* Surge
(Running) (Starting)
Watts Watts
75
500 500
800 1200
800 1600
1000 2000
1200 1800
300 600
800 1300
1000
1500
1500
2500
100
100
45O
5OO
8OO
180
3OO
480 520
4000
1000
600 1200
960 960
1000 1000
1500 1500
1800 1800
1800 1800
2000 2000
2500 2500
Check tool or
11

ENGINE TECHNICAL aNFORMATtON
This is a single cylinder, overhead valve(OHV), air
cooled engine, it is a low emissions engine.
in the State of California, Model Series 210000
engines are certified by the California Air Resources
Board to meet emissions standards for 250 hours.
Such certification does not grant the purchaser, owner
or operator of this engine any additional warranties
with respect to the performance or operational life of
this engine. The engine is warranted solely according
to the product and emmisions warranties stated
elsewhere in this manual.
Power Ratings
The power ratings for an individual engine model are
initially developed by starting with SAE (Society of
Automotive Engineers) code J1940 (Small Engine
Power & Torque Rating Procedure) (Revision 2002-
05). Given both the wide array of products on which
our engines are placed, and the variety of
environmental issues applicable to operating the
equipement, it may be that the engine you have
purchased will not develop the rated horsepower when
used in a peice of power equipment (actual "on-site"
power). This difference is due to a variety of factors
including, but not limited to, the following: differences
in altitude, temperature, barometric pressure, humidity,
fuel, engine lubrication, maximum governed engine
speed, individual engine to engine variability, design of
the particular peice of power equipment, the manner in
which the engine is operated, engine run-in to reduce
friction and clean out of combustion chambers,
adjustments to the valves and carburetor, and other
factors. The power ratings may also be adjusted
based on comparisons to other similar engines
utilizedin similar applications, and will thereforenot
necessarily match the values derived using the
foregoing codes.
PRODUCT SPECIFICATIONS
Generator Specifications
Rated Maximum Power ........ 6300 Watts (6.3 kW)
Surge Power ................ 9100 Watts (9.1 kW)
Rated AC Voltage ............ 120/240 Volts
Rated Maximum AC Current
at 240 Volts ............... 26.3 Amperes
at 120 Volts ............... 52.5 Amperes
Rated Frequency ............. 60 Hz at 3600 rpm
Phase ...................... Single Phase
Unit Weight ................. 198 Ibs.
Engine Specifications
Rated Horsepower ............ 11 at 3600 rpm
Bore ....................... 3.3 in. (83.81 mm)
Stroke ...................... 2.438 in. (61.67 mm)
Displacement ................ 20.85 in. (342 cc)
Spark Plug
Type: ................. Champion RC12YC or
Equivalent
Set Gap To: ............ 0.030inch (0.76mm)
Armature Air Gap: ............ 0.008-0.012 in.
(0.20-0.30mm)
Valve clearance with valve springs installedand piston 1/4 in.
(6 mm) past top dead center (checkwhen engine iscold).
intake ...................... 0.004-0.006 in.
(0.!0-0.15 mm)
Exhaust .................... 0.004-0.006 in.
(0.10-0.15 ram)
Fuel Capacity ................ 7 U.S. gallons
Oil Type:
Above 40° F ............... SAE 30
Below 40° F ............... SAE 5W-30 or 10W-30
12

OWNER'S RESPONSIBILITIES
Follow the hourly or calendar intervals, whichever occurs first.
More frequent service is recuired when operating in adverse conditions noted below.
MABNTENANCE SCHEDULE
FtLL tN DATES AS YOU
COMPLETE REGULAR SERVICE
MAINTENANCE TASK
Check oil level
Clean debris
Change engine oil
Service air cleaner
Service spark plug
Service spark arrester
Clean cooting system
Prepare for storage
SERVICE DATES
Before Every 25 Hours
Each Use or Yearly
X
x
X 2
Every 50 Hours
or Year y
X 1
Every 100
Hours or Yearly
x
x
x 2
If unit is to remain idle for longer than 30 days.
SERVICE DATES
Change oil after the first (5) operating hours and every 50 hours or every year, whichever occurs first, thereafter.
Change sooner when operating under dirty or dusty conditions.
Replace more often under dirty or dusty conditions.
GENERAL RECOMMENDATIONS
Regular maintenance will improve the performance
and extend the life of the generator. See any
authorized Sears dealer for service.
The generator's warranty does not cover items that
have been subjected to operator abuse or negligence.
To receive full value from the warranty, the operator
must maintain generator as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your generator.
All service and adjustments should be made at least
once each season. Follow the requirements in the
"Maintenance Schedule" chart above.
NOTE: Once a year you should clean or replace the
spark plug and replace the air filter. A new spark plug
and clean air filter assure proper fuel-air mixture and
help your engine run better and last longer.
EMISSION CONTROL
Maintenance, replacement or repair of the emission
control devices and systems may be performed by any
non-road engine repair establishment or individual.
GENERATOR MAINTENANCE
Generator maintenance consists of keeping the unit
clean and dry. Operate and store the unit in a clean dry
environment where it will not be exposed to excessive
dust, dirt, moisture or any corrosive vapors. Cooling air
slots in the generator must not become clogged with
snow, leaves, or any other foreign material.
Check the cleanliness of the generator frequently and
clean when dust, dirt, oil, moisture or other foreign
substances are visible on its exterior surface.
NOTE: DO NOT use a garden hose to clean
generator. Water can enter the engine fuel system and
cause problems. In addition, if water enters the
generator through cooling air slots, some of the water
will be retained in voids and cracks of the rotor and
stator winding insulation. Water and dirt buildup on the
generator internal windings will eventually decrease
the insulation resistance of these windings.
Generator Cleaning
Daily or before use, clean accumulated debris from
generator. Keep linkage, spring and controls clean.
Keep area around and behind muffler free from any
combustible debris.
Generator parts should be kept clean to reduce the
risk of overheating and ignition of accumulated debris.
• Use a damp cloth to wipe exterior surfaces clean.
CAUTION
DO NOT expose generator to excessive moisture, dust,
dirt, or corrosive vapors,
DO NOT insert any objects through cooling slots,
• Use a soft bristle brush to loosen caked on dirt, oil, etc.
• Use a vacuum cleaner to pick up loose dirt and debris.
Battery Maintenance
Other than trickle charging, described elsewhere, no
maintenance is required for the battery. Keep the
battery and terminals clean and dry.
IMPORTANT: Battery charging should be performed
in a dry location, such as inside a garage.
13

ENGINE MAINTENANCE
WARNING
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR
GENERATOR
Disconnect the spark plug wire from the spark plug and
place the wire where it cannot contact spark plug.
WHEN TESTBNGFOR ENGINE SPARK
Use approved spark plug tester.
DO NOT check for spark with spark plug removed.
Checking OH Leve_
Oil level should be checked prior to each use or at least
every 5 hours of operation. Keep oil level maintained.
Changing Engine OH
Change the oil after the first 5 hours of operation.
Change oil every 50 hours or once each year,
whichever comes first, thereafter. If you are using your
generator under extremely dirty or dusty conditions, or
in extremely hot weather, change the oil more often.
Change the oil while the engine is still warm from
running, as follows:
1. Place generator on a level surface.
2. Disconnect spark plug wire and keep it away from
spark plug. Disconnect battery at negative terminal.
3. Clean area around oil drain plug. The oil drain
plug is located at base of engine, opposite
carburetor.
4. Remove oil drain plug and oil fill cap and drain oil
completely into a suitable container.
5. Install oil drain plug and tighten securely.
6. Fill oil sump with recommended oil to the point of
overflowing. See page 7 for oil recommendations.
7. Install oil cap. Tighten cap securely.
8. Wipe up any spilled oil
CmeantRep[ace Spark Plug
Change the spark plug every 100 hours of operation
or once each year, whichever comes first. This will
help your engine to start easier and run better.
1. Clean area around spark plug.
2. Remove and inspect spark plug.
3. Check electrode gap with wire feeler gauge and set
spark plug gap to 0.030 inch (0.76mm) if necessary.
/.
4. Replace spark plug if electrodes are pitted, burned
or porcelain is cracked. Use a recommended
replacement plug.
NOTE: You can purchase a new spark plug by calling
1-800-366-PART.
Service Air Cleaner
Your engine will not run properly and may be
damaged if you run it using a dirty air cleaner. Clean
or replace the air cleaner paper filter once every
25 hours of operation or once a year, whichever
comes first. Clean or replace more often if operating
under dusty or dirty conditions.
,Service.Air Filter
1. Loosen screws and remove air cleaner cover.
Remove paper filter.
Cartridge
Cover
Base
2. Install clean (or new) air cleaner assembly inside
cover. Dispose of old filter properly.
3. Assemble air cleaner cover onto base and tighten
screws.
NOTE: You can purchase new air cleaner elements by
calling 1-800-366-PART.
Carburetor
if you think your carburetor needs adjusting, see your
nearest Sears service center. Engine performance
may be affected at altitudes above 3000-5000 feet.
For operation at higher elevations, contact your
nearest Sears service center.
CJean Spark Arrester Screen
The engine exhaust muffler has a spark attester
screen. Inspect and clean the screen every 100 hours
of operation or once each year, whichever comes first.
NOTE: You can purchase a new spark attester screen
by calling 1-800-366-PART.
If you use your generator on any forest-covered, brush-
covered, or grass-covered unimproved land, it must
have a spark attester. The spark arrester must be
maintained in good condition by the owner/operator.
14

WARNING
DO NOT touch hot surfaces.
Allow equipment to cool before touching.
The generator must be at least 5 feet from structures having
combustible walls and/or other combustible materials.
Keep at least 3 feet of clearance on all sides of generator
for adequate cooling, maintenance and servicing.
In the State of California a spark arrester is required by law
(Section 4442 of the California Public Resources Code).
Other states may have similar laws. Federal laws apply on
federal lands. If you equip the muffler with a spark arrester,
it must be maintained in effective working order.

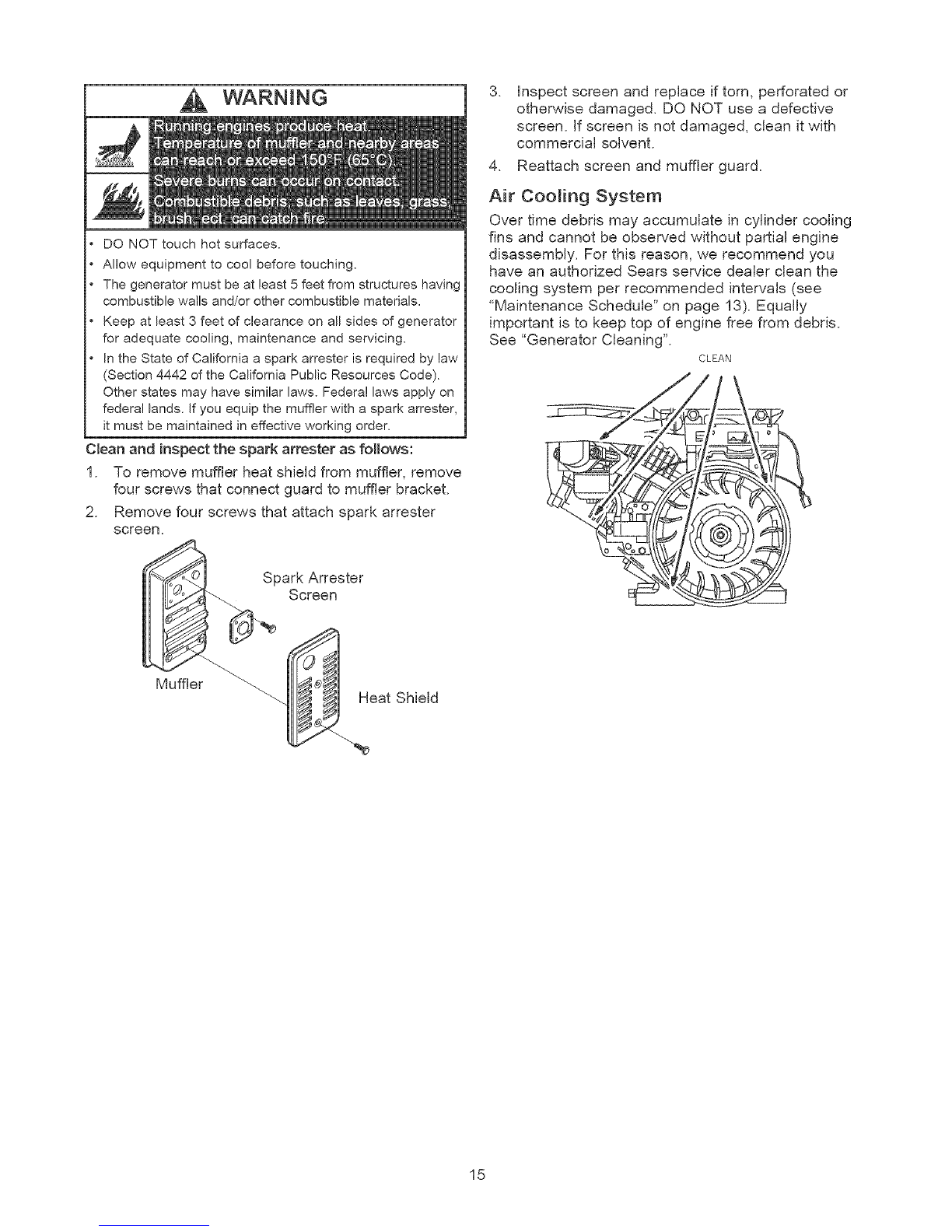

Clean and inspect the spark attester as foltows:
1. To remove muffler heat shield from muffler, remove
four screws that connect guard to muffler bracket.
2. Remove four screws that attach spark attester
screen.
Spark Attester
Screen
eat Shield
.inspect screen and replace if torn, perforated or
otherwise damaged. DO NOT use a defective
screen. If screen is not damaged, clean it with
commercial solvent.
4. Reattach screen and muffler guard.
Air Cooling System
Over time debris may accumulate in cylinder cooling
fins and cannot be observed without partial engine
disassembly. For this reason, we recommend you
have an authorized Sears service dealer clean the
cooling system per recommended intervals (see
"Maintenance Schedule" on page 13). Equally
important is to keep top of engine free from debris.
See "Generator Cleaning". CLEAN
15

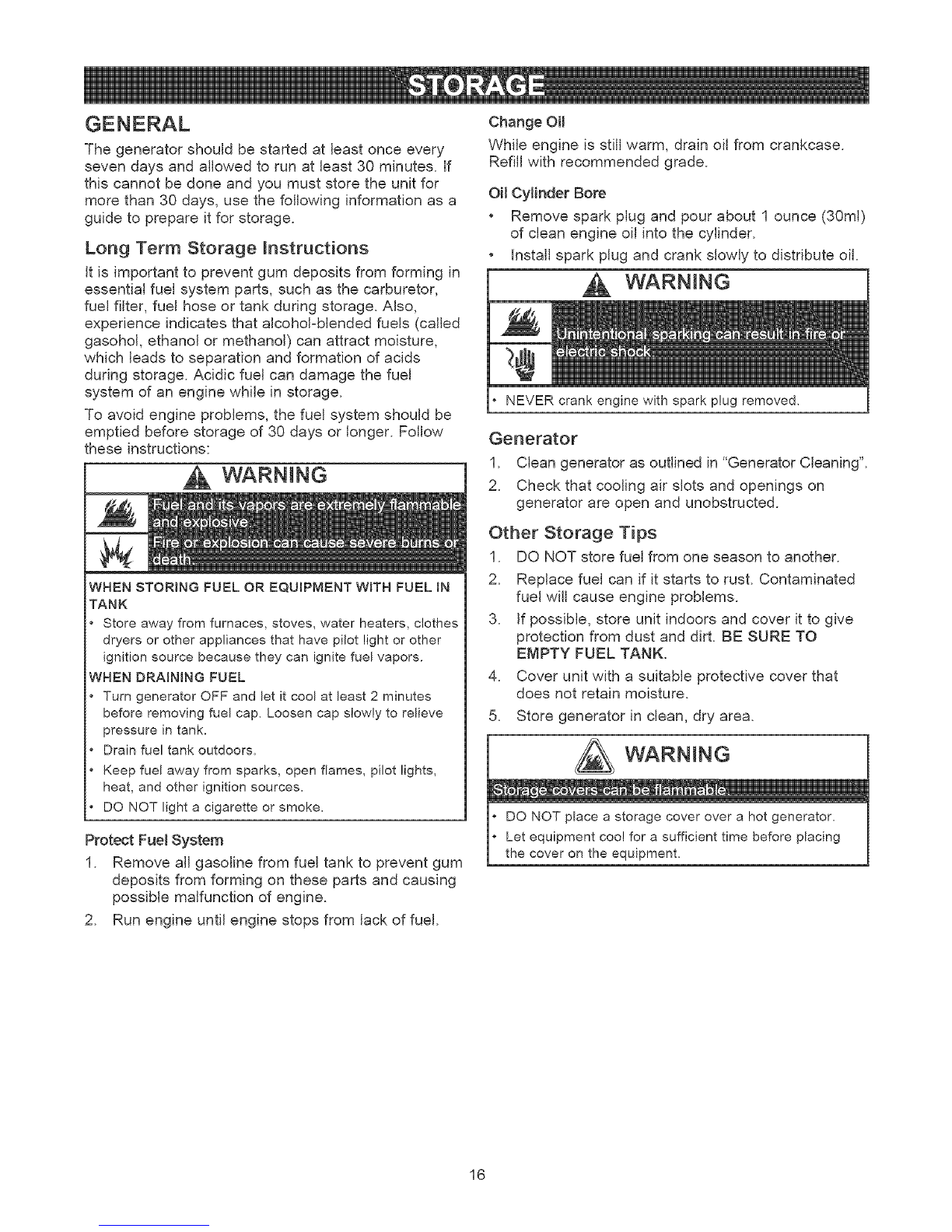

Thegeneratorshouldbestartedatleastonceevery
sevendaysandallowedtorunatleast30minutes.If
thiscannotbedoneandyoumuststoretheunitfor
morethan30days,usethefollowinginformationasa
guidetoprepareitforstorage.
Long Term Storage _nstructions
it is important to prevent gum deposits from forming in
essential fuel system parts, such as the carburetor,
fuel filter, fuel hose or tank during storage. Also,
experience indicates that alcohol-blended fuels (called
gasohol, ethanol or methanol) can attract moisture,
which leads to separation and formation of acids
during storage. Acidic fuel can damage the fuel
system of an engine while in storage.
To avoid engine problems, the fuel system should be
emptied before storage of 30 days or longer. Follow
these instructions:
WARNING
WHEN STORING FUEL OR EQUIPMENTWITH FUEL IN
TANK
Store away from furnaces, stoves, water heaters, clothes
dryers or other appliances that havepilot light or other
ignition source because they can ignite fuel vapors.
WHEN DRAiNiNG FUEL
Turn generator OFF and let itcool at least 2 minutes
before removing fuel cap. Loosen cap slowly to relieve
pressure in tank.
Drain fuel tank outdoors.
Keep fuel away from sparks, open flames, pilot lights,
heat, and other ignition sources.
DO NOT light a cigarette or smoke.
Protect Fuet System
1. Remove all gasoline from fuel tank to prevent gum
deposits from forming on these parts and causing
possible malfunction of engine.
2. Run engine until engine stops from lack of fuel.
Change OH
While engine is still warm, drain oil from crankcase.
Refill with recommended grade.
OHCylinder Sore
• Remove spark plug and pour about 1 ounce (30ml)
of clean engine oil into the cylinder.
• Install spark plug and crank slowly to distribute oil.
WARNING
NEVER crank enqine with spark plug removed.
Generator
1. Clean generator as outlined in "Generator Cleaning".
2. Check that cooling air slots and openings on
generator are open and unobstructed.
Other Storage Tips
1. DO NOT store fuel from one season to another.
2. Replace fuel can if it starts to rust. Contaminated
fuel will cause engine problems.
3. If possible, store unit indoors and cover it to give
protection from dust and dirt. BE SURE TO
EMPTY FUEL TANK.
4. Cover unit with a suitable protective cover that
does not retain moisture.
5. Store generator in clean, dry area.
WARNING
DO NOT place a storage cover over a hot generator,
Let equipment coo! for a sufficient time before placing
the cover on the equipment.
16

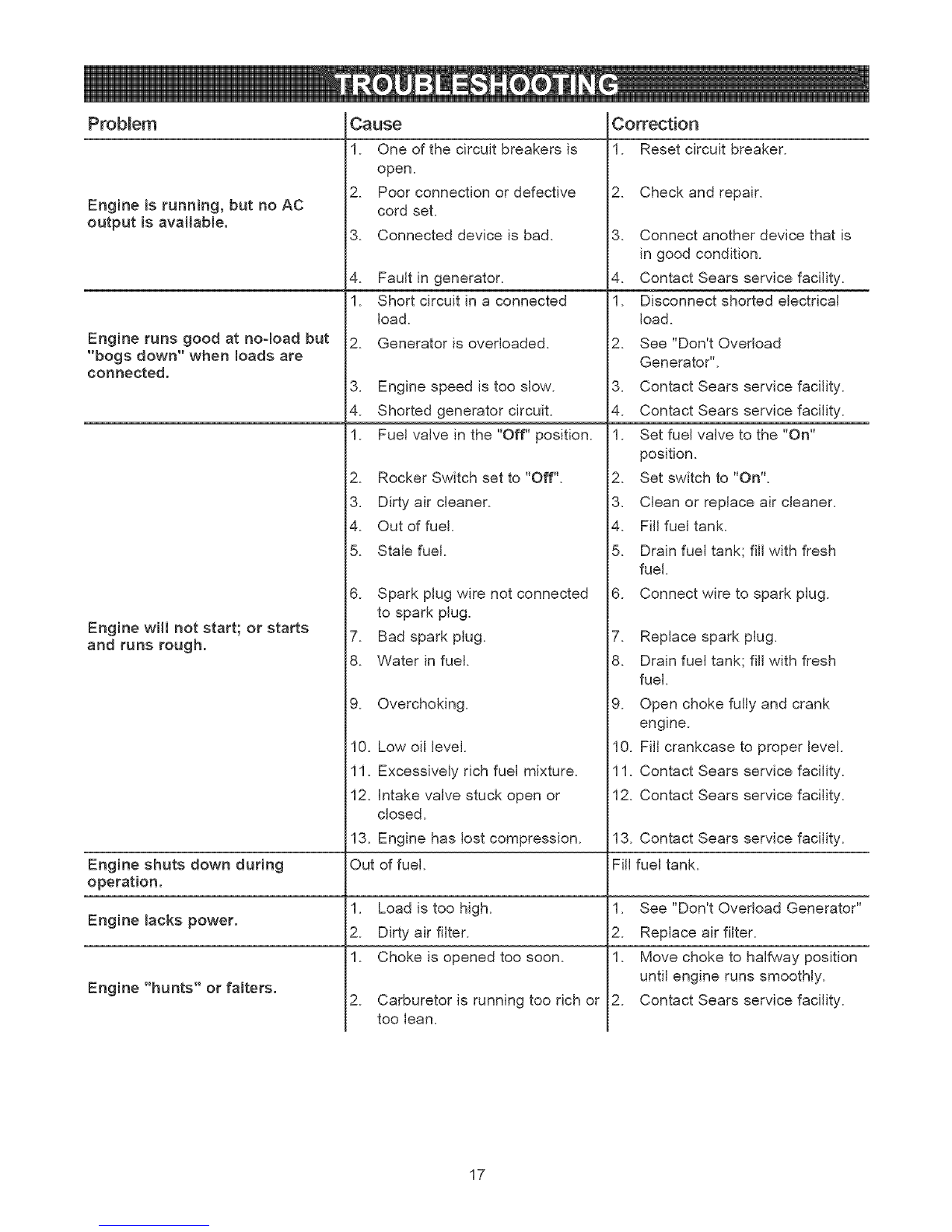

Prob{em
Engine Bsrunning, but no AC
output is available.
EngBne runs good at no-load but
"bogs down" when loads are
connected.
C_use
One of the circuit breakers is
open.
Poor connection or defective
cord set.
3. Connected device is bad.
.Fault in generator.
Short circuit in a connected
load.
Generator is overloaded.
3. Engine speed is too slow.
4. Shorted generator circuit.
Fuel valve in the "Off" position.
Rocker Switch set to "Off".
3. Dirty air cleaner.
4. Out of fuel.
5. Stale fuel.
Correction
Reset circuit breaker.
Check and repair.
3. Connect another device that is
in good condition.
4. Contact Sears service facility.
Disconnect shorted electrical
load.
See "Don't Overload
Generator".
3. Contact Sears service facility.
4. Contact Sears service facility.
Set fuel valve to the "On"
position.
Set switch to "On".
6. Spark plug wire not connected
Engine will not start; or stars
and runs rough.
3. Clean or replace air cleaner.
4. Fill fuel tank.
5. Drain fuel tank; fill with fresh
fuel.
6. Connect wire to spark plug.
to spark plug.
7. Bad spark plug.
8. Water in fuel.
9. Overchoking.
7. Replace spark plug.
8. Drain fuel tank; fill with fresh
fuel.
9. Open choke fully and crank
engine.
10. Low oil level.
11. Excessively rich fuel mixture.
12. Intake valve stuck open or
closed.
13. Engine has lost compression.
Engine shuts down during Fill
operation.
Load is too high.
Engine lacks power. Dirty air filter.
Choke is opened too soon.
Engine "hunts" or ratters. Carburetor is running too rich or
too lean.
0. Fill crankcase to proper level.
1. Contact Sears service facility.
2. Contact Sears service facility.
3. Contact Sears service facility.
fuel tank.
See "Don't Overload Generator"
Replace air filter.
Move choke to halfway position
until engine runs smoothly.
Contact Sears service facility.
17

CRAFTSMAN 6300 Watt AC Generator 580.326300
iP
PI-2
CBt
IIA
22
CB3
25A
IP
IIA
- WHITE
BATTERY CHARGE
66 __ 77
FUSE
13A
I__
PI]WER
120V
20A
22 _ S _ B
IBO/240V
30A
CB4
44B _-_
oo
25A
_P
30A
iP
44
_i P1-4
CBB
44A
44A
18

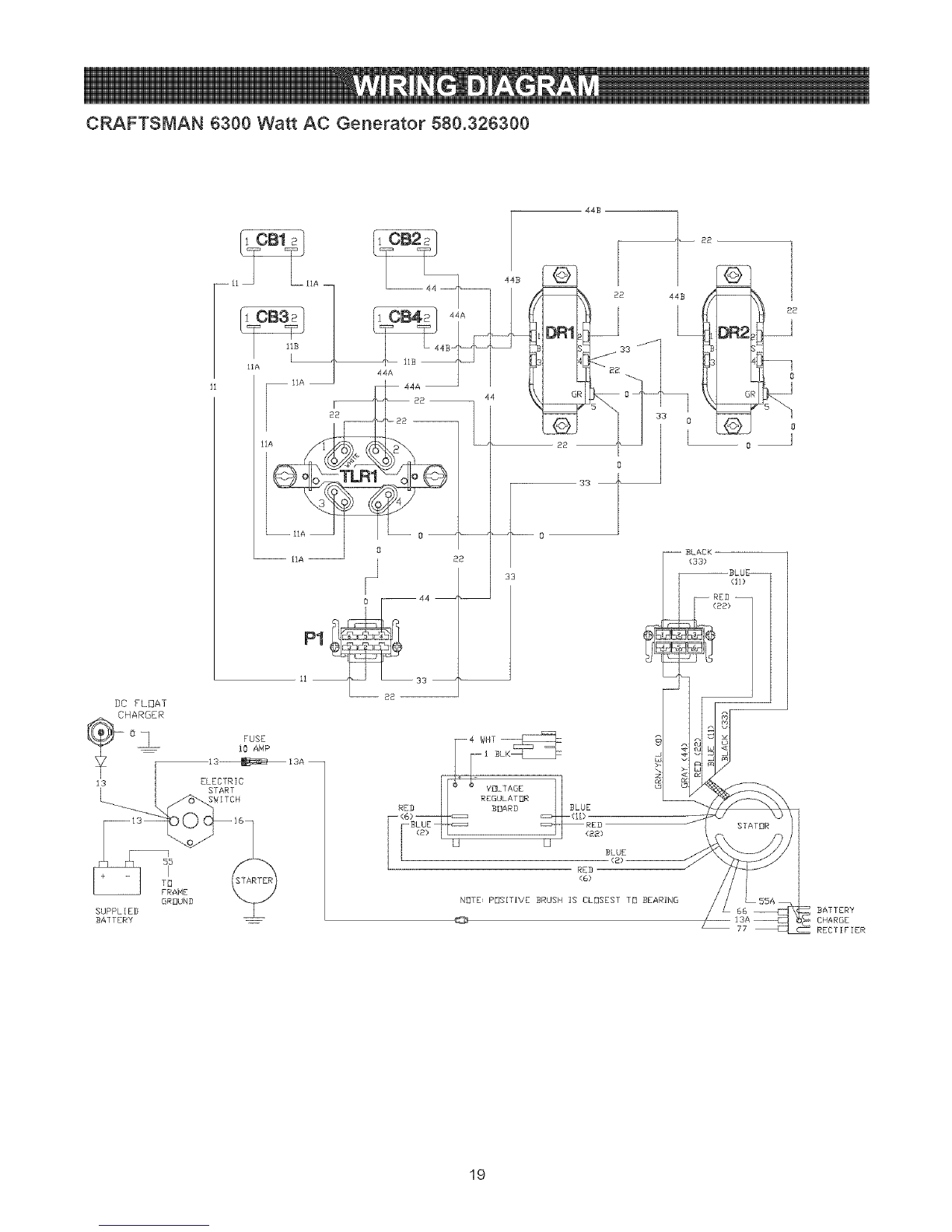

CRAFTSMAN 6300 Watt AC Generator 580.326300
44B
£B
DC FLOAT
CHARGER
IIA
33
BLACK
(33)
SUPPLIED
BATTERY
BLUE
(2)
RED
(6)
66
_3A
77
BATTERY
CHARGE
RECTIFIER
19

CRAFTSMAN 6300 Watt AC Generator 580.326300
Main Unit m E×p_oded View
DETA_ OF
BATTERY TRAY
DET£-IL OF JACK
5SSEVBLY COAXIAL DC
52
50
55
76 78
DETAIL OF E[ECTRC
START S/NITCH
56
/
78 /S[ARTER
85 \_ TO RBC
\TO b TERMINAL
ON BATTERY
56
25
51
5
\\
15
1
2O
