Craftsman 911633 User manual

Owner's Manual
CRAFTSMAN®
3i) Sander
Model No.
~11633
CAUTION:
Before using this Pad
Sander, read tbis manual
and follow all fts SafetY
Rules and Operating
Instructions.
• Safety Instructions
• . Assembly
• Operation
• 'Maintenance
• Parts List
• . Espanol
Sears, Roebuck andCo., Hoffman Estates, IL 60179 U.S.A.
Part No. 184116331001 Rev. 0 05/07/03 •

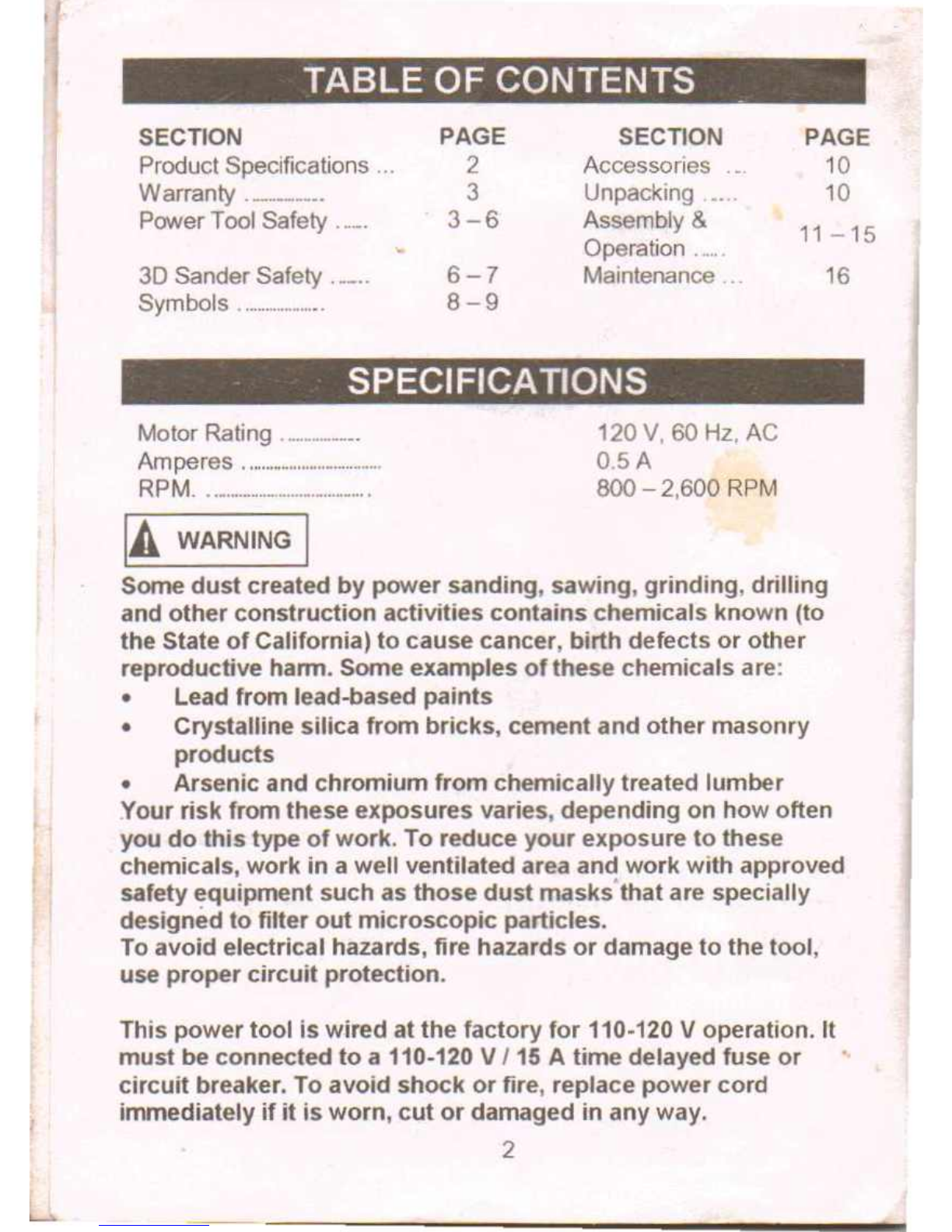

TABLE OF CONTENTS
SECTION PAGE SECTION PAGE
Product Specifications ... 2Accessories
.-.
10
Warranty. ________. 3 Unpacking
~ ...
10
Power Tool Safety ...... 3-6 Assembly & 11 -15
Operation ......
3D Sander Safety. __.. 6-7 Maintenance .. 16
Symbols .................._. 8-9
Motor Rating __..
Amperes _ _ .
RPM _ _ _ .
1£ WARNING I
Some dust created by power sanding, sawing, grinding, drilling
and other construction activities contains chemicals known (to
the State of California) to cause cancer, birth defects or other
reproductive harm. Some examples ofthese chemicals are:
Lead from lead-based paints
Crystalline silica from bricks, cement and other masonry
products
• Arsenic and chromium from chemically treated lumber
.Your risk from these exposures varies, depending on how often
you do this type of work. To reduce your exposure to these
chemicals, work in a well ventilated area and work with approved
safety equipment such as those dust masksthat are specially
designed to filter out microscopic particles.
To avoid electrical hazards, fire hazards or damage to the tool,
use proper circuit protection.
120 V, 60 Hz, AC
0.5A
800 - 2,600 RPM
SPECIFICATIONS
This power tool is wired at the factory for 110-120 V operation. It
must be connected to a 110-120 V 115 A time delayed fuse or
circuit breaker. To avoid shock or fire, replace power cord
immediately if it is worn, cut or damaged in any way.
2

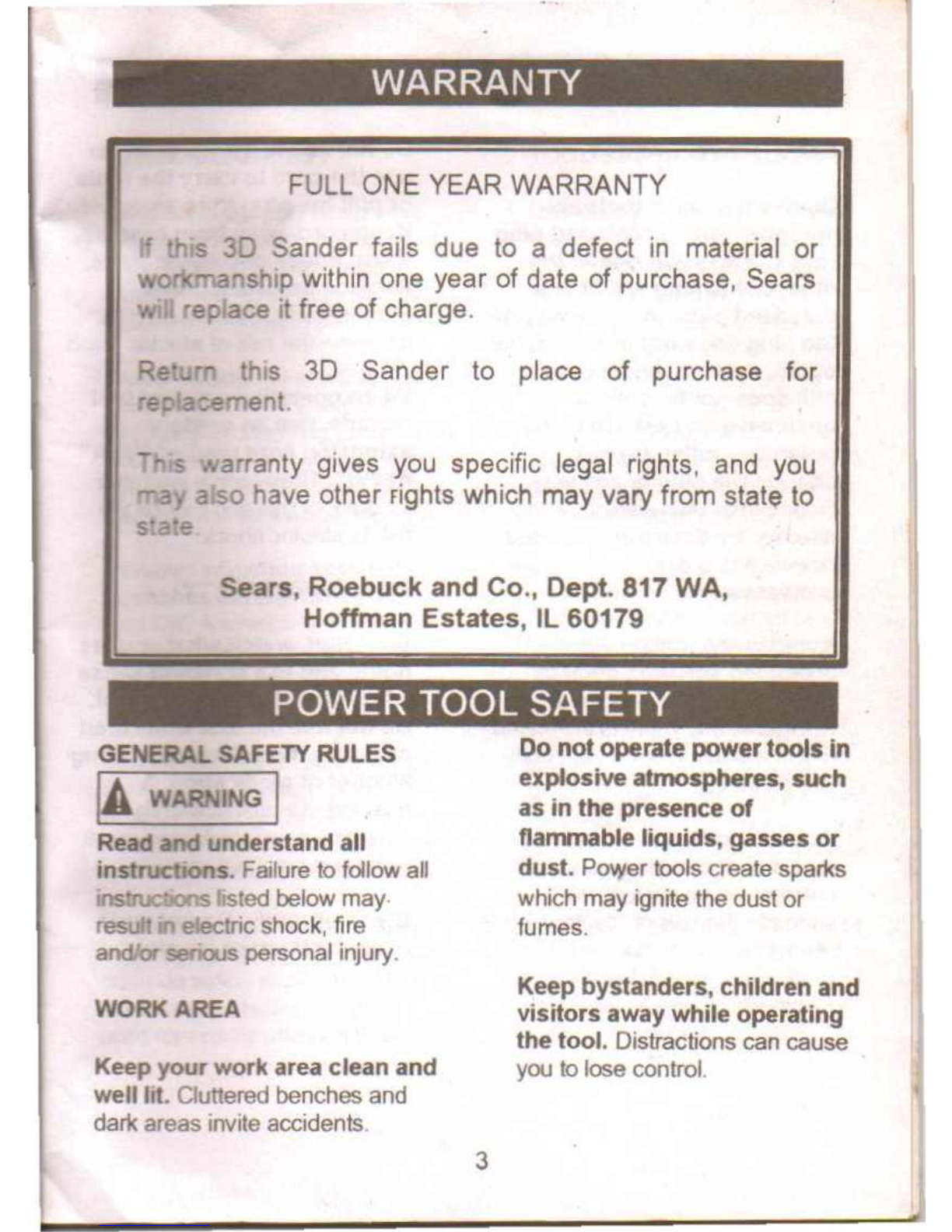

WARRANTY
FULL ONE YEAR WARRANTY
r th 5 3D Sander fails due to a defect in material or
workmanship within one year of date of purchase, Sears
WI reolace it free of charge.
Return this 3D Sander to place of purchase for
replacement.
-~ s warranty gives you specific legal rights, and you
~,a) a so have other rights which may vary from state to
stat=
Sears, Roebuck and Co., Dept. 817 WA,
Hoffman Estates, IL 60179
POWER TOOL SAFETY
GENERAL SAFETY RULES
IA WARNING I
Read and understand all
instructJoos. Failure to follow all
IOStrucooos isted below may
result m electric shock, fire
and/or senous personal injury.
WORKAREA
Keep your work area clean and
well lit. Cluttered benches and
dark areas invite accidents.
Do not operate power tools in
explosive atmospheres, such
as in the presence of
flammable liquids, gasses or
dust. Power tools create sparks
which may ignite the dust or
fumes.
Keep bystanders, children and
visitors away while operating
the tool. Distractions can cause
you to lose control.
3

POWER TOOL SAFETY
ELECTRICAL SAFETY
Double insulated tools are
equipped with a polarized plug
(one blade is wider than the
other). This plug will fit in a
polarized plug only one way. If
the plug does not fit fully in the
outlet, reverse the plug. If it
still does not fit, contact a
qualified electrician to install a
polarized outlet. Do not
change the plug in any way.
Double insulation eliminates the
need for the three wire grounded
power cord and grounded power
supply system.
Avoid body contact with
grounded surfaces such as
pipes, radiators, ranges and
refrigerators. There is increased
risk of electric shock if your body
is grounded.
Don't expose power tools to
rain or wet conditions. Water
entering the power tool will
increase the risk of electric shock.
Do not abuse the cord. Never
use the cord to carry the tools
or pull the plug from an outlet.
Keep cord away from heat, oil,
sharp edges or moving parts.
Replace damaged cords
immediately. Damaged cords
increase the risk of electric shoel
When operating a power tool
outside, use an outdoor
extension cord marked "W-A"
or "W". These cords are rated
for outdoor use and reduce the
risk of electric shock.
PERSONAL SAFETY
Stay alert, watch what you are
doing and use common sense
when operating a power tool.
Do not use the tool while tired
or under the influence of drug!
alcohol or medication. A
moment of inattention while
operating power tools may result
in se~ous personal InJury.
Dress properly. Do not wear
loose clothing or jewelry.
4

TOOL USE AND CARE
POWER TOOL SAFETY
PERSONAL SAFETY
Contain long hair. Keep your
hair. clothing and gloves away
from moving parts. Loose
clothing. jewelry or long hair can
be caught in moving parts.
Avoid accidental starting. Be
sure switch is OFF before
plugging in. Carrying tools with
your "l1lgeron the switch or
plLJggJngIn tools that have the
SWitchON invites accidents.
Remove adjusting keys or
wrenches before turning the
tool ON. A "Hench or key that is
left attached 10 a rotating part of
the tool may result in personal
injury
Do not overreach. Keep proper
footing and balance at all
times. Proper footing and
balance enables better control of
the tool III unexpected situations.
Use safety equipment. Always
wear eye protection. Dust mask,
non-skid safety shoes, hard hat
or hearing protection must be
used for appropnate conditions.
Use clamps or other practical
way to secure and support the
workpiece to a stable platform.
Holding the work by hand or
against your body is unstable
and may lead to loss of control.
Do not force the tool. Use the
correct tool for your
application. The correct tool will
do the job better and safer at the
rate for which it is designed.
Do not use the tool if the
switch does not turn it ON or
OFF. Any tool that cannot be
controlled with the switch is
dangerous and must be repaired.
Disconnect the plug frOlT\the
power source before making
any adjustments, changing
accessories or storing the tool.
Such preventive safety measures
reduce the risk of starting the tool
accidentally
Store idle tools out of reach of
children and other untrained
persons. Tools are dangerous in
the hands of untrained users.
5

POWER TOOL SAFETY
TOOL USE AND CARE
Maintain tools with care. Keep
cutting tools sharp and clean.
Properly maintained cutting tools
with sharp cutting edges are less
likely to bind and are easier to
control.
Check for misalignment or
binding of moving parts,
breakage of parts and any
other condition that may affect
the tool's operation. If
damaged, have the tool
serviced before using. Many
accidents are caused by poorly
maintained tools.
Use only accessories that are
recommended bythe
manufacturer for your model.
Accessories that may be suitable
for one toot may become
hazardous when used on another
tool.
3D SANDER SAFETY
SERVICE
Tool SeJVICe IlXIst be
performed only by qualified
personnel Service or
1T\CL~'lCe performed by
~ personnel could
~ r.9 of InJury.
When serviCing atool, use
only idenucaJ replacement
parts. Follow instructions in
the Maintenance section of
this manual. Jse of
unaulhorized parts or failure to
follow Maintenance instructions
may create a nsk of electric
shock Of injury

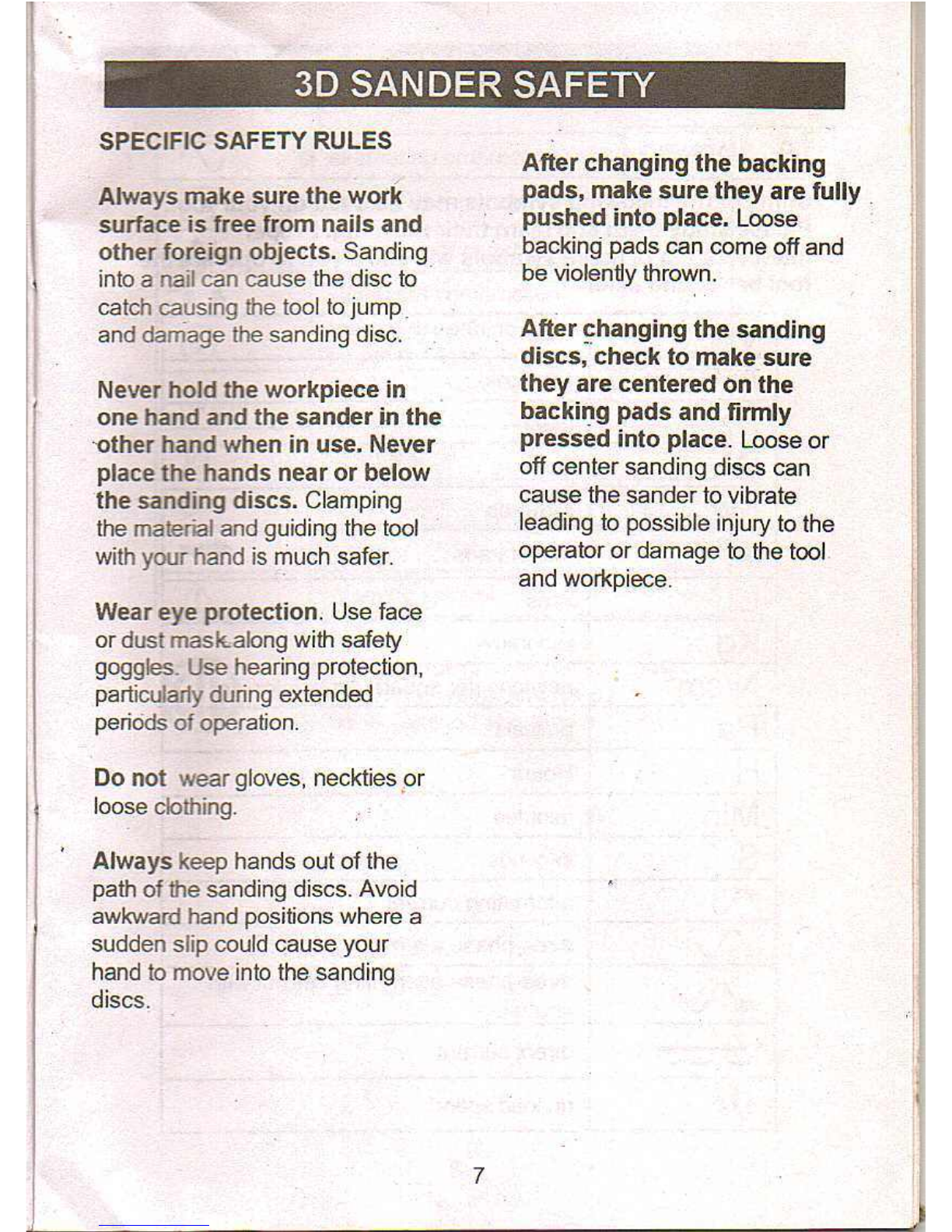

SPECIFIC SAFETY RULES
14 WARNING I
:=Of ~-our safety, do not plug
m your 3D Sander or try to
use t U'" it is completely
assembled according to these
tnstructons, and until you
have read and understood
thiS (}.vner" s Manual.
6

After changing the backing
pads, make sure they are fully .
. pushed into place. Loose
backing pads can come off and
be violently thrown.
After ~hanging the sanding
discs, check to make sure
they are centered on the
backing pads and firmly
pressed into place. Loose or
off center sanding discs can
cause the sander to vibrate
leading to possible injury to the
operator or damage to the tool.
and workpiece
SPECIFIC SAFETY RULES
3D SANDER SAFETY
Always make sure the work
surface. is free from nails and
other foreign objects. Sanding
into a nail can cause the disc to .
catch causing the tool to jump.
and damage the sanding disc.
Never hold the workpiece in .
one .hand and the sa nder in the
-other hand when in use. Never
place the hands near or below
the sanding discs. Clamping
the material and guiding the tool
with your hand is much safer.
Wear eye protection. Use face
or dust maskoalong with safety
goggles. Use hearing protection,
particularly during extended
periods of operation.
Do not wear gloves, neckties or
loose clothing. .
Always keep hands out of the
path of the sanding discs. Avoid
awkward hand positions where a
sudden slip could cause your
hand to move into the sanding
discs,
7

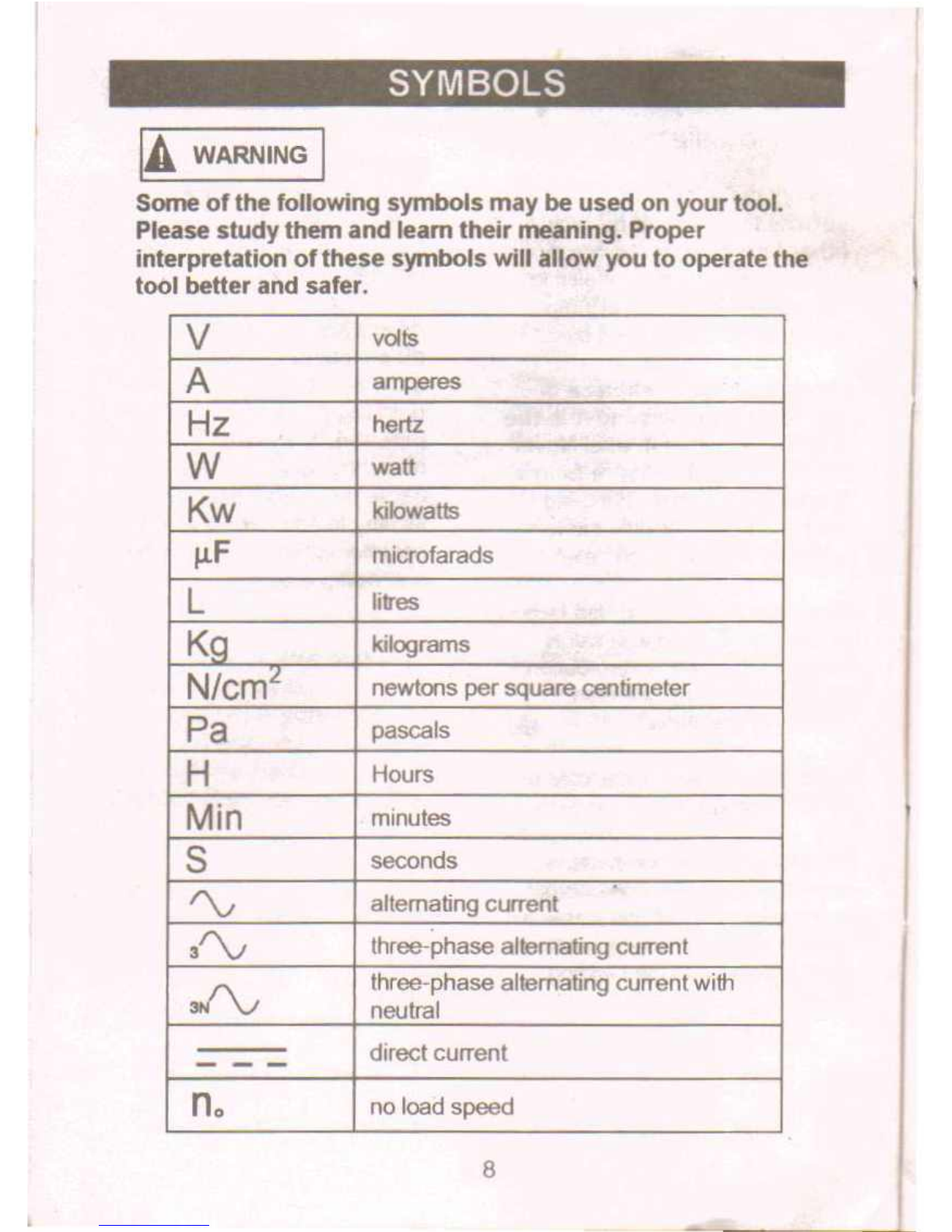

SYMBOLS
IA WARNING I
Some of the following symbols may be used on your tool.
Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the
tool beHer and safer.
V
volts
Aamperes
Hz
hertz
Wwatt
Kw kilowatts
f.lF
microfarads
Llitres
Kg kilograms
N/cmL newtons per square centimeter
Pa pascals
H
Hours
Min minutes
S
seconds
<:
alternating current
/"v
three-phase alternating current
JV
three-phase alternating current with
neutral
---
direct current
- --
no
no load speed
8

alternating or direct current

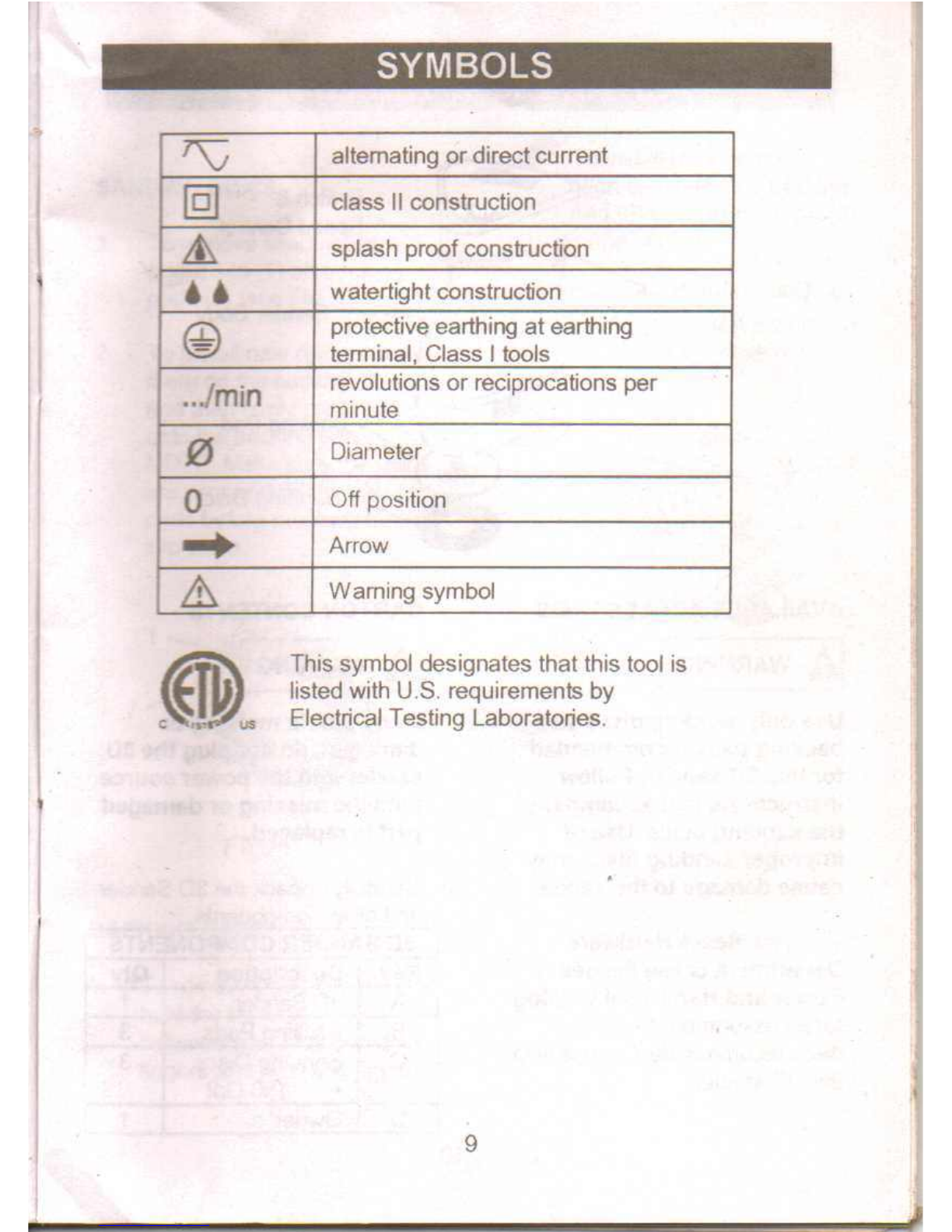

SYMBOLS
class II construction
splash proof construction
••
watertight construction
®protective earthing at earthing
terminal, Class I tools
."/min
revolutions or reciprocations per
minute
'£1
Diameter
I
0
Off position
...
Arrow
I
&
Waming symbol
~~
This symbol designates that this tool is
listed with U.S. requirements by
Electrical Testing Laboratories.
9

KNOW YOUR 3D SANDER
Coolinq Vents
AVAILABLE ACCESSORIES
III WARNING I
Use only sanding discs and
backing pads recommended
for this 3D sander. Follow
instructions that accompany
the sanding discs. Use of
improper sanding discs may
cause damage to the sander.
Visit your Sears Hardware
Department or see the Sears
Power and Hand Tool Catalog
for an assortment of sanding
discs recommended for use with
this 3D sander.
Backing Pad
Sanding Disc
CARTON CONTENTS
III WARNING I
If any part is missing or
damaged, do not plug the 3D
sander into the power source
until the missing or damaged
part is replaced.
Carefully' unpack the 3D Sander
and all its components.
3D SANDER COMPONENTS
Kev DescriDtion Qtv
A 3D Sander 1
BBacking Pads 3
CSanding Discs 3
.150 Grit
0 Owner's 1
10

2. To install backing pads,
align the slot in the backing
pad (2) with the drive pin (3)
in the sander.
ASSEMBLY &OPERATION
SANDING DISCS
1. To remove sanding discs,
peel discs (1) off backing
pads (2) (see Fig. 1).
2. To Install new discs, center
them on the backing discs
and then firmly press them
onto the backing pad.
NOTE: Make sure the discs
are centered on the backing
pads before pressing them
into place.
2
Fig. 1
BACKING PADS
1. To remove backing pad,
hold the backing pad (1)
between your thumb and
fingers and pull (see Fig. 2).
3. Press the backing pad onto
the sander until it snaps into
place over the drive pin.
Fig. ~
11

ASSEMBLY & OPERATION
NOTES SANDING HINTS
a) Slower speeds allow greater
control over the sander and For extremely small
remove material slowly. surfaces, remove one or two
b) Higher speeds remove backing pads.
material more quickly and
produce a smoother surface. 2. Check condition of sanding
discs often. Soft materials
3. Once sander is set at the will clog up the disc and not
desired speed, slowly work efficiently. Worn discs
place the sander on the may come off the backing
workpiece to be sanded. pad.
NOTES:
a) Keep the sander moving 3. Clean clogged sanding
on the workpiece. Do not discs with an old eraser.
let the sander remain in Replace worn discs for
one location or you will faster cutting action and
gouge the surface. smoother finishes.
b) Move the sander in long
uniform strokes to produce 4. If sander jerks, try
a uniform result. changing the sander speed
and make sure the radius
4. When sanding is complete, of the curved surface is
remove the sander from greater than 4" (10cm).
the workpiece surface and
turn the switch OFF. 5. . Hold sander firmly to
pre~ent it from jerking.
6. Replace backing pads
when they become wom or
damaged.
15

Consequently, it IS not
recommended that this 1001 be
used for extended work on any
fiberglass matenal, wallboard,
spackling compounds or plaster
During any use on Ihese
materials it is exllemely
important that the 1001 is cleaned
frequently by blowing out with an
airjel.
MAINTENANCE
CLEANING
DO NOT use solvents when
cleaning plastic parts. Most
plastics are susceptible to
damage from various types of
commercial solvents and may be
damaged by their use. Use clean
cloth to remove dirt, dust, oil,
grease, etc.
III WARNING I
Do not at any time allow brake
nuids, gasoline, petroleum-
based products, penetrating
oils, etc. to come in contact
with plastic parts. They
contain chemicals that can
damage, weaken or destroy
plastic.
It has been found that electric
tools are subjected to
accelerated wear and possible
premature failure when they are
used on fiberglass boats and
sports cars, wallboard, spackling
compounds or plaster. The chips
and grindings from these
materials are highly abrasive to
electric tool parts such as
bearings, bnushes, commutators,
etc.
III WARNING I
Always wear safety goggles or
safety glasses with side
shields during all sanding
operations. It is critical that
you also wear safety goggles
or safety glasses with side
shields and a dust mask while
blOwing dust out of the sander I
with an air jet. Failure to take
these safety precautions could
result in permanent eye or
lung damage.
LUBRICATION
All of the bearings in this sander
are lubricated with a sufficient
amount of high grade lubricant
for the life of the unit under
normal conditions. Therefore, no
further lubrication is required.
16
