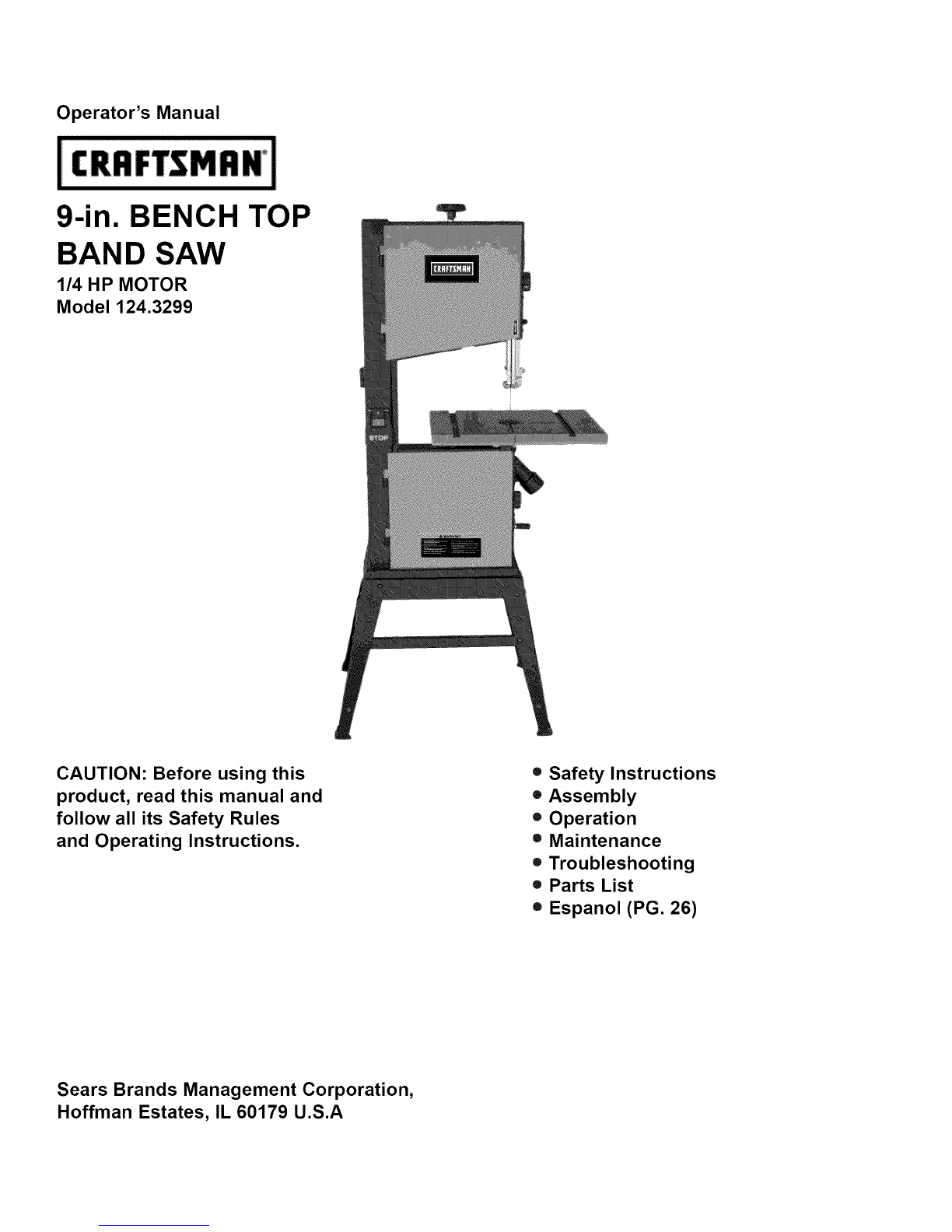

Craftsman 124.3299 User manual

Operator's Manual
CRAFTSMH
9-in. BENCH TOP
BAND SAW
1/4 HP MOTOR
Model 124.3299
CAUTION: Before using this
product, read this manual and
follow all its Safety Rules
and Operating Instructions.
®Safety Instructions
®Assembly
® Operation
• Maintenance
•Troubleshooting
®Parts List
® Espanol (PG. 26)
Sears Brands Management Corporation,
Hoffman Estates, IL 60179 U.S.A

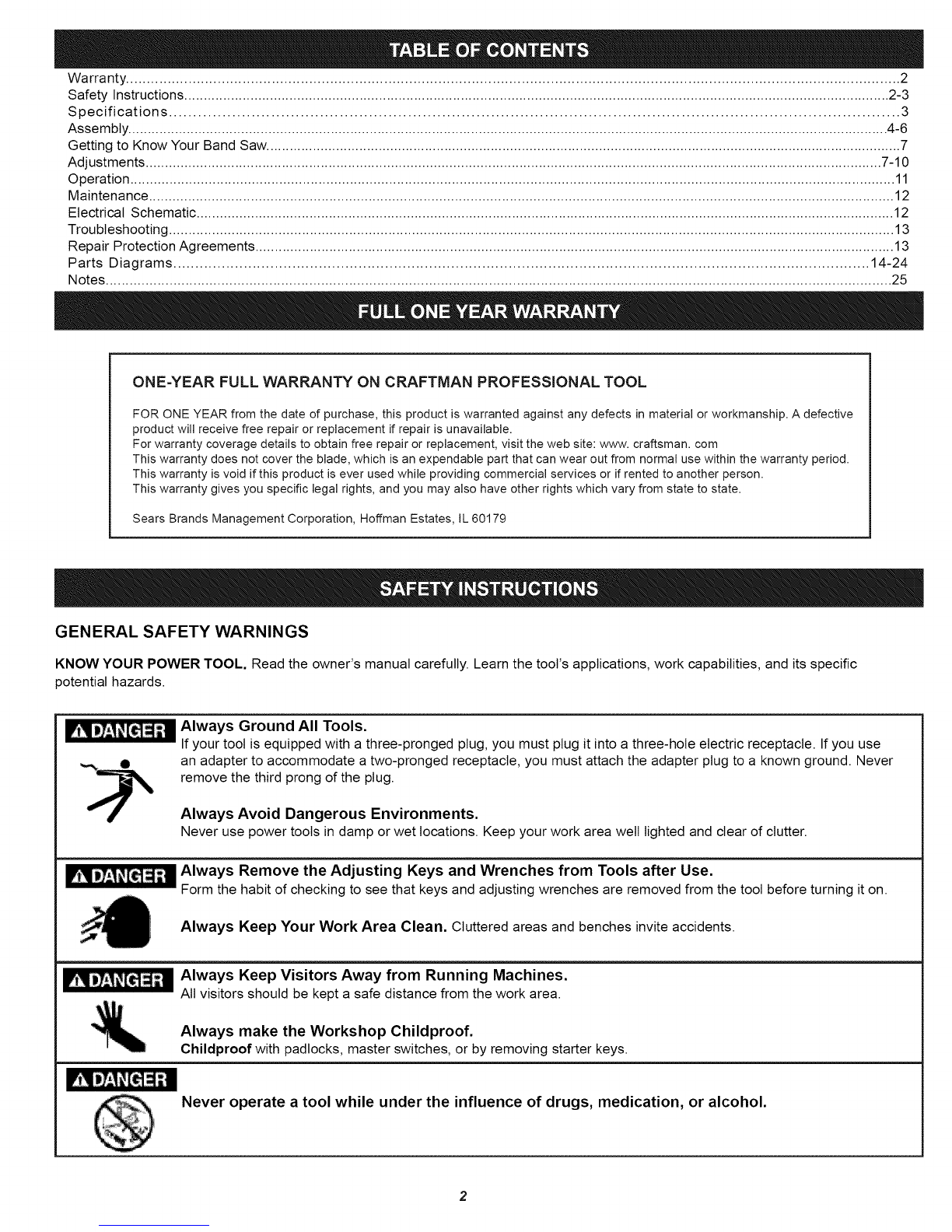

Warranty .......................................................................................................................................................................................... 2
Safety Instructions ..................................................................................................................................................................................... 2-3
Specifications ...................................................................................................................................................... 3
Assembly ................................................................................................................................................................................................... 4-6
Getting to Know Your Band Saw.................................................................................................................................................................... 7
Adjustments ............................................................................................................................................................................................. 7-10
Operation ................................................................................................................................................................................................... 11
Maintenance .............................................................................................................................................................................................. 12
Electrical Schematic ................................................................................................................................................................................... 12
Troubleshooting ......................................................................................................................................................................................... 13
Repair Protection Agreements .................................................................................................................................................................... 13
Parts Diagrams .............................................................................................................................................................. 14-24
Notes ..................................................................................................................................................................................................... 25
ONE-YEAR FULL WARRANTY ON CRAFTMAN PROFESSIONAL TOOL
FOR ONE YEAR from the date of purchase, this product is warranted against any defects in material or workmanship. A defective
product will receive free repair or replacement if repair is unavailable.
For warranty coverage details to obtain free repair or replacement, visit the web site: www. craftsman, corn
This warranty does not cover the blade, which is an expendable part that can wear out from normal use within the warranty period.
This warranty is void if this product is ever used while providing commercial services or if rented to another person.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
GENERAL SAFETY WARNINGS
KNOW YOUR POWER TOOL. Read the owner's manual carefully. Learn the tool's applications, work capabilities, and its specific
potential hazards.
Always Ground All Tools.
If your tool is equipped with a three-pronged plug, you must plug it into a three-hole electric receptacle. If you use
an adapter to accommodate a two-pronged receptacle, you must attach the adapter plug to a known ground. Never
remove the third prong of the plug.
Always Avoid Dangerous Environments.
Never use power tools in damp or wet locations. Keep your work area well lighted and clear of clutter.
Always Remove the Adjusting Keys and Wrenches from Tools after Use.
Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning iton.
Always Keep Your Work Area Clean. Cluttered areas and benches invite accidents.
Always Keep Visitors Away from Running Machines.
All visitors should be kept asafe distancefrom the work area.
Always make the Workshop Childproof.
Childproof with padlocks, master switches, or by removing starter keys.
Never operate a tool while under the influence of drugs, medication, or alcohol.
2

Always Wear Proper Apparel.
Never wear loose clothing or jewelry that might get caught in moving parts. Rubber-soled footwear is recommended
for the best footing.
Always Use Safety Glasses and Wear Hearing Protection.
Also use a face or dust mask if the cutting operation is dusty.
Never Overreach.
Keep your proper footing and balance at all times.
Never Stand on Tools.
Serious injurycould occur if the tool is tipped or ifthe cutting tool isaccidentally contacted.
Always Disconnect Tools.
Disconnecttools before servicing and when changingaccessories such as blades, bits, and cutters.
Always Avoid Accidental Staring.
Make sure switch is in "OFF" position before plugging in cord.
Never Leave Tools Running Unattended.
Always Check for Damaged Parts.
Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure that it
will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other damaged parts
should immediately be properly repaired or replaced.
SPECIAL SAFETY RULES FOR BAND SAWS
1. Always stop the band saw before removing scrap pieces from table.
2. Always keep hands and fingers away from the blade.
3. Never attempt to saw stock that does not have a flat surface, unless a suitable support is used.
4. Always hold material firmly and feed it into the blade at a moderate speed.
5. Always turn off the machine if the material is to be backed out of an uncompleted cut.
6. Check for proper blade size and type for thickness and type of material being cut.
7. Make sure that the blade tension and blade tracking are properly adjusted.
8. Make "relief" cuts before cutting long curves.
9. Release blade tension when the saw will not be used for a long period of time.
10. Note and follow the safety warnings and instructions that appear on the lower door of this saw.
Blade Length ................................................ 62-1/8"
Blade Width ............................................ 1/4" to 3/8"
Throat Width ................................................... 8-3/4"
Cutting Depth ................................................. 3-1/2"
Blade Speeds ............................................. 1 Speed
Dust Ports ......................................................... 1-2"
Table Size ...................................... 11-1/2" x 11-1/2"
Table Tilt ............................................. 0-45 Degrees
Motor ............................................................. 1/4 HP
Motor Voltage .................................................. 120V
Motor Amperage .............................................. 2.5 A
Net Weight ................................................... 44 LBS
SAVE THESE INSTRUCTIONS.
Refer to them often.

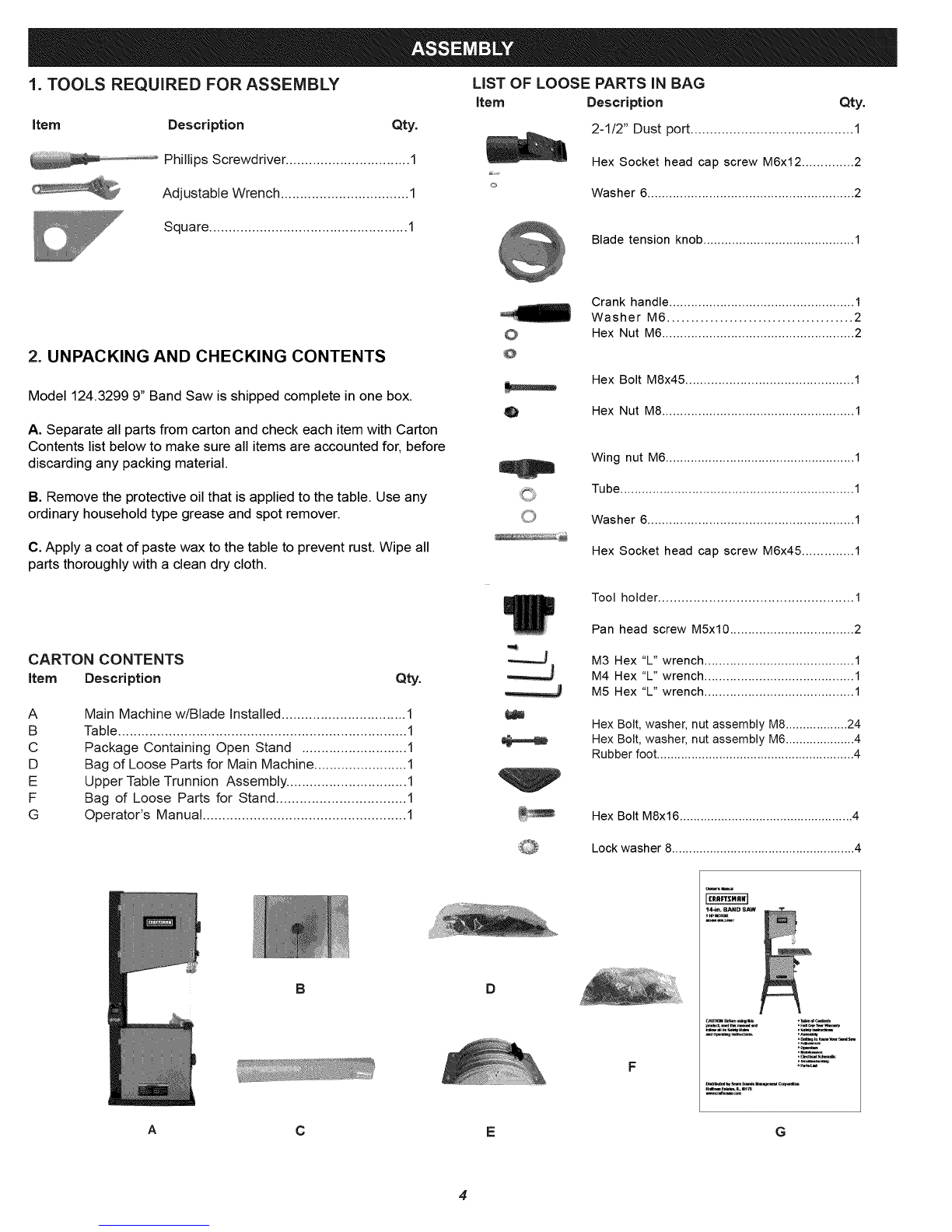

1. TOOLS REQUIRED FOR ASSEMBLY LIST OF LOOSE PARTS iN BAG
Item Description Qty.
_ Phillips Screwdriver ................................ 1
Adjustable Wrench ................................. 1
Item
©
Description Qty.
2-1/2" Dust port.......................................... 1
Hex Socket head cap screw M6x12 .............. 2
Washer 6......................................................... 2
Square ................................................... 1 Blade tension knob .......................................... 1
2. UNPACKING AND CHECKING CONTENTS
Model 124.3299 9" Band Saw is shipped complete in one box.
A. Separate all parts from carton and check each item with Carton
Contents list below to make sure all items are accounted for, before
discarding any packing material.
B. Remove the protective oil that is applied to the table. Use any
ordinary household type grease and spot remover.
C. Apply a coat of paste wax to the table to prevent rust. Wipe all
parts thoroughly with a clean dry cloth.
CARTON CONTENTS
item Description Qty.
A
B
C
D
E
F
G
Main Machine w/Blade Installed ................................ 1
Table .......................................................................... 1
Package Containing Open Stand ........................... 1
Bag of Loose Parts for Main Machine ........................ 1
Upper Table Trunnion Assembly ............................... 1
Bag of Loose Parts for Stand ................................. 1
Operator's Manual .................................................... 1
©
@
Crank handle ................................................... 1
Washer M6 ....................................... 2
Hex Nut M6..................................................... 2
Hex Bolt M8x45 .............................................. 1
Hex Nut M8..................................................... 1
Wing nut M6 ..................................................... 1
Tube ................................................................. 1
Washer 6......................................................... 1
Hex Socket head cap screw M6x45 .............. 1
Tool holder .................................................. 1
Pan head screw M5xl0 .................................. 2
M3 Hex "L" wrench ......................................... 1
M4 Hex "L" wrench ......................................... 1
M5 Hex "L" wrench ......................................... 1
Hex Bolt, washer, nut assembly M8 .................. 24
Hex Bolt, washer, nut assembly M6 .................... 4
Rubber foot ......................................................... 4
Hex Bolt M8x16 .................................................. 4
Lock washer 8..................................................... 4
14_n. BAND SAW
D
AEG

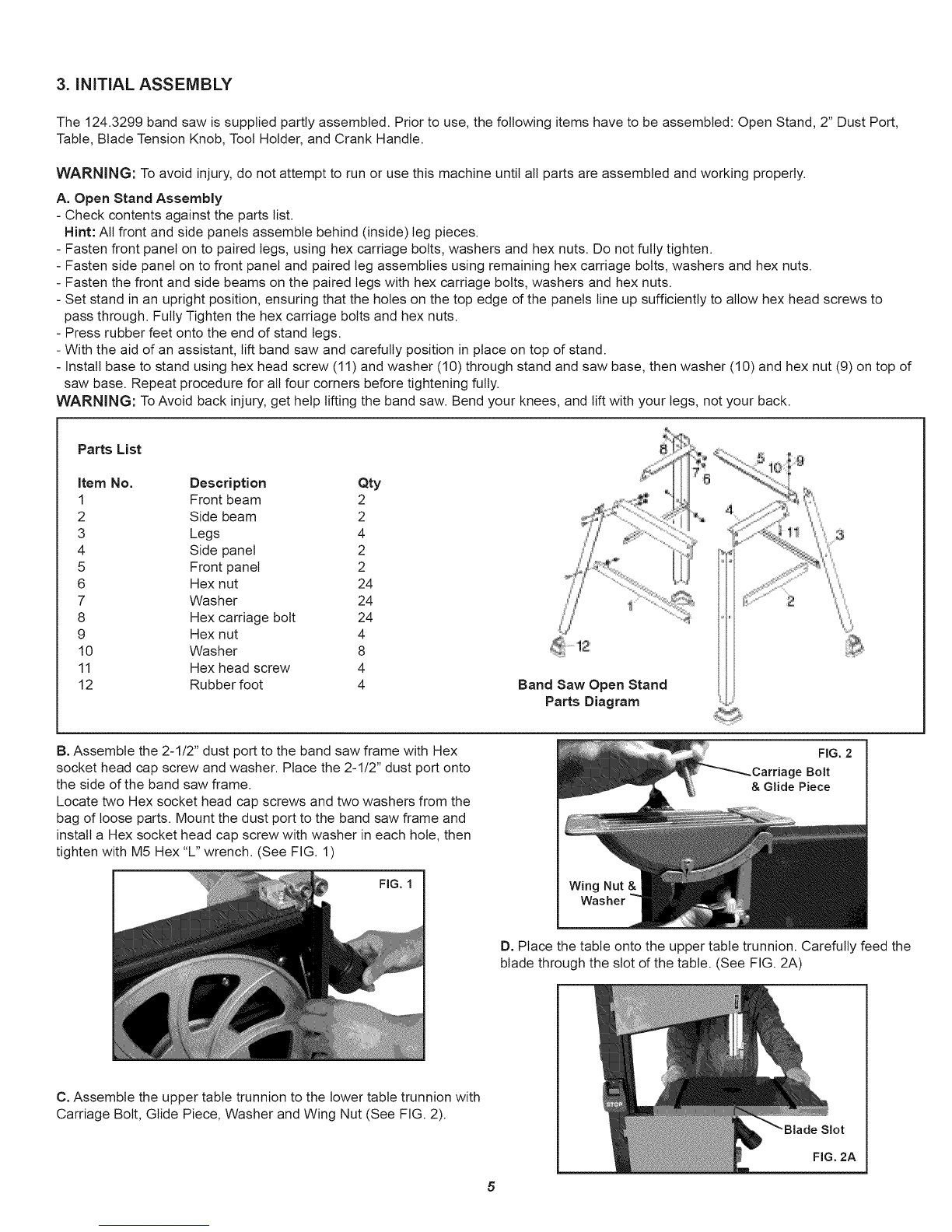

3. iNiTiAL ASSEMBLY
The 124.3299 band saw is supplied partly assembled. Prior to use, the following items have to be assembled: Open Stand, 2" Dust Port,
Table, Blade Tension Knob, Tool Holder, and Crank Handle.
WARNING: To avoid injury, do not attempt to run or use this machine until all parts are assembled and working properly.
A. Open Stand Assembly
- Check contents against the parts list.
Hint: All front and side panels assemble behind (inside) leg pieces.
- Fasten front panel on to paired legs, using hex carriage bolts, washers and hex nuts. Do not fully tighten.
- Fasten side panel on to front panel and paired leg assemblies using remaining hex carriage bolts, washers and hex nuts.
- Fasten the front and side beams on the paired legs with hex carriage bolts, washers and hex nuts.
- Set stand in an upright position, ensuring that the holes on the top edge of the panels line up sufficiently to allow hex head screws to
pass through. Fully Tighten the hex carriage bolts and hex nuts.
- Press rubber feet onto the end of stand legs.
- With the aid of an assistant, lift band saw and carefully position in place on top of stand.
- Install base to stand using hex head screw (11) and washer (10) through stand and saw base, then washer (10) and hex nut (9) on top of
saw base. Repeat procedure for all four corners before tightening fully.
WARNING: ToAvoid back injury, get help lifting the band saw. Bend your knees, and lift with your legs, not your back.
Parts List
Item No. Description Qty
1 Front beam 2
2 Side beam 2
3 Legs 4
4 Side panel 2
5 Front panel 2
6 Hex nut 24
7 Washer 24
8 Hex carriage bolt 24
9 Hex nut 4
10 Washer 8
11 Hex head screw 4
12 Rubber foot 4 Band Saw Open Stand
Parts Diagram
3
B. Assemble the 2-1/2" dust port to the band saw frame with Hex
socket head cap screw and washer. Place the 2-1/2" dust port onto
the side of the band saw frame.
Locate two Hex socket head cap screws and two washers from the
bag of loose parts. Mount the dust port to the band saw frame and
install a Hex socket head cap screw with washer in each hole, then
tighten with M5 Hex "L" wrench. (See FIG. 1)
FIG. 1
FIG. 2
_ge Bolt
D. Place the table onto the upper table trunnion. Carefully feed the
blade through the slot of the table. (See FIG. 2A)
C. Assemble the upper table trunnion to the lower table trunnion with
Carriage Bolt, Glide Piece, Washer and Wing Nut (See FIG. 2).
FIG, 2A

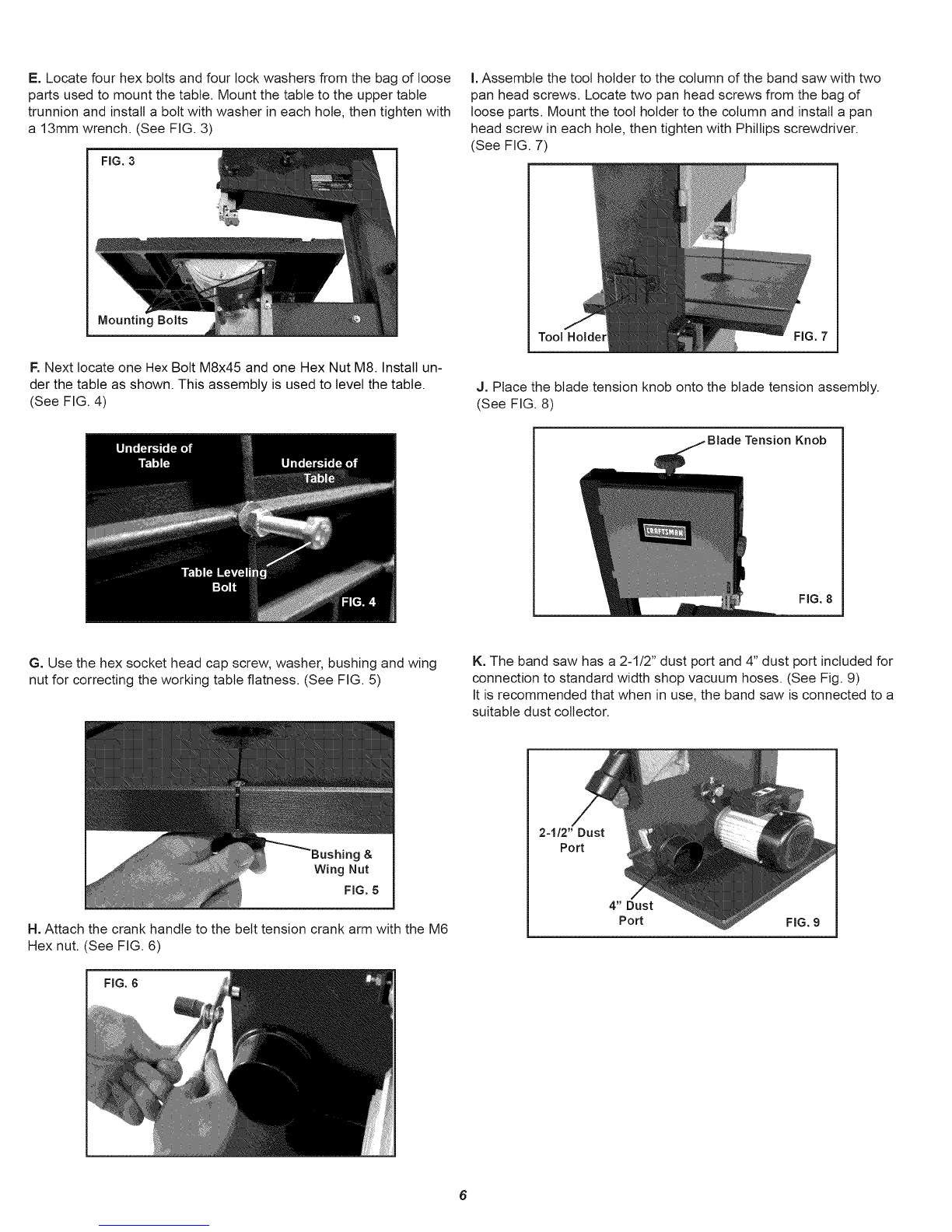

E. Locate four hex bolts and four lock washers from the bag of loose
parts used to mount the table. Mount the table to the upper table
trunnion and install a bolt with washer in each hole, then tighten with
a 13mm wrench. (See FIG. 3)
FIG, 3
Mounting Bolts
F. Next locate one HexBolt M8x45 and one Hex Nut M8. Install un-
der the table as shown. This assembly is used to level the table.
(See FIG. 4)
I. Assemble the tool holder to the column of the band saw with two
pan head screws. Locate two pan head screws from the bag of
loose parts. Mount the tool holder to the column and install a pan
head screw in each hole, then tighten with Phillips screwdriver.
(See FIG. 7)
Tool ,7
J. Place the blade tension knob onto the blade tension assembly.
(See FIG. 8)
Tension Knob
FIG. 8
G. Use the hex socket head cap screw, washer, bushing and wing
nut for correcting the working table flatness. (See FIG. 5) K. The band saw has a 2-1/2" dust port and 4" dust port included for
connection to standard width shop vacuum hoses. (See Fig. 9)
It is recommended that when in use, the band saw is connected to a
suitable dust collector.
g&
Wing Nut
FIG. 5
H. Attach the crank handle to the belt tension crank arm with the M6
Hex nut. (See FIG. 6)
FIG. 6
2-1/2" Dust
Port
4" Dust
Port FIG. 9
6

Upper Bandwheel
Switch
Lower Bandwheel
Door Locking Knob
Blade Guides
Table Insert
Table
2-1/2" Dust Port
Drive Belt
Tension
Blade Tension Knob"
Blade Tracking
Guide Post Adjusting
Upper Table Trunniori
Blade Tension
Indicator
Tool Holder
Motor

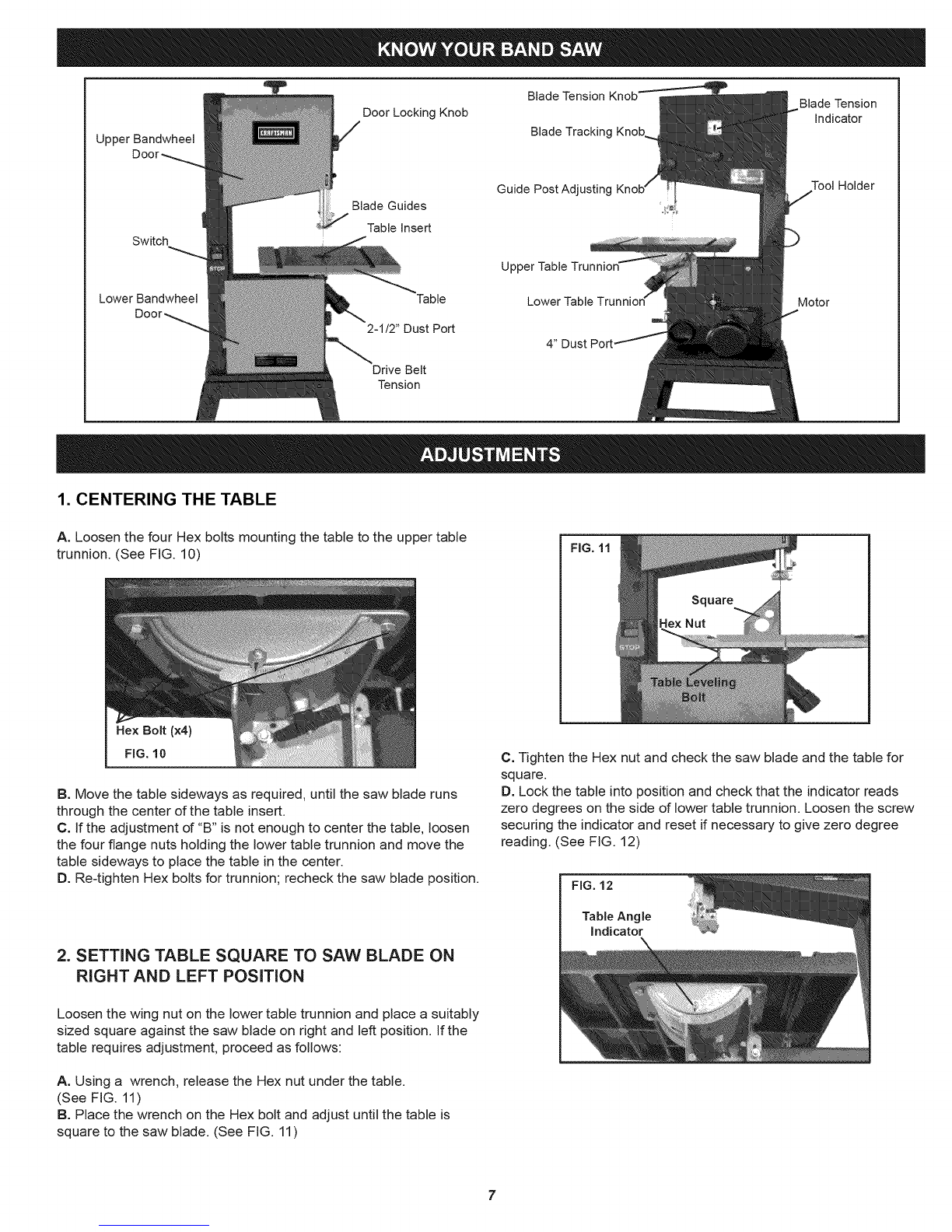

1. CENTERING THE TABLE
A. Loosen the four Hex bolts mounting the table to the upper table
trunnion. (See FIG. 10)
mFI6.11
Hex Nut
B. Move the table sideways as required, until the saw blade runs
through the center of the table insert.
C. If the adjustment d"B" is not enough to center the table, loosen
the four flange nuts holding the lower table trunnion and move the
table sideways to place the table in the center.
D. Re-tighten Hex bolts for trunnion; recheck the saw blade position.
2. SETTING TABLE SQUARE TO SAW BLADE ON
RIGHT AND LEFT POSITION
Loosen the wing nut on the lower table trunnion and place a suitably
sized square against the saw blade on right and left position. If the
table requires adjustment, proceed as follows:
C. Tighten the Hex nut and check the saw blade and the table for
square.
D. Lock the table into position and check that the indicator reads
zero degrees on the side of lower table trunnion. Loosen the screw
securing the indicator and reset if necessary to give zero degree
reading. (See FIG. 12)
FIG. 12
Table Angle
Indicator
A. Using a wrench, release the Hex nut under the table.
(See FIG. 11)
B. Place the wrench on the Hex bolt and adjust until the table is
square to the saw blade. (See FIG. 11)

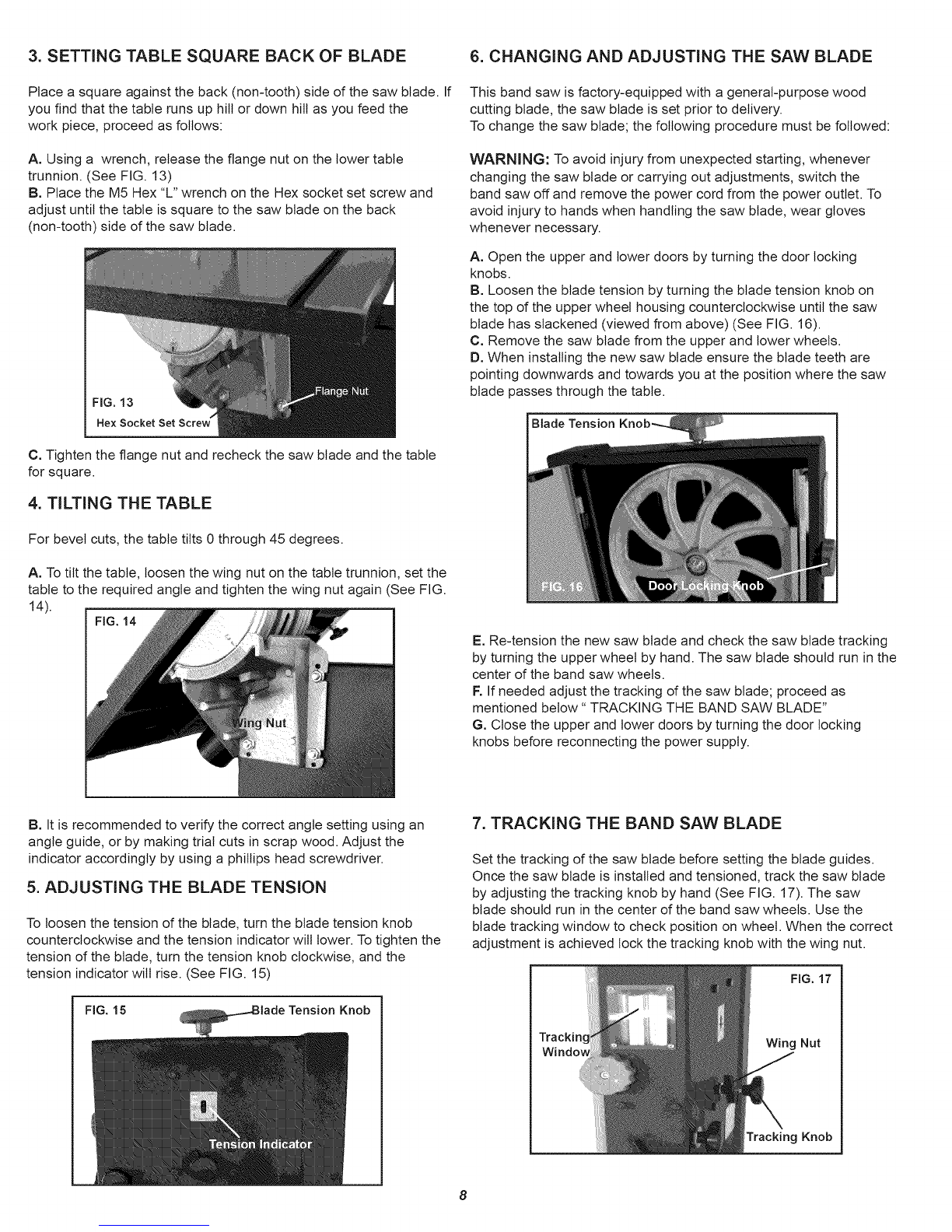

3. SETTING TABLE SQUARE BACK OF BLADE 6. CHANGING AND ADJUSTING THE SAW BLADE
Place a square against the back (non-tooth) side of the saw blade. If
you find that the table runs up hill or down hill as you feed the
work piece, proceed as follows:
A. Using a wrench, release the flange nut on the lower table
trunnion. (See FIG. 13)
B. Place the M5 Hex "L" wrench on the Hex socket set screw and
adjust until the table is square to the saw blade on the back
(non-tooth) side of the saw blade.
FIG. 13
Hex Socket SetScrew
C. Tighten the flange nut and recheck the saw blade and the table
for square.
4. TILTING THE TABLE
For bevel cuts, the table tilts 0 through 45 degrees.
A. To tilt the table, loosen the wing nut on the table trunnion, set the
table to the required angle and tighten the wing nut again (See FIG.
14). FIG, 14
This band saw is factory-equipped with a general-purpose wood
cutting blade, the saw blade is set prior to delivery.
To change the saw blade; the following procedure must be followed:
WARNING: To avoid injury from unexpected starting, whenever
changing the saw blade or carrying out adjustments, switch the
band saw off and remove the power cord from the power outlet. To
avoid injury to hands when handling the saw blade, wear gloves
whenever necessary.
A. Open the upper and lower doors by turning the door locking
knobs.
B. Loosen the blade tension by turning the blade tension knob on
the top of the upper wheel housing counterclockwise until the saw
blade has slackened (viewed from above) (See FIG. 16).
C. Remove the saw blade from the upper and lower wheels.
D. When installing the new saw blade ensure the blade teeth are
pointing downwards and towards you at the position where the saw
blade passes through the table.
IBlade Tension
E. Re-tension the new saw blade and check the saw blade tracking
by turning the upper wheel by hand. The saw blade should run in the
center of the band saw wheels.
R If needed adjust the tracking dthe saw blade; proceed as
mentioned below" TRACKING THE BAND SAW BLADE"
G. Close the upper and lower doors by turning the door locking
knobs before reconnecting the power supply.
B. It is recommended to verify the correct angle setting using an
angle guide, or by making trial cuts in scrap wood. Adjust the
indicator accordingly by using a phillips head screwdriver.
5. ADJUSTING THE BLADE TENSION
To loosen the tension of the blade, turn the blade tension knob
counterclockwise and the tension indicator will lower. To tighten the
tension of the blade, turn the tension knob clockwise, and the
tension indicator wilt rise. (See FIG. 15)
FIG, 15 Knob
7. TRACKING THE BAND SAW BLADE
Set the tracking of the saw blade before setting the blade guides.
Once the saw blade is installed and tensioned, track the saw blade
by adjusting the tracking knob by hand (See FIG. 17). The saw
blade should run in the center of the band saw wheels. Use the
blade tracking window to check position on wheel. When the correct
adjustment is achieved lock the tracking knob with the wing nut.
FIG. 17
Wing Nut
Tracking Knob

8. SETTING THE CUTTING HEIGHT The Lower Blade Guide
A. The upper blade guide should be set as close as practical against
the work piece.
B. To adjust this height, loosen the wing nut at the side of the upper
wheel housing. (See FIG. 18)
C. Set the blade guide to the required height by turning the guide
post adjusting knob.
D. Tighten the wing nut after setting proper height.
FIG, 18
Post
Wing Nut Knob
A. To adjust the lower blade guides, first position the right and left
roller guides relative to the blade by loosening the lock nut (FIG. 21 )
and moving the guide carrier until both roller guides are
approximately 1/16" behind the gullets (See Inset, FIG. 19) of the
saw blade.
B. Set both roller guides to within 1/32" of the saw blade by releasing
the guide adjusting screw (FIG. 21 ) and moving the guide to desired
position. Lock the roller guide in position with the guide adjusting
screw. Do not set the roller guides too close as this will adversely
affect the life of the saw blade.
C. Adjust the rear roller guide to be just clear of the back of the saw
blade by unlocking the guide adjusting screw (FIG. 21 ) and moving
the guide to approximately 1/32" behind the blade.
D. When the correct adjustment is reached, lock the roller guides in
position with the guide adjusting screws.
11. ADJUSTING THE BLADE GUIDES
The Upper Blade Guide
A. To adjust the upper blade guides, first position the right and left
roller guides relative to the blade by loosening the lock nut (FIG. 19)
and moving the guide carrier until both roller guides are
approximately 1/16" behind the gullets of the saw blade.
B. Set both roller guides to within 1/32" of the saw blade by
releasing the guide adjusting screw (FIG. 19) on each side of the
saw blade and moving the guides to desired position. Lock the roller
guide in position with the guide adjusting screw. Do not set the roller
guides too close as this will adversely affect the life of the saw blade.
Blade Gullet
Guide Adjusting
Screw FIG, 19
C. Adjust the rear roller guide to be just clear of the back of the saw
blade by releasing the guide adjusting screw FIG. 20 and moving the
guide to approximately 1/32" behind the blade.
D. When the correct adjustment is reached, lock the roller guide in
position with the guide adjusting screw FIG. 20.
Lock Nut Adjustinc
12. CHANGING THE BLADE SPEED
WARNING: Before changing the speed always make sure the
machine has been unplugged from the electrical supply.
This band saw has two blade speeds:
A. 1620 feet/min for hardwoods, some plastics and certain
nonferrous metals.
B. 3340 feet/min for all other timber.
The lower bandwheel has two, integral, multi-vee form pulleys and
the motor shaft has a twin multi-vee form pulley.
The drive belt passes around the bandwheel pulley, the motor pulley
and the tension wheel. The belt tension is released and applied by
using the crank handle (See FIG. 22). This moves the tension wheel
and allows the speed to be changed.
(See DRIVE BELT POSITIONS HIGH/LOW SPEED on page 10)
Guide Ad
Screw FIG. 20

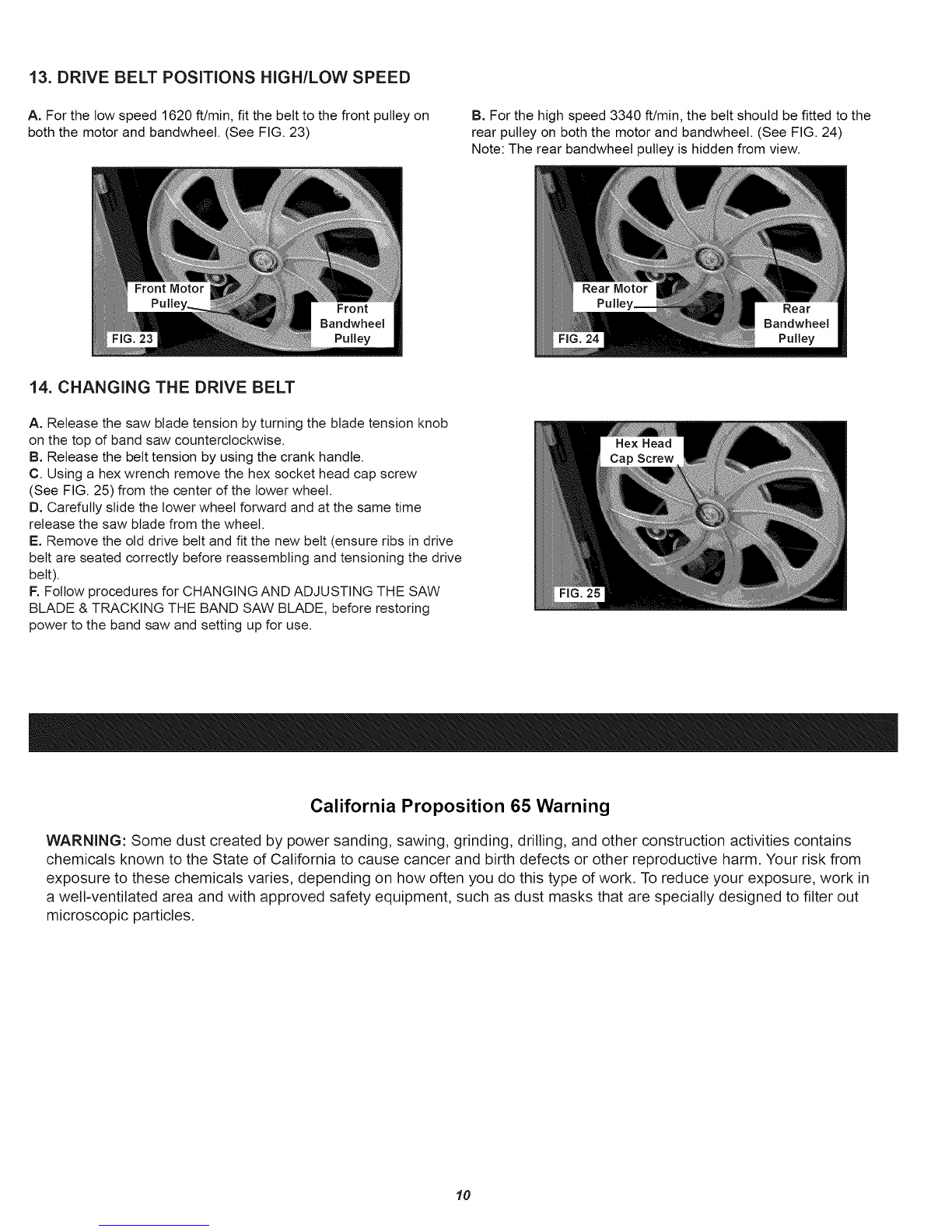

13. DRIVE BELT POSiTiONS HIGH/LOW SPEED
A. For the tow speed 1620 ft/min, fit the belt to the front pulley on
both the motor and bandwheel. (See FIG. 23) B. For the high speed 3340 ft/min, the belt should be fitted to the rear pulley on both the motor and bandwheel. (See FIG. 24)
Note: The rear bandwheel pulley is hidden from view.
14. CHANGING THE DRIVE BELT
A. Release the saw blade tension by turning the blade tension knob
on the top of band saw counterclockwise.
B. Release the belt tension by using the crank handle.
C. Using a hex wrench remove the hex socket head cap screw
(See FIG. 25) from the center of the lower wheel.
D. Carefully slide the lower wheel forward and at the same time
release the saw blade from the wheel.
E. Remove the old drive belt and fit the new belt (ensure ribs in drive
belt are seated correctly before reassembling and tensioning the drive
belt).
F. Follow procedures for CHANGING AND ADJUSTING THE SAW
BLADE & TRACKING THE BAND SAW BLADE, before restoring
power to the band saw and setting up for use.
Cap Screw
California Proposition 65 Warning
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains
chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Your risk from
exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in
a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out
microscopic particles.
10

WARNING: Before starting check if any part of your band saw is
missing, malfunctioning, has been damaged or broken, such as the
motor switch, or other operation control, a safety device or the power
cord, turn the band saw off and unplug it until the particular part is
properly repaired or replaced.
The saw blade cuts on a continuous downstroke. To avoid injury
when hands are unavoidably near to the saw blade, they should be
placed on either side of the blade (See FIG. 26), not in line with it
(See FIG. 27). Use a push stick whenever possible when working in
close proximity to the saw blade.
FiG. 26 Blade
Start the band saw by pressing the green ON button (See FIG. 28)
and wait for the band saw to come to full speed before starting to
cut. Never start the band saw with the work piece in contact with the
saw blade.
Slowly feed the work piece towards the saw blade, putting only light
pressure on it. With both hands, firmly hold the work piece down on
the table, and feed it towards the saw blade slowly.
Blade
Once the cutting operation is complete turn the band saw off by
pressing the red STOP paddle on the switch.
For best results the saw blade must be sharp. Select the right saw
blade for the job, depending on the thickness of the wood the cut to
be made. The thinner and harder the wood, the finer the teeth (14
teeth per inch) of the saw blade. Use a fine tooth blade for cutting
sharp curves. For thick wood cutting use less teeth, approximately 4
teeth per inch.
The machine is especially suited for cutting curves, but will also
make straight cuts. Do not attempt to turn the work piece without
pushing it, as this may cause the work piece to get stuck, or the saw
blade to bend.
An accessory rip fence isused to ensure safe and accurate straight
cuts of the work piece, usually in the same direction as the grain of
the timber. Please see separate instructions provided in the
accessory rip fence package.
WARNING: When sawing with the rip fence and a tilted table, the rip
fence must be installed on that side of the table which is tilted down-
ward.
11

WARNING: To avoid injury due to unexpected starting, before

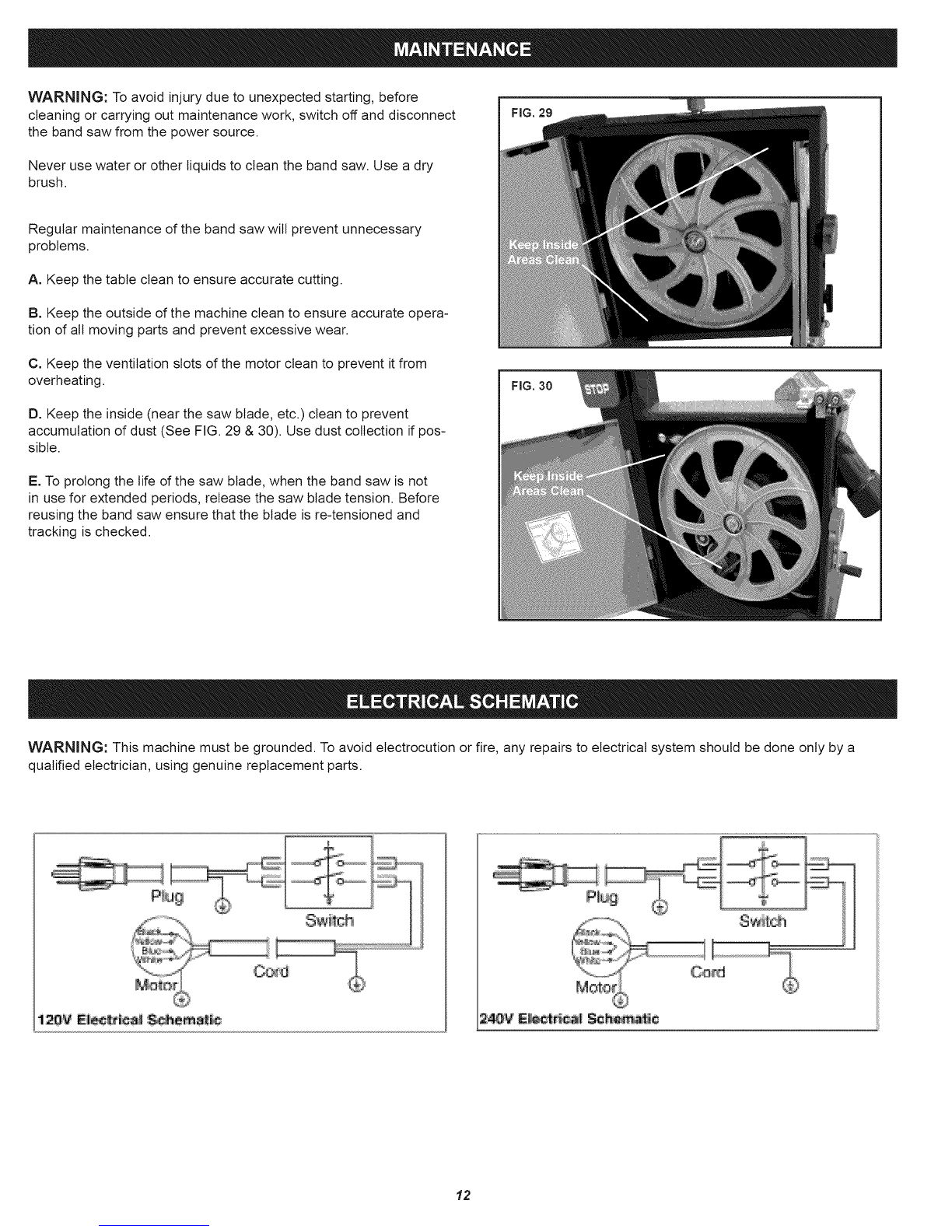

cleaning or carrying out maintenance work, switch off and disconnect
the band saw from the power source.
Never use water or other liquids to clean the band saw. Use a dry
brush,
Regular maintenance of the band saw wilt prevent unnecessary
problems,
A. Keep the table clean to ensure accurate cutting,
B. Keep the outside of the machine clean to ensure accurate opera-
tion of all moving parts and prevent excessive wear,
FIG. 29
C. Keep the ventilation slots of the motor clean to prevent it from
overheating,
D. Keep the inside (near the saw blade, etc.) clean to prevent
accumulation of dust (See FIG. 29 & 30). Use dust collection if pos-
sible,
E. To prolong the life of the saw blade, when the band saw is not
in use for extended periods, release the saw blade tension. Before
reusing the band saw ensure that the blade is re-tensioned and
tracking is checked.
FIG. 30
WARNING: This machine must be grounded. To avoid electrocution or fire, any repairs to electrical system should be done only by a
qualified electrician, using genuine replacement parts.
120V Ele_i¢_ _emal_ _V E_r_! S_ c
12

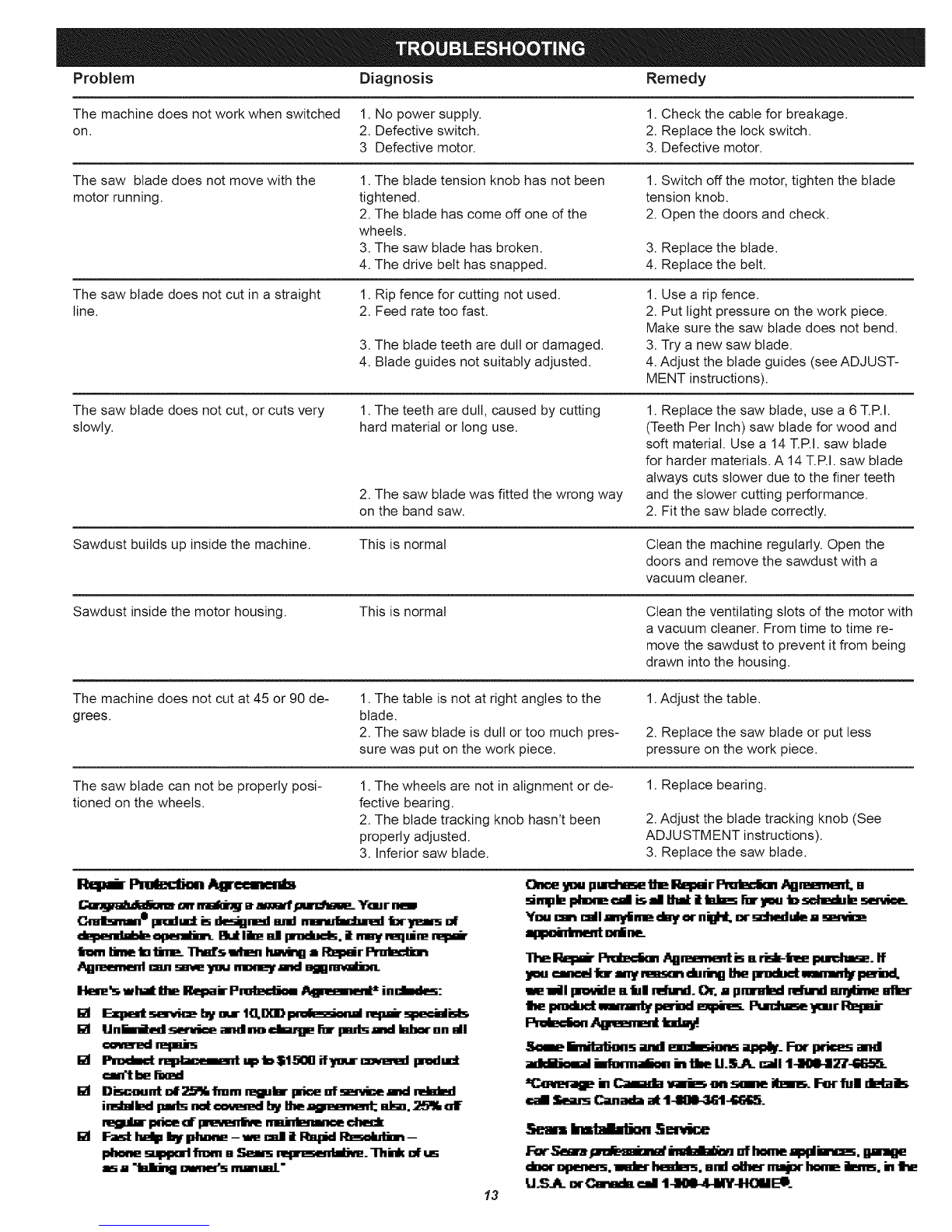

ProbJem Diagnosis Remedy
The machine does not work when switched 1. No power supply. 1. Check the cable for breakage.
on. 2. Defective switch. 2. Replace the lock switch.
3 Defective motor. 3. Defective motor.
The saw blade does not move with the
motor running.
The saw blade does not cut in a straight
line.
1. The blade tension knob has not been
tightened.
2. The blade has come off one dthe
wheels.
3. The saw blade has broken.
4. The drive belt has snapped.
1. Rip fence for cutting not used.
2. Feed rate too fast.
3. The blade teeth are dull or damaged.
4. Blade guides not suitably adjusted.
1. Switch off the motor, tighten the blade
tension knob.
2. Open the doors and check.
3. Replace the blade.
4. Replace the belt.
1. Use a rip fence.
2. Put light pressure on the work piece.
Make sure the saw blade does not bend.
3. Try a new saw blade.
4. Adjust the blade guides (see ADJUST-
MENT instructions).
The saw blade does not cut, or cuts very
slowly. 1. The teeth are dull, caused by cutting hard material or long use.
2. The saw blade was fitted the wrong way
on the band saw.
1. Replace the saw blade, use a 6 T.P.I.
(Teeth Per Inch) saw blade for wood and
soft material. Use a 14 T.P.I. saw blade
for harder materials. A 14 T.RI. saw blade
always cuts slower due to the finer teeth
and the slower cutting performance.
2. Fit the saw blade correctly.
Sawdust builds up inside the machine. This is normal Clean the machine regularly. Open the
doors and remove the sawdust with a
vacuum cleaner.
Sawdust inside the motor housing. This is normal Clean the ventilating slots of the motor with
a vacuum cleaner. From time to time re-
move the sawdust to prevent it from being
drawn into the housing.
The machine does not cut at 45 or 90 de-
grees. 1. The table is not at right angles to the
blade.
2. The saw blade is dull or too much pres-
sure was put on the work piece.
1. Adjust the table.
2. Replace the saw blade or put less
pressure on the work piece.
The saw blade can not be properly posi-
tioned on the wheels. 1. The wheels are not in alignment or de-
fective bearing.
2. The blade tracking knob hasn't been
properly adjusted.
3. Inferior saw blade.
1. Replace bearing.
2. Adjust the blade tracking knob (See
ADJUSTMENT instructions).
3. Replace the saw blade.
__rrnzlkzhg izamerf jmmcheee_Your _
Gmts_u_ ° pudu[:L _[lle_unnd and _Tnrynam d
_llnemJ_=_ q_mrJ_rt. I]k.dtlikp nil _, it tony umquim u_Mm"
from line kzlimp_Thzzlrswhzm _ =iFlz_r _
,#gmeme_ ca. _]mu nmnL_ _1 agil_
_'s ih,zl Ilhe llelpair Pmb_dimz _incllBdes:
Ezped s,_,,ice by our I(].DOD_ mW_ sWe_alis_
!_1 UnFlll_d _amdzrm,=1_ rot pml_ im=l Mbmrnn ,,:,q
,==,_mmdmmzim
I_ l_mldrEll_Lam_mmlt upb$1_Dl]ifyuLr_m_l l_mluEt
€_r_tluefiJ_d
65 iD_.Gount ulf25n&4[mmm_ulnr puk_ nf _&_ _=1 neJkdml
m Fast henpu_,p_n_ -_mn _g_u_ _m=_nn-
_SUl=tnurlhcnm n _ _. l"hink _,-,_
=m_a"tnllnng mimers msmunn"
13
Once _uu pmdvme the Repeir Pmkeckzn Agmened. e
_imple phmle cd is,dIhaL itkd_ rnrymn "In_le
You cat cell a_lime dey or nigHL,or sdmlule a meek:e
=m:akdm_ online.
]_,=,,==,,=,,ak,r =.,',j,r,m_undu,ir,a the pm_,,=,,=,d_ p_'iud.
tm rail pmq_e n ful mlhurul.Or. a pmrulm9 udurul mqdim_ uflm-
_inC_Ia vzi_, ® _ ihs_,_IF_ f_l _el_ils
_11 Seam Canada at 1-_1]10-3_1-4_1_.
._n_uS lumtallali_ S mvi_
R_,-_ pu_.lim_ _aftmme_=_ia'_. n_nne
du=r upusm_. _ub_r hmmdms,and _Jmr maim-hom_ iimms, in _e
U.S.A_ m-Carm_ _dl 14413_-4-IW-140_L__

6

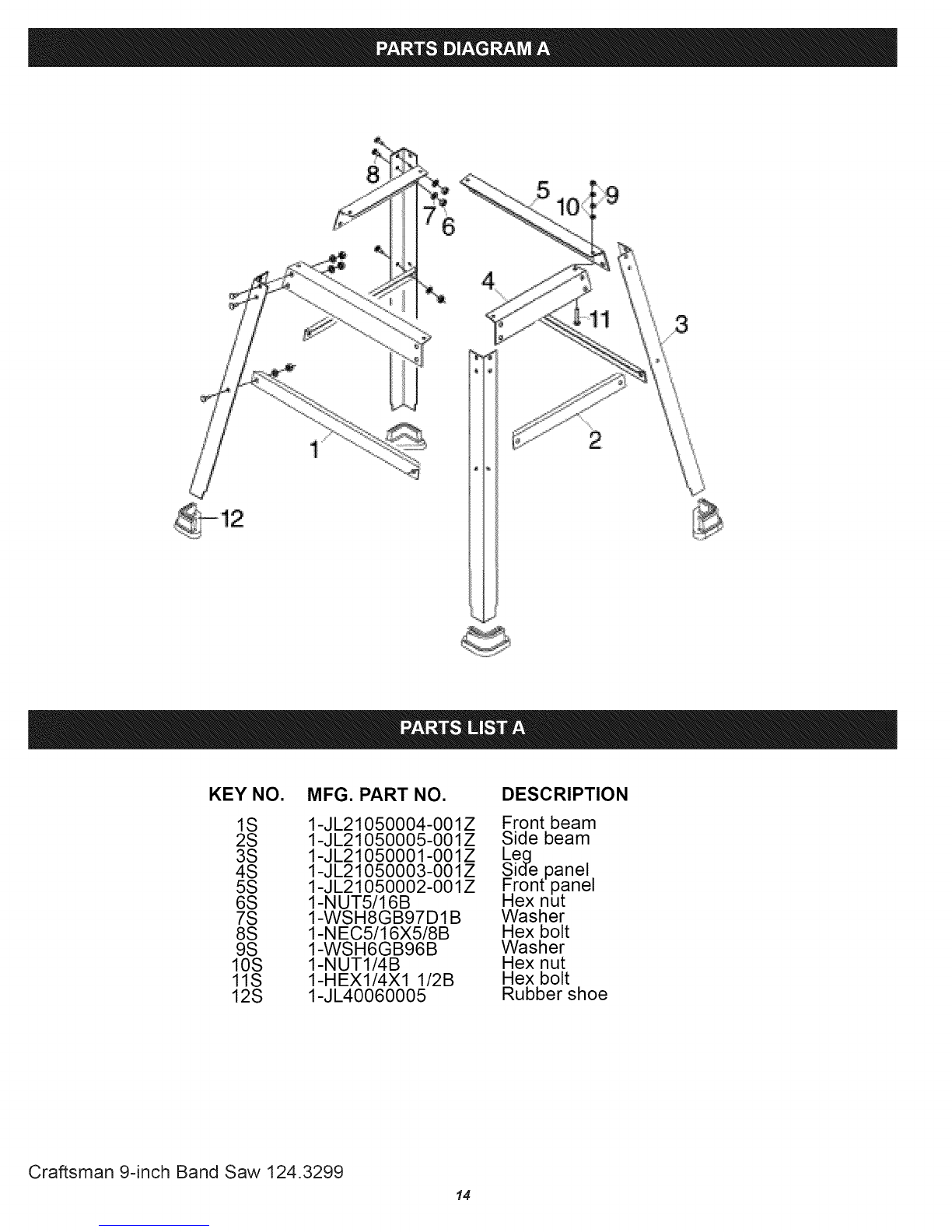

KEY NO. MFG. PART NO. DESCRIPTION
1S 1-JL21050004-001Z Front beam
2S 1-JL21050005-001Z Side beam
3S 1-JL21050001-001Z Le;.q
4S 1-JL21050003-001Z Side panel
5S 1-JL21050002-001Z Front panel
6S 1-NUT5/16B Hex nut
7S 1-WSH8GB97 D1B Washer
8S 1-NEC5/16X5/8B Hex bolt
9S 1-WSH6GB96B Washer
10S 1-NUT1/4B Hex nut
11S 1-HEX1/4X1 1/2B Hex bolt
12S 1-JL40060005 Rubber shoe
Craftsman 9=inch Band Saw 124.3299 14

\
4:3 42 41
35
6
3
33
21
22 "', 24:........25
Craftsman 9-inch Band Saw 124.3299 15
27 '¸ 29 30

KEY NO. MFG. PART NO. DESCRIPTION
1 1-JL21010001A-001S Top plug
2 1-JL21011000L001Z _-rame
3 1-JL20010008 Leaf spring
4 1-RVT4X8G B12618A Rivet
5 1-M6GB889Z Lock nut M6
6 1-J L26010007 Bushing
7 1-M6X25GB70Z Hex socket screw M6X25
8 1-M6GB889Z Lock nut M6
9 1-JL26010006-106S Door Iockinq knob
10 1-M6X25GB70Z Hex Bolt M6X25
11 1-M20GB6173Z Hex Nut M20
12 1-JL21012000H081Z Upper door
13 1-M4X12GB818Z Pan head screw
14 1-HY56C Switch
15 1-JL20010004 Brush
16 1-M8X100GB14Z Carriage bolt M8X100
17 1-M8GB6177D1Z Flange nut M8
18 1-JL21020005 Tube
19 1-JL26010001 Clear window
20 1-RVT3X7GB 12618A Rivet 3x7
21 1-JL20010006-001Z Blade Cover
22 1-M4X12GB818Z Pan head screw
23 1-M4GB889Z Lock nut M4
24 1-WSH4GB97D1Z Washer
25 1-JL21013000D-081Z Lower door
26 1-JL20010007-001S Dust port
27 1-M5X20GB70Z Guide adjusting screw
28 1-BRG608-2ZGB276 Bearing
29 1-WSH6GB97D1Z Washer 6
30 1-JL22042004 Bearing mount cylinder
31 1-JL20042002 Bearing bushing
32 1-JL21042001 Upper guide mount
33 1-JL22043002 Lower guide shaft
34 1-M6X10GB80B Hex Socket set screw M6xl0
35 1-M6X20GB5783Z Hex Bolt M6x20
36 1-JL20040001 Lower guide mount seat
37 1-JL21043001 Lower guide support
38 1-M6GB889Z Lock nut M6
39 1-JL21010019 Dust port 2-1/2"
40 1-M6X10GB5781Z Hex bolt
41 1-JL20024001-001S Adjusting knob cap
42 1-JL20044001-001S Adjusting knob body
43 1-JL20044002 /uDe
44 1-JL21020003 Ruler
45 1-JL22040003 Spring washer
46 1-JL22040001 L_ear
Craftsman 9-inch Band Saw 124.3299 16

!
iiiiiii
_ ¸¸i,¸¸¸¸
.........i;............
.....,67 "" '@_'65
Craftsman 9-inch Band Saw 124.3299 17

KEY NO. MFG. PART NO. DESCRIPTION
47 1-JL28020004 Bushing
48 1-JL21020001K Saw blade
49 1-JL21022001A Upper wheel
50 1-CLP40GB893D1B #etaining ring 40
51 1-BRG6203-2Z-P5GB276 _eanng
52 1-JL21022002A Tire
53 1-JL21023002C Lower wheel
54 1-JL20020002 Drive belt
55 1-JL20014002A Tension wheel
56 1-B RG6001-2 RS G B276 Bearing
57 1-CLP28GB893D1B Retaing ring 28
58 1-CLP12GB894D1B Retaing rin.q 12
59 1-JL20014001 Sliding shaft
60 1-JL21015100 Belt tension crank arm
61 1-M6GB6172Z Hex Nut M6
62 1-M6X55GB65Z Set screw M6X55
63 1-JL20015001-001S Crank handle
64 1-JL20010015 Set collar
65 1-M5X8GB71Z Set screw M5x8
66 1-WSH10GB97D1Z Washer 10
67 1-JL20070001 Motor pulley
68 1-M6X10GB80B Hex Sockefset screw M6xl0
69 2-YYH806084 Motor
70 1-M6X16GB5783Z Hex bolt M6X16
71 1-WSH6GB93Z Spring washer 6
72 1-CLP17GB894D1B Retaining ring 17
73 1-M6X20GB5783Z Hex Bolt M6x20
74 1-JL20020004 Special Hex Nut
75 1-M6GB6170Z Hex Nut M6
76 1-JL21020002B Lower bearing bolt
77 1-WSH8GB96Z Washer 8
78 1-M8X16GB70Z Hex Socket set screw M8X16
88 1-WSH8GB93Z Spring washer
Craftsman 9-inch Band Saw 124.3299 18

.... %,

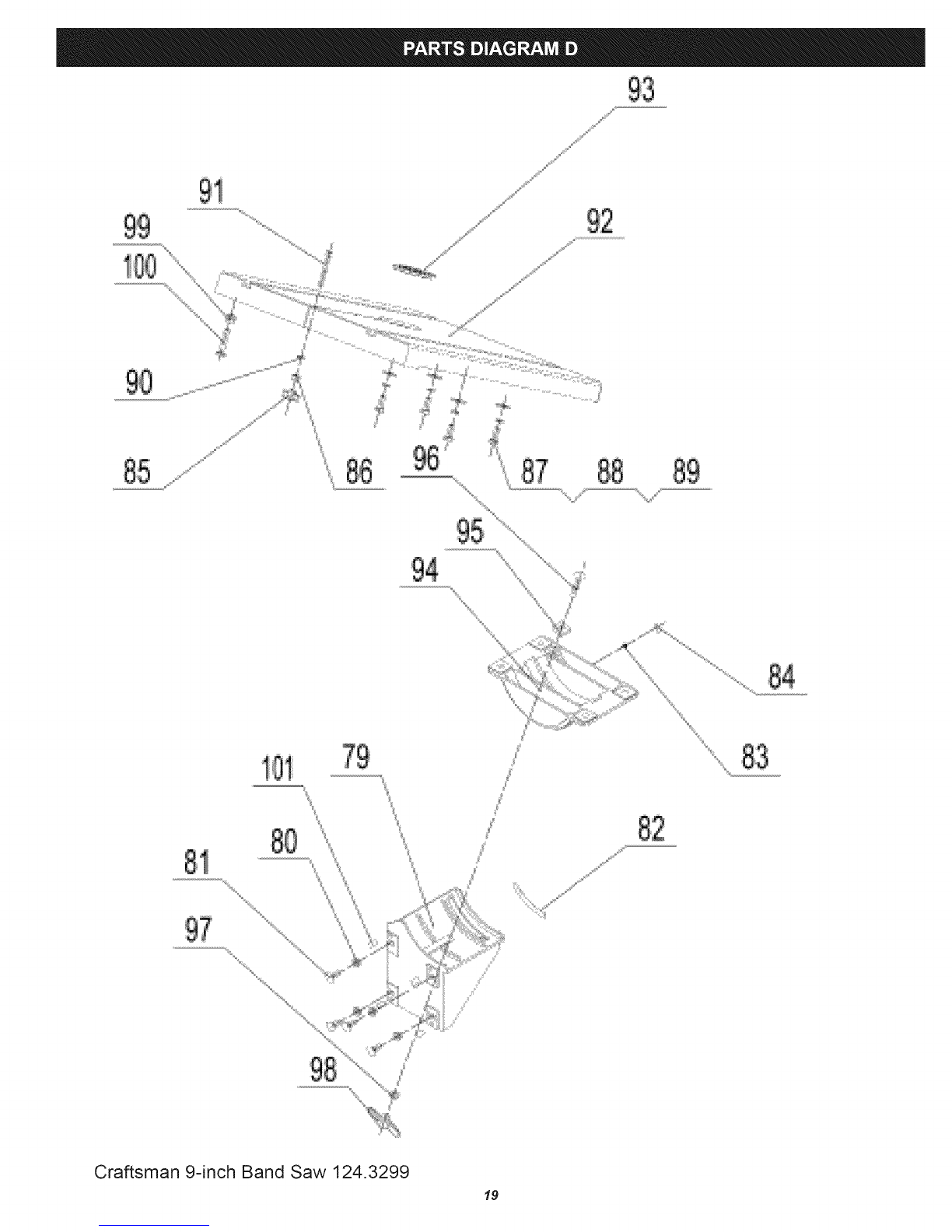

S
Craftsman 9-inch Band Saw 124.3299 19

KEY NO.
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
MFG. PART NO.
1-JL20030001A
1-M8GB6177B
1-M8X20GB14Z
1-JL20030004
1-ST3D5X9D5GB845Z
1-1506003
1-JL22020002-001S
1-JL21031003
1-M8X20GB5783Z
1-WSH8GB93Z
1-WSH8GB96Z
1-WSH6GB97D1Z
1-M6X45GB70Z
1-JL21031001D001G
1-JL20031002-001S
1-JL20032001
1-WSH8GB96Z
1-M8X50GB14Z
1-WSH8GB97D1Z
1-JL20010016-001S
1-M8GB6 70Z
1-M8X45(_B5783Z
1-M6XIO(_B80B

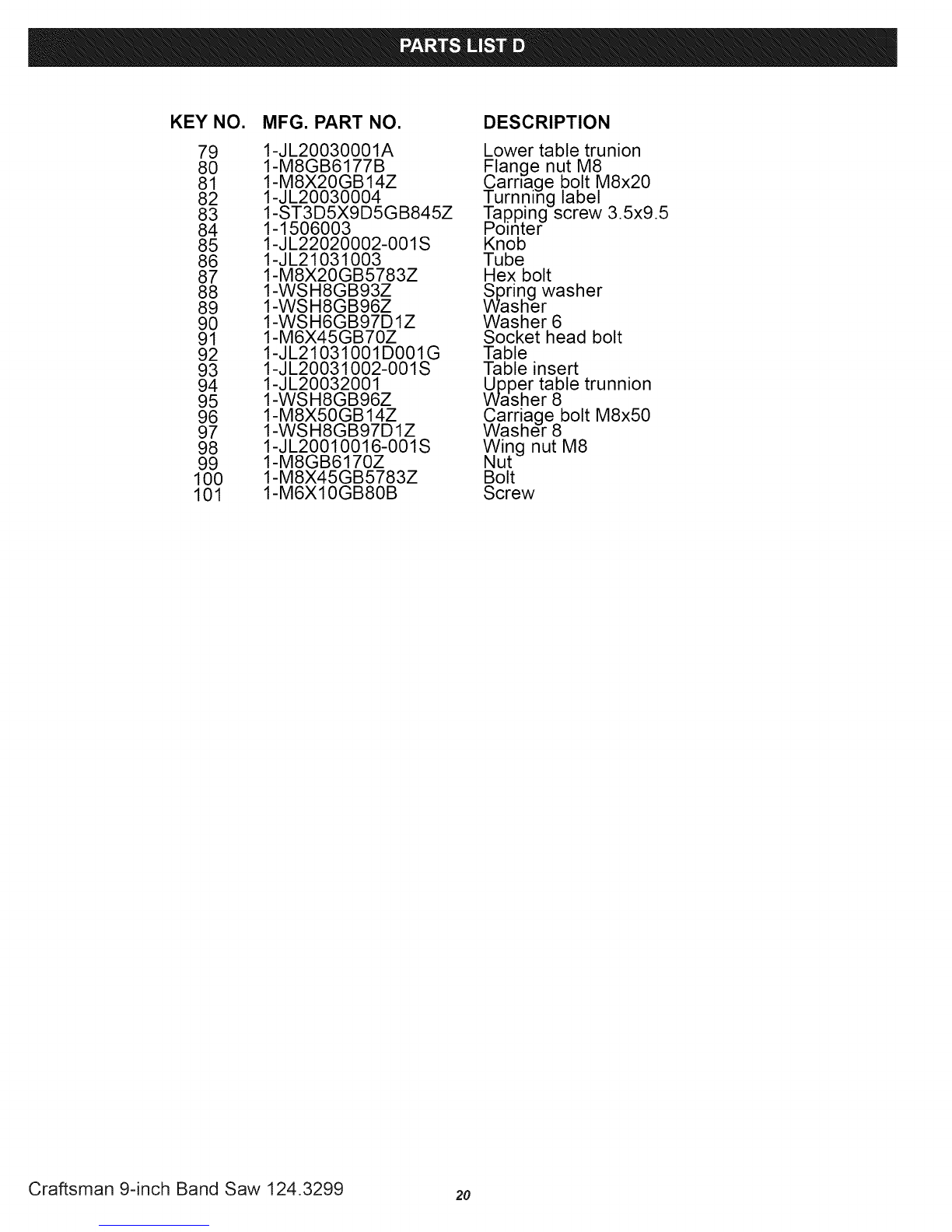

DESCRIPTION
Lower table trunion
Flange nut M8
Carnage bolt M8x20
Turnning label
Tapping screw 3.5x9.5
Pointer
Knob
Tube
Hex bolt
ring washer
sher
Washer 6
Socket head bolt
Table
Table insert
vUaPer table trunnion
sher 8
Carriage bolt M8x50
Washer 8
Wing nut M8
Nut
Bolt
Screw
Craftsman 9-inch Band Saw 124.3299 20
