Craftsman 247.29933 User manual

Sears Brands Management Corporation, Hoffman Estates, IL 60179, U.S.A.
Visit our web site: www.craftsman.com
CAUTION: Before using
this product, read this
manual and follow all
safety rules and operating
instructions.
Operator’s Manual
205cc Engine
Rear Tine Tiller
Model No. 247.29933
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• PARTS LIST
• ESPAÑOL
10/14/2010
FORM NO. 769-05527A
®

26

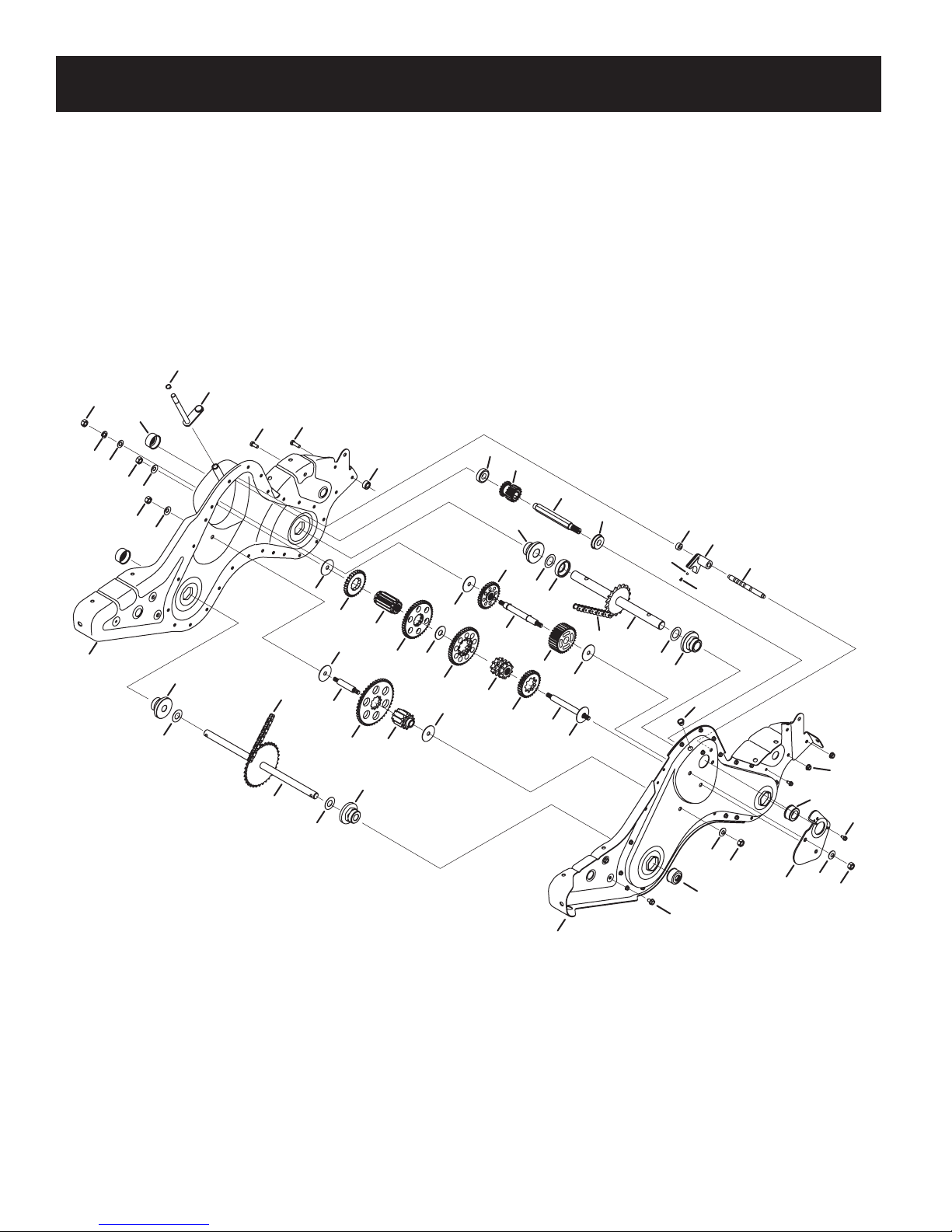

PARTS LIST
Craftsman Tiller — Model No. 247.29933
6
23
19
2
33
35
34
31 39
34
47
18
5
11
25
31
30
41
30
38
34
32
24
9
16
27
38
34
37
36
42
51
52
53
50
29
43
48
31
34
12
7
35
40
121
26
44
45
54
46
49
34
10
28
14
3
13
15
20
4
22
20
8
17

27
PARTS LIST
Ref. No. Part No. Description
1747-1152 Shift Rod
2649-0034-0691 Lower Handle Tube Assembly
3 649-0041-0691 Upper Handle Assembly
4 710-0946 Screw, 1/4-20 x 0.625
5 710-3005 Hex Head Screw, 3/8-16:1.25
6 710-3056 Hex Head Screw, 5/16-18 x 3.25
7911- 0415 Clevis Pin, .375 X 1.75
8712-0324 Hex Lock Nut, 1/4-20
9 712-0379 Flange Lock Nut, 3/8-24
10 912-0429 Hex Lock Nut, 5/16-18
11 714-0147 Cotter Pin, .125 X 1.75 Internal
12 720-0210A Small Tee Knob
13 720-0278A Foam Grip, .970 x 11.0
14 720-0313 Grip, .1875 x 1.00
15 726-0273 Battery Clamp, 5/16
16 726-0317 Cable Tie, 8.5 LG
17 735-0246A End Plug
18 936-0117 Washer, Flat, .385 x .620 x .033
19 736-0242 Washer, Bell, .340 x .872 x .060
20 736-3090 Washer, Flat, .260 x .720 x .060
21 938-0958 Spacer, .50 x .190 x .360 LG
22. 747-1219-0637 Clutch Bail
23 784-0190 Handle Adjustment Crank
24 784-0191 Hex Nut Retainer Bracket
25 786-0120-0637 Tiller Depth Control
26 786-0181-0691 Shaft Rod Lever
27 735-0127 Washer, .33 ID x .87 OD x .125
Ref. No. Part No. Description
28 914-0104 Cotter Pin, .072 x 1.12 LG
29 686-0044B-0691 End Cover Assembly
30 710-0176 Hex Head Screw, 5/16-18 x 2.75
31 710-3008 Hex Head Screw, 5/16-18 x .75
32 710-3022 Hex Head Screw, 3/8-16 x 2.75
33 710-04482 Hex Head Flange, 3/8-16 x .875
34 712-04063 Flange Lock Nut, 5/16-18
35 712-04065 Flange Lock Nut, 3/8-16
36 712-0421 Wing Nut, 5/16-18 w/ Bell Washer
37 926-0106 Speed Nut Cap, 1/4 ROD
38 736-0204 Washer, Flat, .344 x .62 x .033
39 938-0849 Screw, Hex, 5/16-18 x .75
40 747-0432 Tiller Flap Rod
41 750-0885A Spacer, .322 x .625 x 2.00
42 786-0090A-0691 Side Shield
43 786-0113A-0691 Rear Tine Shield
44 786-0176-0691 RH Handle Mount Bracket
45 786-0177-0691 LH Handle Mount Bracket
46 786-0178A-0691 Tine Shield
47 786-0179-0637 FRT Tine Shield Bracket
48 786-0180-0637 FRT Tine Shield Spacer Bracket
49 710-0382 Hex Head Screw, 1/2-20 x 5.50
50 712-0206 Hex Nut, 1/2-20
51 936-0921 Washer, Lock, 1/2
52 731-1595 Counterweight
53 936-0179 Washer, Flat, 1/2 x 1.25 x .100
54 710-0376 Hex Head Screw, 5/16-18 x 1.00
Craftsman Tiller — Model No. 247.29933

28
PARTS LIST
Craftsman Tiller — Model No. 247.29933
5
25
35
33
28
22
24
10
15
44
16
38
13
3
53
18
2
26
14 17 4
43
42
12
39
1
6
9
27
30
23 7
33
32
36 34
37
11
21
29
19
20
40
41
49
50
46
48
45
47
51
52
53
31
8
54

29
PARTS LIST
Ref. No. Part No. Description
1 686-0111-0637 Belt Cover Bracket Assembly
2710-1039 Hex Head Screw, 3/8-24 x 1.00
3710-0237 Hex Head Screw, 5/16-24 x .625
4710-0412 Hex Head Screw, 1/4-28 x .75
5 710-0502A Screw, 3/8-16 x 1.250
6 710-0599 Screw, 1/4-20 x 0.500
7 710-3005 Hex Head Screw, 3/8-16 x 1.25
8731-07556 Cap
9712-0266A Jam Lock Nut, 3/8-16
10 742-0305A-0637 Articulating Tine
11 914-0104 Cotter Pin, .072 DIA. x 1.13 LG
12 936-0104 Washer, Lock, 5/16
13 936- 0119 Washer, Lock, 5/16
14 936-0176 Washer, Flat, .265 x .938 x .120
15 784-0160-0637 Tine Adaptor Assembly
16 936-0271 Washer, Spring, .317 x .625 x .020
17 936-0329 Washer, Lock, 1/4
18 936-0452 Washer, Bell, .396 x 1.140 x .095
19 938-0876 Shoulder Nut, 7/16-20
20 746 -1117 Clutch Cable
21 747-1159 Idler Pulley Rod
22 954-0434 Belt, 4L x 58.16 LG
23 756-0405 Flat Idler Pulley w/ Flanges, 3.75 O.D.
24 756-0971 Engine Pulley, Inner Half
25 756-0972 Engine Pulley, Outer Half
26 756-1162 Input Pulley, 4L x 8.594
27 786-0064A Idler Pulley Bracket
Ref. No. Part No. Description
28 786-0185A-0637 Belt Keeper Bracket
29 786-0187-0637 Shift Cover Bracket
30 786-0193-0637 Idler Belt Keeper
31 686-0109A Shift Crank Assembly
32 710-0653 Screw, 1/4-20:0.375
33 710-0896 Hex Washer Screw, 1/4-14 x .625
34 712-0392 Lock Nut ,Cap, 1/4-28
35 915-0120 Spiral Pin, 3/16 x 1.00
36 936-3020 Washer, Flat, .271 x .630 x .065
37 784-0158A-0691 Belt Cover
38 784-0208D-0691 Shift Cover
39 634-04654 Wheel, 16 x 4.6 x 8
40 710-05289 Hex Screw, 1/4-20 x 1.50
41 712-04064 Flange Lock Nut, 1/4-20
42 911- 0415 Clevis Pin, .375 x 1.75
43 714-04043 Cotter Pin, Bow Tie
44 986-04074B Complete Gear Case Assembly
45 712-3054 Hex Lock Nut, 3/8-24
46 936-0169 Washer, Lock, 3/8
47 936-0208 Washer, Flat, .51 x 1.5 x 0.07
48 936-0253 Washer, Bell, .525 x 1.00 x .050
49 938-0688 Screw, Shoulder, 3/8-24 x 1/2 x .325
50 938-0689 Screw, Shoulder, 3/8-24 x 1/2 x .180
51 710-0805 Hex Head Screw, 5/16-18 x 1.50
52 736-0242 Washer, Bell, .340 x .872 x .060
53 912-3010 Hex Nut, 5/16-18
54 BS-12S412-0523-B8 Replacement Engine
Craftsman Tiller — Model No. 247.29933

30
PARTS LIST
Craftsman Tiller — Model No. 247.29933
20
3
28
19
46
16
3435
1637
16 37
29
10
11
14
50
38
24 38
2
3351
45
27
15
48
42
12
28
31
47
18
38
5
38
21
36
36
4
43
8
26
9
25 39
22 7
23 44
37
40
30 37 16
16
38
46
33
1
38
6
41
47
49
32
17
13
29
12

31
PARTS LIST
Craftsman Tiller — Model No. 247.29933
Ref. No. Part No. Description
1 611-0021 Shaft Assembly, Tine, 18T
2611- 0128 Shaft Assembly, Jack
3611- 0129 Shaft Assembly, Shift Input
4 611-04074A Shaft Assembly, Wheel, 33T
5 617-0058 Gear Assembly, 30T Reverse Idler
6617-0059 Gear Assembly, 30T Tine Idler
7 617-0060 Sprocket Assembly, 9T Tine Input
8617-0061 Sprocket Assembly, 10T Wheel Input
9617-0062 Gear Assembly, 11T
10 686-0108A-0637 RH Chain Case Housing Assembly
11 710-0376 Hex Head Screw, 5/16-18 x 1.00
12 710-0599 Screw, 1/4-20 x 0.500
13 710-0604A Screw, :5/16-18 x 0.625
14 710-3008 Hex Head Screw, 5/16-18 x .75
15 711-1349 Input Shaft, .75
16 712-0378 Nut, Hex, 7/16-20
17 712-3004A Flange Lock Nut, 5/16-18
18 913-0367 Endless Chain, #420 x 50 Links
19 913-0484 Endless Chain, #50 x 54 Links
20 716-0865 Snap Ring, .500
21 717-0853A Clutch Collar
22 717-1582 Gear Spur, 44T
23 717-1583 Gear Spur, 30T
24 717-1584 Gear Spur, 30T
25 717-1585 Gear Spur, 44T
26 717-1587 Gear Spur, 44T
Ref. No. Part No. Description
27 717-1594 Gear Spur, 16T
28 921-0378 Shaft Seal, 1.0
29 721-0379 Shaft Seal, .75
30 786-0238 Positioner Gear Bracket
31 726-0277 Tapered Cap Plug
32 732-04778 Compression Spring, .230 OD
33 936-0163 Washer, Flat, 1.03 x 1.62 x .03
34 936-0171 Washer, Lock, 7/16
35 936-0226 Washer, Flat,.474 x .879 x .064
36 936-0351 Washer, Flat, .760 ID x 1.50 OD
37 736-0407 Washer, Bell,.45 x 1.00 x .062
38 736-0518 Washer, Thrust, .445 x 1.92 x .060
39 736-3088 Washer, Flat,1.595 x .635 x .062
40 686-04129-0637 LH Chain Case Housing
41 750-0664 Spacer, .505 ID x .88 OD x .440
42 738-0645 Shaft Detent, .5 DIA
43 738-0648 Shaft, Jack, .625 x 2.385
44 738-04424A Shaft, Jack, .6250 x 5.0050
45 741-0124 Ball Bearing, 17 x 40 x 12
46 941-0420 Flange Bearing, 1.0 x 2.5 x 1.38
47 741-0421 Flange Bearing, .75 x 2.5 x 1.38
48 941-0563 Ball Bearing, 17 x 40 x 12:6203
49 741-0862 Ball, Detent, .250
50 750-0258 Spacer, .315 x .750 x .375 LG
51 950-0570 Spacer, 1.0 ID x 2.0 OD x.5 LG

32
PARTS LIST
552
718 15
615
3
306
307
12
20
1616 2
18
21
15A
746
742
220
219
27
27
30
32
32A
25 26
28
29
46
24 146
741
16
332
1330 REPAIR MANUAL
1058 OPERATOR’S MANUAL
48 SHORTBLOCK 1329 REPLACEMENTENGINE
22
12
1026
851
333
415
522
Briggs & Stratton Engine Model 12T102 For Craftsman Tiller Model 247.29933

33
PARTS LIST
337
635
36
238
40
35 238
40
868 51
7
993
1022
619
830
1029
13
1026
45
1022
155
34
192
1023
33
122
5
1034
914
914A
Briggs & Stratton Engine Model 12T102 For Craftsman Tiller Model 247.29933

34
PARTS LIST
365
51
95
692
104
137
276
633
186
633A
130
108
127
163
276
276
51
118
122
117
975
133
134
125
97
109
98
190
601
187
951
180
181
1425
825
703
804
1068
601A
240
Briggs & Stratton Engine Model 12T102 For Craftsman Tiller Model 247.29933

35
PARTS LIST

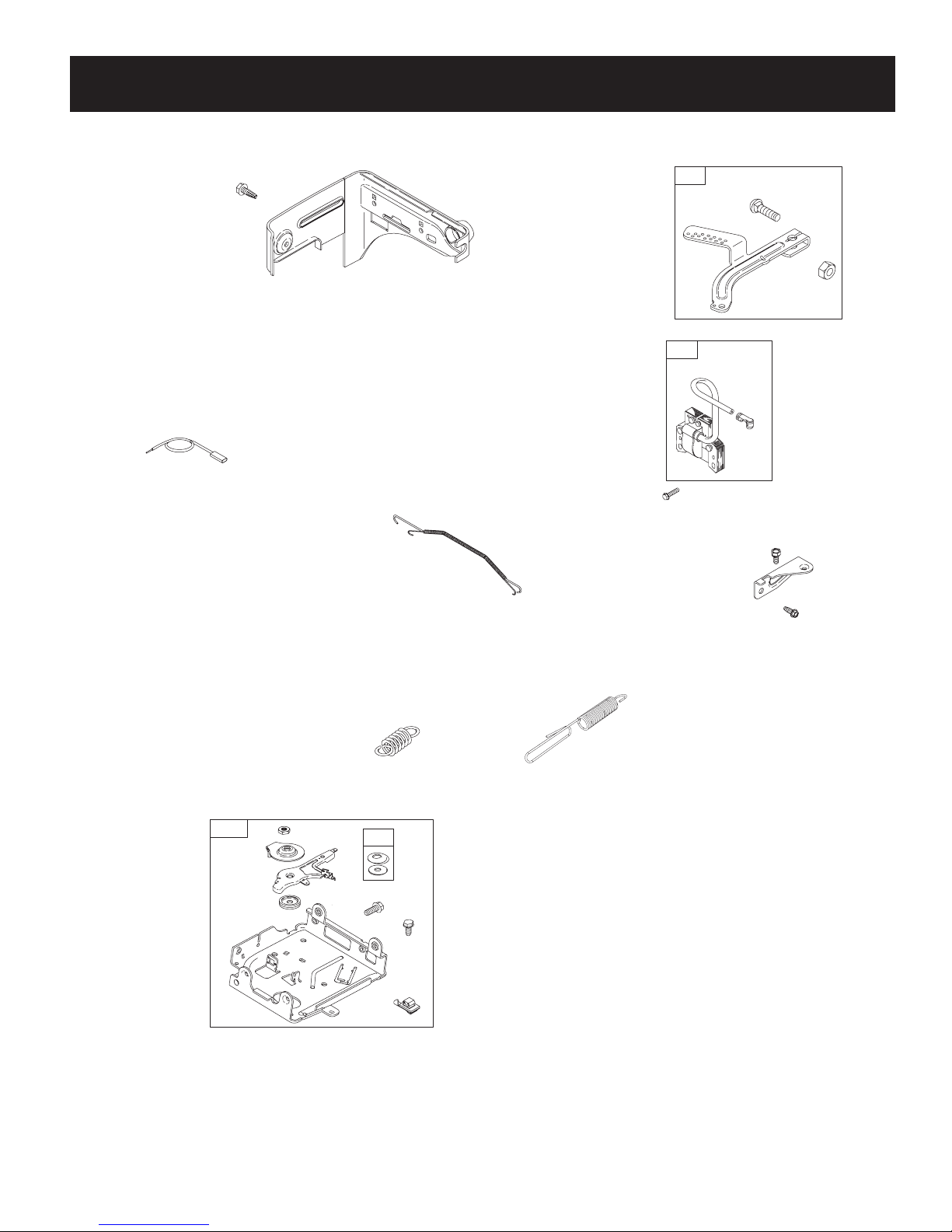

334
851
209
505
562
632
663
281
333
227
356
209A
188
427
773
271
668
621
504
222
190A
652A
890
652
Briggs & Stratton Engine Model 12T102 For Craftsman Tiller Model 247.29933

36
PARTS LIST
11
163
161
445
968
1395
967
951
836
832
836A
883
613
300
Briggs & Stratton Engine Model 12T102 For Craftsman Tiller Model 247.29933

37
PARTS LIST
23
1070
1005
455
332
597
456
689
459
1210
851121
55
608
60
1036EMISSIONS LABEL
305
65
304
Briggs & Stratton Engine Model 12T102 For Craftsman Tiller Model 247.29933

38

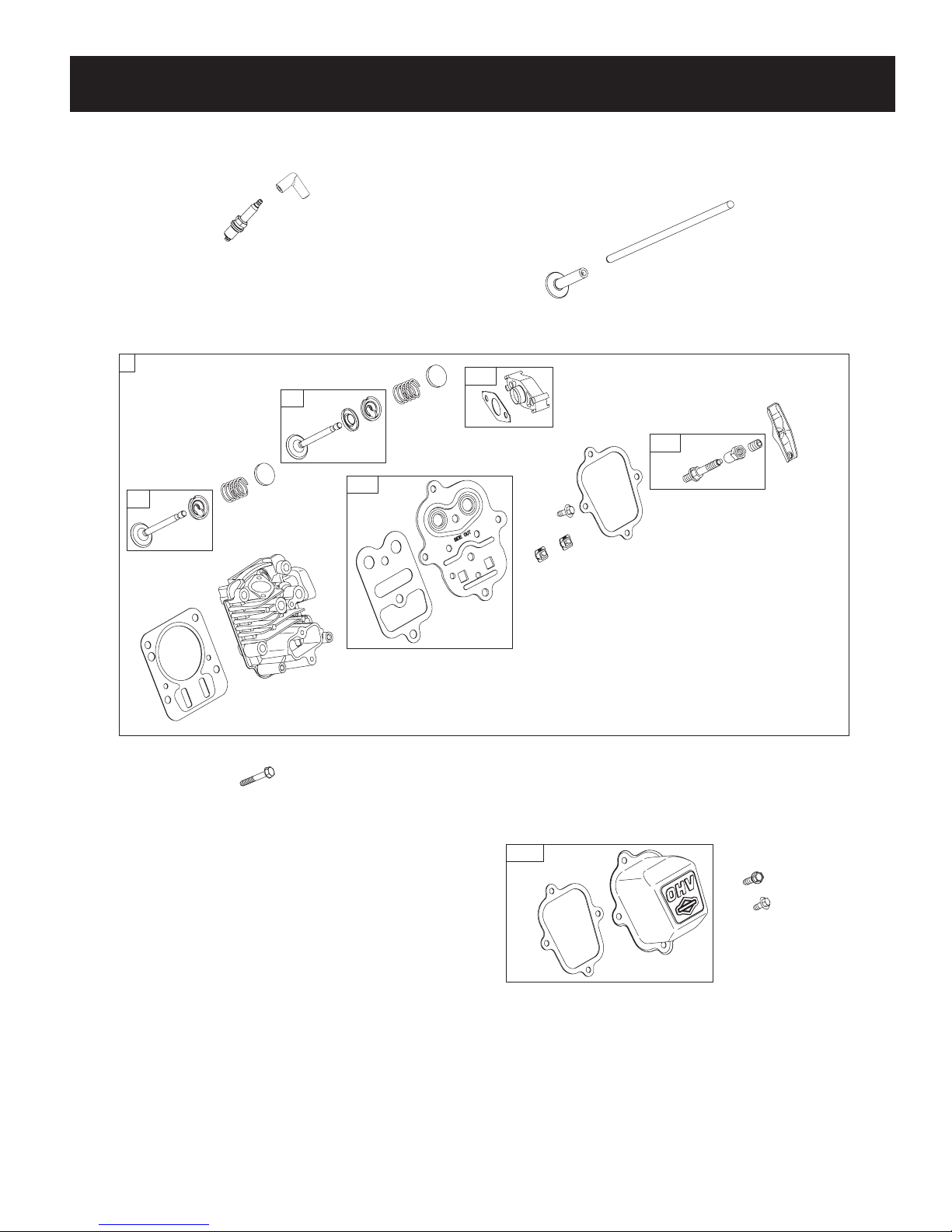

PARTS LIST
12 20
51
7
993
1022
883
3
868
358 ENGINEGASKET SET
163
51
7
993 1022
868
1095VALVE GASKETSET
51
104
137 276
121 CARBURETOROVERHAUL KIT
633
633A
127 134
163
Briggs & Stratton Engine Model 12T102 For Craftsman Tiller Model 247.29933

39
PARTS LIST
Ref. No. Part No. Description
1BS-699510 Cylinder Assembly
2BS-399269 Kit-Bushing/Seal (Magneto Side)
3BS-299819s Seal-Oil (Magneto Side)
5BS-797439 Head-Cylinder
7BS-698210 Gasket-Cylinder Head
11 BS-790632 Tube-Breather
12 BS-699485 Gasket-Crankcase
13 BS-699482 Screw (Cylinder Head)
15 BS-691686 Plug-Oil Drain
15A BS-691682 Plug-Oil Drain
16 BS-797074 Crankshaft
18 BS-699696 Cover-Crankcase
20 BS-692550 Seal-Oil (PTO Side)
21 BS-281658s Cap-Oil Fill
22 BS-699478 Screw (Crankcase Cover/Sump)
23 BS-699488 Flywheel
24 BS-222698s Key-Flywheel
25 BS-795429 Piston Assembly (Standard)
BS-795430 Piston Assembly (.020” Oversize)
26 BS-791969 Ring Set (Standard)
BS-791969 Ring Set (.020” Oversize)
27 BS-691866 Lock-Piston Pin
28 BS-499423 Pin-Piston
29 BS-690124 Rod-Connecting
30 BS-791584 Dipper-Connecting Rod
32 BS-691664 Screw (Connecting Rod) (Short)
32A BS-695759 Screw (Connecting Rod) (Long)
33 BS-499642 Valve-Exhaust
34 BS-795443 Valve-Intake
35 BS-691304 Spring-Valve (Intake)
36 BS-691304 Spring-Valve (Exhaust)
40 BS-692194 Retainer-Valve
45 BS-690977 Tappet-Valve
46 BS-693404 Camshaft
48 N/A Short Block
51 BS-692555 Gasket-Intake
55 BS-791848 Housing-Rewind Starter
58 BS-693389 Rope-Starter
60 BS-490652 Grip-Starter Rope
65 BS-699228 Screw (Rewind Starter)
95 BS-691636 Screw (Throttle Valve)
Ref. No. Part No. Description
97 BS-690024 Shaft-Throttle
98 BS-398185 Kit-Idle Speed
104 BS-691242 Pin-Float Hinge
108 BS-692567 Valve-Choke
109 BS-790624 Shaft-Choke
117 BS-498978 Jet-Main (Standard)
118 BS-498975 Jet-Main (High Altitude)
121 BS-792006 Kit-Carburetor Overhaul
122 BS-795208 Spacer-Carburetor
125 BS-791077 Carburetor
127 BS-691739 Plug-Welch
130 BS-691181 Valve-Throttle
133 BS-398187 Float-Carburetor
134 BS-398188 Kit-Needle/Seat
137 BS-693981 Gasket-Float Bowl
146 BS-690979 Key-Timing
155 BS-797442 Plate-Cylinder Head
161 BS-795231 Base-Air Cleaner
163 BS-696024 Gasket-Air Cleaner
180 BS-795705 Tank-Fuel
181 BS-795221 Cap-Fuel Tank
186 BS-692317 Hose-Connector
187 BS-791766 Line-Fuel (Cut to Required Length)
188 BS-699479 Screw (Control Bracket)
190 BS-699220 Screw (Fuel Tank)
190A BS-795047 Screw (Fuel Tank)
192 BS-797440 Adjuster-Rocker Arm
209 BS-691278 Spring-Governor (Platinum)
209A BS-692571 Spring-Governor
219 BS-693578 Gear-Governor
220 BS-691724 Washer (Governor Gear)
222 BS-795669 Bracket-Control
227 BS-794367 Lever-Governor Control
238 BS-691300 Cap-Valve
240 BS-394358s Filter-Fuel
271 BS-694256 Lever-Control
276 BS-271716 Washer-Sealing
281 BS-793133 Panel-Control
300 BS-693593 Muffler
304 BS-795219 Housing-Blower
305 BS-699480 Screw (Blower Housing)
Briggs & Stratton Engine Model 12T102 For Craftsman Tiller Model 247.29933

40
PARTS LIST
Ref. No. Part No. Description
306 BS-795334 Shield-Cylinder
307 BS-699483 Screw (Cylinder Shield)
332 BS-792723 Nut (Flywheel)
333 BS-796964 Armature-Magneto
334 BS-699477 Screw (Magneto Armature)
337 BS-491055s Plug-Spark
356 BS-692390 Wire-Stop
358 BS-791797 Gasket Set-Engine
365 BS-699484 Screw (Carburetor)
415 BS-693463 Plug
427 BS-694255 Nut (Control Bracket)
445 BS-491588s Filter-Air Cleaner Cartridge
455 BS-692591 Cup-Flywheel
456 BS-692299 Plate-Pawl Friction
459 BS-281505s Pawl-Ratchet
504 BS-694254 Washer Set
505 BS-691251 Nut (Governor Control Lever)
522 BS-697689 Plug-Dipstick/Fill
552 BS-692346 Bushing-Governor Crank
562 BS-691119 Bolt (Governor Control Lever)
597 BS-691696 Screw (Pawl Friction Plate)
601 BS-791850 Clamp-Hose (Green)
601A BS-795230 Clamp-Hose
608 BS-795930 Starter-Rewind
613 BS-791972 Screw (Muffler)
615 BS-692576 Retainer-Governor Shaft
616 BS-692547 Crank-Governor
619 BS-699230 Screw (Cylinder Head Plate)
621 BS-692310 Switch-Stop (Brake)
632 BS-693408 Spring/Link-Mechanical Governor
633 BS-693867 Seal-Choke/Thrttle Shaft (Choke)
633A BS-691321 Seal-Choke/Thrttle Shaft (Throttle)
635 BS-692076 Boot-Spark Plug
652 BS-699230 Screw (Support Bracket)
652A BS-699755 Screw (Support Bracket)
663 BS-699206 Screw (Control Panel)
668 BS-694257 Spacer
689 BS-691855 Spring-Friction
692 BS-690572 Spring-Detent
703 BS-795222 Clip
718 BS-690959 Pin-Locating
Ref. No. Part No. Description
741 BS-695087 Gear-Timing
742 BS-692564 Retainer-E Ring
746 BS-790278 Gear-Idler
773 BS-694258 Retainer
804 BS-795223 Canister-Carbon (EVAP)
825 BS-795226 Hose-Air
830 BS-797441 Stud-Rocker Arm
832 BS-693583 Guard-Muffler
836 BS-699632 Screw (Muffler Guard)
836A BS-699203 Screw (Muffler Guard)
851 BS-493880s Terminal-Spark Plug
868 BS-795440 Seal-Valve
883 BS-691893 Gasket-Exhaust
890 BS-790203 Bracket-Support
914 BS-699480 Screw (Rocker Cover) (Bottom)
914A BS-797444 Screw (Rocker Cover)
951 BS-790630 Lever-Choke
967 BS-493537s Filter-Air Cleaner Foam
968 BS-791082 Cover-Air Cleaner
975 BS-796611 Bowl-Fuel
993 BS-694088 Gasket-Cylinder Head Plate
1005 BS-692592 Fan-Flywheel
1022 BS-691890 Gasket-Rocker Cover
1023 BS-499924 Cover-Rocker
1026 BS-790287 Rod-Push
1029 BS-797443 Arm-Rocker
1034 BS-691343 Guide-Push Rod
1036 Label-Emissions (Available from a
Briggs & Stratton Dealer)
1058 BS-277040 Operator’s Manual
1068 BS-795229 Hose/Clamp Assembly
1070 BS-699201 Screw (Flywheel Fan)
1095 BS-791798 Gasket Set-Valve
1210 BS-791849 Pulley/Spring Assembly (Pulley)
1011 BS-791849 Pulley/Spring Assembly (Spring)
1329 BS-12S412-0523-B8 Replacement Engine
1330 BS-276781 Repair Manual
1395 BS-690370 Screw (Air Cleaner Base)
1425 BS-795227 Hose-Purge Line
Briggs & Stratton Engine Model 12T102 For Craftsman Tiller Model 247.29933

Parts List
41
777I23106
777I20451
777D15445
777I20358
777S33508
777D15446
777X43688
18 ”
TILLING
WIDTH
DUAL DIRECTION TINESDUAL DIRECTION TINES
18 ”
DUAL DIRECTION
TINES
TILLING
WIDTH
DUAL DIRECTION
TINES
Craftsman Tiller Model No. 247.29933
