Operator's Manual

2-Cycle

WEEDWACKER_ GAS TRIMMER

Model No. 316.791900

W .pI .WJH TM

_BII_LlffV, CBLI_ _rA_rttif6 t_A S E _

•SAFETY

• ASSEMBLY

• OPERATION

• MAINTENANCE

• PARTS LIST

• ESPANOL, E 13

CAUTION: Before usingthis product,

read this manual and follow all safety

rules and operating instructions.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.

Visit our website" www.sears.com/craftsman

769-03836A 3/08

CALIFORNIA PROPOSITION 65 WARNING

THE ENGINE EXHAUST FROM THIS PRODUCT CONTAINS

CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE

CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.

TABLE OF CONTENTS

Safety Rules .......................................... 2

Warranty ............................................. 4

Know Your Unit ........................................ 4

Assembly Instructions ................................... 4

Oil and Fuel Information ................................. 5

Starting/Stopping Instructions ............................ 5

Operating Instructions ................................... 6

Maintenance and Repair Instructions ....................... 7

Cleaning and Storage ................................... 8

Troubleshooting Chart ................................... 9

Specifications ........................................ 10

Parts List ........................................... E14

Service Numbers .............................. Back Cover

SPARK ARRESTOR NOTE

NOTE: For users on U.S. Forest Land and in the states of California,

Maine, Oregon and Washington. All U.S. Forest Land and the state of

California (Public Resources Codes 4442 and 4443), Oregon and

Washington require, by law that certain internal combustion engines

operated on forest brush and/or grass-covered areas be equipped with a

spark arrestor, maintained in effective working order, or the engine be

constructed, equipped and maintained for the prevention of fire. Check

with your state or local authorities for regulations pertaining to these

requirements. Failure to follow these requirements could subject you to

liability or a fine. This unit is factory equipped with a spark arrestor. If

it requires replacement, ask your LOCAL SERVICE DEALER to install the

Accessory Part #753-0516g Spark Arrestor Kit.

All information, illustrations, and specifications in this manual are based

on the latest product information available at the time of printing. We

reserve the right to make changes at any time without notice.

The purpose of safety symbols is to attract your attention to possible

dangers. The safety symbols, and their explanations, deserve your

careful attention and understanding. The safety warnings do not by

themselves eliminate any danger. The instructions or warnings they

give are not substitutes for proper accident prevention measures.

SYMBOL MEANING

dl_ SAFETY ALERT: Indicates danger, warning or caution.

Attention is required in order to avoid serious personal

injury. May be used in conjunction with other symbols or

pictographs.

NOTE: Advises you of information or instructions vital to the

operation or maintenance of the equipment.

DANGER: Failure to obey a safety warning will result inserious injury to yourself or to others. Always follow the

safety precautions to reduce the risk of fire, electric shock

and personal injury.

WARNING: Failureto obey a safety warning can resultin

injury to yourself and others. Always follow the safety precautions

to reduce the riskof fire,electric shock and personal injury.

A ICAUTION: Failure to obey a safety warning may result in I

property damage or personal injury to yourself or to others.

A ways fo ow the safety precaut ons to reduce the r sk of f re,

electric shock and personal injury.

Read the Operator's Manual and follow all warnings and safety

instructions. Failure to do so can result in serious injury to the operator

and/or bystanders.

FOR QUESTIONS, CALL 1-800-659-5917

=IMPORTANT SAFETY INSTRUCTIONS =

READ ALL INSTRUCTIONS BEFORE OPERATING

I_ ARNING:Whenusingtheunit, you must follow the I

safety rules. Please read these instructions before operating

the unit in order to ensure the safety of the operator and any

bystanders. Please keep these instructions for later use.

• Read the instructions carefully. Be familiar with the controls and

proper use of the unit.

• Do not operate this unit when tired, ill or under the influence of

alcohol, drugs or medication.

• Children must not operate the unit. Teens must be accompanied

and guided by an adult.

• Inspect the unit before use. Replace damaged parts. Check for

fuel leaks. Make sure all fasteners are in place and secure.

Replace cutting attachment parts that are cracked, chipped or

damaged in any way.

• Use only Hassle Free TM XTRA QUIET Spiral Line. Never use

metal-reinforced line, wire, chain or rope. These can break off

and become dangerous projectiles.

• Be aware of risk of injury to the head, hands and feet.

• Clear the area to be cut before each use. Remove rocks, broken

glass, nails, wire, string and other objects which may be thrown

or become entangled in the cutting attachment. Clear the area of

children, bystanders and pets; keep them outside a 50-foot

(15 m) radius, at a minimum. Even then, they are still at risk from

thrown objects. Encourage bystanders to wear eye protection. If

you are approached, stop the unit immediately.

• Squeeze the throttle control and check that it returns

automatically to the idle position. Make all adjustments or repairs

before using the unit.

FUEL SAFETY WARNINGS

_1_ I WARNING: Gasoline is highly flammable and its vapors I

can explode if ignited. Take the following precautions:

• Store fuel only in containers specifically designed and approved

for the storage of such materials.

• Always stop the engine and allow it to cool before filling the fuel

tank. Never remove the fuel tank cap or add fuel when the engine is

hot. Never operate the unit without the fuel cap securely in place.

• Loosen the fuel tank cap slowly to relieve any pressure in the tank.

• Mix and add fuel in a clean, well-ventilated outdoor area where

there are no sparks or flames. Remove the fuel cap slowly, and

only after the engine stops. Do not smoke while fueling or mixing

fuel. Wipe up any spilled fuel from the unit immediately.

• Avoid creating a source of ignition for spilled fuel. Do not start the

engine until fuel vapors dissipate.

• Move the unit at least 30 feet (9.1 m)from the fueling source and site

before starting the engine. Do not smoke. Keep sparks and open

flames away from the area while adding fuel or operating the unit.

WHILE OPERATING

• Never start or run the unit inside a closed room or building.

Breathing exhaust fumes can be fatal. Operate this unit only in a

well-ventilated outdoor area.

• Wear safety glasses or goggles that meet ANSI Z87.1-1989 standards

and are marked as such. Wear ear/hearing protection when operating

this unit. Wear a face or dust mask ifthe operation is dusty.

• Wear heavy long pants, boots, gloves and a long sleeve shirt. Do

not wear loose clothing, jewelry, short pants, sandals or go

barefoot. Secure hair above shoulder level.

•The cutting attachment shield must always be in place while

operating the unit. Do not operate unit without both trimming lines

extended, and the proper line installed. Do not extend the

trimming line beyond the length of the shield.

• This unit has a clutch. The cutting attachment remains stationary

when the engine is idling. If it does not, take the unit to a Sears or

other qualified service dealer for an adjustment.

• Adjust the D-handle to your size in order to provide the best grip.

• Be sure the cutting attachment is not in contact with anything

before starting the unit.

• Use the unit only in daylight or good artificial light.

• Avoid accidental starting. Be in the starting position whenever

pulling the starter rope. The operator and unit must be in a stable

position while starting. Refer to Starting/Stopping Instructions.

• Use the right tool. Only use this tool for its intended purpose.

• Always hold the unit with both hands when operating. Keep a firm

grip on both handles or grips.

• Keep hands, face, and feet away from all moving parts. Do not

touch or try to stop the cutting attachment when it rotates.

• Do not touch the engine, gear housing or muffler. These parts get

extremely hot from operation, even after the unit is turned off.

• Do not operate the engine faster than the speed needed to cut, trim

or edge. Do not run the engine at high speed when not cutting.

• Always stop the engine when cutting is delayed or when walking

from one cutting location to another.

• Ifyou strike or become entangled with a foreign object, stop the engine

immediately and check for damage. Do not operate before repairing

damage. Do not operate the unit with loose or damaged parts.

• Turn the engine to off and disconnect the spark plug for

maintenance or repair.

• Use only replacement parts or accessories recommended for this

tool that are distributed by Sears or a Craftsman outlet. Use of

any replacement parts or accessories purchased elsewhere may

be hazardous, and will also void your warranty.

• Keep unit clean of vegetation and other materials. They may

become lodged between the cutting attachment and shield.

• To reduce fire hazard, replace a faulty muffler and spark arrestor.

Keep the engine and muffler free from grass, leaves, excessive

grease or carbon build up.

OTHER SAFETY WARNINGS

• Never store the unit with fuel in the tank, inside a building where

fumes may reach an open flame (pilot lights, etc.) or sparks

(switches, electrical motors, etc.).

• Allow the engine to cool before storing or transporting. Be sure to

secure the unit while transporting.

• Store the unit in a dry place, secured or at a height to prevent

unauthorized use or damage. Keep out of the reach of children.

• Never douse or squirt the unit with water or any other liquid. Keep

handles dry, clean and free from debris. Clean after each use, see

Cleaning and Storage instructions (p. 11).

• Keep these instructions. Refer to them often and use them to

instruct other users. If you loan this unit to others, also loan them

these instructions.

SAVE THESE INSTRUCTIONS

• SAFETY & INTERNATIONAL SYMBOLS •

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's

manual for complete safety, assembly, operating and maintenance and repair information.

SYMBOL MEANING SYMBOL MEANING

,_ * SAFETY ALERT SYMBOL

A_ IIndicates danger, warning or caution. May be used in

J. conjunction with other symbols or pictographs.

lO • WARNING - READ OPERATOR'S MANUAL

Read the operator's manual(s) and follow all warnings

and safety instructions. Failure to do so can result in

[ serous njury to the operator and/or bystanders.

• WEAR EYE AND HEARING PROTECTION

WARNING: Thrownobjects and loud noise cancause

severeeyeinjuryand hearingloss.Weareye protection

meetingANSIZ87.1-1989standards and earprotection when

Joperatng ths unt. Use a fu face she d when needed.

l _ ,UNLEADED FUEL

Always use clean, fresh unleaded fuel

I= ON/OFF STOP CONTROL

tIION /START! RUN

i i

' THROWN OBJECTS AND ROTATING CUTTER CAN

CAUSE SEVERE INJURY

WARNING: Small objects can be propelled at high

speed, causing injury. Keep away from the rotating rotor.

, KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders, especially children

and pets, at least 50 feet (15 m.)from the operating area.

Do not touch a hot muffler or cylinder. You may get

burned. These parts get extremely hot from operation.

When turned off they remain hot for a short time.

'OIL i

Refer to operators manual for the proper type of oil.

, PRIMER BULB

Push primer bulb, ful!y and slowly, !0 times,

'SHARP BLADE

WARNING: sharP blade on Cuttingattachment Shield.

To prevent serious injury,donot touch the !inecutting blade.

CRAFTSMAN FULL WARRANTY

If this Craftsman product fails due to a defect in material or workmanship within two years from the date of purchase, return it to any Sears

store, Parts & Repair Service Center, or other Craftsman outlet in the United States for free repair (or replacement if repair proves impossible).

This warranty applies for only 90 days from the purchase date if this product is ever used for commercial or rental purposes.

This warranty covers ONLY defects in material and workmanship. Sears will NOT pay for:

•Expendable items that can wear out from normal use within the warranty period, such as cutting line, filters or spark plugs.

• Repairs necessary because of accident or failure to operate or maintain the product according to all supplied instructions.

• Preventive maintenance, or repairs necessary due to improper fuel mixture, contaminated or stale fuel.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Fuel Cap

On/Off Stop Control

Starter

Rope Grip

Shaft Grip

APPLICATIONS

As a trimmer:

• Cutting grass and light weeds.

• Edging

• Decorative trimming around trees, fences, etc.

Other optional accessories may be used with this unit.

•Throttle Control

D-Handle

Shoulder Strap

Loop

Muffler

Spark Plug

Air Filter/

Muffler Cover

Primer Bulb

Convertible TM

Coupler

Trimmer Attachment

Shaft Housing

Line Cutting

Blade

Cutting J

Hassle Free®PlusCutting Head

ADJUSTING THE D-HANDLE

1. Using aflathead or T-25 screwdriver,

loosen the 4 screws on the D-handle

enough to loosen it (Fig. 1).

2. Rotate the D-Handle to the upright

position on the front side of the

shaft housing (Fig. 1).

3. Hold the unit in the operating position

(Fig.8). Ifnecessary, reposition the D-

handle to the location that provides

the best grip.

4. Tighten the 4 screws until the D-

handle is secure. Fig. 1

INSTALLING THE TRIMMER ATTACHMENT

Prior to use, make sure trimmer attachment is installed correctly.

Please refer to Operating the Convertible TM Coupler System for

proper installation.

NOTE: Remove red cap or hanger from lower shaft housing prior to

assembling to Convertible TM coupler

OILANDFUELMIXINGINSTRUCTIONS

Oldand/orimproperlymixedfuelarethemainreasonsfortheunitnot

runningproperly.Besuretousefresh,cleanunleadedfuel,Followthe

instructionscarefullyfortheproperfuel/oilmixture.

DefinitionofBlendedFuels

Today'sfuelsareoftenablendofgasolineandoxygenatessuchas

ethanol,methanol,orMTBE(ether),Alcohol-blendedfuelabsorbs

water.Aslittleas1%waterinthefuelcanmakefuelandoil

separate,Itformsacidswhenstored,Whenusingalcohol-blended

fuel,usefreshfuel(lessthan60daysold).

UsingBlendedFuels

Ifyouchoosetouseablendedfuel,oritsuseisunavoidable,follow

recommendedprecautions:

•Always use the fresh fuel mix explained in your operator's manual

• Always agitate the fuel mix before fueling the unit

• Drain the tank and run the engine dry before storing the unit

Using Fuel Additives

The bottle of 2-cycle oil that came with your unit contains a fuel

additive which will help inhibit corrosion and minimize the formation of

gum deposits. It is recommended that you use our 2-cycle oil with this

unit. If unavailable, use a good 2-cycle oil de-signed for air-cooled

engines along with a fuel additive, such as STA-BIL_ Gas Stabilizer or

an equivalent, Add 0.8 oz, (23 ml,) of fuel additive per gallon of fuel

according to the instructions on the container. NEVER add fuel

additives directly to the unit's fuel tank,

I_llb CAUTION: For proper engine operation and maximum I

reliability, pay strict attention to the oil and fuel mixing I

instructions on the 2-cycle oil container. Using improperly

mixed fuel can severely damage the engine,

Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded

gasoline in a separate fuel can, Use a 40:1 fuel/oil ratio. Do not mix

them directly in the engine fuel tank, See the table below for

specific gas and oil mixing

ratios,

NOTE: One gallon (3,8 liters)

of unleaded gasoline

mixed with one 3.2

oz. (95 ml,) bottle of

2-cycle oil makes a

40:1 fuel/oil ratio,

NOTE: Dispose of the old

fuel/oil mix in

accordance to

Federal, State and

Local regulations,

UNLEADED GAS 2 CYCLE OIL

1 GALLON US 3.2 FL.OZ.

(3.8LITERS} (95 ml)

1 LITER 25 ml

MIXING RATIO - 40:1

WARNING: Gasoline is extremely flammable. Ignited

vapors may explode. Always stop the engine and allow it

to cool before filling the fuel tank. Do not smoke while

filling the tank, Keep sparks and open flames at a distance

from the area.

WARNING: Remove fuel cap slowly to avoid injury from

fuel spray, Never operate the unit without the fuel cap

securely in place.

WARNING: Add fuel in a clean, well ventilated outdoor

area. Wipe up any spilled fuel immediately. Avoid creating

a source of ignition for spilt fuel. Do not start the engine

until fuel vapors dissipate.

WARNING: Operate this unit only in a well-ventilatedoutdoor area, Carbon monoxide exhaust fumes can be

lethal in a confined area.

WARNING: Avoid accidental starting. Make sure you are

in the starting position when pulling the starter rope (Fig, 5),

To avoid serious injury, the operator and unit must be

in a stable position while starting,

STARTING INSTRUCTIONS

1, Mix gas with oil, See

Oil and Fuel Mixing

Instructions,

2, Fill the fuel tank with

the fuel/oil mixture.

NOTE: There is no need

to turn the unit

on, The On/Off

Stol

the ON ( I )

position at all

times (Fig. 2),

-_ 3,

StarUOn

Control

Fig. 2

Fullypressand release _ Primer Bulb

the primerbulb 10 times, _J(..... _

slowly.Some amount of _ - y _J_ f

fuel shouldbe visible in _ ,f __ _"

the primerbulb and fuel _\ ff / S F_rJ_

lines(Fig.3).Ifyoucan't _ /_/_-JJ \_

seefuelin the bulb, \ ]}_-J/_/ // ol}

pressand releasethe \_ l, (_'_-,_l I/

bulb asmanytimes as it N,_'--J_,\k_ [I _,)

takes untilyou can see \__-_

fuel in it. Fig. 3

4, Crouch in the starting

position (Fig. 4). Do not

squeeze the throttle,

andpull the starter rope

with a controlled and

steady motion until the

unit starts. Wait 10to

15 seconds, then

squeeze the throttle to

control the cutting

speed.

NOTE: The unit usesthe

Throttle Control

Fig. 4

Starting

Position

INCREDI-PULL TM starting system, which significantly

reducesthe effort requiredto start the engine. You must pull

the starter rope out far enough to hear the engine attempt to

start. There is no need to pull the rope briskly-- there is no

harsh resistancewhen pulling. Be aware thatthis starting

method isvastly different from (and much easierthan) what

you may be used to.

-- IE.. The engine does not start, go back to step 3,

NOTE: If the unit is hot and fails to start within 3 pulls of the

starter rope, squeeze the throttle control and pull the

starter rope until the unit starts.

STOPPING INSTRUCTIONS

1, Release your hand from the throttle control. Allow the

engine to cool down by idling,

2, Press and hold On/Off Stop Control in the OFF (O) position

until engine comes to a complete stop (Fig. 2),

OPERATINGTHECONVERTIBLE TM COUPLER SYSTEM

WARN ING: Before you begin using any attachment, read

and understand the manual that came with the attachment.

Follow all safety information contained within.

CAUTION: These attachments are to be snapped into

the primary hole only. Using the wrong hole could lead to

personal injury or damage to the unit.

The Convertible TM coupler system enables the use of these optional

attaachments.

• Edger

• Cultivator

• Turbo Blower

• Brushcutter

• Pole Saw

• Blade Pruner

• Hedge Trimmer

REMOVING THE TRIMMER A'R'ACHMENT OR OTHER ATTACHMENT

I_1_ WARNING: To avoid serious personal injury and

damage to the unit, shut the unit off before removing or

installing all attachments.

1. Turn the knob

counterclockwise to

loosen (Fig. 7).

2. Press and hold the

release button (Fig. 5).

3. While firmly holding the

upper shaft housing, pull

the trimmer attachment or

other attachment straight

out of the Convertible TM

coupler (Fig. 6).

REMOVING THE TRIMMER

Convertible TM Release Button

Coupler _ __=

Guide Recess

Fig. 5

ATTACHMENT OR OTHER ATTACHMENT

I,_ AUTION: Before operating this unit, be sure that the

release button is fully snapped into the primary hole (Fig. 12),

and that the knob (Fig. 13) is securely tightened.

NOTE: To make installing or Primary Hole

removing the "_''-'_ _,__

attachment easier,

place the unit on the

bench.gr°undor on a work ___,,

1. Turn knob Upper Shaft Lower Shaft

counterclockwise to Housing

loosen (Fig. 7). Housing

2. While firmly holding the Fig.6

trimmer attachment or 9O°Edging Hole

other attachment, push it (Trimmer Only)

straight into the

Convertible TM coupler

until the release button

snaps firmly into the

primary hole (Fig. 6).

NOTE: Aligning the release

button with the guide Knob

recess will help Fig. 7

installation (Fig. 5).

3. Turn the knob clockwise to tighten (Fig. 7).

For decorative edging with the line head trimmer attachment or

other attachment, lock the release button of the attachment into the

90° hole (Fig. 7).

HOLDING THE TRIMMER

A IWARNING: Always wear eye, hearing, foot and body

protection to reduce the risk of injury when operating this unit.

Before operating the unit, stand in the operating position (Fig. 8).

Check for the following:

• The operator is wearing eye

protection and proper clothing

• With a slightly-bent right arm, the

operator's hand is holding the shaft grip

• The operator's left arm is slightly bent,

the left hand holding the D-handle

• The unit is at waist level

• The trimmer attachment is parallel to

the ground and easily contacts the

grass without the need to bend over

TIPS FOR BEST TRIMMING RESULTS

• Keep the trimmer attachment parallel

to the ground.

• Cut from leftto right whenever possible. Fig.8

Cutting to the right improves the unit's

cutting efficiency. Clippings are thrown away from the operator.

• Trim only when grass and weeds are dry.

• The life of your cutting line is dependent upon:

- Following the trimming tips

- What vegetation is being cut

- Where vegetation is being cut

DECORATIVE TRIMMING

Decorative trimming is accomplished by

removing all vegetation around trees,

posts, fences and more. Rotate the

whole unit so that the trimmer Fig.9

attachment is at a 30° angle to the ground (Fig. 9).

MAINTENANCE SCHEDULE

WARNING: To prevent serious injury, never perform

maintenance or repairs with unit running. Always service

and repair a cool unit. Disconnect the spark plug wire to

ensure that the unit cannot start.

Perform these required maintenance procedures at the frequency

stated in the table. These procedures should also be a part of any

seasonal tune-up.

NOTE: Some maintenance procedures may require special tools or

skills. If you are unsure about these procedures take your unit to

Sears or other qualified service dealer. Call 1-800-4-MY-HOME ®

for more information.

NOTE: Maintenance, replacement, or repair of the emission

control devices and system may be performed by a Sears

or other qualified service dealer. Call 1-800-4-MY-HOME ®

for more information.

In order to assure peak performance of your engine, inspection of the

engine exhaust port may be necessary after 50 hours of operation. If

you notice lost RPM, poor performance or general lack of acceleration,

this service may be required. Ifyou feel your engine is in need of this

inspection, refer service to a Sears or other qualified service dealer.

Call 1-800-4-MY-HOME ®for more information. DO NOT attempt to

perform this process yourself as engine damage may result from

contaminants involved in the cleaning process for the port.

FREQUENCY MAINTENANCE REQUIRED SEE

Before starting Fill fuel tank with fresh fuel p. 5

engine

Every 10 hours Clean and re-oil air filter p. 7

Every 25 hours Check and clean spark arrestor p. 8

Check spark plug condition and gap p. 8

Every 50 hours Inspect exhaust port and spark p. 8

arrestor screen for clogging or

obstruction

LINE REPLACEMENT

for Hassle-Free TM Plus Cutting Head

Always use Craftsman Hassle-Free TMXTRA QUIET Spiral Line.

Choose the line size best suited for the job at hand. Red colored line

is designed for cutting grass and small weeds. Black colored line is

designed for cutting larger weeds and light brush,

NOTE: Before inserting new line into the holes in the cutting head,

identify the proper holes, Follow directions as shown on the

glide plate, Do Not attempt to remove the cutting head from

the unit when replacing line.

NOTE: Do not mix lines, Use 2 black or 2 red only,

1. Remove the old line and line glide plate from the cutting head,

2. Clean entire surface of cutting head,

3. Reinstall line glide plate (Fig. 10). Trimming

The glide plate is akeyed item Line

and will only fit one way. Ifit does

not go into the cutting head Insertion

smoothly, DO NOT force it. Holes

Rotate the glide plate until it

slides into the cutting head easily, Positioning

Tunnel

NOTE: The glide plate must be

installed in the cutting head

before inserting new line.

4. Insert both ends of your line

through the insertion holes in the

side of the cutting head (Fig. 10).

5. Push and/or pullthe line so that

the line issnug against the hub

and is fully extended through the

positioning tunnels (Fig. 11).

6. Correctly installed line will be

the same length on both sides

(Fig. 12).

NOTE: Make sure that when

installing new line, that the

line is as close to even as

possible. Any variation in

lengths may cause the unit

to vibrate excessively. If this

happens, stop the unit and

make sure the line is even.

7. Repeat steps 4 thru 6 to install

the second trimmer line.

8. Correctly installed, the four

lines will all be the same

length (Fig. 13).

Some line breakage will occur from:

• Entanglement with foreign matter

• Normal line fatigue

• Attempting to cut thick, stalky

weeds

• Forcing the line into objects

such as walls or fence posts

NOTE: During normal use the

Glide Plate

Fig. 10

Fig. 11

Fig. 12

trimming line may become worn unevenly which may cause

excessive vibrations in the unit. If this becomes

uncomfortable or uncontrollable, stop the unit and replace

the line. Refer to the Line Replacement instructions above.

AIR FILTER MAINTENANCE

_IL I WARNING" Toavoid

serious personal injury,

always turn your unit off

and allow it to cool before

you clean or service it.

The condition ofthe airfilter is important

to the operation of the unit.A dirty air

filter will restrict airflow and change the

air/fuel mixture. This is often mistaken

for anout of adjustment carburetor.

Check the condition ofthe airfilter

beforeadjusting the idlespeed screw.

Referto Air FilterMaintenance.

Removing the Air Filter/Muffler

Cover

1. Remove the four (4)screws

securing the air filter/muffler

cover (Fig. 14). Use aflat blade

or T20 Torx bit screwdriver.

2. Pull the cover from the

engine. Do not force.

Cleaning the Air Filter

Failure to maintain your air

filter properly can result in

poor performance or can

cause permanent damage to

your engine.

1. Remove air filter/muffler

cover. Refer to Removing

the Air Filter/Muffler

Cover above.

2. Turn cover over and look

inside to locate the air filter.

Remove the air filter from

inside the air filter/muffler

cover (Fig. 15).

3. Wash the filter in detergent

and water (Fig. 16). Rinse

the filter thoroughly.

Squeeze out excess water.

Allow it to dry completely.

4. Apply enough clean SAE

30 oil to lightly coat the

filter (Fig. 17).

5. Squeeze the filter to

spread and remove

excess oil (Fig. 18).

6. Replace the air filter

inside the air filter/muffler

cover (Fig. 15).

NOTE: Operating the unit

without the air filter

and air filter/muffler

cover assembly will

VOID the warranty.

Reinstalling the Air

Filter/Muffler Cover

1. Place the air filter/muffler

cover over the back of the

carburetor and muffler.

Align the screw holes.

2. Insert the four (4) screws

into the holes in the air

filter/muffler cover (Fig.

14) and tighten. Do not

over tighten.

Screws <

Air Filter"

Fig. 13

Fig. 14

Fig. 15

Fig. 16

Fig. 17

Fig. 18

Screws

SPARK ARRESTOR MAINTENANCE

NOTE: Pay close attention when disassembling the muffler so you

can put it back together correctly. Failure to do so will

damage the unit and may cause serious personal injury.

1. Remove air filter/muffler cover. Refer to Removing the Air

Filter/Muffler Cover.

2. Locate the muffler,but do not remove it. Findthe screw on the

bottom of the muffler (Fig. 19).This screw holds the Spark Arrestor

Hood Assembly and the spark arrestor screen to the bottom of the

muffler. Removethis screw using either a Torx T20 or flat blade

screwdriver. Spark Arrestor Hood Engine

3. Using a small flat blade j Slo_

screwdriver, carefully pry

up the spark arrestor

screen from the recessed _r_ew_ _

hole, taking care to notice

that the "raised" part of

the spark arrestor screen

is inside the recessed hole. S

Remove the spark arrestor Tabs Screen Muffler

screen from the muffler. Fig. 19

4. Clean the spark arrestor screen with a wire brush. Replace it if it

is damaged, or if you are unable to clean it thoroughly.

5. Reinstall the spark arrestor screen by putting the "raised"

portion of the screen inside the recessed hole of the muffler.

Make sure that the spark arrestor screen fits flat against the

muffler.

6. Place the spark arrestor hood on top of the spark arrestor plate

with the "raised" side up and the opening facing AWAY from the

engine (Fig. 18). Verify that the exhaust will be directed AWAY

from the engine.

7. Replace the screw you removed in Step 2 and tighten securely.

8. Reinstall the air filter/muffler cover (Fig. 13).

I_I_ WARN ING: If the spark arrestor hood and spark arrestor

screen are not tightened securely, they could fall off causing

damage to the unit and possible serious personal injury.

CARBURETOR ADJUSTMENT

NOTE: Careless adjustments can seriously damage your unit. Contact

aSears or other qualified service dealer to make carburetor

adjustments. Call 1-800-4-MY-HOME® for more information.

REPLACING THE SPARK PLUG

Use a Champion RDJ7Y spark plug or equivalent. Remove the plug

after every 25 hours of operation and check its condition.

1. Stop the engine and allow it to cool. Grasp the plug boot firmly

and pull it from the spark plug.

2. Clean around the spark plug. Remove the spark plug from the

cylinder head by turning a 5/8-inch socket counterclockwise.

I_ WARNING: Do not sand blast' scrape °r clean spark plug I

electrodes. Grit in the engine could damage the cylinder.

3. Replace a cracked, fouled

or dirty spark plug. Set _'-

the air gap at 0.025 in.

(0.635 ram} using a feeler

gauge (Fig. 20).

4. Install a correctly-gapped

spark plug inthe cylinder |

head. Tighten by turning the 0.025 in.

5/8-inch socket clockwise (0.635 ram) t

until snug. Ifusing a torque

wrench, torque to: Fig. 20

110-120 in.°lb. (12.3-13.5 N°m}. Do not over-tighten.

5. Reattach the plug boot.

TRANSPORTING

° Allow the engine to cool before transporting.

° Drain fuel from unit.

° Tighten fuel cap before transporting.

° Secure the unit while transporting.

CLEANING

,l_l WARNING" Toavoid serious personal injury,always turn your

tr mmer off and a ow t to coo before you c ean or ma nta n t.

Use a small brush to clean off the outside of the unit. Do not use strong

detergents. Household cleaners that contain aromatic oils such as pine

and lemon, and solvents such as kerosene, can damage plastic housing

or handle. Wipe off any moisture with a soft cloth.

STORAGE

° Never store a fueled unit where fumes may reach an open flame or spark.

° Allow the engine to cool before storing.

° Store the unit locked up to prevent unauthorized use or damage.

° Store the unit in a dry, well-ventilated area.

° Store the unit out of the reach of children.

LONG TERM STORAGE

If you plan on storing the unit for an extended time, use the

following storage procedure:

1. Carefully drain the fuel tank by running the unit dry or remove

fuel cap and tip the motor housing over and drain oil/gas fuel

into a container with the same 2-cycle fuel mixture. Do not use

fuel that has been stored for more than 60 days.

2. Start the engine and allow it to run until it stalls. This ensures

that all fuel has been drained from the carburetor.

3. Allow the engine to cool. Remove the spark plug and put 1 oz.

(30 ml) of any high quality motor oil or 2-cycle oil into the

cylinder. Pull the starter rope slowly to distribute the oil.

Reinstall the spark plug.

NOTE: Remove the spark plug and drain all of the oil from the

cylinder before attempting to start the trimmer after storage.

4. Thoroughly clean the unit and inspect it for any loose or

damaged parts. Repair or replace damaged parts and tighten

loose screws, nuts or bolts. The unit is ready for storage.

PROBLEM

Primer bulb wasn't pressed enough

Old or improperly mixed fuel

SOLUTION

Press primer bulb fully and slowly 10 times

Drain gas tank and add fresh fuel mixture

Plugged spark arrestor

The outside temperature is above 90° F

Old or improperly mixed fuel

:1#[=tl#I:::U,vAIm111#toilf,_T_e.]::1n!::1:r,__/

Old or improperly mixed fuel

Cutting attachment bound with grass

Plugged spark arrestor

Old or improperly mixed fuel

Air filter is plugged

Plugged spark arrestor

Clean or replace spark arrestor

Pull the starter rope up to 10-15 times

Drain gas tank and add fresh fuel mixture

Stop the engine and clean the cutting attachment

Clean or replace spark arrestor

Drain gas tank and add fresh fuel mixture

Replace or clean air filter

Clean or replace spark arrestor

NEED MORE HELP?

Youq], fk_d, the a_wwe_: and mo_e on mal_agemyhOmeoCOm- for free!

o Find this and at[ your other product manuats ontine.

o Get answers from our team of home experts.

o Get a personatized maintenance ptan for your home.

o Find information and toots to hetp with home projects.

/}fought te you b_ Sea_'s

lI[IlII1

Engine Type ............................................................................................................................................................................ Air-Cooled, 2 Cycle

Displacement ........................................................................................................................................................................... 32 cc (1.95 cu in.)

Idle Speed RPM ...................................................................................................................................................................... 2,600 - 3,600 rpm

Operating RPM ................................................................................................................................................................................. 6,800+ rpm

Ignition Type ............................................................................................................................................................................. Electronic Ignition

Ignition Switch .............................................................................................................................................................................. Rocker Switch

Spark Plug Gap ................................................................................................................................................................... 0.025 in. (0.635 mm)

Spark Plug ................................................................................................................................................... Champion RDJ7Y or equivalent plug

Lubrication .................................................................................................................................................................................. Fuel/Oil Mixture

Fuel/Oil Ratio ................................................................................................................................................................................................. 40:1

Carburetor ...................................................................................................................................................................... Diaphragm, All-Position

Starter .......................................................................................................................................................... Incredi-Pull TM Starting Auto Rewind

Muffler ..................................................................................................................................................................................... Baffled with Guard

Throttle .............................................................................................................................................................................. Manual Spring Return

Fuel Tank Capacity ....................................................................................................................................................................... 13 oz. (384 ml)

D]:t kvj::1_1:r,_!_nII;le_ll n/ I_[€_',21nq_,_e.]:hV_l::1_/ I

Drive Shaft Housing ................................................................................................................................ Steel Tube (Craftsman Convertible TM)

Throttle Control ....................................................................................................................................................................... Finger-Tip Trigger

Approximate Unit Weight (No fuel, with Hassle Free®,shield, and D-handle) ................................................................................ 14 Ibs. (6 kg)

Cutting Mechanism ..................................................................................................................................................... Hassle FreeTM Plus Head

Trimming Line ........................................................................................................................................ Hassle FreeTM XTRA QUIET Spiral Line

All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at

any time without notice.

REPAIR PROTECTION AGREEMENTS

Congratulations on making a smart purchase. Your new Craftsman® product is designed and manufactured for years of dependable

operation. But like all products, it may require repair from time to time. That's when having a Repair Protection Agreement can save you

money and aggravation.

Here is what the Repair Protection Plan Agreement includes:

[] Expert service by our 10,000 professional repair specialists

[] Unlimited service and no charge for parts and labor on all covered repairs

[] Product replacement up to $1500 if your cover product can not be fixed

[] Discount of 10% from regular price of service and related installed parts not covered by the agreement; also, 10% off regular price of

preventive maintenance checks

[] Fast help by phone - we call it Rapid Resolution - phone support from a Sears representative. Think of us as a "talking owner's maunal."

Once you purchase the Repair Protection Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime

day or night, or schedule a service appointment online.

The Repair Protection Agreement is a risk-free purchase. If you cancel for any reason during the product warranty period, we will provide afull refund.

Or a prorated refund anytime after the prodduct warranty period expires. Purchase you Repair Protection Agrrement today!

Some limitations and exclusions apply. For prices and additional information call 1-800-827-6655.

*Coverage in Canada varies on some items. For full datails call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or

Canada call 1-800-4-MY-HOME ®.

CALIFORNIA/EPA EMISSION CONTROL WARRANTY STATEMENT

Your Warranty Rights and Obligations

The California Air Resources Board, the Environmental Protection Agency, and Sears, Roebuck and Co. (Sears) are pleased to explain the emission

control system warranty on your 2007 and later small off-road engine. InCalifornia and the 49 states, new small off-road engines must be designed,

built and equipped to meet the state's stringent anti-smog standards. Sears must warrant the emission control system on your small off-road engine

for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine.

Your emission control system may include parts such as the carburetor or fuel-injection system, the ignition system, and catalytic converter. Also

included may be hoses, belts, connectors and other emission-related assemblies.

Where a warrantable condition exists, Sears will repair your small off-road engine at no cost to you including diagnosis, parts and labor.

The 2007 and later small off-road engines arewarranted for two years. Ifany emission-related part on your engine is defective, the part will be repaired

or replaced by Sears. Owners Warranty Responsibilities

As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your operator's manual. Sears

recommends that you retain all receipts covering maintenance on your small off-road engine, but Sears cannot deny warranty solely for the lack

of receipts or for your failure to ensure the performance of all scheduled maintenance.

• As the small off-road engine owner, you should however be aware that Sears may deny you warranty coverage if your small off-road engine

or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

• You are responsible for presenting your small off-road engine to a Sears Authorized Service Center as soon as a problem exists. The

warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should call f-800-4-MY-NOME ®.

Manufacturer's Warranty Coverage

• The warranty period begins on the date the engine or equipment is delivered to the retail purchaser.

• The manufacturer warrants to the initial owner and each subsequent purchaser, that the engine is free from defects in material and

workmanship which cause the failure of a warranted part for a period of two years.

• Repair or replacement of warranted part will be performed at no charge to the owner at an Authorized Sears Service Center. For the nearest

location please contact Sears at: f-800-4-MY-NOME ®.

• Any warranted part which is not scheduled for replacement, as required maintenance or which is scheduled for only for regular inspection

to the effect of "Repair or Replace as Necessary" is warranted for the warranty period. Any warranted part which is scheduled for

replacement as required maintenance will be warranted for the period of time up to the first scheduled replacement point for that part.

• The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective, if the diagnostic work

is performed at an Authorized Sears Service Center.

• The manufacturer is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

• Failures caused by abuse, neglect or improper maintenance are not covered under warranty.

• The use of add-on or modified parts can be grounds for disallowing a warranty claim. The manufacturer is not liable to cover failures of

warranted parts caused by the use of add-on or modified parts.

• In order to file a claim, go to your nearest Authorized Sears Service Center. Warranty services or repairs will be provided at all Authorized

Sears Service Centers.

• Any manufacturer approved replacement part may be used in the performance of any warranty maintenance or repair of emission related

parts and will be provided without charge to the owner. Any replacement part that is equivalent in performance or durability may be used

in non-warranty maintenance or repair and will not reduce the warranty obligations of the manufacturer.

Emission Warranty Parts List:

The following components are included in the emission-related warranty of the engine: air filter, carburetor, primer, fuel lines, fuel pick up/fuel

filter, ignition module, spark plug, and muffler. Valves and Cam are additionally included if your engine is a 4-Stroke Model.

CALIFORNIA EVAPORATIVE EMISSION CONTROL WARRANTY STATEMENT

Your Warranty Rights and Obligations

The California Air Resources Board and Sears, Roebuck and Co. (Sears) is pleased to explain the evaporative emission control system's warranty

on your 2007 model year and later small off-road (equipment type) engine. In California, new equipment that use small off-engines must be designed,

built, and equipped to meet the State's stringent anti-smog standards Sears must warrant the evaporative emission control system on your small

off-road Lawn & Garden engine for the period listed below provided there has been no abuse, neglect or improper maintenance of your equipment.

Your evaporative emission control system may include parts such as: carburetors, fuel tanks, fuel lines, fuel caps, valves, canisters, filters, vapor

hoses, clamps, connectors, and other associated components. For engines less than or equal to 80 cc, only the fuel tank is subject to the

evaporative emission control warranty requirements of this section. The displacement of your small off road engine is less than 80 cc.

Manufacturer's Warranty Coverage

This evaporative emission control system is warranted for two years. If any evaporative emission-related part on your equipment is defective,

the part will be repaired or replaced by Sears. Owner's Warranty Responsibilities

• As the small off-road Lawn & Garden engine owner, you are responsible for performance of the required maintenance listed in your owner's

manual. Sears recommends that you retain all receipts covering maintenance on your Lawn & Garden Engine but Sears cannot deny

warranty solely for the lack of receipts.

• As the small off-road Lawn & Garden engine owner, you should however be aware that the Sears may deny you warranty coverage if your

fuel tank has failed due to abuse, neglect, or improper maintenance or unapproved modifications.

• You are responsible for presenting your Lawn & Garden fuel tank to Sears distribution center or service center as soon as the problem exists.

The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have a question regarding your

warranty coverage, you should contact Sears at f-800-4-MY-NOME ®.

DefectsWarrantyRequirements

(a) The warranty period begins on the date the engine or equipment is delivered to an ultimate purchaser.

(b) General Evaporative Emissions Warranty Coverage. The fuel tank must be warranted to the ultimate purchaser and any subsequent owner

that the evaporative emission control system when installed was:

(1) Designed, built, and equipped so as to conform with all applicable regulations; and

(2) Free from defects in materials and workmanship that causes the failure of a warranted part for a period of two years.

(1) Any warranted part that is not scheduled for replacement as required maintenance in the written instructions must be warranted for the

warranty period defined in subsection (b)(2). If any such part fails during the period of warranty coverage, it must be repaired or replaced

by Sears. Any such part repaired or replaced under the warranty must be warranted for a time not less than the remaining warranty

period.

(2) Any warranted part that is scheduled only for regular inspection in the written instructions must be warranted for the warranty period defined in

subsection (b)(2).A statement in such written instructions to the effect of "repair or replace as necessary" will not reduce the period of warranty

coverage. Any such part repaired or replaced under warranty must be warranted for a time not less than the remaining warranty period.

(3) Any warranted part that is scheduled for replacement as required maintenance in the written instructions must be warranted for the

period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the

part must be repaired or replaced by the Sears. Any such part repaired or replaced under warranty must be warranted for a time not less

than the remainder of the period prior to the first scheduled replacement point for the part.

(4) Repair or replacement of any warranted part under the warranty provisions of this article must be performed at no charge to the owner

at a warranty station.

(5) Not withstanding the provisions of subsection (4) above, warranty services or repairs must be provided at distribution centers that are

franchised to service the subject engines or equipment.

(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided

that such diagnostic work is performed at a warranty station.

(7) Throughout the evaporative emission control system's warranty period set out in subsection (b)(2), Sears must maintain a supply of

warranted parts sufficient to meet the expected demand for such parts.

(8) Manufacturer approved replacement parts must be used in the performance of any warranty maintenance or repairs and must be provided

without charge to the owner. Such use will not reduce the warranty obligations of the manufacturer issuing the warranty.

(9) The use of any add-on or modified parts will be grounds for disallowing a warranty claim made in accordance with this article. The

manufacturer issuing the warranty will not be liable under this Article to warrant failures of warranted parts caused by the use of an add-

on or modified part.

(10) Sears shall provide any documents that describe the warranty procedures or policies within five working days of request bythe Air Resources Board.

Emission Warranty Parts List

(1) Fuel Tank

Writteninstructions forthemaintenance and useofthe evaporative emissionscontrol system bythe ownershall befurnished with eachnew engineor equipment.

Manual del Operador

2-Tiempos

WEEDWACKER_ RECORTADOR A GASOLINA

Modelo No. 316.791900

W_.pI_.WJH TM

#!_BII_LIf[V,4BLI_ _ rAR r t tif 6t: A S E _

•SEGURIDAD

• MONTAJE

• FUNCIONAMIENTO

• MANTENIMIENTO

• LISTADO DE PIEZAS

PRECAUCION: Lea el manual

del operador y siga todas las

advertencias e instrucciones

de seguridad.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.

Visite nuestro sitio web" www.sears.com/craftsman

769-03836A 3/08

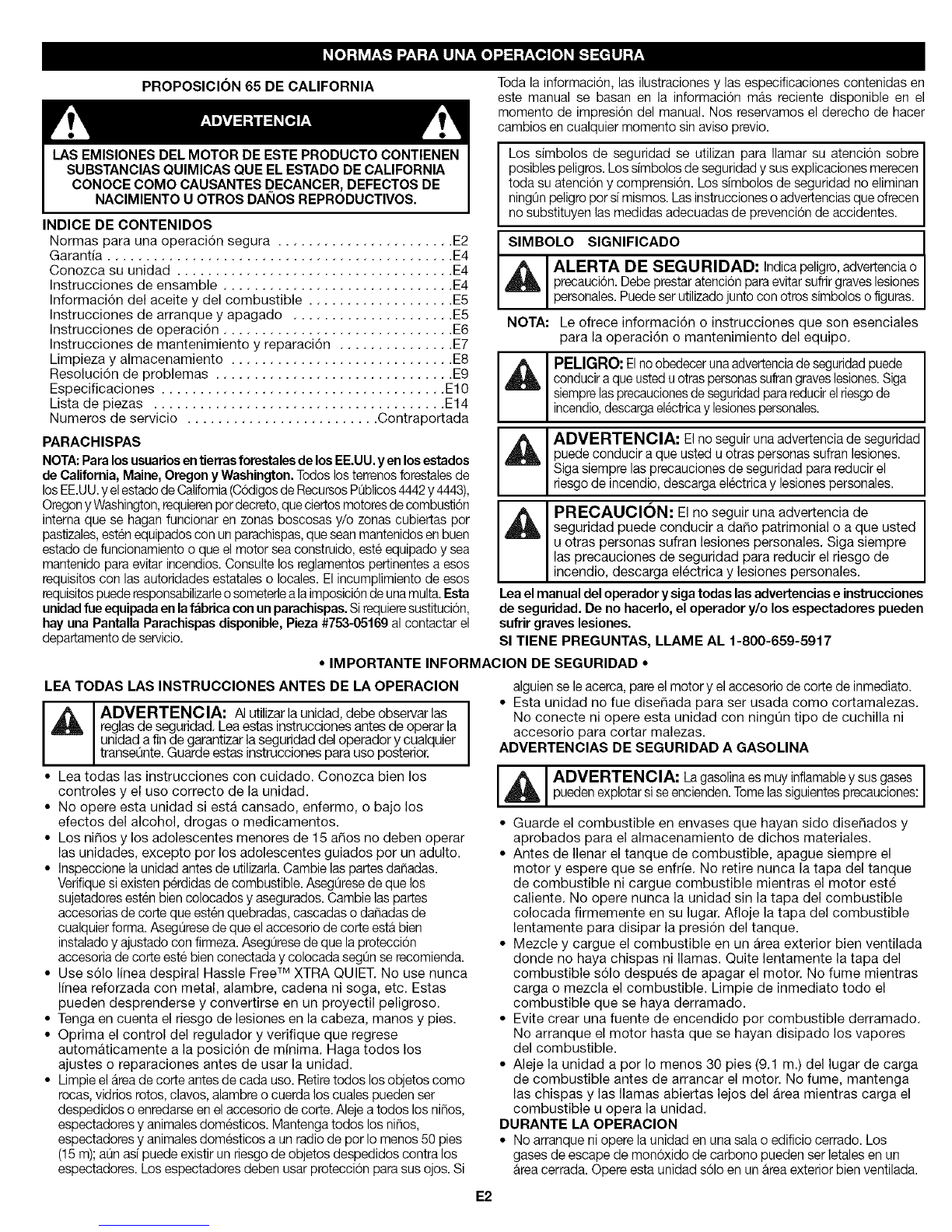

PROPOSICION 65 DE CALIFORNIA

LAS EMISIONES DEL MOTOR DE ESTE PRODUCTO CONTIENEN

SUBSTANCIAS QUlMICAS QUE EL ESTADO DE CALIFORNIA

CONOCE COMO CAUSANTES DECANCER, DEFECTOS DE

NACIMIENTO U OTROS DANOS REPRODUCTIVOS.

INDICE DE CONTENIDOS

Normas para una operaci6n segura ....................... E2

Garantfa ............................................. E4

Conozca su unidad .................................... E4

Instrucciones de ensamble .............................. E4

Informaci6n del aceite y del combustible ................... E5

Instrucciones de arranque y apagado ..................... E5

Instrucciones de operaci6n .............................. E6

Instrucciones de mantenimiento y reparaci6n ............... E7

Limpieza y almacenamiento ............................. E8

Resoluci6n de problemas ............................... E9

Especificaciones ..................................... E10

Lista de piezas ...................................... E14

Numeros de servicio ......................... Contraportada

PARACHISPAS

NOTA:Para los usuariosentierras forestales de losEE.UU.y en losestados

de California, Maine,Oregon y Washington.Todos losterrenosforestalesde

los EE.UU.yel estadode California(C6digosdeRecursosP0blicos4442y 4443),

Oregony Washington,requierenpordecreto,queciertosmotoresdecombustion

interna que se haganfuncionar en zonas boscosas y/o zonas cubiertas por

pastizales,est6nequipadoscon unparachispas,que seanmantenidosen buen

estado de funcionamientoo que el motor sea construido, este equipado y sea

mantenido para evitar incendios.Consulte los reglamentos pertinentesa esos

requisites con las autoridades estatales o locales. El incumplimiento de esos

requisitespuede responsabilizarleosometerlea laimposicionde unamulta.Esta

unidad rue equipada en lafabrica con unparachispas. Si requieresustitucbn,

hay una Pantalla Parachispas disponible, Pieza #753-05169 al contactar el

departamentode servicio.

Toda la informaci6n, las ilustraciones y las especificaciones contenidas en

este manual se basan en la informaci6n mas reciente disponible en el

momento de impresi6n del manual. Nos reservamos el derecho de hacer

cambios en cualquier momento sin aviso previo.

Los simbolos de seguridad se utilizan para Ilamar su atenci6n sobre

posiblespeligros.Los simbolos de seguridad y sus explicaciones merecen

toda su atenci6n y comprensi6n. Los simbolos de seguridad no eliminan

ningQnpeligro porsi mismos. Las instruccioneso advertencias queofrecen

no substituyen lasmedidas adecuadas de prevenci6n de accidentes.

SIMBOLO SIGNIFICADO

ALERTA DE SEGURIDAD: Indica peligro,advertencia o

precaucion. Debeprestar atencion para evitarsufrirgraves lesiones

personales. Puede ser utilizadojunto con otres simbolos o figures.

NOTA: Le ofrece informaci6n o instrucciones que son esenciales

para la operaci6n o mantenimiento del equipo.

PELIGRO: Elno obedeceruna advertenciade seguridadpuedeconducir aqueusteduotraspersonassultangraveslesiones.Siga

siempre lasprecaucionesde seguridadparareducirel riesgode

incendio,descargaelectricay lesionespersonales.

_, ADVERTENCIA" El no seguir unaadvertencia de seguridad

puede conducir a que usted u otras personas sufran lesiones.

Siga siempre las precauciones de seguridad para reducir el

riesgo de incendio, descarga electrica y lesiones personales.

PRECAUCI()N" El no seguir una advertencia de

seguridad puede conducir a dafio patrimonial o a que usted

u otras personas sufran lesiones personales. Siga siempre

las precauciones de seguridad para reducir el riesgo de

incendio, descarga electrica y lesiones personales.

Leael manual del operador y siga todas los advertencias e instrucciones

de seguddad. De no hacerlo, el operador y/o los espectadores pueden

sufrir graves lesiones.

Sl TIENE PREGUNTAS, LLAME AL 1-800-659-5917

•IMPORTANTE INFORMACION DE SEGURIDAD *

LEA TODAS LAS INSTRUCClONES ANTES DE LA OPERAClON

AADVERTENCIA" AI utilizarla unidad, debe observar las

_ I recjlasde seguridad. Leaestas instrucciones antes de operar la

-- unidad afin de garantizar la seguridad del operador y cualquier

transeQnte.Guarde estas instrucciones para uso posterior,

• Lea todas las instrucciones con cuidado. Conozca bien los

controles y el uso correcto de la unidad.

• No opere esta unidad si eeta cansado, enfermo, o bajo los

efectos del alcohol, drogas o medicamentos.

• Los niSos y los adolescentes menores de 15 a_os no deben operar

las unidades, excepto por los adolescentes guiados por un adulto.

• Inspeccione la unidad antes de utilizarla.Cambie las partes dafiadas.

Verifiquesi existen perdidasde combustible. AsegQresede que los

sujetadores esten bien colocados y asegurados. Cambie las partes

accesorias de corte que esten quebradas, cascades o dafiadas de

cualquierforma. AsegQresede que el accesoriode corte esta bien

instalado y ajustado con firmeza.AsegQresede que la proteccbn

accesoria de corte este bien conectada y colocada segQnse recomienda.

• Use s61o linea despiral Hassle Free TM XTRA QUIET. No use nunca

Ifnea reforzada con metal, alambre, cadena ni soga, etc. Estas

pueden desprenderse y convertirse en un proyectil peligroso.

• Tenga en cuenta el riesgo de lesiones en la cabeza, manos y pies.

• Oprima el control del regulador y verifique que regrese

automaticamente a la posici6n de minima. Haga todos los

ajustes o reparaciones antes de usar la unidad.

• Limpie el Areade corte antes de cada ueo. Retiretodoe los objetos como

rocas, vidrios rotoe,clavos, alambre o cuerda loscuales pueden ser

despedidos o enredarse en el accesorio de corte. Aleje atodos los nifioe,

espectadoree y animales domesticos. Mantengatodos los nifios,

espectadores y animales domesticos a un radio de por Io menos 50 pies

(15m);aQnaeipuede existir un riesgo de objetoe despedidoe contra los

espectadores. Losespectadores deben usarprotecci6n para sue ojos. Si

alguien se le acerca, pare el motor y el accesorio de corte de inmediato.

• Esta unidad no fue disefiada para set usada como cortamalezas.

No conecte ni opere esta unidad con ningQn tipo de cuchilla ni

accesorio para cortar malezas.

ADVERTENCIAS DE SEGURIDAD A GASOLINA

_L_ DVERTENCIA: Lagasolinaes muy inflamabley sus gases

puedenexplotarsi seencienden.Tomelassiguientesprecauciones:J

• Guarde el combustible en envases que hayan sido dise_ados y

aprobados para el almacenamiento de dichos materiales.

• Antes de Ilenar el tanque de combustible, apague siempre el

motor y espere que se enfrfe. No retire nunca la tapa del tanque

de combustible ni cargue combustible mientras el motor este

caliente. No opere nunca la unidad sin la tapa del combustible

colocada firmemente en su lugar. Afloje la tapa del combustible

lentamente para disipar la presi6n del tanque.

• Mezcle y cargue el combustible en un Area exterior bien ventilada

donde no haya chispas ni llamas. Quite lentamente la tapa del

combustible s61o despues de apagar el motor. No fume mientras

carga o mezcla el combustible. Limpie de inmediato todo el

combustible que se haya derramado.

• Evite crear una fuente de encendido por combustible derramado.

No arranque el motor hasta que se hayan disipado los vapores

del combustible.

• Aleje la unidad a por Io menos 30 pies (9.1 m.) del lugar de carga

de combustible antes de arrancar el motor. No fume, mantenga

las chispas y las llamas abiertas lejos del Area mientras carga el

combustible u opera la unidad.

DURANTE LA OPERACION

• No arranque ni opere la unidad en una sala o edificio cerrado. Los

gases de escape de mon6xido de carbono pueden ser letales en un

Areacerrada. Opere esta unidad s61oen un Areaexterior bien ventilada.

• Use lentes o gafas de protecci6n que cumplan con las

normas ANSI Z87.1-1989, y protecci6n para sus ofdos/audici6n

mientras opere esta unidad. Use siempre una mascara facial o

para protegerse contra el polvosi la operaci6n levanta polvo.

• Use pantalones largos y gruesos, botas, guantes y camisa de manga

larga. No use ropa holgada, alhajas, pantalones cortes, sandal!as ni

este descalzo. Sostenga el cabello sobre el nivel de los hombros.

• La protecci6n accesoria de corte debe estar siempre colocada en

su lugar mientras opere la unidad. No opere la unidad con las dos

lineas de corte extendidas, y la linea correcta instalada. No

extienda la Ifnea de corte mas alia de la Iongitud de la protecci6n.

• Esta unidad no tiene embrague. El accesorio de corte continQa

girando cuando el motor esta en marcha en vacio. Para evitar

lesiones, haga que un tecnico de servicio autorizado ajuste la unidad.

• Ajuste la manija en D a su tamafio de modo que le brinde el mejor agarre.

• AsegQrese de que el accesorio de corte no esta en contacto con

ningQn objeto antes de arrancar la unidad.

• Use la unidad Qnicamente con la luz del dia o con buena luz artificial.

• Evite arrancar la unidad accidentalmente. Col6quese en posici6n

de inicio siempre que tire de la cuerda de arranque. El operador y

la unidad deben estar en una posici6n estable al comenzar. Lea

las instrucciones de Arranque y Apagado.

• Use la herramienta adecuada. No use esta unidad para ninguna

tarea para la cual no ha sido dise_ada.

• No se estire demasiado. Mantenga siempre una posici6n y

equilibrio adecuados.

• Sostenga siempre la unidad con ambas manes mientras este en

funcionamiento. Sostenga con firmeza tanto el mango como la

manija auxiliar.

• Mantenga las manes, la cara y los pies lejos de todas las partes

m6viles. No intente tocar ni detener el accesorio de corte mientras gira.

• No toque el motor, el bastidor del engranaje ni el silenciador.

Estas partes se calientan mucho con la operaci6n. Luego de

apagar la unidad, permanecen calientes durante un tiempo breve.

• No opere el motor a una velocidad mayor que la necesaria para

cortar, recortar o recortar los bordes. No haga funcionar el motor

a alta velocidad mientras no esta cortando.

• Apague siempre el motor cuando demore el corte o mientras

camina entre zonas de corte.

• Si golpea o se enreda con algt]n objeto extrafio, apague el motor de

inmediato y verifique si hay dafios. Repare todos los dafios antes de

volver a intentar operar la unidad. No opere la unidad si tiene piezas

flojas o dafiadas.

• Apague el motor para realizar todo el mantenimiento,

reparaciones o cambio del accesorio de corte u otros accesorios.

• Use s61opiezas y accesorios de repuesto delfabricante del equipo

original para esta unidad. Puede obtenerlos en su proveedor de servicio

autorizado. El uso de piezas y accesorios que no son equipo origina;

puede causar graves lesiones al operador o el dafio de su unidad, y la

cancelaci6n de su garantia.

• Mantenga la unidad libre de vegetaci6n y otros mater!ales.

Pueden alojarse entre el accesorio de corte y la protecci6n.

• Parareducirel riesgode incendio,cambie los silenciadoresy

amortiguadoresde chispas defectuosos, mantengael motor y el silenciador

librede pasto,hojas, grasaexcesivao acumulaciones decarbono.

OTRAS ADVERTENCIAS DE SEGURIDAD

• No guarde nunca la unidad con combustible en el tanque en un edificio

donde los gases puedan Ilegar a una llama abierta o a una chispa.

• Espere que el motor se enfrie antes de guardar o transportar la

unidad. AsegQrese de que la unidad este segura al transportarla.

• Guarde la unidad bajo Ilave en un lugar adecuado y seco para

evitar que sea usada por personas no autorizadas y se da_e,

fuera del alcance de los ni_os.

• Nunca moje ni rocie la unidad con agua ni con ningOnotro liquido.

Mantenga las manijas secas, limp!as y sin residues. Limpie la unidad

luegode cada uso, lealas instrucciones de Limpieza y Almacenamiento.

• Guarde estas instrucciones. ConsQItelas con frecuencia y

utilicelas para ense_ar a otros usuarios. Si le presta esta unidad a

alguien, prestele tambien estas instrucciones.

CONSERVE ESTAS INSTRUCCIONES

•SIMBOLOS DE SEGURIDAD E INTERNACIONALES,

Este manual del operador describe los simbolos y figuras de seguridad e internacionales que pueden aparecer en este producto. Lea el

manual del operador para obtener informaci6n completa acerca de la seguridad, ensamble, operaci6n y mantenimiento y reparaci6n.

SIMBOLO SIGNIFICADO

,ndica pe,igro_ advertencia o precauoi6n, Pued_ s_r

utilizado junto con otros simbolos o figuras.

O, ADVERTENCIA -LEA EL MANUAL DEL

OPERADOR

Lea el manual del 0perador y siga todas las advertencias

e instrucciones de seguridad. De no hacerlo, el operador

y/o los espectadores pueden sufrir graves lesiones.

, USE PROTECCION OCULAR f AUDITIVA

ADVERTENCIA: Losobjetos arrojadospot la unidady

el ruido fuerte puedencausargraves lesionesocularesy

p6rdida auditiva.Utiliceprotecci6n ocularque cumpla con las

normasANS!Z87:1-1989 y protecci6n auditiva cuando epere

esta unidad. Use una caretacompleta cuando lanecesite.

g_ .COMBUSTIBLESINPLOMO

use siempre C0mbustible limp!o; nuevo y sin plomol

I' CONTROL DE ENCENDIDO Y APAGADOENCENDIDO/ARRANQUE/MARCHA

SIMBOLO SIGNIFICADO

, LOS OBJETOS DESPEDIDOS Y LA CUCHILLA

ROTATIVA PUEOEN CAUSAR GRAVES LESIONES

ADVERTENCIA: No 0peie esta unidad si la

proteccbn p!Astica de Iinea no esta colocada en su lugar.

Mant6ngase alejado del accesorio de corte giratorio:

, MANTENGA ALEJADOS A LOS ESPECTADORES

ADVERTENCIA: Mantenga atedos 10SesPectadoresl

en especial a nifios y animales dom6sticos a per Io menos

50 pies (15 m)del _.reade corte.

No toque un silenciador ni un cilindro caliente. Puede

quemarse. Estas partes se calientan mucho con el

uso. Luego de apagarse Permanecen ca!ientes

durante un corto tiempo.

, INDICADOR DE ACEITE

Consulte el manual del operador para obtener informaci6n

acerca del tipo correcto de aceite.

' PRIMER BULB

Push primer bulb, fully and slowly, 10 times.

,,CUCHILLA AFILADA

ADVERTENCIA: La protecci6n del accesorio de

corte contiene una cuchilla afilada. Para prevenir

graves lesiones, no toque la cuchilla.

GARANTIATOTALDECRAFTSMAN

Si este producto de Craftsman Professional falla debido a un defecto en el material o en la mano de obra dentro de un perfodo de tres ar_os

a partir de la fecha de compra, devuelvalo a cualquier tienda o Centro de Servicio de Piezas y Reparaciones Sears u otro establecimiento de

Craftsman en los Estados Unidos para que sea reparado sin costo alguno (o ser reemplazado si resulta imposible repararlo).

Esta garantfa se aplica solamente durante 90 dias si este producto en algQn momento se utiliza para fines comerciales o de alquiler.

Esta garantia abarca SOLAMENTE los defectos en el material o en la mano de obra. Sears NO pagara:

• Los articulos consumibles que se desgasten debido al uso normal dentro del perfodo de garantfa.

• Las reparaciones necesarias debidas aaccidente asi como por no operar o no mantener el equipo de acuerdo con todas las instrucciones provistas.

• Mantenimiento preventivo, o las reparaciones necesarias debido a mezcla incorrecta de combustible, combustible contaminado o viejo.

Esta garantia le concede a usted derechos legales especificos, y usted pudiera tener otros derechos que varfan de un estado a otro.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Control de encendido y

Tapa del combustible Manija de la

cuerda de

arranque

Mango del

eje

APLICACIONES

Como recortadora;

• Corte de cesped y hierbas delgadas

• Recorte de bordes

• Recorte decorativo alrededor de arboles, cercos, etc.

Puede usar otros accesorios con la unidad. Lea la lista de accesorios.

-Control del regulador

Manija en D

Bujia de

encendido

Adaptador de

apoyo

Cubierta del silenciador /

filtro de aire

Bombilla del cebador

Silenciador

Convertible TM

acoplador

Accesorio de corte

Bastidor del

eje

Protector de

Cuchilla de

corte de

linea

AJUSTE DE LA MANIJA EN D

1 aalead u/ 2!_!isc_,w,Jd_ve_

oose ° the 4 s< _,_wson Ihe D-ha de

e o f_hto oosel (F9 1)

2 RoaetheD_Hande ethe(}_fi t

}osto ont/e_ostsdeoflhe

shaft ho(sn (F fl I}

3_ Hod the _t nt eo}eatrf_posto_

(Ff_ @ I _ec_,ssa_y,reposto/he D

bandeto tse ocato that provde<,

te bes {_lp

4 ghtenlhe4scews_t theD

_sa de ssec(m Fig. 1

INSTALACION DEL ACCESORIO RECORTADOR

Antes del uso, la marca la fijaci6n segura de trimmer es instalada

correctamente. Refierase por favor a Operar el Convertible TM

Sistema de Acoplador para la instalaci6n apropiada.

NOTA: Quite la tapa roja o el gancho de la cubierta inferior del eje

antes de ensamblar al acoplador Convertible TM

INSTRUCCIONES PARA MEZCLAR EL ACEITE Y EL COMBUSTIBLE

El combustible viejo o real mezclado son los motivos principales del

real funcionamiento de la unidad. AsegL_resede uear combustible

nuevo, limpio y sin plomo. Siga las instrucciones en detalle para

mezclar correctamente el aceite y el combustible.

Definici6n de los combustibles de mezcla

Los combustibles actuales con frecuenciason una mezclade gasolinay

oxigenantes como pot ejemplo etanol, metanol o MTBE (eter).Elcombustible

mezclado con alcohol absorbe agua. Unacantidad tan pequeSacomo el 1%

de agua enel combustible puede cauearla separaci6ndel combustible y el

aceite.Forma Acidos cuando estAalmacenado. Cuando usecombustible

mezclado con alcohol,use combustible nuevo (demenos de 60 dfas).

Uso de combustibles de mezcla

Si usted opta pot usar un combustible de mezcla o ei su uso es

inevitable, tome lae precauciones recomendadas.

•Use siempre una mezcla fresca de combustible eegL_nIo indica

eu manual del operador.

• Agite siempre la mezcla de combustible antes de cargarlo en la unidad.

• Drene el tanque y haga funcionar el motor en eeco antes de

guardar la unidad.

Uso de aditivos en el combustible

La botella de aceite de 2 ciclos que vino con su unidad contiene un aditivo

en el combustible que ayudara a inhibit la corrosi6n y a reducirla formaci6n

de dep6sitos de goma. Se recomienda que use s61oel aceite de 2 ciclos

con esta unidad. Si es inevitable,use un buen aceite de 2ciclos elaborado

para motores enfriados por airejunto con un aditivo para el combustible

como por ejemplo el estabilizador de gasolina STA-BIL® o similar.Agregue

23 mL (0,8onzas)de aditivo de combustible por gal6n de combustible de

acuerdo con lasinstrucciones del envase. NUNCA agregue aditivos

directamente en el tanque de combustible de la unidad.

_1 RECAUClON" Paraqueelmotor funcione correctamente

y con la mayor fiabilidad, preste mucha atenci6n alas

instrucciones de mezcla de aceite y combustible de] envase de

aceite de 2 ciclos. Eluso de combustible mezclado enforma

incorrecta puede daSar seriamente el motor.

Mezclebien la proporci6n correcta de aceite para motor de 2 ciclos y

gasolina sin plomo en una lata de combustible por separado. Use una

proporci6n de 40:1 de combustible y aceite. No los mezcle directamente

en el tanque de combustible de la unidad. Consulte las proporciones

especificas de mezclade gasolina

NOTA: 3,8 litros (un gal6n) de

gasolina sin plomo

mezclada con una

NOTA:

botella de 95 mL (3,2

onzas) de aceite de 2

ciclos es una

proporci6n de 40:1 de

combustible y aceite.

Elimine la mezcla vieja

de aceite y

combustible de

acuerdo con los

reglamentos federales

estatales y locales.

aceite en la tabla siguiente.

GASOLINA SIN ACEITE DE 2

PLOMO ClCLOS

3,8 LITROS 05 mL

(1 GALON de (3,20NZAS

EE.UU.) FLUIDAS)

1 LITRO 25 mL

PROPORCION DE LAMEZCLA = 40:1

ADVERTENCIA" La gasolina es muy inflamable. Los

gases pueden explotar si se encienden. Apague siempre el

motor y espere que se enfrie antes de cargar el tanque de

combustible. No fume mientras Ilena el tanque. Mantenga

las chispas y las llamas lejos del area.

ADVERTENCIA" Saque la tapa del combustible lentamentepara evitar lesionarse con el rociado del combustible. No opere

nunca la unidad sin la tapa del combustible firmemente colocada

en su lugar.

ADVERTENClA" Cargue el combustible en un area exterior

limpia y bien ventilada. Limpie de inmediato todo combustible

que se haya derramado. Evitecrear una fuente de encendido con

el combustible derramado. No arranque el motor hasta que se

hayan evaporado los gases del combustible.

ADVERTENCIA: Use esta unidad s61o en un area

exterior bien ventilada. Los gases de escape de mon6xido

de carbono pueden ser letales en un Area cerrada.

_ DVERTENCIA: Evitelos arranques accidentales. Cobquese

enposici6n de iniciocuando tire de lacuerda de arranque(Fig.5).El

operadory launidad deben estarenuna posici6n establealarrancar

launidad paraevitargraveslesionespersonales.

INSTRUCClONES DE ARRANQUE

1. Mezcle la gasolina Apagado

con el aceite. Vea las

Instrucciones para Encendido

Mezclar el Aceite y el

Combustible.

2. Llene el tanque de

combustible con la

mezcla de

combustible/aceite. Control del

ulador

NOTA: No hay necesidad

de girar la unidad. Fig. 2

Encendido/de

parada el control _ Bulbo cebador

(Fig. 2) esta en la __ _ J

posici6n de trabajo _ _L_//'--_=_-_--X_ J

s empretl/

Oprima completamente "\

elcebador y sueltelo 10

veces. Hagalo \ _-/_/ // ol}

lentamente.Sedebera \_ l. (_l I/

ver unpoco de N._'--J_.\L_ /I ...S_

combustible en el \ __

cebador y en las Fig. 3

..... Sl... El

NOTA:

tuberias de alimentaci6n

decombustible (Fig.3).

Si no puede ver el

combustible en el /_fl'_/'P///IAdH°

cebador,oprimalo y \ r-4:,_,_'"/

sueltelotantas veces

como sea necesario

hastaque yea

combustible en el

mismo. Control del

4. Coloqueseen la regulador

posici6n de arranque Fig. 4

(Fig.4)y haleel cordon

Posici6n de

Arranque

dearranque con energia hastaque el motor arranque. Espera 10

a15 segundos, entonces exprima la valvula reguladora para

controlar el corte o lavelocidad que sopla.

NOTA: La unidad usa INCREDI-PULU MIo cual reduce

considerablemente el esfuerzo requerido para arrancar

el motor. Debe halar el cord6n de arranque Io suficiente

para oir que el motor trata de arrancar. No es necesario

halar el cord6n con energia: no hay fuerte resistencia al

halar. Tenga en cuenta que este metodo de arranque

es muy diferente (y mucho mas facil) del que usted

pudiera estar acostumbrado a usar.

motor no arranca, regrese al paso 3.

Si la unidad esta caliente y no Iogra arrancar despues

de halar 3 veces el cord6n de arranque, apriete el

control del obturador y hale el cord6n de arranque

hasta que la unidad arranque.

INSTRUCCIONES DE APAGADO

1. Saque la mano del control del regulador. Deje enfriar el

motor en marcha en vacio.

2. Coloque el control de encendido y apagado en posici6n de

APAGADO (O) (Fig. 2).

OPERACIONDELSISTEMA DEL ACOPLADOR CONVERTIBLE TM

I_, ADVERTENCIA: Antesde comenzara usaresteaccesorio,

leay comprenda el manual que viene con el accesorio. Siga toda

la informaci6n de seguridad contenida en el mismo.

I _tl_ ADVERTENOIA" Para evitar graves lesiones personales,

apague a un dad antes de sacar o nsta ar accesor os.

El sistema del acoplador Convertible TM le permite el uso de estos

accesorios optativos.

• Recortador de bordes de cesped

• Cultivador

• Turbo soplador

• Cortamalezas

• Sierra de poste

• Podadora con cuchilla circular

• Recortador de setos

COMO SACAR EL ACCESORIO DE CORTE U OTRO ACCESORIO

I_ DVERTENClA" Para evitar graves lesiones

personales, apague la unidad antes de sacar o instalar

aocesorios.

1. Gire la perilla en sentido

antihorario para aflojarla

(Fig. 7).

2. Opima y sostenga el

bot6n de desconexi6n

(Fig. 5).

3. A la vez que sujeta la caja

del eje superior, tire del

accesorio de corte o

cualquier otto accesorio

recto hacia afuera del

acoplador Convertible TM

(Fig. 6).

Acoplador de Bot6n de desconexi6n

Conv_

Hueco de guia

Fig. 5

INSTALAClON DEL ACCESORIO DE CORTE U OTROS

ACCESORIOS

i_ RECAUCION: Antes de operar esta unidad, cerci6rese I

de que el bot6n de liberaci6n est6 completamente encajado en

e or f c o pr nc pa (Fg. 6) y de que a per a de ajuste (Fg. 7)

este firmemente apretada.

NOTA: Para facilitar la instalaci6n o remoci6n de los

accesorios, coloque la unidad sobre el suelo

o sobre un banoo de Hoyo primario

1. Gire la perilla en sentido

antihorario para aflojarla ,

(Fig. 7).

2. Ala vez que sostiene "

firmemente el accesorio

de corte u otro accesorio, Bastidor del Bastidor del

empQjelo derecho hacia el eje superior eje inferior

interior del acoplador

Convertible TM hasta que el Fig. 6

botdn de desconexidn

encaje s61idamente en el Orificio lateral 90°

orificio principal (Figura 6).

NOTA: La alineaci6n del

bot6n de

desconexi6n con el

hueco de guia

facilitara la instalaci6n Perilla

(Fig. 6).

3. Gire laperilla en sentido Fig. 7

horario para ajustarla(Fig.7).

Para realizar recortes decorativos con el accesorio de corte de cabezal

de linea u otto accesorio, trabe el bot6n de desconexi6n del accesorio

de corte u otro accesorio en el interior del agujero de 90° (Fig. 7).

COMO SOSTENER EL RECORTADOR

ADVERTENCIA" Siempre ojo del desgaste, el err,

protecci6n del pie y del cuerpo para reducir el riesgo de

lesi6n al funcionar esta unidad.

Antes de operar esta unidad, parese en

posici6n de operaci6n (Fig. 8). Verifique Io

• El operador tiene protecci6n ocular y

ropa adecuada.

• El brazo derecho esta levemente

doblado, y la mane esta sosteniendo

el mango del eje.

• El brazo izquierdo esta recto y la

mane sostiene la manija en D.

• La unidad esta debajo del nivel de la

cintura.

• El accesorio de corte esta paralelo al

suelo y hace facil

contacto con la vegetaci6n que va a _ ,_

ser cortada sin que el operador tenga Fig.8

que inclinarse.

CONSEJOS PARA OBTENER MEJORES RESULTADOS AL

RECORTAR

• El angulo correcto para ubicar el accesorio de cortees paralelo al

suelo.

• Corte de derecha a izquierda siempre que sea posible. Cortar

hacia la izquierda mejora la eficiencia de la unidad. Los recortes

salen arrojados en sentido contrario al operador.

• Recorte Qnicamente cuando el paste y las hierbas esten secas.

• La vida de su linea de corte depende de:

• Seguir todas las tecnicas de corte indicadas anteriormente

• El tipo de vegetaci6n que corte

• El lugar donde se corta

Por ejemplo, la Ifnea se desgastara mas rapido cuando corte contra

un muro que cuando corte alrededor de un arbol.

RECORTE DECORATIVO

El recorte decorative se realiza

eliminando toda la vegetaci6n de

alrededor de los arboles, postes,

cercos, etc.

Gire toda la unidad a mode de que el

accesorio de corte se ubique a un

angulo de 30° con el suelo (Fig. 9). Fig.9

PROGRAMA DE MANTENIMIENTO

_lib I ADVERTENCIA: Paraevitar lesionespersonalesgraves,

nunca realicemanteni-miento ni reparaciones con launidad

funcionando. Realicesiempre el mantenimiento y las reparaciones

con la unidad fria. Desconecte el cable de la bujia de encendido

para cerciorarse deque la unidad no arrancar&

Estos procedimientos requeridos para el mantenimiento deben ser

realizados con la frecuencia indicada en la tabla. Deben ser incluidos come

parte de toda puesta a punto de cada temporada.

NOTA: Es posible que algunos procedimientos de mantenimiento

requieran herramientas o habilidades especiales. Si no

esta seguro sobre estos procedimientos, Ileve la unidad a

Sears o a otro proveedor de servicio calificado. Para mas

informaci6n, Ilame al 1-800-4-MY-HOME ®.

NOTA: El mantenimiento, el reemplazo o la reparaci6n de los

dispositivos y del sistema de control de emisiones puede set

realizado per Sears o per otra agencia de servicio calificada.

Para mas informaci6n, Ilame al 1-800-4-MY-HOME ®.

A fin de garantizar el rendimiento maximo de su motor, pudiera ser

necesaria la inspecci6n de la lumbrera de escape del motor despues de

50 horas de operaci6n. Si usted nota perdida de RPM, un rendimiento

insuficiente o una falta general de aceleraci6n, pudiera requerirse este

servicio. Si usted considera que su motor necesita esta inspecci6n,

consulte con Sears u otra agencia de servicio calificada. Para mas

informaci6n, Ilame al 1-800-4-MY-HOME®. NO trate de realizar este

proceso usted mismo ya que pudiera dafiar el motor como resultado de

contaminantes presentes en el proceso de limpieza de la lumbrera.

FREOUENOIA MANTENIMIENTO CONSULTE

REQUERIDO

Antes de Llene el tanque de combustible p. E5

arrancar el motor con la mezcla correcta de aceite

y combustible

Cada 10 horass Limpie y vuelva a aceitar el p. E7

filtro de aire

Cada 25 horass Examine el parachispas y limpielo p. E8

Inspeccione la condicion y la p. E8

separaci6n de la bujiade

encendido

Cada 50 horas Inspeccione si la lumbrera de p. E8

escape y la rejilla del

parachispas estan tupidas u

obstruidas para garantizar los

niveles maximos de rendimiento

REEMPLAZO DE LA LiNEA

para la Cabeza de Corte Hassle-Free TM Plus.

Use siempre la Linea Espiral Hassle-Free TM XTRA QUIET de

Craftsman. Elija el tamaflo de la Ifneaque mejor se ajuste al trabajo en

cuestiSn. La Ifneade color rojo esta

concebida para el corte de hierba y el Linea

desyerbe de hierbas malas pequeflas, espiral

La linea de color negro est_ concebida

para el desyerbe de hierbas malas Agujeros de

mayores y arbustos pequeflos, mserclon

NOTA: Antes de insertarunanueva Tuneles de

lineaen losorificiosdelcabezal ", ..

COlOCaclon

de corte,identifiqueclaramente -,,

elorificioadecuado. Sigalas

instruccionesqueaparecenen

laplaca guiade la linea.No

tratede quitarelcabezalde

cortede la unidadalcambiarla

linea.

NOTA: No combine las lineas. Use 2

negras o 2 rojassolamente.

1. Quite la linea vieja y la placa guia

de la linea del cabezal de corte.

2. Limpie completamentela

superficie del cabezal de corte.

3. Reinstale la placa guia de la linea

(Fig. 10).La placa guia es un

elemento con espiga y ajusta de

unasola forma. Si no entra en el

Iofuerce. Gire la placa hasta que

se encaje facilmente en el cabezal

de corte.

NOTA: La placa guia de la Ifnea

debe instalarse en el

cabezal de corte antes de

insertar una nueva linea.

4. Inserte ambos extremos de la

linea en los orificios adecuados

ubicados al costado del

cabezal de corte (Fig. 11).

5. Empuje y/o tire de la Ifnea de

modo que esta se ajuste al

cabezal central y quede

completamente extendida a

traves de los tt_neles de

colocaci6n. (Fig. 12)

6. Si la Ifnea se instala correcta-

mente, tendra la misma

Iongitud en ambos lados.

NOTA: AI instalar la linea nueva,

Placa

Deslizamiento

de la Linea

Fig. 11

Fig. 12

asegQrese de que la linea

quede Io mas uniforme

posible. Cualquier variaci6n

en la Iongitud puede

ocasionar que la unidad

vibre excesivamente. Si

esto sucede, pare la unidad

y asegQrese de que la Ifnea

este pareja.

7. Repita los pasos del 4 al 6 para

instalar la segunda linea del

recortador.

8. Si se instalan correctamente,

las cuatro lineas tendran la

misma Iongitud (Fig. 14).

La Ifnea puede romperse debido:

• A que se enrede con un objeto

extra_o

• A fatiga normal de la linea

• AI intento de cortar hierbas

gruesas y le_osas

• A que se fuercen con objetos tales Fig. 13

como paredes o postes de cercas

NOTA: Durante el uso normal, la linea de corte puede desgastarse

disparejamente Io cual puede ocasionar exceso de vibraciones

en la unidad. Si esto setorna inc6modo o incontrolable, pare la

unidad y cambie la linea. Vea las Instrucciones sobre Reemplazo

de la Linea mas arriba.

MANTENIMIENTO DEL FILTRO DE AIRE

_lb] DVERTENCIA: Para evitar graves lesiones personales,

apague siempre su recortador y espere que se enfrie antes

de limpiarlo o realizar todo tipo de mantenimiento.

La condici6n del filtro de aire es

importante para la operaci6n de

la unidad. Un filtro de aire sucio

limitara el flujo de aire y cambiara

la mezcla de combustible y aire Tornillos,

en el carburador. Esto con

frecuencia se confunde con un

carburador mal ajustado.

Verifique la condicidn del filtro de

aire antes de ajustar el tornillo de

marcha lenta. Consulte

Mantenimiento del Filtro de Aire.

Remoci6n de la cubierta del

silenciador/filtro de aire

1. Saque los cuatro (4)tornillos

que sostienen la cubierta

del silenciador /filtro de aire

(Fig. 13).Use un destorn-

illador de vastago piano o

de broca Torx N° T20.

2. Quite la tapa del motor al

empujarla hacia arriba y

halarla hacia atras. No la

fuerce.

Limpieza del Filtro de Aire

No mantener debidamente el

filtro de aire puede resultar en

funcionamiento inadecuado o

puede causar dar_o

permanente a en el motor.

1. Saque la cubierta del

silenciador /filtro de aire.

Lea la secci6n de

Remoci6n e Instalaci6n

de la cubierta del

silenciador /filtro de aire.

2. Gire la tapa y ubique el

filtro de aire adentro.

Saque el filtro de aire de

adentro de la tapa del

filtro de aire /silenciador

(Fig. 14).

3. Lave el filtro con agua y

Fig. 13

Fig. 14

Fig. 15

JFig. 16

;Tornillos

detergente (Fig. 15).

Enjuague bien el filtro.

Escurra el exceso de

agua. Dejelo secar por

completo.

4. Apliquesuficienteaceite

limpio SAE 30 para recubrir

ligeramente el filtro (Fig. 16).

5. Apriete el filtro para

esparcir y retirar el exceso

de aceite (Fig. 17).

Fig. 17

Cambie el filtro de aire dentro de la tapa del filtro de aire /silenciador

(Fig. 13).

NOTA: Si opera la unidad sin el filtro de aire y el ensamble de la

cubierta del silenciador /filtro de aire, su garantia quedara

ANULADA.

Reinstalaci6n de la cubierta del silenciador/filtro de aire

1. Coloque la cubierta del silenciador /filtro de airesobre la parte posterior

del carburador y del silenciador.Alinee los orificios de los tornillos.

2. Inserte los cuatro (4)tornillos en los orificios de la cubierta del

silenciador /filtro de aire (Fig. 13)y ajQstelos.No los ajuste demasiado.

MANTENIMIENTO DEL PARACHISPAS

NOTA: El flujo de las emisiones puede ser en una direcci6n solamente:

APARTANDOSEdel motor. Preste mucha atenci6n a c6mo se

ensambla el silenciador, de modo que Io pueda volver a armar

exactamente como esta. El no hacerlo asi dafiara a la unidad y

pudiera causar lesiones personales graves.

1. Quite el filtro de aire /tapa del silenciador. Ver Remoci6n de la

Tapa del Filtro /Silenciador.

2. Localice el silenciador, Cap6 del parachispas Motor

pero no Io quite. Busque /Ran, ir_ A

el tornillo en la parte

inferior del silenciador

(Fig 18)" Quite el t°rnill° TLr_nillo__ _

usando una Ilave torx No.

20 o un destornillador

piano.

3. Levante cuidadosamente

haciendo palanca el lado engLietas Silenciador

izquierdo de la cubierta

del parachispas. Dos Fig. 18

leng0etas actOan como bisagrae en el lado derecho de la

cubierta. Abra con un golpe rapido la cubierta del parachispas,

como si fuera una puerta, y deepuee hale lae leng0etae para

sacarlae de lae ranuras del silenciador.

4. Con un destornillador de punta plana, levante cuidadosamente

haciendo palanca la rejilla del parachispas, sacandola del

interior de la cubierta del parachispas.

5. Limpie la rejila del parachiepas con un cepillo de cerdae metalicas.

Cambiela siesta datada o si no la puede limpiar completamente.

6. Reinstale la rejilla del parachispae, ajustandola en forma cetida

de nuevo en la cubierta del parachispas.

7. Reinetale las doe lengOetas de la cubierta en las dos ranuras y

cierre la cubierta del parachispas con un golpe rapido.

8. Vuelva a colocar el tornillo que quit6 en el Paso 2 y aprietele

firmemente.

9. Reinstale la tapa del filtro de aire /silenciador.

I_lk DVERTENClA: Si el cap6 del parachispas y pantalla del

parachispas no se aprieta fijamente se puede caer y causarle

dafio a la unidad y posibles lesiones personales graves.

AJUSTI= DI=L CARBURADOR

NOTA: Los ajustes realizados sin cuidado pueden datar seriamente su

unidad. Contacte una Quemaduras uotto comerciante

calificado del servicio para hacer los ajustes de carburador.

Llame 1-800-4-MY-HOME ®para mas informaci6n.

CAMBIO DE LA BUJIA DE ENCENDIDO

I_, DVERTENCIA" No limpie con chorro de arena, ni

raepe ni limpie los electrodos. El motor podrfa datarse si

penetran pequetas particulas en el cilindro.

Use una bujia de encendido Champion RDJ7Y (o similar). La

separaci6n correcta ee de 0,635 mm (0,025 pulgadae). Retire la

bujia luego de cada 25 horae de operaci6n e inspeccione su estado.

1. Apague el motor y espere que se enfrie. Tome el alambre de la

bujfa con firmeza y saquelo de la bujia de encendido.

2. Limpie alrededor de la bujia de encendido. Saque la bujia de

encendido de la cabeza del cilindro girando una Ilave de casquillo

de 5/8 de pulgada en sentido antihorario.

3. Cambie las bujias que

esten rajadas, sucias o

deterioradas. Fije la

separaci6n de aire a

0,635 mm (0,025

pulgadas) utilizando un

calibrador (Fig. 19).

4. Instale una bujfa de

encendido con la

separaci6n correcta en la

cabeza del cilindro.

Ajuste girando la Ilave de

0,635 mm

(0,025 in.) t

Fig. 19

casquillo de 5/8 pulg. en sentido horario hasta que este

ajustada sin huelgo.

Si usa una Ilave de torsi6n, ajuste a:

12,3-13,5 N*m (110-120 pulg.*libras). No ajuste demasiado.

TRANSPORTE

• Espere que el motor se enfrfe antes de su transporte.

° Drene el combustible de la unidad.

° Ajuste la tapa del combustible antes del transporte.

° Asegure la unidad durante su transporte.

LIMPIEZA

ADVERTENCIA: Para evitar graves lesiones personales,

apague siempre su recortador y espere que se enfrfe antes

de limpiarlo o realizar cualquier tipo de mantenimiento.

Use un cepillo pequeto para limpiar la parte exterior de la unidad.

No use detergentee fuertes. Los limpiadoree domesticos que

contienen aceitee aromaticoe como pino y lim6n, y con eolventes

como el queroseno pueden datar el bastidor de plastico y la

manija. Seque toda la humedad con un patio suave.

ALMACENAMIENTO

* No guarde nunca la unidad con combustible en el tanque donde

los vapores puedan Ilegar a una llama o chiepa.

* Eepere que el motor se enfrfe antes de guardar la unidad.

* Guarde la unidad bajo Ilave para prevenir el uso pot

personas no autorizadas y eu dato.

* Guarde la unidad en un area seca y bien ventilada.

* Guarde la unidad fuera del alcance de los nitos.

ALMACI=NAMIENTO PROLONGADO

Si planea guardar la unidad durante un largo periodo de tiempo,

siga el siguiente procedimiento para su almacenamiento.

1. Drene todo el combustible del tanque de combustible en un

recipiente que contenga la misma mezcla de combustible de 2

ciclos. No use combustible que haya permanecido guardado

durante mas de 60 diae. Deseche la mezcla vieja de combustible y

aceite de acuerdo a laeregulaciones federalee, eetatalee y locales.

2. Arranque el motor y dejelo funcionar haeta que se ahogue. Eeto

asegura que todo el combustible ha sido drenado del carburador.

3. Eepere que el motor se enfrfe. Retire la bujia de encendido y

coloque alrededor de 30 ml (1 onza) de cualquier aceite para

motor de 2 ciclos de buena calidad dentro del cilindro. Tire de

la cuerda de arranque lentamente para esparcir el aceite.

Vuelva a instalar la bujfa de encendido.

NOTA: Saque la bujia de encendido y drene todo el aceite del

cilindro antes de intentar arrancar el recortador despues de

su almacenamiento.

4. Limpie bien la unidad e inspeccione para vet si existen partes

flojae o datadas. Repare o cambie las partee datadae y ajuste

los tornilloe, tuercas o pernos que puedan estar flojoe. La

unidad esta ahora lista para set guardada.

Other manuals for Incredi-Pull 316.791900

This manual suits for next models

Table of contents

Languages:

Other Craftsman Trimmer manuals

Craftsman

Craftsman WEEDWACKER 316.731700 User manual

Craftsman

Craftsman 917.77342 User manual

Craftsman

Craftsman Weedwacker 358.791980 User manual

Craftsman

Craftsman 900.74526 User manual

Craftsman

Craftsman INCREDI.PULL 316.79204.0 User manual

Craftsman

Craftsman 151.30378 User manual

Craftsman

Craftsman 138.74500 User manual

Craftsman

Craftsman WEEDWACKER 316.791860 User manual

Craftsman

Craftsman 917.773744 User manual

Craftsman

Craftsman WEEDWACKER 358.796121 User manual

Craftsman

Craftsman Nextec 320.74906 User manual

Craftsman

Craftsman WEEDWACKER Incredi-Pull 316.796140 User manual

Craftsman

Craftsman 917.773704 User manual

Craftsman

Craftsman 74544 - 12 in. Electric Line Trimmer User manual

Craftsman

Craftsman CMCST900 User manual

Craftsman

Craftsman 917.773422 User manual

Craftsman

Craftsman 257.796040 User manual

Craftsman

Craftsman WEEDWACKER 358.796122 User manual

Craftsman

Craftsman 917.773763 User manual

Craftsman

Craftsman 316.792491 User manual

Craftsman

Craftsman WS230 User manual

Craftsman

Craftsman WEEDWACKER 316.74082 Series User manual

Craftsman

Craftsman WEEDWACKER 358.791820 User manual

Craftsman

Craftsman WEEDWACKER 358.745290 User manual

Popular Trimmer manuals by other brands

Mantis

Mantis 8550 Operator's manual

Homelite

Homelite UT13144 Operator's manual

Echo

Echo Shindaiwa HT235 Operator's manual

LawnMaster

LawnMaster B261 Safety and operating manual

Argo

Argo TA 46 instruction manual

Nakayama

Nakayama ET2500 Translation of the original instructions

Husqvarna

Husqvarna 553RBX Operator's manual

Wahl

Wahl 3205 quick start guide

Andis

Andis Slimline 22950 brochure

JUKI

JUKI AMS-210DHL-6350/AL6 Instruction manual and parts list

Ryobi

Ryobi P2008VNM Operator's manual

Makita

Makita DUR193 instruction manual

Ryobi

Ryobi EXPAND-IT RY15524 Operator's manual

Spear & Jackson

Spear & Jackson GT600 instruction manual

Toro

Toro 51903; 51904; 51906; 51907 Operator's manual

Husqvarna

Husqvarna 129RJ Operator's manual

Dolmar

Dolmar AH-1853H instruction manual

Yard-Man

Yard-Man YM26CO Operator's manual

Craftsman Incredi-Pull 316.791900 User manual

Popular Trimmer manuals by other brands
