Cramer 2100586 User manual
EN | DE | ES | IT | FR | PT | NL | RU | FI || SV |
| NO|
| DA |
PL | CS | SK | SL| HR| HU | RO| BG| EL || AR |
| TR |
| HE |
LT | LV | ET |
2100586 (82T)
cramer.eu
2
3
4
5
6
1

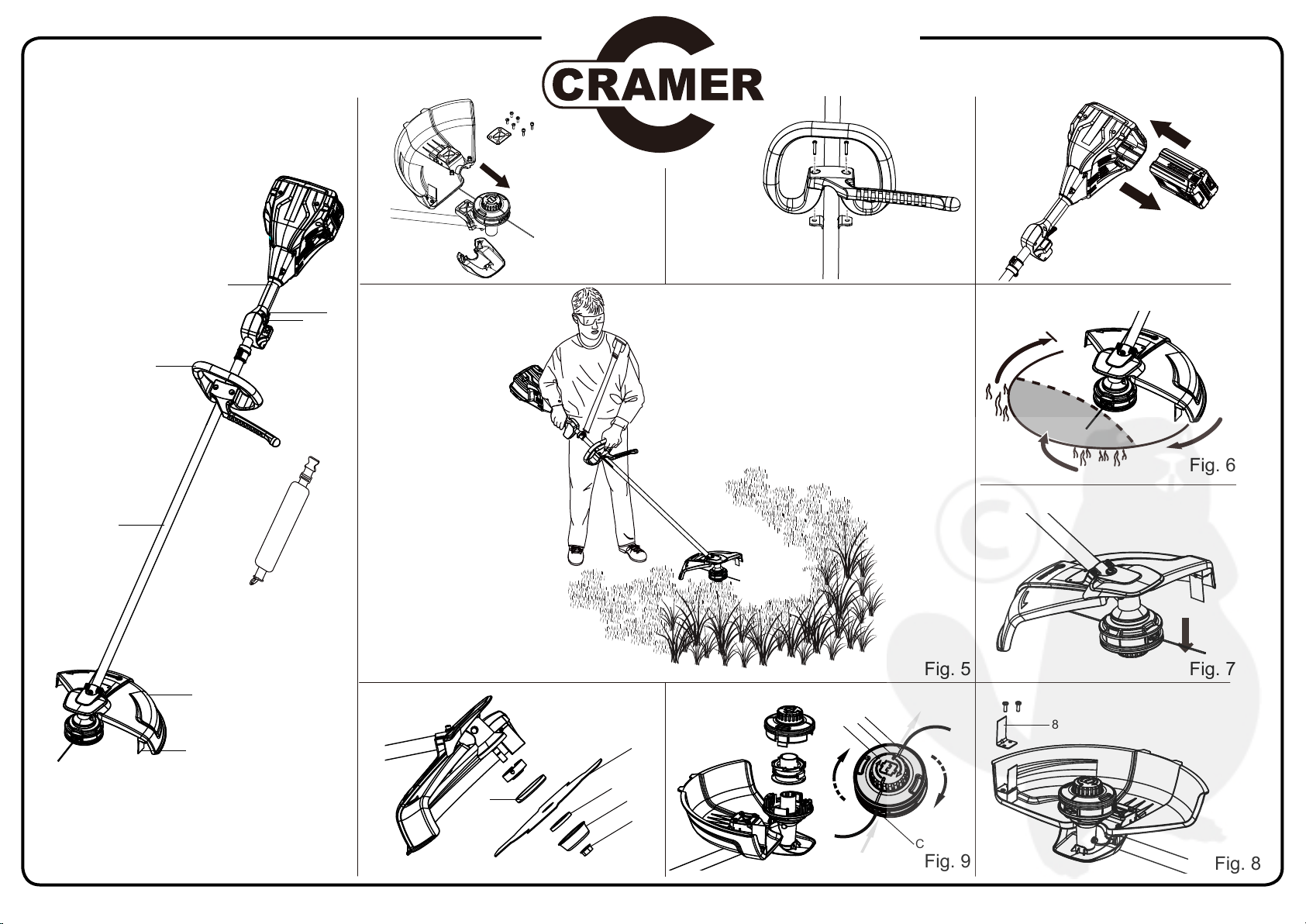

Fig. 1
Fig. 2 Fig. 3 Fig. 4
Fig. 5
Fig. 8
Fig. 10 Fig. 9
Fig. 6
Fig. 7
7
8
B
A
C
D
F
G
H
I
J
2100586
82T
English (original instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
SPECIFICATIONS
Voltage 82 volts
No load speed 6500±10% RPM
Cutting head Bump feed/Brush-cutter Blade
Cutting Line
Diameter
2.0 mm
Cutting Path
Diameter
356/406 mm (Lawn trimmer)
254 mm (Brush cutter)
Battery pack 82V430/82V220G/82V430G/82V220
Charger 82C2/82C6
Weight without
battery pack
5.0 kg
Lawn Trimmer
Measuered sound
pressure level
84 dB(A), k:3.0
dB(A)
Measuered sound
power level
94.4 dB(A)
Guaranteed
sound power level
96 dB(A)
Vibration 4.6 m/s2
k=1.5m/s2
Brush Cutter
Measuered sound
pressure level
87 dB(A), k:3.0
dB(A)
Measuered sound
power level
101.1 dB(A)
Guaranteed
sound power level
104 dB(A)
Vibration 6.0 m/s2
k=1.5m/s2
WARNING
The vibration emission during actual use of the power
tool can differ from the declared total value depending
on the ways in which the tool is used; avoid vibration risk
suggestion: Wear glove during operation limit operating
time and shorten trigger time.
DESCRIPTION
1. Switch trigger
2. Rear handle
3. Lock-out trigger
4. Front handle
5. Shaft
6. *UDVVGHÀHFWRU
7. Cut-off blade
ASSEMBLY
UNPACKING
This product requires assembly.
Carefully remove the product and any accessories
from the box. Make sure that all items listed in the
packing list are included.
WARNING
Do not use this product if any parts on the Packing List
are already assembled to your product when you unpack
it. Parts on this list are not assembled to the product by
the manufacturer and require customer installation. Use
of a product that may have been improperly assembled
could result in serious personal injury.
Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
WARNING
If any parts are damaged or missing do not operate this
product until the parts are replaced. Use of this product
with damaged or missing parts could result in serious
personal injury.
WARNING
Do not attempt to modify this product or create
accessories not recommended for use with this product.
$Q\VXFKDOWHUDWLRQRUPRGL¿FDWLRQLVPLVXVHDQGFRXOG
result in a hazardous condition leading to possible
serious personal injury.
1
English (original instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
WARNING
To prevent accidental starting that could cause serious
personal injury, always remove the battery pack from the
product when assembling parts.
ATTACHING GRASS DEFLECTOR See Figure 2.
WARNING
Avoid contact with the blade. Failure to avoid contact
can result in serious personal injury.
Remove the battery pack.
Invert the grass trimmer/edger to access the trimmer
head.
Using a Phillips head screwdriver, remove the
preinstalled screw from the trimmer head.
Place the guard on to the trimmer head.
Align the screw hole on the guard with the screw hole
on the trimmer head.
Insert the screw into the trimmer head, fastening the
guard in place.
WARNING
Do not allow familiarity with products to make you
careless. Remember that a careless fraction of a second
LVVXI¿FLHQWWRLQÀLFWVHULRXVLQMXU\
WARNING
Always wear eye protection. Failure to do so could
result in objects being thrown into your eyes resulting in
possible serious injury.
WARNING
Do not use any attachments or accessories not
recommended by the manufacturer of this product. The
use of attachments or accessories not recommended
can result in serious personal injury.
ATTACHING THE FRONT HANDLE See Figure 3.
Install the main handle onto the shaft, place the bar on
the top of main handle, making sure the bar is pointing
left while holding unit.
Place the clam on the back side of the main handle
onto shaft.
Take 2 bolts provided and secure the bolts to clamp
with Philips screw driver (not provided).
OPERATION
Hold the power head with your right hand on the rear handle
DQG\RXUOHIWKDQGRQWKHIURQWKDQGOH.HHSD¿UPJULSZLWK
both hands while in operation. Power head should be held
at a comfortable position with the rear handle about hip
height. Always operate power head at full throttle. If debris
becomes wrapped around the attachment, RELEASE THE
SWITCH TRIGGER, and remove the debris.
Use the harness when operation.
TO INSTALL BATTERY PACK See Figure 4.
Place the battery pack in the trimmer. Align raised ribs
on battery pack with grooves in the trimmer’s battery
port.
Make sure the latch on bottom of the battery pack
snaps in place and that battery pack is fully seated and
secure in the trimmer before beginning operation.
TO REMOVE BATTERY PACK See Figure 4.
Release the switch trigger and lock-out trigger to stop
the trimmer.
Press the power button to turn off the trimmer.
Press and hold the battery latch button at the bottom of
the battery pack.
Remove battery pack from the trimmer.
STARTING/STOPPING THE TRIMMER See Figure 5.
To start the trimmer, grip the front handle with one
hand while holding the rear handle with your other
hand making sure to depress the lock-out trigger while
squeezing the variable speed trigger.
To stop the trimmer, just release the variable speed
control trigger.
WARNING
Noise. A degree of noise from the machine is not
avoidable. Route noisy work is to be licensed and limits
for certain periods. Keep rest periods and they may
need to restrict the working hours to a minimum.
For their personal protection and protection of people
working nearby, an appropriate hearing protection shall
be worn;
2
English (original instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
Vibration. Always wear safety and anti-vibration glove.
([FHVVLYHYLEUDWLRQPD\FDXVHZKLWH¿QJHUGLVHDVHRU
carpal tunnel syndrome. If you notice an unpleasant
sensation or skin discoloration during use of the
machine on your hands once you stop working. Place
an adequate work breaks. And continual and regular
users should monitor closely the condition of their hands
¿QJHUV
WARNING
Contact with the trimmer cutting head while operating
can result in serious personal injury.
CUTTING TIPS See Figure 6.
Keep the trimmer tilted toward the area being cut; this
is the best cutting area.
The trimmer will cut better when moved from left to
right across the area to be cut; it is less effective when
moved from right to left.
Use the tip of the cutting line to do the cutting; do not
force cutting head into uncut grass.
Wire and picket fences cause extra cutting line wear,
even breakage. Stone and brick walls, curbs, and wood
may wear cutting line rapidly.
Avoid trees and shrubs. Tree bark, wood moldings,
siding, and fence posts can easily be damaged by the
cutting line.
Attach metal knob to the rubber hole on the rear handle
when in use, unlock the metal knob when not in use.
ADVANCING CUTTING LINE See Figure 7.
While the string trimmer is operating, the cutting line
gets worn down and becomes shorter. This trimmer
is equipped with bump feed line advancement, which
advances additional line once the head is bumped on the
ground while rotating. The cutting blade will cut the line to
keep an accurate cutting swath.
ADJUSTABLE CUTTING DIAMETER See Figure 8.
The trimmer is currently set at a 14 in. cutting swath. To
adjust to a cutting swath of 16 in.:
Remove the battery from the string trimmer.
Remove both screws on the cut-off blade with a Phillips
screwdriver (not included).
Rotate the cut-off blade 180°.
Replace both screws in the cut-off blade.
Note: Set the cut-off blade to 14 in. for greater runtime. Set
the cut-off blade to 16 in. for greater cutting area.
Note: a smaller diameter cutting path will maximize run
time and cutting speed, while a larger cutting path will help
complete the trimming task quicker.
LINE CUT-OFF BLADE See Figure 8.
This trimmer is equipped with a line cut-off blade on the
JUDVV GHÀHFWRU )RU EHVW FXWWLQJ DGYDQFH OLQH XQWLO LW
is trimmed to length by the line cut-off blade. Advance
line whenever you hear the engine running faster than
QRUPDORUZKHQWULPPLQJHI¿FLHQF\GLPLQLVKHV7KLVZLOO
maintain best performance and keep line long enough to
advance properly.
WARNING
When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING
To avoid serious personal injury, always remove the
battery pack from the tool when cleaning or performing
any maintenance.
GENERAL MAINTENANCE
Before each use, inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts, caps,
etc. Tighten securely all fasteners and caps and do not
operate this product until all missing or damaged parts are
replaced.
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING
'RQRWDWDQ\WLPHOHWEUDNHÀXLGVJDVROLQHSHWUROHXP
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
Only the parts shown on the parts list are intended to
be repaired or replaced by the customer. All other parts
should be replaced at an Authorised Service Centre.
3
English (original instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
WARNING
To avoid serious personal injury, always remove the
battery pack from the tool when cleaning or performing
any maintenance.
SPOOL REPLACEMENT See Figure 9.
Use original manufacturer’s replacement cutting line for
best performance.
Remove the battery pack.
Push in tabs on side of spool cover.
Pull spool cover up to remove.
Remove the old spool.
To install the new spool, make sure the cutting line is
captured in the slot on the new spool. Make sure the
end of the cutting line is extended approximately 15cm
beyond the slot.
Install the new spool so that the cutting line and slot
align with the eyelet in the cutting head. Thread the
cutting line into the eyelet.
Pull the cutting line extending from the cutting head so
the cutting line releases from the slot in the spool.
Reinstall the spool cover by depressing tabs into slots
and pushing down until spool cover clicks into place.
CUTTING LINE REPLACEMENT See Figures 9.
Line up the slots on the spool cap (A) with the slots on
the string head (B).
Insert line through the string head hole (C). Push line
until it exits the opposite string head hole.
Pull the line through until there is an equal amount of
line on each side.Turn the spool cap (D) clock-wise to begin winding
the string into the string head. Leave approximately 5
inches of string protruding out of each side of the head.
ASSEMBLY THE BRUSH CUTTER See Figure 10.
Warning: Be careful of sharp edges and to wear gloves.
Remove the battery pack.
Ensure the 'F’ is installed on the shaft of the trimmer.
Insert a suitable screw driver through the two holes.
Place the Brush-cutter Blade 'G' on top of the spacer 'F'
ensuring it is centered.
Place washer 'H on top of the Brush-cutter Blade 'G'
Place cover 'I' over washer 'H'
Using a 19mm or 3/4" wrench tighten the lock-nut 'J'
Counter-clockwise to 44-58" N.M or 32-42 ft/lbs of
torque.
Spin the Brush-cutter Blade 'B' to ensure Brushcutter
Blade is secured tightly.
STORING THE TRIMMER
Remove the battery pack from the trimmer before
storing.
Store it in a place that is inaccessible to children.
Keep away from corrosive agents such as garden
chemicals and de-icing salts.
Store and charge your batteries in a cool area.
Temperatures above or below normal room
temperature will shorten battery pack life.
Store the battery pack where the temperature is below
Û&DQGDZD\IURPPRLVWXUH
All batteries gradually lose their charge. The higher the
temperature, the quicker they lose their charge. If you
store your unit for long periods of time without using
it, recharge the batteries every month or two. This
practice will prolong battery pack life.
Secure the trimmer during transport to prevent damage
or injury. Clean and maintenance before storage, use
of guards on cutting attachments with metal blades.
Use of cover for metal blades during transport and
storage.
ENVIRONMENTAL PROTECTION
Environmental protection should be a priority of
considerable importance when using the machine,
for the benefit of both social coexistence and the
environment in which we live. Try not to cause any
disturbance to the surrounding area.
Scrupulously comply with local regulations for the
disposal of packaging, deteriorated parts or any
elements with a strong environmental impact; this
waste must not be disposed of as normal waste, it must
be separated and taken to specified waste disposal
centres where the material will be recycled.
Scrupulously comply with local regulations for the
disposal of waste materials after mowing.
At the time of decommissioning, do not pollute the
environment with the machine, but hand it over to a
disposal centre, in accordance with the local laws in
force.
4
English (original instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
String will not advance when using
the bump-feed head.
String is welded to itself. Lubricate with silicone spray.
Not enough string on spool. Install more string. Refer to string
replacement earlier in this manual.
String is worn too short. Pull string while pressing line release
button.
String is tangled on spool. Remove string from spool and rewind.
Refer to string replacement earlier in
this manual.
Grass wraps around shaft housing
and string head.
Cutting tall grass at ground level Cut tall grass from the top down to
prevent wrapping.
Motor fails to start when switch trigger
is depressed.
Battery is not secure. To secure the battery pack, make
sure the latch on bottom of the battery
pack snaps into place.
Battery is not charged. Charge the battery pack according
to the instructions included with your
model.
Shaft not connected completely Make sure lower shaft is fully seated
in shaft coupler on upper shaft and
secure shaft coupler.
<6500
The maximum rotational frequency of
the spindle.
Noise value
Double-insulated construction
5
Other manuals for 2100586
1
Table of contents
Other Cramer Brush Cutter manuals
