Creative Outdoor Solutions FHTA80008 User manual

WARNING
FOR YOUR SAFETY:
For Outdoor Use Only (outside any enclosure)
Do Not Use For Cooking.
WARNING
FOR YOUR SAFETY:
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
• Do NOT try lighting any appliance.
• Do NOT touch any electrical switch; do
NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency or
gas supplier.
Save these instructions for future
reference.
If you are assembling this unit for someone
else, give this manual to him or her to read
and save for future reference.
WARNING
FOR YOUR SAFETY:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.
DANGER
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or other
flammable vapors or liquids in the vicinity of
this or any other appliance.
2. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
DANGER
Do NOT leave this appliance unattended while
it is in operation.
CARBON MONOXIDE HAZARD
• This appliance can produce carbon monoxide which has
no odor.
• Using it in an enclosed space can kill you.
• Never use this appliance in an enclosed space such as a
camper, tent, car or home.
·DANGER
Table of Contents
Important Safety Information............................................ . . . . . . . . . . 2
Propane (LP) Dangers and Warnings .......................................... . . . . . . . . . 4
Hose & Regulator Assembly and Replacement .................................... . . . . . . . . . 5

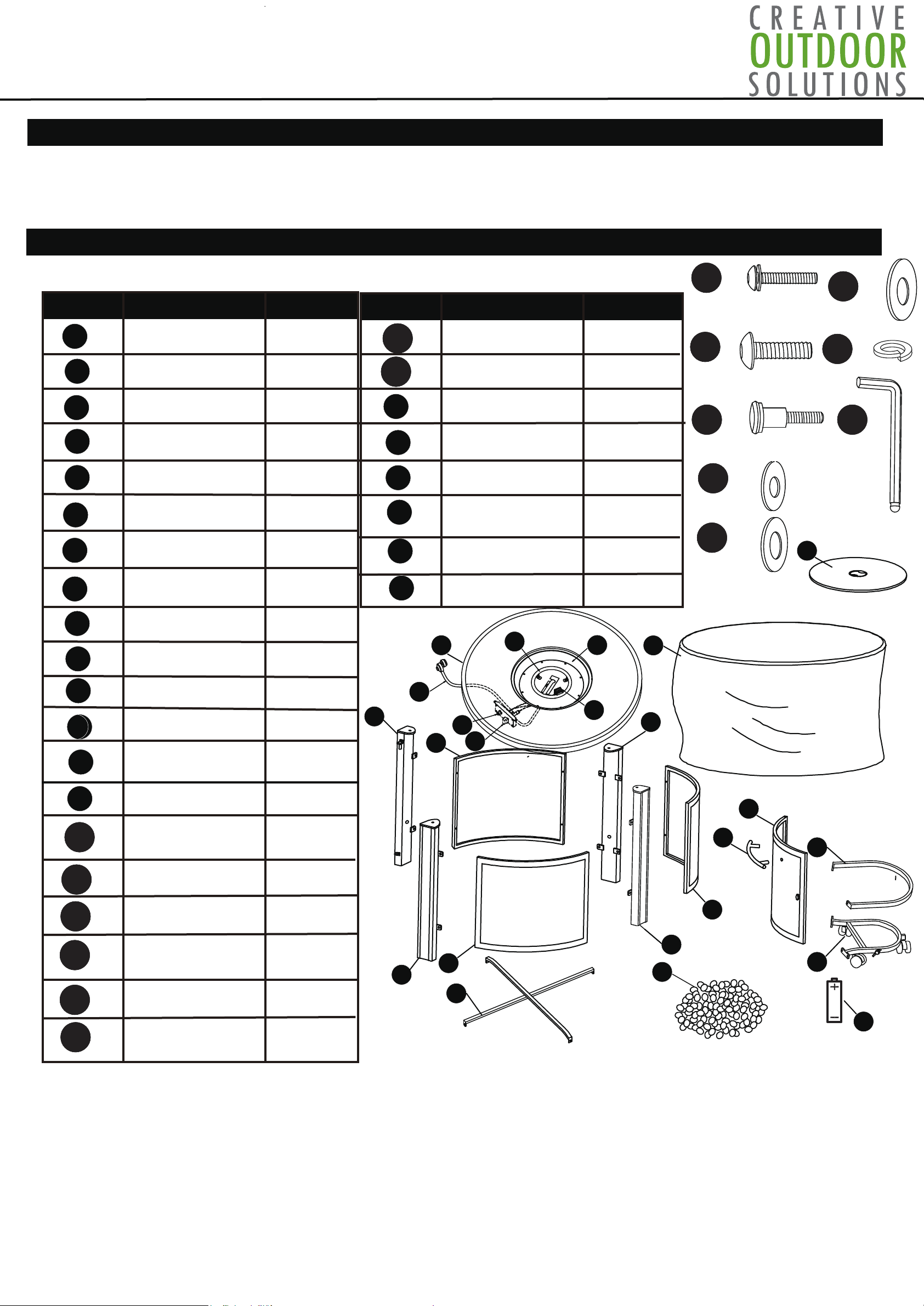

Parts List ............................................. . . . . . . . . . . ........ . . . . . . . . . 7
Assembly Instructions .................................................... . . . . . . . . . . 7
Lighting Instructions ...................................................... . . . . . . . . . . 8
Care and Cleaning ..................................................... . . . . . . . . . . 8
Gas Component Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting ....................................................... . . . . . . . . . . 8
Warranty ........................................................ . . . . . . . . . .. . . . . . 9
California Proposition 65: Combustion by-products produced when using this product contain chemicals
known to the State of California to cause cancer, birth defects, and other reproductive harm.
California Proposition 65:Wash your hands after handling this product.
California Proposition 65: Handling the brass material on this product exposes you to lead, a chemical.
known to the State of California to cause cancer, birth defects, or other reproductive harm.
This appliance complies with “ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative
Gas Appliances.”
USC
1
Item# 0698669
Factory Model# FHTA80008
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
www.CreativeOutdoorSolutionsCorp.com

IMPORTANT SAFETY INFORMATION
WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY
WARNING Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death,
or in a fire or an explosion causing damage to property.
IMPORTANT NOTICE Read and understand all warnings and precautions prior to assembly and use of your gas fire table.
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
Note The use and installation of this product must conform to local codes. In the absence of local codes, use the National
Fuel Gas Code, ANSI Z223.1/NFPA54. Reference to Natural Gas and Propane Installation code CS A B149.1 or Propane
Storage and Handling code B149.2.
Minimum Clearence from Unit to Combustible Materials
72’’ (182.9cm) from the top: 48’’ (121.9cm) from all sides and back. Do not locate this fire table under any overhead enclosure.
IF YOU SMELL GAS
·Shut off gas supply to the fire table.
Extinguish any open flame.
Do not try lighting any appliance.
Do not touch any electricel switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
If you cannot reach you gas supplier, call the fire department.
Keep these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or
her to read and keep for future reference.
This gas fire table must be used ONLY outdoors in a well-ventilated space and shall NOT be used inside a building,
garage, or any other anclosed area.
DO NOT use this outdoor gas fire table for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause
asphyxiation.
NEVER LEAVE this gas fire table unattended when in use.
Do not store or use gasoline or other flammable vapors and liquids within 25 feet (7.62m) of this or any other appliance.
Do not store any combustible materials in the base enclosure.
The use of alcohol, prescription or non-prescription drugs may impair an individual’s ability to properly assemble or
safely operate this outdoor fire table.
·
·
·
·
·
·
·
·
·
·
·
·
·
• DO NOT use in an explosive atmosphere. Keep gas fire table area a clear and free from combustible materials, gasoline
• This outdoor fire table is not to be installed or used in or on recreation vehicles and/or boats.
• Always use in accordance with all applicable local, state and national codes. Contact your local fire department for details
flammable vapors and liquids.
on outdoor burning.
and other
2
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a qualified service person. More frequent cleaning
may be required as necessary. It is imperative that the control compartment, burners and circulating
air passageways of the appliance are kept clean.
Children and adults should be alerted to the hazards of high surface temperatures and be kept at a
safe distance while fire table is in use. This outdoor fire table is not to be operated by children.
Young children should be closely supervised when in the vicinity of this outdoor fire table.
Do not hang or place clothing or other flammable materials on or near the gas fire table.
Any guard or protective device removed for servicing the appliance shall be replaced prior to
operating the appliance.
This unit is to be used with propane gas only!(sold separately)
Do not attach a remote gas supply to this unit.
Only use propane gas for this unit.
This unit is not intended for natural gas.
Converting this unit to natural gas is dangerous and not recommended. The conversion of this unit will void the
manufacturer warranty.
Do not use a flame to check for gas leaks.
·
·
·
·
·
·
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
www.CreativeOutdoorSolutionsCorp.com

• Always use this outdoor fire table on a hard, level non-combustible surface such a concrete, rock or stone. An asphalt or
• DO NOT use this outdoor fire table if any part has been under water. Immediately call a qualified service technician to
and any gas control which has been under water.
•
• DO NOT lean over this outdoor fire table when lighting or when in use.
• Use only the regulator and hose assembly provided. The replacement regulator and hose assembly shall be that specified by
the manufacturer.
• DO NOT attempt to disconnect the gas regulator from the tank or any gas fitt ing while the outdoor fire table is in use.
• Always shut off the supply at the tank valve and disconnect regulator from the tank when the fire table is not in use
• DO NOT sit on the fire table when the unit is in operation.
• DO NOT throw anything onto the fire when the unit is in operation.
• Glass shards are very hot; please keep children or pets at a safe distance.
• It is essential to keep the outdoor fire table valve compartment, burners, and circulating air passages clean. Inspect outdoor
fire table before each use.
Prior to each fire table operation, check the hose for evidence of excessive abrasion or wear by looking through the visual
replaced before using the gas fire table. The hose assembly
assembly specified by the manufacturer. Please call Creative Outdoor Solutions at
866-292-8800.
IMPORTANT SAFETY INFORMATION (continued)
blacktop surface may not be acceptable for this purpose.
the fire table and to replace any part or control system
Do not use in windy conditions.
•
Keep all electrical cords away from a hot outdoor fire table.
•
Certain areas of this outdoor fire table when in use will become too hot to touch. Do not touch hot surfaces until the unit has
cooled unless you are wearing protective gear such as insulated pot holders or heat resistant gloves or mittens to avoid burns.
Do not attempt to move or store this outdoor fire table until all parts are cool.
•
•
check hole. If the hose is damaged, cracked or cut, it must be
can only be replaced with a hose
•Before each use, remove the lava rocks. Examine the burner and its components. If dirty, clean with a soft brush and soapy
or foreign material, such as spider webs or nests in this
that the burner is damaged, the fire table must not be used. The burner assembly
replaced. Please contact Creative Outdoor Solutions at 866-292-8800 for technical support.
• Place the hose out of the pathways where people may trip over it (if using external tank). Do not place the hose in
areas where it may be subjected
ATTENTION: Any alteration of the outdoor fire table that is not specifically directed in the operations manual will void
water solution. Also examine the area around the burner. Any dirt
area should be removed. If it is evident
can not be
to accidental damage.
DANGER
This outdoor fire table is for use with liquid propane (LP) gas only. The conversion
to or attempted use of natural gas in this outdoor fire table is dangerous and could
result in serious personal injury, or property damage.
manufacturer warranty.
PROPANE (LP) DANGERS AND WARNINGS
LP GAS
LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before using any LP gas product.
Propane Characteristics:
• Flammable, explosive under pressure, heavier than air and settles in pools in low areas.
3
• Use the same precautions you would with any open fire when using this outdoor fire table.
• DO NOT burn solid fuels such as: wood, charcoal briquettes, lump charcoal, manufactured logs, driftwood, trash, leaves,
wood in this outdoor fire table.
• DO NOT use this outdoor fire table until it is COMPLETELY assembled and all parts are securely fastened and tightened.
• DO NOT store another LP gas tank within 10 feet (3.05 m) of this outdoor fire table while it is in operation.
• DO NOT use this outdoor fire table near automobiles, trucks, vans or recreational vehicles.
• DO NOT use this outdoor fire table under any overhead structure or near any unprotected combustible constructions.
paper, cardboard, plywood, painted or stained or pressure treated
Avoid using near or under overhanging trees and shrubs.
Do not paint or color any part of this heating unit. •
Always remove protective cover before operating(if applicable).
Do not set the protective cover over the unit until it is turned off and completely cooled down.
•
Check for leaks after not using the unit for long periods of time. •
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
inspect
•
www.CreativeOutdoorSolutionsCorp.com

PROPANE (LP) DANGERS AND WARNINGS
• The LP gas supply tank must be constructed and marked in acco rdance with the Specifications for LP gas LP gas tanks of
n (DOT) or the National standard of Canada, CAN/CSA-B339, LP gas tanks, Spheres
es for the Transportation of Dangerous Goods; and Commission.
• LP gas tank must be arranged for vapor withdrawal.
• The LP gas tank must have a listed overfilling prevention device (OPD) and a QCCI or Type I (CGA810) LP gas tank connection.
the U.S. Department of Transportatio
and Tub
• The LP gas tank must have a tank collar to protect the tank valve.
• Never use an LP gas tank with a damaged body, valve, collar, or footing. Dented or rusted LP gas tanks may be hazardous
supplier prior to use.
• The LP gas tank should not be dropped or handled roughly.
• Tanks must be stored outdoors out of the reach of children. Do NOT store in a building, garage, or any other enclosed area.
• Never store your LP gas tank where temperatures can reach ove r 125°F.
• Do not store the LP gas cylinder in direct sunlight or near a source of heat or combustion.
• Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the gas pressure to increase, which may open the
pe.
• Place dust cap on valve outlet whenever the LP gas tank is not in use. Only install the type of dust cap on the LP gas tank
the LP gas tank valve. Other types of caps or plugs may result in leakage of propane.
a. Do not store a spare LP gas cylinder under or near this appliance.
b. Never fill the LP gas cylinder beyond 80% full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or serious injury may occur.
• LP gas cylinders should be filled only by a certified LP gas dealer.
• The pressure regulator is set for 11 inches of water column ( pressure).
• The maximum inlet gas pressure for this outdoor fire table is 14 inches of water column pressure.
• Never attempt to attach this appliance to the self-contained LP gas system of a camper trailer, motor home or house.
• Always use the pressure regulator and hose assembly provided with the appliance to connect to a LP gas cylinder. Never
pply. For technical support contact Creative Outdoor Solutions at 866-292-8800.
• Hand turn the manual gas control valve. Never use tools. If the valve will not turn by hand, do not try to repair it. Call a
f force or any self attempted repair may result in a fire or explosion.
Connecting your gas cylinder:
Before connection, be sure that there is no debris caught in the head of the gas cylinder, head of the regulator valve or in the
ports. Connect regulator valve and hand-tighten firmly. Disconnect the propane cylinder from
the regulator valve when the fire table is not in use. DO NOT obstruct the flow of combustion air and ventilation air to the
burner.
LP gas cylinder must contain a shut-off valve as specified in the standard for compressed gas cylinder valve outlet and inlet
and inlet connection, ANSI/CGA-V-1-1977, CSA B96.
•
and should be checked by your LP gas
relief valve and allow gas to esca
valve outlet that is provided with
connect to an unregulated LP gas su
Certified Gas Technician. The use o
head of the burner and burner
4
LP GAS WARNINGS:
• Cylinders must be stored outdoors in a well-ventilated area out of reach of children.
• Disconnected cylinders must have threaded valve plugs tightly installed and must not be stored in a building, garage or any
• Never use a propane cylinder with a damaged body, valve, collar or footing.
• Dented or rusted propane cylinders may be hazardous and should be checked by your propane gas supplier.
• Be sure to use only one 20 lb (9.1 kg) LP gas cylinder with a Type 1 valve with this appliance as required by the American
Steering Committee.
• Only tanks marked “propane” may be used.
other enclosed area.
National Standards Institute (ANSI) and the Canadian Standards
• In its natural state, propane has no odor. For your safety, an odorant has been added.
• Contact with propane could burn your skin.
• Propane is extremely flammable and hazardous if handled improperly.
Propane Characteristics
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
www.CreativeOutdoorSolutionsCorp.com

HOSE & REGULATOR ASSEMBLY AND REPLACEMENT
1. This fire table comes equipped with a standard LP gas hose and regulator including the appliance side connection for a CGA
regulator supplied with this fire table must be used. Only a hose
manufacturer can be used for replacement.
a. The CGA No 791 connection incorporates a magnetic flow limiting device that acts to limit the flow of gas if a leak is detected
b. If the burner valve is open prior to the LP gas cylinder service valve being opened, the connection will interpret this free flow
c. The connection safety feature will reduce gas flow from the regulator to the
appliance to a minimal level.
d. Be sure that the burner control valve is closed prior to opening the LP gas cylinder service valve to ensure that the
mistakenly.
e. If the connection flow limiting device is triggered mistakenly, close the LP gas cylinder service valve and the burner valve,
reset, open the cylinder service valve, then open the burner valve and light the
fireplace as per lighting instructions.
2. Be sure to protect the hose from any hot surfaces. Serious danger may result if the hose contacts any hot surface.
3. Regular maintenance of the hose and regulator:
a. Inspect the hose before each use of the fire table. If the hose shows signs of
cracks, abrasions, cuts or damage of any
replace the hose as required before using the appliance. For assistance
or replacement of the hose, call Creative Outdoor Solutions Corporation at 866-292-8800. Use only
replacement parts from the
b. Inspect the seal inside the CGA No 791 service valve on the LP gas cylinder when replacing the cylinder or at least once
damage, have the seal replaced by a certified gas dealer before operating the
appliance.
4. Do not use tools to tighten the CGA No 791 connection nut onto the LP gas cylinder service valve. Hand tighten only.
5. Be careful to not cross the threads on the connection when tightening the CGA No 791 connection on to the LP gas
6. “Leak Test” should always be performed after attaching the connection to the LP gas cylinder service valve. (See “Checking
for Leaks” section of this manual on page 13)
7. For the connection of the hose and regulator to the LP tank, refer to the “Connection” section of the LP gas cylinder section
above.
Glass Shards Warning:
1.Glass embers may have sharp edges, wear safety glasses and gloves when handling
No 791 Cylinder Connection Device. The LP gas hose and
and regulator specified by
between the regulator and the burner valve.
of gas to be a leak.
connection flow limiting device is not triggered
wait 10 seconds to allow the device to
kind, do not operate the appliance. Fix or
with repair
manufacturer.
per year. If there is any indication of
cylinder service valve.
3. Pour the glass media evenly in to the burner area (with the exception of the screen-if applicable). The glass should be
1/2-1”above the burner.
2. Do not change or substitute the glass ember material provided with this fire pit. If replacing, use only
replacement glass embers available from your local authorized dealer/distributor
.
DO NOT PLACE ANY
MEDIA ON SCREEN
5
5.Keep away from the unit for the first 20 minutes after igniting your unit for the first time,as lava rocks/pumice
stones/glass shards could pop out and cause injury. Should any rocks pop out,discard them.
6.Always ensure that pumice stones/Lava Glass are completely dry before use. Failure to do so will
cause them to crack or pop.
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
www.CreativeOutdoorSolutionsCorp.com
4. IMPORTANT: Do not exceed a height of 1" above the burner when placing glass media. Ensure no media covers
the igniter screen. Store any excess media in a safe location.

PARTS LIST
1
2
3
10
11
12
12
13
1
2
3
4
5
6
7
8
9
10
12
13
11Glass Beads x 1
Table Lid x 1
Table Top x 1
Table Leg A x 1
Side Panel A x 1
Handle x 1
Tank frame x 1
Tank Base x 1
Table Leg B x 1
Table Leg C x 2
Support Brace x 1
Side Panel B x 3
PVC Cover x 1
PACKAGE CONTENTS
6
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
Important: Handle fire table top
carefully during unpacking
and assembly.
www.CreativeOutdoorSolutionsCorp.com
14 Batteryx1
14
5
67
8
12
9
411
15
16
17
18
19
20
15
16
17
18
19
20
Bottom Bowl x 1
Burner x 1
Pilot Housing x 1
Regulator/Hose Asembly
x 1
Manual electric ignitor
x 1
Control Knob x 1

AA
AA
AA
AA x 4
Assembly Instructions
1. Carefully place the top (3) upside down on a soft surface. Failure to do so could result
in damage or scratches to the tabletop. Attach the legs A (4), table leg B (9) and table
(11) to the top (3). Use bolt (AA).
7
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
1
ATTENTION: Assembly is
easiest when you partially
tighten bolts at first. Only
tighten by hand.
11
11
4
9
3
AA
www.CreativeOutdoorSolutionsCorp.com
M6x20 Bolt and
washer
AA
AA
AA
AA
Qty: 26
M6x20 Bolt
Qty: 2
Bolt
Qty: 1
AA
AA
AA
BB
AA
AA
AA
CC
AA
AA
AA
DD φ 15 Washer
Qty: 2
AA
AA
AA
EE φ 17 Washer
Qty: 2
φ 24 Washer
Qty: 2
AA
AA
AA
FF
AA
AA
AA
GG
AA
AA
AA
HH
Washer
Qty: 2
Allen Wrench
Qty: 1
HARDWARE CONTENTS (not show actual size)
legs C

AA
x 4
Assembly Instructions
3

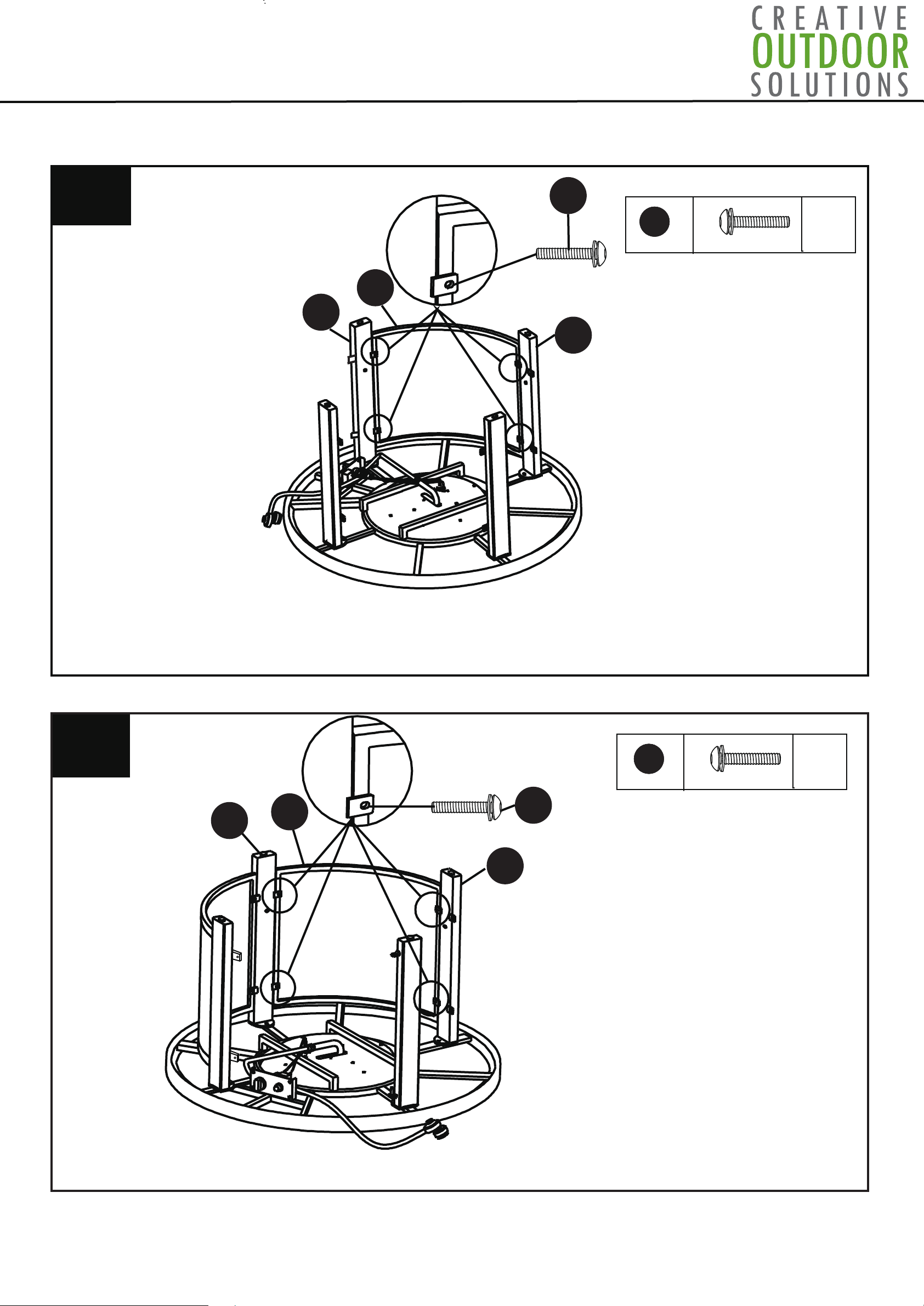

3. Attach the side panel B (12) to table leg C (11). Use bolt (AA).
11
11
12
8
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
AA
AA
AA
AA
www.CreativeOutdoorSolutionsCorp.com
AA
AA
AA
AA x 4
2. Attach the side panel B (12) to the table legs B (9) and table leg C (11). Use bolt (AA).
9
11
12
2
AA
ATTENTION: Assembly is
easiest when you partially
tighten bolts at first. Only
tighten by hand.
ATTENTION: Assembly is
easiest when you partially
tighten bolts at first. Only
tighten by hand.

AA
AA
AA
AA
AA x 2
Assembly Instructions
5. Attach the tank frame (7) to side panel A (5). Use bolt (AA).
7
5
9
5
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
www.CreativeOutdoorSolutionsCorp.com
AA
AA
AA
AA x 4

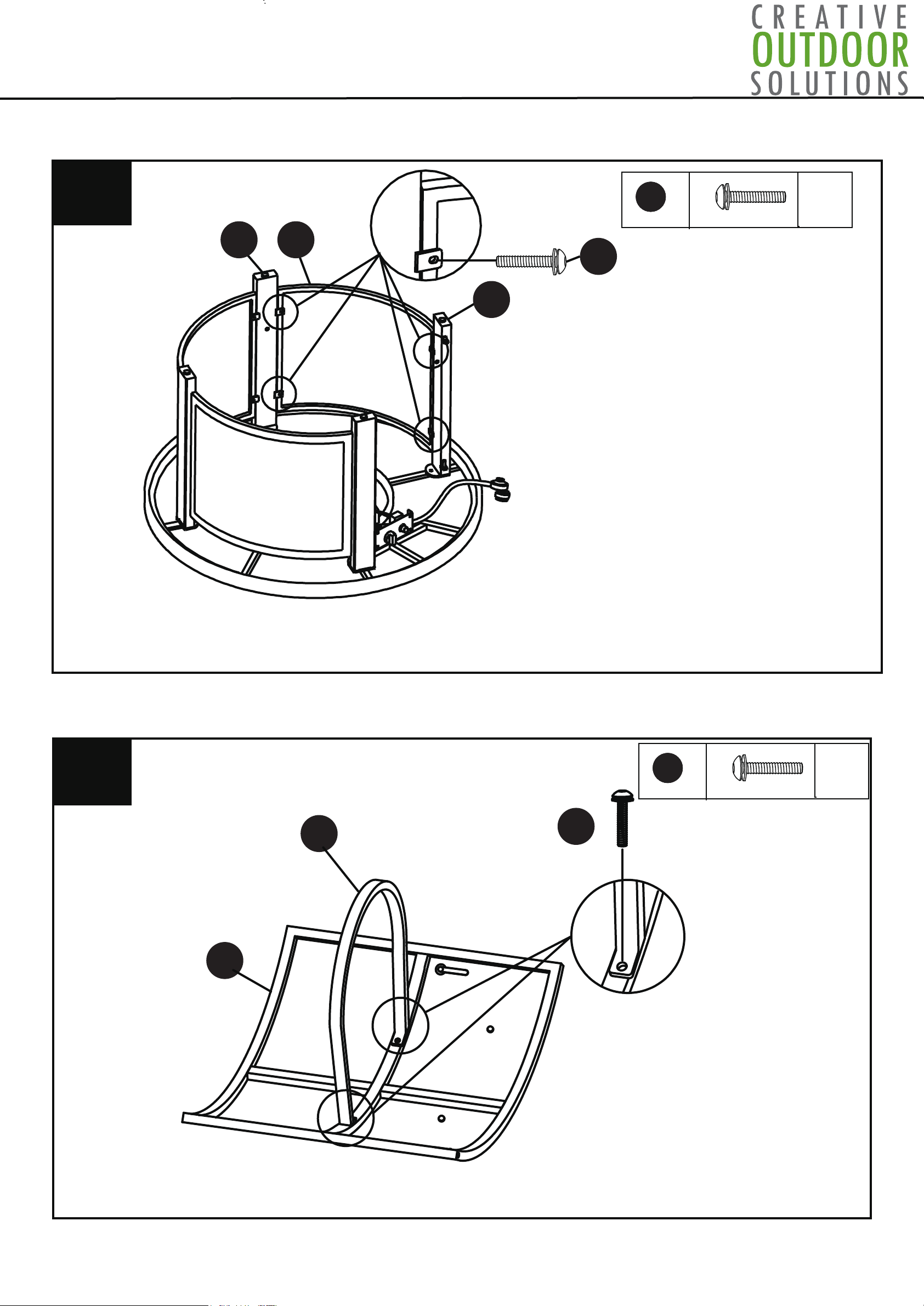

4. Attach the side panel B (12) to the table leg A (4) and table leg C (11). Use bolt (AA).
11
4
12 AA
4
ATTENTION: Assembly is
easiest when you partially
tighten bolts at first. Only
tighten by hand.

AA
AA
AA
BB x 2
Assembly Instructions
7. Attach the handle (6) to side panel A (5). Use bolt (BB), washer (DD), washer (FF)
and washer (GG).
BB
6
5
GG
FF
DD
AA
AA
AA
GG x 2
AA
AA
AA
FF x 2
AA
AA
AA
DD x 2
10
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
7
www.CreativeOutdoorSolutionsCorp.com
AA
AA
AA
AA x 4
5
8
AA AA
6. Attach the tank base (8) to side panel A (5). Use bolt AA.
6

AA
AA
AA
AA x 4
Assembly Instructions
9. Attach support brace （10）to the table leg A (4), table leg B (9), table leg C (11),
use bolt (AA).
4
AA
9
11
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
9
www.CreativeOutdoorSolutionsCorp.com
AA
AA
AA
CC x 1
8. Attach the side panel A (5) to table leg A (4). Use screw (CC).
ADAD
CC
9
4
5
8
11
10
11
ATTENTION: Fully tighten
all bolts with Allen Wrench.

Assembly Instructions
11. Place the lid (2) over the burner bowl.
2
3
12
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
11
www.CreativeOutdoorSolutionsCorp.com
10. Place the glass shards (1) into the burner bowl.
5
1
3
CAUTION:To ensure
proper function,the
screen on this burner
should be free of
glass shards
10
Pilot
Housing
Burner
Tube
Do not block
opening
CORRECT IN CORRECT

Assembly Instructions
14
12. Insert the included battery and knob into the electric ignitor and twist the button cover
on to ignitor housing. Do not overtighten.
13
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
12
WARNING: Batteries may contain
mercury. Do not put batteries into
the fire or trash. Please treat batteries
as hazardous waste and recycle
properly.
www.CreativeOutdoorSolutionsCorp.com

Installing LP Gas Tank
To operate, you will need one precision-filled
standard grill LP gas tank with external valve threads
.
CAUTION: LP gas tank must be
properly disconnected and removed
prior to moving this
outdoor fireplace.
Inserting LP Gas Tank
WARNING: Make sure LP gas tank valve is closed.
1. Loosen LP gas tank retainer bolt by turning counter-clockwise.
2. Place precision-filled LP gas tank upright into hole in outdoor fireplace
base so the tank valve is facing the gas line connection.
3. Secure tank by turning LP gas tank retainer bolt clockwise until tight.
Connecting LP Gas Tank
1. Before connecting,be sure there is no debris caught
head of the LP gas tank
,head of the regulator
valve or in the head of the burner or burner ports.
2. Connect regulator/hose assembly to tank by turning
knob clockwise until it stops.
1. Before disconnecting make sure the LP gas tank
valve is “CLOSED”.
2. Disconnect regula tor/hose assembly from LP gas
turning knob counterc lockwise until it
CAUTION: LP gas tank must be
disconnected and removed
prior to moving this grill.
3. Place the protective cap cover on the LP tank and store the
tank outdoors in a well ventilated area out of direct sunlight
.
Checking for Leaks
WARNING: Before using this outdoor
fireplace,make sure you have read,
understand and are following
all information provided in the
“Important Safeguards” section on page
Failure to follow those instructions can
serious, injury
or property
Burner Connections
1. Make sure the regulator hose and valve connections are securely
2. Visually check the connection between the burner/venturi
3. Make sure the burner/venturi tube fits over the orifice.
WARNING: Failure to inspect this
instructions could
an explosion which can cause
serious ry or damage to property.
4.
5. If the burner/venturi tube does not rest flush to the orifice,
as shown, please contact 866-292-8800 for assistance.
Please refer to diagram for proper installation
Tank/Gas Line Connection
1. Make 2-3 oz .of leak detection solution by
mixing one part liquid dishwashing so ap with
three parts water.
2. Make sure control knobs are in the
“ OFF” position (Figure 3).
3. Connect LP gas tank per
“Installing LP Gas
Tank” section.
4. Turn LP gas tank valve to “OPEN ”.
5. Spoon several drops of solution or use a squirt
bottle,at all “X” locations (Figures 1, 2 and 4).
Operating Instructions Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
20 lb
9 Kg
17.9 in. / 45.5 cm
12.2 in. / 31 cm
Step 1
Disconnecting LP Gas Tank
is loose.
LP Gas
Connection
LP Gas Valve
with Orifice
X
XX
XX
OFF
ON
15.7 in-26.7in
40-68cm
14
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
in the
tank by
properly
2.
cause death,
damage.
fastened to the burner and the tank.
tube and orifice.
or follow these
bodily inju
Figures 1 and 2).
a. If any bubbles appear, turn LP gas tank valve to
“CLOSED”, reconnect and re-test.
b. If you continue to see bubbles after several attempts
turn LP gas tank valve to “CLOSED” and
disconnect LP gas tank, per
“Disconnecting LP Gas Tank”.
Contact 866-292-8800 for assistance.
c. If no bubbles appear after one minute, turn L
P gas
tank valve to “CLOSED”, wipe away solution and
proceed.
a fire or
connection
death
cause
www.CreativeOutdoorSolutionsCorp.com
Lighting
WARNING: NEVER light the burner
with the cover on the outdoor
fireplace.
CAUTION: Keep outdoor gas
appliance area clear and free from
combustible materials, gasoline and
other flammable vapors and liquids.
CAUTION: Do NOT obstruct the
combustion and ventilation air.
CAUTION : Check and clean burner/venturi tubes for insects and insect
nests. A clogged tube can lead to a fire.
1. Make sure all labels, packaging and protective films have been removed from
flow of
the outdoor fireplace.
2. Check for obstructions of airflow to the burner. Spiders, insects and webs can
clog the burner/venturi tube. Aclogged burner tube can lead to a fire.
3. Control knob must be in the “ OFF” position (Figure 3)
4. Clear small area of glass rocks away from the igniter cover (Figure 4).
5. Connect LP gas tank per “Installing LP Gas Tank” section.
6. Turn LP gas tank valve to “OPEN”.
7. Push and hold the electronic ignitor to create sparks within the electrode,
continue to hold.
8. Push in the control knob and turn to the “ON” position, Keep holding down the
control knob to allow gas to flow for 20 seconds.
9. After 20 seconds, release and turn control knob counterclockwise to adjust flame
to desired height.
10. If ignition does not occur in 20 seconds turn burner control knob to “ OFF” wait
5 minutes, fan with a newspaper or magazine, and repeat lighting procedure.
11. Remove cover and lid from outdoor fireplace before lighting.

,
,
,
12. If igniter does not light burner:
.
. .
CAUTION: After lighting - using a fireplace tool and heat-resistant gloves, carefully move the glass shards back to
their proper, position, being careful to avoid the flame.
Turning Off
Cleaning and Care
Notices
Before Each Use:
.
.
Operating Instructions (continued)
15
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
a. Wearing heat-resistant gloves, position a long lit match or long lit butane lighter near the pilot housing.
b. Push and turn contorl knob to “ON ”
C. Remove match/lighter once burner is lit.
13. After lighting, observe the burner flame make sure all burner ports are lit and flame height matches illustration(Figure 5)
CAUTION: If ignition does not occur in 5 seconds, turn control knob to “ OFF”, wait 5 minutes, fan with a
newspaper or magazine and repeat lighting procedure.
1. Turn LP gas tank valve to “ CLOSED”.
2. Turn control knob to the “ OFF” position. Note: A “poof” sound is normal as the last of the LP gas is burned.
3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.
CAUTION:
1. All cleaning and maintenance should be done when outdoor fireplace is cool and with the fuel supply disconnected.
2. Do not clean any outdoor fireplace part in a self-cleaning oven, the extreme heat will damage the finish.
3. Do not enlarge valve orifices or burner ports when cleaning the valves or burners.
1. This outdoor fireplace should be thoroughly cleaned and inspected on a regular basis.
2. Abrasive cleaners will damage this product.
3. NEVER use oven cleaner to clean any part if this ourdoor fireplace.
1. Keep the outdoor fireplace area clear and free from any combustible materials, gasoline and other flammable vapors
and liquids.
2. Do not obstruct the flow of the combustion of LP gas and the ventilation of air.
3. Keep the ventilation opening(s) of the LP gas tank area free and clear from debris.
4. Visually check the burner flames to make sure your outdoor fireplave is working properly (Figure 5).
5. See below for proper cleaning instructions.
6. Check all gas connections for leaks.
7. Check components for any signs of damage or rust.
8. Check for obstructions of airflow to the burner spiders insects and webs can clog the burner/venturi tube period A
clogged burner/venturi tube can lead to a fire.
9. If damage to any component is detected, do NOT operate until repairs are completed.
www.CreativeOutdoorSolutionsCorp.com
Cleaning Surfaces
Before Storing
CAUTION: NEVER place cover on hot outdoor fireplace.
1. Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water.
2. For stubborn stains, use a citrus-based cleaner and a nylon scrubbing brush.
3. Rinse clean with water.
4. Allow to air dry.
1. Turn LP gas tank valve to “CLOSED”.
2. Turn control knob to the “ OFF” position. Note: A “poof” sound is normal as the last of the gas is burned.
3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.
4. Clean all surfaces.
5. Lightly coat the burner with cooking oil to prevent excess rusting.
6. If storing the outdoor fireplace indoors, cover the outdoor fireplace and store in a cool dry location away from children
and pets.
7. If storing the outdoor fireplace outdoors, cover the outdoor fireplace with the included cover for protection from
the weather.

If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
www.CreativeOutdoorSolutionsCorp.com
1. Porcelain requires care.
Sealing – the most important thing you can do for your tabletop
The most important thing you can do to ensure the lasting beauty of your tabletop is seal it, when necessary, with outdoor tile
and stone sealer. The sealer acts as a repellent, preventing the absorption of moisture and stainable materials.
2. Cleaning – handle with care
The porcelain on your table has been sealed. Maintaining the sealer on the table is very important and requires regular cleaning.
Clean tops with a soft, clean cloth (one that won’t bleed color) or sponge. Use warm clean water and mild dish soap. Do not use
petroleum-based or abrasive cleaners. Rinse with plenty of clean water to remove any soap residue. Dry thoroughly after cleaning
to prevent water spots.
Even if your tabletop has been sealed, spills need to be cleaned immediately to prevent staining or damaged to the tabletop.
Always blot spills with a clean, soft cloth. Wiping could spread the spill. Repeat blotting with dry area of cloth until spill is totally
absorbed. Rinse with clean, warm water and wipe dry.
Cleaning your top on a consistent and regular basis will help aid in a longer lasting top.
Cover your firetable with the included cover when not in use to protect it from the elements.
We recommend that your firetable be stored indoors during the winter months. It will protect it from cracking in extreme cold.
If it must be stored outside, it should ALWAYS be covered.
Care and Maintenance
16
Product Registration
Replacement Parts
For faster warranty service, please register your product immediately. To register go to www.creativeoutdoorsolutionscorp.com
866-292-8800.
For replacement parts, visit parts. www.creativeoutdoorsolutionscorp.com or call 866-292-8800.
ONE-YEAR LIMITED WARRANTY
The appliance has been manufactured under the highest standards of quality and workmanship. We warrant to the original
consumer/purchaser that all aspects of this product will be free of defects in material and workmanship for one (1) year from
the date of purchase. If within the stated warranty period a product is found to be defective in material or workmanship, the
purchaser must contact the manufacturer's customer service department at 1- 866-292-8800. The manufacturer, at its option,
will repair or replace the defective parts. Replacements for any defective part will be supplied free of charge for installation by
the consumer. This warranty shall be effective from the date of purchase as shown in the purchaser’s receipt. This warranty is
valid for the original consumer purchaser only and excludes industrial, commercial or business use of the product, product
damage due to shipment or failure which results from alteration, product abuse or product misuse, where performed by a
container, service company or consumer. We will not be responsible for labor charges and/or damage incurred in installation,
repair or replacement, nor for incidental or consequential damage.
This warranty does not apply: (a) to consumable parts, such as batteries or protective coatings that are designed to diminish
over time, unless failure has occurred due to a defect in materials or workmanship; (b) to cosmetic damage, including but not
limited to scratches, dents and broken materials unless failure has occurred due to a defect in materials or workmanship; (c)
to damage caused by use with a third party component or product that does not meet the manufacturer’s product specifications;
(d) to damage caused by accident, abuse, or misuse; (e) to damage caused by operating the product contrary to the published
user manual(s); or (f) to a product that has been modified to alter functionality or capability.
or call

17
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
C
For replacement parts, call our customer service department at 866-292-8800.
www.CreativeOutdoorSolutionsCorp.com
REPLACEMENT PARTS LIST
PART DESCRIPTION PART#
2
4
9
10
11
11
12
12
13
1
2
3
4
5
6
7
8
9
10
Glass Shards 0698669-1
Table Lid 0698669-2
Table Top 0698669-3
Table Leg A 0698669-4
Side Panel A 0698669-5
Handle 0698669-6
Tank frame 0698669-7
Tank Base 0698669-8
Table Leg B 0698669-9
Support Brace 0698669-10
PART DESCRIPTION PART#
12
13
11 Table Leg C 0698669-11
Side Panel B 0698669-12
PVC Cover 0698669-13
1
AA
AA
AA
AA
AA
AA
AA
BB
AA
AA
AA
CC
AA
AA
AA
DD
AA
AA
AA
EE
φ 24 Washer
AA
AA
AA
FF
AA
AA
AA
GG
AA
AA
AA
HH
Washer
Allen Wrench
AA
AA
AA
HH
A
0698669-GG
0698669-HH
5
67
8
14 Battery 0698669-14
M6x20 Bolt
and washer
M6x20 Bolt
Bolt
φ 15 Washer
φ 17 Washer
AA
AA
AA
AA
AA
AA
AA
BB
AA
AA
AA
CC
AA
AA
AA
DD
0698669-AA
0698669-BB
0698669-CC
0698669-DD
0698669-EE
AA
AA
AA
EE
AA
AA
AA
FF 0698669-FF
AA
AA
AA
GG
14
15
16
17
18
19
20
1
Bottom Bowl
Burner
Pilot Housing
Regulator/Hose
Manual electric
ignitor
Control Knob
Asembly
0698669-15
0698669-16
0698669-17
0698669-18
0698669-19
0698669-20
12
3
18
19
20
16 15
17
ONE-YEAR LIMITED WARRANTY
This warranty gives you specific legal rights, and you may also have the other rights that vary from state to state. As some
states do not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply.

Troubleshooting
Problem Possible Cause Prevention/Cure
Burner will not light using igniter
LP gas tank valve is closed Make sure regulator is securely attached to the LP gas tank per “Installing
LP
LP gas tank is low or empty Exchange, refill or replace LP gas tank
LP gas leak
1. Turn LP gas tank valve to “CLOSED”
2. Wait 5 minutes for gas to clear
3. Follow “Checking for Leaks” section
Battery needs to be changed Replace the “AA” battery (follow assembly step for inserting battery)
Electrode and burners are wet Wipe dry with cloth
Electrode cracked or broken - sparks at crack Replacement part(s) may be needed - contact Customer Care at 866-292-8800
Wire loose or disconnected Reconnect wire or replacement part(s) may be needed - contact Customer Care
a
Wire is shorting (sparking) between igniter and electrode Replacement part(s) may be needed - contact Customer Care at 866-292-8800
Bad igniter Replacement part(s) may be needed - contact Customer Care a
Burner will not light with match
No gas flow
Check if LP gas tank is empty
a. If empty, exchange, refill or replace LP gas tank
b. If LP gas tank is not empty, refer to“Sudden drop in gas flow or
reduced flame height” (see below)
LP gas tank is low or empty Exchange, refill or replace LP gas tank
LP gas leak
1. Turn LP gas tank valve to “CLOSED”
2. Wait 5 minutes for gas to clear
3. Follow “Checking for Leaks” section
Coupling nut and regulator not fully connected Turn the coupling nut about one-half to three-quarters additional turn until solid
stop.Tighten by hand only - do NOT use tools
Obstruction of gas flow 1. Clear burner/venturi tube
2. Check for bent or kinked hose
Disengagement of burner to valve Re-engage burner and valve
Spider webs or insect nest in burner/venturi tube Clean burner/venturi tube
Burner ports clogged or blocked Clean burner ports
Sudden drop in gas flow or
reduced flame height
Out of gas Exchange, refill or replace LP gas tank
Overfilling prevention device
may have been activated
1. Turn control knob to “ OFF”
2. Wait 30 seconds and light outdoor fireplace per “Lighting” section
3. If flames are still too low, reset the overfilling prevention device:
a. Turn control knob(s) “ OFF”
b. Turn LP gas tank valve to “CLOSED”
c. Disconnect regulator
d. Turn control knobs to (ON)
e. Wait one minute
f. Turn control knobs to “ OFF”
g. Reconnect regulator and leak check connections, being careful not to
fully open valve
h. Light outdoor fireplace per “Lighting” section
Irregular flame pattern,flame does
not run the full length of burner Burner ports are clogged or blocked Clean burner ports
Flame is yellow or orange
New burner may have residual manufacturing oils Burn outdoor fireplace for 15 minutes and reinspect
Spider webs or insect nest in burner/venturi tube Clean burner/venturi tube
Poor alignment of valve to burner/venturi tube Ensure burner/venturi tube is properly engaged with valve
Flame goes out
High or gusting winds Do not use outdoor fireplace in high winds
Low on LP gas Exchange, refill or replace LP gas tank
Excess flow valve tripped Refer to “Sudden drop in gas flow or reduced flame height”
Flashback (fire in venturi/burner tube(s)) Burner and/or burner/venturi tube is blocked Clean burner and/or burner/venturi tube
Flame seems to lose heat when burning
in cold weather - temperature below 50ºF
Ice has built up on the outside of the LP gas
tank because the vaporization process is
1. Turn off per “Turning Off” section
2. Replace with a spare LP gas tank
3. Reconnect LP gas tank per “Installing LP Gas Tank” section
4. Follow “Checking for Leaks” section
5. Light outdoor fireplace per “Lighting” section
For assistance ,please visit us at www.creativeoutdoorsolutionscorp.com or call 866-292-8800.
too slow.
Gas Tank,” then turn LP gas tank valve to “OPEN”
18
If you have any questions or concerns,
please contact Creative Outdoor Solutions
Corporation at CreativeOutdoorSolutionsCorp.com
or call 866-292-8800
t 866-292-8800
t 866-292-8800
www.CreativeOutdoorSolutionsCorp.com
