Spirit of St. Louis : Assembly Instructions

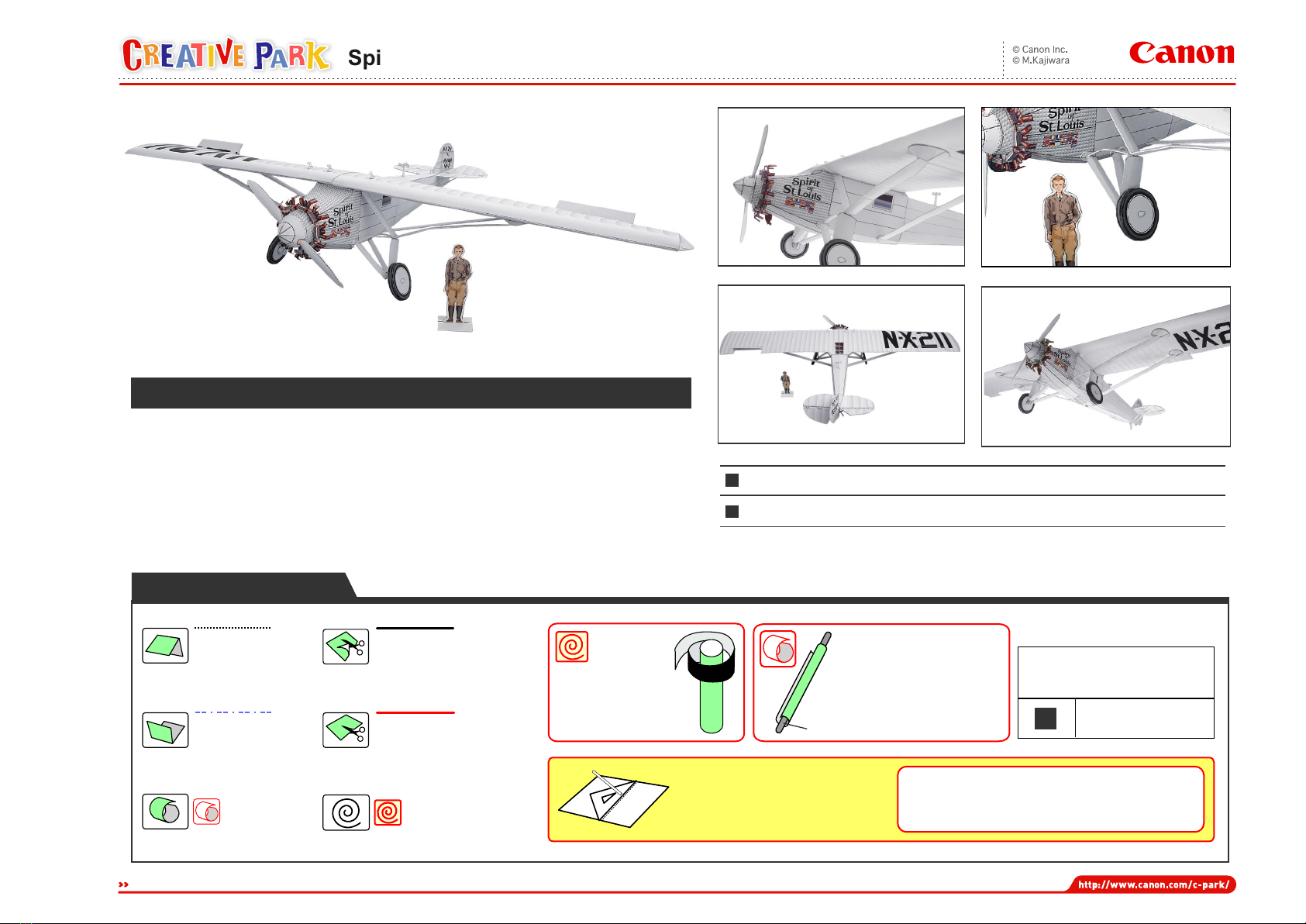

PAGE01
The Spirit of St. Louis (also known as the Ryan NYP-1) is a single-engine plane that was successfully
flown by Charles Lindbergh as a solo non-stop transatlantic flight. The main external features of the
craft were its lack of front windshield, and its wings, which were extremely long compared to its body.
The aircraft took off from New York's Long Island and flew 5,810km to Paris. The journey took 33
hours, 29 minutes and 29.8 seconds, which was regarded as quite fast at the time. It was the first solo,
non-stop flight to travel this route.
This papercraft Spirit of St. Louis is about one twenty eighth the size of the real Spirit of St. Louis.
*This model was designed for Papercraft and may differ from the original in some respects.
Glue tab notation key
Glue
Each glue tab has a symbol and
number printed on it.
Glue with in the same part.
(Dotted line)
Mountain fold
Guide rod
How to make the cylinders
This craft involves making cylinders
with diameters of 3 to 7mm, so it may
be helpful to have some rods of sizes
about 0.5mm thinner handy.
Assembly Instructions
Wrap around and glue
to the top of the cylinder.
(Dashed and dotted line)
Valley fold
(Solid line)
Scissors line
You may like to use
a metal rod as a guide.
Layer wrapping (roll)
Wrap around and glue to the
cylinder,to use as a glue tab
(Red solid line)
Cut in Line
Completed parts
become a cylinder
Trace along the folds with a ruler and
a used pen (no ink) to get a sharper,
easier fold.
Glue, scissors and other tools may be dangerous to
young children so be sure to keep them out of the
reach of young children.
Parts list (Assembly Instructions) : Twelve A4 sheets
No. of Parts: 177
*Bulid the model by carefully reading the Assembly Instructions,
in the parts sheet page order.
Spirit of St. Louis

PAGE02 Scissors line Mountain fold Valley fold Cut out
Cut in Line
Spirit of St. Louis : Assembly Instructions
2-B
2-C 2-D
2-F
2-E 2-A
2-J
2-M
2-W
2-X
2-W
2-X-1
2-X-1
2-P-1
2-W
2-Y
2-Y-1
2-I
2-I
2-Z-1
2-Z-2
2-P-2
2-P-2
2-Z
2-C/2-D
2-F/2-E
2-A/2-B

PAGE03
Spirit of St. Louis : Assembly Instructions
Scissors line Mountain fold Valley fold Cut out
Cut in Line
2-T
2-P
2-R
2-Q
2-Q/R
2-P
2-S
2-Q-1
3-C
3-B
2-K
2-L 2-L-1
2-K/2-K-1
2-L/2-L-1
Insert in between 2-W
and 2-J/M and attach.
Insert the long glue tabs
on 2-S through the holes
in 2-Q/R and fasten them
to the glue tabs on 2-P.
2-P-1
3-D
3-E-1/3-A-1
2-S
3-D
3-E/3-E-1
Insert the protruding parts of 3-B
into the holes on 3-A/3-A-1/3-E/3-E-1,
fold them and attach them to the
protruding parts of 3-D.
Do not put glue on 3-A/3-A-1/3-E/3-E-1.
3-E/3-A
3-S-1/3-S
After attaching
the tail assembly,
attach it to 2-P-1.
After gluing, check that the parts move.
2-K-1
2-P/Q is moveable.

PAGE04
Spirit of St. Louis : Assembly Instructions
Scissors line Mountain fold Valley fold Cut out
Cut in Line
3-G
2-O
3-F
2-U
2-N
2-H
4-E
4-E-1
3-H
4-D-1
4-D
4-C-1
4-C
2-G
Attach 2-O in line
with the fold lines
on 3-F and 3-G.

PAGE05
Spirit of St. Louis : Assembly Instructions
Scissors line Mountain fold Valley fold Cut out
Cut in Line
Cross-sectional diagram of how to glue the engine parts
With the bumpy ends omitted Push in towards
the center.
Glue the
center joining
parts together.
Bend
towards
the back.
Push in towards
the center.
3-L
3-I
3-I 3-I
3-Q
3-R
3-P
3-O
3-N
4-Q
4-K
4-O
4-O/4-P
4-L
4-O
4-P
Align these parts on 4-P/4-O.
4-P
4-R
3-M

PAGE06
Spirit of St. Louis : Assembly Instructions
Scissors line Mountain fold Valley fold Cut out
Cut in Line
Cross-sectional diagram of how to assemble the propellor shaft
Only put glue on 4-M. In step , before attaching
4-H to 4-K, check that the 4-K parts rotate.
4-J
4-M
4-M
4-H
4-H
4-Z
4-Z
4-H
4-N
4-N
4-O/P
4-N
4-K
4-H
4-U
4-W
4-U/4-W
3-K
4-U/4-W
4-H
4-Z
3-Q/R
4-M
4-M
4-J
4-R
4-J
4-K
4-J
Cut a slot.
Add a curve to
the 4-Z glue tabs.
Glue the 4-Z glue tab parts
to the inside of 4-H.
*Do not glue 4-J.
*Do not glue 4-J/4-K.
*Glue 4-H to 4-K.
*Add a curve to 4-U/4-W after gluing.
*Curve it as shown.
*Insert 4-U/4-W into the slots
on 4-H and attach.

PAGE07
Spirit of St. Louis : Assembly Instructions
Scissors line Mountain fold Valley fold Cut out
Cut in Line
5-C/6-C
5-C/6-C
5-B/6-B
5-I/6-G
5-H/6-F
5-A/6-A
5-F
5-F
5-F/5G
5-G
5-G
5-E/6-E
5-D/6-D
*Make 10 pairs altogether
of 5-D/6-D/5-E/6-E.
Make two pairs.
Where to attach 5-F/5-G.

PAGE08
Spirit of St. Louis : Assembly Instructions
Scissors line Mountain fold Valley fold Cut out
Cut in Line
5-I/6-G
5-H/6-F
Side view after gluing
Start gluing from the folded side and work back.
5-A/6-A
5-A/6-A
5-D/6-D
5-D/6-D
5-A/6-A
5-B/6-B
5-B/6-B is moveable
so do not put glue on
the wing.
5-A
6-A
*Attach the tip of
the wing together first.
*Insert 5-B/6-B into the wing. (Do not add glue.)
*The 5-A/6-A wing is assembled in the same way.
Place 5-A/6-A on the template on page 7 of the parts sheet as shown in the figure below and attach them in line with the black lines.
Plane side of wing
Fold in without gluing.
Moves up and down.
Moves up and down.
Paper template to attach to the wing 5-D/6-D.
Align the tips of 5-D/6-D with the
fold line of the glue spot on
5-A/6-A, and begin to attach.
Attach 5-D/6-D at a position so that
the glue spot is folded 45 .
*After completing steps and ,
attach the wing together.

PAGE09
Spirit of St. Louis : Assembly Instructions
Scissors line Mountain fold Valley fold Cut out
Cut in Line
3-U/3-U-1
3-U/
3-U-1
6-I/6-H
6-I/6-H
6-H
3-J/3-Y
3-J/3-Y
4-I
4-I
4-A/4-B
3-X/3-X-1
3-X/3-X-1
4-S/4-T
7-K
4-S/4-T
3-W/3-W-1
3-W/3-W-1
4-A/4-B
3-T-1 3-T-1
7-K
5-A/6-A
3-L
6-I
Wings
Align the tip of 3-L with the wings,
fold the edge forward and attach.
Wrap around
4-A/4-B and
attach.
3-U-1
3-U
3-Y
4-A
3-J
4-B

PAGE10
Spirit of St. Louis : Assembly Instructions
Scissors line Mountain fold Valley fold Cut out
Cut in Line
4-G
4-F
4-F
4-F
4-F
3-T 3-Z
3-T
7-E7-E
7-E
Glue spot
7-E
4-G
4-G
4-G
Slot 7-E onto 4-A/4-B,
and attach to the body.
Slot 7-E onto 7-C/7-D,
and attach to the body.
Wrap 3-T/3-Z around
3-U and attach.
7-A
7-B
7-B
7-C
7-D
7-D
Body
Attach to the body.
Put glue on 4-G/4-F
and attach.

PAGE11
Spirit of St. Louis : Assembly Instructions
Scissors line Mountain fold Valley fold Cut out
Cut in Line
Main axis side
Front view of
axle positioning
7-1
7-I
7-F/7-G
7-F/7-G
7-H
7-F/7-G
7-F/7-G
4-Y
4-X
7-F/7-G
7-J

PAGE12
Spirit of St. Louis : Assembly Instructions
Scissors line Mountain fold Valley fold Cut out
Cut in Line
