1Introduction
PC-CAM 930 Slim.book Page 0 Thursday, May 19, 2005 5:27 PM

1-1 Introduction
Introduction
Creative PC-CAM 930 Slim is a digital video camera that gives you everything you
need to capture 24-bit still images and video in 16.7 million colors. Not only that, it
also allows you to communicate face-to-face with others on the Internet!
Creative PC-CAM 930 Slim comes with the following applications:
❑Presto! VideoWorks 6
❑Presto! Mr Photo
Before You
Begin
Package
Contents
Your Creative PC-CAM 930 Slim package contains the following items:
❑Creative PC-CAM 930 Slim
❑USB cable
❑Installation CD
❑Quick Start leaflet
❑Soft camera case
❑2 x AAA batteries
❑Wrist strap
Applications
included on your
Installation CD
may vary
depending on
camera model and
region of purchase.
PC-CAM 930 Slim.book Page 1 Thursday, May 19, 2005 5:27 PM

Introduction 1-2
Minimum System
Requirements
❑Intel®Pentium®running at 166 MHz
❑64 MB RAM or higher
❑100 MB free hard disk space on a hard disk drive (for installation of all
applications)
❑Available USB port
❑Microsoft®Windows®XP, Windows 2000, Windows Millennium Edition (Me) or
Windows 98 Second Edition (SE)
❑CD-ROM drive installed.
For Videoconferencing
❑Modem or LAN access to the Internet at 56 Kbps or faster
Document
Conventions
Tip. This tells you about short cuts or hints relating to a
feature.
Note. This highlights additional or important information about
a feature.
Caution! This highlights proper usage of your product. Use this
information to avoid risky situations.
Warning! This warns you of possible hazards to yourself or your
product, that may result in injury or damage.
PC-CAM 930 Slim.book Page 2 Thursday, May 19, 2005 5:27 PM

1-3 Introduction
PC-CAM 930 Slim.book Page 3 Thursday, May 19, 2005 5:27 PM

2About Your Camera
PC-CAM 930 Slim.book Page 0 Thursday, May 19, 2005 5:27 PM

2-1 About Your Camera
About Your Camera
About Creative
PC-CAM 930
Slim
Figure 2-1 and Figure 2-2 highlight the features of Creative PC-CAM 930 Slim.
Macro LED
LCD screen
USB port
cover
Function
buttons
Playback button
Flash/Set button
Busy LED
Mode button
Figure 2-1: Creative PC-CAM 930 Slim back view
Standard/
Macro
switch
PC-CAM 930 Slim.book Page 1 Thursday, May 19, 2005 5:27 PM

About Your Camera 2-2
Shutter button Power button
Strap lug
Flash
Figure 2-2: Creative PC-CAM 930 Slim front and bottom views
Camera
lens
Front View
Strap lug
Battery cover
Microphone
Tripod socket
Bottom View
Memory card
slot
PC-CAM 930 Slim.book Page 2 Thursday, May 19, 2005 5:27 PM

2-3 About Your Camera
About the Mode
button
With your camera’s Mode button, you can access the following features:
• Playback mode — view photos and videos with audio streams
• Capture mode — take photos using the camera’s automatic exposure and
white balance settings
• Movie mode — record short videos
• Setup mode — adjust your camera settings
• PC mode — transfer photos and audio/video recordings, or use your
camera as a PC-CAM.
Selecting a Mode 1. Press and hold the Mode button.
The mode selection menu appears.
2. Use the Function buttons to select a mode.
3. Press the Flash/Set button.
PC-CAM 930 Slim.book Page 3 Thursday, May 19, 2005 5:27 PM

About Your Camera 2-4
Using the
Function buttons
Use the Function buttons to locate options on your On Screen Display (OSD) menu,
and press the Flash/Set button to select an option.
For more details on
using the Function
buttons with your
On Screen Display
menu, see "Using
Creative PC-CAM
930 Slim as a Digital
Camera" on page
3-1.
Up button
Down button
Figure 2-3: Function buttons
Flash/Set button
PC-CAM 930 Slim.book Page 4 Thursday, May 19, 2005 5:27 PM

2-5 About Your Camera
Inserting an SD
Memory Card
(optional)
You can purchase a Secure Digital (SD) memory card to extend the image storage
capacity of your camera.

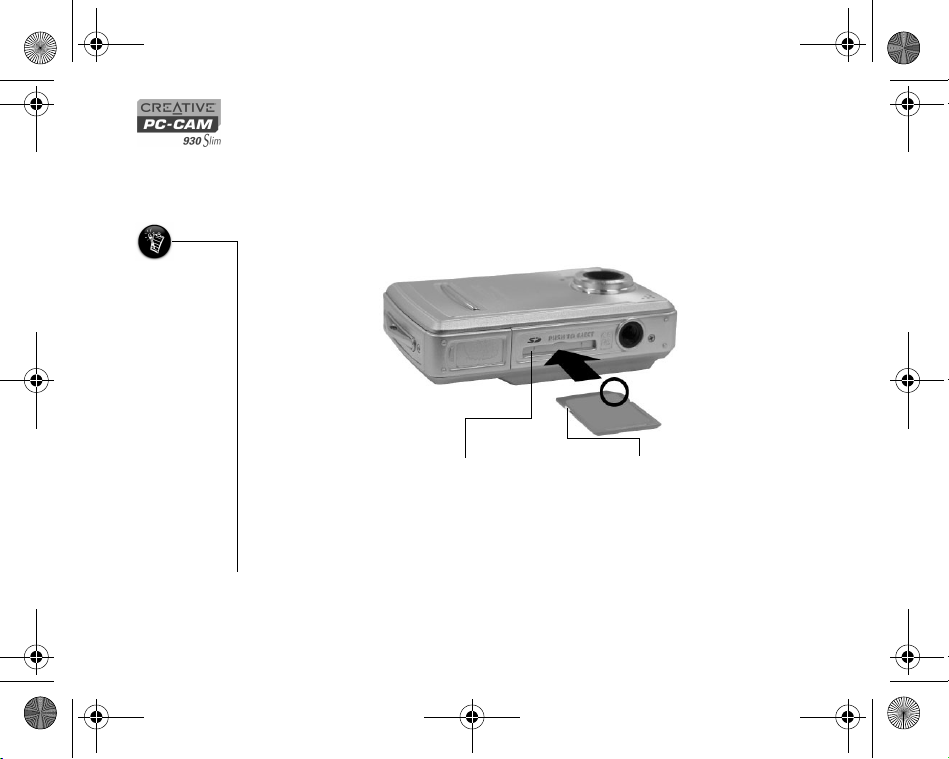

To install your SD card, insert the SD card as shown.
To remove the card, push the card.
• The SD memory
card has a
write-protect
switch to prevent
the accidental
deletion of
valuable data.
This switch is
disabled by
default.
• When the SD card
is protected,
images cannot be
recorded. If you
try to record or
delete an image
with the camera,
the "SD Card
Locked" message
will appear in the
LCD screen.
• To write or erase
data from the SD
memory card,
release the
write-protect
switch.
SD removable card slot
Figure 2-4: Inserting a memory card
Write-protect switch
PC-CAM 930 Slim.book Page 5 Thursday, May 19, 2005 5:27 PM

About Your Camera 2-6
Tu r n i n g o n Yo u r
Camera
1. Slide and swing open the battery
compartment cover.
2. Insert the batteries according to the + and
- symbols indicated on the inside of the
battery compartment cover (see Figure
2-5).
3. Close the battery compartment cover.
4. Press and hold down the Power button to
turn on your camera.
The LED lights up in red and the LCD
monitor is activated.
The LED turns green.
• Be sure to insert
the batteries
according to the
polarity indicated.
If not, the
batteries may leak
and damage your
camera.
• Do not mix old
and new batteries
together.
•Toconserve
battery power,
your camera turns
the LCD off if no
operation is made
within 60 seconds.
See "Auto Power
Off" on page 3-5
for more
information.
Figure 2-5: Inserting batteries
Battery compartment cover
Figure 2-6: Power button
Power button
PC-CAM 930 Slim.book Page 6 Thursday, May 19, 2005 5:27 PM

2-7 About Your Camera
PC-CAM 930 Slim.book Page 7 Thursday, May 19, 2005 5:27 PM

3Using Creative PC-CAM 930
Slim as a Digital Camera
PC-CAM 930 Slim.book Page 0 Thursday, May 19, 2005 5:27 PM
