Creative BLASTER PC M004 User manual

TM
M004 Motherboard

Creative End-User Software License Agreement
Version 2.0, June 1998
PLEASE READ THIS DOCUMENT CAREFULLY BEFORE USING THE SOFTWARE. BY USING THE SOFTWARE, YOU AGREE TO
BEBOUNDBYTHETERMSOFTHISAGREEMENT.IF YOUDO NOTAGREETOTHE TERMS OF THE AGREEMENT, DO NOTOPEN
THE SEALED DISK PACKAGE, INSTALL OR USE THE SOFTWARE. PROMPTLY RETURN, WITHIN15 DAYS, THESOFTWARE, ALL
RELATED DOCUMENTATION AND ACCOMPANYING ITEMS TO THE PLACE OF ACQUISITION FOR A FULL REFUND.
Thisis a legalagreement betweenyou and CreativeTechnologyLtd.and
its subsidiaries (“Creative”). This Agreement states the terms and
conditionsuponwhich Creativeoffersto license the software sealedin the
disk package together with all related documentation and accompanying
items including, but not limited to, the executable programs, drivers,
libraries and data files associated with such programs (collectively, the
“Software”).
LICENSE
1. Grant of License
The Software is licensed, not sold, to you for use only under the terms
of this Agreement. You own the disk or other media on which the
Software is originally or subsequently recorded or fixed; but, as
between you and Creative (and, to the extent applicable, its licensors),
Creative retains all title to and ownership of the Software and reserves
all rights not expressly granted to you.
2. For Use on a Single Computer
The Software may be used only on a single computer by a single user
at any time. You may transfer the machine-readable portion of the
Software from one computer to another computer, provided that (a)
theSoftware (includinganyportion or copythereof) iserased from the
first computer and (b) there is no possibility that the Software will be
used on more than one computer at a time.
3. Stand-Alone Basis
You may use the Software only on a stand-alone basis, such that the
Software and the functions it provides are accessible only to persons
who are physically present at the location of the computer on which
the Software is loaded. You may not allow the Software or its
functions to be accessed remotely, or transmit all or any portion of the
Software through any network or communication line.
4. Copyright
The Software is owned by Creative and/or its licensees and is
protected by United States copyright laws and international treaty
provisions. You may not remove the copyright notice from any copy
of the Software or any copy of the written materials, if any,
accompanying the Software.
5. One Archival Copy
You may make one (1) archival copy of the machine-readable portion
of the Software for backuppurposes only in support of your use of the
Software on a single computer, provided that you reproduce on the
copy all copyright and other proprietary rights notices included on the
originals of the Software.
6. No Merger or Integration
You may not merge any portion of the Software into, or integrate any
portion of the Software with, any other program, except to the extent
expressly permitted by the laws of the jurisdiction where you are
located. Any portion of the Software merged into or integrated with
another program, if any, will continue to be subject to the terms and
conditions of this Agreement, and you must reproduce on the merged
or integrated portion all copyright and other proprietary rights notices
included in the originals of the Software.
7. Network Version
If you have purchased a “network” version of the Software, this
Agreement applies to the installation of the Software on a single “file
server”. It may not be copied onto multiple systems. Each “node”
connectedto the“file server” must also haveits ownlicenseof a “node
copy” of the Software, which becomes a license only for that specific
“node”.
8. Transfer of License
You may transfer your license of the Software, provided that (a) you
transfer all portions of the Software or copies thereof, (b) you do not
retain any portion of the Software or any copy thereof, and (c) the
transferee reads and agrees to be bound by the terms and conditions of
this Agreement.
9. Limitations on Using, Copying, and Modifying the Software
Except to the extent expressly permitted by this Agreement or by the
laws of the jurisdiction where you acquired the Software, you may not
use, copy or modify the Software. Nor may you sub-license any of
your rights under this Agreement.
10.Decompiling, Disassembling, or Reverse Engineering
You acknowledge that the Software contains trade secrets and other
proprietary information of Creative and its licensors. Except to the
extent expressly permitted by this Agreement or by the laws of the
jurisdiction where you are located, you may not decompile,
disassemble or otherwise reverse engineer the Software, or engage in
any other activities to obtain underlying information that is not visible
to the user in connection with normal use of the Software.
In particular, you agree not for any purpose to transmit the Software
or display the Software's object code on any computer screen or to
make any hardcopy memory dumps of the Software's object code. If
you believe you require information related to the interoperability of
the Software with other programs, you shall not decompile or
disassemble the Software to obtain such information, and you agree to
request such information from Creative at the address listed below.
Upon receiving such a request, Creative shall determine whether you
require such information for a legitimate purpose and, if so, Creative
will provide such information to you within a reasonable time and on
reasonable conditions.
In any event, you will notify Creative of any information derived from
reverse engineering or such other activities, and the results thereof
will constitute the confidential information of Creative that may be
used only in connection with the Software.
TERMINATION
The license granted to you is effective until terminated. You may
terminate it at any time by returning the Software (including any portions
or copies thereof) to Creative. The license will also terminate
automatically without any notice from Creative if you fail to comply with
any term or condition of this Agreement. You agree upon such
termination to return the Software (including any portions or copies
thereof) to Creative. Upon termination, Creative may also enforce any
rights provided by law. The provisions of this Agreement that protect the
proprietary rights of Creative will continue in force after termination.
LIMITED WARRANTY
Creative warrants, as the sole warranty, that the disks on which the
Software is furnished will be free of defects, as set forth in the Warranty
Card or printed manual included with the Software. No distributor, dealer
or any other entity or person is authorized to expand or alter this warranty
or any other provisions of this Agreement. Any representation, other than
the warranties set forth in this Agreement, will not bind Creative.
Creativedoesnotwarrant that thefunctions contained inthe Software will
meet your requirements or that the operation of the Software will be
uninterrupted, error-free or free from malicious code. For purposes of this
paragraph, “malicious code” means any program code designed to
contaminate other computer programs or computer data, consume
computer resources, modify, destroy, record, or transmit data, or in some
other fashion usurp the normal operation of the computer, computer
system, or computer network, including viruses, Trojan horses, droppers,
worms, logic bombs, and the like. EXCEPT AS STATED ABOVE IN
THIS AGREEMENT, THE SOFTWARE IS PROVIDED AS-IS
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED,INCLUDING,BUT NOTLIMITED TO,ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. CREATIVE IS NOT OBLIGATED TO
PROVIDE ANY UPDATES, UPGRADES OR TECHNICAL
SUPPORT FOR THE SOFTWARE.
Further, Creative shall not be liable for the accuracy of any information
provided by Creative or third party technical support personnel, or any
damages caused, either directly or indirectly, by acts taken or omissions
made by you as a result of such technical support.
TEXT CONTINUED ON INSIDE BACK COVER OF MANUAL . . . .

ii

User’s Manual
Information in this document is subject to change without notice and does not represent a
commitment on the part of Creative Technology Ltd. No part of this manual may be reproduced
or transmitted in any form or by any means, electronic or mechanical, including photocopying
and recording, for any purpose without the written permission of Creative Technology Ltd. The
software described in this document is furnished under a license agreement and may be used or
copied only in accordance with the terms of the license agreement. It is against the law to copy
the software on any other medium except as specifically allowed in the license agreement. The
licensee may make one copy of the software for backup purposes.
Copyright © 1998 by Creative Technology Ltd. All rights reserved.
Version 1.0
August 1998
Sound Blaster is a registered trademark of Creative Technology Ltd.
Intel is a registered trademark of Intel Corporation.
Pentium™ II Processor is a registered trademark of Intel Corporation.
IBM, PC/AT, and PS/2 are registered trademarks of International Business Machines
Corporation.
Microsoft, MS-DOS, Windows, and the Windows logo are registered trademarks of Microsoft
Corporation.
All other product names or brands are trademarks or registered trademarks of their respective
owners.

Safety Information
CAUTION: This device is intended to be installed by the user
in a CSA/TUV/UL certified/listed IBM AT or compatible
personal computers in the manufacturer’s defined operator
access area. Check the equipment operating/installation manual
and/or with the equipment manufacturer to verify/confirm if
your equipment is suitable for user-installed application cards.
ATTENTION: Ce carte est destiné à être installé par
l’utilisateur, dans un ordinateur compatible certifié
CSA/TUV/UL ou listé IBM AT, à l’intérieur de la zone définie
par le fabricant. Consulter le mode d’emploi ou le fabricant de
l’appareil pour vérifier ou confirmer si l’utilisateur peut y
installer lui-même des cartes périphériques.
Notice for the USA
FCC Part 15: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, this notice is
not a guarantee that interference will not occur in a particular
installation. Ifthis equipment doescause harmfulinterferenceto
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
one or more of the following measures:
❑Reorient or relocate the receiving antenna.
❑Increase the distance between the equipment and receiver.
❑Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
❑Consult the dealer or an experienced radio/TV technician.
CAUTION: To comply with the limits for the Class B digital
device,pursuant to Part 15 of the FCC Rules, this device must be
installed in computer equipment certified to comply with the
Class B limits.
All cables used to connect the computer and peripherals must be
shielded and grounded. Operation with non-certified computers
or non-shielded cables may result in interference to radio or
television reception.
Modifications
Any changes or modifications not expressly approved by the
grantee of this device could void the user’s authority to operate
the device.
Notice for Canada
This apparatus complies with the Class “B” limits for radio
interference as specified in the Canadian Department of
Communications Radio Interference Regulations.
Cet appareil est conforme aux normes de CLASSE “B”
d’interference radio tel que spe’cifie’ par le Ministère Canadien
des Communications dans les règlements d’interfe’rence radio.
Compliance
This product conforms to the following Council Directive:
❑Directive 89/336/EEC, 92/31/EEC (EMC)
CE Notice
The following standards were appliedto this product, in order to
achieve compliance with the electromagnetic compatibility:
❑Immunity in accordance with EN 50082-1: 1992
❑Emissions in accordance with EN 55022: 1987 Class B
Safety & Regulatory Information
The following sections contain notices for various countries:

iii
Contents
Introduction....................................................................................................... v
Document Conventions....................................................................... vi
1 The M004 Motherboard
Features...........................................................................................................1-1
Specifications.................................................................................................1-2
2 The Pentium®II Processor
About the Pentium II Processor....................................................................2-1
Installing the Hardware for the Pentium II Processor..................................2-2

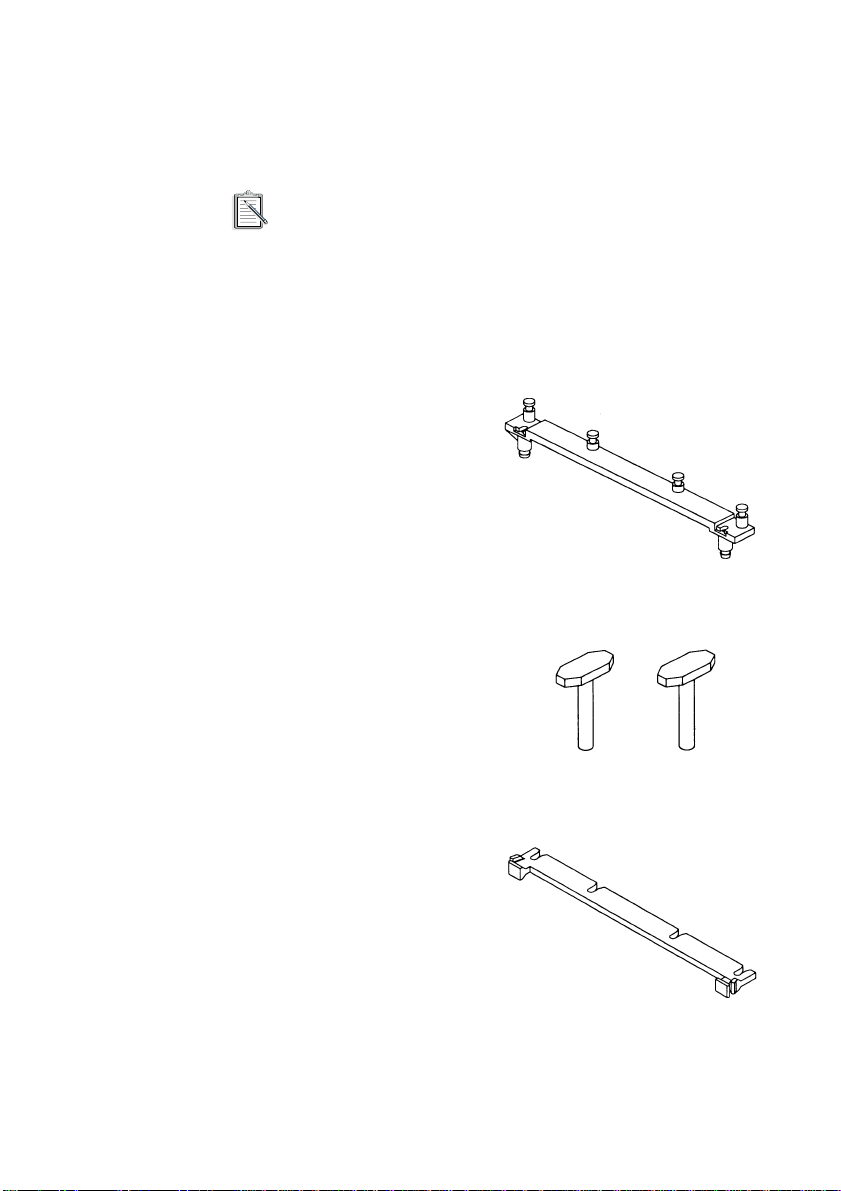

Components of the Pentium II Processor’s retention mechanism ..2-3
Step 1: To install the retention mechanism.......................................2-4

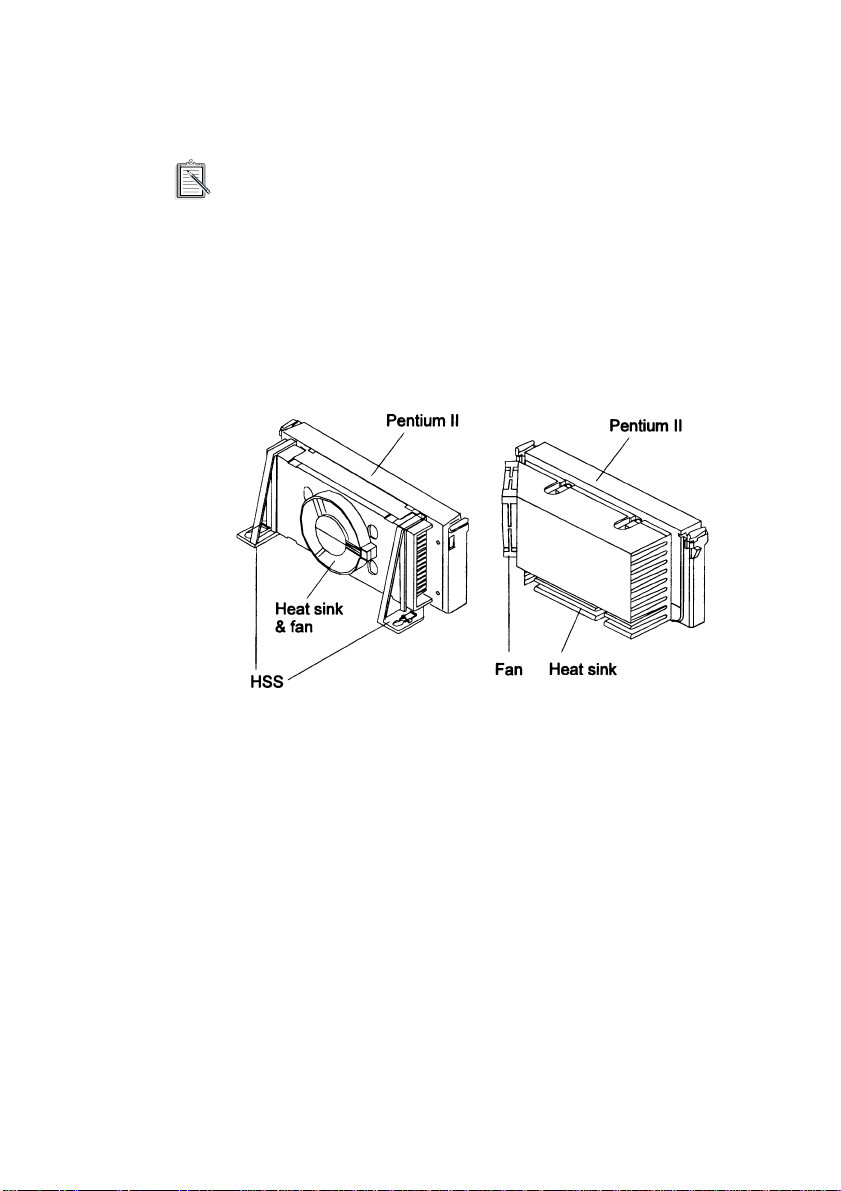

Components of the Pentium II Processor’s heat sink support.........2-5
Step 2: To install the heat sink support.............................................2-6
Step 3: To mount the Pentium II processor......................................2-8
3 The Celeron™Processor
About the Celeron Processor.........................................................................3-1
Installing the Hardware for the Celeron Processor......................................3-2
Components of the Celeron Processor’s retention mechanism.......3-3
Step 1: To assemble the retention mechanism .................................3-4
Components of the Celeron Processor’s heat sink...........................3-4
Step 2: To mount the heat sink onto the Celeron processor ............3-5
Step 3: To mount the Celeron processor...........................................3-8
4 Connectors
Front Panel Connectors..................................................................................4-1
Back Panel Connectors..................................................................................4-2
Other Connectors...........................................................................................4-3
5 Jumper Settings
About Jumpers...............................................................................................5-1
Changing Jumper Settings.............................................................................5-2
To configure the CPU bus clock multiplier......................................5-3
To configure the CPU external clock (system frequency)...............5-4
To overclock a 66 MHz-based processor.........................................5-6

iv
To clear the CMOS............................................................................5-6
To flash the EEPROM Vpp...............................................................5-7
To enable or disable the keyboard & PS/2 mouse
Power-On function.............................................................................5-8
6 Memory Configuration and
BIOS Settings
Memory Configuration..................................................................................6-1
BIOS Settings.................................................................................................6-2
To change BIOS settings in CMOS..................................................6-2
The CMOS Setup Utility Menu........................................................6-3
Standard CMOS Setup......................................................................6-5
BIOS Features Setup.........................................................................6-8
Chipset Features Setup....................................................................6-11
Power Management Setup...............................................................6-15
PnP/PCI Configuration Setup.........................................................6-18
Integrated Peripherals......................................................................6-20
Password Setting..............................................................................6-24

v
Introduction
Thank you for purchasing the M004 motherboard. It is a highly
integrated IBM PC/AT compatible system board designed to meet the
industry’s most demanding desktop applications.
This manual provides you with information on how to set up your
motherboard:
❑Chapter 1, “The M004 Motherboard”
Gives you a list of the motherboard’s capabilities and features.
It also provides the motherboard’s technical specifications and
a diagram of the motherboard’s layout.
❑Chapter 2, “The Pentium® II Processor”
Gives you a brief introduction on the Intel®Pentium II
processor and shows you how to mount the processor on the
motherboard.
❑Chapter 3, “The Celeron™ Processor”
Gives you a brief introduction on the Intel Celeron processor
and shows you how to mount the processor on the
motherboard.
❑Chapter 4, “Connectors”
Provides information on the connectors on your motherboard.
❑Chapter 5, “Jumper Settings”
Provides information on the location and settings of the
jumpers on your motherboard.
❑Chapter 6, “Memory Configuration and BIOS Settings”
Provides instructions on how to specify BIOS settings in the
CMOS Setup utility. It also provides a list of descriptions for
the setup items and a table of recommended settings for some
of these items.

vi
Document Conventions
This manual uses the following conventions to help you locate and
identify the information you need.
Table i: Text conventions.
Text Elements Use
bold Text that must be entered exactly as it appears.
italic Title of a book or a placeholder. A placeholder
represents information that you must provide.
UPPERCASE Directory name, file name, or acronym.
< > Symbols, letters, and key names on the
keyboard.
Table ii: Icons.
Icon Use
Note.
Warning.
Tip.

The M004 Motherboard 1-1
1
The M004 Motherboard
This chapter is organized into the following sections:
❑Features
❑Specifications
Features
M004 is a highly integrated IBM PC/AT compatible system board
designed to meet the industry’s most demanding desktop applications.
This motherboard is based on the Intel 82440BX AGPset chipset
which supports Pentium® II processors with processor speeds of up to
500 MHz with MMX technology. It has four 168-pin Dual Inline
Memory Module (DIMM) sockets supporting up to 1024 MB of
SDRAM.
M004 also comes with an Accelerated Graphics Port (AGP) slot, a
high-performance hardware interface for graphics-intensive
applications, such as 3D applications. The AGP slot is independent of
the Peripheral Component Interconnect (PCI) bus and is designed to
be used exclusively with graphic display devices. The M004 supports
3.3 V AGP devices with data transfer rates up to 133 MHz, and it
allows a data throughput rate of 500 MB/sec.
M004 is built with four PCI bus slots, thus providing a high bandwidth
data path for intensive data movement functions. In addition, M004
has three ISA slots.
The Intel’s 82440BX AGPset chipset provides an integrated Bus
Mastering IDE controller with two high-performance IDE interfaces.
You can connect up to four IDE devices to the controller and achieve
data transfer rates of up to 33 MB/sec.

1-2 The M004 Motherboard
The onboard Giga I/O controller provides standard PC I/O functions:
floppy drive interface, two First In First Out (FIFO) serial ports, an
Infrared Data Association (IrDA) device port, and a parallel port that
supports Standard Parallel Port (SPP), Enhanced Parallel Port (EPP),
and Extended Capabilities Port (ECP).
Specifications
Intel Chipset
Features Intel’s 440BX AGPset with I/O subsystems.
CPU Support
Intel Pentium II 233~333 MHz (at 66 MHz system bus frequency) and
350~500 (at 100 MHz system bus frequency in ) or Intel Celeron
processor 266 MHz, 300 MHz and 333 MHz.
Versatile Memory Supports
Four DIMM sockets that support 168-pin 3.3V SDRAM memory
modules, with maximum possible memory size of up to 1024 MB.
Configurable support for Error Checking (EC) and Error Checking
and Correcting (ECC).
PCI and ISA Expansion Slots
Provides four 32-bit PCI slots and three 16-bit ISA slots.
AGP Slot
Supports AGP cards for high-performance, component-level
connection targeted at 3D graphical display applications.
Onboard GiGA-I/O
Provides one floppy drive port, one optional PS/2 mouse connector,
two high-speed 16C550 UART compatible serial ports and one
parallel port with SPP, ECP and EPP capabilities. Serial Port 2 can
also be directed from COM2 to the infrared module for wireless
connections.

The M004 Motherboard 1-3
Onboard PCI Bus Master IDE Controller
Two Ultra DMA/33 Bus Master IDE ports that support four IDE
devices and provide data transfer rates of up to 33 MB/sec. This
controllersupportsEnhancedPIOModes3and4,and Bus Master IDE
DMA Mode 2 devices.
Onboard 20-pin ATX Power Supply
Provides ATX power connector onboard supports soft-on/off function.
System BIOS
Provides licensed Award V4.51PG BIOS on Flash Electrically
Erasable Programmable Read-Only Memory (EEPROM). Supports
Green PC, DMI and bundled with NCR SCSI BIOS.
ACPI
Support ACPI (Advanced Configuration and Power Interface)
function. ACPI provides more energy-saving features for future
operating systems that support OS Direct Power Management
(OSPM) functionality.
Board Size
ATX form factor 305mm x 170mm.
Advanced Features
❑Low EMI
Built-in Spread Spectrum. ±1.5% modulation and automatic
clock shut-off of unused PCI/SDRAMS slots to reduce the
EMI.

1-4 The M004 Motherboard
❑Dual Function Power Button
The system can be in one of two modes, Suspend or Soft-off.
If you hold the Power button down for less than 4 seconds, the
system will go into the Suspend mode. If you hold the Power
button for more than 4 seconds, the system will go into the
Soft-off mode.
UsetheCMOSSetupUtility to specify the mode you want. For
details, see the section “Power Management Setup” on page
6-15.
❑Modem Ring Power-on
Automatic switching on of the system when the modem ring is
activated.
Figure 1-1 on page 1-5 is a diagram of the M004 motherboard for your
reference.

The M004 Motherboard 1-5
Figure 1-1: The M004 motherboard.

The Pentium® II Processor 2-1
2
The Pentium®II Processor
This chapter consists of the following sections:
❑About the Pentium II Processor
❑Installing the Hardware for the Pentium II Processor
About the Pentium II Processor
The Pentium II processor and the Celeron™ processor are the latest
additions to the P6 processor family. They combine the architectural
advances in the Pentium Pro processor with the instruction set
extensions of MMX technology. They are fully compatible with the
huge base of Intel architecture-based PC software.
In addition, the Pentium II processor delivers new levels of
performance for advanced media and communications software
including powerful, realistic graphics and imaging capabilities, video
conferencing,andtheability to run full-screen, full-motion video. The
combination of these advanced features makes the Pentium II
processor the ideal choice for executing modern 32-bit CPU-intensive
and multimedia-enhanced application work loads using advanced
32-bit operating systems.
The Pentium II processor has a separate 32 KB, on-chip, non-blocking
Level 1 cache which runs at the same speed as the processor. It also
has a 512 KB or 256 KB onboard Level 2 non-blocking cache which
runs at half the speed of the processor.

2-2 The Pentium® II Processor
Installing the Hardware for the Pentium II
Processor
The Pentium II processor uses Single Edge Contact (SEC) cartridge
packaging technology which enables high volume availability and
improved handling protection.
Figure 2-1 shows the front, rear, and top views of the Pentium II
processor (without heat sink mounted).
ThePentiumIIprocessorrequirestheRetentionMechanism(RM)and
the Heat Sink Support (HSS) to hold the base processor in the SEC
cartridge.
The following sections will showyou how to install the RM and HSS.
If you should need help with the mechanism, please contact your
dealer.
Figure 2-1: Different views of the Pentium II processor.
Front View
Rear View
Top View

The Pentium® II Processor 2-3
Before you proceed, do the following:
1. Switch off the computer.
2. Remove the motherboard from the chassis.
3. Place it on a workbench.
4. Remove all DIMM chips, cables, and cards from the
motherboard so that it is bare.
Components of the Pentium II Processor’s retention
mechanism
The Retention Mechanism (RM) consists of the following parts:
❑Retention Mechanism
(RM)
A plastic guide with captive
nuts that hold the SEC
cartridge in the Slot 1
connector.
❑RM Attachment Mounts
(RMAM)
Bolt/bridge assemblies
inserted through the RM to
secure it to the motherboard.
Two RMAM assemblies are
required for each RM.
Figure 2-2: The Retention
Mechanism.
Figure 2-3: The RM
attachment mounts.

2-4 The Pentium® II Processor
Step 1: To install the retention mechanism
1. Locatethe Retention Mechanism (RM)mounting holes andthe
“Pin 1” mark of Slot 1 on the motherboard (see Figure 2-4).
2. Mount the RM onto Slot 1. Make sure that the square cut mark
of the RM has the same orientation as Pin 1 of Slot 1.
See Figure 2-5.
Figure 2-4: Locating the mounting holes on the motherboard.
Figure 2-5: Mounting the RM onto Slot 1.

The Pentium® II Processor 2-5
3. Insert the four RMAM pegs through the motherboard and the
RM. Secure the RM to the RMAM assemblies by screwing the
four captive nuts onto the four RMAM pegs. (see Figure 2-5.)
Two RMAMs and four captive nuts are required for each
assembly.
Components of the Pentium II Processor’s heat sink
support
The Heat Sink Support (HSS) consists of the following parts:
❑HSS Base
A plastic support bar
mountedtothemotherboard
under the ATX heat sink.
❑HSS Pins
Plastic pins inserted through
theHSS base to secure itto the
motherboard.
Two pins are required for each
assembly.
❑HSS Top Bar
A plastic bar that clips onto
the HSS base through the
fins of the ATX heat sink.
Figure 2-6: The HSS base.
Figure 2-7: The HSS pins.
Figure 2-8: The HSS top bar.

2-6 The Pentium® II Processor
Step 2: To install the heat sink support
Before you install the heat sink support, please verify if your
Pentium II processor is the Intel boxed processor or the OEM
type Pentium II processor with active heat sink (see Figure
2-9). If you have an Intel boxed processor, ignore this section.
Intel boxed processor kits include their own heat sink support
accessories and installation manuals. Refer to Intel’s
installation manual if you are using an Intel boxed processor.
Figure 2-9: The two types of Pentium II processors.
The Intel boxed processor The OEM type processor with
active heat sink
